Installation Instructions
WARRANTY REGISTRATION
Register your product today and be automatically entered
to win an ISOBAR
®
surge protector in our monthly drawing!
tripplite.com/warranty
Cat8 STP Shielded
Tool-Free Keystone
Jack 568A/568B
Model: N238-SHC8-TF-1
Este manual está disponible en español en la página
de Tripp Lite: tripplite.com
Ce manuel est disponible en français sur le site Web
de Tripp Lite : tripplite.com
Русскоязычная версия настоящего руководства
представлена на веб-сайте компании Tripp Lite по
адресу: tripplite.com
Dieses Handbuch ist in deutscher Sprache auf der
Tripp Lite-Website verfügbar: tripplite.com
2
Installation
JACK PIN
DESIGNATIONS
TIA / EIA
T568A
TIA / EIA
T568B
1
2
White/Green
Green
White/Orange
Orange
3
6
White/Orange
Orange
White/Green
Green
4
5
Blue
White/Blue
7
8
White/Brown
Brown
3
Installation
Step 1:
Strip o 1.5 in. (40 mm) of cable jacket. Fold back
the braiding.
1.5 in. (40 mm)
0.4 in.
(10 mm)
4
Installation
Step 2:
Insert the cable into the termination cap and fan out
all four twisted pairs. Following the instruction of the
color-coded wire position printed on the termination
cap, position conductors in the proper slots. Trim
the ends of the conductors.
5
Installation
Step 3:
Install the termination cap to the outlet, which will
also allocate the conductors sitting on the slots.
6
Installation

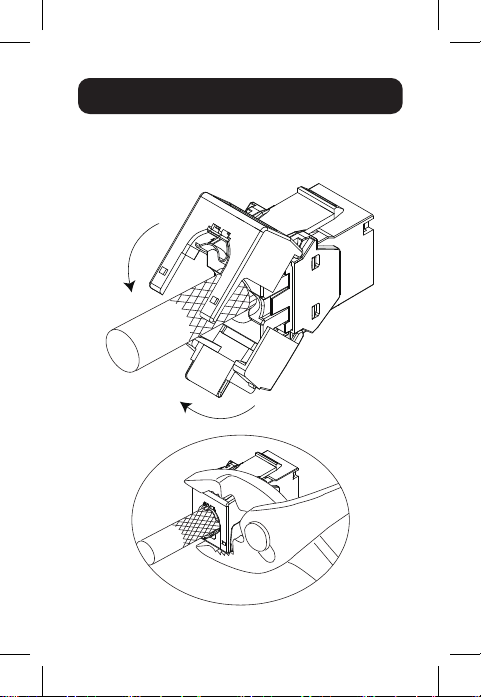

Step 4:
Secure the hinged outlet by using a crimping tool
until it snaps into place to complete the connection.
7
Installation
Warranty and
Product Registration
Step 5:
Fasten a cable tie wrap to secure braiding on the
cable xture.
Cable Tie
Cable Fixture
Lifetime Limited Warranty
Seller warrants this product, if used in accordance with all applicable instructions,
to be free from original defects in material and workmanship for its lifetime. If the
product should prove defective in material or workmanship within that period,
Seller will repair or replace the product, in its sole discretion. Service under this
Warranty can only be obtained by your delivering or shipping the product (with
all shipping or delivery charges prepaid) to: TRIPP LITE; 1111 W. 35th Street,
Chicago, IL 60609. Seller will pay return shipping charges. Visit tripplite.com/
support before sending any equipment back for repair.
THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE
RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER
MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY
EXPRESSLY SET FORTH HEREIN.
