ST800FT FUNCTIONAL TRAINER
OWNER’S MANUAL
Spirit Fitness
1
www.spirittness.com

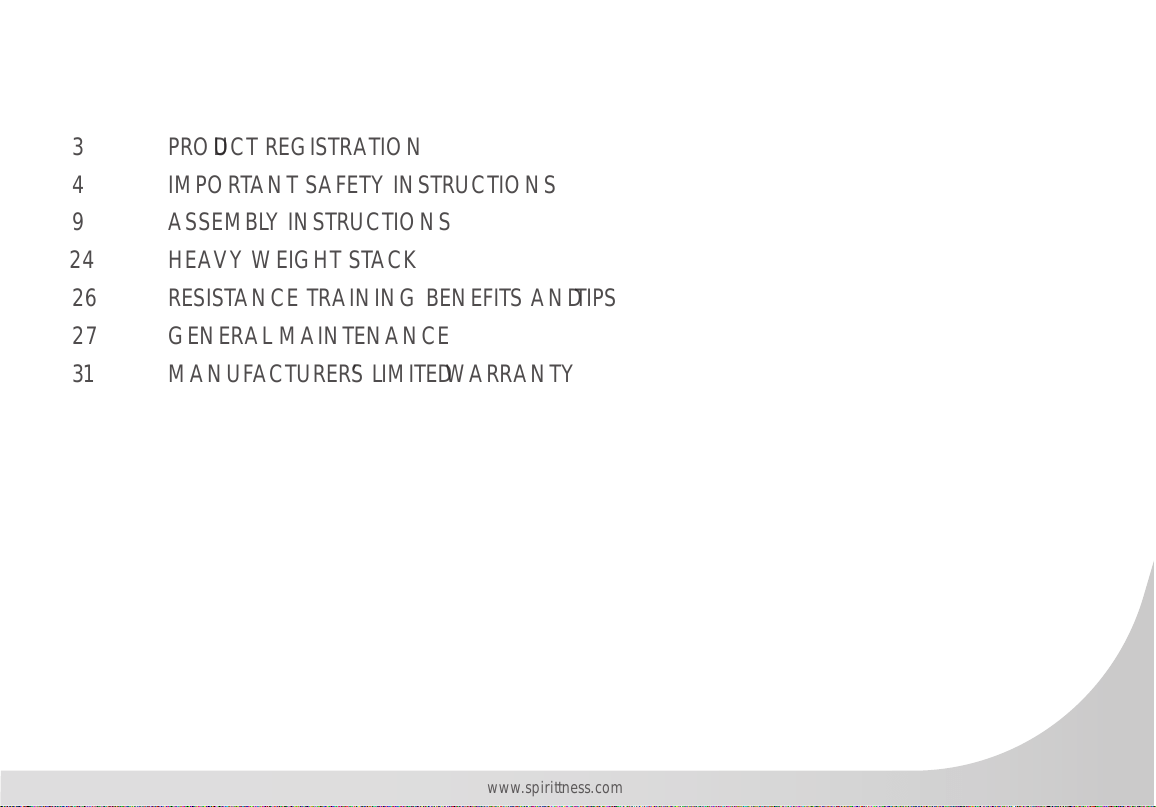

3 PRODUCT REGISTRATION
4 IMPORTANT SAFETY INSTRUCTIONS
9 ASSEMBLY INSTRUCTIONS
24 HEAVY WEIGHT STACK
26 RESISTANCE TRAINING BENEFITS AND TIPS
27 GENERAL MAINTENANCE
31 MANUFACTURER’S LIMITED WARRANTY
2
Spirit Fitness

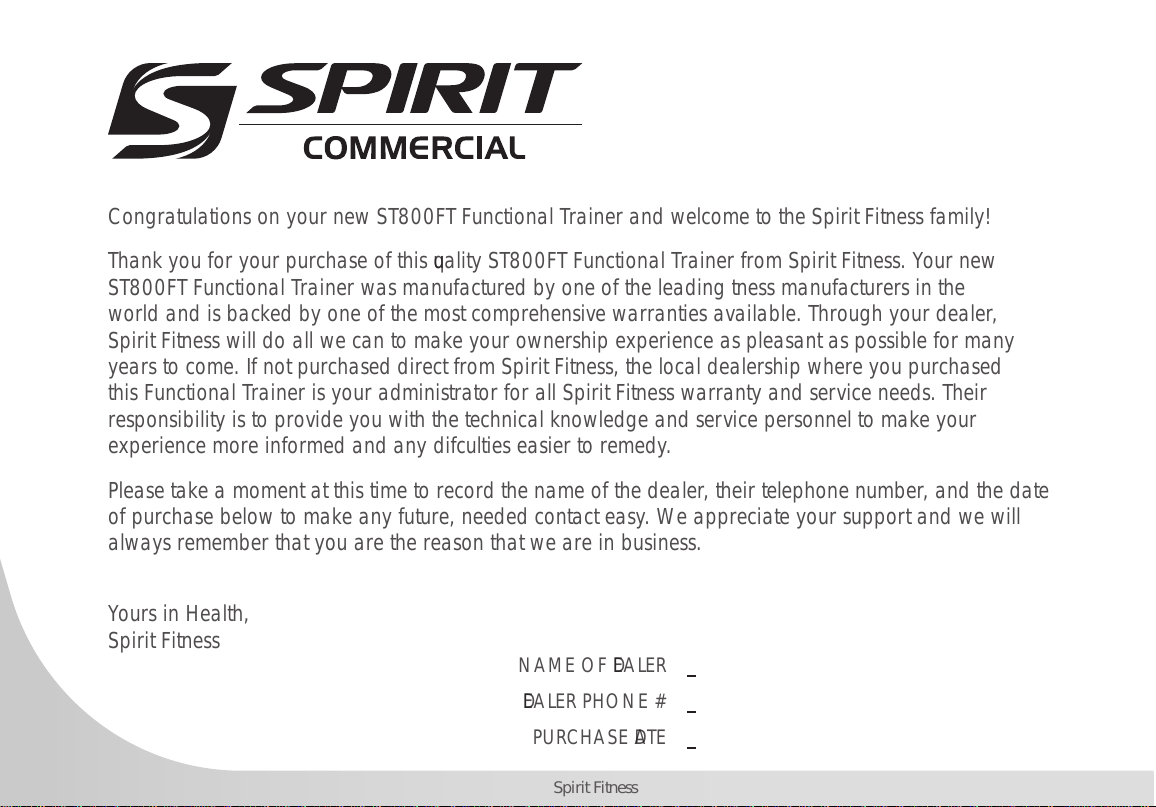

Congratulations on your new ST800FT Functional Trainer and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality ST800FT Functional Trainer from Spirit Fitness. Your new
ST800FT Functional Trainer was manufactured by one of the leading tness manufacturers in the
world and is backed by one of the most comprehensive warranties available. Through your dealer,
Spirit Fitness will do all we can to make your ownership experience as pleasant as possible for many
years to come. If not purchased direct from Spirit Fitness, the local dealership where you purchased
this Functional Trainer is your administrator for all Spirit Fitness warranty and service needs. Their
responsibility is to provide you with the technical knowledge and service personnel to make your
experience more informed and any difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number, and the date
of purchase below to make any future, needed contact easy. We appreciate your support and we will
always remember that you are the reason that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _____________________________________
DEALER PHONE # _____________________________________
PURCHASE DATE _____________________________________
3
www.spirittness.com
RECORD YOUR SERIAL NUMBER
Please record the serial number of this tness product in the space provided below. The serial number is
located at the base of the Functional Trainer.
SERIAL NUMBER:
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to Spirit Fitness. You can
also go to www.spirittness.com/warranty under the Support tab to register online.
WARNING
This product can expose you to chemicals including Toluene and Acrylamide which are known to the State
of California to cause Cancer and birth defects or other reproductive harm. For more information, go to
www.P65Warnings.ca.gov
4
Spirit Fitness
IMPORTANT SAFETY
INSTRUCTIONS
Read the Owner’s Manual carefully before
assembling, servicing or using the equipment. It
is the responsibility of the facility owner and/or
owner of the equipment to instruct users on proper
operation of the equipment and review all labels.
WARNING: Serious injury could occur if these
safety precautions are not observed:
USER SAFETY PRECAUTIONS
• Obtain a medical exam before beginning any
exercise program.
• Stop exercising if feeling faint, dizzy or experiencing
pain and consult your physician.
• Obtain instructions before using.
• Read and understand the owner’s manual and all
warnings posted on the machine before using.
• Keep all children (12 and under) away. Teenagers
(13 and over) and disabled must be supervised.
• Keep body and clothing free from and clear of all
moving parts.
• Use the machine only for the intended use. DO NOT
modify the machine.
• Inspect machine prior to use. DO NOT use if it
appears damaged or inoperable.
• Inspect all cables and connections prior to use. DO
NOT use if any components are worn, frayed or
damaged.
• DO NOT attempt to x a broken or jammed
machine. Notify oor staff.
• DO NOT use if guards are missing or damaged.
• Be sure that the weight pin is completely inserted. Use
only the pin provided by the manufacturer. If unsure
seek assistance.
• Never pin the weights in an elevated position. DO
NOT use this machine if found in this condition. Seek
assistance from oor staff.
• DO NOT use dumbbells or other incremental weights,
except those provided by the manufacturer.
• Report any malfunctions, damage or repairs to the
facility.
• Replace any warning labels if damaged, worn or
illegible.
• DO NOT use use this machine outdoors.
5
www.spirittness.com
FACILITY SAFETY PRECAUTIONS
• Read the Owner’s Manual carefully before assembling, servicing or using the equipment.
• In residential (home) usage where rocking, tipping, or falling over due to incorrect usage and misuse is not a
possibility, equipment does not need to be anchored to oor.
• In facilities (unsupervised settings such as hotels, apartment gyms, etc), Spirit Fitness strongly recommends that to
eliminate rocking, tipping or falling over due to incorrect usage and misuse, equipment be secured to a solid, level
surface.
NOTE: Spirit Fitness is not responsible for the actual anchoring of equipment. Consult with a professional contractor.
NOTE: Use fasteners having a minimum of 500 lbs. tensile capacity (3/8” grade 2 bolts or better).
NOTE: If legs/frame does not contact surface, DO NOT pull down with anchors. Shim any leg or frame not in contact with
surface using at washers.
• Make sure that each machine is set up and operated on a solid level surface. Do not install equipment on an
uneven surface.
• Make sure that all users are properly trained on how to use the equipment.
• Make sure there is enough room for safe access and operation of the equipment.
• Perform regular maintenance checks on the equipment. Also pay close attention to all areas most susceptible to
wear, including (but not limited to) cables, pulleys, belts and grips.
• Immediately replace worn or damaged components. If unable to immediately replace worn or damaged
components then remove from service until the repair is made.
• Use only Spirit Fitness supplied components to maintain/repair the equipment.
• Keep a repair log of all maintenance activities.
• Inspect all cables and belts and connections prior to use. DO NOT use if any components are worn, frayed or
damaged.
NOTE: It is the sole responsibility of the user/owner or facility operator to ensure that regular maintenance is
performed.
6
Spirit Fitness
SAFETY GUIDELINES AND PRACTICES
Spirit Fitness recommends that all tness equipment be used in a supervised area. It is recommended that
the equipment be located in an access controlled area. Control is the responsibility of the owner. The
extent of control is at the discretion of the owner.
It is the responsibility of the purchaser/user of Spirit Fitness products to read and understand the owner’s
manual, and warning labels; as well as instruct all individuals, whether end users or supervising personnel,
on proper usage of the equipment.
PROPER USAGE
Use machine only as described in the manual. Failing to follow proper instructions may result in injury.
• Do not lean against or pull on the framework or any component, whether machine is at rest or in use.
Inappropriate or improper use may result in injury to users or third parties (bystanders).
• Do not use machine if it is not located on a solid level surface or is improperly installed.
• Provide an adequate safety perimeter between the machine, walls and other equipment to ensure that the facility
has the proper clearance for usage and training.
7
www.spirittness.com
SECURING EQUIPMENT
The machine has holes in the feet, which allow for ease in anchoring to the oor. Spirit Fitness strongly recommends
that to eliminate rocking, tipping or falling over due to incorrect usage and misuse, equipment be secured to a solid,
level surface.
• The solid, level surface should not deviate more than 1/8” over a 10’ distance or as dened and required by
local building and architectural codes.
• Anchoring of equipment must be completed by a qualied licensed contractor.
• Anchoring holes are provided on the feet of the frame. All anchoring locations must be used when anchoring the
equipment to the oor.
• Due to the wide variation of ooring on which machines may be anchored or installed, verify anchoring method
and anchoring fasteners with a qualied and licensed contractor.
• A minimum pull out force of 220 lbs/100 kgs is required for each anchor position.
• Do not use machine until it is properly anchored.
MAINTENANCE
Preventative maintenance allows proper equipment operation and reduces the risk of injury. Perform the
maintenance requirements as specied in the manual (see table on page 27).
STANDARD COMPLIANCE
Spirit Fitness products meet or exceed applicable ASTM and EN Standards.
8
Spirit Fitness
WARNING/CAUTION DECALS
• Warning decals indicate a potentially hazardous situation, which, if not avoided, could result in death or serious
injury.
• Caution decals indicate a potentially hazardous situation, which, if not avoided, could result in minor or moderate
injury.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
9
www.spirittness.com

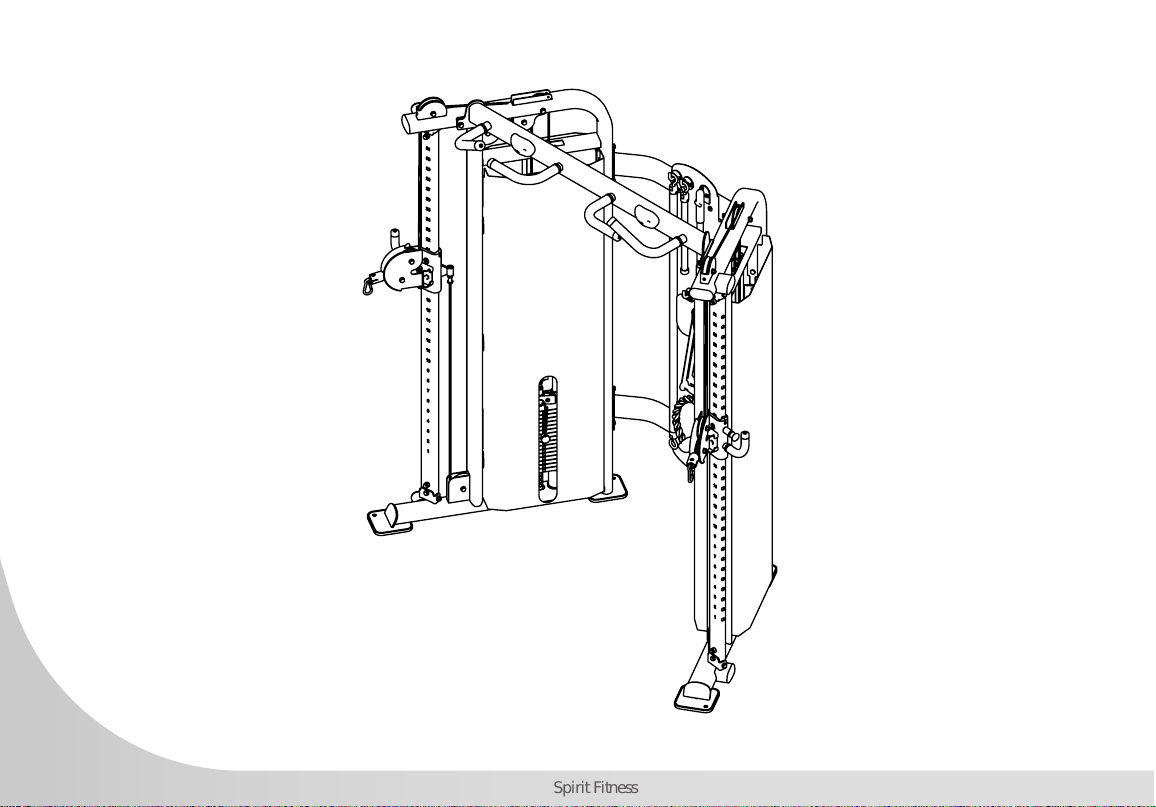

ST800FT ASSEMBLY INSTRUCTIONS
10
Spirit Fitness
PRE-ASSEMBLY
To avoid possible damage to this ST800FT Functional Trainer, please follow these assembly steps in the
correct order. Be sure to read your Assembly/Owner’s Guide before using your new ST800FT Functional
Trainer.
Please use the various lists in this manual to account for all parts included in the assembly. If replacement
parts are needed, use the part number and the description from the lists. Use only our replacements when
servicing. Failure to do so will void your warranty and could result in personal injury.
After assembly, check all operations for ease of use. If any problems are experienced, rst recheck the
assembly instructions for possible errors made. If more help is needed, call your authorized dealer. Be sure
to have your serial number ready.
NOTE: During assembly, it is recommended to ensure that all bolts are in place and partially threaded
before completely tightening any one bolt.
UNPACKING
1. Cut the straps, then pull the staples away from the bottom half and lift the top half of the carton off of the bottom
2. The hardware is located in the holes of the associated tubes/brackets
11
www.spirittness.com
TOOLS REQUIRED / HARDWARE GUIDE
RATCHET WRENCH
AND SOCKET
ADJUSTABLE WRENCH
RUBBER MALLET
HEX KEY WRENCH SET
Button Head Cap
Screw
Socket Head Cap
Screw
Flat Head Cap
Screw
Hex Head Bolt
12
Spirit Fitness
PARTS LIST
Item No. Description QTY
1 Left Stand 1
2 Right Stand 1
3 Left Guide Bar 1
4 Right Guide Bar 1
5 Left Slip Frame 1
6 Right Slip Frame 1
7 Cross Brace 2
8 Transverse Beam 1
9 Dual Pulley Bracket 2
10 Guide Bar 4
11 Hand Board 1
12 Pop Pin 2
13 Support Frame 4
14 Pulley Connecting Frame 2
15 Fixing Rack 1
16 Hook Fixing Rack 6
17 Inner Shroud 2
18 Outer Shroud 2
19 Long Handle 1
20 Short Pull Handle Assembly 1
21 Short Handle 1
22 Lat Strap 2
23 Triceps Rope 1
24 Foot Lat Strap 1
25 Shaft For Pulley Bracket 2
26 Cable Assembly 2
27 Plastic Tube Guide 4
28 Big Pulley 6
29 Small Pulley 10
30 Rock Climbing 2
31 Grip 2
32 Gloves 3
33 Gloves 2
34 L Hook Sleeve 7
35 Aluminum Cap φ32 4
36 Aluminum Ring φ32 4
37 Aluminum Cap φ25 2
38 Aluminum Ring φ25 2
39 Spacer 4
40 Plug 6
41 Plug 4
13
www.spirittness.com
PARTS LIST
42 Foot Cove 4
43 Shield Permanent Seat 12
44 Bumper 2
45 Mount Sleeve 4
46 Weight Bumper 4
47 Nylon Bumper 4
48 Nylon Spacer 4
49 Six Angle Flange Nut M12 4
50 Gourd Hook φ8 2
51 Weight Plate 30
52 Top Plate 2
53 Selector Pin w/Coil 2
54 Rubber Pedestal 2
55 Hex Bolts M10*115 2
56 Hex Bolts M10*95 4
57 Hex Bolts M10*55 4
58 Hex Bolts M10*50 18
59 Hex Bolts M10*25 12
60 Hex Bolts M8*95 2
61 Socket Head Cap Bolts M10 x 30 2
62 Socket Head Cap Bolts M8 x 30 4
63 Socket Head Cap Bolts M4 x 20 2
64 Button Head Cap Screw M10 x 20 4
65 Button Head Cap Screw M8 x 16 14
66 Button Head Cap Screw M6 x 12 4
67 Flat Head Cap Screw M6 x 15 6
68 Screw M5*20 24
69 Socket Set Screw M5 x 3 12
70 Nylon Lock Nut M10 28
71 Nylon Lock Nut M8 16
72 Nylon Lock Nut M6 4
73 Hex Thin Nut M6 12
74 Spring Washer φ10 4
75 Arc Washers φ10.5 x φ21 x 1.8 4
76 Washer φ11 x φ20 x 2 68
77 Washer φ9 x φ16 x 1.5 36
14
Spirit Fitness
EXPLODED VIEW
ST800FT小飞鸟
1
2
3
4
5
6
7
7
8
9
11
10
12
13
14
15
16
17
18
19
20
22
23
24
25
26
27
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
58
58
59
59
60
61
62
63
64
65
66
67
67
68
69
69
70
70
70
70
70
71
70
58
71
72
73
73
74
75
75
77
77
76
76
76
76
76
77
76
76
76
21
15
www.spirittness.com
ASSEMBLY INSTRUCTIONS
Assembly of the equipment takes professional installers aproximately 2 hours. If this is the rst time you have
assembled this type of equipment, plan to spend more time. It is highly recommended to use professional
installers to assemble the equipment. You may nd it quicker, safer, easier to assemble with the assistance of
another person as some components of the unit are large and heavy.
It is important that you assemble your product in a clean, clear, uncluttered area. This will enable you to
move around the product whilst you are tting components and reduce the possibility of injury during assem-
bly.
Note:
As with any assembled part, proper alignment is critical. While tightening the fasteners, be sure to leave
room for adjustments. Do not fully tighten the fasteners until instructed to do so. Be cafeful to assemble the
components in the sequence presented in this manua.
16
Spirit Fitness
ST800FT STEP ONE
7
1
2
76
73 59
Connect the Right Stand (No. 2) to
the Left Stand (No. 1) using the two
Cross Braces (No. 7).
Secure with:
4 M10 x 25 Hex Head Bolts (No. 59)
4 Spring Washers φ 10 (No. 73)
4 Washers φ11 x φ20 x 2 (No. 76)
Note: Hand Tighten the Bolts
17
www.spirittness.com
ST800FT STEP TWO
8
1
2
59
73 76
1. Attach the Transverse Beam (No. 8)
to the Right Stand (No. 2) and the Left
Stand (No. 1).
Secure with:
4 M10 x 25 Hex Head Bolts (No. 59)
4 Spring Washers φ 10 (No. 73)
4 Washers φ11 x φ20 x 2 (No. 76)
Note: Hand Tighten the Bolts
18
Spirit Fitness
ST800FT STEP THREE
I
1
2
5
6
3
4
58
56
76
76
76
76
70
70
57
58
48
56
76
76
76
76
76
76
70
70
70
I
1
2
5
6
3
4
58
56
76
76
76
76
70
70
57
58
48
56
76
76
76
76
76
76
70
70
70
1. Slide the Left Slip Frame (No. 5) onto the Left
Guide Bar (No. 3).
1a. Repeat with the Right Slip Frame (No. 6) onto the
Right Guide Bar (No. 4).
2. Attach the Left Guide Bar (No. 3) onto the Left
Stand (No. 1).
Secure with:
2 M10 x 95 Hex Head Bolts (No. 56)
2 M10 x 50 Hex Head Bolts (No. 58)
4 Nylon Lock Nuts M10 (No. 70)
8 Washers φ11 x φ20 x 2 (No. 76)
2a. Repeat with the Right Guide Bar (No. 4) onto the
Right Stand (No. 2).
Note: Wrench Tighten Bolts
Note: Left Guide Bar (No. 3) and Right
Guide Bar (No. 4) need to be
lubricated.
19
www.spirittness.com
ST800FT STEP FOUR
53
54
14
62
74
77
45
10
51
46
13
1
2
52
Note: Guide Bar (No. 10) need
to be lubricated.
20
Spirit Fitness
STEP FOUR
1. Slide the 2 Guide Bars (No. 10) into the holes at the base. Allow the Guide Bars to lean inward
together toward the center of the machine - this will allow you to more easily slide on the necessary parts
during this assembly step.
2. Slide the 2 Support Frames (No. 13) onto the 2 Guide Bars (No. 10) rst, then slide the 2 Weight
Bumpers (No. 46) on top of them. The two Support Frames (No. 13) and the two Weight Bumpers (No.
46) will support the weight stack.
Note: If additional 50lbs of plates are purchased to increase the weight from 160lbs to 210lbs on each
weight stack, then these two Support Frames will be removed - see diagram at end of assembly steps
for more info.
3. Slide 15 Weight Plates (No. 51) onto the 2 Guide Bars (No. 10), then slide on the Top Plate (No. 52).
4. Tilt the 2 Guide Bars (No. 10) back to a vertical position (pointing straight up) and secure the 2 Guide
Bars (No. 10) to the frame at the top using:
2 Mount Sleeves (No. 45)
2 Washers φ9*φ16*1.6 (No. 77)
2 Spring Washers φ8 (No. 74)
2 M8*25 SHCS (No. 62)
5. Attach the Rubber Pedestal (No. 54), then the Pulley Connecting Frame (No. 14) to the Top Plate (No.
52). Then attach the Selector Pin with Coil (No. 53) to the bolt portion of the Pulley Connecting Frame
(No. 14).
Wrench Tighten Screws.
21
www.spirittness.com
STEP FIVE
安装步骤5
5
6
14
50
L
L
26
50
Start
Finish
Repeat this step for both sides of the machine.
Follow the diagram with the Cable Assembly (No. 26) through the framework as shown. Pay special attention to make
sure the cable end with the bolt is connected at the “Finish” and the cable end with the loop is positioned at the “Start”
as shown in the diagram.
Wrench Tighten Bolts and Nylon Lock nuts
22
Spirit Fitness
ST800FT STEP SIX
18
17
1
2
1. Hook the Inner Shroud (No. 17) en-
closing the Left Stand (No. 1) along with
the Outer Shroud (No. 18).
2. Repeat on the Right Stand (No. 2).
23
www.spirittness.com
STEP SEVEN
安装步骤7
11
64
76
19
20
22
23
24
21
7
1. Attach the Hang Board (No. 11) to the
two Cross Braces (No. 7) using:
4 M10 x 20 Button Head Cap Screw
(No. 64)
4 Washers φ11 x φ20 x 2 (No. 76)
2. Place the Accessories under the
silhouette of their shape.
Long Handle (No. 19)
Short Pull Handle Assembly (No. 20)
Short Handle (No. 21)
Two Lat Straps (No. 22)
Triceps Rope (No. 23)
Foot Lat Strap (No. 24)
24
Spirit Fitness
HEAVY WEIGHT STACK
13
51
10
52
51
1. Disassemble the Inner shroud (No.
17), two Guide bars (No. 10), Top Plate
(No. 10), 15 Weight Plates (No. 52).
2. Take away the two Support Frame
(No. 13), add 5 Weight Plates (No. 51)
to the Left Stand (No. 1).
Repeat on the Right Stand (No. 2)
25
www.spirittness.com
EFFECTIVE RESISTANCE (Each Weight Stack)
WEIGHT SELECTED ACTUAL RESISTANCE
10 5
20 10
30 15
40 20
50 25
60 30
70 35
80 40
90 45
100 50
110 55
120 60
130 65
140 70
150 75
160 80
EFFECTIVE RESISTANCE (Heavy Weight Stack)
WEIGHT SELECTED ACTUAL RESISTANCE
170 85
180 90
190 95
200 100
210 105
26
Spirit Fitness
RESISTANCE TRAINING BENEFITS AND TIPS
Always consult a physician before starting an exercise program. To be successful in your exercise
program, it is important to develop an understanding of the basic principles of resistance training.
Now that you have assembled your Spirit Fitness gym, it is only natural that you want to get started
immediately. First, determine a few realistic, short term goals and expectations for yourself. Choose an
appropriate exercise routine that best suits your individual needs.
• Warm up properly before engaging in resistance training. Stretching, yoga, jogging, calisthenics, or other
cardiovascular exercise can help prepare your body for the heavier workload of lifting weights.
• Learn how to perform the exercise correctly before using heavy weight. Correct form is important to avoid injury
and ensure that you work the proper muscle groups.
• Know your limitations. If you are new to resistance training or are starting back, after an extended layoff, start
slowly and build foundational strength over a longer period of time.
• Pay attention to your breathing. As a general rule of thumb: inhale on the non-exertion part of the movement and
exhale during the exertion portion. Never hold your breath.
• Keep in mind how important the recovery phase is in achieving your goals. The general rule is to allow a
minimum of 48-72 hours before training the same muscles. If you still experience soreness after this period of time
has elapsed, take a few additional days until the soreness has subsided.
• To achieve maximum results and avoid possible injury, consult a tness professional to formulate a complete
exercise program.
27
www.spirittness.com
GENERAL MAINTENANCE
For best performance, Spirit recommends the following maintenance schedule. Check the integrity and
function of the following parts. Replace all worn components immediately. Your equipment comes with a
commercial schedule decal. For in home use, please follow the maintenance schedule listed below.
ROUTINE COMMERCIAL HOME LATEST DATE ENTRY
Inspect: Links, Pull Pins, Snap Locks, Swivels, Weight
Stack Pins
Daily Weekly
Clean: Upholstery Daily Weekly
Inspect: Cables or Belts and their tension Daily Weekly
Inspect: Accessory Bars, and Handles Weekly Monthly
Inspect: All Decals Weekly 3 Months
Inspect: All Nuts and Bolts, Tighten if needed Weekly 3 Months
Inspect: Anti-Skid Surface Weekly 3 Months
Clean & Lubricate: Guide Rods with a Teon (PTFE)
based lubricant
Monthly 3 Months
Lubricate: Seat Sleeves, Turcite Bushings, Linear
Bearing
Monthly 3 Months
Clean and Wax: All Glossy Finishes 6 Months Yearly
Repack with Grease: Linear Bearings 6 Months Yearly
Replace: Cables, Belts and Connecting Parts Yearly 3 Years
28
Spirit Fitness
GENERAL MAINTENANCE
Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack
Pins:
• Check all pieces for signs of visible wear or
damage.
• Check springs in snap hook and pull-pins for
proper tension alignment.
• If the spring sticks or has lost its rigidity, replace it
immediattely.
Upholstery:
• To ensure prolonged upholstery life and proper
hygiene, all upholstered pads should be wiped
down with a damp cloth after every workout.
• Periodically take the time to use a mild soap or an
approved vinyl upholstery cleaner to deter the onset
of cracking or drying. Avoid using any abrasive
cleaners or cleaners not intended for use on vinyl.
• Replace ripped or warm upholstery immediately.
• Keep shart or pointed objects clear of all
upholstery
Decals:
•Inspect and familiarise yourself with any safety
warnings or other user information posted on each
decal.
Nuts and Bolts:
•Inspect all nuts and bolts for any loosening and
tightening if needed.
• Go through a re-tightening sequence
periodically to ensure that all hardware is
tensioned proper.
Anti-Skid Surfaces:
•These surfaces are designed to supply secure
footing and need to be replaced if they appear
worn or become slippery.
29
www.spirittness.com
Seat Sleeves, Guide Rods:
•Wipe down adjusting tubes with a dust free rag
before applying lubricant.
• Lubricate seat sleeves and Guide Rods with a
Silicon or Teon based lubricant spray.
Linear Bearings:
• Referring to the Owner’s Manual carefully
disassemble the bearing from its housing and place
a nger full of light grease (lithium, super lube, etc.)
into the inside of the bearing. Using your nger,
press the grease into the ball-bearing and their
tracks. Repeat until the ball-bearing tracks are full of
grease. Insert the shaft back into the bearing and
wipe off excess grease.
Belts and Cables:
•We uses only high quality belt, and mil-spec
cables.
•Visually inspect the belt and cables for fraying,
cracking, peeling, or discoloration.
•While the machine is not in use, carefully run
your ngers along the belt or cable to feel for
thinning or bulging areas.
• Replace belts and cables immediately at the rst
of damage or wear. Do not use equipment until
belts or cables have been replaced.
Belt and Cable Tension:
•Referring to the Owners Manual, when belt or
cables are used check all bolts attachments to be
sure they are properly attached.
• Check slack in cables and re-adjust cable
tension if needed.
GENERAL MAINTENANCE
30
Spirit Fitness
SANITIZING YOUR SPIRIT FITNESS EQUIPMENT
• Unupholstered high-contact surfaces (hard plastics) can be sanitized using a 75% isopropyl alcohol solution and a
clean, dry cloth.Spray surfaces to be sanitized, and use the dry cloth to wipe clean. Allow surfaces to dry before
using.
• For upholstered or soft-plastic surfaces, use a conditioner after sanitizing.Be sure to follow the instructions provided
by the conditioner manufacturer to ensure proper use of the conditioner.
• Alternatively, you can make your own spray by mixing the proper ratio of isopropyl alcohol and distilled water to
reach a 75% solution.
• For more details on sanitization, or to learn how to make your own spray solution, please visit https://support.
spirittness.com/hc/en-us/articles/4406787148564 .
31
www.spirittness.com
ST800FT FUNCTIONAL TRAINER WARRANTY
EFFECTIVE NOVEMBER 24, 2021
Spirit Fitness warrants the ST800FT Functional Trainer for a period of time listed below from the date
of sale, as determined by sale receipt, or in the absence of a sales receipt eighteen (18) months
from the original factory shipping date. Spirit Fitness’ responsibilities include providing new or
remanufactured parts, at Spirit Fitness’ option, and technical support to our independent dealers and
servicing organizations. In the absence of a dealer or service organization, these warranties will be
administered by Spirit Fitness directly. The warranty period applies to the following components:
NORMAL RESPONSIBILITIES OF THE FACILITY
The facility is responsible for the items listed below:
1. The warranty registration card must be completed and returned to the address listed on the card within 10 days of the
original purchase, or completed online to validate the manufacturer’s limited warranty.
2. Proper use of the tness equipment in accordance with the instructions provided in this manual.
3. Expenses for making the tness equipment accessible for servicing, including any item that was not part of the tness
equipment at the time it was shipped from the factory.
4. Damages to the tness equipment nish during shipping, installation or following installation.
5. Routine maintenance of this unit as specied in this manual.
Frame Parts Cables Upholstery/Grips
Residential Lifetime Lifetime Lifetime Lifetime
(vendor defects only)
Commercial 10 Years 5 Years 1 Year 6 Months
(non-dues paying facilities)
*Prisons and correctional facilities are excluded from warranty coverage.
32
Spirit Fitness
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL
EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY. NOTE: Some states
do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not
apply to you.
2. Service call reimbursement to the facility. Service call reimbursement to the dealer that does not involve malfunction or
defects in workmanship or material, for units that are beyond the warranty period, for units that are beyond the service
call reimbursement period, for tness equipment not requiring component replacement, or tness equipment not in non-
dues paying facility or household use.
3. Damages caused by services performed by persons other than authorized Spirit Fitness service companies; use of
parts other than original Spirit Fitness parts; or external causes such as corrosion, discoloration of paint or plastic,
alterations, modications, abuse, misuse, accident, improper maintenance, inadequate power supply, or acts of God.
4. Products with original serial numbers that have been removed or altered.
5. Products that have been: sold, transferred, bartered, or given to a third party.
6. Products that do not have a warranty registration card on le at Spirit Fitness. Spirit Fitness reserves the right to request
proof of purchase if no warranty record exists for the product.
7. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
8. Product used in prisons and correctional facilities.
Warranties outside of the United States may vary. Please contact your local dealer for details.
33
www.spirittness.com
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the
date of factory shipping as determined by the serial number establishes the labor warranty period should
service be required. If service is performed, it is in your best interest to obtain and keep all receipts. This written
warranty gives you specic legal rights. You may also have other rights that vary from state to state. Service
under this warranty must be obtained by following these steps, in order:
1. Contact your selling authorized Spirit Fitness dealer. OR
2. Contact your local authorized Spirit Fitness service organization.
3. If there is a question as to where to obtain service, contact our service department at (870) 935-1107.
4. Spirit Fitness’ obligation under this warranty is limited to repairing or replacing, at Spirit Fitness’ option, the product
through one of our authorized service centers. All repairs must be preauthorized by Spirit Fitness.
5. The owner is responsible for adequate packaging upon return to Spirit Fitness. Spirit Fitness is not responsible for
damages in shipping. Make all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY UNIT
TO OUR FACTORY WITHOUT A RETURN AUTHORIZATION NUMBER. All units arriving without a return authorization
number will be refused.
6. For any further information, or to contact our service department by mail, send your correspondence to:
SPIRIT FITNESS, INC.
P.O. Box 2037
Jonesboro, AR 72402-2037
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by Spirit Manufacturing, Inc.
This warranty applies only in the 48 contiguous United States. NOTE: This does not apply to Alaska or Hawaii.
800.258.4555
spiritservice@spirittness.com
www.spirittness.com
Spirit Fitness
3000 Nestle Road
Jonesboro, AR 72401
ST800FT Owners Manual
© 2021 All Rights Reserved
Revision: 11.24.2021
