Body-Solid S2FTX Series 2 Functional Trainer User Manual

Assembly Instructions

OWNER’S MANUAL

v. S2FT-102418

S2FT

Warning, Safety & Maintenance

Be sure that all users carefully read and understand all

warning, safety and maintenance labels on the machine

before each use. Failure to do so may result in death or

serious injury.

It is imperative that you retain this Owner’s Manual and be

sure all warning labels are legible and intact. Replacement

Owner’s Manuals and warning labels are available from your

local Body-Solid dealer.

If you have any questions about the operation, set up or

maintenance of this machine please call our customer service

department at 1 (800) 556-3113.

Warning, Safety & Maintenance

Be sure that all users carefully read and understand all

warning, safety and maintenance labels on the machine

before each use. Failure to do so may result in serious injury.

It is imperative that you retain this Owner’s Manual and be

sure all warning labels are legible and intact. Replacement

Owner’s Manuals and labels are available from your local

Body-Solid dealer. If you have any questions about the

operation, set up or maintenance of this machine please call

our customer service department at 1 (800) 556-3113.

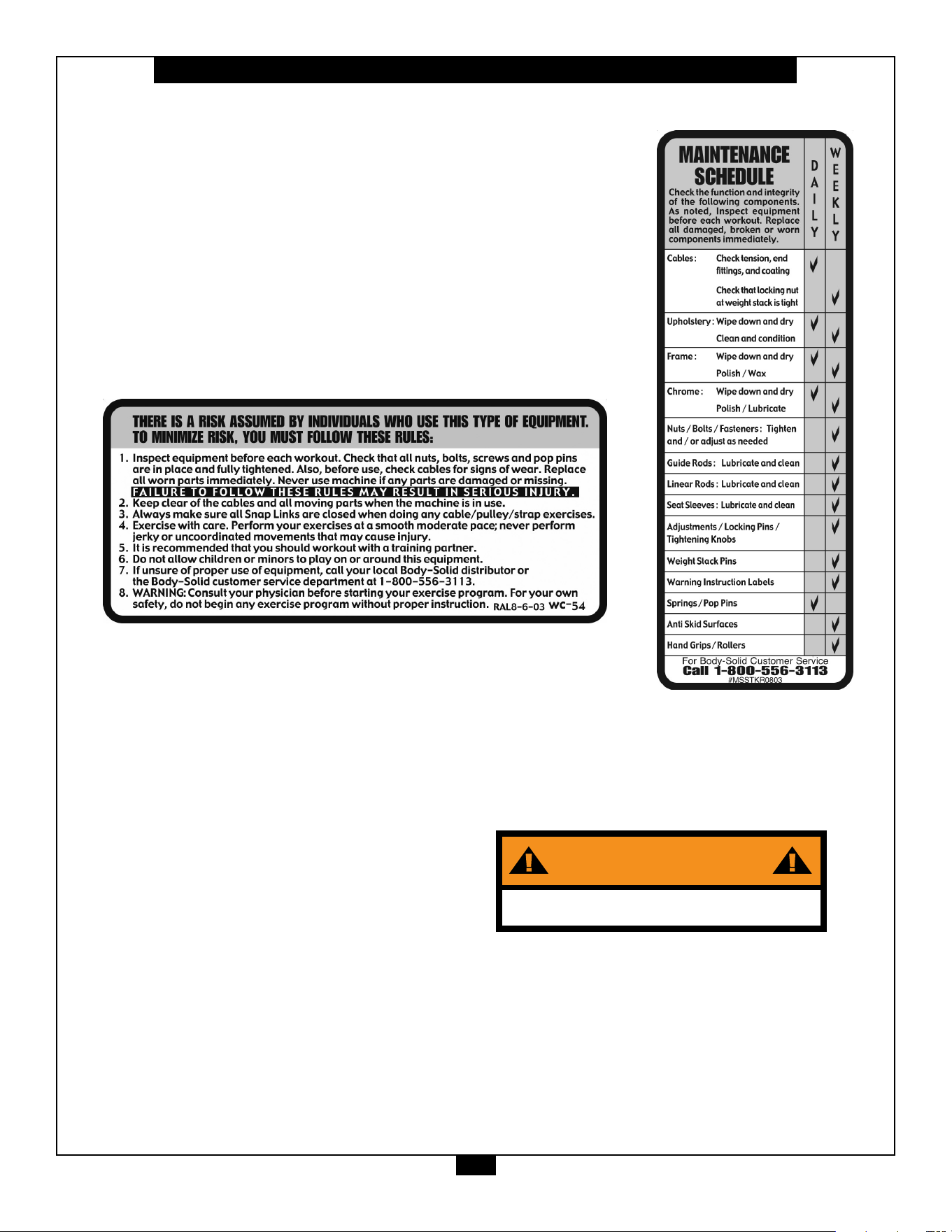

#DWRULE-4

Warning Label for Rules

#DWSM-5

Warning Label for Maintenance

Warning, Safety & Maintenance

Be sure that all users carefully read and understand all

warning, safety and maintenance labels on the machine

before each use. Failure to do so may result in serious injury.

It is imperative that you retain this Owner’s Manual and be

sure all warning labels are legible and intact. Replacement

Owner’s Manuals and labels are available from your local

Body-Solid dealer. If you have any questions about the

operation, set up or maintenance of this machine please call

our customer service department at 1 (800) 556-3113.

#DWRULE-4

Warning Label for Rules

#DWSM-5

Warning Label for Maintenance

Although Body-Solid provides the highest quality of materials and

workmanship in its products, the fact remains that component parts eventually wear

out over time and with use. This is particularly true with reference to pliable

moving parts such as cables. In spite of any expressed and/or implied warranties,

intervening factors such as improper use, unusually heavy use, improper installation,

improper alignment, poor maintenance, etc. serve to drastically reduce the usable

life and safety of cables.

Be advised that dangerous conditions can arise even during warranty

periods and that any expressed and/or implied warranties Do Not Negate the

owner’s responsibility to thoroughly, carefully and daily inspect all cables on this

machine.

Serious injury can occur if you are struck by falling weights or moving parts.

The risk that you assume by using this type of equipment can be reduced by

following a few simple steps:

Cable inspection should be performed daily. Inspect all cables, the

nylon coating on all cables and the area near the fittings at each end of each cable.

Replace any damaged or worn cables immediately. Do not allow the machine to

be used until damaged or worn cables are replaced.

Important: Cables are wear items. It is your responsibility to prevent

unexpected breakage. The actual wire strands, the fittings and the nylon coating

itself must all be scrutinized. Using or allowing a machine to be used with a suspect

cable can result in serious injury.

The nylon coating on a cable is essential for cable life and safety. Visually

inspect all cables and pulleys. Look at the cables as they travel around the cams

and pulleys. A cable that is wearing may exhibit a “ballooned” or broken coating in

the area that passes over the pulley. Damage to the coating is an early warning

signal. A cable should be replaced if the nylon coating is missing, is damaged in

anyway, has pulled or shrunk from the fittings at the end of the cables, or if it is

discolored. Discoloration of the cable coating is an early indication of internal

problems such as wear or fraying.

Annual cable replacement (semiannual in multi-user settings) is strongly

recommended as an additional precaution. The rate at which cables wear depends

on many factors including: number of users, number of repetitions, weight setting,

misuse, abuse, etc. Because of this, periodic cable replacement is not a sufficient

safeguard against unexpected breakage.

Nothing short of a thorough, careful, daily inspection constitutes an

adequate safety program.

Warning

Safety and Maintenance of Cables

WARNING

Bolt machine to the ground before use

Table of Contents

• SAFETY INSTRUCTIONS.............................. PAGE 4

• PREPARATION............................................... PAGE 5

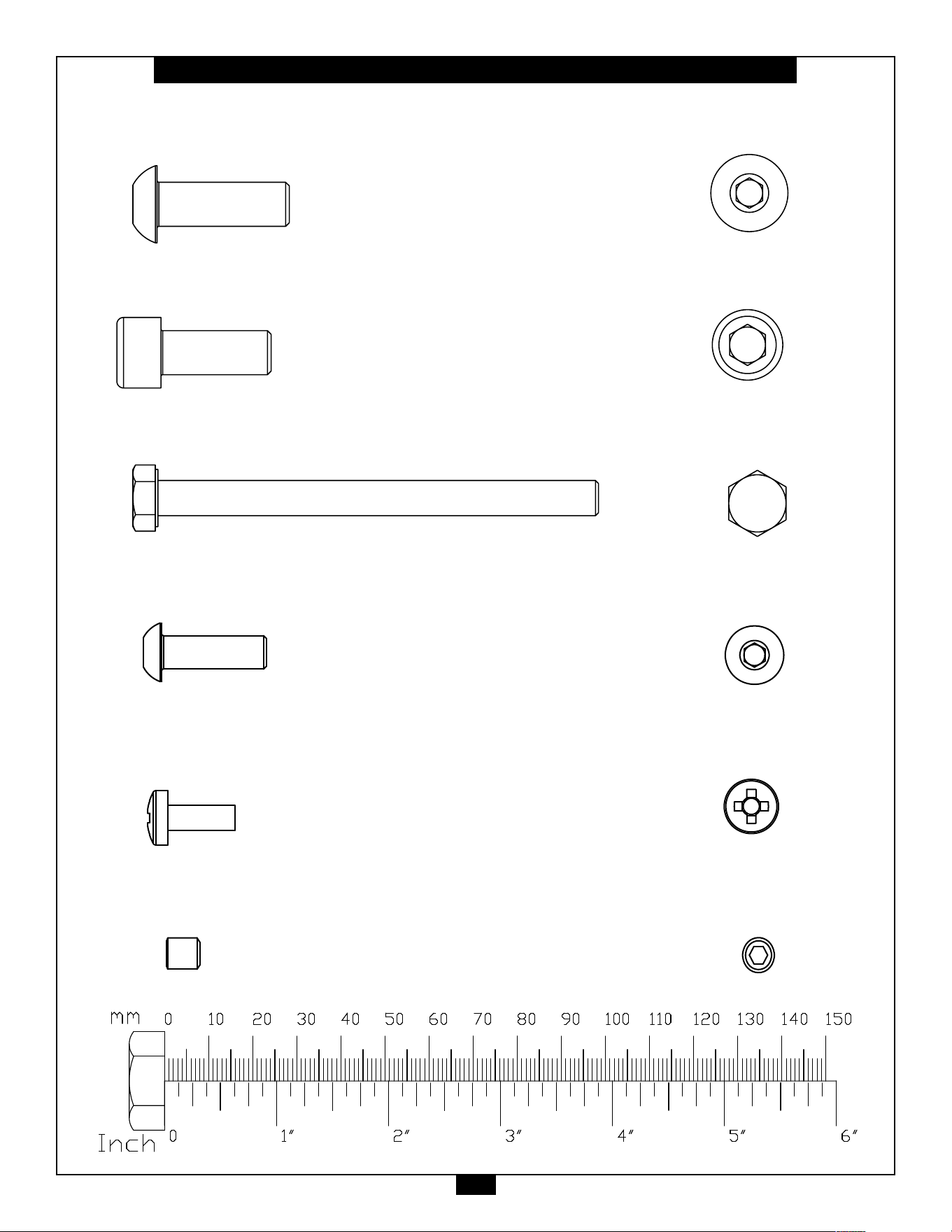

• HARDWARE LIST........................................... PAGE 6

• HARDWARE ILLUSTRATION......................... PAGE 8

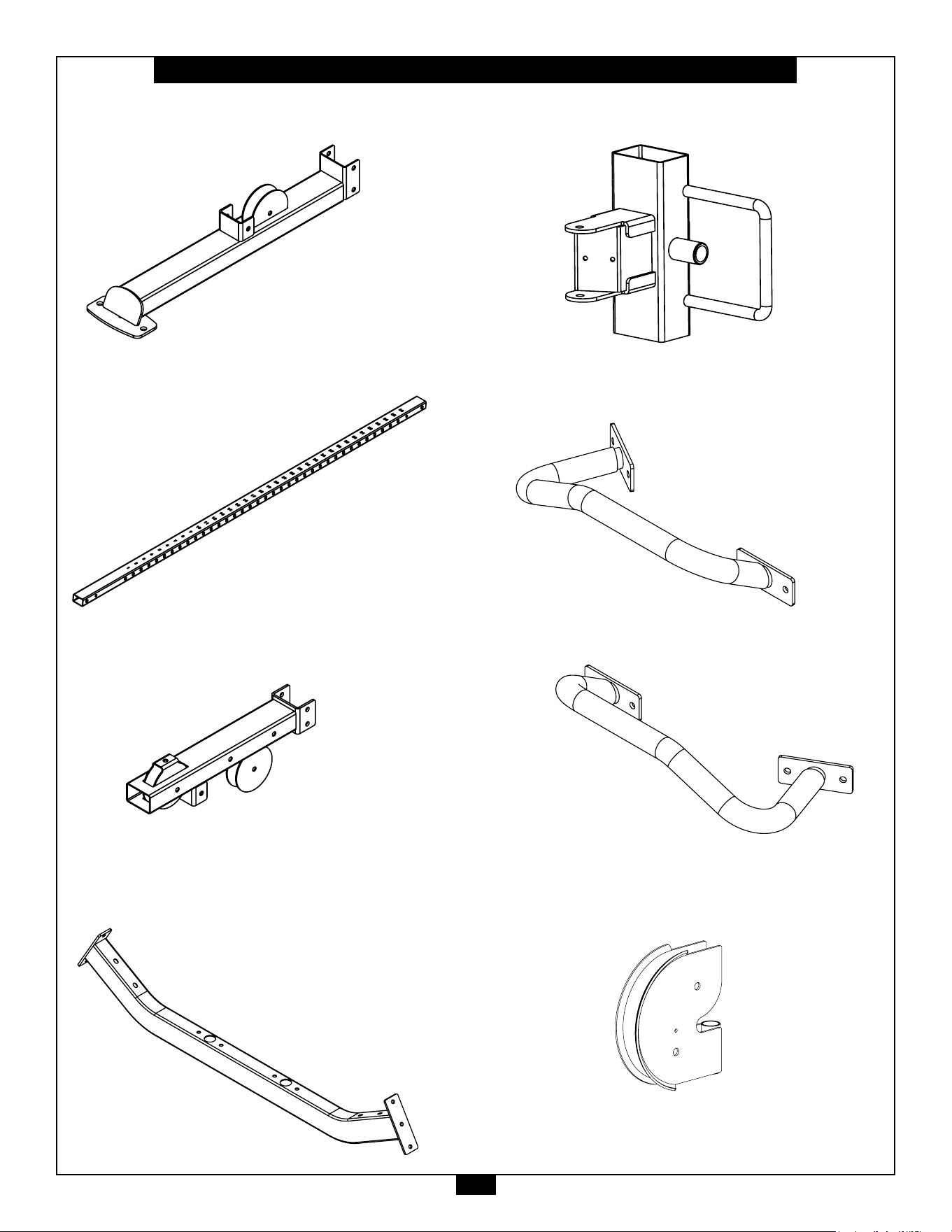

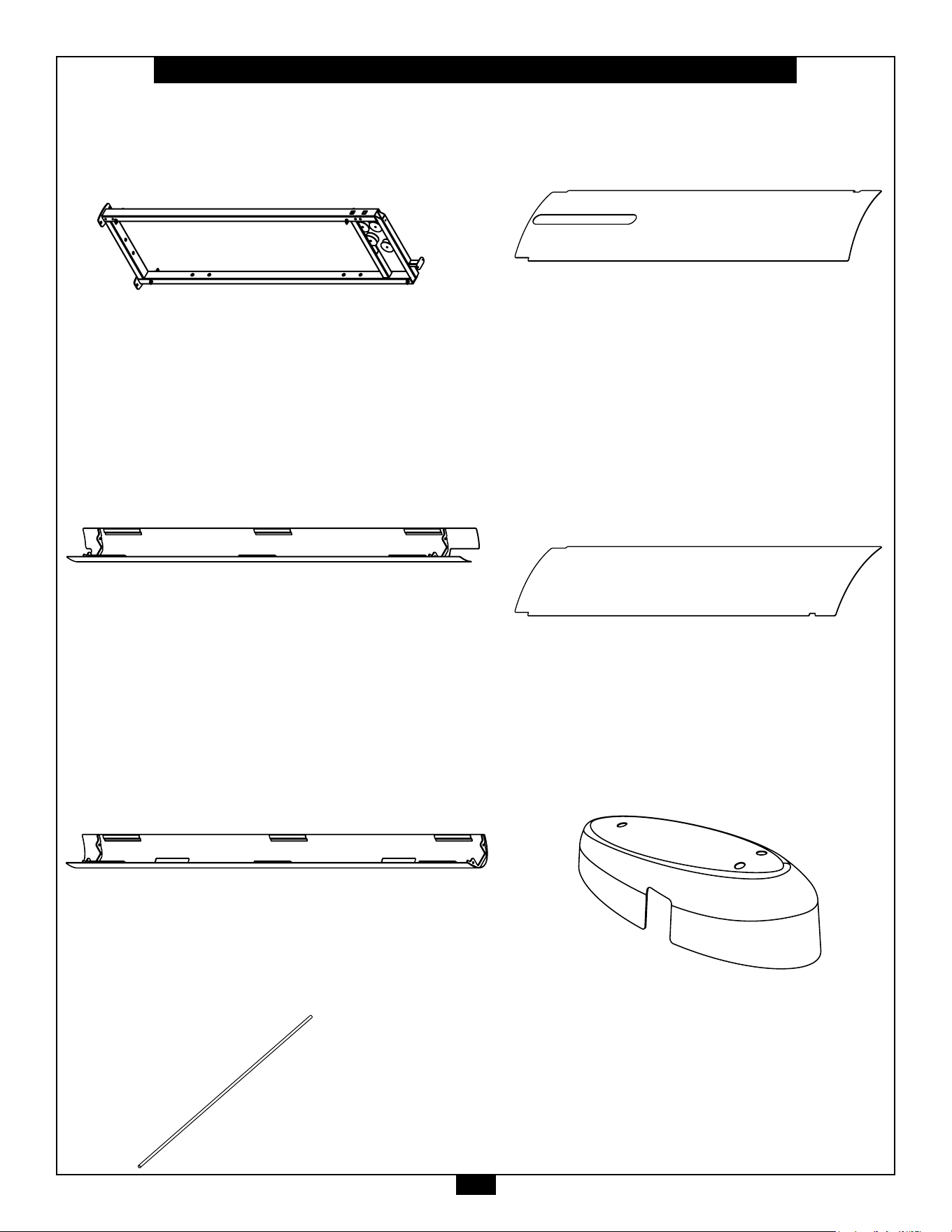

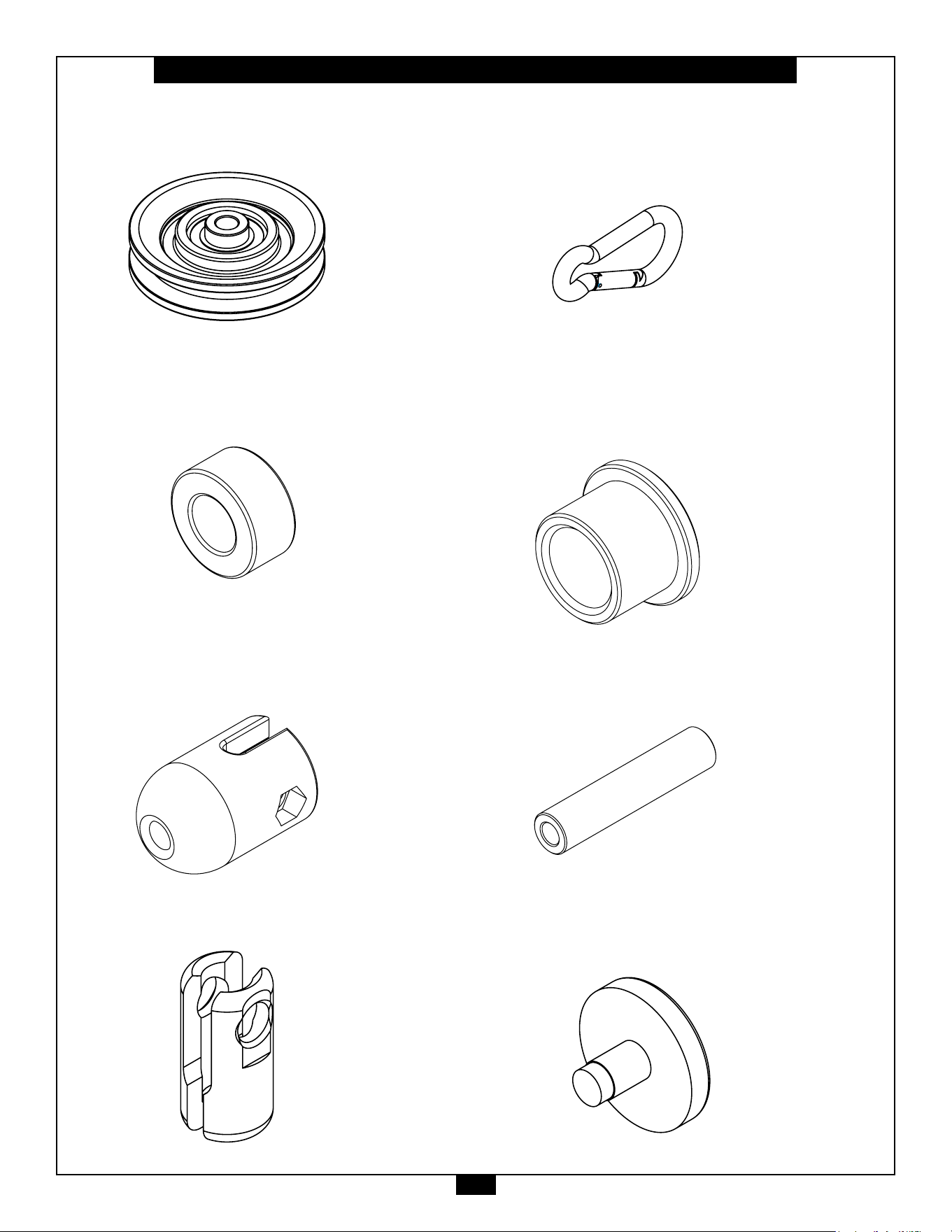

• PART / LIST ILLUSTRATION......................... PAGE 13

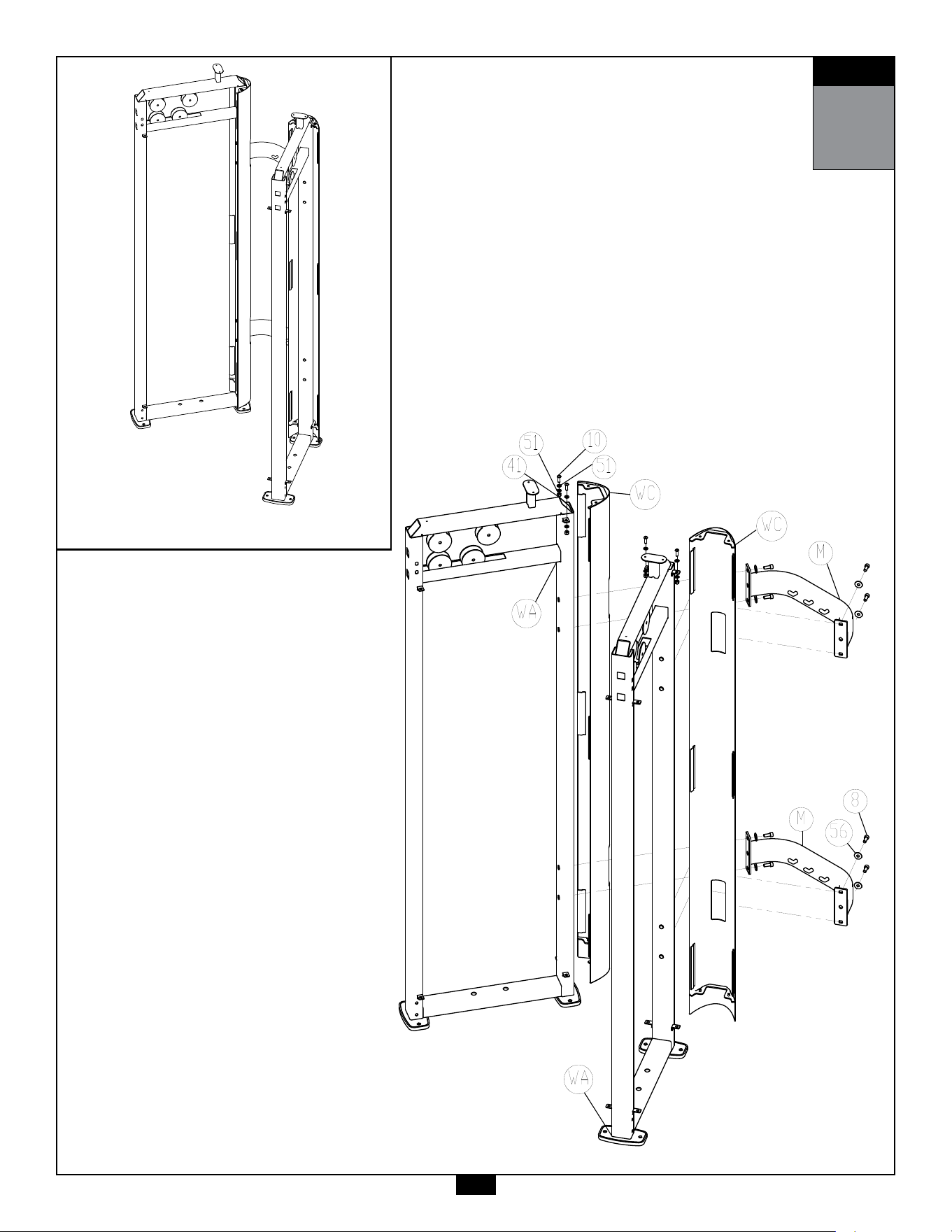

• ASSEMBLY INSTRUCTIONS........................ PAGE 22

• EXPLODED VIEW......................................... PAGE 36

• CONTACT PAGE........................................... PAGE 38

Important Safety Instructions

Beforebeginninganytnessprogram,youshouldobtainacompletephysicalexaminationfromyourphysician.

Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise.

Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.

Antes de comenzar cualquier programma de ejercicios, deberias tener un examen sico con su doctor.

When using exercise equipment, you

should always take basic precautions,

including the following:

m ReadallinstructionsbeforeusingtheS2FT.

Theseinstructionsarewrittentoensureyoursafety

andtoprotecttheunit.

m Do not remove any safety labels from the

machine.

m Donotallowchildrenonorneartheequipment.

m Usetheequipmentonlyforitsintendedpurpose

asdescribedinthisguide.Donotuseaccessory

attachmentsthatarenotrecommendedbythe

manufacturer.Suchattachmentsmightcause

injuries.

m Wearproperexerciseclothingandshoesforyour

workout,nolooseclothing.

m Keephands,limbs,looseclothing,andlonghairwell

outofthewayofallmovingparts.

m Usecarewhengettingonoro󰀨theunit.

m Donotoverexertyourselforworktoexhaustion.

m Ifyoufeelanypainorabnormalsymptoms,stop

yourworkoutimmediatelyandconsultyour

physician.

m Neveroperateunitwhenithasbeendroppedor

damaged.Returntheequipmenttoaservice

centerforexaminationandrepair.

m Neverdroporinsertobjectsintoanyopeningin

theequipment.

m Alwayschecktheunitanditscablesbeforeeach

use.Makesurethatallfastenersandcablesare

secureandingoodworkingcondition.

m Donotusetheequipmentoutdoorsornearwater.

Personal Safety During Assembly

m Beforebeginningassembly,pleasetakethetime

toreadtheinstructionsthoroughly.

m Readeachstepintheassemblyinstructionsand

followthestepsinsequence.Donotskipahead.

Ifyouskipahead,youmaylearnlaterthatyou

havetodisassemblecomponentsandthatyou

mayhavedamagedtheequipment.

m Assembleandoperatethe S2FTonasolid,level

surface.Locatetheunitafewfeetfromthewalls

orfurnituretoprovideeasyaccess.

TheS2FT isdesignedforyourenjoyment.Byfollowing

theseprecautionsandusingcommonsense,youwill

havemanysafeandpleasurablehoursof

healthfulexercisewithyourBody-Solid Pro-Club

Functional Trainer.

Afterassembly,youshouldcheckallfunctionsto

ensurecorrectoperation.Ifyouexperienceproblems,

rstrechecktheassemblyinstructionstolocateany

possibleerrorsmadeduringassembly.Ifyouareunable

tocorrecttheproblem,callthedealerfromwhomyou

purchasedthemachineorcall1-800-556-3113forthe

dealernearestyou.

Obtaining Service

PleaseusethisOwner’sManualtomakesurethatall

partshavebeenincludedinyourshipment.When

orderingparts,youmustusethepartnumberand

descriptionfromthisOwner’sManual.Useonly

Body-Solidreplacementpartswhenservicingthis

machine.Failuretodosowillvoidyourwarrantyand

couldresultinpersonalinjury.

Forinformationaboutproductoperationorservice,

checkouttheo󰀩cialBody-Solidwebsiteat

www.bodysolid.comorcontactanauthorized

Body-SoliddealeroraBody-Solidfactory-authorized

servicecompanyorcontactBody-Solidcustomer

serviceatoneofthefollowing:

Toll Free: 1-800-556-3113

Phone: 1-708-427-3555

Fax: 1-708-427-3556

Hours: M-F 8:30-5:00 CST

E-Mail: [email protected]

Or write to: Body-Solid, Inc.

Service Department

1900 S. Des Plaines Ave.

Forest Park, IL 60130 USA

Retain this Owner’s Manual for future

reference. If you need to order replacement

parts please be prepared to provide the

following information when contacting us so

that we can assist you better.

1. Model Number

2. Place of Purchase

3. Serial Number (S/N)

4. Part # and Description

Preparation

Thankyouforpurchasingthe

S2FT

.ThismachineispartoftheBody-Solidlineofqualitystrengthtraining

machines,whichletsyoutargetspecicmusclegroupstoachievebettermuscletoneandoverallbody

conditioning. To maximize your use of the equipment please study this Owner’sManual thoroughly.

Body-Solidcontinuallyseekswaystoimprovetheperformance,specicationsandproductmanualsinordertoensurethatonly

superiorproductsarereleasedfromourfactories.Pleasetakethetimetocarefullyreadthroughthismanualthoroughly.Instructions

containedinthisdocumentarenotintendedtocoveralldetailsorvariationspossiblewithBody-Solidequipment,ortocoverevery

contingencythatmaybemetinconjunctionwithinstallation,operation,maintenanceortroubleshootingoftheequipment.Even

thoughwehavepreparedthismanualwithextremecare,neitherthepublishernortheauthorcanacceptresponsibilityforanyerrors

in,oromissionfrom,theinformationgiven.Shouldadditionalinformationberequired,orshouldsituationsarisethatarenotcovered

bythismanual,themattershouldbedirectedtoyourlocalBody-Solidrepresentative,ortheServiceDepartmentatBody-SolidInc.

inForestPark,Illinois.

Required Tools

Thebasictoolsthatyoumustobtainbeforeassembling

theS2FTincludebutarenotlimitedto:

m MetricAllenKeySet

m StandardAllenKeySet

m StandardWrenchSet

m MetricWrenchSet

m AdjustableWrench

m Screwdriver(standardand/orphillips)

Installation Requirements

Followtheseinstallationrequirementswhenassembling

theS2FT:

SetuptheS2FTonasolid,atsurface.Asmooth,at

surfaceunderthemachinehelpskeepitlevel.A

levelmachinehasfewermalfunctions.

Provideamplespacearoundthemachine.Open

spacearoundthemachineallowsforeasieraccess.

Insertallboltsinthesamedirection.Foraesthetic

purposes,insertallboltsinthesamedirectionunless

specied(intextorillustrations)todootherwise.

Leaveroomforadjustments.Tightenfastenerssuchas

bolts,nuts,andscrewssotheunitisstable,butleave

roomforadjustments.Donotfullytightenfasteners

untilinstructedintheassemblystepstodoso.

Fill out and mail the warranty card.

Assembly Tips

Readall“Notes”oneachpagebeforebeginningeach

step.

WhileyoumaybeabletoassembletheS2FTusingthe

illustrationsonly,importantsafetynotesandothertips

areincludedinthetext.

Somepiecesmayhaveextraholesthatyouwillnotuse.

Useonlythoseholesindicatedintheinstructionsand

illustrations.

NOTE: Withsomanyassembledparts,proper

 alignmentandadjustmentiscritical.While

 tighteningthenutsandbolts,besuretoleave

 roomforadjustments.

NOTE: Thebottlesthataremarked“Poison”isyour

 touchuppaint.Keepawayfromchildren.

CAUTION: Obtainassistance!Ifyoufeellikeyoucan’t

 assembletheS2FTbyyourselfthendo

 notattempttodosoasthiscouldresultin 

 injury.Reviewtheinstallationrequirements 

 beforeproceedingwiththefollowingsteps.

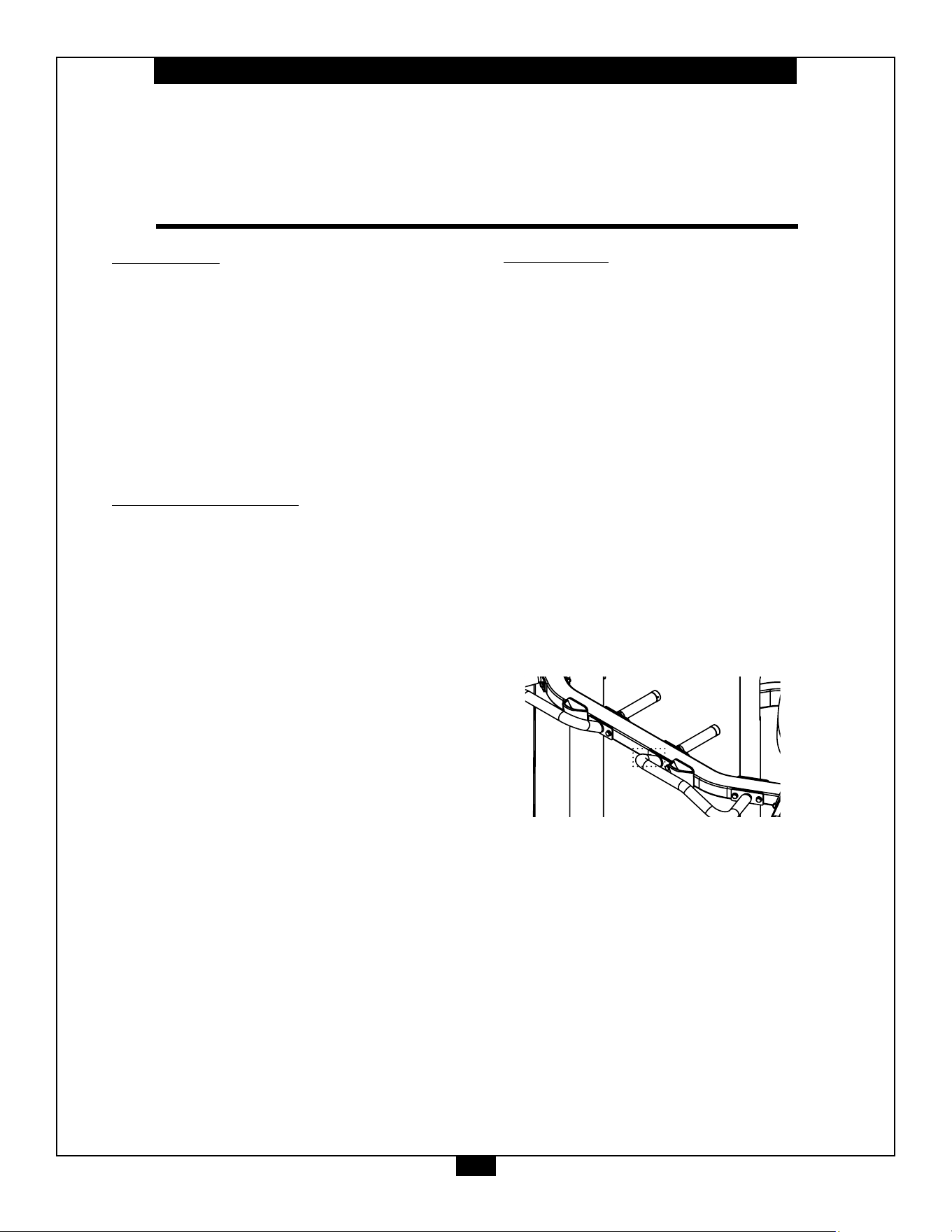

YourS/N#can

befoundhere

↑

S2FT Hardware List

Part# Size Description Quantity

M10X105mm

M10X100mm

M10X95mm

M10X90mm

M10X55mm

M10X50mm

M10X30mm

M10X25mm

M8X100mm

M8X25mm

M6X16mm

M8X8mm

3/8”X2.0”

10-32X1/8”

5/16”X1.25”

M5X20mm

HEX HEAD BOLT

BUTTON HEAD CAP SCREW

SOCKET HEAD CAP SCREW

HEX HEAD BOLT

BUTTON HEAD CAP SCREW

PHILLIPS HEAD SCREW

SET SCREW

SOCKET HEAD CAP SCREW

SET SCREW

SHOULDER BOLT

BUTTON HEAD CAP SCREW

20 PCS.

4 PCS.

2 PCS.

4 PCS.

14 PCS.

4 PCS.

8 PCS.

2 PCS.

8 PCS.

6 PCS.

8 PCS.

2 PCS.

8 PCS.

2 PCS.

Part# Size Description Quantity

S2FT Hardware List

M10

5/16”-18

1/2”

M10

3/8”

M10

NYLON LOCK NUT

FLANGE HEX NUT

FLAT WASHER

LOCK WASHER

LARGE FLAT WASHER

48 PCS.

10 PCS.

4 PCS.

1 PCS.

6 PCS.

96 PCS.

20 PCS.

6 PCS.

2 PCS.

8 PCS.

S2FT Hardware Illustration

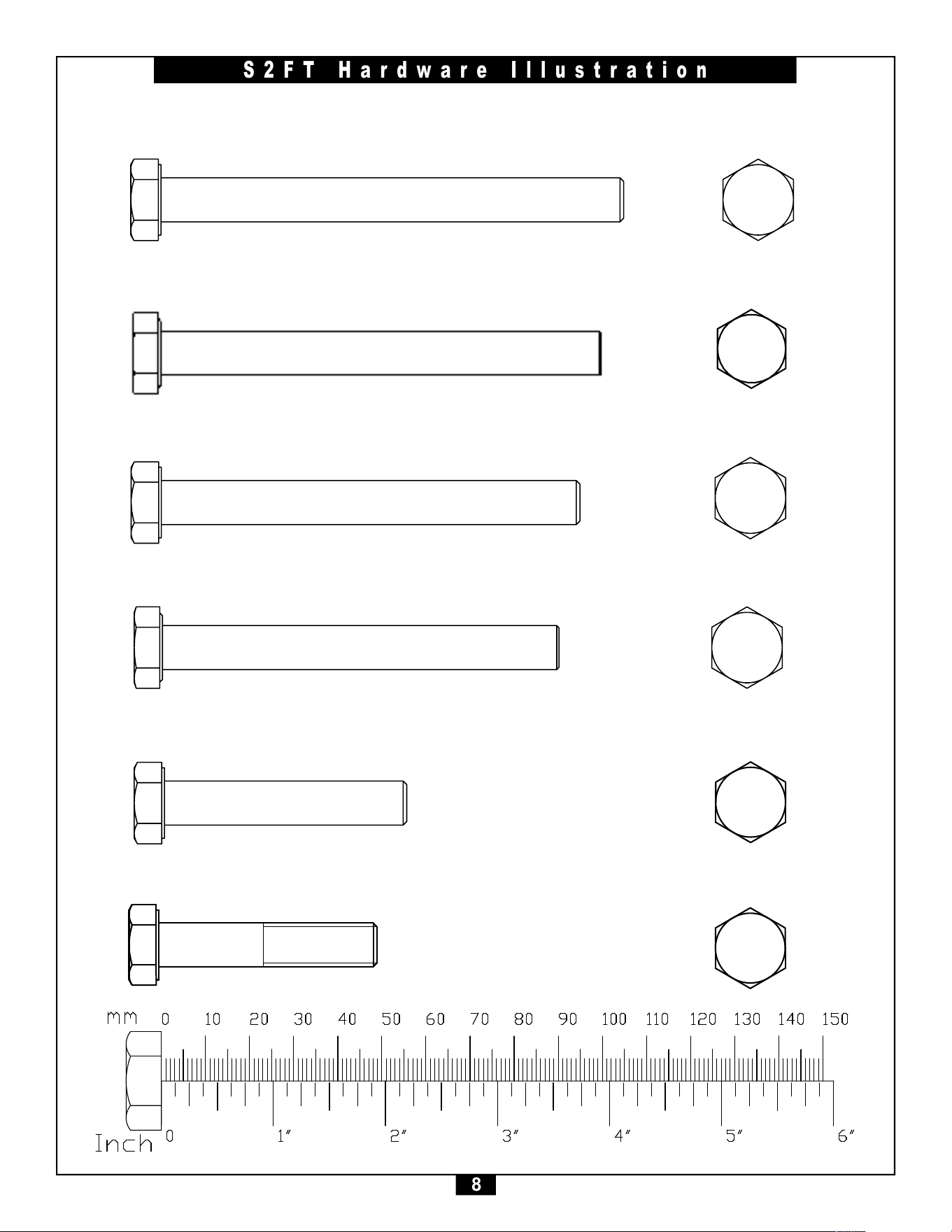

Part#1 HEX HEAD BOLTM10X105mm     QTY.20

Part#2 HEXHEADBOLTM10X100mm     QTY.4

Part#3 HEXHEADBOLTM10X95mm     QTY.2

Part#4 HEXHEADBOLTM10X90mm     QTY.4

Part#5 HEXHEADBOLTM10X55mm     QTY.4

Part#6 HEXHEADBOLTM10X50mm     QTY.14

PART #1 FLAT HEAD CAP SCREW M10X25 FULL THREAD-NL QTY.2

PART #3 HEX HEAD BOLT M10X100 PARTIAL THREAD QTY.1

PART #6 HEX HEAD BOLT M10X30 FULL THREAD QTY.3

PART #2 HEX HEAD BOLT M10X35 PARTIAL THREAD QTY.1

PART #4 HEX HEAD BOLT M10X50 PARTIAL THREAD QTY.8

PART #5 HEX HEAD BOLT M12X35 PARTIAL THREAD

QTY.8

PART #7 SOCKET HRAD CAP SCREW M8X20 FULL THREAD QTY.1

PART #8 ALLEN SCREW M4X8 FULL THREAD QTY.1





















Part #1 HEX HEAD BOLT M10X105mm PARTIAL QTY. 4

Part #2 HEX HEAD BOLT M10X35mm PARTIAL QTY. 1

Part #3 HEX HEAD BOLT M10X45mm PARTIAL QTY. 2

Part #4 HEX HEAD BOLT M10X50mm PARTIAL QTY. 8

Part #5 HEX HEAD BOLT M10X65mm PARTIAL QTY. 3

Part #6 HEX HEAD BOLT M10X75mm PARTIAL QTY. 5

Part #7 HEX HEAD BOLT M10X80mm PARTIAL QTY. 2

PART #1 FLAT HEAD CAP SCREW M10X25 FULL THREAD-NL QTY.2

PART #3 HEX HEAD BOLT M10X100 PARTIAL THREAD QTY.1

PART #6 HEX HEAD BOLT M10X30 FULL THREAD QTY.3

PART #2 HEX HEAD BOLT M10X35 PARTIAL THREAD QTY.1

PART #4 HEX HEAD BOLT M10X50 PARTIAL THREAD QTY.8

PART #5 HEX HEAD BOLT M12X35 PARTIAL THREAD

QTY.8

PART #7 SOCKET HRAD CAP SCREW M8X20 FULL THREAD QTY.1

PART #8 ALLEN SCREW M4X8 FULL THREAD QTY.1

PART #1 FLAT HEAD CAP SCREW M10X25 FULL THREAD-NL QTY.2

PART #3 HEX HEAD BOLT M10X100 PARTIAL THREAD QTY.1

PART #6 HEX HEAD BOLT M10X30 FULL THREAD QTY.3

PART #2 HEX HEAD BOLT M10X35 PARTIAL THREAD QTY.1

PART #4 HEX HEAD BOLT M10X50 PARTIAL THREAD QTY.8

PART #5 HEX HEAD BOLT M12X35 PARTIAL THREAD

QTY.8

PART #7 SOCKET HRAD CAP SCREW M8X20 FULL THREAD QTY.1

PART #8 ALLEN SCREW M4X8 FULL THREAD QTY.1

S2FT Hardware Illustration

Part#7 BUTTON HEAD CAP SCREWM10X30mm   QTY.7

Part#8 SOCKET HEAD CAP SCREW M10X25mm   QTY.8

Part#9 HEXHEADBOLTM8X100mm     QTY.2

Part#10 BUTTONHEADCAPSCREWM8X25mm   QTY.8

Part#11 PHILLIPSHEADSCREWM6X16mm    QTY.6

Part#12 SETSCREWM8X8mm      QTY.4





















PART #10 PHILIP BOLT M6X16 FULL THREAD QTY.3

PART #13 BUTTON HEAD CAP SCREW M8X25 FULL THREAD QTY.4

PART #15 ALLEN SCREW 10-32*3.2 FULL THREAD QTY.8

PART #9 ALLEN SCREW M8X8 FULL THREAD QTY.4

QTY.2

PART #11 FLAT PHILIPS SCREW M5X16 FULL THREAD

PART #12 BUTTON HEAD CAP SCREW M6X40 FULL THREAD QTY.1

PART #14 SOCKET HRAD CAP SCREW 3/8”-16X50.8 FULL THREAD QTY.1

PART #10 PHILIP BOLT M6X16 FULL THREAD QTY.3

PART #13 BUTTON HEAD CAP SCREW M8X25 FULL THREAD QTY.4

PART #15 ALLEN SCREW 10-32*3.2 FULL THREAD QTY.8

PART #9 ALLEN SCREW M8X8 FULL THREAD QTY.4

QTY.2

PART #11 FLAT PHILIPS SCREW M5X16 FULL THREAD

PART #12 BUTTON HEAD CAP SCREW M6X40 FULL THREAD QTY.1

PART #14 SOCKET HRAD CAP SCREW 3/8”-16X50.8 FULL THREAD QTY.1

PART #10 PHILIP BOLT M6X16 FULL THREAD QTY.3

PART #13 BUTTON HEAD CAP SCREW M8X25 FULL THREAD QTY.4

PART #15 ALLEN SCREW 10-32*3.2 FULL THREAD QTY.8

PART #9 ALLEN SCREW M8X8 FULL THREAD QTY.4

QTY.2

PART #11 FLAT PHILIPS SCREW M5X16 FULL THREAD

PART #12 BUTTON HEAD CAP SCREW M6X40 FULL THREAD QTY.1

PART #14 SOCKET HRAD CAP SCREW 3/8”-16X50.8 FULL THREAD QTY.1

PART #10 PHILIP BOLT M6X16 FULL THREAD QTY.3

PART #13 BUTTON HEAD CAP SCREW M8X25 FULL THREAD QTY.4

PART #15 ALLEN SCREW 10-32*3.2 FULL THREAD QTY.8

PART #9 ALLEN SCREW M8X8 FULL THREAD QTY.4

QTY.2

PART #11 FLAT PHILIPS SCREW M5X16 FULL THREAD

PART #12 BUTTON HEAD CAP SCREW M6X40 FULL THREAD QTY.1

PART #14 SOCKET HRAD CAP SCREW 3/8”-16X50.8 FULL THREAD QTY.1

PART #10 PHILIP BOLT M6X16 FULL THREAD QTY.3

PART #13 BUTTON HEAD CAP SCREW M8X25 FULL THREAD QTY.4

PART #15 ALLEN SCREW 10-32*3.2 FULL THREAD QTY.8

PART #9 ALLEN SCREW M8X8 FULL THREAD QTY.4

QTY.2

PART #11 FLAT PHILIPS SCREW M5X16 FULL THREAD

PART #12 BUTTON HEAD CAP SCREW M6X40 FULL THREAD QTY.1

PART #14 SOCKET HRAD CAP SCREW 3/8”-16X50.8 FULL THREAD QTY.1

PART #10 PHILIP BOLT M6X16 FULL THREAD QTY.3

PART #13 BUTTON HEAD CAP SCREW M8X25 FULL THREAD QTY.4

PART #15 ALLEN SCREW 10-32*3.2 FULL THREAD QTY.8

PART #9 ALLEN SCREW M8X8 FULL THREAD QTY.4

QTY.2

PART #11 FLAT PHILIPS SCREW M5X16 FULL THREAD

PART #12 BUTTON HEAD CAP SCREW M6X40 FULL THREAD QTY.1

PART #14 SOCKET HRAD CAP SCREW 3/8”-16X50.8 FULL THREAD QTY.1

S2FT Hardware Illustration

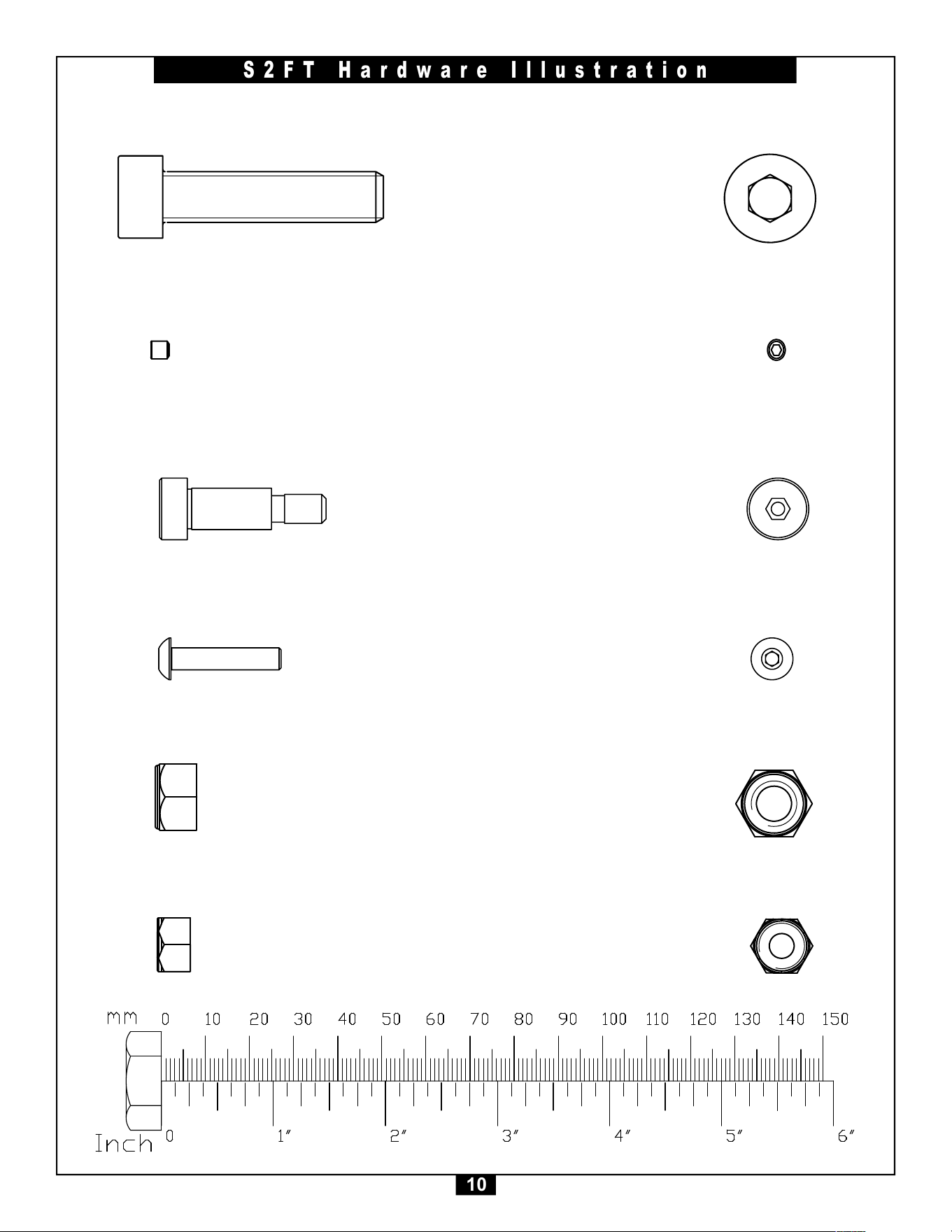

Part#13 SOCKET HEAD CAP SCREW3/8”X2.0”    QTY.1

Part#14 SETSCREW10-32X1/8”      QTY.8

Part#15 SHOULDERBOLT5/16”X1.25”     QTY.1

Part#40 NYLON LOCK NUT M10       QTY.48

Part#41 NYLON LOCK NUT M8 QTY.10

PART #10 PHILIP BOLT M6X16 FULL THREAD QTY.3

PART #13 BUTTON HEAD CAP SCREW M8X25 FULL THREAD QTY.4

PART #15 ALLEN SCREW 10-32*3.2 FULL THREAD QTY.8

PART #9 ALLEN SCREW M8X8 FULL THREAD QTY.4

QTY.2

PART #11 FLAT PHILIPS SCREW M5X16 FULL THREAD

PART #12 BUTTON HEAD CAP SCREW M6X40 FULL THREAD QTY.1

PART #14 SOCKET HRAD CAP SCREW 3/8”-16X50.8 FULL THREAD QTY.1

PART #10 PHILIP BOLT M6X16 FULL THREAD QTY.3

PART #13 BUTTON HEAD CAP SCREW M8X25 FULL THREAD QTY.4

PART #15 ALLEN SCREW 10-32*3.2 FULL THREAD QTY.8

PART #9 ALLEN SCREW M8X8 FULL THREAD QTY.4

QTY.2

PART #11 FLAT PHILIPS SCREW M5X16 FULL THREAD

PART #12 BUTTON HEAD CAP SCREW M6X40 FULL THREAD QTY.1

PART #14 SOCKET HRAD CAP SCREW 3/8”-16X50.8 FULL THREAD QTY.1

PART #10 PHILIP BOLT M6X16 FULL THREAD QTY.3

PART #13 BUTTON HEAD CAP SCREW M8X25 FULL THREAD QTY.4

PART #15 ALLEN SCREW 10-32*3.2 FULL THREAD QTY.8

PART #9 ALLEN SCREW M8X8 FULL THREAD QTY.4

QTY.2

PART #11 FLAT PHILIPS SCREW M5X16 FULL THREAD

PART #12 BUTTON HEAD CAP SCREW M6X40 FULL THREAD QTY.1

PART #14 SOCKET HRAD CAP SCREW 3/8”-16X50.8 FULL THREAD QTY.1

PART #10 PHILIP BOLT M6X16 FULL THREAD QTY.3

PART #13 BUTTON HEAD CAP SCREW M8X25 FULL THREAD QTY.4

PART #15 ALLEN SCREW 10-32*3.2 FULL THREAD QTY.8

PART #9 ALLEN SCREW M8X8 FULL THREAD QTY.4

QTY.2

PART #11 FLAT PHILIPS SCREW M5X16 FULL THREAD

PART #12 BUTTON HEAD CAP SCREW M6X40 FULL THREAD QTY.1

PART #14 SOCKET HRAD CAP SCREW 3/8”-16X50.8 FULL THREAD QTY.1

PART #41 NYLON LOCK NUT M10 QTY.8

PART #42 NYLON LOCK NUT M12 QTY.8

PART #44 NYLON LOCK NUT M8 QTY.4

PART #45 HEX NUT 1/2"-13X11 QTY.1

PART #43 NYLON LOCK NUT M6 QTY.1

PART #40 FLANGE NUT M16 QTY.1

PART #41 NYLON LOCK NUT M10 QTY.8

PART #42 NYLON LOCK NUT M12 QTY.8

PART #44 NYLON LOCK NUT M8 QTY.4

PART #45 HEX NUT 1/2"-13X11 QTY.1

PART #43 NYLON LOCK NUT M6 QTY.1

PART #40 FLANGE NUT M16 QTY.1

PART #41 NYLON LOCK NUT M10 QTY.8

PART #42 NYLON LOCK NUT M12 QTY.8

PART #44 NYLON LOCK NUT M8 QTY.4

PART #45 HEX NUT 1/2"-13X11 QTY.1

PART #43 NYLON LOCK NUT M6 QTY.1

PART #40 FLANGE NUT M16 QTY.1

PART #41 NYLON LOCK NUT M10 QTY.8

PART #42 NYLON LOCK NUT M12 QTY.8

PART #44 NYLON LOCK NUT M8 QTY.4

PART #45 HEX NUT 1/2"-13X11 QTY.1

PART #43 NYLON LOCK NUT M6 QTY.1

PART #40 FLANGE NUT M16 QTY.1





















Part#16 BUTTONHEADCAPSCREWM5X20mm   QTY.2

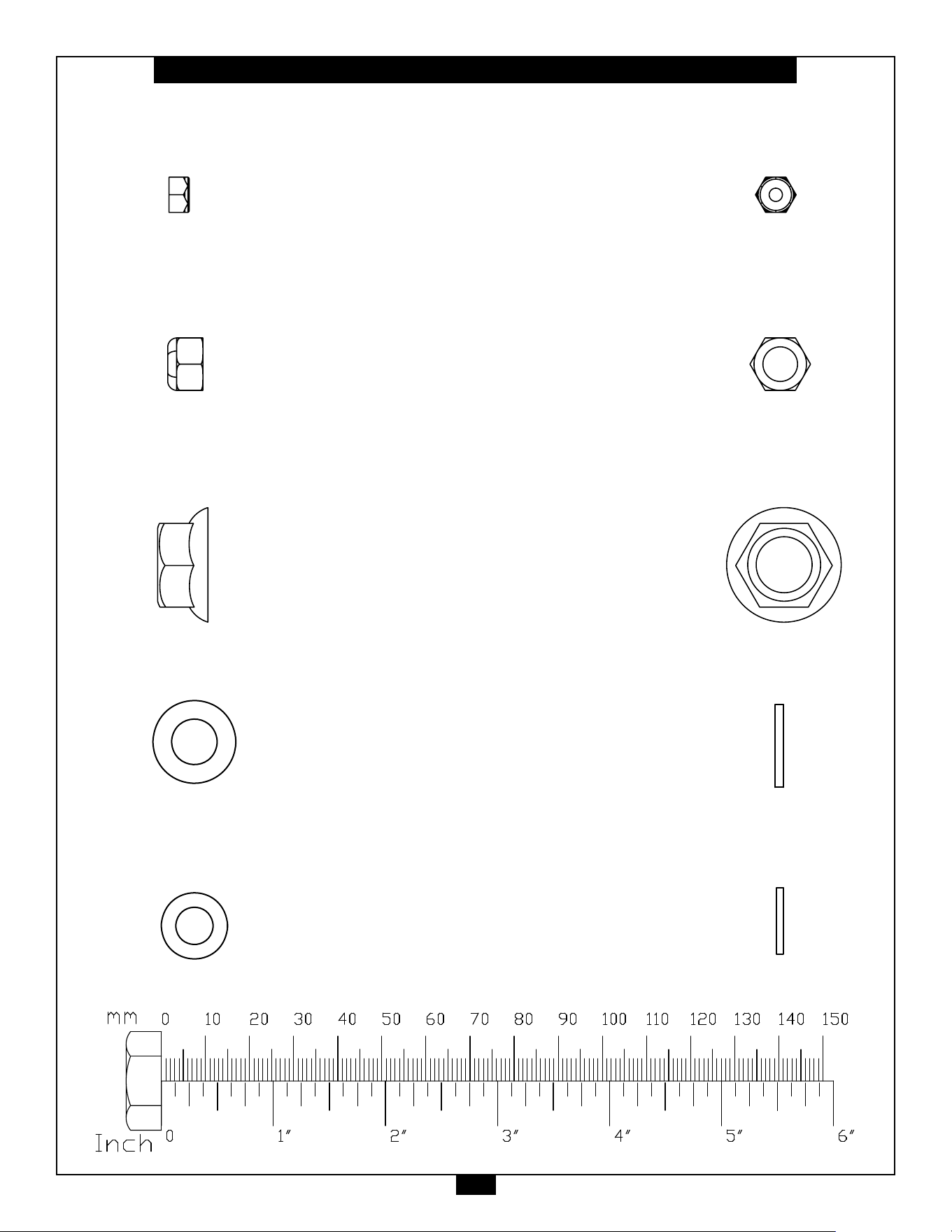

S2FT Hardware Illustration

Part#42 NYLON LOCK NUTM5      QTY.4

Part#43 NYLONLOCKNUT5/16”      QTY.1

Part#44 FLANGENUT1/2”       QTY.6

Part#50 FLAT WASHER M10 QTY.96

Part#51 FLAT WASHER M8 QTY.20





















PART #51 FLAT WASHER ĳ11Xĳ20X2 QTY.19

PART #52 FLAT WASHER ĳ13Xĳ24X2.5 QTY.16

PART #53 FLAT WASHER ĳ6.6Xĳ12X1.6 QTY.3

PART #54 FLAT WASHER ĳ9Xĳ16X1.6 QTY.8

PART #56 SPRING WASHER 1/2" QTY.1

PART #50 SPRING WASHER ĳ10 QTY. 5

PART #55 SPRING WASHER 3/8"

QTY.1

PART #51 FLAT WASHER ĳ11Xĳ20X2 QTY.19

PART #52 FLAT WASHER ĳ13Xĳ24X2.5 QTY.16

PART #53 FLAT WASHER ĳ6.6Xĳ12X1.6 QTY.3

PART #54 FLAT WASHER ĳ9Xĳ16X1.6 QTY.8

PART #56 SPRING WASHER 1/2" QTY.1

PART #50 SPRING WASHER ĳ10 QTY. 5

PART #55 SPRING WASHER 3/8"

QTY.1

PART #51 FLAT WASHER ĳ11Xĳ20X2 QTY.19

PART #52 FLAT WASHER ĳ13Xĳ24X2.5 QTY.16

PART #53 FLAT WASHER ĳ6.6Xĳ12X1.6 QTY.3

PART #54 FLAT WASHER ĳ9Xĳ16X1.6 QTY.8

PART #56 SPRING WASHER 1/2" QTY.1

PART #50 SPRING WASHER ĳ10 QTY. 5

PART #55 SPRING WASHER 3/8"

QTY.1

PART #51 FLAT WASHER ĳ11Xĳ20X2 QTY.19

PART #52 FLAT WASHER ĳ13Xĳ24X2.5 QTY.16

PART #53 FLAT WASHER ĳ6.6Xĳ12X1.6 QTY.3

PART #54 FLAT WASHER ĳ9Xĳ16X1.6 QTY.8

PART #56 SPRING WASHER 1/2" QTY.1

PART #50 SPRING WASHER ĳ10 QTY. 5

PART #55 SPRING WASHER 3/8"

QTY.1

S2FT Hardware Illustration

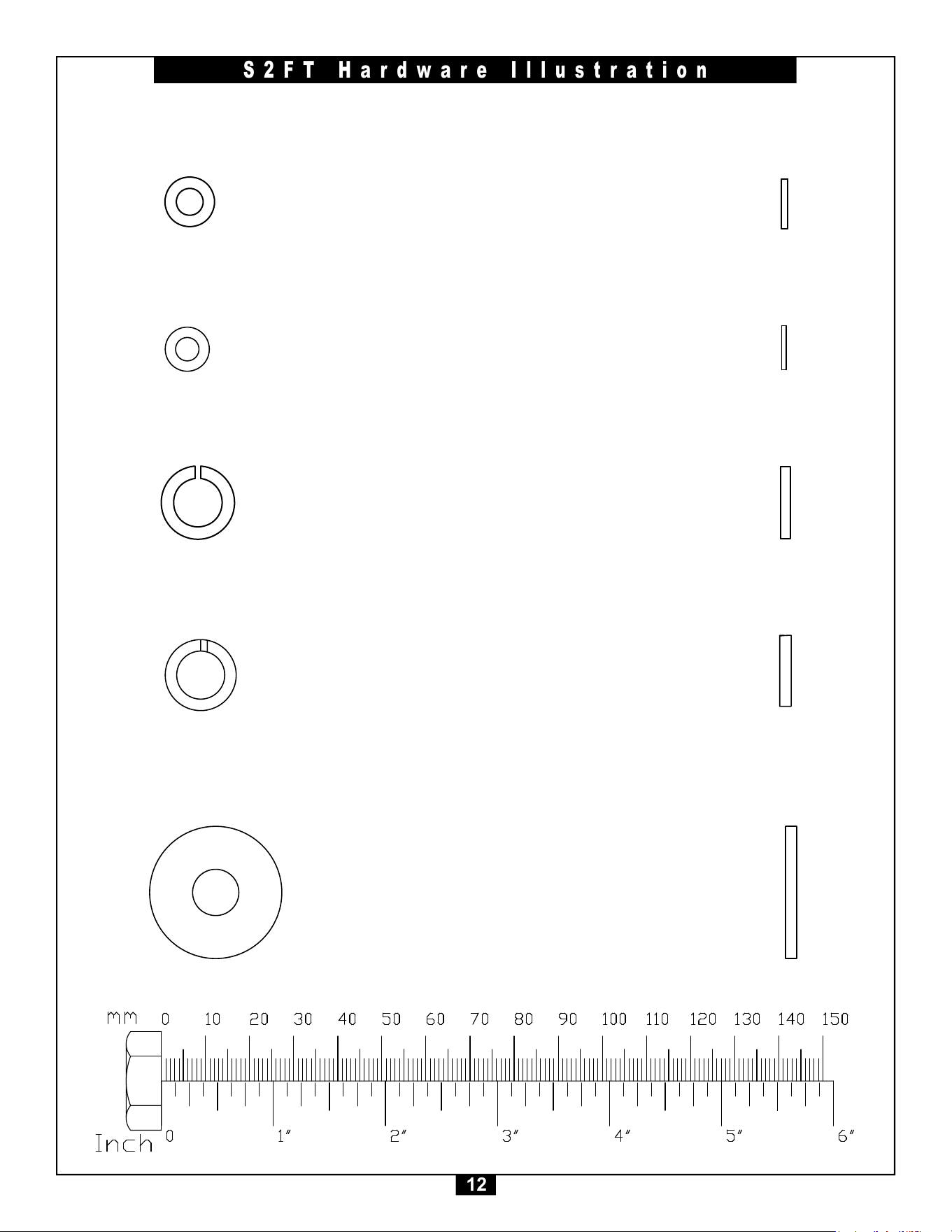

Part#52 FLATWASHERM6       QTY.6

Part#53 FLATWASHERM5       QTY.2

Part#54 LOCKWASHER3/8” QTY.2

PART #51 FLAT WASHER ĳ11Xĳ20X2 QTY.19

PART #52 FLAT WASHER ĳ13Xĳ24X2.5 QTY.16

PART #53 FLAT WASHER ĳ6.6Xĳ12X1.6 QTY.3

PART #54 FLAT WASHER ĳ9Xĳ16X1.6 QTY.8

PART #56 SPRING WASHER 1/2" QTY.1

PART #50 SPRING WASHER ĳ10 QTY. 5

PART #55 SPRING WASHER 3/8"

QTY.1

PART #51 FLAT WASHER ĳ11Xĳ20X2 QTY.19

PART #52 FLAT WASHER ĳ13Xĳ24X2.5 QTY.16

PART #53 FLAT WASHER ĳ6.6Xĳ12X1.6 QTY.3

PART #54 FLAT WASHER ĳ9Xĳ16X1.6 QTY.8

PART #56 SPRING WASHER 1/2" QTY.1

PART #50 SPRING WASHER ĳ10 QTY. 5

PART #55 SPRING WASHER 3/8"

QTY.1

PART #51 FLAT WASHER ĳ11Xĳ20X2 QTY.19

PART #52 FLAT WASHER ĳ13Xĳ24X2.5 QTY.16

PART #53 FLAT WASHER ĳ6.6Xĳ12X1.6 QTY.3

PART #54 FLAT WASHER ĳ9Xĳ16X1.6 QTY.8

PART #56 SPRING WASHER 1/2" QTY.1

PART #50 SPRING WASHER ĳ10 QTY. 5

PART #55 SPRING WASHER 3/8"

QTY.1

PART #51 FLAT WASHER ĳ11Xĳ20X2 QTY.19

PART #52 FLAT WASHER ĳ13Xĳ24X2.5 QTY.16

PART #53 FLAT WASHER ĳ6.6Xĳ12X1.6 QTY.3

PART #54 FLAT WASHER ĳ9Xĳ16X1.6 QTY.8

PART #56 SPRING WASHER 1/2" QTY.1

PART #50 SPRING WASHER ĳ10 QTY. 5

PART #55 SPRING WASHER 3/8"

QTY.1





















Part#55 LOCK WASHER M10 QTY.2

Part#56 LARGE FLAT WASHER M10 QTY.8

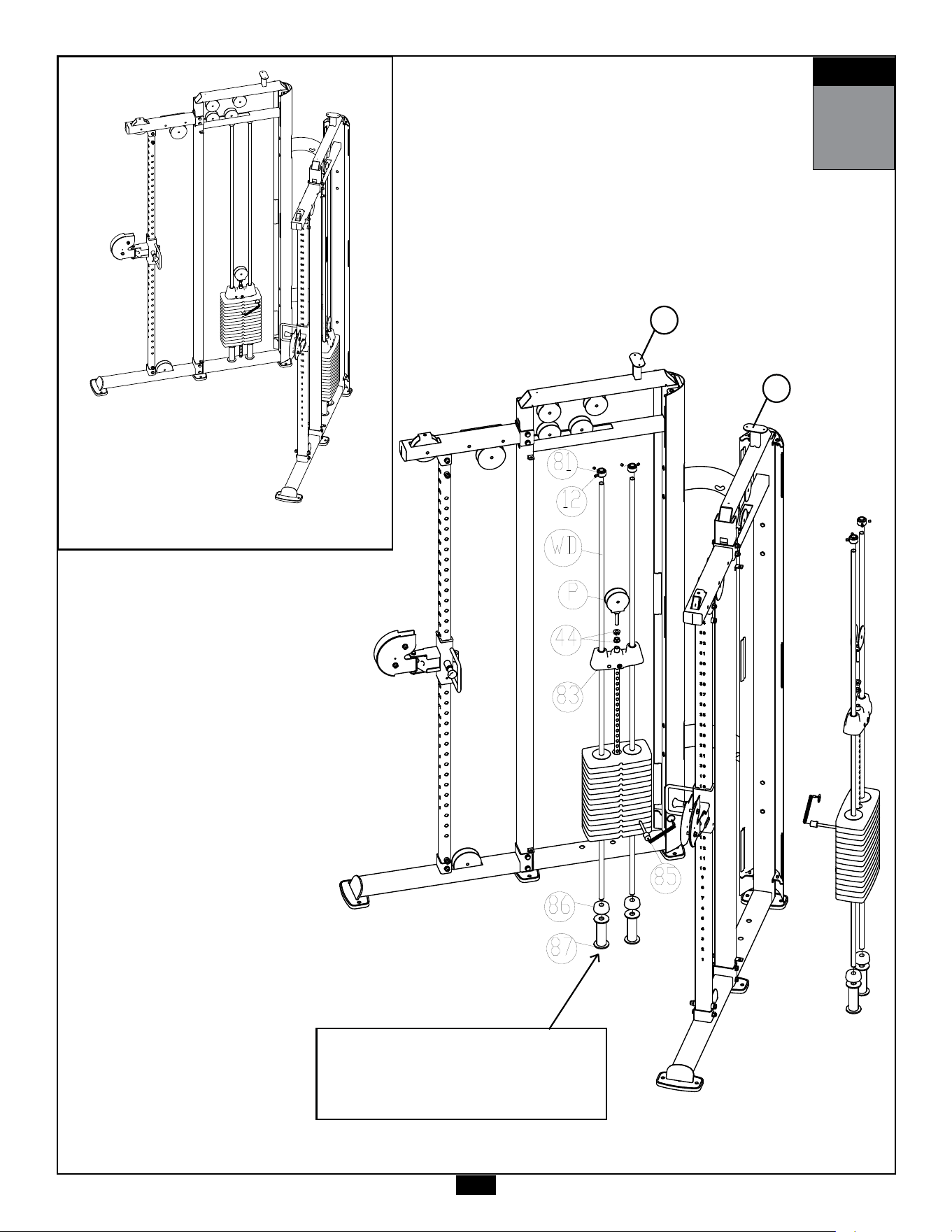

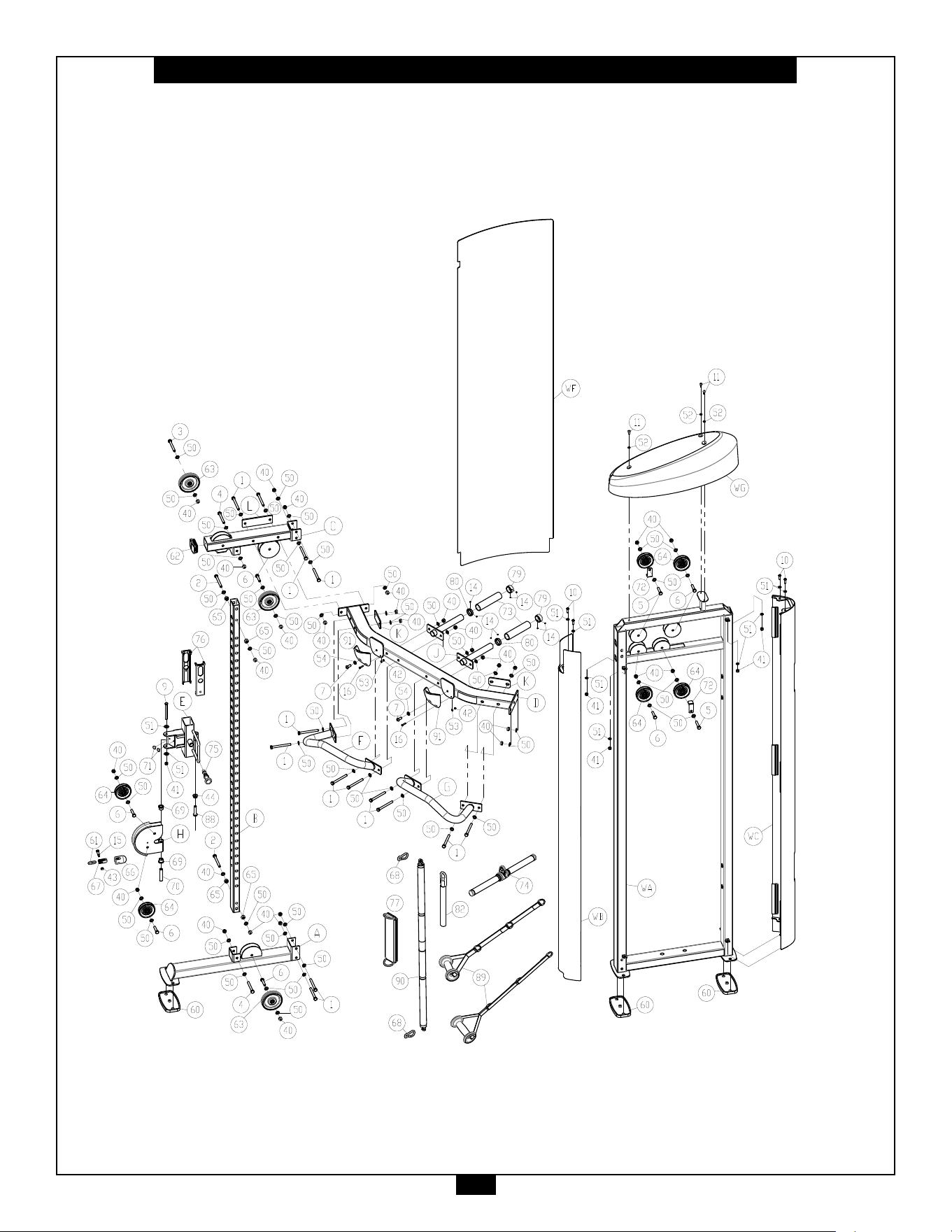

S2FT Parts List/Illustration

PART A - BASE FRAME, 2PCS.

PART B - RIGHT GUIDE POST, 1PC.

PART C - TOP SIDE FRAME, 2PCS.

PART D - CENTER TOP FRAME, 1PC.

PART E - RIGHT SWIVEL ADJUSTER, 1PC.

PART F - RIGHT CHIN UP HANDLE, 1PC.

PART G - LEFT CHIN UP HANDLE, 1PCS.

PART H - PULLEY HOLDER, 2PCS.

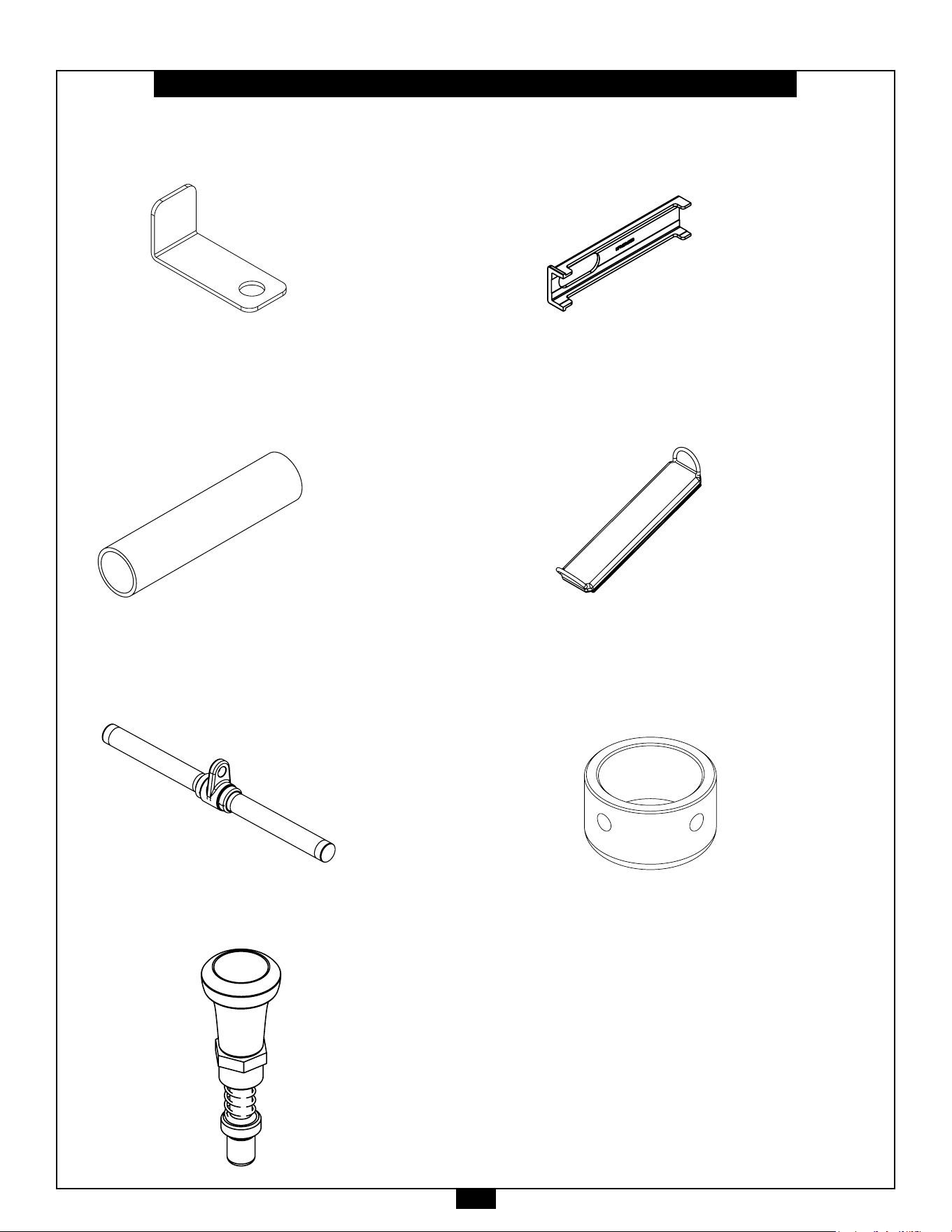

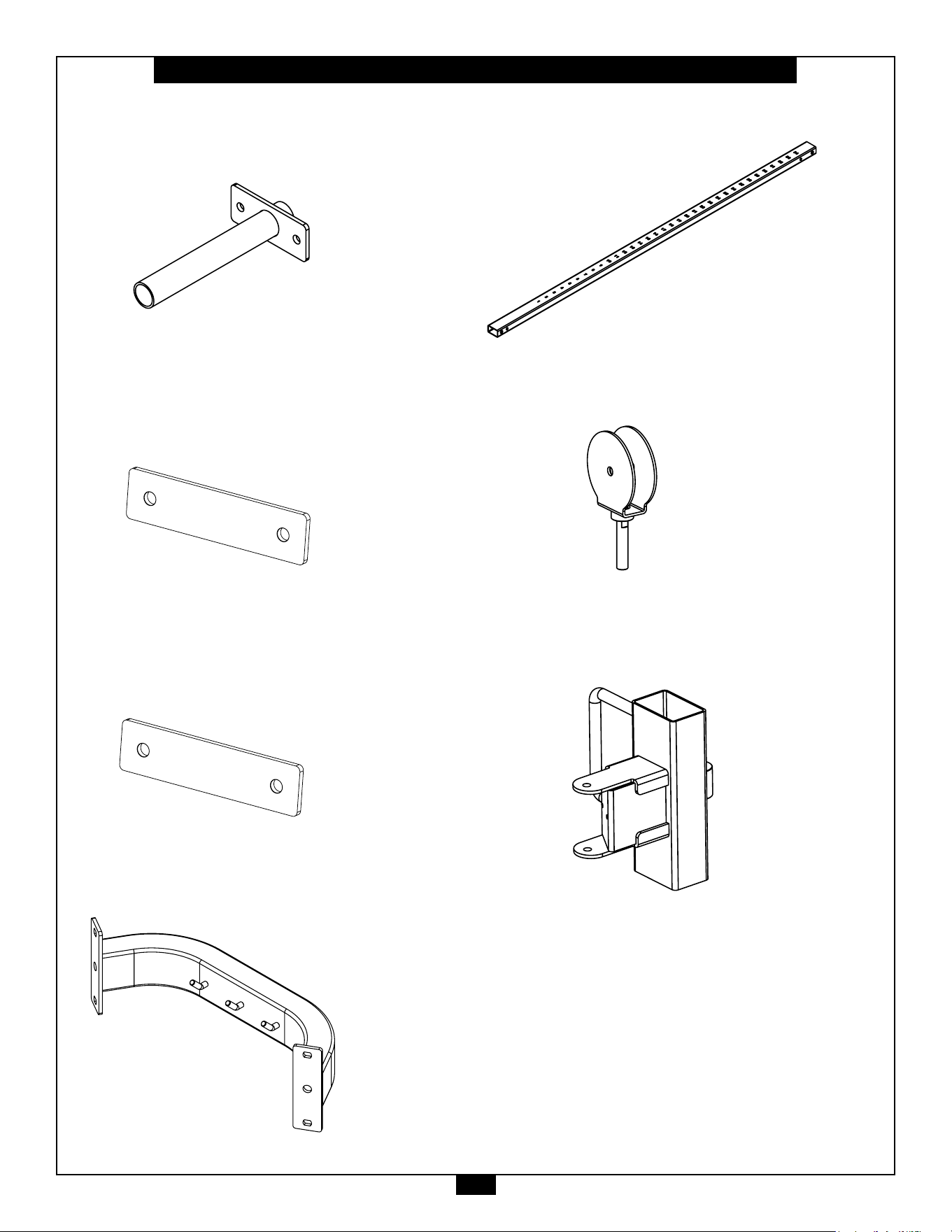

S2FT Parts List/Illustration

PART J - PULL UP HANDLE, 2PCS.

PART K - STEEL PLATE, 2PCS.

120mm x 50mm x 5mm

PART L - STEEL PLATE 2PCS.

170mm x 50mm x 5mm

PART M - CENTER FRAME, 2PCS.

PART N - LEFT GUIDE POST , 1PC.

PART P - SWIVEL PULLEY BRACKET, 2PCS.

PART Q - LEFT SWIVEL ADJUSTER, 1PC.

S2FT Parts List/Illustration

PART WA - WEIGHT STACK FRAME, 2PCS.

PART WD - CHROME GUIDE ROD, 4PCS.

PART WB - SHORT SIDE SHROUD, 2PCS.

PART WC - LONG SIDE SHROUD, 2PCS.

PART WE - RIGHT FRONT SHROUD, 1PC.

PART WF - RIGHT REAR SHROUD, 1PCS.

PART WG - TOP SHROUD, 2PCS.

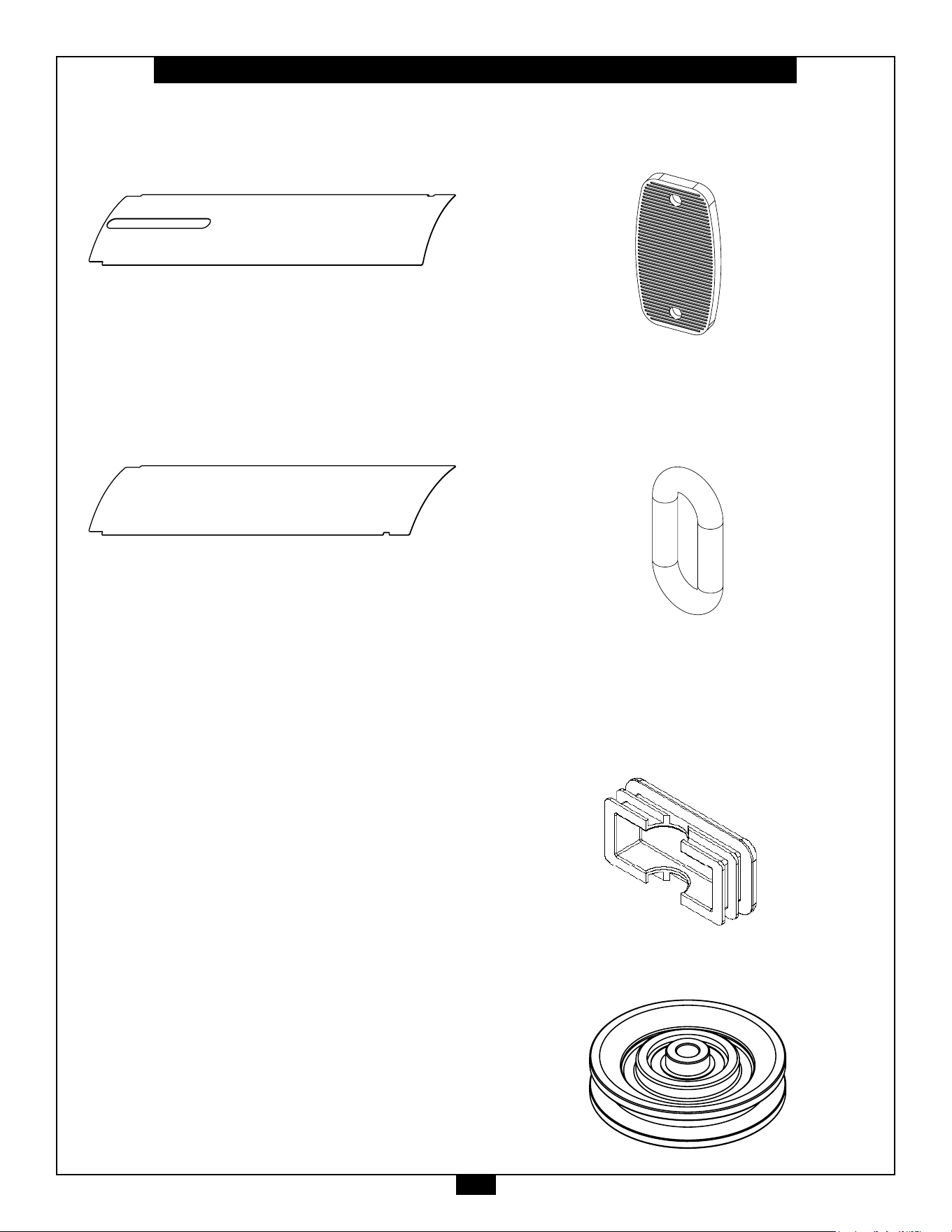

S2FT Parts List/Illustration

PART WH - LEFT FRONT SHROUD, 1PC.

PART WJ - LEFT REAR SHROUD, 1PCS.

PART #60 - FOOT PAD, 8PCS.

PART #61 - CHAIN LINK, 2PCS.

PART #62 - PLASTIC END CAP, 2PCS.

75x50mm

PART #63 - LARGE PULLEY, 6PCS.

S2FT Parts List/Illustration

PART #64 - SMALL PULLEY, 14PCS.

PART #65 - RUBBER SLEEVE, 8PCS.

PART #66 - CABLE BUMPBER, 2PCS.

PART #67 - CABLE CONNECTOR, 2PCS.

PART #68 - SNAP LINK, 2PCS.

PART #69 - BUSHING, 4PCS.

ø28xø22x18mm

PART #70 - STEEL TUBE, 2PCS.

ø16xø8.5x75mm

PART #71 - PLASTIC STOPPER, 4PCS.

PART #72 - STEEL BRACKET, 4PCS.

PART #73 - HANDLE GRIP, 1PC.

PART #74 - LOW ROW BAR, 1PC.

PART #75 - POP PIN, 2PCS.

PART #76 - PLASTIC BUSHING, 4PCS.

PART #77 - ANKLE CUFF, 1PCS.

PART #79 - HANDLE END CAP, 2PCS.

ø39.5xø32.5x19mm

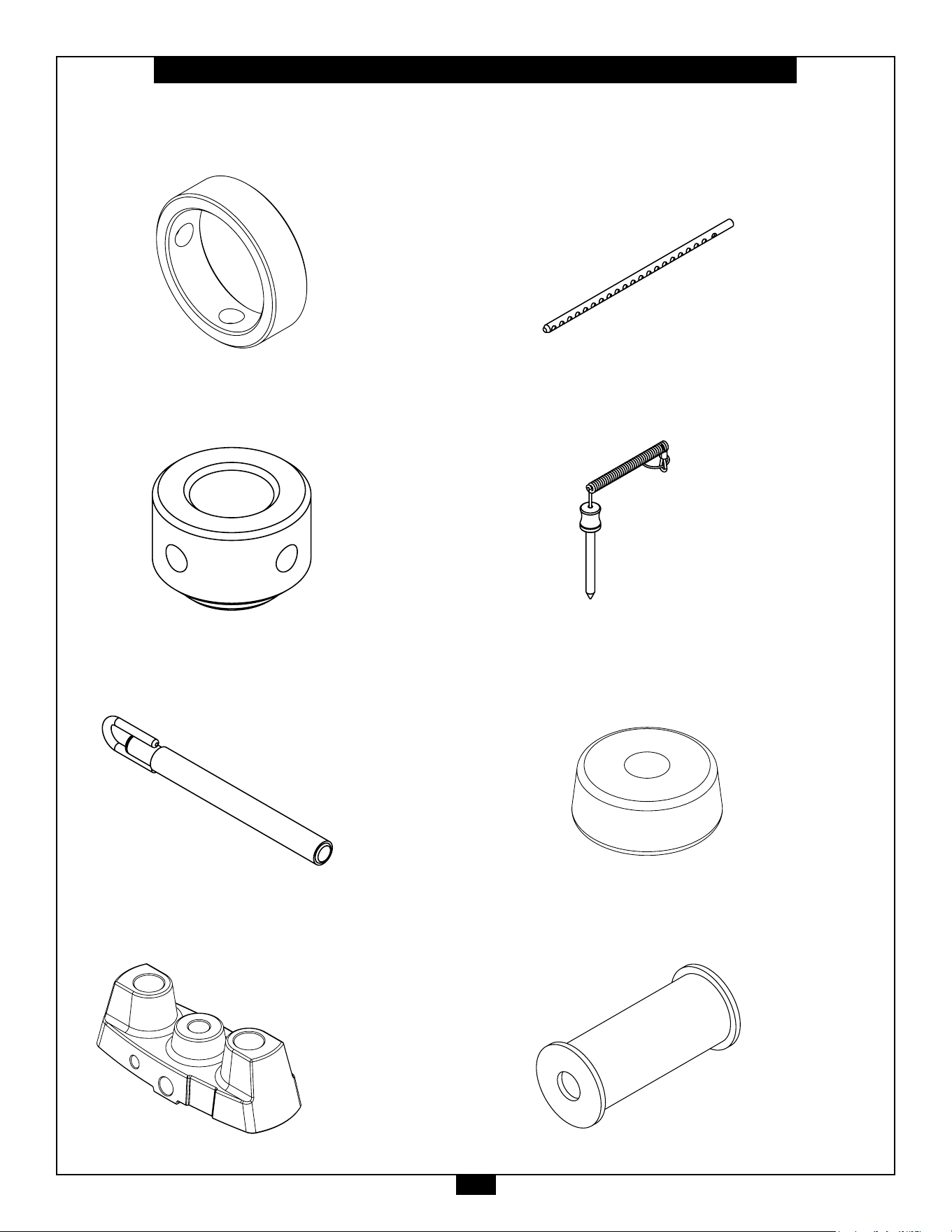

S2FT Parts List/Illustration

PART #80 - HANDLE END RING, 2PCS.

ø39.5xø32.5x9.5mm

PART #81 - SHAFT COLLAR, 4PCS.

PART #82 - SHORT BAR, 1PC.

PART #83 - TOP PLATE, 2PCS.

PART #84 - SELECTOR ROD, 2PCS.

PART #85 - SELECTOR PIN, 2PCS.

PART #86 - RUBBER DONUT, 4PCS.

PART #87 - WEIGHT RISER, 4PCS.

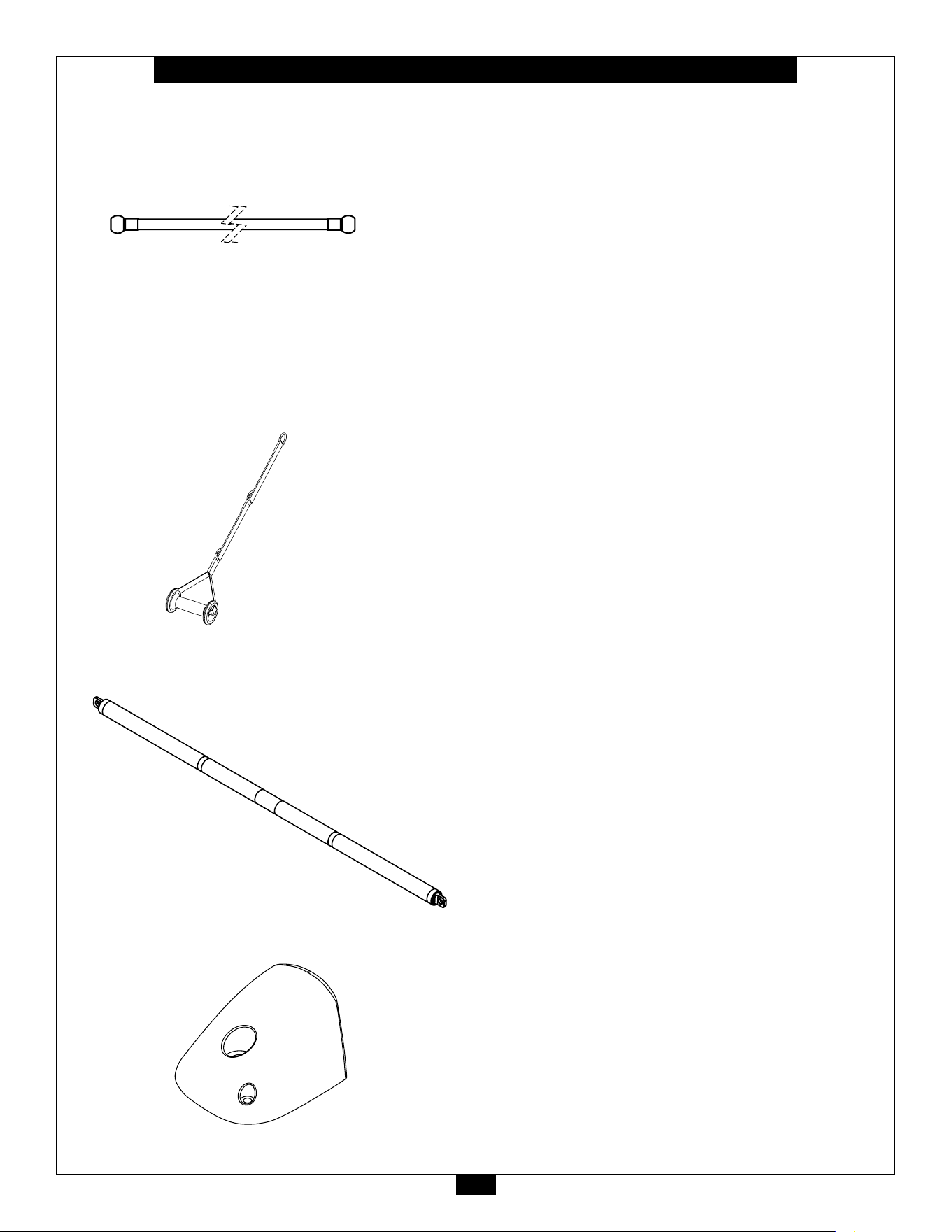

S2FT Parts List/Illustration

PART #88 - CABLE, 2PCS.

PART #89 - STRAP HANDLE, 2PCS.

PART #90 - LONG BAR, 1PC

PART #91 - ROCK CLIMBING GRIP, 2PCS.

3$5738//(<63&6

3$57&$%/(3&6

3$57&$33&6

3$57+$1'/((1'&$33&6

3$57+$1'/(5,1*3&6

6$&3DUWV/LVW,OOXVWUDWLRQ

PP



3$57%86+,1*3&6

Notes

PCL Badge Location

STEP

Be careful to assemble all components

in the sequence they are presented.

NOTE:

Finger tighten all hardware in this step. DO NOT wrench tighten unless instructed.

Some components may be pre-assembled. Nylon lock nuts will not fully screw onto

bolts, they must be wrench tighten to fully go on.

1A. AttachtwoLongMetalShrouds(WC) totwoWeightStackFrames(WA)

 using:

4 - (#10) M8X25mm Button Head Cap Screw

8 - (#51) M8 Flat Washer

4 - (#41) M8 Nylon Lock Nut

1. AttachtwoCenterFrames(M)toWeightStackFrames(WA)using:

8 - (#8) M10X25mm Socket Head Cap Screw

8 - (#56) M10 Large Flat Washer

STEP

AboveshowsStep1assembledandcompleted.

STEP

Be careful to assemble all components

in the sequence they are presented.

NOTE:

Finger tighten all hardware in this step. DO NOT wrench tighten unless instructed.

Some components may be pre-assembled. Nylon lock nuts will not fully screw onto

bolts, they must be wrench tighten to fully go on.

2A. AttachtwoBaseFrames(A) toWeightStackFrames(WA)using:

4 - (#1) M10X105mm Hex Head Bolt

8 - (#50) M10 Flat Washer

4 - (#40) M10 Nylon Lock Nut

2B. AttachtwoTopSideFrames(C)toWeightStackFrames(WA)using:

4 - (#1) M10X105mm Hex Head Bolt

8 - (#50) M10 Flat Washer

4 - (#40) M10 Nylon Lock Nut

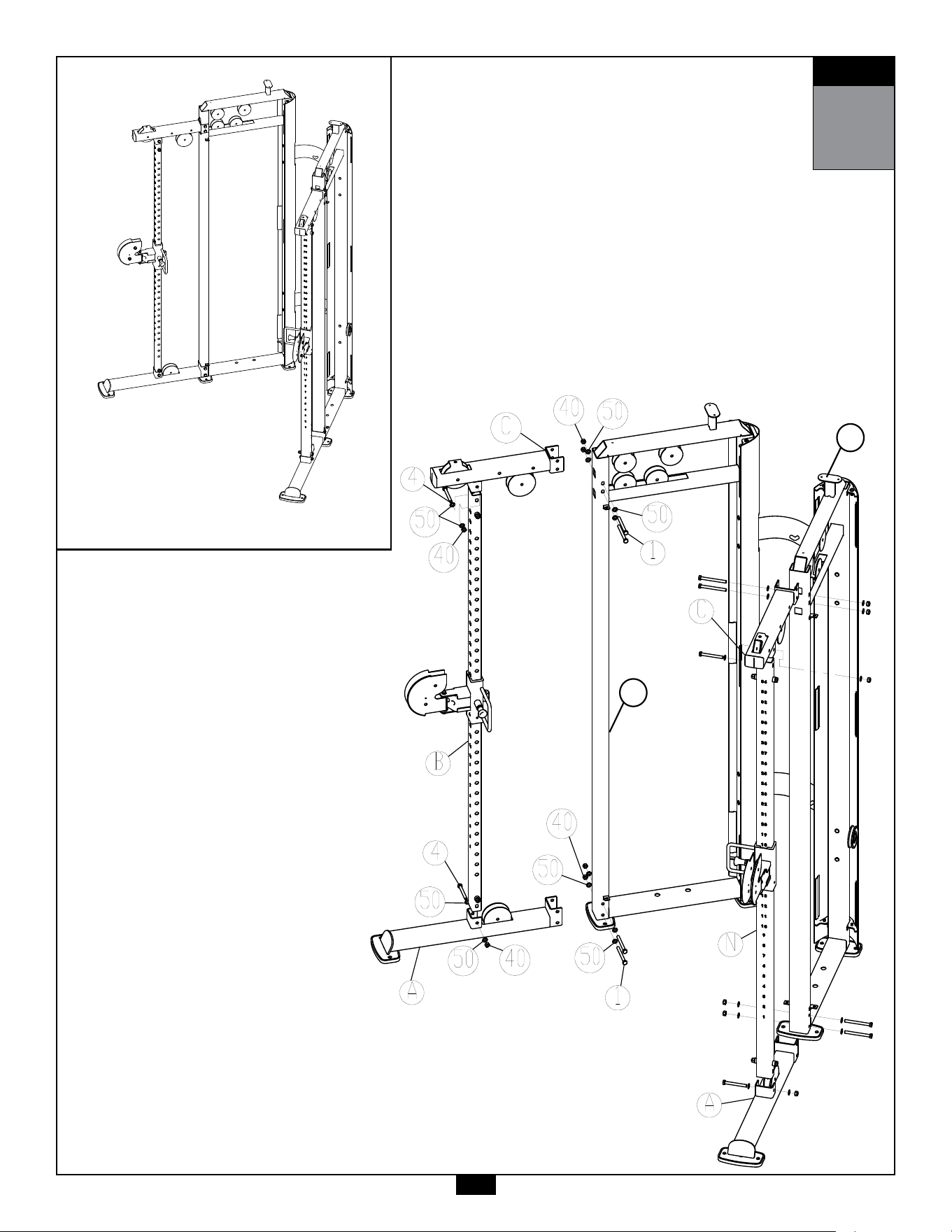

2C. AttachRightGuidePost(B)toRightSideofBaseFrame&TopSide

 Frame(A & C)using:

2 - (#4) M10X90mm Hex Head Bolt

4 - (#50) M10 Flat Washer

2 - (#40) M10 Nylon Lock Nut

2D. AttachLeftGuidePost(N)toLeftSideofBaseFrame&TopSide

 Frame(A & C)using:

2 - (#4) M10X90mm Hex Head Bolt

4 - (#50) M10 Flat Washer

2 - (#40) M10 Nylon Lock Nut

STEP

AboveshowsStep2assembledandcompleted.

STEP

Be careful to assemble all components

in the sequence they are presented.

NOTE:

Finger tighten all hardware in this step. DO NOT wrench tighten unless instructed.

Some components may be pre-assembled. Nylon lock nuts will not fully screw onto

bolts, they must be wrench tighten to fully go on.

3A. InstallChromeGuideRods(WD)intotheholesintheWeightStackFrames(WA).

3B. InstallWeightRisers(#87) & RubberDonuts(#67)andslidetothebottom

 oftheGuideRods

Important Notes:

1. Install the rod ends with side holes into the bottom section of the Weight

Stack Frame.

2. If 20pcs of weight plates are to be installed, do not install Weight Risers (87)

3C. TiltGuideRods(WD) awayfromtheWeightStackFrame(WA) andinstall15pcs

 ofweightplates.Becarefultoholdguiderodssteadilywheninstalling

 weightplates.

3D. InstallTopPlate&SelectorRodAssembly(#83)ontotheGuideRods(WD) .

3E. InstallWeightStackPin(#85)usingthekeyringendthroughtheSwivelPully

 Bracket(P).

3F.  InstallTwo1/2”FlangeHexNut(#44) &SwivelPulleyBracket(P)ontothe

 TopPlate(#83) .

3G. InstallShaftCollars(#81)ontotheGuideRods(WD)

3H. SlideShaftCollars(#81)upwardsotheylocktheguiderodsintopositionby

 tighteningthefourM8x8mmSetScrews(#12).

3J. RepeattheSameSteps(3Ato3H)ontheothersideofthemachine.

STEP

AboveshowsStep3assembledandcompleted.

Note:

Risers(#87)arenotnecessaryif

20pcsofweightplatesaretobe

installed

STEP

Be careful to assemble all components

in the sequence they are presented.

NOTE:

Wrench tighten ALL hardware at the end of Step 4A. Some components may be

pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench

tighten to fully go on.

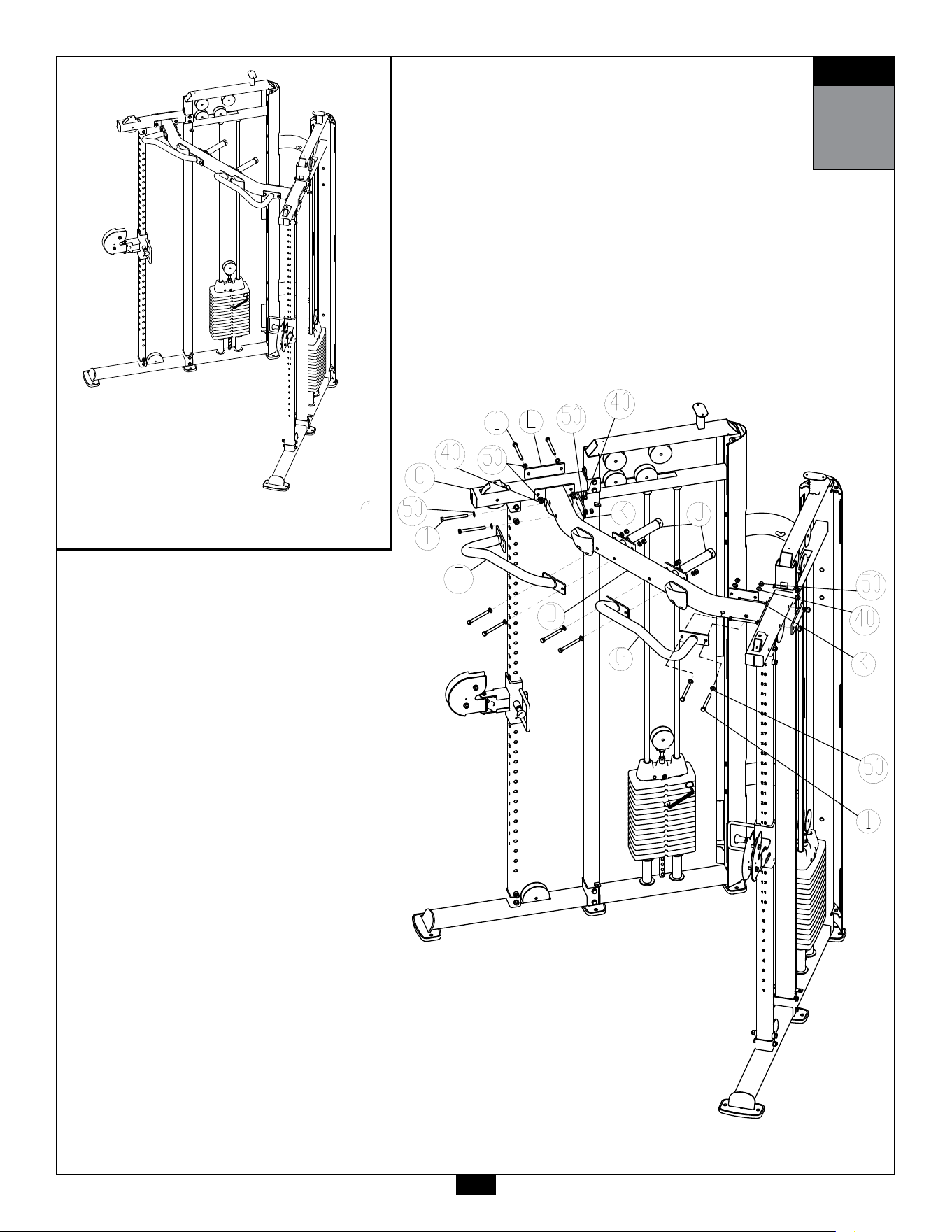

4A. AttachCenterTopFrame(D) toTopSideFrames(C)using:

4 - (#1) M10X105mm Hex Head Bolt

8 - (#50) M10 Flat Washer

4 - (#40) M10 Nylon Lock Nut

2 - (L) Steel Plate

4B. AttachRightChinUpHandle(F)&PullUpHandle(J)toCenter

 TopFrame(D)using:

4 - (#1) M10X105mm Hex Head Bolt

8 - (#50) M10 Flat Washer

4 - (#40) M10 Nylon Lock Nut

1 - (K) Steel Plate

4C. AttachLeftChinUpHandle(G) &PullUpHandle(J)toCenter

 TopFrame(D)using:

4 - (#1) M10X105mm Hex Head Bolt

8 - (#50) M10 Flat Washer

4 - (#40) M10 Nylon Lock Nut

1 - (K) Steel Plate

STEP

AboveshowsStep4assembledandcompleted.

STEP

Be careful to assemble all components

in the sequence they are presented.

NOTE:

Wrench tighten ALL hardware at the end of Each Step. Some components may be

pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench

tighten to fully go on.

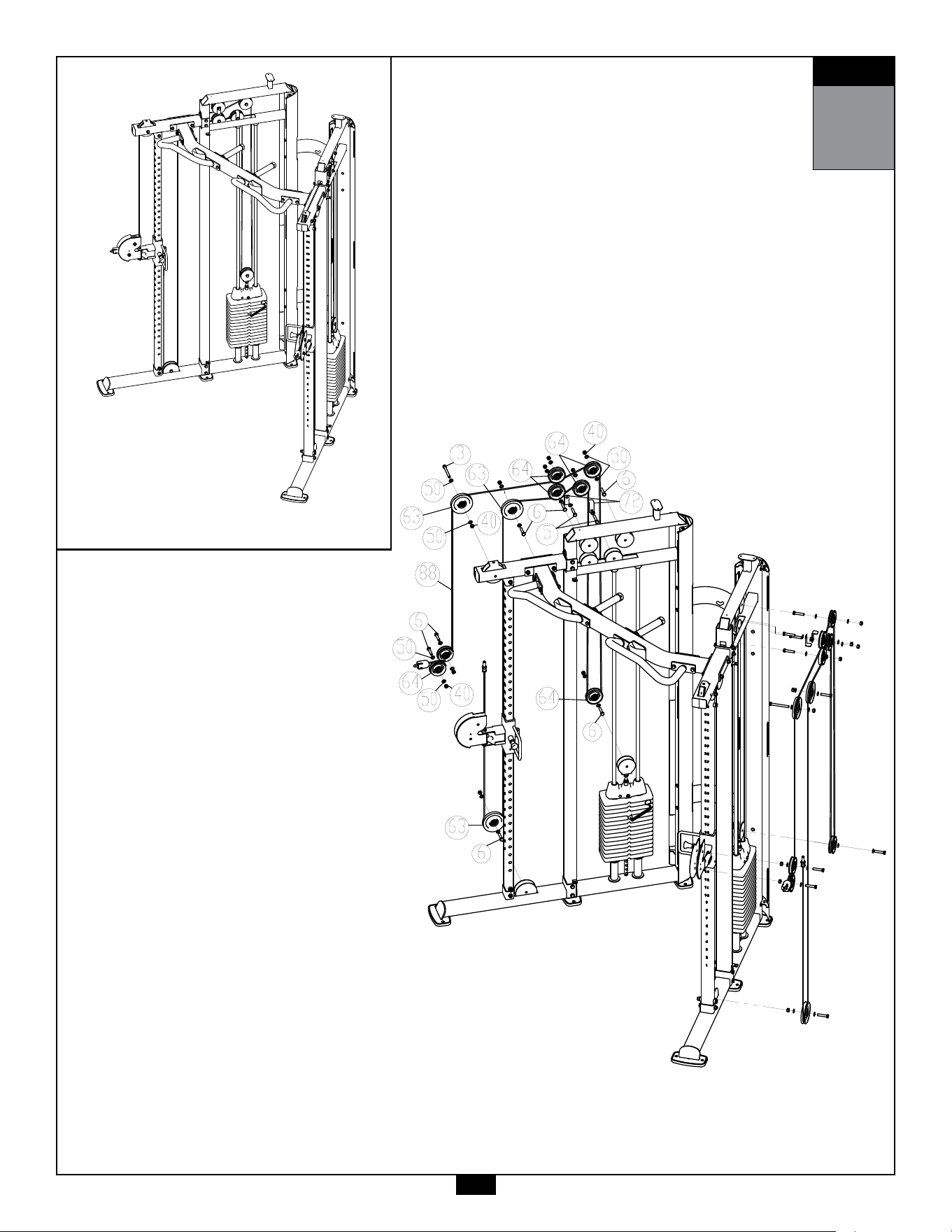

5A. InstallCable(#88)whileinstallingthreeLargePulleys(#63)and

 SevenSmallPulleys(#64) ontheRightSideoftheMachineasshown

 inStep5Drawingusing:

1 - (#3) M10X95mm Hex Head Bolt

2 - (#5) M10X55mm Hex Head Bolt

7 - (#6) M10X50mm Hex Head Bolt

20 - (#50) M10 Flat Washer

10 - (#40) M10 Nylon Lock Nut

2 - (#72) Steel Bracket

5B. RepeatthepreviousStep(5A)ontheothersideofthemachine.

STEP

AboveshowsStep5assembledandcompleted.

STEP

Be careful to assemble all components

in the sequence they are presented.

NOTE:

Wrench tighten ALL hardware at the end of Each Step. Some components may be

pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench

tighten to fully go on.

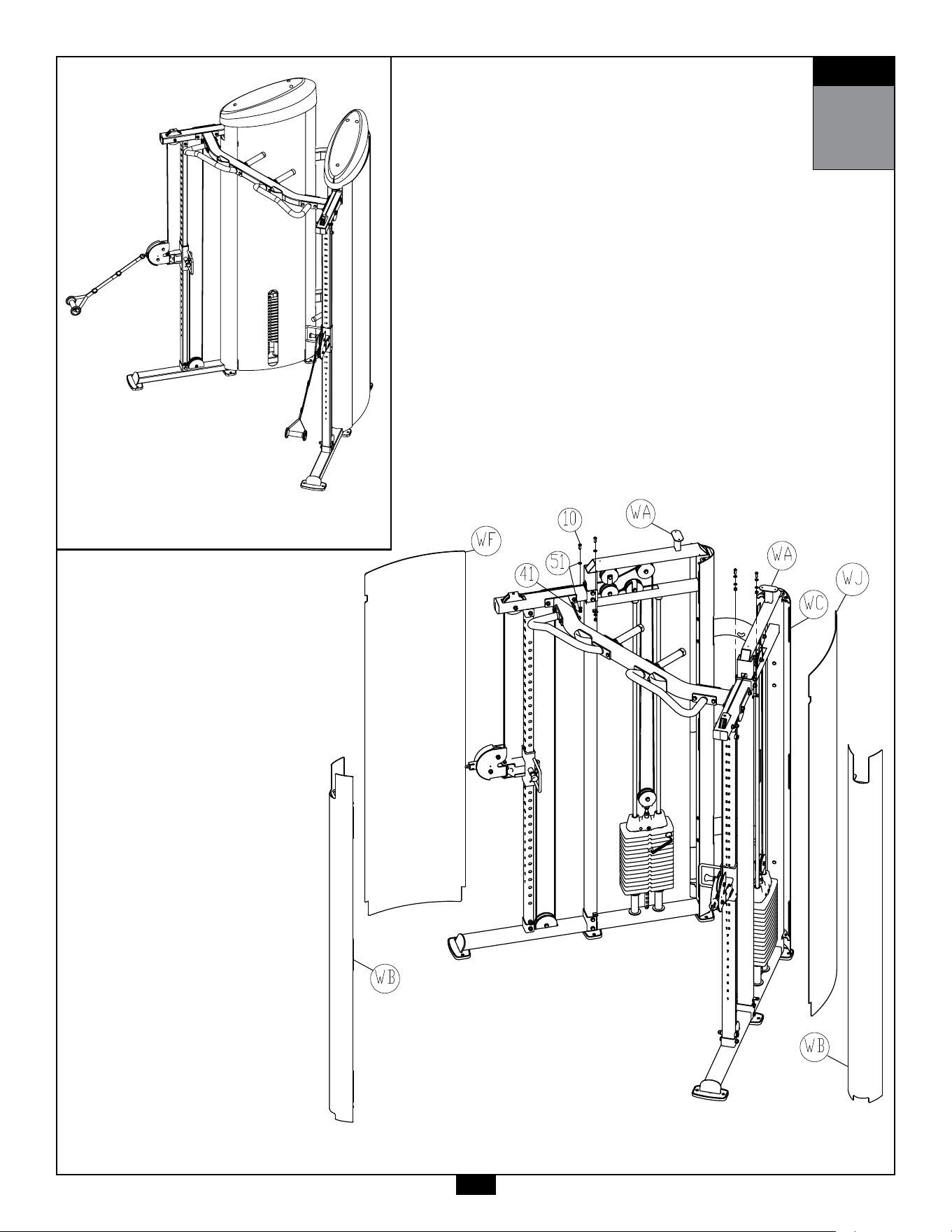

6A. AttachtwoShortMetalShrouds(WB)toWeightStackFrames(WA)

 using:

4 - (#10) M8X25mm Button Head Cap Screw

8 - (#51) M8 Flat Washer

4 - (#41) M8 Nylon Lock Nut

6B. BendtheRightRearShroud(WF)andinsertittotheside

 slotsoftheMetalShrouds(WB & WC).

6C. BendtheLeftRearShroud(WJ)andinsertittotheside

 slotsoftheMetalShrouds(WB & WC).

STEP

AboveshowsStep6assembledandcompleted.

STEP

Be careful to assemble all components

in the sequence they are presented.

NOTE:

Wrench tighten ALL hardware at the end of Each Step. Some components may be

pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench

tighten to fully go on.

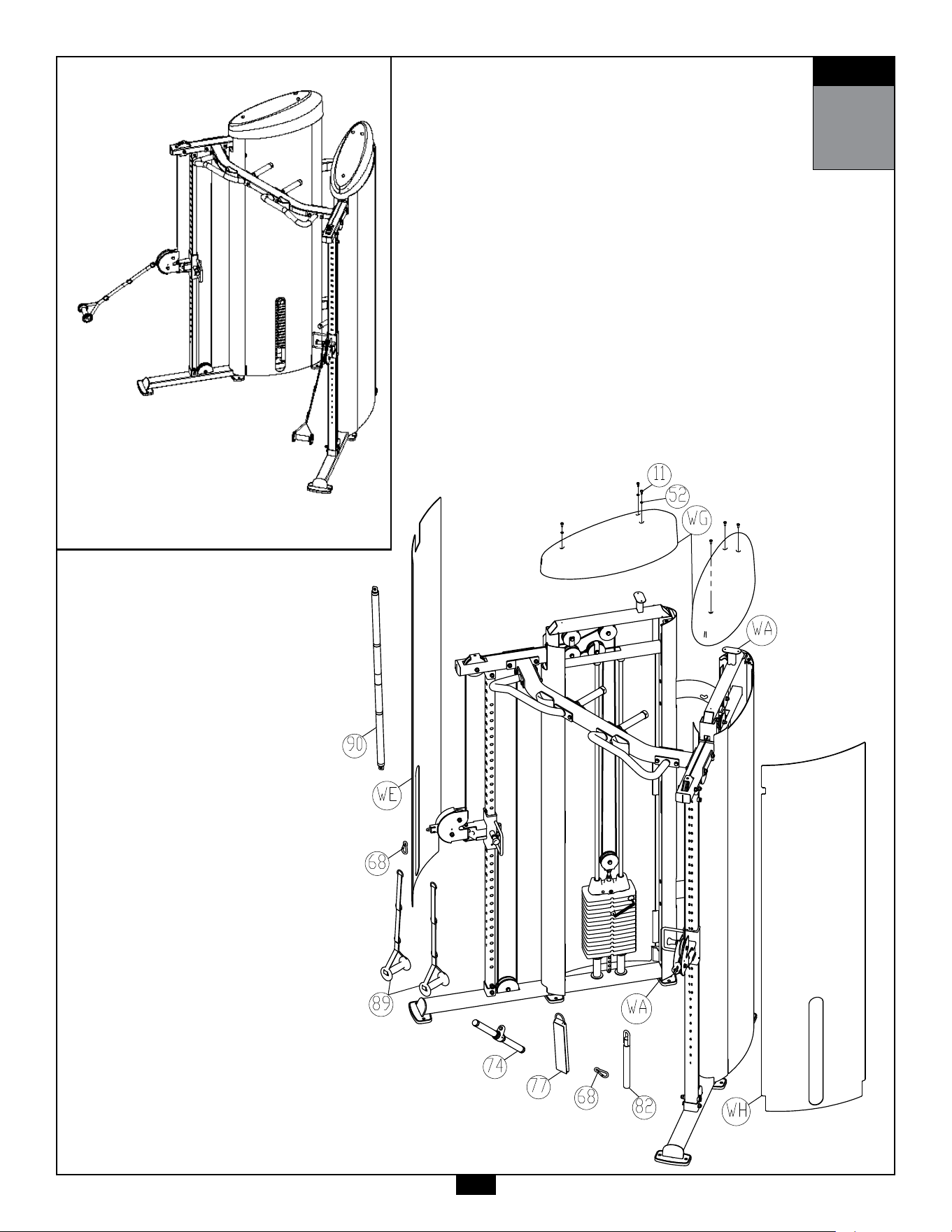

7A. BendtheRightFrontShroud(WE)andinsertittotheside

 slotsoftheMetalShrouds(WB & WC).

7B. BendtheLeftRearShroud(WH)andinsertittotheside

 slotsoftheMetalShrouds(WB & WC).

7C. AttachTwoTopShrouds(WG)toWeightStackFrames(WA)using:

6 - (#11) M6X16mm Phillips Head Screw

6 - (#52) M6 Flat Washer

STEP

AboveshowsStep7assembledandcompleted.

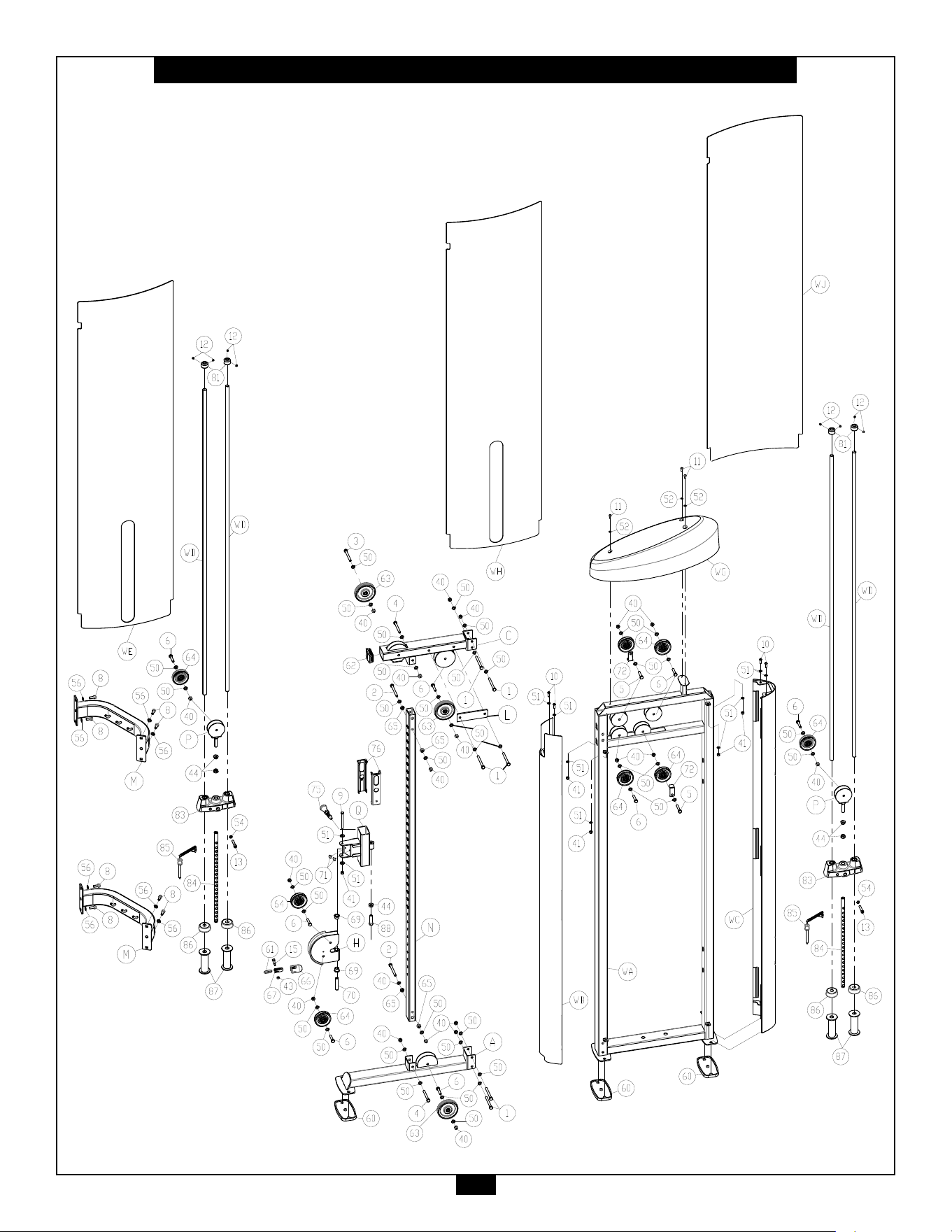

S2FT Exploded View

S2FT Exploded View (Continue)

1900S.DesPlainesAve.

ForestPark,Il60130

Phone:(708)427-3555

Fax:(708)427-3556

Hours:M-F8:30-5:00CST

www.bodysolid.com

PLEASE WRITE YOUR SERIAL NUMBER IN THE BOXES BELOW

S/N# 011878-��-��-��-��

S2FT

Body-Solid S2FTX Series 2 Functional Trainer

Product's Documents

Product Manual

Specifications

Body-Solid S2FTX Questions and Answers

Related Products

Body-Solid BFFT10B Functional Trainer

Body-Solid GFT100 Functional Trainer

Body-Solid PFT-100 PFT100 Dual Stack Functional Trainer

Body-Solid S2FT/2 Pro Clubline Series II Functional Trainer S2FT2

Body-Solid BFFT10B Functional Trainer

Body-Solid GFT100 Functional Trainer
