Ver. PFT100-20230116
Owner’s Manual
WWW.BODYSOLID.COM
PFT100
FUNCTIONAL TRAINER
2

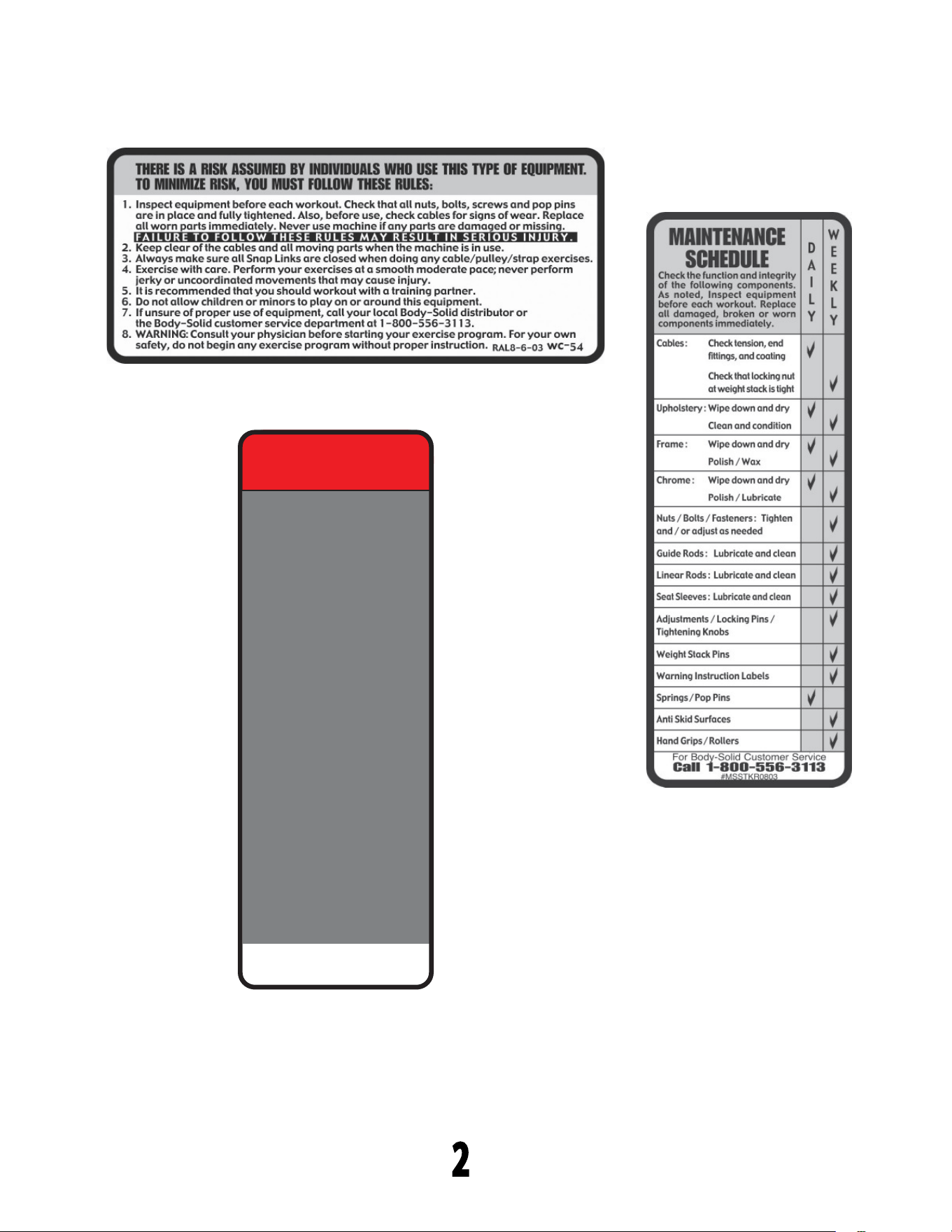

WARNING
Safety and Maintenance
of Cables
IMPORTANT: Cables are
wear items. It is your
responsibility to prevent
unexpected breakage.
Cable inspection should
be performed daily.
Inspect all cables, the
nylon coating on all
cables, and the area
near the fitting at each
end of each cable.
Replace any damaged or
worn cable immediately.
Do not allow the machine
to be used until damaged
or worn cables are
replaced. Using or allowing
a machine to be used
with a suspect cable can
result in serious injury. See
Owner’s Manual for more
information.
For Body-Solid Customer Service
Call 1-800-556-3113
#DWRULE-4
#DWRULE-4
3
PFT100
TABLE OF CONTENTS
• SAFETY INSTRUCTIONS.......................................................
• PREPARATION.........................................................................
• PART/HARDWARE LIST........................................................
• HARDWARE ILLUSTRATION...............................................
• ASSEMBLY INSTRUCTIONS................................................

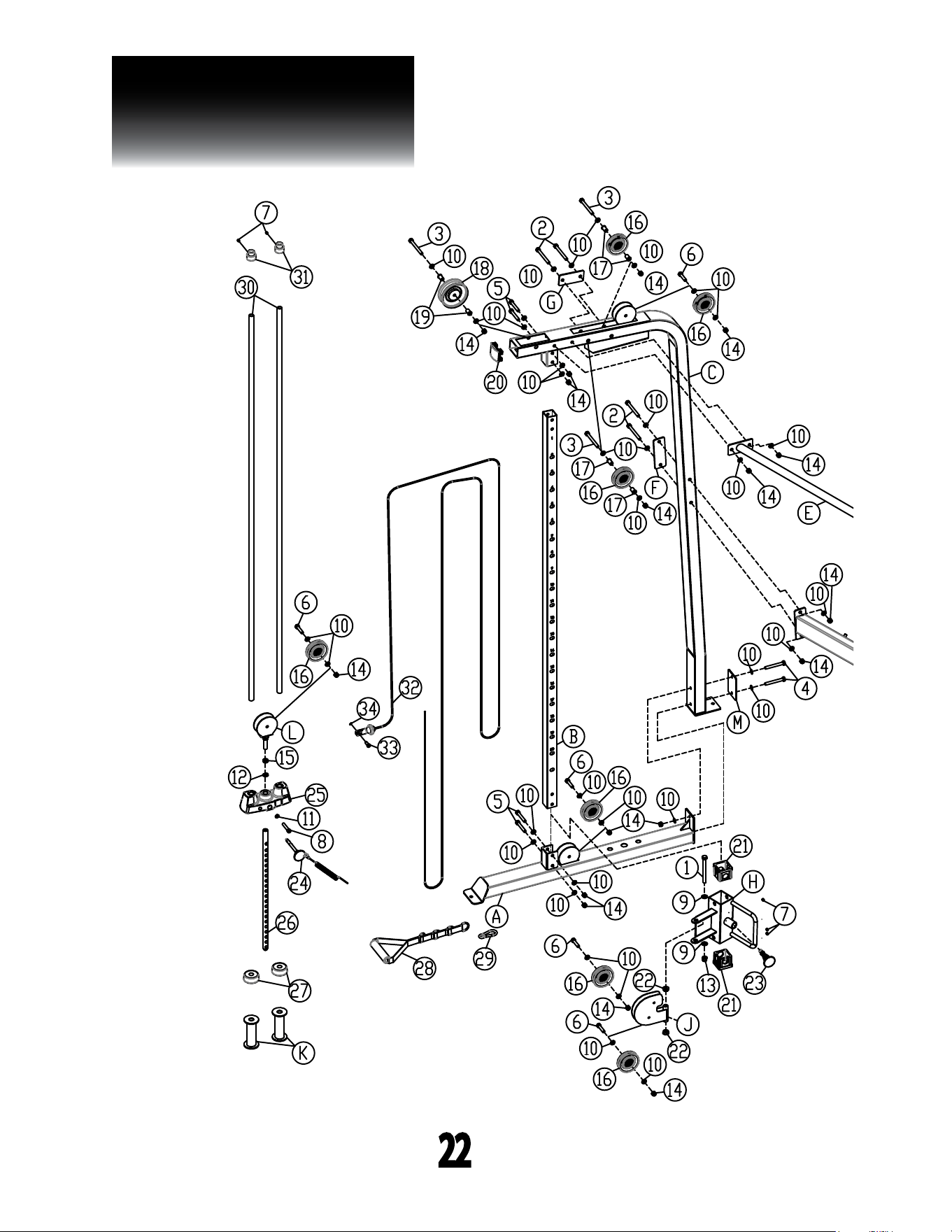

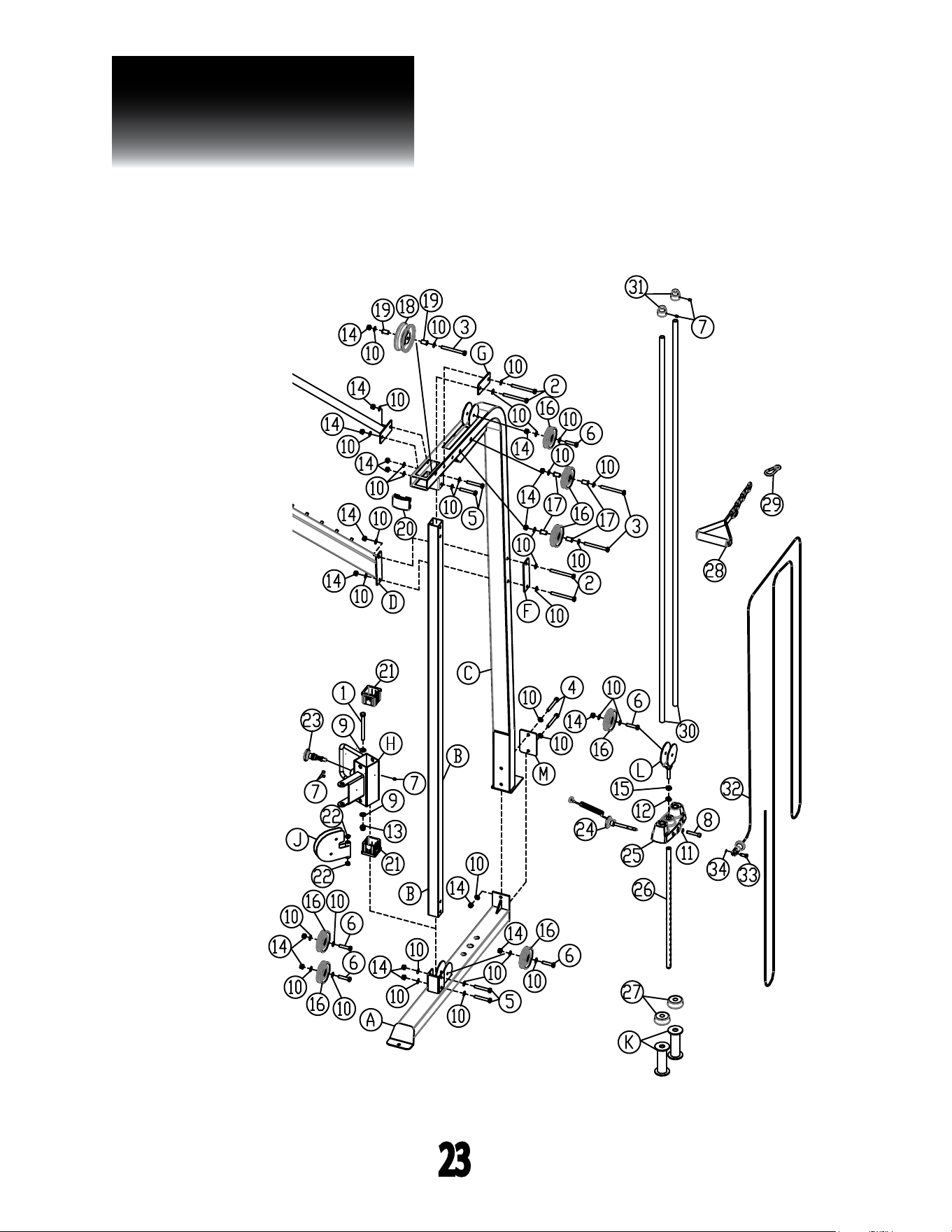

• EXPLODED VIEW...................................................................
• CONTACT PAGE.....................................................................
PAGE 4
PAGE 5
PAGE 6
PAGE 8
PAGE 12
PAGE 22
PAGE 16
4
PFT100
SAFETY INSTRUCTIONS
When using exercise equipment,
you should always take basic
precautions including the
following:
• ReadallinstructionsbeforeusingthePFT100.These
instructionsarewrittentoensureyoursafetyandto
protecttheunit.
• Donotremoveanysafetylabelsfromthe
machine.
• Donotallowchildrenonorneartheequipment.
• Usetheequipmentonlyforitsintendedpurpose
asdescribedinthisguide.Donotuseaccessory
attachmentsthatarenotrecommendedbythe
manufacturer.Suchattachmentsmightcauseserious
injuries.
• Wearproperexcerciseclothingandshoesforyour
workout,nolooseclothing.
• Keephands,limbs,looseclothing,andlonghairwell
outofthewayofallmovingparts
• Usecarewhengettingonorofftheunit.
• Donooverexertyourselforworktoexhaustion.
• Ifyoufeelanypainorabnormalsymptoms,stopyour
workoutimmediatelyandconsultyourphysician.
• Neveroperateunitwhenithasbeendroppedor
damaged.Returntheequipmenttoaservicecenter
forexaminationandrepair.
• Neverdroporinsertobjectsintoanyopeninginthe
equipment.
• Alwayschecktheunitanditscablesbeforeeachuse.
Makesurethatallfastenersandcablesaresecure
andingoodworkingcondition.
• Donotusetheequipmentoutdoorsornearwater.
Personal Safety During Assembly
• Beforebeginningassembly,pleasetakethetimeto
readtheinstructionsthoroughly.
• Readeachstepintheassemblyinstructionsand
followthestepsinsequence.Donotskipahead.If
youskipahead,youmaylearnlaterthatyouhave
todisassemblecomponentsandthatyoumayhave
damagedtheequipment
• AssembleandoperatethePFT100onasolid,level
surface.Locatetheunitafewfeetfromthewallsor
furnituretoprovideeasyaccess.
ThePFT100isdesignedforyourenjoyment.By
followingtheseprecautionsandusingcommonsense,
youwillhavemanysafeandpleasurablehoursof
healthfulexercisewithyourPowerlineFunctional
Trainer.
Afterassembly,youshouldcheckallfunctionsto
ensurecorrectoperation.Ifyouexperienceproblems,
rstrechecktheassemblyinstructionstolocateany
possibleerrorsmadeduringassembly.Ifyouare
unabletocorrecttheproblem,callthedealerfrom
whomyoupurchasedthemachineorcall1-800-556-
3113forthedealernearestyou.
Obtaining Service
PleaseusethisOwner’sManualtomakesurethat
allpartshavebeenincludedinyourshipment.When
orderingparts,youmustusethepartnumberand
descriptionfromthisOwner’sManual.Useonly
PowerlinebyBodySolidreplacementpartswhen
servicingthismachine.Failuretodosowillvoidyour
warrantyandcouldresultinpersonalinjury.
Forinformationaboutproductoperationor
service,checkouttheofcialPowerlinewebsite
atwww.bodysolid.comorcontactanauthorized
PowerlinedealeroraPowerlinefactory-authorized
servicecompanyorcontactBody-Solidcustomer
serviceatoneofthefollowing:
TollFree:1-800-556-3113
Phone: 1-708-427-3555
Fax: 1-708-427-3556
Email: [email protected]
Orwriteto:Body-Solid,Inc.
ServiceDepartment
1900S.DesPlainesAve.
ForestPark,IL60130USA
Retain this Owner’s Manual for
furture reference. Part numbers
are required when ordering parts.
PFT100
PREPARATION
Required tools
Thebasictoolsthatyoumustobtainbeforeassembling
thePFT100includebutarenotlimitto:
•StandardWrenchSet
•MetricWrenchSet
•AdjustableWrench
•Standard/MetricAllenKeySet
Installation Requirements
Followtheseinstallationrequirementswhenassembling
thePFT100:
SetupthePFT100onasolid,atsurface.Asmooth,at
surfaceunderthemachinehelpskeepitlevel.
Provideamplespacearoundthemachine.Openspace
aroundthemachineallowsforeasieraccess.
Foraestheticpurposes,insertallboltsinthesame
directionunlessspecied(intextorillustrations)todo
otherwise.
Leaveroomforadjustments.Tightenfastenerssuchas
bolts,nuts,andscrewssotheunitisstable,butleave
roomforadjustments.Donotfullytightenfastenersuntil
instructedintheassemblystepstodoso.
Filloutandmailthewarrantycard.
Ordering Replacement Parts
Ifyouneedtoorderreplacementpartspleasebe
preparedtoprovidethefollowinginformation
whencontactingussothatwecanassistyoubetter.
1.ModelNumber
2.PlaceofPurchase
3.SerialNumber(S/N)
4.Part#andDescription
Assembly Tips
Readall“Notes”oneachpagebeforebeginningeachstep.
WhileyoumaybeabletoassemblethePFT100usingthe
illustrationsonly,importantsafetynotesandothertipsmaybe
includedinthetext.
Somepiecesmayhaveextraholesthatyouwillnotuse.Use
onlythoseholesindicatedintheinstructionsandillustrations.
NOTE: Withsomanyassembledparts,proper
alignmentandadjustmentiscritical.While
tighteningthenutsandbolts,besuretoleave
roomforadjustments.
NOTE: Thebottlesthataremarked“Poison”isyour
touchuppaint.Keepawayfromchildren.
CAUTION:Obtainassistance!Ifyoufeellikeyoucan’t
assemblethePFT100byyourselfthendo
notattempttodosoasthiscouldresultin
injury.ReviewtheInstallationRequirements
beforeproceedingwiththefollowingsteps.
5
↑

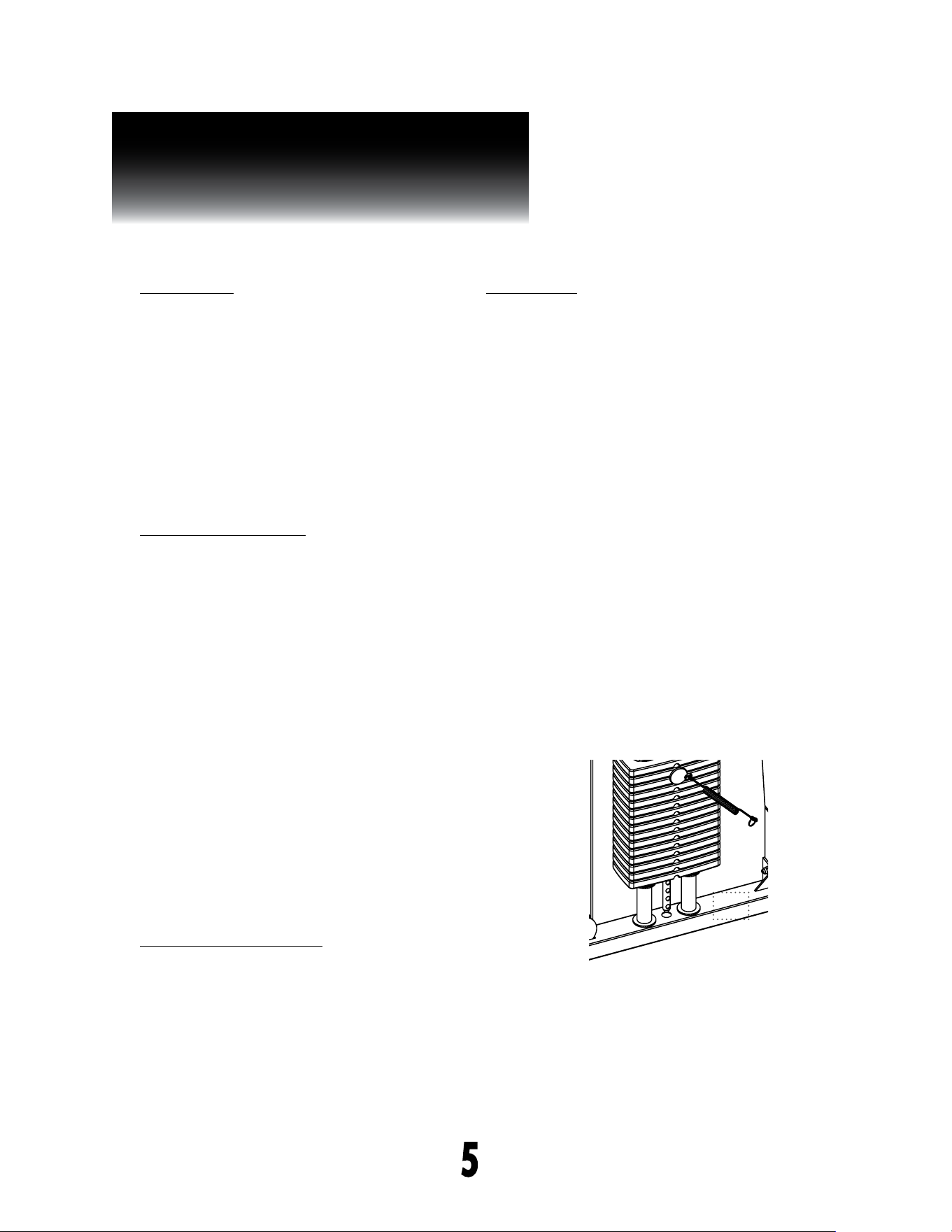

YOUR S/N # CAN
BE FOUND HERE
PFT100
PART LIST
6
Part #
A
B
C
D
E
F
G
H
J
K
L
M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
QTY
2
2
2
1
1
2
2
2
2
4
2
2
2
8
6
4
8
10
10
2
4
70
1
2
2
34
2
14
8
2
4
DESCRIPTION
BASE FRAME
CHROME UPRIGHT
REAR UPRIGHT
CENTER CROSSMEMBER
CHIN UP BAR
STEEL BRACKET
STEEL BRACKET
HANDLE
DOUBLE PULLEY HOLDER
WEIGHT RISER
PULLEY BRACKET
STEEL BRACKET
HEX HEAD BOLT, M12x105mm
HEX HEAD BOLT, M10x100mm
HEX HEAD BOLT, M10x95mm
HEX HEAD BOLT, M10x75mm
HEX HEAD BOLT, M10x65mm
HEX HEAD BOLT, M10x45mm
SET SCREW, M8x10mm
SOCKET HEAD CAP SCREW,
3/8”x2.0”
FLAT WASHER, M12
FLAT WASHER, M10
LOCK WASHER, 3/8”
LOCK WASHER, 1/2”
NYLON LOCK NUT, M12
NYLON LOCK NUT, M10
NUT, 1/2”
PULLEY, 3.5”
SPACER, ø16x ø10x28mm
V GROOVED PULLEY
SPACER, ø16x ø10x14mm
PFT100
PART LIST
7
Part #
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
QTY
2
4
4
2
2
2
2
4
2
2
4
4
2
2
2
DESCRIPTION
PLASTIC END CAP, 75x50mm
NYLON BUSHING, 60x60mm
BUSHING, , ø21.5x ø12x14mm
POP PIN
WEIGHT STACK PIN
TOP PLATE
SELECTOR ROD
RUBBER DONUT
HANDLE STRAP
SNAP LINK
CHROME GUIDE ROD
COLLAR
CABLE, 7700mm
PIN
RETAINING RING

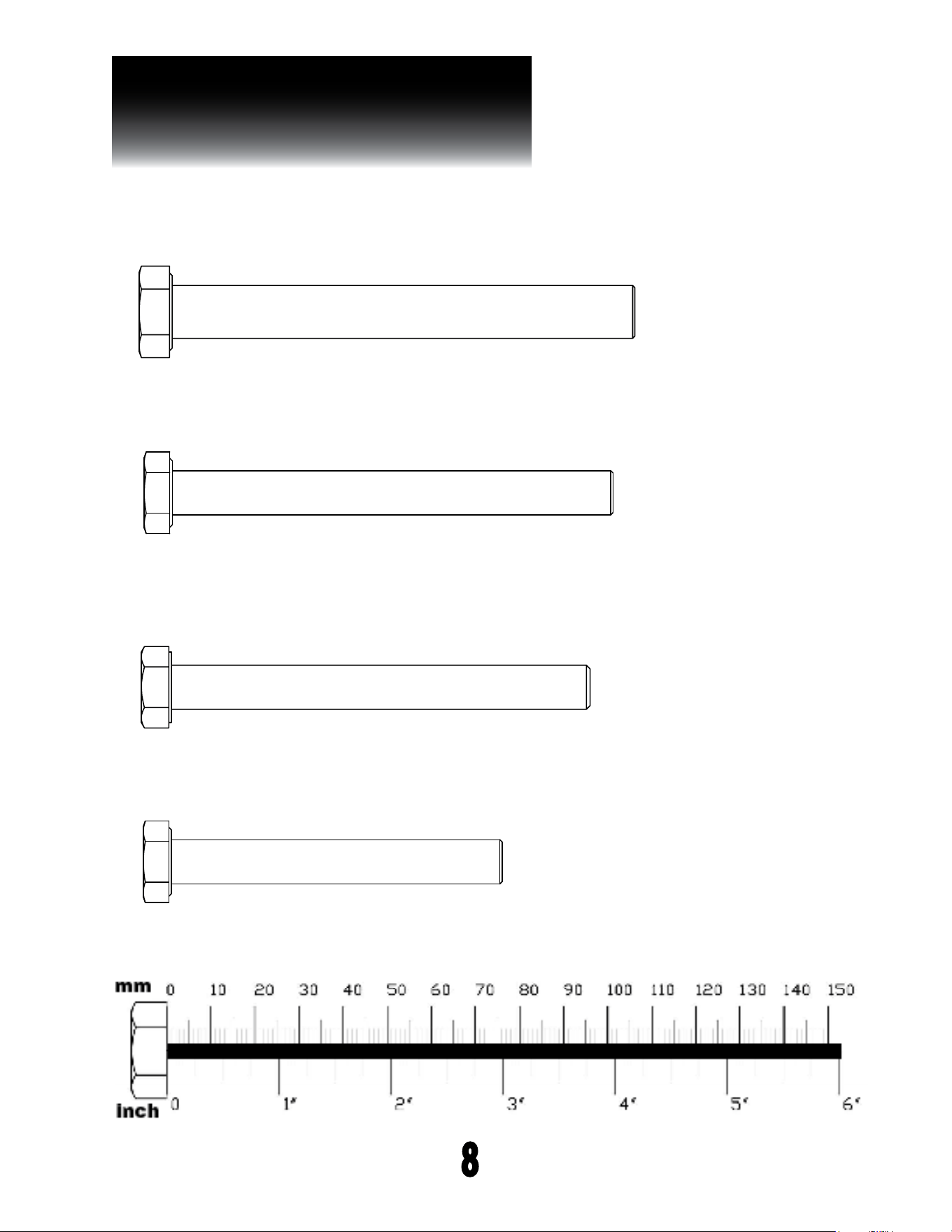

PFT100
HARDWARE ILLUSTRATION
8
Part #3 M10X95mm hex head bolt QTY. 6
Part #2 M10X100mm hex head bolt QTY. 8
Part #1 M12x105mm hex head bolt QTY. 2
Part #4 M10X75mm hex head bolt QTY. 4
Part #5 M10X65mm hex head bolt QTY. 8
Part #6 M10x45mm hex head bolt QTY. 10
9

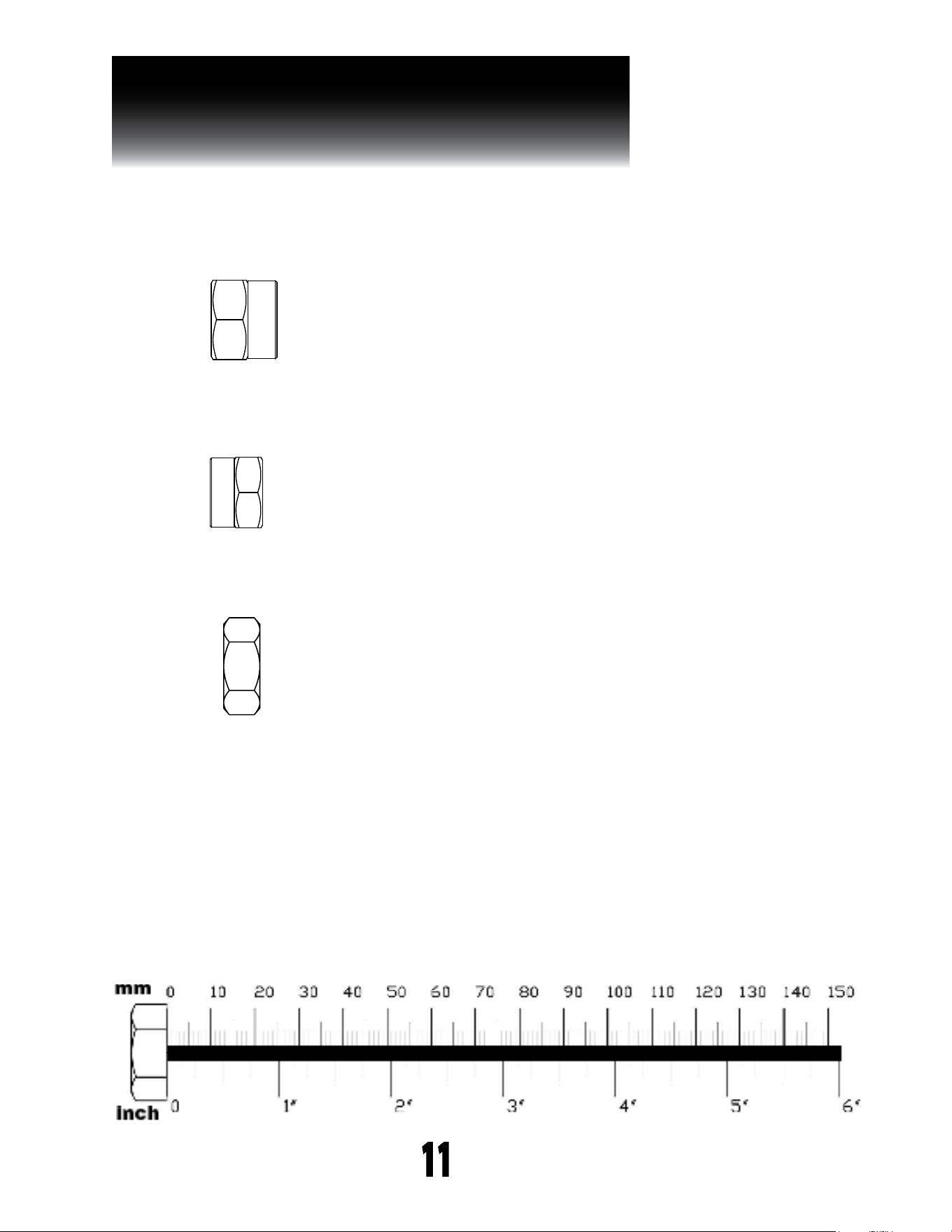

PFT100

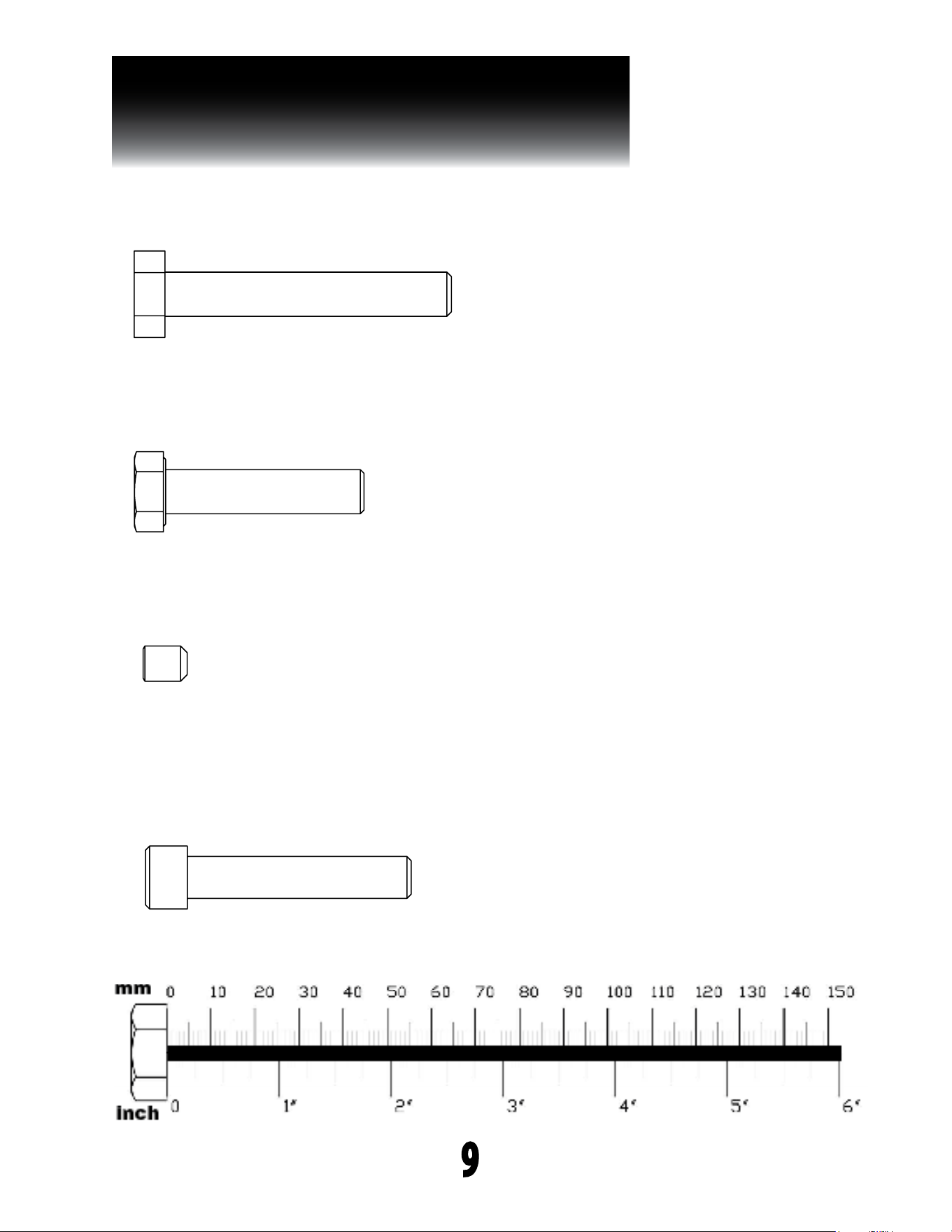

HARDWARE ILLUSTRATION CONT.
Part #7 M8x10mm SET SCREW QTY. 10
Part #8 3/8”X2.0” SOCKET HEAD CAP SCREW QTY. 2
(PRE-INSTALLED)
10
PFT100

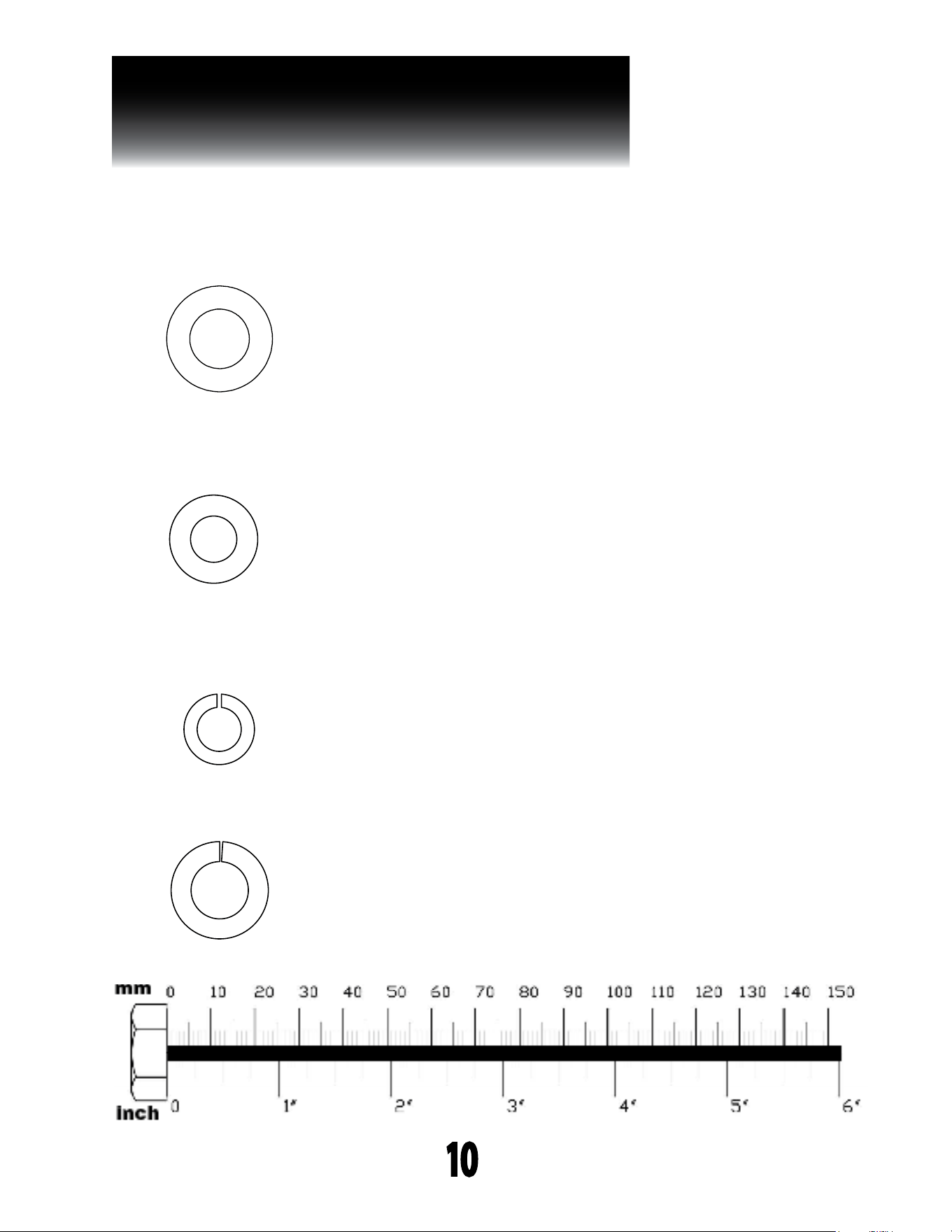

HARDWARE ILLUSTRATION CONT.
Part #10 M10 FLAT WASHER QTY. 70
Part #11 3/8” LOCK WASHER QTY. 1
(PRE-INSTALLED)
Part #12 1/2” LOCK WASHER QTY. 2
Part #9 M12 FLAT WASHER QTY. 4
11
PFT100
HARDWARE ILLUSTRATION CONT.
Part #14 M10 NYLON LOCK NUT QTY. 34
Part #15 1/2” NUT QTY. q
Part #13 M12 NYLON LOCK NUT QTY. 2
PFT100
STEP 1
BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE
THAT THEY ARE PRESENTED.
NOTE:
Finger tighten all hardware in this step. DO NOT wrench tighten until the last step.
some components may be pre-assembled. Nylon lock nuts will not fully screw onto
bolts, must wrench tighten.
RIGHT SIDE ASSEMBLY
1A. Insert handle (H) onto chrome upright (B)
1B. Attach chrome upright (B) to base frame (A) using:
2 - (#5) m10x65mm hex head bolt
4 - (#10) m10 at washer
2 - (#14) m10 nylon lock nut
1C. Attach rear upright (C) to base frame (A) using:
2 - (#4) m10x75mm hex head bolt
3 - (#10) m10 at washer
1 - (#14) m10 nylon lock nut
1 - (M) steel bracket
1D. Attach chrome upright (B) to back upright (C) using:
2 - (#5) m10x65mm hex head bolt
4 - (#10) m10 at washer
2 - (#14) m10 nylon lock nut
12

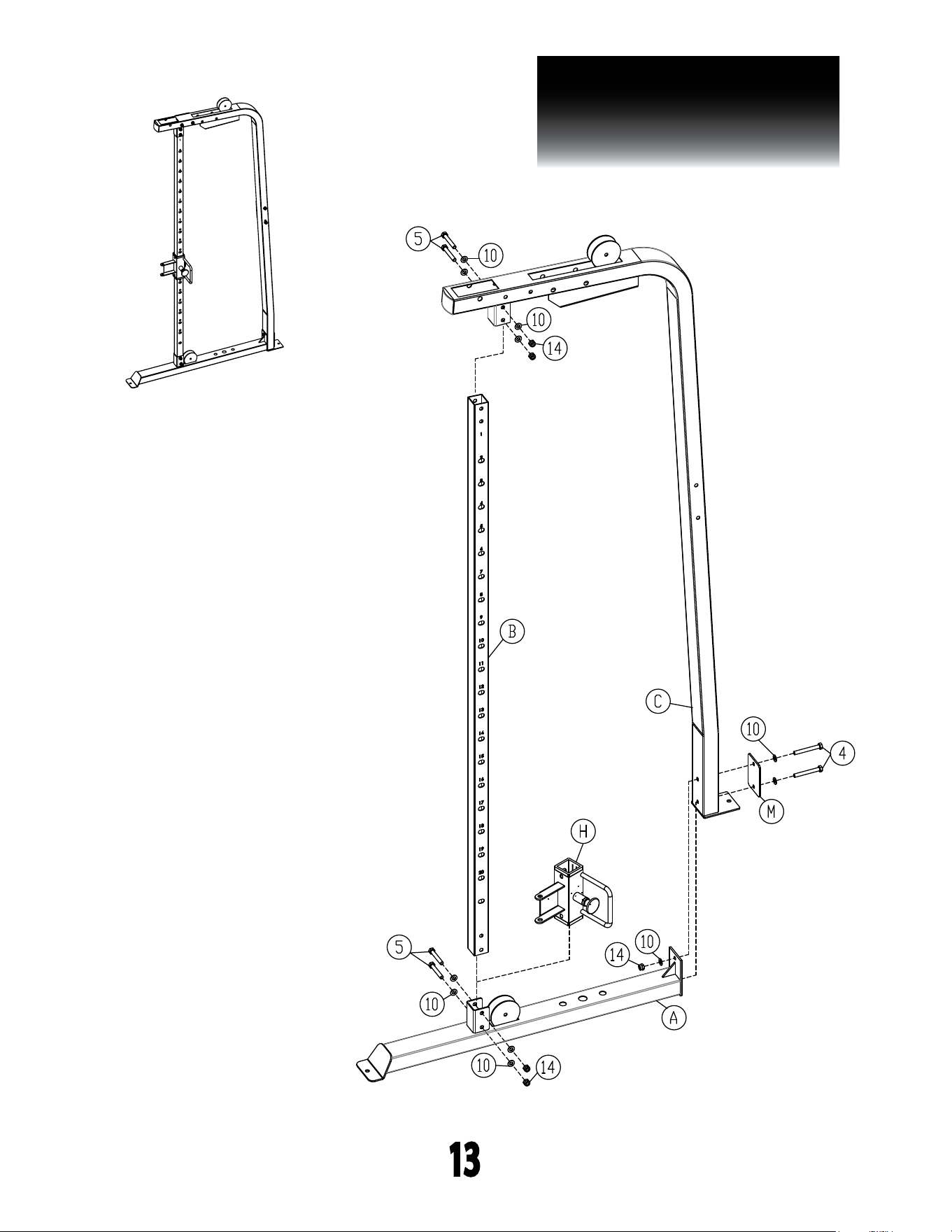

PFT100
STEP 1
13
Above shows step 1 assembled
and completed
PFT100
STEP 2
BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE THAT
THEY ARE PRESENTED.
NOTE:
Finger tighten all hardware in this step. DO NOT wrench tighten until the last step.
some components may be pre-assembled. Nylon lock nuts will not fully screw onto
bolts, must wrench tighten.
LEFT SIDE ASSEMBLY
2A. Insert handle (H) onto chrome upright (B)
2B. Attach chrome upright (B) to base frame (A) using:
2 - (#5) m10x65mm hex head bolt
4 - (#10) m10 at washer
2 - (#14) m10 nylon lock nut
2C. Attach rear upright (C) to base frame (A) using:
2 - (#4) m10x75mm hex head bolt
3 - (#10) m10 at washer
1 - (#14) m10 nylon lock nut
1 - (M) steel bracket
2D. Attach chrome upright (B) to rear upright (C) using:
2 - (#5) m10x65mm hex head bolt
4 - (#10) m10 at washer
2 - (#14) m10 nylon lock nut
14

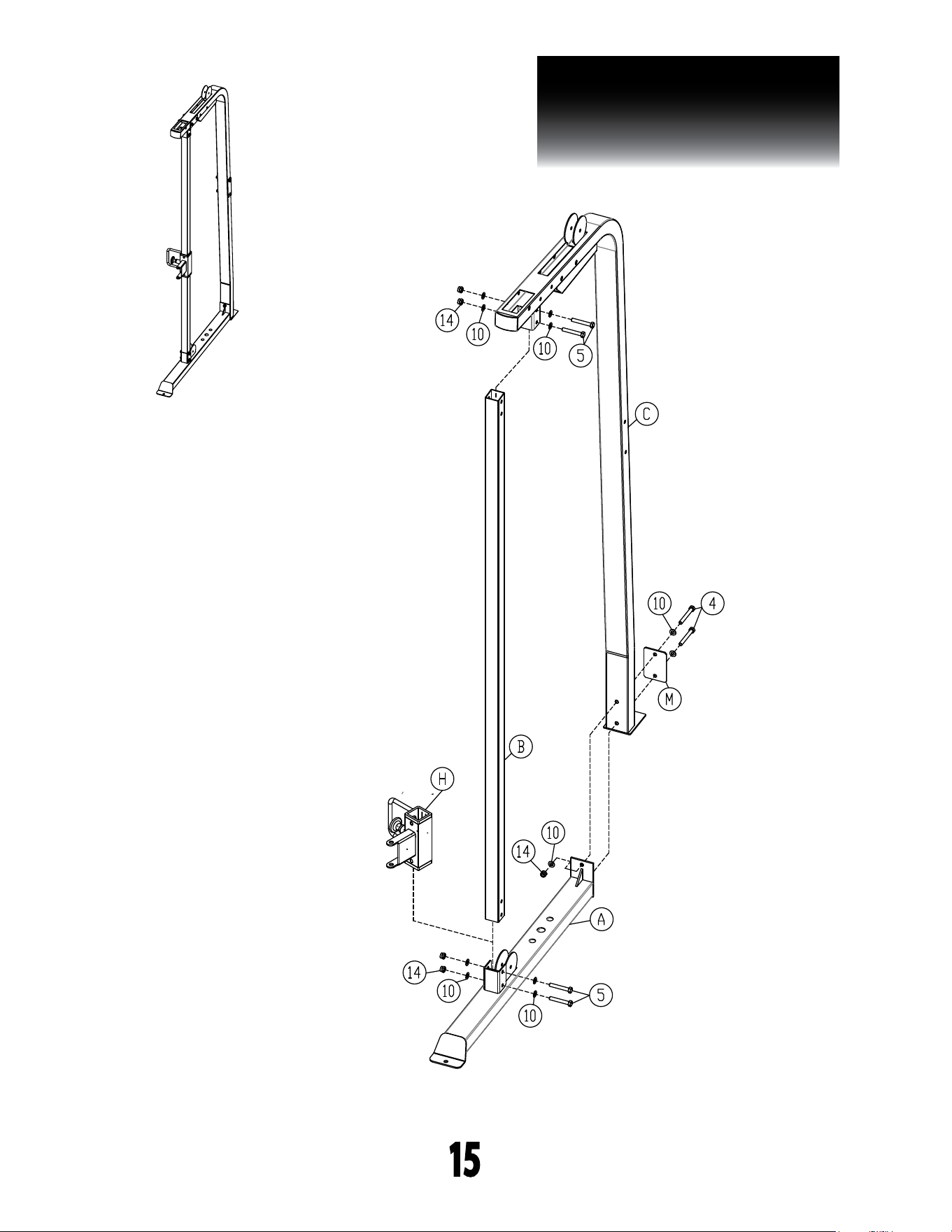

PFT100
STEP 2
15
Above shows step 2 assembled
and completed
PFT100
STEP 3
BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE THAT
THEY ARE PRESENTED.
NOTE:
Finger tighten all hardware in this step. DO NOT wrench tighten until the last step.
some components may be pre-assembled. Nylon lock nuts will not fully screw onto
bolts, must wrench tighten.

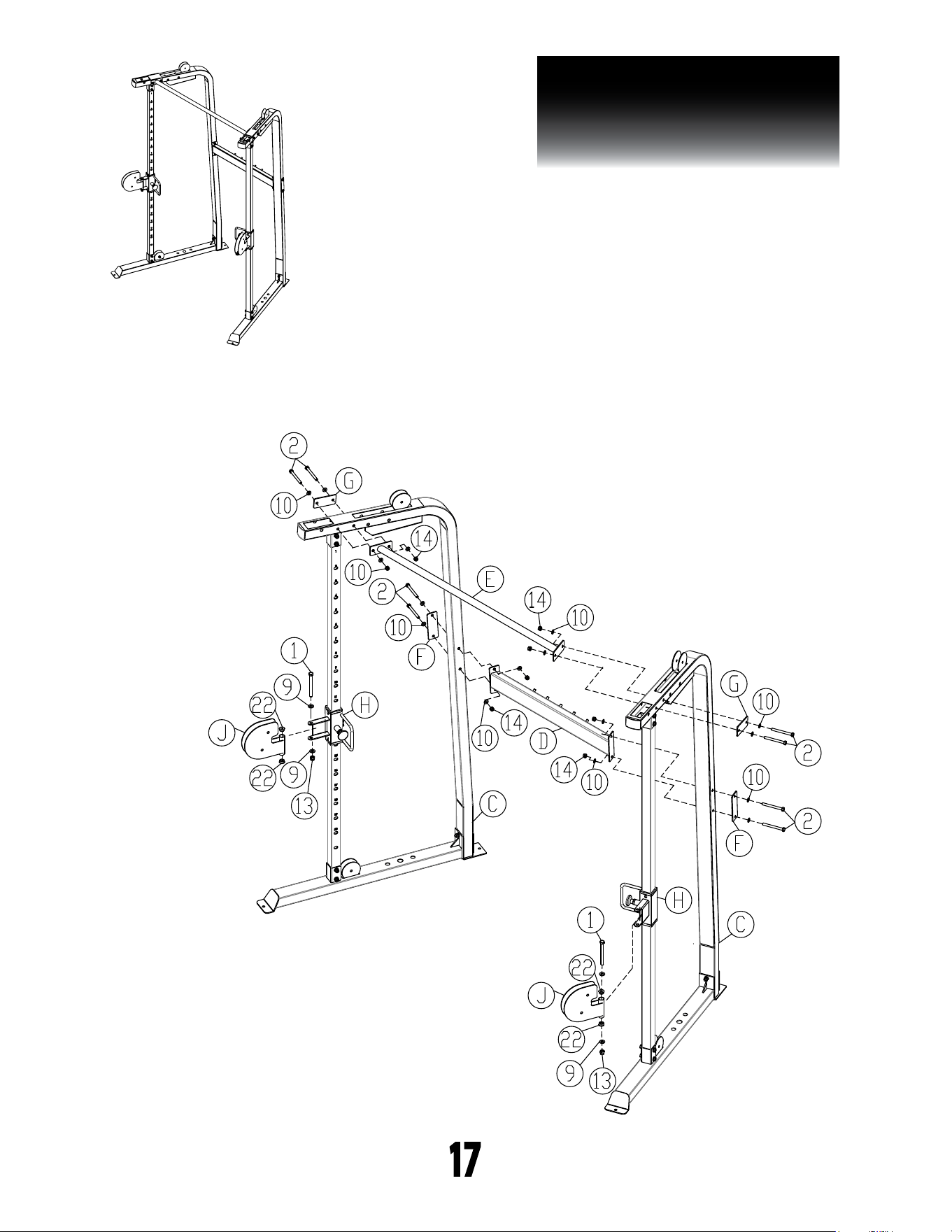

3A. Attach rear uprights (C) to center crossmember (D)
using:
4 - (#2) m10x100mm hex head bolt
8 - (#10) m10 at washer
4 - (#14) m10 nylon lock nut
2 - (F) steel bracket
3B. Attach rear uprights (C) to chin up bar (E) using:
4 - (#2) m10x100mm hex head bolt
8 - (#10) m10 at washer
4 - (#14) m10 nylon lock nut
2 - (G) steel bracket
3C. Attach double pulley holders (J) to handles (H) using:
2 - (#1) m12x105mm hex head bolt
4 - (#9) m12 at washer
2 - (#13) m12 nylon lock nut
4 - (#22) bushing, ø21.5x ø12x14mm
16
PFT100
STEP 3
17
Above shows step 3 assembled
and completed
PFT100
STEP 4
BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE THAT
THEY ARE PRESENTED.
NOTE:
Some components may be pre-assembled. nylon lock nuts will not fully
screw onto bolts, must wrench tighten.
4A. Install Chrome Guide Rods (#30) into the holes of base frame (A).
4B. Install Weight Risers (K) & Rubber Donuts (#27) and slide to the
bottom of the Guide Rods (#30)
Important Notes: If 20pcs of weight plates are to be installed, do not
install Weight Risers (K)
4C. Tilt Guide Rods (#30) away from Base Frame (A) and install 15pcs
weight plates (#35).
4D. Install Top Plate & Selector Rod Assembly (#25) onto the Guide
Rods (A) .
4E. Install Weight Stack Pin (#24) using the key ring end through the
Pulley Bracket (L).
4F. Install 1/2” Hex Nut (#15), 1/2” Lock Washer (#12) and Pulley
Bracket (L) onto the Top Plate (#25) .
4G. Install two Collars (#31) onto the Guide Rods (#30)
4H. Slide Collars (#31) upward into the Rear Upright (C) so they lock
the guide rods into position by tightening the M8x10mm Set
18

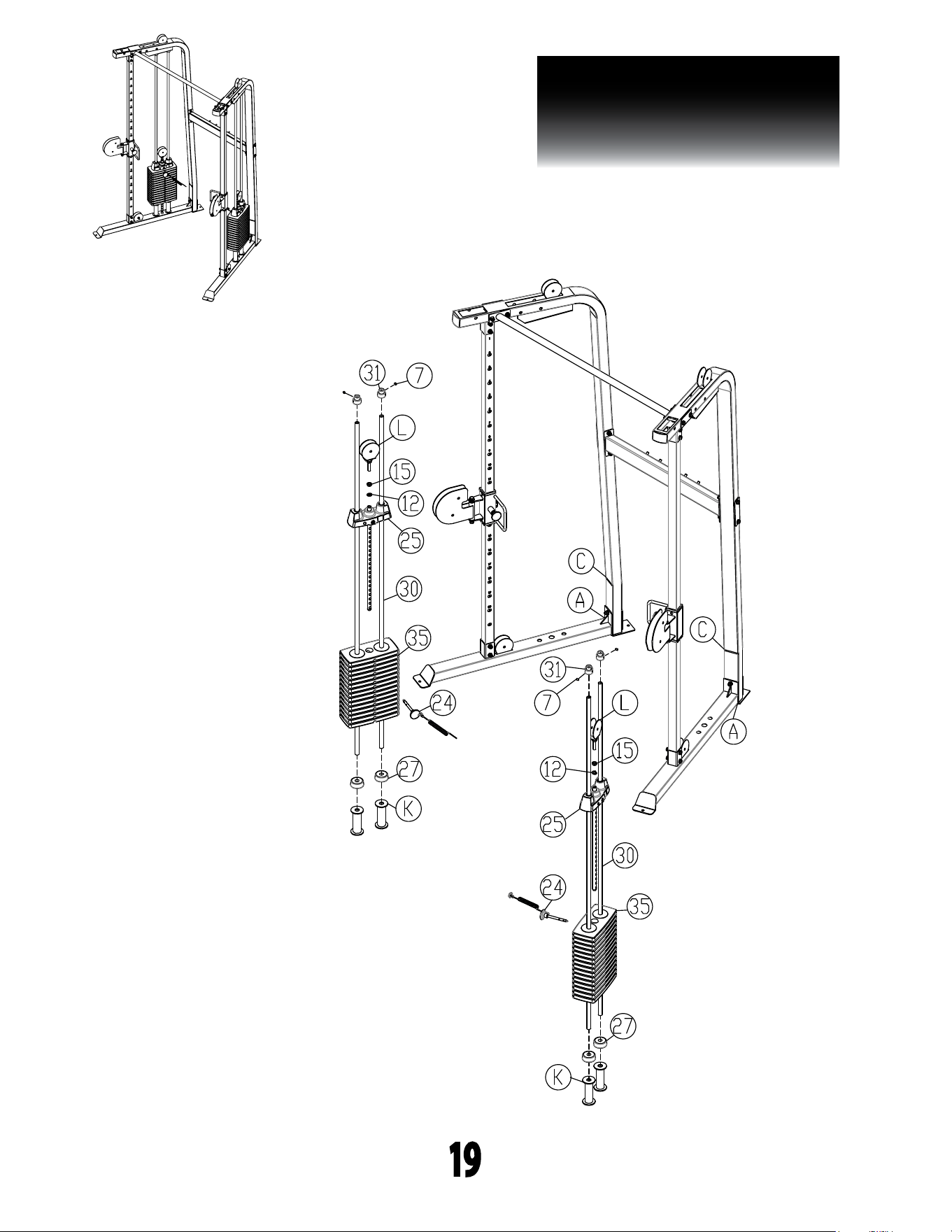

PFT100
STEP 4
19
Above shows step 4 assembled
and completed

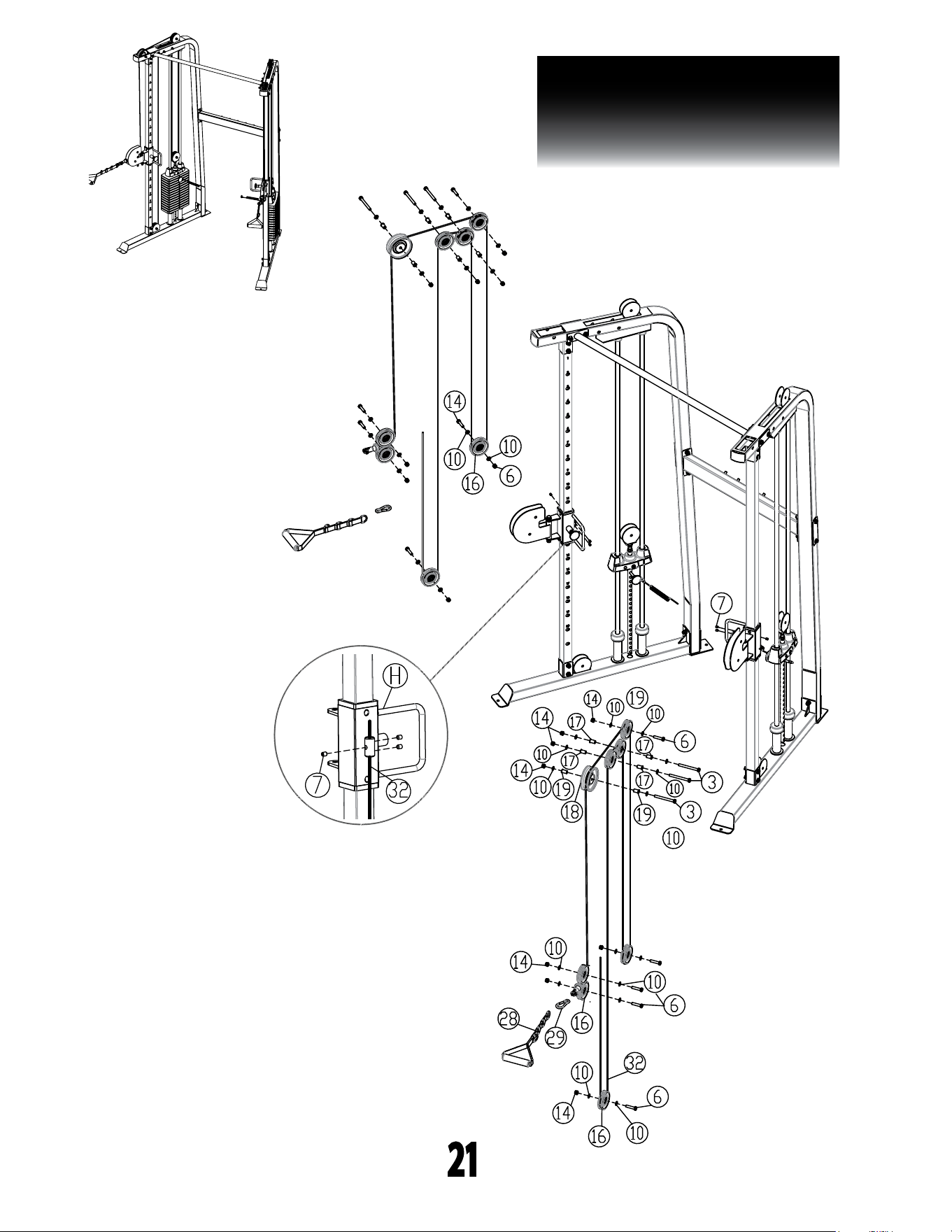

PFT100
STEP 5
BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE SEQUENCE THAT
THEY ARE PRESENTED.
NOTE:
Some components may be pre-assembled. nylon lock nuts will not fully
screw onto bolts, must wrench tighten.
5A. Install one v grooved pulley (#18) and seven 3.5” pulleys (#16) left side of the
machine as shown in step 5 drawing using:
5 - (#6) m10x45mm hex head bolt
3 - (#3) m10x95mm hex head bolt
16 - (#10) m10 at washer
8 - (#14) m10 nylon lock nut
4 - (#17) bushing, ø16x ø10x28mm
2 - (#19) bushing, ø16x ø10x14mm
5B. Route cable (#32) as shown in step 5 drawing.
NOTE: Cable (#32) needs to be stripped before inserting it into the hole on the
back of the handle (H).
5C. Once the cable (#32) is stripped and inserted into thehole on the back of
handle (H), wrench tighten the three m8x10mm set screws (#7) to secure
the cable (#32).
5D. Attach snap link (#29) & strap handle (#28) to the Cable (#32).
5E. Repeat the same steps (5A, 5B, 5C, 5D) on the other side of the machine.
20
PFT100
STEP 5
21
Above shows step 5 assembled
and completed
22
PFT100
EXPLODED VIEW
PFT100
EXPLODED VIEW
23
PFT100
S/N # 013964-��-��-����-����
please write your serial number in the boxes below
1900 S. Des Plaines Ave.
Forest Park, IL 60130
Phone:(708)427-3555
Fax:(708)427-3556
Hours: M-F 8:30 - 5:00 CST
