user manual
electrolux en:tice barbecue
EQBM60AS and EQBM90AS
2 contents electrolux en:tice barbecue
environmental tip
Information on disposal for users
• Most of the packing materials are recyclable. Please
dispose of those materials through your local recycling
depot or by placing them in appropriate collection
containers.
• If you wish to discard this product, please contact your
local authorities and ask for the correct method of disposal.
Congratulations
Congratulations and thank you for choosing our Electrolux
En:tice barbecue. We are sure you will nd your new
barbecue a pleasure to use. Before you use the barbecue,
we recommend that you read through the entire user
manual, which provides the description of the barbecue
and its functions.
To avoid the risks that are always present when you use
a gas appliance, it is important that it is installed correctly
and that you read the safety instructions carefully to avoid
misuse and hazards.
We recommend that you keep this instruction booklet
for future reference and pass it on to any future owners.
After unpacking the barbecue please check it is not
damaged. If in doubt, do not use the appliance but
contact your local Electrolux Customer Care Centre
Conditional Use
This appliance is intended to be used in household and
similar applications such as:
- Farm Houses
- By clients in holiday apartments and other residential
type environments
Contents
•Importantsafetyinstructions3
•ElectroluxEn:ticebarbecueEQBM90AS4
•ElectroluxEn:ticebarbecueEQBM60AS6
•Barbecueparts8
•Unpackingthebarbecue9
•Assemblingthebarbecue10
•Gasspecications20
•Gasbottlesafetyinformation20
•Gasbottleinstallation20
•Leaktestprocedure(UniversalLPG)20
•ConversiontoNaturalGas21
•Choosingalocation22
•Installationwarnings22
•Activatingthewheelbrake23
•Optionsforcongurationofhotplatesandgrills23
•Operatinginstructions23
•Usingtheroastinghood24
•Usingthesidetable24
•Cleaningandcare25
•Maintenance25
•Troubleshooting26
•Accessories26
•Warranty27
electrolux en:tice barbecue important safety instructions 3
Please read the user manual carefully and store in a handy
place for later reference.
Meanings of the symbols used in this manual are shown below:
warning
Thissymbolindicatesinformationconcerningyour
personalsafety
caution
Thissymbolindicatesinformationonhowtoavoid
damagingtheappliance
tips and information
Thissymbolindicatestipsandinformationaboutuse
oftheappliance
environmental tip
Thissymbolindicatestipsandinformationabout
economicalandecologicaluseoftheappliance
Thissymbolindicatesnevertodothis
Foryoursafetypleasereadthisbookbefore
operatingyourbarbecue.
warning
Improperinstallation,adjustment,alterationor
maintenancecancauseinjuryorpropertydamage.
NOTETOTHEINSTALLER
THIS MANUAL MUST REMAIN WITH THE OWNER
FOR FUTURE REFERENCE
Important safety instructions
warning
IFYOUSMELLGAS,donotattempttolightthe
barbecue.Locatetheleakandre-tightentheleaking
joint.CarryouttheLeakTestprocedureasdescribedin
thismanual.Iftheleakpersists,turnoffthegassupply
andcallElectroluxServiceoraLicensedGasFitter.
warning
Donotleanoverbarbecuewhenlighting.
Donotleavethebarbecueunattendedwhenalight.
Donotdelaylightingoncethegashasbeenturnedon.
Donotstoreoruseaerosolcansinthevicinityof
thebarbecue.
Donotstoreammableliquidsinthevicinityof
thebarbecue.
Donotusecausticorabrasivebasedcleanerson
thebarbecue.
Donotoperatewithoptionalweatherproof
covertted.
Donotattempttodismantleoradjustthe
controlvalves.
Donotattempttodismantleoradjusttheregulator.
Donottestforleakswithanakedame.
Donotmodifytheconstructionofthisappliance
ormodifytheinjectororicesize.
Donotobstructanyventilationofthebarbecue.
Donotallowchildrentooperateorplaynear
thebarbecue.
caution
ThisbarbecueissuppliedsetupforUniversalLPG
andislabelledaccordingly.UniversalLPGlabel
locatedinsidebarbecuecabinetontheRHside
panel.ANaturalGasconversionkitisavailablefor
purchasefromElectroluxServiceorSpareParts.
ConversionofthisunittoNaturalGasmustbecarried
outbyaqualiedlicensedpersonandaCerticate
ofCompliancemustbeissuedtotheowneron
completionoftheinstallationandconversion.
4 EQBM90AS description electrolux en:tice barbecue
Electrolux En:tice barbecue EQBM90AS
1Roasting hood
2 Temperature indicator
3 Burner controls
4 Swivel wheels with brake
5 Swivel wheels (not illustrated)
6 Gas bottle well
7 Storage compartment
8 Fold down side table
3
1
10
12
13
8
7
11
2
9
6
4
9 Grill
10 Hotplate
11 Warming racks
12 Gas connection point
13 Gas hose with universal LPG connection
14 Match holder for manual lighting (not illustrated)
15 Removable oil reservoirs located at front of cooking
surface (not illustrated)
electrolux en:tice barbecue EQBM90AS dimensions 5
Dimensions EQBM90AS
581mm
202mm
539mm
924mm
1080mm
1169mm
700mm
966mm
Weight86kg
Electrolux En:tice barbecue EQBM60AS
1Roasting hood
2 Temperature indicator
3 Burner controls
4 Swivel wheels with brake
5 Swivel wheels (not illustrated)
6 Gas bottle well
7 Fold down side table
8 Grill
3
1
9
14
10
11
7
2
8
6
4
9 Hotplate
10 Gas connection point
11 Gas hose with universal LPG connection
12 Match holder for manual lighting (not illustrated)
13 Removable oil reservoirs located at front of cooking
surface (not illustrated)
14 Wire warming rack
6 EQBM60AS description electrolux en:tice barbecue
Dimensions EQBM60AS
581mm
636mm
792mm
700mm
1169mm
966mm
202mm
539mm
electrolux en:tice barbecue EQBM60AS dimensions 7
Weight70kg
8 EQBM60AS/EQBM90AS parts electrolux en:tice barbecue
Electrolux En:tice barbecue parts
descriptionqty
Separation
panel
assembly
1
Rear panel 1
Upper rear
panel
1
Front control
panel
1
Burner box
& hood
assembly
1
Hotplate 1
Grills 2
Wire warming
rack (model
EQBM60AS)
1
descriptionqty
Base panel 1
Left side panel
assembly
1
Right side
panel
assembly
1
Left &
right door
assemblies
2
Wheel
assemblies
4
Blister pack
containing
screws,
washers,
door hinge
brackets and
control knobs
1
Warming
racks (model
EQBM90AS
only)
2
Tools you will need for assembly:
– Phillips head screwdriver
Contents of your barbecue pack:
electrolux en:tice barbecue unpacking the barbecue 9
caution
When removing the burner box and hood assembly
from the box, ensure that it is placed onto a support
such as the polystyrene packaging to prevent kinking
the exible gas hose.
Unpacking the barbecue
Polystyrene PackagingPolystyrene Packaging
Take care to prevent kinking of hose here
10 assembling the barbecue electrolux en:tice barbecue
1.Fitlowerhingebracketstobasepanel
2.Partiallyinstallscrewstobasepanel
DO NOT screw in fully
Assembling the barbecue
Lower hinge bracket
Base panel
Lower hinge bracket
Qty 4
Type 3 screw (M5 x 12)
Spring washer
Flat washer
Qty 2
Lower hinge bracket
Screw locations
Qty 3
Type 1 screw (M4 x 8)
Note: EQBM60AS only
requires 2 screws.
Base panel
electrolux en:tice barbecue assembling the barbecue 11
3.Fitleftupperdoorhingebracket
4.Partiallyinstallscrewstoleftsidepanelassembly
DO NOT screw in fully
Screw locations
Qty 7
Type 1 screw (M4 x 8)
Left side panel assembly
Left side panel assembly
Qty 2
Type 3 screw (M5 x 12)
Spring washer
Flat washer
Qty 1
Left upper door hinge bracket
Left upper door
hinge bracket
12 assembling the barbecue electrolux en:tice barbecue
5.Fitrightupperdoorhingebracket
6.Partiallyinstallscrewstorightsidepanelassembly
DO NOT screw in fully
Qty 2
Type 3 screw (M5 x 12)
Spring washer
Flat washer
Qty 1
Right upper door hinge bracket
Right side panel assembly
Right upper door
hinge bracket
Qty 7
Type 1 screw (M4 x 8)
Screw locations
Right side panel assembly
electrolux en:tice barbecue assembling the barbecue 13
7.Fitsidepanelstobasepanel
Slide base panel slots under screw heads
and tighten screws 4 places (2 each side)
8.Fitwheelandbracketassemblies
Right side panel
assembly
Base panel
Qty 8
Type 2 screw (M6 x 20)
Spring washer
Flat washer
Left side panel
assembly
All hinge brackets
this side up
Base panel secured by
2 screws each side
Qty 4
Type 2 screw (M6 x 20)
Door hinge brackets
this side up
Wheel assembly
with brake
Qty 2
Wheel assembly with brake
Qty 2
Wheel assembly without brake
14 assembling the barbecue electrolux en:tice barbecue
9.Fitrearpanel
Alight rear panel slots with screws and slide
rear panel slots under screw heads and tighten
screws 9 places (3 each side & 3 at bottom)
10.Fitupperrearpanel
Align upper rear panel slots at side with screws
and slide rear panel slots under screw heads
and tighten screws 4 places (2 each side)
DO NOT t screws to these
holes until next step
Rear panel
Upper rear panel
angled bend at top
electrolux en:tice barbecue assembling the barbecue 15
11.Fitseparationpanel
Lower separation panel into position. Sides of
separation panel rest on side panel and shoulders.
Align holes at rear with holes in rear panel,
and t 3 x type 1 screws
12.Fitburnerboxandhoodassembly-requires2people
A. Carefully lift the assembly (1 person each side) above the
base and lower into position. Ensure the trim panel ts
neatly over the top frame and the gas hose ts through
the slot in the separation panel. Do not t screws to
underside of separation panel at front until step 13.
Qty 3
Type 1 screw (M4 x 8)
Note: EQBM60AS only
requires 2 screws.
Side of panel rests on
shoulder of side panel
Screws tted to
holes at rear
Separation panel assembly
These panels facing up
Burner box and hood assembly
Ensure gas hose
located in panel slot
Cut out ts over top of
frame each corner
16 assembling the barbecue electrolux en:tice barbecue
B. Once in position, open the hood and align the side
burner box formed holes with the side brackets.
Fit 2 screws with bre washer each side.
13.Fitcontrolpanel
Fit the control panel in by locating the 3 tabs
(EQBM60AS only has 2 tabs) at top into slots. Ensure
that valve shafts locate through holes. Check the lower
tabs of control panel are below the separation panel.
Align the lower tab holes with those in the separation
panel and t screws in 2 places.
Qty 4
Type 3 screw (M5 x 12)
Fibre washer
Left side screw
locations
Right side screw
locations
Qty 2
Type 3 screw (M5 x 12)
Upper control panel tab to
be located into slots
location tab
Screw locations
electrolux en:tice barbecue assembling the barbecue 17
14.Fitdoors
Present the door perpendicular to the barbecue,
and locate the upper and lower pins of door to
support brackets. Repeat for other door.
Fit matcholder chain to inside of door with clip.
15.Controlknobs
Align the control knob with the valve shaft and push on.
NOTE: the hole and the shaft are not completely round,
having one side flat, these need to be aligned
Doors to be at 90° to
barbecue for assembly
Qty 4
Control knob
18 assembling the barbecue electrolux en:tice barbecue
16.Fitgreasecollectors
The collectors are already in correct location,
remove from plastic bag and relocate.
17.Fitgrills
The grills are to be placed in the correct orientation to
enable the grease to ow to the front grease collectors –
refer diagram for details.
Slots of grease collectors to be
placed over the location screws
Rear bracket locates
on top of burner box
Bracket at front located behind
barrier panel to prevent grill
from sliding forward.
Location
screws
Slots at rear of warmer
rack slide vertically into
retaining screws.
electrolux en:tice barbecue assembling the barbecue 19
Raised edge at rear
Drip edge at front
Form under front of plate
locates against front barrier
to prevent sliding forward
Forms under plate at rear locate
on rear of burner box to give
slope for grease drainage
Hot plate matches grill
when correctly installed
18.Fithotplate
The hot plate has forms underneath for location.
The rear forms lift the plate at rear to give slope for
grease drainage. The front forms are located behind
front barrier to prevent sliding forward. The plate slope
will match the grills when installed correctly.
19.Fitwarmerracks(modelEQBM90ASonly)
The warmer racks have slots in the rear bend
which slide over screws in splashback at rear.
20.Fitwirewarmingrack(modelEQBM60ASonly)
Tilt front of rack up and locate wire ends into holes
in rear of splashguard.
20 gas specications/gas bottle safety/gas bottle installation/leak test procedure electrolux en:tice barbecue
Leak test procedure (Universal LPG)
• Ensure all gas valves are in the ‘OFF’ position.
• In a small container, mix a solution of water and
detergent or soap.
• After connection of the hose, turn on the valve at the
gas bottle or mains as appropriate.
• Using a brush apply the solution to the gas connection
points and look for bubbles forming.
• Bubbling will indicate a leak.
• Turn off the valve and re-tighten the joint. Repeat the
leak test.
• If the leak persists, turn off the gas at the isolation
valves and contact a licensed gas tter to correct.
leak test points
check hose for
signs of abrasions,
cracks or leaks
Gas specications
ForElectroluxEn:ticeEQBM90ASonly
gastypeuniversalLPGnaturalgas
Maximum gas consumption48 MJ/h58 MJ/h
Injector orice diameter (mm)0.951.75
Number of injectors4 4
Regulator pressure2.75 kPa**0.97 kPa*
ForElectroluxEn:ticeEQBM60ASonly
gastypeuniversalLPGnaturalgas
Maximum gas consumption42 MJ/h42 MJ/h
Injector orice diameter (mm)0.901.50
Number of injectors4 4
Regulator pressure2.75 kPa**0.97 kPa*
NOTES
• This appliance MUST be serviced only by a qualied
licensed person.
• This product is intended for outdoor use only.
• Ventilation holes in the unit must not be obscured
by the installation.
* The outlet pressure at the Natural Gas regulator will be
lower when all burners are operating. Burner pressure
should read 0.97kPa with one burner operating and
approximately 0.87kPa for model EQBM90AS and
0.89kPa for model EQBM60AS with four burners
operating.
** The outlet pressure at the LPG regulator will be lower when
all burners are operating Burner pressure should read 2.75kPa
with one burner operating and approximately 2.67kPa with four
burners operating.
For conversion to Natural Gas a conversion kit is available
for purchase from Electrolux Spare Parts.
Gas bottle safety information
• This appliance is designed to use a Universal LPG
9kg (20 lbs) gas cylinder.
• The gas cylinder must be made and marked in
accordance with specications for LPG cylinders
• The isolation valve must be turned off when the
appliance is not in use.
• Gas cylinders must be stored in an approved housing
out of reach of children.
• When disconnecting the gas bottle ensure that all
the control valves are in the ‘OFF’ position.
• Remove the bottle from any housing in which it
may be stored before disconnection.
• When reconnecting the hose to the bottle, ensure
that all connections are tight before replacing in the
storage compartment.
• Carry out a leakage check as detailed below after
each reconnection.
Gas bottle installation
1. Open both gas bottle compartment doors.
2. Place gas bottle into well in base ensuring bottle is stable.
3. Make connection of gas hose to gas bottle.
Gas bottles vary in size and there may be some variations
that do not t into the space provided. As an alternative to
placing the bottle into well in base, the bottle can be placed
on the ground and hose placed through hole in rear panel
for connection to inlet. The cylinder connection is a POL
type 21 connection with a left hand thread.
electrolux en:tice barbecue conversion to natural gas 21
PreparingtheunitforNaturalGasinstallation.
This barbecue is supplied set up for Universal LPG and is
labelled accordingly. A Natural Gas conversion kit can be
purchased from Electrolux Spare Parts to enable conversion
to Natural Gas use.
NOTE: Conversion of this unit to Natural Gas must be
carried out by a qualied licensed person and a Certicate
of Compliance must be issued to the owner on completion
of the installation and conversion.
The conversion kit consists of:
• Regulator
• Hose with quick connect bayonet tting one end
• Small plastic bag containing 4 brass injectors
• Natural Gas sticker
• Socket tool to remove/t injectors
Procedure
1.Changingtheinjectors
• Remove warming racks (model EQBM90AS only).
• Remove the hotplates & grills.
• Remove screws securing burners at rear.
• Manoeuvre rear of burner to release front of burner
from injector.
• Using socket tool remove brass injectors
• Fit natural gas injectors (refer gas specications for sizes).
• Ret burners ensuring the injector is located in
burner inlet.
• Ret warmer racks, grills and hotplates.
2.DisconnectbrassadaptorandLPGhoseand
regulatorassemblyfromgasinletconnection
3.ConnecttheNGhosetotheNGregulator
• Place threaded end of hose through hole in rear panel.
• Apply thread tape or sealant to the male thread on
the hose and screw into the regulator. The thread type
for this connection is 1/2” BSPT.
4.Connecttheregulatortothebarbecuegasinlet
• Fit the regulator ensuring the blue sealing washer is
in place and the arrow is pointing in the right direction.
The thread type for this connection is 1/2” BSP.
5.Replacethe‘gastype’sticker
• Locate the ‘Universal LPG’ sticker located on the
barbecue gas inlet and remove it. Put the ‘Natural
Gas’ sticker in its place.
6.Leaktestprocedure
• Ensure all gas valves are in the ‘OFF’ position.
• In a small container, mix a solution of water and
detergent or soap.
• After connection of the hose, turn on the valve at the
gas bottle or mains as appropriate.
• Using a brush apply the solution to the gas
connection points and look for bubbles forming.
• Bubbling will indicate a leak.
• Turn off the valve and re-tighten the joint. Repeat the
leak test.
• If the leak persists, turn off the gas at the isolation
valves and contact a licensed gas tter to correct.
Leak test points
Check hose for
signs of abrasions,
cracks or leaks
regulator – ensure
arrow is pointing in
the right direction
hose with tapered
thread – thread tape
required
sealing washer
barbecue gas inlet
remove (4) screws
securing burners
Conversion to Natural Gas

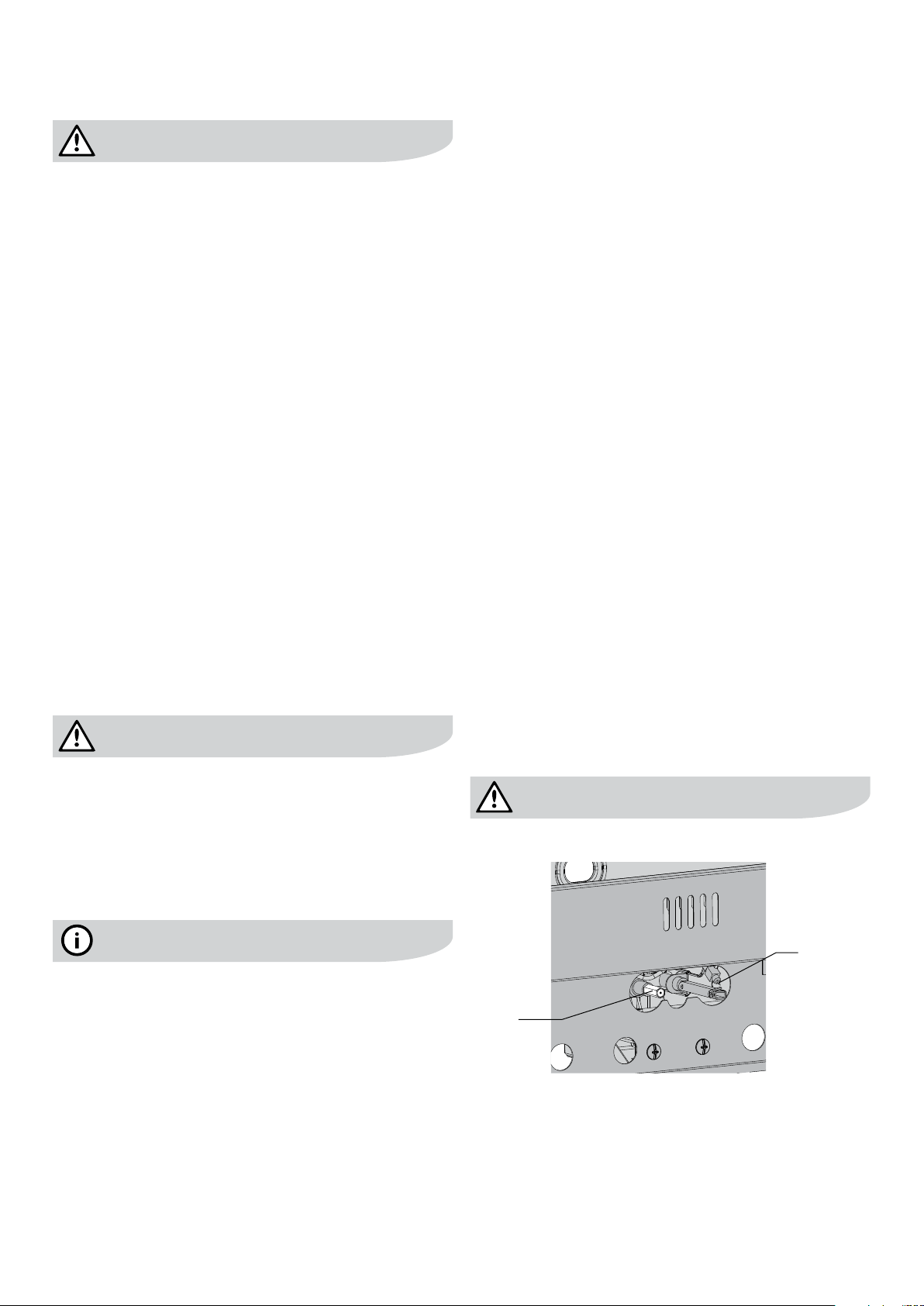

injector
spark plug
22 choosing a location/installation warnings electrolux en:tice barbecue
7.Turndownadjustment
When converting to natural gas the turndown setting
will need to be adjusted to give a satisfactory ame
on low setting.
• Remove all knobs from valve shafts
• Using a Phillips head screw driver, fully screw in
clockwise the valve rotation limit screw. When this is
done the valve rotation will be limited to less than 180°.
• Repeat this for all valves
• Following connection of the gas and leak testing as
per previous steps, light all burners and set to high.
• One burner at a time turn the valve shaft to lowest
setting, observe the ame to ensure a small steady
ame is achieved.
• Turn burners off and replace control knobs.
• The vertical clearance above the cooking surface to
any combustible materials must be at least 1000mm.
• Cooking with roasting hood closed vents the hot
ue gases out the rear of the appliance. A minimum
clearance of 450mm to any combustible materials is
required. This clearance should also be maintained for
brittle materials which may be affected, such as glass.
• Avoid windy conditions as this will affect cooking
performance and burner efciency. If this situation
cannot be avoided some shielding may be necessary.
• The barbecue grills and hotplates are slightly sloped
to enable grease & oil drainage into front receptacles.
When choosing a location ensure that the slope
towards the front is maintained. If not, oil & grease
may run into the back of the burner box from the
grill channels.
• This appliance must be installed in accordance with
Australian Standards AS4557 and AS5601 and in
accordance with the local authority.
Choosing a location
valve rotation limit screw
warning
• This appliance shall only be used in an above ground,
open air situation with natural ventilation without
stagnant areas, where gas leakage and products of
combustion are rapidly dispersed by wind or natural
convection. This barbecue has been designed for
outdoor use only. Refer to diagrams below.
• Never install this barbecue inside any building, garage,
shed or breezeway or inside a boat, caravan or
recreational vehicle. This is to prevent the possibility of
re or carbon monoxide poisoning or asphyxiation.
• Any enclosure in which this appliance is installed shall
comply with one of the following:
– An enclosure with walls on all sides, but at least
one permanent opening at the ground level and no
overhead covering.
– Within a partial enclosure that includes an overhead
cover and no more than 2 walls.
– Within a partial enclosure that includes an overhead
cover and more than 2 walls, the following shall apply:
– at least 25% of the total wall area is completely
open and at least 30% of the remaining wall area
is open and unrestricted
• In the case of balconies, at least 20% of the total of
the side, back and front wall areas shall be and remain
open and unrestricted.
Outdoor area example 1
Outdoor area example 2
Outdoor area example 3
Outdoor area example 4
Outdoor area example 5
Installation warnings
both ends
open
open side at
least 25% of
total wall area
30% or more
in total of the
remaining wall
area is open and
unrestricted
open side at
least 25% of
total wall area
30% or more
in total of the
remaining wall
area is open and
unrestricted
electrolux en:tice barbecue activating wheel brake/conguration of hotplate and grills/operating instructions 23
Operating instructions
Controlfunctions
Before lighting the barbecue:
• Check that all hoses and gas ttings are tight.
• Open the roasting hood.
• Check all control knobs are in the ‘OFF’ position.
• Ensure that the cooking surfaces are clean.
• Turn the gas isolation valve ‘ON’.
Lightinginstructions
• Do not attempt to light burners with roasting hood closed.
• Read instructions before lighting.
• To light a burner, depress the knob and rotate to ‘HIGH’.
• If the burner did not light, turn the knob to the ‘OFF’
position. Allow gas to disperse, then repeat lighting
procedure.
Manuallighting
• If, in the event of the automatic ignition system
not working, the barbecue can be lit manually.
• A match holder with attached chain is xed to
the inner panel of the left door.
• To light manually, unclip match holder and t a 40mm
match to the holder and light. Pass match through
viewing slots below the front of the cooking plate down
towards the burner, then rotate the control knob to
HIGH to ignite. If ignition fails, turn the control valve
OFF and allow several minutes for the gas to disperse
before attempting to light again.
• Once alight, repeat for other burners as required.
pass match holder
through viewing slot at
front under cooking plates
Location of
match holder for
manual lighting
For safety, the wheel brake should be activated to
prevent any movement of the barbecue.
There are 2 wheel brakes.
To activate:
• Push down until it locks.
important
Options for conguration
of hotplates and grills
Activating the wheel brake
Grills can be placed
either side of hotplate.
This is the preferred
option for roasting.
Grills can be placed
together on one side and
hotplate on the other.
wheel brakes
24 using the roasting hood/using the side table electrolux en:tice barbecue
Preheating
• This barbecue is tted with high power burners. In
most conditions it will only be necessary to preheat the
barbecue for 5 minutes before cooking can commence.
• As with most things, experience will familiarise you with
the effectiveness of and the time required to achieve the
desired preheating time to obtain the desired cooking
temperature.
• Testing has shown that the burners can be turned to
the low position for satisfactory cooking.
• If the unit does not operate correctly refer to the
troubleshooting section on page 26.
• If the burners are left to run too hot there will be excessive
smoking during the cooking process and subsequent
burning of the food being prepared. This may also result
in excessive aring of the fat being emitted from the food.
• Roasting with the hood closed only requires the 2 outermost
burners to be on low setting for satisfactory cooking. Refer
below for further information on roasting.
Toturntheburneroff
• When cooking is complete, rotate the knob fully
clockwise so the pointer on the knob is positioned
at the ‘OFF’ position.
• Turn gas bottle isolation valve off after turning all
knobs to ‘OFF’ position when appliance not in use.
Using the roasting hood
• Cooking with the hood closed only requires 2 burners
to be on low setting. Setting is to be adjusted
depending on conditions and using the temperature
indicator as a guide.
• It is recommended when roasting to place the solid
hot plate in the centre with one grill on each side of the
plate. Use the two outer burners under the grills.
• To achieve even cooking of the food, place the food
onto a wire rack above the hot plate to allow air to
circulate under the food.
• Food can also be placed on the warming racks for
cooking with hood closed
warning
•Donotusemorethan2burnerswhenhoodclosed
anddonotallowthetemperaturetoexceedthe
‘Ready’zoneofthetemperatureindicator.These
conditionscreateexcessiveheatandmaycause
damagetothebarbecueandroastinghood.
•Whencookingwiththehoodclosedthehotue
gasesowouttherearoftheappliancebetween
thesplashguardandthehood.Ensurethebarbecue
issuitablylocatedtoavoiddamageorinjury.
To extend the side tables:
• Lift upwards until it locks.
To fold back into place:
1. Lift upwards slightly to unlock.
2. Slide support arms upwards and table should fall
into place.
Using the side table
Lift upwards
Lift upwards
warning
ONLY USE A MINIMUM AMOUNT OF OIL AS EXCESS
OIL CAN CAUSE THE FLAMES TO IGNITE FURTHER.
electrolux en:tice barbecue cleaning and care/maintenance/troubleshooting/accessories 25
Cleaningtheoilreservoirs
The barbecue has a unique oil management
system which drains oil to the front into easily removed
reservoirs which should be cleaned after each use.
• To remove reservoirs, pull upwards from the front
of the barbecue and dispose of the contents of the
catchment responsibly.
• The oil reservoirs have a non stick coating to assist
with cleaning. To preserve this surface only use a
soft dishcloth with warm soapy water to clean.
Powdercoated&paintedpanels
Do not use abrasive or caustic cleaners, scourers or metal
scrapers as they may permanently damage your barbecue.
Wash all powder coated panels with a soft dishcloth using
warm soapy water. Ensure that all surfaces are dried with
a clean dry cloth.
Storage
When the barbecue is not being used it is recommended
to keep it covered. A cover is available, contact Electrolux
Customer Service for details. If the barbecue is to be stored
indoors, remove the gas cylinder and store the cylinder in
a ventilated outdoor area.
Stainlesssteelburners
Burners should be checked at least once per year and
cleaned as necessary. Inspect burners to ensure no
residues have been deposited and gas ports are clear.
caution
Careshouldbetakennottodisturbthesparkelectrode
orgasinjectors.
GasFittings
Check gas ttings are tight and do not leak. Check gas
supply hoses are in good condition and do not leak.
RegularInspection
Inspect the BBQ thoroughly for any grease, dirt or food
residue accumulation and remove. The barbecue interior
can be wiped down with a soft cloth in hot soapy water.
Maintenance
warning
Pleaseensurethatyourbarbecueisswitched
offandhascooleddownbeforefollowingthe
instructionsbelow.
Castironplates&enamelcoatedsteelgrills
The cooking plates and grills have a porcelain
enamelled coating.
NOTE: Many food acids, juices, marinades and sauces
contain highly acidic elements that will slowly attack
the surface of the cast iron if not removed immediately
after cooking.
After use remove all solid material from the cooking surface
using a brass bristled barbecue brush or plastic bristled
scourer. Wipe off the remaining grease with paper towelling.
Gently wash the surfaces with a cloth or sponge and a mild
detergent and hot water. Dry components immediately and
coat the cooking surface with a light layer of cooking oil.
This protects the surface when not in use. Do not clean the
cooking surface in a dishwasher
Enamelcoatedpanels–hoodinner&burnerbox
Wash enamel surfaces with hot soapy water and a nylon
scourer. To avoid contact with burners and the potential
of blocking burner ports with residue, it is advisable to
remove burners prior to cleaning burner box.
Do not use caustic, harsh abrasive cleaners, powder
cleaners, steel wool or wax polishes.
Cleaningstainlesssteelsurfaces
caution
Donotuseabrasiveorcausticcleaners,scourersor
metalscrapersonthesestainlesssteelsurfacesasthey
maypermanentlyscratchanddamageyourbarbecue.
• Wash stainless steel surfaces with a soft dishcloth using
hot soapy water.
• Ensure that all surfaces are dried with a clean dry cloth.
tips and information
Sometimes stainless steel surfaces are affected by a brown
discolouration called tea staining. This usually occurs in areas
of high heat and can be easily removed using specialised
stainless steel cleaners. For best results,
we recommend that specialised cleaners be used regularly
on all stainless steel components. You will nd these cleaners
at most hardware stores or from Electrolux Spare Parts.
Cleaning and care
injector
spark plug
26 cleaning and care/maintenance/troubleshooting/accessories electrolux en:tice barbecue
Contact Electrolux Customer Service
for the following accessories:
NG conversion kit
Cleaning kit/Cleaning products
Hotplate/grills
Non-stick hotplate liner
Weatherproof cover
problempossiblecauseremedy
Barbecue won’t
light
No gasCheck isolation valve
is ON
Gas bottle empty – rell
or change gas bottle
Ignition system
not working
Check spark being
generated when knob
rotated
Ignition electrode wet or
dirty, gently clean and
dry electrode, ensuring
position unchanged
Manually light the
barbecue
Excess smoke
being emitted
from the cooking
area
Too much heatTurn down gas valve or
turn off selected burners
Smell of gas
DO NOT
ATTEMPT TO
LIGHT THE
APPLIANCE
Gas leakTurn off gas at the
isolation valves
Check for leaks, tighten
joints
If problem persists call
Electrolux Service
Troubleshooting
Accessories
electrolux en:tice barbecue warranty 27
This document sets out the terms and conditions of the product
warranties for Electrolux Appliances. It is an important document.
Please keep it with your proof of purchase documents in a safe place
for future reference should you require service for your Appliance.
1. In this warranty
(a) ‘acceptable quality’ as referred to in clause 10 of this warranty has
the same meaning referred to in the ACL;
(b) ‘ACL’ means Trade Practices Amendment (Australian Consumer
Law) Act (No.2) 2010;
(c) ‘Appliance’ means any Electrolux product purchased by you
accompanied by this document;
(d) ‘ASC’ means Electrolux’ authorised serviced centres;
(e) ‘Electrolux’ means Electrolux Home Products Pty Ltd of 163
O’Riordan Street, Mascot, NSW 2020, ABN 51 004 762 341 in
respect of Appliances purchased in Australia and Electrolux (NZ)
Limited of 3-5 Niall Burgess Road, Mount Wellington, in respect
of Appliances purchased in New Zealand;
(f) ‘major failure’ as referred to in clause 10 of this warranty has the
same meaning referred to in the ACL and includes a situation when
an Appliance cannot be repaired or it is uneconomic for Electrolux, at
its discretion, to repair an Appliance during the Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for personal, domestic or household
use (i.e. normal single family use) as set out in the instruction
manual, the Appliance is warranted against manufacturing
defects in Australia for 24 months and in New Zealand for 24
months, following the date of original purchase of the Appliance;
(ii) where the Appliance is used for commercial purposes (including
being used to directly assist a business or where the Appliance is
used in a multi-family communal or share type environment), the
Appliance will then be warranted against manufacturing defects
in Australia for 3 months and in New Zealand for 3 months,
following the date of original purchase of the Appliance.
(h) ‘you’ means the purchaser of the Appliance not having purchased
the Appliance for re-sale, and ‘your’ has a corresponding meaning.
2. This warranty only applies to Appliances purchased and used in Australia
or New Zealand and is in addition to (and does not exclude, restrict, or
modify in any way) any non-excludable statutory warranties in Australia
or New Zealand
3. During the Warranty Period Electrolux or its ASC will, at no extra charge
if your Appliance is readily accessible for service, without special
equipment and subject to these terms and conditions, repair or replace
any parts which it considers to be defective. Electrolux or its ASC may
use remanufactured parts to repair your Appliance. You agree that
any replaced Appliances or parts become the property of Electrolux.
This warranty does not apply to light globes, batteries, lters or similar
perishable parts.
4. Parts and Appliances not supplied by Electrolux are not covered by this
warranty.
5. You will bear the cost of transportation, travel and delivery of the
Appliance to and from Electrolux or its ASC. If you reside outside of the
service area, you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance to and from Electrolux
or its ASC,
In all instances, unless the Appliance is transported by Electrolux or an
Electrolux authorised representative, the Appliance is transported at the
owner’s cost and risk while in transit to and from Electrolux or its ASC.
6. Proof of purchase is required before you can make a claim under
this warranty.
7. You may not make a claim under this warranty unless the defect claimed
is due to faulty or defective parts or workmanship. Electrolux is not liable
in the following situations (which are not exhaustive):
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly maintain or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or incorrect power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional instructions supplied with the
Appliance;
(b) the Appliance is modied without authority from Electrolux in writing;
(c) the Appliance’s serial number or warranty seal has been removed
or defaced;
(d) the Appliance was serviced or repaired by anyone other than
Electrolux, an authorised repairer or ASC.
8. This warranty, the contract to which it relates and the relationship
between you and Electrolux are governed by the law applicable where
the Appliance was purchased. Where the Appliance was purchased in
New Zealand for business purposes the Consumer Guarantee Act does
not apply.
9. To the extent permitted by law, Electrolux excludes all warranties and
liabilities (other than as contained in this document) including liability for
any loss or damage whether direct or indirect arising from your purchase,
use or non use of the Appliance.
10. For Appliances and services provided by Electrolux in Australia, the
Appliances come with a guarantee by Electrolux that cannot be
excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any
other reasonably foreseeable loss or damage. You are also entitled to
have the Appliance repaired or replaced if the Appliance fails to be of
acceptable quality and the failure does not amount to a major failure.
The benets to you given by this warranty are in addition to your other
rights and remedies under a law in relation to the Appliances or services
to which warranty relates.
11. At all times during the Warranty Period, Electrolux shall, at its discretion,
determine whether repair, replacement or refund will apply if an
Appliance has a valid warranty claim applicable to it.
12. For Appliances and services provided by Electrolux in New Zealand,
the Appliances come with a guarantee by Electrolux pursuant to the
provisions of the Consumer Guarantees Act, the Sale of Goods Act and
the Fair Trading Act.
13. To enquire about claiming under this warranty, please follow these steps:
(a) carefully check the operating instructions, user manual and the terms
of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (eg an invoice) available;
(d) telephone the numbers shown below.
14. You accept that if you make a warranty claim, Electrolux and its ASC
may exchange information in relation to you to enable Electrolux to meet
its obligations under this warranty.
Warranty
FOR SALES IN AUSTRALIA AND NEW ZEALAND
APPLIANCE: ELECTROLUX BARBECUE
Important Notice
Before calling for service, please ensure that the steps listed in point 13 above have been followed.
FOR SERVICE
or to nd the address of your nearest
state service centre in Australia
PLEASE CALL 13 13 49
For the cost of a local call (Australia only)
SERVICE AUSTRALIA
ELECTROLUX HOME PRODUCTS
www.electrolux.com.au
FOR SPARE PARTS
or to nd the address of your nearest
state spare parts centre in Australia
PLEASE CALL 13 13 50
For the cost of a local call (Australia only)
FOR SERVICE
or to nd the address of your nearest
authorised service centre in New Zealand
FREE CALL 0800 10 66 10
(New Zealand only)
SERVICE NEW ZEALAND
ELECTROLUX HOME PRODUCTS
www.electrolux.co.nz
FOR SPARE PARTS
or to nd the address of your nearest
state spare parts centre in New Zealand
FREE CALL 0800 10 66 20
(New Zealand only)
EBBQ_Warr_Apr11
ElectroluxHomeProductsAustralia
telephone: 1300 363 640
fax: 1800 350 067
email: customercare@electrolux.com.au
web: www.electrolux.com.au
P/No.0616001951
© Copyright 2011 Electrolux Home Products Pty Ltd
ABN 51 004 762 341
Print code: ENTBBQUM_May11
The Thoughtful Design Innovator.
Do you remember the last time you opened a gift that made you say
“Oh! How did you know? That’s exactly what I wanted!” That’s the kind of
feeling that the designers at Electrolux seek to evoke in everyone who
chooses or uses one of our products. We devote time, knowledge, and a
great deal of thought to anticipating and creating the kind of appliances that
our customers really need and want.
This kind of thoughtful care means innovating with insight. Not design for
design’s sake, but design for the user’s sake. For us, thoughtful design means
making appliances easier to use and tasks more enjoyable to perform, freeing
our customers to experience that ultimate 21st century luxury, ease of mind. Our
aim is to make this ease of mind more available to more people in more parts of
their everyday lives, all over the world. So when we say we’re thinking
of you, you know we mean just that.
The “Thinking of you” promise from Electrolux goes beyond meeting the needs
of today’s consumers. It also means we’re committed to making appliances
safe for the environment—now and for future generations.
Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com.au
