Planet Audio AC1500.1M User Manual

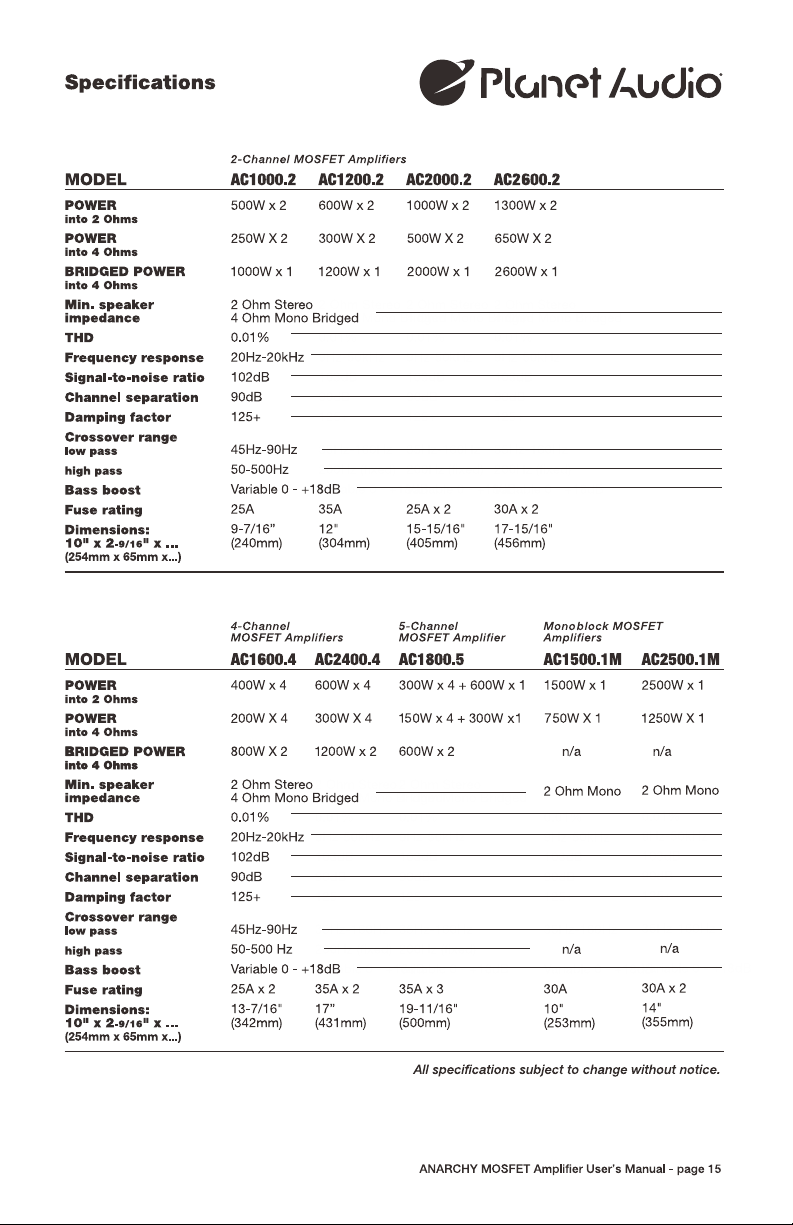

Planet Audio AC1500.1M Monoblock Car Amplifier 1500 Watts Max Power, 2/4 Ohm Stable, Class A/B, Mosfet Power Supply, Remote Subwoofer Control
User's Manual
For AC1500.1M.
PDF File Manual
,
16 pages
,
Read Online
|
Download pdf file

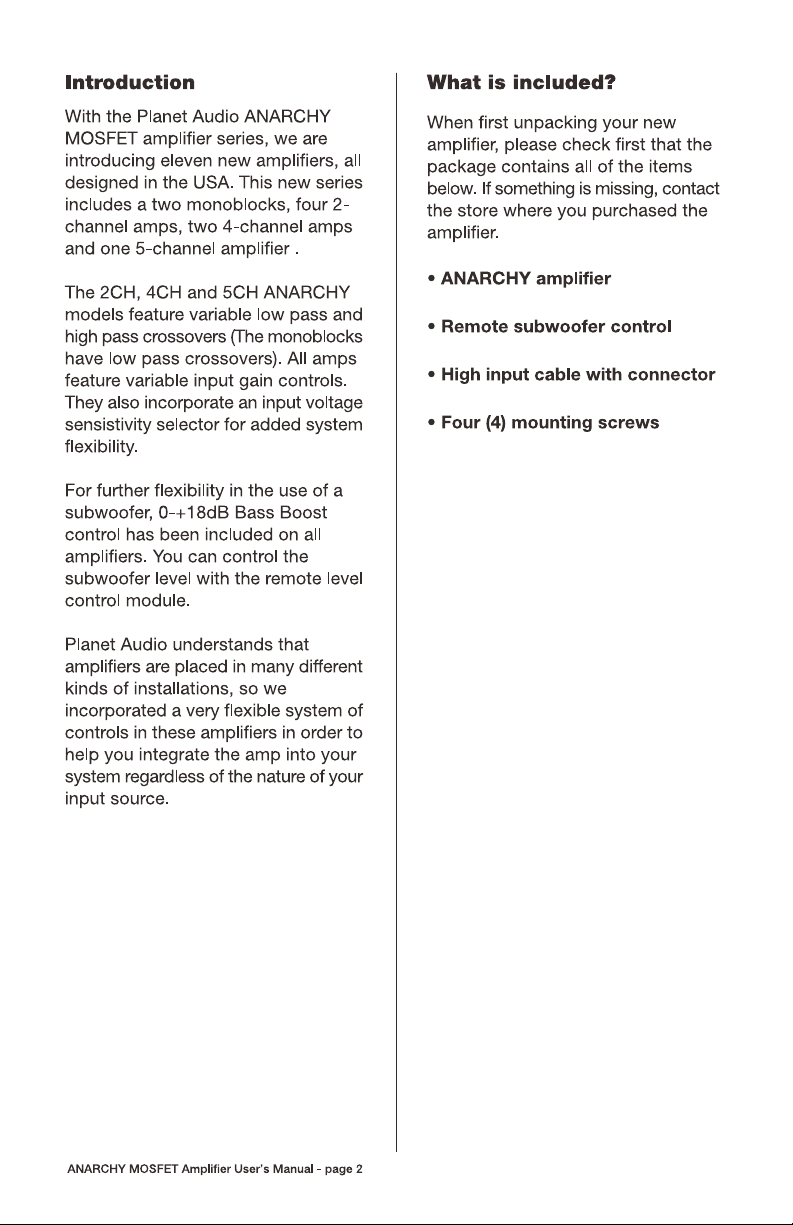

Introduction
What Is Included?

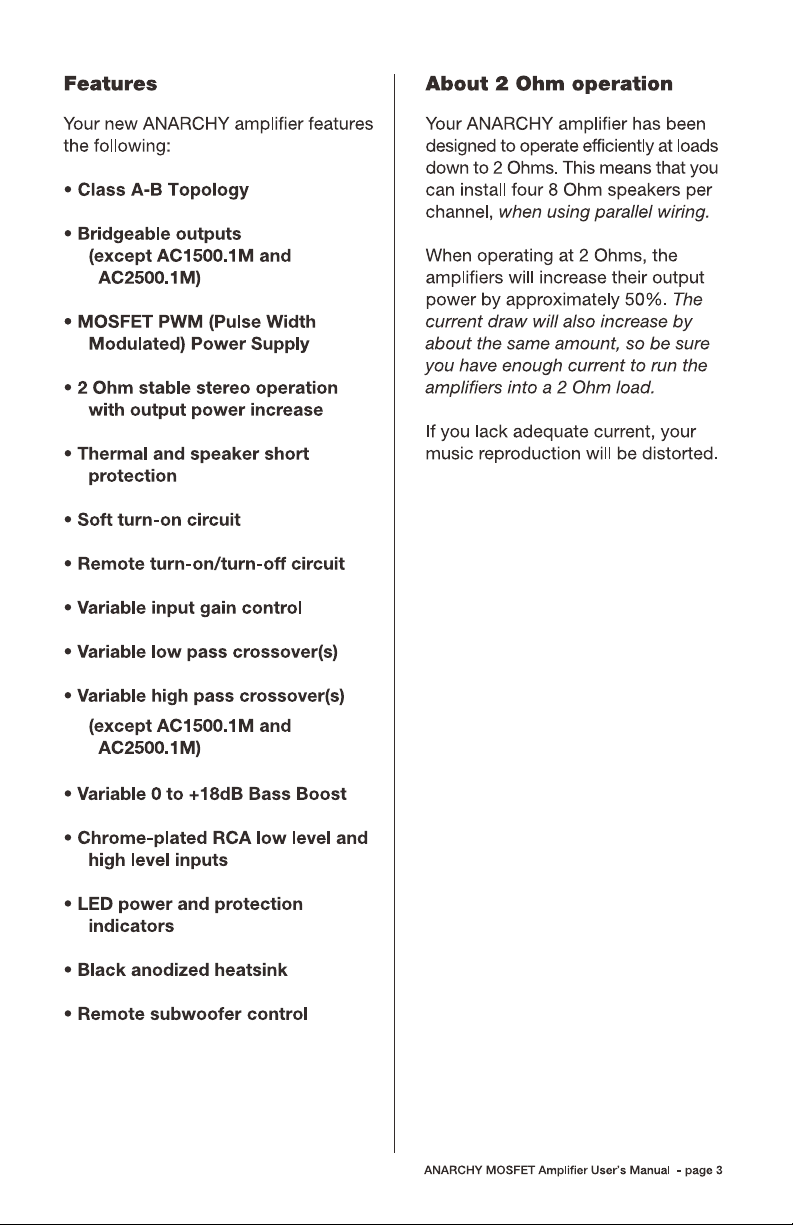

Features
About 2 Ohm Operation

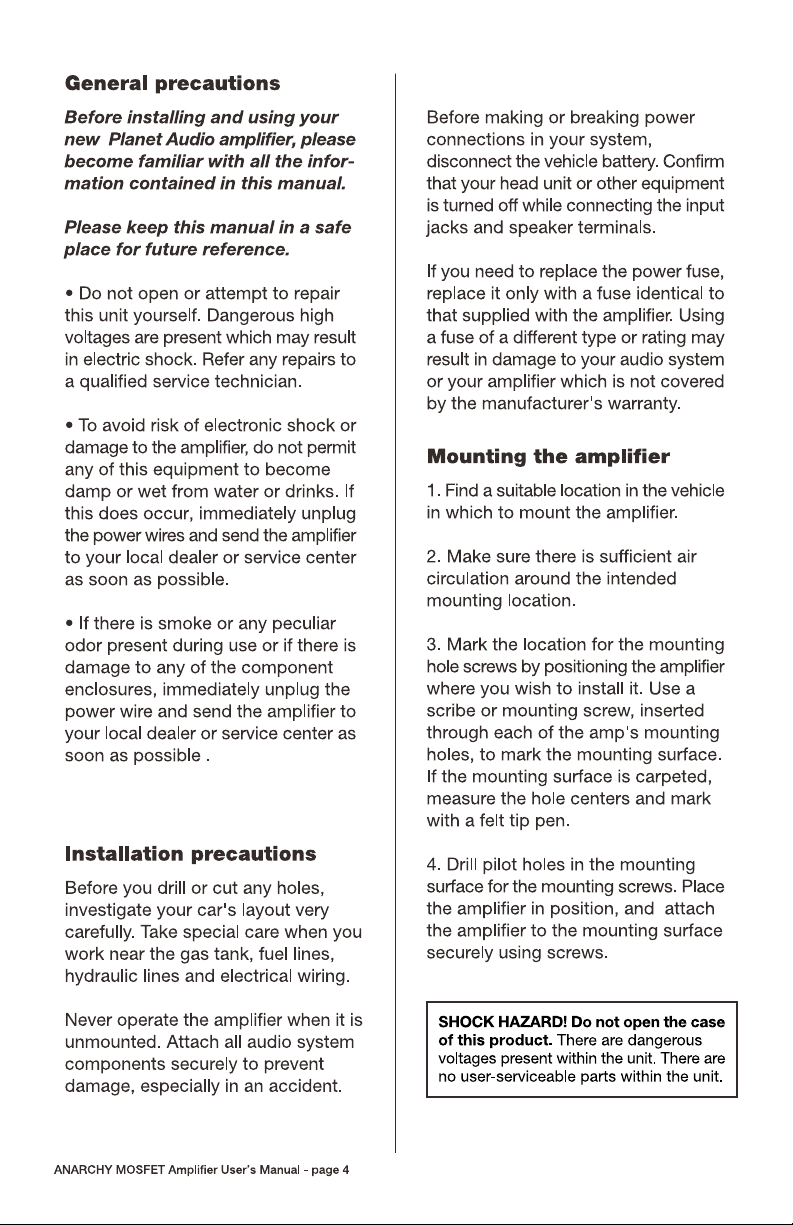

General Precautions
Installation Precautions
Mounting The Amplifier

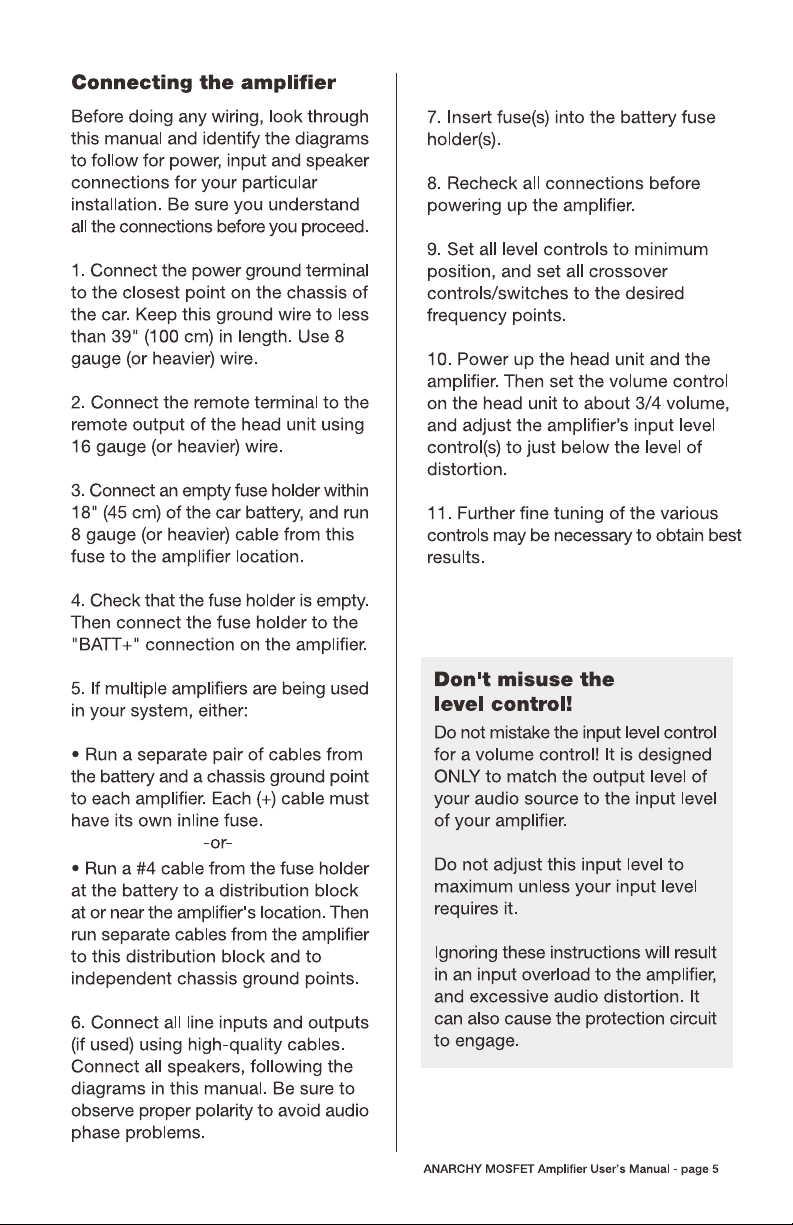

Connecting The Amplifier

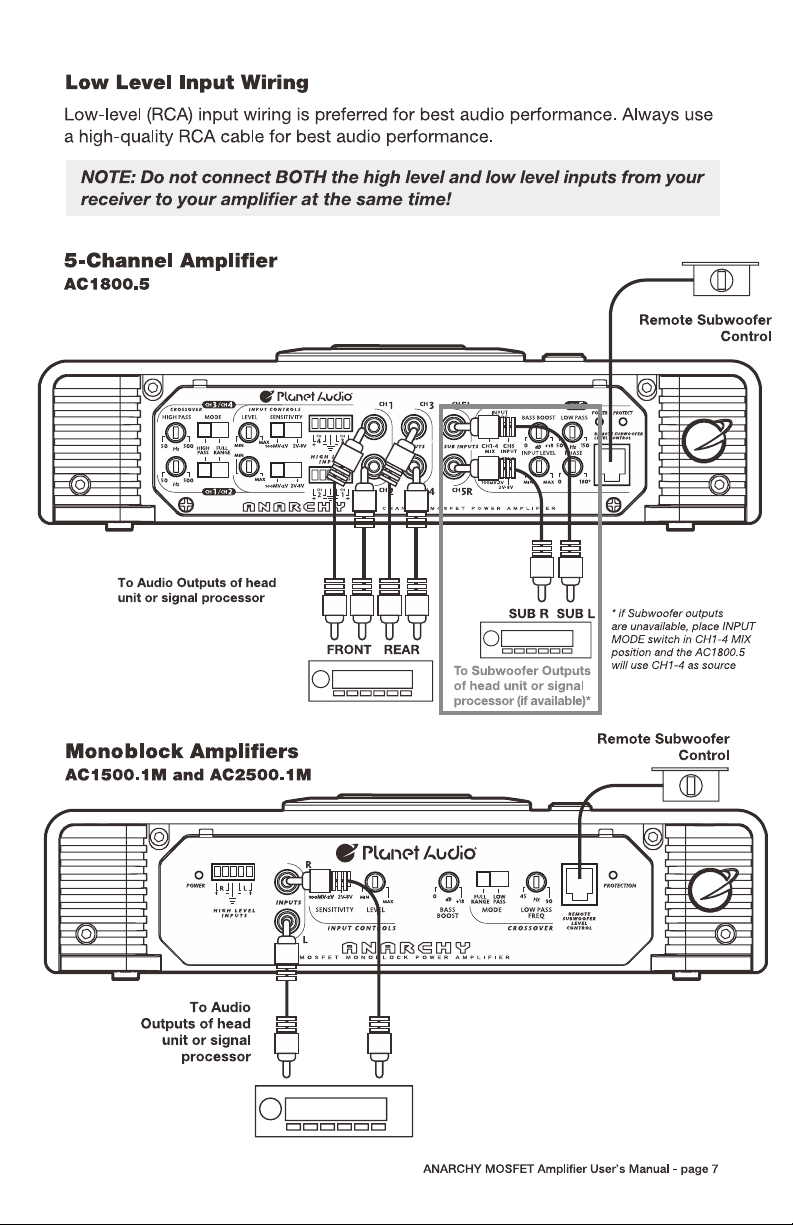

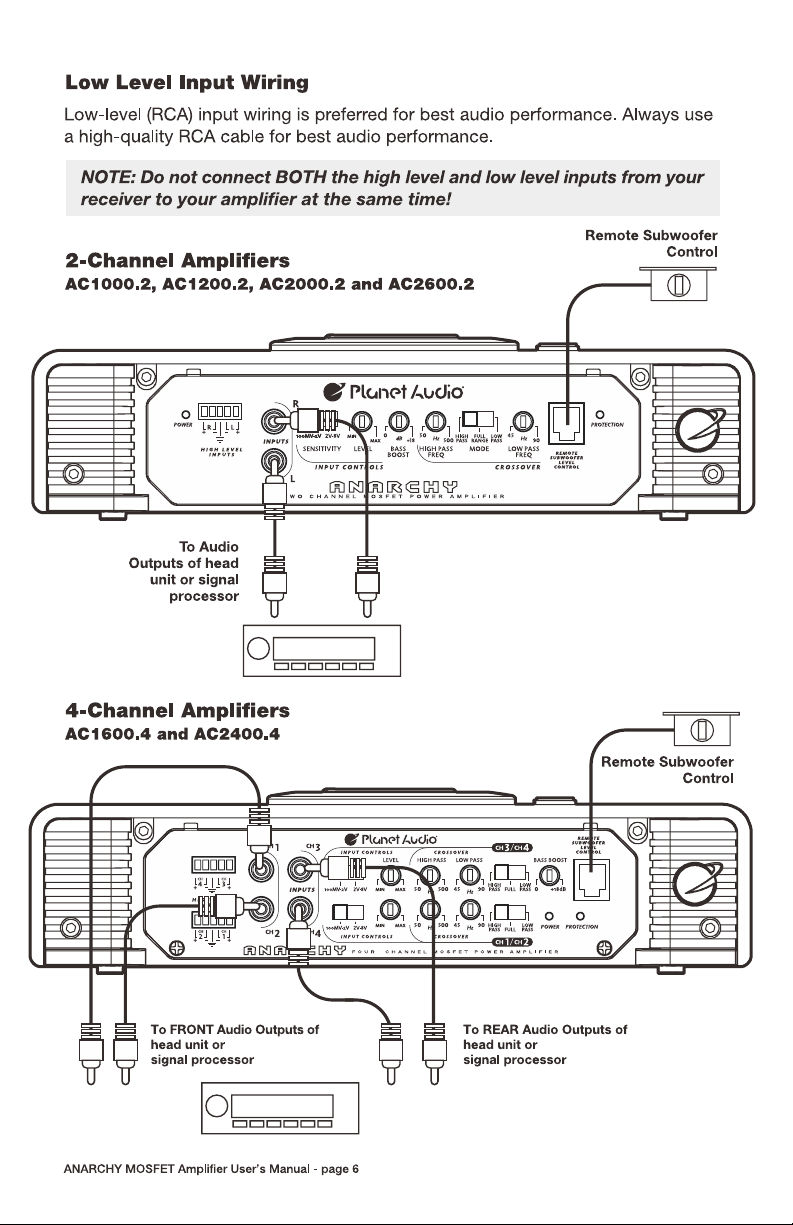

Low Level Input Wiring

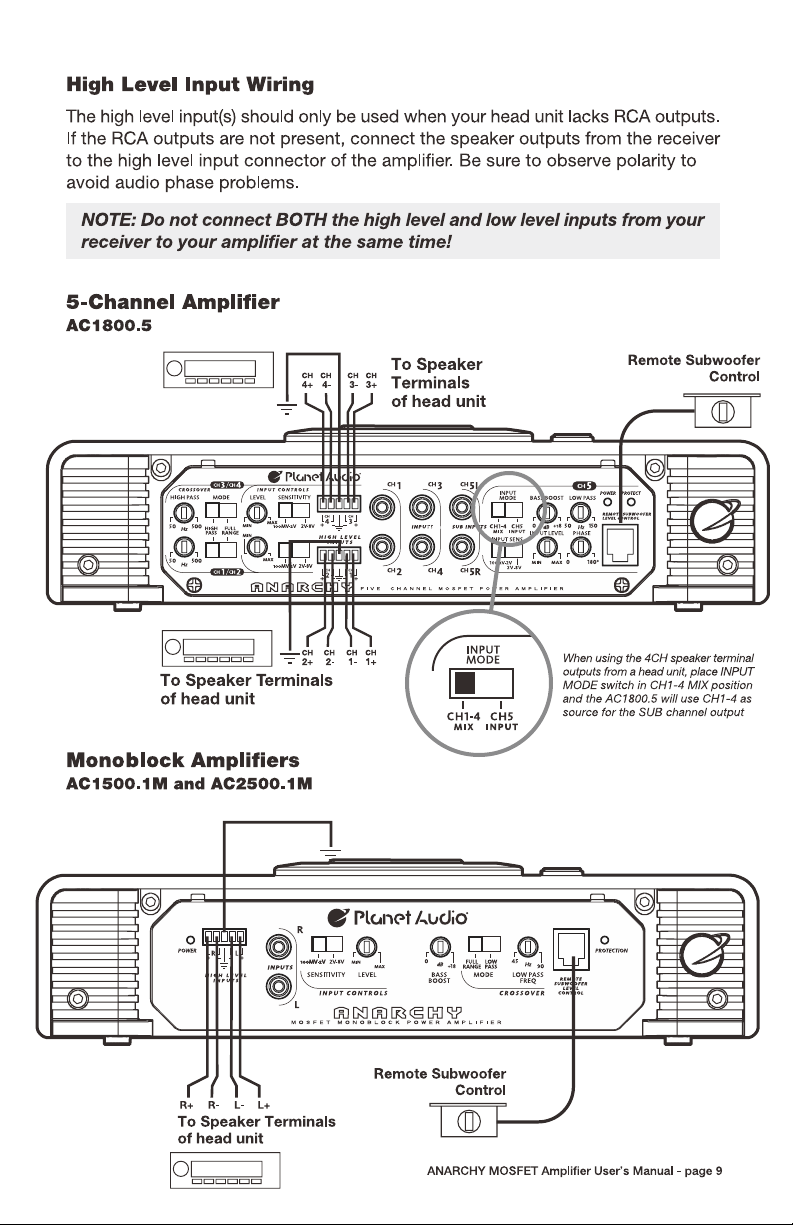

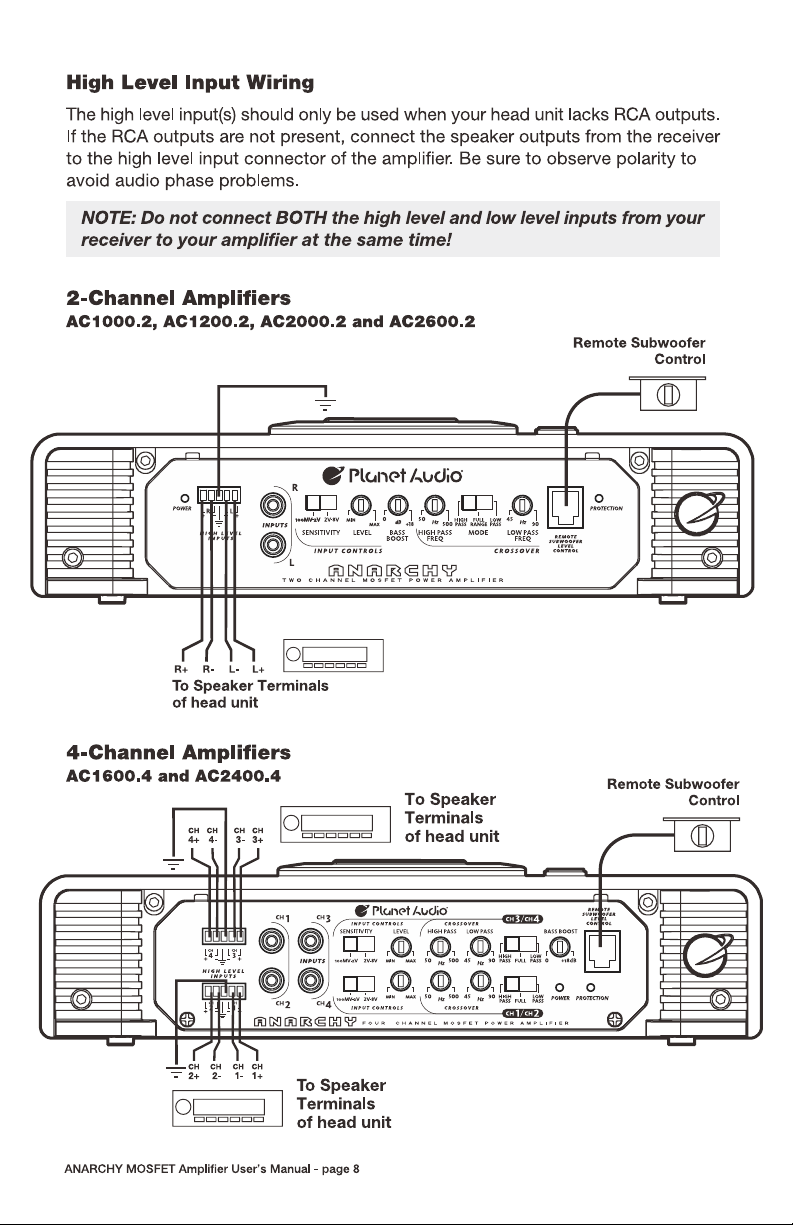

High Level Input Wiring
2 CH Power And Speaker Wiring

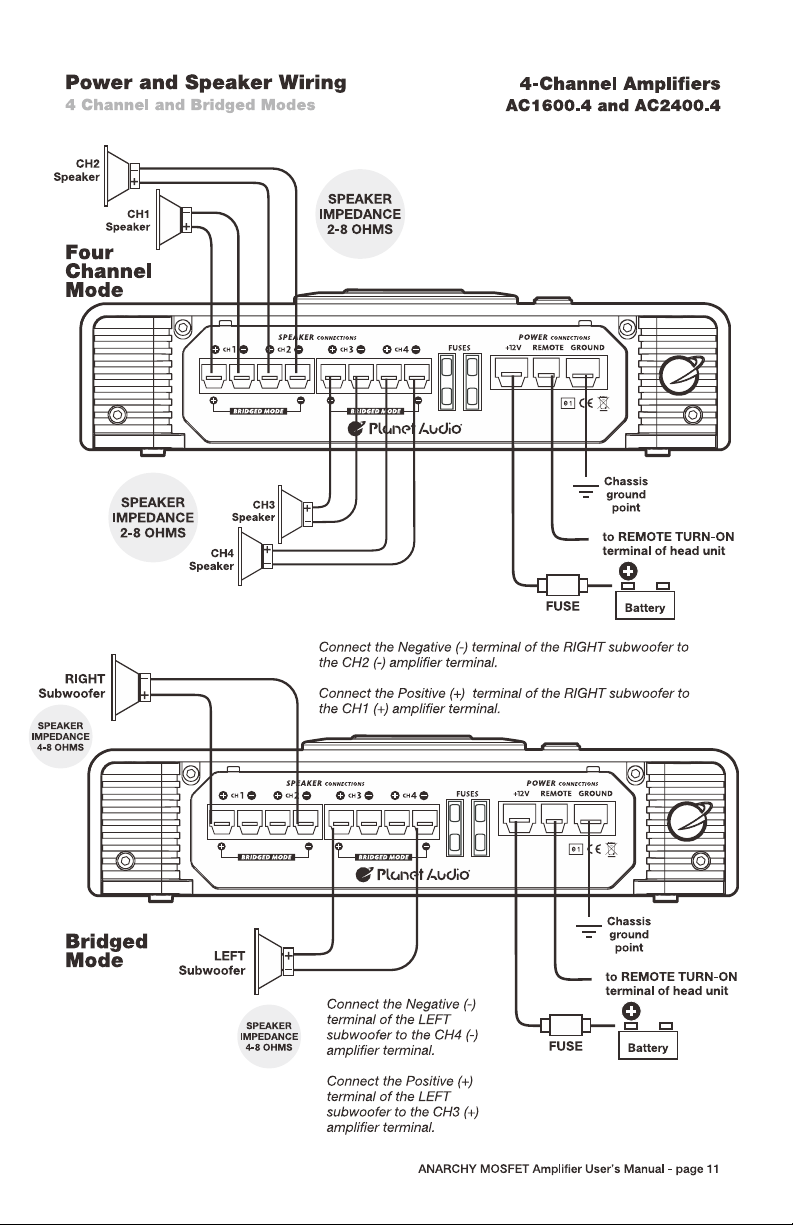

4 CH Power And Speaker Wiring

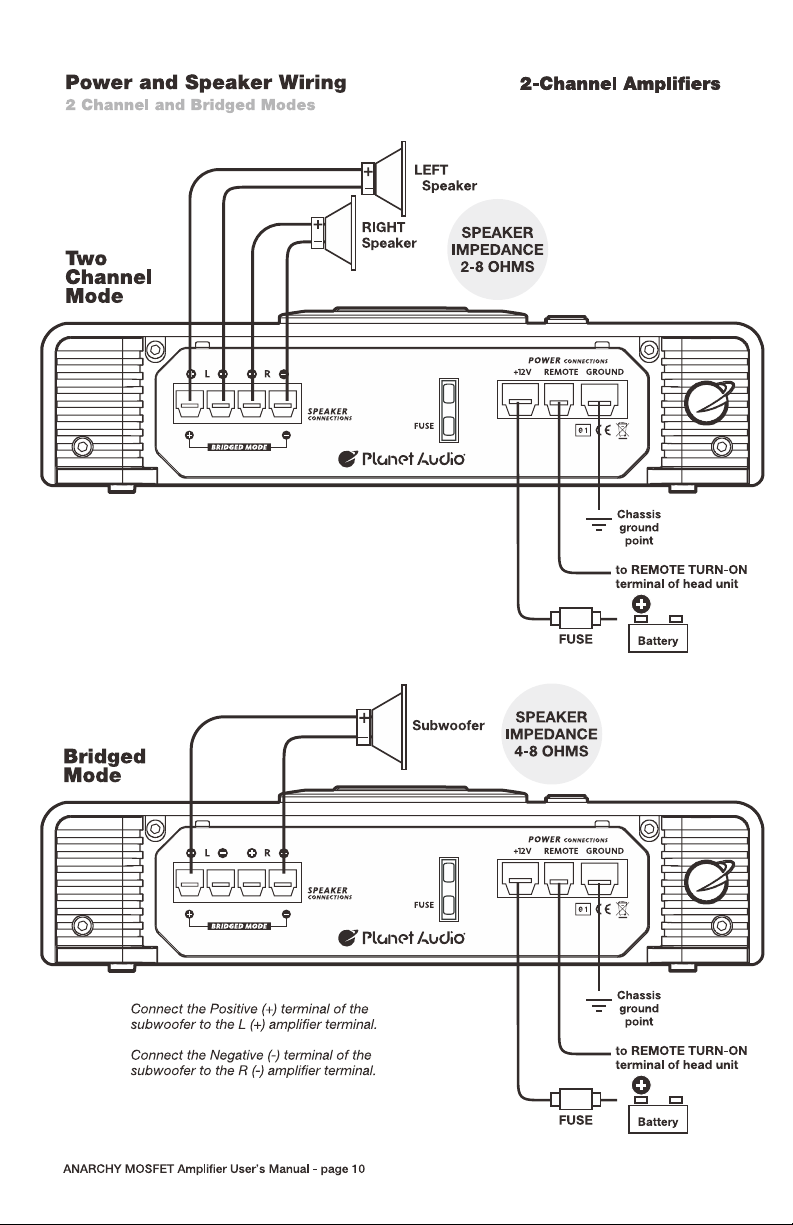

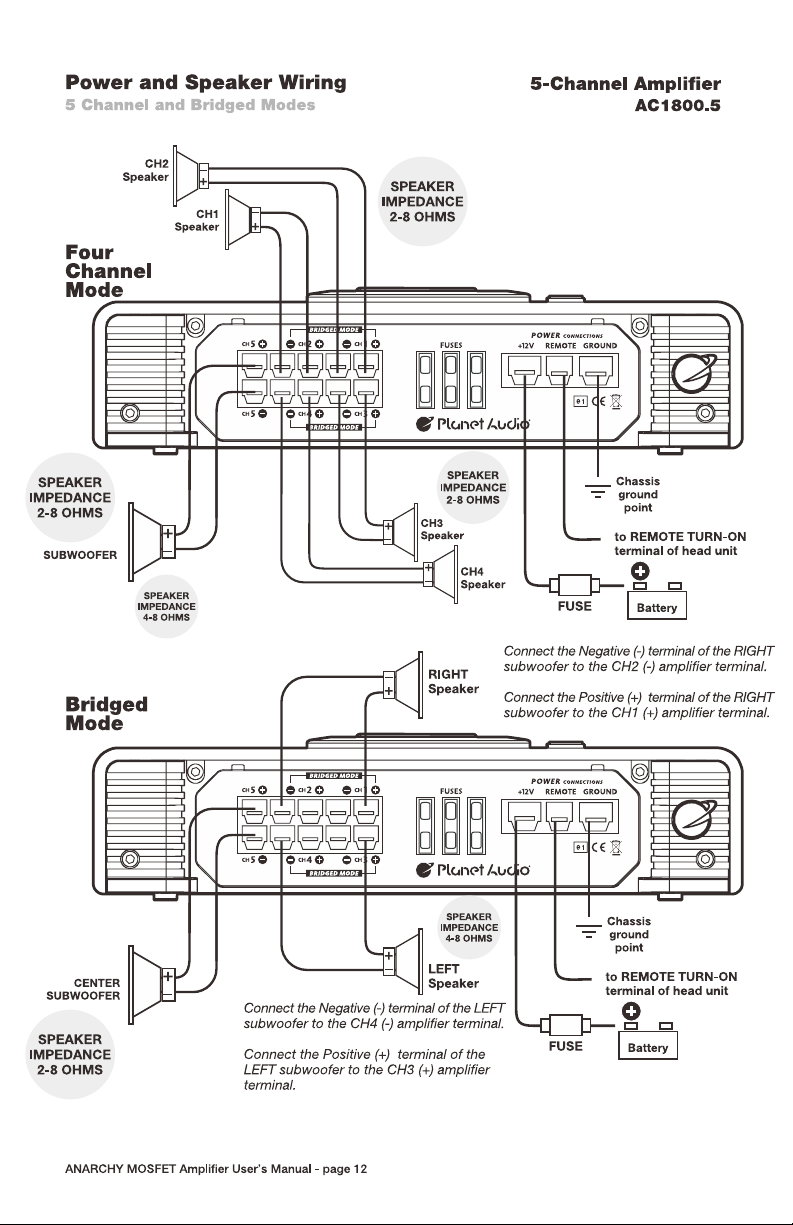

5 CH Power And Speaker Wiring
H And Bridged Modes

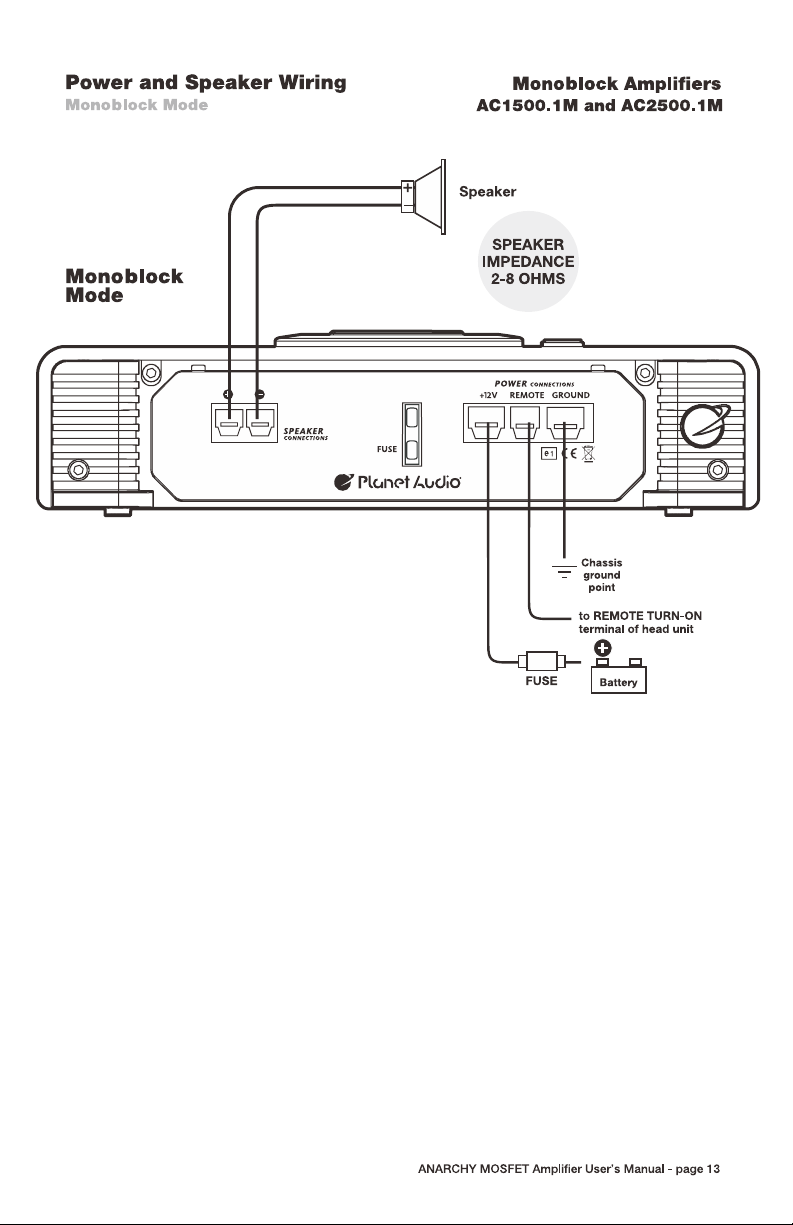

Monoblock Power And Speaker Wiring

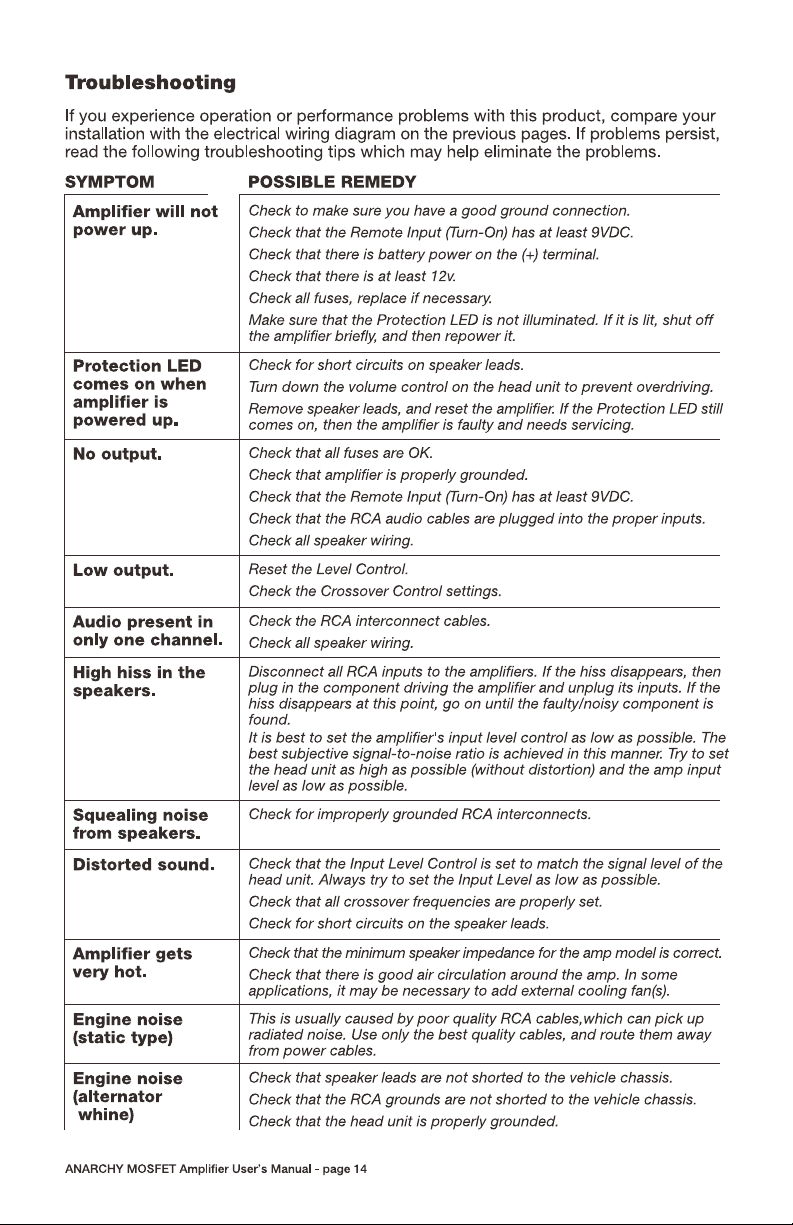

Troubleshooting
