This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
Model: PKHJ301
PICK UP TRUCK LADDER RACK
User Manual
2
- 2 -
Safety & Warning
Read and understand this entire manual before assembling, installing,
operating, or servicing this product.Failure to follow these warnings
and instructions can cause death, personal injury or damage to
valuable property.
Adhere to all Department of Transportation (D.O.T.) requirements
when using this product. Use ropes and tie downs（not included） to
securely hold all cargo in place.
cargo. Make sure the vehicle’s engine is OFF, with parking brake set,
before loading or unloading the Ladder Rack.
Do not use to hold or restrain human or animal weight in any manner.
When assembly is complete, check and test all vehicle system
Do not overload the Ladder Rack. Never exceed the maximum weight
capacity of 250 Lbs. (this is front and back rack combined capacity.)
Make sure the vehicle is in a safe place for loading ladders and other
s
including lights and brakes; make sure no damage occured during
product installation.
This Ladder Rack is designed to carry ladders, lumber, piping, rebar,
sports equipment and other long materials. Do not modify the Ladder
Rack and do not use this product for purposes that it was not designed
for.
Before and after each use, check to make sure that all hardware is
tightly secured. Regularly inspect for damage. If fraying or distortion
is found, immediately discontinue use.
Use common sense when working. Stay alert and concentrate when
setting up and using the Ladder Rack. Never work while under the
influence of alcohol, drugs or medications.
While assembling and using the Ladder Rack keep work area clean
and well lighted. Keep spectators and children out of the work area.
Dress appropriately. Never wear loose fitting clothing or jewelry when
working. Contain long hair, and keep hair, clothing and gloves away
from moving parts
- 3 -

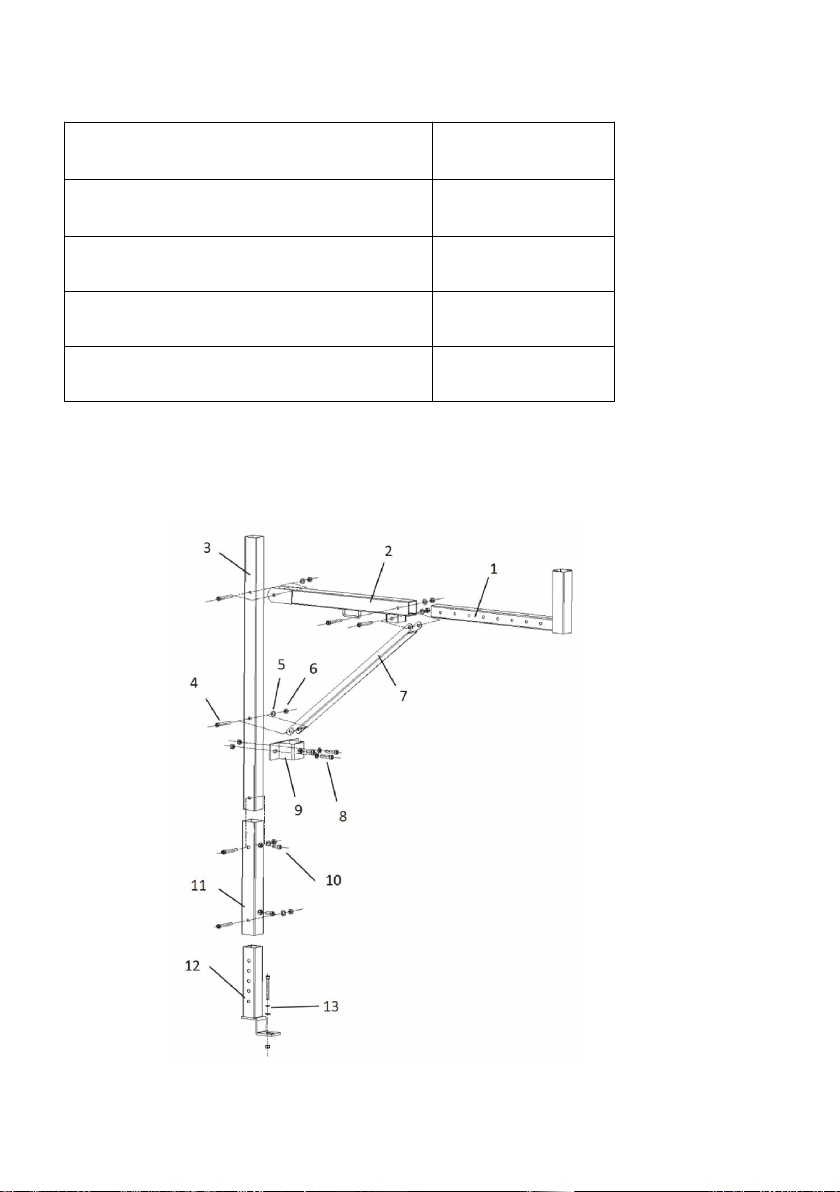

Specifications
Package Contents
Model Series
PKHJ3012
Maximum Load Capacity（lbs）
250
Height Adjustment Range (mm) 980-1108
Width adjustment range (mm) 490-870
Gross Weight(kg)
17.5
figure 1
- 4 -
Installation Guide:

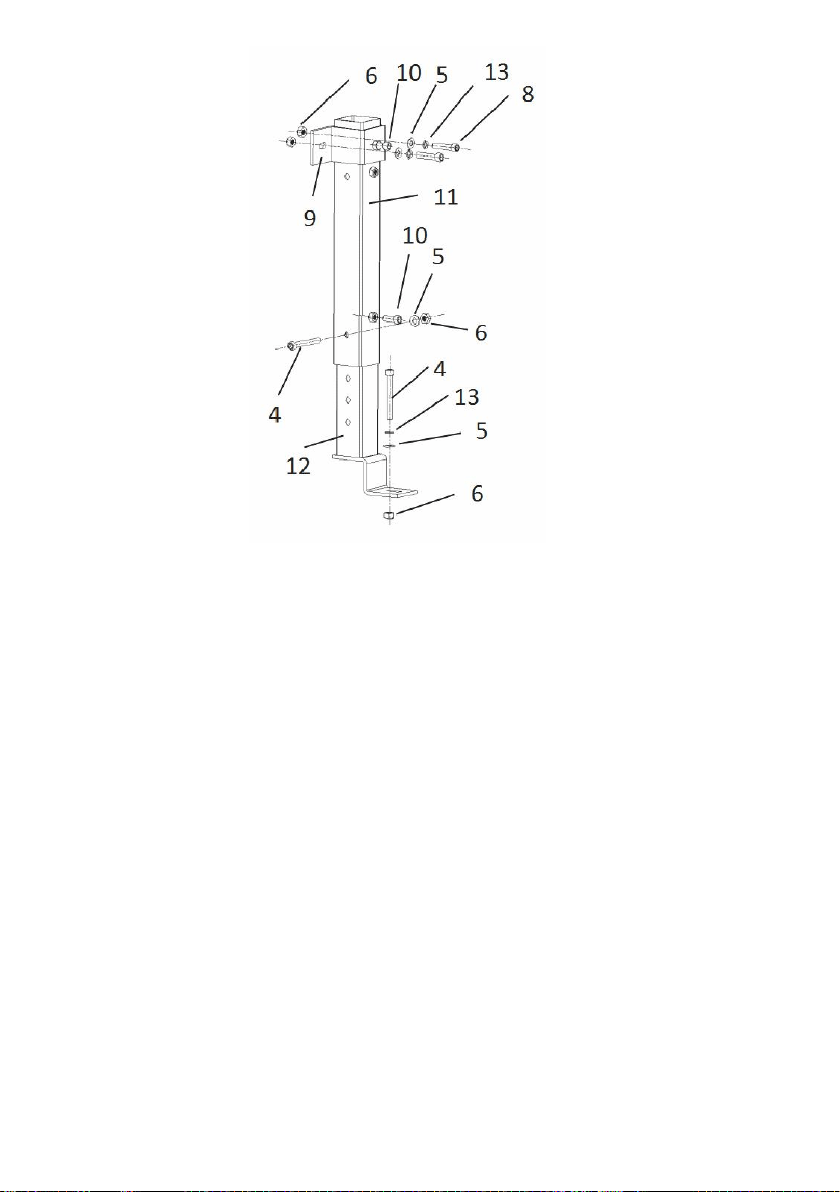

Step 1
Install the mounting bracket (9), extended bracket (11), and base
bracket (12) on one side of the truck bed. Show as figure 2.
A. Mark the 3 drill holes on truck rack for mounting bracket(9) and
base bracket(12) and drill the holes.
B. Insert bolt (4)to extended bracket(11) and base bracket(12) ,Lock
it with flat washer(5)and lock nut(6).
C. The mounting bracket (9) slides over into the extended
bracket(11) at suitable postion and fix it with bolts (8), flat
washer(5),spring washer(13), lock nut(6). tighten the Anti-float
screw (10) at last.
Part
Description
Qty
1
Extended Cross Bar
2
2
Cross Bar
2
3
Vertical bar
2
4
M8×65 bolt
14
5
M8 Flat Washer
18
6
M8 Lock Nut
18
7
Support Bar
2
8
M8×35 Bolt
4
9
Mounting Bracket
2
10
M10×10 Anti-float Screw
6
11
Extended Bracket
2
12
Base Bracket
2
13
M8 Spring Washer
6
- 5 -
Step 2
Assembling upper portion of ladder rack.
A. Assemble cross bar(2) and support Bar (7) to vertical bar (3)
using 3 sets of bolt (4), washer (5) and lock nut (6) . Show as
figure 3.
B. Slide extended cross bar (1) into end of cross bar (2) and secure
in place with bolt(4), washer(5), and lock nut(6) at suitable
position, the extended cross bar (1) length can be
adjustable.Show as figure 4.
Figure2
- 6 -

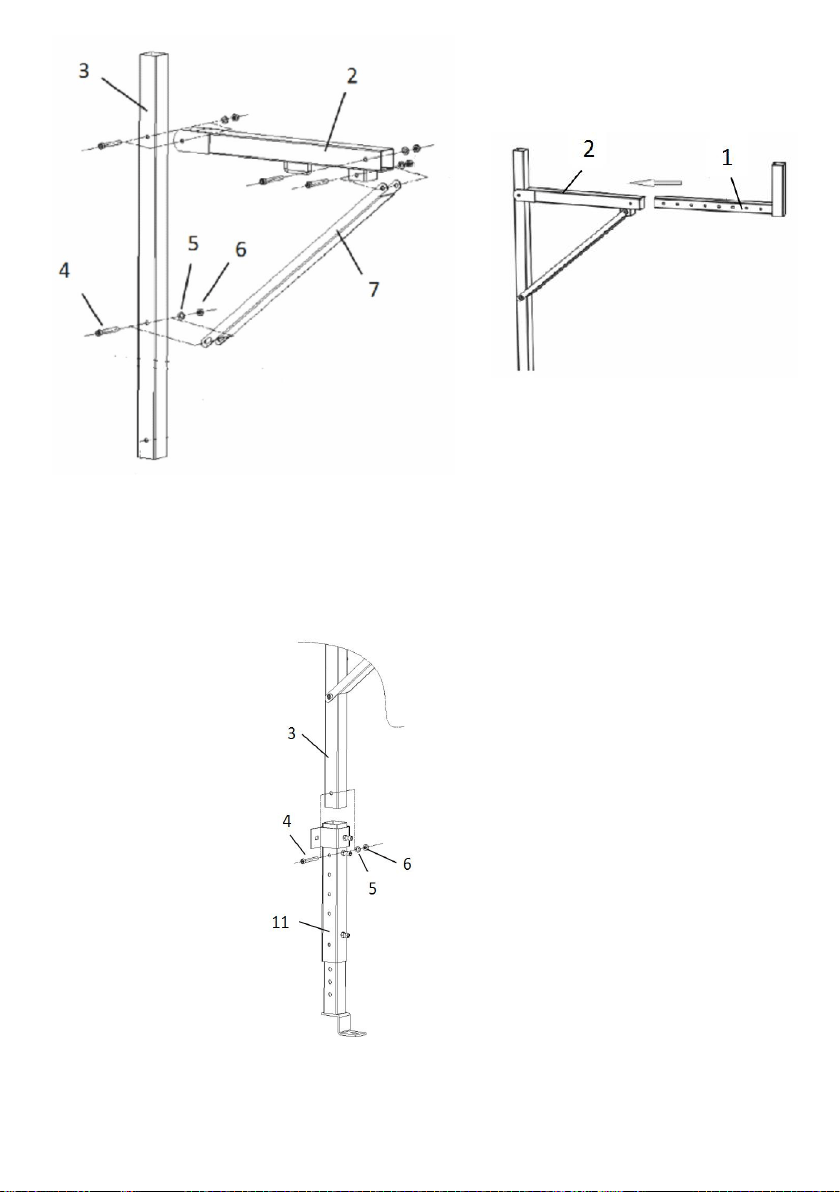

Repeat the above two steps to assembly the upper portion of the
other ladder rack.
figure 3
figure
figure 5
4
- 7 -
Step 3
Assembling upper ladder rack to extended bracket(11).
A. Slide extended vertical bar ( 3) into extended bracket(11) and secure in place
with bolt(4), washer(5), and lock nut(6) at suitable position, the position of
extended bracket(11) can be adjustable. Show as figure 5.
B. Repeat the above steps to assemble the other upper Ladder rack to the
extended bracket(11) .
