OIP-AC01 Quick Installation Guide
1. PACKAGE CONTENTS
6U Rack Chassis
Installation Guide
Power Adapter

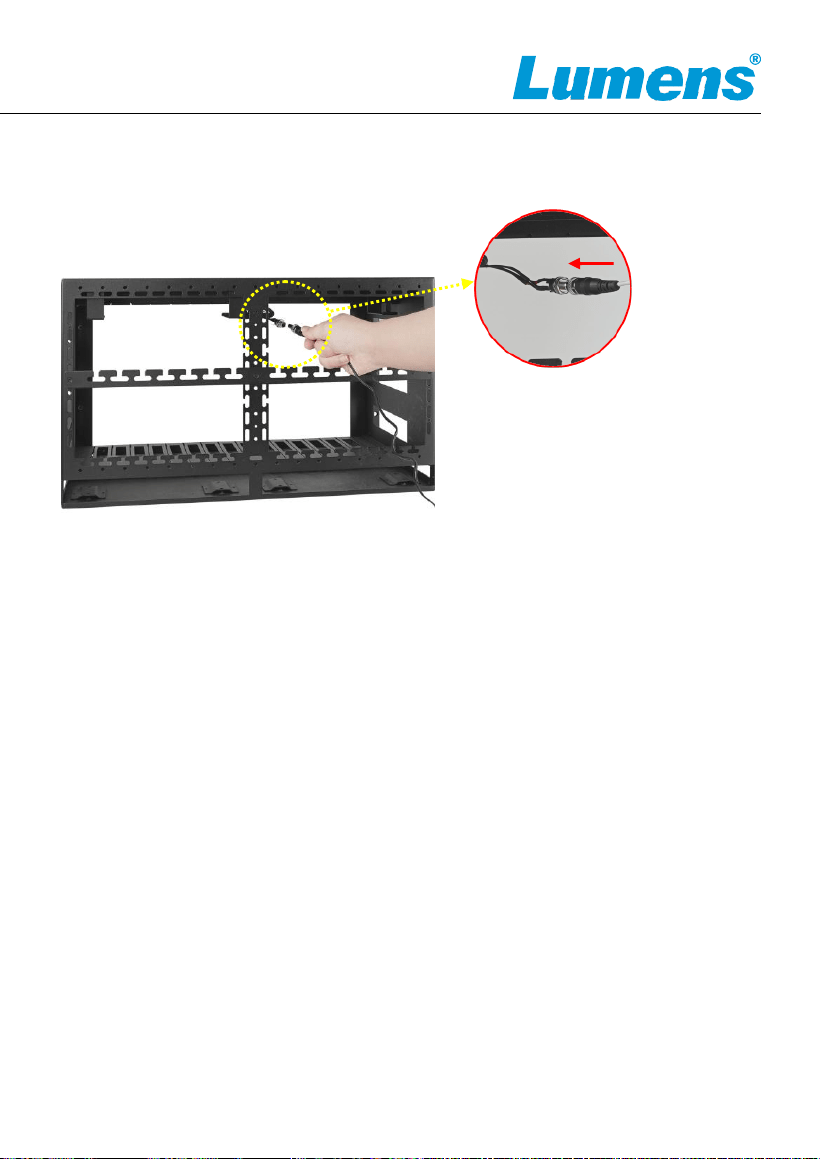

Power Connector
M5 Screw x8
Cable Clip x5
(Appearance may vary
depending on country/region
2. Power & System Requirements
Power Requirement: DC 12V, 3A power supply for the cooling fan system.
System Requirement:
The 6U rack chassis requires a minimum of 266.7mm (10.5in) contiguous
free space in the rack for mounting.
With the Cooling Fan System installed, an additional 1U space above the
chassis should be left empty to provide space for air to flow freely.
3. Installation Instructions
STEP 1

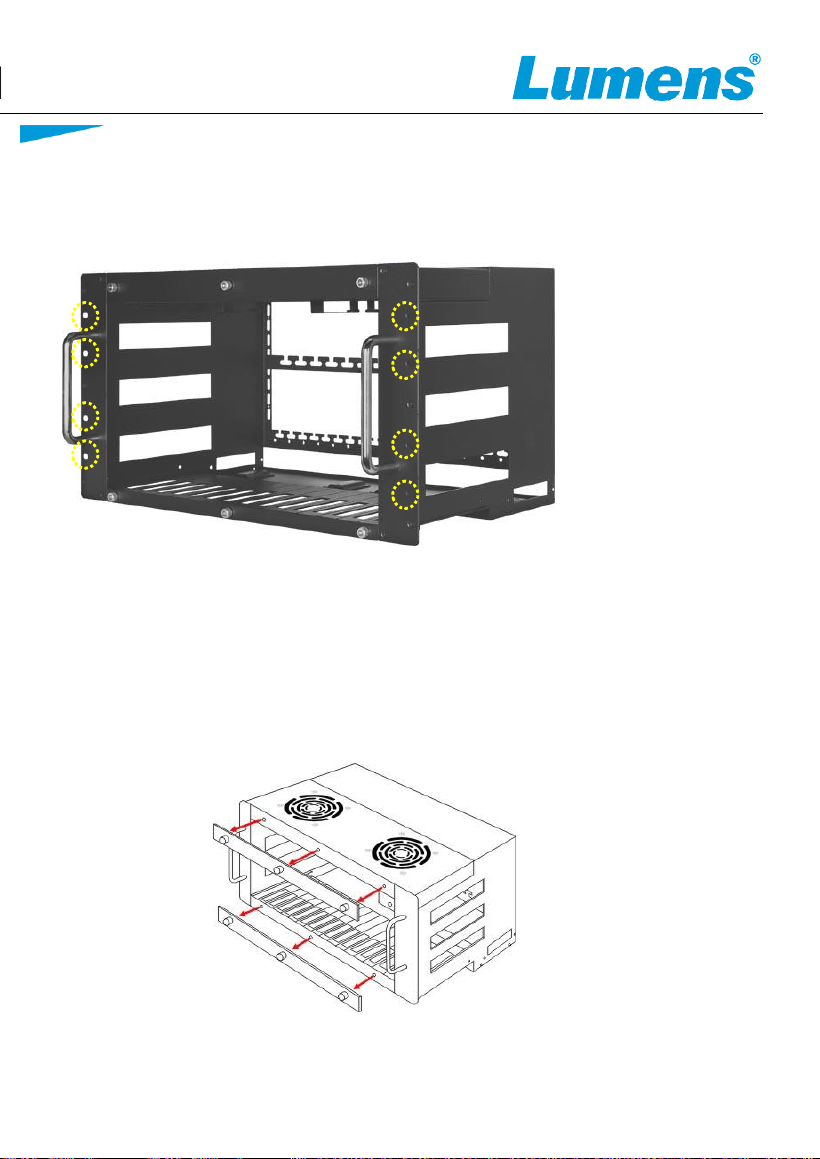

Install the OIP-AC01 to the rack with M5 Screws*8pcs.
STEP 2

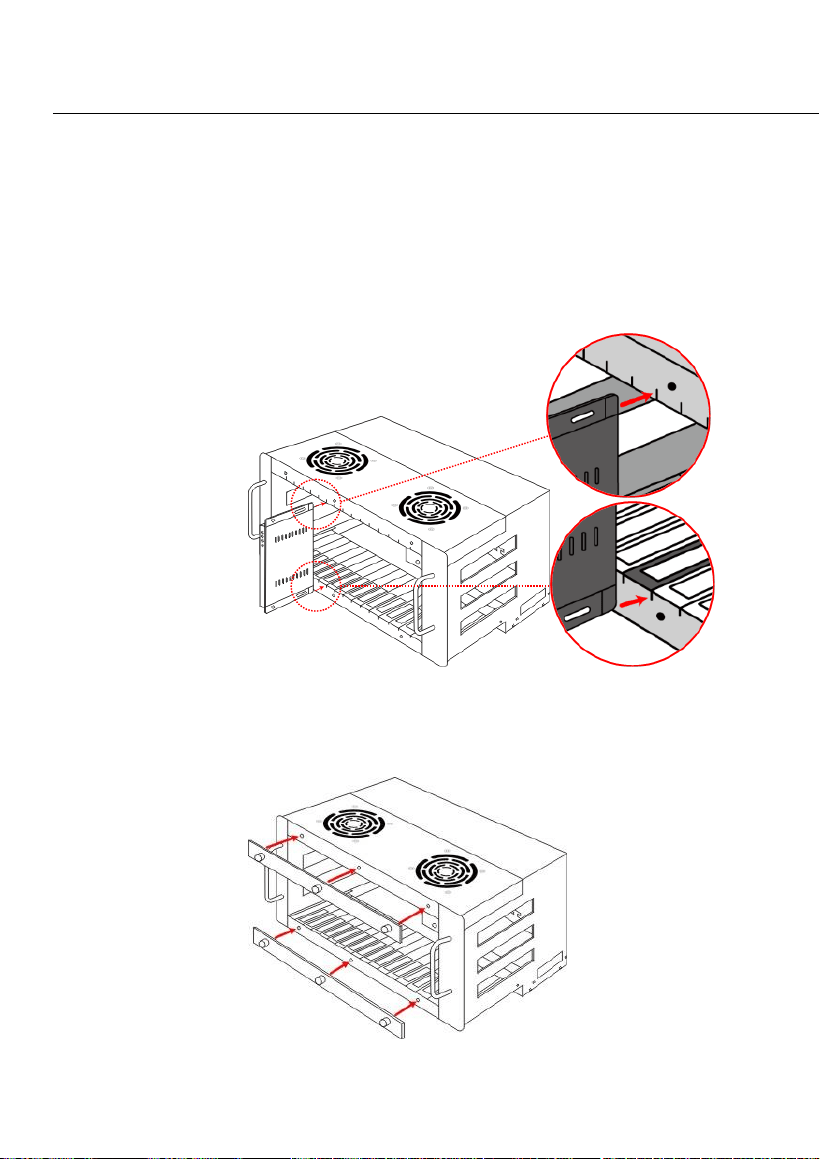

Unscrew the 3 thumbscrews holding the top locking panel in place, and remove
the panel from the front of the chassis. Unscrew the 3 thumbscrews holding the
bottom locking panel in place, and remove the panel from the front of the
chassis.
Note: The thumbscrews are connected to the locking panels with a retention mechanism
and will not come completely free when they have been unscrewed from the chassis.
