User manual
Remove both expansion card holder and the riser
cable holder
Unfasten and remove the 4 screws securing the
horizontal expansion card module
First, place the graphics card into the expansion card
holder, then install the graphics card, expansion card
module and expansion card holder into the chassis
Install the graphics card onto the horizontal
expansion card module
Adjusting the expansion card holderSecure the expansion card module with screws at the
front chassis, and secure the expansion card holder
with screws on both sides of the chassis
Place the rubber dampening padding under the
graphics card and double check the padding does
not interfere with the graphics card cooling fans
Remove the riser cable holder first before installing
the riser cable
Remove the horizontal expansion card module
Remove the PCI slots
Full-height expansion card installation Full-height graphics card in
horizontal orientation installation
Different adjustment positions
for the expansions card holder
Secure the graphics card, expansion card module,
and expansion card holder back into the chassis
Motherboard
standoff

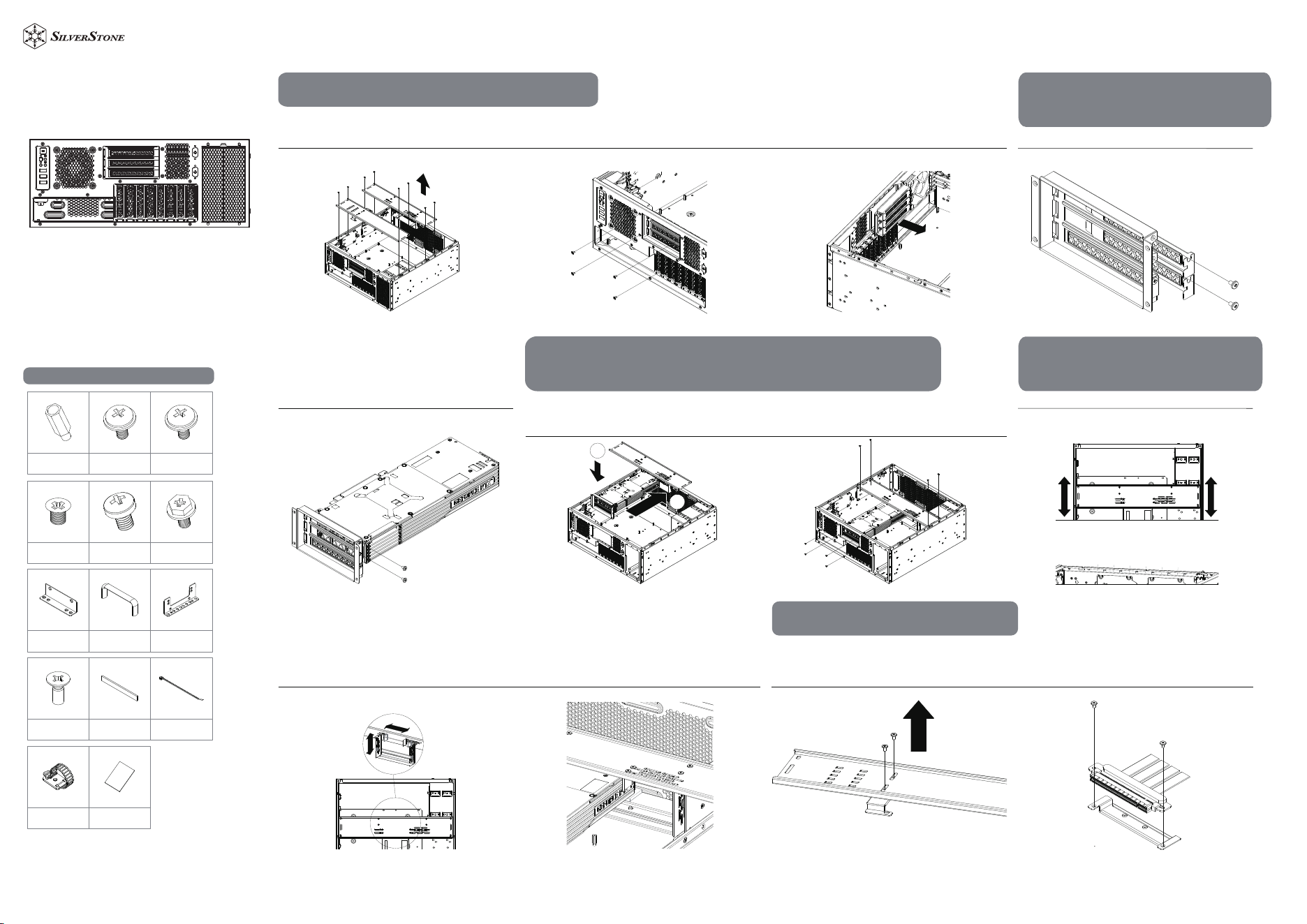

Accessories Content
Motherboard
screws
2.5” SSD Screws
(M3-4)
PSU mounting
bracket
2.5” SSD Screws
(M3-5)
3.5” HDD Screws
(#6-32)
PSU mounting
screws
Handlebars
Conductive foam
Handlebar bracket
Handlebar screws
Cable ties
Velcro straps User manual
RM47-502I
1
Attach the riser cable to the riser cable bracket and
secure with screws (Optional SST-RC05 PCIe Gen 5
riser cable can be purchased)
Fixating the riser card holder
2
1
Front and back adjustment
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
The adjustable positions are as follows
Left and right adjustment
Preparation
Remove the top panel
Remove the bottom PSU mounting bracket screws located at
outer side of the bottom chassis
Remove both expansion card holder and the riser cable holder
Remove the bottom PSU mounting bracket located at the
bottom of the chassis
CPU Cooler
Maximum height with riser cable holder: 114mm
Maximum height without riser cable holder: 148mm
Riser cable holder and CPU
cooler compatibility
PSU mount and 5.25” drive cage interchangeability instructions
2
Unfasten and remove the 4 screws on the side securing the
drive cage
Adjust the 5.25” drive cage position to the rear, and the PSU
mounting bracket to the front
Secure the corresponding screws
5.25” drive cage removal PSU mount and 5.25” drive cage interchangeability instructions
Installing conductive foam to fill the gaps on the drive cage
Installation of components in the
5.25” drive cage
Connect the riser cable to the motherboard and graphics card
then secure the whole module with screws
Removal of PSU mounting bracket
Unfasten and remove the PSU mounting bracket screws Remove the PSU mounting bracket from the rear chassis panel
114mm
Maximum: 148mm
PSU mounting bracket is pre-installed at the rear side, if the
positions is to be interchanged, ensure the PSU mounting bracket
is also moved to the front PSU mounting position for installation

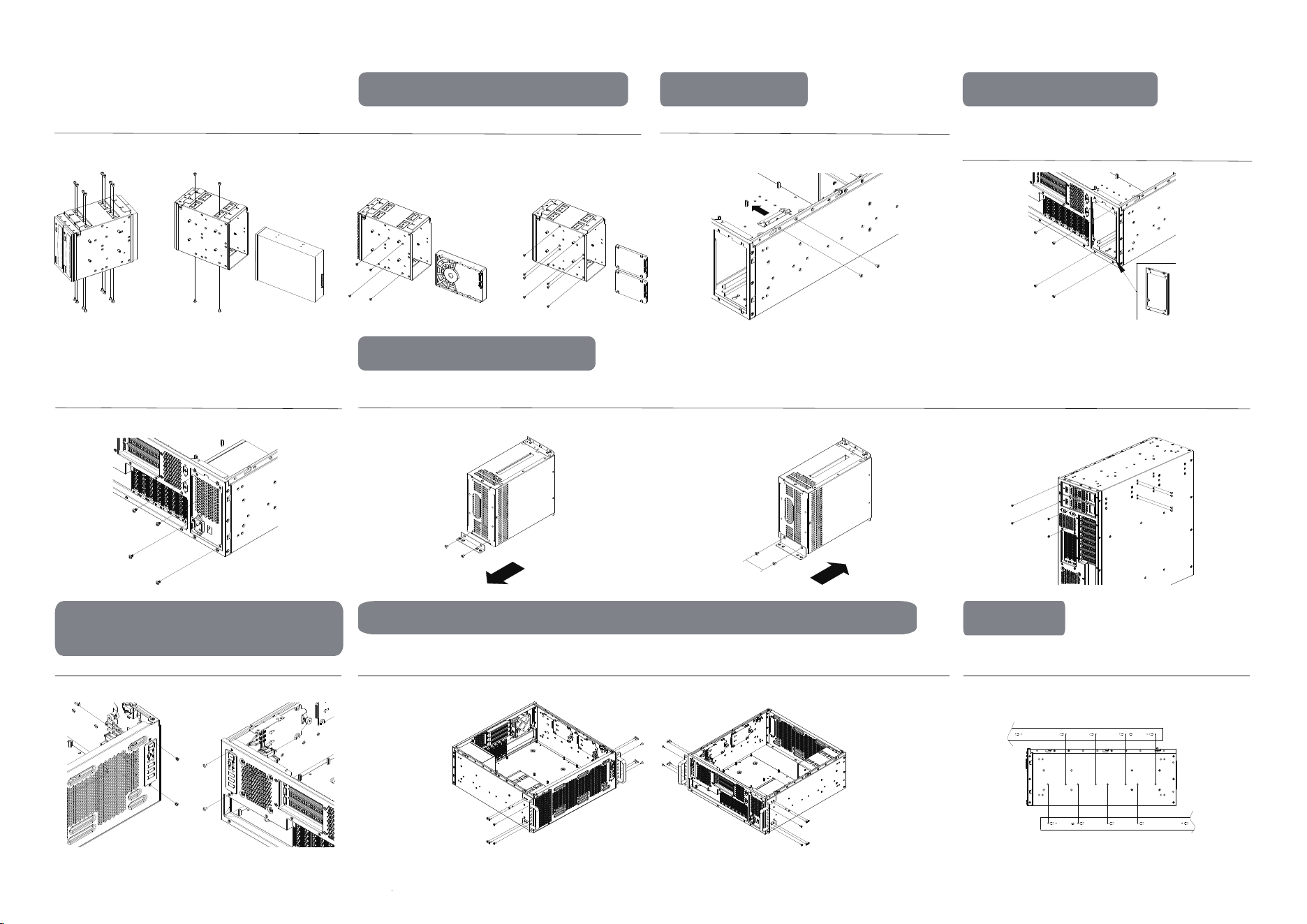

First remove the beams that supports the expansion card retainerInstalling 2 x 5.25” ODD drives 5.25" ODD x 1 or 3.5” HDD x 1 or 2.5” SSD x 2
Storage drive installation options PSU Installation ATX (PS2) Installation
Secure PSU with screws Remove the PSU mounting bracket Attach and secure the additional PSU mounting bracket included
in the accessories package to the chassis
Install and secure the PSU to the chassis
Mini Redundant Installation
I/O panel can also be interchanged
between front and rear side
3
Rear mounting position / Front mounting position
Handlebars can also be interchanged between the front and rear side
Rear mounting position / Front mounting position
Due to its interchangeable nature, when mounting the RMS05-22
rail slides, ensure that the inner rails are screwed and secured into
the designated mounting holes
Rail slides
5.25”ODD *1
2.5" SSD *2
or
3.5" HDD *1
or
50mm
OR
Rear mounting position
Front mounting position
OR
Front mounting positionRear mounting position
Rear mounting position
Front mounting position
Component restrictions PSU and 5.25” device restrictions
The total thickness of the full-height graphics card + the height of the low-profile expansion card equates to 142mm
I/O panel installed at the rear
The radiator compatibility allows three combinations between
280mm, 240mm or 120mm
Graphics card and fan/radiator total thickness cannot exceed
438mm
When installing a 280mm radiator, please install the fan(s)
between the rear chassis panel and the radiator to avoid
interference with the I/O panel
Maximum length limitation for radiator
CPU cooler height limitations
Maximum height with expansion card holder: 114mm
Maximum height without expansion card holder: 148mm
CPU cooler is allowed to protrude 7mm over the edge of the
motherboard
When 2.5” SSD mounting bracket is installed on the side, the
distance between the CPU cooler and the edge of the
motherboard must be greater than 5mm
The measurements from the front to the rear is 455mm
Considering the cable management requirements, it is recommended
that the length of the PSU and 5.25” device should not exceed 430mm
Graphics card restrictions
Radiator restrictions
4
114 mm
Maximum： 148mm
Maximum： 7mm
5mm
2.5"SSD
or
2.5"bracket
5.25"Device
Power
Supply
455mm
254mm
Graphics card
Maximum 438mm
Low-profile expansion card on the bottom
Full-height graphics card on top
142mm
142mm
120mm radiator x2
240mm radiator x1
280mm radiator x1
Max. 333mm
Cooling fans limitations

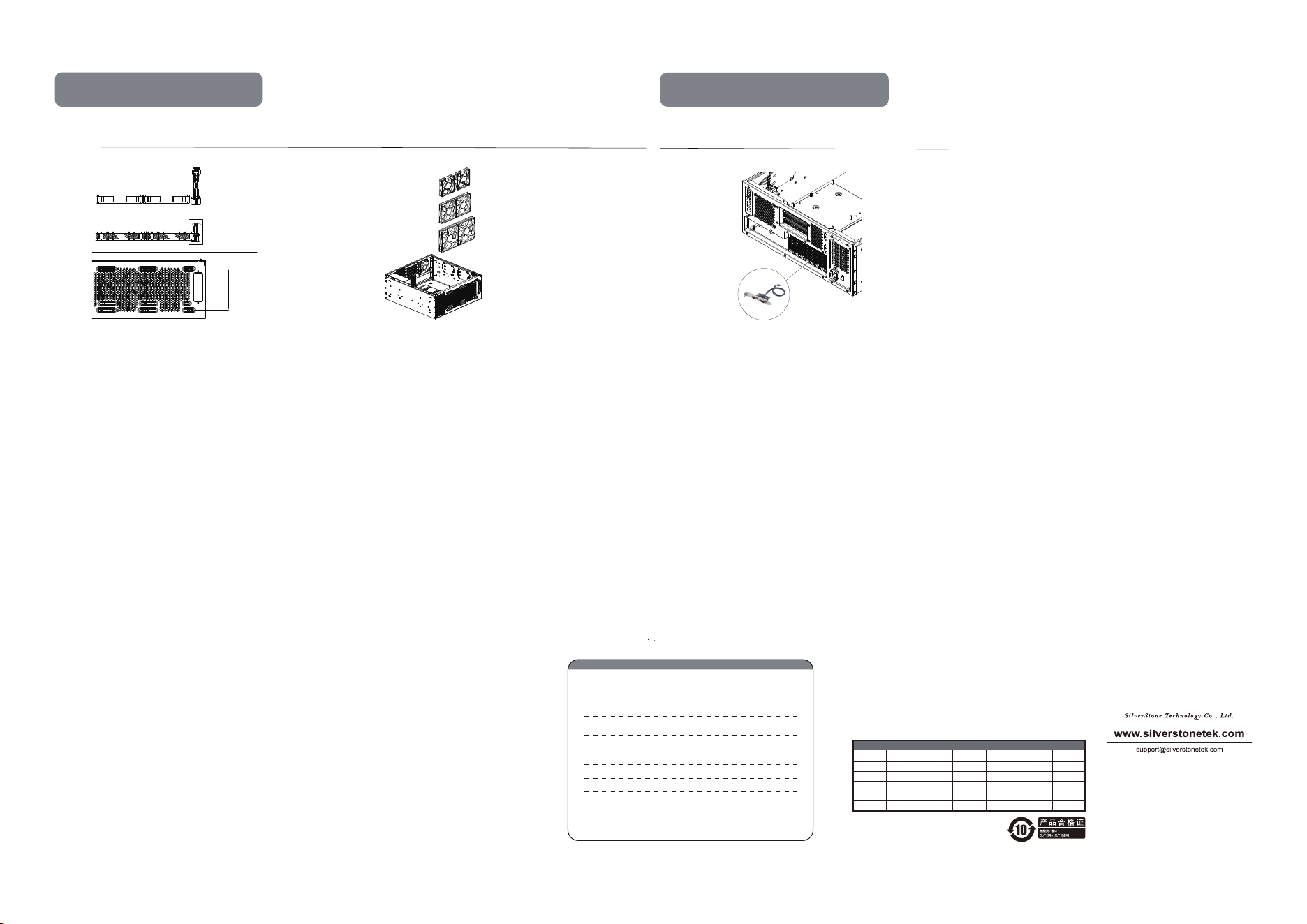

Installation of RS232 ports
If the I/O panel is located at the rear, the maximum number of fans is 2 x 140mm
If the I/O panel is located at the front, allows installation of 160mm fans with 140mm mounting holes
Can purchase optional SilverStone ECD01 (Internal USB 2.0 to
dual RS232 port adapter) to be installed in the RS232 reserved ports
