E-MANUAL
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
Model _____________ Serial No. _____________
Contents
Channel Menu
• Using the Channel Menu 1
• Using the Favorite Channels 23
• Memorizing Channels 27
• Other Features 31
Basic Features
• Changing the Preset Picture Mode 33
• Adjusting Picture Settings 34
• Changing the Picture Size 36
• Changing the Picture Options 42
• Using the TV with Your PC 55
• Changing the Preset Sound Modes 59
• Adjusting Sound Settings 60
Preference Features
• Wired Network Setting 70
• Wireless Network Setting 82
• Setting the Time 110
• Blocking Programs 118
• Economical Solutions 130
• Picture In Picture (PIP) 132
• Other Features 136
• Support Menu 151
Advanced Features
• 3D 164
• Smart Hub 178
• Setting up Smart Hub 194
• Using Smart Hub 216
• Screen Display 225
• Videos 226
• Music 234
• Photos 238
• Smart Hub - Additional Functions 240
• Using Samsung Apps 246
• AllShare™ 288
• Anynet+(HDMI-CEC) 294
Other Information
• Troubleshooting 307
• Anti-theft Kensington Lock 319
• License 321
English
▶
❑
Using the Channel Menu
To access the Channel menu, press the
SMART HUB button on your remote. After
Smart Hub appears, use the arrow buttons on
your remote to select Channel, and then press
the ENTER
E
button.
■
Schedule Manager
O
SMART HUB
→
Schedule Manager
→
ENTER
E
Press the SMART HUB button on your remote, and then select Schedule Manager
to access the Timer Viewing function. Timer Viewing lets you display the channel
you want at the time of your choice.
● The displayed image may differ depending on the
model.
Search
Favorites
Schedule Ma...
Channel Web Browser
Source
Videos Photos Music
a
Login
b
Sort by
{
Edit Mode
}
Settings
Recommended
▶
English
▶
Using the Timer Viewing
You can set the TV to display a desired channel automatically on a day and at a time
of your choice.
N
You must set the current time first using the Time
→
Clock function in the System
menu to use this function.
To use Timer Viewing, follow these steps:
1. Press the ENTER
E
button to add a scheduled viewing.
2. Press the
l
/
r
/
u
/
d
buttons to set Antenna, Channel, Repeat, and Start
Time.
▶
English
▶
●
Antenna: Select Air or Cable.
●
Channel: Select the desired channel.
N
You can only select memorized channels.
●
Repeat: Select Once, Manual, Sat~Sun, Mon~Fri or Everyday. If you select
Manual, you can set the day you want.
N
The
c
mark indicates a day you selected.
Date: You can set a desired date.
N
Date is available only when you select Once in Repeat.
▶
English
▶
●
Start Time: You can set the start time you want.
N
You can only select memorized channels.
N
On the Information screen, you can change or cancel a scheduled viewing.
●
Cancel Schedules: Cancel a scheduled viewing.
●
Edit: Change a a scheduled viewing.
●
Return: Return to the previous screen.
▶
English
▶
■
Channel List
The Channel List contains the channels your
TV displays (Added Channels) when you press
the CH LIST button on your remote. On the
Channel List, you can view Added Channels,
channel information, Favorites, and manage
channels.
O
When you press the CH LIST button on
the remote control, Channel List screen is
displayed immediately.
● The displayed image may differ depending on the
model.
6-1 TV #6
7 Air
8 Air
9 Air
No Information
9-2 TV #10
9-3 TV #11
9 Air
10-1 TV #12
10-2 TV #13
10 Air
11 Air
6 Air
Channel List
Added Channels
Air
a
Antenna
{
Program View
L
Ch.Mode
E
Watch
k
Page
▶
English
▶
●
Added Channels: Shows all added channels.
●
Favorites 1-5: Shows all favorite channels, in up to five groups. Each group
has a separate screen.
N
If you want to view the list of favorite channels, press the CH LIST button,
and then press the
r
(CH Mode) button to display Favorites 1-5.
Press the
l
button to return to the Added Channels.
N
The TV displays Favorites only if you have added favorites using
Edit Favorites.
Using the colored and function buttons with the Channel List.
●
a
Red (Antenna): Switches the mode and display between Air or Cable.
●
{
Yellow (Program View / Channel View): For digital channels, switches the
display between Program View and Channel View. When you select a digital
channel in Channel View, press once to display a list of programs on that
channel. Press again to re-display the Channel List.
▶
English
▶
●
l
/
r
(CH Mode): Toggles between the Favorites list (if you have added
favorites using Edit Favorites) and the Added Channels.
●
E
(Watch / Information): Press to watch the channel you selected. / Displays
detailed of the selected program.
●
k
(Page): Scrolls the Channel List to the next or previous page.
Channel Status Display Icons
Icon Operations
a
An analog channel.
)
A reserved program.
▶
English
▶
How to use Timer Viewing in Channel List (digital channels only)
You can use Timer Viewing in the Channel List to schedule a digital channel
program for viewing. The TV will turn on and display the digital channel program
when the program begins.
To schedule a digital program, follow these steps:
1. Press the CH LIST button, then select a desired digital channel.
2. Press the
{
(Program View) button.
▶
English
▶
3. Press the
u
or
d
buttons to select the desired program, and then press the
INFO button.
4. Press the
l
or
r
buttons to select Timer Viewing, and then press the
ENTER
E
button.
5. Press RETURN twice to exit.
N
If you want to cancel Timer Viewing, follow Steps 1 through 3, and then
select Cancel Schedules.
▶
English
▶
■
Channel
O
SMART HUB
→
Channel
→
ENTER
E
Using the Channel function, you can add
channels, delete Added channels, set Favorite
channels, use the program guide for digital
broadcasts and change between the All
Channels and Added Ch. screen. You can
also change the antenna or channel settings by
selecting the icons in the top right corner of the
screen.
● The displayed image may differ depending on the
model.
6 Air
6-1 TV #6
7 Air
8 Air
9 Air
9-1 TV #9
9-2 TV #10
9-3 TV #11
9-4 TV #12
10 Air
11 Air
12 Air
13 Air
14 Air
15 Air
13-1 TV #15
10-1 TV #13
10-2 TV #14
Channel
All Channels
Added Ch.
▶
English
▶
●
Antenna: Toggle between Air or Cable. To access the Antenna function,
use the arrow buttons to move the cursor to the Antenna icon on the top right
corner of the screen.
●
Edit Mode: Add channels to the Favorites list and delete channels from
the Channel list.
N
To change between All Channels and Added Ch., select All Channels or
Added Ch. on the screen, and then press the ENTER
E
button.
▶
English
▶
●
Edit Mode: Setting channels you watch frequently as favorites.
1. Select the
Edit Mode icon on the upper right of your screen, and
then press the ENTER
E
button.
2. Press the arrow buttons to select a channel as a favorite, and then press
ENTER
E
. A check appears to the left of the channel.
N
You can select more than one channel.
N
Pressing ENTER
E
again deselects the channel.
3. Select Edit Favorites at the bottom of your screen, and then press
ENTER
E
button. The Edit Favorites pop-up appears.
▶
English
▶
4. Highlight a group on the Favorites list, and then press ENTER
E
.
N
The Edit Favorites screen has five groups (Favorites 1, Favorites 2,
etc.). You can add a favorite channel to any one of the groups. Select a
group using the up and down arrows on your remote.
5. Select OK, press ENTER
E
, and then press ENTER
E
again.
6. Press ENTER
E
again to exit Edit Mode.
▶
English
▶
●
Using Edit Mode to Delete a Channel from the Channel List
1. Select the Edit Mode icon on the upper right of your screen, and then
press the ENTER
E
button.
2. Select Delete at the bottom of your screen, and then press ENTER
E
.
A pop-up appears asking if you want to delete the item.
3. Press the
l
/
r
/
u
/
d
buttons to select a channel, and then press
ENTER
E
. A check appears to the left of the channel.
N
You can select more than one channel.
N
Pressing ENTER
E
again deselects the channel.
▶
English
▶
4. Select OK, press ENTER
E
, and then press ENTER
E
again.
The channel is deleted from the Channel list.
5. Press ENTER
E
again to exit Edit Mode.
N
The Deselect function that appears with the Delete function lets you
deselect all selected channels.
▶
English
▶
N
Using the TOOLS button with Channel
To use the TOOLS button functions, highlight a channel in the Added Ch. list
or All Channels list, and then press the TOOLS button.
●
Add / Delete: Add a channel to or delete a channel from the Added Ch.
list. When you use the Channel button on your remote to change channels,
your TV only displays the channels on the Added Ch. list.
▶
English
▶
To Add a channel using the TOOLS button in Channel, follow these steps:
1. Use the arrow buttons to select All Channels, and then press ENTER
E
.
N
All Channels will be at the very top or bottom of the screen.
2. On the All Channels screen, select a greyed out channel.
3. Press the TOOLS button.
4. Select Add on the TOOLS menu, press ENTER
E
, and then press
ENTER
E
again.
▶
English
▶
To Delete a channel using the TOOLS button in Channel, follow these steps:
1. Use the arrow buttons to select Added Ch., and then press ENTER
E
.
N
Added Ch. will be at the very top or bottom of the screen.
2. On the Added Ch. screen, select a channel.
3. Press the TOOLS button.
4. Select Delete on the TOOLS menu, press ENTER
E
, and then press
ENTER
E
again.
▶
English
▶
N
NOTE
●
Your TV lists all available channels, both added and deleted, on the
All Channels menu.
●
A gray-colored channel indicates the channel has been deleted.
●
Add only appears if you have selected a deleted channel on the All
Channel list.
●
Delete only appears if you have selected an added channel on the
Added Ch. or All Channels list.
●
You can also delete a channel on the All Channels list. Added
channels are bright. Deleted channels are dim. To delete an Added
channel on the All Channels list, select a bright channel, press
the TOOLS button, select Delete, press ENTER
E
, then press
ENTER
E
again.
▶
English
▶
●
Edit Favorites: Setting channels you watch frequently as favorites.
To set channels as favorites, follow these steps:
1. Highlight a channel in the Added Ch. list or All Channels list, and then
press the TOOLS button.
2. Select Edit Favorites in the TOOLS menu, and then press the
ENTER
E
button.
3. Highlight a group on the Edit Favorites screen (Favorites 1, Favorites 2,
etc.), and then press the ENTER
E
button.
N
The Edit Favorites screen has five groups. You can add a favorite
channel to any one of the groups. Select a group using the up and
down arrows on your remote.
4. Select OK, and then press the ENTER
E
button. The channel is made
a favorite and is assigned to the favorite group you selected.
N
The TV displays the “
F
” symbol next to the channel, indicating it is a
favorite.
▶
English
▶
●
Edit Favorites: Removing a channel from list of favorites using the TOOLS
buton.
To remove a channel from the list of favorites, follow these steps:
1. Highlight a favorite channel in the Added Ch. list or All Channels list,
and then press the TOOLS button.
2. Select Edit Favorites in the TOOLS menu, and then press the
ENTER
E
button. The Edit Favorites screen appears.
3. The group this favorite is assigned to has a green square in front of it.
Highlight that group on the Edit Favorites screen, press the ENTER
E
button, and then press the ENTER
E
button again.
4. Select OK, press the ENTER
E
button, and then press the ENTER
E
button again. The channel is removed from the list of favorites.
▶
English
▶
●
Channel Name Edit (Appears only if you have selected an analog channel.):
Assign a name of up to five characters to a channel. For example, Hist,
Food, Golf, etc. This makes it easier to find and select the channel.
●
Upcoming Program (Appears only if you have selected a digital channel.):
View details on the program being aired on the selected digital channel.
Channel Status Display Icons
Icon Operations
a
An analog channel.
c
A selected channel.
F
A favorite channel
▶
English
▶
❑
Using the Favorite Channels
■
Favorites
O
SMART HUB
→
Favorites
→
ENTER
E
View all of your favorite channels.
Your favorite channels are organized in up to five groups (Favorites 1-5).
If you want to change from one favorite group to another, follow these steps:
1. Move the cursor to the group name displayed on the top of the screen, and
then press the ENTER
E
button. A list of groups appears.
2. Use the up or down arrow key to select a group, and then press the ENTER
E
button. The group you select appears on the screen.
▶
English
▶
Functions on the Favorites Screen
To access the functions listed below, use the arrow buttons to move the cursor
to the icon of your choice on the top right corner of the screen, and then press
ENTER
E
.
●
View Mode: Toggles between the Text view and Thumbnail view of your
favorite channels. Thumbnail view displays a picture of the program currently
on.
●
Antenna: Toggles between Air and Cable.
●
Sorting: Toggles between sorting favorites by Category and sorting by
Title.
●
Edit Mode: Delete channels from the Favorites list. For instructions, see
the next page.
▶
English
▶
To use View Mode, Antenna, or Sorting, select the appropriate icon as described
above, and then press ENTER
E
. Use the left or right arrow button to make your
selection, and then press ENTER
E
.
Using Edit Mode to Delete a Favorite
1. Select the
Edit Mode on the upper right of your screen, and then press the
ENTER
E
button.
2. Press the
l
/
r
/
u
/
d
buttons to select a channel, and then press
ENTER
E
. A check appears to the left of the channel.
N
You can select more than one channel.
N
Pressing ENTER
E
again deselects the channel.
3. Select Delete at the bottom of your screen, and then press ENTER
E
.
A pop-up appears asking if you want to delete the item.
▶
English
▶
4. Select OK, press ENTER
E
, and then press ENTER
E
again. The channel is
deleted from Favorites.
5. Press ENTER
E
again to exit Edit Mode.
N
The Deselect function that appears with the Delete function lets you
deselect all selected channels.
N
If you have assigned a channel to more than one favorite group (say Favorite
1 and Favorite 2), you must repeat this process in both groups to remove a
channel entirely from your Favorites.
▶
English
▶
❑
Memorizing Channels
O
MENU
m
→
Channel
→
ENTER
E
■
Antenna (Air / Cable)
t
Your TV memorizes channels and adds the memorized channels to the Channel.
Before your TV can memorize channels, you must specify the signal source, either
Air or Cable. If you select cable, when you start Auto Program, you must also
specify the cable system type, STD, HRC, or IRC. If you don’t know your cable
system type, contact your local cable company for the information. Most cable
companies use STD.
▶
English
▶
To select Air or Cable, follow these steps:
1. Push MENU
m
→
Channel
→
ENTER
E
on your remote.
2. Select Antenna, and then press ENTER
E
.
3. Select the source of your TV signal, Air or Cable, and then press the RETURN
button.
▶
English
▶
■
Auto Program
Scans for channels automatically and stores them in the TV’s memory.
To start Auto Program, follow these steps:
1. Push MENU
m
→
Channel
→
ENTER
E
on your remote.
2. Select Auto Program, and then press ENTER
E
.
3. Select Air or Cable or both by highlighting and then pressing ENTER
E
.
N
If you selected Air or Cable or both on the Antenna screen, your choice will
already be selected.
4. Select Next, and then press ENTER
E
.
▶
English
▶
5. If you selected Cable, the Cable System screen appears. Select Digital, and
then press ENTER
E
.
N
If you selected Antenna only, Auto Program starts.
6. Select STD, HRC, or IRC, and then press ENTER
E
.
7. Repeat for Analog.
8. Select Next, and then press ENTER
E
. Auto Program starts.
N
After all the available channels are stored, Auto Program removes
scrambled channels. When done, the Auto Program menu then reappears.
This process can take up to 30 minutes
▶
English
▶
❑
Other Features
O
MENU
m
→
Channel
→
ENTER
E
■
Clear Scrambled Channel
This function filters out scrambled channels after Auto Program is completed. This
process may take up to minutes.
How to Stop the Clear Scrambled Channels function
1. Press the ENTER
E
button to select Stop.
2. Press the
u
button to select Yes.
3. Press the ENTER
E
button.
N
This function is only available in Cable mode.
▶
English
▶
■
Fine Tune
(analog channels only)
If the reception is clear, you do not have to fine tune the channel, as this is done
automatically during the search and store operation. If the signal is weak or
distorted, fine tune the channel manually. Scroll to the left or right until the image is
clear.
N
Settings are applied to the channel you’re currently watching.
N
Fine tuned channels that have been saved are marked with an asterisk “*” on
the right-hand side of the channel number in the channel banner.
N
To reset the fine-tuning, select Reset.
Picture Menu
▶
English
▶
❑
Changing the Preset Picture Mode
O
MENU
m
→
→
Picture Mode
→
ENTER
E
■
Picture Mode
t
Picture modes apply preset adjustments to the picture. Select a mode using the
up and down arrow keys, and then press the ENTER
E
button.
N
When connecting a PC, you can only select Entertain and Standard.
●
Dynamic: Suitable for a bright room.
●
Standard: Suitable for a normal environment.
●
Natural
for LED TV
/ Relax
for PDP TV
: Suitable for reducing eye strain.
●
Movie: Suitable for watching movies in a dark room.
●
Entertain (When connecting a PC): Suitable for watching movies and games.
▶
English
▶
❑
Adjusting Picture Settings
O
MENU
m
→
→
ENTER
E
■
Backlight
for LED TV
/ Cell Light
for PDP TV
/ Contrast / Brightness / Sharpness /
Color / Tint (G/R)
Your television has several options for adjusting picture quality. Select an option
using the up and down arrow keys, and then press ENTER
E
. Use the arrow
keys to adjust the option value or select an option setting. When done, press
ENTER
E
.
▶
English
▶
N
When you make changes to Backlight / Cell Light, Contrast, Brightness,
Sharpness, Color or Tint (G/R), the OSD will be adjusted accordingly.
N
When connecting a PC, you can only make changes to Backlight / Cell Light,
Contrast, Brightness, and Sharpness.
N
You can adjust and store Settings for each external device connected to the TV.
N
Lowering picture brightness reduces power consumption.
▶
English
▶
❑
Changing the Picture Size
O
MENU
m
→
→
Screen Adjustment
→
ENTER
E
■
Screen Adjustment
Screen Adjustment provides various picture size and aspect ratio options. Select
an option using the
u
and
d
arrow keys, and then press ENTER
E
. Use the
arrow keys to select an option in the sub-menu, and then press ENTER
E
.
●
Picture Size: If you have a cable box or satellite receiver, it may have its own
set of screen sizes as well. However, we highly recommend you use your TV’s
16:9 mode most of the time.
N
If you have set Double (
à
,
Œ
) mode in PIP (Picture-in-Picture), you
cannot adjust the Picture Size.
16:9: Sets the picture to 16:9 wide mode.
▶
English
▶
Zoom1: Use for moderate magnification. Cuts off the top and sides.
Zoom2: Use for a stronger magnification.
Wide Fit: Enlarges the aspect ratio of the picture so it fits the entire screen.
N
Available with HD 1080i / 720p signals in 16:9 mode.
4:3: Sets the picture to basic (4:3) mode.
N
Do not set your TV to 4:3 format for a long time. The borders displayed
on the left and right, or top and bottom of the screen may cause image
retention (screen burn) which is not covered by the warranty.
▶
English
▶
Screen Fit: When your TV inputs HDMI (720p / 1080i / 1080p) or Component
(1080i / 1080p) signals, displays the full image without any cut-off.
Smart View 1: Reduces the 16:9 picture by 50%.
for LED TV
Smart View 2: Reduces the 16:9 picture by 25%.
for LED TV
N
Smart View 1 is enabled only in HDMI mode.
N
Smart View 2 is enabled only in HDMI or DTV mode.
N
The picture size can vary depending on the input resolution when you play
content from Videos in Smart Hub.
●
Position: Adjusts the picture position. Position is only available if Picture size
is set to Zoom1, Zoom2, Wide Fit, or Screen fit.
▶
English
▶
N
To use the Position function after selecting Zoom1, Zoom2 or Wide Fit, follow
these steps:
1. Press the
d
button to select Position.
2. Press the ENTER
E
button.
3. Press the
u
or
d
button to move the picture up or down.
4. Press the ENTER
E
button.
5. Select Close by pressing the
d
and
r
buttons sequentially. To reset the
picture position, press Reset.
▶
English
▶
N
To use the Position function after selecting Screen Fit in HDMI (1080i/1080p)
or Component (1080i/1080p), follow these steps:
1. Press the
d
button to select Position.
2. Press the ENTER
E
button.
3. Press the
u
,
d
,
l
or
r
button to move the picture.
4. Press the ENTER
E
button.
5. Select Close by pressing the
d
and
r
buttons sequentially.
N
If you want to reset the picture to its original position, select Reset in the
Position screen. The picture will be set to its default position.
▶
English
▶
●
HD (High Definition): 16:9 - 1080i/1080p (1920x1080), 720p (1280x720)
●
You can adjust and store settings for each external device you have connected
to an input on the TV.
●
Picture Sizes available by Input Source:
Input Source Picture Size
ATV, AV, Component (480i, 480p) 16:9, Zoom1, Zoom2, 4:3
HDMI (720p, 1080i, 1080p) Smart View 1
DTV(1080i), HDMI (720p, 1080i, 1080p) Smart View 2
DTV(1080i), Component (1080i, 1080p),
HDMI (720p, 1080i, 1080p)
16:9, 4:3, Wide Fit, Screen Fit
PC 16:9, 4:3
▶
English
▶
❑
Changing the Picture Options
■
Advanced Settings
O
MENU
m
→
→
Advanced Settings
→
ENTER
E
All Advanced Settings are available in the Standard
and Movie modes. When connecting a PC, you can
only make changes to Gamma and White Balance.
To use, select an option using the up and down arrow
keys, and then press ENTER
E
. Use the arrow
keys to change the value or setting, and then press
ENTER
E
.
● The displayed image may differ
depending on the model.
Advanced Settings
Black Tone Off
Dynamic Contrast Off
Gamma 0
Expert Pattern Off
Color Space Native
White Balance
RGB Only Mode Off
▶
English
▶
●
Black Tone (Off / Dark / Darker / Darkest): Select the black level to adjust the
screen depth.
●
Dynamic Contrast (Off / Low / Medium / High): Adjusts the screen contrast.
●
Shadow Detail (-2~+2)
for LED 7000 Series
: Increases the brightness of dark
images.
●
Gamma: Adjusts the primary color intensity.
●
Expert Pattern (Off / Pattern1 / Pattern2): Use the Expert Pattern function
to calibrate the picture. If the OSD menu disappears or a menu other than the
Picture menu is opened, the TV saves the calibration and the Expert Pattern
screen disappears.
Off: Turns the Expert Pattern function off.
Pattern1: This test screen demonstrates the effect of the display settings on
shades of grey and black.
▶
English
▶
Pattern2: This test screen demonstrates the effect of the display settings on
colors.
N
After selecting Pattern1 or Pattern2, you can adjust any of the advanced
settings for desired effect.
N
While the Expert Pattern is running, the TV does not output sound.
N
Only enabled in DTV, Component, and HDMI modes.
●
RGB Only Mode (Off / Red / Green / Blue): Displays the Red, Green and
Blue colors so you can make fine adjustments to hue and saturation.
▶
English
▶
●
Color Space (Auto / Native / Custom): Adjusts the range and variety of colors
(the color space) available to create images.
N
To adjust Color, Red, Green, Blue and Reset, set Color Space to
Custom.
●
White Balance: Adjusts the color temperature for a more natural picture.
R-Offset / G-Offset / B-Offset: Adjusts each color’s (red, green, blue)
darkness.
R-Gain / G-Gain / B-Gain: Adjusts each color’s (red, green, blue) brightness.
Reset: Resets the White Balance to it’s default settings.
▶
English
▶
●
10p White Balance (Off / On): Controls the white balance in 10 point intervals
by adjusting the red, green, and blue brightness.
N
Available when the picture mode is set to Movie and when the external
input is set to all input.
N
Some external devices may not support this function.
Interval: Select interval to adjust.
Red: Adjust the red level.
Green: Adjust the green level.
Blue: Adjust the blue level.
Reset: Resets the 10p White Balance to its default settings.
▶
English
▶
●
Flesh Tone: Emphasizes pink “Flesh Tone.”
●
Edge Enhancement (Off / On): Emphasizes object boundaries.
●
Motion Lighting (Off / On):
Reduces power consumption by reducing screen
brightness when the picture on the screen is in motion.
N
3D is not supported.
N
When you change the Backlight
for LED TV
/ Cell Light
for PDP TV
, Contrast
or Brightness, the TV sets Motion Lightning to Off.
▶
English
▶
●
xvYCC (Off / On): Setting xvYCC on increases picture detail and enlarges the
color space when your are watching movies input from an external device (e.g.
BD/DVD player) connected to the TV’s HDMI or Component IN jacks.
N
Available only when you set the picture mode to Movie and the external
input to HDMI or Component.
N
Some external devices may not support this function.
●
LED Motion Plus (Off / On)
for LED 7000 and 7050 Series
: Removes blur and judder
from scenes with large amounts of rapid movement to provide a clearer picture.
●
LED Motion Plus (Off / Normal / Cinema / Ticker)
for LED 7900 and 8000 Series
:
Removes blur and judder from scenes with large amounts of rapid movement
to provide a clearer picture.
▶
English
▶
■
Picture Options
O
MENU
m
→
→
Picture Options
→
ENTER
E
Select an option using the up and down arrow keys, and the press ENTER
E
.
Use the arrow keys to change the setting, and then press ENTER
E
.
N
When connecting a PC, you can only make
changes to Color Tone.
●
Color Tone (Cool / Standard / Warm1 / Warm2)
N
Warm1 or Warm2 will be deactivated when the
picture mode is Dynamic.
N
You can adjust and store settings for each
external device connected to an input on the
T V.
● The displayed image may differ
depending on the model.
Picture Options
Color Tone Standard
Digital Noise Filter Auto
MPEG Noise Filter Auto
HDMI Black Level Normal
Film Mode Off
Auto Motion Plus Standard
Smart LED Standard
▶
English
▶
●
Digital Noise Filter (Off / Low / Medium / High / Auto / Auto Visualization):
If the broadcast signal received by your TV is weak, you can activate the Digital
Noise Filter feature to reduce any static and ghosting that may appear on the
screen.
N
When the signal is weak, try all the options until the the TV displays the best
picture.
Auto Visualization: When changing analog channels, displays signal strength.
N
Only available for analog channels.
N
When the bar is green, you are receiving the best possible signal.
●
MPEG Noise Filter (Off / Low / Medium / High / Auto): Reduces MPEG
noise to provide improved picture quality.
▶
English
▶
●
HDMI Black Level (Low / Normal): Lets you adjust the screen depth by
selecting a black level.
N
Available only in HDMI mode.
●
Film Mode (Off / Auto1 / Auto2 / Cinema Smooth
for PDP TV
): Sets the TV
so that it senses and then processes film signals from all sources automatically
and adjusts the picture for optimum quality. The Cinema Smooth function is
only active when the TV inputs an HDMI 24Hz signal.
N
Available in TV, AV, COMPONENT (480i / 1080i) and HDMI (1080i).
▶
English
▶
●
Auto Motion Plus (Off / Clear / Standard / Smooth / Custom /
Demo)
For LED TV
: Removes blur and Translate from scenes with larger amounts
of rapid movement to provide a clearer picture.
N
The info screen on your TV displays the resolution and frequency of the
incoming video signal (60 Hz). This displayed frequency is not the frequency
of the picture the TV is displaying when you have Auto Motion Plus on.
N
If noise occurs on the screen, please set Auto Motion Plus to Off. If you
set Auto Motion Plus to Custom, you can control Blur Reduction and
Judder Reduction manually and use Reset to reset both to their default
settings.
N
If you set Auto Motion Plus to Demo, you can compare the difference
between a picture with Auto Motion Plus on and Auto Motion Plus off.
▶
English
▶
Blur Reduction: Adjusts the blur reduction level for signals input from all video
sources.
Judder Reduction: Adjusts the Translate reduction level for signals input from
a video source through which you are playing a movie.
Reset: Reset the custom settings.
●
Smart LED (Off / Low / Standard / High / Demo)
for LED 7900 and 8000 Series
:
Controls the LED backlight to maximize picture clarity.
Demo: Displays the difference between Smart LED on and off modes.
●
Cinema Black (Off / On)
for LED 7900 and 8000 (46~55 inches) Series
: More immersive
viewing for cinema resolution by dimming control.
▶
English
▶
■
Reset Picture (Yes / No)
Resets your current picture mode to its default settings.
▶
English
▶
❑
Using the TV with Your PC
Set the input source to PC.
■
Auto Adjustment
t
O
MENU
m
→
→
Auto Adjustment
→
ENTER
E
Automatically adjusts the picture’s frequency, position, and fine tune settings in the
PC mode.
N
Available in PC mode only.
N
Not available if you connect your PC with an HDMI to DVI cable.
▶
English
▶
■
PC Screen Adjustment
O
MENU
m
→
→
Screen Adjustment
→
PC Screen Adjustment
→
ENTER
E
N
Available in PC mode only.
●
Coarse / Fine: Removes or reduces picture noise. If the noise is not removed
by Fine-tuning alone, use the Coarse function to adjust the frequency as best
as possible (Coarse) and Fine-tune again. After the noise has been reduced,
re-adjust the picture so that it is aligned with the center of screen.
●
Position: To adjust the PC’s screen position if it is not centered or does not fit
the TV screen. Press the
u
or
d
button to adjust the Vertical Position. Press
the
l
or
r
button to adjust the Horizontal Position.
●
Image Reset: Resets the image to the default settings.
▶
English
▶
Using Your TV as a Computer (PC) Display
Entering the Video Settings (Based on Windows XP)
For your TV to work properly as a computer display, you must enter the correct video
settings.
N
Depending on your version of Windows and your video card, the procedure on
your PC will probably differ slightly from the procedure presented here. However,
the same basic information will apply in most cases. (If not, contact your computer
manufacturer or Samsung Dealer.)
▶
English
▶
1. Click “Control Panel” on the Windows start menu.
2. Click “Appearance and Themes” in the “Control Panel” window. A display dialog-
box appear.
3. Click “Display”. Another display dialog box appears.
4. Click the the “Settings” tab on the display dialog-box.
●
On the Settings tab, set the correct resolution (screen size). The optimal
resolution for this TV is 1920 x 1080.
●
If a vertical-frequency option exists on your display settings dialog box, select
“60” or “60 Hz”. Otherwise, just click “OK” and exit the dialog box.
Sound Menu
▶
English
▶
❑
Changing the Preset Sound Modes
O
MENU
m
→
Sound
→
Sound Mode
→
ENTER
E
■
Sound Mode
t
Use the up and down arrow keys to select an option, and then press ENTER
E
.
●
Standard: Selects the normal sound mode.
●
Music: Emphasizes music over voices.
●
Movie: Provides the best sound for movies.
●
Clear Voice: Emphasizes voices over other sounds.
●
Amplify: Increase the intensity of high-frequency sound to allow a better
listening experience for the hearing impaired.
N
If Speaker Select is set to External Speaker, Sound Mode is disabled.
▶
English
▶
❑
Adjusting Sound Settings
O
MENU
m
→
Sound
→
ENTER
E
■
Sound Effect
N
If Speaker Select is set to External Speaker, Sound Effect is disabled.
N
Available only when Sound Mode is set to Standard.
●
SRS TruSurround HD (Off / On)
t
: This function provides a virtual 5.1
channel surround sound experience through a pair of speakers using HRTF
(Head Related Transfer Function) technology.
●
SRS TruDialog (Off / On): This function allows you to increase the intensity of
a voice over background music or sound effects so that dialog can be heard
more clearly.
▶
English
▶
●
Equalizer: The Equalizer displays a series of sliders. Use the up and down
arrow keys to select a slider. Use the left and right arrow keys to change the
slider’s value. To Reset the Equalizer, select Reset and press ENTER
E
,
then select Yes and press ENTER
E
. To exit, select Close, and then press
ENTER
E
.
Equalizer is available in the standard sound mode only.
●
Balance L/R: Adjusts the balance between the right and left speaker.
●
100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment): Adjusts
the volume level of specific bandwidth frequencies.
●
Reset: Resets the equalizer to its default settings.
▶
English
▶
■
3D Audio (Off / Low / Medium / High)
3D audio technology provides the immersive sound corresponding to the pop-up
effect of 3D video by audio depth control in perspective.
N
Available only when watching 3D image.
▶
English
▶
■
Broadcast Audio Options
●
Preferred Language
(digital channels only)
Use the up and down arrow keys to select a language, and then press
ENTER
E
.
Digital-TV broadcasts can simultaneously transmit many audio tracks (for
example, simultaneous translations of the program into foreign languages).
N
You can only select a language from among the ones being broadcasted.
▶
English
▶
●
Multi-Track Sound (MTS)
t
(analog channels only)
Select an option using the up and down arrow keys, and the press ENTER
E
.
Mono: Choose for channels that are broadcasting in mono or if you are having
difficulty receiving a stereo signal.
Stereo: Choose for channels that are broadcasting in stereo.
SAP: Choose to listen to the Separate Audio Program, which is usually a
foreign-language translation.
N
Depending on the program being broadcast, you can listen to Mono,
Stereo, or SAP.
▶
English
▶
■
SPDIF Output
SPDIF (Sony Philips Digital Interface) provides digital audio output to speakers and
various digital devices such as A/V Receivers and Home Theaters which reduces
interference and distortion.
●
Audio Format (PCM / Dolby Digital): You can select the Digital Audio output
(SPDIF) format. The available Digital Audio output (SPDIF) format may differ
depending on the input source.
●
Audio Delay: Lets you correct timing mismatches between the audio track and
the video when you are watching the TV and listening to digital audio output
from the TV through an external device such as an AV receiver. When you
select Audio Delay, a slider appears. User the left and right arrow buttons to
adjust the slider. Press ENTER
E
when done (0ms ~ 250ms).
▶
English
▶
■
Speaker Settings
●
Speaker Select (External Speaker / TV Speaker)
If you are listening to the sound track of a broadcast or movie through an
external receiver, you may hear a sound echo caused by the difference in
decoding speed between the TV’s speakers and the speakers attached to your
audio receiver. If this occurs, set the TV to External Speaker.
▶
English
▶
N
NOTE
●
When you set Speaker Select to External Speaker, the TV’s speakers
are turned off. You will hear sound through the external speakers only.
When you set Speaker Select to TV Speaker both the TV’s speakers
and the external speakers are on. You will hear sound through both.
●
When Speaker Select is set to External Speaker, the
y
and
MUTE buttons will not operate and the sound settings will be limited.
●
If there is no video signal, both the TV’s speakers and the external
speakers will be mute.
▶
English
▶
●
Auto Volume (Off / Normal / Night)
Normal equalizes the volume level on each channel, so that when you change
channels, the volume level is the same.
Night equalizes and decrease the volume level on each channel, so each
channel is quieter. Night is useful at night, when you may want to keep the
volume low.
N
To use the volume control of a connected source device, set Auto Volume
to Off. A change to the volume control of the connected source device may
not be applied if Auto Volume is set to Normal or Night.
▶
English
▶
■
Reset Sound (Yes / No)
Reset all sound settings to the factory defaults. Select Reset Sound, press
ENTER
E
, select Yes in the pop-up, and then press ENTER
E
again.
▶
English
▶
❑
Wired Network Setting
■
Connecting to a Wired Network
There are three ways to attach your TV to your LAN using cable:
●
You can attach your TV to your LAN by connecting the LAN port on the back of
your TV to an external modem using a LAN cable. See the diagram below.
The Modem Port on the Wall
LAN
LAN CableModem Cable
External Modem
(ADSL / VDSL / Cable TV)
▶
English
▶
●

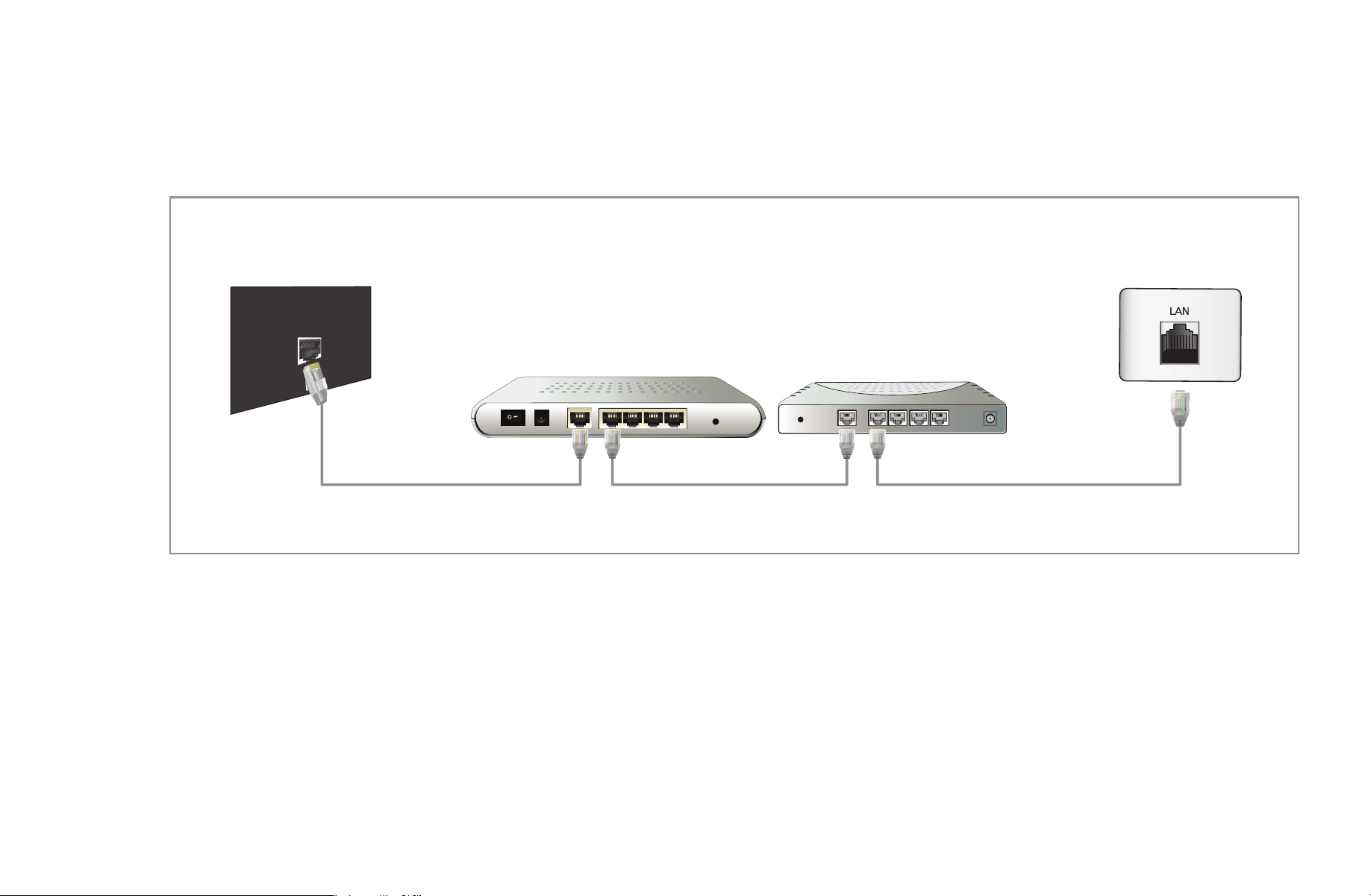

You can attach your TV to your LAN by connecting the LAN port on the back
of your TV to an IP Sharer which is connected to an external modem. Use LAN
cable for the connection. See the diagram below.
The Modem
Port on the Wall
LAN
LAN Cable LAN CableModem Cable
External Modem
(ADSL / VDSL / Cable TV)
IP Sharer
(having DHCP server)
▶
English
▶
●

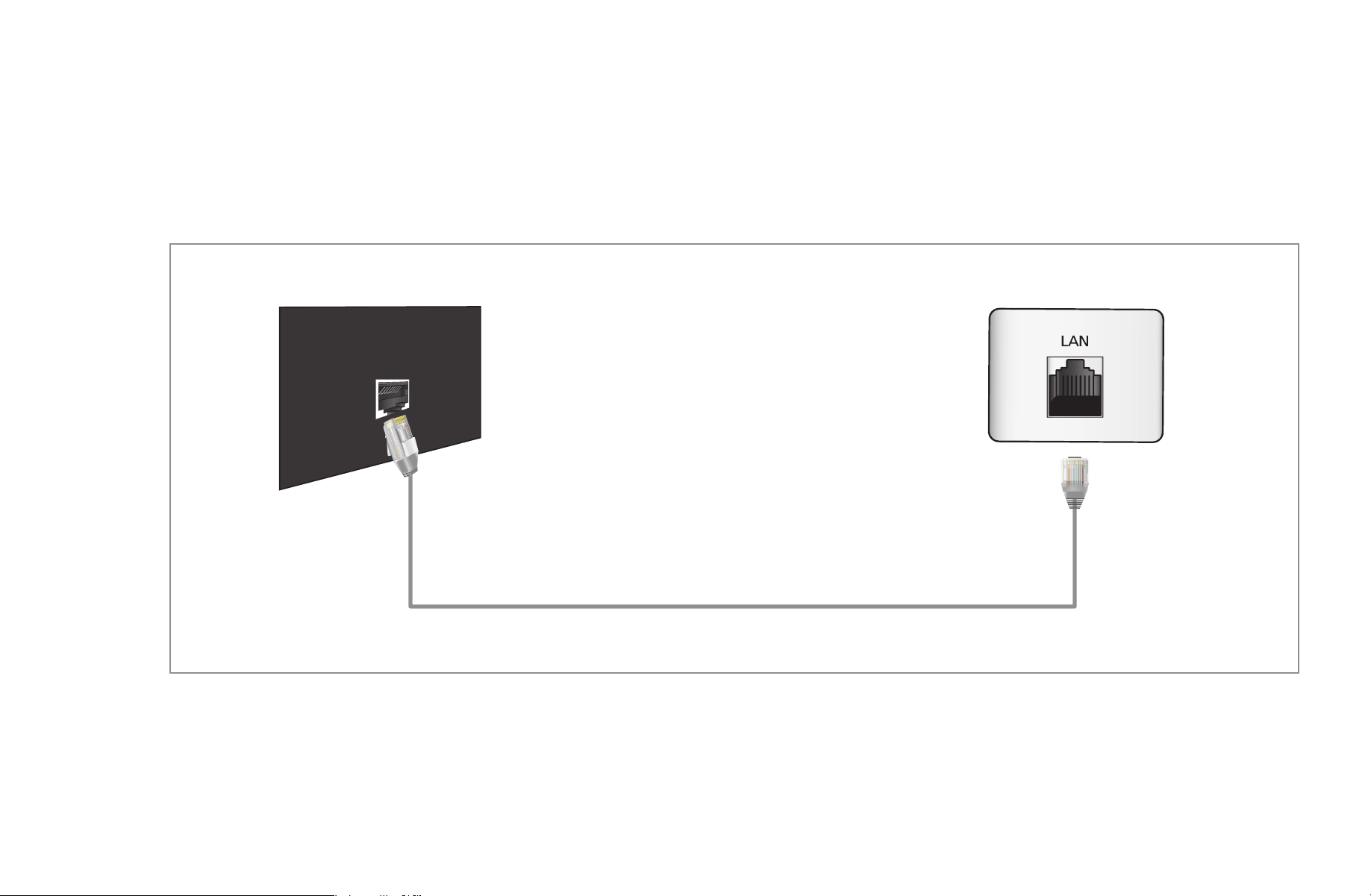

Depending on how your network is configured, you may be able to attach your
TV to your LAN by connecting the LAN port on the back of your TV directly to
a network wall outlet using a LAN cable. See the diagram below. Note that the
wall outlet is attached to a modem or router elsewhere in your house.
The LAN Port on the Wall
LAN
LAN Cable
▶
English
▶
●
If you have a Dynamic Network, you should use an ADSL modem or router
that supports the Dynamic Host Configuration Protocol (DHCP). Modems and
routers that support DHCP automatically provide the IP address, subnet mask,
gateway, and DNS values your TV needs to access the Internet so you do not
have to enter them manually. Most home networks are Dynamic Networks.
Some networks require a Static IP address. If your network requires a Static
IP address, you must enter the IP address, subnet mask, gateway, and DNS
values manually on your TV’s Cable Setup Screen when you set up the network
connection. To get the IP address, subnet mask, gateway, and DNS values,
contact your Internet Service Provider (ISP). If you have a Windows computer,
you can also get these values through your computer.
N
You can use ADSL modems that support DHCP if your network requires a
Static IP address. ADSL modems that support DHCP also let you use Static
IP addresses.
▶
English
▶
■
Network Settings
O
MENU
m
→
Network
→
Network Settings
→
ENTER
E
Set the network connection to use various Internet services such as Smart Hub,
AllShare™ and perform software upgrades.
■
Network Status
O
MENU
m
→
Network
→
Network Status
→
ENTER
E
You can check the current network and Internet status.
▶
English
▶
■
AllShare Settings
O
MENU
m
→
Network
→
AllShare Settings
→
ENTER
E
Selects whether to use media functions on the network. For details on set up
options, refer to the “AllShare™” instructions.
■
SWL (Samsung Wireless Link)
O
MENU
m
→
Network
→
SWL (Samsung Wireless Link)
→
ENTER
E
You can connect your TV to a wireless mobile device easily. For details on set up
options, refer to the “Wireless Network Connection” instructions.
▶
English
▶
■
Automatic Network Setup
Use the Automatic Network Settings when connecting your TV to a network
that supports DHCP. To set up your TV’s cable network connection automatically,
follow these steps:
How to set up automatically
1. Go to the Network Settings screen.
(MENU
m
→
Network
→
Network
Settings
→
ENTER
E
)
2. Select Wired, press ENTER
E
, and then
press ENTER
E
again.
3. The network test screen appears and
verifies the network connection. When the
connection has been verified, the
“Internet is connected successfully.” message appears.
Network Settings
Select a network connection type.
Wired
Previous
Next
Cancel
Wireless (General)
WPS(PBC)
One Foot Connection
Connect to the network using
LAN cable. Please make sure
that the LAN cable is connected.
● The displayed image may differ depending on the
model.
▶
English
▶
N
If the connection process fails, check the
LAN port connection.
N
If the automatic process cannot find the
network connection values or if you want to
set the connection manually, go to the next
secton, Manual Network Setup.
Network Setting
Wired network and Internet connection completed.
Internet is connected successfully.
If you have a problem using any Internet services, contact your Internet service
provider.
MAC Address 00:12:fb:2b:56:4d
IP Address 192.168.11.4
Subnet Mask 255.255.255.0
Gateway 192.168.11.1
DNS Server 192.168.11.1
Retry
IP Settings
Previous
OK
● The displayed image may differ depending on the
model.
▶
English
▶
■
Manual Network Setup
Use the Manual Network Setup when connecting your TV to a network that
requires a Static IP address.
Getting the Network Connection Values
To view the Network connection values on most Windows computers, follow these
steps:
1. Right click the Network icon on the bottom right of the screen.
2. In the pop-up menu that appears, click Status.
3. On the dialog that appears, click the Support tab.
4. On the Support Tab, click the Details button. The Network connection values
are displayed.
▶
English
▶
How to set up manually
To set up your TV’s cable network connection manually, follow these steps:
1. Go to the Network Settings screen.
(MENU
m
→
Network
→
Network Settings
→
ENTER
E
)
2. Select Wired, press ENTER
E
, and then
press ENTER
E
again.The network test
screen appears and the verification process
starts.
3. Press ENTER
E
. The verification process
stops. Select IP Settings on network
connection screen. The IP Settings screen
appears.
IP Settings
IP Mode Manual
DNS Mode Manual
DNS Server 0 . 0 . 0 . 0
IP Address 0 . 0 . 0 . 0
Subnet Mask 0 . 0 . 0 . 0
Gateway 0 . 0 . 0 . 0
OK
● The displayed image may differ depending on
the model.
▶
English
▶
4. Select the field at the top, press ENTER
E
, and then set IP Mode to Manual.
5. Press the
d
button on your remote to go to the IP Address entry field, and
then press ENTER
E
.
6. Enter the first portion of the IP Address (for example, 105) into the first entry
field using the number keys on your remote. Press the right arrow button to go
to the next field.
7. Enter the next portion of the IP Address. Press the right arrow button to go to
the next field.
8. Repeat the entry process for each field in the IP Address.
N
If you make a mistake when entering a number, re-enter the number to
correct it. You can also press the up or down arrow button to change the
number one unit at a time.
▶
English
▶
9. When done entering the IP Address, press ENTER
E
.
10. Press the down arrow key to go to the Subnet Mask fields, and then press
ENTER
E
.
11. Repeat the same entry process for Subnet Mask, Gateway, and DNS Server.
12. When done, select OK at the bottom of the page, and then press ENTER
E
.
The network test screen appears and the verification process starts. When the
connection has been verified, the “Internet is connected successfully.” message
appears.
▶
English
▶
❑
Wireless Network Setting
■
Connecting to a Wireless Network
You can connect your TV to your LAN through a standard wireless router or
modem.
The LAN Port on the Wall
LAN Cable
Wireless IP sharer
(router having DHCP server)
TV
▶
English
▶
This TV supports the IEEE 802.11a/b/g and n communication protocols. Samsung
recommends using IEEE 802.11n. When you play video over a network connection,
the video may not play smoothly.
N
NOTE
●
To use a wireless network, your TV must be connected to a wireless IP sharer
(either a router or a modem). If the wireless IP sharer supports DHCP, your TV
can use a DHCP or static IP address to connect to the wireless network.
●
Select a channel for the wireless IP sharer that is not currently being used. If the
channel set for the wireless IP sharer is currently being used by another device
nearby, this will result in interference and communication failure.
▶
English
▶
●
Your TV supports only the following wireless network security protocols:
–
Authentication Mode : WEP, WPAPSK, WPA2PSK
–
Encryption Type : WEP, TKIP, AES
●
If you select the Pure High-throughput (Greenfield) 802.11n mode and the
Encryption type is set to WEP, TKIP or TKIP AES (WPS2Mixed) on your AP or
wireless router, Samsung TVs will not support a connection in compliance with
new Wi-Fi certification specifications.
●
If your wireless router supports WPS (Wi-Fi Protected Setup), you can
connect to the network via PBC (Push Button Configuration) or PIN (Personal
Identification Number). WPS will automatically configure the SSID and WPA key
in either mode.
▶
English
▶
●
If your router, modem, or device is not certified, it may not connect to the TV.
Connection Methods: You can set up the wireless network connection in six
ways:
–
Auto Setup (Using the Auto Network Search function)
–
Manual Setup
–
WPS(PBC)
–
One Foot Connection
–
Plug & Access
–
SWL (Samsung Wireless Link)
▶
English
▶
■
Automatic Network Setup
Most wireless networks have an optional security system that requires devices that
access the network to transmit an encrypted security code called an Access or
Security Key. The Security Key is based on a Pass Phrase, typically a word or a
series of letters and numbers of a specified length you were asked to enter when
you set up security for your wireless network. If you use this method of setting
up the network connection, and have a Security Key for your wireless network,
you will have to enter the Pass Phrase during the the automatic or manual setup
process.
▶
English
▶
How to set up automatically
1. Go to the Network Settings screen.
(MENU
m
→
Network
→
Network
Settings
→
ENTER
E
.
2. Select Wireless (General), press
ENTER
E
, and then press ENTER
E
again.
3. The Network function searches for available
wireless networks. When done, it displays a
list of the available networks.
4. In the list of networks, press the
u
or
d
button to select a network, and then
press the ENTER
E
button twice.
N
If the wireless router is set to Hidden (Invisible), you have to select Add
Network and enter the correct Network Name (SSID) and Security key to
establish the connection.
Network Settings
Select a network connection type.
Wired
Previous
Next
Cancel
Wireless (General)
WPS(PBC)
One Foot Connection
Set up wireless network by
selecting your Wireless Router.
You may need to enter security key
depending on the setting of the
Wireless Router.
● The displayed image may differ depending on the
model.
▶
English
▶
5. If the Enter security key screen appears, go
to step 6. If you select a wireless router that
does not have security, go to step 8.
6. If the router has security, enter the Security
key (Security key or PIN).
N
W
hen you enter the Security key
(Security key or PIN), use
u
/
d
/
l
/
r
buttons on your remote to select number/
characters. Press the
ENTER
E
button to enter the characters.
N
You can also enter numbers by pressing the number buttons on your
remote.
7. When done, use the right arrow button to move the cursor to Next, and then
press ENTER
E
.
Network Settings
Enter security key.
a b c d e f 1 2 3
g h i j k l 4 5 6
m n o p q r 7 8 9
s t u v w x y z 0
a/A Delete Space
Previous
Next
Cancel
0 entered
4/6
● The displayed image may differ depending on the
model.
▶
English
▶
8.
The network connection screen appears and the verification process starts.
When the connection has been verified, the “Internet is connected successfully.”
message appears.
N
If the network does not accept the Security key (Security key or PIN),
select Retry or select IP Settings to enter the settings manually.
N
If you want to set up the connection manually, select IP Settings. Then, go
to the next section, “How to set up manually”.
▶
English
▶
■
Manual Network Setup
Use the Manual Network Setup when connecting your TV to a network that
requires a Static IP address or if the automatic connection process has failed.
Getting the Network Connection Values
To view the Network connection values on most Windows computers, follow these
steps:
1. Right click the Network icon on the bottom right of the screen.
2. In the pop-up menu that appears, click Status.
3. On the dialog that appears, click the Support tab.
4. On the Support Tab, click the Details button. The Network connection values
are displayed.
▶
English
▶
How to set up manually
To set up your TV’s cable network connection manually, follow these steps:
1. Go to the Network Settings screen.
(MENU
m
→
Network
→
Network Settings
→
ENTER
E
)
2. Select Wireless (General), press ENTER
E
,
and then press ENTER
E
again.
3. The Network function searches for available
wireless networks. When done, it displays a
list of the available networks.
IP Settings
IP Mode Manual
DNS Mode Manual
DNS Server 0 . 0 . 0 . 0
IP Address 0 . 0 . 0 . 0
Subnet Mask 0 . 0 . 0 . 0
Gateway 0 . 0 . 0 . 0
OK
● The displayed image may differ depending on
the model.
▶
English
▶
4. In the list of networks, press the
u
or
d
button to select a network, and then
press the ENTER
E
button twice.
N
If the wireless router is set to Hidden (Invisible), you have to select Add
Network and enter the correct Network Name (SSID) and Security key to
establish the connection.
5. If the Enter security key screen appears, go to step 6. If you selected an
wireless router that does not have security, go to step 8.
▶
English
▶
6. Enter the Security key (Security key or PIN).
N
When you enter the Security key (Security key or PIN), use the
u
/
d
/
l
/
r
buttons on your remote to select number/characters. Press ENTER
E
to
enter the characters.
N
You can also enter numbers by pressing the number buttons on your
remote.
N
You should be able to find the Pass Phrase on one of the set up screens
you used to set up your router or modem.
7. When done, use the
r
button to move the cursor to Next, and then press the
ENTER
E
button.
▶
English
▶
8. The network connection screen appears and the verification process starts.
Press ENTER
E
to cancel. Select IP Settings on the network connection
screen. The IP Settings screen appears.
9. Select the field on the top, press ENTER
E
, and then set IP Mode to Manual.
10. Press the
d
button on your remote to go to the IP Address entry field, and
then press ENTER
E
.
11. Enter the first portion of the IP Address (for example, 105) into the first entry
field using the number keys on your remote. Press the
r
button to go to the
next field.
12. Enter the next portion of the IP Address. Press the
r
button to go to the next
field.
▶
English
▶
13. Repeat the entry process for each field in the IP Address.
N
If you make a mistake when entering a number, re-enter the number to
correct it. You can also press the
u
or
d
button to change the number one
unit at a time.
14. When done entering the IP Address, press ENTER
E
.
15. Press the
d
button to go to the Subnet Mask fields, and then press
ENTER
E
.
16. Repeat the same entry process for Subnet Mask, Gateway, and DNS Server.
17.
When done, select OK at the bottom of the page, and then press ENTER
E
.
The network connection screen appears and the verification process starts.
When the connection has been verified, the “Internet is connected successfully.”
message appears.
▶
English
▶
■
WPS(PBC) Network Setup
How to set up using WPS(PBC)
If your router has a WPS(PBC) button, follow these steps:
1. Go to Network Setting screen.
(MENU
m
→
Network
→
Network
Settings
→
ENTER
E
).
2. Select WPS(PBC), press ENTER
E
, and
then press ENTER
E
again.
3. Press the WPS(PBC) button on your router
within 2 minutes. Your TV automatically
acquires all the network setting values it
needs and connects to your network.
4. The network connection screen appears, and network setup is done.
Network Settings
Select a network connection type.
Wired
Previous
Next
Cancel
Wireless (General)
WPS(PBC)
One Foot Connection
Connect to the Wireless Router
easily by pressing the WPS(PBC)
button. Choose this if your
Wireless Router supports Push
Button Configuration(PBC)
● The displayed image may differ depending on the
model.
▶
English
▶
■
Ad Hoc Network Setup
You can connect to a mobile device supporting Ad-hoc connections without a
wireless router or AP through the TV. When connected to a mobile device, you can
use files on the device or connect to the Internet using the AllShare or Multimedia
function.
N
This function is available when SWL (Samsung Wireless Link) is set to Off.
How to set up using Ad hoc
1. Go to Network Settings screen.
(MENU
m
→
Network
→
Network Settings
→
ENTER
E
).
2. Select Wireless (General), and press ENTER
E
, then press ENTER
E
again.
▶
English
▶
3. Select Ad hoc. The message “Ad hoc service supports a direct connection
with Wi-Fi compatible devices like a cell phone or PC. Other network
services may be limited. Do you want to change the network connection?”
is displayed.
4. Select OK, and press ENTER
E
. The TV searches for the mobile device.
5. When the TV finishes searching for your mobile device, input the generated
Network Name (SSID) and Security Key into the device you want to connect
and then connect to the network
N
If network does not operate normally, check the Network Name (SSID) and
Security key again. An incorrect Security key may cause a malfunction.
N
If a device is connected once, it is displayed in the Network Setting list.
When you connect to it again, you can find it in the list.
▶
English
▶
■
SWL (Samsung Wireless Link)
This function lets you connect a Samsung device that supports WPS(PBC) to your
TV wirelessly. You can connect devices to the TV even if the TV is not connected
to a sharer (a router or modem).
N
For the TV to use Smart Hub, you must have an AP (the access point, usually
a router or modem) and the AP must be connected to a wireless network.
N
Only sharers using the 2.4 Ghz band are supported. Sharers using the 5 Ghz
band are not supported.
▶
English
▶
■
Connect Using SWL
You can connect a device that supports WPS(PBC) directly to the TV.
N
This function is only available when you set SWL (Samsung Wireless Link) to
On.
How to connect using Samsung Wireless Link
To connect a device to the TV using SWL, follow these steps:
1. Go to the Network Settings screen.
(MENU
m
→
Network
→
SWL (Samsung Wireless Link)
→
ENTER
E
).
2. Select SWL (Samsung Wireless Link), and then press ENTER
E
button to
turn it On.
▶
English
▶
3. Select Connect SWL by using the
d
button and press the ENTER
E
button.
4. If the “Press the WPS(PBC) button on your Wireless Router within 120
seconds.” message appears, press the WPS(PBC) button on the device you
want to connect. A countdown timer also appears on the screen.
N
For more information, refer to the wireless network setup manual of the
device.
5. If the device connects properly to the TV, the message box with the countdown
timer disappears automatically.
N
If the connection fails, please retry after 2 minutes.
▶
English
▶
■
One Foot Connection Network Setup
The One Foot Connection function lets you connect your Samsung TV
automatically to a Samsung wireless routers. If your wireless router does not
support One Foot Connection, you must connect using one of the other
methods.
N
You can check for equipment that supports One Foot Connection on www.
samsung.com.
▶
English
▶
How to set up using One Foot Connection
1. Turn on the Samsugn wireless router and the TV.
2. Go to Network Settings screen.
(MENU
m
→
Network
→
Network Settings
→
ENTER
E
).
3. Select One Foot Connection, and press
ENTER
E
, then press ENTER
E
again.
Network Settings
Select a network connection type.
Wired
Previous
Next
Cancel
Wireless (General)
WPS(PBC)
One Foot Connection
Connect to wireless network
automatically if your Wireless
Router supports One Foot
Connection. Select this
connection type after placing
the Wireless Router within 10
inches(25cm) of your TV.
2/6
● The displayed image may differ depending on the
model.
▶
English
▶
4. Place the wireless router in parallel with your TV set (if you do not need to use the
adapter), and no farther away than 25cm (about 9 3/4 inches).
N
If One Foot Connection does not connect your TV to your Router, a pop-
up screen appears on the screen notifying you of the failure. If you want to try
using One Foot Connection again, reset the wireless router, and then try again
from Step 1. You can also choose one of the other connection setup methods.
5. The network connection screen appears, and network setup is done.
6. Place the wireless router in a desired location.
N
If the wireless router’s settings change or you install a new wireless router, you
must perform the One Foot Connection procedure again, beginning from Step
1.
▶
English
▶
■
Plug & Access Network Setup
The Plug & Access function lets you easily connect your Samsung TV to your
Samsung wireless router by using a USB memory stick to transfer the setup
information from the router to the TV. If your non-Samsung wireless router does
not support Plug & Access, you must connect using one of the other methods.
N
You can check for equipment that supports Plug & Access on www.samsung.
com.
▶
English
▶
How to set up using the Plug & Access function
1. Turn on the Samsung wireless router and your TV.
2. Insert a USB memory stick into the USB port in your Samsung wireless router.
Check the router’s LED’s to make sure it is on (Blinking
→
on).
3. Take the USB memory stick out of the router, and then insert it into a USB port
on your Samsung TV. The memory stick downloads the connection information.
4. Wait until the connection is automatically established.
N
If Plug & Access does not connect your TV to your wireless router, a pop-
up screen appears on the screen notifying you of the failure. If you want
to try using Plug & Access again, reset the AP, disconnect the Samsung
Wireless LAN adapter and then try again from Step 1. You can also choose
one of the other connection setup methods.
▶
English
▶
5. The network connection screen appears, and the network setup is done.
6. Place the wireless router in a desired location.
N
If the wireless router’s settings change or you install a new wireless router,
you must perform the Plug & Access procedure again, beginning from Step
1.
▶
English
▶
Priority QOS
Samsung wireless routers are optimized to stream HD AV to Samsung DTVs.
This Priority QOS function is unique to Samsung wireless routers.
You can connect a Samsung wireless router to many devices, such as laptops,
mobile phones, BD players etc. But, when you connect a Samsung TV to a
Samsung wireless router, the Samsung wireless router gives the Samsung TV a
priority connection.
This ensures you get the highest quality streaming contents and the fastest
throughput speed.
●
Priority QOS makes your TV faster by giving it priority bandwidth. (Priority QOS
is optional. You can turn it on and off.)
●
Because your Samsung TV has a priority connection, you can enjoy HD
content without buffering.
N
The connection speed may vary based on the network environment.
▶
English
▶
If Your TV Fails to Connect to the Internet
Your TV may not be able to connect to the Internet because your ISP has permanently reg-
istered the MAC address (a unique identifying number) of your PC or modem, which it then
authenticates each time you connect to the Internet as a way of preventing unauthorized
access. As your TV has a different MAC address, your ISP can not authenticate its MAC ad-
dress, and your TV can not connect.
To resolve this problem, ask your ISP about the procedures required to connect devices
other than a PC (such as your TV) to the Internet.
If your Internet service provider requires an ID or password to connect to the Internet, your
TV may not be able to connect to the Internet. If this is the case, you must enter your ID or
password when connecting to the Internet.
The internet connection may fail because of a firewall problem. If this is the case, contact
your Internet service provider.
If you cannot connect to the Internet even after you have followed the procedures of your
Internet service provider, please contact Samsung Electronics at 1-800-SAMSUNG.
▶
English
▶
❑
Setting the Time
O
MENU
m
→
System
→
Time
→
ENTER
E
■
Time
O
The current time will appear every time you press the INFO button.
●
Clock: Set the clock to use the various various timer features of the TV.
N
If you disconnect the power cord, you have to set the clock again.
–
Clock Mode: Set the current time manually or automatically.
Auto: Have the TV set the current time automatically using the time from a
digital channel.
N
You must have the cable or an antenna connected to the TV to set the
time automatically.
▶
English
▶
Manual: Set the current time manually.
N
Depending on the broadcast station and signal, the auto time set up
may not be correct. In this case, set the time manually.
–
Clock Set: Set the Date and Time.
Select Clock Set. Select Date or Time, and then press ENTER
E
. Use the
number buttons to enter numbers or press the up and down arrow buttons.
Use the left and right arrow buttons to move from one entry field to the next.
Press ENTER
E
when done. To exit Clock Set, select Close, and then
press ENTER
E
.
N
Available only when Clock Mode is set to Manual.
N
You can set the Date and Time directly by pressing the number buttons
on the remote control.
▶
English
▶
–
Time Zone: Select your time zone.
N
This function is only available when the Clock Mode is set to Auto.
–
DST (Off / On): Switches the DST (Daylight Saving Time) function on or off.
N
This function is only available when the Clock Mode is set to Auto.
Using the Sleep Timer
O
MENU
m
→
System
→
Time
→
Sleep Timer
→
ENTER
E
●
Sleep Timer
t
: Automatically shuts off the TV after a preset period of
time. (30, 60, 90, 120, 150 and 180 minutes).
N
Use the up and down arrows to select a period of time, and then press
ENTER
E
. To cancel Sleep Timer, select Off.
▶
English
▶
Setting the On / Off Timer
O
MENU
m
→
System
→
Time
→
ENTER
E
Set On Timer so that your TV turns on
automatically at a time and on a day of your
choosing.
●
On Timer: You can set up three separate On
Timer configurations. (On Timer 1, On Timer
2, On Timer 3)
N
You must set the clock before you can
use On Timer.
On Timer 1
Setup Off
Sun Mon Tur Wed The Fri Sat
Time 12:00 am
Volume 20
Source TV
Antenna Cable
Channel 3
Close
● The displayed image may differ depending on
the model.
▶
English
▶
Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual.
If you select Manual, you can choose the days you want On Timer to turn on
your TV.
N
The
c
mark indicates days you’ve selected.
Time: Set the hour, minute, am/pm. Use the number buttons or the up and
down arrow keys to enter numbers. Use the left and right arrow buttons to
change entry fields.
Volume: Set the desired volume level. Use the left and right arrow buttons to
change the volume level.
▶
English
▶
Source: Select TV or USB. Select TV and the TV will display broadcast or cable
TV programs when it turns on automatically. Select USB and the TV will play
content from a USB device when the TV turns on automatically. (You can select
USB only when a USB device is connected to the TV)
Antenna (when the Source is set to TV): Select Air or Cable.
Channel (when the Source is set to TV): Select the desired channel.
Music / Photo (when the Source is set to USB): Select a folder in the USB
device containing music or photo files you want played when the TV turns on
automatically.
▶
English
▶
N
NOTE
●
If there is no music file on the USB device or you don’t select a folder
containing a music file, the Timer function does not operate correctly.
●
If there is only one photo file in the USB, the Slide Show will not play.
●
If a folder name is too long, the folder cannot be selected.Each USB you
use is assigned its own folder. When using more than one of the same
type of USB, make sure the folders assigned to each USB have different
names.
●
We recommend that you use a USB memory stick and a multi card
reader when using On Timer. The On Timer function may not work
with USB devices with a built-in battery, MP3 players, or PMPs made
by some manufacturers because the TV can take too long to recognize
these devices.
▶
English
▶
●
Off Timer: You can set up three separate Off
Timer configurations. (Off Timer 1, Off Timer
2, Off Timer 3)
N
You must set the clock before you can
use Off Timer.
Setup: Select Off, Once, Everyday,
Mon~Fri, Mon~Sat, Sat~Sun or Manual. If
you select Manual, you can choose the days
you want Off Timer to turn off your TV.
N
The
c
mark indicates days you’ve selected.
Time: Set the hour, minute, and am/pm. Use the number buttons or the up
and down arrow keys to enter numbers. Use the left and right arrow buttons to
change entry fields.
Off Timer 1
Setup Off
Sun Mon Tur Wed Thu Fri Sat
Time 12:00 am
Close
● The displayed image may differ depending on
the model.
▶
English
▶
❑
Blocking Programs
O
MENU
m
→
System
→
Security
→
ENTER
E
■
Security
Every time you access the Security functions, the PIN screen will appear and you
must enter that PIN. The PIN screen closes and the Security menu appears.
●
Program Rating Lock (Off / On): When turned on, the Program Rating Lock
feature can automatically block programs that you deem inappropriate for your
children. You must enter a PIN (personal identification number) before you can
set or change any of the Program Rating Lock restrictions.
N
Program Rating Lock is not available in HDMI, Component or PC mode.
N
The default PIN number for a new TV set is “0-0-0-0”.
▶
English
▶
TV Rating: You can block TV programs based on their ratings. This function
allows you to control what your children can watch. TV Rating displays a grid
with locks. The following categories are on the left side:
–
TV-Y: Young children / TV-Y7: Children 7 and over / TV-G: General
audience / TV-PG: Parental guidance / TV-14: Viewers 14 and over / TV-
MA: Mature audience
▶
English
▶
The following categories are on top:
–
ALL: Lock all TV ratings. / FV: Fantasy violence / V: Violence / S: Sexual
situation / L: Adult Language / D: Sexually Suggestive Dialog
N
To block certain content, you select a lock, and press ENTER
E
(That
is, you “click it”.). For example, click the lock at the intersection of V
and TV-MA, and you block all programs that are rated violent and
for mature adults. The locks are also assigned to related groups. For
example, if you click TV-Y under All, then TV-Y7 will also automatically
be blocked. Similarly, if you click TV-G under ALL, then all the categories
in the young adult group will be blocked (TV-G, TV-PG, TV-14 and TV-
MA). The sub-ratings (D, L, S, V) work similarly. So, if you block the L
sub-rating in TVPG, then the L sub-ratings in TV-14 and TV-MA will
automatically be blocked.
▶
English
▶
N
To unblock a category, click the lock. To unblock all the categories in a
row, click the lock under ALL.
N
To watch a blocked program, you must enter the Security code when
requested.
Movie Rating (MPAA): You can block movies based on their MPAA rating.
The Motion Picture Association of America (MPAA) has implemented a rating
system that provides parents or guardians with advanced information on which
films are appropriate for children.
▶
English
▶
Movie Rating displays a column with locks and the following ratings
categories:
–
G: General audience (no restrictions). / PG: Parental guidance suggested.
/ PG-13: Parents strongly cautioned. / R: Restricted. Children under 17
should be accompanied by an adult. / NC-17: No children under age 17. / X:
Adults only. / NR: Not rated.
N
To block certain content, you select a lock, and press ENTER
E
(That
is, you “click it”.). For example, click the X lock and you block all X-rated
movies. The rating categories are also grouped so that clicking one
category blocks all the categories a parent would block along with it.
For example, if you block the PG-13 category, then R, NC-17 and X will
automatically be blocked also.
N
To unblock a category, click the lock.
▶
English
▶
Canadian English Rating: You can block TV programs based on their
Anglophone Canadian rating.
Canadian English Rating displays a column with locks and the following
ratings categories:
–
C: Programming intended for children under age 8. / C8+: Programming
generally considered acceptable for children 8 years and over to watch
on their own. / G: General programming, suitable for all audiences. / PG:
Parental Guidance. / 14+: Programming contains themes or content
which may not be suitable for viewers under the age of 14. / 18+: Adult
programming.
▶
English
▶
N
To block certain content, you select a lock, and press ENTER
E
(That
is, you “click it”.). For example, click the 18+ lock and you block all TV
programs rated 18+. The rating categories are also grouped so that
clicking one category blocks all the categories a parent would block
along with it. For example, if you block the G category, then PG, 14+
and 18+ will automatically be blocked.
N
To unblock a category, click the lock.
▶
English
▶
Canadian French Rating: You can block TV programs based on their French
Canadian rating.
Canadian French Rating displays a column with locks and the following
ratings categories:
–
G: General / 8 ans+: Programming generally considered acceptable for
children 8 years and over to watch on their own. / 13 ans+: Programming
may not be suitable for children under the age of 13. / 16 ans+:
Programming is not suitable for children under the age of 16. / 18 ans+:
Programming restricted to adults.
▶
English
▶
N
To block certain content, you select a lock, and press ENTER
E
(That
is, you “click it”.). For example, click the 18 ans+ lock and you block all
TV programs rated 18 ans+. The rating categories are also grouped so
that clicking one category blocks all the categories a parent would block
along with it. For example, if you block the 8 ans+ category, then 13
ans+, 16 ans+ and 18 ans+ will automatically be blocked also.
N
To unblock a category, click the lock..
Downloadable U.S. Rating: Parental restriction information you can use while
watching DTV channels.
▶
English
▶
N
NOTE
●
If information is not downloaded from the broadcasting station,
Downloadable U.S. Rating menu is deactivated.
●
Parental restriction information is automatically downloaded while you
watch DTV channels. It may take several seconds.
●
The Downloadable U.S. Rating menu is available for use after
information is downloaded from the broadcasting station. However,
depending on the information from the broadcasting station, it may not
be available for use.
●
Parental restriction levels differ depending on the broadcasting station.
The default menu name and Downloadable U.S. Ratings change
depending on the downloaded information.
▶
English
▶
●
Even if you set the on-screen display to another language, the
Downloadable U.S. Rating menu will appear in English only.
●
Blocking one rating level will automatically block other categories that
deal with more sensitive material.
●
The rating titles (For example: Humor Level..etc) and TV ratings (For
example: DH, MH, H..etc) may differ depending on the broadcasting
station.
▶
English
▶
●
Change PIN: The Change PIN screen will appear. Choose any 4 digits for your
PIN and enter it in Enter New PIN. Re-enter the same 4 digits in Confirm New
PIN. When the Confirm screen disappears, press the Close button. The TV has
memorized your new PIN.
How to watch a restricted program or movie
If the TV is tuned to a restricted program or movie, the Program Rating Lock will
block it. The screen will go blank and the following message will appear:
“This channel is blocked by Program Rating Lock. Please enter the PIN to
unblock.”
Enter the PIN to unblock the program or movie.
N
If you forget the PIN code, press the remote control buttons in the following
sequence in Standby mode, which resets the PIN to “0-0-0-0”:
MUTE
→
8
→
2
→
4
→
POWER (on).
▶
English
▶
❑
Economical Solutions
■
Eco Solution
O
MENU
m
→
System
→
Eco Solution
→
ENTER
E
●
Energy Saving (Off / Low / Medium / High / Picture Off): Lets you adjusts
the brightness of the TV in order to reduce power consumption. If you select
Picture Off, the screen is turned off, but the sound remains on. Press any
button except the volume button to turn on the screen.
●
Eco Sensor (Off / On): To enhance your power savings, the picture settings
will automatically adapt to the light in the room.
N
If you adjust Backlight
for LED TV
/ Cell Light
for PDP TV
in the Picture menu,
Eco Sensor will be set to Off.
▶
English
▶
Min. Backlight
for LED TV
/ Min Cell Light
for PDP TV
: When Eco sensor is On,
you can manually adjust the minimum screen brightness.
N
If Eco Sensor is On, the display brightness may change (become slightly
darker or brighter) depending on the surrounding light intensity. You can
control the screen’s minimum brightness with the Min. Backlight function.
●
No Signal Power Off (Off / 15 min. / 30 min. / 60 min.): To avoid unnecessary
energy consumption, you can set how long you want the TV to remain on if it’s
not receiving a signal.
N
Disabled when an attached PC is in power saving mode.
●
Auto Power Off (Off / On): The TV will automatically turn off if you don’t press
a button on the remote or touch a button on TV’s front panel within 4 hours to
prevent overheating.
▶
English
▶
❑
Picture In Picture (PIP)
O
MENU
m
→
System
→
PIP
→
ENTER
E
■
PIP
t
You can watch a program whose signal has passed through the TV’s tuner and
video from one external video source simultaneously. For example, if you have a
cable box connected to the Cable In jack, you can use PIP to watch programs
from the cable box and a movie from a Blu-ray player attached to the HDMI In
jack.
▶
English
▶
N
NOTE
●
If you have set Double (
à
,
Œ
) mode in PIP (Picture-in-Picture), you
cannot adjust the Picture Size.
●
For PIP sound, refer to the Sound Select instructions.
●
If you turn the TV off while watching in the PIP mode, the PIP function is
reset to off. When you turn your TV on, you must turn PIP on again to watch
in the PIP mode.
●
You may notice that the picture in the PIP screen becomes slightly unnatural
when you use the main screen to view a game or karaoke.
●
While Smart Hub or Program Rating Lock is on, you cannot use PIP.
●
PIP is not supported in 3D mode.
▶
English
▶
●
PIP Settings
The picture from the external video source will be in the main screen and the
picture from the TV’s tuner will be in the PIP sub-picture screen.
Main picture Sub picture
Component, HDMI, PC TV
▶
English
▶
●
PIP (Off / On): Activate or deactivate the PIP function.
●
Air/Cable (Air / Cable): Select either Air or Cable as the input source for the
sub-screen.
●
Channel: Select the channel for the sub-screen.
●
Size (
õ
/
ã
/
à
/
Œ
): Select a size for the subpicture.
●
Position (
ã
/
–
/
—
/
œ
): Select a position for the sub-picture.
N
In Double (
à
,
Œ
) mode, you cannot select Position.
●
Sound Select (Main / Sub): You can choose to listen to the sound from the
Main picture or the Sub picture.
▶
English
▶
❑
Other Features
O
MENU
m
→
System
→
ENTER
E
■
Menu Language
Set the menu language.
1. Select Menu Language, and then press the ENTER
E
button.
2. Choose a language, and then press the ENTER
E
button.
N
Choose from English, Español, and Français.
▶
English
▶
■
Caption
(On-Screen Text Messages)
●
Caption (Off / On): You can switch the caption function on or off. If captions
are not available, they will not be displayed on the screen.
N
The Caption feature does not work with devices connected to the TV
through the Component, HDMI or PC input jacks.
●
Caption Mode: You can select the desired caption mode.
N
The availability of captions depends on the program being broadcast.
Default / CC1~CC4 / Text1~Text4: (analog channels only) The Analog Caption
function operates in either analog TV channel mode or when a signal is supplied
from an external device to the TV. (Depending on the broadcasting signal, the
Analog Caption function may or may not work with digital channels.)
▶
English
▶
Default / Service1~Service6 / CC1~CC4 / Text1~Text4: (digital channels
only) The Digital Captions function works with digital channels.
N
Service1~6 may not be available in digital caption mode depending on the
broadcast.
●
Digital Caption Options: (digital channels only) Adjusts the each option. When
done, select Close.
Size: Options include Default, Small, Standard and Large. The default is
Standard.
Font Style: Options include Default and Styles 0 to 7. The default is Style 0.
Foreground Color: You can change the color of the letters. Options include
Default, White, Black, Red, Green, Blue, Yellow, Magenta and Cyan. The default
is White.
▶
English
▶
Background Color: You can change the background color of the caption.
Options include Default, White, Black, Red, Green, Blue, Yellow, Magenta and
Cyan. The default is Black.
Foreground Opacity: This adjusts the opacity of text. Options include Default,
Transparent, Translucent, Solid and Flashing.
Background Opacity: This adjusts the opacity of the caption background.
Options include Default, Transparent, Translucent, Solid and Flashing.
Return to Default: This option sets each Size, Font Style, Foreground Color,
Background Color, Foreground Opacity and Background Opacity to their
default.
▶
English
▶
N
NOTE
●
Digital Caption Options are available only when you can select Default
and Service1 ~ Service6 in Caption mode.
●
The availability of captions depends on the program being broadcast.
●
The Default setting follows the standards set by the broadcaster.
●
You cannot set the Foreground and Background to the same color.
●
You cannot set both the Foreground Opacity and the Background
Opacity to the same color.
▶
English
▶
■
Auto Protection Time (Off / 2 hours / 4 hours / 8 hours / 10 hours)
for LED TV
If the screen displays a still image for a certain period of time you define, the TV
activates the screen saver to prevent the formation of burnt in ghost images on the
screen.
▶
English
▶
■
Screen Burn Protection
for PDP TV
To reduce the possibility of screen burn, this unit is equipped with Pixel Shift screen
burn prevention technology. Pixel Shift moves the picture slightly on the screen.
The Pixel Shift Time setting allows you to program the time between movements
of the picture in minutes.
Your TV also has the following additional screen burn protection functions:
–
Pixel Shift
–
Auto Protection Time
–
Scrolling
–
Side Gray
▶
English
▶
●
Pixel Shift (Off / On): Using this function, you can set the TV to move pixels
minutely on the PDP screen in a horizontal or vertical direction to minimize after
images on the screen.
N
Available Pixel Shift Settings and Optimum Settings
Available Settings
Optimum Settings for
TV/AV/Component/HDMI/PC
Horizontal 0~4 (pixels) 4
Vertical 0~4 (pixels) 4
Time (minute) 1~4 min 4 min
N
The Pixel Shift value may differ depending on the monitor size (inches) and
mode.
N
This function is not available in the Screen Fit mode.
▶
English
▶
●
Auto Protection Time (Off / 10 min / 20 min / 40 min / 1 hour): If the screen
displays a still image for a certain period of time you define, the TV activates the
screen saver to prevent the formation of burnt in ghost images on the screen.
●
Scrolling: This function removes after-images on the screen by illuminating all
the pixels on the PDP according to a pattern. Use this function when there are
after images or symbols on the screen, especially when you displayed a still
image on the screen for a long time.
N
The after-image removal function has to be executed for a long time
(approximately 1 hour) to effectively remove after-images on the screen. If the
after-image is not removed after you apply the function, repeat the function
again.
N
Press any key on the remote control to cancel this feature.
●
Side Gray (Light / Dark): When you watch TV with the screen ratio set to 4:3,
using the Side Gray function can prevent damage to the edges of the screen
by adjusting the white balance on the extreme left and right sides.
▶
English
▶
■
General
●
Game Mode (Off / On): When you have connected a game console such as
a PlayStation™ or Xbox™ to the TV, you can enjoy a more realistic gaming
experience if you set Game Mode on.
N
Precautions and limitations for Game Mode:
–
Before disconnecting a game console and connecting another external
device, set Game Mode to Off in the System menu.
–
If you display the TV menu in Game Mode, the screen shakes slightly.
N
Game Mode is not available when the input source is set to TV or PC.
N
Set Game Mode to On only after connecting a game console. If you turn
Game Mode on before you have attached the game console, you may
notice reduced picture quality.
N
If Game Mode is On:
–
Picture Mode is set to Standard and Sound Mode is set to Movie.
▶
English
▶
●
BD Wise (Off / On): Provides the optimal picture quality for Samsung DVD,
Blu-ray and Home Theater products which support BD Wise. When BD
Wise is turned On, the picture mode is automatically changed to the optimal
resolution.
N
Available when you connect Samsung products that support BD Wise
through an HDMI cable to the TV.
▶
English
▶
●
Boot Logo (Off / On): Displays the Samsung logo when the TV is turned on.
●
Light Effect (Off / In Standby / Watching TV / Always)
For LED 8000 series
: You
can turn the LED on the TV’s front panel on or off. Turn it off to save power or if
the LED is too bright for you.
N
Set the Light Effect to Off to reduce the power consumption.
N
The color of light may very depending on the model.
●
TV Name: Sets the TV name so you can find it easily on a mobile device.
N
If you select the User Input, you can type on the TV using the OSK (On
Screen Keyboard).
▶
English
▶
■
Anynet+(HDMI-CEC)
For details on set up options, refer to the “What is Anynet+?” instructions.
▶
English
▶
■
DivX® Video On Demand
Shows the registration code authorized for the TV. If you connect to the DivX web
site and register using that code, you can download the VOD registration file. If you
activate the VOD registration using Smart Hub, the registration is completed.
N
For more information about DivX® VOD, visit “http://vod.divx.com”.
▶
English
▶
■
Network Remote Control (On / Off)
Turn on/off or give permission to Samsung mobile phone devices to connect with
and control the TV.
You must have a Samsung Mobile phone/device which supports Wireless Remote
Control. For more details, refer to each device’s manual.
Support Menu
▶
English
▶
❑
Support Menu
O
MENU
m
→
Support
→
ENTER
E
■
e-Manual
The e-Manual is built into your TV. Open the e-Manual to learn how to use your
TV’s many features.
N
For the detailed information about the e-Manual Screen, refer to “How to view
the e-Manual” in the Users Manual.
▶
English
▶
■
Self Diagnosis
●
Picture Test: Use to check for picture problems. Picture test displays a high
definition picture that you can examine for flaws or faults.
Yes: Select Yes if the test picture does not appear or there is noise or distortion
in the test picture. There may be a problem with the TV. Contact Samsung’s
Call Center for assistance.
No: Select No if the test picture displays properly. There may be a problem
with your external equipment. Please check your connections. If the problem
persists, refer to the external device’s user manual.
▶
English
▶
●
Sound Test: Use the built-in melody to check for sound problems.
N
If you hear no sound from the TV’s speakers, before performing the sound
test, make sure Speaker Select is set to TV Speaker in the Sound menu,
and then try the speakers again.
N
You will hear the melody during the test even if you have set Speaker
Select to External Speaker or have muted the sound by pressing the
MUTE button.
Yes: Select Yes if you can hear sound from only one speaker or from neither
speaker during the sound test. There may be a problem with the TV. Contact
Samsung’s Call Center for assistance.
No: Select No if you can hear sound from the speakers. There may be a
problem with your external equipment. Please check your connections. If the
problem persists, refer to the external device’s user manual.
▶
English
▶
●
Signal Information: (digital channels only) The reception quality of over-the-air
HD channels is either perfect or the channels are unavailable. Signal Information
displays HD channel signal strength so you can adjust your antenna to increase
signal strength and receive HD channels.
●
Troubleshooting: Displays a troubleshooting guide organized into four
symptom categories: Poor or Distorted Picture, Distorted Sound or No Sound,
RF or PC Issues, and Other Issues. If your TV seems to be having a problem,
access the troubleshooting guide for a solution.
▶
English
▶
■
Software Upgrade
The Software Upgrade menu lets you upgrade your TV’s software to the latest
version.
●
Current Version: This is the software version already installed in the TV.
▶
English
▶
Upgrading to the Latest Version
You can upgrade in four ways:
●
By USB
●
By Online
●
Alternative Software
●
Standby Mode Upgrade
The four methods are explained in the following pages.
N
Be careful not to turn off the power until the upgrade is complete. The TV will
turn off and on automatically after completing the software upgrade. When
you upgrade software, all video and audio settings you have made will return
to their default settings. We advise you to write down your settings so that you
can easily reset them after the upgrade.
▶
English
▶
By USB
To upgrade by USB, follow these steps:
1. Visit www.samsung.com.
2. Download the latest USB software upgrade
exe archive to your computer.
3. Extracts the exe archive to your computer.
You should have a single folder with the
same name as the exe file.
4. Copy the folder to a USB flash drive.
5. Turn on the TV, and then insert the USB flash drive into the USB port of the TV.
6. In the TV’s menu, go to Support
→
Software Upgrade.
7. Select By USB.
N
Please be careful not to remove the USB drive until the upgrade is complete.
USB
● The displayed image may differ depending on the
model.
▶
English
▶
By Online
The By Online function lets you download the upgrade software directly from the
Internet into your TV and then upgrade the software in one operation. To use By
Online, you must have configured your TV to connect to your network and the TV
must be connected to the Internet. See the Network Connection instructions.
To upgrade by Online, follow these steps:
1. Select By Online, and then press the ENTER
E
button. The Connecting to
Server message appears.
2. If there is a download available, the Download pop-up appears with a progress
bar and the download starts.
3. When the download is complete, the Upgrade Query screen appears with three
choices: Upgrade Now, Upgrade Later, or Don’t Upgrade.
▶
English
▶
4. If you select Upgrade Now, the TV upgrades the software, turns off, and then
turns on automatically.
5. If you do not make a selection in one minute or select Upgrade Later, the TV
stores the new upgrade software. You can upgrade the software later using the
Alternative Software function.
6. If you select Don’t Upgrade, the TV cancels the upgrade.
▶
English
▶
Alternative Software
The Alternative Software option lets you upgrade using a file the TV downloaded
earlier, but you decided not to install immediately, or a file downloaded by the TV in
Standby Mode (See Standby Mode Upgrade on the next page).
To upgrade By Alternative Software, follow these steps:
1. If upgrade software has been downloaded, you will see the software version
number to the right of Alternative Software.
2. Select Alternative Software, and then press the ENTER
E
button.
3. The TV displays a message asking if you want to upgrade. Select Yes. The TV
begins the upgrade.
4. When the upgrade is complete, the TV turns off automatically, and then turns
on.
▶
English
▶
Standby Mode Upgrade
You can set the Standby Mode Upgrade function so that the TV downloads new
upgrade software when it is in Standby mode. In Standby mode, the TV is off, but
its Internet connection is active. This allows the TV to download upgrade software
automatically, when you are not using it. Because the TV is turned on internally,
the screen may glow slightly. This phenomenon may continue for more than 1 hour
until the software download is complete.
▶
English
▶
To set Standby Mode Upgrade, follow these steps:
1. Press the arrow buttons to select Standby Mode Upgrade in Software
upgrade menu, and then press the ENTER
E
button.
2. Select On or Off.
●
Off: If you select Off, the TV will notify you with a pop up message when
newupgrade software is available.
●
On: If you select On, the TV will automatically download new upgrade
software when it is in Standby mode with the power off. If it downloads new
upgrade software, the TV will ask you if you want to install it when you turn
the TV on.
N
To use the Standby Mode Upgrade function, your TV must be connected to
the Internet.
▶
English
▶
■
Contact Samsung
View this information when your TV does not work properly or when you want to
upgrade the software. You can find information regarding our call centers and how
to download products and software.
▶
English
▶
❑
3D
O
MENU
m
→
→
3D
→
ENTER
E
■
Using the 3D function
This exciting new feature enables you to view 3D content. To fully enjoy this
feature, you must purchase a pair of Samsung 3D Active Glasses to view 3D video.
Samsung 3D Active Glasses are sold separately. For more detailed purchasing
information, contact the retailer where you purchased this TV.
▶
English
▶
IMPORTANT HEALTH AND SAFETY INFORMATION FOR 3D PICTURES.
Read and understand the following safety information before using the TV’s
3D function.
[
WARNING
●
Some viewers may experience discomfort while viewing 3D TV such as
dizziness, nausea and headaches. If you experience any such symptom,
stop viewing 3D TV, remove the 3D Active Glasses and rest.
●
Watching 3D images for an extended period of time may cause eye strain. If
you feel eye strain, stop viewing 3D TV, remove your 3D Active Glasses and
rest.
▶
English
▶
●
A responsible adult should frequently check on children who are using the
3D function. If there are any reports of tired eyes, headaches, dizziness, or
nausea, have the child stop viewing 3D TV and rest.
●
Do not use the 3D Active Glasses for other purposes (such as general
eyeglasses, sunglasses, protective goggles, etc.)
●
Do not use the 3D function or 3D Active Glasses while walking or moving
around. If you use the 3D function or 3D Active Glasses while walking or
moving around you can injure yourself by running into objects, tripping, and/
or falling.
▶
English
▶
●
3D Mode: Select the 3D input format.
N
If you want to experience the 3D effect fully, put the 3D Active Glasses on
first, and then select the 3D Mode from the list below that provides the best
3D viewing experience.
N
3D Mode may differ depending on the input signal.
3D Mode Operation
3D
3D
Off Turns the 3D function off.
2D
→
3D Changes a 2D image to 3D.
Side by Side Displays two images next to each other.
Top & Bottom Displays one image above another.
Line by Line
for LED 7000 Series and above
Displays the images for the left and right eye alternately
in rows.
Vertical Stripe
for LED 7000 Series and above
Displays the images for the left and right eye alternately
in columns.
▶
English
▶
3D Mode Operation
Checker Board
for LED 7000 Series and above
Displays the images for the left and right eye alternately
in pixels.
Frame Sequential
for LED 7000 Series and above
Displays the images for the left and right eye alternately
in frames.
N
Some file formats may not support the “2D
→
3D.”
N
“Side by Side” and “Top & Bottom” are available when the resolution is
720p, 1080i and 1080p in DTV, HDMI and USB mode or when you set the
TV’s source to PC and your PC is connected through an HDMI/DVI cable.
N
“Vertical Stripe”, “Line by Line” and “Checker Board” are available when you
set the sourcre to PC, the TV’s resolution is 1920 x 1080, and your PC is
connected through an HDMI/DVI cable.
N
“Frame Sequential” displays the frequency (60Hz only) when you set the
source to PC and the TV’s resolution is 1920 x 1080.
▶
English
▶
●
3D Effect
for LED 7000 Series and above
: Adjust 3D effects like perspective and
depth to your preference.
3D Effect (Auto / Manual)
–
Auto: Automatically adjust the perspective and depth settings in accordance
with the 3D input source.
–
Manual: Manually adjust the perspective and depth settings.
3D Perspective (-5 - +5): Adjust the overall 3D perspective of the on-screen
image.
Depth (1-10): Adjust the overall depth.
●
3D Perspective (-5 - +5)
for PDP TV
: Adjust the overall 3D perspective of the
on-screen image.
●
Depth (1-10)
for PDP TV
:Adjust the overall depth.
●
L/R Change (L/R Image / R/L Image): Swap the left and right pictures.
▶
English
▶
●
3D
→
2D (Off / On): Displays the image for the left eye only.
N
This function is deactivated when 3D Mode set to “2D
→
3D” or Off.
●
3D Auto View (Off / Message Notice / On):
for LED 7000 / PDP 8000 Series and above
If you set 3D Auto View to On, TV will switches the TV to 3D automatically.
If you set 3D Auto View to Message Notice, a message screen appears when
the TV receives a 3D signal. Then you can view a 3D image by pressing
3D button.
N
In USB mode, this function is available only when the resolution is
1280X720p, 1920X1080i or 1920X1080p.
N
Available when the resolution is 720p, 1080i and 1080p in DTV and HDMI
mode.
N
If a 3D failure occurs due to a 3D information error, set 3D Auto View to
Off and manually select a 3D Mode using the 3D button or corresponding
menu.
▶
English
▶
N
When you access some application (such as Smart Hub, Yahoo, etc.), TV
will do not switch to 3D. In this case, you should to use the 3D, after exiting
the application.
●
3D Optimize
for LED TV
: Automatically adjusts the picture overall to provide an
optimal 3D effect.
N
Support resolution (16:9 only)
Resolution Frequency (Hz)
1280 x 720p 60 Hz
1920 x 1080i 60 Hz
1920 x 1080p 24 / 30 / 60 Hz Resolution
Resolution supported for HDMI PC mode
The optimal resolution for the HDMI PC mode is 1920 x 1080.
If the input resolution is not 1920 x 1080, the TV may not display images properly
in 3D display or full screen mode.
▶
English
▶
How to watch the 3D images
N
Some 3D modes may not be available depending on the format of the image
source.
N
To watch in 3D, you must wear 3D Active Glasses and turn the glasses on by
pressing the power button.
1. Press the MENU button on your remote, use the
u
or
d
button to select Picture, and then press the
ENTER
E
button.
2. Use the
u
or
d
button to select 3D, and then press
the ENTER
E
button.
● The displayed image may differ
depending on the model.
3D
3D
3D
3D Mode
3D Effect Manual
L/R Change L/R Image
3D Auto View On
3D Optimize
3D
→
2D Off
▶
English
▶
● The displayed image may differ
depending on the model.
3. Use the
u
or
d
button to select 3D Mode,
and then press the ENTER
E
button.
4. Using the
l
or
r
buttons on your remote
control, select the 3D Mode of the image
you want to view.
● The displayed image may differ depending on the
model.
3D
3D
3D Mode
Cancel
▶
English
▶
Supported formats and operating specifications for Standard HDMI 3D
N
The 3D formats listed below are recommended by the HDMI association and
must be supported by 3D TVs.
Source signal format Standard HDMI 1.4 3D
1920x1080p@24Hz x 2 1920x2205p@24Hz
1280x720p@60Hz x 2 1280x1470p@60Hz
▶
English
▶
Read These Notes Before Using the 3D Function...
N
NOTE
●
3D Mode is set to Off automatically when you access Smart Hub or
e-Manual functions.
●
3D Mode is set to its memorized configuration value automatically when
you change the input source.
.
▶
English
▶
●
Some Picture functions are disabled in 3D mode.
●
PIP is not supported in 3D mode.
●
3D Active Glasses from Samsung’s previous product (IR type) or other
manufacturers are not be supported.
●
When the TV is initially powered on, it may take some time until the 3D
display is optimized.
●
The 3D Active Glasses may not work properly if there is any other 3D
product or electronic devices turned on near the glasses or TV. If there is a
problem, keep other electronic devices as far away as possible from the 3D
Active Glasses.
▶
English
▶
●
Be sure to stay within the viewing angle and optimum TV viewing distance
when watching 3D pictures. Otherwise, you may not be able to see 3D
effects properly.
●
The ideal 3D viewing distance is three times or more the height of the
screen. For example, if your screen is two feet high, you should sit at least
six feet from the screen. We recommend sitting so that your eyes are level
with the screen.
▶
English
▶
❑
Smart Hub
Using Smart Hub, you can stream movies,
videos, and music from the Internet, access
various for pay or free-of-charge applications
and view them on your TV. Application content
includes news, sports, weather forecasts, stock
market quotes, maps, photos, and games.
O
You can also start this function by pressing
the SMART HUB button on the remote
control.
● The displayed image may differ depending on the
model.
Search
Favorites
Schedule Ma...
Channel Web Browser
Source
Videos Photos Music
a
Login
b
Sort by
{
Edit Mode
}
Settings
Recommended
▶
English
▶
Smart Hub at a Glance
TV Screen: Displays the
current input source
screen.
My Applications: Displays
your personal gallery of
applications which you can
add to, modify, and delete.
Recommended : Displays
recommended contents
managed by Samsung.
Controls:
● a Red (Login): To log in to Smart Hub.
● b Green (Sort by): To sort the applications.
● { Yellow (Edit Mode): To edit the applications.
● } Blue (Settings): To change the settings of Smart Hub.
N The colored buttons may work differently depending on the
application.
Information: Displays
notices, new applications,
and advertisements
brought to you by
Samsung product
introductions.
Samsung Apps : You can
download various for pay or
free-of-charge application
services.
Exit: Exits the SMART HUB.
You can search for various
types of content that
can be used on your
TV. Enter a keyword to
search for media, various
applications, or online
information that you can
use on the TV.
Search
Favorites
Schedule Ma...
Channel
Source
Videos Photos Music
a
Login
b
Sort by
{
Edit Mode
}
Settings
Recommended
Web Browser
▶
English
▶
N
NOTE
●
Samsung Electronics takes no legal responsibility for any interruption of the
Smart Hub service caused by the service provider for any reason.
●
The Smart Hub service downloads and processes data via the Internet so
that you can enjoy the Internet contents on your TV screen. If the Internet
connection is unstable, the service may be delayed or interrupted. Furthermore,
the player may turn off automatically in response to conditions on the Internet.
If this occurs, check the Internet connection and try again.
●
Application services may be provided in English only and the contents available
may vary, depending on your area.
▶
English
▶
●
For more information about a Smart Hub service, visit the web site of the
applicable service provider.
●
The services provided are subject to change by the Smart Hub service provider
without notice.
●
The Smart Hub service contents may differ depending on the player’s firmware
version.
●
For pay DivX contents with copy protection can only be played through a
composite, a component or an HDMI cable.
▶
English
▶
Starting Smart Hub for the First Time
To start Smart Hub for the first time, follow these steps :
1. Press the SMART HUB button.
2. The Smart Hub screen appears. In a few cases, the Country screen appears
immediately after.
3. If the Country screen has appeared, press the
u
/
d
/
l
/
r
buttons to select
your country, then press the ENTER
E
button.
N
Certain applications are available only in certain countries.
4. The General Disclaimer screen appears. Press the
l
/
r
buttons to select Agree,
then press the ENTER
E
button.
N
Screens can take a few seconds to appear.
▶
English
▶
5. The Privacy Policy screen appears. Press the
l
/
r
buttons to select Agree, then
press the ENTER
E
button.
6. The Service Update screen appears and installs a number of services and
applications. When done, it closes. The applications and services downloaded are
displayed on the Smart Hub screen. This may take some time.
N
Smart Hub may close momentarily during the installation process.
N
A number of screens may appear after installation. You can press the
ENTER
E
button to close them or let them close on their own.
7. To start an application, press the
u
/
d
/
l
/
r
buttons to highlight a application,
then press the ENTER
E
button.
▶
English
▶
Using the Keypad
Pressing the – button on the remote while you are using the Screen Keypad
enables you to change the text fields to lower case, capitalized case, upper case,
numbers and icons.
You can use this Screen Keypad in a several Smart Hub applications.
Method 1: Using keypad of ABC type.
1. For example, suppose that you want to input “105Chang”.
2. Press the – button on the remote 3 times to change the input mode from lower
case to numbers.
3. Press the 1, 0 and 5 button in numerical order.
▶
English
▶
4. Press the – button on the remote 4 times to change the input mode from
numbers to upper case.
5. Press the 2 button on the remote 3 times to input C.
6. Press the – button on the remote 3 times to change the input mode from upper
case to lower case.
7. Press buttons on the remote to input the rest of “Chang”. When done, press
the ENTER
E
button.
Method 2: Using the Keypad of T9 type.
1. For example, suppose that you want to input “105Chang”
2. Press the – button on the remote 3 times to change the input mode from lower
case to numbers.
3. Press the 1, 0 and 5 button in numerical order.
▶
English
▶
4. Press the – button on the remote 3 times to change the input mode from
numbers to capitalized case.
5. Press numbers in sequence: 2, 4, 2, 6, 4. A window will appear displaying a list
of words that can be entered using the selected numbers. Select “Chang” from
the list.
N
If “Chang” cannot be found in the list, select + to create your own dictionary.
Add your own word to your dictionary
▶
English
▶
Creating an Account
To establish your own, exclusive, configuration of Smart Hub, create your own
Smart Hub account.
N
Note
●
You must use an e-mail address as an ID.
●
You can register up to 10 User Accounts.
●
You do not need an account to use Smart Hub.
▶
English
▶
To create an account, follow these steps:
1. Press the
a
button on your remote control. The Login screen appears.
2. Press the
u
/
d
/
l
/
r
buttons to select Create Account, and then press the
ENTER
E
button.
3. On the next screen, select Smart Hub Account, and then press the ENTER
E
button. An entry screen and keypad appear.
4. Use the keypad to enter your e-mail address. This will serve as your ID.
▶
English
▶
5. When done, press the ENTER
E
button. The Login screen re-appears.
6. Select Password, and then press the ENTER
E
button. The Password screen
and a keyboard appear.
7. Use the keypad to enter a password. The password can be any combination of
letters, numbers, and symbols.
N
Press the
a
button on your remote to show or hide the password as you
enter it.
▶
English
▶
8. When done, press the ENTER
E
button.
9. Select Confirm Password and then press the ENTER
E
button.
10. Repeat Steps 7 and 8.
11. When the Login screen re-appears, select Create Account, and then press the
ENTER
E
button. The Confirmation screen appears.
12. Select OK, and then press the ENTER
E
button. The Continue to Register
Service screen appears.
13. Select Go Register and then press the ENTER
E
button.
▶
English
▶
14. The Register Service Account screen appears.
N
If you have existing accounts with any of the listed providers, you can
associate the provider account and the provider account password with
your Smart Hub account.
Registration makes it easier to access the providers web site. For
registration instructions, go to Step 2 in Account Management under
Settings in the “Setting Up Smart Hub” section of this manual.
N
If you don’t have existing provider accounts or do not want to register
existing accounts at this time, select Register Later and then press the
ENTER
E
button. You can also let the window close on its own in about a
minute.
▶
English
▶
Account Log In
To log in to your Smart Hub account, follow these steps:
1. With the Smart Hub main screen displayed on your TV, press the
a
button on
your remote. The Login screen appears.
2. Select the
^
next to the Smart TV ID field, and then press the ENTER
E
button.
N
If you want to input the Smart TV ID, press the ENTER
E
button. The
screen keypad will appear. You can input your Smart TV ID manually.
3. Select your ID from the list that appears, and then press the ENTER
E
button.
The Login screen re-appears.
▶
English
▶
4. Select Password, and then press the ENTER
E
button. The Password screen
and a keypad appears.
5. Using the keypad and your remote, enter your password. When done, press
the ENTER
E
button.
N
If you want Smart Hub to enter your password automatically, select
Remember my Smart TV ID and password. after you have entered your
password, and then press the ENTER
E
button. A check appears. Smart
Hub will now enter your password automatically when you select or enter
your ID.
▶
English
▶
❑
Setting up Smart Hub
■
Settings
The Settings Menu Screen gives you access to account management, account
reset, and account properties functions.
To access the Settings Menu, and then select a menu item, follow these steps:
1. Press the
}
button on your remote.
2. Press the
u
/
d
to select a menu item, and then press the ENTER
E
button.
▶
English
▶
The functions on the Settings Menu screen are described below.
●
Account Management
The Account Management Menu contains
functions that let you register your service
provider accounts, change your Smart Hub
password, and delete or deactivate your
Smart Hub account.
● The displayed image may differ depending on
the model.
Settings
Account Management
Service Manager
Reset
Properties
Close
▶
English
▶
Register Service Account: If you have existing accounts with any of the
providers listed by the Register Service Account function, you can associate
the provider account and the provider account password with your Smart Hub
account. If you associate the account, you will be able to log onto the account
through Smart Hub easily, without entering your account name or password.
To use the Register Service Account function, follow these steps:
1. In the Account Management menu, select Register Service Account,
and then press the ENTER
E
button. The Register Service Account screen
appears.
▶
English
▶
2. Press the
u
/
d
arrow buttons to select a Service Provider you want to
associate with your Smart Hub account, and then press the ENTER
E
button.
N
If you have a Samsung account and you want to use the
Samsung Apps function in Smart Hub, you must register your Samsung
Apps account here.
3. Using your remote and the on-screen Keypad, enter your site ID and
password. When done, press the ENTER
E
button.
N
This is the ID and password you normally use to access your account on
this site.
▶
English
▶
4. If you have entered the ID and password correctly, the Registered
Successfully. message appears, asking you if you want to add another
service provider. If you do, press the ENTER
E
button. If not, press the
RETURN button and return to the Settings Menu.
5. If you pressed ENTER
E
, repeat Steps 2 through 4 to associate another
Service Provider.
6. When you are done, press the RETURN button.
Change Password: The Change Password function lets you change your
Smart Hub password. To change the password, follow these steps:
1. Select Change Password, and then press the ENTER
E
button.
2. Enter your current password. The next screen appears.3
▶
English
▶
3. On the next screen, enter a new password on the first line. Enter it again on
the second line to confirm.
4. The Changing Password Completed. message screen appears. Press the
ENTER
E
button or wait for the screen to close - about 5 seconds.
Remove from TV Account List: The Remove from TV Account List function
cancels all your current registered Service Accounts that you registered on the
Register Service Account screen.
Deactivate Account: The Deactivate Account function deactivates your
Smart TV ID and deletes it and all your account settings entirely from Smart
Hub.
▶
English
▶
●
Service Manager
Ticker Autorun: You can set Ticker Autorun to come on when powering on the
T V.
N
The Ticker function allows you to view content from the current input source
and ticker data at the same time.
N
Depending on your country, the Ticker application may have a different service
or not be supported.
Channel Bound Service (Off / On): Some channels support applications as an
Internet data service, allowing you to access the Internet service while watching
T V.
N
Only available if supported by the broadcaster
▶
English
▶
●
Reset: The Reset function initializes all downloaded applications, erases all
user accounts and settings from the TV, and resets all Smart Hub settings to the
factory default settings. It then restarts Smart Hub as if it were starting for the first
time. Your account, however, remains on the Smart Hub server. To log into your
account, enter your ID and password on the Login screen.
To use the Reset function, follow these steps:
1. In the Settings menu, select Reset, and then press the ENTER
E
button. The
Reset screen appears.
▶
English
▶
2. Enter the your security password.
N
The default password set is “0-0-0-0.”
N
If you forget the password you created, press the following sequence of
remote control buttons to reset the password to “0-0-0-0”:
POWER (off)
→
MUTE
→
8
→
2
→
4
→
POWER (on).
3. After a few moments, Smart Hub automatically resets. The screen may
go black, then Smart Hub re-appears. In a few moments, it starts the re-
initialization procedure.
4. To complete the re-initialization, go to Step 2 in Starting Smart Hub for the First
Time.
▶
English
▶
●
Properties
The Properties menu item lists three functions that display information about Smart
Hub :
Detail: Lists information about Smart Hub including version number, the number of
services installed, memory usage, and the unique product ID.
Terms of Service Agreement: Display the Terms of Service Agreement.
▶
English
▶
■
Edit Mode
The functions in the Edit Mode menu let you manipulate the applications in the My
Applications section of the Smart Hub screen. Using these functions, you can lock
and unlock access to some applications, create folders and move applications to
them, rename folders, delete applications, and change the position of applications
on the screen. To access the Edit Mode Menu, and then select a menu item,
follow these steps:
1. Press the
{
button on your remote. The Edit Mode menu bar appears on the
bottom of the screen.
2. Press the
u
/
d
/
l
/
r
to select a menu item, and then press the ENTER
E
button.
▶
English
▶
The functions in the Edit Mode Menu bar are described below.
N
NOTE
●
Some menu items may not appear on the screen. To see these items, press
the
l
/
r
to move to the screen edge, and then press one more time to
reveal the items.
●
You can close the bar by highlighting the X on the bottom right side, and
then pressing the ENTER
E
button.
▶
English
▶
●
Move
The Move function lets you change the screen position of an application. To
use the Move function, follow these steps:
1. Press the
{
button on your remote.
2. Select an application, and then press the ENTER
E
button. A
c
appears
above the application.
3. Press the
u
/
d
/
l
/
r
to select Move, and then press the ENTER
E
button. A position change icon appears above the application.
4. Press the
u
/
d
/
l
/
r
to move the icon. Press the ENTER
E
button
when the icon is in the position of your choice. The application moves to its
new location.
▶
English
▶
●
Move to Folder
The Move to Folder function lets you move an application to a folder. To use
the Move to Folder function, follow these steps:
1. Press the
{
button on your remote.
2. Select an application, and then press the ENTER
E
button.
3. Press the
u
/
d
/
l
/
r
to select Move to Folder, and then press the
ENTER
E
button. The Move to Folder screen opens.
4. Press the
u
/
d
/
l
/
r
to select a folder, and then press the ENTER
E
button. The Moved to Folder message appears, and then closes. The
application has been moved to the folder.
▶
English
▶
To access an application in a Folder
1. Close the Edit Mode menu.
2. In My Applications, press the
u
/
d
/
l
/
r
to select a folder, and then
press the ENTER
E
button. The folder opens.
3. Select an application, and then press the ENTER
E
button. The application
service starts.
▶
English
▶
To Edit Items in a Folder
Select a folder, and then press the ENTER
E
button. The folder opens. Press
the
{
button on your remote. The Edit buttons appear at the bottom of the
screen.
These buttons work the same as the Edit Mode menu buttons on the main
screen. For example, to move an application back to the My Apps main screen:
1. Select the application.
2. Select Move to Folder, and then press the ENTER
E
button. The Move
to Folder screen appears.
3. Select My Apps, and then press the ENTER
E
button. The Move
to Folder screen closes and the application returns to the main My
Applications screen.
▶
English
▶
●
New Folder
The New Folder function lets you create and name new folders. Once you
have created a folder, you can move applications into it.
To use the New Folder function, follow these steps:
1. Press the
{
button on your remote.
2. Press the
u
/
d
/
l
/
r
to move the cursor to New Folder, and then press
the ENTER
E
button. The New Folder screen and a keypad appear.
3. Use the keypad to enter the name of the folder.
4. Press the ENTER
E
button. The New Folder screen closes and the New
Folder appears on the Smart Hub screen.
▶
English
▶
●
Rename Folder
The Rename Folder function lets you rename folders. To use the Rename
Folder function, follow these steps:
1. Press the
{
button on your remote.
2. Press the
u
/
d
/
l
/
r
to select a folder, and then press the ENTER
E
button.
3. Press the
u
/
d
/
l
/
r
to select Rename Folder, and then press the
ENTER
E
button. The Rename Folder screen and a keyboard appears.
4. Use the key board to enter a new name.
5. Press the ENTER
E
button. The Rename window closes and the new
name appears below the folder.
▶
English
▶
●
Lock
The Lock function lets you lock some application in My Applications so they
can not be opened without entering the password.
To use the Lock function, follow these steps:
1. Press the
{
button on your remote.
2. Press the
u
/
d
/
l
/
r
to select an application, and then press the
ENTER
E
button.
3. Press the
u
/
d
/
l
/
r
to select Lock, and then press the ENTER
E
button. The Security screen appears.
4. Enter your password. If you do not changed a password, enter “0-0-0-0”.
5. Press the ENTER
E
button. A confirming message screen appears. A lock
symbol appears next to the application.
▶
English
▶
●
Unlock
1. Press the
{
button on your remote.
2. Press the
u
/
d
/
l
/
r
to select a locked application, and then press the
ENTER
E
button.
3. Press the
u
/
d
/
l
/
r
to select Unlock, and then press the ENTER
E
button. The Security screen appears.
4. Enter your password. If you have not changed a password, enter “0-0-0-0”.
5. Press the ENTER
E
button. A confirming message screen appears. A lock
symbol disappears next to the application.
▶
English
▶
●
Delete
The Delete function lets you delete application from My Applications. To use
the Delete function, follow these steps:
1. Press the
{
button on your remote.
2. Press the
u
/
d
/
l
/
r
to select an application, and then press the
ENTER
E
button.
3. Press the
u
/
d
/
l
/
r
to select Delete, and then press the ENTER
E
button. The message, “Do you want to delete selected item(s)?” appears.
4. Select Yes, and then press the ENTER
E
button. The application is
deleted.
▶
English
▶
■
Sort by
The functions in the Sort Menu let you sort the applications in My Applications
by Name, Date, Frequency (of use), and Category. If you manually change the
position of an application, the Sort menu is set to User Defined automatically.
To sort the applications in My Applications, follow these steps:
1. Press the
b
button on your remote.
2. Press the
l
/
r
to select a sorting method, and then press the ENTER
E
button. Smart Hub sorts the applications by the method you have chosen.
▶
English
▶
❑
Using Smart Hub
Enjoy photos, music and/or movie files saved
on a USB Mass Storage Class (MSC) device
and/or your PC.
1. Press the SMART HUB button.
2. Press the
d
or
u
button to select Videos,
Photos, or Music, and then press the
ENTER
E
button.
N
To view content on a USB device, you must
plug the device into a USB jack on the TV.
● The displayed image may differ depending on the
model.
Search
Favorites
Schedule Ma...
Channel Web Browser
Source
Videos Photos Music
a
Login
b
Sort by
{
Edit Mode
}
Settings
Recommended
▶
English
▶
❑
Connecting a USB Device
1. Turn on your TV.
2. Connect a USB device containing photo,
music and/or movie files to the USB port on
the back or side panel of the TV.
3. When a USB device is connected to the TV,
the Connected Device screen appears.
Select a connected device, and then press
ENTER
E
.
N
The TV may display the files on the USB device automatically if it is the only
device connected.
TV Rear Panel
USB Drive
● The displayed image may differ depending on the
model.
▶
English
▶
Read this information before using Smart Hub with a USB device.
●
The USB function might not work properly with unlicenced multimedia files.
●
MTP (Media Transfer Protocol) is not supported.
●
The file system supports FAT16, FAT32 and NTFS.
●
Certain types of USB Digital camera and audio devices may not be compatible
with this TV.
●
Smart Hub only supports the Sequential jpeg format. It does not support the
Progressive jpeg format.
●
Smart Hub only supports USB Mass Storage Class (MSC) devices. MSC is a
Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb
drives, Flash Card Readers and USB HDD (USB HUB are not supported).
Devices should be connected directly to the TV’s USB port.
▶
English
▶
●
Before connecting your device to the TV, please back up your files to prevent
them from damage or loss of data. SAMSUNG is not responsible for any data
file damage or data loss.
●
Connect a USB HDD to the dedicated USB 1 (HDD) port.
●
Do not disconnect the USB device while it is loading.
●
The higher the resolution of the image, the longer it takes to display on the
screen.
●
The maximum supported JPEG resolution is 15360 x 8640 pixels.
●
If a file is corrupted or the TV does not support the file type, the “Not Supported
File Format.” message apears.
●
Pictures, video, music can be displayed up to 1000 files in each other.
●
If the number of files and folders saved on a USB storage device is
approximately over 8000, the files and folders may not appear and some
folders may not be opened.
▶
English
▶
●
The TV cannot play MP3 files with DRM that have been downloaded from a for
pay site. Digital Rights Management (DRM) is a technology that supports the
creation, distribution, and management of digital content in an integrated and
comprehensive way, including protecting the rights and interests of content
providers, preventing illegal copying of contents, and managing billings and
settlements.
●
If more than 2 PTP devices are connected, you can only use one at a time.
●
If more than two MSC devices are connected, some of them may not be
recognized. A USB device that requires high power (more than 500mA or 5V)
may not be supported.
▶
English
▶
●
If the TV has no input during the time set in Auto Protection Time, the
Screensaver will run.
●
The power-saving mode of some external hard disk drives may be released
automatically when you connect them to the TV.
●
If you connect a USB device with a USB extension cable, the TV may not
recognize the USB device or read the files on the device.
●
If a USB device you connect to the TV is not recognized, the files on the device
are corrupted, or a file in the list is not played, connect the USB device to a PC,
format the device and check the connection.
●
If a file you deleted from the PC is still found when you run Smart Hub, use the
“Empty the Recycle Bin” function on the PC to permanently delete the file.
▶
English
▶
❑
Connecting to a PC through a network
You can play pictures, music, and videos saved in your PC through a network
connection in the AllShare™ mode.
N
For more information on how to configure your TV and connect it to your
network, see ‘Network Connection’.
N
To view content located on your PC, you must have connected your TV and
your PC to your LAN and downloaded and installed AllShare PC Software on
your PC.
N
We recommend you locate both your TV and PC in the same network subnet.
IP addresses have four parts, separated by periods (111.222.333.444). If your
TV and PC are in the same subnet, the first 3 parts of the TV IP address and
the PC IP address (111.222.333) will be the same and only the last part (the
host address) will be different.
▶
English
▶
N
The following Smart Hub functions are not supported when you are playing media
from a PC connected through a network:
●
The Background Music and Background Music Setting functions.
●
Sorting files by preference in the Photos, Music, and Videos folders.
●
The
π
(REW) or
µ
(FF) button while a movie is playing.
N
DivX DRM are not supported.
N
Set your PC firewall program so that AllShare PC Software is a permitted program.
▶
English
▶
N
Depending on the Internet server, when you use Smart Hub through a network
connection:
●
The sorting method may vary.
●
The Scene Search function may not be supported.
●
The Resume function which resumes playing of a video, may not be supported.
–
The Resume function does not support multiple users. (It memorizes only
the point where the most recent user stopped playing a video.)
●
The
l
or
r
button may not work depending on the content information.
N
You may experience file stuttering while playing a video in Smart Hub through a
network connection.
▶
English
▶
❑
Screen Display
Move to the file you want to play using the up/down/right/left buttons, and then
press the ENTER
E
or
�
(Play) button. The file is played.
Device name: Displays the
name of the connected
device.
Change Contents/Device:
Changes the content type or
connected device.
Sorting: Displays sort criteria.
Sort criteria differ, depending
on the content.
Edit Mode: Select and play
multiple files or assign them
to My Playlist. This function is
available only for Music.
Home: Return to content
home
Move to another page containing a list of files.
File List Section: Displays
files sorted according to
your criteria.
I Love Music
Ming
Music_1
No Singer
Music_2
No Singer
Music_3
No Singer
Music_4
No Singer
Music_6
No Singer
Music_5
No Singer
Sweet Candy
Music_7
No Singer
Music_8
No Singer
SUM
Music
Upper Folder
▶
English
▶
■
Videos
Playing a Video
1. Press the
l
/
r
/
u
/
d
button to select the
desired video in the file list.
2. Press the ENTER
E
button or
�
(Play)
button.
●
The file name appears on the top with its
playing time.
●
If video time information is unknown, the
playing time and progress bar are not
displayed.
●
During video playback, you can search using the
l
and
r
buttons.
1:02:15 / 2:04:10
Movie 1.avi
Play
● The displayed image may differ depending on the
model.
▶
English
▶
●
You can use the
π
(REW),
µ
(FF), Pause, Stop, and Play buttons on the
bottom of your remote during playback.
●
Press the RETURN button to exit the movie
●
Supported Video Subitle Formats (for language subtiles, etc.)
Name File extension Format
MPEG-4 time-based text .ttxt XML
SAMI .smi HTML
SubRip .srt string-based
SubViewer .sub string-based
Micro DVD .sub or .txt string-based
▶
English
▶
●
Supported Video Formats
File Extension Container Video Codec Resolution
Frame rate
(fps)
Bit rate
(Mbps)
Audio Codec
*.avi
*.mkv
AVI
MKV
DivX 3.11 / 4.x / 5.1 / 6.0 1920x1080 6 ~ 30 8
MP3 / AC3
/ LPCM /
ADPCM /
DTS Core
H.264 BP / MP / HP 1920x1080 6 ~ 30 25
MPEG4 SP / ASP 1920x1080 6 ~ 30 8
Motion JPEG 1920x1080 6 ~ 30 8
*.asf ASF
DivX 3.11 / 4.x / 5.1 / 6.0 1920x1080 6 ~ 30 8
MP3 / AC3
/ LPCM /
ADPCM /
WMA
H.264 BP / MP / HP 1920x1080 6 ~ 30 25
MPEG4 SP / ASP 1920x1080 6 ~ 30 8
Motion JPEG 1920x1080 6 ~ 30 8
*.wmv ASF Window Media Video v9 1920x1080 6 ~ 30 25 WMA
*.mp4 MP4
H.264 BP / MP / HP 1920x1080 6 ~ 30 25
MP3 /
ADPCM /
AAC
MPEG4 SP / ASP 1920x1080 6 ~ 30 8
▶
English
▶
File Extension Container Video Codec Resolution
Frame rate
(fps)
Bit rate
(Mbps)
Audio Codec
*.3gp 3GPP
H.264 BP / MP / HP 1920x1080 6 ~ 30 25 ADPCM /
AAC / HE-
AAC
MPEG4 SP / ASP 1920x1080 6 ~ 30 8
*.vro
VRO
VOB
MPEG1 352x288 24 / 25 / 30 30
AC3 / MPEG
/ LPCM
MPEG2 1920x1080 24 / 25 / 30 30
*.mpg
*.mpeg
PS
MPEG1 352x288 24 / 25 / 30 30
AC3 / MPEG
/ LPCM /
AAC
MPEG2 1920x1080 24 / 25 / 30 30
H.264 1920x1080 6 ~ 30 25
*.ts
*.tp
*.trp
TS
MPEG2 1920x1080 24 / 25 / 30 30
AC3 / AAC /
MP3 / DD+ /
HE-AAC
H.264 1920x1080 6 ~ 30 25
VC1 1920x1080 6 ~ 30 25
▶
English
▶
Other Restrictions
N
NOTE
●
Video content will not play, or not play correctly, if there is an error in the
content or the container.
●
Sound or video may not work if the contents have a standard bitrate/frame rate
above the compatible Frame/sec listed in the table above.
●
If the Index Table is in error, the Seek (Jump) function is not supported.
●
You may experience file stuttering while playing a video through a network
connection.
●
Video content can not be played, if there are many contents in one file.
●
When you play video over a network connection, the video may not be played
smoothly.
▶
English
▶
●
The menu may take longer to appear if the video’s bit rate exceeds 10Mbps.
●
Some USB/digital camera devices may not be compatible with the player.
Video Decoder Audio Decoder
•
Supports up to H.264, Level 4.1
•
H.264 FMO / ASO / RS, VC1 SP / MP / AP L4
and AVCHD are not supported.
•
For MPEG4 SP, ASP:
−
Below 1280 x 720: 60 frame max
−
Above 1280 x 720: 30 frame max
•
GMC 2 over is not supported.
•
Supports up to WMA 7, 8, 9, STD
•
WMA 9 PRO does not support 2 channel excess
multi channel or lossless audio.
•
WMA sampling rate 22050Hz mono is not
supported.
•
RealAudio 10 lossless is not supported.
▶
English
▶
Using the Play Continuously Function (Resume Play)
If you exit a movie when it is playing, you can play the movie later from the point where
you stopped it.
N
The Resume function does not support multiple users. (It will only memorize the
point where the most recent user stopped playing.)
1. Select the movie file you stopped and want to resume by pressing the
l
or
r
button.
2. Press the
�
(Play) or ENTER
E
button.
3. Press Resume Icon on control panel for resume. The Movie will begin to play from
where you stopped it.
N
Resume is only available when you resume playing a movie you had stopped.
▶
English
▶
Using the Scene Search function
Scene Search divides a video into five chapters during playback. You can then re-
start playback from the chapter you select.
N
If the index information is damaged or unsupported, you will not be able to use the
Scene Search function.
1. Select the movie file you want to play from the
file list section.
2. Press the
�
(play) or ENTER
E
button.
3. Press the TOOLS button, and then press the
l
or
r
button to select Scene Search. A pop
up screen appears.
4. Press the
l
or
r
button to select a chapter
you want to view. Playback will start from the
chapter you selected.
00:12:20 00:24:40 00:36:5900:49:18 00:08:18
Scene Search
● The displayed image may differ depending on the
model.
▶
English
▶
■
Music
Playing Music
1. Press the
l
/
r
/
u
/
d
button to select the
desired music file in the file list.
2. Press the ENTER
E
button or
�
(Play)
button.
●
When the music is playing, you can search
using the
π
(REW) and
µ
(FF) button.
N
Smart Hub only displays files with MP3 file
extensions. Other file extensions are not
displayed, even if they are saved on the same USB device.
N
If the sound is abnormal when you play MP3 files, adjust the Equalizer in the
Sound menu. (An over-modulated MP3 file may cause a sound problem.)
Ming
Love
R&B
2011-01-01
1.2MB
Mu
Musi
M
c_
1
No S
No S
No S
inge
ing
r
I Love You
Mi
n
g
Musi
si
c_3
3
c
No S
S
S
inge
inge
e
inge
r
r
r
r
MusiMusi
i
c_2
2
c_
c_2
N
o
S
ing
ng
ge
r
r
Musi
c_4
4
4
N
o
S
inge
e
r
Music_
5
N
o Sin
g
er
Musi
c_6
c_6
6
No S
S
i
in
inge
ge
r
r
Musi
c_7
c_7
7
No S
o S
S
i
in
inge
ge
r
Musi
Musi
Mu
c
c_8
N
No S
inger
I Love You
01:01/03:12
Playlist 1/2
● The displayed image may differ depending on the
model.
▶
English
▶
Creating My Playlist
1. On the Music screen in the Smart Hub menu, press the
l
/
r
/
u
/
d
button to
select
Edit Mode, and then press the ENTER
E
button.
N
A check box appears to the left of the files.
2. Press the
l
/
r
/
u
/
d
button to select the tracks you want to add, and then
press the ENTER
E
button.
N
A check appears in the check box.
3. Repeat Step 2 to select additional tracks.
N
To select all the files in the current page, select Select All at the top of the
page, and then press ENTER
E
.
▶
English
▶
4. Press the
l
/
r
/
u
/
d
button to select Add to My Playlist.
N
Note that selecting Clear My Playlist will return My Playlist to the default
playlist and remove all the tracks you added.
5. Press the ENTER
E
button. The message “Selected items were added to My
Playlist.” is displayed.
6. The newly created or updated playlist will be in the main Music page.
Playing My Playlist
Select the My Playlist folder and it will play automatically. Press the
u
or
d
button to
play a different music file within the play list.
N
To delete a file from My Playlist, select the recycle bin icon next to the file you
want to delete by using the direction buttons, and then press ENTER
E
. The file
will be deleted from My Playlist.
▶
English
▶
Playing Selected Music Files
1. On the Music screen in the Smart Hub menu, press the
l
/
r
/
u
/
d
button
to select
Edit Mode on the far right side of the screen, and then press the
ENTER
E
button.
2. Press the
l
/
r
/
u
/
d
button to select the desired music file in the file list, and
then ENTER
E
button.
N
The
c
mark appears to the left of the selected files.
3. Repeat Step 2 to select additional tracks.
N
To select all the files in the current page, select Select All at the top.
N
To cancel a selection, press the ENTER
E
button again.
4. Press the
l
/
r
/
u
/
d
button to select Play at the bottom of the screen, and
then press ENTER
E
. The selected music files play.
▶
English
▶
■
Photos
Viewing a Photo (or Slide Show)
1. Press the
l
/
r
/
u
/
d
button to select the
desired file in the file list.
2. Press the ENTER
E
button.
●
To view files manually, one at a time, press
the left or right arrow buttons.
●
To start the slide show, press the
�
(Play) button when the file you selected is
displayed.
●
During the slide show, all files in the file list are displayed in order, starting from
the file you selected
Normal Friends.jpg 1024 X 768 2011/01/03
● The displayed image may differ depending on the
model.
▶
English
▶
N
When you press the
�
(Play) button in the file list, the slide show will start
immediately.
N
During a Slide Show, press the TOOLS button to access additional functions
such as Slide Show Speed, Background Music, Zoom, and Rotate.
N
You can add background music to a slide show if you have music files on your
USB device or PC by setting Background Music to On in the Tools menu, and
then selecting music files to play.
N
The Background Music cannot be changed until the BGM has finished loading.
N
You can use the Pause, Stop, and Play buttons on the bottom of your remote
during a slide show.
N
When you press the Stop or Return button, the slide show stops and the main
photo screen re-appears.
▶
English
▶
❑
Smart Hub - Additional Functions
Sorting the file lists
To sort files in the file lists, select the
(Sorting) icon in the top right of the
screen by using the
l
/
r
/
u
/
d
button. Then, press the ENTER
E
button. The
checks below indicate which media the sort criteria apply to.
Sort Criteria Operation Videos Music Photos
Folder View
Displays the whole folder. You can view the file name
and thumbnail by selecting the folder.
> > >
Title
Sorts and displays the file title in Symbol/Number/
Alphabet/Special order.
> > >
Latest Date Sorts and shows files by the latest date.
> >
Earliest Date Sorts and shows files by the earliest date.
> >
▶
English
▶
Sort Criteria Operation Videos Music Photos
Artist Sorts the music file by artist in alphabetical order.
>
Album Sorts the music file by album in alphabetical order.
>
Genre Sorts music files by the Genre.
>
Monthly Sorts and shows photo files by month.
>
▶
English
▶
Videos/Music/Photos Play Option menu
When playing video or photo files, you can press the TOOLS button to display an
Options menu.
Below are a series of tables listing the options available and the media each option
applies to.
Option Name Operations Videos Music Photos
List Return to the file list.
> > >
Previous / Next Go to previous / next photo file.
>
Shuffle You can play the music sequentially or randomly.
>
Resume
You can restart a movie file from where you
stopped it.
>
▶
English
▶
Option Name Operations Videos Music Photos
Scene Search
You can use the Scene Search function during
playback to view or start a movie from the scene
of your choice.
>
Title Search You can move directly to another Title.
>
Time Search
You can search the movie using
l
and
r
buttons
at intervals of 1 minute.
>
Subtitle
You can view a subtitle. You can select a specific
language if the subtitle file contains multiple
languages.
>
Repeat Mode You can play movie and music files repeatedly.
> >
Picture Size You can adjust the picture size to your preference.
>
▶
English
▶
Option Name Operations Videos Music Photos
Picture Mode You can change the Picture Mode.
> >
Sound Mode You can change the Sound Mode.
> > >
Audio Language
You can enjoy video in one of supported
languages. The function is enabled only when you
play stream-type files which support multiple audio
formats.
>
Subtitle Setting
Displays the Subtitle Setting. You can set up a
subtitle option.
> >
Start Slide Show /
Stop Slide Show
You can start or stop a slide show. Alternatively,
use the
�
or
�
button on the remote.
>
Slide Show Speed
You can select the slide show speed during the
slide show. Alternatively, use the
π
or
µ
button
on the remote.
>
▶
English
▶
Option Name Operations Videos Music Photos
Slide Show Effect You can set various slide show effects.
>
Background Music
On / Off
You can start or stop background music.
>
Background Music
Setting
You can set and select background music when
watching a photo file or slide show.
>
Zoom You can zoom into images in full screen mode.
>
Rotate You can rotate images.
>
N
Pressing the INFO button while a device name is selected will display information
about the selected device.
N
Pressing the INFO button while a file is selected will display information about the
selected file.
▶
English
▶
❑
Using Samsung Apps
■
Samsung Apps
Samsung Apps is a store from which you can download applications to use on
Samsung TV/AV equipment.
You can enjoy a variety of contents such as videos, music, photos, games, useful
information etc. using the downloaded applications.
New applications are added regularly.
▶
English
▶
N
Using the colored buttons with Samsung Apps.
●
a
Red (Login): To log in to the Internet
service.
●
b
Green (List View / Thumbnail View):
To toggle the view between List and
Thumbnail.
●
}
Blue (Sort by): To sort the
applications by Recommended, Most
downloaded, Most recent or Name.
N
You can sort all categories except What’s New?.
●
πµ
(Page): Move to previous or next page
●
R
Return: Moves to previous menu.
Welcome to Samsung Apps! More apps are in store for you to enjoy.
What’s New?
Video
Game
Sports
Lifestyle
Information
Other
Accu Weather
TV store Test User001
World Clock
TV store Test User002
Twitter
TV store Test User003
Facebook
TV store Test User004
Picasa Web
TV store Test User005
My Account
Help
a
Login
b
Thumbnail View
πµ
page
R
Return
What’s New?
1/6
● The displayed image may differ depending on the
model.
▶
English
▶
Using Samsung Apps by category
The following categories are available:
●
What’s New?: Displays newly registered applications.
●
Video: Displays apps that provide video media such as movies, TV shows and
short length videos.
●
Game: Displays various game apps such as sudoku and chess.
●
Sports: Displays apps that provide sports content such as game results, images
and short length video.
●
Lifestyle: Includes apps that provide lifestyle media services such as music,
personal photo management tools, and social networking such as Facebook and
Twitter.
▶
English
▶
●
Information: apps that provide information content such as news, financial
information, stock quotes, weather, etc.
●
Other: Includes other miscellaneous apps and services.
●
My Account: Displays the application list and your App cash balance.
N
Starting in the middle of 2010 (US and Korea only), you can purchase
cybercash that you can use to buy applications through tv.samsungapps.com.
●
Help: If you have questions about Samsung Apps, check this section first.
▶
English
▶
■
Social TV
(May not be available, depending on your country.)
Share your TV viewing experience with your friends via social networking services
(SNS). Using the Social TV function provided by the Smart Hub, you can use an
SNS function such as Twitter, Facebook or Google Talk while watching TV in the
same way you use it on a PC. For detailed information about using a service, refer
to the corresponding website.
N
To use the Social TV function, you have to sign in uniformly first. If you don’t
have a Smart Hub account, create a Smart Hub ID and log in first. If the Smart
Hub account is not linked with the user account of the SNS, you have to
register the SNS account in Smart Hub to use the service through Smart Hub.
For more information about registering a service site, refer to “How to create a
Smart Hub ID”
▶
English
▶
1. To open Social TV, press the
l
/
r
/
u
/
d
buttons to select Social TV,
and then press the ENTER
E
button.
2. Enjoy your social network service through Social TV
Using the colored and function buttons with Social TV
●
a
Red (Log in / Logout): To log into or logout of the Smart Hub account.
●
b
Green (Refresh): Refresh the application.
●
{
Yellow (Comment): Displays the Comment screen.
N
The function for this button may change depending on the service.
●
}
Blue (Change View): Change the view mode. Select Overlay, PIG, or Hide mode.
●
T
(Settings): Displays the Service Settings.
Social TV Auto Run (Off / On): Set the Social TV application to turn on
automatically when turning the TV on.
Service Settings: Displays the Service Settings. You can activate or deactivate
the service.
●
R
(Exit): Return to the previous screen.
▶
English
▶
■
Search
(May not be available, depending on your country.)
Easily search for and access content from diverse sources (e.g. applications, Your
Video, AllShare™)
1. To open Search, press the
l
/
r
/
u
/
d
buttons to select Search, and then
press the ENTER
E
button.
2. If you want to input a search term directly, press the ENTER
E
button. A
keypad screen appears. Enter the search term using the remote control.
N
If you want to select a category, press the
d
button. You can select a
category to search.
▶
English
▶
Your Video: Personalize your movie-watching with a customized video on demand
(VOD) recommendation service.
Most Searched: You can search for a video by selecting a key word in the key
word list. The key word list displays words you frequently use for searches.
Top Application: You can search top video applications and services for a video.
Search History:
You can search for a video by selecting a keyword in the History list.
▶
English
▶
■
Your Video
(May not be available, depending on your country.)
1. To open Your Video, press the
l
/
r
/
u
/
d
buttons to select Your Video,
and then press the ENTER
E
button.
2. Enjoy your movie watching with a customized video on demand (VOD)
recommendation service.
▶
English
▶
■
Web Browser
(May not be available, depending on your country.)
Using the Web Browser function provided by the Smart Hub, you can surf the
Internet on your TV.
1. To open Web Browser, press the
l
/
r
/
u
/
d
buttons to select Web
Browser, and then press the ENTER
E
button.
2. Surf the Internet in much the same way as on a PC.
▶
English
▶
N
When the Web Browser opens, the cursor is in Tab Mode. In Tab Mode, the
cursor highlights text or objects, or surrounds them with a blue rectangle. To
move the cursor in Tab Mode, use the
l
/
r
/
u
/
d
buttons. Press ENTER
E
to select. To scroll the screen
u
or
d
down, use the
l
or
r
buttons.
N
You can change from Tab Mode to Pointer Mode by pressing the Yellow
{
button. Use the arrow buttons to move the pointer. Press ENTER
E
to select.
▶
English
▶
The Web Browser has a series of icons across the top of the screen. With these
icons, you can easily use the Web Browser. The icons are described below,
starting with the icon on the far left of the screen.
●
Back: Moves to the previous web page.
N
If there is no saved previous web page, this icon will not work.
●
Forward: Moves to the next web page if there are saved URLs.
N
If there is no saved next web page, this icon will not work.
●
Refresh / Stop: Refreshes the current page or stops the current connection
from loading.
●
Home: Goes to the URL you specified as your the home page.
▶
English
▶
●
Zoom: You can select a zoom level of 50%, 75%, 100%, 125%, 150%,
200%, 400% and Fit to Screen.
●
Favorite: Displays the Favorites List screen. You can set the current page as
a Favorite or select a favorite page to visit from the Favorites page list.
●
History: Displays the History screen. You can select a web page to visit in the
History list. You can also sort the History list by Date, Name, or Frequency.
To sort, select the Sort Criteria button in the upper right corner of the History
screen and then press ENTER
E
.
When you highlight a page, the Options button appears on the right. Access
the Options by selectng the Options button, and then pressing ENTER
E
.
In the Options pop-up you can Delete the selected page from the history list,
Delete All pages from the History list, or Add the selected page to Favorites.
▶
English
▶
●
URL: Shows the URL of the current page. If you press the ENTER
E
button,
the URL pop-up appears. Press ENTER
E
again and you can key in a new a
URL directly. You can also select a page to visit on the displayed Page list.
In addition, you can sort the Page list by Date, Name, or Frequency. To sort,
select the Sort Criteria button in the upper right corner of the URL pop-up and
then press ENTER
E
.
●
Windows List: Displays images of open windows (the Windows List). You
can add the current page to the list (using Add a new page), select and access
a page in the list, select and close a page in the list, or close all pages. The
selected page is the enlarged page in the center.
N
A new web browser tab automatically displays the home page.
▶
English
▶
●
Search: Lets you search the web. When you access the Search entry field and
press ENTER
E
, the Browser displays a pop-up with a text entry keyboard
and a text entry field on the right. The keyboard functions much like a cell
phone texting keypad.
On the left of the pop up is the name of the current search engine. Select the
search engine and press ENTER
E
, and you can select a different search
engine or add a search engine to the current list.
●
Setting: You can configure the Web Browser settings.
▶
English
▶
Using the colored and function buttons with the Web Browser
●
a
Red (Back): Moves to previous page. If there is no saved previous web
page, this button will not work.
●
b
Green (Zoom): You can select a screen size of 50%, 75%, 100%, 125%,
150%, 200%, 400% and Fit to Screen.
●
{
Yellow (Pointer Mode / Tab Mode): You can change the cursor to
Pointer Mode or Tab Mode.
●
}
Blue (PIP): Turns PIP on or off. With PIP on, you can watch TV while using
the Web Browser.
▶
English
▶
●
T
TOOLS (Options): Displays the icons from the top of the page in a toolbar
in the middle of the screen. Press RETURN to close.
●
πµ
(Scroll Up / Down): You can scroll the page up or down.
●
R
RETURN: Return to the previous screen or close the Web Browser. You
can also close the Browser by pressing the EXIT button.
Setting up the Web Browser
Press the TOOLS button or move the cursor to the top of the screen, and then
select the Settings icon.
●
PIP Settings: Lets you configure the PIP function.
PIP Position: Select a position for the PIP sub-picture.
Sound Select: Select the audio source you will hear - Main or Sub - when PIP
is on.
▶
English
▶
●
Reading Tools: Provides an easy-to-read page by enlarging the main text.
●
Clean site: When Clean site is on, you can only access the web pages
registered in Clean site. Use Clean Site to restrict your children’s access to
appropriate web pages.
To access the Clean Site function, you must enter your Clean Site password. If
you have not created a Clean Site password, enter the default password 0 0 0 0.
Clean site feature (On / Off): Turn Clean site, on and off.
Reset password for clean sites: Enter a new password.
▶
English
▶
●
Add surrent site: Lets you add the currently displayed web site to the Clean
Site list.
Manage clean sites: Lets you key in URLs to add to the Clean site List and
delete sites from the Clean site List.
N
If you turn Clean site on and have not added any sites to the Clean site
List, you will not be able to access any Internet sites.
●
Private Browsing: Enable or disable the Browser Privacy Mode. When the
Browser Privacy Mode is enabled, the browser does not retain the URLs
of sites you visit. If you want to enable Private Browsing, Select Yes. If the
Private Browsing function is running, the “Stop” icon appears in front of the
URL at the top of the screen.To disable Private Browsing, select it again when
Private Browsing is enabled.
▶
English
▶
●
Option: You can configure Web Browser options.
Set as homepage: You can set the home page.
–
Most Visited: Set the most frequently visited URL as the home page.
–
Current Page: Sets the current page as the home page.
–
Enter address: Lets you key in the URL of the page you want for your
home page. The keyboard works like a cell phone texting keyboard.
Pop-up blocker: Turns the Pop Up Blocker on or off.
Advt. Block Settings: You can determine whether to block advertisements
and select the URLs for which advertisements are blocked.
▶
English
▶
–
Ad Blocker (On / Off): Turns the Ad Blocker on or off.
–
Block current page: Adds the current page to the blocked list.
–
Manage blocked sites: Displays the Manage blocked sites screen. You
can add a website for which advertisements should be blocked by directly
keying in the URL, or you can delete a website from the list.
General: You can delete your personal information.
–
Delete search history: Deletes the website history.
–
Delete browsing data: Deletes Internet access information such as
cookies.
–
Restore Default Settings: Reset all web browser settings to the factory
defaults.
▶
English
▶
Encoding: You can set the Encoding setting for webpages to Automatic or
Manual.
–
Auto select (On / Off): Select the Encoding settings for webpages
automatically.
–
Setting: Select the Encoding settings for webpages manually. Select an
encoding format from the encoding format list.
Pointer: You can set the speed of the cursor when the cursor is set to Pointer
Mode.
–
Pointer Speed (Slower / Slow / Standard / Fast / Faster): Select a
pointer speed.
●
Web browser information: Refer to this information before using the Web
Browser.
▶
English
▶
■
Skype
Skype created a little piece of software that
makes communicating with people around the
world easy and fun. With Skype you can say
hello or share a laugh with anyone, anywhere.
And if both of you are on Skype, it’s free.
Communicate with people around the world!
Buy and use the TV camera (SAMSUNG only).
N
Other company’s TV Cameras are not
compatible with Skype on your TV.
N
For more information, download the Skype user’s manual from “www.samsung.
com.”
samsung
Echo / Sound Test Serivce
Voice CallVoice Call Chat
Contact
Chat
History
Call phones
Settings
a
Sign Out
{
Add a Contact
R
Return
1/1 Page
● The displayed image may differ depending on the
model.
▶
English
▶
[Legal Statement]
Due to the various capabilities of products featuring the Samsung Smart Hub -
Content Service, as well as limitations in the available content, certain features,
applications, and services may not be available on all devices or in all territories.
Some features on Smart Hub may also require additional peripheral devices or
membership fees that are sold separately. Please visit http://www.samsung.
com for more information on specific device information and content availability.
The services and availability of content through Smart Hub are subject to
change from time to time without prior notice.
▶
English
▶
■
Yahoo
Smart Hub provides an integrated Internet and television experience powered by
the Yahoo!® Widget Engine. You can monitor stocks, stocks, share photos with
friends and family, and track news and weather all through the Yahoo!® Widget
Engine.
N
When running Smart Hub for the first time, you will be prompted to configure
the basic settings.
N
Depending on your country’s regulations, some applications may have limited
service or not be supported.
▶
English
▶
Screen Display
●
Dock Mode
● Dock: Displays your snippets.
● Snippets are quick launch icons for your widgets.
● PROFILE Widget and Widget Gallery cannot be
deleted.
Welcome Banner: Shows your profile.
● } Blue (Viewport): Toggles between Viewport and
Overlay modes.
● { Yellow (Edit Snippet): To edit snippets with a
help window.
N In Viewport mode, the TV or video plays in a
scaled-down area with graphics outside. In overlay
mode, the graphics are displayed on top of the TV
or video.
● The displayed image may differ depending on the model.
Hello John!
5:15 AM Mon January 19th
Viewport Edit Snippet
My Profile
Signed in as
John
WEATHER Widget Gallery FINANCE
▶
English
▶
●
Sidebar Mode
Widget logo and Current menu.
Contents List: The current selection is highlighted in
blue. Displays the current page and number of total
pages.
Controls:
● a Red: To close the widget. If you want to see the Dock
mode, press the YAHOO! button.
● b Green: To change the widget’s settings.
● { Yellow: To size video to fit or display in full screen.
● } Blue: To manage your snippets.
N Some buttons may not be available with certain widgets.
● The displayed image may differ
depending on the model.
FINANCE
My Stocks
^DJI
^IXIC
YHOO
AAPL
INTC
AMZN
◄
PAGE 1 OF 2
►
Add New Symbol...
Display Format
Value
Import Symbols From Yahoo!...
About Yahoo! Finance...
To remove a stocks symbol, please select it from the
list below.
▶
English
▶
Editing Snippets in the Dock
1. Edit a snippet by selecting it in the dock and pressing the Yellow button.
2. The snippet moves to the Second position and its tile slides up to show the
following help text:
●
Move Snippet: To rearrange snippets.
●
Delete Snippet: To remove the widget.
N
Deleted widgets can be restored from the Widget Gallery.
●
Done Editing: To exit the Edit Snippet menu.
▶
English
▶
■
PROFILE Widget
Set up user profiles through PROFILE Widget. You can set up multiple profiles,
each with its own list of widgets. Use the Switch Profile option to switch to a
different user profile.
N
There must be at least two registered profiles. For instructions on adding a
profile, refer to Administrative Controls.
▶
English
▶
●
Use the Profile Settings option to customize and protect your profile.
–
User profiles can be customized with a unique name
and avatar (a picture used to represent your profile).
–
Your profile’s name and avatar are displayed in the
profile snippet in the dock.
–
Protect your profile using the Create Profile PIN
option.
–
When setting up a new PIN, you can set a Security
Question.
● The displayed image may
differ depending on the
model.
PROFILE
Switch Profile
System Settings
Profile Settings
Administrative Controls
Sign out of Yahoo!
Signed in as
John
▶
English
▶
●
The Profile Settings option limits access to the profile’s widgets.
–
If you forget your Profile PIN, answer your profile’s Security Question.
–
New widgets cannot be added to profiles with the Limit Profile indicator
enabled.
N
Owner PIN must be set to use this feature. For instructions on setting
Owner PIN, refer to Administrative Controls.
●
System Settings allows you to:
–
Change your Location, Time Zone and Zip Code (US only) to tailor
contents specific to your region.
–
Replay the tutorial that was shown during guided setup.
▶
English
▶
–
Restore Factory Settings resets all widget settings and information.
N
When you cannot run Restore Factory Settings normally or you can not
install/run the specific widgets normally, press the remote control buttons
in the following sequence, which resets the Yahoo Service: POWER
(on)
→
MUTE
→
9
→
4
→
8
→
EXIT
→
POWER (off)
→
POWER (on)
→
YAHOO! (If Yahoo Service is displayed on the TV Screen, you should
stop the Yahoo Service using the EXIT button in advance.).
●
From the Administrative Controls menu you can:
–
Configure the Screen Saver timeout to avoid screen burn-in.
–
Create Owner PIN and set a Security Question to control other profiles.
–
Create and configure a new profile with a unique set of widgets.
–
Delete an existing profile.
▶
English
▶
●
Sign into Yahoo!® from PROFILE Widget using your Yahoo! ID.
–
If you have a Yahoo! ID, you can access personalized content using Yahoo!
TV widgets.
–
You will be automatically signed-in to all installed Yahoo! TV widgets with
your profile’s Yahoo! ID.
–
If you do not have a Yahoo! account, visit “www. yahoo.com” to create one.
–
You may not be able to log in with an ID created through a Yahoo website in
a country that does not support Smart Hub.
●
About Profile Widget: Press the Green button to view a brief description of
Profile Widget, Copyright Policy, Terms of Service, and Privacy Policy.
▶
English
▶
❑
Widget Gallery
Use Yahoo!® Widget Gallery to add more widgets to your TV. View available TV
widgets in the following categories:
●
Featured: Displays recommended widgets.
●
Latest: Displays the most recent widgets.
●
All Widgets: Displays all widgets.
●
Categories: Displays all widgets by category.
N
To install a widget, select Add Widget to My Profile and press the ENTER
E
button. The widget will be installed and become available in the dock.
▶
English
▶
●
Widget Gallery Settings: Press the Green button.
–
About Yahoo! Widget Gallery...: You can view brief information for the
Widget Gallery, Copyright Policy, Terms of Service, and Privacy Policy.
–
TV Widget Software: Displays the current version of the system software
and installed widgets.
–
Create your own widgets through the Developer Settings menu. For more
information, visit our developer site at http://connectedtv.yahoo.com/.
▶
English
▶
❑
Troubleshooting for Smart Hub
Problem Possible Solution
Some application contents only
appear in English. How can I change
the language?
The Application content language may be different from the
application user interface language.
The ability to change the language depends on the service
provider.
Some application services do not
work.
Check with the service provider.
Refer to the help website for application service provider
information.
When a network error occurs, I can
only use the setting menu.
If network connection doesn’t work, your service might be
limited, as all functions except the setting menu are needed to
connect to the internet.
▶
English
▶
■
Troubleshooting for Web Browser
1. To open Web Browser, press the
u
/
d
/
l
/
r
buttons to select Web
Browser, and then press the ENTER
E
button. The Web Browser may be
displayed differently with PC.
2. The Web Browser is not compatible with a Java application.
3. When attempted to download a file, but the file could not be saved and an error
message appeared.
4. Access may be blocked to some websites or to web browsers operated by
certain businesses.
5. Playback of Flash video may be restricted.
6. E-commerce, for purchasing products online, is not supported.
▶
English
▶
7. Scrolling a web page that allows only part (and not the whole) of the page to be
scrolled may cause corrupted characters.
8. ActiveX is not supported.
9. Some options cannot be accessed in Tab mode. (To access such options,
switch to Pointer mode.)
10. Some text may appear corrupted because the number of supported fonts is
limited.
11. The response to a command on the remote or the screen display may be
delayed temporarily if a web page is currently loading.
12. The loading of a web page may delay or stop with some web pages.
13. Copy and Paste are not supported.
▶
English
▶
14. When writing emails or posting messages, some functions (Such as changing
the size or colours.) may not be supported.
15. The number of bookmarks and logs that can be saved is limited.
16. The maximum number of windows that can open at the same time may vary
depending on the browsing condition or TV model.
17. The web browsing speed depends on the network conditions.
18. PIP will automatically be deactivated if a video is played in the browser. Videos
may not commence playback after PIP interruption and a possible refresh for
the page may be required.
19. The Web Browser can play MP3 audio files only.
20. The function for importing or exporting bookmarks is compatible with bookmark
files in a particular file format only. (Compatible format: Netscape-bookmark-
file-1)
▶
English
▶
21. When you import or export the bookmark, the folder tree is not included.
22. If you import the bookmark file to a Computer from a TV, the bookmark file will
be saved in “Samsung SmartTV Bookmark” folder.
23. If the time is not set in the menu (System
→
Time
→
Clock), the history
information may not be saved.
24. Visited web site history is saved in chronological order and It will be removed
from the list according to oldest page accessed.
25. Some video or audio content may not play during Flash playback depending on
the video/audio codec supported.
26. A sudden change in the picture brightness inside the video window may affect
the brightness of the surrounding stationary picture.
for PDP TV
▶
English
▶
All content and services accessible through this device belong to third parties and are protected by
copyright, patent, trademark and/or other intellectual property laws. Such content and services are
provided solely for your personal noncommercial use. You may not use any content or services in a
manner that has not been authorized by the content owner or service provider. Without limiting the
foregoing, unless expressly authorized by the applicable content owner or service provider, you may not
modify, copy, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or distribute
in any manner or medium any content or services displayed through this device.
YOU EXPRESSLY ACKNOWLEDGE AND AGREE THAT USE OF THE DEVICE IS AT YOUR SOLE RISK
AND THAT THE ENTIRE RISK AS TO SATISFACTORY QUALITY, PERFORMANCE AND ACCURACY
IS WITH YOU. THE DEVICE AND ALL THIRD PARTY CONTENT AND SERVICES ARE PROVIDED “AS
IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED. SAMSUNG EXPRESSLY
DISCLAIMS ALL WARRANTIES AND CONDITIONS WITH RESPECT TO THE DEVICE AND ANY CONTENT
AND SERVICES, EITHER EXPRESS OR, IMPLIED, INCLUDING BUT NOT LIMITED TO, WARRANTIES
OF MERCHANTABILITY, OF SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, OF
ACCURACY, OF QUIET ENJOYMENT, AND NON-INFRINGEMENT OF THIRD PARTY RIGHTS. SAMSUNG
DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR COMPLETENESS
OF ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND DOES NOT
WARRANT THAT THE DEVICE, CONTENT OR SERVICES WILL MEET YOUR REQUIREMENTS, OR THAT
OPERATION OF THE DEVICE OR SERVICES WILL BE UNINTERRUPTED OR ERROR-FREE.
▶
English
▶
UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL SAMSUNG BE LIABLE, WHETHER
IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES ARISING OUT OF, OR IN
CONNECTION WITH, ANY INFORMATION CONTAINED IN, OR AS A RESULT OF THE USE OF THE
DEVICE, OR ANY CONTENT OR SERVICE ACCESSED BY YOU OR ANY THIRD PARTY, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Third party services may be changed, suspended, removed, terminated or interrupted, or access may be
disabled at any time, without notice, and Samsung makes no representation or warranty that any content
or service will remain available for any period of time. Content and services are transmitted by third parties
by means of networks and transmission facilities over which Samsung has no control. Without limiting
the generality of this disclaimer, Samsung expressly disclaims any responsibility or liability for any change,
interruption, disabling, removal of or suspension of any content or service made available through this
device. Samsung may impose limits on the use of or access to certain services or content, in any case and
without notice or liability.
Samsung is neither responsible nor liable for customer service related to the content and services. Any
question or request for service relating to the content or services should be made directly to the respective
content and service providers.
▶
English
▶
❑
AllShare™
AllShare™ connects your TV and compatible Samsung mobile phones/ devices
through a network. You can play media contents including videos, photos, and
music saved on your mobile phones or the other devices (such as your PC) by
controlling them on the TV via the network.
N
For more information, visit “www.samsung.com” or contact the Samsung call
center. Mobile devices may need additional software installation. For details,
refer to each device’s user’s guide.
▶
English
▶
N
If your Samsung TV connects to a non-Samsung DLNA server, a compatibility
issue may occur during video playback.
N
By connecting your Samsung TV to a network via AllShare™, you can use
Samsung’s original functions as follows:
–
Playback of various video formats (DivX, MP4, 3GPP, AVI, ASF, MKV, etc.)
–
Video thumbnail feature
–
Bookmark function (to resume video playback)
–
Auto-chaptering (scene navigation)
–
Digital content management
–
Compatibility with various subtitle formats (SRT, SMI, SUB, TXT, TTXT)
–
Search with file names
–
And many others
N
To use the original DLNA functions of Samsung fully, it is recommended that
you use the AllShare™ software provided with your TV.
▶
English
▶
❑
Setting Up AllShare™
O
MENU
m
→
Network
→
AllShare Settings
→
ENTER
E
■
AllShare Settings
●
Media (On / Off): Enables or disables the media
function. When the media function is on, you can
control Media contents play using mobile phones
or other devices that support DLNA DMC.
AllShare Settings
Media Off
● The displayed image may differ
depending on the model.
▶
English
▶
■
Media
Shows a list of mobile phones or connected devices which have been set up to
use the Media function with this TV.
N
The Media function is available in all devices which support DLNA DMC.
●
Allowed / Denied: Allows/Blocks the devices.
●
Delete: Deletes the devices from the list.
N
This function only deletes the name of the device from the list. If the deleted
device is turned on or tries to connect to the TV, it may appear on the list
again.
▶
English
▶
Using the Media Function
An alarm window appears informing you that media contents (videos, photos, music)
sent from a mobile phone will be displayed on your TV. The contents are played
automatically 3 seconds after the alarm window appears. If you press the RETURN or
EXIT button when the alarm window appears, the media contents are not played.
N
NOTE
●
The first time a device accesses your TV through the media function, a warning
popup window appears. Press the ENTER
E
button to select Allow. This
permits the phone to access the TV freely and use the Media function to play
content.
▶
English
▶
●
To turn off media contents transmissions from a mobile phone, set Media to
Off in the AllShare Settings.
●
Contents may not play on your TV depending on their resolution and format.
●
The ENTER
E
and
l
/
r
buttons may not work depending on the type of
media content.
●
Using the mobile device, you can control the media play. For details, refer to
each mobile’s user’s guide.
▶
English
▶
❑
Anynet+(HDMI-CEC)
■
What is Anynet+?
t
Anynet+ is a function that enables you to control all connected Samsung devices that
support Anynet+ with your Samsung TV’s remote. The Anynet+ system can be used
only with Samsung devices that have the Anynet+ feature. To be sure your Samsung
device has this feature, check if there is an Anynet+ logo on it.
N
NOTE
●
You can only control Anynet+ devices using the TV’s remote control, not the
buttons on the TV.
●
The TV remote control may not work under certain conditions. If this occurs,
reselect the Anynet+ device.
●
The Anynet+ functions do not operate with other manufacturers’ products.
▶
English
▶
●
For instructions explaining how to connect Anynet+ external devices, refer to the
device’s user manual You must connect an Anynet+ device using an HDMI cable.
Some HDMI cables may not support Anynet+ functions.
●
Anynet+ works when the AV device supporting Anynet+ is in the standby or on
status.
●
Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3
devices of the same type.
▶
English
▶
●
However, you can connect only one Anynet+ Home Theater. To connect an
Anynet+ Home Theate, connect the Home Theater to the TV using an HDMI cable
then:
–
To hear sound from the Home Theater’s Front, Left and Right speakers and the
subwoofer only, connect a Digital Optical cable between the DIGITAL AUDIO
OUT (OPTICAL) jack on your TV and the Digital Audio Input on the Home
Theater.
–
To hear 5.1 channel audio, connect HDMI cables to your Anynet+ DVD player,
satellite box, etc. Then, connect the DIGITAL AUDIO OUT (OPTICAL) jack on
your DVD player, Satellite Box, etc. (i.e. Anynet + Device 1 or 2) directly to the
Home Theater, not the TV.
▶
English
▶
Anynet+ Menu
The Anynet+ menu changes depending on the type and status of the Anynet+ devices
connected to the TV.
Anynet+ Menu Description
View TV
•
Changes Anynet+ mode to TV broadcast mode.
Device List
•
Shows the Anynet+ device list.
(device_name) MENU
•
Shows the menu of the connected device menus. E.g. if a DVD player is
connected, the disc menu of the DVD player will appear.
(device_name) Tools
•
Shows the tools menu of the connected device. E.g. if a DVD player is
connected, the tools menu of the DVD player will appear.
N
Depending on the device, this menu may not be available.
(device_name) Title Menu
•
Shows the title menu of the disc in the connected device. E.g. If a DVD
player is connected, the title menu of the movie in the DVD player will
appear.
N
Depending on the device, this menu may not be available.
Receiver
•
Sound is played through the receiver.
▶
English
▶
❑
Setting Up Anynet+
O
MENU
m
→
System
→
Anynet+ (HDMI-CEC)
→
ENTER
E
■
Anynet+ (HDMI-CEC) (Off / On)
To use the Anynet+ Function, Anynet+ (HDMI-CEC) must be set to On.
N
When the Anynet+ (HDMI-CEC) function is disabled, all the Anynet+ related
operations are deactivated.
▶
English
▶
■
Auto Turn Off (No / Yes)
Set an Anynet+ Device to turn off automatically when the TV is turned off.
N
If Auto Turn Off is set to Yes, running external devices will turn off at the same
time as the TV powers off.
N
May not be enabled depending on the device.
▶
English
▶
❑
Switching between Anynet+ Devices
1. Press the TOOLS button, select Anynet+ (HDMI-CEC), and then press
ENTER
E
.
2. Select Device List, and then press the ENTER
E
button.
N
If you cannot find a device you want, select Refresh to refresh the list.
3. Select a device, and then press the ENTER
E
button. You can switch to the
selected device.
▶
English
▶
N
The Device List menu appears only when you set Anynet+ (HDMI-CEC) to
On in the System menu.
●
Switching to the selected device may take up to 2 minutes. You cannot
cancel the switching operation while switching is in progress.
●
If you have selected an Anynet+ device by pressing the SOURCE button
and then selecting its input source, you cannot use the Anynet+ function.
Make sure to switch to an Anynet+ device by using the Device List.
▶
English
▶
❑
Listening through a Receiver
You can listen to sound through a receiver (i.e Home Theater) instead of the TV
Speaker.
1. Select Receiver and set to On.
2. Press the EXIT button to exit.
N
If your receiver supports audio only, it may not appear in the device list.
N
The receiver will work when you have properly connected the optical in jack
of the receiver to the DIGITAL AUDIO OUT (OPTICAL) jack of the TV.
N
When the receiver (i.e Home Theater) is set to On, you can hear sound
output from the TV’s Optical jack. When the TV is displaying a DTV (air)
signal, the TV will send out 5.1 channel sound to the receiver. When the
source is a digital component such as a DVD player and it is connected to
the TV via HDMI, you will hear only 2 channel sound from the receiver.
▶
English
▶
Using the ARC function
You can listen to sound through a receiver connected using an HDMI cable without
connecting a separate optical cable.
1. Select Receiver and set to On.
2. Press the EXIT button to exit.
N
To use the ARC function, a receiver which supports the HDMI-CEC and ARC
features must be connected to the HDMI IN 2 (ARC) port.
N
To disable the ARC function, set the Receiver to Off. Even if the TV transmits
the ARC signal continuously, the receiver will be blocked from receiving the
signal.
▶
English
▶
❑
Troubleshooting for Anynet+
Problem Possible Solution
Anynet+ does not work.
•
Check if the device is an Anynet+ device. The Anynet+ system
supports Anynet+ devices only.
•
You can connect only one receiver (home theater).
•
Check if the Anynet+ device power cord is properly connected.
•
Check the Anynet+ device’s Video/Audio/HDMI cable connections.
•
Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+
setup menu.
•
Check whether the TV remote control is in TV mode.
•
Check whether the remote control is Anynet+ compatible.
•
Anynet+ doesn’t work in certain situations. (Searching channels,
operating Smart Hub or Plug & Play (initial setup), etc.)
•
If you have removed and then reconnected the HDMI cable, please
make sure to search devices again or turn your TV off and on again.
•
Check if the Anynet+ function of the Anynet device is set on.
▶
English
▶
I want to start Anynet+.
•
Check if the Anynet+ device is properly connected to the TV and
check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+
Setup menu.
•
Press the TOOLS button to display the Anynet+ menu and select a
menu you want.
I want to exit Anynet+.
•
Select View TV in the Anynet+ menu.
•
Press the SOURCE button on the TV remote control and select a
non- Anynet+ device.
The message “Connecting to
Anynet+ device...” appears on
the screen.
•
You cannot use the remote control when you are configuring
Anynet+ or switching to a view mode.
•
Use the remote control after the TV has completed Anynet+
configuration or has finished switching to Anynet+.
The Anynet+ device does not
play.
•
You cannot use the play function when Plug & Play (initial setup) is
in progress.
▶
English
▶
The connected device is not
displayed.
•
Check whether or not the device supports Anynet+ functions.
•
Check whether or not the HDMI cable is properly connected.
•
Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+
setup menu.
•
Search Anynet+ devices again.
•
Anynet+ requires an HDMI connection. Make sure the device is
connected to your TV with an HDMI cable.
•
Some HDMI cables may not support Anynet+ functions.
•
If the connection is terminated because there has been a power
failure or the HDMI cable has been disconnected, please repeat the
device scan.
The TV sound is not output
through the receiver.
•
Connect the optical cable between TV and the receiver.
•
The ARC function enables digital output of sound using the HDMI
IN 2(ARC) port and can only be operated when the TV is connected
to an audio receiver that supports the ARC function.
▶
English
▶
❑
Troubleshooting
If your TV seems to have a problem, first review this list of issues and solutions. If none
of these troubleshooting tips apply, please visit “www. samsung.com,” and then click
on Support, or contact the Samsung call center.
Issues Solutions and Explanations
Picture Quality First, perform the Picture Test and to see if your TV is properly displaying the
test image.
•
Go to MENU - Support - Self Diagnosis - Picture Test
If the test image is properly displayed, the poor picture may be caused by the
source or signal.
The TV image does not
look as good as it did in
the store.
•
Store displays are all tuned to digital, HD (high definition) channels.
•
If you have an analog cable/set top box, upgrade to a digital set top box.
Use HDMI or Component cables to deliver HD (high definition) picture quality.
•
Cable/Satellite subscribers: Try HD channels from the channel line up.
•
Air/Cable Antenna connection: Try HD channels after performing an Auto
program.
N
Many HD channels are up scaled from SD (Standard Definition) contents.
Look for a channel that is broadcasting true HD content.
•
Adjust the Cable/Sat box video output resolution to 1080i or 720p.
▶
English
▶
Issues Solutions and Explanations
The picture is distorted:
macro block error, small
block, dots, pixelization
•
The compression of video contents may cause picture distortion especially
in fast moving pictures such as sports and action movies.
•
A weak or bad quality signal can cause picture distortion. This is not a TV
issue.
•
Mobile phones used close to the TV (within 3.3 ft) may cause noise in the
picture on analog and digital channels.
Color is wrong or missing.
•
If you’re using a Component connection, make sure the component cables
are connected to the correct jacks. Incorrect or loose connections may
cause color problems or a blank screen.
The color is poor or
the picture is not bright
enough.
•
Adjust the Picture options in the TV menu (go to Picture Mode / Color /
Brightness / Sharpness)
•
Adjust the Energy Saving option in the TV menu (go to MENU – System –
Eco Solution – Energy Saving)
•
Try resetting the picture to view the default picture settings (go to MENU -
Picture - Reset Picture)
▶
English
▶
Issues Solutions and Explanations
There is a dotted line on
the edge of the screen.
•
If the picture size is set to Screen Fit, change it to 16:9.
•
Change the cable/satellite box resolution.
The picture is black and
white.
•
If you are using an AV composite input, connect the video cable (yellow) to
the Green jack of Component Input 1 on the TV.
When changing channels,
the picture freezes or is
distorted or delayed.
•
If the TV is connected to a cable box, try to reset the box. (Disconnect and
then reconnect the AC cord and wait until the cable box reboots. It may take
up to 20 minutes.)
•
Set the output resolution of the cable box to 1080i or 720p.
▶
English
▶
Issues Solutions and Explanations
3D
The 3D Active Glasses are
not working correctly
•
Make sure the glasses are turned on.
•
The 3D Active Glasses may not work properly if there is any other 3D
product or electronic devices turned on near the glasses or TV.
•
If there is a problem, keep other electronic devices as far away as possible
from the 3D Active Glasses.
The 3D images don’t look
quite right.
•
The ideal viewing distance is three times or more the height of the screen.
•
We also recommend sitting with viewer’s eyes on a level with the screen
The batteries in the 3D
glasses don’t last
•
Turn off 3D glasses while not using them. If you leave 3D glasses on, battery
lifespan is shortened
▶
English
▶
Issues Solutions and Explanations
Sound Problem First, perform the Sound Test to determine if your TV audio is operating
properly.
•
Go to MENU - Support - Self Diagnosis - Sound Test)
If the audio is OK, the sound problem may caused by the source or signal.
There is no sound or
the sound is too low at
maximum volume.
•
Please check the volume of the device (Cable/Sat Box, DVD, Blu-ray etc.)
connected to your TV.
The picture is good but
there is no sound.
•
Set the Speaker Select option to TV Speaker in the Sound menu.
•
If you are using an external device, check the device’s audio output option.
(Ex. You may need to change your cable box’s audio option to HDMI if you
have the box connected to your TV using an HDMI cable.)
•
If you are using a DVI to HDMI cable, a separate audio cable is required.
•
If your TV has a headphone jack, make sure there is nothing plugged into it.
•
Reboot the connected device by disconnecting, and then reconnecting
device’s power cable.
▶
English
▶
Issues Solutions and Explanations
The speakers are making
an inappropriate noise.
•
Check cable connections. Make sure a video cable is not connected to an
audio input.
•
For antenna or cable connections, check the signal information. A low signal
level may cause sound distortion.
•
Perform the Sound Test as explained on a previous page.
No Picture, No Video
The TV turns off
automatically.
•
Ensure the Sleep Timer is set to Off in the System menu.
•
If your PC is connected to the TV, check your PC power settings.
•
Make sure the AC power cord is plugged in securely to the wall outlet and
the TV.
•
When you are watching TV, and the signal is coming from an antenna or
cable connection, the TV will turn off after 10 - 15 minutes if there is no
signal.
▶
English
▶
Issues Solutions and Explanations
RF (Cable/Antenna) Connection
The TV is not receiving all
channels.
•
Make sure the coaxial cable is connected securely.
•
Run Auto Program to add available channels to the channel list. Go to
MENU - Channel - Auto Program then select Auto and make sure to select
the correct Cable TV signal type. There are 3 options, STD, HRC and IRC.
Most cable systems use STD.
•
Verify the antenna is positioned correctly.
No caption on digital
channels.
•
Check the Caption Setup menu. Try changing Caption Mode Service1 to
CC1.
•
Some channels may not have caption data.
The picture is distorted:
macro block error, small
block, dots, pixelization.
•
The compression of video contents may cause picture distortion, especially
with fast moving pictures such as sports and action movies.
•
A weak signal can cause picture distortion. This is not a TV problem.
▶
English
▶
Issues Solutions and Explanations
PC Connection
A “Mode Not Supported”
message appears.
•
Set your PC’s output resolution so it matches a resolution supported by the
T V.
“PC” is always shown on
the source list, even if a PC
is not connected.
•
This is normal. “PC” is always shown in the source list, regardless of whether
a PC is connected.
The video is OK but there
is no audio.
•
If you are using an HDMI connection, check the audio output setting on your
PC.
Network Connection
The wireless network
connection failed.
•
Make sure the Network Connection is set to Wireless(General).
•
Make sure the TV is connected to a wireless IP sharer (router).
Software Upgrade over the
network fails.
•
Run Network Test in Network menu to confirm the connection.
•
If you have latest Software (SW) version, SW upgrade will not proceed.
▶
English
▶
Issues Solutions and Explanations
Others
Purple/green rolling
horizontal bars and buzzing
noise from the TV speakers
with a Component cable
connection.
•
Remove the left and right audio connections from the set-top-box. If the
buzzing stops, this indicates that the set-top-box has a grounding issue.
Replace the Component video cables with an HDMI connection.
Plasma TV is
making humming
noise.
for PDP TV
•
Plasma TVs typically make a soft humming sound. This is normal. It’s caused
by the electrical charges that are used to create the images on the screen.
•
If the humming sound is loud, you may have set the brightness on the TV
too high. Try setting the brightness lower.
•
You can also have loud humming if the back of your Plasma TV is too close
to a wall or other hard surface. Also, try rerouting your connection cables.
•
An improperly installed wall mount can also create excessive noise.
▶
English
▶
Issues Solutions and Explanations
The picture won’t display
in full screen.
•
HD channels will have black bars on either side of the screen when
displaying up scaled SD (4:3) contents.
•
Black bars will appear on the top and bottom of the screen when you watch
movies that have aspect ratios different from your TV.
•
Adjust the picture size options on your external device or the TV to full
screen.
Image Retention (Burn In)
Issue.
for PDP TV
•
To minimize the possibility of screen burn, this unit is equipped with Pixel
Shift screen burn reduction technology. Pixel Shift lets you set the picture
so it moves slightly up and down (Vertical Line) and side to side (Horizontal
Dot). The regular, slight movement of the picture reduces screen burn in.
A “Mode Not Supported”
message appears.
•
Check the supported resolution of the TV, and adjust the external device’s
output resolution accordingly. Refer to the resolution settings on User
manual.
Caption on TV menu is
greyed out.
•
You cannot select the Caption menu if you have selected a source
connected to the TV via HDMI or Component.
•
The external device’s Caption function must also be activated.
▶
English
▶
Issues Solutions and Explanations
There is a plastic smell
from the TV.
•
This smell is normal and will dissipate over time.
The TV Signal Information
is unavailable in the Self
Diagnosis menu.
•
This function is only available for digital channels the TV receives from an
Antenna / RF/Coax connection.
The TV is tilted to the side.
•
Remove the base stand from the TV and reassemble it.
The channel menu is
greyed out (unavailable).
•
The Channel menu is only available when you select the TV source.
Your settings are lost after
30 minutes or every time
the TV is turned off.
•
If the TV is in the Store Demo mode, it will reset audio and picture settings
every 30 minutes. Change the settings from Store Demo mode to Home
Use mode using the Plug & Play procedure. Press the SOURCE button
to select TV mode, and go to MENU
→
System
→
Plug & Play
→
ENTER
E
.
▶
English
▶
Issues Solutions and Explanations
You have intermittent loss
of audio or video.
•
Check the cable connections and reconnect them.
•
Loss of audio or video can be caused by using overly rigid or thick cables.
Make sure the cables are flexible enough for long term use. If mounting the
TV to a wall, we recommend using cables with 90 degree connectors.
You see small particles
when you look closely at
the edge of the frame of
the TV.
•
This is part of the product’s design and is not a defect.
The PIP menu is not
available.
•
PIP functionality is only available when you are using an HDMI, PC, or
Component source.
POP (TV’s internal banner
ad) appears on the screen.
•
Select Home Use under Plug & Play mode. For details, refer to the Plug &
Play Feature.
▶
English
▶
❑
Anti-theft Kensington Lock
A Kenisngton Lock is a device you can use
to physically fix your TV in place when using
it in a public place. You wrap the Kensington
Lock’s cable around a large, immobile object
and then attach the lock to the Kensington
slot on the back of the TV.
The appearance and locking method may
differ from the illustration below depending
on the manufacturer. Refer to the manual provided with the Kensington Lock for
additional information on proper use. The Kensington Lock is not supplied by
Samsung.
N
Please find a “
K
” icon on the rear of the TV. The Kensington slot is beside the
“
K
” icon.
1
<TV Rear>
<Optional>
▶
English
▶
To lock the product, follow these steps:
1. Wrap the Kensington Lock cable around a large, stationary object such as desk or
chair.
2. Slide the end of the cable with the lock attached through the looped end of the
Kensington Lock cable.
3. Insert the locking device into the Kensington slot on the product
1
.
4. Lock the lock.
N
These are general instructions. For exact instructions, see the User manual
supplied with the locking device.
N
The locking device has to be purchased separately.
N
The location of the Kensington slot may be different depending on the TV model.
▶
English
▶
❑
License
TheaterSound HD, SRS and the symbol are trademarks of SRS Labs, Inc.
TheaterSound HD technology is incorporated under license from SRS Labs, Inc.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380;
5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and
the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are
trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved.
▶
English
DivX Certified® to play DivX® video up to HD 1080p, including premium content.
DivX®, DivX Certified® and associated logos are trademarks of DivX, Inc. and are used
under license.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified®
device that plays DivX video. Visit www.divx.com for more information and software tools to convert your
files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play
purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD
section in your device setup menu. Go to vod.divx.com for more information on how to complete your
registration.
Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274
Open Source License Notice
In the case of using open source software, Open Source Licenses are available on the product menu.
Open Source License Notice is written only English.
