final page size: 8.5 x 5.5 in CRAFTSMAN
6 in. (150 mm) Bench Grinder
Amoladora de banco de 150 mm (6 pulgadas)
CMXEGAR500
INSTRUCTION MANUAL | MANUAL DE INSTRUCTIONES
IF YOU HAVE QUESTIONS OR COMMENTS, CONTACT US.
SI TIENE DUDAS O COMENTARIOS, CONTÁCTENOS.
1-888-398-7737 WWW.CRAFTSMAN.COM
English (original instructions) 1
Español (traducido de las instrucciones originales) 21
3
English

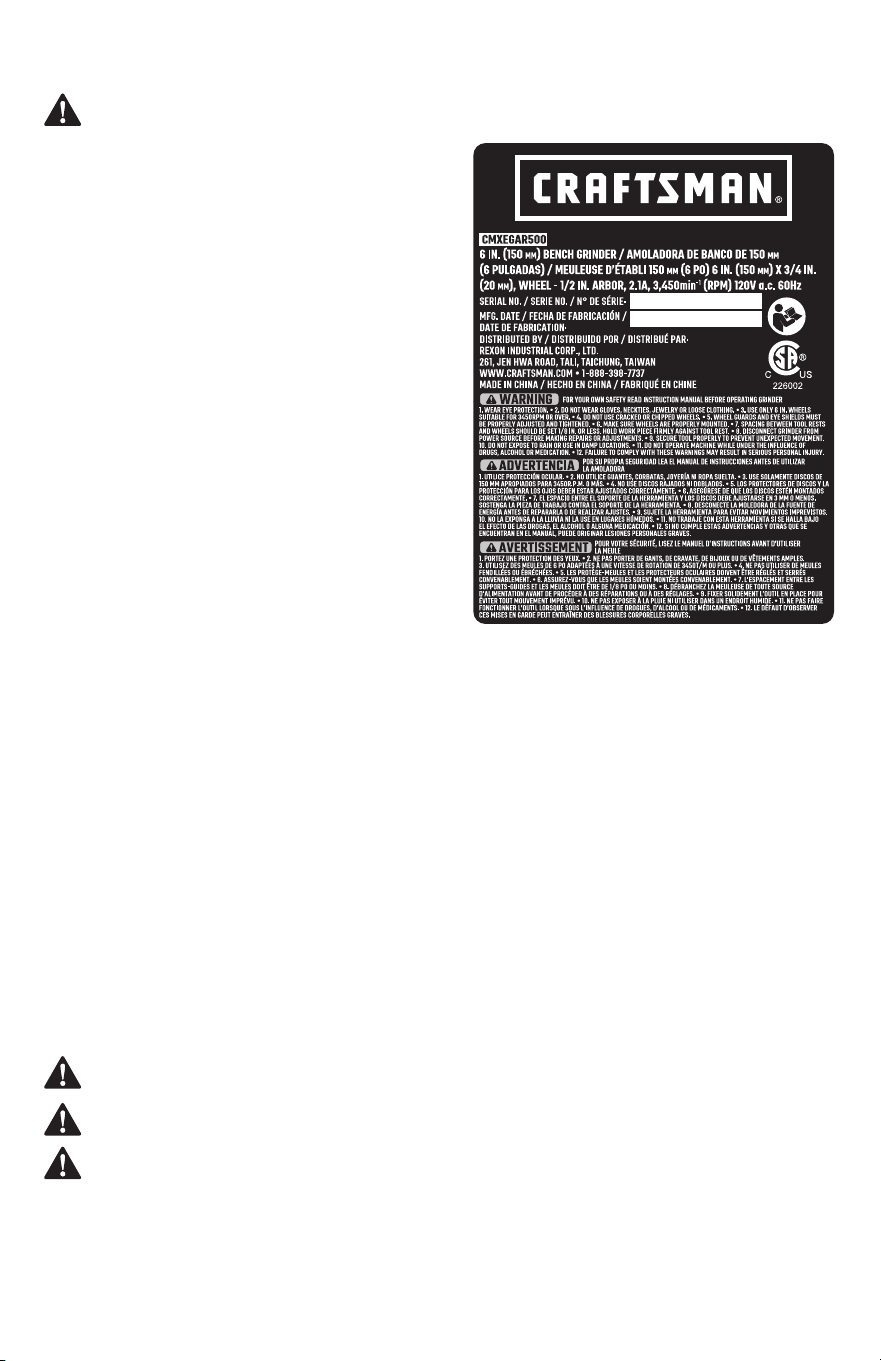

Definitions: Safety Alert Symbols and Words
This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk
of personal injury or property damage.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or seriousinjury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or seriousinjury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.
(Used without word) Indicates a safety related message.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage.
WARNING: Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
seriousinjury.
WARNING: Never modify the product or any part of it.
Damage or personal injury couldresult.
WARNING: To reduce the risk of injury, read the
instructionmanual.
if you have any questions or comments about this
product, call CRAFTsMAn toll free at: 1-888-398-7737.

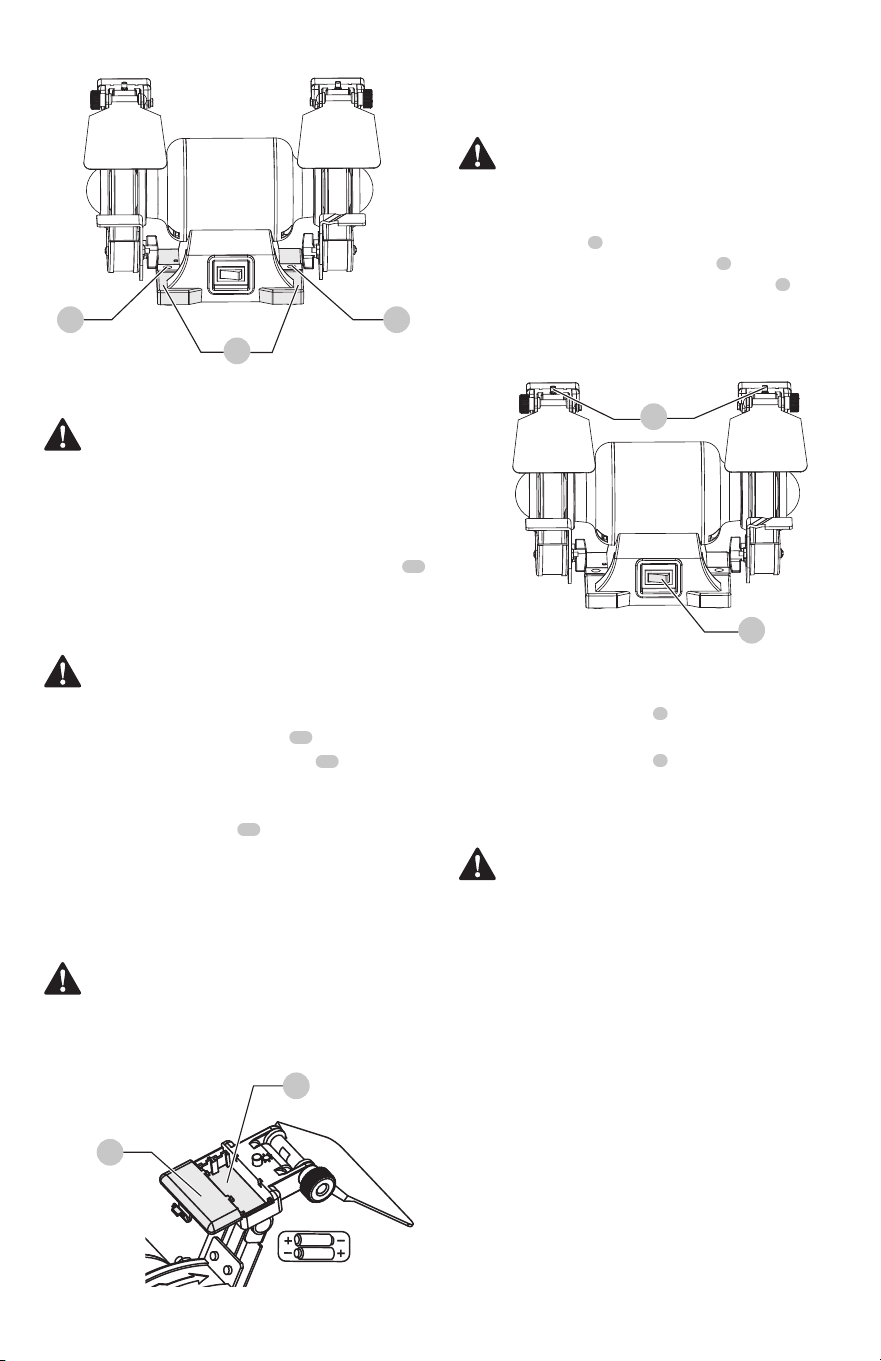

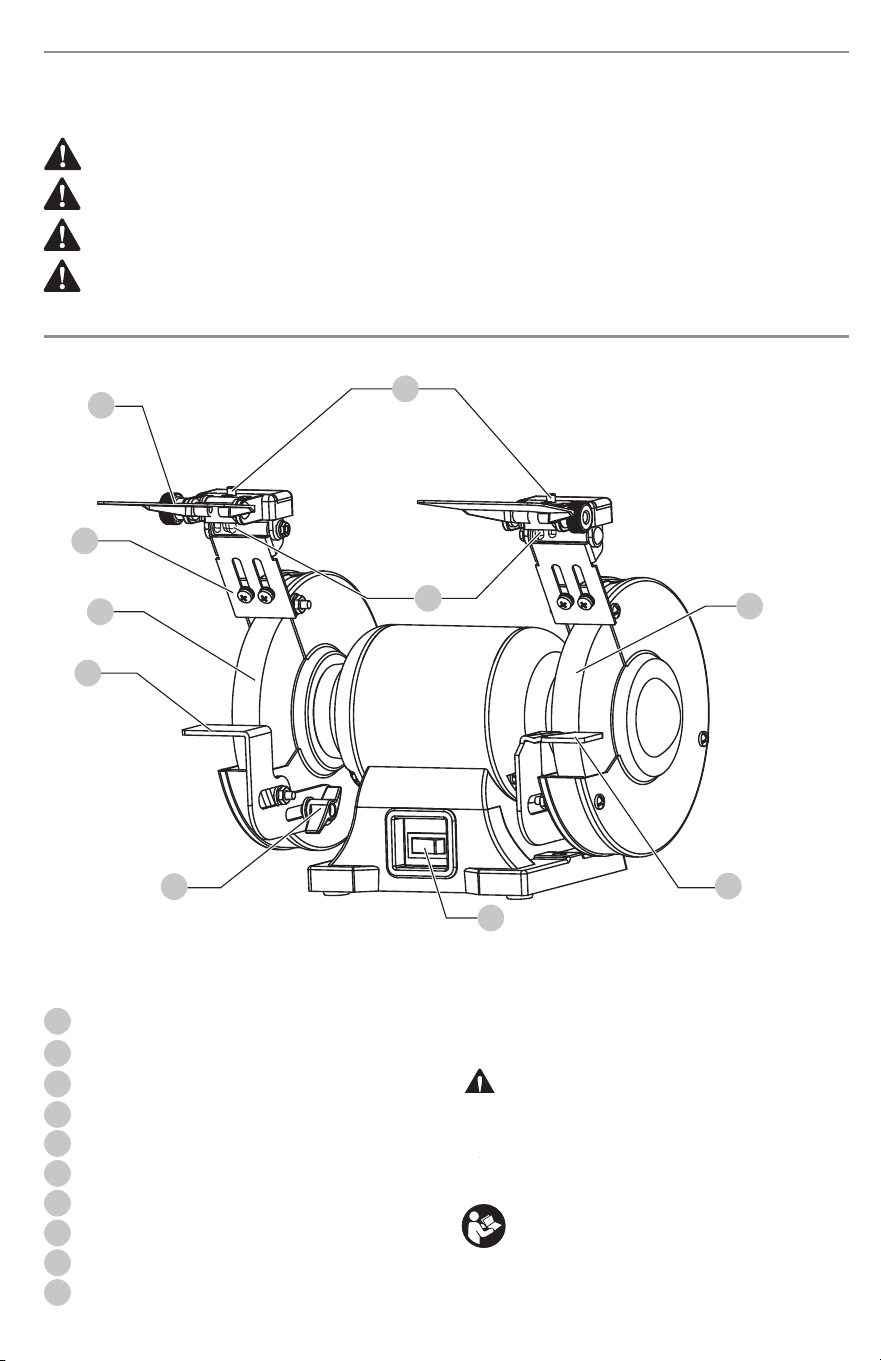

COMPONENTS
LED light ON/OFF switch
LED light
Medium grinding wheel (60 Grit)
Right tool rest assembly (V Grooved)
ON/OFF switch
Tool rest lock knob
Left tool rest assembly
Coarse grinding wheel (36 Grit)
Spark guards
Eye shield
1
2
3
4
5
6
7
8
9
10
Fig. A
1
2
10
9
8
7
6
5
4
3
PRODUCT SPECIFICATIONS
Wheel Diameter: 6” (150 mm)
Arbor: 1/2” (13 mm) RPM Speed 3,450
English
4
6 in. (150 mm) Bench Grinder
CMXEGAR500
GENERAL POWER TOOL SAFETY WARNINGS
WARNING: Read all safety warnings,
instructions, illustrations and specifications
provided with this power tool. Failure to follow all
instructions listed below may result in electric shock,
fire and/or seriousinjury.
SAVE ALL WARNINGS AND
INSTRUCTIONS FOR FUTURE
REFERENCE
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
powertool.
1) Work Area Safety
a ) Keep work area clean and well lit. Cluttered or dark
areas inviteaccidents.
b ) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust orfumes.
c ) Keep children and bystanders away while
operating a power tool. Distractions can cause you
to losecontrol.
2) Electrical Safety
a ) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electricshock.
b ) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed orgrounded.
c ) Do not expose power tools to rain or wet
conditions. Water entering a power tool will increase
the risk of electricshock.
d ) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electricshock.
e ) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electricshock.
f ) If operating a power tool in a damp location
is unavoidable, use a ground fault circuit
interrupter (GFCI) protected supply. Use of a GFCI
reduces the risk of electricshock.
3) Personal Safety
a ) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools
may result in serious personalinjury.
b ) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personalinjuries.
c ) Prevent unintentional starting. Ensure the
switch is in the off position before connecting to
power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your
finger on the switch or energizing power tools that
have the switch on invitesaccidents.
d ) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personalinjury.
e ) Do not overreach. Keep proper footing and
balance at all times. This enables better control of
the power tool in unexpectedsituations.
f ) Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewelry or
long hair can be caught in movingparts.
g ) If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of dust
collection can reduce dust-relatedhazards.
h ) Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
cause severe injury within a fraction of a second.
4) Power Tool Use and Care
a ) Do not force the power tool. Use the correct
power tool for your application. The correct power
tool will do the job better and safer at the rate for
which it wasdesigned.
b) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must
berepaired.
c) Disconnect the plug from the power source and/
or remove the battery, pack if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of
starting the power toolaccidentally.
5
English
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands
of untrainedusers.
e) Maintain power tools and accesories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool’s operation. If
damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained
powertools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier tocontrol.
g) Use the power tool, accessories and tool bits, etc.
in accordance with these instructions, taking
into account the working conditions and the
work to be performed. Use of the power tool for
operations different from those intended could result
in a hazardoussituation.
h) Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
5) Service
a ) Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the
power tool is maintained.
BENCH GRINDER SAFETY
• Wear eye protection that complies with ANSI
Z87.1 specifications.
• Use grinding wheels suitable for the speeds of the grinder.
• Stand beside the bench grinder during start-up, not
facing directly in front.
• Do not remove the wheel guard.
• Do not use the grinding wheel to cut anything.
• Do not use anything to stress the grinding wheel.
• Use a grinding wheel dressing tool to shape or remove
glaze from grinding wheels.
• Adjust distance between wheel and tool rest to maintain
1/8 inch (3.2 mm) or less separation as the diameter of
the wheel decreases with use.
• Connect to a supply circuit protected by a circuit breaker
or time-delay fuse.
• Secure the bench grinder to its supporting surface to
prevent the grinder from tipping over, sliding, or walking
on its supporting surface.
A. Replace a cracked wheel immediately.
B. Always use the guards and eye shields.
C. Do not overtighten the wheel nut.
D. Use only flanges furnished with this grinder.
• Always inspect grinding wheels prior to use for cracks,
missing pieces, etc. Replace wheel immediately before use.
• USE ONLY GRINDING WHEELS that comply with ANSI
B7.1 and rated greater than 3450 RPM.
• GUARD AGAINST ELECTRICAL SHOCK by preventing
body contact with grounded surfaces. For example: pipes,
radiators, ranges, refrigerator enclosures.
• DO NOT use wheels with incorrect size holes. NEVER use
wheel washers or wheel screws that are defective or incorrect,
and NEVER touch a grinding wheel or other moving parts.
• NEVER reach to pick up a workpiece, a piece of scrap, or
anything else that is in or near the grinding path of the
wheel.
• AVOID AWKWARD OPERATIONS AND HAND POSITIONS
where a sudden slip could cause your hand to move into the
wheel. ALWAYS make sure you have good balance.
• NEVER stand or have any part of your body in line with
the path of the wheel.
• DO NOT USE TOOL IF SWITCH DOES NOT TURN IT
ON AND OFF. Have defective switches replaced by an
authorized service center.
• DO NOT TURN THE MOTOR SWITCH ON AND OFF
RAPIDLY. This could cause the wheel to loosen and
create a hazard. Should this ever occur, stand clear and
allow the wheel to come to a complete stop. Disconnect
your grinder from the power supply and retighten the
wheel nut securely.
• RISK OF INJURY DUE TO ACCIDENTAL STARTING. Do
not use in an area where children may be present.
• NEVER START THE GRINDER when the wheel is in
contact with the workpiece.
• SECURE WORK. Always hold the workpiece firmly
against the work rest.
• DO NOT USE THE BENCH GRINDER if the flange nut or
clamp nut is missing or if the spindle shaft is bent.
• FREQUENTLY clean grinding dust from beneath the
grinder.
• DO NOT OPERATE THIS TOOL WHILE UNDER
THE INFLUENCE OF DRUGS, ALCOHOL OR ANY
MEDICATION.
• ALWAYS STAY ALERT. Do not allow familiarity (gained
from frequent use of your grinder) to cause a careless
mistake. ALWAYS REMEMBER that a careless fraction of
a second is sufficient to inflict severe injury.
• STAY ALERT AND EXERCISE CONTROL. Watch what
you are doing and use common sense. Do not operate
the tool when you are tired. Do not rush.
• SAVE THESE INSTRUCTIONS. Refer to them frequently
and use them to instruct other users. If you loan someone
this tool, loan them these instructions also.
English
6
READ INSTRUCTION MANUAL: To reduce the risk of
injury, user and all bystanders must read instruction
manual before using this product.
• Avoid prolonged contact with dust from power
sanding, sawing, grinding, drilling, and other
construction activities. Wear protective clothing and
wash exposed areas with soap and water. Allowing
dust to get into your mouth, eyes, or lay on the skin may
promote absorption of harmfulchemicals.
WARNING: Use of this tool can generate and/
or disperse dust, which may cause serious and
permanent respiratory or other injury. Always use
NIOSH/OSHA approved respiratory protection
appropriate for the dust exposure. Direct particles
away from face andbody.
WARNING: Always wear proper personal hearing
protection that conforms to ANSI S12.6 (S3.19)
during use. Under some conditions and duration
of use, noise from this product may contribute to
hearingloss.
CAUTION: When not in use, place tool on its side on
a stable surface where it will not cause a tripping or
falling hazard. Some tools will stand upright but may
be easily knocked over.
• Air vents often cover moving parts and should be
avoided. Loose clothes, jewelry or long hair can be
caught in movingparts.
ELECTRICAL SPECIFICATIONS AND SAFETY
Power supply and motor specifications
WARNING: To avoid electrical hazards, fire
hazards, or damage to the tool, use proper circuit
protection. Use a separate electrical circuit for
your tool. Your grinder is wired at the factory for
120 V operation. Connect to a 120 V, 2.1 Amp
circuit and use a 2.1 Amp time delay fuse or
circuit breaker. To avoid shock or fire, if power
cord is worn, cut, or damaged in any way, have it
replaced immediately.
Grounding instructions
WARNING: This tool must be grounded while in use
to protect the operator from electrical shock.
IN THE EVENT OF A MALFUNCTION OR BREAKDOWN,
grounding provides a path of least resistance for electric
currents and reduces the risk of electric shock. This tool is
equipped with an electrical cord that has an equipment-
grounding conductor and a grounding plug. The plug must
be plugged into a matching receptacle that is properly
installed and grounded in accordance with all local codes and
ordinances.
DO NOT MODIFY THE PLUG PROVIDED. If it will not fit the
receptacle, have the proper receptacle installed by a qualified
electrician.
• ALWAYS EASE THE WORKPIECE AGAINST THE
ABRASIVE WHEEL when starting to grind. A harsh
impact can break the wheel. Use light pressure when
starting to grind. Too much pressure on a cold wheel can
cause the wheel to crack.
• USE ONLY FLANGES furnished with this bench grinder.
• IF ANY PART OF THIS GRINDER IS MISSING or should
break, bend, fail in any way, or should any electrical
component fail to perform properly, shut off the power
switch, remove the machine plug from the power surce
and have damaged, missing, or failed parts replaced
before resuming operation.
• SAFETY SHIELD AND SPARK DEFLECTOR. The safety
shields and spark deflectors are adjustable for operator
convenience. Operating the grinder without these
features attached could result in serious injury. Do not
grind with the safety shield raised. Always wear safety
glasses for personal protection.
• WORK REST. The work rests are independently
adjustable to compensate for wheel wear. Before
grinding, make certain the work rests are adjusted
properly. Generally, the object being ground is done
slightly above the center of the grinding wheel.
• Lawn mower blades are usually sharpened on only
one edge and dressed up slightly on the other. Perform
this sharpening process on both cutting ends of the
blade. After sharpening, balance the blade by removing
additional material.
PROPOSITION 65 WARNING
WARNING: Some dust created by power sanding,
sawing, grinding, drilling, and other construction
activities contains chemicals known to the State
of California to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals
are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other
masonry products, and
• Arsenic and chromium from chemically-treated
lumber.
Your risk from these exposures varies depending on
how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated
area and work with approved safety equipment, such
as those dust masks that are specially designed to
filter out microscopic particles.
Handling the power cord on this product may expose
you to chemicals known to the state of California to
cause cancer and birth defects or other reproductive
harm. Wash hands after handling.
For more information go to: www.P65Warnings.ca.gov
7
English
IMPROPER CONNECTION of the equipment grounding
conductor can result in risk of electric shock. The conductor
with the green insulation (with or without yellow stripes) is
the equipment grounding conductor. If repair or replacement
of the electrical cord or plug is necessary, do not connect the
equipment grounding conductor to a live terminal.
CHECK with a qualified electrician or service person if you do
not completely understand the grounding instructions, or if you
are not certain the tool is properly grounded.
USE only 3-wire extension cords that have three-pronged
grounding plugs with three-pole receptacles that accept
the tool’s plug. Repair or replace damaged or worn cords
immediately.
Use a separate electrical circuit for your tool. This circuit must
not be less than #18 wire and should be protected with a
2.1 Amp time lag fuse. Before connecting the motor to the
power line, make sure the switch is in the off position and the
electric current is rated the same as the current stamped on the
motor nameplate. Running at a lower voltage will damage the
motor.
GUIDELINES FOR EXTENSION CORDS USE THE PROPER
EXTENSION CORD. Make sure your extension cord is in good
condition. Use an extension cord heavy enough to carry the
current your product will draw. An undersized cord will cause a
drop in line voltage resulting in loss of power, overheating and
burning out of the motor. The table below shows the correct
size to use depending on cord length and nameplate ampere
rating. If in doubt, use the next heavier gauge. The smaller the
gauge number, the heavier the cord.
Make sure your extension cord is properly wired and in good
condition. Always replace a damaged extension cord or have it
repaired by a qualified technician before using it. Protect your
extension cords from sharp objects, excessive heat and damp or
wet areas.
WARNING: This tool is for indoor use only. Do not
expose to rain or use in damp locations.
This tool is intended for use on a circuit that has a receptacle

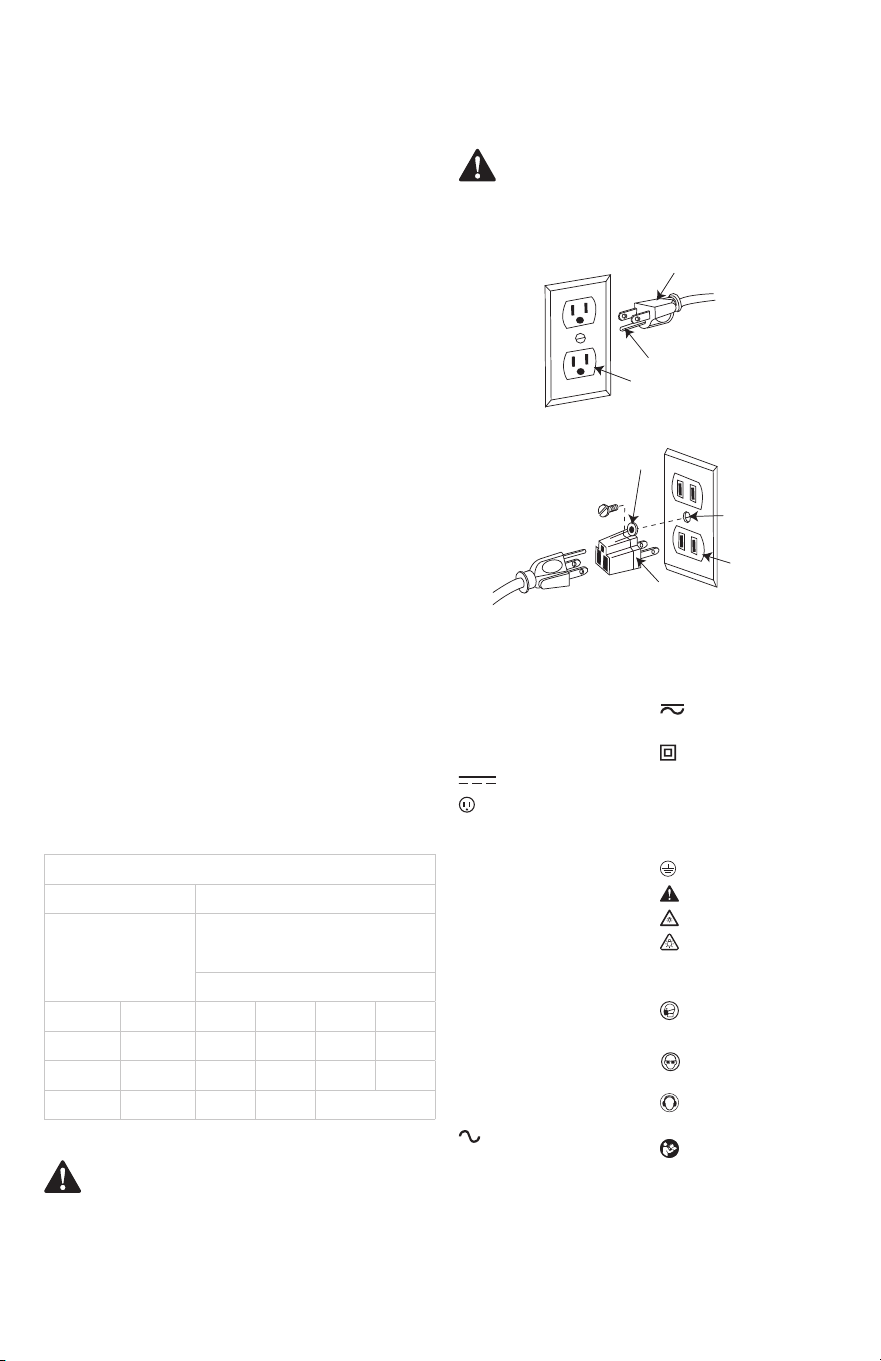

like the one illustrated in Fig. B . Fig. B shows a three-pronged
electrical plug and receptacle that has a grounding conductor.
If a properly grounded receptacle is not available, an adapter
(Fig. C) can be used to temporarily connect this plug to a two-
contact grounded receptacle. The adapter (Fig. C) has a rigid
lug extending from it that MUST be connected to a permanent
earth ground, such as a properly grounded receptacle box.
CAUTION: In all cases, make certain the receptacle is
properly grounded. If you are not sure, have a qualified
electrician check the receptacle.
The label on your tool may include the following symbols. The
symbols and their definitions are as follows:
SAVE THESE INSTRUCTIONS FOR
FUTURE USE
MiniMUM gAUgE FOR EXTEnsiOn CORDs (AWg)
(When using 120 volts only)
Ampere Rating Total length of Cord
More not 25 50 100 150 ft
Than More (7.62 15.24 30.48 45.72 m)
Than AWG-American Wire Gauge
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not Recommended
Fig. B
Fig. C
Three-Pronged Plug
Grounding Prong
Properly Grounded
Three-Pronged Receptacle
Grounding Lug
Make sure this is
connected to a
known ground.
Two-Pronged
Receptacle
Adapter
V ......................... volts
Hz .......................hertz
min ..................... minutes
or DC ......direct current
...................... Class I Construction
(grounded)
…/min ..............per minute
BPM .................... beats per minute
IPM ..................... impacts per minute
RPM .................... revolutions per
minute
sfpm ................... surface feet per
minute
SPM .................... strokes per minute
OPM .................... oscillations per
minute
A ......................... amperes
W ........................watts
or AC ...........alternating current
or AC/DC .... alternating or
direct current
...................... Class II
Construction
(double insulated)
n
o
.......................no load speed
n .........................rated speed
......................earthing terminal
.....................safety alert symbol
.....................visible radiation
..................... avoid staring at
light
..................... wear respiratory
protection
........................... wear eye
protection
..................... wear hearing
protection
..................... read all
documentation
English
8
Bag E
Bag C
Bag HBag G
Bag F
Motor
Be sure your power supply agrees with the nameplate
marking. Voltage decrease of more than 10% will cause loss
of power and overheating. These tools are factory tested; if
this tool does not operate, check power supply.
TOOLS NEEDED FOR ASSEMBLY
CARTON CONTENTS
Unpacking And Checking Contents
Carefully unpack the grinder and all its parts, and compare
against the list below and the illustration to the right. With
the help of an assistant place the grinder on a secure surface
and examine it carefully.
WARNING: To avoid injury from unexpected starting
or electrical shock, do not plug the power cord into a
source of power during unpacking and assembly. The
cord must remain unplugged whenever you are
adjusting/assembling the grinder.
WARNING: The grinder is heavy and should be lifted
with care. If needed, get the assistance of someone to
lift and move the grinder.
WARNING: If any part is missing or damaged, do not
attempt to assemble the grinder , or plug in the power
cord until the missing or damaged part is correctly
replaced.

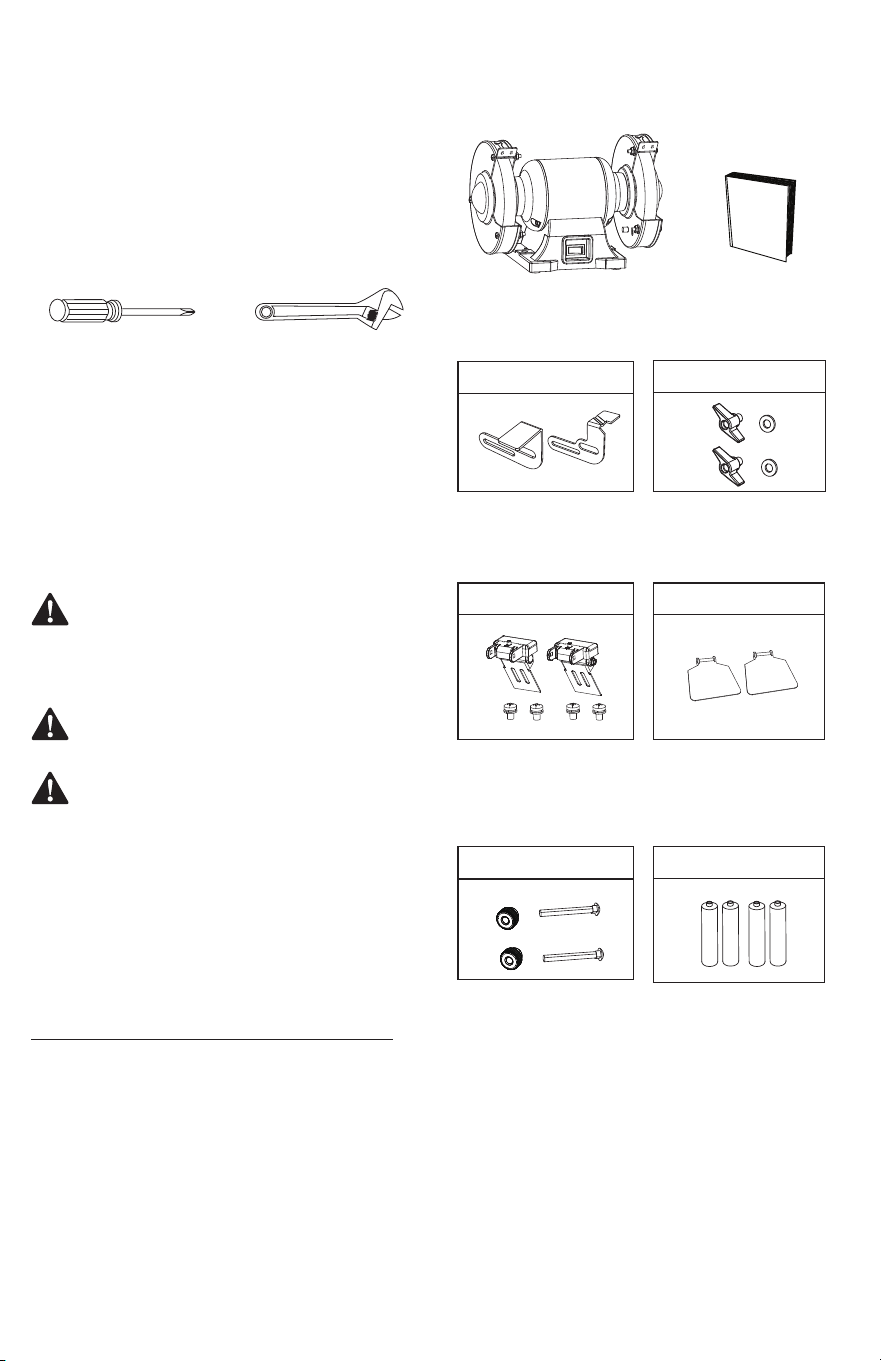

Table of Loose Parts
not supplied
Phillips Screwdriver Adjustable Wrench
iTEM DEsCRiPTiOn Q’TY
A.
Bench grinder
1
B.
Instruction manual
1
C.
Left / Right tool rest
1 each
D.
Tool rest lock knob and washer
2 each
E.
LED work light and composite screw
2 sets
F.
Eye shield
2
G.
Eye shield lock knob and bolt
2 each
H.
LED work light battery - AAA
4
UNPACKING YOUR BENCH GRINDER
A
B
C
Bag D
D
E F
G
H
9
English
ASSEMBLY AND ADJUSTMENTS
Estimated Assembly Time:
10 - 20 Minutes.
WARNING: To avoid injury, do not connect
this bench grinder to the power source until
it is completely assembled and adjusted, and
you have read and understood this Instruction
Manual.
WARNING: To reduce the risk of injury, turn unit
off and disconnect it from power source before
installing and removing accessories, before
adjusting or when making repairs. An accidental
start-up can cause injury.

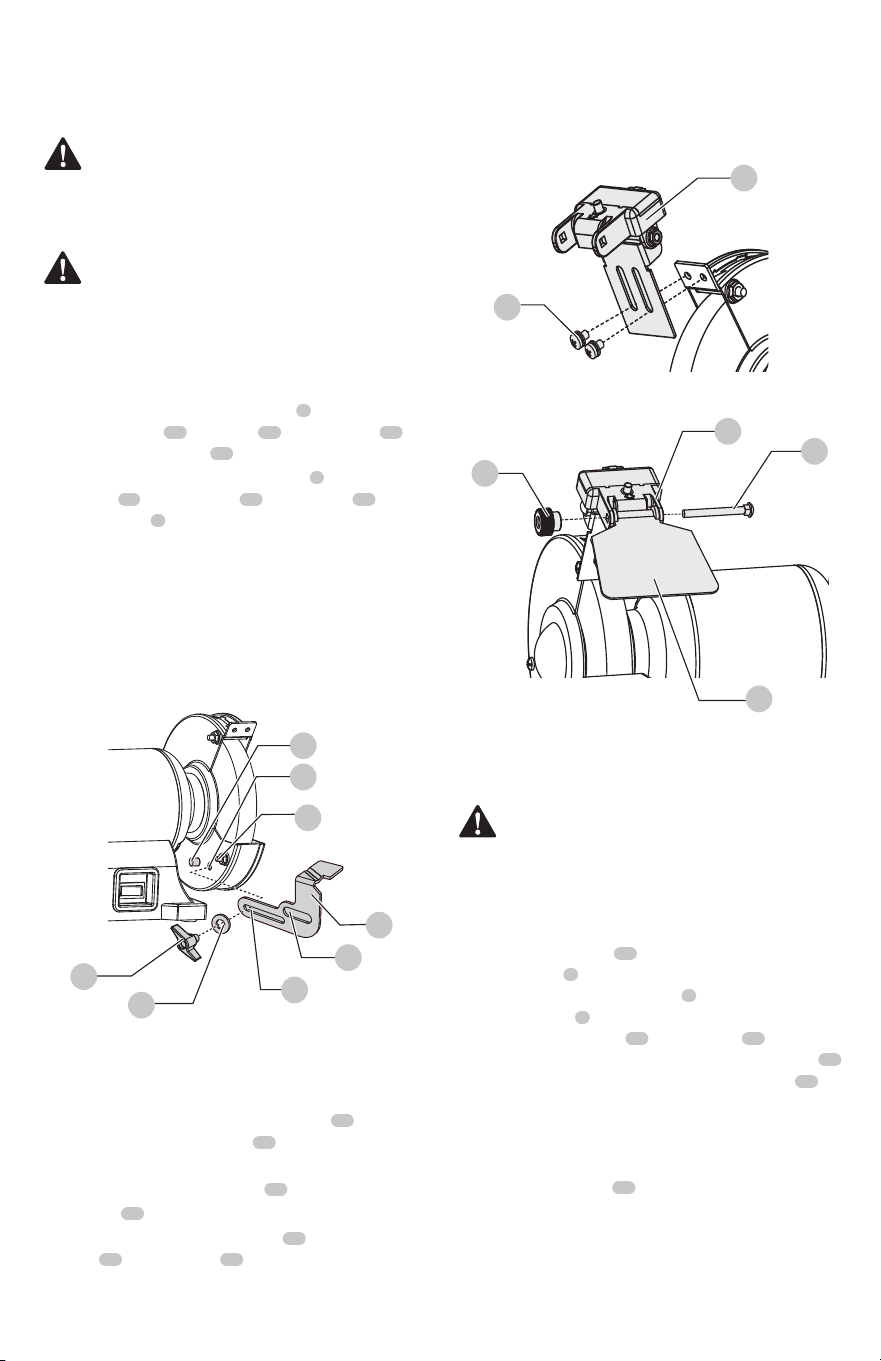

Installing Tool Rests (Fig. D)
1. Bag "C" - Attach the right tool rest
4
to the grinder as
the upper slot
11
to the nut
12
and lower slot
13
to
the protrude cylinder
14
.
2. Bag "D" - Place the tool rest lock knob
6
through the
washer
15
and lower slot
13
into the hole
16
to lock
the tool rest
4
in place.
nOTE: The V grooved tool rest must mounts on the right
side of grinder.
3. Repeat the above steps for installing the left tool rest.
nOTE: When in use, the tool rests should be adjusted to
within 1/8 in. (3.2 mm) of the grinding wheel or other
accessory being used.
Installing The LED Light And Eye Shiled
Assembly (Fig. E, F)
1.
Bag "E"-Tighten the LED light assembly
17
to grinder
with two composite screws
18
using a Philips
screwdriver. (Fig. E)
2. Bag "F" - Attachne eye shield
10
to the support
bracket
19
of the LED light assembly.
3. Bag "g" - Tighten the eye shield
10
by using a carriage
bolt
20
and lock knob
21
as the way shown in Fig. F.
Fig.D
4
6
11
12
13
14
15
16
4. Repeat the above steps for installing the other LED light
and eye shield assembly.
nOTE: Adjust eye shidlds to appropriate distance from
tool rests avoiding interference when operation.
Changing Grinding Wheels
(Fig. G, H, I, J, K)
CAUTION: Turn off and unplug the bench grinder.
Use only grinding wheels that measure 6 in.
(150 mm) in diameter. This tool has 1/2 in.
(12.7 mm) arbors on both sides.
NOTE: See page 12 for information on wire or buffing wheels
(not included).
1. Raise the eye shield
10
out of the way and sdjust the
spark guard
9
in its highest setting.
2. Loosen the tool rest lock knob
6
and remove the tool
rest assembly
7
.
3. Remove three screws
22
and lock nuts
23
from the left
side wheel cover and then remove the wheel cover
24
.
4. To prevent wheel rotating, place a wood wedge
25
(not supplied) between the wheel and the wheel cover
as shown in Fig. H.
nOTE: Using a metal object, like a screwdriver, is not
recommended as it may damage the grinding wheel.
5. Loosen the hex nut
26
by an adjustable wrench as
show in Fig. I.
nOTE: The nut on the left side of the grinder has a
standard left-hand thread (turn clockwise to loosen).
The one on the right side has a right-hand thread (turn
counterclockwise to loosen). Both wheel nuts tighten
Fig.E
Fig.F
17
18
21
20
19
10
English
10
when turning toward the rear of the grinder and loosen
when turning toward the front of the grinder.
6. Remove the hex nut
26
, the outside wheel flange
27
and the wheel
8
.
7. Inspect the wheel
8
for cracks, chips or any other visible
damage (other than normal wear) and discard if such
damage is found. Inspect the blotter/cardboard disc for
damage. If the blotter id missing or severely damaged,
replace it withe a piece of thin cardboard of blotter
paper cut in the same shape. NEVER USE A GRINDING
WHEEL WITHOUT A BLOTTER.
8. Install the new wheel and make sure both wheel
flanges
27
,
28
are in place with the concave sides
toward wheels.

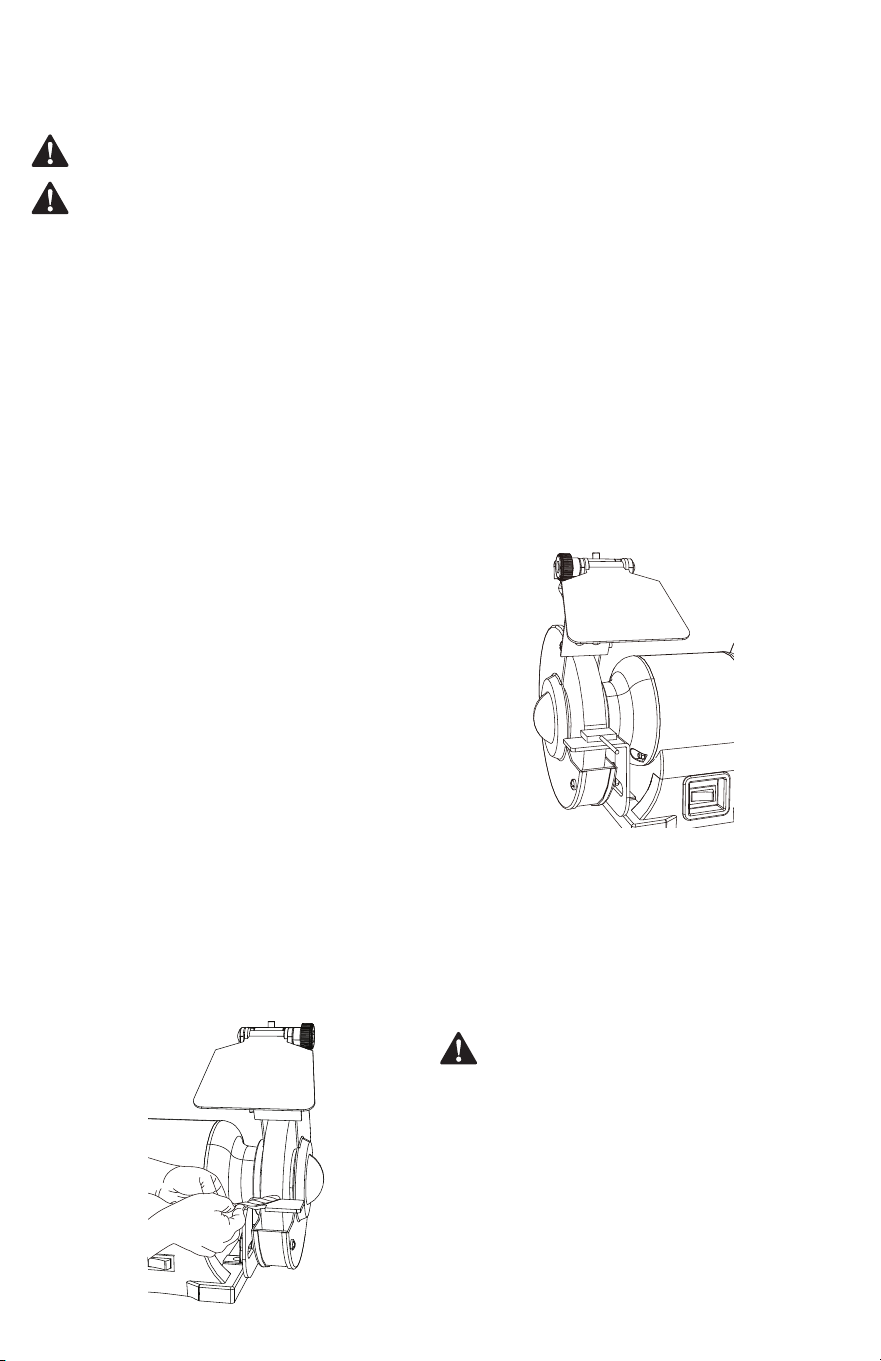

9. To prevent wheel rotating, place a wood wedge
25
(not
supplied) between the wheel and the wheel cover as
shown in Fig. K.
10. Tighten the hex nut
26
by an adjustable wrench.
nOTE: Do not overtighten the nut as this can crack the
grinding wheel.
11. Replace the wheel cover
24
and screws
22
.
12. Reinstall and adjust the tool rest to 1/16 in. (1.6 mm)
away from the wheel and tighten securely.
13. Adjust the eye shield
10
to a point between your eyes
and the wheel.

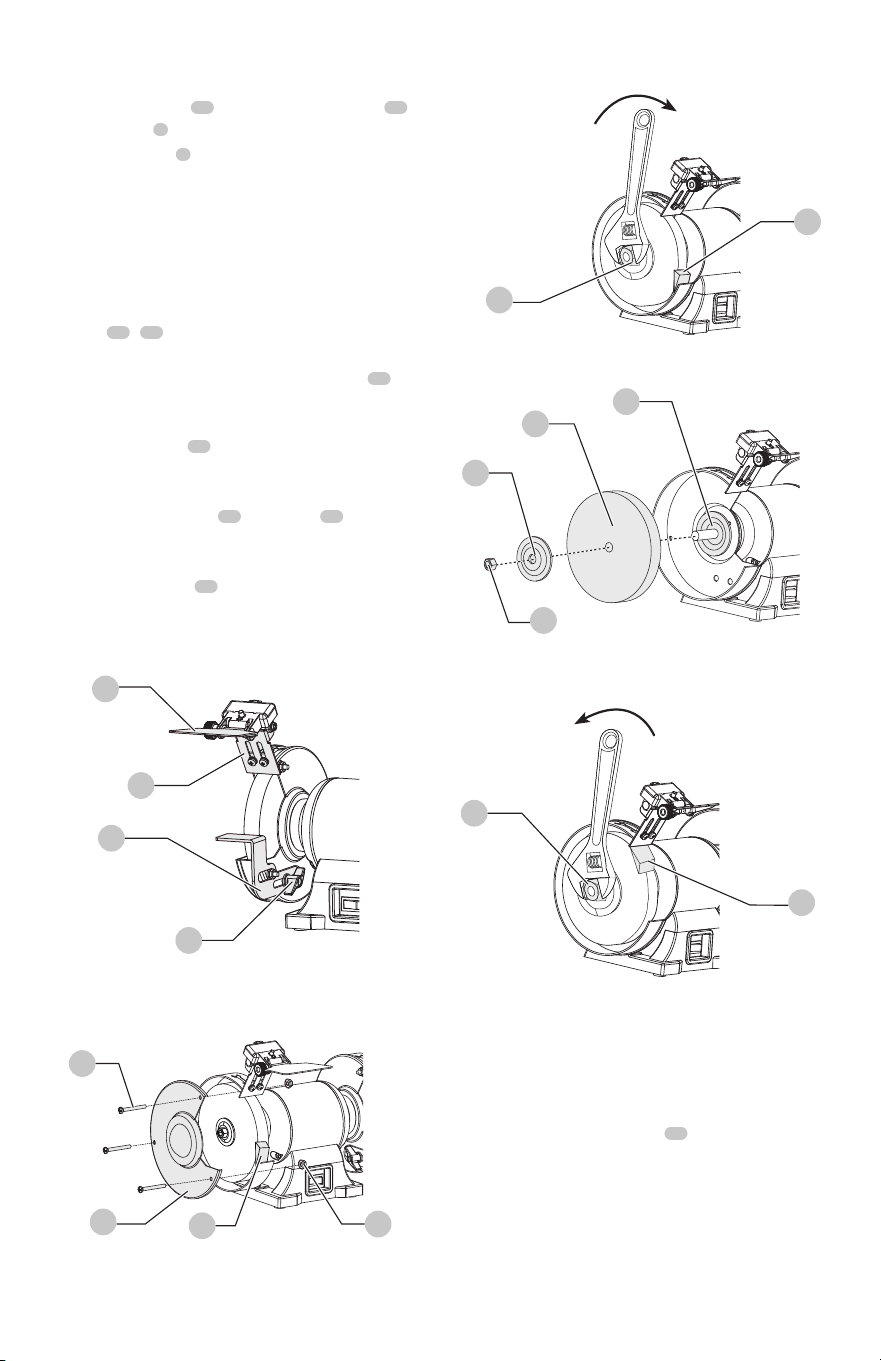

Fig.G
Fig.H
22
24
25
23
10
9
7
6
Mounting The Tool On A Workbench (Fig. L)
nOTE: FIRMLY BOLT THE GRINDER TO A WORK BENCH OR
LEG STAND to gain maximum stability for your machine.
1. Using the base of the bench grinder as a template, mark
the bench through two holes
29
in the casting.
2. Bolt the bench grinder on the bench with bolts, washers
and nuts.
nOTE: The mentioned fasteners are not supplied with
the machine.
Fig.I
25
26
Fig.J
26
27
8
28
loosen
Fig.K
26
25
tighten
11
English
Transporting The Grinder (Fig. L)
WARNING: To reduce the risk of injury, turn off
the grinder and disconnect it from power source
before installing and removing accessories,
adjusting and making repairs. An accidental
start-up can cause injury.
In order to conveniently carry the bench grinder from place
to place, hold the left and right side of the grinder base
30
for transportation.
Change Batteries (Fig. M)
WARNING: Unplug your grinder. Failure to unplug
your saw could result in accidental starting and
causing possible serious personal injury.
1. Bag "h" - Open the battery cover
31
.
2. Insert two AAA batteries into the case
32
. If replacing
the batteries, take out the old batteries and replace with
new AAA batteries. Dispose off old batteries properly.
3. Replace the battery cover
31
.
nOTE: Replace with batteries that have a rating of
1.5 volts (Number 4 series and AAA size or equivalent).
When replacing the batteries, the battery guide should
be thoroughly cleaned. Use a soft paintbrush or similar
device, to remove all sawdust and debris.
WARNING: Do not mix old and new batteries. Do not
mix alkaline, standard (carbon - zinc), or rechargeable
(nickel - cadmium) batteries.
Fig.L
29 29
30
OPERATION
Starting And Stopping The Grinder (Fig. N)
WARNING: To avoid injury, always keep the
plug disconnected from the power source and
switch turned OFF until the grinder is completely
assembled and adjusted properly.
The ON/OFF switch
5
is located on the front of the grinder.
To turn the grinder on, press the switch
5
to the "I"
position. To turn the grinder off, press the switch
5
to the
"O" position.
Using The Led Light (Fig. N)
1. Press the LED light switch
1
down to turn the LED light
"ON".
2. Press the LED light switch
1
again to turn the LED light
"OFF".
General Operation
WARNING: Keep all bystanders a safe distance
away from the tool and not in direct line, front or
back of the grinder.
1. Your bench grinder has a medium wheel (60 grit) for
medium material removal and general purpose grinding,
and a coarse wheel (36 grit) for fast material removal.
2. To operate the bench grinder, always wear safety glasses
and turn the tool on while standing at the side and not
in front of the grinder. Allow it to reach full speed before
grinding.
3. Hold the workpiece firmly against the tool rest. Hold
very small pieces with pliers or other suitable clamps.
4. Feed the workpiece smoothly and evenly into the
grinding wheel.
5. Move the workpiece slowly and avoid jamming the
workpiece against the wheel. If the wheel tends to slow
down from excessive force, you should occasionally
release the pressure to let the wheel return to full speed.
6. The grinding wheels supplied with this unit are
designedfor different types of steel, wrought iron, and
bronze.
Fig.M
Fig.N
1
5
31
32
English
12
7. Never sharpen or grind anything made of aluminum,
brass, copper, wood, plastic or any other non-metallic
materials.
WARNING: Grind only on the face of the grinding
wheel and never the side of it.
CAUTION: Prolonged grinding will cause most
materials to become hot. Use care when handling such
materials.
Scissors
If possible, take the scissors apart to make the sharpening
operation easier and safer. Remove material only from the
outside surface and work from the heavy end of the blade
toward the tip.
Knives
Remove metal from both faces of most knives, working from
the heavy end of the blade toward the tip.
Screwdrivers
The end of a properly sharpened screwdriver will be a
perfect rectangle, absolutely flat and perpendicular to the
center line of the shank. The two sides and two faces will
taper outward from the edge of the shoulder or shank. They
should be flat with intersecting faces perpendicular. Hold
each face of the screwdriver against the wheel to true it up,
then ease the end straight into the stone to grind it true.
Twist Drill Bits (Fig. O)
Drill bits are best sharpened on a sharpening jig, available
at most hardware stores, but can be “dressed up” on your
grinder. Begin on one side of the point at the existing angle,
then twist the bit while maintaining a constant angle with
grinding surface. Sharpen only the tip. This technique
requires considerable practice, so take your time and make
a few “dry runs” first with the grinder off. Be sure to maintain
the original cutting edge angle as this is important to the
efficiency of your bits. One tool rest has a V-groove that is
correctly angled for most drill bits.
Lawn Mower Blades
Lawn mower blades are usually sharpened on only one side
and dressed up slightly on the other. After sharpening, be
sure to balance the blade by removing additional material
from the heavy end. There are a number of inexpensive
cone balancers on the market for this purpose. Unbalanced
blades can cause serious crank shaft damage to your lawn
mower. Always remove spark plug wires from the mower
before servicing the blades to prevent accidental starting.
Dressing A Grinding Wheel (Fig. P)
Bring the dressing tool forward on the tool rest until it
touches the high point on the face of the wheel. Dress the
wheel by moving the dressing tool back and forth. Repeat
this operation until the face of the grinding wheel is clean
and the corner of the wheel is square.
nOTE: A wheel dressing tool is NOT provided with the
grinder.
nOTE: DO NOT use the wheel dressing tool on wire wheels.
Installing Wire Wheel Or Bung Wheels
(Not included)
When replacing the grinding wheel with a wire wheel
or buffing wheels, it is necessary to place a spacer (not
included) on the spindle shaft BEFORE installing the inner
flange, wheel, outer flange and wheel nut.
WARNING: Since accessories such as a wire wheel
or buffing wheel may not have been tested with this
product, use of such accessories could be hazardous.
All grinding wheels or accessories must fit within the
confines of the guard and must be rated higher than
the recommended speed as marked on the bench
grinder nameplate.
Fig.O
Fig.P
13
English
MAINTENANCE
WARNING: For your own safety, turn switch "OFF"
and remove plug from power soure outlet before
adjusting and maintaining your bench grinder. If
power cord is worn, cut or damaged in any way,
have it replaced immediately.
General Maintenance
1. Regularly check the tool and use a soft brush to remove
accumulated dust.
2. Use only mild soap and damp cloth to clean the tool. Do
not use alcohol, petrol or other similar cleaning agents.
3. Do not make contact with the grinding wheels with any
damp cloth.
4. Never let any liquid get inside the tool; never immerse
any part of the tool into a liquid.
5. Wear safety goggles to protect your eyes while cleaning.
6. Always make sure the eyeshields are transparent and not
blocking the view of the grinding wheel.
7. In normal use, grinding wheels may become cracked,
grooved, rounded at the edges, chipped, out of true or
loaded with foreign material. Cracked wheels should be
replaced IMMEDIATELY. While any of the other conditions
can be remedied with a dressing tool (included), new
wheels sometimes require dressing to make them
round.
8. If you must replace a wheel be sure to obtain one with
a safe rated speed at least as high as the “NO LOAD”
RPM marked on your grinder’s nameplate. Replacement
wheels must have a 1/2 in. (12.7 mm) center hole, 6 in.
(150 mm) diameter and should be a maximum of 3/4 in.
(20 mm) wide. Test new wheels for cracks and maintain
the existing sequence of retaining hardware. Be sure the
tool is unplugged before attempting repairs.
9. If replacing the batteries, take out the old batteries
and replace with new AAA batteries. When replacing
the batteries, the battery guide should be thoroughly
cleaned. Use a soft paintbrush or similar device, to
remove all sawdust and debris. Dispose off old batteries
properly. Do not mix old and new batteries. Do not mix
alkaline, standard (carbon - zinc), or rechargeable (nickel
- cadmium) batteries. Batteries are to be inserted with
the correct polarity. Do not charge the battery which is
not a rechargeable battery.
WARNING: Never use caustic agents to clean the
plastic parts of the tool.
WARNING: Water must never come into contact with
the grinder.
WARNING: The use of any other accessories is not
recommended and may result in serious injury.
Free Warning Label Replacement:
If your warning labels become illegible or are missing, call
1-888-398-7737 for a free replacement.
English
14
TROUBLESHOOTING GUIDE
BE sURE TO FOllOW sAFETY RUlEs AnD insTRUCTiOns
For assistance with your product, visit our website at www.craftsman.com for a list of service centers, or call CRAFTSMAN
at 1-888-398-7737.
PlEAsE READ ThE FOllOWing: The manufacturer and/or distributor is providing the buyer with a parts list and assembly
diagram in this manual as a reference tool only. Neither the manufacturer nor distributor make any representation or
warranty of any kind to the buyer regarding the accuracy of the list or diagram or that buyer is qualified and able to make
any repairs or replace any parts of the product. The manufacturer and/or distributor expressly recommend: that all repairs
and/or part replacements only be undertaken by a certified and licensed technician, and not by the buyer. The buyer
assumes all risk and liability, including injuries to persons and damage to property, associated with and arising out of any
attempt of the buyer at repairs or replacement of parts to the product.
PROBlEM PROBlEM CAUsE sUggEsTED CORRECTiVE ACTiOn
Motor will not run. 1. Not plugged into power outlet.
2. Switch is not in ON position.
3. Motor cord cut or abraded.
4. Plug on cord is faulty.
5. Faulty motor.
6. Fuse on circuit breaks open.
1. Plug it into the power outlet.
2. Turn the switch ON.
3. Contact Service Center or Authorized Service Station.
4. Contact Service Center or Authorized Service Station.
5. Contact Service Center or Authorized Service Station.
6. Re-set; may be too many machines on line.
Grinding wheel
vibrates or
shakes.
1. Grinding wheel is not fixed properly.
2. Other.
1. Adjust grinding wheel properly. See ADJUSTMENT section.
2. Contact Service Center or Authorized Service Station.
15
English
Register Online
Thank you for your purchase. Register your product now for:
• WARRAnTY sERViCE: Registering your product will
help you obtain more efficient warranty service in case
there is a problem with your product.
• COnFiRMATiOnOF OWnERshiP: In case of an
insurance loss, such as fire, flood or theft, your
registration of ownership will serve as your proof of
purchase.
• FOR YOUR sAFETY: Registering your product will
allow us to contact you in the unlikely event a safety
notification is required under the Federal Consumer
Safety Act.
Register online at www.craftsman.com/registration
Three Year Limited Warranty
CRAFTSMAN will repair or replace, without charge, any
defects due to faulty materials or workmanship for one year
from the date of purchase. This warranty does not cover
part failure due to normal wear or tool abuse. For further
detail of warranty coverage and warranty repair information,
visit www.craftsman.com or call 1-888-398-7737. This
warranty does not apply to accessories or damage caused
where repairs have been made or attempted by others.
THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS,
INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDES
ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some
states do not allow limitations on how long an implied
warranty lasts or the exclusion or limitation of incidental
or consequential damages, so these limitations may not
apply to you. This warranty gives you specific legal rights
and you may have other rights which vary in certain states
or provinces.
90 DAY MOnEY BACK gUARAnTEE
If you are not completely satisfied with the performance of
your CRAFTSMAN Power Tool, Laser, or Nailer for any reason,
you can return it within 90 days from the date of purchase
with a receipt for a full refund – no questions asked.
lATinAMERiCA: This warranty does not apply to products
sold in Latin America. For products sold in Latin America,
see country specific warranty information contained either
in the packaging, call the local company or see website for
warranty information.
English
16
PARTS LIST
6 in. (150 mm) Bench grinder
Parts list for bench grinder
i.D.nO. Description size Q’ty
X70D BATTERY COVER 2
X70E AAA BATTERY 4
X70F LED ASS’Y 2
X70G SMALL CARRIAGE BOLT M5*60 2
X70H LAMP COVER 2
X70J PHILIPS SCREW ST2.9*8 4
X70K BUSHING 2
X70L RUBBER FOOT 4
X70M PHILIPS SCREW AND FLAT WASHER M4*6 2
X70N BOTTOM PLATE 1
X70P CAPACITOR 1
X70Q PHILIPS SCREW AND SPRING WASHER M6*18 2
X70R SWITCH 1
X70S SWITCH PLATE 1
X70U RIGHT SAFETY GUARD COVER 1
X70V HEX NUT 1
X70W GRINDING WHEEL 60# 1
X70X RIGHT SAFETY GUARD 1
X70Y RIGHT TOOL REST 1
X70Z HEX NUT 2
X710 POWER CORD 1
X711 CORD CLIP 1
X712 ROTOR 1
X713 BALL BEARING 2
X714 CORD BUSHING 1
X715 PHILIPS SCREW WITH SPRING WASHER & FLAT WASHER M4*8 2
X716 TOOTHED WASHER 1
X718 WAVY WASHER 1
X71A PHILIPS SCREW AND FLAT WASHER M4*118 2
X71C FLAT WASHER 2
X71D HEX NUT 6
X71F LEFT TOOL REST 1
X71G PHILIPS SCREW AND SPRING WASHER M5*10 4
X71H GRINDING WHEEL 36# 1
X71J FLANGE 4
X71K HEX NUT 1
X71M PHILIPS SCREW M5*42 6
X71N EYESHIELD BRACKET 2
X71P PHILIPS SCREW WITH SPRING WASHER AND FLAT WASHER M5*8 4
X71R EYESHIELD 2
X71S SMALL CARRIAGE BOLT M5*55 2
X84D GRINDING WHEEL WARNING LABEL 2
X84E EYESHIELD LOCKING KNOB 2
X84H GRINDING WHEEL WARNING LABEL 2
X84J CAUTION LABEL 1
X84K INSTRUCTION MANUAL 1
X84L BASE 1
X84M STATOR 1
X84N END CAP 2
X84P LOCKING KNOB M8*9 2
X84Q LEFT SAFETY GUARD 1
X84R RIGHT SAFTY GUARD COVER 1
X84S HEX NUT 2
17
English
6 in. (150 mm) Bench grinder
schematic for bench grinder
X71R
X71S
X71P
X71N
X70K
2
X70J
2
X70H
X70G
X70F
X70E
2
X70D
X71M
X71K
X71J
X71H
X71J
X71G
X71D
3
X71F
X71C
X71A
2
X718
X716
X715
X714
X713
X712
X70S
X70R
X70Q
X70P
X715
X70N
X70M
2
X70L
4
X710
X711
X713
X70Z
X71C
X70Y
X71D
3
X70X
2
X71G
2
X71J
X71J
X70W
X70V
X70U
3
X71M
3
X71S
X71R
X71P
2
X71N
X70K
X70J
2
X70H
X70F
X70G
X70G
X70E
2
2
2
X84E
X84S
X84N
X84M
X84J
X84R
X84H
X84H
X84Q
X84P
X84L
X84P
X84S
X84D
X84D
X84K
X84E
C. Hardware bag
D. Hardware bag
E. Hardware bag
F. Hardware bag
G. Hardware bag H. Hardware bag
X84N
English
18
NOTES
19
English
NOTES
English
20
NOTES
