• Page 1 - English - : Contents Vehicle Safety P 2 Operation Guide P 12 Maintenance P 28 Troubleshooting P 50 Information P 56 Specifications P 70 2021 CRF250RRX 31K95630 MOM 17461 2003
• Page 2 - English - : IMPORTANT NOTICE FOR COMPETITION USE ONLY This vehicle is designed manufactured and sold for closedcourse competition use only It does not conform to Federal Motor Vehicle Safety Standards or US EPA Noise and Emission Standards Operation on public streets roads highways or for offroad recreation is illegal State and federal laws prohibit operation of this vehicle except in an organized racing or competitive event on a closed course or by permit issued by the local governmental jurisdiction This vehicle is sold as is with no warranties FOR EXPERIENCED RIDERS NO PASSENGERS This vehicle is designed as an operatoronly vehicle and for use by experienced riders only The load limit and seating configuration do not safely permit the carrying of a passenger
• Page 3 - English - : Welcome Congratulations on your purchase of a new Honda vehicle Your selection of a Honda makes you part of a worldwide family of satisfied customers who appreciate Hondas reputation for building quality into every product Your vehicle is a high performance racing motorcycle that utilizes the latest offroad racingmotocross technology and is intended for competition use in sanctioned closedcourse events by experienced riders only Be aware that offroad racingmotocross is a physically demanding sport that requires more than just a fine vehicle To do well you must be in excellent physical condition and be a skillful rider For the best results work diligently on your physical conditioning and practice frequently To ensure your safety and riding pleasure Read this owners manual and competition handbook carefully Follow all recommendations and procedures contained in this owners manual and competition handbook Pay close attention to safety messages contained in this owners manual competition handbook and on the vehicle To protect your investment we urge you to take responsibility for keeping your vehicle well serviced and maintained Also observe the breakin guidelines and always perform the preride inspection and other periodic checks in this manual
• Page 4 - English - : When service is required remember that your Honda dealer knows your vehicle best If you have the required mechanical know how and tools you can purchase an official Honda Service Manual to help you perform many maintenance and repair tasks 2 P 67 You may also want to visit our website at wwwpowersportshondacom Canada wwwhondaca Happy riding
• Page 5 - English - : A Few Words About Safety Your safety and the safety of others is very important Operating this vehicle safely is an important responsibility To help you make informed decisions about safety we have provided operating procedures and other information on safety labels in this owners manual and competition handbook This information alerts you to potential hazards that could hurt you or others Of course it is not practical or possible to warn you about all hazards associated with operating or maintaining a vehicle You must use your own good judgment You will find important safety information in a variety of forms including Safety labels on the vehicle Safety Messages preceded by a safety alert symbol and one of three signal words DANGER WARNING or CAUTION These signal words mean 3DANGER You WILL be KILLED or SERIOUSLY HURT if you dont follow instructions 3WARNING You CAN be KILLED or SERIOUSLY HURT if you dont follow instructions 3CAUTION You CAN be HURT if you dont follow instructions Other important information is provided under the following titles NOTICE Information to help you avoid damage to your vehicle other property or the environment
• Page 6 - English - : Safety Guidelines P 3 Safety LabelsP 6 Safety Precautions P 7 Riding Precautions P 8 Accessories amp Modifications P 10 This section contains important information for safe riding of your vehicle Please read this section carefully Vehicle Safety
• Page 7 - English - : Safety Guidelines Follow these guidelines to enhance your safety Perform all routine and regular inspections specified in this owners manual and competition handbook Stop the engine and keep sparks and flame away before filling the fuel tank Do not run the engine in enclosed or partly enclosed areas Carbon monoxide in exhaust gases is toxic and can kill you Always Wear a Helmet Its a proven fact helmets and protective apparel significantly reduce the number and severity of head and other injuries So always wear an approved helmet and protective apparel 2 P 7 Before Riding Make sure that you are physically fit mentally focused and free of alcohol and drugs Check that you are wearing an approved helmet and protective apparel Take Time to Get to Know Your Vehicle Because every motorcycle is unique take time to become thoroughly familiar with how this one operates and responds to your commands before placing your machine and yourself in competition Ride within Your Limits Never ride beyond your personal abilities or faster than conditions warrant Fatigue and inattention can impair your ability to use good judgment and ride safely Never Carry a Passenger There are no handholds seat or footrests to carry a passenger Safety Guidelines Vehicle Safety Continued
• Page 8 - English - : Dont Drink or Use Drugs and Ride Alcohol or drugs and riding dont mix Even one alcoholic drink can reduce your ability to respond to changing conditions and your reaction time gets worse with every additional drink The same is true for drug use Dont drink or use and ride and dont let your friends do it either Keep Your Honda in Safe Condition Maintaining your vehicle properly is critical to your safety A loose bolt for example can cause a breakdown in which you can be seriously injured LithiumIon LiIon Battery If you smell an unusual odor coming from the lithiumion liion battery park your vehicle in a safe place outside and away from flammable objects then stop the engine Have your vehicle inspected by your dealer immediately Safety Guidelines Vehicle Safety
• Page 9 - English - : Carbon Monoxide Hazard Exhaust contains poisonous carbon monoxide a colorless odorless gas Breathing carbon monoxide can cause loss of consciousness and may lead to death If you run the engine in confined or even partly enclosed area the air you breathe could contain a dangerous amount of carbon monoxide Never run your vehicle inside a garage or other enclosure 3WARNING Running the engine of your vehicle while in an enclosed or even partially enclosed area can cause a rapid build up of toxic carbon monoxide gas Breathing this colorless odorless gas can quickly cause unconsciousness and lead to death Only run your vehicles engine when it is located in a well ventilated area outdoors Safety Guidelines Vehicle Safety

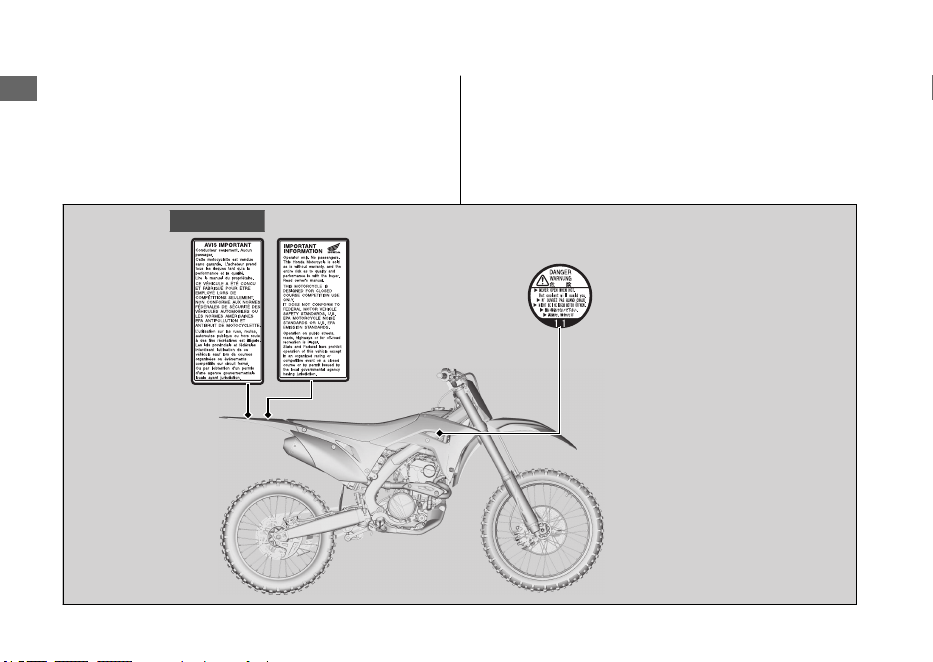

• Page 10 - English - : Safety Labels Safety and information labels on your vehicle provide important safety information and may warn you of potential hazards that could cause serious injury Read these labels carefully and dont remove them If a label comes off or becomes hard to read contact your dealer for a replacement Safety Labels Vehicle Safety For Canada
• Page 11 - English - : Safety Precautions Protective Apparel Make sure that you are wearing an approved helmet eye protection and other appropriate riding gear Helmet Should be safetystandard certified high visibility and correct size for your head Must fit comfortably but securely with the chin strap fastened Approved eye protection USA Look for a DOT Department of Transportation certification label on any helmet you buy 3WARNING Not wearing a helmet increases the chance of serious injury or death in a crash Make sure that you always wear an approved helmet eye protection and protective apparel Protective Gear Whether youre practicing to improve your skills or riding in competition always wear an approved helmet eye protection and proper protective gear Safety Precautions Vehicle Safety
• Page 12 - English - : Riding Precautions Breakin Period During the first operating day or 15 miles 25 km of running follow these guidelines to ensure your vehicles future reliability and performance Avoid fullthrottle starts and rapid acceleration Avoid hard braking and rapid downshifts Ride conservatively This same procedure should be followed each time when Piston is replaced Piston rings are replaced Cylinder is replaced Crankshaft or crank bearings are replaced Parking CRF250RX Park on a firm level surface If you must park on a slight incline or loose surface park so that the vehicle cannot move or fall over Make sure that hightemperature parts cannot come into contact with flammable materials Do not touch the engine muffler brakes and other hightemperature parts until they cool down Parking with the Side Stand Stop the engine Push the side stand down Slowly lean the vehicle to the left until its weight rests on the side stand Turn the handlebar fully to the left u Turning the handlebar to the right reduces stability and may cause the vehicle to fall Riding Precautions Vehicle Safety
• Page 13 - English - : Refueling and Fuel Guidelines Follow these guidelines to protect the engine and fuel system Use only unleaded gasoline Use recommended octane number Using lower octane gasoline will result in decreased engine performance Do not use fuels containing a high concentration of alcohol 2 P 66 Do not use stale or contaminated gasoline or an oilgasoline mixture Avoid getting dirt or water in the fuel tank Riding Precautions Vehicle Safety
• Page 14 - English - : Accessories amp Modifications We strongly advise that you do not add any accessories that were not specifically designed or approved for your vehicle by Honda or make modifications to your vehicle from its original design Doing so can make it unsafe 3WARNING Improper accessories or modifications can cause a crash in which you can be seriously hurt or killed Follow all instructions in this owners manual regarding accessories and modifications Do not pull a trailer with or attach a sidecar to your vehicle Your vehicle was not designed for these attachments and their use can seriously impair your vehicles handling Do not attempt modify the vehicle to carry a passenger The subframe was not designed to carry the additional weight of a passenger Accessories amp Modifications Vehicle Safety

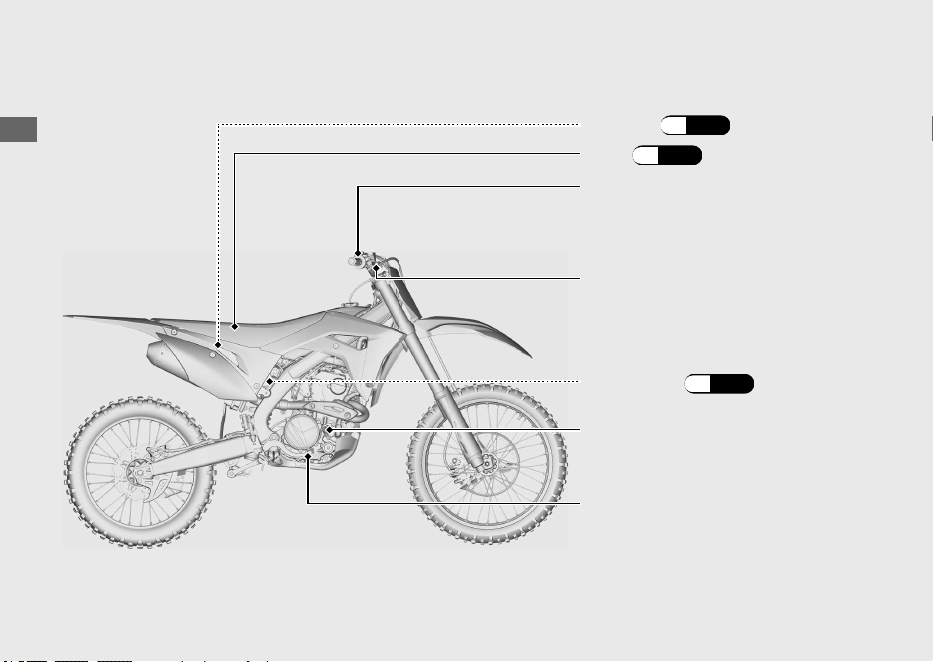

• Page 16: Parts Location Operation Guide Throttle grip Main fuse P54 Front brake lever Rear brake pedal Engine oil fill capdipstick Seat P48 Battery P46

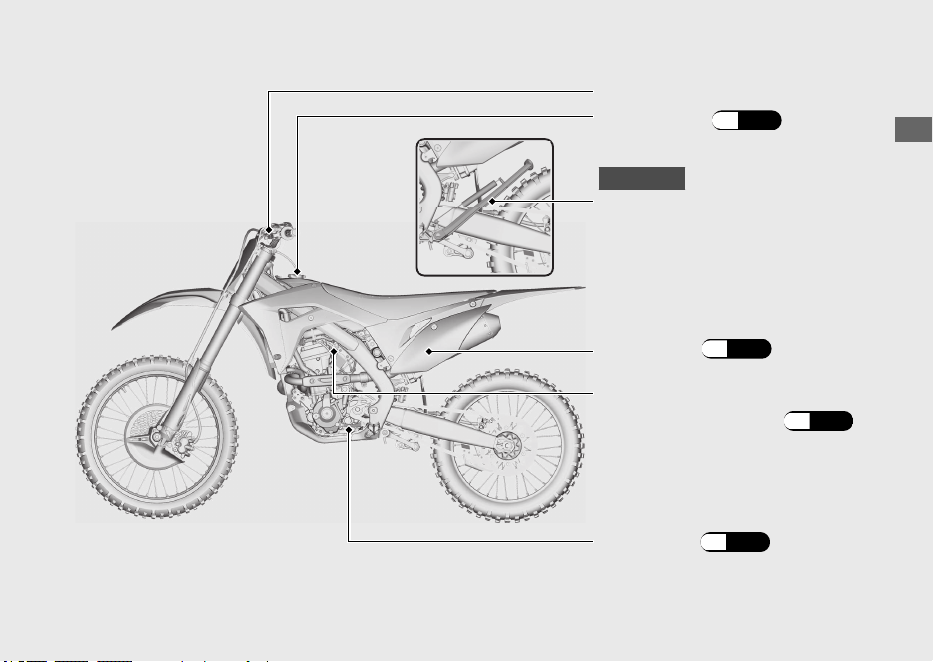

• Page 17: Operation Guide Clutch lever Fuel fill cap P26 Side stand Shift lever P25 Side cover P49 Fast idle knob Engine idle speed P22 CRF250RX
• Page 18 - English - : Indicators Operation Guide PGMFI malfunction indicator lamp MIL amber If it comes on while engine is running P52 Engine mode indicator blue Launch control system indicator purple Indicates the condition of HRCLaunch Control System P19 Indicates the currently selected mode by blinking the mode number once when the engine is started Indicates the currently selected mode P16 Comes on briefly when the engine is started

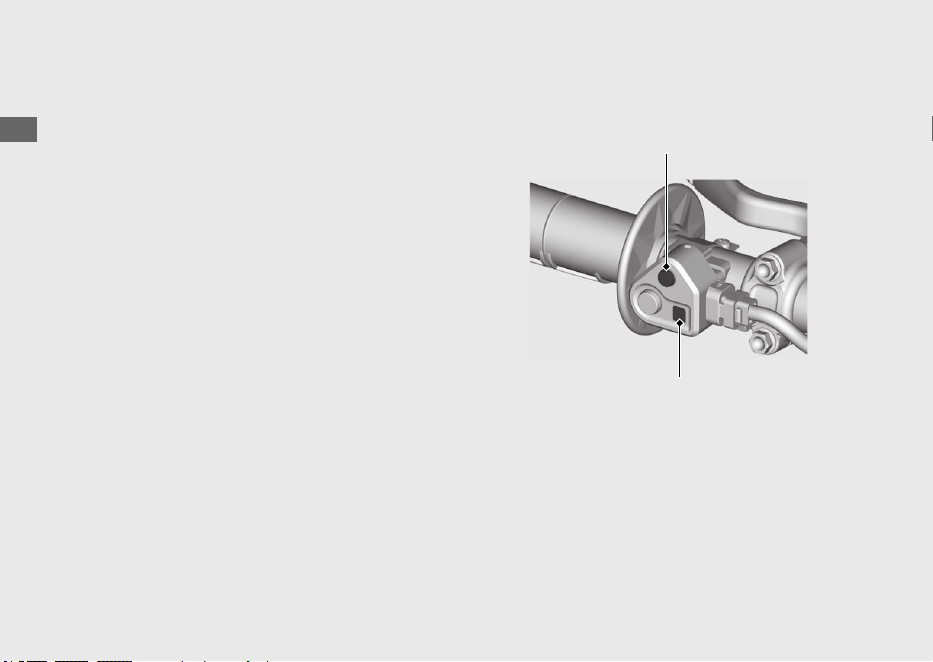

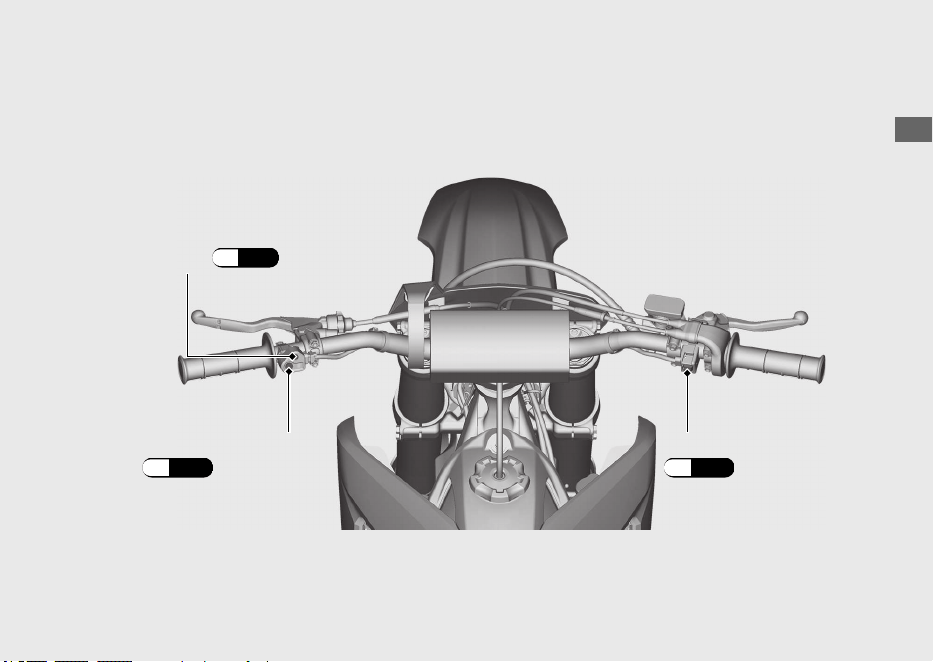

• Page 19: Switches Operation Guide Continued Engine mode select button P16 Engine stop button P24 Start button P22

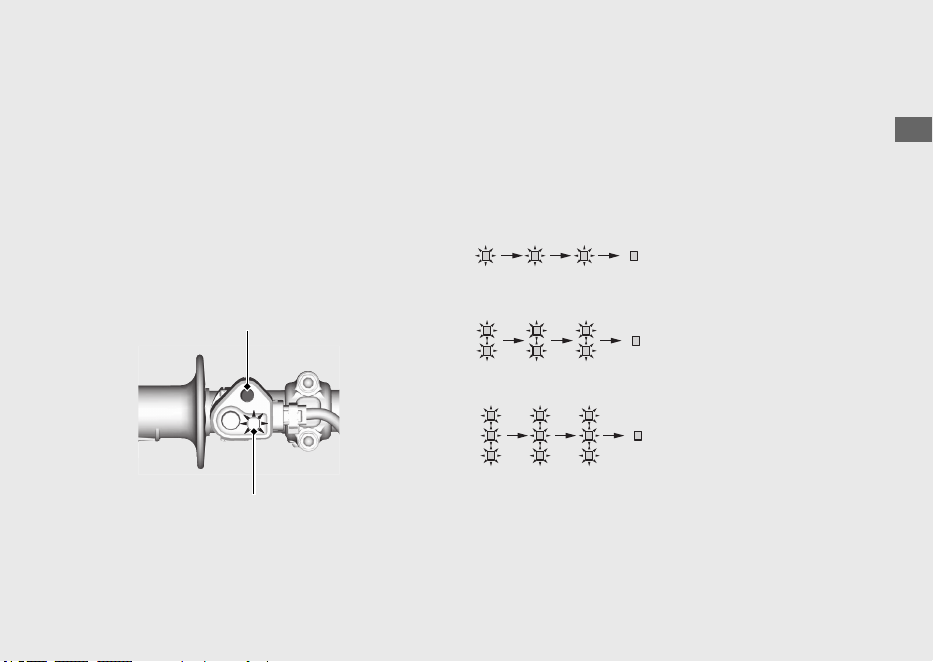

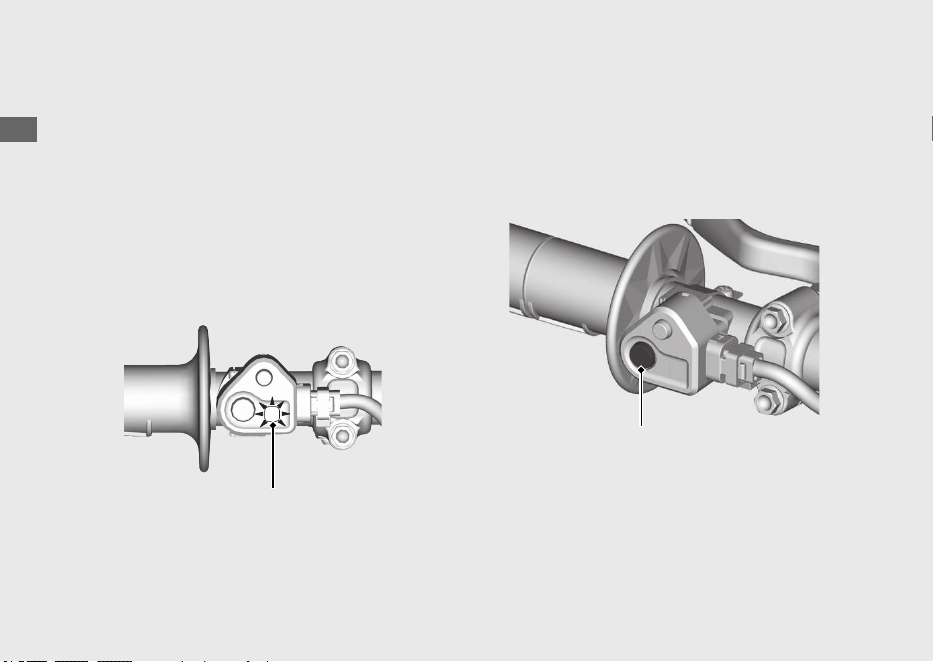

• Page 20 - English - : Operation Guide Switches Continued Engine mode select button Engine mode indicator blue You can change engine output characteristic depending on track conditions by using the engine mode select button PGMFI mode 1 standard setting PGMFI mode 2 smooth setting reduce throttle response from the standard setting PGMFI mode 3 aggressive setting increase throttle response from the standard setting Engine Mode

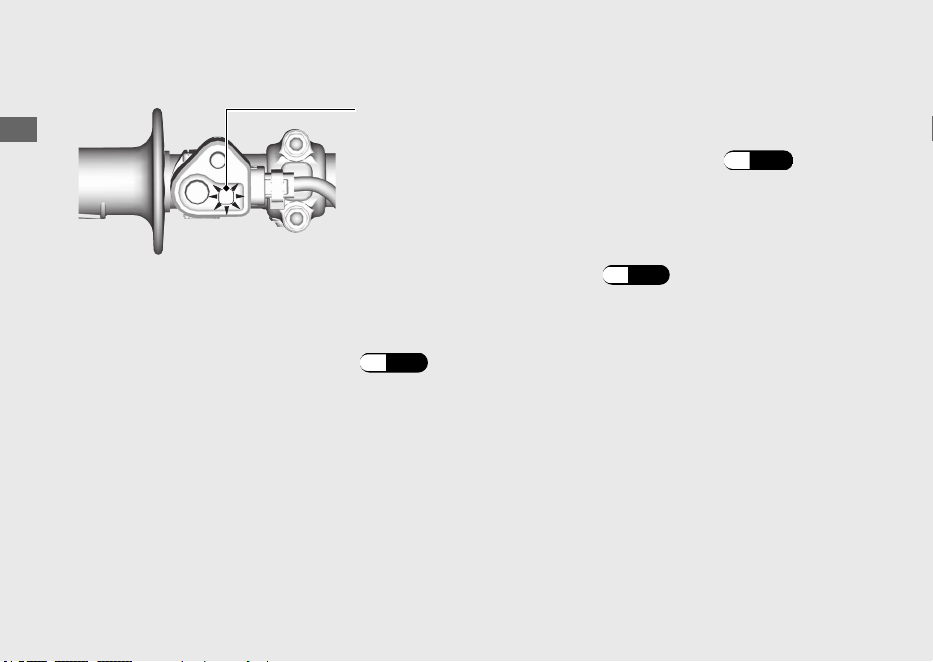

• Page 21 - English - : Operation Guide Continued Engine mode select button Engine mode indicator blue Start the engine and push the engine mode select button with your vehicle stopped The engine mode indicator under the engine mode select button indicates the selected mode by blinking the mode number in blue 3 times Current Mode The engine mode indicator also indicates the currently selected mode by blinking the mode number once when the engine is started PGMFI mode 1 The indicator blue blinks once and repeats it 3 times PGMFI mode 2 The indicator blue blinks 2 times and repeats it 3 times PGMFI mode 3 The indicator blue blinks 3 times and repeats it 3 times If the engine mode indicator stays on or does not come on when it should have your dealer check it for problems
• Page 22 - English - : Operation Guide Switches Continued Mode Selection a Start the engine b With your vehicle stopped and the throttle closed push and hold the engine mode select button for 1 or more second Make sure that the fast idle knob is pushed in P22 c Release the engine mode select button The engine mode indicator will indicate a selected mode by the number of times the indicator blue blinks d Repeat steps 2 3 until the desired mode is indicated PGMFI mode 1 PGMFI mode 2 PGMFI mode 3 If the fast idle knob is pulled out the engine mode will not change

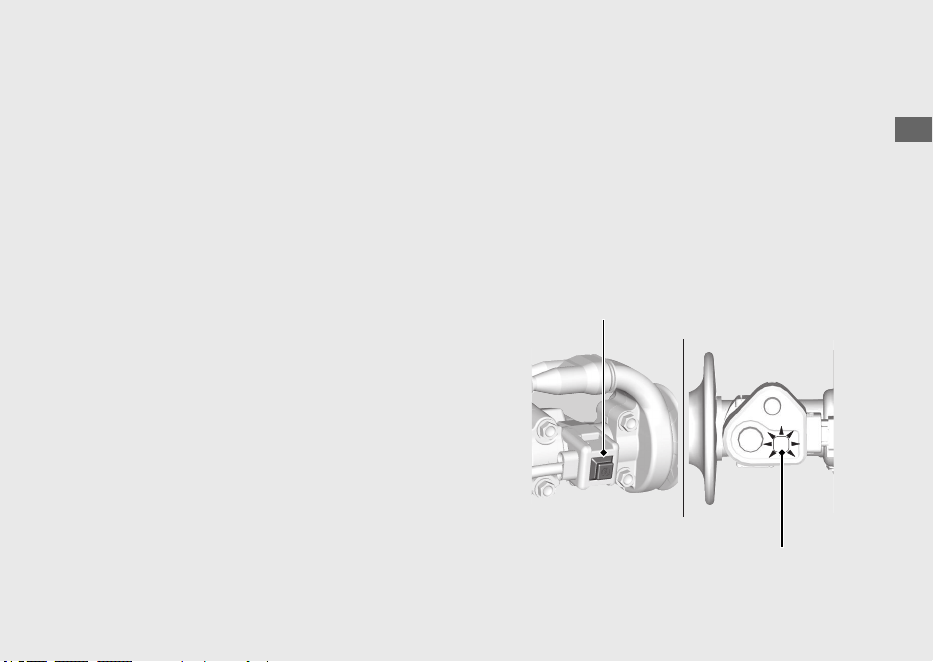

• Page 23 - English - : HRCLaunch Control System The HRCLaunch Control System reduces slip and assists for an effective start by temporarily decreasing the rev limit when starting You can select the rev limit level while the system is operating according to your skill and track conditions To change the level a Start the engine and wait more than 2 seconds b Close the throttle completely press and hold the start button while pulling the clutch lever in until the launch control system indicator blinks purple u The system goes into standby and the launch control system indicator indicates the selected level by blinking purple u From standby the control to decrease the rev limit starts u The system may become disabled if you snap the throttle excessively u If the idle speed is low the system may not go into standby Set the idle speed to standard rpm u To disable the system quickly press the start button The launch control system indicator stops blinking Operation Guide Continued Start button Launch control system indicator purple
• Page 24 - English - : c Press and hold the start button The level changes every time you press and hold u The level selected last is saved u The factory setting is level 2 d To continue using the system refer to step 2 in To operate the system next page To disable the system quickly press the start button The launch control system indicator stops blinking and the system is disabled Level Rev limit during launch control Number of launch control system indicator blinks 1 High 1 2 Middle 2 3 Low 3 Operation Guide HRCLaunch Control System Continued Level 1 Level 2 Level 3 Press and hold the start button while the launch control system is in standby
• Page 25 - English - : To operate the system a Perform steps 1 and 2 in To change the level b Shift into 1st or 2nd gear c When launching open the throttle halfway or more The system operates u The reduced rev limit is controlled and will gradually return to normal in a few seconds Once the rev limit returns to normal the system is disabled u The launch control system indicator comes on purple while the system is operating u If you open the throttle halfway or more before starting control system stops before starting and there is no effect u If you close the throttle immediately the system may not operate u When the launch control system operates these following conditions will disable launch control Vehicle is in 3rd gear The throttle completely closed d Make sure that the launch control system indicator is off If it is not off the system is not disabled Quickly press the start button to disable the system Operation Guide
• Page 26 - English - : Starting the Engine Start your engine using the following procedure To restart a warm engine follow the procedure for Warm Engine Starting NOTICE If the engine does not start within 5 seconds wait 10 seconds before trying to start the engine again to recover battery voltage Extended fast idling and revving the engine can damage the engine and the exhaust system Snapping the throttle or fast idling for more than about 5 minutes may cause exhaust pipe discoloration Operation Guide

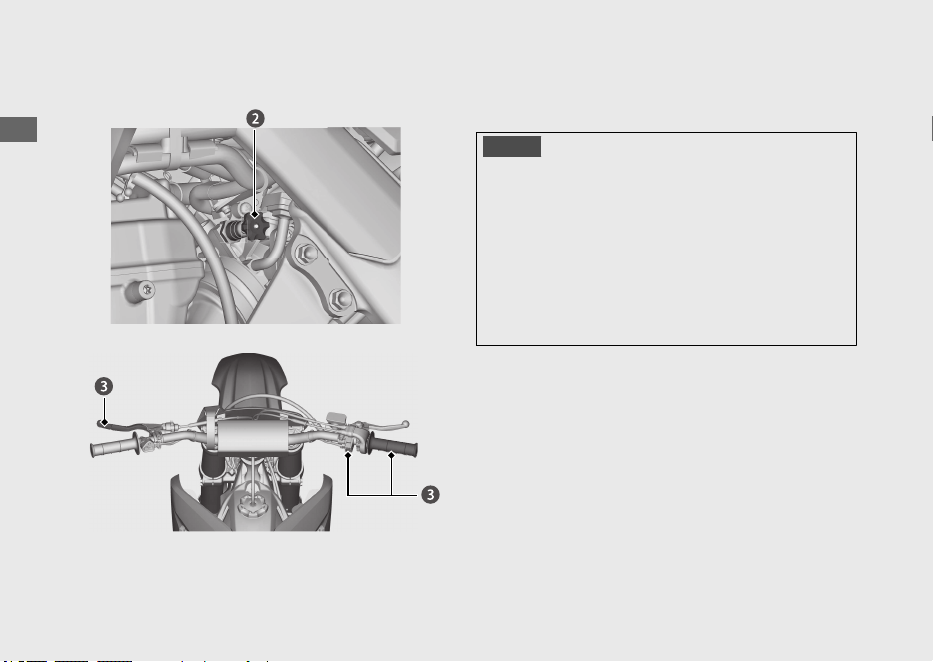

• Page 27 - English - : Cold Engine Starting a Shift the transmission to neutral b If the temperature is 50 F 10 C or below pull the fast idle knob fully up c With the throttle closed Pull the clutch lever all the way in and press the start button d About a minute after the engine starts push the fast idle knob back all the way to fully off If idling is unstable open the throttle slightly Warm Engine Starting a Shift the transmission into neutral b Pull the clutch lever and press the start button Do not open the throttle Starting the engine excessively charged with fuel by throttle blipping or other reasons a Shift the transmission into neutral b With the throttle fully opened pull the clutch lever and press the start button for 5 seconds to discharge excessive fuel from the engine c Pull the clutch lever and press the start button Do not open the throttle Operation Guide Continued
• Page 28 - English - : When starting the engine the PGMFI malfunction indicator lamp MIL amber will stay on for 2 seconds then go off And then the engine mode indicator blue indicates the current engine mode for 08 seconds then goes off If the PGMFI malfunction indicator lamp MILengine mode indicator does not come on or go off when it should have your dealer check it for problems When you stop the engine Normal Engine Stop a Shift the transmission into neutral b Push and hold the engine stop button until the engine stops completely Emergency Engine Stop To stop the engine in an emergency push and hold the engine stop button Operation Guide Starting the Engine Continued PGMFI malfunction indicator lamp MIL amber engine mode indicator blue Engine stop button

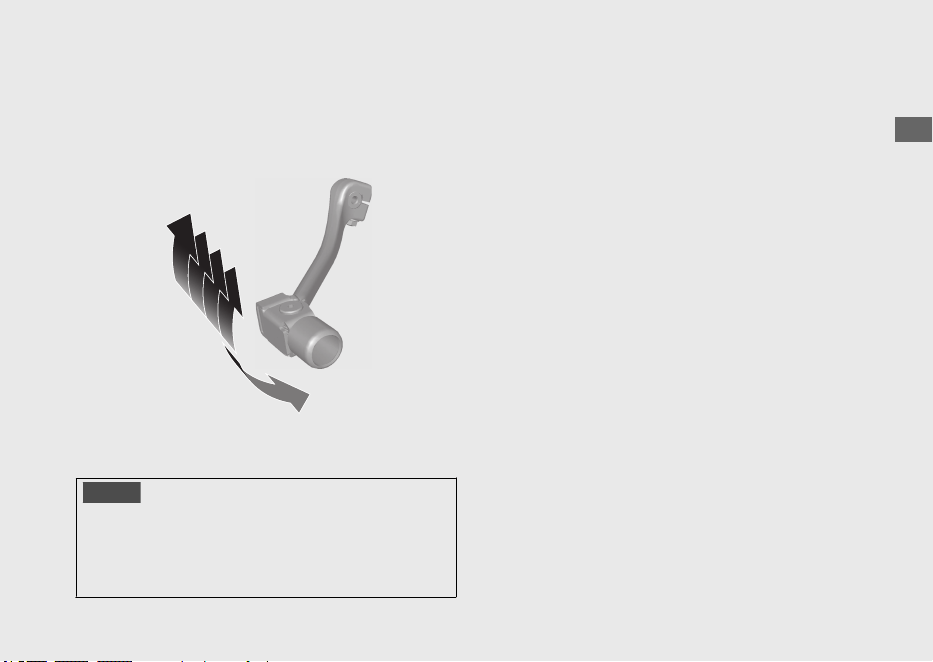

• Page 29 - English - : Shifting Gears Your vehicle transmission has 5 forward gears in a onedown fourup shift pattern NOTICE Improper shifting can damage the engine transmission and drive train Also coasting or towing the vehicle for long distances with the engine off can damage the transmission Operation Guide N
• Page 30 - English - : Refueling Be careful not to damage the fuel pump while filling the fuel tank Avoid overfilling the tank There should be no fuel in the filler neck Fuel type Unleaded gasoline only Recommended fuel octane number Pump Octane Number PON 91 or higher CRF250RX Tank capacity 225 US gal 85 L CRF250R Tank capacity 166 US gal 63 L Refueling and Fuel Guidelines P9 Opening the Fuel Fill Cap a Pull the breather tube out of the steering stem nut b Turn the fuel fill cap counterclockwise and remove it Operation Guide Fuel fill capFiller neck bottom Steering stem nut Breather tube

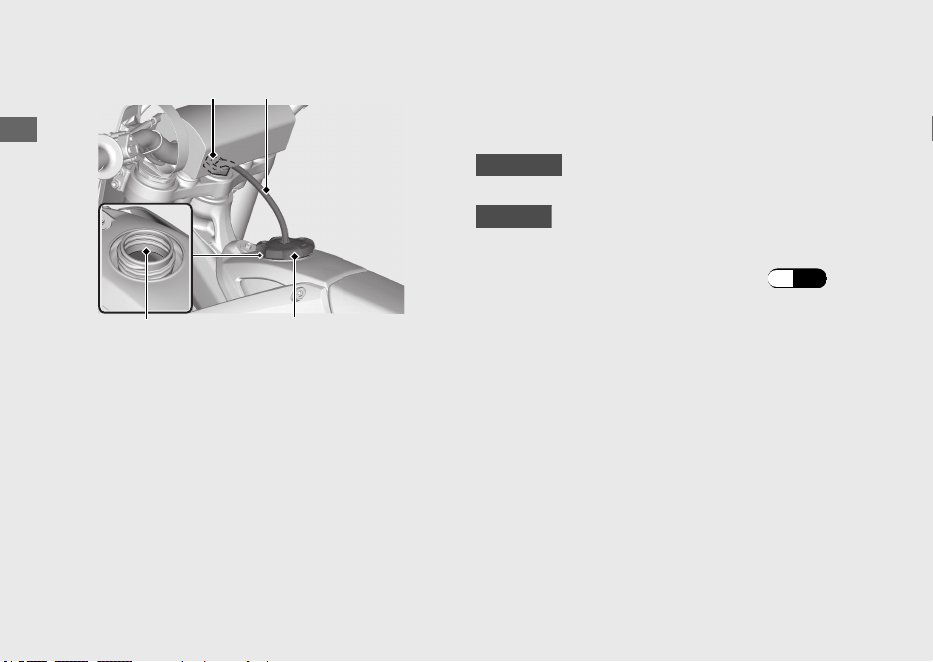

• Page 31 - English - : Closing the Fuel Fill Cap a After refueling close the fuel fill cap securely b Insert the breather tube into the steering stem nut 3WARNING Gasoline is highly flammable and explosive You can be burned or seriously injured when handling fuel Stop the engine and keep heat sparks and flame away Handle fuel only outdoors Wipe up spills immediately Operation Guide

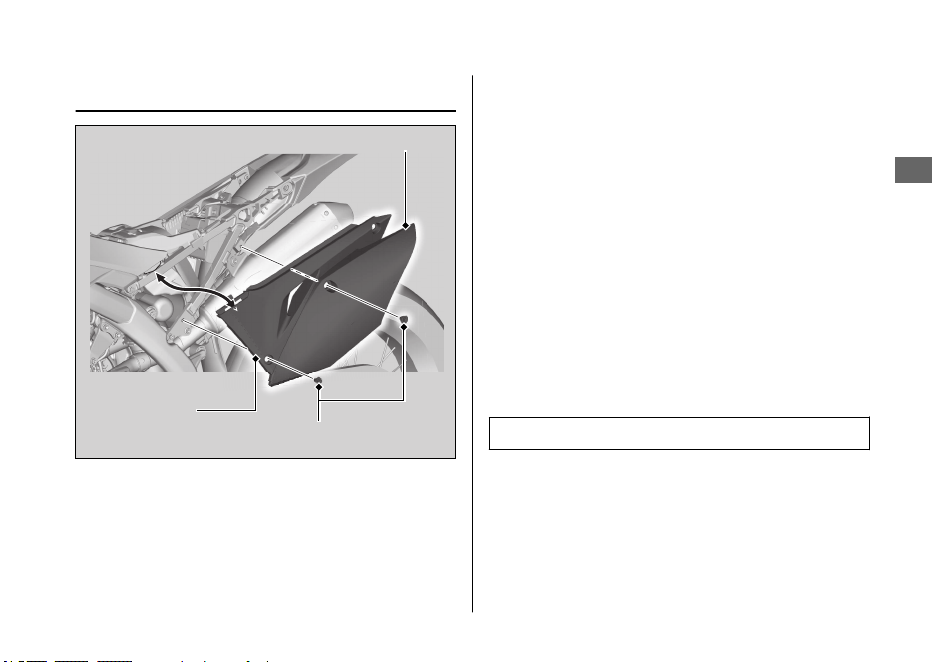

• Page 32 - English - : Importance of Maintenance P 29 Maintenance ScheduleP 31 Maintenance Fundamentals P 36 Removing amp Installing Body ComponentsP 46 Battery P 46 Seat P 48 Side CoverP 49 Please read Importance of Maintenance Maintenance Fundamentals and Competition Handbook carefully before attempting any maintenance Refer to Competition Handbook for service data Maintenance
• Page 33 - English - : Importance of Maintenance Importance of Maintenance Keeping your vehicle wellmaintained is absolutely essential to your safety and to protect your investment obtain maximum performance avoid breakdowns and reduce air pollution Maintenance is the owners responsibility Be sure to inspect your vehicle before each ride and perform the periodic checks specified in the Maintenance Schedule 2 P 31 3WARNING Improperly maintaining your vehicle or failing to correct a problem before you ride can cause a crash in which you can be seriously hurt or killed Always follow the inspection and maintenance recommendations and schedules in this owners manual and competition handbook Maintenance Safety Always read the maintenance instructions before you begin each task and make sure that you have the tools parts and skills required We cannot warn you of every conceivable hazard that can arise in performing maintenance Only you can decide whether or not you should perform a given task Follow these guidelines when performing maintenance Stop the engine CRF250RX Place your vehicle on a firm level surface using the side stand an optional workstand or a maintenance stand to provide support CRF250R Place your vehicle on a firm level surface using an optional workstand or a maintenance stand to provide support Maintenance Continued
• Page 34 - English - : Allow the engine muffler brakes and other hightemperature parts to cool before servicing as you can get burned Run the engine only when instructed and do so in a wellventilated area Importance of Maintenance Maintenance
• Page 35 - English - : Maintenance Schedule To maintain the safety and reliability of your vehicle regular inspection and service is required as shown in the Maintenance Schedule that follows The Maintenance Schedule lists items that can be performed with basic mechanical skills and hand tools Procedures for these items are provided in Competition Handbook The Maintenance Schedule also includes items that involve more extensive procedures and may require special training tools and equipment Therefore we recommend that you have your dealer perform these tasks unless you have advanced mechanical skills and the required tools Procedures for items in this schedule are provided in an official Honda Service Manual available for purchase from your dealer 2 P 67 CRF250RX Service intervals in the maintenance schedule are expressed in terms of races and riding hours To avoid overlooking required service we urge you to develop a convenient way to record the number of races andor hours you ride CRF250R Service intervals in the maintenance schedule are expressed in terms of motos and riding hours To avoid overlooking required service we urge you to develop a convenient way to record the number of motos andor hours you ride If you do not feel capable of performing a given task or need assistance remember that your Honda dealer knows your vehicle best and is fully equipped to maintain and repair it If you decide to do your own maintenance use only Honda Genuine Parts or their equivalents for repair or replacement to ensure the best quality and reliability Maintenance Continued
• Page 36 - English - : Make sure whoever performs the scheduled maintenance completes the maintenance record Retain all service documents If you sell your vehicle these service documents should be transferred with the vehicle to the new owner Maintenance Schedule Maintenance
• Page 37 - English - : Perform the Preride Inspection 2 P 36 at each scheduled maintenance period FREQUENCY ITEMS NOTE CRF250R Each race or about 25 hours Every 3 races or about 75 hours Every 6 races or about 150 hours Every 9 races or about 225 hours Every 12 races or about 300 hours CRF250RX Each race or about 35 hours Every 2 races or about 75 hours Every 4 races or about 150 hours Every 6 races or about 225 hours Every 8 races or about 300 hours Fuel Line NOTE 6 Fuel Pump Filter NOTE 6 Throttle Operation Air Filter NOTE 1 Crankcase Breather Spark Plug Valve ClearanceDecompressor System NOTE 4 Engine Oil NOTE 3 5 Engine Oil Filter NOTE 3 Engine Idle Speed WE RECOMMEND THESE ITEMS BE SERVICED BY REFERRING TO THE OFFICIAL HONDA SERVICE MANUAL This maintenance schedule is based upon average riding condition Machine subjected to severe use require more frequent servicing Maintenance Legend Inspect clean adjust lubricate or replace if necessary Lubricate Replace Clean Maintenance Schedule Maintenance Continued
• Page 38 - English - : FREQUENCY ITEMS NOTE CRF250R Each race or about 25 hours Every 3 races or about 75 hours Every 6 races or about 150 hours Every 9 races or about 225 hours Every 12 races or about 300 hours CRF250RX Each race or about 35 hours Every 2 races or about 75 hours Every 4 races or about 150 hours Every 6 races or about 225 hours Every 8 races or about 300 hours Piston and Piston Rings Piston Pin Radiator Coolant NOTE 2 Cooling System Drive Chain Drive Chain Slider Drive Chain Roller Drive Sprocket Driven Sprocket Brake Fluid NOTE 2 Brake Pads Wear Brake System Maintenance Schedule Maintenance
• Page 39 - English - : FREQUENCY ITEMS NOTE CRF250R Each race or about 25 hours Every 3 races or about 75 hours Every 6 races or about 150 hours Every 9 races or about 225 hours Every 12 races or about 300 hours CRF250RX Each race or about 35 hours Every 2 races or about 75 hours Every 4 races or about 150 hours Every 6 races or about 225 hours Every 8 races or about 300 hours Clutch System NOTE 5 Control Cables Exhaust PipeMuffler Suspension SwingarmShock Linkage Fork Oil NOTE 3 Nuts Bolts Fasteners WheelsTires Steering Head Bearings Side Stand NOTE 7 Notes 1 Clean after every race for dusty riding condition 4 Inspect after the first breakin ride 2 Replace every 2 years Replacement requires mechanical skill 5 Replace the engine oil if the clutch discs and plates are replaced 3 Replace after the first breakin ride 6 Replace every year 7 Only RX type Maintenance Schedule Maintenance
• Page 40 - English - : Maintenance Fundamentals Preride Inspection To ensure safety it is your responsibility to perform a preride inspection and make sure that any problem you find is corrected A pre ride inspection is a must not only for safety but because having a breakdown or even a flat tire can be a major inconvenience Refer to Competition Handbook for procedures Competitive riding can be tough on a motorcycle so its important to inspect your vehicle and correct any problems you find before each ride Check the following before each ride Engine oil level Fuel line for condition Coolant for proper level Cooling system and hoses for condition Spark plug for proper heat range carbon fouling and spark plug wire terminal for looseness Air cleaner for condition and contamination Clutch lever freeplay Breather drain for cleaning Steering head bearing and related parts for condition Throttle operation Tires for damage or improper inflation pressure Spokes for looseness Rim locks for looseness Front and rear suspension for proper operation Front and rear brakes check operation Drive chain for correct slack and adequate lubrication Drive chain sliders and drive chain rollers for damage or wear Exhaust pipeMuffler for looseness Every possible part for looseness such as cylinder head bolts engine mounting bolts nuts axle nuts handlebar holder bolts fork bridge pinch bolts drive chain adjuster lock nuts drive chain roller boltnut wire harness connectors PGMFI malfunction indicator lamp MIL operation Maintenance

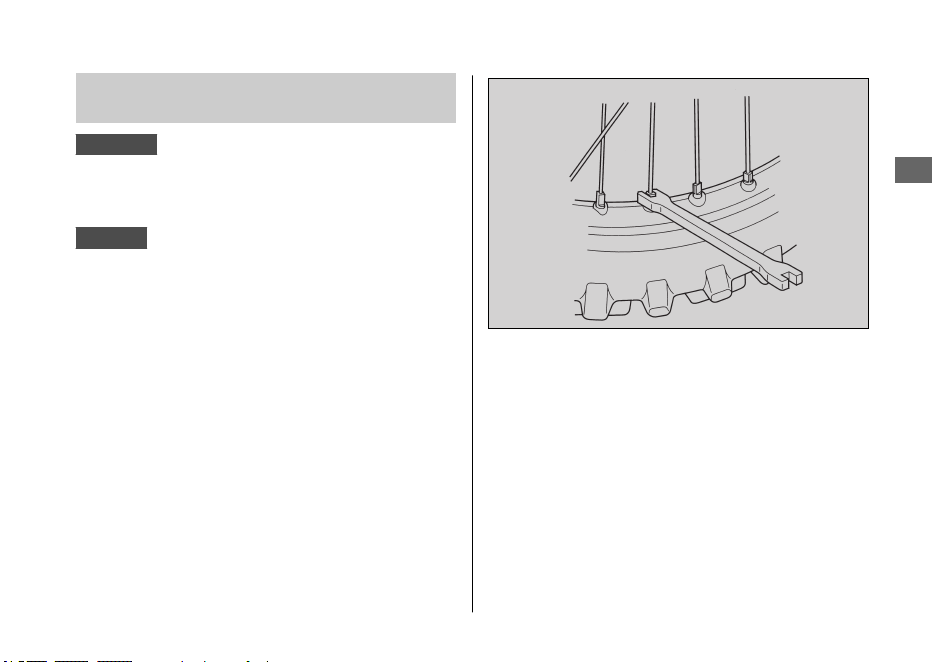

• Page 41 - English - : Between RacesMotos amp Practice Maintenance CRF250RX After practice or between races you have a chance to make additional checks and adjustments CRF250R After practice or between motos you have a chance to make additional checks and adjustments Clean accumulated dirt from under the fenders and off the wheels suspension components handgrips controls and footpegs A stiff nylon parts cleaning brush works well Check tire air pressure Check spoke tension and make sure the rim locks are secure Check to make sure the sprocket bolts and nuts are secure Clean the sides of the drive chain with a stiff nylon partscleaning brush Lubricate and adjust the chain as necessary Do not perform maintenance while engine is running Injury to your fingers or hands may result Maintenance Fundamentals Maintenance Continued

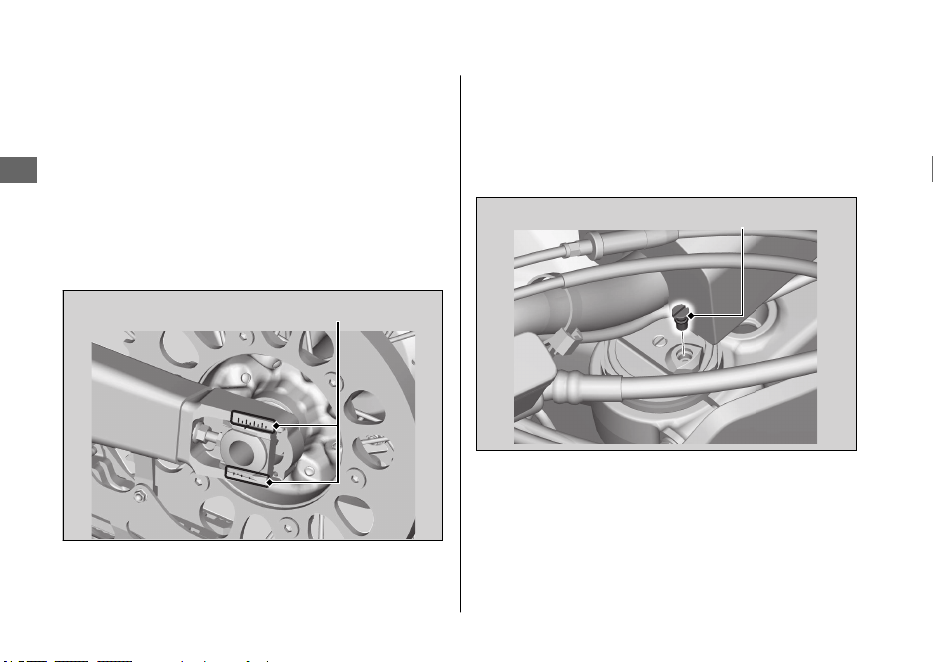

• Page 42 - English - : After adjustment check that the chain adjuster index marks are in the same position on each side This will ensure that the rear wheel is in proper alignment and allow maximum performance from the rear disc brake Maintaining proper wheel alignment will also extend brake pad lifespan Suspend the front wheel above the ground and use the pressure release screws to release the builtup pressure in the forks This pressure is caused by normal fork action while riding Maintenance Fundamentals Maintenance Chain adjuster index marks Pressure release screw
• Page 43 - English - : After Competition Maintenance It is important to the long term performance of your vehicle to practice a consistent maintenance program Right after the event is a good time to begin your next maintenance cycle After Race CRF250RXMoto CRF250R Lubrication Apply a light coating of rustinhibiting oil to the drive sprocket and any steel portions of the chassis or engine where the paint has worn away This will prevent rusting of the exposed metal Apply rustinhibiting oil more heavily if the event was particularly wet or muddy Take care to avoid spraying any oil near the brake pads or the brake discs Take care to prevent catching your fingers between the chain and sprocket Remove the drive chain clean and lubricate it Be sure the chain is wiped clean and is dry before lubricating the chain Routine Cleaning If your vehicle is only slightly dirty it is best to clean it by hand with the aid of a stiff bristled nylon brush and some clean rags Maintenance Fundamentals Maintenance Continued

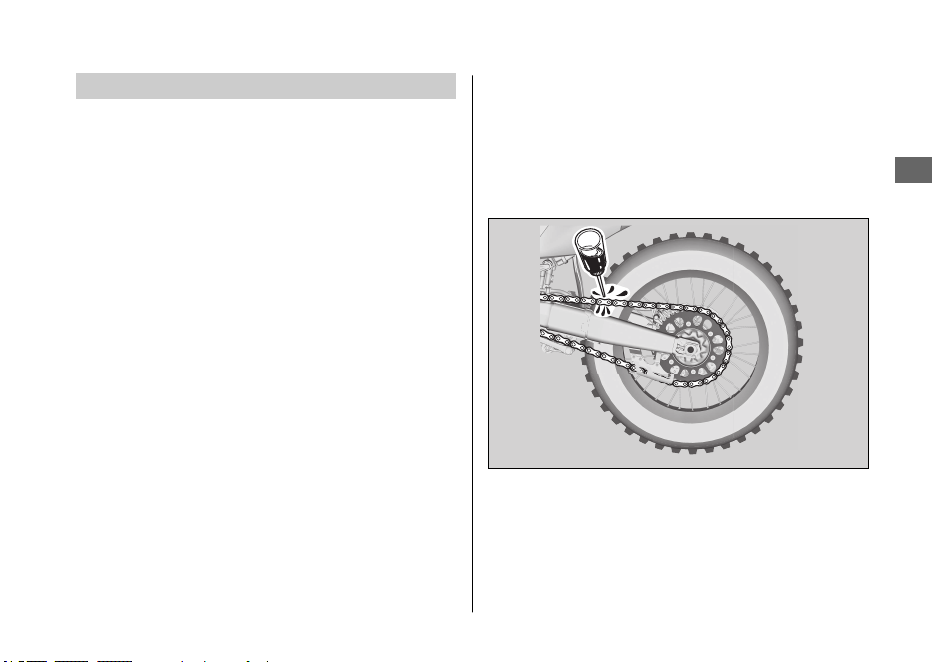

• Page 44 - English - : Take care to prevent catching your fingers between the chain and sprocket A variety of reasonably priced cleaning brushes are available from variety drug food and hardware stores Some of these brushes are extremely useful in removing dirt from the many tight contours of the metal pieces of your vehicle Avoid using stiff abrasive brushes on the plastic or rubber parts If your vehicle was exposed to sea air or salt water rinse it as soon as possible after the event dry it and apply a spray lubricant to all metal parts If you decide to wash your vehicle or use cleaners refer to quotCaring for Your Vehiclequot 2 P 57 Replacing Parts Always use Honda Genuine Parts or their equivalents to ensure reliability and safety 3WARNING Installing nonHonda parts may make your vehicle unsafe and cause a crash in which you can be seriously hurt or killed Always use Honda Genuine Parts or equivalents that have been designed and approved for your vehicle Maintenance Fundamentals Maintenance
• Page 45 - English - : LithiumIon LiIon Battery Your vehicle has a lithiumion liion battery Clean the battery terminals if they become dirty or corroded NOTICE An improperly disposed of battery can be harmful to the environment and human health Always confirm local regulations for proper battery disposal instruction What to do in an emergency If any of the following occurs immediately see your doctor Electrolyte splashes into your eyes u Wash your eyes repeatedly with cool water for at 15 minutes Using water under pressure can damage your eyes Electrolyte splashes onto your skin u Remove affected clothing and wash your skin thoroughly using water Electrolyte splashes into your mouth u Rinse mouth thoroughly with water and do not swallow 3WARNING The battery contains flammable organic solvent as electrolyte You can be burned or seriously injured if the battery is handled improperly Keep the battery away from heat sparks and flame Keep the battery out of the reach of children Do not disassemble or modify the battery or battery terminals Do not shortcircuit the battery with metal tools or other metal objects Do not subject the battery to impacts Maintenance Fundamentals Maintenance Continued
• Page 46 - English - : Cleaning the Battery Terminals Remove the battery 2 P 46 If the terminals are starting to corrode and are coated with a white substance wash with warm water and wipe clean If the terminals are heavily corroded clean and polish the terminals with a wire brush or sandpaper Wear safety glasses After cleaning reinstall the battery The battery has a limited life span Consult your dealer about when you should replace the battery Always replace the battery with another lithiumion liion battery of the same type Charging If you use electrical accessories that drain the battery or you do not ride frequently we recommend that you charge the battery every 30 days using a charger recommended by your lithiumion liion battery manufacturer Contact your dealer before charging the battery Make sure the battery terminals are disconnected before charging the battery NOTICE Only use a charger recommended by your lithiumion liion battery manufacturer Using a battery charger that is not recommended can cause permanent damage to your battery NOTICE Improper charging can damage the battery If you cant charge the battery or it appears unable to hold a charge contact your dealer Maintenance Fundamentals Maintenance
• Page 47 - English - : NOTICE Do not jumpstart as this can damage your vehicles electrical system and battery Bump starting is not recommended NOTICE Installing nonHonda electrical accessories can overload the electrical system discharging the battery and possibly damaging the system Fuses Fuses protect the electrical circuits on your vehicle If something electrical on your vehicle stops working check for and replace any blown fuses 2 P 54 Inspecting and Replacing Fuses Turn the engine off to remove and inspect the fuses If a fuse is blown replace with a fuse of the same rating For fuse ratings see Specifications 2 P 72 NOTICE Replacing a fuse with one that has a higher rating greatly increases the chance of damage to the electrical system If a fuse fails repeatedly you likely have an electrical fault Have your vehicle inspected by your dealer Maintenance Fundamentals Maintenance Blown fuse
• Page 48 - English - : Tires InspectingReplacing Checking the Air Pressure Visually inspect your tires and use an air pressure gauge to measure the air pressure before each ride Always check air pressure when your tires are cold If you decide to adjust the tire pressure for a particular riding condition make changes a little at a time Inspecting for Damage Inspect the tires for cuts slits or cracks that exposes fabric or cords or nails or other foreign objects embedded in the side of the tire or the tread Also inspect for any unusual bumps or bulges in the side walls of the tires Inspecting for Abnormal Wear Inspect the tires for signs of abnormal wear on the contact surface Inspecting Rims and Valve Stems Inspect the rims for damage and loose spokes Also inspect the valve stems for their positions A tilted valve stem indicates the tube is slipping inside the tire or the tire is slipping on the rim See your dealer 3WARNING Riding on tires that are excessively worn or improperly inflated can cause a crash in which you can be seriously hurt or killed Follow all instructions in this owners manual regarding tire inflation and maintenance Maintenance Fundamentals Maintenance
• Page 49 - English - : Have your tires replaced by your dealer For recommended tires and air pressure see Specifications 2 P 70 Follow these guidelines whenever you replace tires Use the recommended tires or equivalents of the same size construction speed rating and load range Remember to replace the inner tube whenever you replace a tire The old tube will probably be stretched and it could fail if installed in a new tire If a tube is punctured or damaged you should replace it as soon as possible A repaired tube may not have the same reliability as a new one and it may fail while you are riding Use a replacement tube equivalent to the original 3WARNING Installing improper tires on your vehicle can adversely affect handling and stability and can cause a crash in which you can be seriously hurt or killed Always use the size and type of tires recommended in this owners manual Maintenance Fundamentals Maintenance

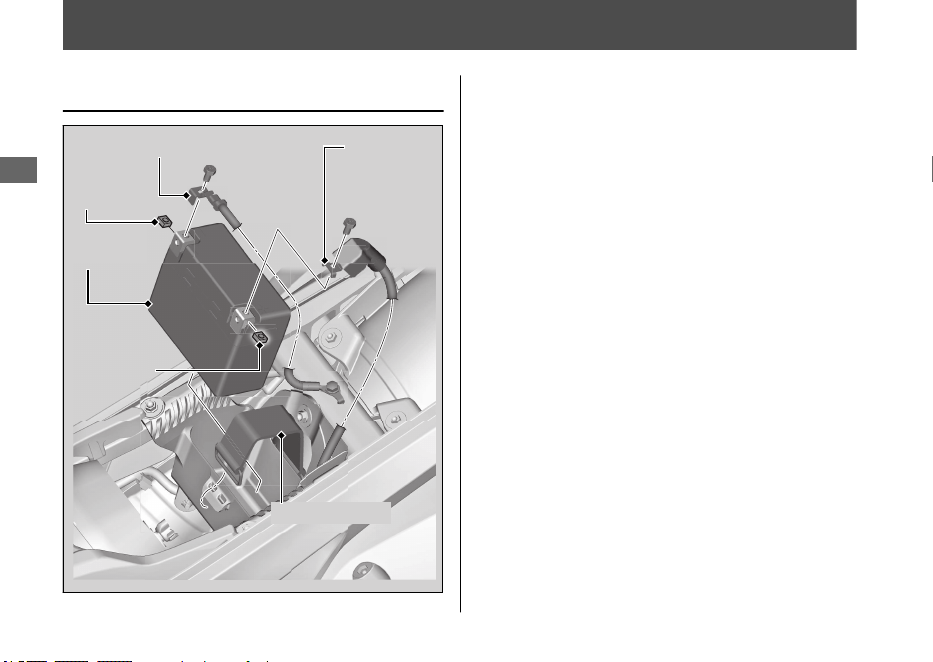

• Page 50 - English - : Removing amp Installing Body Components Battery Removal Remove the seat 2 P 48 Remove the battery band Disconnect the negative terminal from the battery Disconnect the positive terminal from the battery Remove the battery taking care not to drop the terminal nuts Maintenance Negative terminal Battery Battery band Positive terminal Terminal nut Terminal nut
• Page 51 - English - : Installation Install the parts in the reverse order of removal Always connect the positive terminal first Make sure that bolts and nuts are tight Tighten the positive terminal bolt and negative terminal bolt to the specified torque Torque 15 lbfft 20 Nm 02 kgfm Install the battery band and seat For proper handling of the battery see Maintenance Fundamentals 2 P 41 Battery Goes Dead 2 P 53 Removing amp Installing Body Components u Battery Maintenance
