IMPORTANT NOTICE
FOR RECREATIONAL OFF-ROAD OR COMPETITION USE ONLY
This vehicle is designed and manufactured for recreational off-road
use or competition only and is covered by a noise control warranty.
It does not conform to federal motor vehicle safety standards or US
EPA On Highway Exhaust Emission regulations, and operation on
public streets, roads, or highways is illegal. The vehicle is equipped
with a USDA qualified spark arrester. If you need to cross a paved or
public road, get off and walk your vehicle across. Obey local laws
and regulations.
It conforms to US EPA and California emission regulations for off-
road motorcycles.
Do not modify any emission-related items except for competition use.
Any emission-related modifications should be restored to standard
factory specifications before resuming recreational off-road use.
NO PASSENGERS
This vehicle is designed and constructed as an operator-only model.
The motorcycle load limit and seating configuration do not safely
permit the carrying of a passenger.
Welcome
Congratulations on your purchase of a new
Honda vehicle. Your selection of a Honda makes
you part of a worldwide family of satisfied
customers who appreciate Honda's reputation
for building quality into every product.
Your vehicle was designed as a recreational
motorcycle for off-road use by one rider only.
To ensure your safety and riding pleasure:
● Read this owner's manual and
competition handbook carefully.
● Follow all recommendations and
procedures contained in this owner's
manual and competition handbook.
●
Pay close attention to safety messages
contained in this owner's manual,
competition handbook and on the vehicle.
To protect your investment, we urge you to
take responsibility for keeping your vehicle
well serviced and maintained. Also, observe
the break-in guidelines, and always perform
the pre-ride inspection and other periodic
checks in this manual.
When service is required, remember that
your Honda dealer knows your vehicle best.
If you have the required mechanical “know-
how” and tools, you can purchase an official
Honda Service Manual to help you perform
many maintenance and repair tasks. 2 P. 92
Read the warranty information thoroughly so
that you understand the warranty coverage
and that you are aware of your rights and
responsibilities. 2 P. 93
You may also want to visit our website at
www.powersports.honda.com.
Happy riding!
A Few Words About Safety
Your safety, and the safety of others, is very
important. Operating this vehicle safely is an
important responsibility.
To help you make informed decisions about
safety, we have provided operating procedures
and other information on safety labels, in this
owner's manual and competition handbook.
This information alerts you to potential hazards
that could hurt you or others.
Of course, it is not practical or possible to
warn you about all hazards associated with
operating or maintaining a vehicle. You must
use your own good judgment.
You will find important safety information in a
variety of forms, including:
● Safety labels on the vehicle
●
Safety Messages preceded by a safety alert
symbol and one of three signal words:
DANGER, WARNING, or CAUTION.
These signal words mean:
3DANGER
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3WARNING
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3CAUTION
You CAN be HURT if you don’t follow
instructions.
Other important information is
provided under the following titles:
NOTICE
Information to help you avoid
damage to your vehicle, other
property, or the environment.
Safety Guidelines................................................. P. 3
Safety Labels
......................................................... P. 7
Safety Precautions............................................... P. 8
Riding Precautions .............................................. P. 9
Accessories & Modifications........................... P. 12
Loading ................................................................ P. 13
This section contains important information for safe riding of your vehicle.
Please read this section carefully.
Vehicle Safety
Safety Guidelines
Follow these guidelines to enhance your safety:
● Perform all routine and regular inspections
specified in this owner's manual and
competition handbook.
● Stop the engine and keep sparks and flame
away before filling the fuel tank.
● Do not run the engine in enclosed or partly
enclosed areas. Carbon monoxide in
exhaust gases is toxic and can kill you.
Always Wear a Helmet
It's a proven fact: helmets and protective
apparel significantly reduce the number and
severity of head and other injuries. So always
wear an approved helmet and protective
apparel. 2 P. 8
Before Riding
Make sure that you are physically fit, mentally
focused and free of alcohol and drugs. Check
that you are wearing an approved helmet and
protective apparel.
Take Time to Learn & Practice
Developing off-road riding skill is a gradual
step-by step process. Start by practicing at low
speeds in a safe area and slowly build your
skills.
Ask your dealer if there are off-road riding
groups in your area where you can learn from
experienced riders. Also be sure to read Tips &
Practice Guide for the Off-Highway Motorcyclist
that came with your new vehicle.
Be Alert for Off-road Hazards
The terrain can be present a variety of
challenges when you ride off-road.
Safety Guidelines
Vehicle Safety
3
Continued
Continually “read” the terrain for unexpected
turns, drop-offs, rocks, ruts and other hazards.
Always keep your speed low enough to allow
time to see and react to hazards.
Ride within Your Limits
Never ride beyond your personal abilities or
faster than conditions warrant. Fatigue and
inattention can impair your ability to use good
judgment and ride safely.
Never Carry a Passenger
There are no handholds, seat, or footrests to
carry a passenger.
Don't Drink or Use Drugs and Ride
Alcohol or drugs and riding don't mix. Even one
alcoholic drink can reduce your ability to
respond to changing conditions, and your
reaction time gets worse with every additional
drink. The same is true for drug use. Don't drink
or use and ride, and don't let your friends do it
either.
Keep Your Honda in Safe Condition
It's important to keep your vehicle properly
maintained and in safe riding condition.
Having a breakdown can be difficult, especially
if you are stranded off-road far from your base.
Inspect your vehicle before every ride and
perform all recommended maintenance. Follow
the loading guidelines (2 P. 13), and do not
modify your vehicle or install accessories that
would make your vehicle unsafe (2 P. 12).
Safety Guidelines
Vehicle Safety
4
If You are Involved in a Crash
Personal safety is your first priority after a crash.
If you or anyone else has been injured, take
time to assess the severity of the injuries and
whether it is safe to continue riding. If you
cannot ride safely, send someone for help. Do
not ride if you will risk further injury.
If you decide that you are capable of riding
safely, first evaluate the condition of your
vehicle. If the engine is still running, turn it off
and look it over carefully; inspect it for fluid
leaks, check the tightness of critical nuts and
bolts, and secure such parts as the handlebar,
control levers, brakes, and wheels.
If there is minor damage, or you are unsure
about possible damage but decide to try riding
the vehicle back to your base, ride slowly and
cautiously.
Lithium-Ion (Li-Ion) Battery
If you smell an unusual odor coming from the
lithium-ion (li-ion) battery, park your vehicle in a
safe place outside and away from flammable
objects, then stop the engine. Have your vehicle
inspected by your dealer immediately.
Safety Guidelines
Vehicle Safety
5
Continued
Carbon Monoxide Hazard
Exhaust contains poisonous carbon monoxide, a
colorless, odorless gas. Breathing carbon
monoxide can cause loss of consciousness and
may lead to death.
If you run the engine in confined or even partly
enclosed area, the air you breathe could
contain a dangerous amount of carbon
monoxide.
Never run your vehicle inside a garage or other
enclosure.
3WARNING
Running the engine of your vehicle
while in an enclosed or even partially
enclosed area can cause a rapid build-
up of toxic carbon monoxide gas.
Breathing this colorless, odorless gas
can quickly cause unconsciousness and
lead to death.
Only run your vehicle's engine when it
is located in a well ventilated area
outdoors.
Safety Guidelines
Vehicle Safety
6
Safety Labels
Safety and information labels on your vehicle
provide important safety information and may
warn you of potential hazards that could cause
serious injury. Read these labels carefully and
don't remove them.
If a label comes off or becomes hard to read,
contact your dealer for a replacement.
Safety Labels
Vehicle Safety
7
Safety Precautions
Protective Apparel
Make sure that you are wearing an approved
helmet, eye protection, and other appropriate
riding gear.
#
Helmet
Should be safety-standard certified, high-
visibility, and correct size for your head
● Must fit comfortably but securely, with the
chin strap fastened.
● Approved eye protection
● Face shield with unobstructed field of vision
or other approved eye protection
Look for a DOT (Department of Transportation)
certification label on any helmet you buy.
3WARNING
Not wearing a helmet increases the
chance of serious injury or death in a
crash.
Make sure that you always wear an
approved helmet ,eye protection, and
protective apparel.
#
Protective Gear
We recommend that you wear sturdy boots,
gloves, and other protective gear. The exhaust
system becomes very hot during operation, and
it remains hot after operation. Never touch any
part of the hot exhaust system. Wear clothing
that fully covers your legs.
Do not wear loose clothing which could catch
on the control levers, kickstarter, footpegs, drive
chain, or wheels.
Safety Precautions
Vehicle Safety
8
Riding Precautions
Break-in Period
During the first operating day or 15 miles (25
km) of running, follow these guidelines to
ensure your vehicle's future reliability and
performance.
● Avoid full-throttle starts and rapid
acceleration.
● Avoid hard braking and rapid down-shifts.
● Ride conservatively.
This same procedure should be followed each
time when:
● Piston is replaced
● Piston rings are replaced
● Cylinder is replaced
● Crankshaft or crank bearings are replaced
Brakes
To slow or stop, apply the front brake lever and
rear brake pedal smoothly, while downshifting
to match your speed. Gradually increase
braking as you feel the brakes slowing your
speed. To prevent stalling the engine, pull the
clutch lever in before coming to a complete
stop. For support, put your left foot down first,
then your right foot when you are through
using the rear brake pedal.
For maximum braking, close the throttle and
firmly apply the front brake lever and rear brake
pedal controls.
Applying the brakes too hard may cause the
wheels to lock and slide, reducing control of
your vehicle. If this happens, release the brake
controls, steer straight ahead until you regain
control, then reapply the brakes more gently.
Riding Precautions
Vehicle Safety
9
Continued
Generally, reduce your speed or complete
braking before beginning a turn. Avoid braking
or closing the throttle quickly while turning.
Either action may cause one or both wheels to
slip. Any wheel slip will reduce your control of
your vehicle.
When riding in wet or raining conditions, or on
loose surfaces, the ability to maneuver and stop
will be reduced. All of your actions should be
smooth under these conditions. Rapid
acceleration, braking, or turning may cause loss
of control. For your safety, exercise extreme
caution when braking, accelerating, or turning.
When descending a long, steep grade, use
engine compression braking by downshifting,
with intermittent use of both brakes.
When you brake to a stop, pull the clutch lever
in before stopping completely to prevent
stalling the engine. For support, put your left
foot on the ground first, then your right foot
when you have finished braking.
Parking
● Park on a firm, level surface.
● If you must park on a slight incline or loose
surface, park so that the vehicle cannot
move or fall over.
● Make sure that high-temperature parts
cannot come into contact with flammable
materials.
● Do not touch the engine, muffler, brakes
and other high-temperature parts until they
cool down.
#
Parking with the Side Stand
1.
Stop the engine.
2.
Push the side stand down.
3.
Slowly lean the vehicle to the left until its
weight rests on the side stand.
Riding Precautions
Vehicle Safety
10
4.
Turn the handlebar fully to the left.
u Turning the handlebar to the right
reduces stability and may cause the
vehicle to fall.
Post-ride Inspection
When you return home after riding, thoroughly
clean your vehicle and remove any dirt, mud,
brush, rocks or other objects you may have
picked up along the way.
After cleaning, carefully inspect your vehicle for
leaks or damage.
Be sure to lubricate the drive chain to prevent
rusting.
Refueling and Fuel Guidelines
Follow these guidelines to protect the engine
and fuel system:
● Use only unleaded gasoline.
● Use recommended octane number. Using
lower octane gasoline will result in
decreased engine performance.
● Do not use fuels containing a high
concentration of alcohol. 2 P. 91
● Do not use stale or contaminated gasoline
or an oil/gasoline mixture.
● Avoid getting dirt or water in the fuel tank.
Riding Precautions
Vehicle Safety
11
Accessories &
Modifications
We strongly advise that you do not add any
accessories that were not specifically designed
or approved for your vehicle by Honda or make
modifications to your vehicle from its original
design. Doing so can make it unsafe.
Modifying your vehicle may also void your
warranty and make your vehicle illegal to
operate on public roads. Before deciding to
install accessories on your vehicle be certain the
modification is safe and legal.
3WARNING
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner's
manual regarding accessories and
modifications.
Do not pull a trailer with, or attach a sidecar to,
your vehicle. Your vehicle was not designed for
these attachments, and their use can seriously
impair your vehicle's handling.
Do not attempt modify the vehicle to carry a
passenger. The subframe was not designed to
carry the additional weight of a passenger.
Accessories & Modifications
Vehicle Safety
12
Loading
We recommended that you do not carry any
cargo on this motorcycle. However, if you
decide to carry cargo, ride at reduced speeds
and follow these commonsense guidelines:
● Never carry a passenger. Your vehicle was
not designed to carry a passenger.
● Carrying extra weight affects your vehicle's
handling, braking and stability.
Always ride at a safe speed for the load you
are carrying.
● Avoid carrying an excessive load.
● Tie all luggage securely, evenly balanced
and close to the centre of the vehicle.
● Do not place objects near the lights or the
muffler.
● Keep cargo small and light weight.
Make sure it cannot easily be caught on
brush or other objects, and that it does not
interfere with your ability to shift position to
maintain balance and stability.
3WARNING
Overloading, improper loading or
carrying a passenger can cause a crash
and you can be seriously hurt or killed.
Follow all loading guidelines in this
manual.
Loading
Vehicle Safety
13
Operation Guide
17
Continued

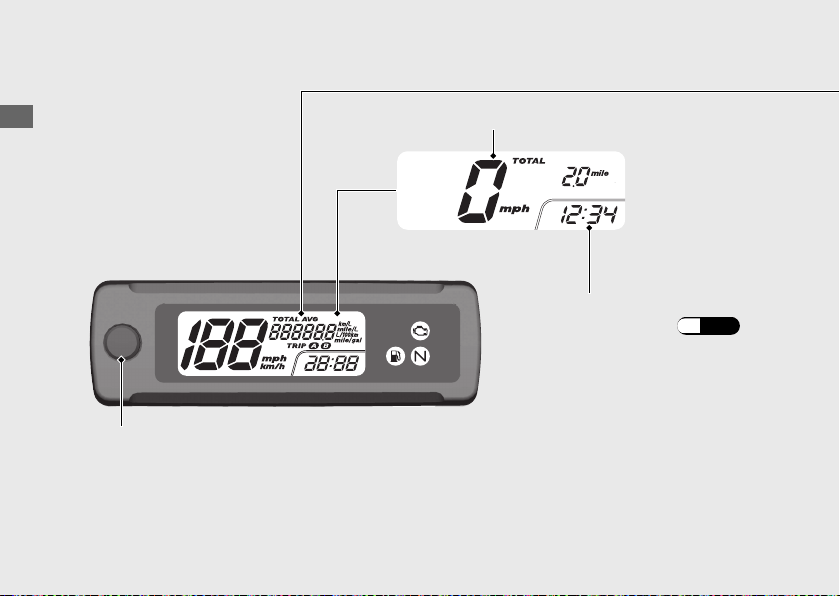

To select the odometer, tripmeter A/B, current fuel mileage, average fuel mileage A/B or
fuel consumption A/B press the SEL button.
Odometer [TOTAL], tripmeter [TRIP A/B], current fuel mileage,
average fuel mileage A [
TRIP A AVG], average fuel mileage B [TRIP B AVG], fuel
consumption A and fuel consumption B
To set the display
(P.
22)
Fuel
consumption A
Average fuel
mileage A
Current fuel
mileage
Tripmeter BTripmeter AOdometer
Average fuel
mileage B
Fuel
consumption B
To reset the tripmeter, average fuel mileage and fuel consumption
(P.20)
#
Odometer [TOTAL]
Total distance ridden.
When "
" is displayed, go to your
dealer for service.
#
Tripmeter [TRIP A/B]
Distance ridden since tripmeter A or
tripmeter B respectively were reset.
When "
" is displayed, go to your
dealer for service.
To reset the tripmeter: (P.20)
#
Current fuel mileage
Displays the current or instant fuel mileage.
Display range:
0.0 to 199.9 mile/gal.
0.0 to 99.9 L/100km (km/L).
● When your speed is less than 4 mph (6
km/h): “
” or “ ” is displayed.
When “ ” or “ ” is displayed except for
the above-mentioned case, go to your dealer
for service.
Operation Guide
18
Instruments (Continued)
#
Average fuel mileage [AVG]
Displays the average fuel mileage since the
selected tripmeter was reset.
The average fuel mileage will be calculated
based on value displayed on the tripmeter (A
or B) selected.
Display range:
0.0 to 199.9 mile/gal.
0.0 to 99.9 L/100km (km/L).
When “
” or “ ” is displayed, go to your
dealer for service.
To reset the average fuel mileage
(P.20)
#
Fuel Consumption
Displays the tripmeter fuel consumption since
the tripmeter was reset.
The fuel consumption will be calculated
based on value displayed on the tripmeter (A
or B) selected.
Display range: 0.0 to 299.9 gal (L)
When “
” is displayed, go to your dealer
for service.
To reset the fuel consumption: (P.
20)
Operation Guide
19
Continued
#
To Reset the Tripmeter [TRIP A/B]、
Average Fuel Mileage [AVG] and Fuel
Consumption
To reset tripmeter A, fuel consumption
(based on tripmeter A) and average fuel
mileage (based on tripmeter A) together,
press and hold the SEL button with the
tripmeter A, fuel consumption (based on
tripmeter A) or average fuel mileage (based
on tripmeter A) displayed.
When they are reset, reset display appears at
each indication.
Operation Guide
20
Instruments (Continued)
Or
Fuel Consumption A
Tripmeter A
Average fuel mileage A
Or
To reset tripmeter B, fuel consumption
(based on tripmeter B) and average fuel
mileage (based on tripmeter B) together,
press and hold the SEL button with the
tripmeter B, fuel consumption (based on
tripmeter B) or average fuel mileage (based
on tripmeter B) displayed.
When they are reset, reset display appears at
each indication.
Operation Guide
21
Continued
Or
Fuel Consumption B
Tripmeter B
Average fuel mileage B
Or
Display Setting
Press and hold the SEL button while odometer
or current fuel mileage is displayed, the
display turn into the setting mode.
Following items to change sequentially.
• Time format setting
• Clock setting
• Backlight brightness adjustment
• Changing of speed and mileage unit
• Changing of fuel mileage unit
In addition, to move the ordinary display at
display setting.
• Stop the engine and then restart the
engine.
u The established setting is maintained.
• The button is not pressed for about 30
seconds.
u The established setting is maintained.
Operation Guide
22
Instruments (Continued)
Ordinary display
Time format setting
Clock setting
Backlight brightness adjustment
Changing of speed and mileage unit
Changing of fuel mileage unit
Press and hold SEL button
1. Time format setting:
You can switch the time format between 12
hour format or 24 hour format.
a
Starting the engine.
b
Press the SEL button to select the odometer
or current fuel mileage. (P.
17)
c
Press and hold the SEL button until the
current time format start flashing
d
Press the SEL button to select “12 hr” or
“24 hr”.
e
Press and hold the SEL button. The time
format is set, and then the display moves to
the clock setting
Operation Guide
23
Continued
Odometer: Current fuel mileage:
Or
2. Clock setting:
a
Press the SEL button until the desired hour is
displayed.
b
Press and hold the SEL button. The minute
digits start flashing.
c
Press the SEL button until the desired
minute is displayed.
d
Press and hold the SEL button. The clock is
set, and then the display moves to the
backlight brightness adjustment.
Operation Guide
24
Instruments (Continued)
3. Backlight brightness adjustment
You can adjust the brightness to one of five
levels.
a
Press the SEL button. The brightness is
switched.
b
Press and hold the SEL button. The backlight
is set, and then the display moves the
changing of the speed and mileage unit.
4. Changing of speed and mileage unit
a
Press the SEL button to select either “mph”
and “mile” or “km/h” and “km”.
b
When selecting the “mph” and “mile”
Press and hold the SEL button. The speed
and mileage unit is set, and then the
display will return to the ordinary display.
When selecting the “km/h” and “km”
Press and hold the SEL button. The speed
and mileage unit is set, and then the
display moves the changing of the fuel
mileage unit.
Operation Guide
25
Continued
4. Changing of fuel mileage unit
a
Press the SEL button to switch between
“km/L
” or “L/100km”.
b
Press and hold the SEL button. The fuel
mileage unit is set, and then the display will
return to the ordinary display.
Operation Guide
26
Instruments (Continued)
Indicators
Operation Guide
27
Neutral indicator
Comes on when the transmission
is in Neutral.
If one of these indicators does not come on when it should, have your dealer check for
problems.
Fuel reserve indicator
Comes on when there is only reserve fuel left
in the fuel tank. Remaining fuel when low fuel
indicator comes on:
0.58 US gal (2.2 L)
Comes on briefly when the engine is started.
If it comes on while engine is running:
(P.
67)
PGM-FI malfunction indicator lamp (MIL)
Starting the Engine
Start your engine using the following procedure.
To restart a warm engine, follow the
procedure for “Warm Engine Starting”.
NOTICE
• If the engine does not start within 5 seconds,
wait 10 seconds before trying to start the
engine again to recover battery voltage.
•
Extended fast idling and revving the engine can
damage the engine, and the exhaust system.
• Snapping the throttle or fast idling for more
than about 5 minutes may cause exhaust
pipe discoloration.
Operation Guide
29
Continued
Cold Engine Starting
a
Shift the transmission to neutral.
b
If the temperature is 50 °F (10 °C) or below,
pull the fast idle knob fully up.
c
With the throttle closed. Pull the clutch lever
all the way in, and depress the start button.
d
About a minute after the engine starts, push
the fast idle knob back all the way to fully
OFF. If idling is unstable, open the throttle
slightly.
Warm Engine Starting
a
Shift the transmission into neutral.
b
Pull the clutch lever and depress the start
button. (Do not open the throttle.)
Starting the engine excessively charged
with fuel by throttle blipping or other
reasons
a
Shift the transmission into neutral.
b
With the throttle fully opened, pull the clutch
and depress the start button for 5 seconds
to discharge excessive fuel from the engine.
c
Pull the clutch lever and depress the start
button. (Do not open the throttle.)
Operation Guide
30
Starting the Engine (Continued)

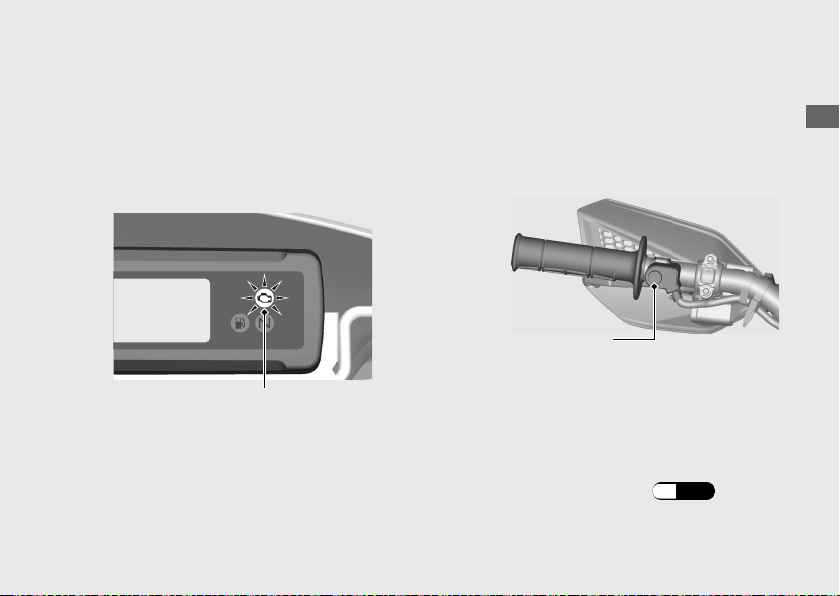

When starting the engine, the PGM-FI
malfunction indicator lamp (MIL) (amber) will
stay on for 2 seconds, then go off. If the
PGM-FI malfunction indicator lamp (MIL)
does not come on or go off when it should,
have your dealer check it for problems.
When you stop the engine
#
Normal Engine Stop
a
Shift the transmission into neutral.
b

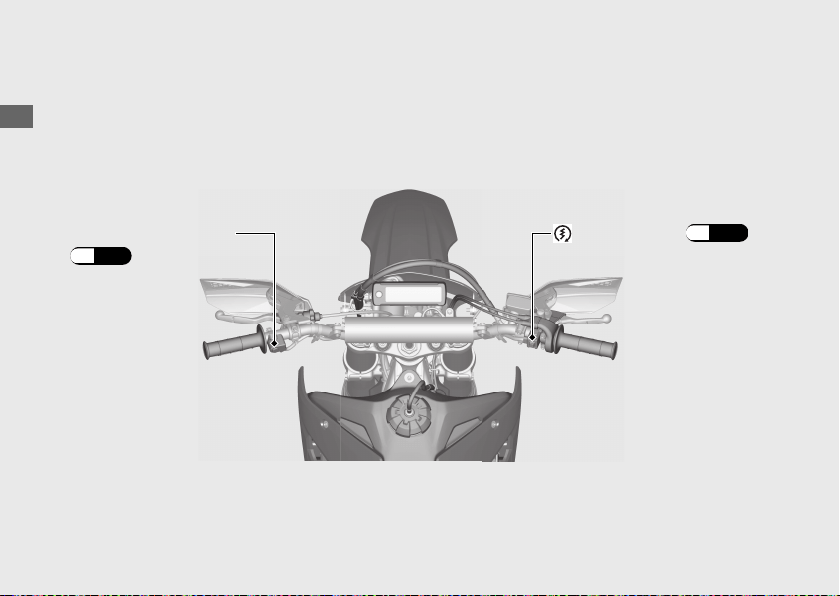

Push and hold the engine stop button until
the engine stops completely.
#
Emergency Engine Stop
To stop the engine in an emergency, push
and hold the engine stop button.
#
If Engine Will Not Start
(P.
66)
Operation Guide
31
PGM-FI malfunction indicator lamp
(MIL) (amber)
Engine stop button
Shifting Gears
Your vehicle transmission has 6 forward
gears in a one-down,
five-up shift pattern.
To start riding, after the engine has been
warmed and the side stand raised.
1.
Close the throttle and pull the front brake
lever in.
2.
Pull the clutch lever all the way in.
3.
Depress the shift lever from neutral down
to first gear.
4.
Release the front brake lever. Gradually
open the throttle while you slowly release
the clutch lever. If the engine rpm (speed)
is too low when you release the clutch
lever, the engine will stall. If the engine
rpm (speed) is too high or you release the
clutch lever too quickly, your vehicle may
lurch forward.
5.
When you attain a moderate speed, close
the throttle, pull the clutch lever in, and
raise the shift lever. After shifting, release
the clutch lever and apply the throttle.
6.
To continue shifting up to each higher
gear, repeat step 5.
7.
To shift down to a lower gear, close the
throttle, pull the clutch lever in, and
depress the shift lever. After shifting,
release the clutch lever and apply the
throttle.
Operation Guide
32
N
1
4
3
2
5
6
Remember to close the throttle and pull the
clutch lever in completely before shifting.
Learning when to shift gears comes with
experience. Upshift to a higher gear or
reduce throttle before engine rpm (speed)
gets too high.
Downshift to a lower gear before you feel the
engine laboring (lugging) at low rpm.
NOTICE
Downshifting can help slow your motorcycle,
especially on downhills. However, downshifting
when engine rpm is too high can cause engine
damage.
NOTICE
Improper shifting can damage the engine,
transmission, and drive train. Also, coasting or
towing the vehicle for long distances with the
engine off can damage the transmission.
Operation Guide
33
Refueling
Be careful not to damage the fuel pump
while filling the fuel tank.
Do not fill with fuel above the lower edge of
the filler neck.

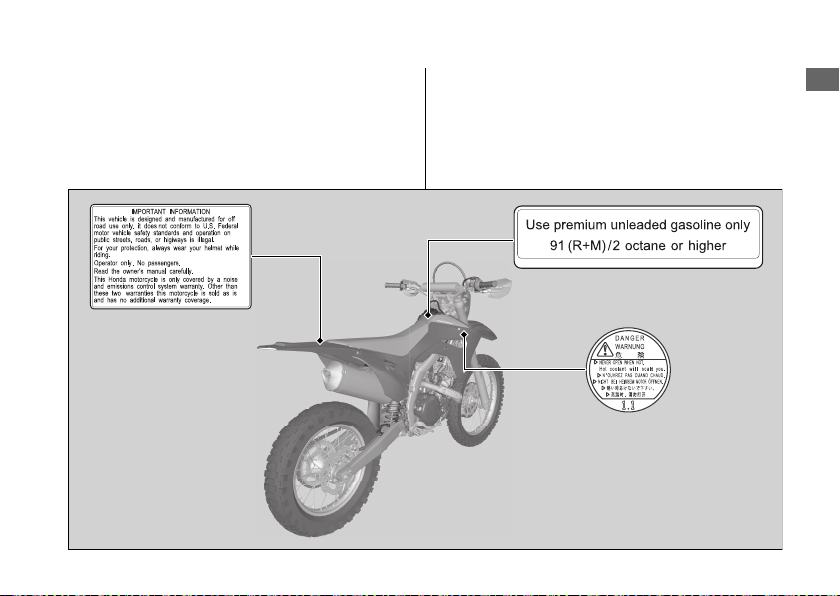

Fuel type: Unleaded gasoline only
Recommended fuel octane number:
Pump Octane Number (PON) 91
or higher.
Tank capacity: 2.01 US gal (7.6 L)
#
Refueling and Fuel Guidelines (P.11)
Operation Guide
34

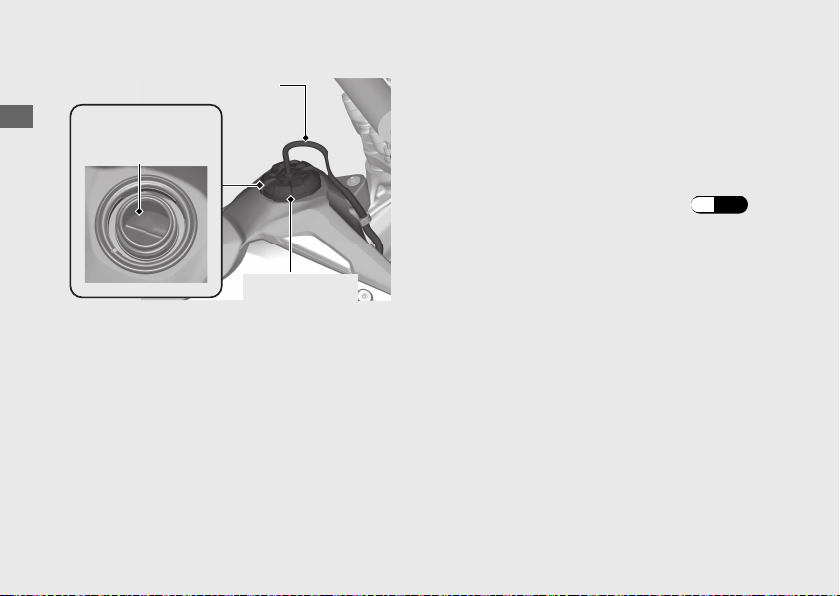

Fuel fill cap
Lower edge of
filler neck
Breather tube
Opening the Fuel Fill Cap
If mud is on the fuel fill cap and fuel tank top
shelter at time of refueling, remove the mud
before refueling.
Turn the fuel fill cap counterclockwise and
remove it.
NOTICE
Equivalent or modified parts must comply with
applicable Air Resource Board (ARB) evaporative
emission control regulations. Non-compliance
may result in civil litigation or criminal
prosecution.
The fuel cap may not be disassembled. When
replacing, consult with a dealer and replace with
a Honda genuine fuel cap or one that complies
with Air Resource Board (ARB) evaporative
emission control regulations.
Closing the Fuel Fill Cap
After refueling,turn the fuel fill cap clockwise
until it clicks.
u If the breather tube is twisted, turn the
rotary joint to correct.
u If you replace the fuel fill cap, use a Honda
Genuine replacement part or equivalent.
3WARNING
Gasoline is highly flammable and
explosive. You can be burned or
seriously injured when handling fuel.
• Stop the engine, and keep heat,
sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Operation Guide
35
Importance of Maintenance ...........................P. 37
Maintenance Schedule
..................................... P. 39
Maintenance Record......................................... P. 47
Maintenance Fundamentals ...........................P. 48
Removing & Installing Body Components..P. 58
Battery.................................................................... P. 58
Seat ......................................................................... P. 60
Left Side Cover..................................................... P. 61
Spark Arrester .................................................... P. 62
Please read “Importance of Maintenance”, “Maintenance Fundamentals” and Competition
Handbook carefully before attempting any maintenance. Refer to Competition Handbook
for service data.
Maintenance
Importance of Maintenance
Importance of Maintenance
Keeping your vehicle well-maintained is
absolutely essential to your safety and to
protect your investment, obtain maximum
performance, avoid breakdowns, and reduce air
pollution. Maintenance is the owner's
responsibility. Be sure to inspect your vehicle
before each ride, and perform the periodic
checks specified in the Maintenance Schedule.
2 P. 39
3WARNING
Improperly maintaining your vehicle or
failing to correct a problem before you
ride can cause a crash in which you can
be seriously hurt or killed.
Always follow the inspection and
maintenance recommendations and
schedules in this owner's manual and
competition handbook.
For information about the exhaust emission and
noise emission requirements of the U.S.
Environmental Protection Agency (EPA), and the
California Air Resources Board (CARB). 2 P. 87
Maintenance, replacement or repair of the
emission control devices and systems may
be performed by any vehicle repair
establishment or individual using parts
that are “certified” to EPA standards.
Maintenance
37
Maintenance Safety
Always read the maintenance instructions
before you begin each task, and make sure that
you have the tools, parts, and skills required.
We cannot warn you of every conceivable
hazard that can arise in performing
maintenance. Only you can decide whether or
not you should perform a given task.
Follow these guidelines when performing
maintenance.
● Stop the engine.
● Place your vehicle on a firm, level surface
using the side stand, an optional workstand
or a maintenance stand to provide support.
● Allow the engine, muffler, brakes, and other
high-temperature parts to cool before
servicing as you can get burned.
● Run the engine only when instructed, and
do so in a well-ventilated area.
Importance of Maintenance
Maintenance
38
Maintenance Schedule
To maintain the safety and reliability of your
vehicle, regular inspection and service is
required as shown in the Maintenance
Schedules – Regular OFF ROAD Use (non-
competition) and Competition Use – that
follows.
The Maintenance Schedule lists items that can
be performed with basic mechanical skills and
hand tools. Procedures for these items are
provided in Competition Handbook. The
Maintenance Schedule also includes items that
involve more extensive procedures and may
require special training, tools, and equipment.
Therefore, we recommend that you have your
dealer perform these tasks unless you have
advanced mechanical skills and the required
tools. Procedures for items in this schedule are
provided in an official Honda Service Manual
available for purchase from your dealer. 2 P. 92
Service intervals in the maintenance schedule
for competition use are expressed in terms of
motos and riding hours. To avoid overlooking
required service, we urge you to develop a
convenient way to record the number of motos
and/or hours you ride.
If you do not feel capable of performing a given
task or need assistance, remember that your
Honda dealer knows your vehicle best and is
fully equipped to maintain and repair it. If you
decide to do your own maintenance, use only
Honda Genuine Parts or their equivalents for
repair or replacement to ensure the best quality
and reliability.
Make sure whoever performs the scheduled
maintenance completes the maintenance
record. Retain all service documents. If you sell
your vehicle, these service documents should
be transferred with the vehicle to the new
owner.
Maintenance
39
Continued
MAINTENANCE SCHEDULE - REGULAR OFF-ROAD USE (NON-COMPETITION)
Perform the Pre-ride Inspection (2 P. 48) at each scheduled maintenance period.
Frequency
Items
Whichever Comes First
Initial
Maintenance
Regular Maintenance Interval
mi 100 600 1200 1800 2400
km 150 1000 2000 3000 4000
Note Month 1 6 12 18 24
Fuel Line
Fuel Pump Filter
Throttle Operation
Air Cleaner
(NOTE 1)
(NOTE 3)
Crankcase Breather
Spark Plug
Valve Clearance
Engine Oil
Engine Oil Filter
Maintenance Level Maintenance Legend
: Intermediate. We recommend service by your
dealer, unless you have the necessary tools and are
mechanically skilled.
Procedures are provided in an official Honda Service
Manual (2 P. 92).
:
:
:
:
Inspect (clean, adjust, lubricate, or replace, if necessary)
Lubricate
Replace
Clean
: Technical. In the interest of safety, have your vehicle
serviced by your dealer.
Maintenance Schedule
Maintenance
40
Frequency
Items
Whichever Comes First
Initial
Maintenance
Regular Maintenance Interval
mi 100 600 1200 1800 2400
km 150 1000 2000 3000 4000
Note Month 1 6 12 18 24
Decompressor System
Engine Idle Speed
Radiator Coolant (NOTE 2)
Cooling System
Secondary Air Supply System
Evaporative Emission Control System
Drive Chain (NOTE 1)
Every 300 mi (500 km) or 3 months :
Drive Chain Slider
Brake Fluid (NOTE 2)
Brake Pads Wear
Brake System
Maintenance Schedule
Maintenance
41
Continued
Frequency
Items
Whichever Comes First
Initial
Maintenance
Regular Maintenance Interval
mi 100 600 1200 1800 2400
km 150 1000 2000 3000 4000
Note Month 1 6 12 18 24
Headlight Aim
Clutch System
Side Stand
Suspension
Spark Arrester
Every 1,000 mi (1,600 km) or every 100 operating hours :
Nuts, Bolts, Fasteners
Wheels/Tyres
Steering Head Bearings
Notes: 1 : Service more frequently when ridden in wet or dusty conditions.
2 : Replace every 2 years. Replacement requires mechanical skill.
3 : Replace every 3 years.
Maintenance Schedule
Maintenance
42
MAINTENANCE SCHEDULE – COMPETITION USE
All items should be checked before each off-road event. See your dealer unless you are
mechanically qualified and have the proper tools.
Damage from Competition use is not covered by the Distributor’s Limited Warranty on
your Honda.
Perform the Pre-ride Inspection (2 P. 48) at each scheduled maintenance period.
Frequency
Items
NOTE
Each race or
about 3.5 hours
Every 2 races or
about 7.5 hours
Every 4 races or
about 15.0 hours
Every 6 races or
about 22.5 hours
Every 8 races or
about 30.0 hours
Fuel Line (NOTE 6)
Fuel Pump Filter (NOTE 6)
Throttle Operation
Air Cleaner
(NOTE 1)
(NOTE 7)
Crankcase Breather
Spark Plug
Valve Clearance/Decompressor System (NOTE 4)
WE RECOMMEND THESE ITEMS BE SERVICED BY REFERRING TO THE OFFICIAL HONDA SERVICE
MANUAL.
This maintenance schedule is based upon average riding condition. Machine subjected to severe use
require more frequent servicing.
Maintenance Legend
:
Inspect (clean, adjust, lubricate, or replace, if necessary)
: Lubricate
: Replace
: Clean
Maintenance Schedule
Maintenance
43
Continued
Frequency
Items
NOTE
Each race or
about 3.5 hours
Every 2 races or
about 7.5 hours
Every 4 races or
about 15.0 hours
Every 6 races or
about 22.5 hours
Every 8 races or
about 30.0 hours
Engine Oil (NOTE 3)
Engine Oil Filter (NOTE 3)
Engine Idle Speed
Piston and Piston Rings
Piston Pin
Radiator Coolant (NOTE 2)
Cooling System
Drive Chain
Drive Chain Slider
Drive Chain Roller
Drive Sprocket
Driven Sprocket
Brake Fluid (NOTE 2)
Brake Pads Wear
Brake System
Maintenance Schedule
Maintenance
44
Frequency
Items
NOTE
Each race or
about 3.5 hours
Every 2 races or
about 7.5 hours
Every 4 races or
about 15.0 hours
Every 6 races or
about 22.5 hours
Every 8 races or
about 30.0 hours
Clutch System
Control Cables
Exhaust Pipe/Muffler
Suspension
Swingarm/Shock Linkage
Fork Oil
Nuts, Bolts, Fasteners
Wheels/Tires
Steering Head Bearings
Notes: 1 : Clean after every moto for dusty riding condition.
2 : Replace every 2 years. Replacement requires mechanical skill.
3 : Replace after the first break-in ride.
4 : Inspect after the first break-in ride.
5 : Replace the engine oil, if the clutch discs and plates are replaced.
6 : Replace every year.
7 : Replace 3 years.
Maintenance Schedule
Maintenance
45
Continued
Maintenance
46
BLANK PAGE
Maintenance Record
Keeping an accurate maintenance record will help ensure that your vehicle is properly maintained.
Retain detailed receipts to verify the maintenance was performed. If the vehicle is sold, these receipts
should be transferred with the vehicle to the new owner. Make sure whoever performs the
maintenance completes this record. All scheduled maintenance, including the 100 mile (150 km) or 1
month initial maintenance, is considered a normal owner operating cost and will be charged for by
your dealer. Use the space under Notes to record anything you want to remind yourself about or
mention to your dealer.
Miles (km) or Month Odometer Date Performed By: Notes
100 (150) or 1
600 (1,000) or 4
1,200 (2,000) or 8
1,800 (3,000) or 12
2,400 (4,000) or 16
3,000 (5,000) or 20
3,600 (6,000) or 24
4,200 (7,000) or 28
4,800 (8,000) or 32
5,400 (9,000) or 36
6,000 (10,000) or 40
6,600 (11,000) or 44
7,200 (12,000) or 48
7,800 (13,000) or 52
Maintenance
47
Maintenance Fundamentals
Pre-ride Inspection
To ensure safety, it is your responsibility to
perform a pre-ride inspection and make sure
that any problem you find is corrected. A pre-
ride inspection is a must, not only for safety, but
because having a breakdown, or even a flat tire,
can be a major inconvenience.
Refer to Competition Handbook for procedures.
Check the following before each ride:
● Engine oil level.
● Fuel line for condition.
● Coolant for proper level.
● Cooling system and hoses for condition.
● Spark plug for proper heat range, carbon
fouling and spark plug wire terminal for
looseness.
● Air cleaner for condition and contamination.
● Clutch lever freeplay.
● Breather drain for cleaning.
● Steering head bearing and related parts for
condition.
● Throttle operation.
● Tires for damage or improper inflation
pressure.
● Spokes for looseness.
● Rim locks for looseness.
● Front and rear suspension for proper
operation.
● Front and rear brakes, check operation.
● Drive chain for correct slack and adequate
lubrication.
● Drive chain sliders and drive chain rollers for
damage or wear.
● Exhaust pipe/Muffler for looseness.
● Every possible part for looseness (such as
cylinder head bolts, engine mounting bolts/
nuts, axle nuts, handlebar holder bolts, fork
bridge pinch bolts, drive chain adjuster, lock
nuts, drive chain roller bolt/nut, wire harness
connectors).
● PGM-FI malfunction indicator lamp (MIL)
operation.
Maintenance
48
Between Motos & Practice
Maintenance
After practice or between motos you have a
chance to make additional checks and
adjustments.
• Clean accumulated dirt from under the
fenders and off the wheels, suspension
components, handgrips, controls, and
footpegs. A stiff, nylon parts cleaning brush
works well.
• Check tire air pressure.
• Check spoke tension, and make sure the rim
locks are secure.
• Check to make sure the sprocket bolts and
nuts are secure.
• Clean the sides of the drive chain with a stiff,
nylon parts-cleaning brush. Lubricate and
adjust the chain as necessary.
Do not perform maintenance while engine is
running. Injury to your fingers or hands may
result.
Maintenance Fundamentals
Maintenance
49
Continued
• After adjustment, check that the chain
adjuster index marks are in the same
position on each side. This will ensure that
the rear wheel is in proper alignment and
allow maximum performance from the rear
disc brake.
Maintaining proper wheel alignment will also
extend brake pad lifespan.
• Suspend the front wheel above the ground
and use the pressure release screws to
release the built-up pressure in the forks.
This pressure is caused by normal fork
action while riding.
Maintenance Fundamentals
Maintenance
50

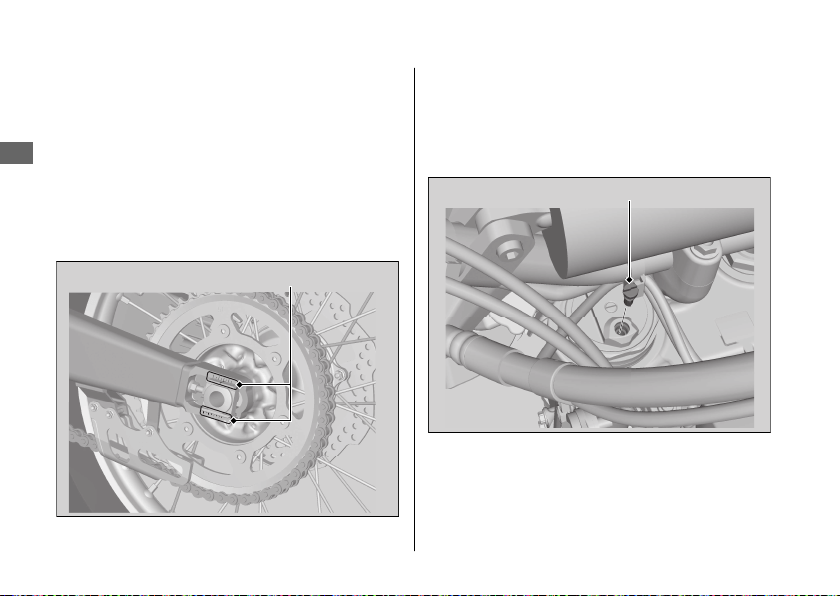

Chain adjuster index marks
Pressure release screw
After Competition Maintenance
It is important to the long term performance of
your vehicle to practice a consistent
maintenance program. Right after the event is a
good time to begin your next maintenance
cycle.
#
After Moto Lubrication
Apply a light coating of rust-inhibiting oil to the
drive sprocket and any steel portions of the
chassis or engine where the paint has worn
away.
This will prevent rusting of the exposed metal.
Apply rust-inhibiting oil more heavily if the
event was particularly wet or muddy. Take care
to avoid spraying any oil near the brake pads or
the brake discs.
Take care to prevent catching your fingers
between the chain and sprocket.
Remove the drive chain, clean and lubricate it.
Be sure the chain is wiped clean and is dry
before lubricating the chain.
#
Routine Cleaning
If your vehicle is only slightly dirty, it is best to
clean it by hand with the aid of a stiff bristled
nylon brush and some clean rags.
Maintenance Fundamentals
Maintenance
51
Continued
Take care to prevent catching your fingers
between the chain and sprocket.
A variety of reasonably priced cleaning brushes
are available from variety, drug, food, and
hardware stores. Some of these brushes are
extremely useful in removing dirt from the many
tight contours of the metal pieces of your
vehicle.
Avoid using stiff, abrasive brushes on the plastic
or rubber parts.
If your vehicle was exposed to sea air or salt
water, rinse it as soon as possible after the
event, dry it, and apply a spray lubricant to all
metal parts.
If you decide to wash your vehicle or use
cleaners, refer to "Caring for Your Vehicle".
2 P. 77
Replacing Parts
Always use Honda Genuine Parts or their
equivalents to ensure reliability and safety.
3WARNING
Installing non-Honda parts may make
your vehicle unsafe and cause a crash in
which you can be seriously hurt or
killed.
Always use Honda Genuine Parts or
equivalents that have been designed
and approved for your vehicle.
Maintenance Fundamentals
Maintenance
52
Lithium-Ion (Li-Ion) Battery
Your vehicle has a lithium-ion (li-ion) battery.
Clean the battery terminals if they become dirty
or corroded.
NOTICE
An improperly disposed of battery can be
harmful to the environment and human health.
Always confirm local regulations for proper
battery disposal instruction.
#
What to do in an emergency
If any of the following occurs, immediately see
your doctor.
● Electrolyte splashes into your eyes:
u Wash your eyes repeatedly with cool
water for at 15 minutes. Using water
under pressure can damage your eyes.
● Electrolyte splashes onto your skin:
u Remove affected clothing and wash your
skin thoroughly using water.
● Electrolyte splashes into your mouth
u Rinse mouth thoroughly with water, and
do not swallow.
3WARNING
The battery contains flammable organic
solvent as electrolyte.
You can be burned or seriously injured
if the battery is handled improperly.
● Keep the battery away from heat,
sparks, and flame.
● Keep the battery out of the reach of
children.
● Do not disassemble or modify the
battery or battery terminals.
● Do not short-circuit the battery with
metal tools or other metal objects.
● Do not subject the battery to
impacts.
Maintenance Fundamentals
Maintenance
53
Continued
#
Cleaning the Battery Terminals
1.
Remove the battery. 2 P. 58
2.
If the terminals are starting to corrode and
are coated with a white substance, wash
with warm water and wipe clean.
3.
If the terminals are heavily corroded, clean
and polish the terminals with a wire brush or
sandpaper. Wear safety glasses.
4.
After cleaning, reinstall the battery.
The battery has a limited life span. Consult your
dealer about when you should replace the
battery. Always replace the battery with another
lithium-ion (li-ion) battery of the same type.
#
Charging
If you use electrical accessories that drain the
battery or you do not ride frequently, we
recommend that you charge the battery every
30 days using a charger recommended by your
lithium-ion (li-ion) battery manufacturer.
Contact your dealer before charging the
battery.
Make sure the battery terminals are
disconnected before charging the battery.
NOTICE
Only use a charger recommended by your
lithium-ion (li-ion) battery manufacturer. Using a
battery charger that is not recommended can
cause permanent damage to your battery.
NOTICE
Improper charging can damage the battery. If
you can’t charge the battery or it appears unable
to hold a charge, contact your dealer.
Maintenance Fundamentals
Maintenance
54
NOTICE
Do not jump-start, as this can damage your
vehicle's electrical system and battery.
Bump starting is not recommended.
NOTICE
Installing non-Honda electrical accessories can
overload the electrical system, discharging the
battery and possibly damaging the system.
Fuses
Fuses protect the electrical circuits on your
vehicle. If something electrical on your vehicle
stops working, check for and replace any blown
fuses. 2 P. 73
#
Inspecting and Replacing Fuses
Turn the engine off to remove and inspect the
fuses. If a fuse is blown, replace with a fuse of
the same rating. For fuse ratings, see
“Specifications.” 2 P. 98
NOTICE
Replacing a fuse with one that has a higher rating greatly
increases the chance of damage to the electrical system.
If a fuse fails repeatedly, you likely have an
electrical fault. Have your vehicle inspected by
your dealer.
Maintenance Fundamentals
Maintenance
55
Blown fuse
Tires (Inspecting/Replacing)
#
Checking the Air Pressure
Visually inspect your tires and use an air
pressure gauge to measure the air pressure
before each ride.
Always check air pressure when your tires are
cold.
If you decide to adjust the tire pressure for a
particular off-road riding condition, make
changes a little at a time.
#
Inspecting for Damage
Inspect the tires for cuts, slits, or cracks that
exposes fabric or cords, or nails or other foreign
objects embedded in the side of the tire or the
tread. Also inspect for any unusual bumps or
bulges in the side walls of the tires.
#
Inspecting for Abnormal Wear
Inspect the tires for signs of abnormal wear on
the contact surface.
#
Inspecting Rims and Valve Stems
Inspect the rims for damage and loose spokes.
Also inspect the valve stems for their positions.
A tilted valve stem indicates the tube is slipping
inside the tire or the tire is slipping on the rim.
See your dealer.
3WARNING
Riding on tires that are excessively worn
or improperly inflated can cause a crash
in which you can be seriously hurt or
killed.
Follow all instructions in this owner's
manual regarding tire inflation and
maintenance.
Maintenance Fundamentals
Maintenance
56
Have your tires replaced by your dealer.
For recommended tires, air pressure, see
“Specifications.” 2 P. 97
Follow these guidelines whenever you replace
tires.
● Use the recommended tires or equivalents
of the same size, construction, speed rating,
and load range.
● Remember to replace the inner tube
whenever you replace a tire. The old tube
will probably be stretched, and it could fail if
installed in a new tire.
● If a tube is punctured or damaged, you
should replace it as soon as possible. A
repaired tube may not have the same
reliability as a new one, and it may fail while
you are riding.
Use a replacement tube equivalent to the
original.
3WARNING
Installing improper tires on your vehicle
can adversely affect handling and
stability, and can cause a crash in which
you can be seriously hurt or killed.
Always use the size and type of tires
recommended in this owner's manual.
Maintenance Fundamentals
Maintenance
57
Removing & Installing Body Components
Battery
#
Removal
1.
Remove the seat. 2 P. 60
2.
Remove the battery band.
3.
Disconnect the negative - terminal from
the battery.
4.
Remove the positive terminal cover.
5.
Disconnect the positive + terminal from
the battery.
6.
Remove the battery taking care not to
drop the terminal nuts.
Maintenance
58
Negative terminal
Positive terminal cover
Battery Battery band
Positive terminal
#
Installation
1.
Install the parts in the reverse order of
removal. Always connect the positive +
terminal first. Make sure that bolts and
nuts are tight.
2.
Tighten the positive + terminal bolt and
negative - terminal bolt to the specified
torque:
Torque:
1.5 lbf·ft (2 N·m, 0.2 kgf·m)
3.
Install the battery band and seat.
Make sure the clock information is correct
after the battery is reconnected. 2 P. 22
For proper handling of the battery, see
“Maintenance Fundamentals.” 2 P. 53
“Battery Goes Dead.” 2 P. 68
Removing & Installing Body Components u Battery
Maintenance
59
Seat
#
Removal
1.
Remove the seat mounting bolts.
2.
Remove the seat by pulling it backward.
#
Installation
1.
Install the seat while aligning the seat
front prong with the slot of the fuel tank
and seat center prongs with the seat
support base slots.
2.
Install and tighten the seat mounting bolts
to the specified torque:
Torque: 19 lbf·ft (26 N·m, 2.7 kgf·m)
Removing & Installing Body Components u Seat
Maintenance
60
Seat center prongs
Slot Seat support base slots
Seat front prong Seat
mounting
bolts
Left Side Cover
#
Removal
1.
Remove the seat. 2 P. 60
2.
Remove the left side cover by removing
the bolts.
#
Installation
1.
Install the left side cover, and then tighten
the bolts to the specified torque:
Torque: 7 lbf·ft (10 N·m, 1.0 kgf·m)
2.
Install the seat. 2 P. 60
Removing & Installing Body Components u Left Side Cover
Maintenance
61
Side cover
bolts
Spark Arrester
Cleaning the Spark Arrester
The spark arrester must be serviced every
1,000 mi (1,600 km) of running or 100
operating hours to maintain its efficiency.
Regular servicing prevents carbon buildup
(which can diminish engine performance)
and also complies with USDA regulations for
regular maintenance to assure proper
function. The spark arrester prevents random
sparks from the combustion process in your
engine from reaching the environment.
1.
Allow the engine and muffler to cool.
2.
Remove the tail cap cover bolts, washers
and tail cap cover from the muffler.
Maintenance
62

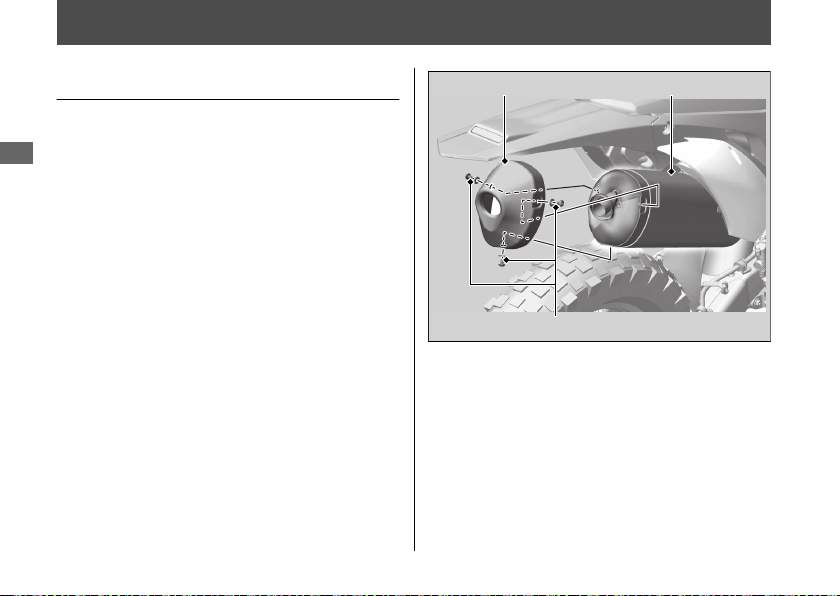

Muffler
Tail cap cover bolts/Washers
Tail cap cover
3.
Remove the glass wool.
4.
Remove the spark arrester mounting
bolts, spark arrester and gasket from the
muffler.
Spark Arrester u Cleaning the Spark Arrester
Maintenance
63
Continued
Glass wool
Spark arrester mounting bolts
Spark arrester Gasket
5.
Use a brush to remove carbon deposits
from the spark arrester screen. Be careful
to avoid damaging the spark arrester
screen. The spark arrester must be free of
breaks and holes. Replace, if necessary.
Check the gasket. Replace, if necessary.
6.
Install a new gasket and the spark arrester
in the muffler and tighten the spark
arrester mounting bolts to the specified
torque:
Torque: 6.6 lbf·ft (9 N·m, 0.9 kgf·m)
7.
Check the glass wool. Replace, if
necessary. Install the glass wool with its
seam side facing the muffler and start
winding the glass wool from the position
as shown.
8.
Install the tail cap cover, washers and
tighten the tail cap cover bolts to the
specified torque:
Torque: 3.9 lbf·ft (5.25 N·m, 0.5 kgf·m)
Spark Arrester u Cleaning the Spark Arrester
Maintenance
64
Spark arrester screen
Seam
90°
Engine Will Not Start........................................ P. 66
Warning Indicators On or Flashing
............... P. 67
PGM-FI (Programmed Fuel Injection)
Malfunction Indicator Lamp (MIL).................P. 67
Electrical Trouble............................................... P. 68
Battery Goes Dead ..............................................P. 68
Burned-out Light Bulb........................................ P. 69
Blown Fuse ............................................................ P. 73
Troubleshooting
Engine Will Not Start
Starter Motor Operates But
Engine Does Not Start
Check the following items:
● Check the correct engine starting
sequence. 2 P. 29
● Check that there is gasoline in the fuel
tank.
● Check if the PGM-FI malfunction indicator
lamp (MIL) is on.
Starter Motor Does Not
Operate
Check the following items:
● Check the correct engine starting
sequence. 2 P. 29
● Check for a blown fuse. 2 P. 73
● Check for a loose battery connection
(2 P. 58) or battery terminal corrosion
(2 P. 54).
● Check the condition of the battery.
2 P. 68
If the problem continues, have your vehicle
inspected by your dealer as soon as possible
or refer to an official Honda Service Manual
available for purchase from your dealer.
2 P. 92
Troubleshooting
66
Warning Indicators On or Flashing
PGM-FI (Programmed Fuel
Injection) Malfunction
Indicator Lamp (MIL)
If the indicator comes on while riding, you
may have a serious problem with the PGM-FI
system. Reduce speed and have your vehicle
inspected by your dealer as soon as possible
or refer to an official Honda Service Manual
available for purchase from your dealer.
2 P. 92
Troubleshooting
67
Electrical Trouble
Battery Goes Dead
Battery charging is needed.
A battery charger recommended by your
lithium-ion (li-ion) battery manufacturer is
needed for battery charging.
Contact your dealer before charging the
battery.
Remove the battery from the vehicle before
charging.
NOTICE
Only use a charger recommended by your
lithium-ion (li-ion) battery manufacturer. Using a
battery charger that is not recommended can
cause permanent damage to your battery.
If the battery does not recover after
recharging, contact your dealer.
NOTICE
Do not jump-start, as this can damage your
vehicle's electrical system and battery.
Bump starting is not recommended.
Check the battery voltage using a digital
multi meter with the cable connected.
Below 1V: The battery has failed; replace the
battery.
Between 1V and 8V: The battery may have
failed; charge the battery and then recheck.
If you can’t charge the battery or it appears
unable to hold a charge, see your dealer.
Troubleshooting
68
Burned-out Light Bulb
Follow the procedure below to replace a
burned-out light bulb.
Allow the bulb to cool before replacing it.
Do not use bulbs other than those specified.
Check the replacement bulb for correct
operation before riding.
For the light bulb wattage, see
“Specifications.” 2 P. 98
Electrical Trouble u Burned-out Light Bulb
Troubleshooting
69
Continued
#
Headlight
1.
Remove the front visor bolts.
2.
Pull out the front visor and disconnect the
headlight connector.
Electrical Trouble u Burned-out Light Bulb
Troubleshooting
70
Front visor bolts
Front visor
Headlight connector
Dust cover
3.
Pull back the dust cover.
4.
Push and turn the socket
counterclockwise, then pull it out.
5.
Pull out the bulb without turning it.
6.
Install a new bulb and parts in the reverse
order of removal.
u Install the dust cover with its “TOP”
mark facing up.
Do not touch the glass surface with your
fingers. If you touch the bulb with your bare
hands, clean it with a cloth moistened with
isopropyl (rubbing) alcohol
.
Electrical Trouble u Burned-out Light Bulb
Troubleshooting
71
Continued

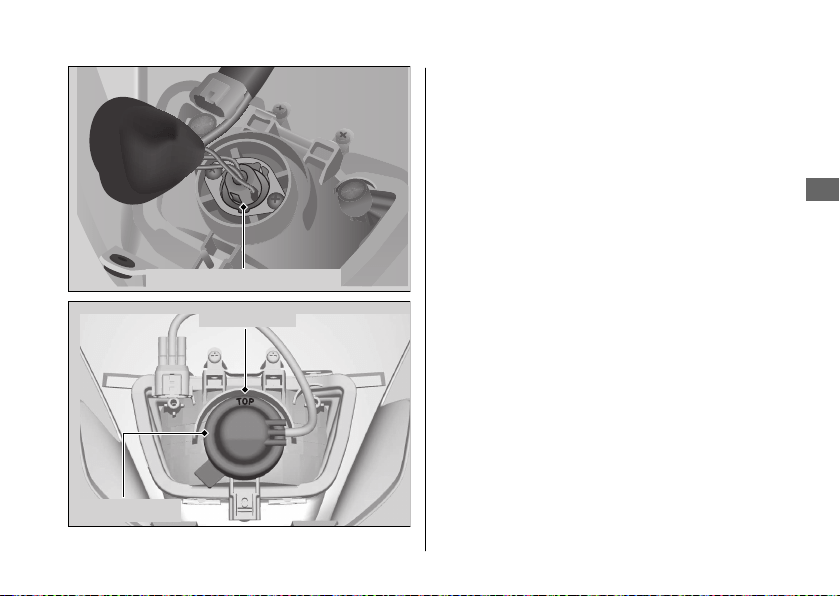

Headlight bulb socket
"TOP"mark
Dust cover
#
Taillight
The taillight uses several LEDs.
If there is an LED which is not turned on, see
your dealer for servicing.
This model is equipped with an electric
starter and battery for easy engine starting.
There is a possibility of damage to the
lighting system if the battery is carelessly
removed.
Electrical Trouble u Burned-out Light Bulb
Troubleshooting
72
Blown Fuse
Before handling fuses, see “Inspecting and
Replacing Fuses.” 2 P. 55
#
Fuse Box Fuses
1.
To prevent an accidental short circuit,
stop the engine.
2.
Remove the seat. 2 P. 60
3.
Remove the left side cover. 2 P. 61
4.
Open the rubber fuse box cover and fuse
box cover.
5.
Pull out the fuses one by one to check for
a blown fuse. Always replace a blown fuse
with a spare fuse of the same rating.
6.
Close the fuse box cover and rubber fuse
box cover.
7.
Reinstall parts in the reverse order of
removal.
Electrical Trouble u Blown Fuse
Troubleshooting
73
Continued
Rubber fuse box coverSpare fuse
Fuse box cover
#
Main Fuse
1.
To prevent an accidental short circuit,
stop the engine.
2.
Remove the seat. 2 P. 60
3.
Remove the left side cover. 2 P. 61
4.
Remove the start magnetic switch cover.
5.
Pull out the main fuse to check for a
blown fuse. Always replace a blown fuse
with a spare main fuse.
6.
Close the start magnetic switch cover.
7.
Reinstall parts in the reverse order of
removal.
NOTICE
If a fuse fails repeatedly, you likely have an
electrical problem. Have your vehicle inspected
by your dealer.
Electrical Trouble u Blown Fuse
Troubleshooting
74
Starter magnetic switch cover
Main fuse Spare main fuse
Instruments, Controls, & Other Features..... P. 76
Caring for Your Vehicle
.................................... P. 77
Storing Your Vehicle......................................... P. 82
Transporting Your Vehicle ..............................P. 83
You & the Environment.................................... P. 85
Vehicle Identification Number....................... P. 86
Emission Control Systems ............................... P. 87
Oxygenated Fuels..............................................P. 91
Authorized Manuals ......................................... P. 92
Warranty Coverage and Service .................... P. 93
Honda Contacts ................................................. P. 95
Information
Instruments, Controls, &
Other Features
Odometer
The display locks at 999,999 when the read-out
exceeds 999,999.
Tripmeter
The tripmeters return to 0.0 when each read-
out exceeds 9,999.9.
Ignition Cut-off System
A banking (lean angle) sensor automatically
stops the engine and fuel pump if the vehicle
falls over.
Instruments, Controls, & Other Features
Information
76
Caring for Your Vehicle
Frequent cleaning and polishing is important to
ensure the life of your Honda. A clean vehicle
makes it easier to spot potential problems.
While you're cleaning, be sure to look for
damage, wear, and gasoline or oil leaks.
Washing
Allow the engine, muffler, brakes, and other
high-temperature parts to cool before washing.
1.
Rinse your vehicle thoroughly using a low
pressure garden hose to remove loose dirt.
2.
If necessary, use a sponge or a soft towel
with mild cleaner to remove road grime.
u Clean the plastic components with extra
care to avoid scratching them.
Avoid directing water into the air cleaner,
muffler, and electrical parts.
u Do not use steel wool to clean the frame
as it could damage or discolor the frame
surface. Muffler stain remover (Scotch
Brite Hand Pad #7447-maroon) is for
removing stains on the non-coated
aluminum frame only.
3.
Thoroughly rinse your vehicle with plenty of
clean water and dry with a soft, clean cloth.
4.
After the vehicle dries, lubricate any moving
parts.
u Make sure that no lubricant spills onto
the brakes or tires. Brake discs, pads,
drum or shoes contaminated with oil will
suffer greatly reduced braking
effectiveness and can lead to a crash.
5.
Lubricate the drive chain immediately after
washing and drying the vehicle.
6.
Apply a coat of wax to prevent corrosion.
u Avoid products that contain harsh
detergents or chemical solvents. These
can damage the metal, paint, and plastic
on your vehicle.
Keep the wax clear of the tires and brakes.
u If your vehicle has any matte painted
parts, do not apply a coat of wax to the
matte painted surface.
Caring for Your Vehicle
Information
77
Continued
#
Washing Precautions
Follow these guidelines when washing:
● Do not use high-pressure washers:
u High-pressure water cleaners can
damage moving parts and electrical
parts, rendering them inoperable.
u Water in the air intake can be drawn into
the throttle body and/or enter the air
cleaner.
u If you use a high pressure washer, avoid
spraying the following areas:
brake master cylinders
drive chain
electrical circuit
engine stop button
muffler outlet
steering head bearings
suspension pivot points
throttle body
under fuel tank
under seat
Caring for Your Vehicle
Information
78

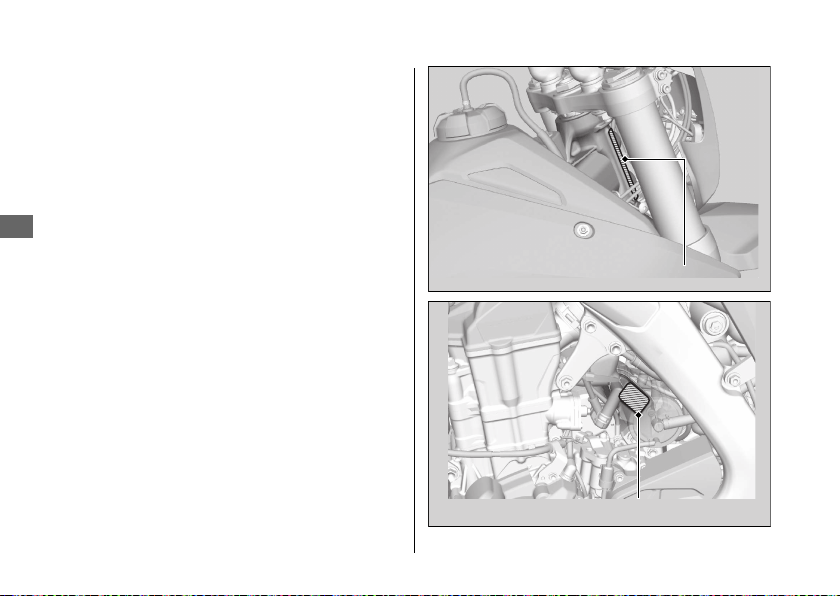

Steering head bearings
Suspension pivot points
● Do not direct water at the muffler:
u Water in the muffler can prevent starting
and causes rust in the muffler.
● Dry the brakes:
u Water adversely affects braking
effectiveness. After washing, apply the
brakes intermittently at low speed to
help dry them.
● Do not direct water at the air cleaner:
u Water in the air cleaner can prevent the
engine from starting.
● Do not direct water near the headlight:
u The headlight's inside lens may fog
temporarily after washing or while riding
in the rain. This does not impact the
headlight function.
u Any condensation inside the headlight
should dissipate after a few minutes of
running the engine with the headlight(s)
on.
However, if you see a large amount of
water or ice accumulated inside the
lens(es), have your vehicle inspected by
your dealer.
● Do not use wax or polishing compounds on
matte painted surface:
u Use a soft cloth or sponge, plenty of
water, and a mild detergent to clean
matte painted surfaces. Dry with a soft
clean cloth.
Caring for Your Vehicle
Information
79
Continued
Aluminum Frame Maintenance
Aluminum corrodes when it comes in contact
with dust, mud and road salt.
To remove stains, use Scotch Brite Hand Pad
#7447 (maroon) or an equivalent. Wet the pad
and polish the surface using strokes parallel to
the length of the frame.
Clean the frame using a wet sponge and a mild
detergent, then rinse well with clean water. Dry
the frame with a soft clean cloth, using strokes
parallel to the length of the frame.
NOTICE
Do not use steel wool to clean the frame as it
could damage or discolor the frame surface.
Scotch Brite Hand Pad #7447-maroon is for
removing stains on the non-coated aluminum
frame only.
Titanium Fuel Tank Maintenance
The fuel tank is made of titanium material.
To remove mud or dust, use a sponge or soft
cloth and a stainless steel kitchen detergent,
then rinse well with clean water.
After washing, rinse with plenty of water and dry
with a clean cloth.
Caring for Your Vehicle
Information
80
Exhaust Pipe and Muffler
The exhaust pipe and muffler are stainless steel
but may become stained by mud or dust.
To remove mud or dust, use a wet sponge and
a liquid kitchen abrasive, then rinse well with
clean water. Dry with chamois or a soft towel.
If necessary, remove heat stains by using a
commercially available fine texture compound.
Then rinse by the same manner as removing
mud or dust.
NOTICE
Even though the exhaust is made of stainless
steel, it can become stained. Remove all marks
and blemishes as soon as they are noticed.
Caring for Your Vehicle
Information
81
Storing Your Vehicle
If you won't be riding for an extended period,
follow these guidelines:
● Wash your vehicle.
● Drain the coolant.
● Lubricate the drive chain.
● Place your vehicle on an optional workstand
or equivalent to raise both tires off the
ground.
● Relieve the fuel pressure and drain the fuel
from the fuel tank into an approved gasoline
container.
● Remove the battery (2 P. 58) to prevent
discharge. Fully charge the battery and then
place it in a shaded, well-ventilated area.
u If you leave the battery in place,
disconnect the negative - terminal to
prevent discharge.
● Stuff a rag into the muffler outlet. Then tie a
plastic bag over the end of the muffler to
prevent moisture from entering.
● Store your vehicle in an unheated area, free
of dampness, away from sunlight, with a
minimum of daily temperature variation.
● Cover your vehicle with a porous material.
Avoid using plastic or similar non-breathing,
coated materials that restrict air flow and
allow heat and moisture to accumulate.
Storing Your Vehicle
Information
82
To remove your vehicle from storage, follow
these guidelines:
● Uncover and clean your vehicle.
● Change the engine oil if more than 4
months have passed since the start of
storage.
● Uncover the end of the muffler and remove
the rag from the muffler outlet.
● Fill the fuel tank with the recommended fuel.
2 P. 34
● Charge the battery as required. 2 P. 53
Install the battery.
● Pour a fresh recommended coolant mixture
slowly into the radiator fill hole up to the
filler neck.
● Increase the fuel pressure.
● Perform all maintenance checks. 2 P. 48
Transporting Your Vehicle
If your vehicle needs to be transported, it
should be carried on a motorcycle trailer or a
flatbed truck or trailer that has a loading ramp
or lifting platform, and motorcycle tie-down
straps. Never try to tow your vehicle with a
wheel or wheels on the ground.
NOTICE
Towing your vehicle can cause serious damage
to the transmission.
Transporting Your Vehicle
Information
83
Continued
If you use a truck or motorcycle trailer to
transport your vehicle, we recommend that you
follow these guidelines:
● Use a loading ramp.
● Relieve the fuel pressure and drain the fuel
from the fuel tank into an approved gasoline
container.
● Secure the vehicle in an upright position,
using motorcycle tie-down straps. Avoid
using rope, which can loosen and allow the
vehicle to fall over.

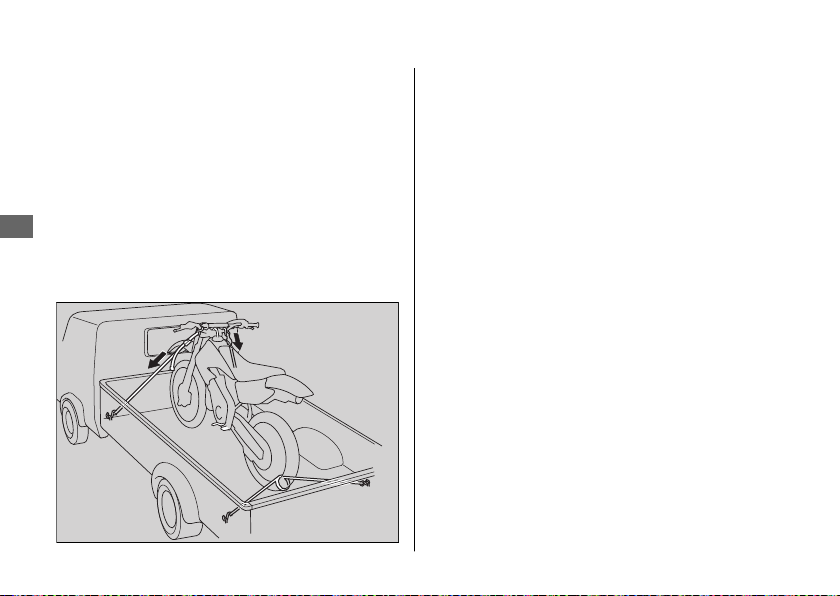

To secure your vehicle, brace the front wheel
against the front of the truck bed or trailer rail.
Attach the lower ends of two straps to the
tiedown hooks on truck bed or trailer rail.
Attach the upper ends of the straps to the
handlebar (one on the right side, the other on
the left), close to the fork.
Check that the tie-down straps do not contact
any control cables or electrical wiring.
Tighten both straps until the front suspension is
compressed about half-way. Too much pressure
is unnecessary and could damage the fork seals.
Use another tie-down strap to keep the rear of
the vehicle from moving.
We recommend that you do not transport your
vehicle on its side. This can damage the vehicle,
and leaking gasoline could be a hazard.
Transporting Your Vehicle
Information
84
You & the Environment
Owning and riding a vehicle can be enjoyable,
but you must do your part to protect the
environment.
Choose Sensible Cleaners
Use a biodegradable detergent when you wash
your vehicle. Avoid aerosol spray cleaners that
contain chlorofluorocarbons (CFCs) which
damage the atmosphere's protective ozone
layer.
Recycle Wastes
Put oil and other toxic wastes in approved
containers and take them to a recycling center.
Call your local or state office of public works or
environmental services to find a recycling center
in your area, and to get instructions on how to
dispose of non-recyclable wastes. Do not place
used engine oil in the trash, or pour it down a
drain or on the ground. Used oil, gasoline,
coolant, and cleaning solvents contain poisons
that can hurt refuse workers and contaminate
drinking water, lakes, rivers, and oceans.
You & the Environment
Information
85
Vehicle Identification
Number
The VIN and engine serial number uniquely
identify your vehicle and are required in order
to register your vehicle. They may also be
required when ordering replacement parts.
You should record these numbers and keep
them in a safe place.
Vehicle Identification Number
Information
86
VIN
Engine number
Emission Control Systems
Your vehicle engine emits combustion
byproducts, including carbon monoxide (CO),
oxides of nitrogen (NOx), and hydrocarbons
(HC). Gasoline evaporation also emits
hydrocarbons. Controlling the production of
NOx, CO, and HC is important for the
environment.
Exhaust Emission Requirements
The U.S. Environmental Protection Agency (EPA)
and the California Air Resources Board (CARB)
require that your vehicle comply with applicable
exhaust, crankcase, and fuel permeation
emission standards during its useful life, when
operated and maintained according to the
instructions provided.
CARB also requires that your vehicle comply
with applicable evaporative emission
requirements during its useful life, when
operated and maintained according to the
instructions provided.
Compliance with the terms of the Distributor's
Warranties for Honda Motorcycle Emission
Control Systems is necessary in order to
maintain a valid emissions system warranty.
The vehicle emission control information label is
attached to the right side of the frame.
Emission Control Systems
Information
87
Continued

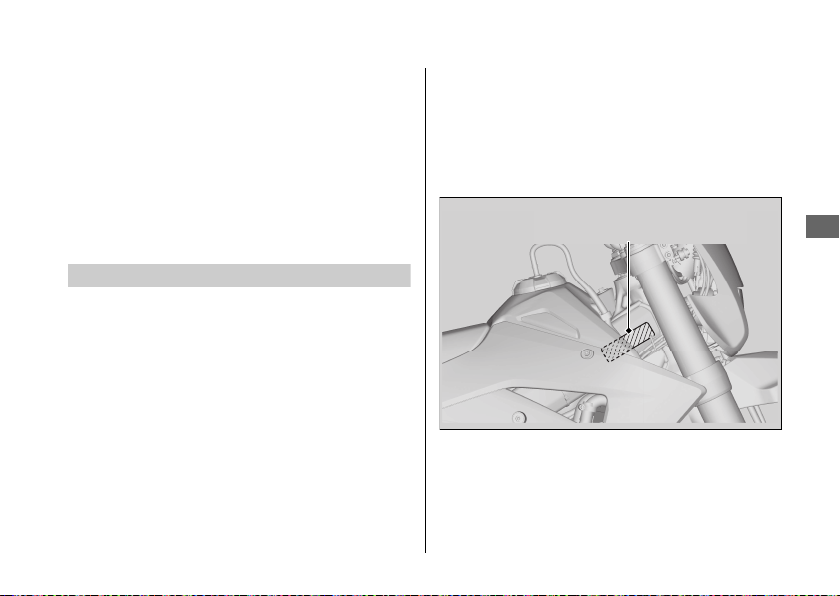

Vehicle emission control
information label
Noise Emission Requirements
The EPA also requires that vehicles built after
January 1,1983 comply with applicable noise
emission standards for one year or 1,865 miles
(3,000 km) after the time of sale to the ultimate
purchaser, the time operated and maintained
according to the instructions provided.
Exhaust Emission Control System
The exhaust emission control system includes
the following components that should not need
adjustment, although periodic inspection by
your dealer is recommended.
#
PGM-FI System
The PGM-FI system has four subsystems: Air
Intake, Engine Control, Fuel Control, and
Exhaust Control. The Engine Control Module
(ECM) uses various sensors to determine how
much air is going into the engine. It then
controls how much fuel is injected under all
operating conditions.
#
Ignition Timing Control System
The ignition timing control system adjusts the
ignition timing to reduce the amount of HC,
CO, and NOx produced.
#
Secondary Air Injection System
The exhaust emission control system consists of
a secondary air injection system. The secondary
air injection system introduces filtered air into
the exhaust gases in the exhaust port. The
secondary air injection system helps improve
emission control performance. No adjustments
to this system should be made although
periodic inspection of the components is
recommended.
Evaporative Emission Control System
50 STATE (meets California)
An evaporative emissions control system uses a
canister filled with charcoal to adsorb fuel vapor
from the fuel tank while the engine is off. The
vapor is drawn into the engine and burned
while riding.
Emission Control Systems
Information
88
Models sold in and used in California: An add-
on or modified part must be compliant with
applicable ARB evaporative emission control
standards. A violation of this requirement is
punishable by civil and/or criminal punishment.
Crankcase Emissions Control System
The engine is equipped with a closed crankcase
system to prevent discharging crankcase
emissions into the atmosphere. Blow-by gas is
returned to the combustion chamber through
the crankcase oil separator, air cleaner and
throttle body.
Fuel Permeation Emission Control
This vehicle complies with the Fuel Permeation
Emission Control regulations of the U.S.
Environmental Protection Agency (EPA) and the
California Air Resources Board (CARB). The fuel
tank, fuel hoses, and fuel vapor charge hoses
used on this vehicle incorporate fuel
permeation control technologies.
Tampering with the fuel tank, fuel hoses, or fuel
vapor charge hoses to reduce or defeat the
effectiveness of the fuel permeation
technologies is prohibited by federal
regulations.
Noise Emission Control System
#
TAMPERING WITH THE NOISE CONTROL
SYSTEM IS PROHIBITED:
U. S. federal law prohibits the following acts or
the causing thereof: (1) The removal or
rendering inoperative by any person, other than
for purposes of maintenance, repair or
replacement, of any device or element of
design incorporated into any new vehicle for
the purpose of noise control prior to its sale or
delivery to the ultimate purchaser or while it is
in use; or (2) the use of the vehicle after such
device or element of design has been removed
or rendered inoperative by any person.
Emission Control Systems
Information
89
Continued
#
AMONG THOSE ACTS PRESUMED TO
CONSTITUTE TAMPERING ARE THE
FOLLOWING ACTS:
● Removal of, or puncturing the muffler,
baffles, header pipes or any other
component which conducts exhaust gases.
● Removal of, or puncturing of any part of the
intake system.
● Lack of proper maintenance.
● Removing or disabling any emissions
compliance component, or replacing any
compliance component with a noncompliant
component.
Problems that May Affect Vehicle
Emissions
If you are aware of any of the following
symptoms, have the vehicle inspected and
repaired by your dealer.
1.
Hard starting or stalling after starting.
2.
Rough idle.
3.
Misfiring or backfiring during acceleration.
4.
After-burning (backfiring).
5.
Poor performance (drive ability) and poor
fuel economy.
Federal regulations prohibit removing or
disabling a device or element of design that
may affect your engine’s emission performance
unless your vehicle will be used exclusively in
competition. If you modify your engine for use
in sanctioned competition events, you must
deface or destroy the emission control
information label.
If you loan, sell, or give your competition
modified vehicle to someone else, according to
applicable law, you must inform the new owner/
operator in writing that the vehicle is to be used
for competition only.
Emission Control Systems
Information
90
Oxygenated Fuels
Some conventional fuels blended with alcohol
or an ether compound are available in some
locales to help reduce emissions to meet clean
air standards. These gasolines are collectively
referred to as oxygenated fuels. If you plan to
use oxygenated fuel, check that it is unleaded
and meets the minimum octane rating and
blend requirement.
The following fuel blends have been approved
for use in your vehicle:
● Ethanol (ethyl alcohol) up to 10% by volume.
u Gasoline containing ethanol may be
marketed under the name Gasohol.
● Do not use gasoline containing methanol
(methyl alcohol).
If you accidentally fill your fuel tank with an
oxygenated fuel containing higher percentages,
you may experience performance problems. To
resolve the problem, have your dealer drain the
fuel tank and replace with the correct fuel. Fuel
system or performance problems resulting from
the use of an oxygenated fuel containing higher
percentages are not covered by your warranty.
NOTICE
Improper use of oxygenated fuels can damage
metal, rubber, and plastic parts of your fuel
system.
Oxygenated fuel can also damage paint.
Damage caused by spilled fuel is not covered by
warranty.
If you notice any undesirable operating
symptoms or performance problems, try a
different brand of gasoline.
Oxygenated Fuels
Information
91
Description
2021 CRF450X Service Manual
Common Service Manual (61CSM00)
Winter Storage Guide (S9507)
2021 CRF450X Owner’s Manual
2021 CRF450X Competition Handbook
Authorized Manuals
The Service Manual used by your authorized
dealer is available from your Honda dealer or
Helm, Inc.
Also available, but not necessary to service your
model, is the Honda Common Service Manual,
which explains basic service information for
various systems on Honda motorcycles,
scooters, and ATV.
The Winter Storage Guide in conjunction with
the Owner's Manual and Service Manual can
help you prepare your Honda motorcycle,
scooter, ATV, and SxS for winter storage.
These Honda manuals are written for the
professional technician. However, if you possess
the proper tools, observe the safety standards,
and are mechanically capable, you should find
them easy to use.
Special Honda tools are necessary for some
procedures.
Order online: www.helminc.com
Order Toll Free: 1-888-CYCLE93
(1-888-292-5393)
(NOTE: For Credit Card Orders Only)
Monday - Friday 8:00 AM - 6:00 PM EST
Authorized Manuals
Information
92
Warranty Coverage and
Service
Coverage
● Emission Control System Warranty
● Noise Control Warranty
Your new Honda is covered by certain
warranties as described in the Honda
Motorcycle Warranties Booklet that was
provided to you by your Honda dealer.
Please read this booklet and be aware of the
responsibilities, restrictions, and exclusions
which apply.
Please also keep your Honda owner’s card with
your Warranties Booklet.
It is important to realize that your warranty for
your Honda applies to defects in material or
factory workmanship. Your warranty coverage
does not apply to normal wear or deterioration
associated with using the motorcycle.
Your warranty coverage will not be voided if
you choose to perform your own maintenance.
However, you should have the proper tools and
service information and be mechanically
qualified.
Failures that occur due directly to improper
maintenance or lack of maintenance are not
covered.
Warranty Coverage and Service
Information
93
Continued
Service
Please remember that recommended
maintenance interval servicing is not included in
your warranty coverage. Additionally, your
warranty does not apply to the normal wear of
items (such as brakes, tires etc.).
If you believe you have a problem with your
Honda, call the service department of your
Honda dealer. Make an appointment for an
inspection and diagnosis. Remember, as the
owner of the motorcycle, you will be asked to
authorize that inspection. Your dealer will give
you the results of the inspection. If the problem
is covered under warranty, your dealer will
perform the warranty repairs for you.
If you have questions about warranty coverage
or the nature of the repair, it is best to talk to
the Service Manager of your Honda dealer.
Sometimes, in spite of the best intentions of all
concerned, a misunderstanding may occur. If
you aren’t satisfied with your dealer’s handling
of the situation, we suggest you discuss your
problem with the appropriate member of the
dealership’s management team. If the problem
has already been reviewed with the Service
Manager, Parts Manager, Sales Manager, etc.,
contact the Owner of the dealership or his
designated representative.
Warranty Coverage and Service
Information
94
Honda Contacts
American Honda Motor Co., Inc.
If you wish to contact Honda directly to
comment on your experiences with your vehicle
or with your dealer, please send your comments
to the following address:
Powersports Customer Relations
American Honda Motor Co., Inc.,
P.O. Box 2200, Torrance,
CA 90509-2200
Mailstop: 100-4W-5F,
Telephone: (866) 784-1870
Website: https://powersports.honda.com/
contact-us
Please include the following information in your
letter:
● Name, address, and telephone number
● Product model, year, and VIN
● Date of purchase
● Dealer name and address
We will likely ask your Honda dealer to respond,
or possibly acknowledge your comments
directly.
Honda Contacts
Information
95
Continued
Your Honda Dealer
The service department of your Honda dealer
offers trained personnel to perform regular
maintenance and unexpected repairs. It has the
latest available service information from Honda
and also handles warranty inspections and
repairs.
The parts department offers Honda Genuine
Parts, Pro Honda products and Honda Genuine
Accessories that provide the same quality that
went into your vehicle.
The sales department offers the Honda
Protection Plan to extend almost all of your
warranty coverage.
Your Honda dealer can also supply information
about, riding events, and information about
safety training available in your local area.
Honda Contacts
Information
96
Specifications
■ Dimension
Overall length 86.4 in (2,195 mm)
Overall width 33.3 in (845 mm)
Overall height 50.2 in (1,275 mm)
Wheelbase 59.1 in (1,500 mm)
Seat height 37.9 in (963 mm)
Footpeg height 16.4 in (417 mm)
Minimum ground clearance 13.0 in (330 mm)
Caster angle 27° 36'
Trail length 5.6 in (143 mm)
■ Frame
Tire size
Front 80/100-21 51M
Rear 110/100-18 64M
Tire type Bias-ply, tube
Recommended
tire
Front DUNLOP MX52F
Rear DUNLOP MX52
Tire pressure
(cold)
Front 22 psi (150 kPa, 1.50 kgf/cm
2
)
Rear 22 psi (150 kPa, 1.50 kgf/cm
2
)
Fuel
unleaded gasoline, pump octane number of 91
or higher
Fuel tank capacity 2.01 US gal (7.6 L)
■ Engine
Bore x stroke 3.78 x 2.44 in (96.0 x 62.1 mm)
Displacement 27.4 cu-in (449 cm
3
)
Compression
ratio
12.0 : 1
Valve clearance
(cold)
Intake
0.004 ± 0.001 in (0.11 ± 0.03
mm)
Exhaust
0.011 ± 0.001 in (0.28 ± 0.03
mm)
Recommended
engine oil
API Service Classification SG or higher except
oils labeled as energy conserving or resource
conserving on the circular API service label,
SAE 10W-30, JASO T 903 standard MA, Pro
Honda GN4 4-stroke oil (USA & Canada) or
Honda 4-stroke oil, or an equivalent
motorcycle oil
Engine oil
capacity
After draining 1.16 US qt (1.10 L)
After draining
and oil filter
change
1.22 US qt (1.15 L)
After
disassembly
1.53 US qt (1.45 L)
Idle speed 1,800 ± 100 rpm
Specifications
97
■ Cooling system
Cooling capacity
After
draining
1.20 US qt (1.14 L)
After
disassembly
1.31 US qt (1.24 L)
■ Drive train
Primary reduction 2.357
Gear ratio
1st 2.357
2nd 1.705
3rd 1.300
4th 1.090
5th 0.916
6th 0.793
Final reduction 3.923
Gear shift pattern
Left foot-operated return system
1-N-2-3-4-5-6
■ Electrical
Battery
HY93-C lithium-ion (li-ion)
12 V-4.5 Ah (20 HR)
Spark plug
(standard)
SILMAR9A-9S
(NGK)
(for extended high speed
riding)
SILMAR10A-9S
(NGK)
Spark plug gap (non-adjustable)
0.031 - 0.035 in
(0.80 - 0.90 mm)
■ Lights
Headlight 12 V-35 W
Taillight LED
■ Fuses
Main fuse 20 A
Other fuse 10 A
■ Torque specifications
Battery terminal bolt 1.5 lbf·ft (2 N·m, 0.2 kgf·m)
Seat mounting bolt 19 lbf·ft (26 N·m, 2.7 kgf·m)
Side cover bolt 7 lbf·ft (10 N·m, 1.0 kgf·m)
Spark arrester mounting bolt 6.6 lbf·ft (9 N·m, 0.9 kgf·m)
Tail cap cover bolt 3.9 lbf·ft (5.25 N·m, 0.5 kgf·m)
Specifications
Specifications
98
Information Record
VIN
Engine No.
Color Label & Code
Owner's Name
Address
City/State
Phone
Dealer's Name
Address
City/State
Phone
Service Manager
99
California Proposition 65 Warning
WARNING: Operating, servicing and maintaining a passenger vehicle
or off-highway motor vehicle can expose you to chemicals including
engine exhaust, carbon monoxide, phthalates, and lead, which are known
to the State of California to cause cancer and birth defects or other
reproductive harm. To minimize exposure, avoid breathing exhaust, do not
idle the engine except as necessary, service your vehicle in a well-
ventilated area and wear gloves or wash your hands frequently when
servicing your vehicle. For more information go to
www.P65Warnings.ca.gov/passenger-vehicle.
