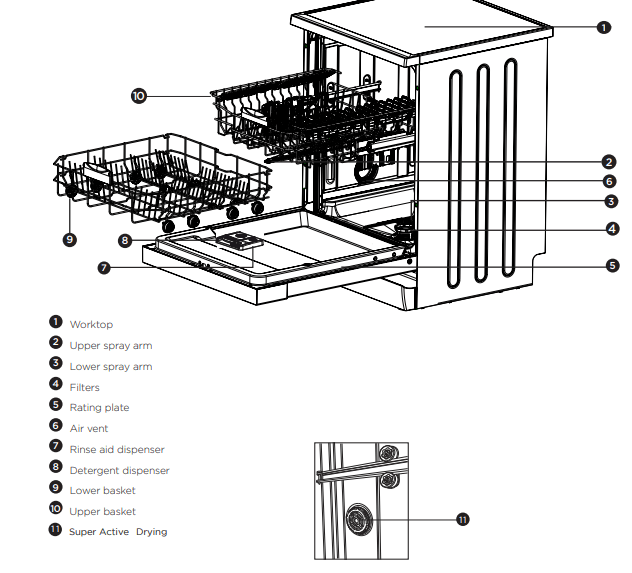

PRODUCT DESCRIPTION

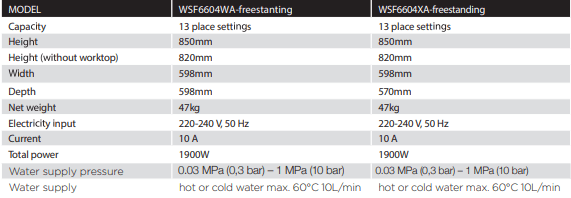

TECHNICAL SPECIFICATIONS

CONTROL PANEL

1. On/Off Button

It turns on/off the energy of the machine when it is pushed, The On-Off lamp lights as long as the machine is on.

2. Program Selection Buttons

It is used for program selection with up/ down buttons.

3. Tablet Option Button

It is used for selection for tablet option. If tablet option is activated, tablet lamp turns on. Select the Tablet Detergent option when using a combined detergent that contains salt, rinse aid or other extras. The Tablet Detergent Indicator will remain on for as long as it is selected.

4. Delay Button

It is used for activation of delay timer. When it is pushed once, 3h timer is activated. 6h and 9h delay timer is activated during consecutive pushes, respectively. If both delay leds are active, it means that 9h delay timer is active.

5. Child Lock Feature Led

This feature is activated by pressing both tablet and delay timer buttons at the same time during 3 seconds. If any button is pushed when the child lock feature is active, all leds blink.

6. Start/Pause Key

When you press the Start/Pause key, the program you have selected with the program selection button will start operating and the washing light will be on. After the program has started, the Start/Pause light will go off. In the Stop (Hold) position, the Start/Pause light blinks while the washing light is lit.

7. Program Monitoring Lights

You can monitor the program flow with the program lights on the control panel.

  • Wash
  • Rinse
  • Dry
  • End

8. Rinse Aid Indicator

Check the rinse aid missing warning indicator light on the display to have an idea whether the amount of the rinse aid in your machine is enough. When the rinse aid missing warning indicator is lit, fill the rinse aid compartment.

9. Half Load Button

Thanks to the half load function in your machine, you can shorten the durations of the programs that you have selected and reduce the energy and water consumption by using half load electricity and water

Switch the machine on by pressing the On/Off button. The On/Off lamp remains lit as long as the machine is on.

Press the Start/Pause button to start the selected program. The Start/Pause light will switch off and the Wash light will illuminate. If the door of your machine is opened while a program is in operation, the Start/Pause light will flash.

NOTE: Press the half load button to activate the Half Load function, which shortens the duration of a program. Press the button again to cancel it.

NOTE: If an extra feature is used, such as the Delay, Tablet or Half Load, on the most recent wash program, this feature will remain active on the next selected program. To cancel this feature on the newly selected wash program, turn the machine off and on. Extra features can be activated with the newly selected program.

Delaying the Program

Press the Delay button to delay the start time of a program for 3, 6 or 9 hours. Pressing the button once will delay the start time for 3 hours, pressing twice will delay for 6 hours, and pressing a third time will delay the start time for 9 hours. If the button is pressed for a fourth time, there will be no delay. Press the Start/ Pause button to activate the delay. The program can be selected first and the delay time after, or vice versa. To cancel or change the delay time, press the Start/ Pause button first, then select a new delay time. The delay time can be cancelled by turning off the machine. During a delay, the light corresponding to the remaining time is switched on.

Changing a Program

Follow the steps below to change a program while in operation.

Cancelling a Program

Follow the steps below to cancel a program while in operation.

Saving a Favourite Program

You can add the programs and options that you consider are best for your dishes and you frequently use. To set your favourite program;

1. Select the program that you want to select using the program button .

2. Add the suitable options for the wash using the option buttons if you want to add additional options to this program.

3. When you press “up” and “down” buttons together after completing your program and option selection, your favourite program and option will be saved.

Selecting a Favourite Program

Press to “Up” button for 3 seconds to select your favourite program

Switching the Machine Off

NOTE: Do not open the door before the program is complete.

NOTE: Leave the door slightly open at the end of a wash program to speed up the drying process.

NOTE: If the door of the machine is opened or the power is cut off during a wash program, the program will continue when the door is closed or when the power returns.

NOTE: If the power is interrupted or if the machine door is opened during the drying process, the program will terminate and your machine will now be ready for a new program selection.

PROGRAM TABLE

NOTE: PROGRAM DURATION MAY CHANGE ACCORDING TO THE AMOUNT OF DISHES, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

  • Only use powder detergent in short programs.
  • Short programs do not include a drying step.
  • To assist drying, we recommend partially opening the door after the program has finished.
  • Eco 50°C program is the Energy Labelling Program and recommended for normally soiled load at the rated capacity.

HINTS AND TIPS

If one of program monitor lights is on and start/pause light is flashing

  • Your machine’s door is open, shut the door to continue.

If the program won’t start

  • Check if the plug is connected.
  • Check your indoor fuses.
  • Check that the water inlet tap is turned on.
  • Check that you have closed the machine door.
  • Check that you switched off the machine by pressing the power on/off button.
  • Check that the water inlet filter and the machine filters are not clogged.

If the control light is off after a wash operation

  • The power on/off button isn’t released yet.

If detergent residues are left in the detergent compartment

  • Detergent has been added when the detergent compartment was wet.
  • Large dishes have blocked the dispenser door.

If water is left inside the machine at the end of the program

  • The water drain hose is clogged or twisted.
  • The filters are clogged.
  • The program is not finished yet.

IMPORTANT TIPS & INFORMATION

At the end of the program, water may still remain on the sides and door of the appliance.

If the machine stops during a wash operation

  • Power failure.
  • Water inlet failure.
  • Program is on standby mode.

If shaking and hitting noises are heard during a wash operation

  • Dishes are placed incorrectly.
  • The spray arm is hitting the dishes.

If there are partial food wastes left on the dishes

  • Dishes are placed incorrectly into the machine, sprayed water did not reach related places.
  • Basket overloaded.
  • Dishes leaning against one another.
  • Very small amount of detergent added.
  • An unsuitable, rather weak wash program selected.
  • Spray arm clogged with food waste.
  • Filters clogged.
  • Filters incorrectly fitted.
  • Water drain pump clogged.

If there are white stains on the dishes

  • A very small amount of detergent is being used.
  • Rinse aid dosage setting at a very low level.
  • Water hardness is very high.

If the dishes won’t dry

  • A program without a dry operation selected.
  • Rinse aid dosage set too low.
  • Dishes unloaded too fast.
  • Use a hotter program.

If there is rust on the dishes

  • Stainless-steel quality of the dishes washed is insufficient.
  • High level of salt in the wash water.
  • Unhealthy mains grounding.

Unloading the baskets

  • For improved drying results with the most effective use of energy, open the door approximately 10cm at the end of the program.
  • Allow the tableware to cool for 30-40 minutes as hot items can easily be damaged.
  • First remove items from the lower basket before removing the items from the upper basket.

Call an authorised service if the problem still persists after the controls or in case of any malfunction not described above.

Useful Information

  • Whenever you will not be operating your machine:
    • Unplug the machine and then turn water off.
    • Leave the door slightly ajar in order to prevent the formation of unpleasant smells.
  • Keep the machine interior clean.
  • Correct loading of dishes in the machine, enables reduced energy consumption and improved washing and drying performance.
  • Remove all large food remnants before you placing dirty dishes into the machine.
  • Operate the machine after it is completely full.
  • If the appliance is located in a place where the risk of freezing exists, you must completely drain the water that has remained in the machine. Turn off the water tap, disconnected the water inlet hose from the tap and allow the interior water to drain.

INSTALLATION

Positioning the machine

When considering the location for the dishwasher, ensure that there is adequate space to enable loading and unloading of the dishes.

  • Do not put your machine in any location where the ambient temperature can fall below 0°C.
  • Before positioning, take the machine out of its packaging by following the warnings located on the package.
  • Position the machine close to a water tap and drain. You need to position your machine, taking into consideration that its connections will not be altered once they are made.
  • Do not grip the machine by its door or panel in order to move it.
  • Take care to leave a certain clearance from all sides of the machine so that you can comfortably move it back and forth during cleaning.
  • Make sure that the water inlet and outlet hoses do not get squeezed while positioning the machine. Also, make sure that the machine does not stand on the electrical cable. Adjust the machine’s feet so that it is level and stable. Proper positioning of the machine ensures problem-free opening and closing of its door.
  • If the door of your machine does not close properly, check if the machine is stable on the floor; if not, adjust the feet and ensure it is level and stable.

Water connection

Ensure that the indoor plumbing is suitable for installing a dishwasher and complies with AS/NZS 3500.1. Also, we recommend that you fit a filter at the entrance of your place or apartment so as to avoid any damage to your machine because of any contamination (sand, clay, rust etc) that might be occasionally carried in through the main’s water supply or the indoor plumbing, and to avoid problems of staining and formation of deposits after washing.

Water inlet hose

Do not use the water inlet hose of your old machine, you must use the new water inlet hose supplied with your machine. Before connecting the water inlet hose to the water tap, ensure clean water is flowing from the tap before making the connection. Connect the water inlet hose directly to the water inlet tap. The pressure supplied by the tap should be at a minimum of 0.03 MPa and at a maximum of 1 MPa. If the water pressure is above 1 MPa, a pressure-relief valve should be installed.

WARNING Only turn the locking nut to secure hose – do not turn the hose.

  • The first time you use the appliance, make sure that there is no leakage.
  • The water inlet hose has a safety valve and a sheath with an inner mains cable.
  • After the connections are made, the tap should be turned on fully and checked for water tightness. For the safety of your machine, make sure to always turn off the water inlet tap after each wash program is finished.

NOTE: A water tempering valve is required if the water temperature is over 60°C.

CAUTION

Always use new hoses when you connect the appliance to the water supply. Old hoses must not be used. The water inlet hose must be examined at an interval of twelve months for deterioration and replaced if necessary.

In order to pass the safety valve through the kitchen cabinets, an opening of at least 45mm x 90mm is needed.

Water drain hose

If you connect the water drain hose to a trap spigot under the sink, remove the plastic membrane. If you do not remove the entire membrane, remaining food can cause blockage in the drain hose spigot. Ensure a hose clamp is used to secure the hose to the spigot.

The water drain hose can be connected either directly to the water drain hole or to the sink outlet spigot. Using a hose hook (if available), the water can be drained directly into the sink by positioning the hose hook over the edge of the sink.

This connection should be at a minimum of 50cm and at a maximum of 110cm above the base of the dishwasher.

WARNING

Maximum drain hose length is 4m. Longer hose length will prevent correct draining, and result in poor wash performance.

Electrical Connection

The plug of your machine should be connected to an earthed outlet that supplies suitable voltage and current.

If there is no earthing installation, have a competent electrician carry out an earthing installation. In case of usage without earthing installed, our company will not be responsible for any loss of usage that might occur.

The indoor fuse current value should be 10-16 A.

Your machine is designed for 220-240 V. The machine should not be plugged in during installation.

  • Always use the molded plug supplied with your machine.
  • Running in low voltage will cause a decline in washing quality.
  • The machine’s electrical cable should be replaced by an authorised service or an authorised electrician only. Failure to do so may lead to accidents.
  • For safety purposes, always make sure to disconnect the plug when a wash program is finished.
  • In order not to cause an electric shock, do not unplug when your hands are wet.
  • When disconnecting your machine from the mains supply, always pull from the plug. Never pull the cord itself.

Fitting the machine undercounter

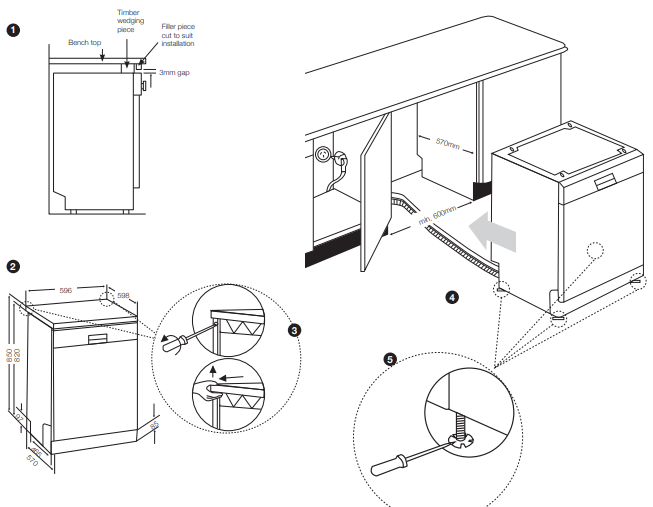

If you wish to fit your machine undercounter, check whether you have sufficient space under your countertop and whether the wiring-plumbing is suitable to do so.

  1. To ensure the stability of the dishwasher for an underbench installation, if the underbench dimension is greater than 820mm, any gap between the dishwasher and the underside of the benchtop should be bridged with a packing piece. This may be achieved by wedging a piece of timber between the dishwasher and the benchtop as shown
  2. If required, remove the worktop as shown in the illustration.
  3. To remove the worktop, remove the screws that hold the worktop which are located at the rear of the machine; then push the front panel 1cm from the front towards the rear and lift it.
  4. Adjust the machine feet according to the slope of the foor.
  5. Fit your machine by pushing it undercounter without letting the hoses get crushed or bent.

WARNING

After removal of worktop, ensure the opening for the dishwasher is according to the following dimensions.

PREPARING FOR USE

Detergent usage

Use a detergent specifically designed for use in domestic dishwashers You can find powder, gel and tablet detergents in the market that have been designed for household dishwashers Detergent should be put into the compartment prior to starting the machine Keep your detergents in cool, dry places out of reach of children Do not fill detergent into the detergent compartment more than required; otherwise it may cause scratches on your glasses as well as lead to a poorly dissolved detergent Should you need more information concerning the detergent you will use, contact detergent manufacturers directly

Filling the detergent compartment

Push the latch to open the detergent container as shown in the image

The Detergent pod has level lines inside It is possible to measure the right detergent amount using these lines

The detergent pod can take a maximum of 40cm3 detergent

Open the dishwasher detergent pod and pour 25cm3 if your dishes are heavily soiled or 15cm3 if they are less soiled

To close the detergent container, push the cover as shown until it locks.

PREPARING FOR USE

You may have to add more detergent into your machine, depending on the degree of soil and the water hardness in your area

If your dishes are from the previous day and there is dried food waste on them, or if you have fully loaded the dishwasher, pour 5cm3 detergent onto the base of the door and start your machine

Combined detergent

Detergent manufacturers also produce combined detergents called “2 in 1”, “3 in 1” or “5 in 1” etc “2 in 1” detergents contain detergent + rinse aid When using “2 in 1” detergents make sure to check the specifications of the tablet

Other tablet detergents contain detergent + rinse aid + various extra functions

Generally, combined detergents produce suitable results under certain usage conditions only

These detergents contain rinse aid and/or other additives in preset amounts

Points to consider when using these type of products:

  • Always make sure to check the specifications of the product you will use or whether or not it is a combined product
  • Check if the detergent used is appropriate for the hardness of mains water that machine relates to
  • Observe the instructions on packaging when using such products
  • If such detergents are in the form of tablets, never put them into the interior section or the cutlery basket of the dishwasher Always put the tablets into the detergent compartment in the detergent dispenser
  • They produce good results for certain types of usage only If you are using this type of detergent, you need to contact the manufacturers and find out about the suitable conditions of use
  • When the conditions of use of such products and the machine settings are appropriate, they ensure savings in salt and/or rinse aid consumption
  • Contact the detergent manufacturer if you are not obtaining good wash results (if your dishes stay calcareous and wet) after having used 2 in 1 or 3 in 1 detergents The scope of warranty for your machine does not cover any complaints caused by the use of these types of detergents

Recommended usage:

For better results while using combined detergents, add rinse aid into your machine and adjust the rinse aid setting to the lowest position

When you give up using combined detergents

  • Fill the rinse aid compartment.
  • Set the suitable rinse aid setting.

Filling with rinse aid and making the setting

To fill the rinse aid compartment, open the rinse-aid compartment cap.

Fill the compartment with rinse aid until MAX level and then close the cap.

Be careful not to overfill the rinse aid compartment and wipe up any spills.

In order to set rinse aid level, follow below steps:

  • Turn on the machine by pressing the On/Off button.
  • Press the Up button for at least 5 seconds immediately after the machine is turned on.
  • Release the Up button when all leds blinks twice. The last setting level is displayed.
  • Press Up or Down button to increase or decrease the hardness level.
  • Turn off the machine to save the setting.

The factory setting is “4”.

If the dishes are not drying properly or are spotted, increase the level. If blue stains form on your dishes, decrease the level.

CAUTION

Use only those rinse aid materials which are allowed for use in the machine. As rinse aid residues left as a result of overflowing will create extremely high amounts of foam and thus reduce the washing performance, remove the excess amount of rinse aid by wiping it with a paper towel or cloth.

LOADING YOUR DISHWASHER

If your dishes are correctly placed in the dishwasher, you will be using it in the best way in terms of energy consumption, washing and drying performance

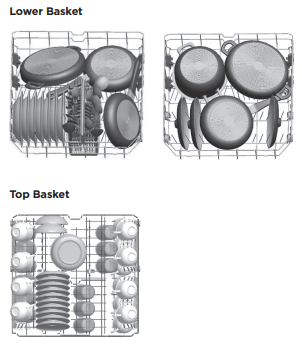

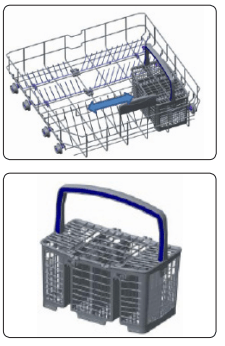

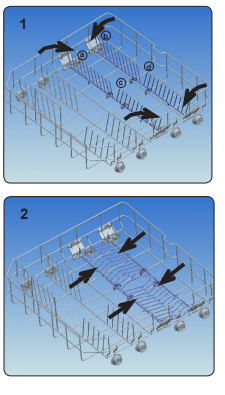

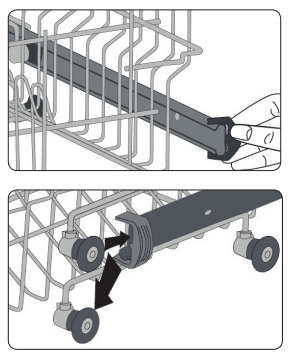

There are two separate baskets for you to load your dishes into your machine You can load into the lower basket such round and deep items as pots with long handles, pot lids, plates, salad plates, cutlery sets

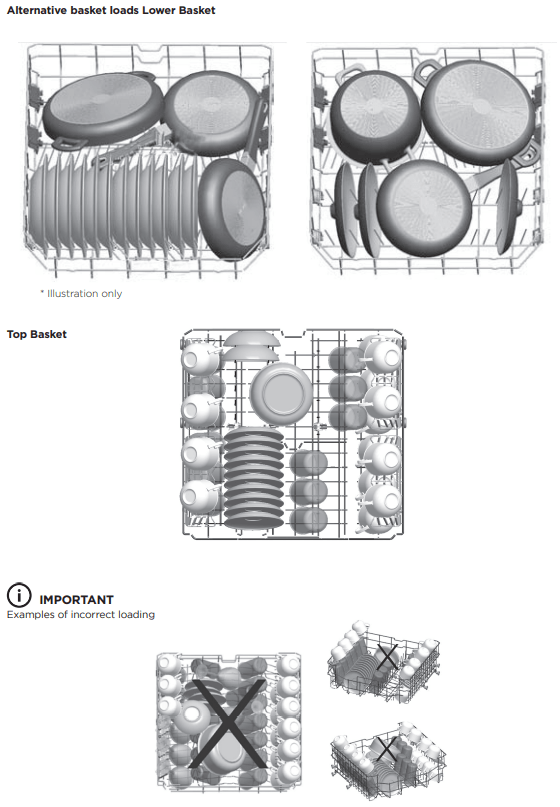

The upper basket has been designed for tea plates, dessert plates, salad bowls, cups and glasses When placing long-stem glasses and goblets, lean them against the basket edge, rack or glass supporter wire and not against other items Do not lean long glasses against one another or they wont remain steady and can be damaged

It is recommended that thin narrow items be placed into the middle sections of baskets You can place spoons among the other cutlery sets in order to prevent them from sticking to one another, use the cutlery grid in order to obtain the best result

To avoid any possible injuries, always place long-handle and sharp-pointed dishes such as serving fork or bread knife with their sharp points facing down or horizontally on the baskets

CAUTION

Place your dishes into your machine in a way that they will not prevent the upper and lower spray arms from spinning

Top basket cup rack

Height Adjustable Rack

These racks are designed to increase the capacity of the top basket You can place your glasses and cups on the racks You can adjust the height of these racks Thanks to this feature, you can place different sizes of glasses under these racks

Thanks to height adjustment plastics mounted on the basket, you can use your racks in two different heights

In addition, you can place long forks, knives and spoons on these racks laterally, so that they do not block the revolution of propeller

Top basket height adjustment while it is empty

Turn the Rail Stop Clips, at the ends of the rails, to the sides to open them (as shown in the image below), then pull out and remove the basket. Change the position of the wheels, then reinstall the basket to the rail, making sure to close the Rail Stop Clips. When the upper basket is in the higher position, large items such as pans can be placed on the lower basket

Alternative basket loads

Folding Racks

The folding racks are designed so that large items, such as pots and pans, can be easily placed in the dishwasher. Each section can be folded separately.

The racks can be folded down or raised up, as shown in the images below.

Slide Basket

The movable cutlery basket can slide between the front and rear wires of the bottom basket.

MAINTENANCE AND CLEANING

IMPORTANT

Cleaning the machine in regular intervals prolongs the machine’s service life.

Oil and lime may accumulate in the machine’s washing section. In case of such accumulation;

  • Fill the detergent compartment without loading any dishes into the machine, select a program that runs at high temperature, and start the machine. If this is ineffective, use a specialty dishwasher cleaner available from most supermarkets

Cleaning the seals in the machine door

  • To clean any accumulated residues in the door seals, wipe the seals regularly by using a dampened cloth

Cleaning the machine

  • Clean the filters and spray arms at least once a week
  • Unplug your machine and turn off its tap before starting the cleaning
  • Do not use hard materials when cleaning your machine. Wipe with a fine cleaning material and a dampened cloth

Filters

  • Check if any food wastes have remained on the coarse and fine filters
  • If any food wastes are left, remove the filters and clean them thoroughly under the water tap

a Micro Filter

b Coarse Filter

c Metal/Plastic Filter

To remove and clean the filter combination, turn it counter clockwise and take it out by lifting upwards 1

Pull and remove the metal/plastic filter 3

Then pull the coarse filter out of the micro filter 2

Rinse it with lots of water under the tap Refit the metal/plastic filter. Insert the coarse filter into the micro filter in away that the marks will correspond to one another. Attach micro filter into the metal/plastic filter and turn to the direction of arrow and it is locked when the arrow on micro filter can be seen from across 4

  • Never use your dishwasher without any filter
  • Incorrect fitting of the filter will reduce the washing effectiveness
  • Clean filters are very important in terms of the proper running of the machine

Spray arms

Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water

You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left

Be sure that the nut is perfectly tightened when refitting the upper spray arm

Hose filter

Water is stopped by the inlet hose filter to avoid any damage to your machine because of any contamination (sand, clay, rust etc) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to forestall such issues as yellowing and formation of deposits after washing. Check the filter and the hose from time to time and clean them if necessary. To clean the filter, first turn off your tap and then remove the hose.

After removing the filter from the hose, clean it under the tap. Insert the cleaned filter back into its place inside the hose. Refit the hose

TROUBLESHOOTING

Insufficient water

  • Make sure the water inlet tap is open and water is flowing.
  • Separate the inlet hose from the tap and clean the filter of the hose.
  • Contact for service if the error continues.

Continuous water input

  • Close the tap and contact for service.

Inability to discharge water

  • Water discharge hose and filters may be clogged.
  • Cancel the program.
  • If the error continues, contact for service.
  • Contact for service.

Faulty heater and heater sensor

  • Contact for service.

Overflow

  • Unplug the machine and close the tap.
  • Contact for service.

Faulty electronic card

  • Contact for service.



See other models: WTB2800WH WVE613WC WR32HX2019 WBE5304SBR WTB4600SB

Westinghouse WSF6604XA | File type: PDF | Filename: 75423825_wsf6604xa.pdf | Size: 13.13 MB | Language: English

Download User Manual

Product Infomation and Reviews - WSF6604XA photo

WSF6604XA Photo

T: @manualsFile

https://manualsFile.com

Westinghouse WSF6604XA Questions and Answers

Find answers or Ask a question.
  • Total questions: 2
  • Questions unAnswered : 2

Q: Same issue as #9869 Reply

Q: Hi
I have the play/pause button and the end lights flashing and the water is not being removed from the bottom of the dishwasher.
I have checked the hose and filters and all looks ok.
Any further suggestions? Reply
