User Guide for Computer Desktop
HELLO DREAM PC! REMOVING PROTECTIVE FOAM
Before you begin, you must remove the protective packing foam before turning on your system
Note: Some cases may have plastic film on the side panel. You can remove these.
Unscrew the screws from the left side panel and remove the panel

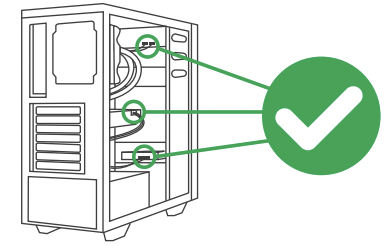

Carefully and gently remove the protective packing foam from inside the system
Note: Depending on system build. there may be more cables.
Check that the cables were not disconnected during shipping
CONNECT
CONNECTIVITY 101 - DISPLAY AND PERIPHERALS

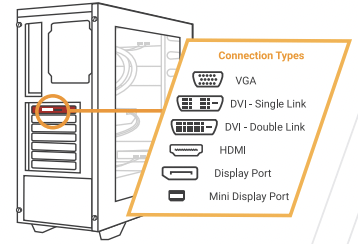

Connect your display. peripherals. and more. for the ultimate gaming experience.
Note: Different video cards have different connectivities
Connect your display only to the video card installed as shown
POWER
LET THERE BE LIGHT ! POWER ON YOUR PC

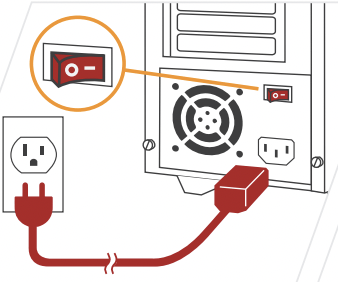

Connect the power cable to the back of your system. Make sure the power supply is switched on.
Plug-in the power cord and switch on the power supply before hitting the power button
Power on the system by pressing the power button (location of button may vary)
Note: Ports may vary depending on your motherboard
Connect your peripherals shown on the diagram above
ACTIVE ALMOST THERE! ACTIVATING WINDOWS PRODUCT KEY
Find the Windows Product Key sticker on the side or back of your computer and copy the code exactly.
We recommend taking a picture. (Some systems may not require this step)
Note: In some instances. your system is pre-activated by iPower and will not require a product key to be entered
FAQ
Where is my Windows Product key sticker?
For most systems the Windows Product Key sticker is located on the side of your PC.
See other models: Mosaic Plex 7000 GTX 560 Ti GTX 460 GTX 760
For some systems. it may be placed on the back. Some systems do not require a product key to be entered for activation. and are pre-activated by iBUYPOWER. During your first boot experience. Windows will ask for your product key if it is required
Why did my computer come with extra cables and extra discs?
All extra accessories are supplied in the event that you would like to add more devices or peripherals to your computer. Extra discs are provided to assist with reinstalling Windows and/or the necessary drivers. These should only need to be used when reformatting your system. as all necessary drivers will have been installed during assembly.
I can hear my system boot up. but the screen is blank.
This may be caused by your monitor being plugged into the wrong video port. The monitor should be connected to the video card (horizontal port underneath the audio ports) as opposed to the motherboard (vertical port near the top of the PC). Also. be sure that your monitor is set to the correct input (HDMI. DVI. etc.).
When I start the computer. I see “No Boot Device Found.”
Check that all cables are properly connected as they may have come loose during shipping. If all cables are properly connected and the problem persists. your computer may be trying to boot to the wrong disk drive.
