User Manual
Refrigerator-Freezer
Thank You
Legend
Warning – Important Safety information
General information and tips
Environmental information
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic ap-
pliances. Do not dispose appliances marked with this
symbol with the household waste. Return the product
to your local recycling facility or contact your municipal
RǎFH
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions con-
tain important information which will help you get the best out of the appliance and ensure
safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.
WARNING!
5LVNRILQMXU\RUVXNjRFDWLRQ
Refrigerants and gases must be disposed of pro-
fessionally. Ensure that the tubing of the refrigerant
circuit is not damaged before being properly dis-
posed of. Disconnect the appliance from the mains
VXSSO\ &XW RNj WKH PDLQV FDEOH DQG GLVSRVH RI LW
Remove the trays and drawers as well as the door
catch and seals, to prevent children and pets to get
closed in the appliance.
2
Content
Intended use ....................................................................................................................................4
Safety ................................................................................................................................................5
Product description .......................................................................................................................8
Use .....................................................................................................................................................9
Equipment .................................................................................................................................... 17
Care and cleaning ........................................................................................................................ 19
Troubleshooting .......................................................................................................................... 21
Installation ..................................................................................................................................... 24
Technical data .............................................................................................................................. 26
CAUTION!
When you close the door, the vertical door slip on the
left door should be bent inside (1).
If you try to close the left door and the vertical door
VOLSLVXQEHQW\RXVKRXOGEHQGLWnjUVWO\RWKHUZLVH
WKHGRRUVOLSZLOOKLWWKHnj[LQJVKDIWRUULJKWGRRU7KXV
a damage to the door slip or a leak will occur.
There is a heating thread inside the vertical door slip.
The temperature of the surface will rise a little, which
LVQRUPDODQGZRQvWDNjHFWWKHIXQFWLRQRIUHIULJHUD-
tor.
1
2
3
Intended use
Intended use
7KLVDSSOLDQFHLVLQWHQGHGIRUFRROLQJDQGIUHH]LQJIRRG,WKDVEHHQGHVLJQHGH[FOXVLYHO\
for use in dry-interior house-holds. It is not intended for commercial or industrial use.
&KDQJHVRUPRGLnjFDWLRQVWRWKHGHYLFHDUHQRWDOORZHG8QLQWHQGHGXVHPD\FDXVHKD]-
ards and loss of warranty claims.
Accessories
Check the accessories and literature in accordance with this list:
User manual
Warranty
card
4
Safety
%HIRUHVZLWFKLQJRQWKHDSSOLDQFHIRUWKHnjUVWWLPH
Do…
▶ make sure there is no transport damage.
▶ make sure all packaging is removed and is kept out of children´s reach.
▶ wait at least two hours before installing the appliance in order to ensure the refrigerant
FLUFXLWLVIXOO\HǎFLHQW
▶ handle the appliance always with at least two persons because it is heavy.
▶
sides around the appliance. Install and level the appliance in an area suitable for its size
and use.
▶ keep ventilation openings in the appliance or in the in-built structure clear of obstruc-
tion.
▶ make sure that the electrical information on the rating plate agrees with the power
supply. If it does not, contact an electrician.
▶ consider that the appliance is operated by a 220~240 VAC/50 Hz power supply. Ab-
QRUPDOYROWDJHǍXFWXDWLRQPD\FDXVHWKHDSSOLDQFHWRIDLOWRVWDUWRUQRWWRRSHUDWH
correctly and damage the temperature control or compressor, originating abnormal
QRLVHWRR7RHOLPLQDWHDEQRUPDOǍXFWXDWLRQLWLVVXJJHVWHGWRXVHDQDXWRPDWLFUHJX-
lator.
▶ use a separate earthed socket for the power supply which is easy accessible. The
appliance must be earthed.
▶ make sure the plug is easy accessible.
▶ ensure that the power cable is not trapped by the refrigerator. Do not step on the
power cable.
Do not…
[
ers).
[ damage the refrigerant circuit. If it does become damaged, do not use the appliance.
[ XVHPXOWLSOXJDGDSWHUVDQGH[WHQVLRQFDEOHV
WARNING!
Make sure not to damage the electric cable and the plug. If damaged it must only be re-
placed by eighter the manufacturer or the authorised service agent.
5
Safety
During daily use
Do…
▶ make sure that this appliance is only used by children from the age of 8 as well as from
SHUVRQVZLWKUHGXFHGSK\VLFDOVHQVRU\RUPHQWDOFDSDELOLWLHVRUODFNRIH[SHULHQFH
and knowledge, if they are supervised or have been instructed how to use it in a safe
way and understand the hazards involved.
▶ NHHSDZD\FKLOGUHQXQGHU\HDUVRIDJHIURPWKHDSSOLDQFHXQOHVVWKH\DUHFRQVWDQWO\
supervised.
▶ make sure children are not playing with the appliance.
▶ make sure children are supervised if they carry out cleaning and maintenance.
▶ hold the plug, not the cable, when unplugging the appliance.
▶ replace a damaged supply cord only by the manufacturer, its service agent or similarly
TXDOLnjHGSHUVRQVLQRUGHUWRDYRLGDKD]DUG
▶ IROORZWKHVHLQVWUXFWLRQVLIFRDOJDVRURWKHULQǍDPPDEOHJDVLVOHDNLQJLQWKHYLFLQLW\RI
WKHDSSOLDQFHWXUQRNjWKHYDOYHRIWKHOHDNLQJJDVRSHQWKHGRRUVDQGZLQGRZVDQGGR
not unplug or plug in the power cable of the appliance or any other appliance.
▶ open and close the doors only with the handles. The gap between the doors and be-
WZHHQWKHGRRUVDQGWKHFDELQHWLVYHU\QDUURZ'RQRWH[WHQG\RXUKDQGVLQWKHVH
DUHDVWRDYRLGSLQFKLQJ\RXUnjQJHUV2SHQRUFORVHWKHUHIULJHUDWRUGRRUVRQO\ZKHQ
there are no children standing within the range of door movement.
▶ disconnect the appliance from the electrical supply before undertaking any routine
maintenance. Allow at least 5 minutes before restarting the appliance, as frequent
starting may damage the compressor.
▶ eliminate the dust on the back of the unit at least once in the year to avoid hazard by
njUHDVZHOODVLQFUHDVHGHQHUJ\FRQVXPSWLRQ
▶ QRWLFHWKDWWKHSURGXFWLVVHWIRURSHUDWLRQDWDVSHFLnjFDPELHQWUDQJHEHWZHHQDQG
r&7KHDSSOLDQFHPD\QRWZRUNSURSHUO\LILWLVOHIWIRUDORQJSHULRGDWDWHPSHUDWXUH
above or below the indicated range.
▶ check the condition of food if a warming in the freezer has taken place.
Do not…
[ set unnecessarily low temperature in the refrigerator compartment. Minus tempera-
WXUHVPD\RFFXUDWKLJKVHWWLQJV$WWHQWLRQ%RWWOHVFDQEXUVW
[ store medicines which need a precision storage temperature or bacteria or chemical
agents in the appliance.
[ store liquids in bottles or cans (besides high percentage spirits) especially carbonated
beverages in the freezer, as these will burst during freezing.
[ SODFHXQVWDEOHDUWLFOHVKHDY\REMHFWVFRQWDLQHUVnjOOHGZLWKZDWHURQWKHWRSRIWKH
appliance, to avoid personal injury caused by falling or electric shock caused by contact
with water.
[ pull on the door shelves. The door may be pulled slant, the bottle rack, may be pulled
away, or the appliance may topple.
[ damage the refrigerant circuit. If it does become damaged, do not use the appliance.
6
Safety
WARNING!
7KHDSSOLDQFH FRQWDLQVWKH ǍDPPDEOH UHIULJHUDQW,62%87+$1( 5D 0DNH VXUH
the refrigerant circuit is not damaged during transportation or installation. Leaking re-
XUUHGNHHSDZD\RSHQnjUH
sources, thoroughly ventilate the room, do QRW plug or unplug the power cords of the
appliance or any other appliance. Inform the customer service.
[ step on the freezer storage compartment door or drawer.
[ touch the inside surface of the freezer storage compartment when in operation, es-
pecially with wet hands, as your hands may freeze onto the surface.
[ touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies im-
mediately after removal from the freezer compartment. There is the risk to freeze or
the formation of frost blisters. FIRST aid: keep immediately under running cold water.
Do not pull away!
[ VFUDSH RNj IURVWDQG LFHZLWK VKDUS REMHFWV 'R QRW XVH VSUD\V HOHFWULF KHDWHUV OLNH
heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage
to the plastic parts.
[ clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl
acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean
with special refrigerator detergent to avoid damage.
[ VSUD\RUǍXVKWKHDSSOLDQFHGXULQJFOHDQLQJ
[ use water spray or steam to clean the appliance.
[ clean the cold glass shelves with hot water. Sudden temperature change may cause
the glass to break.
[ use electrical devices inside the food storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
[ try to repair the appliance by yourself. In case of repair please contact our customer
service.
WARNING!
'RQRWVWRUHRUXVHLQǍDPPDEOHVH[SORVLYHVRUFRUURVLYHPDWHULDOVLQWKHDSSOLDQFHRU
in the vicinity.
5HIULJHUDQWJDVLQIRUPDWLRQ
7
If eyes get into contact with the refrigerant, rinse immediately under running water
and seek medical aenon.
In Queensland - the authorized Service Person MUST hold a Gas Work Authoriasaon
for hydrocarbon refrigerants, to carry out Servicing or repairs which
involve the removal of covers.
This refrigerator may contain the flammable refrigerant isobutane - R600a. It is hazardous
for anyone other than an Authorised Service Person to service this appliance.

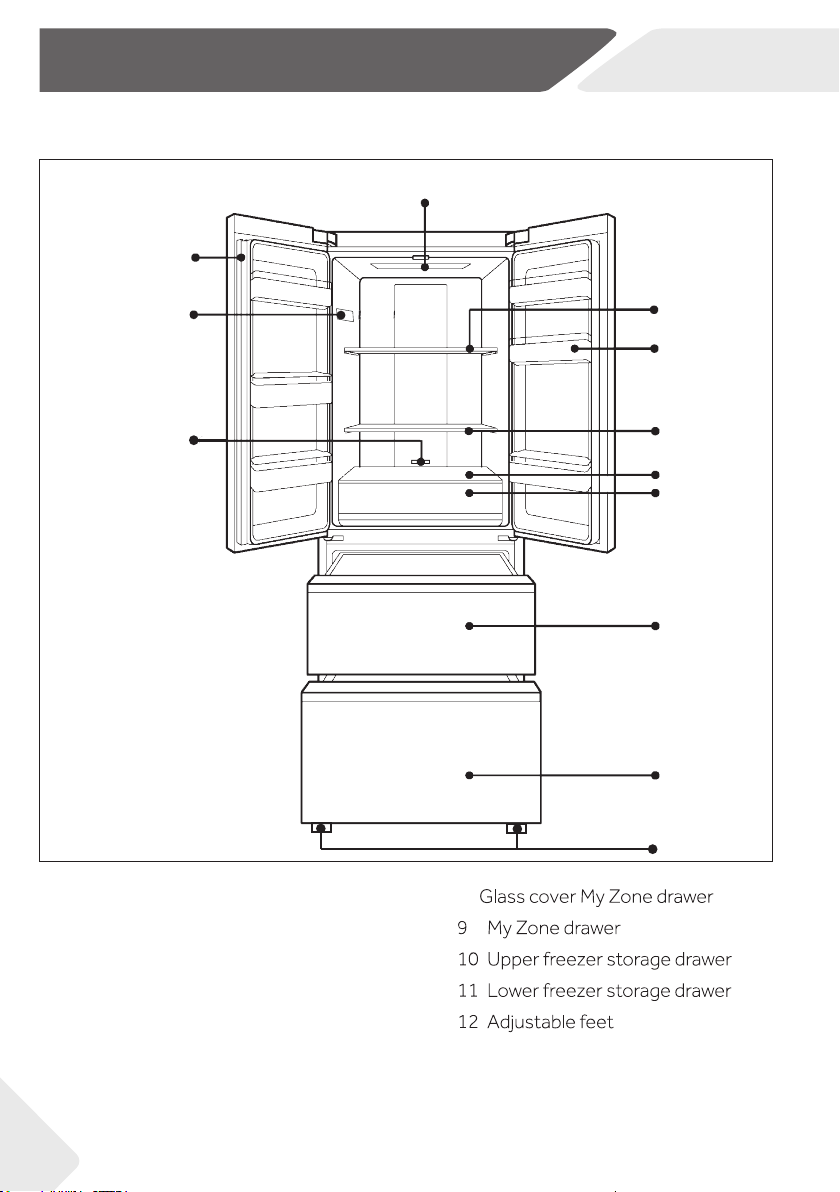

Product description
'XHWRWHFKQLFDOFKDQJHVDQGGLNjHUHQWPRGHOVWKHLOOXVWUDWLRQVLQWKLVFKDSWHUPD\GLNjHU
from your model.
1 Refrigerator LED lamp
2 Door beam
Rating plate
4 Temperature regulator for MyZone drawer
5 Glass shelf
6 %RWWOHKROGHU
7 Glass shelf
8
8
2
3
5
4
6
1
7
8
9
10
11
12
Use
%HIRUHnjUVWXVH
▶ Remove all packaging materials, keep them out of children`s reach and dispose
them in an environmentally friendly manner.
▶ Clean the inside and outside of the appliance with water and a mild detergent before
putting any food in it.
▶ After the appliance has been levelled and cleaned, wait for at least 2 hours before
FRQQHFWLQJLWWRWKHSRZHUVXSSO\6HH6HFWLRQ,167$//$7,21
▶ Precool the compartments at high settings before loading with food. The function
Power Cool and Power Freeze help to cool down the compartments quickly.
▶ 7KHUHIULJHUDWRUWHPSHUDWXUHDQGIUHH]HUWHPSHUDWXUHDUHDXWRPDWLFDOO\VHWWRr&
DQGr&UHVSHFWLYHO\7KHVHDUHWKHUHFRPPHQGHGVHWWLQJV,IGHVLUHG\RXFDQ
FKDQJHWKHVHWHPSHUDWXUHVPDQXDOO\3OHDVHVHH)81&7,216
Control panel
Buttons:
A Compartment selector (“Temp.Zone”)
% 7HPSHUDWXUHUHJXODWLRQNH\ţ7HPS6HWŤ
D Setting/Panel lock selector
Indicators:
1 Refrigerator compartment
2 Freezer Compartment
Temperature value
6 Fuzzy-Function
7 Holiday-Function
9
Sensor keys
The buttons on the control panel are sensor keys, which already respond when lightly
WRXFKHGZLWKWKHnjQJHU
1
3
5
7
6
2
4
B
A
C
D
Use
Notice
▶ 7KHDSSOLDQFHLVSUHVHWWRWKHUHFRPPHQGHGWHPSHUDWXUHRIr&UHIULJHUDWRUDQG
r&IUHH]HU8QGHUQRUPDODPELHQWFRQGLWLRQ\RXQHHGQRWWRVHWDWHPSHUDWXUH
▶ When the appliance is switched on after disconnection from the main power supply, it
may take up to 12 hours for the correct temperatures to be reached.
Notice
The control panel is automatically blocked against
DFWLYDWLRQLIVHFRQGVQREXWWRQLVSUHVVHG)RUDQ\
settings the control panel must be unlocked.
6HOHFWWKHZRUNLQJPRGH
)X]]\PRGH
cording to the ambient temperature and temperature change in the appliance. If you do
not have any special requirements, we recommend that you use fuzzy mode (refer to
)8==<)81&7,21
10
Lock/unlock panel
▶
block all panel elements against activation. An
acoustic signal sounds and the lightening of the
SDQHOLVVZLWFKHGRNj
▶ For unlocking press again the button.
Switch on /of the appliance
The appliance is in operation as soon as it is connected to the power supply.
:KHQWKHDSSOLDQFHLVSRZHUHGRQIRUWKHnjUVWWLPHWKHLQGLFDWRUIRUWKHUHIULJHUDWRUFRP-
(PSW\WKHDSSOLDQFHEHIRUHVZLWFKLQJRNj7RVZLWFKRNjWKHDSSOL
RXWRNjWKHSRZHUVRFNHW
6WDQGE\PRGH
7KHGLVSOD\VFUHHQWXUQVRNjDXWRPDWLFDOO\VHFRQGVDIWHUSUHVVLQJDNH\RULIWKHUHIULJ-
HUDWRUGRRU LVRSHQORQJHUWKDQVHFRQGV 7KHGLVSOD\ZLOOEHDXWRPDWLFDOO\ORFNHG,W
lights up automatically when pressing any key or opening the door/freezer drawer
'RRURSHQLQJDODUP
:KHQWKHUHIULJHUDWRUGRRULVRSHQHGIRUPRUHWKDQPLQXWHVWKHGRRURSHQLQJDODUPZLOO
sound. The alarm can be silenced by closing the door. If the door is left open for more than
PLQXWHVWKHOLJKWLQVLGHWKHUHIULJHUDWRUZLOODXWRPDWLFDOO\VZLWFKRNj
Use
$GMXVWWKHWHPSHUDWXUH
7KHLQGRRUWHPSHUDWXUHVDUHLQǍXHQFHGE\WKHIROORZLQJIDFWRUV
▶ Ambient temperature
▶ Frequency of door opening
▶ Amount of stored foods
▶ Installation of the appliance
0DQXDODGMXVWLQJPRGH
If you want to manually adjust the temperature of the appliance in order to store a par-
ticular food, you can set the temperature via a temperature adjusting button (refer to
ADJUST THE TEMPERATURE).
11

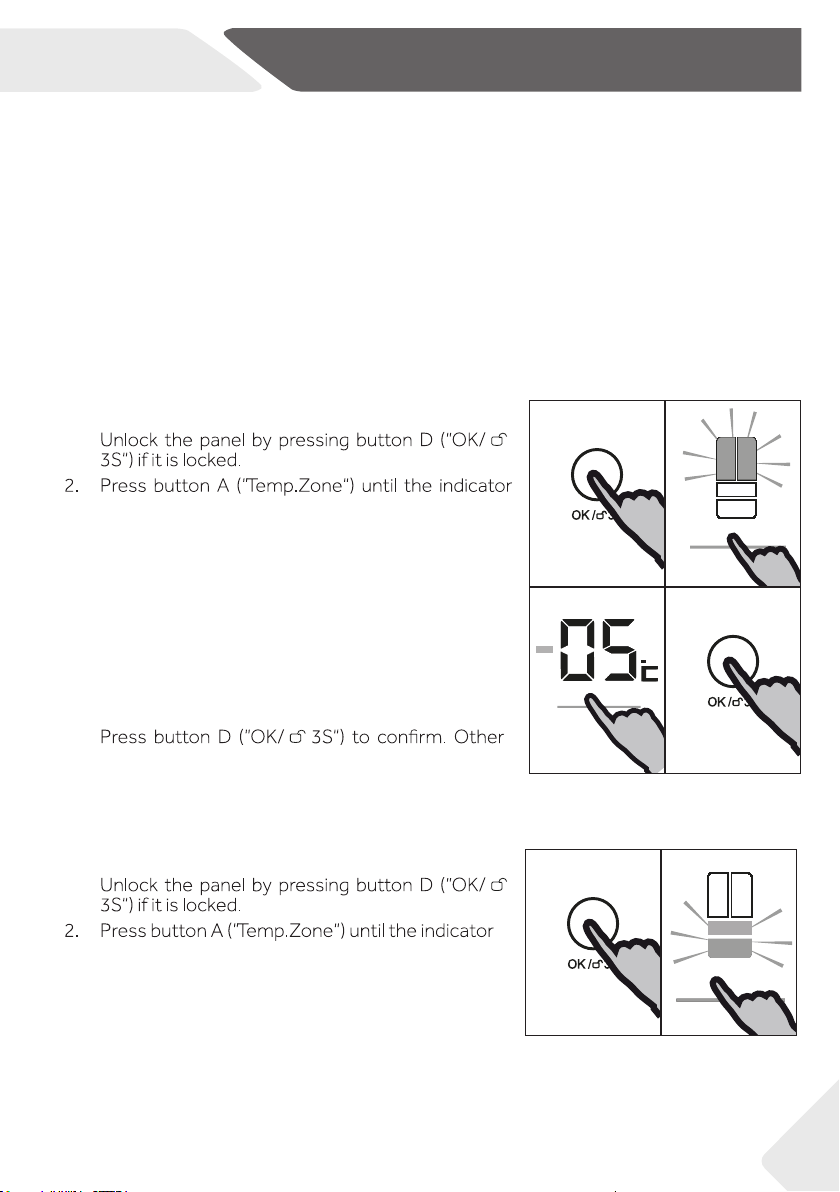

$GMXVWWKHWHPSHUDWXUHIRUIULGJH
1.
for the refrigerator compartment lights up. The
actual temperature in the refrigerator compart-
men is displayed.
3UHVVEXWWRQ%WRVHWWKHUHIULJHUDWRUWHPSHUDWXUH
The setting value of original refrigerating com-
SDUWPHQWǍDVKHVLQWKHGLVSOD\$VLJQDOZLOOVRXQG
at each key press. The temperature increases
LQVHTXHQFHVRIr&IURPDPLQLPXPRIr&WRD
PD[LPXP RI r& 7KH RSWLPXP WHPSHUDWXUH LQ
WKHUHIULJHUDWRULVr&&ROGHUWHPSHUDWXUHVPHDQ
unnecessary energy consumption.
4.
-
ZLVH WKH WHPSHUDWXUH ǍDVKHV IRU VHFRQGVDQG
the previously set temperature remains active.
1. 2.
4.
Temp.Zone
Temp.Set
$GMXVWWKHWHPSHUDWXUHIRUIUHH]HU
1.
for the freezer compartment lights up.
The actual temperature in the freezer compart-
men is displayed.
1.
Temp.Zone
2.
Use
Power-Cool function
Switch on the Power-Cool function if larger quantity
RI IRRG VKRXOG EH VWRUHG IRU H[DPSOH DIWHUWKH SXU-
chase). The Power-Cool function accelerates the
cooling of fresh food and protects the goods already
stored from undesirable warming. The factory setting
WHPSHUDWXUHLVr&
1.
6ţLILWLVORFNHG
indi-
-
ting the above steps or selecting an other function
WKLVIXQFWLRQFDQEHVZLWFKHGRNjDJDLQ
Power-Frz.
HolidayFuzzy
Power-Cool
2.
Fresh food should be frozen as quickly as possible to
celerates the freezing of fresh food and protects the
goods already stored from undesirable warming. If
1.
6ţLILWLVORFNHG
indi-
2.
Power-Frz.
HolidayFuzzy
Power-Cool
Notice
7KLVIXQFWLRQZLOOEHDXWRPDWLFDOO\GLVDEOHGZKHQWKHWHPSHUDWXUHIURPr&LVUHDFKHG
RUWKHIXQFWLRQKDVODVWHGIRUPRUHWKDQKRXUV
12
3UHVVEXWWRQ%WRVHWWKHIUHH]HUWHPSHUDWXUH
The setting value of original freezer compartment
ǍDVKHVLQWKHGLVSOD\$VLJQDOZLOOVRXQGDWHDFK
key press. The temperature increases in sequenc-
-
SHUDWXUHLQWKHIUHH]HULVr&&ROGHUWHPSHUD-
tures mean unnecessary energy consumption.
4.
-
ZLVHWKHWHPSHUDWXUHǍDVKHVIRUVHFRQGVDQG
the previously set temperature remains active.
Temp.Set
4.
Use
Notice
then operated at the previously set temperature.
-
WKLVIXQFWLRQFDQEHVZLWFKHGRNjDJDLQ
WARNING!
During the holiday function no goods must be stored in the refrigerator compartment.
7KHWHPSHUDWXUHRIr&LVWRRKLJKIRUVWRULQJIRRG
13

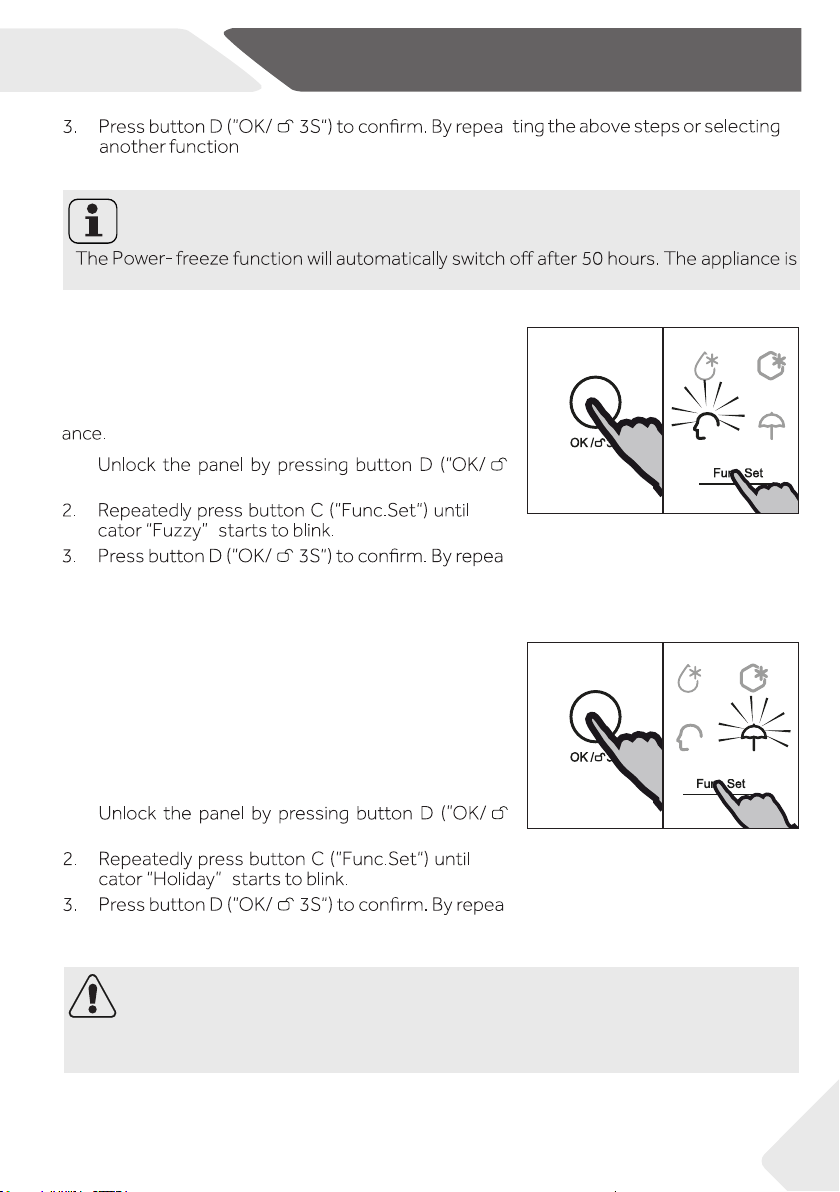

Fuzzy function
In the Fuzzy function, the appliance can automatically
adjust the temperature setting according to the ambi-
ent temperature and temperature change in the appli-
1.
6ţLILWLVORFNHG
indi-
-
ting the above steps or selecting an other function
WKLVIXQFWLRQFDQEHVZLWFKHGRNjDJDLQ
2.
Power-Cool Power-Frz.
HolidayFuzzy
Holiday function
This function sets the refrigerator temperature per-
PDQHQWO\WRr&
This allows to keep the door of the empty refrigera-
tor closed without causing an odour or mold - during
a long absence (e.g. during holiday). The freezer com-
partment is free for your setting.
1.
6ţLILWLVORFNHG
indi-
-
ting the above steps or selecting an other function
WKLVIXQFWLRQFDQEHVZLWFKHGRNjDJDLQ
2.
Power-Cool Power-Frz.
HolidayFuzzy
Use
14
Energy saving tips
▶ 0DNHVXUHWKHDSSOLDQFHLVSURSHUO\YHQWLODWHGVHH,167$//$7,21
▶ Do not install the appliance in direct sunlight or in the near of heat sources(e.g.
stoves, heaters).
▶ Avoid unnecessarily low temperature in the appliance. The energy consumption in-
creases the lower the temperature in the appliance is set.
▶
▶ Allow warm food to cool down before placing it in the appliance.
▶ 2SHQWKHDSSOLDQFHGRRUDVOLWWOHDQGDVEULHǍ\DVSRVVLEOH
▶ 'RQRWRYHUnjOOWKHDSSOLDQFHWRDYRLGREVWUXFWLQJWKHDLUǍRZ
▶ Avoid air within the food packaging.
▶ Keep door seals clean so that the door always closes correctly.
▶ Defreeze frozen food in the fridge storage compartment.
which allows you to store food at the proper temperature, to ensure
its optimal nutritional value.
1. Slide the control to the desired setting.
Setting Description
Fruits and Vegetables
Suitable to store fruits and vegetables
Soft Drinks
Rapid cooling and storage of beverages
Meats
Suitable to store meat.
Use
15
Tips on storing fresh food
6WRULQJLQWRWKHUHIULJHUDWRUFRPSDUWPHQW
▶ .HHS\RXUIULGJHWHPSHUDWXUHEHORZr&
▶ Hot food must be cooled to room temperature before storing in the appliance.
▶ Foods stored in the refrigerator should be washed and dried before storing
▶ Food to be stored should be properly sealed to avoid odour or taste alterations.
▶ 'RQRWVWRUHH[FHVVLYHTXDQWLWLHVRIIRRG/HDYHVSDFHVEHWZHHQIRRGVWRDOORZFROG
QJ
▶ Foods eaten daily should be stored at the front of the shelf.
▶
▶ Defreeze frozen food in the fridge storage compartment. This way, you can use the
frozen food to decrease the temperature in the compartment and save energy.
▶ The ageing process of fruit and vegetables such as courgettes, melons, papaya, ba-
nana, pineapple, etc. can be accelerated in the refrigerator. Therefore, it is not advis-
able to store them in the refrigerator. However, the ripening of strongly green fruits
FDQEHSURPRWHGIRUDFHUWDLQSHULRG2QLRQVJDUOLFJLQJHUDQGRWKHUURRWYHJHWD-
bles should also be stored at room temperature.
▶ Unpleasant odours inside the fridge are a sign that something has spilled and clean-
LQJLVUHTXLUHG6HH&$5($1'&/($1,1*

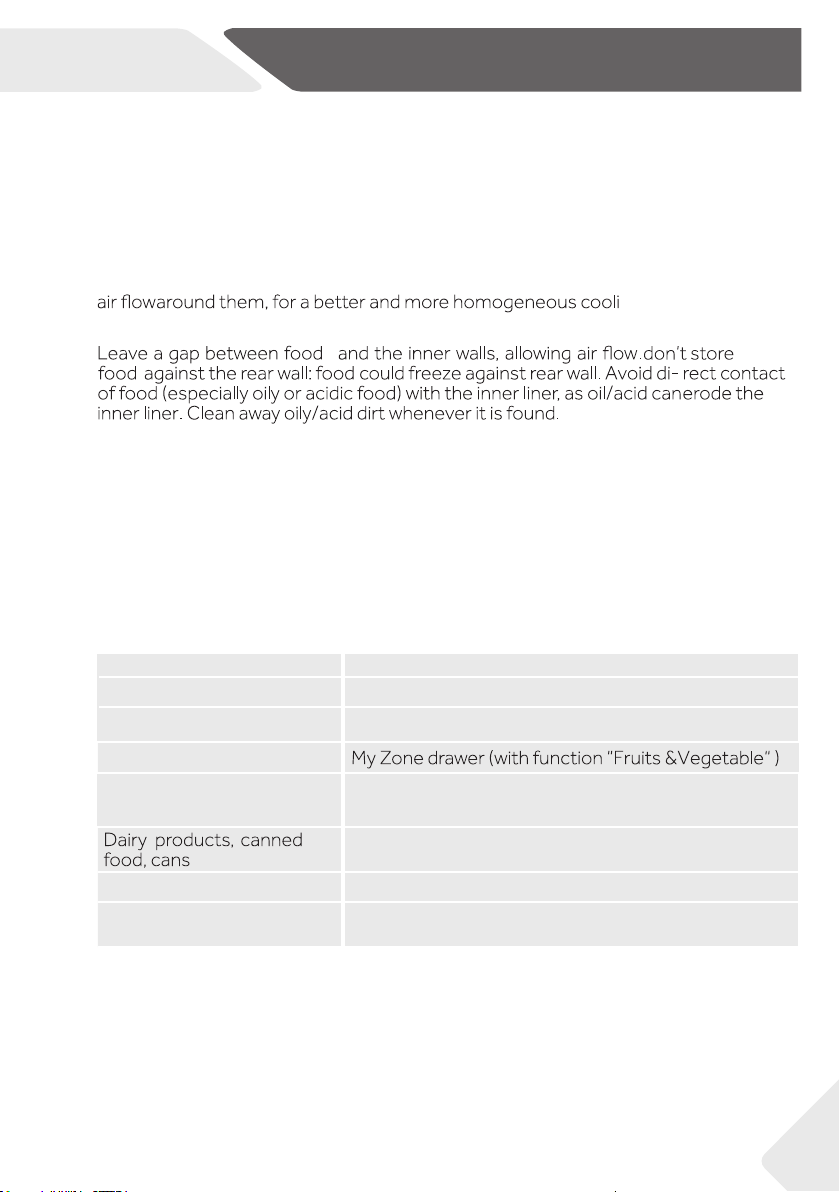

▶ 'LNjHUHQW IRRGV VKRXOG EH SODFHG LQ GLNjHUHQW DUHDV DFFRUGLQJ WR WKHLU SURSHUWLHV
Food /RFDWLRQ
%XWWHUFKHHVH Upper door rack
Eggs Door rack
Fruit, vegetables, salad
Meat, sausage, cheese, milk
Lower area (lowest shelf / coverage above the My
Zone drawer)
Upper area or door rack
Drinks, bottles, tubes Door rack
)UHVKPHDWIUHVKnjVKVDX-
sages, cooked foods
My Zone drawer
Use
:KHQVWRULQJFRPPHUFLDOO\IUR]HQIRRGVSOHDVHIROORZWKHVHJXLGHOLQHV
▶ Always follow manufacturers’ guidelines for the length of time you should store food
IRU'RQRWH[FHHGWKHVHJXLGHOLQHV
▶ Try to keep the length of time between purchase and storage as short as possible to
preserve food quality.
▶ %X\IUR]HQIRRGVZKLFKKDYHEHHQVWRUHGDWDWHPSHUDWXUHRIŞr&RUEHORZ
▶ Avoid buying food which has ice or frost on the packaging – This indicates that the
products might have been partially defrosted and refrozen at some point – temper-
DWXUHULVHVDNjHFWWKHTXDOLW\RIIRRG
6WRUDJHLQWRWKHIUHH]HUFRPSDUWPHQW
▶
▶
RIIRRGKRXUVDUHVXǎFLHQW
▶ Hot food must be cooled to room temperature before storing in the freezer com-
partment.
▶ Food cut into small portions will freeze faster and be easier to defrost and cook. The
▶ It is better to pack food before putting it into the freezer. The outside of the pack-
aging must be dry to avoid bags sticking together. Packaging materials should be
RGRXUIUHHDLUWLJKWQRQSRLVRQRXVDQGQRQWR[LF
▶ ,QRUGHUWRDYRLGH[SLUDWLRQRIVWRUDJHSHULRGVSOHDVHQRWHWKHIUHH]LQJGDWHWLPH
limit and name of the food on the packaging according to the storage periods of dif-
ferent foods.
▶ :$51,1*Acid, alkali and salt etc. could erode the internal surface of the freezer.
'RQRWSODFHWKHIRRGKDYLQJWKHVHVXEVWDQFHVHJVHDnjVKGLUHFWO\RQWKHLQWHUQDO
surface. Salt water in the freezer should be cleaned up immediately.
▶ 'RQRWH[FHHGWKHIRRGVWRUDJHWLPHVUHFRPPHQGHGE\WKHPDQXIDFWXUHUV2QO\
take the required amount of food out of the freezer.
▶ Consume defrosted food quickly. Defrosted food cannot be re-frozen unless it is
▶ 'RQRWORDGH[FHVVLYHTXDQWLWLHVRIIUHVKIRRGLQWKHIUHH]HUFRPSDUWPHQW5HIHU
WRWKHIUHH]LQJFDSDFLW\RIWKHIUHH]HUŞ6HH7(&+1,&$/'$7$RUGDWDDWWKHW\SH
plate.
▶ )RRG FDQ EH VWRUHG LQ WKH IUHH]HUDW D WHPSHUDWXUH RI DW OHDVW r& IRU WR
PRQWKV GHSHQGLQJ RQ LWVSURSHUWLHV HJ PHDW PRQWKV YHJHWDEOHV
months)
▶ When freezing fresh food, avoid bringing it in contact with already frozen food. Risk
of thawing!
▶ Defreeze frozen food in the fridge. This way, you can use the frozen food to decrease
the temperature in the compartment and save energy.
16
Equipment
Notice:
Ensure that all ends of a shelf are level.
17
Adjustable shelves
7KHKHLJKW RI WKHVKHOYHVFDQEH DGMXVWHGWRnjW \RXU
storage needs.
1. 7R UHORFDWH D VKHOI UHPRYHLW njUVWE\ XSOLIWLQJ LWV
hind edge (1) and pulling it out (2).
2. To reinstall it, put it on the lugs on both sides and
push it to the most rearward position until the rear
RIWKHVKHOILVnj[HGLQVLGHWKHVORWVLQWKHVLGHV
5HPRYDEOHGRRUUDFNV
The door racks can be removed for cleaning:
1. Place hands on each side of the rack and lift it up-
wards (1).
2. Pull the door rack out (2).
In order to insert the door rack, the above steps
are carried out in reverse order.
1
2
1

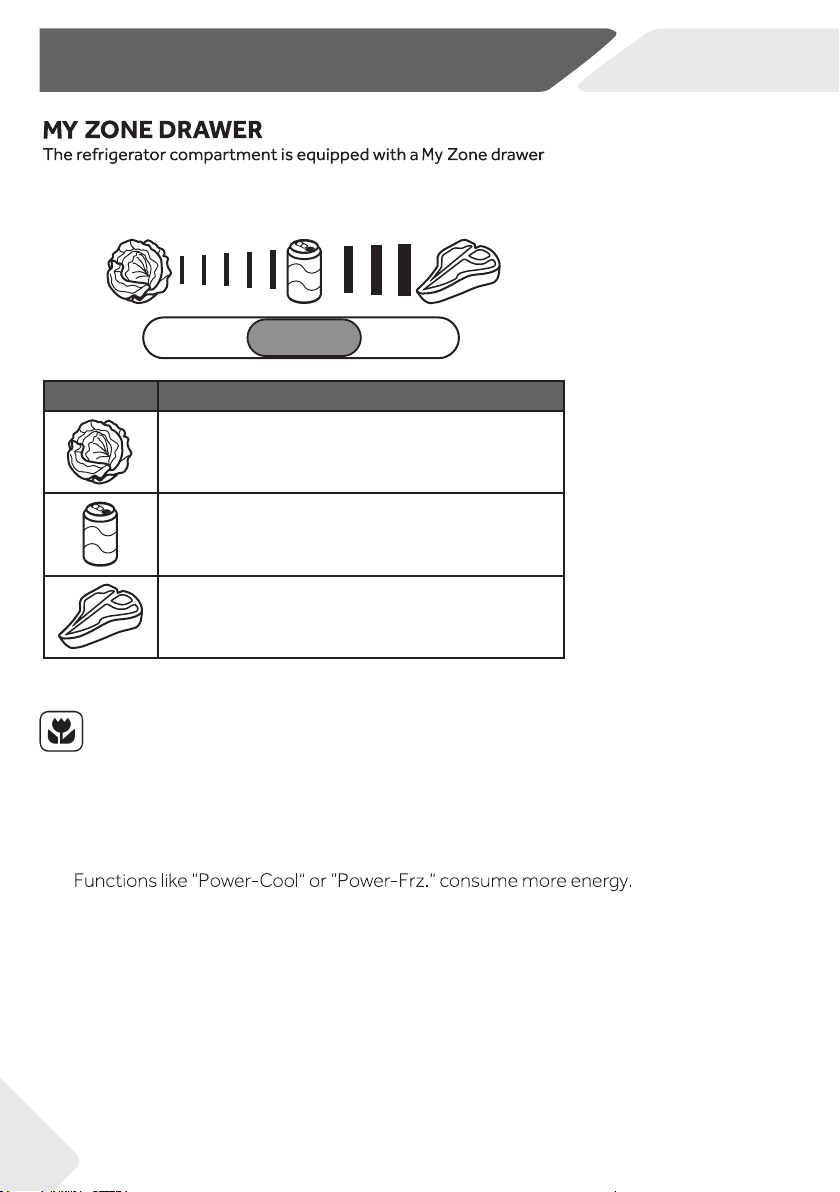

5HPRYDEOH0\=RQHGUDZHU
For the use of the My Zone drawer, please check sec-
tion USE (My- Zone drawer)
To remove the My Zone drawer:
1. Remove the two lower bottle holder from both
doors.
2. Pull the My Zone drawer and the glass cover to the
PD[LPXPH[WHQW
Lift and remove the drawer and its cover.
4. In order to insert the My Zone drawer, the above
steps are carried out in reverse order.
Equipment
WARNING!
'RQRWRYHUORDGWKHGUDZHUV0D[ORDGRIHDFKGUDZHUNJ
18
5HPRYDEOHIUHH]HUVWRUDJHGUDZHU
To remove the freezer storage drawer open them to
WKHPD[LPXPH[WHQWOLIWDQGUHPRYHWKHP
In order to insert the freezer storage drawer, the above
steps are carried out in reverse order.
5HPRYDEOHFRQQHFWLRQURG
The rod can be removed after removing the top freez-
er drawer:
1. Pull out the clip of supporting bar upward of the
upper freezing slide to the left and right of con-
necting rod.
2. Remove the connecting rod.
In order to insert the connection rod, the above steps
are carried out in reverse order.
Care and cleaning

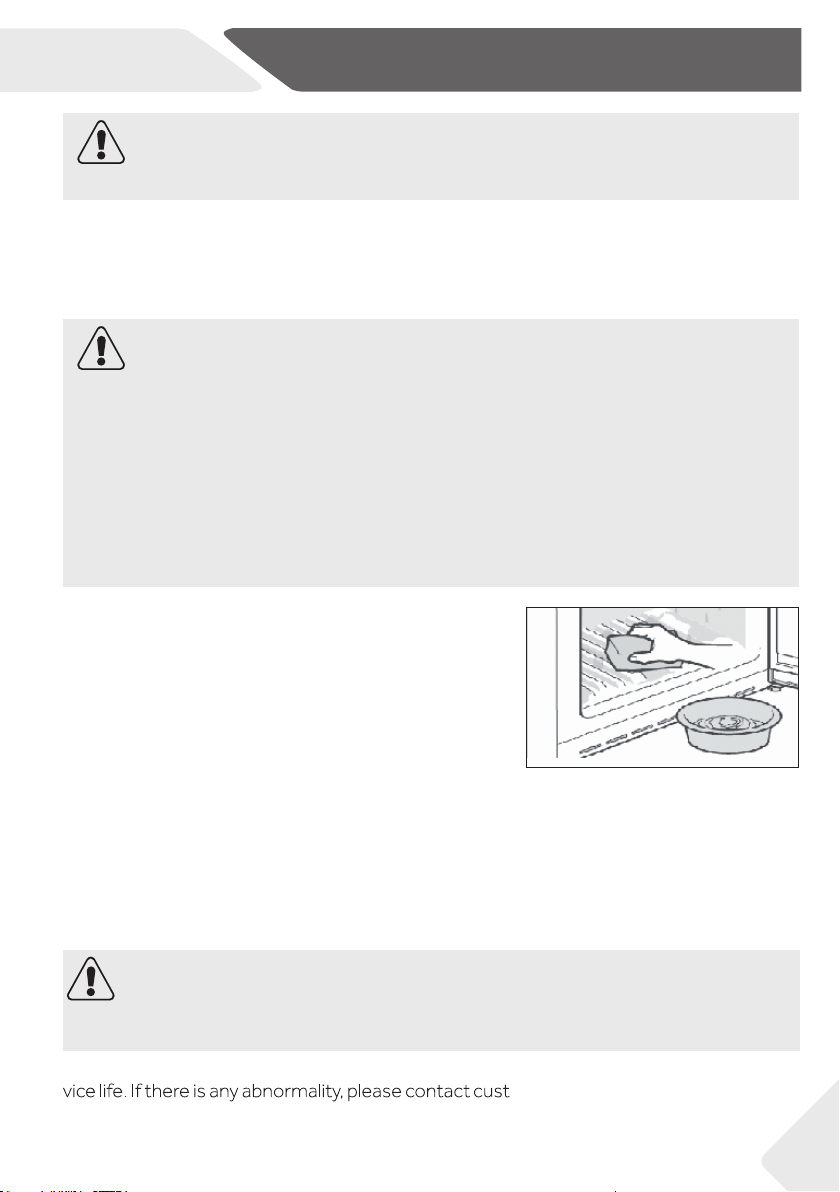

Cleaning
Clean the appliance when only little or no food is stored.
The appliance should be cleaned every four weeks for good maintenance and to prevent
bad stored food odors.
WARNING!
▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol,
amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please
clean with special refrigerator detergent to avoid damage.
▶ 'RQRWVSUD\RUǍXVKWKHDSSOLDQFHGXULQJFOHDQLQJ
▶ Do not use water spray or steam to clean the appliance.
▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may
cause the glass to break .
▶ Do not touch the inside surface of the freezer storage compartment, especially with
wet hands, as your hands may freeze onto the surface.
▶ In case of heating check the condition of frozen goods.
WARNING!
Disconnect the appliance from the power supply before cleaning.
WARNING!
Do not replace the LED lamp yourself, it must only be replaced by either the manufactu-
rer or the authorised service agent.
19
▶ Always keep the door gasket clean.
▶ Clean the inside and housing of the appliance
with a sponge dampened in warm water and
neutral detergent.
▶ Rinse and dry with soft cloth.
▶ Do not clean any of the parts of the appliance in a
dishwasher.
▶ Allow at least 5 minutes before restarting the
appliance as frequent starting may damage the
compressor.
Defrosting
The defrosting of the refrigerator and the freezer compartment are done automatically;
no manual operation is needed.
5HSODFLQJWKH/('ODPSV
The lamp adopts LED as its light source, featuring low energy consumption and long ser-
RPHUVHUYLFH6HH&86720(5
SERVICE.
3DUDPHWHUVRIWKHODPS9PD[:
Care and cleaning
Notice
7XUQWKHDSSOLDQFHRNjRQO\LIVWULFWO\QHFHVVDU\
WARNING!
▶ Do not lift the appliance by its handles.
▶ 1HYHUSODFHWKHDSSOLDQFHKRUL]RQWDOO\RQWKHJURXQG
20
Non-use for a longer period
,IWKHDSSOLDQFHLVQRWXVHGIRUDQH[WHQGHGSHULRGRIWLPHDQG\RXZLOOQRWXVHWKH+ROLGD\
function for the refrigerator:
▶ Take out the food.
▶ Unplug the power cord.
▶ Clean the appliance as described above.
▶ Keep the door and freezer drawers open to prevent the creation of bad odours inside.
Moving the appliance
1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive
tape.
'RQRWWLOWWKHUHIULJHUDWRUPRUHWKDQrWRDYRLGGDPDJLQJWKHUHIULJHUDWLQJV\VWHP
Troubleshooting
0DQ\RFFXULQJSUREOHPVFRXOGEHVROYHGE\\RXUVHOIZLWKRXWVSHFLnjFH[SHUWLVH,QFDVH
of a problem please check all shown possibilities and follow below instructions before you
FRQWDFWDQDIWHUVDOHVVHUYLFH6HH&86720(56(59,&(
3UREOHP 3RVVLEOH&DXVH 3RVVLEOH6ROXWLRQ
The compressor
does not work.
Ũ Mains plug is not connected in the
mains socket.
Ũ The appliance is in the defrosting
cycle
Ũ Connect the mains plug.
Ũ This is normal for an automatic
defrosting
The appliance runs
frequently or runs
Ũ The indoor or outdoor tempera-
ture is too high.
Ũ 7KHDSSOLDQFHKDVEHHQRNjSRZHU
for a period of time.
Ũ A door/drawer of the appliance is
not tightly closed.
Ũ The door/drawer has been opened
too frequently or for too long.
Ũ The temperature setting for the
freezer compartment is too low.
Ũ The door/drawer gasket is dirty,
worn, cracked or mismatched.
Ũ The required air circulation is not
guaranteed.
Ũ In this case, it is normal for the
appliance to run longer.
Ũ 1RUPDOO\LWWDNHVWRKRXUV
for the appliance to cool down
completely.
Ũ Close the door/drawer and
ensure the appliance is located
on a level ground and there is
no food or container jarring the
door.
Ũ Do not open the door/drawer
too frequently.
Ũ Set the temperature higher
until a satisfactory refrigera-
tor temperature is obtained. It
takes 24 hours for the refrig-
erator temperature to become
stable.
Ũ Clean the door/drawer gasket
or replace them by the cus-
tomer service.
Ũ Ensure adequate ventilation.
The inside of the re-
frigerator is dirty and/
or smells.
Ũ The inside of the refrigerator
needs cleaning.
Ũ Food of strong odour is stored in
the refrigerator.
Ũ Clean the inside of the refrig-
erator.
Ũ
WARNING!
▶ %HIRUHPDLQWHQDQFHGHDFWLYDWHWKHDSSOLDQFHDQGGLVFRQQHFWWKHPDLQVSOXJIURP
the mains socket.
▶ (OHFWULFDOHTXLSPHQWVKRXOGEHVHUYLFHGRQO\E\TXDOLnjHGHOHFWULFDOH[SHUWVEHFDXVH
improper repairs can cause considerable consequential damages.
▶ A damaged supply should only be replaced by the manufacturer, its service agent or
VLPLODUO\TXDOLnjHGSHUVRQVLQRUGHUWRDYRLGDKD]DUG
21
Troubleshooting
3UREOHP 3RVVLEOH&DXVH 3RVVLEOH6ROXWLRQ
It is not cold enough
i
Ũ The temperature is set too high.
Ũ
Ũ Too much food has been stored at
one time.
Ũ The goods are too close to each
other.
Ũ A door/drawer of the appliance is
not tightly closed.
Ũ The door/drawer has been opened
too frequently or for too long.
Ũ Reset the temperature.
Ũ Always cool down goods be-
fore storing them.
Ũ Always store small quantities of
food.
Ũ Leave a gap between several
Ũ Close the door/drawer.
Ũ Do not open the door/drawer
too frequently.
It is too cold inside
the appliance.
Ũ The temperature is set too low.
Ũ The Power Freeze/Power-Cool-
function is activated or is running
too long.
Ũ Reset the temperature.
Ũ 6ZLWFK RNj WKH 3RZHU )UHH]H
Power-Cool function
Moisture formation
on the inside of the
partment.
Ũ The climate is too warm and too-
damp.
Ũ A door/drawer of the appliance is
not tightly closed.
Ũ The door/drawer has been opened
too frequently or for too long.
Ũ Food containers or liquids are left
open.
Ũ Increase the temperature.
Ũ Close the door/drawer.
Ũ
too frequently.
Ũ
and liquids.
Ũ The climate is too warm and too
damp.
Ũ The door/drawer is not closed
tightly. The cold air in the appliance
and the warm air outside it con-
densates.
Ũ This is normal in damp climate
midity decreases.
Ũ
tightly shut.
Strong ice and frost
in the freezer com-
partment.
Ũ The goods were not adequately
packaged .
Ũ A door/drawer of the appliance is
not tightly closed.
Ũ The door/drawer has been opened
too frequently or for too long.
Ũ The door/drawer gasket is dirty,
worn, cracked or mismatched.
Ũ Something on the inside prevents
the door/drawer to close properly.
Ũ Always pack the goods well.
Ũ Close the door/drawer.
Ũ Do not open the door/drawer
too frequently.
Ũ Clean the door/drawer gasket
or replace them by new ones.
Ũ Reposition the shelves, door
racks, or internal containers to
allow the door/drawer to close.
22
Troubleshooting
3UREOHP 3RVVLEOH&DXVH 3RVVLEOH6ROXWLRQ
The appliance
makes abnormal
sounds.
Ũ The appliance is not located on
level ground.
Ũ The appliance touches some ob-
ject around it.
Ũ Adjust the feet to level the ap-
pliance.
Ũ Remove objects around the
appliance.
Ũ - Ũ This is normal.
Ũ The fridge storage compartment
door is open.
Ũ Close the door or silence the
alarm manually.
You will hear a faint
hum.
Ũ The anti-condensation system is
working
Ũ This prevents condensation
and is normal
The interior lighting
or cooling system
does not work
.
Ũ Mains plug is not connected in the
mains socket.
Ũ The power supply is not intact.
Ũ The LED-lamp is out of order.
Ũ Connect the mains plug.
Ũ Check the electrical supply to
the room. Call the local elec-
tricity company!
Ũ
23
Power interruption
In the event of a power cut, food should remain safely cold for about 12 hours. Follow these
tips during a prolonged power interruption, especially in summer:
▶ 2SHQWKHGRRUGUDZHUDVIHZWLPHVDVSRVVLEOH
▶ Do not put additional food into the appliance during a power interruption.
▶ If prior notice of a power interruption is given and the interruption duration is longer
than 12 hours, make some ice and put it in a container in the top of the refrigerator
compartment.
▶ An inspection of the goods is required immediately after the interruption.
▶ As temperature in the refrigerator will rise during a power interruption or other fail-
ure, the storage period and edible quality of food will be reduced. Any food that de-
frosts should be either consumed, or cooked and refrozen (where suitable) soon
afterwards in order to prevent health risks.
0HPRU\IXQFWLRQGXULQJSRZHULQWHUUXSWLRQ
After restoration of power the appliance continues with the settings that were set before
the power failure. The control panel is unlocked.
Installation
Unpacking
▶ Take the appliance out of the packaging.
▶ Remove all packaging materials.
(QYLURQPHQWDOFRQGLWLRQV
7KHURRPWHPSHUDWXUHVKRXOGDOZD\VEHEHWZHHQr&DQGr&VLQFHLWFDQLQǍXHQFH
the temperature inside the appliance and its energy consumption. Do not install the appli-
ance near other heat-emitting appliances (ovens, refrigerators) without isolation.
6SDFHUHTXLUHPHQW
Required space when door is opened:
Appliance width: 114 cm
Appliance depth: 98 cm
98 cm
114 cm
10 cm
WARNING!
▶ The appliance is heavy. Always handle with at least two persons.
▶ Keep all packaging materials out of children´s reach and dispose them in an environ-
mentally friendly manner.
Ventilaton cross-section
7R DFKLHYH VXǎFLHQW YHQWLODWLRQ RI WKH DSSOLDQFH IRU
safety reasons, the information of the required ventila-
tion cross sections must be observed.
70,8 cm
180,4 cm
Aigning the appliance
7KHDSSOLDQFHVKRXOGEHSODFHGRQDǍDWDQGVROLGVXU-
face.
1. Tilt the refrigerator slightly backwards.
2. Set the feet to the desired level.
Make sure the distance to the wall on the hinge sides is
at least 10 cm for the doors to open properly.
max 45°
1. 2.
24
Installation

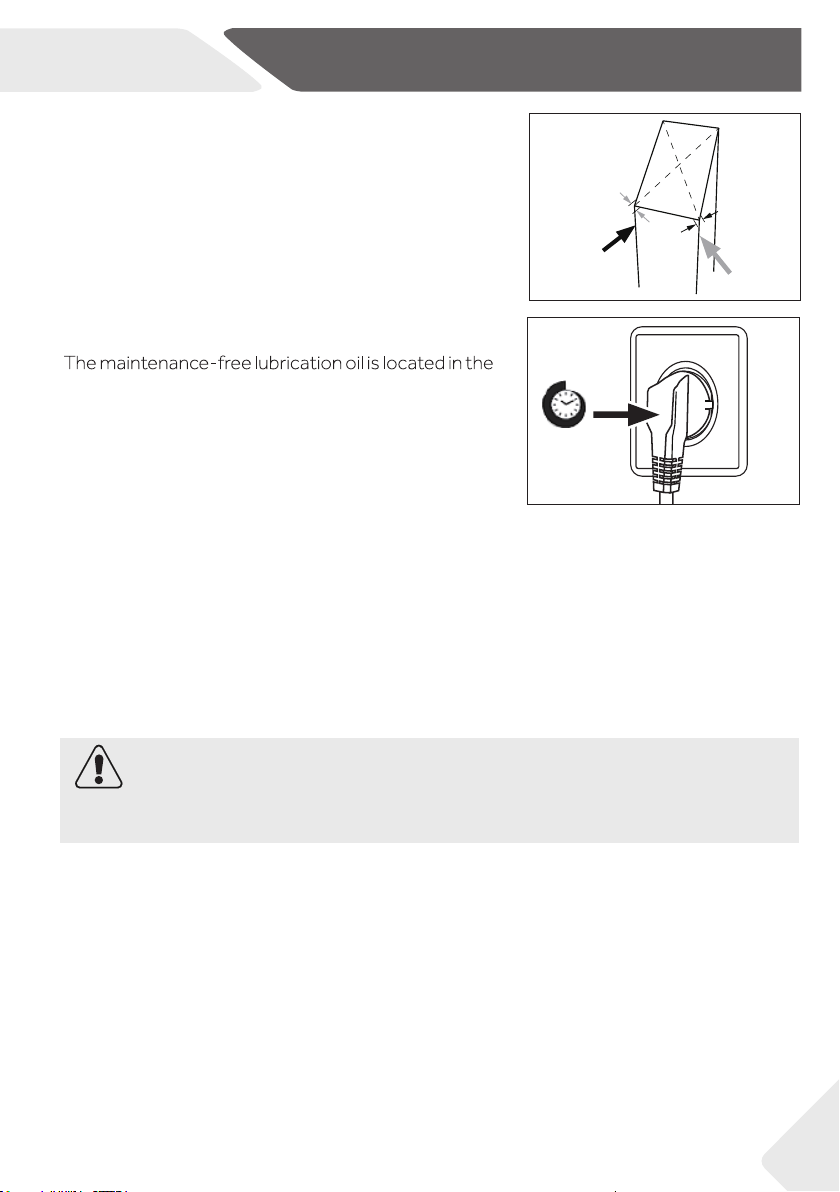

:DLWLQJWLPH
capsule of the compressor. This oil can get through
WKHFORVHGSLSHV\VWHPGXULQJVODQWLQJWUDQVSRUW%H-
fore connecting the appliance to the power supply you
have to wait at least 2 hours so that the oil runs back
into the capsule.
Electrical connection
Before each connection check if:
▶ power supply, socket and fusing are appropriate to
the rating plate.
▶ the power socket is earthed and no multi-plug or
H[WHQVLRQ
▶ the power plug and socket are strictly according.
Connect the plug to a properly installed household
socket.
2 h
The stability can be checked by alternately bump-
ing on the diagonals. The slightly swaying should
EH WKH VDPH LQ ERWK GLUHFWLRQV 2WKHUZLVH WKH
frame can warp; possible leaking door seals are
the result. A low tendency to the rear facilitates
the closing of the door.
WARNING!
To avoid risks a damaged power cord must be replaced by the customer service (see
warranty card).
25
26
Trade mark
Haier
Category of the model
Refrigerator-freezer
Frostfree system
Yes
Climate class
Model No.
HFD462FS1
Energy Star
Voltage / Frequency
220V-240V~/50Hz
2.5 star
Product group
5B
Total gross volume
462L
Total storage volume
355L
Fresh food compartment volume
270L
Freezer compartment volume
85L
Insulation blowing gas
HC-C601
Dimension (DxWxH)
708x708x1804mm
Rrefrigerant
R600a 65g
T
Protection class
I
Technical data
