Whirlpool UW8 F2C XLSB Freezer in Stainless Steel 252L

User Manual - Transcript

• Page 1: User Manual wwwwhirlpooleuregister
• Page 2 - English - : USER MANUAL HEALTH amp SAFETY GUIDE 3 Safety instructions 3 USE amp CARE GUIDE 5 Product Description 5 Control panel 5 Refrigerator light 6 Shelves 6 Door 6 How to use the appliance 7 First time use 7 Freezer compartment and food storage 7 Storage times for home frozen foods 7 How to defrost the freezer compartment 8 Functional sounds 8 Recommendation in case of no use of the appliance 8 Cleaning and maintenance 8 Troubleshooting 9 Aftersales service 10 THANK YOU FOR BUYING A WHIRLPOOL PRODUCT In order to receive a more complete assistance please register your appliance on wwwwhirlpooleuregister INDEX
• Page 3 - English - : EN Health amp Safety guide SAFETY INSTRUCTIONS IMPORTANT TO BE READ AND OBSERVED Before using the appliance read these safety instructions Keep them nearby for future reference These instructions and the appliance itself provide important safety warnings to be observed at all times The manufacturer declines any liability for failure to observe these safety instructions for inappropriate use of the appliance or incorrect setting of controls Very young children 03 years should be kept away from the appliance Young children 38years should be kept away from the appliance unless continuously supervised Children from 8years old and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved Children must not play with the appliance Cleaning and user maintenance must not be carried out by children without supervision PERMITTED USE CAUTION The appliance is not intended to be operated by means of an external switching device such as a timer or separate remote controlled system This appliance is intended to be used in household and similar applications such as sta kitchen areas in shops oces and other working environments farm houses by clients in hotels motels bed amp breakfast and other residential environments This appliance is not for professional use Do not use the appliance outdoors The bulb used inside the appliance is specically designed for domestic appliances and is not suitable for general room lighting within the home EC Regulation 2442009 The appliance is designed for operation in places where the ambient temperature comes within the following ranges according to the climatic class given on the rating plate The appliance may not work properly if it is left for a long time at a temperature outside the specied range Climatic Class Amb T C SN From 10 to 32 C N From 16 to 32 C ST From 16 to 38 C T From 16 to 43 C This appliance does not contain CFCs The refrigerant circuit contains R600a HC Appliances with Isobutane R600a isobutane is a natural gas without environmental impact but is ammable Therefore make sure the refrigerant circuit pipes are not damaged especially when emptying the refrigerant circuit WARNING Do not damage the appliance refrigerant circuit pipes WARNING Keep ventilation openings in the appliance enclosure or in the builtin structure clear of obstruction WARNING Do not use mechanical electric or chemical means other than those recommended by the Manufacturer to speed up the defrost process WARNING Do not use or place electrical devices inside the appliance compartments if they are not of the type expressly authorised by the Manufacturer WARNING Ice makers andor water dispensers not directly connected to the water supply must be lled with potable water only WARNING Automatic icemakers andor water dispensers must be connected to a water supply that delivers potable water only with mains water pressure between 017 and 081MPa 17 and 81bar Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance Do not swallow the contents nontoxic of the ice packs provided with some models Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns For products designed to use an air lter inside an accessible fan cover the lter must always be in position when the refrigerator is in function Do not store glass containers with liquids in the freezer compartment since they may break Do not obstruct the fan if included with food items After placing the food check that the door of the compartments closes properly especially the freezer door Damaged gaskets must be replaced as soon as possible Use the refrigerator compartment only for storing fresh food and the freezer compartment only for storing frozen food freezing fresh food and making ice cubes Avoid storing unwrapped food in direct contact with internal surfaces of the refrigerator or freezer compartments Appliances could have special compartments Fresh Food Compartment Zero Degree Box etc Unless specied in the specic booklet of product they can be removed maintaining equivalent performances CPentane is used as blowing agent in the insulation foam and it is a ammable gas INSTALLATION The appliance must be handled and installed by two or more persons risk of injury Use protective gloves to unpack and install risk of cuts Installation including water supply if any and
• Page 4 - English - : Health amp Safety guide electrical connections and repairs must be carried out by a qualied technician Do not repair or replace any part of the appliance unless specically stated in the user manual Keep children away from the installation site After unpacking the appliance make sure that it has not been damaged during transport In the event of problems contact the dealer or your nearest Aftersales Service Once installed packaging waste plastic styrofoam parts etc must be stored out of reach of children risk of suocation The appliance must be disconnected from the power supply before any installation operation risk of electric shock During installation make sure the appliance does not damage the power cable risk of re or electric shock Only activate the appliance when the installation has been completed Be careful not to damage the oors eg parquet when moving the appliance Install the appliance on a oor or support strong enough to take its weight and in a place suitable for its size and use Make sure the appliance is not near a heat source and that the four feet are stable and resting on the oor adjusting them as required and check that the appliance is perfectly level using a spirit level Wait at least two hours before switching the appliance on to ensure that the refrigerant circuit is fully ecient To guarantee adequate ventilation leave a space on both sides and above the appliance The distance between the rear of the appliance and the wall behind the appliance should be 50 mm to avoid access to hot surfaces A reduction of this space will increase the Energy consumption of product WARNING To avoid a hazard due to instability positioning or xing of the appliance must be done in accordance with the manufacturer instructions It is forbidden to place the refrigerator in such way that the metal hose of gas stove metal gas or water pipes or electrical wires are in contact with the refrigerator back wall condenser coil There is not foreseen door reversibility Do not try to reverse the door ELECTRICAL WARNINGS It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible or by a multipole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards Do not use extension leads multiple sockets or adapters The electrical components must not be accessible to the user after installation Do not use the appliance when you are wet or barefoot Do not operate this appliance if it has a damaged power cable or plug if it is not working properly or if it has been damaged or dropped If the supply cord is damaged it must be replaced with an identical one by the manufacturer its service agent or similarly qualied persons in order to avoid a hazard risk of electric shock CLEANING AND MAINTENANCE WARNING Ensure that the appliance is switched o and disconnected from the power supply before performing any maintenance operation never use steam cleaning equipment risk of electric shock Do not use abrasive or harsh cleaners such as window sprays scouring cleansers ammable uids cleaning waxes concentrated detergents bleaches or cleansers containing petroleum products on plastic parts interior and door liners or gaskets Do not use paper towels scouring pads or other harsh cleaning tools DISPOSAL OF PACKAGING MATERIALS The packaging material is 100 recyclable and is marked with the recycle symbol The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal DISPOSAL OF HOUSEHOLD APPLIANCES This appliance is manufactured with recyclable or reusable materials Dispose of it in accordance with local waste disposal regulations For further information on the treatment recovery and recycling of household electrical appliances contact your local authority the collection service for household waste or the store where you purchased the appliance This appliance is marked in compliance with European Directive 201219EU Waste Electrical and Electronic Equipment WEEE By ensuring this product is disposed of correctly you will help prevent negative consequences for the environment and human health The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment ENERGY SAVING TIPS Install the appliance in a dry well ventilated room far away from any heat source eg radiator cooker etc and in a place not exposed directly to the sun If required use an insulating plate To guarantee adequate ventilation follow installation instructions Insucient ventilation at the back of the product increases energy consumption and decreases cooling eciency Frequent door opening might cause an increase in Energy Consumption The internal temperature of the appliance and the Energy Consumption may be aected also by the ambient temperature as well as location of the appliance Temperature setting should take into consideration these factors Reduce door opening to a minimum When thawing frozen food place in the refrigerator The low temperature of the frozen products cools the food in the refrigerator Allow warm food and drinks to cool down before placing in the appliance Positioning of the shelves in the refrigerator has no impact on the ecient usage of energy Food should be placed on the shelves in such way to ensure proper air circulation food should not touch each other and distance between food and rear wall should be kept You can increase storage capacity of frozen food by removing baskets and if present Stop Frost shelf Do not worry about noises coming from the compressor which are described as normal noises in this products Quick Guide

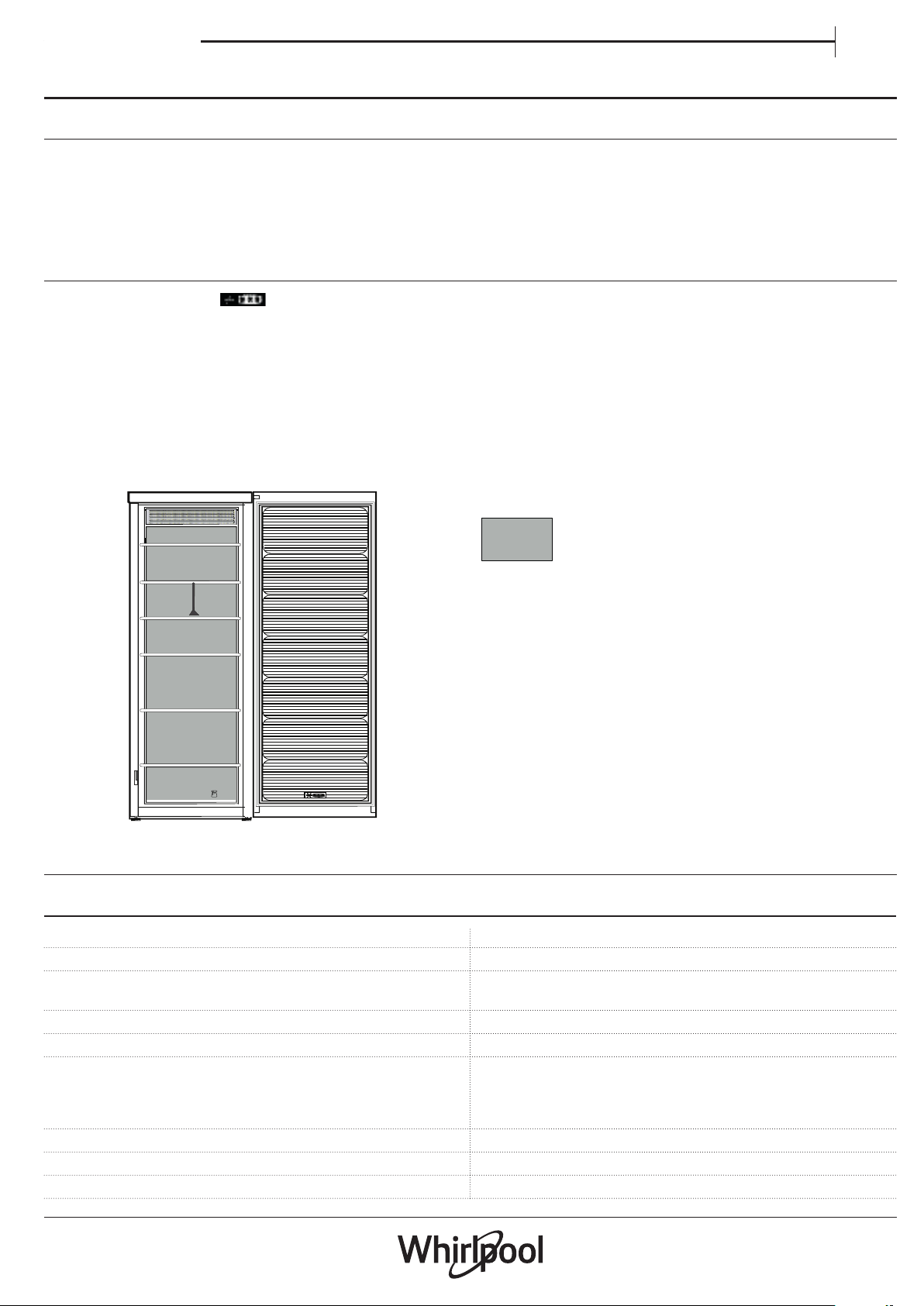

• Page 5 - English - : EN Use amp Care guide PRODUCT DESCRIPTION 1 Control panel 2 Light LED system 3 Ice packs 4 Ice Mate or Ice tray 5 Drawer divider 6 Bottle rack 7 Glass shelves 8 Rating plate with commercial name 9 Door reversibility kit 10 Area for freezing fresh food or to store frozen food 11 Area for storing frozen foods 12 Door seal Available only on certain models ONSTAND BY BUTTON To put the product in Standby press and hold for 3 seconds All the icons turn o except OnStandby indicator To reactivate the appliance press once briey this button TEMPERATURE SETTING BUTTON The appliance is normally factoryset for operation at the recommended temperature of 18C The internal temperature can be adjusted between 16C and 24C proceeding as follows Press to change the set point C The storage temperature can be changed by 1C with each pressure of the button the value changes cyclically between 16C and 24C FAST FREEZER BUTTON To activatedeactivate the Fast Freeze function simply press Fast Freeze button see the Instructions for Use The Fast Freeze function switches o automatically after 50 hours STOP ALARM BUTTON Press in case of alarm BLACK OUT ALARM Long Blackout Alarm indicator see the Instructions for Use ECO NIGHT FUNCTION NIGHT TIME RATE Press to activatedeactivate the Eco Night function The Eco Night function enables appliance energy consumption to be concentrated in the reduced rate hours generally at night see the Instructions for Use TH SENSE FREEZE CONTROL INDICATOR th Sense Freeze Control is an advanced technology that reduces freeze burns and food preserves its original quality and color FREEZER CONTROL BUTTON Freeze Control is an advanced technology that reduces temperature uctuations in the whole freezer compartment to minimum To activatedeactivate the Freeze Control function press for 3 seconds the FREEZE CONTROL button If the function is engaged and the user modify the freezer temperature out of the working range the function is automatically switched o In case of Fast freezing is engaged the function Freeze control is inhibited until the Fast Freezing function switched o see the Instructions for Use CONTROL PANEL 1 OnStand By button 2 Temperature display 3 Fast freezer button 4 Stop Alarm button 5 Black out alarm 6 Eco Night function 7 6 th Sense Freeze control indicator 8 Freezer control indicator 456
• Page 6 - English - : Use amp Care guide REFRIGERATOR LIGHT The light system inside the refrigerator compartment uses LEDs light allowing a better lightning than traditional light bulbs as well as a very low energy consumption Contact the Technical Assistance Service if you need a replacement Important The refrigerator compartment light switches on when the refrigerator door is opened SHELVES All of the drawers door shelves and shelves can be removed DOOR DOOR REVERSIBILITY Note The direction of door opening can be changed If this operation is performed by Aftersales Service it is not covered by the warranty Follow instruction in Installation Guide
• Page 7 - English - : EN Use amp Care guide HOW TO USE THE APPLIANCE FIRST TIME USE Wait at least two hours after the installation before connecting the appliance to the power supply Connect the appliance to the power supply and turn the thermostat knob to switch on the appliance After turning the appliance on you must wait for 46 hours for the correct storage temperature to be reached for a normally lled appliance Position the antibacterial anti odour lter in the fan as demonstrated in the lter packaging if available FREEZER COMPARTMENT AND FOOD STORAGE The freezer compartment allows for the storage of frozen food for the period indicated on the packaging and the freezing of fresh food The quantity of fresh food that can be frozen in 24 hours is written on the rating plate Arrange the fresh food in the freezing area inside the freezer compartment leaving enough space around the food packages to allow air to circulate freely It is advisable that you do not refreeze food that has partially defrosted It is important to wrap the food in a way that prevents the ingress of water humidity or condensation To get more volume the freezer compartment can be used without the grid Make sure that the door is closed properly after putting the food back on the grid ICE CUBES Fill 23 of the ice tray with water and put it back in the freezer compartment Do not use sharp or pointed objects to remove the ice under any circumstances Legend FREEZER ZONE All food items STORAGE TIMES FOR HOME FROZEN FOODS Product Storage period Butter or margarine 6 months Cheese 3 months Fish Shellsh 23 months 1 month Fruits except citrus 812 months Ice cream or sherbet 23 months Meat Ham sausage Roasts beefpork lamb Steaks or chops beeflambpork 2 months 812 months 4 months Milk fresh uid 13 months Poultry chickenturkey 5 7 months Vegetables 812 months

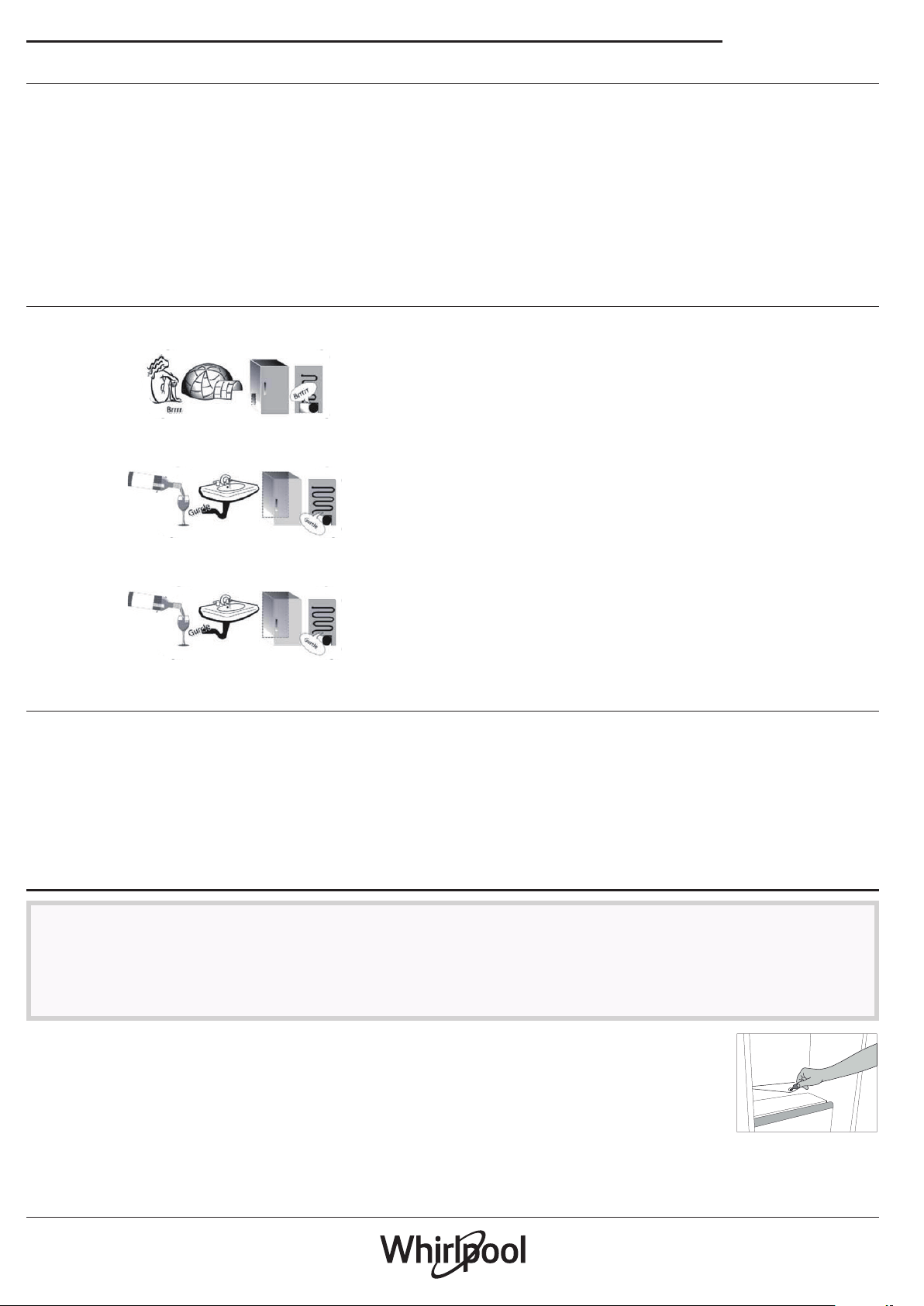

• Page 8 - English - : Use amp Care guide HOW TO DEFROST THE FREEZER COMPARTMENT 1 It is advisable to set the temperature colder or turn on the Fast Freeze four hours before removing the food from the freezer compartment to prolong the preservation of the food during the defrosting phase 2 To defrost turn the appliance o and remove the drawers Put the frozen food in a cool place Leave the door open to allow the frost to melt To prevent the water from escaping during the defrost it is advised that you place an absorbent cloth on the bottom of the freezer compartment and wring it out regularly 3 Clean the inside of the freezer compartment and dry it carefully 4 Turn the appliance back on and put the food back inside FUNCTIONAL SOUNDS 1 A buzz generated by the compressor is normal while the product is working Gurgling and crackles are generated by the passage of the refrigerant gas inside the cooling circuit therefore these are normal noises Its possibile to quothearquot creaks when the compressor is active and inactive it is a normal sound of the products structure 4 Check that the balconies on the inside of the refrigerator door the shelves and the drawers in the refrigerator compartment are attached and positioned properly to avoid possible vibrations 5 Dont place glass containers bottles jars etc in direct contact with each other to avoid vibrations 6 This device is equipped with a compressor that operates at an optimum speed to minimize energy consumption So it may happen that in certain situations in summer or if large quantities of food are introduced that the compressor increases the speed and therefore it is more noisy than usual RECOMMENDATION IN CASE OF NO USE OF THE APPLIANCE IN THE EVENT OF NONUSE OF THE APPLICANCE Disconnect the appliance from the power supply empty it defrost it if necessary and clean it Keep the doors slightly ajar to let air circulate inside the compartments By doing this you avoid the development of mould and bad odours IN THE EVENT OF AN INTERRUPTION TO THE POWER SUPPLY Keep the doors closed so the food stays cold for as long as possible Do not refreeze food that has partially defrosted If there is a prolonged power cut the black out alarm may also activate in products with electronics CLEANING AND MAINTENANCE Before any cleaning or maintenance operation unplug the appliance from the mains or disconnect the electrical power supply Never use abrasives Never clean refrigerator parts with ammable uids Do not use steam cleaners The buttons and control panel display must not be cleaned with alcohol or alcoholderived substances but with a dry cloth Clean the appliance occasionally with a cloth and a solution of warm water and neutral cleaning agents specically for cleaning the inside of the refrigerator To ensure the constant and correct ow of the defrosting water regularly clean the inside of the drain situated in the back wall of the refrigerator compartment near the fruit and vegetable drawer using the utensil provided
• Page 9 - English - : EN Use amp Care guide TROUBLESHOOTING What to do if Possible reasons Solutions The appliance doesnt work There may be an appliance power supply problem Make sure there is not a power failure the plug is properly inserted in the power socket and the doublepole switch if present is in the correct position on the household electrical system protection devices function the power cable is not broken The inside light does not work It may be necessary to replace the light bulb Disconnect the appliance from the power supply and contact the Technical Assistance Service if you need a replacement The internal temperature of the compartments is not cold enough The reasons could vary see Solution column Check that the doors are closed properly the appliance is not installed near a heat source the temperature is appropriately set the circulation of air through the ventilation grilles on the base of the appliance is not obstructed There is water on the bottom of the refrigerator compartment The defrost water drain is blocked Clean the defrosting water drain see section Cleaning and Maintenancequot Excessive amount of frost in the freezer compartment The door to the freezer compartment is not closed properly Check that there is nothing preventing the door from closing properly Defrost the freezer compartment Make sure the appliance has been correctly installed The front edge of the appliance that the door gaskets seal against is hot This is not a problem It prevents condensation from forming A solution is not needed The temperature of the refrigerator compartment is too cold The set temperature is too cold A large amount of fresh food may have been placed in the freezer compartment Try to set a less cold temperature If fresh food has been put in the freezer compartment wait until the freezing has been completed Turn o the fan if present described in the paragraph FAN
• Page 10 - English - : Use amp Care guide AFTERSALES SERVICE BEFORE CALLING THE AFTERSALES SERVICE 1 See if you can solve the problem by yourself with the help of the suggestions given in the TROUBLESHOOTING 2 Switch the appliance o and back on again to see if the fault persists IF AFTER THE ABOVE CHECKS THE FAULT STILL OCCURS GET IN TOUCH WITH THE NEAREST AFTERSALES SERVICE To receive assistance call the number shown on the warranty booklet or follow the instructions on the website www whirlpool eu When contacting our Client After sales service always specify a brief description of the fault the type and exact model of the appliance the service number number after the word Service on the rating plate The service number is also indicated on the guarantee booklet your full address your telephone number If any repairs are required please contact an authorised after sales service to guarantee that original spare parts will be used and repairs carried out correctly
