Owners' Guide Washers and Dryers
Control Panel & Features
- WRINKLE SHIELD™ Feature (on some models)
When you are unable to remove a load of clothes from the dryer as soon as it stops, wrinkles can form. The Wrinkle Shield™ feature periodically tumbles, rearranges, and fluffs the load to help keep wrinkles from forming.
Get 90 minutes of heat-free, periodic tumbling at the end of a cycle. Turn the Wrinkle Shield™ knob to On or Off at any time before the cycle has ended. - DRYER CYCLE KNOB
Use your Dryer Cycle knob to select available cycles on your dryer. Turn the knob to select a cycle for your laundry load. See “Cycle Guide” for detailed descriptions of cycles.
TIMED DRY
Will run the dryer for the specified time on the control. On models with a selectable temperature knob, you may choose a setting based on the fabrics in your load. Drying time and temperature will depend on your dryer model.
See other models: WGD4850HW WTW4715EW WTW4616FW WTW4855HW WTW4850HW
ACCUDRY™/AUTOMATIC DRY
Senses moisture in the load or air temperature and shuts off when the load reaches the selected dryness level. Gives the best drying in the shortest time. Drying time will vary based on fabric type, load size, and dryness setting. - TEMPERATURE
Select a drying temperature based on the fabrics in your load. If you are unsure of the temperature to select for a load, select the lower setting rather than the higher setting.
NOTE: The No Heat temperature setting (on some models) is not available on ACCUDRY™ cycles. - CYCLE SIGNAL/PUSH TO START
The Cycle Signal produces an audible sound when the drying cycle is finished. Promptly removing clothes at the end of the cycle reduces wrinkling. Turn the Cycle Signal knob to select the desired setting (On or Off). Press the PUSH to START knob to start the dryer.
NOTE: When the Wrinkle Shield™ setting is selected and the Cycle Signal is on, the tone will sound every 5 minutes until the clothes are removed or the Wrinkle Shield™ setting ends
Cycle Guide – ACCUDRY™/Automatic Dry Cycles
Not all cycles and settings are available on all models. ACCUDRY™ – Senses moisture in the load or air temperature and shuts off when the load reaches the selected dryness level. Choose ENERGY PREFERRED cycle for optimal energy savings.
NOTE: If loads do not seem as dry as you would like, select More or Very Dry the next time you dry a similar load. If loads seem drier than you like, select Less Dry the next time you dry a similar load.

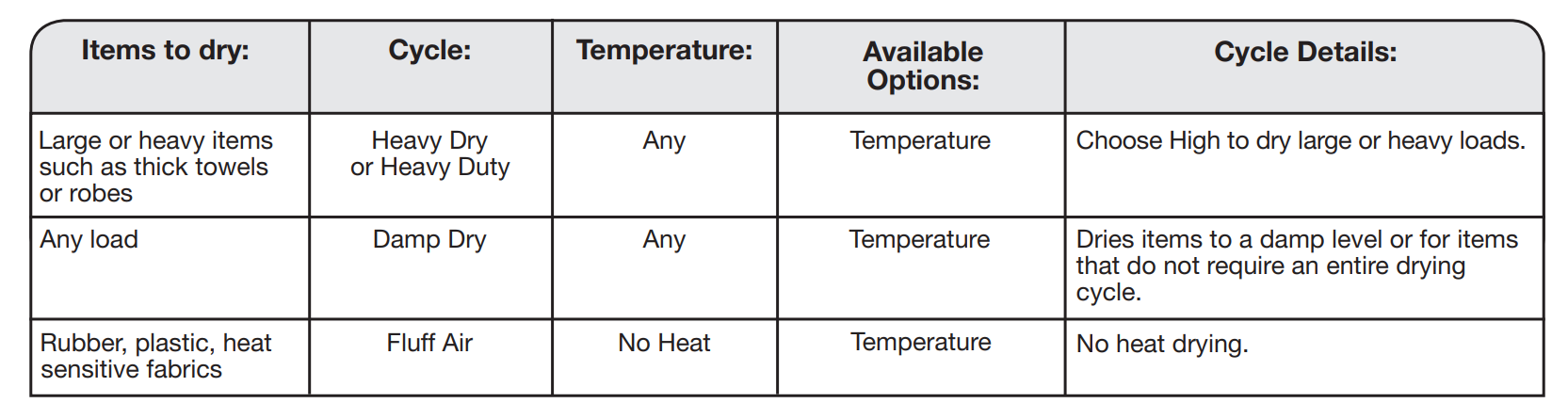

Cycle Guide – Timed Dry Cycles
Not all cycles and settings are available on all models. TIMED DRY – Will run the dryer for the specifi ed time on the control.
Setting the Drying Temperature
If your dryer has multiple heat settings:
A High temperature setting may be used for drying heavyweight items such as towels and work clothes.
A Low to Medium temperature setting may be used for drying medium-weight items such as sheets, blouses, dresses, underwear, permanent press fabrics, and some knits.
Use the No Heat setting for foam, rubber, plastic, or heatsensitive fabrics.
Line dry bonded or laminated fabrics.
NOTE: If you have questions about drying temperatures for various loads, refer to the care label directions.
Using Your Dryer
Warning: Explosion Hazard
Keep flammable materials and vapors, such as gasoline,away from dryer.
Do not dry anything that has ever had anything flammable on it (even after washing).
Failure to follow these instructions can result in death, explosion,or fire.
WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this dryer. Before using your dryer, wipe the dryer drum with a damp cloth to remove dust from storing and shipping.
WARNIING: Fire Hazard
No washer can completely remove oil.
Do not dry anything that has ever had any type of oil on it (including cooking oils).
Items containing foam,rubber,or plastic must be dried on a clothesline or by using an Air Cycle.
Failure to follow these instructions can result in death or fire.

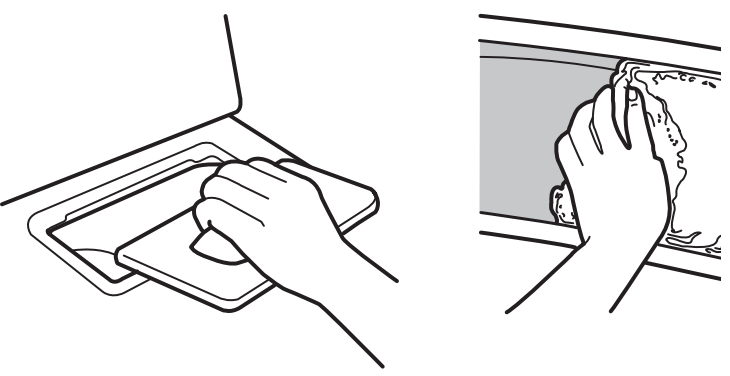

- Clean the lint screen
Clean the lint screen before each load. Pull the lint screen out of its holder. Roll lint off the screen with your fi ngers. Do not rinse or wash screen to remove lint. Push the lint screen fi rmly back into place. For additional cleaning information, see “Dryer Care”. - Load the dryer
Place laundry in the dryer. Close the door.
NOTE: Your model may have a different door than the one shown. Some models have drop down doors. Do not tightly pack the dryer; clothes should be able to tumble freely - Select the desired cycle
Select the desired cycle for your load. See the “Cycle Guide” for more information about each cycle.
ACCUDRY™/Automatic Dry Cycles
You can select a different dryness level, depending on your load, by turning the knob to dryness level. Selecting More or Very Dry, ENERGY PREFERRED, or Less Dry automatically adjusts the dryness level at which the dryer will shut off. Once a dry level is set, it cannot be changed without stopping the cycle. ACCUDRY™/AUTOMATIC DRY cycles give the best drying in the shortest time. Drying time varies based on fabric type, load size, and dryness setting.
NOTE: More or Very Dry removes more load moisture. ENERGY PREFERRED is used for a starting point for ACCUDRY™ cycles. Choose ENERGY PREFERRED for optimal energy savings. Less Dry removes less moisture and is used for loads you may want to put on a hanger to complete drying. - Set cycle settings and options
Select cycle settings and options by turning the knob to the desired position.
NOTE: Not all options and settings are available with all cycles.
Temperature
Turn the Temperature knob to change the drying temperature setting. See “Setting the Drying Temperature”.
Wrinkle Shield™ feature (on some models)
Get 90 minutes of heat-free, periodic tumbling at the end of a cycle. Turn the Wrinkle Shield™ knob to select on or off at any time before the cycle has ended.
Some models with a Wrinkle Shield™ cycle will automatically get 40 minutes of heat-free, periodic tumbling at the end of a cycle. - Select Cycle Signal (if desired)
Turn the Cycle Signal knob to select the desired setting (On or Off). The Cycle Signal produces an audible sound when the drying cycle is fi nished. Promptly removing clothes at the end of the cycle reduces wrinkling.
NOTE: When the Wrinkle Shield™ setting is selected and the Cycle Signal is On, the tone will sound every 5 minutes until the clothes are removed, or the Wrinkle Shield™ setting ends. - Press PUSH to START to begin cycle
Push and hold the PUSH to START knob to begin the cycle. Promptly remove garments after cycle has completed to reduce wrinkling. Use the Wrinkle Shield™ feature to avoid wrinkling when you are unable to remove a load from the dryer as soon as it stops.
Dryer Care
Cleaning the dryer location
Keep dryer area clear and free from items that would block the air fl ow for proper dryer operation. This includes clearing piles of laundry in front of the dryer
WARNING: Explosion Hazard
Keep flammable materials and vapors, such as gasoline,away from dryer.
Do not dry anything that has ever had anything flammable on it (even after washing).
Failure to follow these instructions can result in death, explosion,or fire.
Cleaning the dryer interior
To clean dryer drum
- Apply a liquid, nonfl ammable household cleaner to the stained area of the drum and rub with a soft cloth until stain is removed.
- Wipe drum thoroughly with a damp cloth.
- Tumble a load of clean cloths or towels to dry the drum.
NOTE: Garments that contain loose dyes, such as denim blue jeans or brightly colored cotton items, may discolor the dryer interior. These stains are not harmful to your dryer and will not stain future loads of clothes. Dry these items inside out to avoid drum staining.
Removing accumulated lint
From Inside the Dryer Cabinet
Lint should be removed every 2 years, or more often, depending on dryer usage. Cleaning should be done by a qualifi ed servicer.
From the Exhaust Vent
Lint should be removed every 2 years, or more often, depending on dryer usage
Cleaning the lint screen
Every load cleaning
The lint screen is located in the dryer. A screen blocked by lint can increase drying time.
To clean:
- Pull the lint screen out of its holder. Roll lint off the screen with your fi ngers. Do not rinse or wash screen to remove lint. Wet lint is hard to remove.
- Push the lint screen fi rmly back into place.
IMPORTANT:
- Do not run the dryer with the lint screen loose, damaged, blocked, or missing. Doing so can cause overheating and damage to both the dryer and fabrics.
- If lint falls off the screen into the dryer during removal, check the exhaust hood and remove the lint. See “Venting Requirements.”
As needed cleaning
Laundry detergent and fabric softener residue can build up on the lint screen. This buildup can cause longer drying times for your clothes, or cause the dryer to stop before your load is completely dry. The screen is probably clogged if lint falls off while the screen is in the dryer.
Clean the lint screen with a nylon brush every 6 months, or more frequently, if it becomes clogged due to a residue buildup.
To wash:
- Roll lint off the screen with your fi ngers.
- Wet both sides of lint screen with hot water.
- Wet a nylon brush with hot water and liquid detergent. Scrub lint screen with the brush to remove residue buildup.
- Rinse screen with hot water.
- Thoroughly dry lint screen with a clean towel. Reinstall screen in dryer.
Vacation, storage, and moving care
Non-Use or Storage Care
Operate your dryer only when you are at home. If you will be on vacation or not using your dryer for an extended period of time, you should:
- Unplug dryer or disconnect power.
- (For gas dryers only): Close shut-off valve to gas supply line.
- Clean lint screen. See “Cleaning the Lint Screen.”
Moving Care
For power supply cord-connected dryers:
- Unplug the power supply cord.
- Make sure leveling legs are secure in dryer base.
- Use tape to secure dryer door.
WARNING: Electrical Shock Hazard
- Disconnect power before servicing.
- Replace all parts and panels before operating.
- Failure to do so can result in death or electrical shock.
For direct-wired dryers:
- Turn off power at fuse or breaker box.
- Disconnect wiring.
- Make sure leveling legs are secure in dryer base.
- Use tape to secure dryer door.
For gas dryers:
- Unplug or disconnect power to dryer.
- Close shut-off valve in gas supply line.
- Disconnect gas supply line pipe and remove fi ttings attached to dryer pipe.
- Cap the open fuel supply line.
- Make sure leveling legs are secure in dryer base.
- Use tape to secure dryer door.
Reinstalling the Dryer
Follow the “Installation Instructions” to locate, level, and connect the dryer.
Changing the drum light (on some models)
- Unplug dryer or disconnect power.
- Open the dryer door. Locate the light bulb cover on the back wall of the dryer. Using a Phillips-head screwdriver, remove the screw located in the lower right-hand corner of the cover. Remove the cover.
- Turn bulb counterclockwise. Replace the bulb with a 10-watt appliance bulb only. Replace the cover and secure with the screw.
- Plug into a grounded outlet or reconnect power.
Troubleshooting
If you experience | Possible Causes | Solution |
Clothes are not drying satisfactorily; drying times are too long |
Lint screen clogged with lint. |
|
Fluff Air cycle or No Heat temperature setting has been selected. |
|
|
Load too large and heavy to dry quickly. |
|
|
Exhaust vent or outside exhaust hood clogged with lint, restricting air movement. |
|
|
Fabric softener sheets blocking the grille. |
|
|
Exhaust vent not the correct length. |
|
|
Exhaust vent diameter not the correct size. |
|
|
Dryer located in a room with temperature below 45ºF (7ºC) |
|
|
Dryer located in a closet without adequate opening. |
|
|
Dryer will not run |
Door not closed completely. |
|
PUSH to START knob not pressed fi rmly or held long enough. |
|
|
Household fuse is blown or circuit breaker has tripped. |
|
|
Incorrect power supply. |
|
|
Wrong type of fuse. |
|
|
Unusual sounds |
Dryer had a period of non-use. |
|
A coin, button, or paper clip is caught between the drum and front or rear of the dryer. |
|
|
It is a gas dryer. |
|
|
The four legs are not installed, or the dryer is not level front to back and side to side. |
|
|
Clothing knotted or balled up. |
|
|
No heat |
Household fuse is blown or circuit breaker has tripped. |
|
Supply line valve not open. |
|
|
Incorrect power supply. |
|
|
Cycle time too short | Automatic cycle ending early |
|
Lint on load | Lint screen clogged. |
|
Stains on load or drum | Dryer fabric softener not properly used |
|
Loads are wrinkled |
Load not removed from dryer at the end of the cycle. |
|
Dryer tightly packed. |
|
|
Odors |
You have recently been painting, staining, or varnishing in the area where your dryer is located. |
|
The electric dryer is being used for the fi rst time. |
|
|
Load is too hot |
Laundry items removed from the dryer before the end of the cycle. |
|
A high temperature cycle was used, or a separate temperature control was set on High. |
|
