HYPEREXTENSION ROMAN CHAIR
WITH DIP STATION
SF-BH620062
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: [email protected] or 1- 877 - 90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained, and used
properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings
and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or prevent you
from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you
do experience any of these conditions, you should consult your physician before continuing with
your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has
been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 330 pounds (155KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in extreme
cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial use.
2

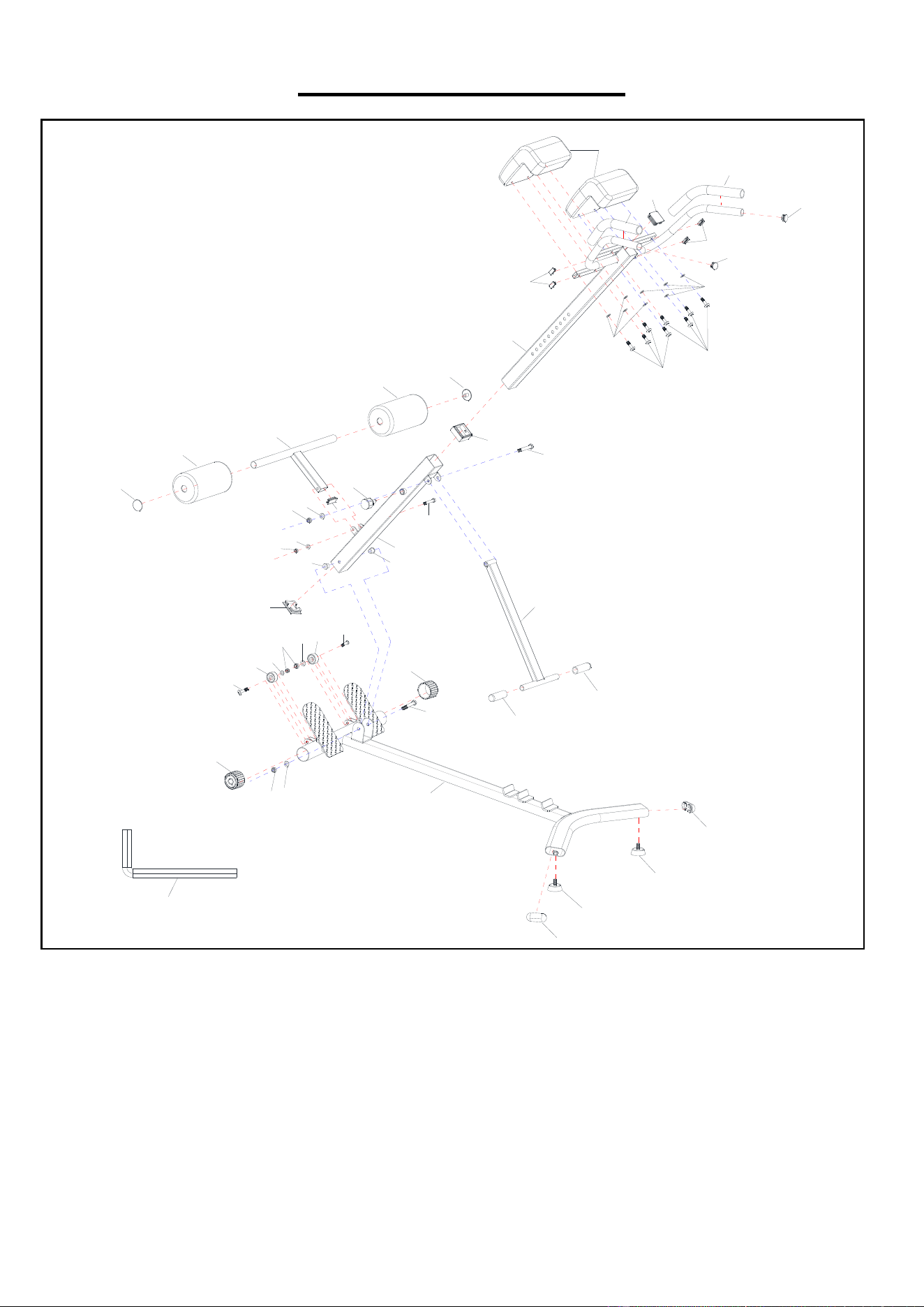

EXPLODED DIAGRAM
3
2
5
6
7
8
10
11
11
12
12
13
14
14
15
15
16
17
17
18
32
20
27
20
22
27
29
29
20
22
19
21
23
26
26
21
23
24
25
25
20
20
28
30
31
4
4
1
9
9
3
2
3
PARTS LIST
HARDWARE PACKAGE
#17-M8*30 8PCS
#20-Φ16*Φ8.5*1.5 8PCS
#28-6mm 1PC
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front
of the manual)
Please contact us at support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
No. Description Spec. Qty. No. Description Spec. Qty.
1 Base Frame 1 17 Hex Bolt M8*30 8
2
Adjustable
Leveler
Φ50*15.6/M10*25 2 18 Hex Bolt M8*58 1
3 Oval End Cap 2 19
Hex Bolt
M10*75 1
4 End Cap Φ50mm 2 20
Flat Washer
Φ16*Φ8.5*1.5 11
5
Front Support
Tube
1 21 Flat Washer Φ20*Φ10.5*2.0 2
6
Square
Bushing
50*50*1.5/45*45*1.5mm 1 22 Nylon Nut M8 3
7 Round Knob M16*20/Φ8 1 23 Nylon Nut M10 2
8
Rear Support
Tube
1 24
Square End
Cap
45*45*2.0
1
9 Buffer Grip Φ19*69mm 2 25
Square End
Cap
25.4*12.7*1.5 4
10 Front Post 1 26 Alloy Wrap Φ20*Φ10.5*15.5 2
11 Sponge Φ100*Φ23*200 2 27
Transportation
Wheel
Φ35*Φ8*19 2
12 End Cap Φ65*22.2 2 28 Allen Wrench 6mm 1
13
Adjustable
Rack
1 29
Hex Socket
Head Bolt
M8*35 2
14 Foam Grip Φ23*Φ26*220 2 30
Square End
Cap
50*50*2.0 1
15
Round End
Cap
Φ25*2.0 2 31
Square End
Cap
40*20*1.5 1
16 Support Pad 200*190*(50+60)mm 2 32 Hex Bolt M10*72 1
4

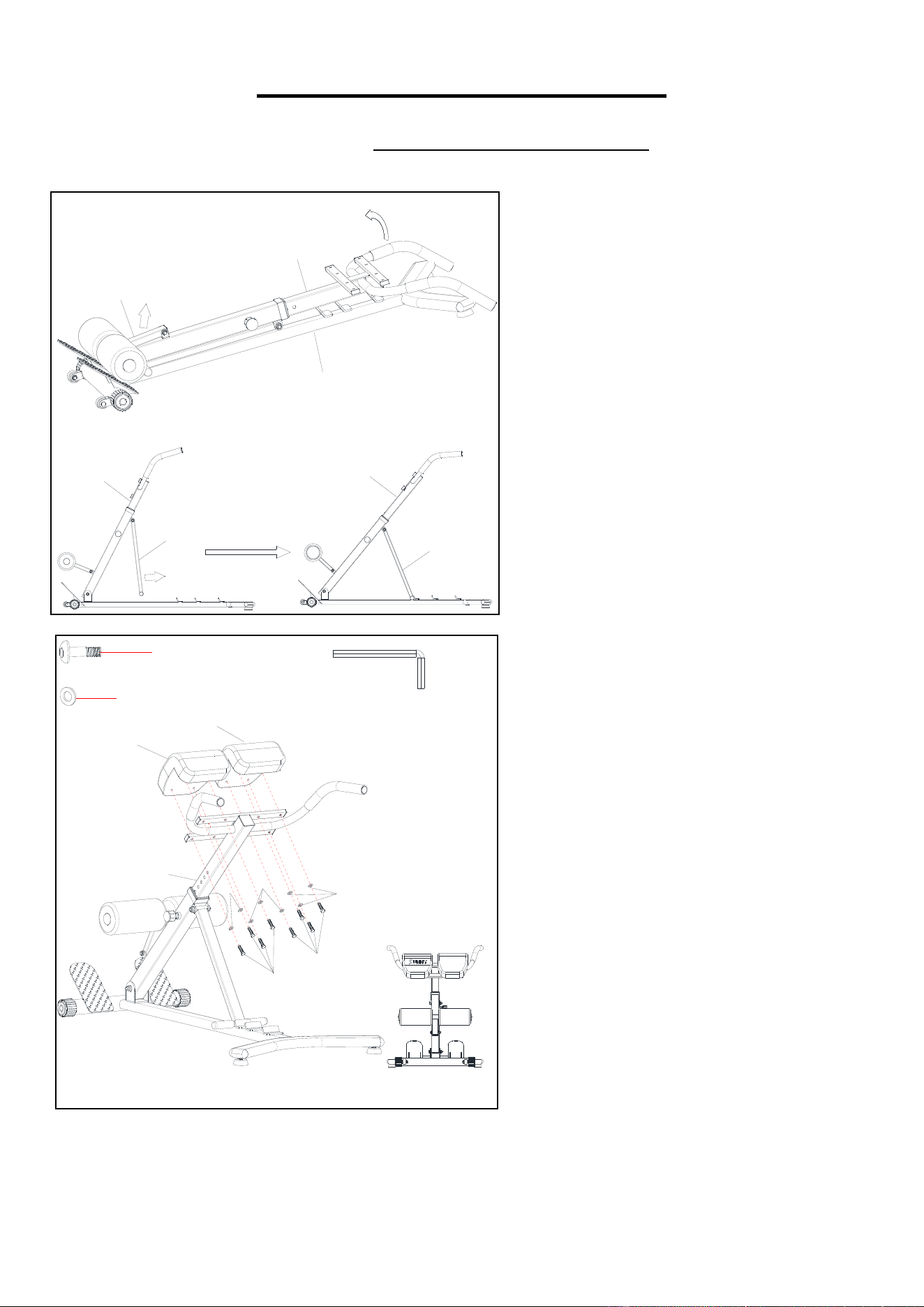

ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-
907-8669).
1
10
13
8
8
13
13
#17-M8*30 8PCS
#20-Φ16*Φ8.5*1.5 8PCS
#28-6mm 1PC
17
17
20
20
20
13
16
16
STEP 2:
Attach 2 Support Pads (No. 16) to the
Adjustable Rack (No. 13) using 8 Hex
Bolts (No. 17) and 8 Flat Washers (No.
20). Tighten and secure with Allen
Wrench (No. 28).
NOTE: Make sure the Support Pads
(No. 16) are assembled with SUNNY logo
facing up, as showed on Fig.A.
STEP 1:
Unfold the equipment before assembly.
Lift Front Post (No. 10) away from the
Base Frame (No. 1).
Lift Adjustable Rack (No. 13) and move
the Rear Support Tube (No. 8) to the first
stopper
Fig. A
5
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-
907-8669).
#7-M16*20/Φ8 1PC
7
5
13

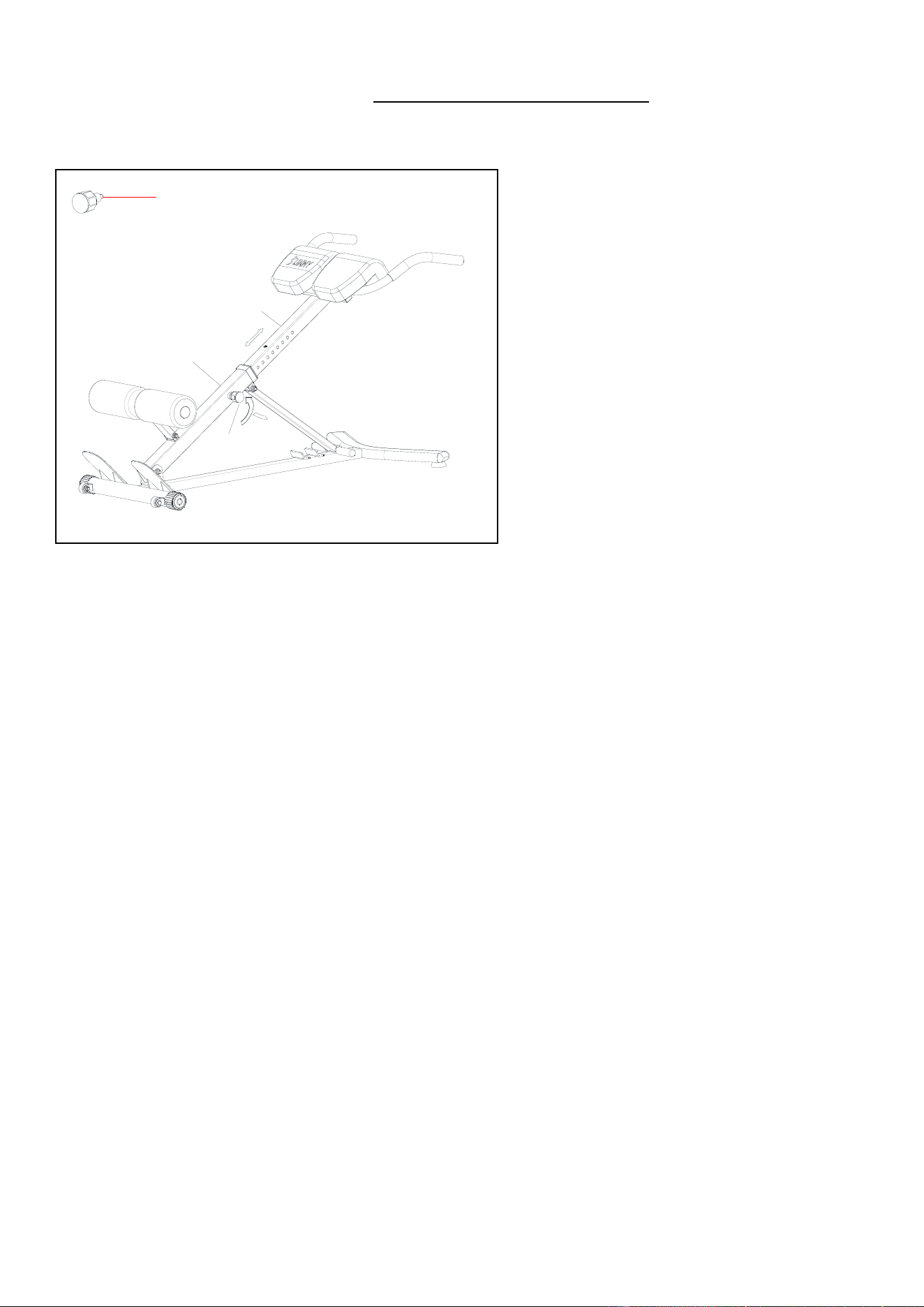

STEP 3
Loosen and pull out the Round Knob
(No. 7), then slide the Adjustable Rack
(No. 13) in Front Support Tube (No. 5)
to desire height. Re-insert and tighten the
Round Knob (No. 7).
CAUTION!
To avoid any injury, please make sure that
the Round Knob (No. 7) is properly
engaged and the Adjustable Rack (No.
13) is secured tightly with the Round
Knob (No. 7).
The assembly is complete!
6

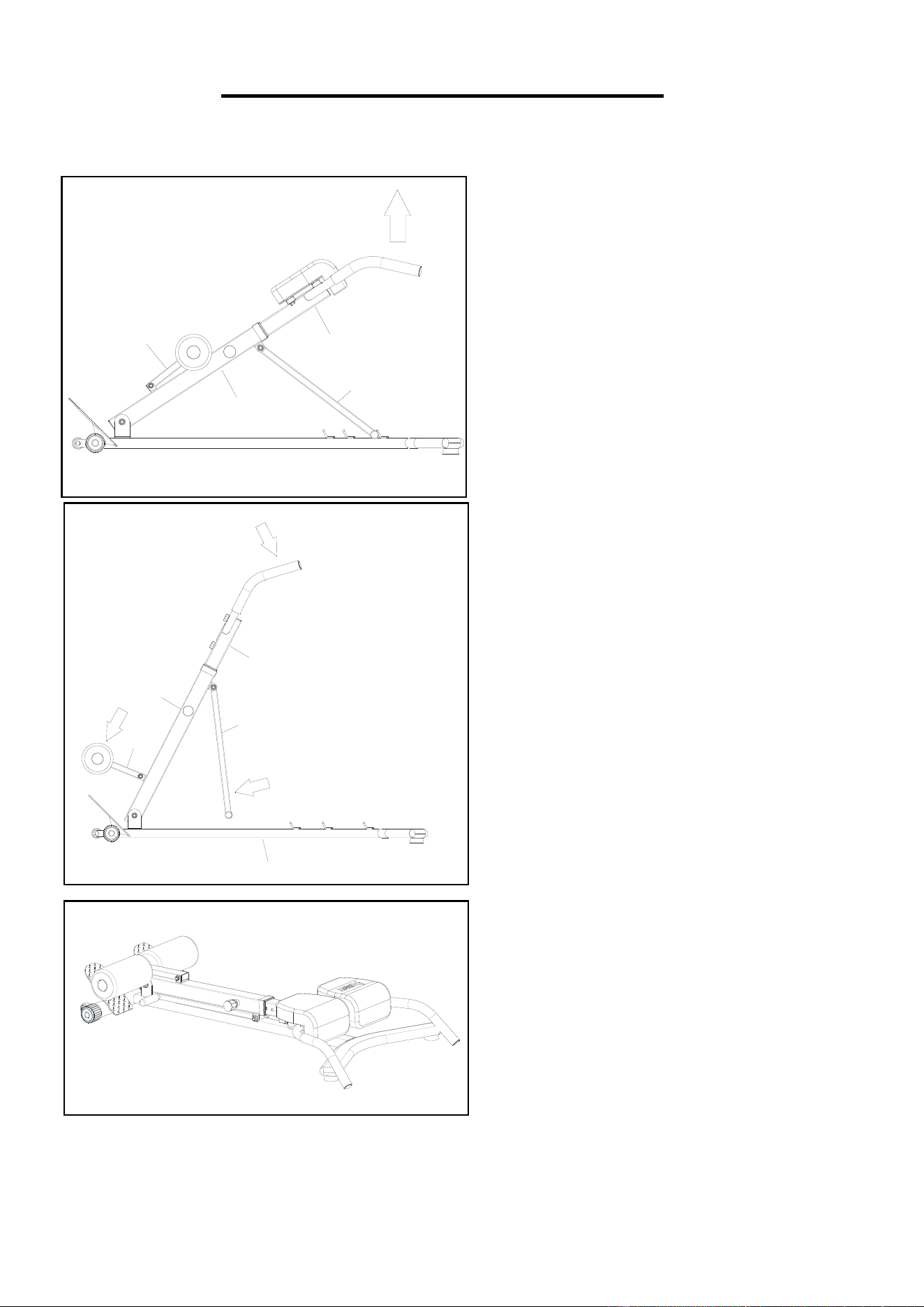

ADJUSTMENTS & USAGE GUIDE
1
2
ADJUSTING THE BALANCE
In order to achieve a smooth and comfortable usage,
you must ensure that the roman chair is stabled and
secured. If you notice that the roman chair is unbalanced
during use, you should adjust the Adjustable Levelers
(No. 2) located on the Base Frame (No. 1). Rotate the
Adjustable Levelers (No. 2) clockwise to raise the
roman chair and counter-clockwise to lower the roman
chair.
1
13
8
ADJUSTING THE ANGLE
The roman chair has 3 different angle settings.
To adjust the angle of the roman chair, slightly lift the
Adjustable Rack (No. 13) so that the Rear Support
Tube (No. 8) can be moved freely.
Bring the Rear Support Tube (No. 8) to the desired
position on the Base Frame (No. 1) and lower the
Adjustable Rack (No. 13) back down.
13
7
ADJUSTING THE HEIGHT
To adjust the height, loosen and pull out Round Knob
(No. 7), slide the Adjustable Rack (No. 13) to the desire
height, re-insert and tighten the Round Knob (No. 7).
CAUTION!
To avoid any injury, please make sure that the Round
Knob (No. 7) is properly engaged and the
A
djustable
Rack (No. 13) is secured tightly with the Round Knob
(No. 7). Once the Round Knob (No. 7) is tightened, the
height can’t be adjusted.
27
13
1
MOVING THE ROMAN CHAIR
Before moving, please make sure the roman chair is
folded.
To move the roman chair, one hand lift the rear end of
the Base Frame (No. 1) until the Transportation
Wheels (No. 27) on the front of the Base Frame (No. 1)
touch the ground, the other hand hold the handlebar on
the Adjustable Rack (No. 13) to avoid the
A
djustable
Rack (No. 13) unfolding during transporting. With the
Transportation Wheels (No. 27) on the ground, you
can transport the roman chair to the desired location with
ease.
7

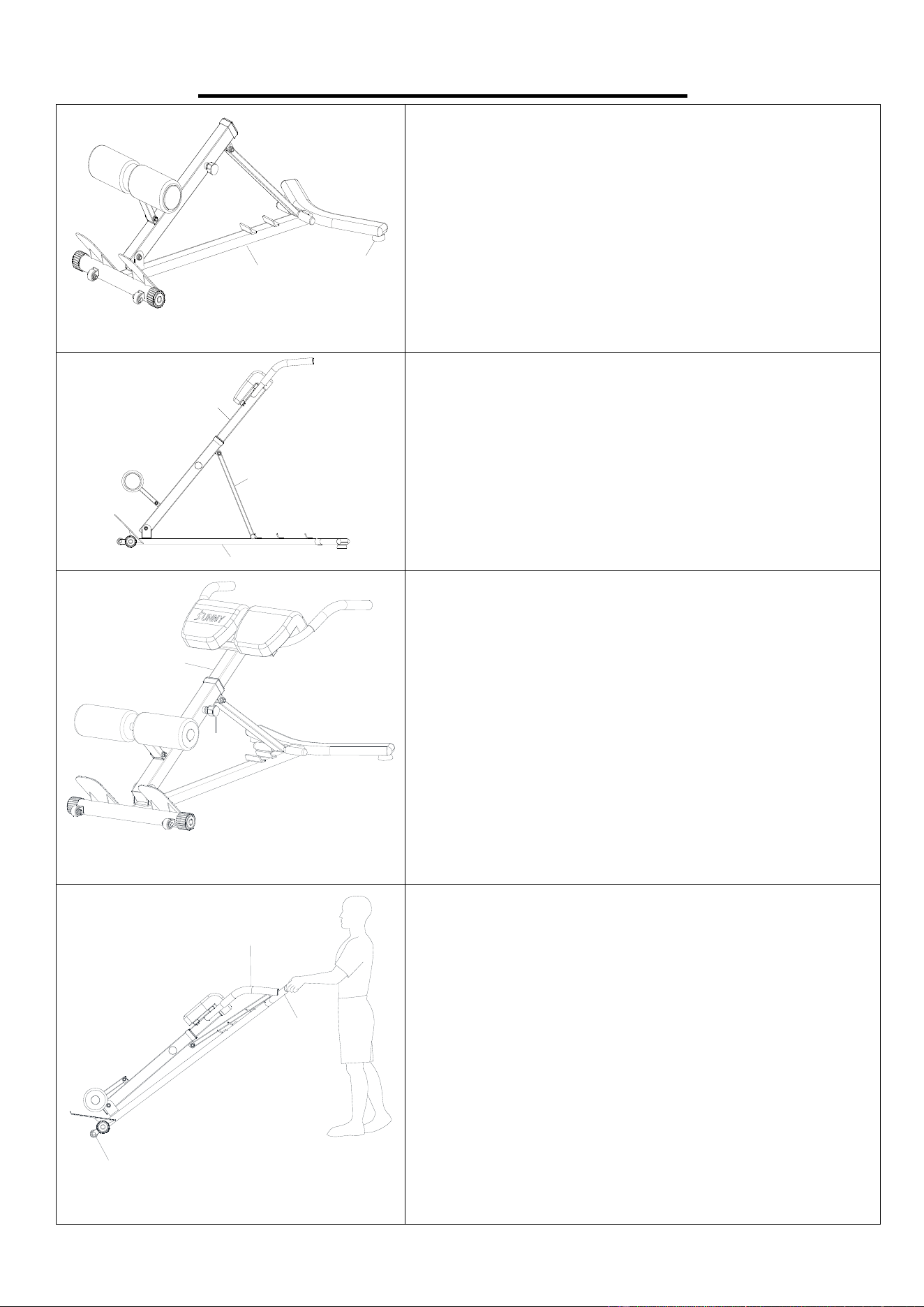

FOLDING THE ROMAN CHAIR
The roman chair is foldable. When not in use, you can save space by folding the roman chair.
10
13
8
5
13
8
10
5
1
First pull the Front Post (No. 10) up to the
Front Support Tube (No. 5), then lift the
Adjustable Rack (No. 13) so that the Rear
Support Tube (No. 8) can be moved freely.
Move the Rear Support Tube (No. 8)
close to the Front Support Tube (No. 5).
Lower the Adjustable Rack (No. 13)
completely onto the Base Frame (No. 1).
Fold the Front Post (No. 10) down onto
the Base Frame (No. 1).
The folding is complete now!
8
MAINTENANCE INSTRUCTIONS
DAILY MAINTENANCE
Inspect and tighten all parts regularly. (Nuts, Bolts, Rubber Pads, Steel Brackets, etc.)
Replace any worn or torn parts immediately.
Check and ensure the equipment is leveled at all time.
Check and tighten all adjustment pins/knobs regularly.
WEEKLY MAINTENANCE
Use damp cloth on plastic parts only, use dry cloth on metal frames.
Inspect the metal frame structure of the equipment.
Version：1.1
