Operating and Installation Instructions
Ventilation Hood
To prevent accidents and damage to the appliance, you must read
these instructions before installing the appliance and using it for the first
time.
en-US M.-Nr. 10 646 590
Contents
2
IMPORTANT SAFETY INSTRUCTIONS ................................................................ 4
Caring for the environment ................................................................................ 13
Guide to the appliance........................................................................................ 14
Description of functions ..................................................................................... 16
Operation.............................................................................................................. 17
Turning on the blower............................................................................................ 17
Selecting the power level ...................................................................................... 17
Delayed shut-off.................................................................................................... 18
Turning off the blower............................................................................................ 18
Turning the overhead lighting on/off...................................................................... 18
Safety switch-off ................................................................................................... 18
Energy-saving tips............................................................................................... 19
Cleaning and care ............................................................................................... 20
Stainless steel housing.......................................................................................... 20
Grease filter ........................................................................................................... 21
OdorFree Charcoal Filter ....................................................................................... 23
Disposing of charcoal filters ............................................................................. 23
Changing a light bulb ............................................................................................ 24
Installation............................................................................................................ 25
Before installation.................................................................................................. 25
Installation parts .................................................................................................... 26
Appliance dimensions ........................................................................................... 28
Distance between cooktop and ventilation hood (S)............................................. 31
Installation recommendations ............................................................................... 32
Attaching the front panel....................................................................................... 37
Aligning the fume deflector ................................................................................... 38
Installing the grease filter....................................................................................... 38
Exhaust air connection.......................................................................................... 39
Set up for recirculation mode................................................................................ 40
Power supply......................................................................................................... 41
Electrical connection .......................................................................................... 42
Air venting ............................................................................................................ 43
Condensate trap.................................................................................................... 44
Reducing Collar .................................................................................................... 44
Service and warranty .......................................................................................... 45
Location of the data plate ..................................................................................... 45
IMPORTANT SAFETY INSTRUCTIONS
4
READ AND SAVE THESE INSTRUCTIONS
This appliance complies with current safety requirements.
Improper use of the appliance can lead to personal injury and
material damage.
Read all instructions before installing or using the appliance for the
first time. Only use the appliance for its intended purpose.
Keep these operating instructions in a safe place and pass them
on to any future user.
Appropriate use
CAUTION: For General Ventilating Use Only. Do Not Use To
Exhaust Hazardous Or Explosive Materials And Vapors.
This appliance is intended for residential use only. Use only as
described in these operating instructions.
This ventilation hood is not intended for outdoor use.
It must only be used to extract and clean vapors produced during
cooking. Any other use occurs at the owner's own risk.
This appliance is suitable for installation above gas or electric
cooking surfaces.
Persons who lack physical, sensory or mental abilities, or
experience with the appliance should not use it without supervision
or instruction by a responsible person.
IMPORTANT SAFETY INSTRUCTIONS
5
Safety with children
As with any appliance, close supervision is necessary when used
by children.
Please supervise children in the vicinity of the hood and do not let
them play with it.
Danger of suffocation! Ensure that any plastic wrappings, bags,
etc. are disposed of safely and kept out of the reach of children.
The LED ClearView lighting is very intense.
Ensure that especially babies/small children don't look into the light.
Technical safety
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
– Use this appliance only in the manner intended by the
manufacturer. If you have questions, contact Miele.
– Before servicing or cleaning the appliance, switch power off at the
service panel and lock the service disconnecting means to
prevent power from being switched on accidentally. If the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
Unauthorized installation, maintenance, and repairs can cause
considerable danger for the user. Installation, maintenance, and
repairs must only be carried out by a Miele authorized technician.
A damaged ventilation hood can be dangerous. Always check for
visible signs of damage. Never use a damaged ventilation hood.
Be certain your appliance is properly installed and grounded by a
qualified technician. To guarantee the electrical safety of this
appliance, continuity must exist between the appliance and an
effective grounding system. It is imperative that this basic safety
requirement be met. If there is any doubt, have the electrical system
of the house checked by a qualified electrician.
IMPORTANT SAFETY INSTRUCTIONS
6
Reliable and safe operation of this hood can only be guaranteed if
it has been connected to the electrical supply.
To avoid damaging the ventilation hood, make sure that the
connection data (voltage and frequency) on the data plate
correspond to the building's power supply before connecting the
appliance.
If in doubt, consult a qualified electrician.
Do not use a power bar or extension cord to connect the
ventilation hood to electricity. These are a fire hazard and do not
guarantee the required level of appliance safety.
To ensure safe operation, only use the ventilation hood after it has
been properly installed.
This ventilation hood may not be used in non-stationary locations
(e.g. on a ship).
Adequate ventilation must be provided when the hood is operated
simultaneously with devices that burn gas or other fuels.
Only open the housing as described in the enclosed “Installation
diagram” and in the “Cleaning and care” section of this manual.
Under no circumstances should any other parts of the housing be
opened.
Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operation faults.
Defective components should be replaced by Miele original parts
only. Only with these parts can safety of the appliance be assured as
intended by the manufacturer.
If the power cord is damaged, it must only be replaced by a
qualified service technician.
IMPORTANT SAFETY INSTRUCTIONS
7
During installation, maintenance, and repair work, the ventilation
hood must be disconnected from the electrical supply. It is only
completely isolated from the electricity supply if one of the following
applies:
– The circuit breakers on the electrical service panel are tripped.
– The screw-type fuses on the electrical service panel have been
removed.
– The power cord (if present) has been unplugged from the socket
(pull the plug not the cord).
Correct use
WARNING: TO REDUCE THE RISK OF A COOKTOP GREASE
FIRE:
– a) Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers may ignite. Heat oils slowly
on low or medium settings.
– b) Always turn the hood on when cooking at a high heat.
– c) Clean the ventilation hood frequently. Grease should not be
allowed to accumulate on the fan or filter.
– d) Use the proper pan size. Always use cookware appropriate for
the size of the cooking area.
Never use an open flame beneath the ventilation hood.
To avoid the risk of fire, do not flambé or grill over an open flame.
When turned on, the ventilation hood will draw any flames into the
filter. Fat deposits may ignite.
WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN
THE EVENT OF A COOKTOP GREASE FIRE, OBSERVE THE
FOLLOWING*:
– a) SMOTHER FLAMES with a close fitting lid, cookie sheet, or
metal tray then turn off the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
IMPORTANT SAFETY INSTRUCTIONS
8
– b) NEVER PICK UP A FLAMING PAN - You may be burned.
– c) DO NOT USE WATER, including wet dishcloths or towels - a
violent steam explosion will result.
– d) Use a fire extinguisher ONLY if:
– 1) You have a class ABC extinguisher, and you know how to operate it.
– 2) The fire is small and contained in the area where it started.
– 3) The fire department is being called.
– 4) You can fight the fire with your back to an exit.
*Based on “Kitchen Fire Safety Tips” published by NFPA.
The ventilation hood may become damaged if exposed to
excessive heat from a gas cooktop.
– When using the ventilation hood over a gas cooktop, ensure that
any burners in use are always covered by cookware. Turn burners
off when removing the cookware, even if doing so for just a short
time.
– Select cookware that is suitable for the size of the burner.
– Adjust the flame so that it never extends up the sides of the
cookware.
– Avoid overheating the cookware (e.g., when cooking with a wok).
Always turn the ventilation hood on whenever a burner is in use to
prevent damage from condensation.
Overheated oil and fat can ignite, causing fire damage to the
ventilation system.
Do not leave cookware, pans, and deep fryers unattended when
cooking with oil or fat. Similarly, never leave an open grill unattended
when grilling.
Fat and debris deposits impair the proper functioning of the
ventilation hood.
To ensure that cooking vapors are properly cleaned, never use the
ventilation hood without the grease filters in place.
IMPORTANT SAFETY INSTRUCTIONS
9
Please note that the heat rising from the stovetop during cooking
can cause the ventilation hood to become very hot.
Do not touch the housing or the grease filters until the ventilation
hood has cooled down.
IMPORTANT SAFETY INSTRUCTIONS
10
Proper installation
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
– a) Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
– b) Sufficient air is needed for combustion and exhausting of gases
through the flue (chimney of fuel burning equipment to prevent
back drafting. Follow the heating equipment manufacturer’s
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA) and the American
Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
– c) When cutting or drilling into the wall or ceiling, do not damage
electrical wiring and other hidden utilities.
– d) Ducted hoods must always be vented to the outdoors.
– e) Do not use this hood with any solid-state speed control device.
To determine whether a ventilation hood may be operated above
your cooking appliance, please refer to the information provided by
the appliance's manufacturer.
Safety regulations prohibit the installation of a ventilation hood
over solid fuel stoves.
An insufficient safety distance between the cooktop and the
ventilation hood can result in damage to the ventilation hood.
The minimum safety distances between the top of the cooktop and
the bottom of the ventilation hood given in the “Installation” section
of this booklet must be observed, unless the cooktop manufacturer
states that a greater safety distance is required.
If more than one cooking appliance is installed beneath the
ventilation hood, and they have different minimum safety distances
to the ventilation hood, select the greater distance.
IMPORTANT SAFETY INSTRUCTIONS
11
Be sure to observe the information contained in the “Installation”
section when mounting the ventilation hood.
Metal parts can have sharp edges which may cause injury.
Wear gloves to protect your hands from being cut.
When installing the exhaust duct, only use pipes or tubes made of
non-flammable material. These can be obtained from your Miele
dealer or from Miele Technical Service.
Exhaust air should not be vented into a chimney or vent flue which
is otherwise in use and should not be channeled into ducting which
ventilates rooms with fuel-burning installations.
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
WARNING: TO REDUCE THE RISK OF FIRE USE ONLY METAL
DUCTWORK.
IMPORTANT SAFETY INSTRUCTIONS
12
Cleaning and maintenance
There is a risk of fire if cleaning is not completed according to the
instructions in this manual.
Never use a steam cleaner to clean the ventilation hood.
The steam can reach the electrical components and cause a short
circuit.
Accessories
Use only genuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty will become void.
Caring for the environment
13
Disposal of the packing
material
The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
contain valuable materials. They also
contain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these
materials improperly by disposing of
them in your household waste can be
harmful to your health and the
environment. Therefore, please do not
dispose of your old appliance with
regular household waste and follow
local regulations on proper disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed. Please
ensure that your old appliance is kept
away from children until removal.
Observe safety requirements for
appliances that may tip over or pose an
entrapment hazard.
Guide to the appliance
14
Guide to the appliance
15

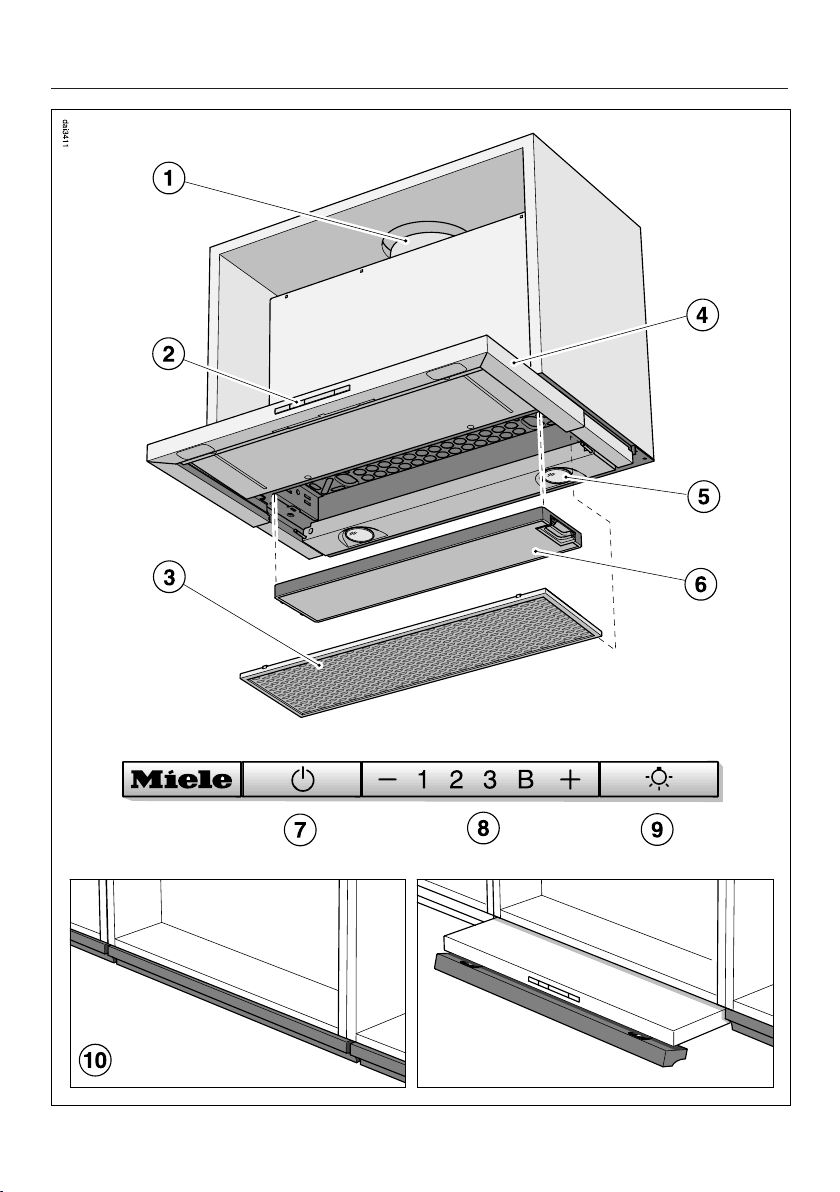

a
Exhaust connection for vented mode/recirculation
b
Controls
c
Grease filters
d
Expandable fume deflector
e
Overhead LED ClearView lighting
f
OdorFree Charcoal filter
Optional accessory for recirculation mode
g
On / Off button for fan
h
Buttons for setting the fan power
i
On / Off button for the Overhead LED ClearView lighting
j
Drop-down front panel
The front panel of the fume deflector can be fitted with one that matches your
kitchen cabinetry instead (DML 400 installation kit required).
Description of functions
16
The following functions are available on
your ventilation hood, depending on the
model:
Extraction mode
Air entering through the intake is
cleaned by the grease filters and
conducted out of the building.
Non-return flap
A non-return flap in the ducting
prevents the exchange of inside and
outside air from occurring when the
ventilation hood is not in use.
The flap is closed when the ventilation
hood is turned off.
When the ventilation hood is turned on,
the non-return flap opens so that the
exhaust air can be transported outside
without any obstruction.
A non-return flap has been provided
with the hood in case your ducting does
not have one. It is inserted into the
outlet duct collar of the fan.
Recirculation mode
(Recirculation mode hoods require a
Recirculation kit an OdorFree Charcoal
Filter (available as optional
accessories), see “Technical Data” for
more information.)
Air entering through the intake is first
cleaned by the grease filters and then
by an OdorFree Charcoal Filter. The
cleaned air is then recirculated back
into the kitchen.
Operation
17
Turning on the blower
Pull out the fume deflector. For
optimum extraction with minimum
noise levels, always pull out the fume
deflector to its full extent.
The blower turns on at level 2. The
symbol and 2 will light up in the blower
level display.
Selecting the power level
Power levels 1 to 3 are available for light
to heavy cooking vapors and odors.
For strong vapors and odors that are
temporarily produced when cooking,
e.g., during searing, select the B
Booster setting.
Select the power level you want by
pressing the or control.
Automatic Booster setting
switch-off
You have the option to program the
booster level to ensure the fan will
always switch back to level 3
automatically after 10minutes.
To set this option, both the blower
and the overhead lighting must be
turned off and the fume deflector
pushed in.
Press theandbuttons at the
same time for approx. 10 seconds,
until 1 lights up.
Then, press the following buttons in
succession:
– the lighting button,
– followed by the button and then
– the lighting buttonagain.
If automatic switch-off is not activated,
the 1 and B displays will flash.
To activate it, press thebutton.
If 1 and B are lit, automatic switch-off is
activated.
To deactivate it, press thebutton.
Use the On/Off buttonto confirm
your choice of setting.
If you do not confirm within
4minutes, the system will revert to
the old setting.
Operation
18
Delayed shut-off
It is advisable to run the blower for a
few minutes after cooking has
finished to neutralize any lingering
vapors and odors in the air.
Turning off the blower
Push in the fume deflector to switch
off the blower. The next time the fume
deflector is pulled out, the hood will
operate at power level 2, or
Press the On/Off button to turn the
blower off.
The symbol will go out.
Turning the overhead lighting
on/off
The overhead lighting can be turned on
and off independently from the blower.
You can turn the overhead lighting on
and off by pulling out the fume
deflector and pushing it in again or by
pressing the lighting button .
The symbol is lit when the overhead
lighting is turned on.
Safety switch-off
If the ventilation hood is switched on
but not used for 10 hours, the fan shuts
off automatically. The cooktop lighting
remains switched on.
Pressing the On/Off buttonwill
switch the fan back on again.
Energy-saving tips
19
This hood operates in a very efficient
and energy-saving manner. The
following will help you to save even
more energy when using it:
– Ensure that there is sufficient
ventilation in the kitchen when
cooking. If there is insufficient air flow
during extraction mode, the hood
cannot operate efficiently, causing
increased operating noise levels.
– Always cook with the lowest possible
setting. This produces fewer cooking
vapors so that you can use a lower
hood power level and therefore
benefit from reduced energy
consumption.
– Check the power level selected on
the hood. A lower power level is
generally sufficient for the majority of
cooking. Only use the booster level
when necessary.
– When a large volume of cooking
vapors are being produced, switch to
a high power level in good time. This
is more efficient than operating the
hood for longer to try to capture
cooking vapors that have already
been distributed throughout the
kitchen.
– Make sure that you switch off the
hood after use.
– Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
Cleaning and care
20
WARNING: TO REDUCE THE
RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
Before cleaning or servicing the
hood, disconnect it from the power
supply, see “IMPORTANT SAFETY
INSTRUCTIONS”.
Stainless steel housing
General information
The surfaces and control buttons
are susceptible to scratching and
chipping.
Observe the following cleaning
instructions.
Clean all surfaces and control buttons
using warm water and liquid dish
soap. Apply with a sponge cloth.
Make sure that no water gets
into the interior of the hood.
Only use a damp cloth to clean the
hood, especially in the control panel
area.
After cleaning, dry the surfaces with a
soft cloth.
Avoid the following:
– Cleaners containing soda, acid or
chloride, or cleaners containing
solvents
– Abrasive sponges, e.g. pot scourers
or sponges which have been
previously used with abrasive
cleaning agents.
Special instructions for stainless
steel surfaces
(does not apply to control buttons)
Stainless steel surfaces can also be
cleaned using a non-abrasive
stainless steel cleaner, available from
Miele.
To prevent the surfaces from quickly
becoming dirty again, we recommend
treating them with a stainless steel
care conditioner.
Apply sparingly over the entire area
using a soft cloth.
Important for the controls
Do not leave dirt and debris on the
buttons for any length of time.
Otherwise they may become
discolored or damaged.
Remove any dirt or debris
immediately.
Observe the general cleaning
instructions contained in this chapter.
Do not use a stainless steel cleaner
to clean the control buttons.
Cleaning and care
21
Grease filter
Risk of fire!
An oversaturated grease filter is a fire
hazard.
Clean the grease filter at regular
intervals.
The reusable metal grease filter in the
appliance removes solid particles from
the kitchen vapors (grease, dust, etc.)
preventing soiling of the ventilation
hood.
The grease filter must be cleaned at
regular intervals.
A heavily soiled grease filter hinders
air extraction and will lead to
increased levels of soiling in the
ventilation hood and in the kitchen.
Cleaning intervals
Accumulated grease solidifies over a
longer period of time and makes
cleaning more difficult. The grease filter
should therefore be cleaned at least
every 3 to 4 weeks.

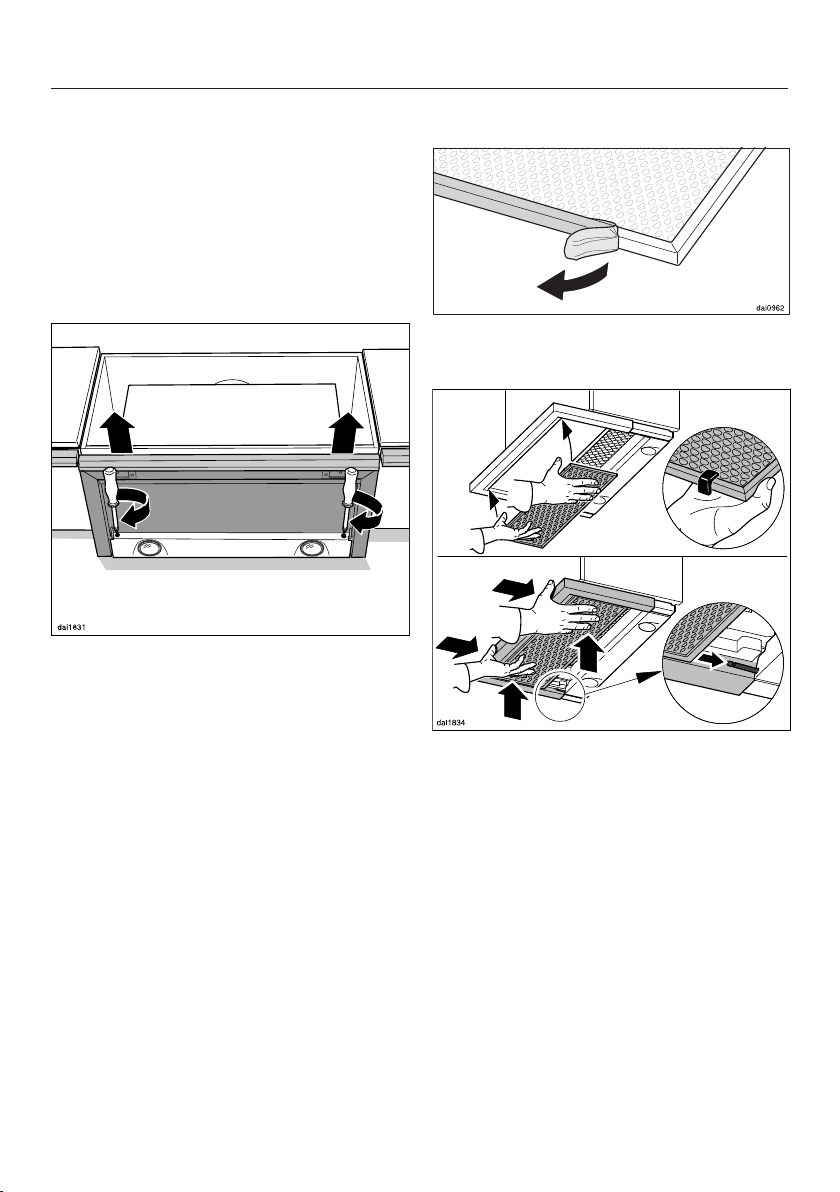

Removing the grease filters
When handling the grease filter,
be careful not to drop it.
This can result in damage to the filter
and the cooktop below.
Make sure you hold the filter securely
at all times when handling it.
When removing the grease filter, do
not tilt it downwards at an angle.
This can damage the retaining pins.
With the fume deflector pushed in,
grip the front of the fume deflector
and hold the grease filter securely.
While holding the grease filter, pull
the fume deflector out as shown.
Then pull the filter downwards to
remove it.
Turn off the blower.
Cleaning and care
22
Cleaning the grease filter by hand
Clean the filters with a soft nylon
brush in a mild solution of hot water
and dish soap. Do not use undiluted
dish soap.
Unsuitable cleaning agents
Unsuitable cleaners can cause damage
to the filter surfaces if used regularly.
Do not use any of the following:
– Lime removers
– Abrasive powders or abrasive liquids
– Aggressive all-purpose cleaners and
degreaser sprays
– Oven sprays
Cleaning the grease filter in a
dishwasher
Place the grease filter upright or
slightly inclined in the lower basket.
Ensure the spray arm is not
obstructed.
Use a commonly available household
dishwashing detergent.
In a Miele dishwasher use the
“Normal” program.
Depending on the detergent used,
cleaning the filter in a dishwasher may
cause the inside filter surfaces to
become discolored. However, this will
not affect the functioning of the grease
filter in any way.
After cleaning
After cleaning, leave the filters on an
absorbent surface to dry.
When removing the filter for cleaning,
also clean off any residues of oil or fat
from the now accessible casing to
prevent the risk of these catching fire.
Installing the grease filter
When installing the grease filter, make
sure that the red plastic guides are at
the front and facing upwards.
Place the grease filter in the front of
the fume deflector, press it upwards
and push it in together with the fume
deflector. It will slide onto the
retaining pins at the back. Finally,
push the grease filter back a little
more.
Cleaning and care
23
OdorFree Charcoal Filter
If the hood is connected for
recirculation, an OdorFree Charcoal
Filter must be inserted in addition to the
grease filter. This is designed to absorb
cooking odors.
It is fitted in the canopy above the
grease filter.
Charcoal filters are available to order via
the Miele web store (see the back of
this manual for details) or from your
Miele dealer.
The charcoal filters are listed under
“Technical data” at the back of this
booklet.
Installing/replacing the charcoal filter
To install or replace the charcoal filter,
the grease filters must first be
removed as described above.
Remove the charcoal filter from its
packaging.

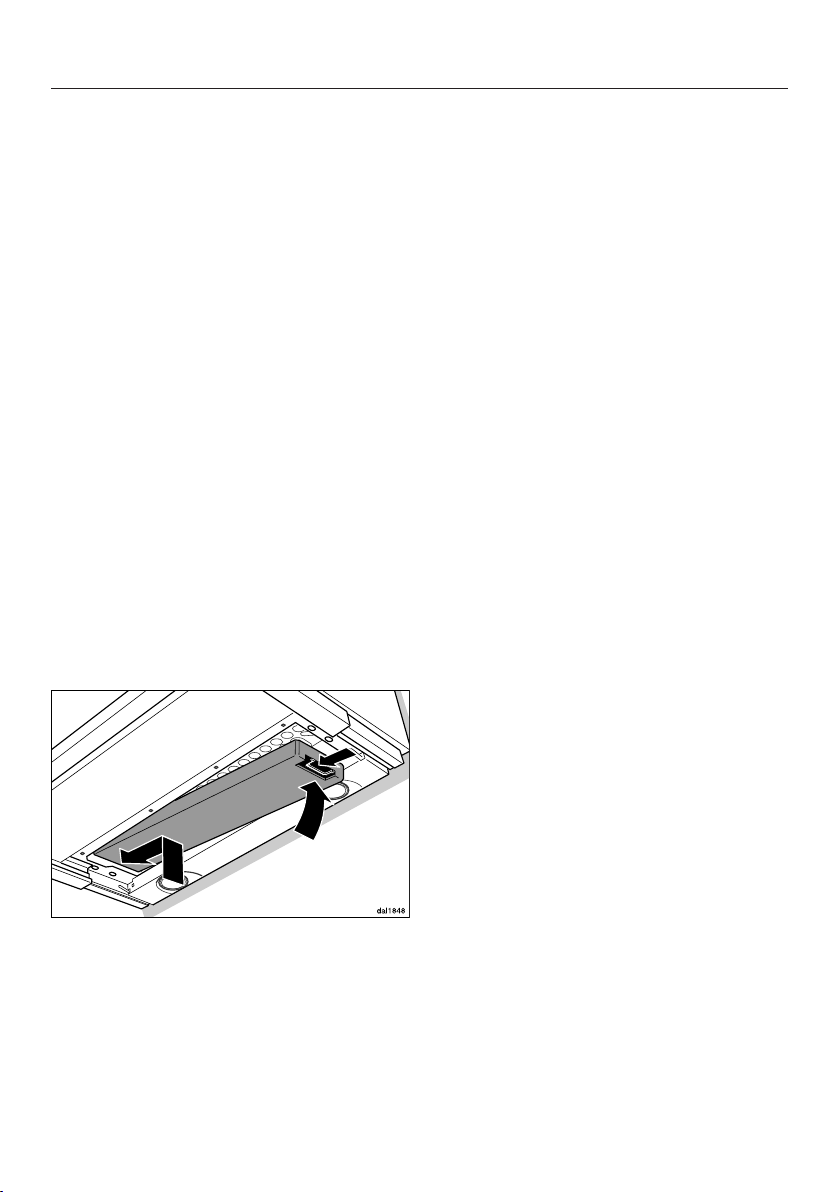

Fit the charcoal filter into the frame.
Replace the grease filter.
When to change the OdorFree
Charcoal Filter
Replace the charcoal filter when it no
longer absorbs kitchen odors
effectively.
It should be replaced at least every 6
months.
Disposing of charcoal filters
The used charcoal filter can be
disposed of with the normal
household waste.
Cleaning and care
24
Changing a light bulb
The bulbs should be replaced with the
following:
Bulb type .............................. LED, GU10
Power ............................................... 3W
Replacement bulbs are available from
Miele.
Pull out the fume deflector, and
remove the grease filter as described
above.
Turn off the blower and the lighting.
Please note that bulbs become
very hot during use.
They can cause burns even after
being shut off for some time.
Allow the bulbs to cool down for a
few minutes before changing them.
Remove the charcoal filter if the hood
is being used in recirculation mode.
Disconnect the hood from the
electrical supply before replacing the
bulbs (see “IMPORTANT SAFETY
INSTRUCTIONS”).
Reach through the opening in the
safety panel and push the lighting
unit slightly downwards.
Turn the bulb counter-clockwise and
pull it out.
Screw the new bulb into the socket
and push it upwards. Please follow
the manufacturer's safety
instructions.
Replace the grease filter and, if being
used in recirculation mode, the
charcoal filter.
Installation
25
Before installation
Before installing the appliance,
read all of the information contained
in this chapter and also in the
“IMPORTANT SAFETY
INSTRUCTIONS” section.
Installation
26
Installation parts
Installation
27
a
2 brackets
for securing the hood in the wall
unit.
b
1 spacer strip
for concealing the gap between the
rear of the appliance and the wall.
c
Recirculation kit for recirculation
mode
(not supplied, but available as an
optional accessory - see “Technical
data”). The kit contains an exhaust
grille and flexible aluminum hose
with hose clips.
d
DML 400 installation kit for fitting
a drop-down front panel
(not supplied but available as an
optional accessory). Contains
hinging and screws for fitting a front
panel to match kitchen cabinetry.
8 screws ³/₁₆“ x ⁹/₁₆” (4 x 15mm)
for securing the hood in the wall unit.
8 screws M4 x ¹/₂" (12mm)
for securing the hood to the brackets.
4 of the screws can be used instead of
the plastic rivets to secure the spacer
strip.
2 screws ³/₁₆“ x ⁹/₁₆” (4 x 15mm) for
fastening the hood to the rear panel.
4 plastic rivets
for securing the spacer strip.
Installation
28

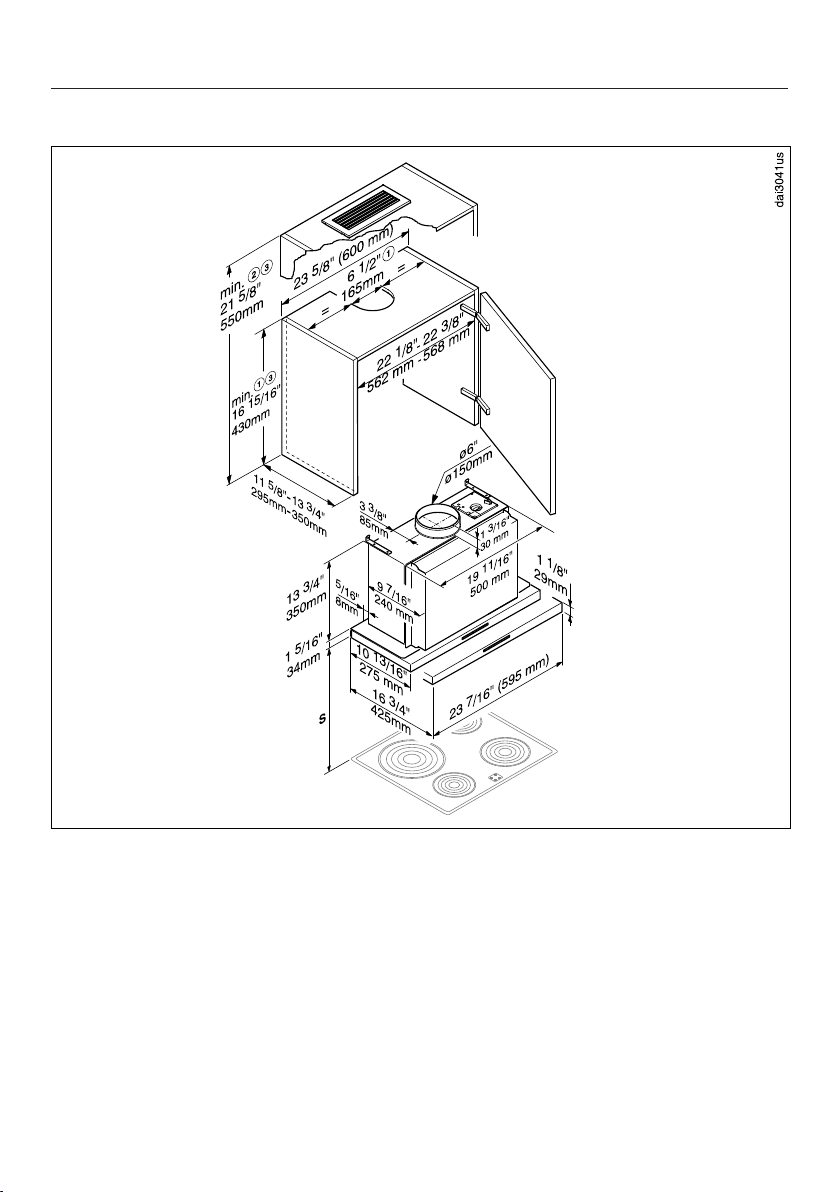

Appliance dimensions
DA 3466
a
Vented mode; consider accessories when measuring cabinet height and cut-
outs (e.g. muffler).
b
Recirculation mode with conversion kit DUU151.
c
For Canada: When installing the ventilation hood with a DAR3000 drop-down
frame, make sure that you note the different wall unit height (please refer to the
dimensions given in the DAR3000 Installation diagram).
Installation
29
DA 3486
a
Vented mode; consider accessories when measuring cabinet height and cut-
outs (e.g. muffler).
b
Recirculation mode with conversion kit DUU151.
c
For Canada: When installing the ventilation hood with a DAR3000 drop-down
frame, make sure that you note the different wall unit height (please refer to the
dimensions given in the DAR3000 Installation diagram).
* Installation is also possible in a 23 5/8" (600 mm) wide cabinet.
Installation
30
DA 3496
a
Vented mode; consider accessories when measuring cabinet height and cut-
outs (e.g. muffler).
b
Recirculation mode with conversion kit DUU151.
c
For Canada: When installing the ventilation hood with a DAR3000 drop-down
frame, make sure that you note the different wall unit height (please refer to the
dimensions given in the DAR3000 Installation diagram).
* The ventilation hood can also be installed in a 23 5/8" (600mm) wide unit (a
DAR3000 drop-down frame cannot be used in this instance).
Installation
31
Distance between cooktop and ventilation hood (S)
Provided a larger distance is not given by the manufacturer of the cooktop,
follow the minimum safety distances between a cooktop and the bottom of the
hood.
Please also observe the information contained in the “IMPORTANT SAFETY
INSTRUCTIONS” section.
Minimum distance S
Cooking appliance Miele
appliance
Non-Miele
appliance
Electric Cooktops 24" (610mm)
Electric Barbeques and Fryers 26" (660mm)
Multiburner Gas Cooktops
≤ 43,000 BTU/hr (12.6kW),
no burner > 15,000 BTU/hr (4.5 kW).
26" (660mm) 30" (760mm)
Multiburner Gas Cooktops
≤ 73,800 BTU/hr (21.6kW),
no burner > 16,500 BTU/hr (4.8 kW)
30" (760mm)
Multiburner Gas Cooktops
> 73,800 BTU/hr (21.6kW),
or one of the burners > 16,500 BTU/hr (4.8 kW)
Not possible
Single Burner Gas Cooktops
≤ 20,500 BTU/hr (6 kW)
26" (660mm) 30" (760mm)
Single Burner Gas Cooktops
> 20,500 BTU/hr (6 kW)
≤ 27,600 BTU/hr (8.1 kW)
30" (760mm)
Single Burner Gas Cooktops
> 27,600 BTU/hr (8.1 kW)
Not possible
If you are installing a front panel made of wood or plastic to the hood, observe
the safety distances given by the cooktop manufacturer regarding the use of
easily flammable materials.
Installation
32
Installation recommendations
– To achieve optimum vapor extraction,
the hood must be centered over the
cooktop, not to the side.
– The cooktop should be no wider than
the hood. Preferably, it should be
narrower for better extraction.
– The mounting area must be easily
accessible. The ventilation hood
should be easy to reach and
disassemble in case a service call is
necessary. This should be taken into
consideration when planning the
position of cabinetry, shelves,
ceilings or decorative elements in the
vicinity of the ventilation hood.
Installation
33
a
Example: Installation without a front
panel installed and with the front
edge of the fume deflector flush with
the front edge of the cabinetry.
b
Example: Installation with a front
panel to match the cabinetry This
installation requires dimension b for
the front panel plus ³/₁₆" (5mm) for
the DML 400 fixing bracket to be
added to the shelf dimension.
To position the hood correctly, cut the
spacer strip to the required depth T and
then attach it to the back of the
appliance:
T= Depth of cabinetry K minus depth of
appliance G
Cut the spacer strip supplied to
measurement T. Score along the
groove for the next smaller
measurement as shown, and remove
any extra.
Installation
34
Secure the spacer strip underneath
the sides of the cabinetry, flush with
the rear wall.
Draw a vertical line up both inside
walls of the cabinetry from the front
of the spacer strip.
The brackets are designed for ⁵/₈“
and ³/₄” (16 and 19mm) thick unit
sides. Orientate the bracket so that
the vertical depth matches the
thickness of the unit side.
Screw the brackets onto the right and
left inside walls of the housing unit as
shown. The back edge of the bracket
should align with the vertical line
drawn up from the front of the spacer
strip and the lower edge should align
with the lower edge of the cabinetry
side wall.
Installation
35
To avoid scratching the fume
deflector, do not remove the
protective film between the fume
deflector and the casing until the
hood has been placed in the
cabinetry
Installation of the hood is carried out
without the grease filter placed in
position. If the grease filter has
already been fitted, then it should be
removed (see “Cleaning and care”).
When installing a 31¹/₂“ or 35⁷/₁₆”
(80 or 90cm) wide hood in a 23⁵/₈“
(60cm) wide wall unit while the fume
deflector is pulled out, unscrew the
two fume deflector spring mounts.
Lift the appliance up into the
cabinetry from below until the spring
mounts at the side engage in the
brackets.
Push the hood back against the
spacer strip.
Note for dismantling the hood:
Removing the screws on the left and
right inside the cabinetry releases the
spring mounts, allowing the appliance
to be removed from the unit.
Installation
36
Secure the hood to the brackets from
below using two screws on each
side.
Loosen the retaining bracket screws
and push the brackets back against
the rear wall.
Attach the retaining bracket to the
rear panel.
The casing needs a stable
attachment to the rear panel.
If this is not guaranteed, the casing
can incline forward and damage the
fume deflector when it is being
pulled out and pushed in.
If the cabinet does not have a stable
rear panel, the fastening bracket
must be attached to the kitchen wall.
To do so, use suitable means of
fastening.
Installation
37
Align the casing and screw the
retaining bracket onto the casing.
Secure the spacer strip to the back of
the appliance from behind using 4
plastic rivets as shown.
Attaching the front panel
The front of the fume deflector can be
fitted with a front panel to match
existing cabinetry.
The front panel must not exceed
approx. 2.8lbs. (1300g). This applies to
front panels with a depth of up to
approx. 1" (30mm). For larger and
heavier front panels, the weight must be
reduced.
A DML 400 installation kit, available as
an optional accessory, is required for
fitting a front panel.
Follow the installation instructions
supplied.
Installation
38
Aligning the fume deflector
The position of the fume deflector can
be brought forward by up to approx.
1³/₈" (35mm) using the adjusting
screws on either side of the fume
deflector. This allows the fume deflector
to be aligned to the front of the
cabinetry on either side.
Use a screwdriver to align the fume
deflector correctly.
Installing the grease filter
Remove the protective foil around the
edge of the grease filter.
When installing the grease filter, make
sure that the red plastic guides are at
the front and facing upwards.
Place the grease filter in the front of
the fume deflector, press it upwards
and push it in together with the fume
deflector. It will slide onto the
retaining pins at the back. Finally,
push the grease filter back a little
more.
Installation
39
Exhaust air connection

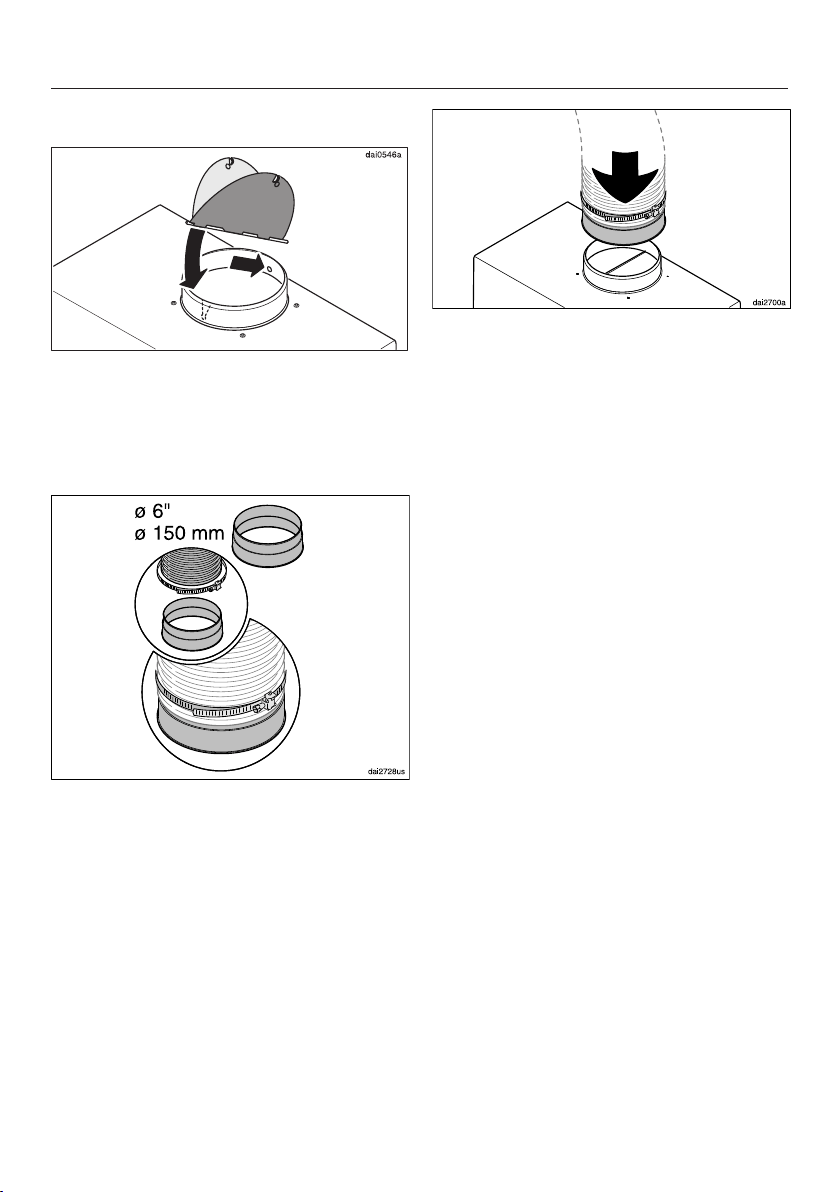

Insert the non-return flap, if required.
Make sure that it opens easily and
closes again by itself. Depending on
the model, the non-return flap is
already installed at the factory.
Secure the exhaust ducting to the
exhaust socket, e.g., with a hose clip
(available as an optional accessory)
on flexible ducting.
Place the exhaust ducting on the
exhaust collar for the hood.
See “Connection for air extraction”
for further instructions on fitting the
ducting.
Installation
40
Set up for recirculation mode
If site conditions are not suitable for the
hood to be used with air extraction, the
appliance must be set up for
recirculation. The DUU151 conversion
kit, available from Miele, is required for
operating the hood in recirculation
mode. You will also need a charcoal
filter (see “Technical data”).
A non-return flap is not used in
recirculation mode. Depending on the
model, it is already installed.
Remove the non-return flap from the
exhaust connection.
Install the conversion kit as described
in the installation instructions
supplied with the kit. Make sure that
the slats in the exhaust grille point
towards the centre of the room and
not towards a wall or the ceiling.
A non-return flap is not used in
recirculation mode.
Insert the charcoal filter (see
“Cleaning and care”).
Installation
41
Power supply
Refer to the notes in “Electrical
connection” and “IMPORTANT
SAFETY INSTRUCTIONS” before
connecting to the electricity supply.
Connect the hood to the electrical
supply.
Electrical connection
42
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
All electrical work should be
performed by a qualified electrician
in strict accordance with national
regulations (for USA: ANSI-NFPA 70)
and local safety regulations.
Installation, repairs and other work
by unqualified persons could be
dangerous.
Ensure that power to the appliance is
OFF while installation or repair work
is performed.
Verify that the voltage, load and
circuit rating information found on
the data plate (located behind the
baffle filters), match the household
electrical supply before installing the
hood.
Use only with ventilation hood cord-
connection kits that have been
investigated and found acceptable
for use with this model hood.
If there is any question concerning
the electrical connection of this
appliance to your power supply,
please consult a licensed electrician
or call Miele’s Technical Service
Department.
WARNING: THIS APPLIANCE MUST
BE GROUNDED
Grounding Instructions
WARNING - Improper grounding can
result in a risk of electric shock.
This appliance must be grounded. In
the event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing a path of least
resistance. This appliance is equipped
with a cord having a grounding wire
with a grounding plug.
If there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
Do not use an extension cord. If the
power supply cord is too short, have a
qualified electrician install an outlet near
the appliance.
The plug must be plugged into an
outlet that is properly installed and
grounded.
WARNING - Grounding instructions
(Canada)
The grounding-type attachment plug
shall be connected to a grounding-
type receptacle installed in
accordance with CSA C22.1-12,
Canadian Electrical Code, Part I.
Air venting
43
WARNING: Danger of toxic fumes.
Gas cooking appliances release
carbon monoxide that can be
harmful or fatal if inhaled.
To reduce the risk of fire and to
properly exhaust air, the exhaust
gases extracted by the hood should
be vented outside of the building
only.
Do not vent exhaust air into spaces
within walls or ceilings or in attics,
crawl spaces or garages.
To reduce the risk of fire, only use
metal ductwork.
Please read and follow the
“IMPORTANT SAFETY
INSTRUCTIONS” to reduce the risk
of personal injury. Follow all local
building codes when installing the
hood.
Only use smooth pipes or flexible
duct hoses made from non-
combustible materials for exhaust
ductwork.
To achieve the greatest possible air
extraction with the lowest noise levels,
please note the following:
– The diameter of the exhaust duct
should not be less than 6" (150mm).
– If flat exhaust ducts are used, the
cross section should not be smaller
than that of the exhaust connector.
– The exhaust duct should be as short
and straight as possible.
– If elbows are needed, make sure they
have a large radius.
– The exhaust duct itself must not be
kinked or compressed.
– Make sure that all connections are
secure and airtight.
Remember that any constriction of
the airflow will reduce extraction
performance and increase operating
noise.
If the exhaust duct is to be routed
through an outside wall, we
recommend installing a telescopic
wall vent or a rooftop vent.

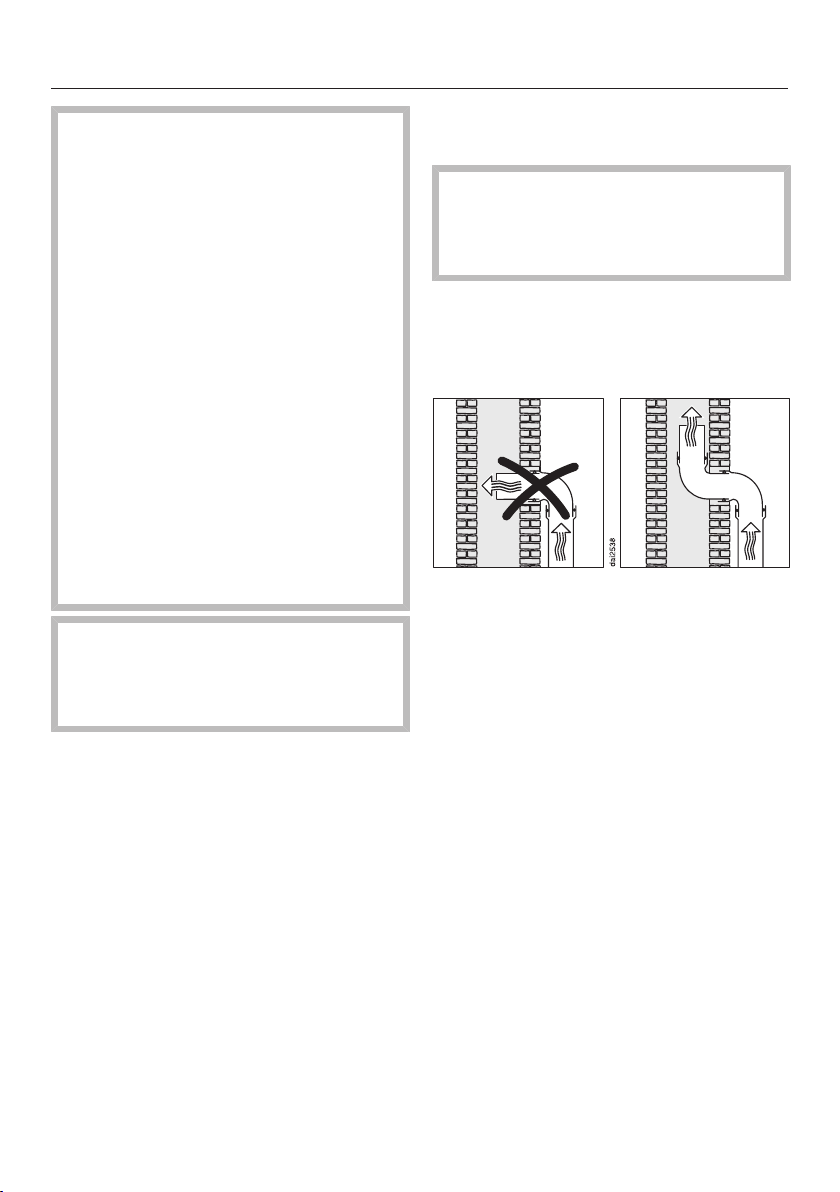

If the exhaust air is conveyed into an
exhaust air chimney, the inlet
connector must face the flow
direction.
When installing the exhaust duct
horizontally, a minimum slope of ¹/₈
inch per foot must be maintained to
prevent condensate from flowing into
the ventilation hood.
If the exhaust duct is to be routed
through cool rooms, ceilings, etc., the
temperatures in these different areas
may differ greatly. Therefore water
condensation must be considered
and the exhaust duct will need to be
insulated.
Air venting
44
Condensate trap
In addition to insulating the exhaust
duct, we recommend installing a
condensate trap to collect and
evaporate any condensate which might
accumulate.
Condensate traps are available for
exhaust ducts with a diameter of
5" (125 mm) or 6" (150 mm).
When installing a condensate trap,
make sure that it is positioned
vertically and, if possible, directly
above the hood outlet duct collar.
The arrow on the housing indicates
the direction of airflow.
Reducing Collar
(optional accessory)
If you would like to reduce the
environmental impact of your ventilation
system by limiting the CFM output the
Reducing Collar can be installed. It
reduces the air flow to less than
400CFM. Check local building codes
for max. CFM requirements.
Push the Reducing Collar on the
exhaust port of the blower.
Push the exhaust hose over it.
Secure both with a hose clamp.
Service and warranty
45
For faults that you cannot resolve on
your own, please contact your Miele
dealer or Miele Technical Service.
The telephone number for Miele is listed
at the back of these instructions.
When contacting Miele, please state the
model and serial number of your
ventilation hood.
These can be found on the data plate.
Location of the data plate
The data plate is visible once you have
removed the grease filters.
Warranty
For further information, please refer to
your warranty booklet.
MieleCare
This service is available in USA only.
MieleCare, our Extended Service
Contract program, gives you the
assurance of knowing that your
appliance investment is covered by
5years of worry free ownership.
MieleCare is the only Extended Service
Contract in the industry that guarantees
repairs by a Miele Authorized Service
Provider using genuine Miele parts.
Only genuine Miele parts installed by
factory trained professionals can
guarantee the safety, reliability, and
longevity of your Miele appliance.
Please note that unless expressly
approved in writing by Miele’s Service
department, Extended Service
Contracts offered by other providers for
Miele products will not be recognized
by Miele. Our goal is to prevent
unauthorized (and untrained) service
personnel from working on your Miele
products, possibly doing further
damage to them, you and/or your
home.
To learn more about MieleCare
Extended Service Contracts, please
contact your appliance dealer or visit us
online at:
www.mieleusa.com
Technical data
46
Blower motor 350W
LED ClearView lighting 2 x 3W
Total connected load 356W
Voltage, Frequency 120V AC, 60Hz
Fuse rating 15A
Power cord length 2.5ft (0.75m)
Weight
DA 3466 27.6lbs (12.5kg)
DA 3486 29.8lbs (13.5kg)
DA 3496 32lbs (14.5kg)
Optional accessories for recirculation mode:
Recirculation kit DUU151 and charcoal filter DKF13-900
9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Technical Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
800-843-7231
609-419-4298
Technical Service & Support
Phone:
Fax:
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
800-999-1360
888-586-8056
Customer Care Centre
Phone:
800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 10 646 590 / 03en-US
DA 3466
DA 3486
DA 3496
