Operating and Installation Instructions
Ventilation hood
To prevent accidents and damage to the appliance, you must read
these instructions before installing the appliance and using it for the first
time.
en-US M.-Nr. 10 984 720
Contents
2
IMPORTANT SAFETY INSTRUCTIONS ................................................................ 4
Caring for the environment ................................................................................ 13
Guide to the appliance........................................................................................ 14
Description of functions ..................................................................................... 16
Before using for the first time ............................................................................ 17
Selecting extraction mode or recirculation mode.................................................. 17
Setting up Miele@home ........................................................................................ 17
Connecting via the app ....................................................................................18
Connecting via WPS ........................................................................................19
Signing out of WiFi (reset to factory settings) ..................................................20
Operation.............................................................................................................. 22
Turning on the blower............................................................................................ 22
Selecting the power level ...................................................................................... 22
Selecting the delayed shutdown time ................................................................... 22
Turning off the blower............................................................................................ 22
Turning the overhead lighting on/off...................................................................... 23
Power management .............................................................................................. 23
Safety shut-off....................................................................................................... 24
Filter saturation indicator....................................................................................... 25
Adjusting the filter saturation indicator for the grease filters............................25
Adjusting or deactivating the filter saturation indicator for the charcoal filter..26
Checking the filter saturation indicator.............................................................26
Energy-saving tips............................................................................................... 27
Cleaning and care ............................................................................................... 28
Stainless steel housing.......................................................................................... 28
Grease filters ......................................................................................................... 29
OdorFree Charcoal Filter ....................................................................................... 32
Resetting the filter saturation indicator for the charcoal filters......................... 32
Disposing of charcoal filters ............................................................................. 32
Changing a light bulb ............................................................................................ 33
Service and warranty .......................................................................................... 34
Location of the data plate ..................................................................................... 34
MieleCare .............................................................................................................. 34
Installation............................................................................................................ 35
Before installation.................................................................................................. 35
Removing the protective film................................................................................. 35
Contents
3
Installation Instructions ......................................................................................... 35
Disassembly .......................................................................................................... 35

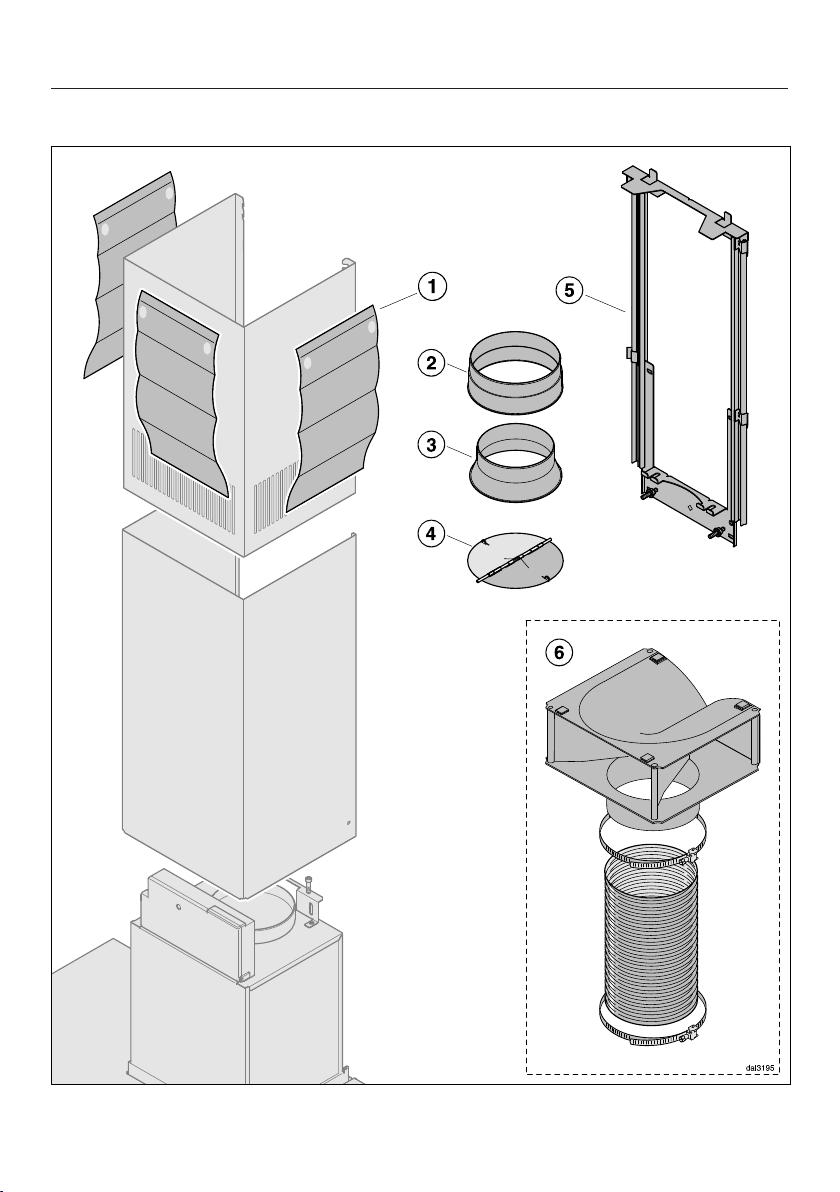

Installation parts .................................................................................................... 36

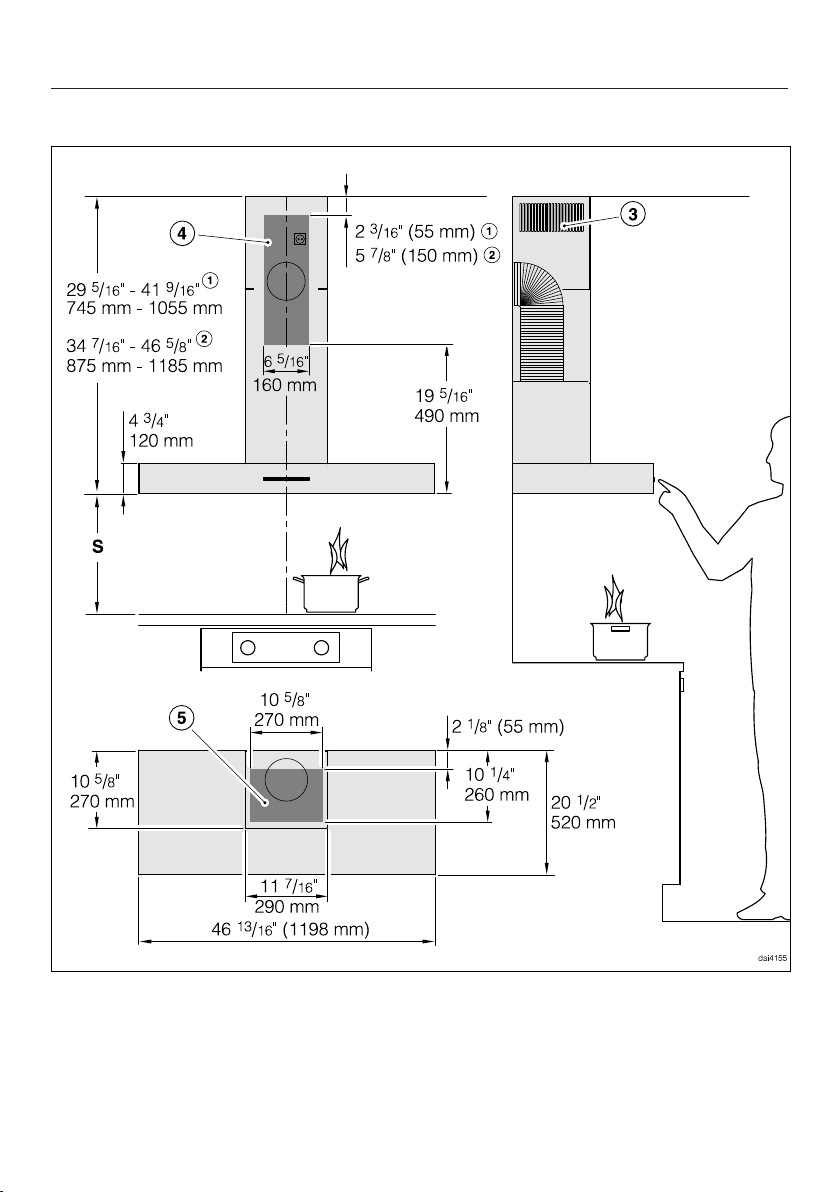

Appliance dimensions ........................................................................................... 38
Distance between cooktop and ventilation hood (S)............................................. 39
Installation recommendations ............................................................................... 40
Drilling diagram for wall mounting......................................................................... 40
Plywood backing .................................................................................................. 41
To install a plywood backing ................................................................................ 41
Air venting ............................................................................................................ 42
Condensate trap.................................................................................................... 43
Electrical connection .......................................................................................... 44
Technical data..................................................................................................... 45
Optional accessories for recirculation mode......................................................... 45
IMPORTANT SAFETY INSTRUCTIONS
4
READ AND SAVE THESE INSTRUCTIONS
This appliance complies with current safety requirements.
Improper use of the appliance can lead to personal injury and
material damage.
Read all instructions before installing or using the appliance for the
first time. Only use the appliance for its intended purpose.
Keep these operating instructions in a safe place and pass them
on to any future user.
Appropriate use
CAUTION: For General Ventilating Use Only. Do Not Use To
Exhaust Hazardous Or Explosive Materials And Vapors.
This appliance is intended for residential use only. Use only as
described in these operating instructions.
This ventilation hood is not intended for outdoor use.
It must only be used to extract and clean vapors produced during
cooking. Any other use occurs at the owner's own risk.
Where a recirculation ventilation hood is installed above a gas
cooktop, please ensure that there is an adequate supply of fresh air
into the room in which it is installed. Please seek the advice of a
qualified gas fitter if necessary.
This appliance is suitable for installation above gas or electric
cooking surfaces.
Persons who lack physical, sensory or mental abilities, or
experience with the appliance should not use it without supervision
or instruction by a responsible person.
IMPORTANT SAFETY INSTRUCTIONS
5
Safety with children
As with any appliance, close supervision is necessary when used
by children.
Please supervise children in the vicinity of the hood and do not let
them play with it.
The LED ClearView lighting is very intense.
Ensure that especially babies/small children don't look into the light.
Danger of suffocation! Ensure that any plastic wrappings, bags,
etc. are disposed of safely and kept out of the reach of children.
Technical safety
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
– Use this appliance only in the manner intended by the
manufacturer. If you have questions, contact Miele.
– Before servicing or cleaning the appliance, switch power off at the
service panel and lock the service disconnecting means to
prevent power from being switched on accidentally. If the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
Unauthorized installation, maintenance, and repairs can cause
considerable danger for the user. Installation, maintenance, and
repairs must only be carried out by a Miele authorized technician.
A damaged ventilation hood can be dangerous. Always check for
visible signs of damage. Never use a damaged ventilation hood.
Be certain your appliance is properly installed and grounded by a
qualified technician. To guarantee the electrical safety of this
appliance, continuity must exist between the appliance and an
effective grounding system. It is imperative that this basic safety
requirement be met. If there is any doubt, have the electrical system
of the house checked by a qualified electrician.
IMPORTANT SAFETY INSTRUCTIONS
6
Reliable and safe operation of this hood can only be guaranteed if
it has been connected to the electrical supply.
To avoid damaging the ventilation hood, make sure that the
connection data (voltage and frequency) on the data plate
correspond to the building's power supply before connecting the
appliance.
If in doubt, consult a qualified electrician.
Do not use a power bar or extension cord to connect the
ventilation hood to electricity. These are a fire hazard and do not
guarantee the required level of appliance safety.
To ensure safe operation, only use the ventilation hood after it has
been properly installed.
This ventilation hood may not be used in non-stationary locations
(e.g. on a ship).
Adequate ventilation must be provided when the hood is operated
simultaneously with devices that burn gas or other fuels.
Only open the housing as described in the enclosed “Installation
diagram” and in the “Cleaning and care” section of this manual.
Under no circumstances should any other parts of the housing be
opened.
Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operation faults.
Defective components should be replaced by Miele original parts
only. Only with these parts can the manufacturer guarantee the
safety of the appliance.
If the power cord is damaged, it must only be replaced by a
qualified service technician.
IMPORTANT SAFETY INSTRUCTIONS
7
During installation, maintenance, and repair work, the ventilation
hood must be disconnected from the electrical supply. It is only
completely isolated from the electricity supply if one of the following
applies:
– The circuit breakers on the electrical service panel are tripped.
– The screw-type fuses on the electrical service panel have been
removed.
– The power cord (if present) has been unplugged from the socket
(pull the plug not the cord).
Correct use
WARNING: TO REDUCE THE RISK OF A COOKTOP GREASE
FIRE:
– a) Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers may ignite. Heat oils slowly
on low or medium settings.
– b) Always turn the hood on when cooking at a high heat.
– c) Clean the ventilation hood frequently. Grease should not be
allowed to accumulate on the fan or filter.
– d) Use the proper pan size. Always use cookware appropriate for
the size of the cooking area.
Never use an open flame beneath the ventilation hood.
To avoid the risk of fire, do not flambé or grill over an open flame.
When turned on, the ventilation hood will draw any flames into the
filter. Fat deposits may ignite.
WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN
THE EVENT OF A COOKTOP GREASE FIRE, OBSERVE THE
FOLLOWING*:
– a) SMOTHER FLAMES with a close fitting lid, cookie sheet, or
metal tray then turn off the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
IMPORTANT SAFETY INSTRUCTIONS
8
– b) NEVER PICK UP A FLAMING PAN - You may be burned.
– c) DO NOT USE WATER, including wet dishcloths or towels - a
violent steam explosion will result.
– d) Use a fire extinguisher ONLY if:
– 1) You have a class ABC extinguisher, and you know how to operate it.
– 2) The fire is small and contained in the area where it started.
– 3) The fire department is being called.
– 4) You can fight the fire with your back to an exit.
*Based on “Kitchen Fire Safety Tips” published by NFPA.
The ventilation hood may become damaged if exposed to
excessive heat from a gas cooktop.
– When using the ventilation hood over a gas cooktop, ensure that
any burners in use are always covered by cookware. Turn burners
off when removing the cookware, even if doing so for just a short
time.
– Select cookware that is suitable for the size of the burner.
– Adjust the flame so that it never extends up the sides of the
cookware.
– Avoid overheating the cookware (e.g., when cooking with a wok).
Always turn the ventilation hood on whenever a burner is in use to
prevent damage from condensation.
Overheated oil and fat can ignite, causing fire damage to the
ventilation system.
Do not leave cookware, pans, and deep fryers unattended when
cooking with oil or fat. Similarly, never leave an open grill unattended
when grilling.
Fat and debris deposits impair the proper functioning of the
ventilation hood.
To ensure that cooking vapors are properly cleaned, never use the
ventilation hood without the grease filters in place.
IMPORTANT SAFETY INSTRUCTIONS
9
Please note that the heat rising from the stovetop during cooking
can cause the ventilation hood to become very hot.
Do not touch the housing or the grease filters until the ventilation
hood has cooled down.
IMPORTANT SAFETY INSTRUCTIONS
10
Proper installation
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
– a) Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
– b) Sufficient air is needed for combustion and exhausting of gases
through the flue (chimney of fuel burning equipment to prevent
back drafting. Follow the heating equipment manufacturer’s
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA) and the American
Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
– c) When cutting or drilling into the wall or ceiling, do not damage
electrical wiring and other hidden utilities.
– d) Ducted hoods must always be vented to the outdoors.
– e) Do not use this hood with any solid-state speed control device.
To determine whether a ventilation hood may be operated above
your cooking appliance, please refer to the information provided by
the appliance's manufacturer.
Safety regulations prohibit the installation of a ventilation hood
over solid fuel stoves.
An insufficient safety distance between the cooktop and the
ventilation hood can result in damage to the ventilation hood.
The minimum safety distances between the top of the cooktop and
the bottom of the ventilation hood given in the “Installation” section
of this booklet must be observed, unless the cooktop manufacturer
states that a greater safety distance is required.
If more than one cooking appliance is installed beneath the
ventilation hood, and they have different minimum safety distances
to the ventilation hood, select the greater distance.
IMPORTANT SAFETY INSTRUCTIONS
11
Be sure to observe the information contained in the “Installation”
section when mounting the ventilation hood.
Metal parts can have sharp edges which may cause injury.
Wear gloves to protect your hands from being cut.
When installing the exhaust duct, only use pipes or tubes made of
non-flammable material. These can be obtained from your Miele
dealer or from Miele Technical Service.
Exhaust air should not be vented into a chimney or vent flue which
is otherwise in use and should not be channeled into ducting which
ventilates rooms with fuel-burning installations.
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
WARNING: TO REDUCE THE RISK OF FIRE USE ONLY METAL
DUCTWORK.
Cleaning and maintenance
There is a risk of fire if cleaning is not completed according to the
instructions in this manual.
Never use a steam cleaner to clean the ventilation hood.
The steam can reach the electrical components and cause a short
circuit.
Accessories
Use only genuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty will become void.
IMPORTANT SAFETY INSTRUCTIONS
12
FCC Declaration of Conformity
These devices comply with FCC Rules Part 15. This equipment
has been tested and found to be in compliance with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules of
Operation and is subject to the following conditions:
These devices may not cause harmful interference.
These devices must accept any interference received, including
interference that may cause undesired operation.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 8" (20 cm) between
the radiator and your body.
Industry Canada Statement
This digital apparatus does not exceed the Class B limits for
Radio Noise Emissions from digital apparatus set out in the Radio
Interference Regulations of the Canadian Department of
Communications.
Complies with Canadian ICES-003 Class B specifications.
Caring for the environment
13
Disposal of the packing
material
The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
contain valuable materials. They also
contain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these
materials improperly by disposing of
them in your household waste can be
harmful to your health and the
environment. Therefore, please do not
dispose of your old appliance with
regular household waste and follow
local regulations on proper disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed. Please
ensure that your old appliance is kept
away from children until removal.
Observe safety requirements for
appliances that may tip over or pose an
entrapment hazard.
Guide to the appliance
14
Guide to the appliance
15
a
Telescopic extension piece
b
Recirculation vents
(only for recirculation mode)
c
Chimney
d
Control panel
e
Canopy
f
Overhead lighting
g
Charcoal filters
Optional accessories for recirculation mode
h
Grease filter
i
Button for switching the lighting on and off
j
Blower on/off button
k
Buttons for setting the blower power
l
Delayed shutdown button
m
Operating-hours button
This button is used for displaying the operating hours used and for altering the
counter setting. See “Before using for the first time” for details on how to set
the counter for extraction mode or for recirculation mode.
Description of functions
16
The following functions are available on
your ventilation hood, depending on the
model:
Vented mode
The air is drawn in and cleaned by the
grease filters and directed outside.
Non-return flap
A non-return flap in the ducting
prevents the exchange of inside and
outside air from occurring when the
ventilation hood is not in use.
The flap is closed when the ventilation
hood is turned off.
When the ventilation hood is turned on,
the non-return flap opens so that the
exhaust air can be transported outside
without any obstruction.
A non-return flap has been provided
with the hood in case your ducting does
not have one. It is inserted into the
outlet duct collar of the fan.
Recirculation mode
The recirculation mode requires a
recirculation kit and OdorFree Charcoal
Filter (available as optional accessories,
see “Technical Data” for more
information)
The air is drawn in and first cleaned by
the grease filters and then by an
OdorFree Charcoal Filter. The cleaned
air is then recirculated back into the
kitchen.
Before using for the first time
17
Selecting extraction mode or
recirculation mode
The ventilation hood can be operated
with either extraction mode or
recirculation mode. The power of the
blower is adapted to suit the selected
mode of operation. The ventilation
hood is set up at the factory for
recirculation mode. It has to be reset
for extraction mode.
To reset it for extraction mode, the filter
saturation indicator for the charcoal
filter(s) has to be deactivated.
Switch off the blower and the lighting.
Press the control and the filter
saturation indicator at the same
time.
The charcoal filter symbol and one of
the blower power level indicators will
flash.
Press and hold the control until the
B indicator lights up.
Confirm the selection by pressing the
filter saturation indicator.
All the indicator lights will go out.
Extraction mode has now been set.
If the new setting is not confirmed
within 4minutes, the ventilation hood
will revert to the previous setting.
Setting up Miele@home
Prerequisite:
– Home WiFi network
Your ventilation hood is equipped with
an integrated WiFi module. The
ventilation hood can be connected to
the household WiFi network.
You will then be able to operate the
ventilation hood via the Miele@mobile
app.
Before installing the ventilation hood
in its final location, ensure that the
signal of your WiFi network is strong
enough.
Before using for the first time
18
Miele@mobile App
The Miele@mobile App is available to
download free of charge from the Apple
App Store
®
or from the Google Play
Store™.
Connecting via the app
The Miele@mobile app can be used to
connect to your network.
Install the Miele@mobile app on your
mobile device.
To log in you will need:
1. Your WiFi network password
2. Your ventilation hood password
The password for your ventilation hood
consists of the last nine digits of the
serial number. This can be found on the
appliance's data plate.
The data plate is visible once you have
removed the grease filters.
Start signing the appliance on in the
app. Follow the signing in
instructions.
If requested to activate WiFi on the
ventilation hood, proceed as follows:
Before using for the first time
19
Switch the ventilation hood off.
Press and hold the control.
Press the lighting control at the
same time.
2 will light up constantly, 3 will flash on
and off.
The ventilation hood is ready for
connection in the next two minutes.
Follow the instructions in the app.
When successfully connected, 2 and 3
will light up constantly.
Quit connection mode on the
ventilation hood by pressing the
delayed shutdown control.
The ventilation hood can now be
operated via the app.
Connecting via WPS
Your WiFi router must support WPS
(WiFi Protected Setup).
Switch the ventilation hood off.
Press and hold the control.
Press the lighting control at the
same time.
2 will light up constantly, 3 will flash on
and off.
The WiFi connection must be started on
the ventilation hood at the same time as
on the WiFi router.
Press the control on the ventilation
hood after a few seconds.
After a short while, 2 will light up
constantly, and 3 and B will flash on
and off.
The ventilation hood is ready for
connection in the next two minutes.
Before using for the first time
20
Start the WiFi connection on your
WiFi router.
When successfully connected, 2 and 3
will light up constantly.
Quit connection mode on the
ventilation hood by pressing the
delayed shutdown control.
The ventilation hood can now be
operated via the app.
If the connection fails, you have
probably not connected WPS to your
router quickly enough. Repeat the steps
above.
Tip: If your WiFi router does not support
WPS, please connect via the
Miele@mobile app.
Signing out of WiFi (reset to factory
settings)
To set up a new WiFi connection, the
existing WiFi connection must be
disconnected.
Switch the ventilation hood off.
Press and hold the control.
Touch the lighting control at the
same time.
With an existing WiFi connection, 2 and
3 will light up constantly.
The ventilation hood is ready for
disconnection during the next two
minutes.
Before using for the first time
21
Touch the control.
2 will light up constantly, 3 will flash on
and off.
After a few seconds, 2 and 3 will flash
on and off. The connection has now
been disconnected.
Quit disconnection mode on the
ventilation hood by pressing the
delayed shutdown control.
The WiFi connection has now been
disconnected. A new connection can
now be set up.
Operation
22
Turning on the blower
Switch the blower on as soon as you
start cooking. This is to ensure that
vapors are captured right from the start.
Press the On/Off control.
The blower turns on at level 2. The
symbol and 2 will light up in the blower
level display.
Selecting the power level
Power levels 1 to 3 are available for light
to heavy cooking vapors and odors.
For strong vapors and odors that are
temporarily produced when cooking,
e.g., during searing, select the B
Booster setting.
Select the power level you want by
pressing the or control.
Reducing power down from the
Booster setting
If power management is activated
(default setting), the blower
automatically switches back to level 3
after 5minutes.
Selecting the delayed
shutdown time
It is advisable to run the blower for a
few minutes after cooking has finished.
This helps to neutralize any lingering
vapors and odors in the air.
It also reduces the risk of odors and
residues accumulating in the ventilation
hood.
The delayed shutdown function enables
the blower to continue running for a
pre-determined time before switching
itself off automatically.
After you have finished cooking,
press the delayed shutdown
control while the blower is still
running.
– Once: blower turns off after
5minutes (5 lights up).
– Twice: blower turns off after
15minutes (15 lights up).
– If you touch the delayed shutdown
control again, the blower will
remain switched on ( will go out).
Turning off the blower
Press the On/Off control to turn
the blower off.
The symbol will go out.
Operation
23
Turning the overhead lighting
on/off
The overhead lighting can be turned on
and off separately from the blower.
To do this, press the lighting
control.
The symbol will light up when the
overhead lighting is turned on.
Power management
The ventilation hood features a power
management system to help save
energy. The blower power level is
reduced and the lighting is turned off
automatically.
– If the booster level is selected, the
blower automatically switches to
level 3 after 5 minutes.
– If the blower is set to level 3, 2 or 1, it
switches back one blower setting
after 2 hours and then in 30-minute
intervals until the blower eventually
switches off.
– If the overhead lighting is on, it will
switch off automatically after 12
hours.
You can deactivate power
management.
This can, however, result in increased
energy consumption.
Operation
24
Turning power management on/off
Switch off the blower and the lighting.
Press the delayed shutdown
control for approx. 10seconds
until the 1 indicator appears in the
blower level display.
Then press in turn:
– the lighting control,
– the control, and then
– the lighting control.
If power management is turned on, the
1 and B indicators will be continuously
lit.
If it is turned off, the 1 and B indicators
will flash.
Press the control to turn power
management off.
The 1 and B indicators will flash.
To turn it on, press the control.
The 1 and B indicators will be
continuously lit.
Confirm the setting by pressing the
delayed shutdown control.
All the indicator lights will go out.
If the new setting is not confirmed
within 4minutes, the ventilation hood
will revert to the previous setting.
Safety shut-off
If power management has been
deactivated, the ventilation hood will
switch itself off automatically after
12hours if it has been left on (blower
and overhead lighting).
To switch it back on, press the On/
Off control or the lighting
control.
Operation
25
Filter saturation indicator
The ventilation hood registers the length
of time it has been operated.
The filter saturation indicators show
when the filters need to be cleaned or
changed by lighting up the grease filter
symbol or charcoal filter symbol .
Additional information on cleaning and
changing the filters and resetting the
filter saturation indicators can be found
under “Cleaning and care”.
Adjusting the filter saturation
indicator for the grease filters
You can set the filter saturation
indicator to suit your cooking habits.
The factory default setting is a cleaning
interval of 30hours.
– Select a shorter interval of 20hours if
you fry food regularly.
– We also recommend a shorter
cleaning interval if you only cook
occasionally. This will prevent grease
build-up from hardening and making
cleaning more difficult.
– Select a longer cleaning interval of 40
or 50hours if you use very little fat
when cooking.
Switch off the blower and the lighting.
Press the delayed shutdown
control and the filter saturation
control at the same time.
The grease filter symbol and one of
the blower power level indicators will
flash.
The indicators 1 to B show the current
time setting:
1............................................... 20hours
2............................................... 30hours
3............................................... 40hours
B .............................................. 50hours
Press the control for a shorter
duration, or for a longer duration.
Confirm the selection by pressing the
filter saturation indicator.
All the indicator lights will go out.
If the new setting is not confirmed
within 4minutes, the ventilation hood
will revert to the previous setting.
Operation
26
Adjusting or deactivating the filter
saturation indicator for the charcoal
filter
The charcoal filter is needed for
recirculation mode.
You can set the filter saturation
indicator to suit your cooking habits.
It has to be deactivated for extraction
mode.
It is set at the factory for 180hours of
use before it needs to be replaced.
Switch off the blower and the lighting.
Press the “” button and the
operating-hours button at the
same time.
The charcoal filter symbol and one of
the blower power level indicators will
flash.
The indicators 1 to B show the current
time setting:
Indicator 1 ............................. 120hours
Indicator 2 ............................. 180hours
Indicator 3 ............................. 240hours
B ......................................... Deactivated
Press the “” or “” button to select
the required duration.
Confirm the selection by pressing the
operating-hours button.
All the indicator lights will go out.
If the selection is not confirmed within
4minutes, the system will revert to the
previous setting.
Checking the filter saturation
indicator
Before the set operating time has run
out, you can check what percentage of
the time has elapsed.
Press the On/Off control to turn the
blower on.
Press and hold the filter saturation
indicator.
– Once, to check the grease filter
operating time. The grease filter
symbol lights up.
– Twice, to check the charcoal filter
operating time. The charcoal filter
symbol lights up.
One or more of the blower power level
indicators will flash simultaneously.
The number of flashing indicators
shows the elapsed operating time as a
percentage.
1 ................................................... 25%
1 and 2 ........................................ 50%
1 to 3 ........................................... 75%
1 toB ......................................... 100%
The elapsed operating time remains
stored in the memory when the
ventilation hood is turned off or in the
event of an interruption to the power
supply.
Energy-saving tips
27
This hood operates in a very efficient
and energy-saving manner. The
following will help you to save even
more energy when using it:
– Ensure that there is sufficient
ventilation in the kitchen when
cooking. If there is insufficient air flow
during vented mode, the hood
cannot operate efficiently, causing
increased operating noise levels.
– Always cook with the lowest possible
setting. This produces fewer cooking
vapors so that you can use a lower
hood power level and therefore
benefit from reduced energy
consumption.
– Check the power level selected on
the hood. A lower power level is
generally sufficient for the majority of
cooking. Only use the booster level
when necessary.
– When a large volume of cooking
vapors are being produced, switch to
a high power level in good time. This
is more efficient than operating the
hood for longer to try to capture
cooking vapors that have already
been distributed throughout the
kitchen.
– Make sure that you switch off the
hood after use.
– Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
Cleaning and care
28
WARNING: TO REDUCE THE
RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
Before cleaning or servicing the
hood, disconnect it from the power
supply, see “IMPORTANT SAFETY
INSTRUCTIONS”.
Stainless steel housing
General information
The surfaces and control buttons
are susceptible to scratching and
chipping.
Observe the following cleaning
instructions.
Clean all surfaces and control buttons
using warm water and liquid dish
soap. Apply with a sponge cloth.
Make sure that no water gets
into the interior of the hood.
Only use a damp cloth to clean the
hood, especially in the control panel
area.
After cleaning, dry the surfaces with a
soft cloth.
Avoid the following:
– Cleaners containing soda, acid or
chloride, or cleaners containing
solvents
– Abrasive sponges, e.g. pot scourers
or sponges which have been
previously used with abrasive
cleaning agents.
Special instructions for stainless
steel surfaces
(does not apply to control buttons)
Stainless steel surfaces can also be
cleaned using a non-abrasive
stainless steel cleaner, available from
Miele.
To prevent the surfaces from quickly
becoming dirty again, we recommend
treating them with a stainless steel
care conditioner.
Apply sparingly over the entire area
using a soft cloth.
Special instructions for RAL color
finish housings
(special order)
Observe the general cleaning
instructions contained in this chapter.
Minor scratches on the surface are
inevitable when cleaning the housing.
Depending on the lighting in the
kitchen, this may negatively affect the
appliance's appearance.
Cleaning and care
29
Important for the controls
Do not leave dirt and debris on the
buttons for any length of time.
Otherwise they may become
discolored or damaged.
Remove any dirt or debris
immediately.
Observe the general cleaning
instructions contained in this chapter.
Do not use a stainless steel cleaner
to clean the control buttons.
Grease filters
Risk of fire!
Oversaturated grease filters are a fire
hazard.
Clean the grease filters at regular
intervals.
The reusable metal grease filters in the
appliance remove the solid particles
contained in kitchen vapors (grease,
dust, etc.), thereby preventing the
ventilation hood from becoming dirty.
The grease filters must be cleaned at
regular intervals.
Heavily soiled grease filters hinder air
extraction and will lead to increased
levels of soiling in the ventilation hood
and in the kitchen.
Cleaning intervals
Accumulated grease solidifies over a
longer period of time and makes
cleaning more difficult. The grease
filters should therefore be cleaned every
3 to 4 weeks.
The filter saturation indicator reminds
you to regularly clean the grease filters
by illuminating the grease filter symbol
.
You can adjust the interval for the
filter saturation indicator to match
your cooking habits (see
“Operation”).
Cleaning and care
30
Removing the grease filters
When handling the grease filter,
be careful not to drop it.
This can result in damage to the filter
and the cooktop below.
Make sure you hold the filter securely
at all times when handling it.
To remove a grease filter, release the
locking clip. Then, open the filter to a
45° angle, unhook it, and remove it
from the hood.
Cleaning the grease filters by hand
Clean the filters with a soft nylon
brush in a mild solution of hot water
and dish soap. Do not use undiluted
dish soap.
Unsuitable cleaning agents
Unsuitable cleaners can cause damage
to the filter surfaces if used regularly.
Do not use any of the following:
– Lime removers
– Abrasive powders or abrasive liquids
– Aggressive all-purpose cleaners and
degreaser sprays
– Oven sprays
Cleaning the grease filters in a
dishwasher
Place the grease filters upright or
slightly inclined in the lower basket.
Ensure the spray arm is not
obstructed.
Use a commonly available household
dishwashing detergent.
In a Miele dishwasher use the
“Normal” program.
Depending on the detergent used,
cleaning the filters in a dishwasher
may cause the inside filter surfaces to
become discolored. However, this will
not affect the functioning of the grease
filters in any way.
Cleaning and care
31
After cleaning
After cleaning, leave the filters on an
absorbent surface to dry.
When removing the filters for
cleaning, also clean off any
accessible oil or fat buildup from the
housing. Doing so will prevent a fire
hazard.
Reinstall the grease filters. When
inserting the filters, make sure that
the locking clip is facing down.
If the filters have been installed
incorrectly, you can insert a small
screwdriver into the slit to disengage
the locking clip.
Resetting the filter saturation
indicator for the grease filters
Once cleaning is complete, the filter
saturation indicator must be reset.
While the blower is turned on, press
the filter saturation indicator for
approx. 3seconds until 1 is the only
indicator flashing.
The grease filter symbol goes out.
When cleaning the grease filters before
the full operating time has elapsed:
Press the filter saturation
indicator for approx. 6seconds
until 1 is the only indicator flashing.
Cleaning and care
32
OdorFree Charcoal Filter
With recirculation mode, a charcoal
filter must be fitted in addition to the
grease filters. The charcoal filter is
designed to absorb cooking odors.
The charcoal filter is fitted in the canopy
above the grease filters.
How to install/replace a charcoal
filter
Remove the grease filters before
fitting or replacing a charcoal filter.
Take the charcoal filter out of its
packaging.
Slide the filter into the back of the
intake frame, then push the front of
the filter up into the frame.
Reinsert the grease filters.
When to change the OdorFree
Charcoal Filter
Replace the charcoal filter when it no
longer absorbs kitchen odors
effectively.
It should be replaced at least every 6
months.
The filter saturation indicator reminds
you to regularly clean the charcoal filter
by illuminating the charcoal filter
symbol.
Resetting the filter saturation
indicator for the charcoal filters
After changing the charcoal filters, the
filter saturation indicator must be reset.
To do this, press the filter saturation
indicator twice with the blower
turned on and hold it for approx.
3seconds until 1 is the only indicator
flashing.
The charcoal filter symbol will go
out.
If you want to replace the charcoal filter
before the full operating time elapses:
Press the filter saturation
indicator twice and hold it for
approx. 6seconds until 1 is the only
indicator flashing.
Disposing of charcoal filters
The used charcoal filter can be
disposed of with the normal
household waste.
Cleaning and care
33
Charcoal filters are available to order via
the Miele Web Store (see end of this
booklet for contact details), or from
your Miele dealer.
The charcoal filters are listed under
“Technical data” at the back of this
booklet.
Changing a light bulb
Only use the specified light bulbs.
Other bulbs, for example halogen
bulbs, may become damaged due to
the high generation of heat.
The light bulbs should be replaced with
the following:
Bulb type .............................. LED, GU10
Power ............................................... 3W
Light bulbs are available from Miele or
specialist dealers.
Turn off the blower and the lighting.
The light bulbs can get very hot
when in use.
Allow the bulbs to cool down for a
few minutes before changing them.
Disconnect the hood from the
electrical supply before replacing the
light bulbs (see “IMPORTANT
SAFETY INSTRUCTIONS”).
Insert the lever supplied into the gap
between the bulb and the bulb
holder..
The bulb will then drop downwards.
Grip the light bulb, turn it
counterclockwise and take it out.
Screw the new bulb into the socket
and push it upwards. Please follow
the manufacturer's safety
instructions.
Service and warranty
34
For faults that you cannot resolve on
your own, please contact your Miele
dealer or Miele Technical Service.
The telephone number for Miele is listed
at the back of these instructions.
When contacting Miele, please state the
model and serial number of your
ventilation hood.
These can be found on the data plate.
Location of the data plate
The data plate is visible once you have
removed the grease filters.
Warranty
For further information, please refer to
your warranty booklet.
MieleCare
This service is available in USA only.
MieleCare, our Extended Service
Contract program, gives you the
assurance of knowing that your
appliance investment is covered by
5years of worry free ownership.
MieleCare is the only Extended Service
Contract in the industry that guarantees
repairs by a Miele Authorized Service
Provider using genuine Miele parts.
Only genuine Miele parts installed by
factory trained professionals can
guarantee the safety, reliability, and
longevity of your Miele appliance.
Please note that unless expressly
approved in writing by Miele’s Service
department, Extended Service
Contracts offered by other providers for
Miele products will not be recognized
by Miele. Our goal is to prevent
unauthorized (and untrained) service
personnel from working on your Miele
products, possibly doing further
damage to them, you and/or your
home.
To learn more about MieleCare
Extended Service Contracts, please
contact your appliance dealer or visit us
online at:
www.mieleusa.com
Installation
35
Before installation
Before installing the appliance,
read all of the information contained
in this chapter and also in the
“IMPORTANT SAFETY
INSTRUCTIONS” section.
Removing the protective film
The housing components are covered
by a protective film to prevent them
from damage during transport.
Please remove this film before
installing the housing components. It
can be peeled off easily without any
additional tools.
Installation Instructions
Please refer to the accompanying
installation sheet for instructions on
how to install the appliance.
Leave these instructions with the
appliance for the consumer/user.
Information is subject to change. Please
refer to our website to obtain the most
current product specification, technical
& warranty information.
Disassembly
If the device ever needs to be
disassembled, follow the installation
sheet instructions in reverse order. A
lever is provided to assist with the
removal of the chimney.
Unscrew the two mounting screws on
the chimney.
Slide the supplied lever between the
chimney and the extension piece.
Pry the chimney out of its
attachment.
Installation
36
Installation parts
Installation
37
a
3 protective installation sheets
for use when installing the chimney.
b
1 collar
for exhaust ducting 6" (150mm).
c
1 reducing collar
for exhaust ducting 5" (125mm).
d
1 non-return flap
for fitting into the exhaust socket on
the motor unit (not needed for
recirculation mode). Depending on
the model, the non-return flap may
already be mounted.
e
Telescopic wall bracket
for securing the ventilation system
on the wall.
f
Conversion kit for recirculation
mode
contains a directional unit socket
and flexible aluminum hose with
hose clips (not supplied, available as
an optional accessory, see
“Technical data”).
6 screws ³/₁₆“x2³/₈” (5x60mm)
and
6 plugs ⁵/₁₆“x2” (8x50mm)
for securing the ventilation system on
the wall.
The screws and plugs are
designed for use in solid walls only.
Use different fasteners for other wall
construction types.
Make sure that the wall can support
the load.
2 M6 locknuts
for mounting the appliance unit.
2¹/₈"x⁵/₁₆"(3.9x7.5mm) screws
for attaching the chimney.
1 lever
for disassembling the chimney.
Montage
Installation
Montaje
Montaggio
Montering
Montagem
Asennus
Installation plan
Installation
38
Appliance dimensions
The drawing is not to scale.
a
Extraction
b
Recirculation
c
Air vent positioned at top for recirculation
Installation
39
de
Mounting area (only d is required for recirculation hoods). Wall and ceiling
area for exhaust duct opening and for wall socket installation. Only the wall
socket installation is required for recirculation hoods.
Vent collar 6“ (150mm), with adapter 5” (125mm).
Distance between cooktop and ventilation hood (S)
Provided a larger distance is not given by the manufacturer of the cooktop,
follow the minimum safety distances between a cooktop and the bottom of the
hood.
Please also observe the information contained in the “IMPORTANT SAFETY
INSTRUCTIONS” section.
Minimum distance S
Cooking appliance Miele
appliance
Non-Miele
appliance
Electric Cooktops 24" (610 mm)
Electric Barbeques and Fryers 26" (660 mm)
Multiburner Gas Cooktops
≤ 43,000 BTU/hr (12.6kW),
no burner > 15,000 BTU/hr (4.5 kW).
26" (660 mm) 30" (760 mm)
Multiburner Gas Cooktops
≤ 73,800 BTU/hr (21.6kW),
no burner > 16,500 BTU/hr (4.8 kW)
30" (760 mm)
Multiburner Gas Cooktops
> 73,800 BTU/hr (21.6kW),
or one of the burners > 16,500 BTU/hr (4.8 kW)
Not possible
Single Burner Gas Cooktops
≤ 20,500 BTU/hr (6 kW)
26" (660 mm) 30" (760 mm)
Single Burner Gas Cooktops
> 20,500 BTU/hr (6 kW)
≤ 27,600 BTU/hr (8.1 kW)
30" (760 mm)
Single Burner Gas Cooktops
> 27,600 BTU/hr (8.1 kW)
Not possible
Installation
40
Installation recommendations
– A distance of at least 26" (660mm) is
recommended above electric
cooktops to provide more workspace
and easier cooking under the hood.
– When selecting an installation height,
always take the user height into
consideration. Users should have
ample space to work comfortably on
the cooktop and reach the ventilation
hood controls with ease.
– Please note that the greater the
distance from the cooktop, the less
effective the hood is at drawing in the
cooking vapors.
– To achieve optimum vapor extraction,
the hood must be centered over the
cooktop, not to the side.
– The cooktop should be no wider than
the hood. Preferably, it should be
narrower for better extraction.
– The mounting area must be easily
accessible. The ventilation hood
should be easy to reach and
disassemble in case a service call is
necessary. This should be taken into
consideration when planning the
position of cabinetry, shelves,
ceilings or decorative elements in the
vicinity of the ventilation hood.
Drilling diagram for wall
mounting
Please follow the directions given in
the installation instructions supplied
for drilling.
When installing a custom back wall
with pre-drilled holes, please refer to
the drilling distances in the drawing
above (screws ³/₁₆" (5mm)).
Installation
41
Plywood backing
The majority of the weight of the
installed ventilation system will be
supported by the lower retaining
plate. It must be firmly attached to
the stud framing behind the drywall.
If studs are not available in the
required locations, a plywood
backing (min. ½" (13 mm) thick)
spanning at least two studs must be
installed.
Failure to adequately support the
weight as stated may result in the
ventilation system falling off the wall,
causing personal injury and property
damage.
If plywood backing is not needed,
proceed to the included “Installation
diagram”.
To install a plywood backing
Determine and mark the location of
the retaining plate for the canopy
as outlined on the “Installation
diagram”.
Make a cutting line 3“ (76 mm) above
and 3” (76 mm) below the outline of
the retaining plate.
Find the studs to the left and right
of the mounting location by tapping
the wall or using a stud finder.
Mark a vertical cutting line along the
center of each stud.
CAUTION: When cutting or drilling
into the wall or ceiling, do not
damage electrical wiring and other
hidden utilities.
Remove the drywall between the
cutting lines and replace it with
plywood of a matching thickness
(min. ½" (13 mm) thick). Tape the
joints and refinish the wall.
Proceed to the enclosed “Installation
diagram” to complete the installation.
Air venting
42
WARNING: Danger of toxic fumes.
Gas cooking appliances release
carbon monoxide that can be
harmful or fatal if inhaled.
To reduce the risk of fire and to
properly exhaust air, the exhaust
gases extracted by the hood should
be vented outside of the building
only.
Do not vent exhaust air into spaces
within walls or ceilings or in attics,
crawl spaces or garages.
To reduce the risk of fire, only use
metal ductwork.
Please read and follow the
“IMPORTANT SAFETY
INSTRUCTIONS” to reduce the risk
of personal injury. Follow all local
building codes when installing the
hood.
Only use smooth pipes or flexible
duct hoses made from non-
combustible materials for exhaust
ductwork.
To achieve the greatest possible air
extraction with the lowest noise levels,
please note the following:
– The diameter of the exhaust duct
should not be less than 6" (150mm).
– If flat exhaust ducts are used, the
cross section should not be smaller
than that of the exhaust connector.
– The exhaust duct should be as short
and straight as possible.
– If elbows are needed, make sure they
have a large radius.
– The exhaust duct itself must not be
kinked or compressed.
– Make sure that all connections are
secure and airtight.
Remember that any constriction of
the airflow will reduce extraction
performance and increase operating
noise.
If the exhaust duct is to be routed
through an outside wall, we
recommend installing a telescopic
wall vent or a rooftop vent (available
as an optional accessory).
If the exhaust air is conveyed into an
exhaust air chimney, the inlet
connector must face the flow
direction.
When installing the exhaust duct
horizontally, a minimum slope of ¹/₈
inch per foot must be maintained to
prevent condensate from flowing into
the ventilation hood.
If the exhaust duct is to be routed
through cool rooms, ceilings, etc., the
temperatures in these different areas
may differ greatly. Therefore water
condensation must be considered
and the exhaust duct will need to be
insulated.
Air venting
43
Condensate trap
In addition to insulating the exhaust
duct, we recommend installing a
condensate trap to collect and
evaporate any condensate which might
accumulate.
Condensate traps are available for
exhaust ducts with a diameter of
5" (125 mm) or 6" (150 mm).
When installing a condensate trap,
make sure that it is positioned
vertically and, if possible, directly
above the hood outlet duct collar.
The arrow on the housing indicates
the direction of airflow.
Electrical connection
44
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
All electrical work should be
performed by a qualified electrician
in strict accordance with national
regulations (for USA: ANSI-NFPA 70)
and local safety regulations.
Installation, repairs and other work
by unqualified persons could be
dangerous.
Ensure that power to the appliance is
OFF while installation or repair work
is performed.
Verify that the voltage, load and
circuit rating information found on
the data plate (located behind the
baffle filters), match the household
electrical supply before installing the
hood.
Use only with ventilation hood cord-
connection kits that have been
investigated and found acceptable
for use with this model hood.
If there is any question concerning
the electrical connection of this
appliance to your power supply,
please consult a licensed electrician
or call Miele’s Technical Service
Department.
WARNING: THIS APPLIANCE MUST
BE GROUNDED
Grounding Instructions
WARNING - Improper grounding can
result in a risk of electric shock.
This appliance must be grounded. In
the event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing a path of least
resistance. This appliance is equipped
with a cord having a grounding wire
with a grounding plug.
If there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
Do not use an extension cord. If the
power supply cord is too short, have a
qualified electrician install an outlet near
the appliance.
The plug must be plugged into an
outlet that is properly installed and
grounded.
WARNING - Grounding instructions
(Canada)
The grounding-type attachment plug
shall be connected to a grounding-
type receptacle installed in
accordance with CSA C22.1-12,
Canadian Electrical Code, Part I.
Technical data
45
Blower motor 350W
Overhead lighting 4x3W
Total connected load 362W
Supply voltage, frequency 120VAC, 60Hz
Fuse 15A
Power cord length 2.5ft (0.75m)
Weight 82.5lbs (37.5kg)
WiFi module
Frequency band 2.412–2.462GHz
Maximum transmission power < 100mW
Optional accessories for recirculation mode
DUW20 conversion kit and DKF12-900 charcoal filter
WiFi module EK037
FCC ID: 2ACUWEK037
IC: 5669C-EK037
This device complies with Part 15 of the FCC Rules and with Industry Canada
licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Technical Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
800-843-7231
609-419-4298
Technical Service & Support
Phone:
Fax:
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
800-999-1360
888-586-8056
Customer Care Centre
Phone:
800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 10 984 720 / 00en-US
DA 5428 W
