Miele 10754040 24" PureLine Graphite Gray Warming Drawer ESW6214GRGR

User Manual - Transcript

• Page 1 - English - : Operating and Installation Instructions Warming Drawer To prevent accidents and machine damage read these instructions be fore installation or use enUS MNr 09 781 150
• Page 2 - English - : Contents IMPORTANT SAFETY INSTRUCTIONS 4 Overview 11 Included accessories 12 Control panel 13 Before using for the first time 14 Cleaning the drawer for the first time 14 Heating the drawer for the first time 14 Operation 15 Basic operation 15 Operating modes 16 Duration 16 Temperature settings 16 Keeping food warm 18 Tips 18 Settings 19 Warming dishes 20 Tips 20 Warming times 20 Capacity 21 Other uses 23 Cleaning and care 24 Frequently asked questions 26 Optional accessories 28 IMPORTANT SAFETY INSTRUCTIONS INSTALLATION 29 Instructions for installation 30 Installation dimensions 31 Installation 36 Electrical connection 37 Connection data 37 Caring for the environment 38 Technical service data plate warranty 39
• Page 4 - English - : IMPORTANT SAFETY INSTRUCTIONS This warming drawer conforms to current safety requirements Im proper use can however lead to personal injury and damage to property To avoid the risk of accidents and damage to the appliance please read these instructions carefully before using the appliance for the first time They contain important notes on installation safety use and maintenance Miele cannot be held liable for damage occurring as a result of noncompliance with these instructions Keep these instructions in a safe place and pass them on to any future owners
• Page 5 - English - : IMPORTANT SAFETY INSTRUCTIONS Use This warming drawer is intended for domestic use and use in other similar environments The warming drawer is not intended for outdoor use The warming drawer is intended for domestic use only as de scribed in these instructions All other use is at the owners own risk and could be dangerous Persons who are unable to safely operate the warming drawer due to limited physical sensory or mental capabilities or because of a lack of experience or knowledge may only use the appliance if they are supervised while doing so These persons may only use the ap pliance without supervision if they have been shown how to use it in a safe manner and if they are able to recognize and understand the potential risks of improper use
• Page 6 - English - : IMPORTANT SAFETY INSTRUCTIONS Children As with any appliance close supervision is necessary when used by children Do not leave children unattended Children should not be alone or unsupervised in the area where the appliance is installed Do not al low them to sit or stand on the appliance Be sure to supervise any children in the vicinity of the warming drawer and do not let them play with it The warmer drawer gets hot when in use and remains hot for some time after being switched off Keep children away from the ap pliance until it has cooled down and is no longer a burn hazard Danger of suffocation Ensure that any plastic wrappings bags etc are disposed of safely and kept out of the reach of children
• Page 7 - English - : IMPORTANT SAFETY INSTRUCTIONS Technical safety Installation repair and maintenance work should be performed by a Miele authorized service technician in accordance with national and local safety regulations and the provided installation instruc tions Contact Mieles Technical Service Department for examination repair or adjustment Repairs and other work by unauthorized per sons could be dangerous and may void the warranty A damaged warming drawer can be dangerous Always check for visible signs of damage Never use a damaged appliance Reliable and safe operation of the drawer can only be assured if it has been connected to the electrical supply Be certain the drawer is properly installed and grounded by a qualified technician To guarantee the electrical safety of this appli ance continuity must exist between the appliance and an effective grounding system It is imperative that this basic safety requirement be met If there is any doubt have the electrical system of the house checked by a qualified electrician Before connecting the appliance to the power supply ensure that the connection data voltage and frequency on the data plate of the drawer match the electrical supply This data must correspond in order to avoid the risk of damage to the warming drawer Consult a qualified electrician if in any doubt Do not connect the drawer to the electrical supply with a power bar or extension cord These are a fire hazard and do not guarantee the required safety of the appliance For safety reasons the warming drawer may only be used when it has been fully installed This drawer may not be used in nonstationary locations eg on a ship
• Page 8 - English - : IMPORTANT SAFETY INSTRUCTIONS Any contact with live connections or tampering with the electrical or mechanical components of the warming drawer will endanger your safety and may lead to appliance malfunctions Do not open the casing of the warming drawer under any circum stances Any repairs not performed by a Miele authorized service techni cian will void the warranty Defective components should be replaced by Miele original parts only Only with these parts can the manufacturer guarantee the safety of the appliance If the plug has been removed or the power cord is not supplied with a plug the drawer must be connected to the power supply by a suitably qualified electrician Do not operate the appliance if the power cord is damaged It must be replaced by a suitably qualified electrician with a H 05 VVF PVCinsulated type power cord available from Miele The drawer must be completely disconnected from the power supply during installation maintenance and repair work This can be ensured as follows The circuit breaker has tripped or The fuse of the electrical installation is completely removed or The plug if present is removed from the outlet In the process pull the plug not the cord If the drawer is installed behind a cabinet door do not close the door while the drawer is in operation Heat and moisture can build up behind the closed door and cause damage to the range and to the surrounding cabinets and flooring Do not close the door until the drawer has completely cooled down
• Page 9 - English - : IMPORTANT SAFETY INSTRUCTIONS Proper use You can burn yourself on a hot warming drawer When using the appliance protect your hands by wearing heatresistant pot holders Only use dry pot holders Wet or damp textiles conduct heat more effectively and produce steam which poses a burn hazard Fire hazard Do not store any plastic containers or flammable ob jects in the warming drawer They can meld or catch fire when the appliance is switched on Due to the high temperatures radiated by the warming drawer nearby flammable objects can catch fire while the appliance is in use Do not use the warming drawer to heat the room Never use paper towels or other similar objects in place of the nonslip mat supplied with the appliance The maximum load capacity of the telescopic drawer rails is 55 lbs 25kg If you overload the drawer or leanstand on it when it is open you will damage the rails The underside of the warming drawer gets hot when the appliance is in use Be careful not to touch it when the drawer is open The nonslip mat is heatresistant up to 395F 200C It is possible for the bottom of cookware to exceed this temperature especially after it has been used to sear food Allow the cookware to cool down for a minute or two before placing it in the warming drawer Cookware made of plastic or aluminum foil will melt at high tem peratures When keeping food warm use only heatresistant cook ware made of porcelain glass etc Liquids that get inside the warming drawer can cause the appli ance to shortcircuit Open and close a loaded drawer carefully to prevent liquids from spilling
• Page 10 - English - : IMPORTANT SAFETY INSTRUCTIONS The quotKeep Warmquot mode is to be used for keeping hot dishes warm not for heating up cold food Make sure that any food placed in the drawer has a high enough temperature In some foods bacterial growth may occur if the temperature is too low Set the appliance to an adequate warming temperature Loose fitting or hanging garments present a fire hazard Wear proper apparel while operating the appliance Smother the fire or flames or use a dry chemical extinguishing agent or foam fire extinguisher Before serving be sure food is at a safe temperature This is par ticularly important when preparing food for babies and children Never warm undiluted alcohol in the warming drawer this can easily ignite Exercise caution when warming food with a high sugar content If heated for too long the sugar may caramelize or ignite Never add water to food in a hot drawer The steam created could cause serious burns or scalds Cleaning and care Do not use a steam cleaner to clean the warming drawer The steam may reach electrical components and cause a short cir cuit SAVE THESE INSTRUCTIONS AND REVIEW THEM PERIODICALLY
• Page 11 - English - : Overview a Nonslip mat b Control panel c Pushpull opening mechanism The drawer can be opened and closed by pressing lightly in the mid dle of the drawer front
• Page 12 - English - : Overview Included accessories The accessories supplied with your ap pliance as well as a range of optional ones are available to order from Miele see quotOptional accessoriesquot Nonslip mat For keeping dishware secure
• Page 13 - English - : Control panel Sensor buttons Sensor button Description OnOff button Menu Selects the operating mode Temperature Sets the temperature Duration Sets the duration Display Display Description Warm CupsGlasses mode Warm DishesPlates mode Keep Warm mode Low Temperature mode Temperature display with segment bars 1h Duration of 1hour 2h Duration of 2hours 3h Duration of 3hours 4h Duration of 4hours
• Page 14 - English - : Before using for the first time Please adhere the extra data plate for the appliance supplied with this doc umentation in the space provided in the quotTechnical service data plate warrantyquot section of this manual Remove any protective foil and stick ers Cleaning the drawer for the first time Remove the nonslip mat if present and the rack from the drawer and clean them with warm water and liq uid dish soap using a clean soft sponge or damp microfiber cloth Dry the mat and the rack with a soft cloth Wipe the drawer inside and out with a damp cloth to remove any dust or leftover packaging Dry all surfaces with a soft cloth Return the nonslip mat and the rack if necessary to the drawer Heating the drawer for the first time With the drawer empty heat the appli ance for at least two hours Tap the button to switch on the drawer Tap the quotMenuquot button repeatedly un til the symbol lights up Tap the quotTemperaturequot button repeat edly until the outer right segment of the temperature display lights up Tap the quotDurationquot button repeatedly until quot2hquot lights up Close the drawer The drawer switches off automatically after two hours The drawer is equipped with a contact switch The drawers heater and fan will only operate when the drawer is closed Because the metal components are protected by a conditioning agent there will be a slight odor the first time the drawer is heated up The harmless odor will dissipate after a short time and does not indicate a faulty connection or appliance defect During this time make sure the kitchen is well ventilated
• Page 15 - English - : Operation Basic operation The button must remain free of debris and liquids Failure to keep the sensor button clean may cause it to become unresponsive or to switch uncontrollably Liquids that get inside the drawer can cause a shortcircuit Open and close a loaded drawer carefully to prevent liquids from spilling Open the drawer Tap the button to switch on the drawer Tap the quotMenuquot button repeatedly un til the desired mode lights up Tap the quotTemperaturequot button repeat edly until the segment of the desired temperature lights up in the tempera ture display Tap the quotDurationquot button repeatedly until the desired hour lights up Close the drawer
• Page 16 - English - : Operation Operating modes The following modes are available Warming cups and glasses Warming dishes and plates Keep Warm Low temperature The next time the appliance is switched on the previously selected operating mode will automatically ap pear on the control panel as the active setting The drawer is equipped with a fan that distributes the warmed air within the drawer The fan runs continuously in the quotWarm CupsGlassesquot and quotWarm DishesPlatesquot modes and at intervals in the quotKeep Warmquot and quotLow Temperaturequot modes You can use the drawer to keep food warm while warming dishes at the same time To do so select the quotKeep Warmquot mode Caution Dishes take longer to warm up in this mode as in the quotWarm Dishes Platesquot mode but can get very hot Duration Do not leave the drawer unattended for too long in continuous operation mode Keeping food warm for a long time can result in it drying out or even selfigniting Your drawer is fit ted with a safety switchoff mecha nism which switches the appliance off after a maximum of 12 hours of continuous operation The drawer is set to continuous opera tion exception Low temperature A limited duration can be selected by tapping the quotDurationquot button tap once for 1 hour 1h twice for 2 hours 2h and so on The maximum duration is 4 hours Tapping the button for a fifth time re turns the appliance to continuous oper ation Temperature settings A temperature range is assigned to each operating mode The default rec ommended temperatures appear in bold The temperature can be changed in 5 increments by tapping the quotTem peraturequot button The next time the drawer is switched on the previously selected temperature is automatically shown in the display as the current setting exception Low tem perature
• Page 17 - English - : Operation Temperature display Temperature FC 105 40 140 60 150 65 150 65 115 45 150 65 160 70 160 70 120 50 160 70 170 75 170 75 130 55 170 75 175 80 175 80 140 60 175 80 185 85 185 85 approximate temperatures measured in the center of an empty drawer
• Page 18 - English - : Keeping food warm The minimum temperatures for keep ing food warm 150F 65C may not be exceeded Use only the quotKeep Warmquot mode to ensure that the minimum temperature is maintained This operating mode is designed to keep food warm immediately after it has been cooked ie when it is still hot It is not intended for reheating food that is cold Select the mode Select the desired time setting The drawer must be preheated for about 15 minutes to ensure that the temperature required for keeping food warm is reached Place the dishware inside the drawer for preheating After 15minutes remove the pre heated dishware from the warming drawer and fill it with the hot food Use pot holders to remove the dish ware Place the dishes in the drawer and close it carefully to prevent liquid foods from spilling Tips Place the hot food in prewarmed dishes To preheat dishes place them in the drawer while it is being pre heated Cover roasted or fried foods that are to remain crispy Use a higher tem perature to keep this type of food warm Cover food with a high moisture con tent liquids and foods which can de velop a skin with aluminum foil or a plate To avoid spilling the food do not overfill dishes Freshly cooked food is hotter than food which has been kept warm Serve food that has been kept warm on preheated plates Foods begin to lose their nutrients during the cooking process and con tinue to do so while being kept warm The longer food is kept warm the greater the loss of nutrients We do not recommend keeping food warm for too long as it will continue to cook The food may cool down if the drawer is opened frequently Do not slam the drawer open or shut Liquids could spill over and get into the vents or inside the drawer
• Page 19 - English - : Keeping food warm Settings Food Cook ware Cover dishes Temperature setting for Position Bot tom Rack Steak rare Plate No x x Casserole Gratin Casserole dish Yes x Roast Plate Yes x Casserole Pot Yes x Fish sticks Pan No x Meat in gravy sauce Pot Yes x Vegetables in sauce Pot Yes x Stew Pot Yes x Mashed potatoes Pot Yes x Plated meal Plate Yes x Baked Boiled potatoes with skin Plate pot Yes x Breaded cutlets Pan No x Pancakes Plate No x x Pizza Plate No x Boiled potatoes Pot Yes x Sauce Pot Yes x Strudel Plate No x Warming bread loaf No x x Warming rolls No x x dependending on the appliance model

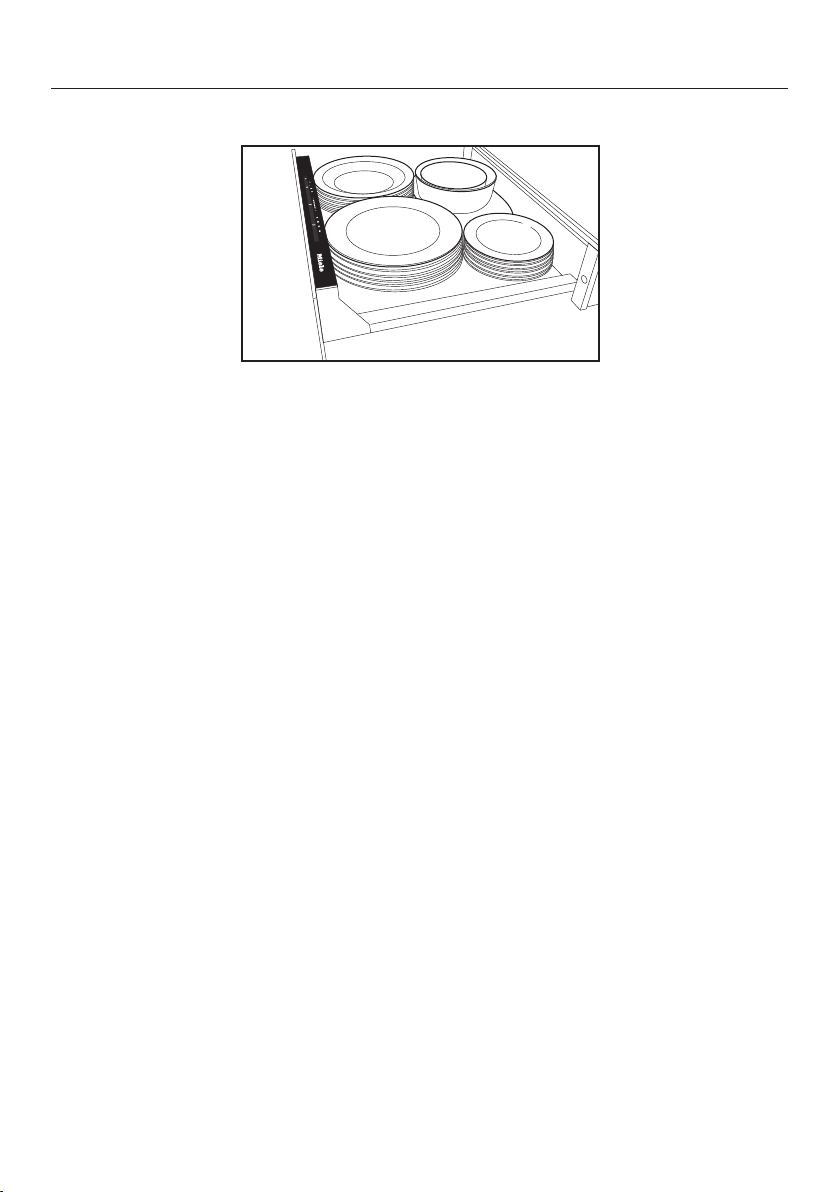

• Page 20 - English - : Warming dishes Tips Distribute the dishware over the whole area of the drawer whenever possible Stacks of plates heat up more slowly than individual pieces If it is not possible to avoid large stacks of plates place them at the front of the drawer Use the rack depending on the appli ance model Do not place large serving dishes in front of the air vents in an upright po sition This will block the warm air outlets and the plates and dishes will not warm evenly For cups and glasses only select the quotWarm CupsGlassesquot mode to ensure that the maximum tempera ture 140F60C is not exceeded Warmed dishes and plates cool down rapidly Do not remove them until you are ready to use them Warming times Various factors will affect the warming times The material and thickness of the dish The amount of dishes placed in the drawer The arrangement of the dishes in the drawer The temperature setting Due to these factors it is not possible to provide exact warming times The following information can be used as a guide
• Page 21 - English - : Warming dishes In the mode it will take approxi mately 30 35 minutes to evenly warm 6 place settings 40 45 minutes to evenly warm 12 place settings As you continue to use the appliance you will get to know which setting best fits your needs Capacity The telescopic runners can support 55 lbs 25kg Overloading the drawer will damage the runners The quantity that can be loaded will de pend to a great extent on the weight and size of your own dishware
• Page 22 - English - : Warming dishes The following loading examples are intended to serve as a guide 6 place settings 6 dinner plates 10 14quot 26 cm 6 deep soup plates 9quot 23cm 6 dessert plates 7 12quot 19cm 1 oval platter 12 12quot 32cm 1 serving bowl 6 14quot 16cm 1 serving bowl 5quot 13cm Or one of the following arrangements 12 dinner plates 10 14quot 26 cm 18 deep soup plates 9quot 23cm 16 soup bowls 4quot 10cm 6 dinner plates and 6 deep soup plates 10 14quot 26cm 9quot 23cm 6 pizza plates 14 14quot 36cm 72 espresso cups 2 14quot 59cm 30 cappuccino cups 3 12quot 88cm 30 tea glasses 2 34quot 67cm 3 14quot 8cm high
• Page 23 - English - : Other uses Food Cookware Cover dishes hmin Defrosting berries Bowl plate No 1250 Dissolving gelatin Bowl No 1215 Proofing Bowl Yes with plate 1230 Preparing yo gurt Yogurt jars with lids 500 Soaking rice pudding Pot Yes with lid 1240 Melting Choco late Bowl No 1220 Defrosting veg etables Bowl No 100 Temperaturesetting Temperaturesetting Duration
• Page 24 - English - : Cleaning and care Risk of injury The steam from a steam cleaner could reach electrical components and cause a short circuit Do not use a steam cleaner to clean the warming drawer Unsuitable cleaning agents can dis color and damage the surfaces of the appliance Only use liquid dish soap and warm water applied with a soft sponge or cloth All surfaces are susceptible to scratching Scratches on glass sur faces may cause a breakage Immediately remove any residues left by cleaning agents Allow the drawer to cool down to a safe temperature before cleaning The drawer and accessories should be cleaned and dried thoroughly after each use Unsuitable cleaning agents To better maintain your appliance avoid the following Cleaners containing soda ammonia thinners or chlorides Descaling agents Abrasive cleaning agents such as powder or cream cleansers pumice stones Solventbased cleaners Stainless steel cleaners Dishwasher cleaners Oven sprays Hard abrasive sponges and brushes such as pot scrubbers or scrub sponges Sharp metal scrapers
• Page 25 - English - : Cleaning and care Cleaning the drawer front and interior The OnOff button must remain free of grime and liquids Failure to keep the sensor button clean may cause it to become unresponsive or to switch un controllably It is best to remove normal soiling im mediately using a clean sponge and a solution of warm water and liquid dish soap or with a clean damp mi crofiber cloth Wipe with clean water afterwards After cleaning dry the surfaces with a soft cloth Glass cleaning agent can be used for the appliance front The long exposure time of glass cleaning agents can damage the sur face Wash off the cleaning agent immedi ately and make sure that no puddles form Cleaning the nonslip mat Do not clean the nonslip mat in the dishwasher or washing machine Never place it in the oven to dry Remove the nonslip mat for clean ing Clean the mat by hand only using warm water and a small amount of liquid dish soap and then dry using a cloth Do not return the nonslip mat to the warming drawer until it is completely dry
• Page 26 - English - : Frequently asked questions The following faults can be corrected without contacting the Miele Service Depart ment If in doubt please contact Miele Repairs should only be carried out by an authorized technician in accor dance with local and national safety regulations Unauthorized repairs could cause injury or appliance damage Do not attempt to open the warming drawer housing Problem Possible cause and solution The drawer does not heat up The plug is not properly inserted Insert the plug The circuit breaker has tripped Check the fuse minimum fuse rating see data plate If the drawer still will not turn on after reacti vating the fuse contact a qualified electrician or Miele Technical Service The food is not hot enough The quotKeep Warmquot mode is not set Set the correct operating mode The temperature setting is too low Select a higher temperature The air vents are covered Make sure that air can circulate freely The food is too hot The quotKeep Warmquot mode is not set Set the correct operating mode The temperature setting is too high Select a lower temperature The dishes are not hot enough The quotWarm DishesPlatesquot mode is not set Set the correct operating mode The temperature setting is too low Select a higher temperature The air vents are covered Make sure that air can circulate freely The dishes have not been warmed long enough The warmingup time for dishes is influenced by various factors see quotWarming dishesquot
• Page 27 - English - : Frequently asked questions Problem Possible cause and solution The dishes are too hot The quotWarm DishesPlatesquot or quotWarm Cups Glassesquot mode is not set Set the correct operating mode The temperature setting is too high Select a lower temperature Noise occurs during op eration The noise is caused by the fan which distributes the heat evenly throughout the drawer The fan runs at intervals in the quotKeep Warmquot and quotLow temperaturequot modes This is not a fault
• Page 28 - English - : Optional accessories Miele offers a range of useful acces sories as well as cleaning and condi tioning products for your appliance Depending on country these can be or dered online from Miele You can also obtain these products from Miele Service see end of this booklet for contact details or your Miele dealer Nonslip mat For keeping dishware secure
• Page 29 - English - : IMPORTANT SAFETY INSTRUCTIONS INSTALLATION WARNING Read all in structions before installation or use of the steam oven to pre vent injury and machine dam age Before connecting the appli ance to the power supply ensure that the connection data voltage and frequency on the data plate of the drawer match the electri cal supply This data must correspond in or der to avoid the risk of damage to the warming drawer Consult a qualified electrician if in any doubt The electrical outlet must be easily accessible after the instal lation of the drawer The drawer may only be built in combination with those appli ances specified by Miele as be ing suitable Miele cannot guar antee troublefree operation if the appliance is operated in combi nation with appliances other than those quoted by Miele as being suitable The base on which the drawer and the combination appliance are fitted must be fixed in place and must support the weight of both appliances When building in the combina tion appliance it is essential to follow the instructions given in the operating and installation in structions supplied with the combination appliance The drawer must be installed in such a way that you can see the contents of cookware Otherwise you may risk scalding or burning your self with hot water and food when removing containers there is enough space to pull out the drawer
• Page 30 - English - : Instructions for installation The combination appliance is placed on top of the drawer without the need for an interim shelf The drawer is available in two models which differ in height The installation dimensions for the food warming drawer must be added to the installa tion dimensions for the combination ap pliance to establish the niche size re quired All dimensions in this instruction book let are given in mm and inches Note to the installer Please leave these instructions with the consumer of the appliance for the local building inspectors use SAVE THESE INSTRUCTIONS

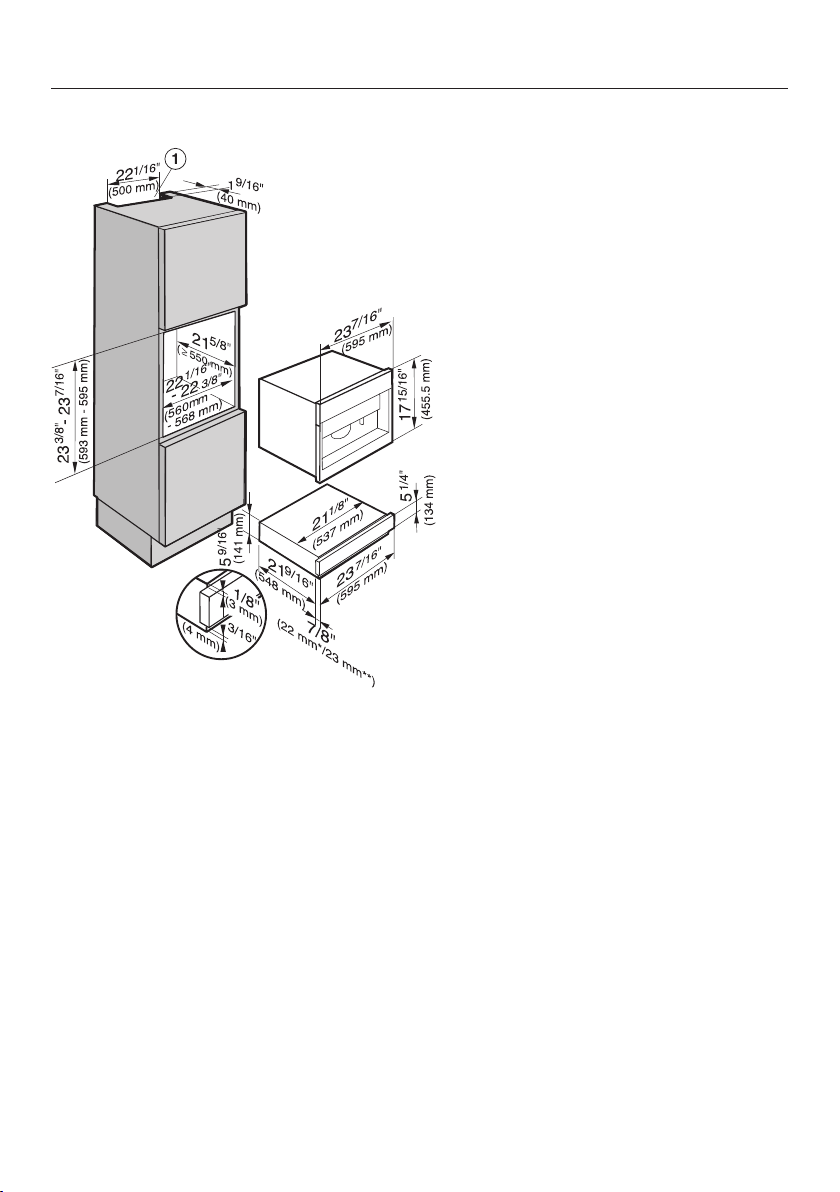

• Page 31 - English - : Installation dimensions ESW with H2xxxBP H6xxxBP a Vent cutout for when appliance is installed in combination with a self cleaning oven b Installation dimensions with plug Power cord L 7 2 58quot 2200 mm Glass front Stainless steel front
• Page 32 - English - : Installation dimensions ESW with H6xxxBMBP M61xx M62xx a Vent cutout for when appliance is installed in combination with a self cleaning oven b Installation dimensions with plug Power cord L 7 2 58quot 2200 mm Glass front Stainless steel front

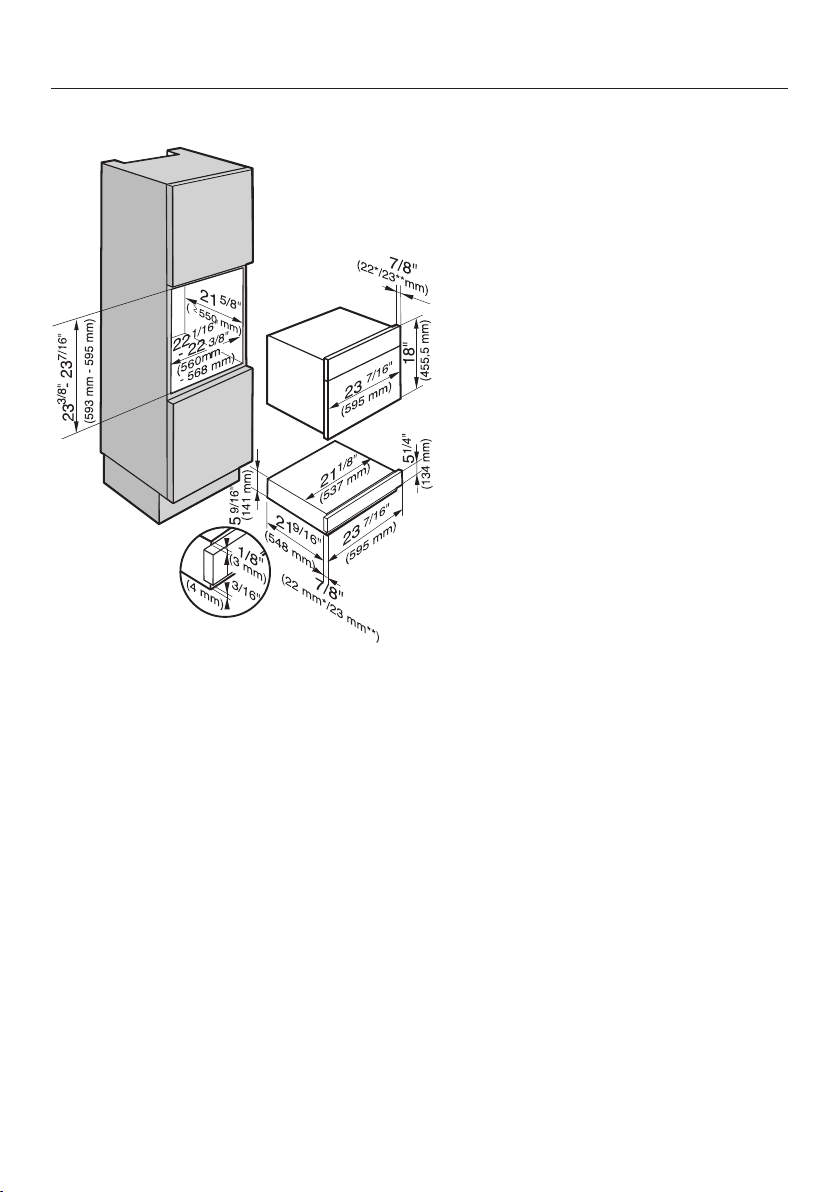

• Page 33 - English - : Installation dimensions ESW with DG6x00 DG6x0x b Installation dimensions with plug Power cord L 7 2 58quot 2200 mm Glass front Stainless steel front

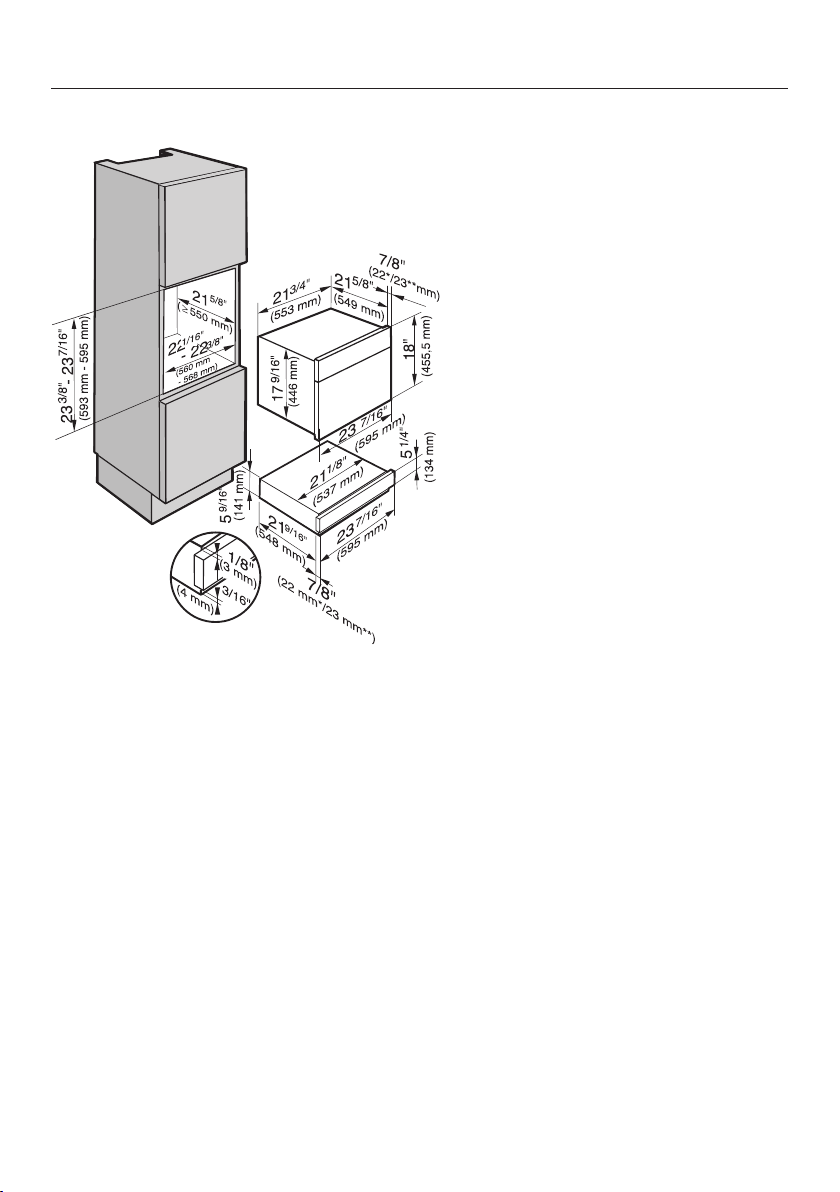

• Page 34 - English - : Installation dimensions ESW with DGC6500 DGC6600 DGC680x a Vent cutout for when appliance is installed in combination with a combination steam cooker with oven b Installation dimensions with plug Power cord L 7 2 58quot 2200 mm Glass front Stainless steel front For DGC 6805 cutouts are required for the water supply and drain hoses see the DGC 6805 installation instructions
• Page 35 - English - : Installation dimensions ESW with CVA6401 CVA68xx a Ventilation cutout for installation in combination with a coffee machine b Installation dimensions with plug Power cord L 7 2 58quot 2200 mm Glass front Stainless steel front In combination installations be sure that each appliance has its own dedicated electrical connection
• Page 36 - English - : Installation The base of the drawer must be clean and level This is important for appliance to function correctly Push the drawer into the housing unit as far as the vapor strip and align it at a right angle Open the drawer and use the screws supplied 2 for the small drawer 4 for the large drawer to secure it to the side walls of the housing unit Install the combination appliance in accordance with its own specific op erating and installation instructions
• Page 37 - English - : Electrical connection ATTENTION Before installation or servicing dis connect the power supply by either removing the fuse manually quottrip pingquot the circuit breaker or unplug ging the appliance Pull the plug not the cord Repairs and service by unqualified persons could be dangerous and the manufacturer will not be held re sponsible Installation work and repairs should only be performed by a qualified technician in accordance with all ap plicable codes and standards Instal lation repair and maintenance work should only be performed by a Mieleauthorized service technician The voltage and frequency listed on the rating label must correspond with the household electrical supply to prevent appliance damage Check these data before connection Consult an electrician if in doubt When another appliance is installed in combination with the warming drawer to the same circuit operating both appliances at the same time may cause an overload If in doubt consult a qualified electri cian Installer Please leave these instructions with the customer Connection Make sure that the connection data on the data plate voltage frequency and fuse rating matches that of your electrical supply Connection data The drawer is ready for connection and equipped with a 20m mains cable with a plug 120V 15A 60Hz Make sure that the connecting socket is accessible after the installation of the drawer
• Page 38 - English - : Caring for the environment Disposal of the packing mate rial The cardboard box and packing materi als protect the appliance during ship ping They have been designed to be biodegradable and recyclable Ensure that any plastic wrappings bags etc are disposed of safely and kept out of the reach of children Dan ger of suffocation Disposal of your old appliance Old electrical and electronic appliances often still contain valuable materials However they also contain harmful substances that were essential for the proper functioning and safe use of the equipment Handling these materials improperly or disposing of them in your household waste can be harmful to your health and the environment Therefore please do not dispose of your old appli ance with regular household waste Old appliances may contain materials that can be recycled Please contact your local recycling authority about the possibility of recycling these materials Please be sure that your old appliance does not pose a danger to children while being stored for disposal
• Page 39 - English - : Technical service data plate warranty After sales service In the event of a fault which you cannot easily correct yourself please contact your Miele dealer or the Miele Technical Service Department See back cover for contact details Please quote the model and serial number of your appliance when contacting Miele Data plate Adhere the extra data plate supplied with the appliance here Ensure that the model number is the same as the one on the back of these operating instructions Warranty For further information please refer to your warranty booklet
• Page 40 - English - : MieleCare This service is available in USA only MieleCare our Extended Service Con tract program gives you the assurance of knowing that your appliance invest ment is covered by 5years of worry free ownership MieleCare is the only Extended Service Contract in the industry that guarantees repairs by a Miele Authorized Service Provider using genuine Miele parts Only genuine Miele parts installed by factory trained professionals can guar antee the safety reliability and longevity of your Miele appliance Please note that unless expressly ap proved in writing by Mieles Service de partment Extended Service Contracts offered by other providers for Miele products will not be recognized by Miele Our goal is to prevent unautho rized and untrained service personnel from working on your Miele products possibly doing further damage to them you andor your home To learn more about MieleCare Ex tended Service Contracts please con tact your appliance dealer or visit us online at wwwmieleusacom
• Page 43 - English - : 9 Independence Way Princeton NJ 08540 Phone Fax wwwmieleusacom USA Miele Inc National Headquarters Please have the model and serial number of your appliance available before contacting Technical Service Canada Importer Miele Limited Headquarters and Miele Centre 8008437231 6094194298 Technical Service amp Support Nationwide Phone Fax TechnicalServicemieleusacom 161 Four Valley Drive Vaughan ON L4K 4V8 wwwmieleca 8009991360 8885868056 Customer Care Centre Phone customercaremieleca 8005656435 9055322272 Germany Manufacturer Miele amp Cie KG CarlMieleStraße 29 33332 Gütersloh
• Page 44: MNr 09 781 150 04enUS ESW 6114 ESW 6214
