• Page 1 - English - : Operating and Installation Instructions Washer To prevent accidents and appliance damage read these instructions before installation or use enUS MNr 11 009 330
• Page 2 - English - : Contents Caring for the environment 6 IMPORTANT SAFETY INSTRUCTIONS 7 Guide to the washer 12 Control panel 12 Operating the sensor buttons 13 Display 14 Examples on how to operate the appliance 14 Environmentally friendly washing 15 Before using for the first time 16 1 Setting the display text 17 2 Setting up Mielehome 17 3 Removing the shipping struts 19 4 Commissioning TwinDos 19 5 Starting the calibration program 22 1 Prepare the laundry 23 2 Selecting a program 24 3 Loading the washing machine 26 4 Selecting program settings 27 Selecting a temperaturespin speed 27 Selecting an extra option 27 EcoFeedback 27 Level of soiling 28 Delay startSmartStart 28 5 Adding detergent 30 TwinDos 30 Detergent dispenser drawer 31 Dispensing aids 31 Using chlorine bleach 32 Using powder detergent 32 Using detergent tablets or pods 32 Using fabric softener and liquid starch 33 CapDosing 33 6 Start the program Program end 36
• Page 3 - English - : Contents Spin cycle 37 Final spin speed in the wash program 38 Rinsespin 38 Omitting the final spin Rinse hold 38 Deselecting the rinsespin and final spin 38 Program guide 39 Extra options 46 Prewash 46 Buzzer 46 Extra options can be selected using the Options sensor button 47 Gentle 47 ExtraRinse 47 The following extra options can be selected in addition to the programs 48 Changing the program sequence 49 Canceling a program 49 Interrupting a program 49 Changing the program 49 Child lock 50 Adding or removing laundry 50 Detergent 51 Mielerecommended detergents 51 General detergent recommendations 52 Cleaning and care 53 Cleaning the drum Hygiene info 53 Cleaning the exterior and control panel 53 Cleaning the detergent dispensing drawer 53 TwinDos maintenance 56 Cleaning the water inlet filter 57 Frequently Asked Questions 58 A wash program cannot be started 58 The following fault message appears in the display and the program has been canceled 59 A message appears in the display at the end of the program or when the appliance is switched on 60 A message about the TwinDos system has appeared in the display 61 Problems with TwinDos 62

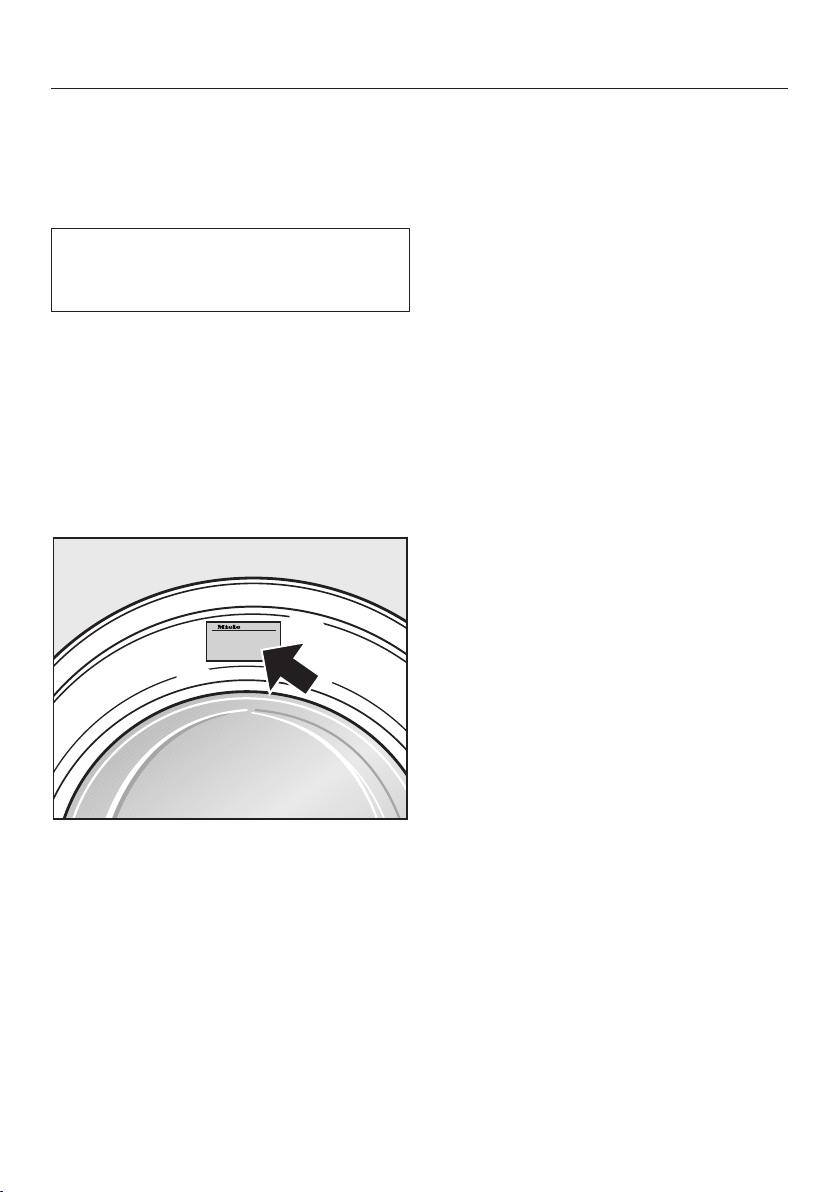

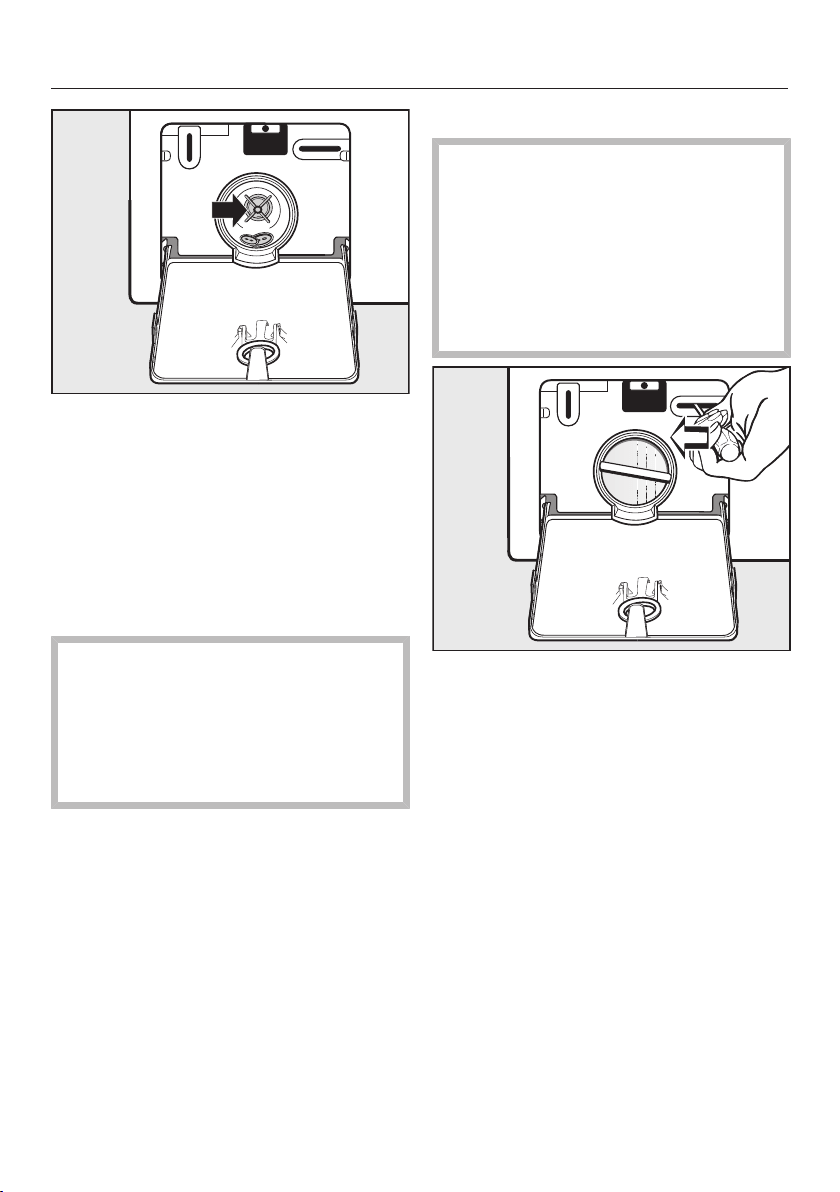

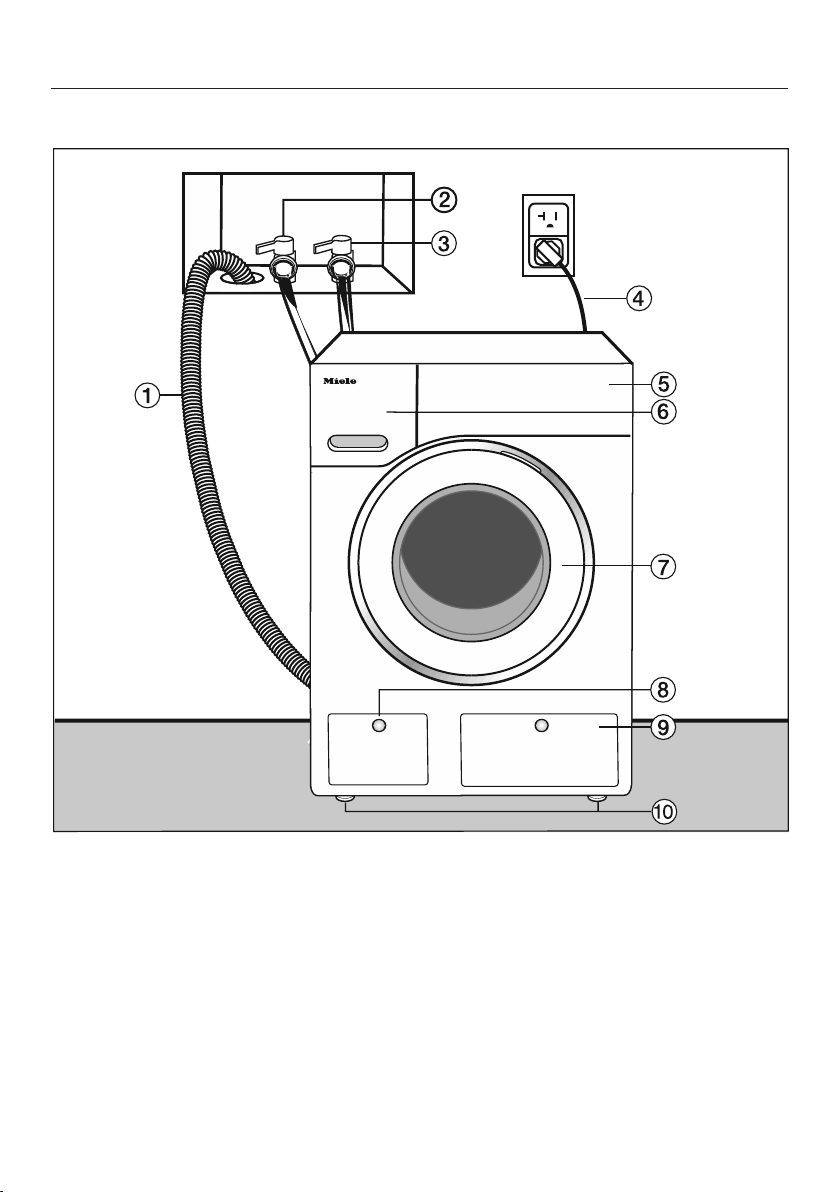

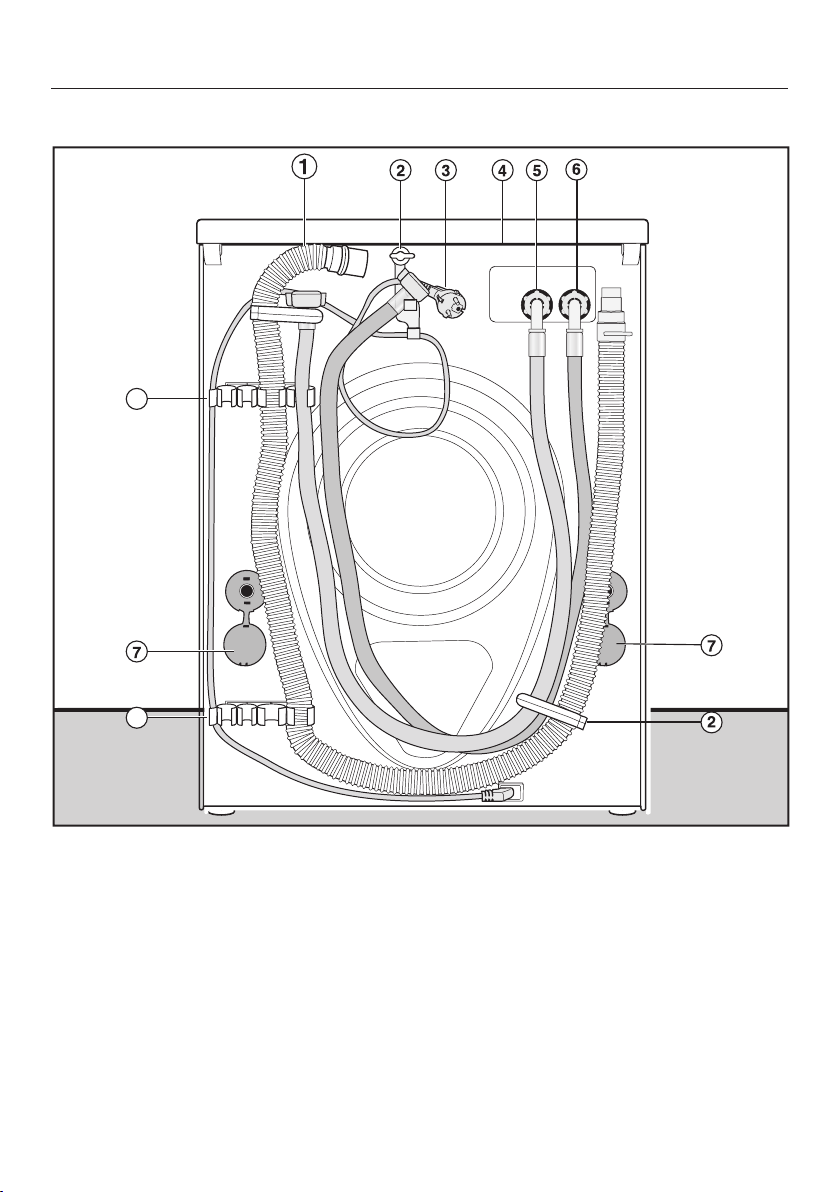

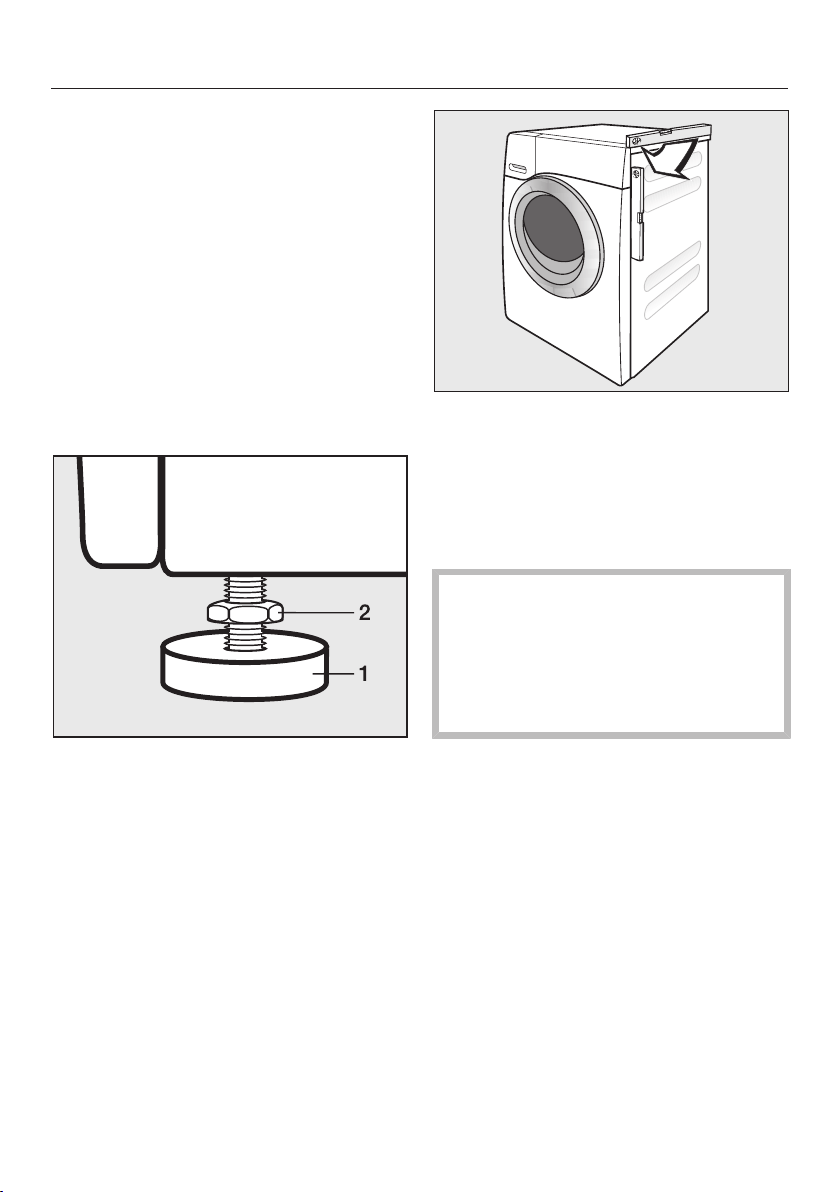

• Page 4 - English - : Contents General problems with the washer 62 Poor wash results 64 The drum door cannot be opened 65 Opening the door in the event of a blocked drain outlet andor power outage 66 Technical Service 68 Contact in case of fault 68 Optional accessories 68 Warranty 68 Installation 70 Front view 70 Rear view 71 Installation site 72 Transporting the washing machine to its installation site 72 Removing the shipping struts 72 Refitting the shipping struts 74 Leveling the machine 75 Screwing out and adjusting the feet 75 Additional installation requirements 76 Installing under a worktop 76 Setting up the cabinet 76 For closets at room height 76 Product Dimensions 77 Dimensions 77 Installation on a plinth 77 Washerdryer stack 77 The water protection system 78 Water intake 79 Water drainage 80 Electrical connection 81 Technical data 82 Settings 83 Calling up settings 83 Selecting settings 83 Changing a setting 83 Closing the Settings menu 83 Language 84 TwinDos 84 Degree of soiling 84 Buzzer volume 84
• Page 5 - English - : Contents Keypad tone 84 Welcome tone 85 Code 85 Unit 85 Brightness 86 Display switchoff 86 Program info 86 Memory 87 Water intake 87 Long pwash Normal 87 Soak duration 87 Gentle action 88 Temp reduction 88 Maximum rinse level 88 Suds cooling 88 Low water pressure 88 AntiCrease 89 Mielehome 89 Remote control 90 SmartGrid 90 RemoteUpdate 91 Running a RemoteUpdate 91 Bleach 92 Optional accessories 93 Detergent 93 Speciality detergents 93 Fabric care 94 Additive 94 Machine care 94
• Page 6 - English - : Caring for the environment Disposal of the packing material The cardboard box and packing materials protect the appliance during shipping They have been designed to be biodegradable and recyclable Ensure that any plastic wrappings bags etc are disposed of safely and kept out of the reach of children Danger of suffocation Disposal of your old appliance Electrical and electronic appliances contain valuable materials They also contain certain substances compounds and components which were essential for the proper functioning and safe use of the equipment Handling these materials improperly by disposing of them in your household waste can be harmful to your health and the environment Therefore please do not dispose of your old appliance with regular household waste and follow local regulations on proper disposal Consult with local authorities dealers or Miele in order to dispose of and recycle electrical and electronic appliances Miele assumes no responsibility for deleting any personal data left on the appliance being disposed Please ensure that your old appliance is kept away from children until removal Observe safety requirements for appliances that may tip over or pose an entrapment hazard
• Page 7 - English - : IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire electric shock or injury to persons while using your appliance follow basic safety precautions including the following Read all instructions before using the appliance GROUNDING INSTRUCTIONS This appliance must be grounded In the event of a malfunction or breakdown grounding will reduce the risk of electric shock by providing a path of least resistance for electric current This appliance is equipped with a cord having an equipmentgrounding conductor and a grounding plug The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances WARNING Improper connection of the equipmentgrounding conductor may result in a risk of electric shock Check with a qualified electrician if you are in doubt as to whether the appliance is properly grounded Do not modify the plug provided with the appliance if it will not fit the outlet have a proper outlet installed by a qualified electrician Do not install or use a washer with visible damage Do not install or store this appliance where it will be exposed to the weather Do not install your washing machine where temperatures below freezing may occur Frozen hoses may burst under pressure The reliability of the electronic control unit may be impaired at temperatures below freezing
• Page 8 - English - : IMPORTANT SAFETY INSTRUCTIONS Before connecting the machine ensure that the connection data on the data plate fusing voltage and frequency match the mains electrical supply If in doubt contact an electrician Do not use an extension cord to connect this appliance to the power supply Extension cords do not guarantee the required safety of the appliance eg danger of overheating This appliance is not designed for maritime use or for use in mobile installations such as recreational vehicles or aircraft However under certain conditions it may be possible for an installation in these applications Please contact the Miele Technical Service Dept with specific requirements Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in these operating instructions If the power cord is damaged it must only be replaced by a Miele Service technician with a genuine Miele power cord Under certain conditions hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more HYDROGEN GAS IS EXPLOSIVE If the hot water system has not been used for such a period turn on all hot water faucets and let the water flow from each for several minutes before using the washing machine This will release any builtup hydrogen gas Do not smoke or use an open flame during this time the gas is flammable Before the appliance is removed for service or discarded remove the door
• Page 9 - English - : IMPORTANT SAFETY INSTRUCTIONS Use Do not allow children to play on or in the appliance Close supervision is necessary when the appliance is used near children The drum door glass will be hot when washing at very high temperatures Do not touch the glass Danger of burns Keep children away from the washer when in use Only use the washing machine to wash items which are specified by the manufacturer to be machine washable on the fabric care label Any other applications may be dangerous Do not wash articles that have been previously cleaned washed soaked or spotted with gasoline drycleaning solvents or other flammable substances These articles give off vapors that could ignite or explode Do not add these items to the wash load Do not add gasoline drycleaning solvents or other flammable or explosive substances to the wash water These substances give off vapors which could ignite or explode Do not use cleaning solvents on or near the machine or the controls Contact with cleaning solvents will damage the surface Do not reach into the appliance if the drum is moving Do not tamper with the controls SAVE THESE INSTRUCTIONS

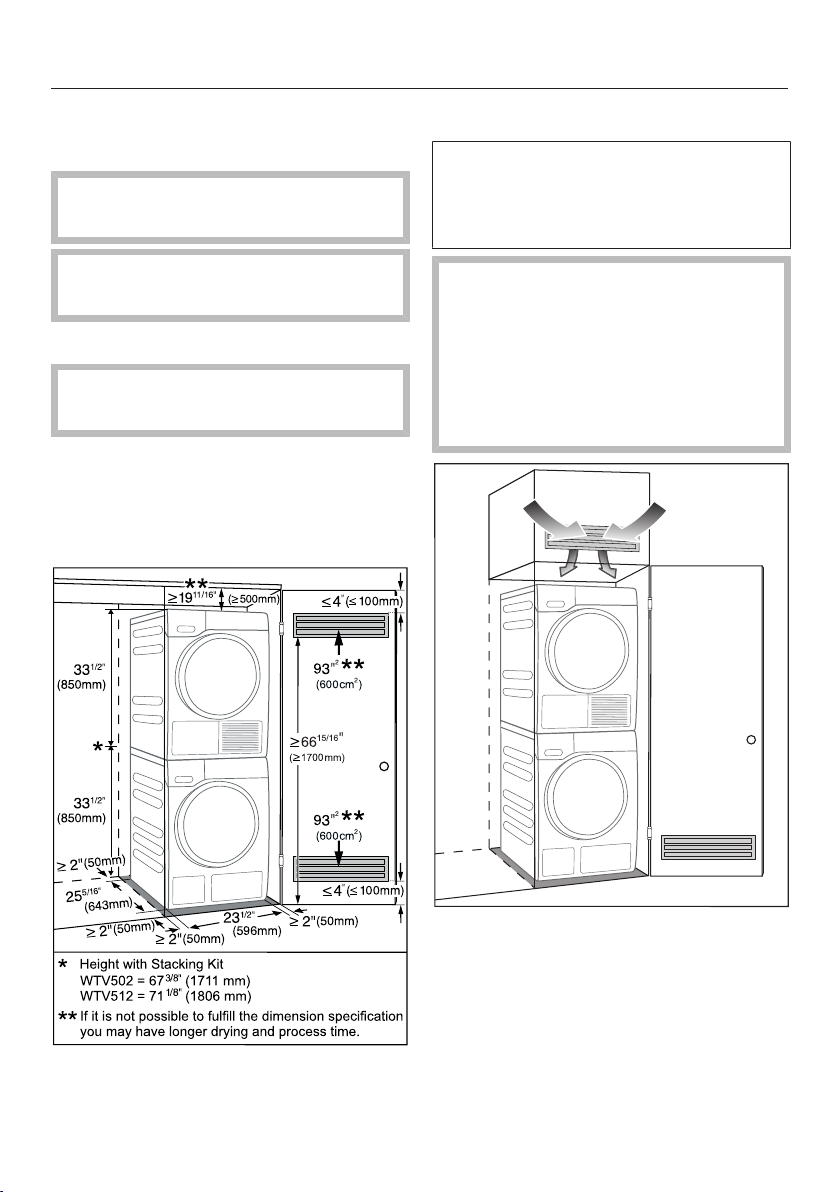

• Page 10 - English - : IMPORTANT SAFETY INSTRUCTIONS Miele tumble dryers and Miele washing machines can be installed as a washerdryer stack A Miele washerdryer connection kit is required as an optional accessory for this Please ensure that the washerdryer connection kit is suitable for the Miele tumble dryer and the Miele washing machine If installing the machine on a Miele plinth available as an optional accessory please make sure you order the correct one for this washing machine Should detergent enter the eyes rinse out immediately with plenty of lukewarm water If accidentally ingested seek medical advice immediately People who have sustained damage to the skin or who have sensitive skin should avoid contact with the detergent Be careful when opening the door following use of the steam function There is a danger of burning due to escaping steam and the high temperature of the surface of the drum as well as the porthole glass Step back and wait until the steam has dissipated The maximum dry laundry weight is 176 lb 8 kg See the Program guide for the maximum recommended loads for individual programs This washing machine is supplied with a special lamp to cope with particular conditions eg temperature moisture chemical resistance abrasion resistance and vibration This special lamp must only be used for the purpose for which it is intended It is not suitable for room lighting Replacement lamps may only be fitted by a Miele authorized person or by Miele Technical Service This product may contain chemicals know to the state of California to cause cancer or birth defects or other reproductive harm
• Page 11 - English - : IMPORTANT SAFETY INSTRUCTIONS FCC Declaration of Conformity These devices comply with FCC Rules Part15 This equipment has been tested and found to be in compliance with the limits for a ClassB digital device pursuant to Part15 of the FCC Rules of Operation and is subject to the following conditions These devices may not cause harmful interference These devices must accept any interference received including interference that may cause undesired operation FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment This equipment should be installed and operated with minimum distance 8 20cm between the radiator and your body Industry Canada Statement This digital apparatus does not exceed the ClassB limits for Radio Noise Emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications Complies with Canadian ICES003 ClassB specifications

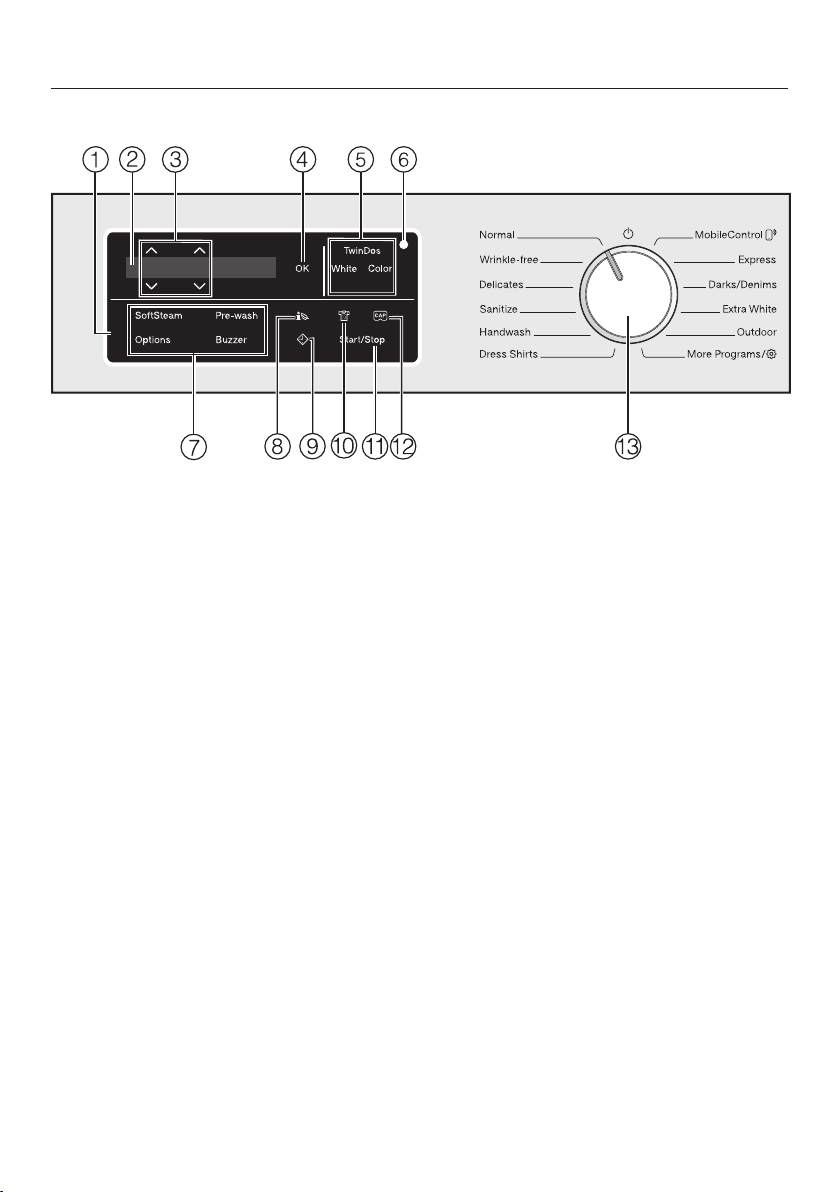

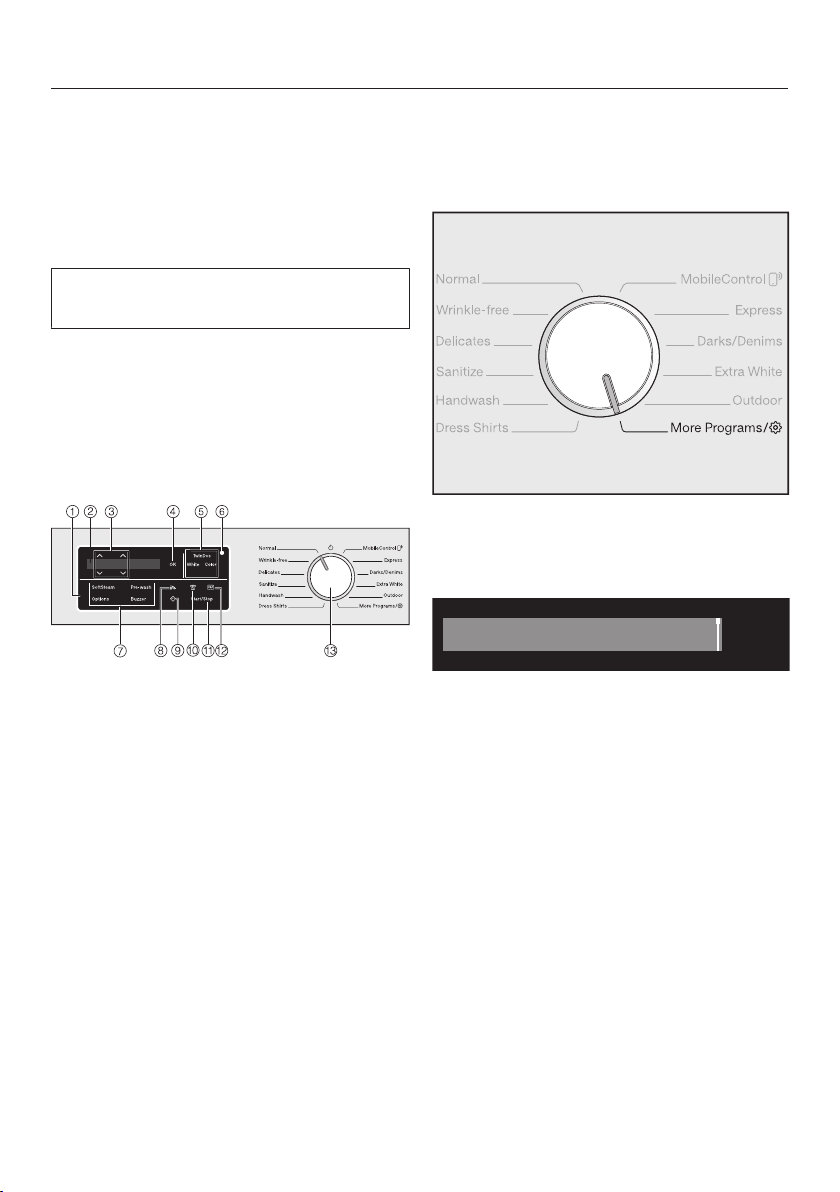

• Page 12 - English - : Guide to the washer Control panel a Control field The control field consists of a display and various sensor buttons The individual sensor buttons are explained in the following sections b Display The following values are displayed andor selected on the display 1 The temperature spin speed and time left for the selected wash program 2 The individual values of the selection lists for extras and settings c Sensor buttons The values in the display can be changed with the sensor buttons The sensor button increases the value or moves the selection list up the sensor button decreases the value or moves the selection list down d OK sensor button Confirm the selected values such as temperature and spin speed with the OK sensor button e TwinDos sensor buttons with the additional White and Color sensor buttons Deactivate or activate the automatic detergent dispensing via the TwinDos sensor button Depending on the color composition of the laundry load control the composition of the detergent dispensing via the White or Color sensor button Please see TwinDos for more information f Optical interface This is used by the Service department as a transmission point
• Page 13 - English - : Guide to the washer g Sensor buttons for extra options You can supplement the wash programs with extra options If a wash program has been selected the sensor buttons for the possible extras light up dimly h Sensor button You can use the sensor button to call up an energy and water consumption forecast for the selected wash program i Sensor button The sensor button starts the delay start function With the delay start function you can delay the start of the program The start of the program can be delayed from 15 minutes up to a maximum of 24 hours Please see Delay start for more information j Sensor button You can specify the level of soiling of the load in three settings Light Normal Heavy The wash program changes depending on which level of soiling is selected k StartStop sensor button Touching the StartStop sensor button starts the selected program or cancels a program that has already been started The sensor button flashes slowly as soon as it is possible for a program to be started and then lights up constantly after the program has started l Sensor button Activate detergent dispensing with a capsule by using the sensor buttons m Program selector For selecting programs and for switching off The washing machine is switched on when you select a program and switched off by turning the program selector to the position Operating the sensor buttons The sensor buttons react to fingertip contact Selection is possible as long as the respective sensor button is lit dimly If a sensor button is dimly lit this means selection possible If a sensor button is brightly lit this means currently selected
• Page 14 - English - : Guide to the washer Display The standard display shows the following values from left to right 126 Warm Max OK The selected wash temperature The selected spin speed The program duration Examples on how to operate the appliance Scrolling through a list The scroll bar in the display indicates that a selection is available Language OK The list scrolls down when the sensor button is touched The list scrolls up when the sensor button is touched The OK sensor button is used to activate the option in the display Identifying the selected option Cap OK An activated option in a list will have a check mark next to it Setting numerical values Start in OK h0000 The numerical value is highlighted in white Touching the sensor button decreases the value Touching the sensor button increases the value The OK sensor button is used to activate the value in the display Leaving a submenu Select Back to exit a submenu
• Page 15 - English - : Environmentally friendly washing Energy and water consumption Make use of the maximum load of the respective wash program The energy and water consumption will then be the lowest in relation to the size of the load When smaller amounts of laundry are washed the washing machines automatic load control system will reduce the amount of water and energy used Use the Express program for small lightly soiled loads Modern detergents make it possible to wash at lower temperatures eg 70F20C Using the corresponding temperature settings will save energy Washing at low temperatures andor using liquid detergents can cause bacteria and odors to build up in the washing machine Miele therefore recommends cleaning the washing machine once every month The washing machine provides you with a reminder with the message Sanitize info Run a high temp program or the quotClean Machinequot program in the display Detergent consumption Use the TwinDos system for exact dispensing Adjust the dosage to the level of soiling of the laundry Do not exceed the amounts of detergent recommended on the packaging Only use high efficiency detergent with the following label When drying with a tumble dryer Select the highest possible spin speed for the wash program to save energy in the subsequent tumble dryer cycle
• Page 16 - English - : Before using for the first time Before initial commissioning please note the information in Installation and connection Removing the protective foil and stickers Remove The protective foil from the door Any stickers from the front and the lid Please do not remove any labels eg the data plate which are visible when you open the door This washing machine has undergone a complete functional test at the factory and some residual water will therefore remain in the drum from this process Remove the detergent cartridges and the drain hose elbow from the drum Two detergent cartridges for automatic detergent dispensing and an elbow piece for the drain hose are stored in the drum Pull open the door Take the two cartridges and the elbow piece out of the drum Shut the door
• Page 17 - English - : Before using for the first time Switching on the washing machine Turn the program selector to the Normal program The welcome tone will sound and the welcome screen will light up The display will guide you through the 5steps of the initial commissioning 1 Setting the display text You are requested to set the display language It is possible to change the language at any time by setting the program selector to the Additional programs position in the Settings submenu english USA OK Touch the sensor buttons until the language you want appears in the display Confirm your language selection by touching the OK button 2 Setting up Mielehome Your washing machine is equipped with an integrated WiFi module The washing machine can be connected to the household WiFi network You will then be able to operate the washing machine via the Mielemobile app The following message appears in the display Mielehome Confirm with OK The following message appears in the display Set up now To set up Mielehome now Touch the OK sensor button To postpone setup until later Touch the sensor button until the following appears in the display Set up later and press the OK button to confirm Select the required connection type from the display 1 Connect via WPS 2 Connect via App Before installing the washing machine in its final location ensure the signal strength is sufficient for your WiFi network
• Page 18 - English - : Before using for the first time Mielemobile App The Mielemobile App is available to download free of charge from the Apple App Store or from the Google Play Store Connecting with WPS Your WiFi router must support WPS WiFi Protected Setup Follow the instructions in the display If the connection fails you have probably not connected WPS to your router quickly enough Repeat the steps above Tip If your WiFi router does not support WPS please connect via the Mielemobile app Connecting via the app The Mielemobile app can be used to connect to your network Install the Mielemobile app on your mobile device Follow the instructions in the app To log in you will need 1 Your WiFi network password 2 Your washing machine password The password for your washing machine consists of the last nine digits on the serial number This can be found on the appliances data plate If the connection is successful the following will appear in the display Connection OK OK Confirm with the OK sensor button

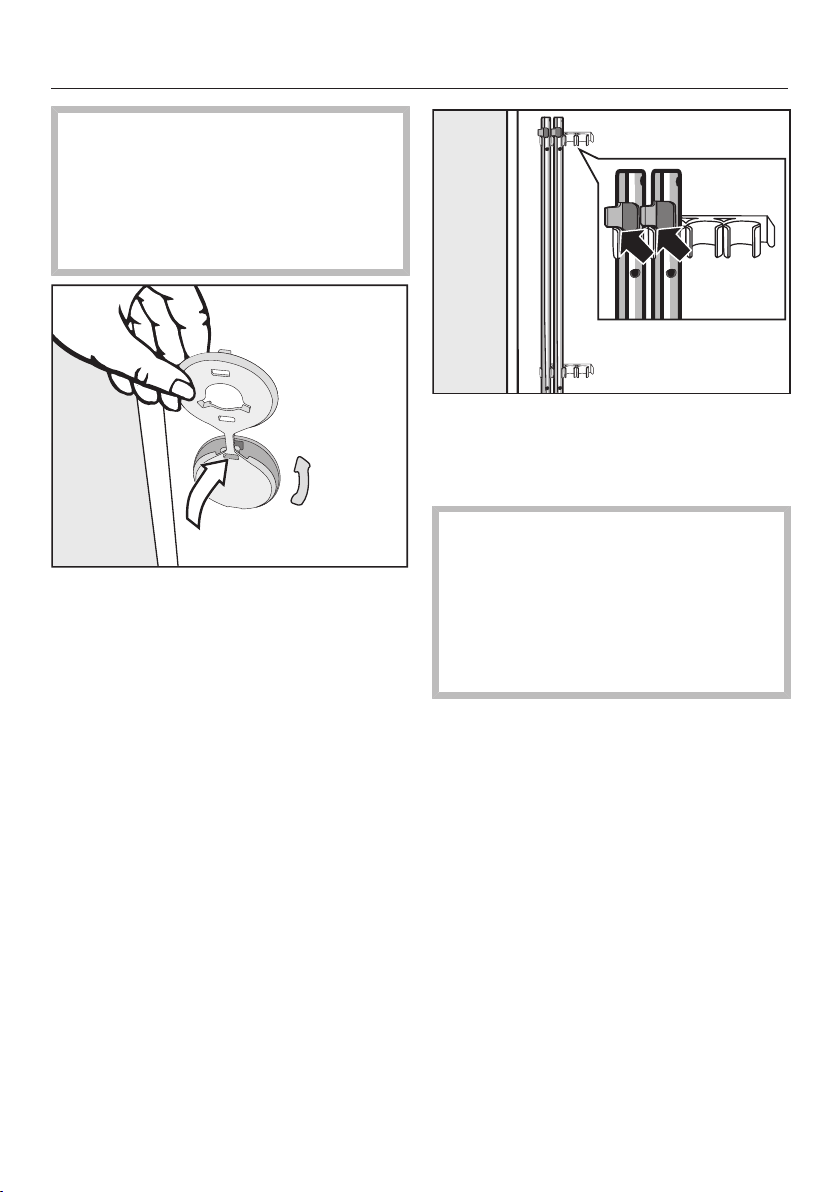

• Page 19 - English - : Before using for the first time 3 Removing the shipping struts Failure to remove the shipping struts can result in damage to the washing machine and to adjacent cabinetry or appliances Remove the shipping struts as described in the Installation section The following message appears in the display Remove shipping struts Confirm with the OK sensor button 4 Commissioning TwinDos The UltraPhase1 and UltraPhase2 values are preset in the standard settings and only need to be confirmed The following message appears in the display TwinDos Confirm with OK The following message appears in the display Set now To set up TwinDos now Touch the OK sensor button To postpone setup until later Touch the sensor button until the following appears in the display Set up later and press the OK button to confirm Settings for compartment The UltraPhase1 values are preset in the standard settings Agent for OK Confirm with the OK sensor button Miele UltraPhase 1 OK Confirm with the OK sensor button The following will appear in the display Set the dosage Observe water hardness levels Confirm with the OK sensor button The dispensing quantity for UltraPhase1 for hardness level I is preset Per load OK ml48 Confirm the preset value with the OK sensor button or correct the value with the sensor buttons and confirm this with the OK sensor button UltraPhase1 Hardness level I 48ml Hardness level II 60ml Hardness level III 72ml

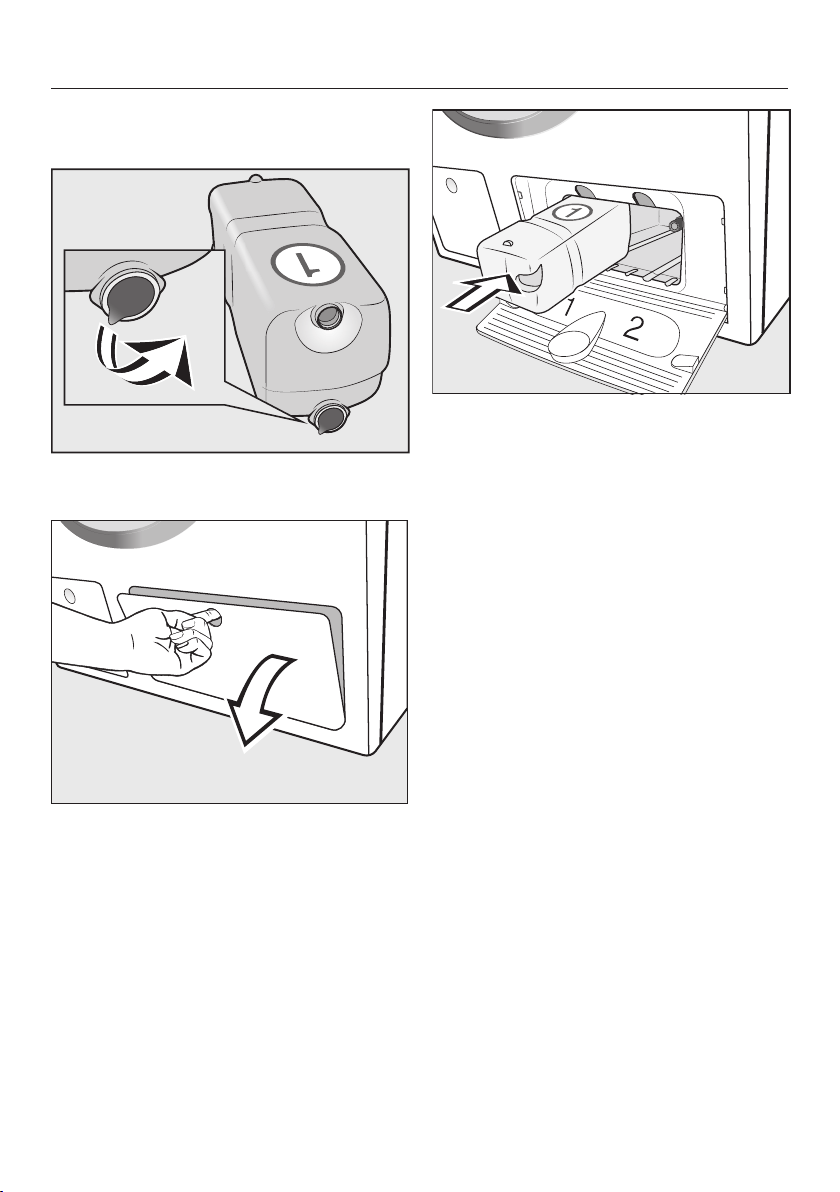

• Page 20 - English - : Before using for the first time The following will appear in the display Insert Remove the cover from the detergent cartridge Open the TwinDos flap Push the UltraPhase1 detergent cartridge into compartment1 until it locks into position

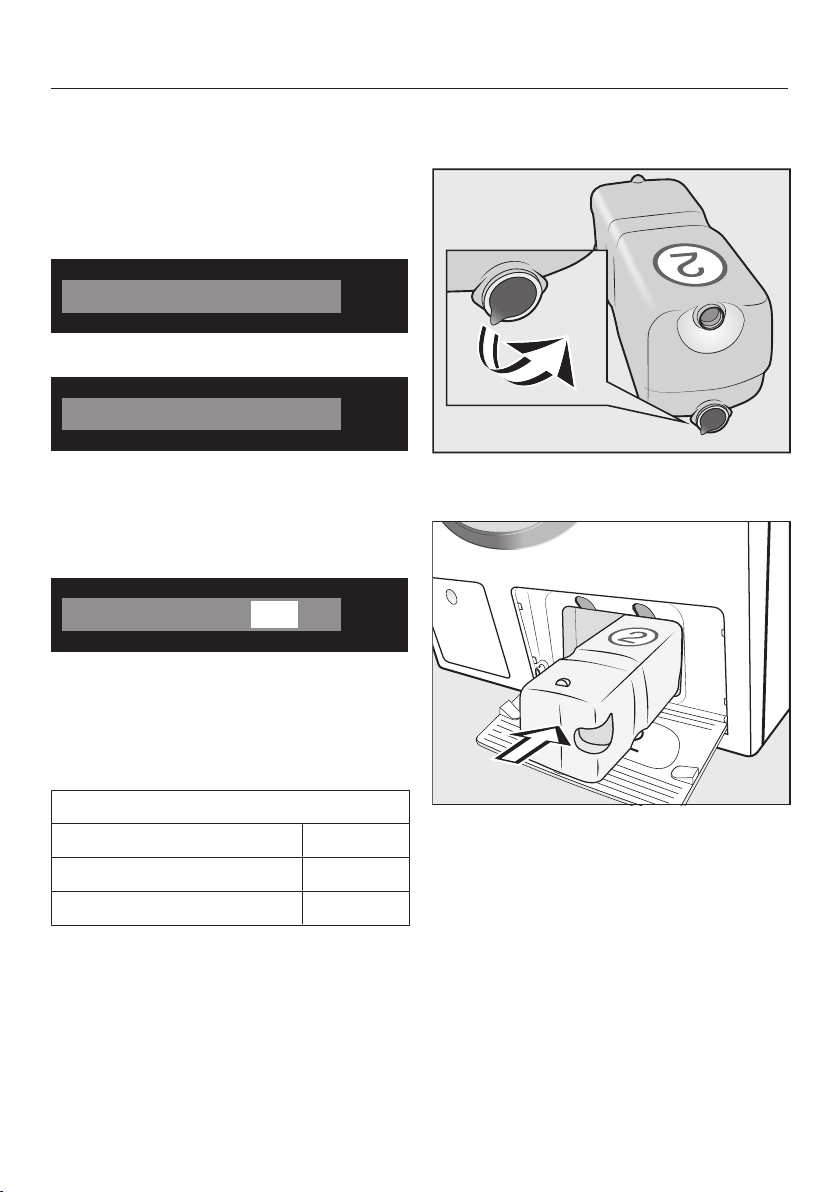

• Page 21 - English - : Before using for the first time Settings for compartment The UltraPhase2 values are preset in the standard settings After the cartridge has been pushed in the display message switches to Agent for OK Confirm with the OK sensor button Miele UltraPhase 2 OK Confirm with the OK sensor button The dispensing quantity for UltraPhase2 for hardness level I is preset Per load OK ml36 Confirm the preset value with the OK sensor button or correct the value with the sensor buttons and confirm this with the OK sensor button UltraPhase2 Hardness level I 36ml Hardness level II 45ml Hardness level III 54ml The following will appear in the display Insert Remove the cover from the detergent cartridge Push the UltraPhase2 detergent cartridge into compartment2 until it locks into position When the cartridge is pushed in the display message switches to quotTwinDosquot set Can be changed in quotSettingsquot Confirm with the OK sensor button Close the TwinDos flap
• Page 22 - English - : Before using for the first time 5 Starting the calibration program For optimum water and energy consumption and excellent wash results it is important to calibrate the washing machine To do this the Normal program must be run without laundry and without detergent No other programs can be started until calibration has been carried out The following message appears in the display Open and run quotNormalquot with quotHot Plusquot without laundry Touch the sensor button until the OK sensor button lights up and confirm this with OK 140 Hot OK Max Turn on the water supply Touch the StartStop sensor button The washing machine calibration program has started It will take approximately 2hours At the end of the program the following message will appear in the display Set up complete
• Page 23 - English - : 1 Prepare the laundry Empty all pockets Foreign objects left in pockets eg nails coins paper clips etc can cause damage to clothes and the machine Sort the laundry Only wash items that are labeled machine washable by the manufacturer Most garments have a fabric care label in the collar or side seam Sort the laundry by care label and color Tip Dark fabrics often bleed the first few times they are washed They should be washed separately several times before being included in a mixed load Pretreating stains Badly soiled areas stains etc should be cleaned as soon as possible preferably while still fresh Dab stains with a damp light colored cloth Do not rub Solventbased cleaners eg benzene can damage plastic parts When pretreating a stain make sure that plastic parts do not come into contact with cleaning agent Chemical solventbased cleaning agents can cause damage in the washing machine Never use such cleaning agents in the washing machine General tips Curtains Remove any lead weights or strips before washing Loose bra underwires should be removed or sewn in place before washing Close zippers hooks and eyelets before washing Comforter covers and pillowcases should be fastened to prevent small items from rolling inside of them Do not wash items with the symbol on the fabric care label
• Page 24 - English - : 2 Selecting a program Switching on the washing machine Turn the program selector to a program The interior drum lighting will come on The drum lighting will go out automatically after five minutes Program selection There are three possible ways to select a program 1 Selecting the standard programs with the program selector dial Turn the program selector to the required program The selected program will be shown in the display This will then be replaced by the standard display 2 Selecting additional programs by setting the program selector to the More programs position and the display Turn the program selector to the More programs position The following appears in the display Table LinensDrapes OK Touch the sensor buttons until the program you want appears in the display Confirm the program with the OK sensor button Preset program parameters will be displayed depending on the program selected
• Page 25 - English - : 2 Selecting a program 3 Selecting the programs via the MobileControl program selector position and the Mielemobile app Tip In order to use MobileControl the washing machine must be logged on to the WiFi network and the Remote control must be switched on Turn the program selector to the MobileControl position The following appears in the display Load laundry close the door and press quotStartquot Appliance can be remotely controlled Follow the instructions in the display and start the program The following appears in the display MobileControl The washing machine can now be operated with the Mielemobile app

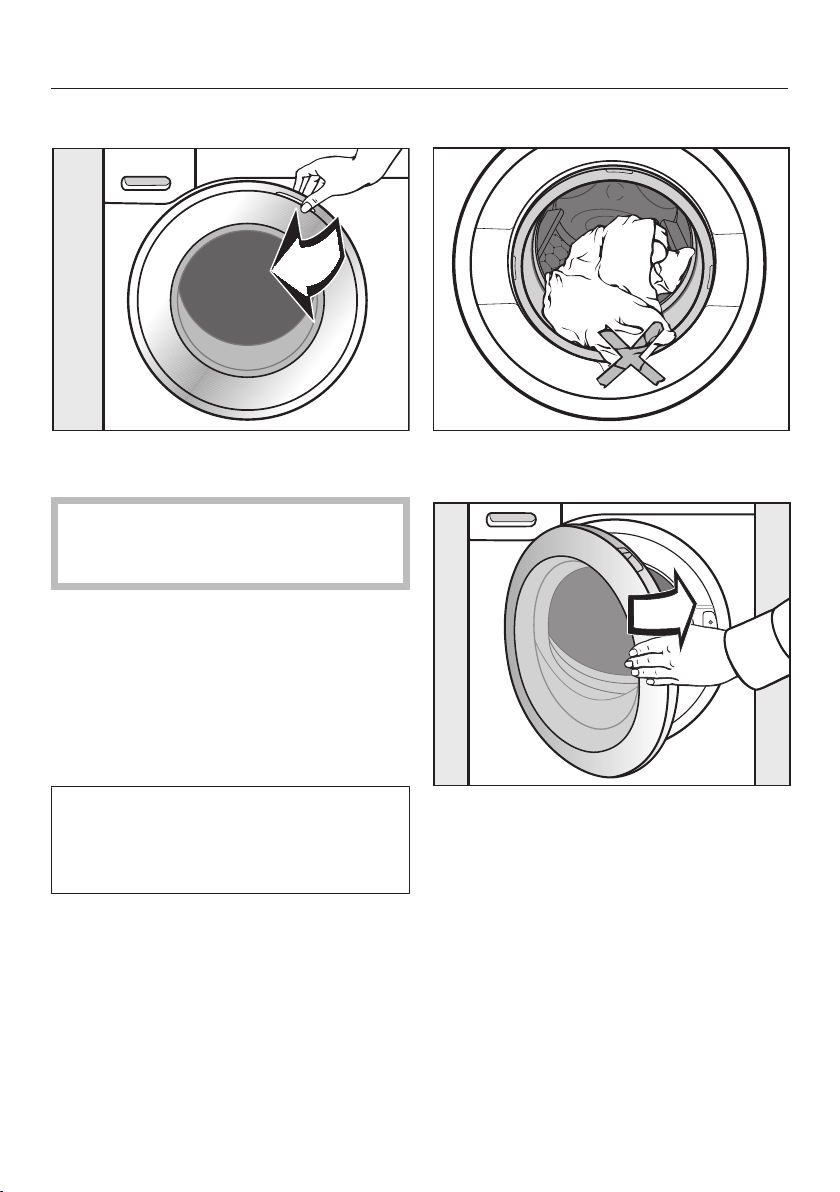

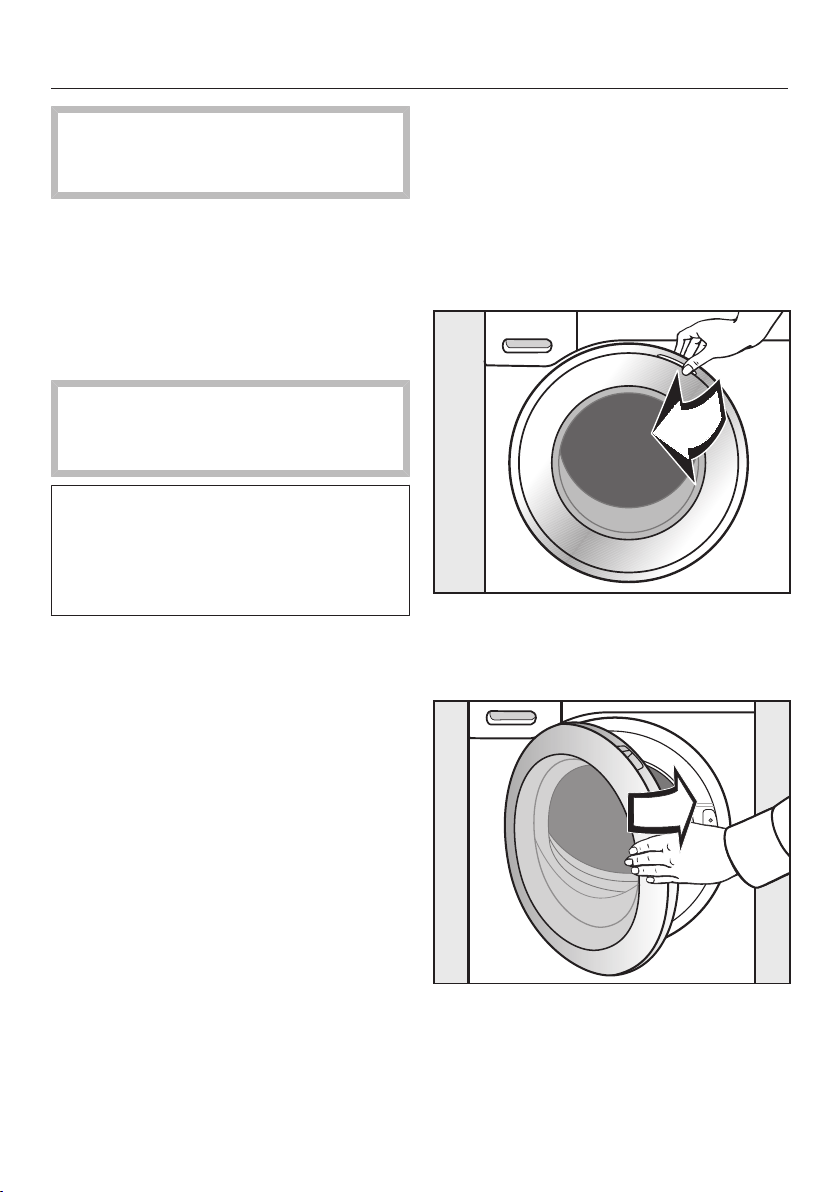

• Page 26 - English - : 3 Loading the washing machine Opening the door Take hold of the door and pull it open Check the drum for pets or foreign objects before loading it with laundry The most efficient use of energy and water is achieved when a full load is washed However do not overload as this reduces cleaning efficiency and causes creasing Unfold the laundry and load loosely in the drum Mixing both large and small items gives better wash results and also helps distribute the load evenly during spinning Tip Please note the maximum load for different wash programs Closing the door Make sure that no items are caught between the door and the seal Shut the door with a gentle swing
• Page 27 - English - : 4 Selecting program settings Selecting a temperaturespin speed You can alter the preset temperature spin speed of a wash program if this is permitted by the program 126 Warm Max OK Touch the sensor buttons above or below the temperature or spin speed value in the display until the temperaturespin speed you want appears in the display Confirm with the OK sensor button Selecting an extra option Touch the sensor button for the extra you want It then lights up brightly Tip You can select multiple extras for a wash program Not all the extra options can be used with every program If an extra option is not dimly lit this option is not permitted for the wash program see Extra options Extras sensor button You can select additional extras using the Extras sensor button Touch the Extras sensor button The following appears in the display No Extras OK Touch the sensor buttons until the extra option you want appears in the display Confirm the extra option with the OK sensor button EcoFeedback You can use the sensor button to call up an energy and water consumption forecast for the selected wash program Touch the sensor button The estimated energy and water consumption levels will be displayed as a bar chart OK The more bars visible the higher the energy or water consumption Touch the OK sensor button or wait until the display automatically returns to the standard display
• Page 28 - English - : 4 Selecting program settings Level of soiling You can specify the level of soiling of the load Light No visible soiling or stains Normal Visible soiling andor a small number of light stains visible Heavy Soiling andor stains clearly visible A prewash is automatically carried out The following parameters will change depending on the level of soiling selected The detergent dosage amount with automatic detergent dispensing With the Heavy level of soiling setting a prewash will be carried out automatically see Options The adjustment of the rinse water level Delay startSmartStart Delay start With the delay start function you can delay the start of the program This function is active when the setting SmartGrid is switched off The hours can be set in the values from 00 to 24 The minutes can be set in 15 minute increments from 00 to 45 Setting the delay start time Touch the sensor button The following will appear in the display Start in OK h0000 Set the hours with the sensor buttons Confirm with the OK sensor button The display will change Start in OK h0006 Set the minutes with the sensor buttons Confirm with the OK sensor button Tip The values will count upwards and downwards automatically if you keep your finger on the sensor buttons Changing delay start The selected delay start time can be changed before the program start Touch the sensor button If desired change the specified time and confirm with the OK sensor button
• Page 29 - English - : 4 Selecting program settings Canceling delay start The selected delay start time can be canceled before the program start Touch the sensor button The selected delay start time will appear in the display Set a time value of 0000 h with the sensor buttons Confirm with the OK sensor button The selected delay start time has been canceled After the program start the selected delay start time can only be changed or canceled by interrupting the program SmartStart The SmartStart function lets you define a time period during which your washing machine will start automatically The start takes place via a signal eg from your energy supplier that indicates that the electricity rate is particularly economical Please check with your local utility provider for availability This function is active when the SmartGrid setting is switched on The time period can be defined between 15 minutes and 24 hours During this period the washing machine waits for the signal from the energy supplier If no signal is sent during the defined period the washing machine starts the wash program Setting the timeframe If you have activated the SmartGrid function in Settings SmartStart in instead of Start in will appear in the display when you touch the sensor button see Settings SmartGrid The procedure for setting this is the same as for setting the time for delay start Use the sensor buttons to enter the hour and confirm your entry with the OK sensor button The hour will be saved and the minute numerical keypad will be highlighted Use the sensor buttons to enter the minutes and confirm your entry with the OK sensor button Press the StartStop sensor button to start the wash program with SmartStart The following will appear in the display SmartStart OK
• Page 30 - English - : 5 Adding detergent There are several options for adding detergent to the washing machine TwinDos The washing machine has an integrated detergent dispensing unit the TwinDos system After the supplied TwinDos cartridges have been inserted the system is ready for use Only operate the TwinDos system with the Miele UltraPhase1 and UltraPhase2 detergents How UltraPhase1 and UltraPhase2 work UltraPhase1 is a liquid detergent which dissolves dirt and removes the most common stains UltraPhase2 is a bleaching agent and removes stubborn stains For the best washing result these two agents are dispensed at separate times during the washing process UltraPhase1 and UltraPhase2 clean white and colored textiles thoroughly UltraPhase1 and UltraPhase2 single use cartridges are available to order from your Miele dealer or via Miele online store Activating TwinDos dispensing TwinDos dispensing is automatically activated on all programs in which dispensing is possible Tip The detergent dispensing quantities are preset If too much foam builds up the dispensing quantity for UltraPhase1 and UltraPhase2 can be reduced via Settings TwinDos Changing TwinDos dispensing You can change the suggested color composition of the laundry Touch the White or Color sensor button Deactivating TwinDos dispensing Touch the TwinDos sensor button The sensor button is only dimly lit and dispensing is deactivated Using other methods to remove stains If you use additional methods of stain removal you have the following options Using the Booster cap and activating the CapDosing Using chlorine bleach via the compartment in the detergent dispenser drawer Cartridge removal Press the yellow button above the cartridge to unlock it Remove the cartridge

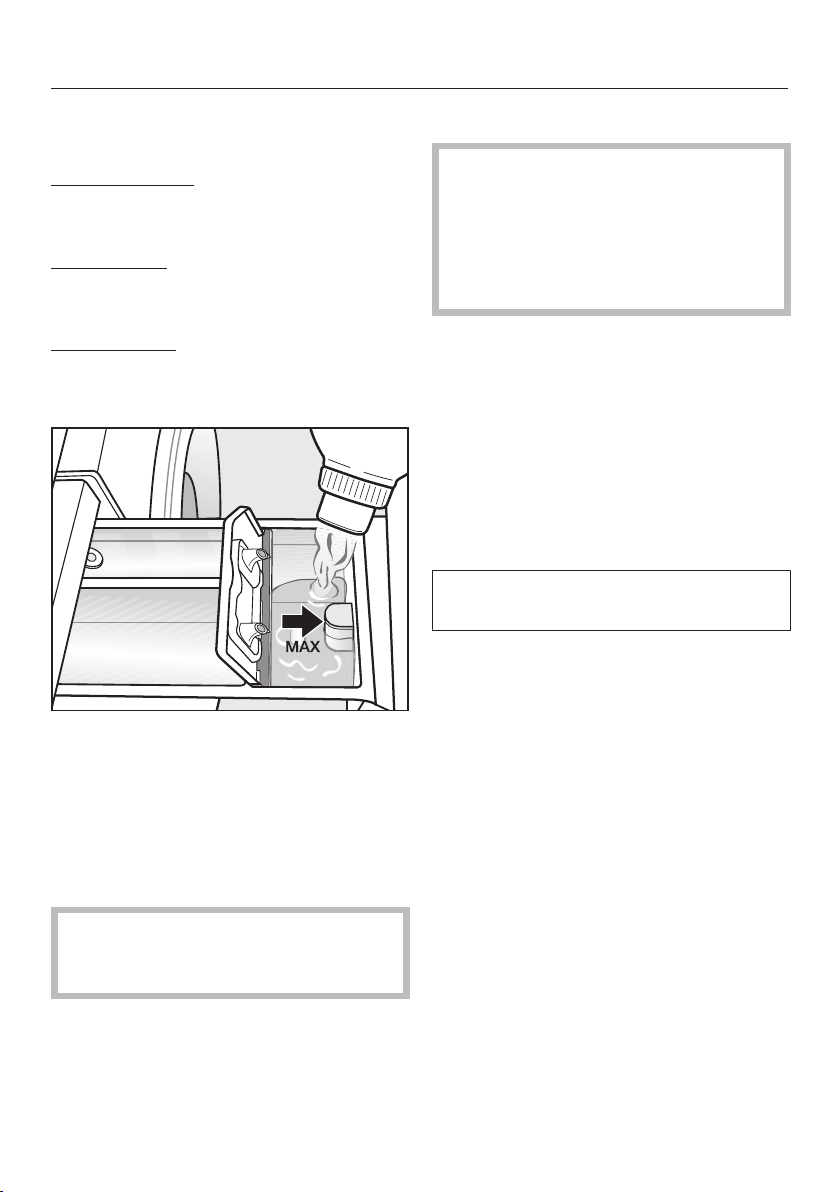

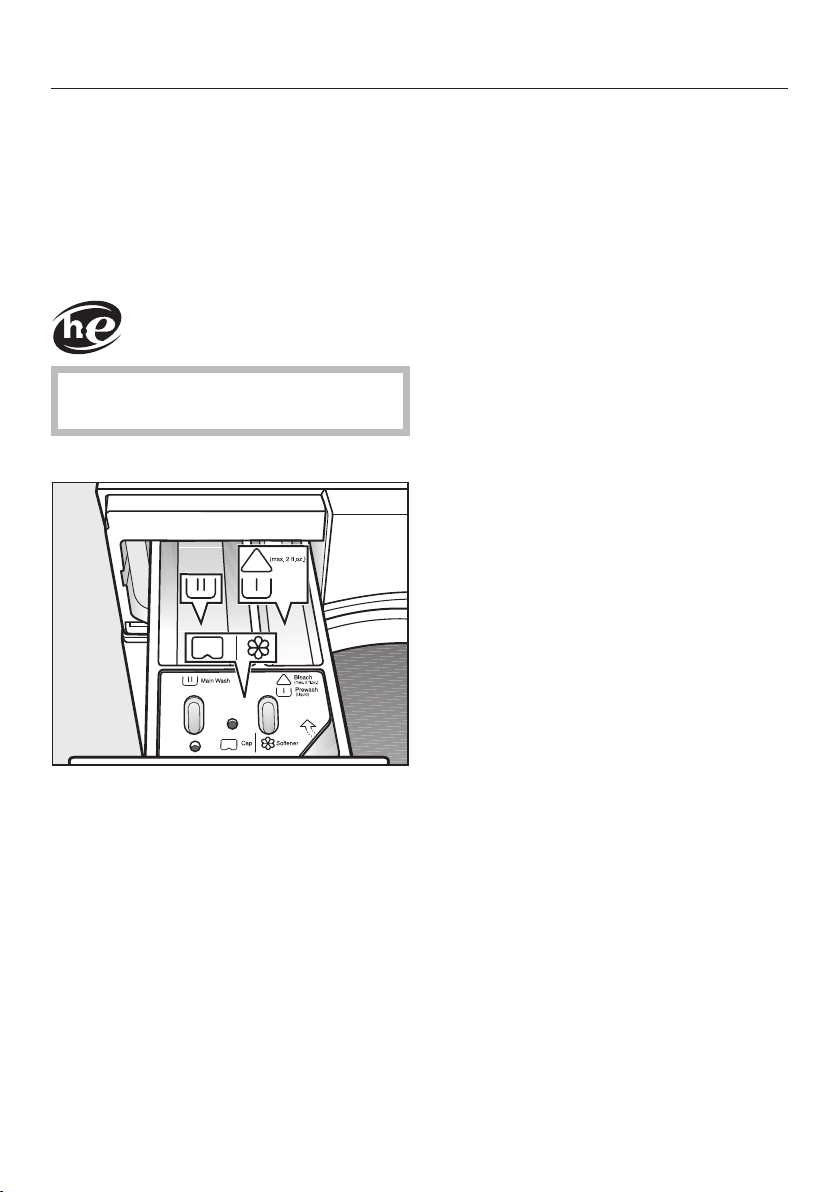

• Page 31 - English - : 5 Adding detergent Detergent dispenser drawer This washing machine requires high efficiency detergent Adhere strictly to the dispensing amounts supplied by the detergent manufacturer The detergents must be marked with the following label Ensure that TwinDos dispensing is deactivated Filling with detergent Pull out the detergent drawer and add detergents to the compartments Chlorine bleach for removing stains or liquid detergent for the prewash Detergent for the main wash and soaking Fabric softener liquid starch or capsules Tips for dispensing Adjust the detergent dosage to the level of soiling of the laundry and the maximum load Reduce the amount of detergent with smaller loads eg reduce the amount of detergent by ⅓ when washing a half load Too little detergent The laundry is not cleaned properly and may become gray and hard to the touch over time Can lead to a buildup of mould in the washing machine Grease is not completely removed from the laundry Can lead to limescale deposits on the heater elements Too much detergent Poor wash rinse and spin results Causes higher water consumption as an extra rinse cycle is automatically activated A greater burden on the environment Dispensing aids Use dispensing aids eg balls if these are supplied with the detergent particularly when using liquid detergent
• Page 32 - English - : 5 Adding detergent Using chlorine bleach Chlorine bleach is a very aggressive substance It can cause damage to the colors and fibers of textiles Only use chlorine bleach on suitable textiles Chlorination must be activated in the settings before chlorine bleach is first used Chlorine bleach may be used in the following programs Normal Wrinklefree Sanitize Dress Shirts Extra White Table LinensDrapes Baby Clothes Dispensing chlorine bleach Follow the manufacturers instructions on the packaging The extra option prewash must not be selected Pour max ¼ cup 60ml of chlorine bleach into the chamber The chlorine bleach is added automatically 10minutes before the end of the main wash Using powder detergent The detergent dispenser drawer contains an insert for liquid detergent in the compartment This insert must be removed to use powder detergent It is not possible to use powder detergent in the compartment A prewash cannot be carried out when using powder detergent Remove the detergent dispenser drawer Remove the insert for liquid detergents from the compartment Tip Reinsert the insert into the detergent dispenser drawer before next using liquid detergent Tip Use TwinDos dispensing if you want to run a program with prewash Using detergent tablets or pods Always put detergent tablets or pods directly in the drum with the laundry They cannot be added via the detergent dispenser drawer
• Page 33 - English - : 5 Adding detergent Using fabric softener and liquid starch Fabric softeners make garments soft to handle and help prevent static cling when tumble drying Liquid starch is synthetic and provides good stiffness to fabric Natural starch stiffens and gives body to fabric Adding fabric softener Add the fabric softener or the liquid starch to the compartment Do not exceed the maximum level mark It will be automatically dispensed in the final rinse cycle At the end of the program a small amount of water remains in the compartment If starching frequently clean the dispenser compartment especially the siphon regularly CapDosing Capsules contain corrosive ingredients and irritants Children could come into contact with the ingredients or swallow them Keep capsules out of the reach of children Three different types of capsule are available Fabric care eg fabric softener proofing agent Additives eg detergent enhancers Detergent for the main wash only Each capsule contains the correct amount for one wash cycle Capsules are available to order from Mieles online store Mieles customer service or from your Miele dealer

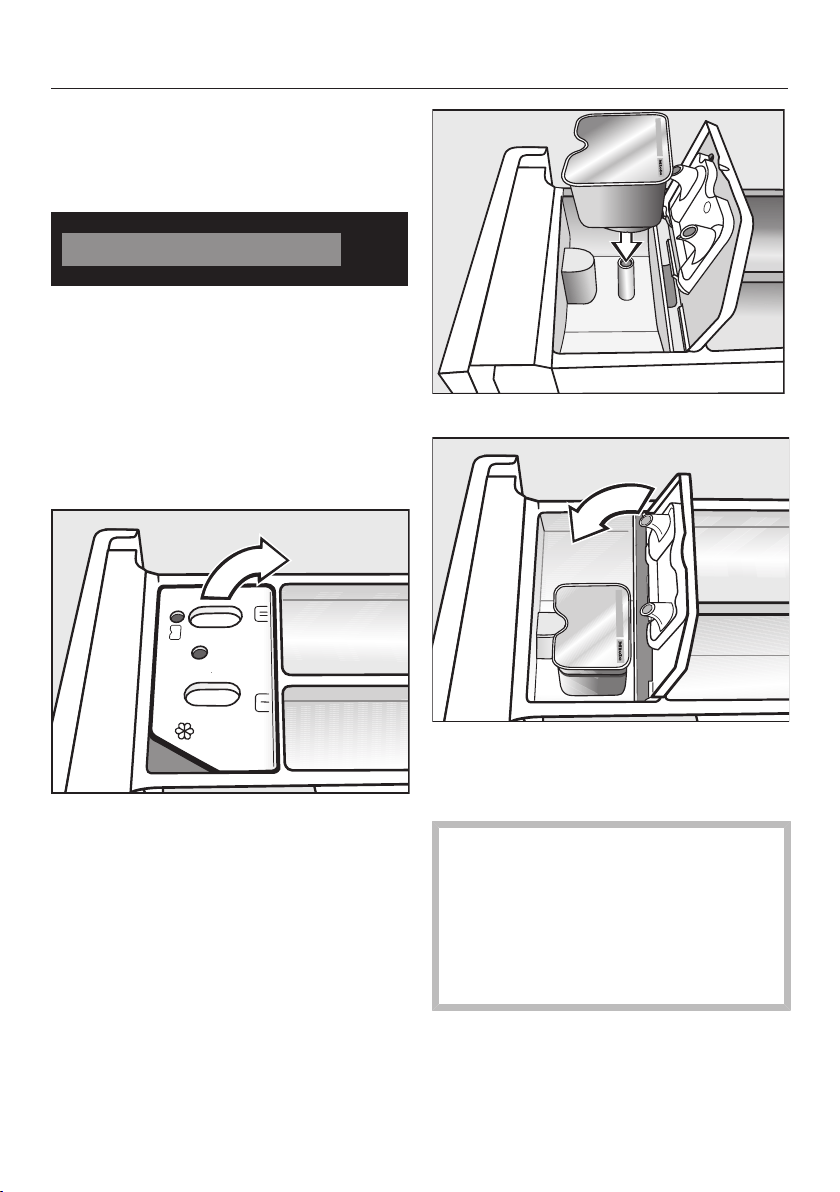

• Page 34 - English - : 5 Adding detergent Activating CapDosing Touch the sensor button The following appears in the display OK No Cap Touch the sensor buttons until the capsule you want appears in the display Confirm the capsule with the OK sensor button Inserting a capsule Open the detergent dispenser drawer Open the lid of the compartment Press the capsule in firmly Close the lid and press it firmly shut Close the detergent dispenser drawer The capsule is opened by the act of inserting it in the detergent dispenser drawer The contents can run out of the capsule if you then remove it from the drawer before it is used In this case dispose of the capsule and do not reuse it
• Page 35 - English - : 5 Adding detergent The contents of the capsule will be added to the wash program at the correct time During CapDosing water intake to the compartment is solely via the capsule No additional fabric softener may be added to the compartment when using a capsule Remove the empty capsule at the end of the wash program For technical reasons a small amount of water will remain in the capsule Deactivating or changing CapDosing CapDosing can only be deactivated or changed prior to program start Touch the sensor button Select No Cap deactivate or a different type of capsule change Dyes dye removers Do not use dye removers in this washer The use of dyes in the washer is recommended only to a degree of usual household use The salt used for dying may corrode the stainless steel with frequent use Use only as directed by the manufacturer

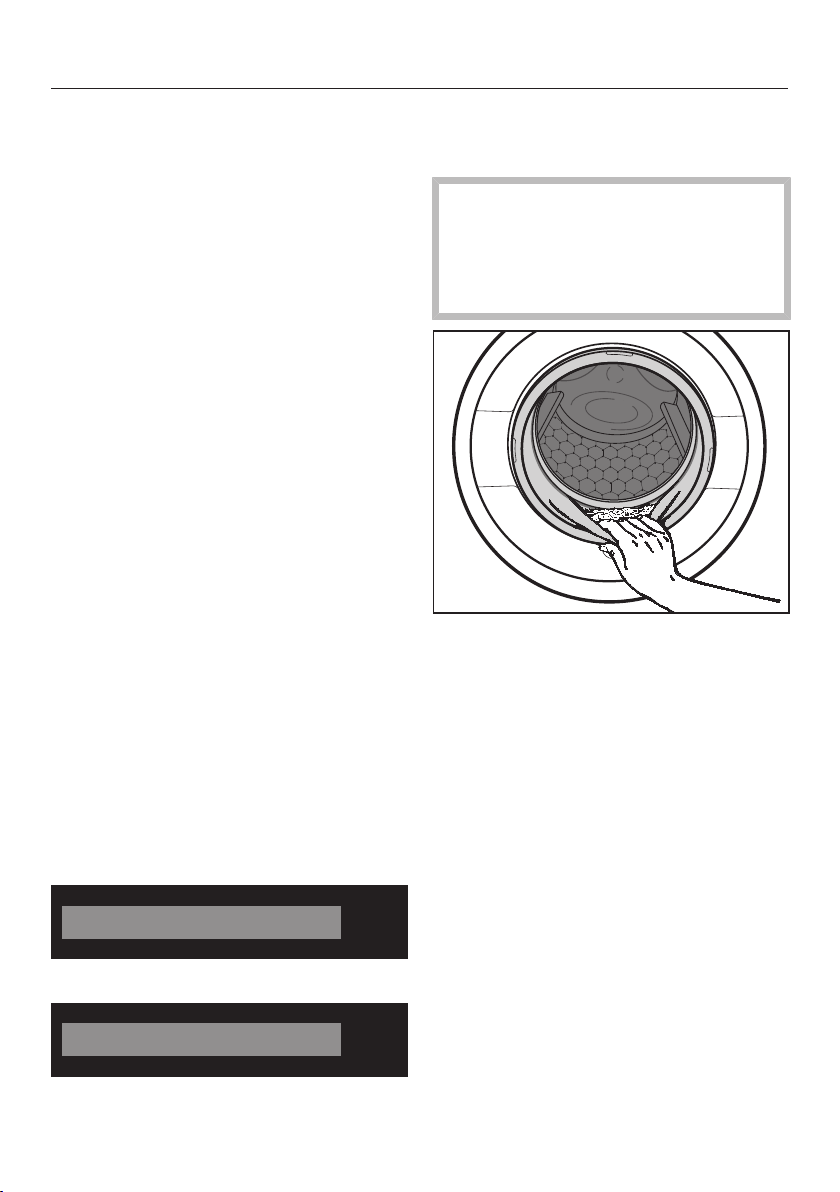

• Page 36 - English - : 6 Start the program Program end Starting a program Touch the flashing StartStop sensor button The door will lock will appear in the display to show this and the wash program will start If a delay start time has been selected then this will count down in the time display At the end of the delay start time or immediately after the program has started if no delay start time has been selected the program duration will appear in the time display Energy savings After 10 minutes the indicators dim The StartStop sensor button will light up flashing You can reactivate the indicators Touch the StartStop sensor button this does not have any effect on a running program The drum lighting switches off once the program has started Program end The door is still locked during the Anti crease phase and the following will appear alternately in the display EndAntiCrease OK and Press Stop button OK Touch the StartStop sensor button The door will be unlocked Pull open the door Remove the laundry Items left in the drum could discolor other items in the next wash or become discolored themselves Check that all items have been removed from the drum Check the folds in the door seal for any small articles Tip Leave the door slightly open to allow the drum to dry Turn the program selector to the position This switches the washing machine off If applicable remove the used capsule from the detergent dispenser drawer Tip Leave the detergent dispenser drawer slightly open to allow it to dry
• Page 37 - English - : Spin cycle Final spin speeds Program Selectable spin speeds in words and numbers Max 1600 rpm High 1200 rpm Med 800 rpm Slow 600 rpm 0 rpm Normal X X Wrinklefree X X X X Delicates X X X Sanitize X X X Handwash X X X X Dress Shirts X X X Express X X X X X DarksDenims X X X X Extra White X X X Outdoor X X X Table LinensDrapes X X X X Sportswear X X X X Woolens X X X X Silks X X Proofing X X X X DrainSpin X X X X Separate rinse X X X X X Baby Clothes X X X X X Towels X X X X X Downs X X X X Pillows X X X X Clean Machine optimum spin speed for program is preset X can be selected cannot be selected
• Page 38 - English - : Spin cycle Final spin speed in the wash program When a program is selected the optimum spin speed for the wash program is always shown in the display A faster spin speed can be selected for certain wash programs The highest selectable spin speed is indicated in the table Rinsespin There is a spin cycle after the main wash and between the rinse cycles A reduction in the final spin speed will also reduce the interim spin speed as appropriate Omitting the final spin Rinse hold If Rinse hold is selected the laundry remains in the water following the final rinse cycle This helps prevent creasing if the laundry is not going to be removed from the drum immediately after the end of the program Set the spin speed To start the final spin The washing machine will display the maximum spin speed possible You can reduce the spin speed Touch the StartStop sensor button Ending the wash program Use if you want to remove the laundry when it is dripping wet and without spinning Reduce the spin speed to 0rpm Touch the StartStop sensor button The water will be pumped away Deselecting the rinsespin and final spin Before the start of the wash program reduce the spin speed to 0rpm Touch the StartStop sensor button After the last rinse cycle the water will be pumped away and the anticrease phase will switch on An additional rinse cycle is carried out with this setting for certain wash programs
• Page 39 - English - : Program guide Programs on the program selector The temperature marked with is preset Temperature with garment care label symbols ItemTip Normal Full load 176lb8kg Hot 140F60C Cotton linen and mixed fibre textiles made of both cotton and linen Hot 120F50C Warm 105F40C Warm 85F30C Cold Cold USA test program in accordance with DOE Federal Register 10 CFR Part 430 Appendix J2 to subpart B Canada test program in accordance with CANCSAC36013 WrinkleFree Half load 88lb4kg Hot 140F60C Synthetic or mixed fibre fabric or easy care cotton Hot 120F50C Warm 105F40C Warm 85F30C Cold Cold Delicates Small load 66lb3kg Hot 140F60C For fine textiles made from synthetic fibers Hot 120F50C Warm 105F40C Warm 85F30C Cold Cold
• Page 40 - English - : Program guide Temperature with garment care label symbols ItemTip Sanitize Full load 176lb8kg Sanitize 170F75C Cotton or linen fabrics with direct skin contact or for which special hygiene requirements apply Handwash Small load 44lb2kg Warm 105F40C For fine textiles which are only suitable for hand washing Warm 85F30C Cold Cold Dress Shirts Small load 44lb2kg Hot 140F60C Pretreat collars and cuffs depending on the level of soiling Wash silk shirts and blouses in the Silks program Hot 120F50C Warm 105F40C Warm 85F30C Cold Cold MobileControl The Mielemobile app is used to select the programs and operate the appliance Express Half load 77lb35kg Warm 105F40C Cotton textiles that have hardly been worn or are only very lightly soiled Selecting the Light level of soiling will reduce the washing time by 10minutes Warm 85F30C Cold Cold
• Page 41 - English - : Program guide Temperature with garment care label symbols ItemTip DarksDenims Small load 44lb2kg Warm 105F40C Black and dark garments made from cotton mixed fibers and denim Wash inside out Denim often contains excess dye and may run during the first few washes Therefore wash light and colored items separately Warm 85F30C Cold Cold Extra White Full load 176lb8kg Hot 140F60C For white textiles made of cotton or linen without special hygiene requirements Outdoor Small load 55lb25kg Warm 105F40C Performance outerwear eg jackets and trousers made from membrane fabric Zip up or close any jackets with Velcro before washing Do not use fabric softener If required these garments can also be re proofed using the Proofing program Reproofing after each wash cycle is not recommended Warm 85F30C Cold Cold
• Page 42 - English - : Program guide Programs positioned on the More programs program selector Temperature with garment care label symbols ItemTip Table LinensDrapes Full load 132lb6kg Hot 140F60C Table Linens and drapes made of cotton and linen Hot 120F50C Warm 105F40C Warm 85F30C Cold Cold Sportswear Half load 66lb3kg Hot 140F60C Sportswear such as jerseys and leggings as well as microfiber and fleece garments Do not use fabric softener Observe the manufacturers care label Hot 120F50C Warm 105F40C Warm 85F30C Cold Cold Woolens Small load 44lb2kg Warm 85F30C Wool or woolblend textiles Reduce the final spin speed for items which crease easily Cold Cold Silks Very small load 22lb1kg Warm 85F30C Silks and other handwashable textiles with no wool content Place tights bras etc in a washing bag Cold Cold
• Page 43 - English - : Program guide Temperature with garment care label symbols ItemTip Proofing Small load 55lb25kg Warm 105F40C Treating microfiber fabric ski wear or Table Linens made from mainly synthetic fibers to provide a finish which is resistant to water and dirt The items should be freshly laundered and spun or dried before proofing For best results the items should be heat treated afterwards either in a tumble dryer or by ironing DrainSpin Full load 176lb8kg Drain only Set spin speed to No Make sure you select the appropriate spin speed Separate rinse Full load 176lb8kg For rinsing handwashed items Reduce the final spin speed for items which crease easily Baby Clothes Full load 132lb6kg Hot 140F60C Baby Clothes baby towels bath gowns toweling items bibs made from cotton Hot 120F50C Warm 105F40C Warm 85F30C Cold Cold
• Page 44 - English - : Program guide Temperature with garment care label symbols ItemTip Towels Full load 11lb5kg Hot 140F60C For linen or cotton towels Hot 120F50C Warm 105F40C Warm 85F30C Cold Cold Downs Small load 44lb2kg Hot 140F60C Jackets sleeping bags pillows and other Down Filled Items Remove air from the laundry before washing to prevent an excessive buildup of foam To do this either push the items into a narrow laundry bag to compress them or tie the items together with a washable strap Please observe the instructions on the wash care label Hot 120F50C Warm 105F40C Warm 85F30C Cold 65F15C Pillows 2 pillows 40x80cm or 1 pillow 80x80cm Hot 140F60C Syntheticfilled washable pillows Remove air from the laundry before washing to prevent an excessive buildup of foam To do this either push the items into a narrow laundry bag to compress them or tie the items together with a washable strap Please observe the instructions on the wash care label Hot 120F50C Warm 105F40C Warm 85F30C Cold 65F15C
• Page 45 - English - : Program guide Settings maintenance Settings You can use the settings to alter the washing machines electronics to suit changing requirements See Settings for more detailed information Maintenance The washing machine has two maintenance programs 1 Clean Machine for cleaning the washing machine 2 TwinDos Care for maintenance of the TwinDos compartments See Cleaning and care TwinDos maintenance for more details Temperature with garment care label symbols ItemTip Clean Machine Without load With frequent washing at low temperatures there is a danger of a buildup of bacteria in the washing machine Cleaning the washing machine will significantly reduce bacteria and prevent the buildup of unpleasant odors Optimum results can be achieved by using Miele machine cleaner Alternatively a universal powder detergent can be used Dispense the machine cleaner or universal detergent directly into the drum Do not load machine The drum must be empty for the maintenance wash
• Page 46 - English - : Extra options You can supplement the wash programs with extra options Selecting extra options Extra options are selected or deselected using the sensor buttons in the control field Additional extra options can be selected on the display using the Extras sensor button Touch the sensor button for the extra option you want The relevant button will light up brightly Not all the extra options can be used with every program An extra option that is not permitted for the wash program is not lit dimly and cannot be activated by touch SoftSteam In order to reduce creasing the laundry undergoes a smoothing process at the end of the program Reducing the maximum load by 50 will give a better result Without SoftSteam With SoftSteam Full load Half load Half load Small load Small load Very small load Small loads give a better result The garments must be suitable for drying in a tumble dryer and suitable for ironing Prewash For laundry with large amounts of dirt eg dust and sand Prewash cannot be combined with the use of chlorine bleach The chlorine bleach is added too early Only liquid detergent may be added to the chamber of the detergent dispenser drawer Powder detergent clogs up the chamber and water can escape from the detergent dispenser drawer Buzzer A buzzer sounds at the end of the program The buzzer sounds until the washing machine is switched off The volume of the buzzer can be changed see Settings Buzzer
• Page 47 - English - : Extra options Extra options can be selected using the Options sensor button Selecting extra options in the display Touch the Options sensor button The first extra option which can be selected appears in the display Touch the sensor buttons until the extra option you want appears in the display Confirm the extra option with the OK sensor button The extra option has a next to it Deselecting an extra option Touch the Options sensor button The first extra option which can be selected appears in the display Touch the sensor buttons until No Extras appears in the display Confirm No Extras with the OK sensor button The previously selected extra option is now deselected Soak For heavily soiled textiles with protein stains A duration of between 30 minutes and 6 hours can be chosen for the soak process in 30minute increments See Settings for more information The factory default setting is 30 minutes Gentle Drum rotation and wash duration is reduced Lightly soiled textiles are washed more gently ExtraRinse An additional rinse cycle can be activated to give a better wash result
• Page 48 - English - : Extra options The following extra options can be selected in addition to the programs SoftSteam Buzzer Prewash Soak Gentle ExtraRinse Normal X X X X X Wrinklefree X X X X X X Delicates X X X X X X Sanitize X X X X X X Handwash X Dress Shirts X X X X X X Express X X DarksDenims X X X X X X Extra White X X X X X X Outdoor X X X X Table LinensDrapes X X X X X X Sportswear X X X X Woolens X Silks X Proofing X DrainSpin X Separate Rinse X X Baby Clothes X X X X X X Towels X X X X Downs X X X Pillows X X X X can be selected cannot be selected
• Page 49 - English - : Changing the program sequence Canceling a program You can cancel a wash program at any time after it has started Touch the StartStop sensor button The following will appear in the display Cancel Program OK Touch the OK sensor button The suds will be pumped away The following will appear in the display Program Canceled OK Wait until the door unlocks Pull open the door Remove the laundry If you want to select a different program Close the door Select the desired program Add detergent to the detergent dispenser drawer if necessary Touch the StartStop sensor button The new program will begin Interrupting a program Turn the program selector to the position The washing machine switches off To continue Turn the program selector to the position of the wash program that was started Tip If Change not possible appears in the display the program selector is in the incorrect position Changing the program After a program has started it is no longer possible to select a different program
• Page 50 - English - : Changing the program sequence Child lock The wash program cannot be interrupted unintentionally Activating the child lock Touch the StartStop sensor button The following will appear in the display Cancel Program OK Scroll up the list with the sensor buttons Activate lock OK Touch the OK sensor button Deactivating the child lock Touch the StartStop sensor button The following will appear in the display Deactivate lock OK Touch the OK sensor button Adding or removing laundry Laundry can only be added or removed at the beginning of a wash program If the following message no longer appears in the display then it is no longer possible to add items of laundry Press the StartStop button The following will appear in the display Cancel Program OK Touch the sensor buttons until the following appears in the display Add laundry OK Touch the OK sensor button The program will stop and the door will unlock Pull open the door Add or remove items Close the door Touch the StartStop sensor button The wash program will continue
