9.808-123.0-D 05/01/19
WR-30E
Service Manual
Water Reclamation System
MODEL: WR-30E
1.103-516.0
FOR COMMERCIAL USE
For the Dealer nearest you,
consult our web page at
www.karchercommercial.com
2 Kärcher WR-30E Service Manual 9.808-123.0 - D
Machine Data Label
3
Table of Contents
Machine Data Label . . . . . . . . . . . . . . . . . . . . . . . . . .2
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
How To Use This Manual . . . . . . . . . . . . . . . . . . . . .4
Safety
Important Safety Information. . . . . . . . . . . . . . . . . . .5
Grounding Instructions . . . . . . . . . . . . . . . . . . . . . . .6
Operations
Component Identification . . . . . . . . . . . . . . . . . . . . .8
Installation & Start Up Instructions . . . . . . . . . . . . .12
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Start Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Utility Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Operating Environment . . . . . . . . . . . . . . . . . . . . . .13
Operating Conditions . . . . . . . . . . . . . . . . . . . . . . .13
Cold Weather . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Cold Climate Conditions . . . . . . . . . . . . . . . . . . . . .13
Sump Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Pump Operation . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Maintenance Instructions . . . . . . . . . . . . . . . . . . . .14
Daily Schedule: . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Weekly Maintenance Schedule: (Performed by
customer personnel) . . . . . . . . . . . . . . . . . . . . . .14
Pump Maintenance . . . . . . . . . . . . . . . . . . . . . . . . .14
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Parts

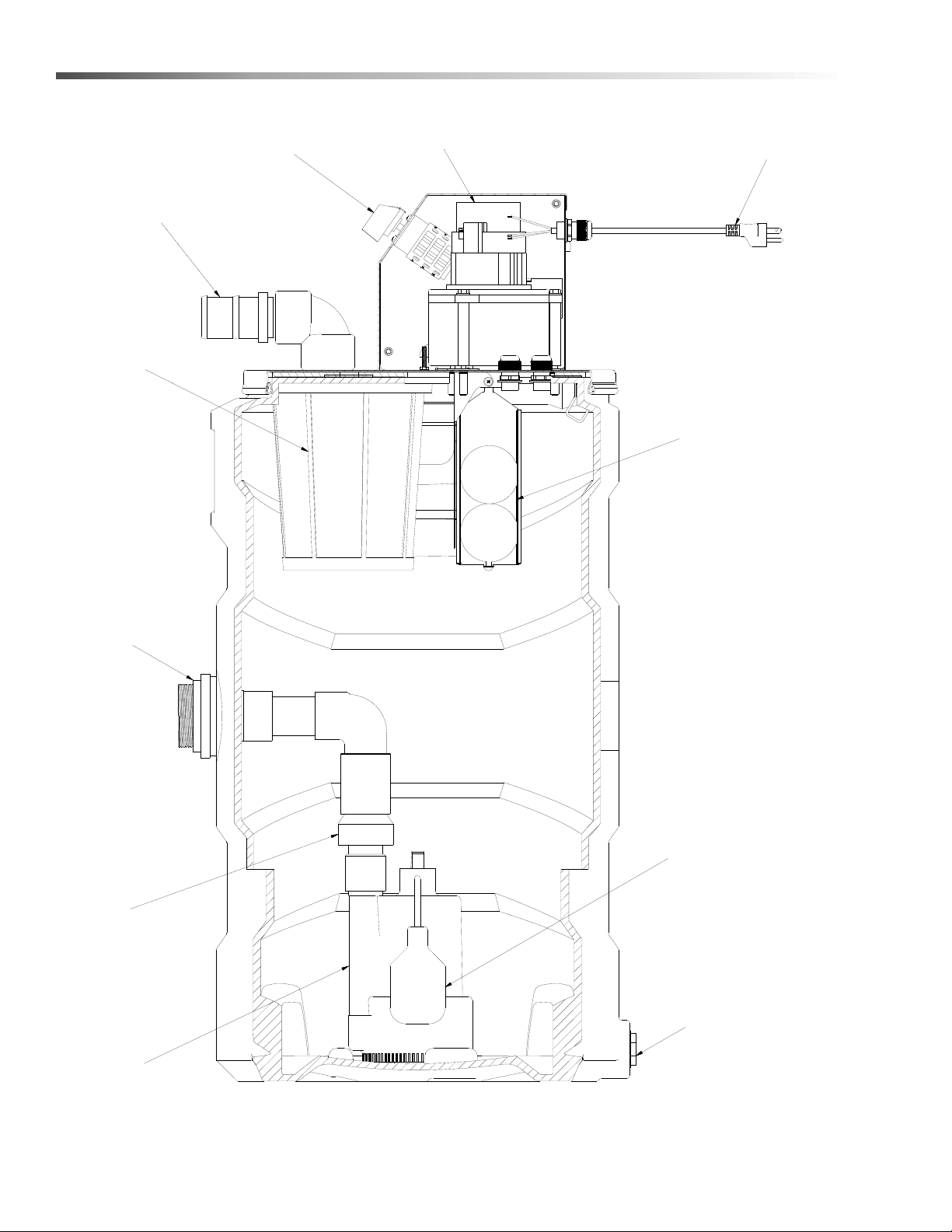

Body . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

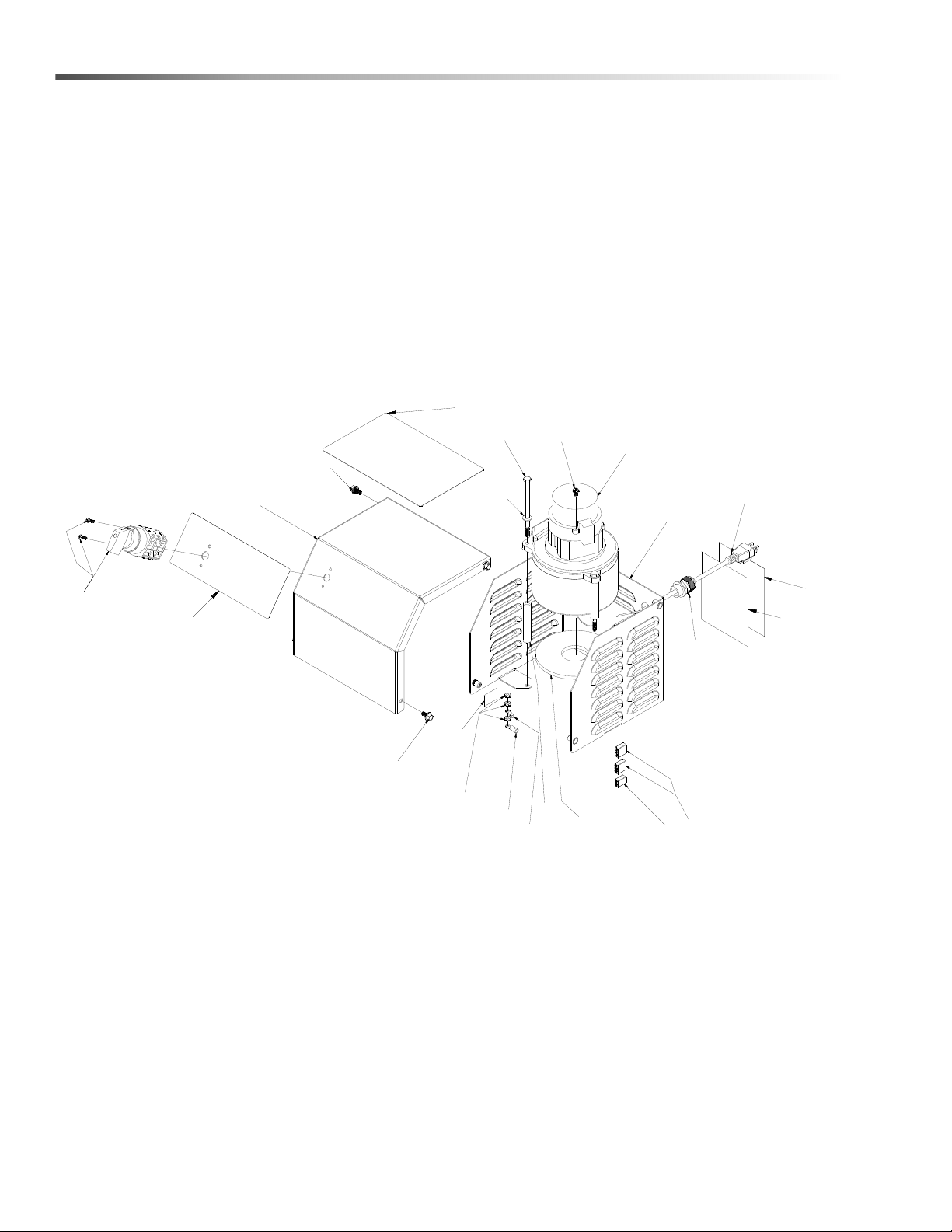

Motor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Sump Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Ball Float . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

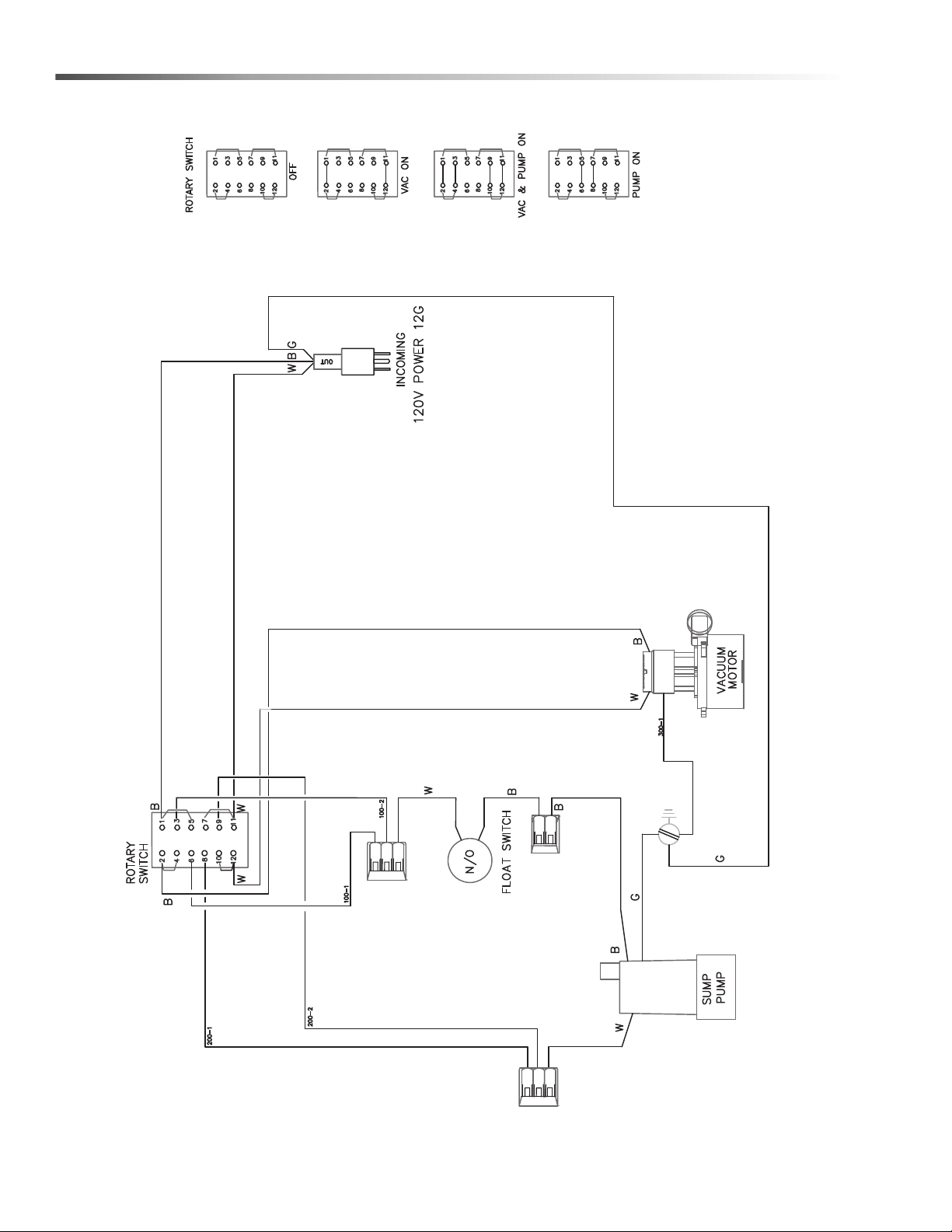

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Kärcher WR-30E Service Manual 9.808-123.0 - D
4
How To Use This Manual
This manual contains the following sections:
• How to Use This Manual
•Safety
• Operations
• Maintenance
• Parts List
The HOW TO USE THIS MANUAL section will tell you
how to find important information for ordering correct
repair parts.
Parts may be ordered from authorized dealers. When
placing an order for parts, the machine model and
machine serial number are important.
The model and serial number of your machine are
located on the back of the machine.
The SAFETY section contains important information
regarding hazardous or unsafe practices of the
machine. Levels of hazards are identified that could
result in product damage, personal injury, or severe
injury resulting in death.
The OPERATIONS section is to familiarize the operator
with the operation and function of the machine.
The MAINTENANCE section contains preventive main-
tenance to keep the machine and its components in
good working condition.
The PARTS LIST section contains assembled parts
illustrations and corresponding parts list. The parts lists
include a number of columns of information:
• REF – column refers to the reference number
on the parts illustration.
• PART NO. – column lists the part number for
the part.
• QTY – column lists the quantity of the part used
in that area of the machine.
• DESCRIPTION – column is a brief description
of the part.
• NOTES – column for information not noted by
the other columns.
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement parts
numbers needed for ordering future parts.
NOTE: The manual part number is located on the
lower right corner of the front cover.
Model:
Date of Purchase:
Serial Number:
Dealer:
Address:
Phone Number:
Sales Representative:
Kärcher WR-30E Service Manual 9.808-123.0 - D
5
Safety
Important Safety Information
Your owner’s manual has been prepared to provide
you with a simple and understandable guide, for
equipment operation and maintenance, based on the
latest product information available at the time of
printing.To keep your machine in top running condition
follow the specific maintenance and troubleshooting
procedures given in this manual.
NOTE: Karcher reserves the right to make changes at
any time without incurring any obligations.
Owner/User Responsibility:
The owner and/or user must have an understand-
ing of the manufacturer’s operating instructions and
warnings before using this equipment. Warning
information should be emphasized and understood. If
the operator is not fluent in English, the manufac-
turer’s instructions and warnings shall be read to and
discussed with the operator in the operator’s native
language by the purchaser/owner, making sure that the
operator comprehends its contents.
Owner and/or user must study and maintain for future
reference the manufacturers’ instructions.
Save These Instructions
This manual should be considered a permanent
part of the machine and should remain with it if
machine is resold.
When ordering parts, please specify model and
serial number. Use only identical replacement
parts.
This machine is to be used only by trained
operators.
General Safety Information
WARNING: When using this
machine basic precautions
should always be followed,
including the following:
AVERTISSEMENT: En utilisant
cette machine, des précautions
de base devraient toujours être
observées, y compris ce qui
suit:
1. Read all the instructions before using the product.
2. To reduce the risk of injury, close supervision is
necessary when a product is used near children.
3. Know how to stop the product. Be thoroughly
familiar with the controls.
4. Stay alert – watch what you are doing.
5. Do not operate the product when fatigued or under
the influence of alcohol or drugs.
6. Keep operating area clear of all persons.
7. Do not overreach or stand on unstable support.
8. Keep good footing and balance at all times. Follow
the maintenance instructions specified in the
manual.
9. Know the system application, limitations, and
potential hazards.
WARNING: This machine must
be wired to the correct voltage.
Refer to the information located
on the serial plate.
AVERTISSEMENT: Raccorder le
système au réseau électrique
en respectant la tension. Se
référer aux informations qui se
trouvent sur la plaque
signalétique.
WARNING: All wiring must be performed by a
qualified electrician.
AVERTISSEMENT: Tout le câblage doit être
effectué par un électricien qualifié.
WARNING: Risk of Electric Shock
AVERTISSEMENT: Risque de choc électrique
WARNING
READ OPERATOR’S
MANUAL THOROUGHLY
PRIOR TO USE.
OPERATIONS
SAFETY
MAINTENANCE
KEEP WATER
SPRAY AWAY FROM
ELECTRICAL WIRING.
WARNING
Kärcher WR-30E Service Manual 9.808-123.0 - D
6
Safety
DANGER: Improper connection of the equipment
grounding conductor can result in a risk of electro-
cution. Check with a qualified electrician or service
personnel if you are in doubt as to whether the
machine is properly grounded. All electrical lines
must be installed by qualified personnel only. Do
not use any type of adapter with this product.
DANGER : Une mauvaise connexion du conducteur
de terre de l'équipement peut entraîner un risque
d'électrocution. Vérifier auprès d'un électricien
qualifié ou du personnel d'entretien si vous avez
des doutes quant à savoir si la sortie est correcte-
ment mise à la masse. Toutes les lignes électriques
doivent être installées par du personnel qualifié
uniquement. NE JAMAIS utiliser un adaptateur
avec ce produit.
Grounding Instructions
This product must be connected to a grounded, metal,
permanent wiring system; or an equipment-grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal located
on the product in compliance with National Electrical
Codes (NEC).
CAUTION: Do not leave this product when plugged
in. Unplug from outlet when not in use.
ATTENTION : Ne laissez pas ce produit lorsqu'il est
branché. Débranchez la prise de courant
lorsqu'elle n'est pas utilisée.
CAUTION: Do not unplug by pulling on cord. To
unplug, grasp the plug, not the cord.
ATTENTION : Ne débranchez pas l'appareil en tirant
sur le cordon. Pour le débrancher, empoignez la
fiche, non pas le cordon.
WARNING: Do not use near
concentrations of flammable or
explosive fluids such as
gasoline, fuel oil, kerosene,
solvents, etc. Do not use in
explosive atmospheres. Liquids
compatible with component
materials should only be used.
Failure to follow this warning can
result in personal injury and/or
property damage.
AVERTISSEMENT: Ne pas utiliser près de concen-
trations de liquides inflammables ou explosifs tels
que l'essence, le mazout, le kérosène, les solvants,
etc. Ne pas utiliser dans des atmosphères explo-
sives. Seuls des liquides compatibles aux
matériaux des composantes devraient être utilisés.
Le non-respect de cet avertissement peut mener à
des lésions corporelles et/ou des dommages à la
propriété.
10. Protect all electrical cords from sharp objects, hot
surfaces, oil, sunlight, and chemicals. Avoid
kinking the cords.
WARNING: If any cords or electrical wires appear
to be frayed, damaged, or in poor condition,
proceed with caution and immediately take steps to
have the cords repaired or replaced.
AVERTISSEMENT: Si un cordon ou des fils
électriques semblent effilochés, endommagés ou
en mauvais état, agir avec prudence et prendre
immédiatement des mesures afin que les cordons
soient réparés ou remplacés.
11. Never make adjustments on the machine while it is
in operation, except for those prescribed in this
manual.
12. Follow the maintenance instructions specified in
this manual.
13. Before servicing the machine, refer to all the SDS’s
on the material identified in the waste stream. You
must comply with all warnings and wear all protec-
tive clothing as stated on the SDS’s.
14. The best insurance against an accident is precau-
tion and knowledge of the equipment.
15. Kärcher is not liable for modifications or use of
components not purchased from Kärcher.
WARNING
RISK OF EXPLOSION:
OPERATE ONLY WHERE
OPEN FLAME OR TORCH
IS PERMITTED
Kärcher WR-30E Service Manual 9.808-123.0 - D
7
Safety
16. Personal Safety:
a. Wear safety glasses and other applicable protective
clothing at all times when working on this machine.
b.Keep your work area clean, uncluttered and properly
lighted
c.Replace all unused tools and equipment.
d.Keep visitors at a safe distance from work area.
17. Release all pressure within the system before
servicing any component.
18. Drain all liquids from the component before
servicing.
19. Check hoses for weak or worn conditions before
each use, making certain that all connections are
secure.
20. Periodically inspect system components. Perform
routine maintenance as required.
21. Do not touch an operating motor. Modern motors
are designed to operate at high temperatures.
22. Do not touch any electrical component with wet
hands, when standing on a wet or damp surface, or
in water.
23. The pump motor is equipped with a thermal
protector. Tripping is an indication of motor over-
loading as a result of operating at excessively high
or low voltage, inadequate wiring or excessively
high water temperature.
24. Do not spray water directly at machine.
WARNING: Protect machine from
freezing.
AVERTISSEMENT: Protéger la
machine contre le gel.
WARNING: This system contains moving parts in
the control box and in the pump. Follow safe
practices when performing maintenance and when
troubleshooting. Disconnect the power before
servicing this machine.
AVERTISSEMENT: Ce système contient des pièces
mobiles dans le centre de contrôle. Suivre les
pratiques de sécurité au moment d'effectuer des
opérations d'entretien et lors de la correction des
erreurs. Débrancher l'alimentation avant
d'effectuer des opérations d'entretien sur cette
machine.
WARNING: Make sure to take precautions when
performing maintenance on the pump in the catch
basin. Turn off the power to the pump and make
sure electrical cords are well maintained.
AVERTISSEMENT: S'assurer de prendre les
précauions nécessaires au moment d'effectuer des
opérations d'entretien sur la pompe dans le bassin
collecteur. Mettre la pompe hors tension et
s'assurer que les cordons électriques sont bien
entretenus.
WARNING
PROTECT FROM
FREEZING
Kärcher WR-30E Service Manual 9.808-123.0 - D
8
Operations

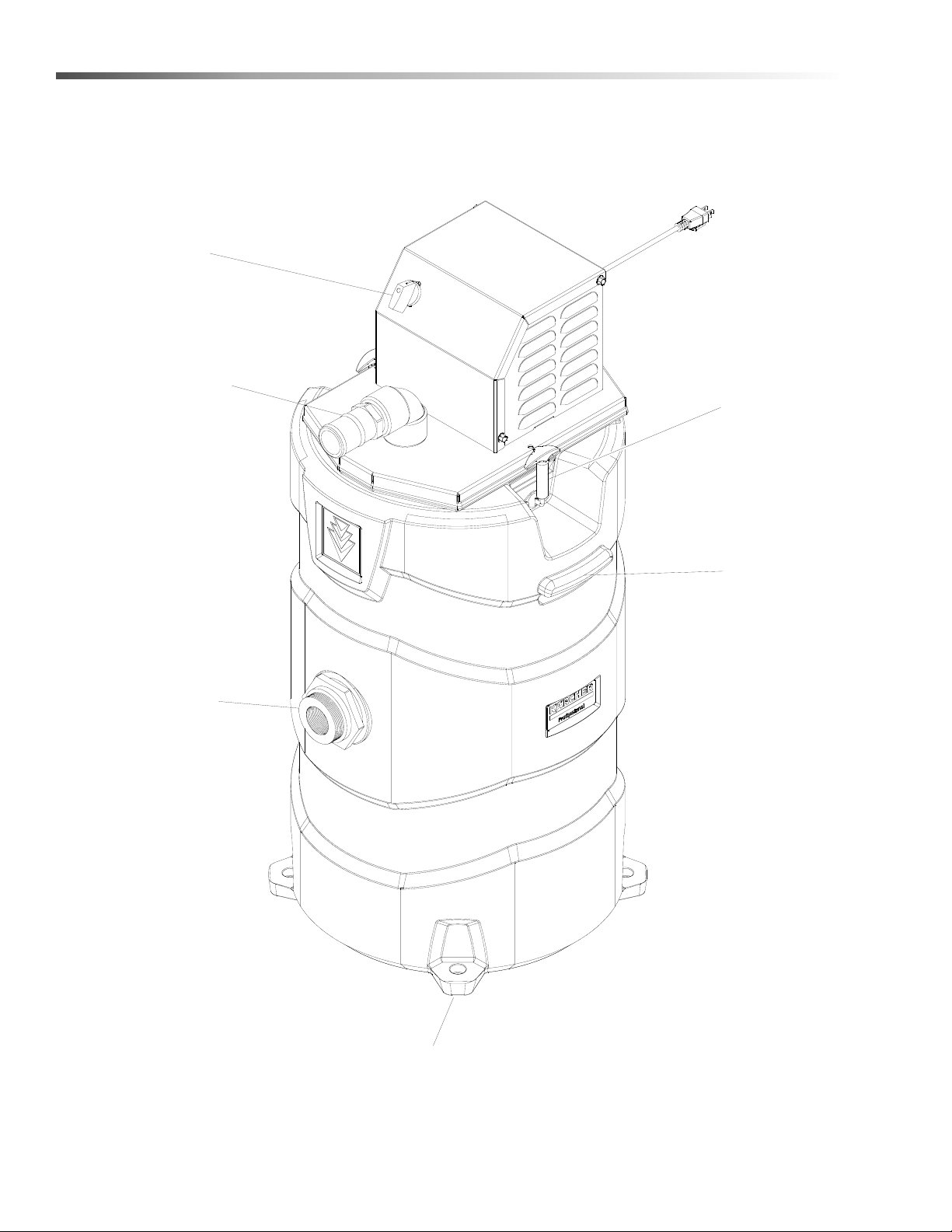

Component Identification
Switch
Vacuum Inlet
Port
Water Discharge
Mounting Feet
Lid Latches
Handles
Kärcher WR-30E Service Manual 9.808-123.0 - D
9

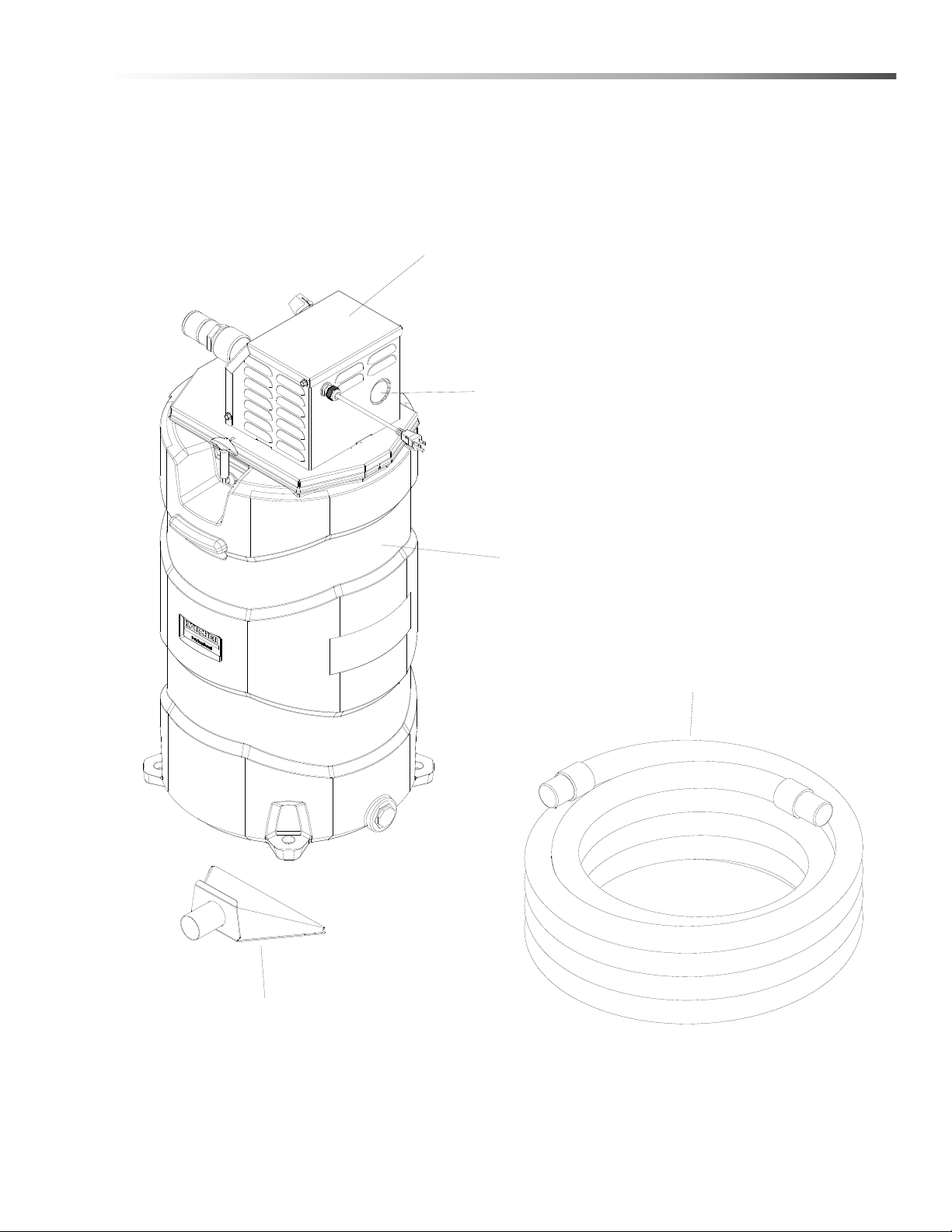

Operations
Kärcher WR-30E Service Manual 9.808-123.0 - D
Control Box
Vacuum Motor
Exhaust
Water Tank
Vacuum Scupper
Vacuum Hose
10
Operations
10
9
6
3
2
1
7
5
4
11
8
Kärcher WR-30E Service Manual 9.808-123.0 - D
11
Operations
# COMPONENT NAME COMPONENT FUNCTION
1 Switch Turning pump and vacuum motor ON/OFF.
2 Vacuum Motor Reducing air pressure inside the tank to create suction.
3 Electrical Plug 120V Supplying 120V/15A power to the system.
4 Suction Port Connecting vacuum hose to the tank.
5 Screen Basket Collecting light debris for waste water stream.
6 High Level Float Switch Limiting water level, preventing water to get into the vacuum motor.
7 Discharge Port Connecting transferring hose, discharging water.
8 Check Valve
Preventing vacuum losses due to air coming into the tank through the sump
pump.
9 Low Level Float Switch Preventing sump pump from running dry.
10 Tank Drain Draining the tank.
11 Sump Pump Transferring water to a holding tank or recycling system.
Kärcher WR-30E Service Manual 9.808-123.0 - D
12
Operations
WR-30E Water Recovery Unit
The Karcher WR-30E should be used as a waste water
reclamation system, and a transferring unit to pump the
waste water to a storage tank or to a water treatment
system. Do not dump waste water on public sewer
systems, make sure you understand local regulation
before disposing waste water.
Installation & Start Up Instructions
The following instructions will provide adequate in-
formation to fully install your Kärcher Recovery System.
Please follow these instructions step by step to ensure
proper installation.
Installation
The WR-30E is designed to be permanently installed
on a flat level surface (e.g. trailers) and to be set up as
a mobile unit to be used as a large wet/dry shop
vacuum.
For a permanent installation on a flat level surface the
following is required:
• A professional drill and a 3/8" drill bit.
• 3/8" bolts. (4)
• 3/8" vibration resistance nuts. (4)
• 3/8 flat washers. (8)
• Assembly tools.
Use one washer on the bolt head side and one on the
nut side. Stainless Steel fasteners are recommended.
Make sure to use the proper bolt length for your specific
installation conditions.
For a mobile set up the casters KIT 8.928-887.0 will
need to be ordered at your local Karcher dealer, it will
provide:
• Heavy duty casters (4)
• 3/8" x 3" stainless steel bolts (4)
• 3/8" stainless steel luck-nuts (4)
• 3/8" stainless steel flat washers (8)
Basic assembly tools will be required for installing the
casters KIT
Start Up
1. Connect the vacuum hose to the inlet port of the
tank by pushing the hose end sleeve on the barbed
couple.
2. Connect the opposite end of the vacuum hose to
the stainless steel vacuum scupper provided with
the unit.
3. Place the vacuum scupper at the point where the
water will be pick up, usually this is a low point on
the ground where water creates a puddle.
4. Connect the electrical plug provided with the WR-
30E unit into a 120V/15AMP GFCI protected power
supply.
5. Turn the vacuum motor switch to the "ON" position
to start collecting water in the tank. As soon as the
water level lifts the pump float switch the pump will
be able to transfer water.
6. Turn the pump switch "ON" to evacuate the water
or to transfer the water to a storage tank.
7. A hose and/or piping might be required to connect
the discharge of the WR-30E unit to a storage tank.
NEVER discharge waste water in the WR-30E tank
into public sewer, make sure to comply with any
applicable local regulation for waste eater disposal.
Utility Usage
Electrical: 120 VAC, 1 PH
Amps: 15 amps
Kärcher WR-30E Service Manual 9.808-123.0 - D
13
Operations
Operating Environment
The WR-30E is designed to work in a wide variety of
operating conditions. In normal operating environ-
ments, the system should perform as specified. In
extremely hot or cold environments certain precautions
need to be taken.
Operating Conditions
Air Temperature Range 40° - 120°F
Cold Weather
Protect the WR-30E from damage
that can occur when freezing water
expands. Freezing water may cause
hoses, pipes and tanks to burst.
Drain all water from the system if a
prolonged hard freeze is expected.
Cold Climate Conditions
In locations where freezing temperatures will be experi-
enced on a regular basis or where very cold tempera-
tures will be incurred, the water treatment system
should be drained when the outside ambient tempera-
ture drops below freezing and/or the water recovery
system (WR-30E) should be housed in a heated struc-
ture. The warranty on the water treatment system does
not provide for repair due to freezing conditions.
Sump Pump
Your Sump Pump is designed and built to give you
reliable performance and long life. It will pump water
automatically for years when properly used in the right
environment
Pump Operation
WARNING: Do not touch pump,
pump motor, water or dis-charge
piping when the pump is
connected to electrical power. Do
not handle a pump or pump
motor with wet hands or when
standing on a wet or damp
surface or in water. Never touch a
pump or discharge piping when a
unit is operating or fails to
operate. Always disconnect the
pump cord (power) before handling.
AVERTISSEMENT: Ne pas toucher les pompes, les
moteurs de pompe, les canalisations d’eau ou les
tuyaux de refoulement lorsque les pompes sont
connectées au réseau électrique. Ne pas manipuler
une pompe ou un moteur de pompe avec les mains
mouillées ou lorsque vous vous tenez sur une
surface mouillée ou humide, ou encore dans l'eau.
Ne jamais toucher une pompe ou la tuyauterie de
sortie pendant qu'une machine est en marche ou
ne fonctionne pas correctement. Toujours
débrancher le cordon de la pompe (alimentation)
avant la manutention
Your sump pump has thermal over-load protection built
in. The thermal overload protector will automatically
shut down the pump in an overheat situation. It will then
reset itself once the pump cools down.
CAUTION: Do not run the pump without water or
pump damage will result.
ATTENTION: Ne pas faire fonctionner la pompe
sans eau pour éviter d'endommager la pompe.
The pump depends on water for cooling and lubrica-
tion. Operating the pump without water may cause the
motor to overheat or cause damage to parts of the
pump. It may also shorten the life of your pump.
WARNING
DRAIN SYSTEM WHEN
TEMPERATURES DROP
BELOW FREEZING
RISK OF ELECTRIC
SHOCK: USE CAUTION
WHEN HANDLING.
WARNING
Kärcher WR-30E Service Manual 9.808-123.0 - D
14
Maintenance
Environmental
To reduce deterioration of equipment it is
recommended that the RC-30E Water Recovery
System be protected from environmental elements
such as rain, snow, hail, direct sunlight, as well as
freezing temperatures. For Outdoor use. Store
indoors.
Maintenance Instructions
Daily and weekly maintenance is important for your
system to function consistently and properly.
Maintenance frequency depends on many factors,
such as usage, volume of sludge, etc. On-site
personnel should be trained and be aware of the daily
and weekly maintenance that is required to meet these
performance factors. We recommend the following:
Daily Schedule:
(Performed by customer personnel)
1. Inspect the screen basket in the inlet of the tank,
remove debris and rinse it as necessary,
2. A small amount of sludge might collect on the
bottom of the tank, even after the pump evacuates
all water from the tank, inspect and remove sludge
as necessary using water and tank drain.
3. While operating the unit, observe an repair any
water leaks.
Weekly Maintenance Schedule:
(Performed by customer personnel)
1. Inspect pump and vacuum motor for any function
abnormalities, i.e.: noise changes, increase vibra-
tion, or rattling. Contact you local dealer for
questions and replacement parts.
Pump Maintenance
WARNING: Before attempting to service,
disconnect power from unit. Do not handle the
pump with wet hands or when standing on a wet or
damp surface or in water. Failure to follow
precautions can result in personal injury and /or
property damage.
AVERTISSEMENT: Toujours débrancher l'alimenta-
tion avant d'effectuer des opérations d'entretien
sur la machine. Ne pas manipuler la pompe avec
les mains mouillées ou lorsque vous vous tenez
sur une surface mouillée ou humide, ou encore
dans l'eau. Le non-respect des précautions peut
mener à des lésions corporelles et/ou des
dommages à la propriété.
NOTE: Only qualified electricians or servicemen
should attempt to repair this unit. Improper repair
and/ or assembly can cause an electrical shock
hazard.
1. Bearings in this unit are pre-lubricated. No addi-
tional lubrication is necessary.
2. Cleaning - Occasionally clean the bottom of the
tank to remove sludge and silt, use a hose to
agitate the sludge on the bottom with water and
allow it to drain using the tank drain.
Kärcher WR-30E Service Manual 9.808-123.0 - D
15
Maintenance
Troubleshooting
PROBLEM POSSIBLE CAUSES SOLUTION
The Pump Does Not
Start or Run
Pump is not plugged in, switch or
breaker is off.
Plug pump in or turn on switch/breaker.
Check for blown fuses or tripped
circuit breakers or tripped GFCI
outlets.
Replace fuse, reset breaker, reset GFCI outlet.
Float switch is defective. Check and replace if necessary.
Motor thermal protector tripped. Allow pump to cool. Pump will reset.
Float switch is stuck or obstructed.
Remove obstruction or position pump so it will not
become stuck.
The Pump Starts and
Stops Too Often
Backflow of water from discharge
hose/pipe.
Install or replace check valve.
Float switch is defective. Replace float switch.
The Pump Runs But
Moves Little or No
Water
Clogged intake screen. Clean or replace screen.
Clogged discharge hose/pipe. Remove clog.
Frozen discharge hose/pipe. Allow hose/pipe to thaw.
Pump is air locked.
Clean out airlock hole with a paper clip or pipe
cleaner.
Low line voltage. Check wire size and increase if necessary.
Check valve is stuck in the closed
position.
Inspect, repair or replace if necessary.
Check valve is installed backwards.
Make sure check valve is installed in the correct
direction of flow.
Worn, damaged or clogged pump
parts.
Inspect for wear, damage or clog and clean or
replace if necessary.
Discharge head exceeds pump
capacity.
If pumping height is over 25’, the pump will not
move water. See performance chart.
Pump Does Not Shut
Off
Float switch is obstructed or stuck. Remove obstruction.
Defective Float Switch. Replace switch.
Vacuum Motor Does
Not Turn On
Low voltage from power outlet.
Check for proper supply voltage to make certain it
corresponds to nameplate voltage.
GFCI opened the circuit
Reset the GFCI by pushing the reset button on the
back of the plug, inspect the electrical outlet. If
electrical outlet is equipped with a GFCI, make
sure it is not open. Reset outlet if needed.
Water level has reached the
maximum level.
Transfer water to a storage tank or a recycle
system.
Drain the tank using the bottom drain, make sure
to comply with local regulations for disposing
waste water.
Kärcher WR-30E Service Manual 9.808-123.0 - D
16
Maintenance
PROBLEM POSSIBLE CAUSE SOLUTION
Vacuum Motor
Does Not Turn On
High level float switch is stuck or
obstructed.
Remove obstruction so it will not become stuck. Make
sure the float switch hangs at the right cord length,
adjust to the original length of 1.5" from the edge of the
PVC pipe if necessary.
Vacuum Motor
Starts But Turns
Off Quickly.
Water level reaches the maximum
level.
Transfer water to a storage tank or a recycle system.
Drain the tank using the bottom drain, make sure to
comply with local regulations for disposing waste water.
If recovering a large amount of water, keep the transfer
pump switch on the "ON" position so that it keeps water
level low.
Reduced Water
Recovery Rate
Screen basket is full of debris.
Remove screen basket from the top of the tank, remove
debris and rinse. Install it back.
Hose length.
This unit is designed to work with a 50' vacuum hose
and it is not recommended to use longer hoses or
extensions.
Vacuum head clogged (scupper).
Inspect vacuum head for possible large debris clogging
the openings.
Kärcher WR-30E Service Manual 9.808-123.0 - D
17
Parts
Parts
Karcher WR-30E
1.103-516.0
Kärcher WR-30E Service Manual 9.808-123.0 - D
18

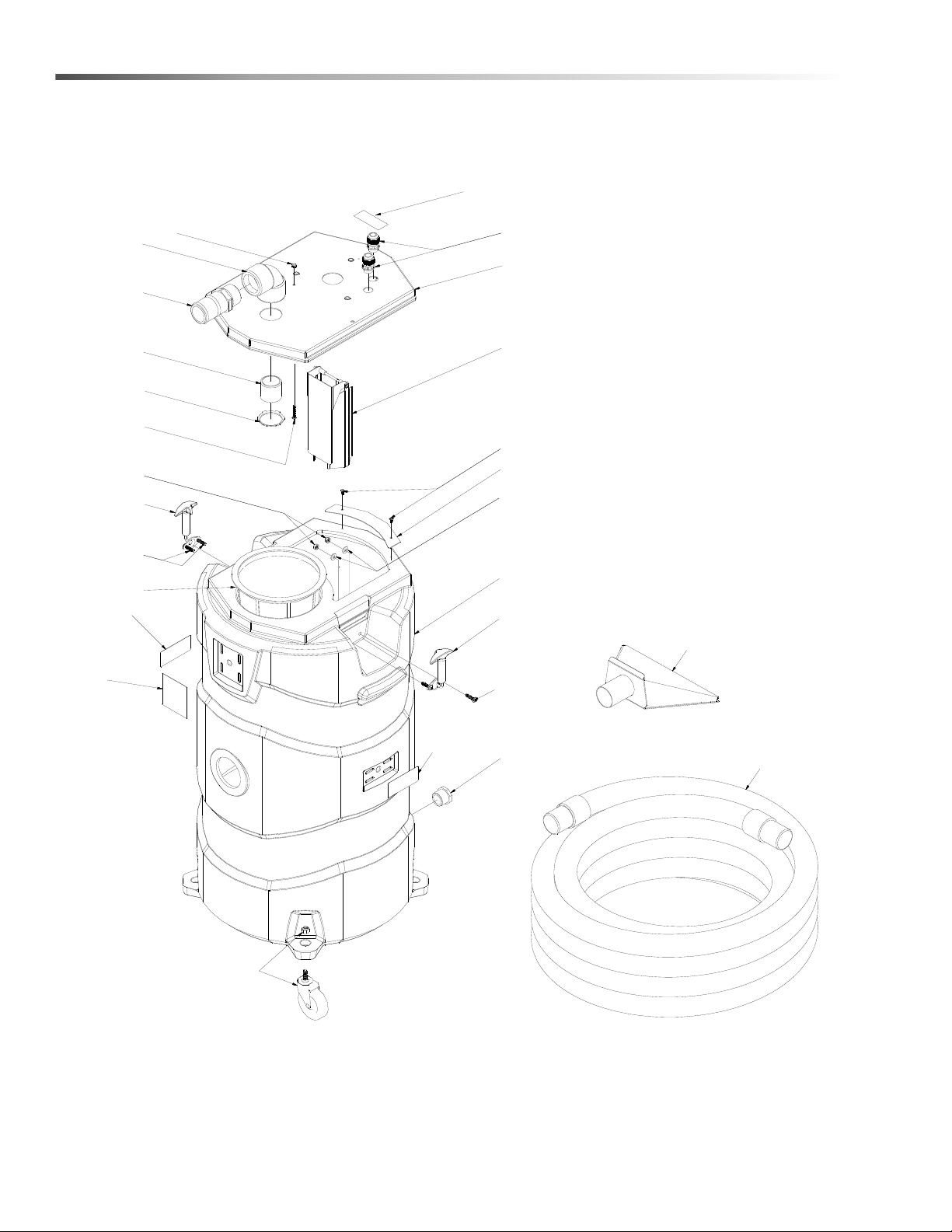

Body
13
15
14
1
4
17
18
10
12
3
11
7
14
16
9
6
5
8
15
2
20
19
20
21
22
24
23
Kärcher WR-30E Service Manual 9.808-123.0 - D
19Kärcher WR-30E Service Manual 9.808-123.0 - D
Body
REF PART NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES
1 8.757-376.0 1
RECOVERY WATER TANK 25 GALLONS
HDPE
2 8.757-375.0 1 SCREEN BASKET 7.5"
3 8.928-859.0 1 LID RECOVERY TANK
4 8.929-146.0 1 BALL FLOAT ASSEMBLY
5 8.706-012.0 1 NIPPLE, 1-1/2" X CLOSE, 316L SS
6 8.750-293.0 1 LOCKNUT 1.5" CONDUIT
7 8.706-375.0 1 ELBOW, 1-1/2" FT X FT, PVC 80, 90 DGR
8 8.757-501.0 1 ADAPTER 1-1/2" MPT X 2" HB GRPP BLK
9 8.718-814.0 1 SCREW, 10-32 X 1-1/4 BH SOC, SS
10 8.718-568.0 4 WASHER, 1/4" FLAT RUBBER BACK, SS
11 9.802-696.0 1 NUT, 10/32" KEPS, SS
12 9.802-514.0 2 STRAIN RELIEF, LT, STR, 1/2 NPT,.23-.45D
13 8.725-518.0 1 PLUG, SCH 40, 1" PVC
14 8.758-004.0 2 LATCH SPRING LOADED T-HANDLE 3.50
15 8.718-747.0 4 SCREW, 1/4" X 1", PH PHIL, SS
16 9.802-774.0 4 *NUT, 1/4', ESNA, NC, SS
17 8.758-003.0 2 SCREW 8-16 X .375 PHPNHTF SS
18 8.929-166.0 1 STRIKER PLATE RECOVERY UNIT
19 4.385-004.0 1 LABEL KÄRCHER SIGNET 3” X 3.35”
20 4.385-000.0 2 LABEL KÄRCHER LOGO L 3.75” X 1.6”
21 8.928-850.0 1 VACUUM HEAD
22 8.618-451.0 1 HOSE, 2" ID X 50' GRY VAC
23 8.901-135.0 1 LABEL, CAUTION WINTERIZE
24 8.928-887.0 1 CASTERS KIT RECOVERY UNIT
- 8.757-899.0 2 CASTER WHEEL 3" INCLUDED IN 24
- 8.757-900.0 2 CASTER WHEEL 3" WITH BRAKE INCLUDED IN 24
- 9.802-780.0 4 NUT, 3/8" STAINLESS, ESNA, NC INCLUDED IN 24
- 9.802-808.0 8 WASHER, 3/8" SAE, SS(936631) INCLUDED IN 24
20
Motor
4
12
15
10
9
7
8
17
11
2
6
1
16
13
14
17
3
20
19
18
21
22
18
Kärcher WR-30E Service Manual 9.808-123.0 - D
21Kärcher WR-30E Service Manual 9.808-123.0 - D
Motor
REF PART NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES
1 8.928-792.0 1 BLOWER HOUSING
2 8.925-861.0 1 VAC MOTOR 120V RECOVERY UNIT
3 8.928-797.0 1
VACUUM MOTOR HOUSING COVER
ROTARY SWITCH
4 8.757-934.0 1 SWITCH ROTARY 4 POSITION
5 8.757-983.0 1
ELECTRIC HARNESS KARCHER
RECOVERY UNIT
NOT SHOWN
6 8.757-898.0 1 CORD SERVICE 12/3 X 15' SJOW 120V 15A
7 8.756-410.0 2 CONNECTOR, LEVER NUT, 3-WIRES
8 8.756-409.0 1 CONNECTOR, LEVER NUT, 2-WIRES
9 8.716-376.0 1 TERMINAL, RING TONGUE, 10RC-10
10 8.716-377.0 1 TERMINAL, RING TONGUE, 14AB-10
11 9.802-514.0 1 STRAIN RELIEF, LT, STR, 1/2 NPT,.23-.45D
12 8.928-848.0 3 SPACER 1/4" PIPE PVC SCH80
13 8.751-242.0 3 BOLT, TAP, 1/4" X 4-1/2" A307A, ZN PLT
14 9.804-082.0 3 WASHER,1/4"X 0.625 X 0.65 STL BLK ZN PLT
15 9.802-696.0 3 NUT, 10-32 KEPS SS
16 8.757-679.0 1 SCREW 10-32 X .375 HEXTC ZNPLT
17 8.751-836.0 4 SCREW, 1/4-20 X 1/2", WHIZ LOC FLANGE SS
18 8.757-971.0 1 LABELS SHEET KARCHER RECOVERY
19 8.757-554.0 1 WARNING LABEL RECOVERY UNIT
20 8.932-968.0 1 LABEL, INTENDED FOR OUTDOOR USE - USA
21 9.800-034.0 1 LABEL CLEAR LEXAN 4.30" X 4.70"
22 8.757-372.0 1 LID SEAL NEOPRENE SC41W PSA
22

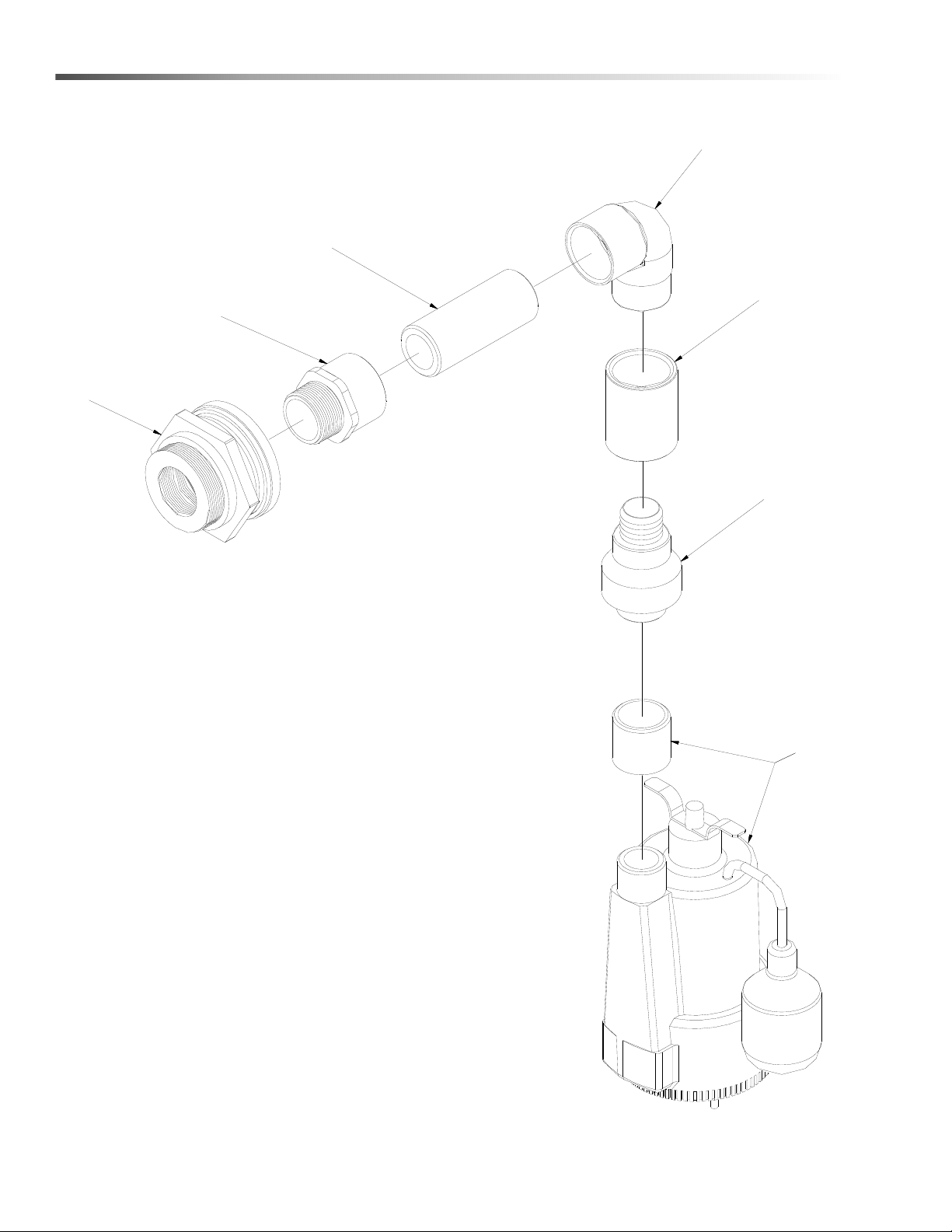

Sump Pump
1
4
3
2
5
6
7
Kärcher WR-30E Service Manual 9.808-123.0 - D
23Kärcher WR-30E Service Manual 9.808-123.0 - D
Sump Pump
REF PART NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES
1 8.757-380.0 1 SUMP PUMP 1/3HP FLOAT SWITCH
COUPLER
INCLUDED WITH
PUMP
2 8.757-381.0 1 CHECK VALVE 1-1/4"
3 8.757-382.0 1 COUPLER 1 -1/2" SLIPXSLIP PVC SCH40
4 8.757-383.0 1
ELBOW STREET 1-1/2"SOCKET X SPIGOT
SCH40
5 8.928-710.0 1 NIPPLE SCH80 4.6" 1-1/2" PVC
6 8.757-545.0 1 ADAPTER 1.5" SLIP X MT, PVC SCH 40
7 8.706-490.0 1 BULKHEAD, 1-1/2" POLYPRO
24

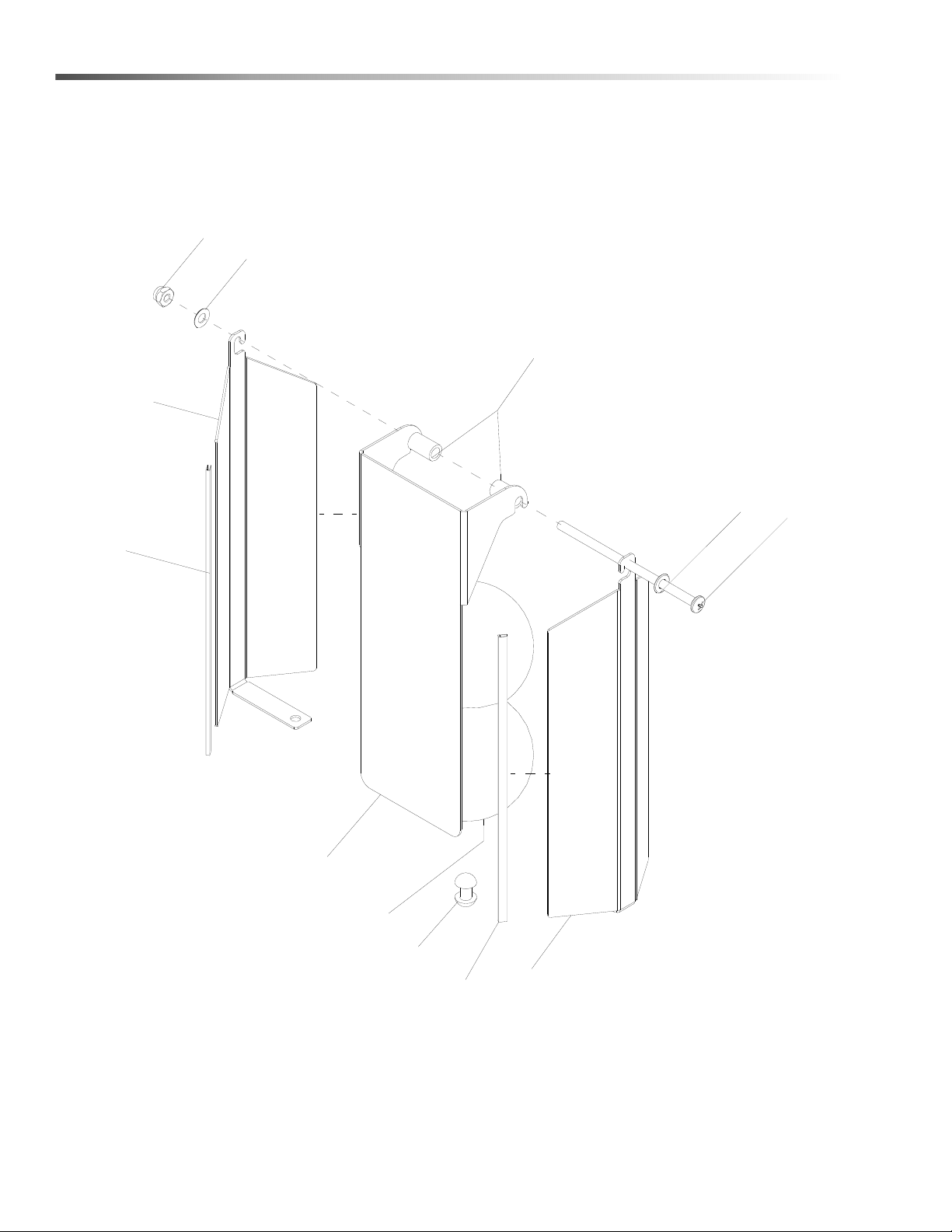

Ball Float
1
9
9
1
7
3
2
6
5
8
5
4
Kärcher WR-30E Service Manual 9.808-123.0 - D
25Kärcher WR-30E Service Manual 9.808-123.0 - D
Ball Float
REF PART NO. QTY DESCRIPTION
SERIAL NO.
FROM
NOTES
1 8.929-112.0 1 CAGE FLOAT BALL
2 8.929-113.0 1 SHIELD FLOAT BALL
3 8.757-940.0 2 BALL FLOAT 2.75 DIAMETER
4 8.757-941.0 1 SCREW 10-32 X 4" PAN HEAD SS
5 8.718-959.0 2 WASHER, #10 FLAT S/S
6 8.718-860.0 1 NUT, 10/32", ESNA, SS
7 8.719-053.0 1 RIVET, 3/16 DIA .126-.250" GRIP, S/S
8 8.925-857.0 2
SPACER TUBING 1/4" ID X 5/8" OPAQUE
POLY
9 8.929-149.0 2 EDGE TRIM NEOPRENE 7.25 L
26
Wiring Diagram
Kärcher WR-30E Service Manual 9.808-123.0 - D
27Kärcher WR-30E Service Manual 9.808-123.0 - D
Notes
9.808-123.0 • Printed in U.S.A.
