6 Adjust settings 27
Video setup 27
Audio setup 28
Network setup 29
EasyLink setup 29
Preference setup 30
Advanced setup 31
7 Tune to FM radio stations 32
Program radio stations automatically 32
Program radio stations manually 33
Tune to a preset radio station 33
Set RDS clock 33
8 Adjust volume level and sound effect 34
Adjust volume level 34
Select a sound effect 34
Mute sound 34
Listen through headphone 34
9 Additional Information 35
Adjust brightness of display panel 35
Turn on or off LED light 35
Set alarm timer 35
Set the sleep timer 35
Update software 35
Care 36
10 Troubleshooting 38
11 Glossary 40
Contents
1 Important 4
Mains fuse (UK only) 5
Disposal of your old product and batteries 5
Hearing safety 5
Copyright notice 6
Trademark notice 6
2 Your Blu-ray Component Hi-Fi System 8
Feature highlights 8
Playable media 8
Product overview 9
3 Connect 12
Preparations 12
Connect speakers 12
Connect video/audio cables 13
Route audio from other devices 15
Connect FM antenna 16
Connect a USB device 16
Connect a network 16
Connect power 17
4 Get started 17
Prepare the remote control 17
Turn on 17
Set clock 18
Activate demonstration mode 18
Find the TV input 18
Use the Home menu 18
Navigate a menu 18
Select a menu display language 19
Set up a network 19
Use Philips EasyLink 20
5 Play 22
Play a disc 22
Play from a USB device 22
Play video 22
Play photo 25
Play music 26
4
stands on flat, level surfaces that can
support the combined weight of the
speaker and stand.
Never place the product or any objects •
on power cords or on other electrical
equipment.
If the product is transported in •
temperatures below 5°C, unpack the
product and wait until its temperature
matches room temperature before
connecting it to the power outlet.
Visible and invisible laser radiation when •
open. Avoid exposure to beam.
Do not touch the disc optical lens inside •
the disc compartment.
Parts of this product can be made of •
glass. Handle with care to avoid injury
and damage.
Risk of overheating!
Never install this product in a confined •
space. Always leave a space of at least
four inches around the product for
ventilation. Ensure curtains or other
objects never cover the ventilation slots
on the product.
Risk of contamination!
Do not mix batteries (old and new or •
carbon and alkaline, etc.).
Remove batteries if they are exhausted •
or if the remote control is not to be used
for a long time.
Batteries contain chemical substances, •
they should be disposed of properly.
Risk of swallowing batteries!
The product/remote control may •
contain a coin type battery, which can be
swallowed. Keep the battery out of reach
of children at all times!
This product is in compliance with the
essential requirements and other relevant
provisions of Directives 2006/95/EC (Low
Voltage), 2004/108/EC (EMC).
1 Important
Risk of electric shock or fire!
Never expose the product and •
accessories to rain or water. Never place
liquid containers, such as vases, near the
product. If liquids are spilt on or into the
product, disconnect it from the power
outlet immediately. Contact Philips
Consumer Care to have the product
checked before use.
Never place the product and accessories •
near naked flames or other heat sources,
including direct sunlight.
Never insert objects into the ventilation •
slots or other openings on the product.
Where the mains plug or an appliance •
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
Disconnect the product from the power •
outlet before lightning storms.
When you disconnect the power cord, •
always pull the plug, never the cable.
Risk of short circuit or fire!
Before you connect the product to the •
power outlet, ensure that the power
voltage matches the value printed on the
back or bottom of the product. Never
connect the product to the power outlet
if the voltage is different.
Risk of injury or damage to the home
theater!
For wall-mountable products, use only •
the supplied wall mount bracket. Secure
the wall mount to a wall that can support
the combined weight of the product
and the wall mount. Koninklijke Philips
Electronics N.V. bears no responsibility
for improper wall mounting that results in
accident, injury or damage.
For speakers with stands, use only the •
supplied stands. Secure the stands to
the speakers tightly. Place the assembled
EN
5
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed with normal household
waste.
Please inform yourself about the local rules
on separate collection of batteries because
correct disposal helps to prevent negative
consequences for the environmental and
human health.
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can •
impair your hearing. This product can
produce sounds in decibel ranges that
may cause hearing loss for a normal
person, even for exposure less than a
minute. The higher decibel ranges are
offered for those that may have already
experienced some hearing loss.
Sound can be deceiving. Over time your •
hearing ‘comfort level’ adapts to higher
volumes of sound. So after prolonged
listening, what sounds ‘normal’ can
actually be loud and harmful to your
hearing. To guard against this, set your
volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
Set your volume control at a low setting. •
Slowly increase the sound until you can •
hear it comfortably and clearly, without
distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even •
at normally ‘safe’ levels, can also cause
hearing loss.
Be sure to use your equipment •
reasonably and take appropriate breaks.
Mains fuse (UK only)
This information applies only to products with
a UK mains plug.
This product is fitted with an approved
molded plug. If you replace the fuse, use one
with:
the ratings shown on the plug,•
a BS 1362 approval, and•
the ASTA approval mark.•
Contact your dealer if you are not sure about
what type of fuse to use.
Caution: To conform with the EMC directive
(2004/108/EC), do not detach the plug from
the power cord.
Disposal of your old product
and batteries
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol
is attached to a product it means that the
product is covered by the European Directive
2002/96/EC. Please inform yourself about the
local separate collection system for electrical
and electronic products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste.
Correct disposal of your old product helps to
prevent potential negative consequences for
the environment and human health.
EN
6
Trademark notice
‘Blu-ray Disc’ and ‘Blu-ray Disc’ logo are
trademarks.
‘BD LIVE’ is a trademark of Blu-ray Disc
Association.
Manufactured under license under U.S. Patent
#’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,226,616; 6,487,535; 7,392,195; 7,272,567;
7,333,929; 7,212,872 & other U.S. and
worldwide patents issued & pending. DTS and
the Symbol are registered trademarks, & DTS-
HD, and DTS-HD Master Audio | Essential
and the DTS logos are trademarks of DTS,
Inc. Product includes software.
DTS, Inc. All
Rights Reserved.
ABOUT DIVX VIDEO: DivX
®
is a digital video
format created by DivX, Inc. This is an official
DivX Certified device that plays DivX video.
Visit www.divx.com for more information and
software tools to convert your files into DivX
video.
ABOUT DIVX VIDEO-ON-DEMAND: This
DivX Certified
®
device must be registered in
order to play DivX Video-on-Demand (VOD)
content. To generate the registration code,
locate the DivX VOD section in the device
Be sure to observe the following guidelines
when using your headphones.
Listen at reasonable volumes for •
reasonable periods of time.
Be careful not to adjust the volume as •
your hearing adapts.
Do not turn up the volume so high that •
you can’t hear what’s around you.
You should use caution or temporarily •
discontinue use in potentially hazardous
situations. Do not use headphones while
operating a motorized vehicle, cycling,
skateboarding, etc.; it may create a traffic
hazard and is illegal in many areas.
Copyright notice
This item incorporates copy protection
technology that is protected by U.S. patents
and other intellectual property rights of
Rovi Corporation. Reverse engineering and
disassembly are prohibited.
Open source software
Philips Electronics Hong Kong Ltd. hereby
offers to deliver, upon request, a copy of the
complete corresponding source code for the
copyrighted open source software packages
used in this product for which such offer is
requested by the respective licenses.
This offer is valid up to three years after
product purchase to anyone in receipt of
this information. To obtain source code,
please contact open.source@philips.com. If
you prefer not to use email or if you do not
receive confirmation receipt within a week
after mailing to this email address, please write
to “Open Source Team, Philips Intellectual
Property & Standards, P.O. Box 220, 5600
AE Eindhoven, The Netherlands.” If you do
not receive timely confirmation of your letter,
please email to the email address above.
EN
7
setup menu. Go to vod.divx.com with this
code to complete the registration process and
learn more about DivX VOD.
DivX
®
, DivX Certified
®
and associated logos
are registered trademarks of DivX, Inc. and
are used under license.
HDMI, and HDMI logo, and High-Definition
Multimedia Interface are trademarks or
registered trademarks of HDMI licensing LLC
in the United States and other countries.
Java and all other Java trademarks and logos
are trademarks or registered trademarks of
Sun Microsystems, Inc. in the United States
and/or other countries.
LASER RADIATION
DO NOT VIEW DIRECTLY
WITH OPTICAL INSTRUMENTS
CLASS 1M LASER PRODUCT
EN
8
Playable media
This product can play:
BD-Video, BD-R/RE2.0•
DVD, DVD-Video, DVD+R/+RW, DVD-•
R/-RW, DVD+R/-R DL (Dual Layer)
Video CD/SVCD•
Audio CD, CD-R/CD-RW, MP3 media, •
WMA media, JPEG files
DivX (Ultra) media•
USB flash drive•
Region codes
You can play discs with the following region
codes.
Region code Countries
DVD Blu-ray
Europe,
United
Kingdom
B
2 Your Blu-ray
Component Hi-
Fi System
Congratulations on your purchase, and
welcome to Philips! To fully benefit from
the support that Philips offers (e.g. product
software upgrade), register your product at
www.philips.com/welcome.
If you contact Philips, you will be asked for the
model and serial number of this product. The
model number and serial number are on the
bottom of this product. Write the numbers
here:
Model No. _________________________
Serial No. __________________________
Feature highlights
For optimal performance of this product,
it is recommended to regularly update the
software of this product.
High-Definition entertainment
Watch high-definition content disc with
HDTV (High Definition Television). Connect
it through a high speed HDMI cable (1.3 or
category 2). You can enjoy excellent picture
quality up to 1080p resolution with the frame
rate of 24 frames per second with progressive
scan output.
BD-Live
Connect this player to the movie studios
website via the LAN port or external Wi-Fi
to access a variety of up-to-date content
(e.g. refreshed previews and exclusive special
features).
EN
9
e /
Search backward or forward.•
Tune to a radio station.•
f
Stop play.•
(Press and hold) Erase a program.•
(Press and hold) Activate/deactivate •
demonstration mode.
g
Open or close the disc •
compartment.
h VOLUME
Adjust volume.•
Adjust time.•
i IR sensor
Detect signals from the remote •
control. Always point the remote
control at the IR sensor.
Product overview

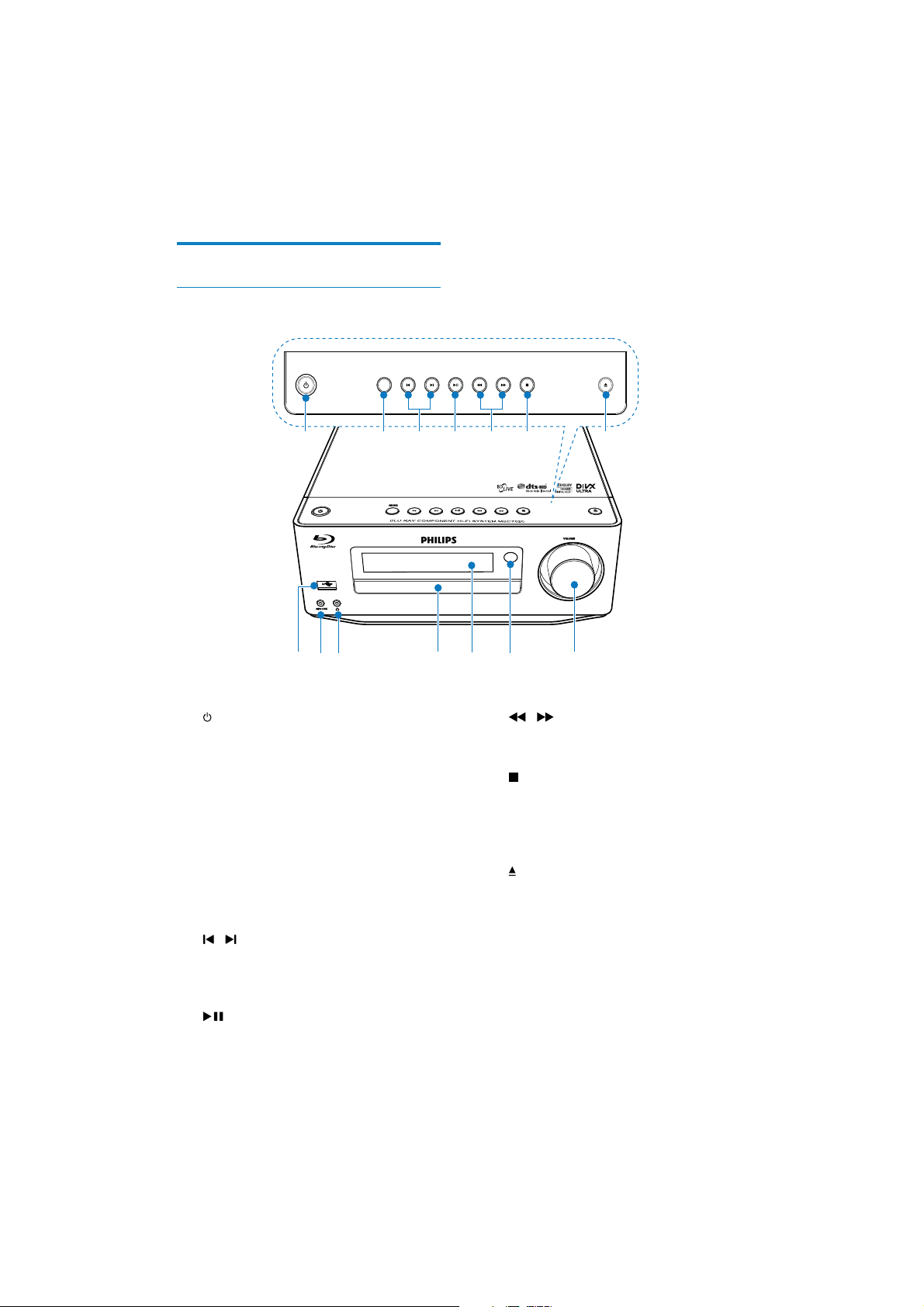

Main unit
a
Turn on this product or switch to •
Eco Power standby mode.
When EasyLink is enabled, press •
and hold for at least three seconds
to turn all connected HDMI CEC
compliant devices to standby.
(Press and hold) switch between •
normal standby mode and Eco
Power standby mode.
b SOURCE
Select a source.•
c
/
Skip to the previous/next track or •
radio station.
Skip to the previous/next title or chapter.•
d
Start or pause play.•
hji
klmn
SOURCE
abc
d
e
fg
EN
10
a
Turn on this product or switch to •
Eco Power standby mode.
When EasyLink is enabled, press •
and hold for at least three seconds
to turn all connected HDMI CEC
compliant devices to standby.
(Press and hold) switch between •
normal standby mode and Eco
Power standby mode.
b Source and color buttons
Select a source.•
BD-live: Select tasks or options.•
c DIM
Select a brightness level for the •
display panel on the main unit.
(Press and hold) turn on or off the •
LED light at the bottom of the unit
and at the volume knob.
d CLOCK
Set the clock.•
Display the set clock.•
e MODE/OPTIONS
Select repeat play modes.•
Select shuffle play modes.•
Access options for the current •
activity or selection.
f
Navigate through the menus.•
•
: Search forward or backward
for a radio station.
•
: Tune to a radio station.
g RDS/INFO
For selected FM radio stations: •
display RDS information.
Display the current status or the disc •
information.
Display the media information (data •
disc/USB device).
h
Pause play.•
j Display panel
k Disc compartment
l
Headphone socket.•
m MP3 LINK
Connect to an external audio device.•
n
Connect to a USB flash drive.•

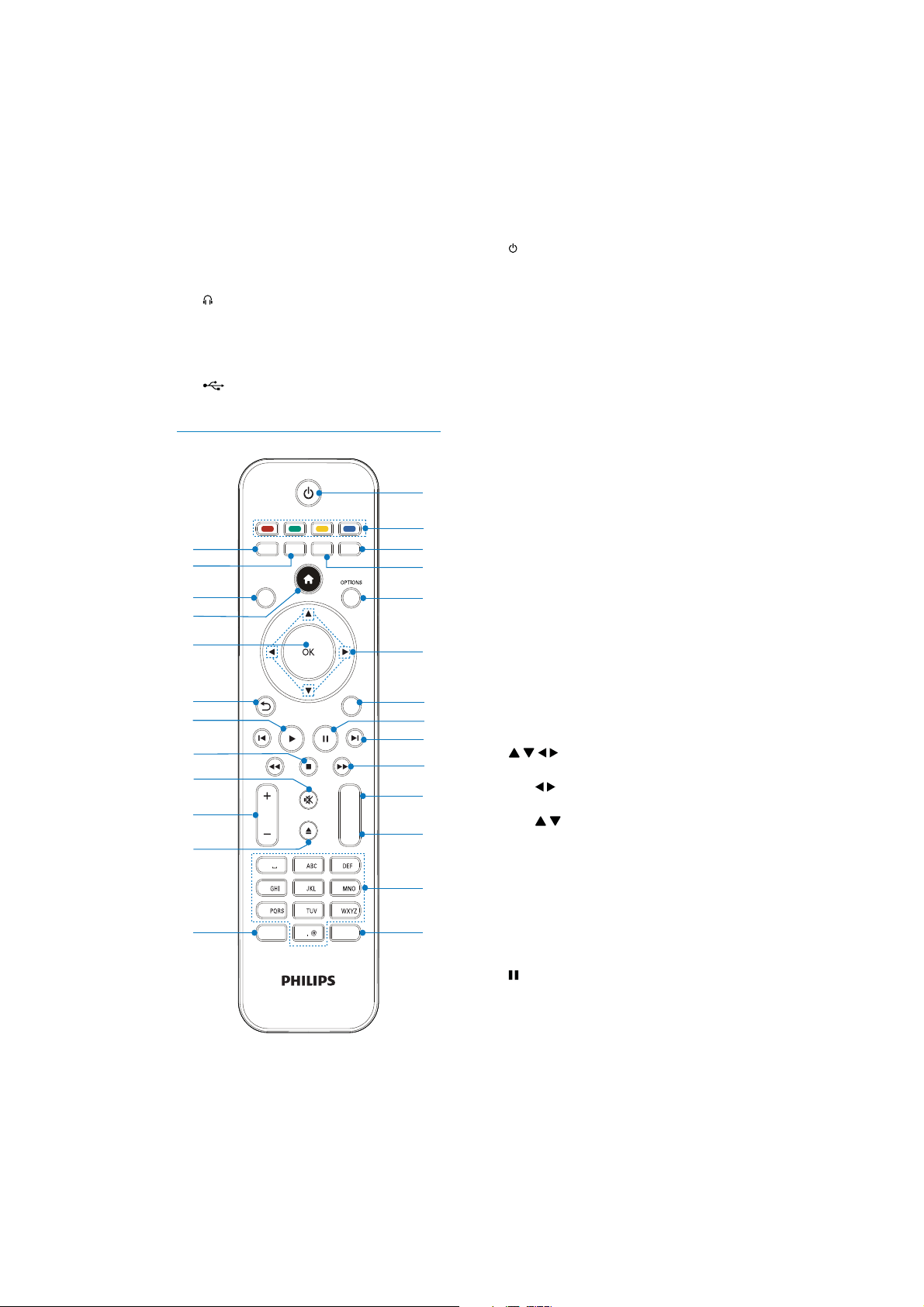

Remote control
BACK
INFO
MODE
RDS
MENU
TOP MENU
DISC
DIMSLEEP CLOCK
MP
3
-LNK/AUX
USB
/
DOCK
RADIO
OPEN / CLOSE
VOL
TREBLE
BASS
2
1
3
5
4
6
8
0
7
9
PROGRAM
LOUDNESS
DISC/
POP
-
UP
TIMER
a
b
f
e
g
h
i
j
x
y
z
w
v
s
k
l
m
n
o
p
q
r
u
t
c
d
EN
11
w
Access the home menu of this •
product.
x DISC/POP-UP/MENU
• BD: Access or exit the pop-up menu.
• DVD: Access or exit the disc menu.
y SLEEP/TIMER
Set the sleep timer.•
Set the alarm timer.•
z TOP MENU
• BD: Display the top menu.
• DVD: Display the title menu.
i
/
Skip to the previous or next title, •
chapter, or track.
Skip to the previous/next title or •
chapter.
j
/
Search backward or forward.•
Tune to a radio station.•
k TREBLE
Enable treble adjustment.•
l BASS
Enable bass adjustment.•
m Alphanumeric buttons
Select an item to play.•
Enter numbers/letters/text.•
n LOUDNESS
Turn on or off automatic loudness •
adjustment.
o PROGRAM
Program radio stations.•
p
OPEN/CLOSE
Open or close the disc •
compartment.
q VOL +/-
Adjust volume.•
Adjust time.•
Adjust the bass/treble level.•
r
Mute or restore volume.•
s
Stop play.•
t
Start or resume play.•
u
BACK
Return to a previous display menu.•
v OK
Confirm an entry or selection.•
EN
12
Optional connections:
Route audio to other devices•
HDMI-compliant AV receiver/•
amplifier
Multi-channel AV amplifier/receiver•
Digital AV amplifier/receiver•
Analog stereo system•
FM antenna•
USB flash drive•
iPod/iPhone dock (compatible dock: •
DCK3060; not supplied)
Wired/Wireless network•
Note
Refer to the type plate at the back or bottom of the •
product for identification and supply ratings.
Before you make or change any connections, ensure
•
that all the devices are disconnected from the power
outlet.
Connect speakers
Note
Insert the stripped portion of each speaker wire into •
the socket completely.
For optimal sound, use the supplied speakers only.
•
Connect only speakers with impedance that is the •
same or higher than the supplied speakers.
The
• DEMO jack is only applicable to the demo unit
that is not included in the apparatus. Do not attempt
to connect any other device to the apparatus
through this jack.
For the main unit side:
LR
acb
3 Connect
Make the following connections to use this
product.
Preparations
1
Place the apparatus near to the TV.
2 Place the front left and right speakers
at equal distance from the TV and at an
angle of approximately 45 degrees from
the listening position.
Note
To avoid magnetic interference or unwanted noise, •
never place this apparatus and speakers too close to
any radiation devices.
Basic connections:
Speakers•
Video•
Audio•
Power•
EN
13
Connect video/audio cables
Select the best video connection that the TV
can support.
• Option 1: Connect to the HDMI jack (for
an HDMI, DVI or HDCP-compliant TV).
• Option 2: Connect to the composite
video jack (for a standard TV).
Option 1: Connect to the HDMI jack
1 Connect an HDMI cable (not supplied) to:
the • HDMI jack on this product.
the HDMI input jack on the TV. •
Tip
If the TV has a DVI connector only, connect via an •
HDMI/DVI adaptor. Connect an audio cable for
sound output.
If this product connects to a TV compatible with
•
1080p or 1080p/24Hz, Philips recommends HDMI
category 2 cable, also known as High Speed HDMI
cable, for optimal video and audio output.
To play the digital video images of a BD-video or
•
DVD-video via an HDMI connection, it is necessary
that both this product and the display device (or an
AV receiver/amplifier) support a copyright protection
system called HDCP (high-bandwidth digital content
protection system).
This type of connection provides best picture quality.
•
AUX INLINE OUT
RR
HDMI IN
1 Unscrew the speaker connectors.
2 Insert fully the red end of a speaker cable
into the left red (+) connector.
3 Screw the left red (+) connector to
secure the cable.
4 Insert fully the silver end of a speaker
cable into the left black (-) connector.
5 Screw the left black (-) connector to
secure the cable.
6 Repeat steps 2-5 to insert the other
speaker cable into the right connectors.
For the speaker side:
1 Unscrew the speaker connectors.
2 For the left speaker, identify the speaker
cable that is connected to the left
connectors on the main unit.
3 Insert fully the red end of the speaker
cable into the red (+) connector.
4 Screw the red (+) connector to secure
the cable.
5 Insert fully the silver end of the speaker
cable into the black (-) connector.
6 Screw the black (-) connector to secure
the cable.
7 Repeat steps 2-6 for the right speaker
a
b
c
EN

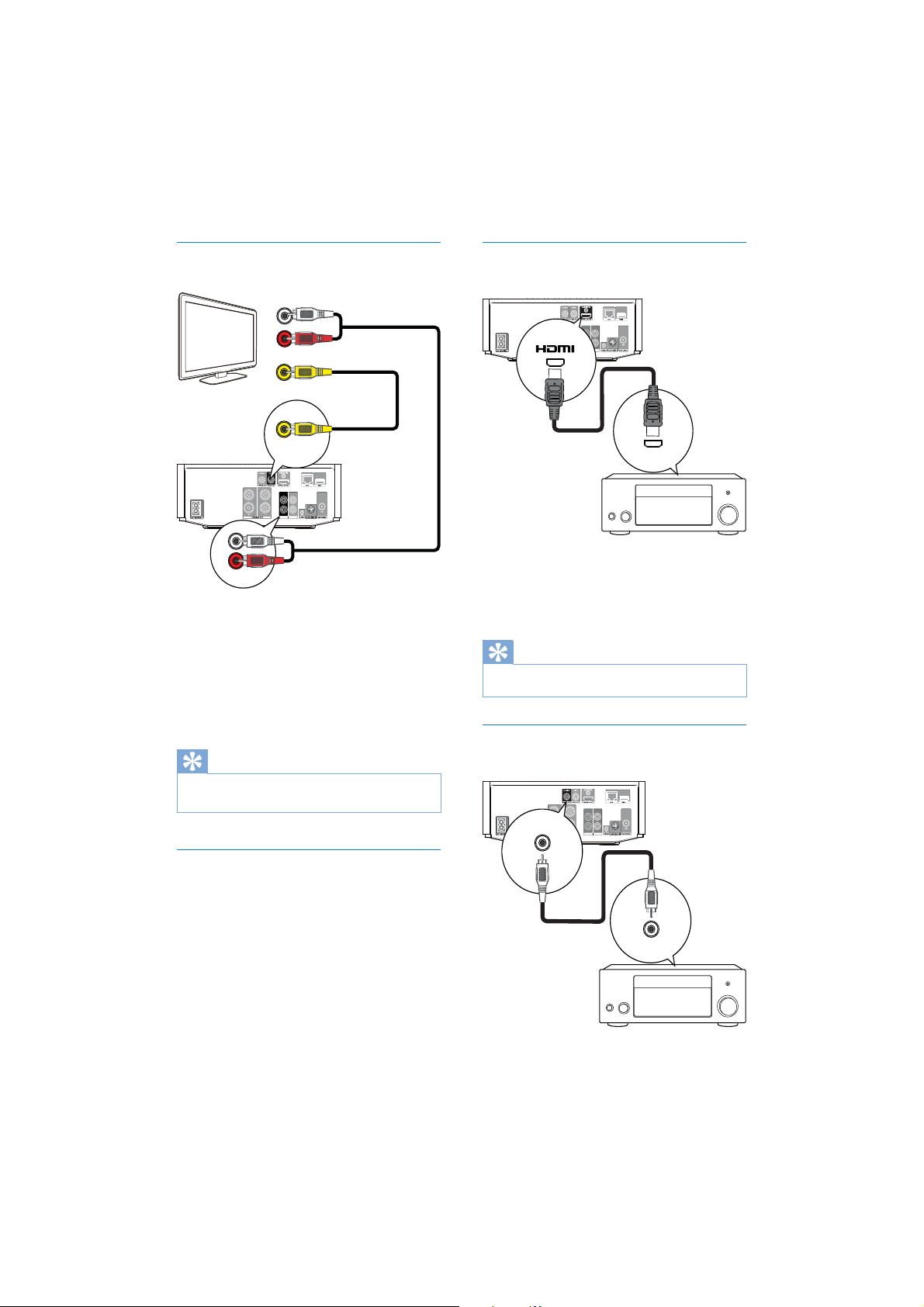

14
Connect to an HDMI-compliant AV
receiver/amplifier
1 Connect an HDMI cable (not supplied) to:
the • HDMI jack on this player.
the HDMI jack input jack on the •
device.
Tip
The HDMI connection provides best audio quality. •
Connect to a digital AV amplifier/
receiver
AUX INLINE OUT
RR
LL
HDMI IN
AUX INLINE OUT
RR
LL
DIGITAL OUT
COAXIAL
COAXIAL
Option 2: Connect to the composite
video jack
1 Connect a composite video cable to:
the • VIDEO jack on this product.
the VIDEO input jack on the TV.•
2 Connect the audio cables to:
the • LINE OUT/AUDIO -L/R jacks
on this product.
the AUDIO input jacks on the TV.•
Tip
The video input jack on the TV might be labeled as •
A/V IN, VIDEO IN, COMPOSITE or BASEBAND.
Route audio to other devices
You can route the audio from this product to
other devices.
AUX INLINE OUT
RR
LL
VIDEO OUT
VIDEO IN
LINE IN
LINE OUT
R
R
L
L
EN

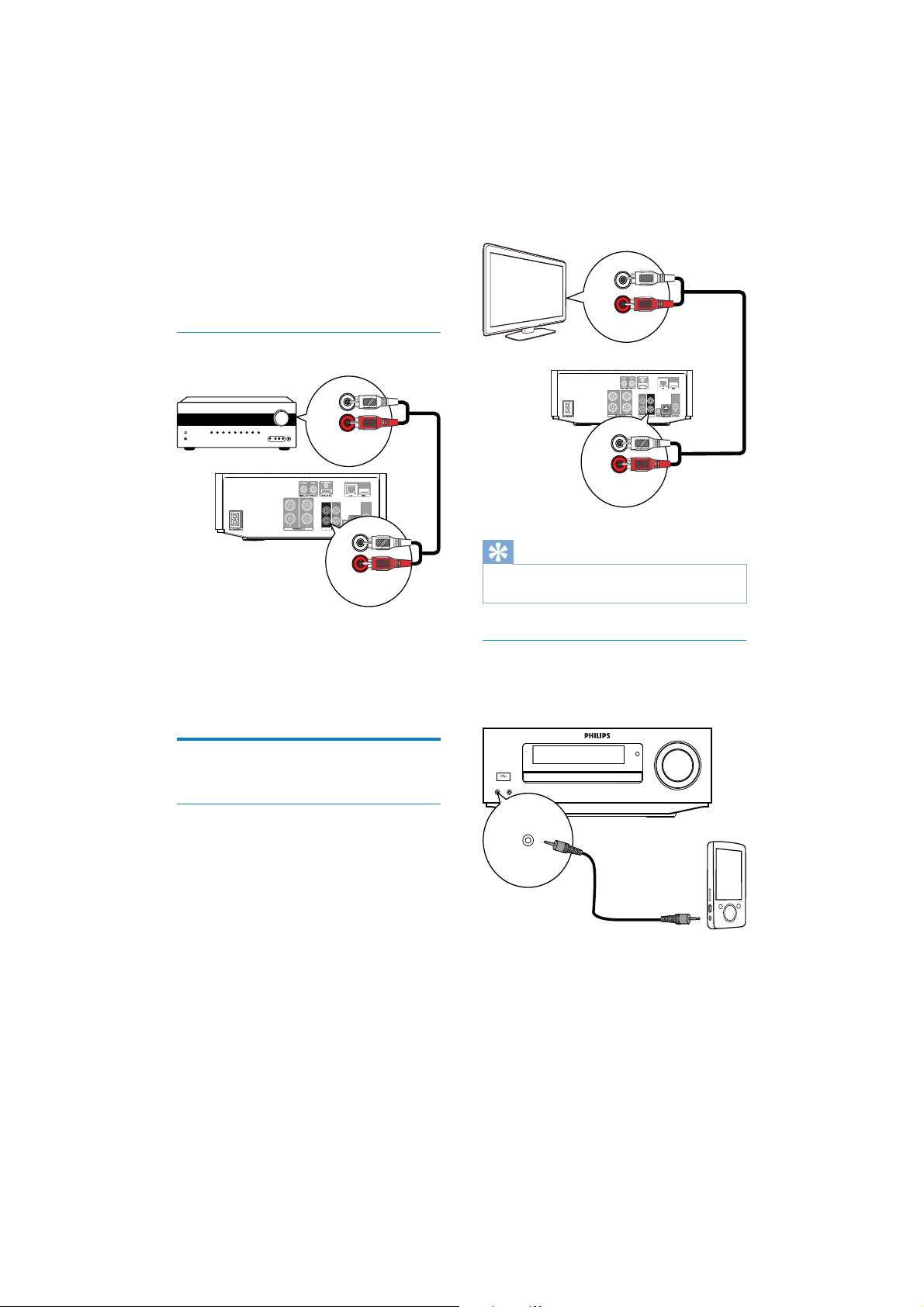

15
Tip
Press • MP3 LINK/AUX to select the audio output of
your connection.
Listen to an audio player
You can listen to an audio player through this
unit.
Connect the supplied MP3 Link cable •
to the MP3-LINK socket and to the
headphone socket on the audio player.
AUX INLINE OUT
RR
LL
LINE OUT
AUX IN
R
R
L
L
MP3-LINK
1 Connect a coaxial cable (not supplied) to:
the • COAXIAL jack on this product.
the COAXIAL/DIGITAL input jack •
on the device.
Connect an analogue stereo system
1 Connect the audio cables to:
the • LINE OUT/AUDIO -L/R jacks
on this product.
the AUDIO input jacks on the •
device.
Route audio from other
devices
Route audio from TV or other
devices
Use this product to play audio from the TV or
other device such as a cable box.
AUX INLINE OUT
RR
LL
AUDIO IN
LINE OUT
R
L
R
L
EN

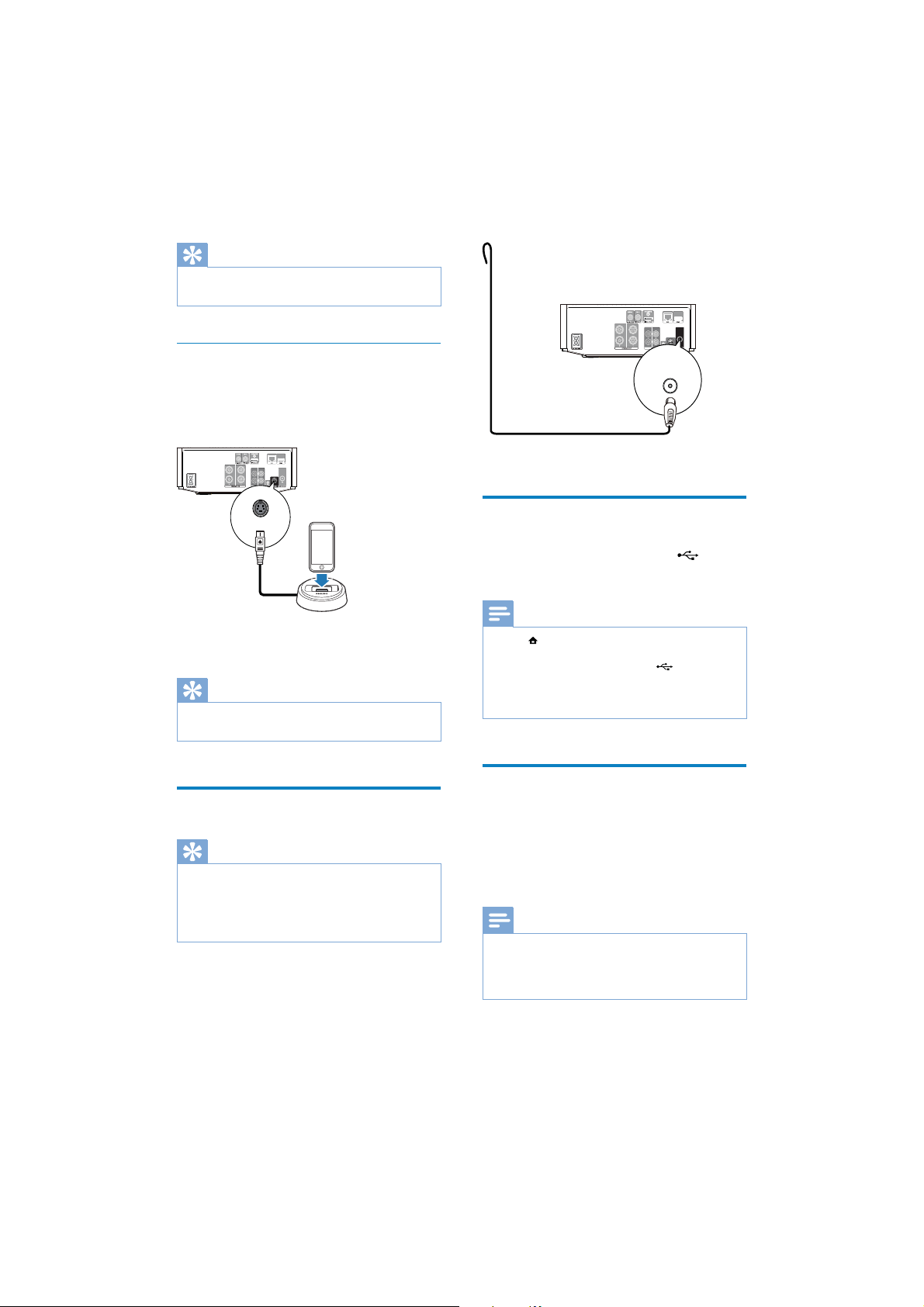

16
AUX INLINE OUT
RR
FM
Connect a USB device
1
Connect a USB device to the (USB)
jack on the front panel of this product.
Note
Press • , and select [Browse USB] in the menu to
access the content and play the files.
Connect a USB device only to the
• jack on the
front panel of this product.
Philips does not guarantee compatibility with all USB
•
devices.
Connect a network
With a wired or wireless connection (see
“Get started” > “Set up a network”), you
can connect this product to the Internet for
software update/BD Live.
Note
Internet access to Philips website for software update •
may not be allowed, depending on the router you
use or the Internet Service Provider’s policy. Contact
your Internet Service Provider for more information.
Tip
Press • MP3 LINK/AUX to select the audio output of
your connection.
Connect an iPod / iPhone dock
With the connected iPod/iPhone dock, you
can charge or listen to music from your iPod/
iPhone through this unit.
Connect a dock (not supplied) to the •
DOCK socket on this unit.
Tip
Press • USB/DOCK to select the audio output of your
connection.
Connect FM antenna
Tip
For optimal reception, fully extend and adjust the •
position of the antenna.
For better FM stereo reception, connect an outdoor
•
FM antenna to the FM jack.
The unit does not support MW radio reception.
•
1 Connect the supplied FM wire antenna to
the FM socket on the unit.
AUX INLINE OUT
RR
DOCK
EN
17
4 Get started
Caution
Use of controls or adjustments or performance •
of procedures other than herein may result in
hazardous radiation exposure or other unsafe
operation.
Always follow the instructions in this chapter
in sequence.
Prepare the remote control
1
Press and push the battery compartment
to slide it open (see “1” in the
illustration).
2 Insert two AAA batteries with correct
polarity (+/-) as indicated.
3 Push and slide back the battery
compartment (see “3” in the illustration).
Note
If you are not going to use the remote control for a •
long time, remove the batteries.
Do not mix batteries (old and new or carbon and
•
alkaline, etc.).
Batteries contain chemical substances, so they should
•
be disposed of properly.
Turn on
1
Press .
The unit switches to the last selected »
source.

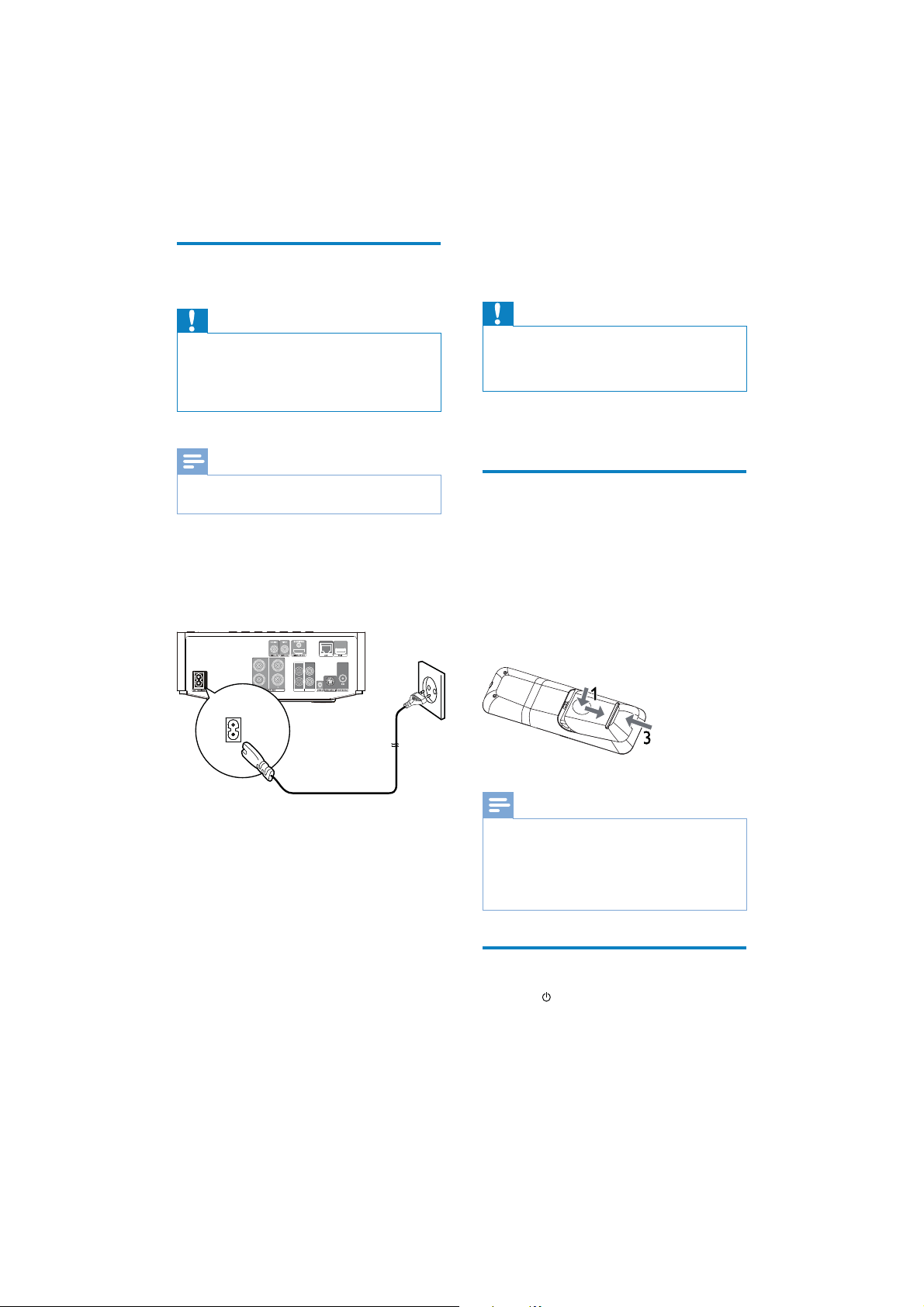

Connect power
Caution
Risk of product damage! Ensure that the power •
supply voltage corresponds to the voltage printed on
the back of the unit.
Before connecting the AC power cord, ensure you
•
have completed all other connections.
Note
The type plate is located on the bottom of the •
product.
1 Connect the AC power cable to:
this product.•
the wall socket.•
This product is ready to be set up •
for use.
AUX INLINE OUT
RR
AC MAIN
~
EN
18
To deactivate the demonstration mode:
1 Press on the main unit again.
Find the TV input
1
Press to turn on this player.
2 Turn on the TV and switch to the video
input (refer to the TV user manual on
how to select the A/V input).
Use the Home menu
1 Press to display the home menu.
To start disc play, select • [Play Disc].
To view the USB contents, select •
[Browse USB].
To access the setup menus, select •
[Setup].
Navigate a menu
1
When a menu is displayed, press the
buttons on the remote control to
navigate.
Button Action
Move up or down.
Move left or right.
OK Confirm a selection.
Enter numbers/letters/
text.

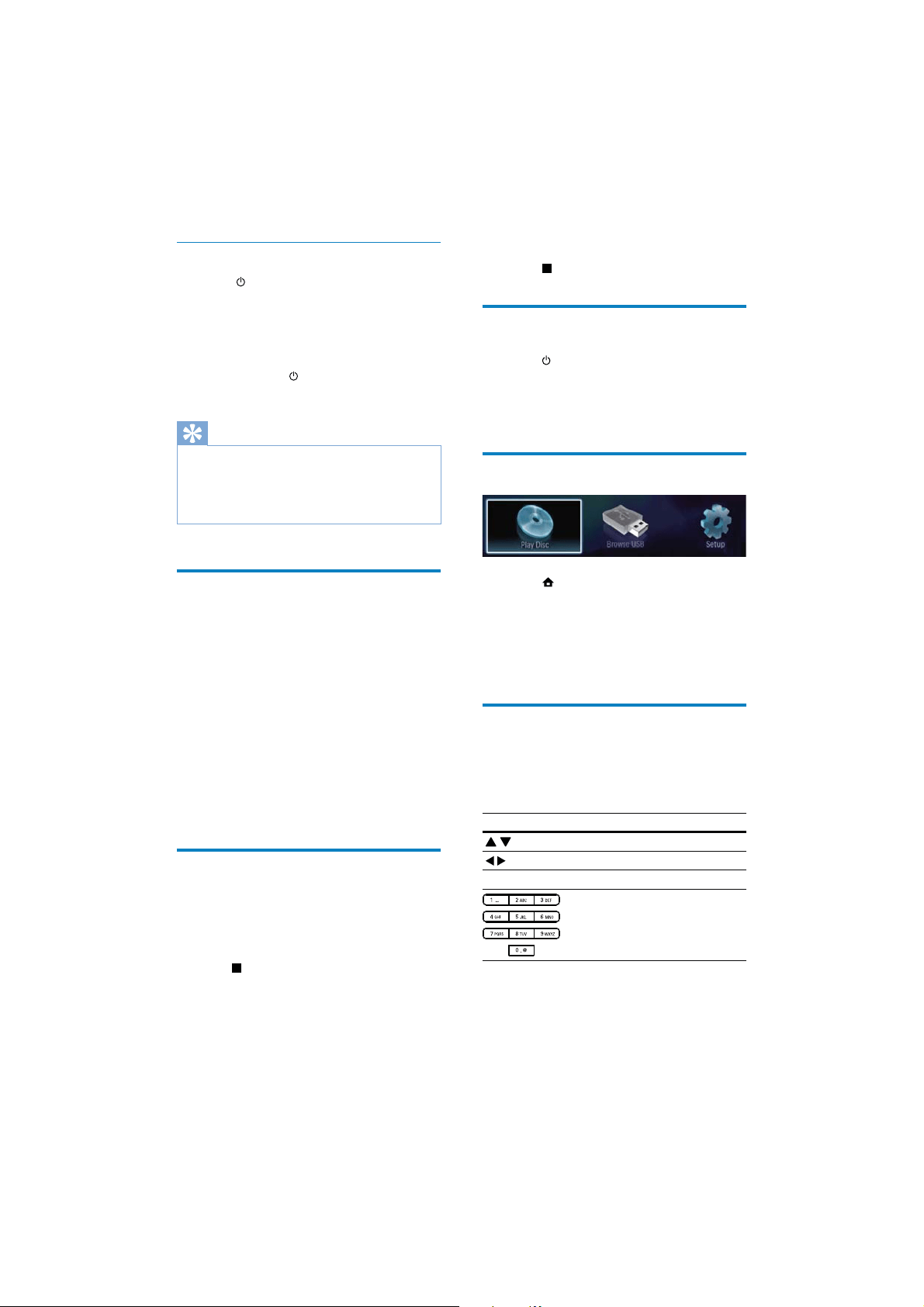

Switch to normal standby mode
Press • to switch the unit to normal
standby mode.
The clock (if set) is displayed. »
To switch to Eco Power Standby
mode:
Press and hold •
until the backlight on
the display panel turns off.
Tip
In Eco Power Standby mode, you can press • CLOCK
to switch to normal standby mode and view the
clock (if set). If no operation is performed, the unit
switches to Eco Power mode automatically after a
short while.
Set clock
1
In normal standby mode, press and hold
CLOCK to activate clock setting.
The hour digits are displayed and »
begin to blink.
2 Press VOL +/- to set the hour, then press
CLOCK again.
The minute digits are displayed and »
begin to blink.
3 Press VOL +/- to set the minute, then
press CLOCK to confirm the clock
setting.
Activate demonstration mode
In this mode, you can see an overview of all
features.
1 In normal standby mode, press and
hold
on the main unit to activate
demonstration mode.
A demonstration of major available »
features starts.
EN
19

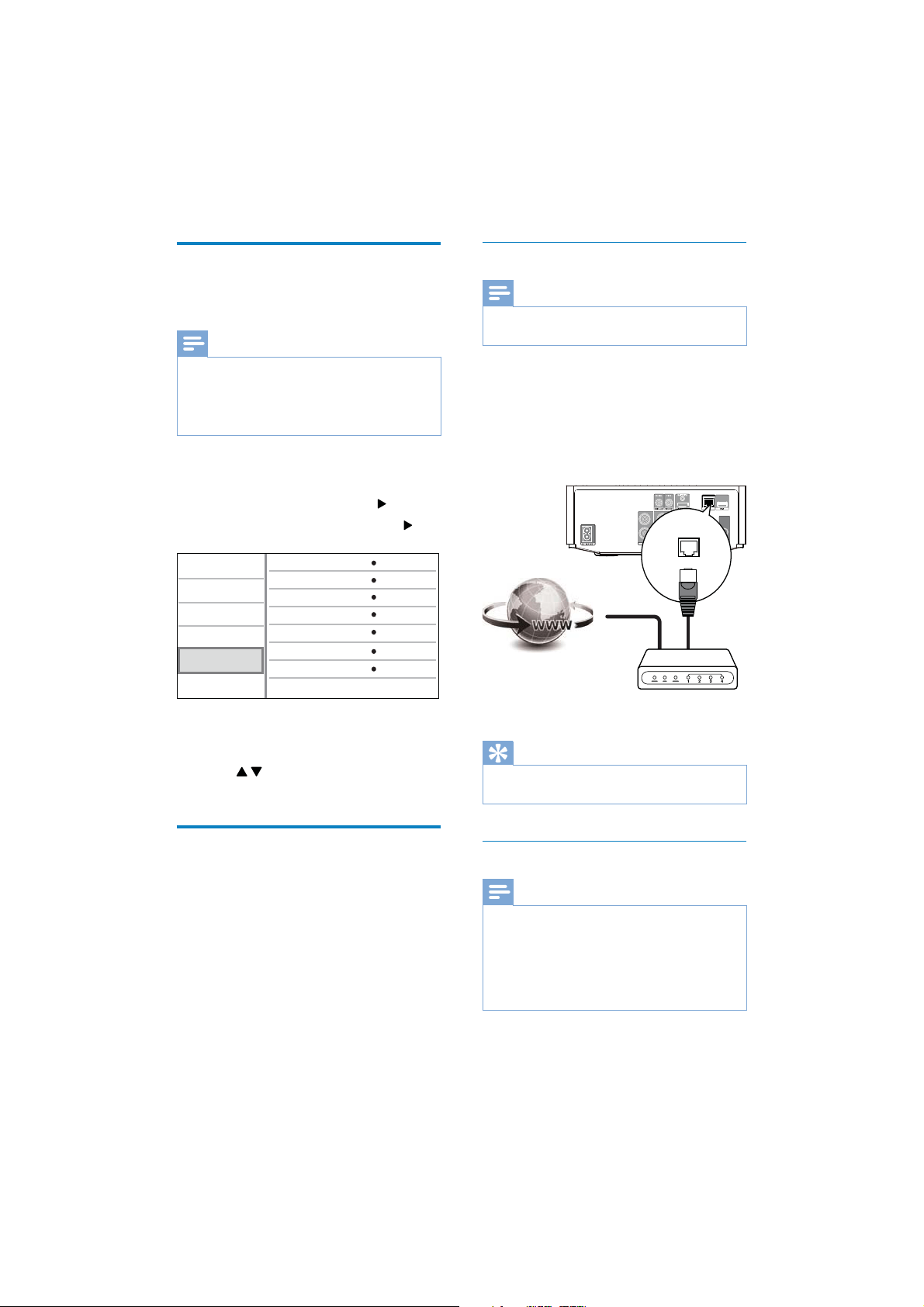

Set up a wired network
Note
Ensure that the network cables are properly •
connected.
1 Connect a network cable (not supplied)
to:
the • LAN port on this product.
the LAN port on a router with •
Internet connection.
2 Turn on this product and the router.
Tip
The wired network ensures the best performance •
for data transmission between the devices.

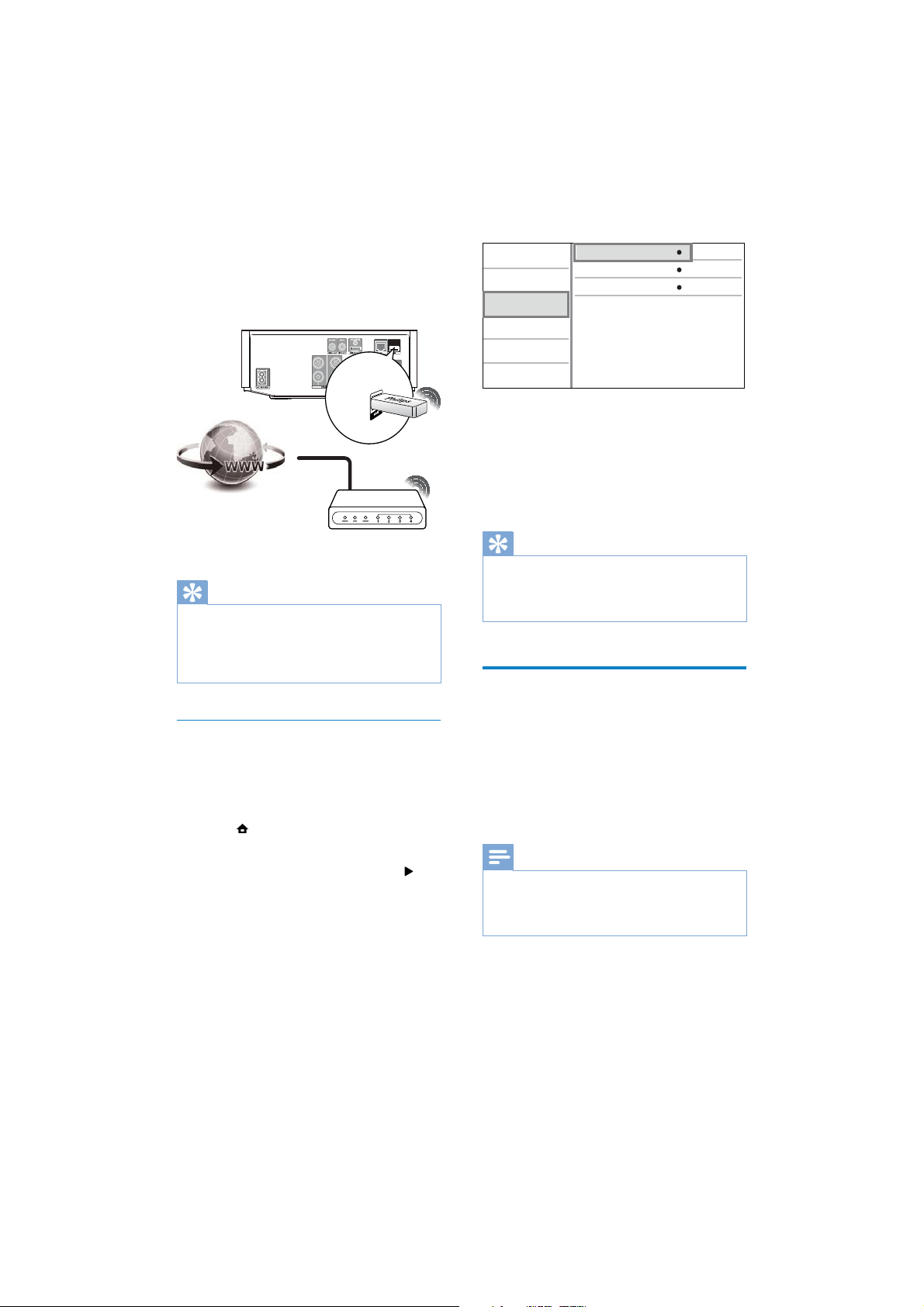

Set up a wireless network
Note
For wireless connection, you need to use an optional •
Philips Wi-Fi USB adapter (named WUB1110).
The Wi-Fi USB Adapter (WUB1110) is not included.
•
To purchase this adapter, visit shop.philips.com. If the
Philips online shop is not available in your country,
please contact Philips customer service. For contact
details, go to www.philips.com/support.
AUX INLINE OUT
RR
LAN
Router
Internet
Select a menu display
language
Note
If this product is connected to an HDMI CEC •
compliant TV, skip this setting. It switches
automatically to the same OSD menu language as
per your TV setting (if the language set on TV is
supported by this product).
1 In the Home menu, select [Setup] and
press OK.
2 Select [Preference], and press .
3 Select [Menu Language], and press .
The language options may vary from •
different regions.
4 Press to select a language, and press
OK.
Set up a network
You can connect this product to the Internet
for software update/BD Live enjoyment.
Menu Language
Parental Control
Disc Menu
Audio
Subtitle
Screen Saver
Change Password
Auto (ENG)
English (ENG)
English (ENG)
Off
Off
On
Advanced
Preference
Video Setup
Audio Setup
Network Setup
EasyLink Setup
EN
20
6 Follow the on-screen instructions to
complete the network installation.
After the network installation »
completes, you can access the
services: BD-Live and software
updates.
Tip
You can check the status of the wired or wireless •
connection of this product (see “Adjust settings”
> “Network Setup” >[View Network Settings] or
[View Wireless Settings]).
Use Philips EasyLink
This player supports Philips EasyLink which
uses the HDMI CEC (Consumer Electronics
Control) protocol. You can use one single
remote control to control EasyLink-compliant
devices that are connected through HDMI
connectors.
Note
To enable the EasyLink feature, you must turn on •
the HDMI CEC operations on the TV and on other
devices connected to TV. Refer to the TVs/devices
manual for details.
View Network Settings
Network Installation
View Wireless Settings
Advanced
Preference
Video Setup
Audio Setup
Network Setup
EasyLink Setup
1 Connect a Philips Wi-Fi USB adapter
(named WUB1110, sold separately) to the
Wi-Fi port on the back of this product.
2 Turn on this product and the router.
Tip
The wireless performance can vary due to •
bandwidth connection, network traffic and some
environmental effects, such as surrounded by metal
panel or heavy concrete, radio interference and
coverage distance.
Install the network connection
For the first time you connect the network,
install the network connection.
1 Set up a wired or wireless network.
2 Press to display the home menu.
3 Select [Setup] and press OK.
4 Select [Network Setup], and press .
5 Select [Network Installation], and press
OK.
AUX INLINE OUT
RR
Router
Internet
Wi-Fi
EN
21
4 Read the on-screen instructions and
press OK to select [Continue].
The product scans and displays the »
valid devices.
5 Press OK to select [Continue].
Select a connected device on the left of
the menu, then press .
6 Select the connector that is used for the
device, then press OK.
Repeat steps 6~7 to map other »
devices.
7 Press to exit the menu.
Update audio mapping from
connected devices
If you have already mapped audio from
connected devices, you can use this procedure
to update your mapping.
1 Press , select [Settings], then press OK.
2 Select [EasyLink Setup] > [Audio Input
Mapping], then press OK.
3 Select a connected device then press .
4 Select the AUX input, and then press
OK.
Note
Philips does not guarantee interoperability with all •
HDMI CEC devices.
AUX
Philips TV
DVD player
Recorder
–
One-touch play
1 Press (standby) to turn on this product.
The TV (if the TV supports one- »
touch play) automatically turns on
and switches to the correct video-in
channel.
If a disc is loaded in this product, disc »
play automatically starts.
One-touch standby
1 Press and hold (standby) for more than
3 seconds.
All the connected devices (if the »
device supports one-touch standby)
automatically switch to standby.
Map the devices to the audio inputs
Note
Before you start, ensure that the audio output of •
the HDMI TV and other HDMI devices have been
connected to the audio input jacks on this product.
1 Press , select [Setup], then press OK.
2 Select [EasyLink Setup], then press .
• [One Touch Play] and [One Touch
Standby] functions are turned on by
default.
3 Select [System Audio Control] > [On].
One Touch Play
EasyLink
One Touch Standby
System Audio Control
Audio Input Mapping
On
On
On
Off
Advanced
Preference
Video Setup
Audio Setup
Network Setup
EasyLink Setup
EN
22
1 Prepare a USB device that contains
playable media files.
2 Connect the USB device to the
(USB) socket on the front panel of this
unit.
After the unit reads files in the »
USB device successfully, play starts
automatically.
3 Press BACK.
A contents menu is displayed. »
4 Select a file to play, and press OK.
Tip
See “Play video”, “Play photo”, “Play music” for •
details.
To stop play, press • or remove the
USB device.
Note
Philips does not guarantee compatibility with all USB •
devices.
Not all digital cameras are supported. Digital
•
cameras that require PC programme installation are
not supported.
NTFS (New Technology File System) data format is
•
not supported.
Play video
Control video play
1 Play a title.
2 Use the remote control to control the
play.
5 Play
Play a disc
Caution
Do not place any objects other than discs into the •
disc compartment.
1 Press OPEN/CLOSE to open the disc
compartment.
2 Insert a disc with its label facing up.
3 Press OPEN/CLOSE to close the disc
compartment and start disc play.
To view disc play, turn on the TV to •
the video input.
To stop disc play, press •
.
Note
Check disc/file formats supported (see “Your Blu-ray •
Component Hi-Fi System” > “Playable media”).
If the password entry menu is displayed, enter
•
the password before you can play the locked or
restricted disc (see “Adjust settings” > “Preference
Setup” > [Parental Control]).
If you pause or stop a disc, the screen saver appears
•
after 10 minutes of inactivity. To deactivate the
screen saver, press any button.
After you pause or stop a disc and no button is
•
pressed within 15 minutes, this product automatically
switches to standby.
Play from a USB device
Play or view media files on the following USB
devices:
flash drive•
memory card reader•
HDD (This product can detect only a •
portable hard disc drive with USB power
peak current no more than 500mA.)
EN
23
Tip
If the PBC setting is off, the VCD/SVCD skips the •
menu and starts play from the first title. To display
the menu before play, turn on the PBC setting (see
“Adjust settings” > [Preference] > [VCD PBC]).
Select a title/chapter
1 During play, press MODE/OPTIONS.
The play options menu is displayed. »
2 Select [Titles] or [Chapters] in the menu,
and press OK.
3 Select the title or chapter number, and
press OK.
Skip play to a specific time
1 During play, press MODE/OPTIONS.
The play options menu is displayed. »
2 Select [Time Search] in the menu, and
press OK.
3 Press the Navigation buttons ( ) to
change the time to skip to, and press OK.
Zoom in/out
1 During play, press MODE/OPTIONS.
The play options menu is displayed. »
2 Select [Zoom] in the menu, and press
OK.
3 Press the Navigation buttons ( )to
select a zoom factor, and press OK.
4 Press the Navigation buttons ( )
to navigate in the zoomed picture.
To cancel zoom mode, press •
BACK to display the zoom factor
bar, and press the Navigation
buttons (
) until the zoom factor
[x1] is selected.
Button Action
Pause play.
Start or resume play.
Stop play.
/ Skip to a previous/next title or
chapter.
/ Search fast-backward or fast-
forward. Press repeatedly to
change the search speed.
Note
For BD discs with Java application, availability of the •
play resume function depends on specific discs.
Display menu
BD-video disc
• TOP MENU: stop video play and show
the disc menu. This feature is disc-
dependent.
• POP-UP MENU: access the BD-video
disc menu without interrupting disc play.
DVD-video disc
• TOP MENU: display the root menu of a
disc.
• DISC MENU: display disc information and
guide you through the available functions
in the disc.
VCD/SVCD/DivX disc:
• DISC MENU: display the content of the
disc.
TOP MENU
MENU
DISC/
POP
-
UP
MP
3
MODE
MENU
TOP MENU
DISC
DIM
-LNK/AUX
USB
/
DOCK
RADIO
TIMER
DISC/
POP
-
UP
EN
24
3 Press the Navigation buttons ( ) to
shift the subtitle, and press OK.
Tip
Subtitle shift is not supported for DivX video with •
external subtitles.
Play BD-video
A Blu-ray video disc has a larger capacity
and supports features such as high-definition
videos, multi-channel surround sounds,
interactive menus and so on.
1 Insert a BD-video disc.
2 Press , select [Play Disc] and press
OK.
3 Play automatically starts, or select a play
option in the menu and press OK.
During play, you can press • TOP
MENU to display the disc menu
without interrupting disc play.
During play, you can press • DISC/
POP-UP/MENU to display additional
information, features or content
stored in the disc.
Enjoy BD-LIVE
(Applicable only to a disc that enables BD-Live
bonus content. Make sure that this product is
connected to the Internet.)
Additional contents (such as movie trailers,
subtitles, and so on) can be downloaded to
a connected USB storage device. Special
video data can be played while they are being
downloaded.
When the disc supporting BD-Live is played,
this product or disc ID can be sent to the
content provider via the Internet. The services
and functions that can be provided vary from
disc to disc.
Repeat play for a specific section
1 During play, press MODE/OPTIONS.
The play options menu is displayed. »
2 Select [Repeat A-B] in the menu, and
press OK to set the starting point.
3 Continue the video play, and press OK to
set the ending point.
Repeat play starts. »
To cancel repeat play mode, press •
MODE/OPTIONS, and select
[Repeat A-B] and press OK.
Note
The marked section for repeat play is only possible •
within a track/title.
View video play from different
camera angles
1 During play, press MODE/OPTIONS.
The play options menu is displayed. »
2 Select [Angle List] in the menu, and press .
3 Select an angle option, and press OK.
Play changes to the selected angle. »
Note
Applicable only to discs that contain multi-angle •
scenes.
Manually shift subtitle display
You can manually adjust the subtitle position
on the TV screen.
1 During play, press MODE/OPTIONS.
The play options menu is displayed. »
2 Select [Subtitle Shift] in the menu, and
press OK.
EN
25
4 Press to start slideshow play.
Note
It may require longer time to display the disc content •
on the TV if there are a large number of songs/
photos compiled onto one disc.
This product can only display digital camera pictures
•
according to the JPEG-EXIF format, typically used by
most digital cameras. It cannot display Motion JPEG,
or pictures in formats other than JPEG, or sound clips
associated with pictures.
Folders/files that exceed the supported limit of this
•
product cannot be displayed or played.
Control photo play
1 Play a photo slideshow.
Press • MODE/OPTIONS to access
play options, select an option, and
press OK.
During slideshow play, you may •
also press
to flip a photo
horizontally/vertically.
If the slideshow stops, press •
to
continue play.
Set a slideshow interval and
animation
1 During play, press MODE/OPTIONS.
The play options menu is displayed. »
2 Select [Duration per slide] in the menu,
and press OK.
3 Select a duration, and press OK.
4 Select [Slide Animation] in the menu, and
press OK.
5 Select a type of animation effect, and
press OK.
Play a musical slideshow
Create a musical slideshow to play
simultaneously MP3/WMA music files and
JPEG photo files.
Play DivX
®
video
DivX video is a digital media format that
retains high quality despite a high rate of
compression.
1 Insert a disc or USB device that contains
the DivX videos.
2 Press , select [Play Disc] or [Browse
USB], and press OK.
A contents menu is displayed. »
3 Select a video folder, and press OK.
4 Select a title to play, and press OK.
5 Use the remote control to control the
play.
Button Action
Stop play.
Note
You can only play DivX videos that were rented or •
purchased with the DivX registration code of this
player (see “Adjust Settings” > [Advanced] > [DivX
®
VOD Code]).
You can play DivX video files of up to 4GB.
•
This player can display up to 45 characters in the •
subtitle.
Play photo
Play photo as slideshow
You can play JPEG photos (files with .jpeg or
.jpg extensions).
1 Insert a disc or USB device that contains
JPEG photos.
2 Press BACK.
A contents menu is displayed. »
3 Select a photo folder, and press OK to
enter.
To select a photo, press the •
Navigation buttons.
To enlarge the selected photo and •
start slideshow, press OK.
EN
26
Play MP3/WMA music
MP3/WMA is a type of compressed audio file
(files with .mp3, .wma extensions).
1 Insert a disc or USB device that contains
the MP3/WMA music.
Play starts automatically. »
2 Press BACK.
A contents menu is displayed. »
3 Select a music folder, and press OK.
4 Select a file to play, and press OK.
To return to the main menu, press •
BACK.
Note
For disc recorded in multiple sessions, only the first •
session is played.
For a WMA file that is protected by Digital Rights
•
Management (DRM), it cannot be played on this
product.
This product does not support MP3PRO audio
•
format.
For any special character that is present in the MP3
•
track name (ID3) or album name, it might not be
displayed correctly on the screen because these
characters are not supported.
Folders/files that exceed the supported limit of this
•
product cannot be displayed or played.
Note
To create a musical slideshow, you must store the •
MP3/WMA and JPEG files on the same disc or USB
device.
1 Play MP3/WMA music.
2 Press BACK to return to the main
menu.
3 Navigate to enter a photo folder, and
press OK to start slideshow play.
Slideshow begins and continues till »
the end of the photo folder.
Audio continues to play until the end »
of the disc.
To stop the slideshow play, press •
.
To stop the music play, press •
again.
Play music
Control a track
1 Play a track.
2 Use the remote control to control the
play.
Button Action
Pause play.
Start or resume play.
Stop play.
/ Skip to a previous/next
track.
Select an item to play.
/ Search fast-backward
or fast-forward. Press
repeatedly to change the
search speed.
MODE/OPTIONS Select or turn off repeat
or shuffle mode.
EN
27
• [4:3 Letterbox] – For 4:3 screen TV:
wide-screen display with black bars on
the top and bottom of the screen.
• [4:3 Panscan] – For 4:3 screen TV: full-
height display with the trimmed sides.
• [16:9 Widescreen] – For wide-screen TV:
display picture at ratio 16:9.
• [16:9] – For 16:9 screen TV: display
picture at ratio 4:3 for a disc with 4:3
ratio, with black bars on the left and right
side of the screen.
Note
If • [4:3 Panscan] you have selected is not supported
by the disc, the screen displays in the [4:3 Letterbox]
format.
[HDMI Video]
Select an HDMI video output resolution that
is compatible with your TV display capability.
• [Auto] - Detect and select the best
supported video resolution automatically.
• [Native] - Set to original video resolution.
• [480i/576i], [480p/576p], [720p], [1080i],
[1080p], [1080p/24Hz] - Select a video
resolution setting that best is supported
by the TV. See the TV manual for details.
Note
If a selected video resolution is not supported with •
your TV and a blank screen appears, to recover
picture display, wait for 10 seconds, or on the remote
control press
and then press “731” (numeric
buttons).
[HDMI Deep Color]
This feature is available only when the display
device is connected by an HDMI cable, and
when it supports deep color feature.
• [Auto] - Enjoy vivid images in over a
billion colors on Deep Color enabled TV.
• [On] - Enjoy vivid images in over a billion
colors on Deep Color enabled TV.
Output 12 bit color that reduces the
posterization effect.
• [Off] - Output standard 8 bit color.
6 Adjust settings
Note
If the setup option is grayed out, it means the setting •
cannot be changed at the current state.
Video setup
1
Press .
2 Select [Setup], and press OK.
3 Select [Video Setup], and press .
4 Select an option, then press OK.
5 Select a setting, then press OK.
To return to the previous menu, •
press
BACK.
To exit the menu, press •
.
[TV Display]
Select a display format:
Standard
Advanced
Preference
Video Setup
Audio Setup
Network Setup
EasyLink Setup
EN
28
Note
Applicable only to Dolby encoded DVD-video or •
BD-video.
[HDMI Audio]
Select an HDMI audio output when you
connect this product and the TV/audio device
with an HDMI cable.
• [Bitstream] – If the connected HDMI
device supports the appropriate HD
audio decoder, the original audio format
on the disc is sent. Otherwise, LPCM is
sent.
• [Auto] – Detect and select the best
supported audio format automatically.
[Digital Audio]
Select an audio format for the sound output
from the DIGITAL OUT jack (coaxial/optical).
• [Auto] - Detect and select the best
supported audio format automatically.
• [PCM] - The audio device does not
support multi-channel format. Audio is
downmixed to two-channel sound.
• [Bitstream] - Select the original audio to
experience Dolby or DTS audio (BD-
video special sound effect is disabled).
Note
Ensure that the audio format is supported by the disc •
and the connected audio device (amplifier/receiver).
When
• [Bitstream] is selected, interactive audio like
button sound is muted.
[PCM Downsampling]
Set the sampling rate for PCM audio output
from the DIGITAL OUT jack (coaxial/optical).
• [On] - PCM audio is down-sampled at
48kHz.
• [Off] - For BD or DVD recorded in
LPCM without copyright protection,
two-channel audio signals up to 96 kHz
are output as LPCM signals with no
conversion.
[Picture Settings]
Select a predefined set of picture color
settings.
• [Standard] – Original color setting.
• [Vivid] – Vibrant color setting.
• [Cool] - Soft color setting.
• [Action] – Sharp color setting. It
enhances the details in the dark area.
Ideal for action movies.
• [Animation] – Contrast color setting.
Ideal for animated pictures.
Audio setup
1
Press .
2 Select [Setup], and press OK.
3 Select [Audio Setup], and press .
4 Select an option, and press OK.
5 Select a setting, and press OK.
To return to the previous menu, •
press
BACK.
To exit the menu, press •
.
[Night Mode]
Increase a soft sound level such as dialogue to
make it easier to hear at a low volume, while
simultaneously decreasing a loud sound level.
• [Auto] - Detect and select a best sound
level at a low volume. Applicable to tracks
with Dolby TrueHD audio only.
• [On] – For quiet viewing at night.
• [Off] – For surround sound with a full
dynamic range.
Off
Auto
Auto
On
Advanced
Preference
Video Setup
Audio Setup
Network Setup
EasyLink Setup
EN
29
EasyLink setup
1
Press .
2 Select [Setup], and press OK.
3 Select [EasyLink Setup], and press .
4 Select an option, and press OK.
5 Select a setting, and press OK.
To return to the previous menu, •
press
BACK.
To exit the menu, press •
.
[EasyLink]
This product supports Philips EasyLink which uses
the HDMI CEC (Consumer Electronics Control)
protocol. You can use one single remote control
to control all EasyLink-compliant devices that are
connected through HDMI connectors.
• [On] - Turn on EasyLink features.
• [Off] - Disable EasyLink features.
[One Touch Play]
When you press
(standby) to turn on
this product, the TV (if the TV supports
one-touch play) automatically turns on and
switches to the video-in channel. Disc play
starts if there is a disc in this product.
• [On] - Turn on one-touch play feature.
• [Off] - Disable one-touch play feature.
[One Touch Standby]
When you press and hold
(standby), all
the connected HDMI CEC devices (if the
device supports one-touch standby) switch to
standby mode simultaneously.
• [On] - Turn on one-touch standby feature.
• [Off] - Disable one-touch standby feature.
One Touch Play
EasyLink
One Touch Standby
System Audio Control
Audio Input Mapping
On
On
On
Off
Advanced
Preference
Video Setup
Audio Setup
Network Setup
EasyLink Setup
Network setup
1
Press .
2 Select [Setup], and press OK.
3 Select [Network Setup], and press .
4 Select an option, then press OK.
5 Select a setting, then press OK.
To return to the previous menu, •
press
BACK.
To exit the menu, press •
.
[Network Installation]
Install the network connection.
[View Network Settings]
Display the information for the current
network status.
[View Wireless Settings]
Display the information for the current Wi-Fi
status.
If the current network is not set to a wireless
connection, this feature is de-activated.
View Network Settings
Network Installation
View Wireless Settings
Advanced
Preference
Video Setup
Audio Setup
Network Setup
EasyLink Setup
EN
30
[Menu Language]
Select an on-screen menu language.
Note
If this product is connected to an HDMI CEC •
compliant TV using an HDMI cable, it switches
automatically to the same menu display language
as per your TV setting (if the language set on TV is
supported by this product).
[Audio]
Select an audio language for disc play.
[Subtitle]
Select a subtitle language for disc play.
[Disc Menu]
Select a language for disc menu.
Note
If the language you have set is not available on the •
disc, the disc uses its own default language.
For some discs, the subtitle/audio language can only
•
be changed from the disc menu.
[Parental Control]
Restrict access to discs that are unsuitable
for children. These types of discs must be
recorded with ratings.
To access, enter your last set password or
‘0000’.
Note
Rated discs above the level you set in • [Parental
Control] require a password to be played.
The ratings are country-dependent. To allow all discs
•
to play, select ‘8’ for DVD-video and BD-Video.
Some discs have ratings printed on them but are not
•
recorded with ratings. This function has no effect on
such discs.
[System Audio Control]
When you play audio that is routed from the
connected device, this unit switches to the
corresponding audio source automatically.
• [On] - Turns on System Audio Control.
Then proceed to [Audio Input Mapping]
to scan and map the connected device.
• [Off] - Disables System Audio Control.
[Audio Input Mapping]
Updates audio input mapping if there are new
devices connected.
Note
You must turn on the HDMI CEC operations on •
the TV/devices before you can enjoy the EasyLink
controls. See the TV/devices manual for details.
Philips does not guarantee 100% interoperability
•
with all HDMI CEC compliant devices.
Preference setup
1
Press .
2 Select [Setup], and press OK.
3 Select [Preference], and press .
4 Select an option, then press OK.
5 Select a setting, then press OK.
To return to the previous menu, •
press
BACK.
To exit the menu, press •
.
Menu Language
Parental Control
Disc Menu
Audio
Subtitle
Screen Saver
Change Password
Auto (ENG)
English (ENG)
English (ENG)
Off
Off
On
Advanced
Preference
Video Setup
Audio Setup
Network Setup
EasyLink Setup
EN
31
4 Select an option, and press OK.
5 Select a setting, and press OK.
To return to the previous menu, •
press
BACK .
To exit the menu, press •
.
[BD-Live Security]
Restricts or allows access to BD-Live (only for
non-commercial, user-created BD-Live discs).
[Software Update]
Update the software of this product (if a
latest version is available on Philips website) to
enhance the performance of this product.
• [USB] - Update software from the
USB device which is connected to this
product.
• [Network] - Update software from the
Internet.
Note
For detailed software updating, see “Additional •
information” > “Update software”.
[Clear Memory]
If the connected USB storage device is not
enough to download BD-Live bonus contents
for a BD disc, reformat theUSB storage device
to clear all the contents.
Note
When you clear the connected USB storage device, •
the previous download of BD-Live bonus contents is
no longer available.
Clear Memory
Software Update
Advanced
Preference
Video Setup
Audio Setup
Network Setup
EasyLink Setup
[Screen Saver]
Turn on or off the screen saver mode. It helps
to protect the TV screen from being damaged
due to over exposure to static image for being
too long.
• [On] - Set the screen saver active after 10
minutes of inactivity (for example, in the
pause or stop mode)
• [Off] - Disable screen saver mode.
[Change Password]
Set or change the password.
1) Press the Numeric buttons to enter the
password or your last set password. If you
forget the password, enter ‘0000’, then press
.
2) Enter the new password.
3) Re-enter the password.
4) Move to [Confirm] in the menu and press
OK.
[Display Panel]
Select a brightness level of the front panel
display.
• [100%] - Brightest
• [70%] - Medium
• [40%] - Dimmest
[VCD PBC]
Turn on or off the content menu of VCDs/
SVCDs with PBC (playback control) feature.
• [On] - Display the index menu when you
load a disc for play.
• [Off] - Skip the menu and start play from
the first title.
Advanced setup
1
Press .
2 Select [Setup], and press OK.
3 Select [Advanced], and press .
EN
32
7 Tune to FM
radio stations
1 Ensure that you have connected and fully
extended the supplied FM antenna.
2 Press RADIO.
3 Press / or .
4 When the frequency indication starts to
change, release the button.
The FM tuner tunes to a station with »
strong reception automatically.
5 Repeat steps 3-4 to tune to more
stations.
To tune to a weak station:
Press
repeatedly until you find optimal
reception.
Program radio stations
automatically
Note
You can program a maximum of 40 preset radio •
stations.
1 Press / to select a preset number to
start programming.
2 Press and hold PROGRAM for 2 seconds
to activate automatic programming.
» [AUTO] (auto) is displayed briefly.
All available stations are programmed »
in the order of waveband reception
strength.
The first programmed radio station is »
broadcast automatically.
[DivX
®
VOD Code]
Obtain the DivX
®
registration code or the
deregistration code.
Tip
Use the DivX registration code of this product when •
you rent or purchase video from www.divx.com/
vod. The DivX videos rented or purchased through
the DivX
®
VOD (Video On Demand) service can be
played only on the device to which it is registered.
[Version Info.]
Display the software version and the MAC
address of this player.
Tip
This information is needed for you to check if a latest •
software version is available at the Philips website so
that you can download and install on this player.
[Restore Default Settings]
Reset all the settings of this player to the
factory settings, except for [Parental Control]
setting.
EN
33
Set RDS clock
You can use time signal broadcast together
with the RDS signal to set the clock of the unit
automatically.
1 Tune to a RDS radio station that
transmits time signals.
2 Press and hold RDS/INFO.
The unit reads the RDS time and sets »
the clock automatically.
Note
The accuracy of the transmitted time depends on the •
RDS station that transmits the time signal.
Program radio stations
manually
Note
You can program a maximum of 40 preset radio •
stations.
1 Tune to a radio station.
2 Press PROGRAM to activate
programming.
3 Press / to allocate a number from
1 to 40 to this radio station, then press
PROGRAM to confirm.
The preset number and the frequency »
of the preset station are displayed.
4 Repeat the above steps to program other
stations.
Note
To overwrite a programmed station, store another •
station in its place.
Tune to a preset radio station
1
Press / to select a preset number
that you want.
Tip
To delete a preset station, tune to the station and •
then press and hold .
EN
34
Mute sound
1
During play, press to mute/resume
sound.
Listen through headphone
1
Plug a headphone into the socket on
the unit.
8 Adjust volume
level and sound
effect
Adjust volume level
1
During play, press VOL +/- to increase/
decrease the volume level.
Select a sound effect
Note
You cannot use different sound effects at the same •
time.
Adjust bass level
1 During play, press BASS to enter bass
adjustment.
2 Press VOL +/- to adjust the bass level.
Adjust treble level
1 During play, press TREBLE to enter treble
adjustment.
2 Press VOL +/- to adjust the treble level.
Select automatic loudness control
The loudness feature enables the system to
increase the treble and bass sound effect
at low volume automatically (the higher
the volume, the lower the treble and bass
increase).
1 During play, press LOUDNESS to turn
on/off automatic loudness control.
EN
35
7 Press SLEEP /TIMER to confirm.
The volume level indicator begins to »
blink.
8 Press VOL +/- to set the volume level,
then press SLEEP /TIMER to confirm.
An alarm icon is displayed. »
Note
In standby mode, press • SLEEP /TIMER repeatedly to
activate/deactivate the alarm timer.
When the alarm sounds, you can press
• VOL +/- to
adjust volume.
If Disc/USB/Dock is selected as the alarm source,
•
while no disc is inserted or no USB/iPhone/iPod
connected, the system switches to the tuner source
instead.
Set the sleep timer
1
When the unit is turned on, press SLEEP/
TIMER repeatedly to select a set period
of time (in minutes).
The unit turns off automatically after »
the set period of time.
Update software
For software updates to enhance
performance, check the current software
version of this product to compare with the
latest software (if available) at the Philips
website.
1 Press .
2 Select [Setup], and press OK.
3 Select [Advanced] > [Version Info.], and
press OK.
9 Additional
Information
Adjust brightness of display
panel
1
In standby mode, press DIM repeatedly
to select different levels of brightness for
the display panel.
Turn on or off LED light
1
In power-on mode, press and hold DIM
to turn on or off the LED light at the
bottom of the unit and at the volume
knob.
Set alarm timer
Note
Make sure that you have set the clock correctly. •
1 In standby mode, press and hold SLEEP
/TIMER.
» [TIMER SET] (set timer) appears
briefly. Then [SELECT SOURCE]
scrolls, followed by an alarm source
for selection.
2 Press VOL +/- to select an alarm source:
DISC, TUNER, USB DIRECT or DOCK.
3 Press SLEEP /TIMER to confirm.
The hour digits begin to blink. »
4 Press VOL +/- to set the hour.
5 Press SLEEP /TIMER to confirm.
The minute digits begin to blink. »
6 Press VOL +/- to set the minute.
EN
36
Care
Caution
Never use solvents such as benzene, thinner, •
cleaners available commercially, or anti-static sprays
intended for discs.
Clean discs
Wipe the disc with a micro fibre cleaning cloth
from the centre to the edge in a straight line
movement.
Specifications
Note
Specifications are subject to change without notice •
Video
Video DAC: 12Bits•
Signal system: PAL / NTSC•
Video format: 4:3 / 16:9•
Video S/N: > 60dB•
HDMI output: 480p, 576p, 720p, •
1080i,1080p, 1080p24
Audio line-out
Output level: 2.0Vrms +/-2dB•
Total harmonic distortion: > 65dB (1kHz)•
Frequency response: 20Hz - 20kHz•
S/N ratio: > 65dBA•
Audio amplifier
Total output power: 2 x 50W RMS•
Total harmonic distortion: > 65dB (1kHz)•
Frequency response: 30Hz - 16kHz•
S/N ratio: > 65dBA•
Headphone out
Output level: 500mV (RL=32ohms)•
Total harmonic distortion: > 65dB (1kHz)•
Frequency response: 20Hz - 20kHz•
S/N ratio: > 85dBA•
Update software via network
1 Set up the internet connection (see “Get
started’ > “Set up a network”).
2 In the Home menu, select [Setup] >
[Advanced] > [Software Update] >
[Network].
You are prompted to start the »
upgrading process if upgrade media is
detected.
3 Follow the instructions on the TV screen
to confirm update operation.
Once software update is complete, »
this product restarts automatically.
Update software via USB
1 Go to www.philips.com/support to check
if the latest software version is available
for this product.
2 Download the software into a USB flash
drive:
a Un-zip the download, and make
sure that the un-zipped folder is
named “UPG_ALL”.
b Put the “UPG_ALL” folder in the
root directory.
3 Insert the USB flash drive to the
(USB) jack on the front panel of this
product.
4 In the Home menu, select [Setup] >
[Advanced] > [Software Update] >
[USB].
5 Follow the instructions on the TV screen
to confirm update operation.
Once software update is complete, »
this product restarts automatically.
Note
Do not turn off the power or remove the USB •
flash drive when software updating is in progress to
prevent possible damage of this product.
EN
37
Laser Specification
Laser Type: •
BD Laser Diode: InGaN/AIGaN•
DVD Laser Diode: InGaAIP•
CD Laser Diode:A IGaAs•
Wave length: •
BD: 405 + 7 nm/-7 nm•
DVD: 655 + 10nm/-10nm•
CD: 790 + 10nm/-20nm•
Output power: •
BD: Max. ratings: 20mW•
DVD: Max. ratings: 7mW•
CD: Max. ratings: 7mW•
Tuner (FM)
Tuning range: 87.5 - 108MHz •
Tuning grid: 50KHz•
- Mono, 26dB S/N ratio: <22 dBf,
- Stereo, 46dB S/N ratio: >43 dBf
Search selectivity: >28dBf •
Total harmonic distortion: <1% •
Signal to noise ratio: >65dB •
S/PDIF digital audio output:
Coaxial: IEC 60958-3•
USB
Compatibility: Hi-Speed USB (2.0)•
Class support: UMS (USB Mass Storage •
Class)
Main unit
Power supply rating•
Europe: 220-240V~, 50/60Hz•
Power consumption: 40W•
Power consumption in standby mode: •
< 0.5 W
Dimensions (w x h x d): •
256 x 94 x 296 (mm)
Net weight: 2.7 kg•
Speakers
Speaker impedance: 6ohm•
Speaker driver: 5.25” woofer+3” tweeter•
Sensitivity: >80dB/m/W ± 4dB/m/W•
Dimensions (w x h x d): •
176 x 260 x 240 (mm)
Net weight: 3.05 kg•
Accessories supplied
Remote control and batteries•
Video cable•
Power cable•
Speaker cables•
FM wire antenna•
MP3 LINK cable•
Quick start guide•
User manual (CD-ROM)•
Optional accessory
A wireless Philips USB adapter(named •
WUB1110, sold separately)
Multimedia connections: Wi-Fi •
802.11b/g/n
Connectivity: Rear connection (USB)•
Ambient temperature: 5 deg C to •
40 deg C.
Dongle dimensions (W x H x D): •
28.4 x 82 x 13.4 mm
An iPod/iPhone dock (DCK3060)•
EN
38
No picture on HDMI connection.
If this product is connected to an •
unauthorized display device with an
HDMI cable, the audio/video signal may
not be output.
Check if the HDMI cable is faulty. Replace •
with a new HDMI cable.
On the remote control, press •
and then
press “731” (numeric buttons) to recover
picture display.
No high-definition video signal on the TV.
Make sure that the disc contains high-•
definition video.
Make sure that the TV supports high-•
definition video.
Sound
No sound or poor sound
Adjust the volume. •
Disconnect the headphones. •
Check that the speakers are connected •
correctly.
Check if the stripped speaker wires are •
clamped.
No sound on HDMI connection.
You may not hear any sound from the •
HDMI output if the connected device
is non-HDCP compliant or only DVI-
compatible.
No secondary audio output for Picture-in-
Picture feature.
When • [Bitstream] under the [HDMI
Audio] or [Digital Audio] menu is
selected, interactive sound like secondary
sound for Picture-in-Picture feature is
muted. Deselect [Bitstream].
Play
Disc cannot be played.
Ensure that the disc is correctly loaded.•
Ensure that this product supports the •
disc (see “Your Blu-ray Component Hi-Fi
System” > “Playable media”).
10 Troubleshooting
Warning
Risk of electric shock. Never remove the casing of •
the product.
To keep the warranty valid, never try to repair
the product yourself.
If you have problems using this product,
check the following points before you request
service. If you still have a problem, register
your product and get support at www.philips.
com/welcome.
Main unit
No reaction to the remote control.
Connect this product to the power •
outlet.
Point the remote control at the IR sensor •
located on the front panel of this product.
Insert the batteries correctly.•
Insert new batteries in the remote •
control.
Timer does not work
Set the clock correctly. •
Switch on the timer. •
Clock/timer setting erased
Power has been interrupted or the power •
cord has been disconnected.
Reset the clock/timer. •
No picture.
See TV manual for correct video input •
selection. Change the TV channel until
you see the Philips screen.
EN
39
Make sure that the BD disc supports BD-•
Live feature.
Poor radio reception
Increase the distance between the •
apparatus and your TV or VCR.
Fully extend the FM antenna. •
Connect an outdoor FM antenna instead. •
Network
Wireless network is not found or distorted.
Microwave ovens, DECT phones or other •
wireless devices in your neighborhood
might disturb the wireless network.
Make sure that the firewalls in your •
network allow access to the wireless
connection of this product.
If the wireless network does not work •
properly in your home, try the wired
network connection (see “Get started” >
“Set up a network”).
Ensure that this product supports the •
region code of the DVD or BD.
For DVD±RW or DVD±R, ensure that •
the disc is finalized.
Clean the disc. •
Data files (JPEG, MP3, WMA) cannot be
played or read.
Ensure that the data file was recorded in •
the UDF, ISO9660 or JOLIET format.
Ensure that the disc does not contain •
more than 9,999 files for DVD, and 999
files for CD.
Ensure that the JPEG file extension is.jpg, •
.JPG, .jpeg or .JPEG.
Ensure that the MP3/WMA file extension •
is .mp3 or .MP3, and .wma or .WMA for
windows Media™ Audio.
DivX video files cannot be played.
Ensure that the DivX video file is •
complete.
Ensure that the file name extension is •
correct.
The contents of the USB flash drive cannot
be read.
The USB flash drive format is not •
compatible with this product.
The maximum size of memory supported •
is 160GB.
‘No entry’ or ‘x’ sign appears on the TV.
The operation is not possible. •
EasyLink feature does not work.
Ensure that this product is connected •
to the Philips brand EasyLink TV and
the[EasyLink]in the menu is set to [On].
Unable to access BD-Live feature.
Check the network connection or •
make sure that the network has been
set up (see “Get started” > “Set up a
network”).
To free space, delete downloaded BD-•
Live data on the connected USB storage
device (see “Adjust settings” > “Advanced
setup” > [Clear Memory]).
EN
40
DivX Video-On-Demand
This DivX Certified
®
device must be
registered in order to play DivX Video-on-
Demand (VOD) content. To generate the
registration code, locate the DivX VOD
section in your device setup menu. Go to
vod.divx.com with this code to complete the
registration process and learn more about
DivX video.
Dolby Digital
A surround sound system developed by Dolby
Laboratories that contains up to six channels
of digital audio (front left and right, surround
left and right, center and subwoofer.)
DTS
Digital Theatre Systems. A surround sound
system for providing 5.1 channels of discrete
digital audio in consumer electronics products
and software content. It is not developed by
Dolby Digital.
H
HDCP
High-bandwidth Digital Content Protection.
This is a specification that provides a secure
transmission of digital contents between
different devices (to prevent unauthorized
copyright.)
HDMI
High-Definition Multimedia Interface (HDMI)
is a high-speed digital interface that can
transmit uncompressed high definition video
and digital multichannel audio. It delivers high
quality picture and sound quality, completely
free from noise. HDMI is fully backward-
compatible with DVI.
As required by the HDMI standard,
connecting to HDMI or DVI products without
HDCP (High-bandwidth Digital Content
Protection) will result in no Video or Audio
output.
11 Glossary
A
Aspect ratio
Aspect ratio refers to the width to height
ratio of TV screens. The ratio of a standard
TV is 4:3, while the ratio of a high-definition
or wide TV is 16:9. The letter box allows you
to enjoy a picture with a wider perspective on
a standard 4:3 screen.
AVCHD
AVCHD is a format (standard) for high
definition video cameras that can be used to
record and play high-resolution HD images.
B
Blu-ray Disc (BD)
Blu-ray Disc is a next generation optical video
disc capable of storing five times more data
than a conventional DVD. The large capacity
makes it possible to benefit from the features
such as high-definition videos, multichannel
surround sound, interactive menus and so on.
BONUSVIEW
BonusView, also known as “Profile 1.1”. In
addition to basic playback and interactive
features, BonusView players introduced after
31st October, 2007 enables users to enjoy
‘Picture-in-Picture’ (PiP) and secondary audio
features (useful when playing games that use
additional audio stream while the movie is
playing) on compatible BonusView discs.
D
Digital Audio
Digital Audio is a sound signal that has been
converted into numerical values. Digital sound
can be transmitted through multiple channels.
Analogue sound can only be transmitted
through two channels.
EN
41
R
Region code
A system that allows discs to be played only
in the region designated. This unit only plays
discs that have compatible region codes. You
can find the region code of your unit on the
product label. Some discs are compatible with
more than one region (or ALL regions.)
W
WMA
Windows Media™ Audio. Refers to an
audio compression technology developed by
Microsoft Corporation. WMA data can be
encoded with Windows Media player version
9 or Windows Media player for Windows XP.
Files are recognized by their file extension
‘.wma.’
J
JPEG
A very common digital still picture format.
A still-picture data compression system
proposed by the Joint Photographic Expert
Group, which features small decrease in image
quality in spite of its high compression ratio.
Files are recognized by their file extension
‘.jpg’ or ‘.jpeg.’
L
LAN (Local Area Network)
A group of linked devices in a company,
school or home. Indicates the boundaries of a
particular network.
M
MP3
A file format with a sound data compression
system. MP3 is the abbreviation of Motion
Picture Experts Group 1 (or MPEG-1) Audio
Layer 3. With the MP3 format, one CD-R or
CD-RW can contain about 10 times more
data than a regular CD.
P
PBC
Playback Control. A system where you
navigate through a Video CD/Super VCD with
on-screen menus that are recorded onto the
disc. You can enjoy interactive playback and
search.
PCM
Pulse Code Modulation. A digital audio
encoding system.
EN
© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
MBD7020_12_UM_V1.0
