Serial Number
Decal
Model No. PFTL79515.5
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER’S MANUAL
proform.com
ACTIVATE YOUR
WARRANTY
To register your product and
activate your warranty today, go
to my.proform.com.
CUSTOMER CARE
For service at any time, go to
proformservice.com.
Or call 1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
2
This drawing shows the locations of the warning
decals. If a decal is missing or illegible, call
the telephone number on the front cover of
this manual and request a free replacement
decal. Apply the decal in the location shown.
Note: The decals may not be shown at actual size.
WARNING DECAL PLACEMENT
IFIT is a registered trademark of ICON Health & Fitness, Inc. App store is a trademark of Apple Inc., registered in
the U.S. and other countries. Android and Google Play are trademarks of Google Inc. The BLUETOOTH
®
word
mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. IOS is a trademark
or registered trademark of Cisco in the U.S. and other countries and is used under license. PROFORM is a regis-
tered trademark of ICON Health & Fitness, Inc.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO USE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
TABLE OF CONTENTS
3
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The treadmill is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use
of the treadmill by someone responsible for
their safety.
4. Use the treadmill only as described in this
manual.
5. The treadmill is intended for home use only.
Do not use the treadmill in any commercial,
rental, or institutional setting.
6. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
7. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
8. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
9. Keep children under age 13 and pets away
from the treadmill at all times.
10. The treadmill should be used only by per-
sons weighing 325 lbs. (148 kg) or less.
11. Never allow more than one person on the
treadmill at a time.
12. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
13. Plug the power cord into a surge suppressor
(not included), and plug the surge suppres-
sor into an appropriate outlet (see page 17).
To avoid overloading the circuit, do not plug
other electrical devices, except for low-power
devices such as cell phone chargers, into
the surge suppressor or into an outlet on the
same circuit.
14. Use only a surge suppressor that meets all of
the specifications described on page 17. To
purchase a surge suppressor, see your local
PROFORM dealer, call the telephone number
on the front cover of this manual, or see your
local electronics store.
15. Failure to use a properly functioning surge
suppressor could result in damage to the
control system of the treadmill. If the control
system is damaged, the walking belt may
slow, accelerate, or stop unexpectedly, which
may result in a fall and serious injury.
16. Keep the power cord and the surge suppres-
sor away from heated surfaces.
17. Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
MAINTENANCE AND TROUBLESHOOTING
on page 26 if the treadmill is not working
properly.)
18. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE POWER on
page 19). Always wear the clip while using the
treadmill.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. ICON assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
IMPORTANT PRECAUTIONS
4
19. Always stand on the foot rails when starting
or stopping the walking belt. Always hold the
handrails while using the treadmill.
20. When a person is walking on the treadmill,
the noise level of the treadmill will increase.
21. Keep fingers, hair, and clothing away from
the moving walking belt.
22. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
23. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
24. Never leave the treadmill unattended while
it is running. Always remove the key, press
the power switch into the off position (see
the drawing on page 6 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
25. Do not attempt to move the treadmill until it
is properly assembled. (See ASSEMBLY on
page 8, and HOW TO FOLD AND MOVE THE
TREADMILL on page 25.) You must be able
to safely lift 45 lbs. (20 kg) to raise, lower, or
move the treadmill.
26. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position. Do
not operate the treadmill while it is folded.
27. Never insert any object into any opening on
the treadmill.
28. Inspect and properly tighten all parts each
time the treadmill is used.
29. DANGER: Always unplug the power
cord immediately after use, before clean-
ing the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser-
vice representative only.
30. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
SAVE THESE INSTRUCTIONS
5
all
STANDARD SERVICE PLANS
6
Thank you for selecting the revolutionary
PROFORM
®
PERFORMANCE 600I treadmill. The
PERFORMANCE 600I treadmill offers an impres-
sive selection of features designed to make your
workouts at home more effective and enjoyable. And
when you’re not exercising, the unique treadmill can
be folded up, requiring less than half the fl oor space of
other treadmills.
For your benefi t, read this manual carefully before
using the treadmill. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, please note the product
model number and serial number before contacting us.
The model number and the location of the serial num-
ber decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
Handrail
Upright
Tray
Key/Clip
Power Switch
Walking Belt
Platform Cushion
Foot Rail
Power Cord
Idler Roller
Adjustment Screws
Console
Heart Rate Monitor
Length: 6 ft. 8 in. (203 cm)
Width: 3 ft. 1 in. (94 cm)
Tablet Holder
7
3/8" Star
Washer (13)–8
5/16" Star
Washer (11)–10
#10 x 3/4" Screw
(9)–4
#8 x 1/2" Silver
Screw (10)–1
#8 x 1/2"
Screw (1)–10
5/16" x 3/4"
Screw (25)–2
#10 Star
Washer (5)–4
5/16" x 2 1/2" Screw (28)–4
#8 x 5/8" Machine
Screw (26)–4
5/16" x 1/2"
Screw (4)
–
4
3/8" x 2 1/4" Screw (7)–4
3/8" x 1 3/4" Screw (62)–2
3/8" x 1 1/4"
Screw (63)–2
PART IDENTIFICATION CHART
Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is
preattached. Extra parts may be included.
8
• To hire an authorized service technician to
assemble the treadmill, call 1-800-445-2480
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you fi nish all assembly steps.
• After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal. If
there is an oily substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 7.
• Assembly requires the following tools:
the included hex key
one adjustable wrench
one Phillips screwdriver
To avoid damaging parts, do not use power tools.
ASSEMBLY
1. Go to my.proform.com on your computer and
register your product.
• documents your ownership
• activates your warranty
• ensures priority customer support if assistance
is ever needed
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.
1
9
2
3

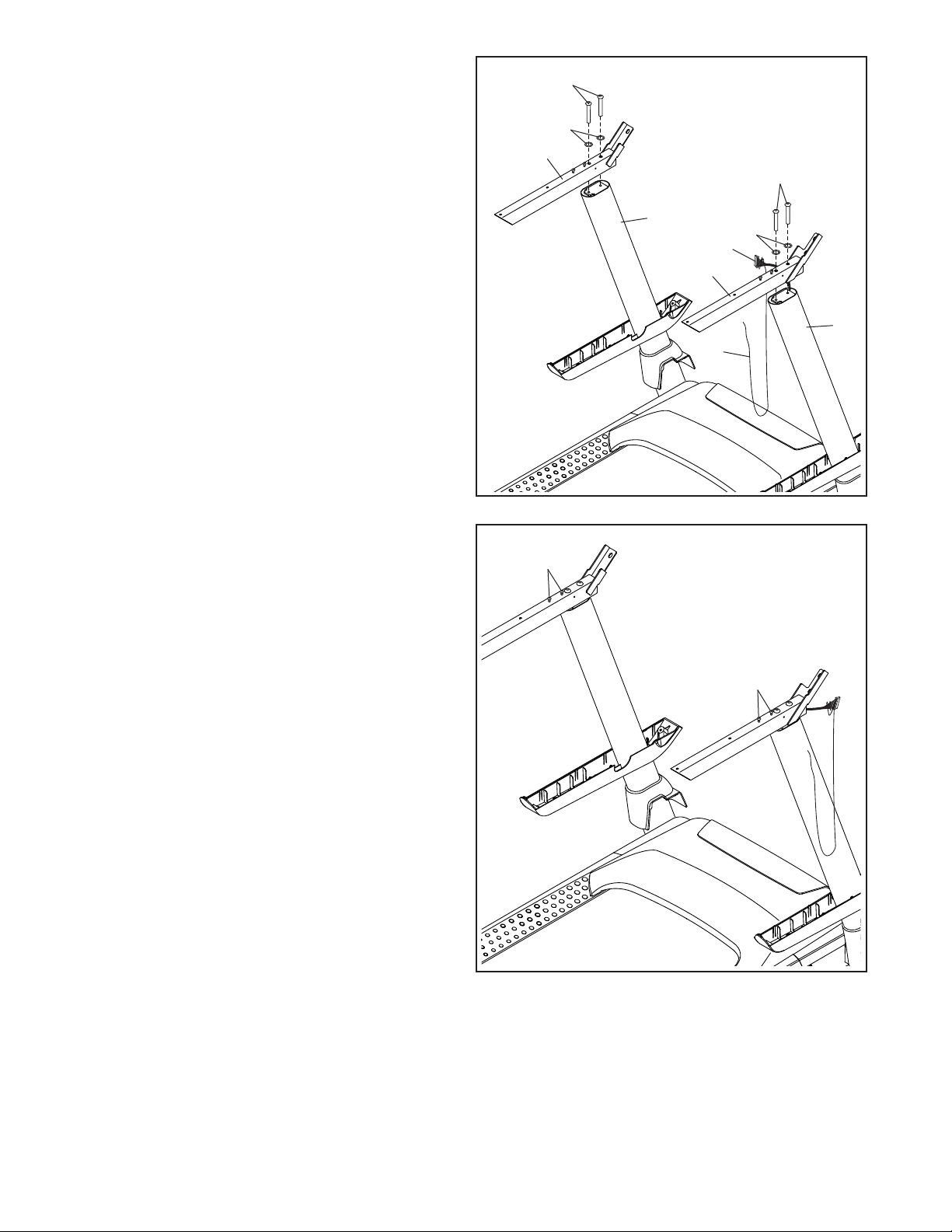

2. Make sure that the power cord is unplugged.
Remove the tie securing the Upright Wire (81) to
the front of the Base (94).
Next, identify the Right Upright (90). Have a sec-
ond person hold the Right Upright near the Base
(94).
See the inset drawing. Tie the wire tie (A) in
the Right Upright (90) securely around the end
of the Upright Wire (81). Then, insert the Upright
Wire into the lower end of the Right Upright as
you pull the other end of the wire tie through the
Right Upright.
94
90
81
90
81
A
A
3. Lay the Right Upright (90) near the Base (94).
Press the Grommet (77) into the square hole (B)
in the Right Upright. Make sure not to pinch
the ground wire (C).
Next, remove and discard the indicated screw (D).
Then, attach the ground wire to the Right Upright
(90) with a #8 x 1/2" Silver Screw (10).
94
90
D
C
B
10
77
10
4
63
62
97
94
13
90
7
13
81
13
5. Identify the Left and Right Base Covers (82, 83).
Slide the Left Base Cover onto the Left Upright
(89), and slide the Right Base Cover onto the
Right Upright (90); do not press the Base
Covers into place yet.
Next, identify the Right and Left Bottom Handrail
Covers (84, 85). Slide the Left Bottom Handrail
Cover onto the Left Upright (89), and slide the
Right Bottom Handrail Cover onto the Right
Upright (90).
82
85
90
83
84
89
5
4. Hold the Right Upright (90) against the Base
(94). Make sure not to pinch the Upright Wire
(81).
Attach the Right Upright (90) and a Wheel (97)
with two 3/8" x 2 1/4" Screws (7), a 3/8" x 1 1/4"
Screw (63), a 3/8" x 1 3/4" Screw (62), and four
3/8" Star Washers (13) as shown; do not fully
tighten the Screws yet.
Attach the Left Upright (not shown) and the
other Wheel (not shown) in the same way.
Note: There are no wires on the left side.
11
6. Identify the Left Handrail (86).
Attach the Left Handrail (86) to the Left Upright
(89) with two 5/16" x 2 1/2" Screws (28) and
two 5/16" Star Washers (11); firmly tighten the
Screws.
Next, attach the Right Handrail (87) to the Right
Upright (90) with two 5/16" x 2 1/2" Screws (28)
and two 5/16" Star Washers (11); firmly tighten
the Screws.
Then, remove the wire tie (A) from the Upright
Wire (81).
90
A
6
87
86
89
81
11
28
11
28
7. If there are four screws (E) in the locations
shown, remove and discard them.
7
E
E
12
8. Note: If the treadmill is assembled on a
smooth surface, it may roll forward during
this step.
Raise the Frame (56) to the upright position.
IMPORTANT: Do not raise the Frame past the
vertical position. Have a second person hold
the Frame until step 10 is completed.
Orient the Latch Crossbar (38) as shown. Make
sure that the “This side toward belt” sticker
(F) is facing the treadmill. Attach the Latch
Crossbar to the brackets (G) on the Frame (56)
with two 5/16" x 3/4" Screws (25) and two 5/16"
Star Washers (11).
56
38
F
G
G
11
11
25
25
8
9. Remove the 5/16" Nut (12) and the 5/16" x 1 3/4"
Bolt (6) from the bracket on the Base (94).
Next, orient the Storage Latch (53) as shown.
Attach the lower end of the Storage Latch (53)
to the bracket on the Base (94) with the 5/16" x
1 3/4" Bolt (6) and the 5/16" Nut (12).
Then, raise the Storage Latch (53) to a vertical
position, and remove the tie (H).
94
53
6
12
H
9
13
10. Remove the 5/16" Nut (12) and the 5/16" x 2 1/4"
Bolt (3) from the bracket on the Latch Crossbar
(38).
Align the upper end of the Storage Latch (53)
with the bracket on the Latch Crossbar (38),
and insert the 5/16" x 2 1/4" Bolt (3) through the
bracket and the Storage Latch. This will push
a spacer (I) out of the Storage Latch; discard
the spacer.
Next, tighten the 5/16" Nut (12) onto the 5/16" x
2 1/4" Bolt (3). Do not overtighten the Nut; the
Storage Latch (53) must be able to pivot.
Then, lower the Frame (56) (see HOW TO
LOWER THE TREADMILL FOR USE on page
25).
38
3
56
12
I
53
10
11. Set the console assembly (J) on the Left and
Right Handrails (86, 87). Make sure not to
pinch any wires (K, 81).
Attach the console assembly (J) with four 5/16" x
1/2" Screws (4) and four 5/16" Star Washers
(11); do not tighten the Screws yet.
11
J
87
86
4
11
4
11
81
K
14
12. Attach the console assembly (J) to the Left and
Right Handrails (86, 87) with four #10 x 3/4"
Screws (9) and four #10 Star Washers (5); start
all four Screws, and then tighten them.
5
12
5
9
J
86
87
13. See the inset drawing. Connect the Upright
Wire (81) to the console wire (K). The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF YOU DO NOT CONNECT THE
CONNECTORS PROPERLY, THE CONSOLE
MAY BECOME DAMAGED WHEN YOU TURN
ON THE POWER.
Then, firmly tighten the four 5/16" x 1/2"
Screws (4) (only two are shown).
81
81
K
13
4
90
K
9
15
14. Attach the Left Handrail Cover (79) and the
Right Handrail Cover (92) to the Left and Right
Handrails (86, 87) with six #8 x 1/2" Screws (1);
start all the Screws, and then tighten them.
Do not overtighten the Screws.
1
92
79
1
86
1
87
1
14
15. Slide the Left Bottom Handrail Cover (85)
up against the Left Handrail Cover (79), and
attach the Left Bottom Handrail Cover with two
#8 x 1/2" Screws (1); do not overtighten the
Screws.
Attach the Right Bottom Handrail Cover (84)
in the same way. Make sure that the Upright
Wire (81) is inserted into the Right Bottom
Handrail Cover.
15
79
1
1
84
85
1
1
81
16. Firmly tighten the four 3/8" x 2 1/4" Screws (7)
and the two 3/8" x 1 1/4" Screws (63).
Next, tighten the two 3/8" x 1 3/4" Screws
(62); the Wheels (97) must turn freely.
Next, set the Left Inner Base Cover (106) onto
the lower end of the Left Upright (89). Slide the
Left Base Cover (82) downward and press it
onto the Left Inner Base Cover.
Then, set the Right Inner Base Cover (14) onto
the lower end of the Right Upright (90). Slide the
Right Base Cover (83) downward and press it
onto the the Right Inner Base Cover.
106
83
82
62
89
7
7
63
62
14
63
16
90
97
97
16
19. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the fl oor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex keys in a secure
place; one of the hex keys is used to adjust the walking belt (see pages 27 and 28). Note: Extra parts may be
included.
17
105
Start First
17. Press the two tabs on the Tablet Holder (105)
into the slots (L) in the console assembly (J).
Attach the Tablet Holder (105) with four #8 x 5/8"
Machine Screws (26). Note: Start the two top
Machine Screws fi rst, and then start the two
bottom Machine Screws. Be careful not to
overtighten the Machine Screws.
IMPORTANT: The Tablet Holder (105) is
designed for use with most full-size tablets.
Do not place any other electronic device or
object in the Tablet Holder.
J
L
26
18. IMPORTANT: You must activate your Console
(80) to begin using its exclusive features.
First, plug in the power cord (see page 17) and
turn on the power (see page 19).
Then, using your smart phone or tablet, go to
iFit.com/activate and follow the instructions to
activate the Console (80).
Note: If you do not have a smart phone or tablet,
use your computer to go to iFit.com/activate for
an alternate way to activate the Console (80). If
you do not have a computer, call Customer Care
(see the front cover of this manual).
18
80
17
HOW TO USE THE TREADMILL
HOW TO CONNECT THE POWER CORD
Use a Surge Suppressor
Your treadmill, like other electronic equipment, can be
damaged by sudden voltage changes in your home’s
power. Voltage surges, spikes, and noise interfer-
ence can result from weather conditions or from other
appliances being turned on or off. To decrease the
risk of damaging the treadmill, always use a surge
suppressor with the treadmill. To purchase a surge
suppressor, see precaution 14 on page 3.
Use only a surge suppressor that is UL 1449 listed as a
transient voltage surge suppressor (TVSS). The surge
suppressor must have a UL suppressed voltage rating
of 400 volts or less and a minimum surge dissipation of
450 joules. The surge suppressor must also be electri-
cally rated for 120 volts AC and 15 amps. There must
be a monitoring light on the surge suppressor to indi-
cate whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill
and serious injury to users.
Plug in the Power Cord
The treadmill must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. The treadmill power cord has a plug with a
grounding pin (see drawing 1 on this page).
Plug the power cord into a surge suppressor, and plug
the surge suppressor into an appropriate outlet that is
properly installed and grounded in accordance with all
local codes and ordinances. The outlet must be on a
nominal 120-volt circuit capable of carrying 15 or
more amps. To avoid overloading the circuit, do
not plug other electrical devices, except for low-
power devices such as cell phone chargers, into
the surge suppressor or into an outlet on the same
circuit. IMPORTANT: If the treadmill is connected to
an AFCI-equipped outlet and your circuit breaker
trips repeatedly when the treadmill is used, see the
front cover of this manual to purchase an arc filter.
A temporary
adapter may
be used to
connect the
surge sup-
pressor to
a 2-pole
receptacle
if a properly
grounded
outlet is not
available.
The lug or wire extending from the adapter must
be connected with a metal screw to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a quali-
fied electrician to determine whether the outlet box
cover is grounded. The temporary adapter should
be used only until a properly grounded outlet can
be installed by a qualified electrician.
1
Surge
Suppressor
Grounding Pin
Grounded Outlet
Grounding Pin
2
Adapter
2-pole Receptacle
Lug
Metal
Screw
DANGER: Improper connection
of the power cord increases the risk of elec-
tric shock. Do not modify the plug—if it will
not fit an outlet, have a proper outlet installed
by a qualified electrician. If you are unsure
whether the treadmill is properly grounded,
contact a qualified electrician.
18

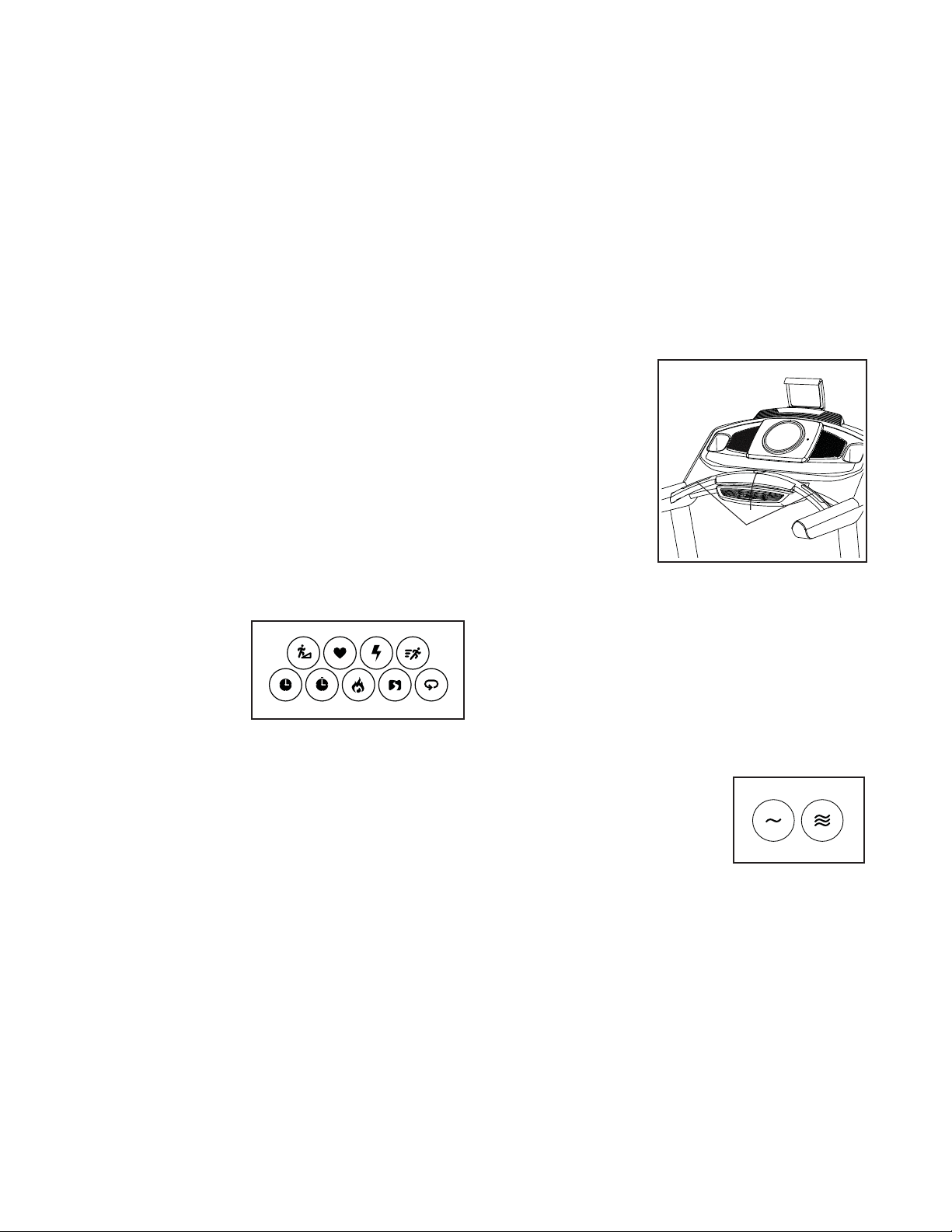

FEATURES OF THE CONSOLE
IMPORTANT: To activate your console and begin
using its exclusive features, see assembly step 18
on page 16.
The treadmill console offers a selection of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode, you can change the
speed and incline of the treadmill with the touch of a
button. As you exercise, the console will display instant
exercise feedback. You can even measure your heart
rate using the handgrip heart rate monitor or a com-
patible heart rate monitor. See page 23 for informa-
tion about purchasing an optional chest heart rate
monitor.
In addition, the console features a selection of on-
board workouts. Each workout automatically controls
the speed and incline of the treadmill as it guides you
through an effective exercise session.
You can also connect your tablet to the console and
use an iFit
®
app to record and track your workout
information.
You can even listen to your favorite workout music or
audio books with the console’s sound system while you
exercise.
To turn on the power, see page 19. To use the man-
ual mode, see page 19. To use an onboard workout,
see page 21. To use an interval training workout,
see page 22. To connect your tablet to the console,
see page 22. To connect your heart rate monitor to
the console, see page 23. To use the sound sys-
tem, see page 23. To use the information mode, see
page 24.
Note: The console can display speed and distance in
either miles or kilometers. To fi nd which unit of mea-
surement is selected, see THE INFORMATION MODE
on page 24. For simplicity, all instructions in this sec-
tion refer to miles.
IMPORTANT: If there are sheets of plastic on the
console, remove the plastic. To prevent damage
to the walking platform, wear clean athletic shoes
while using the treadmill. The fi rst time you use
the treadmill, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 27).
CONSOLE DIAGRAM
19
HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you turn on the power. If you do
not do this, you may damage the console displays
or other electrical components.
Plug in the power cord (see
page 17). Next, locate the
power switch on the tread-
mill frame near the power
cord. Press the power
switch into the reset
position.
Next, stand on the
foot rails of the
treadmill. Find the
clip attached to the
key and slide the
clip onto the waist-
band of your clothes.
Then, insert the key
into the console.
After a moment, the
displays will light.
IMPORTANT: In an emergency, the key can be
pulled from the console, causing the walking belt
to slow to a stop. Test the clip by carefully taking
a few steps backward; if the key is not pulled from
the console, adjust the position of the clip.
IMPORTANT: Before you use the treadmill, take
the following steps to ensure that the console
shows the correct incline level of the treadmill:
First, press the Incline increase button once. Next,
press either the Incline decrease button or the low-
est Quick incline button to set the treadmill to its
lowest setting. When the frame stops moving, the
treadmill is ready for use.
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
Press the Manual Control button to select the
manual mode.
3. Enter your weight.
Press the Wt increase or decrease button to enter
your weight. This information will improve the accu-
racy of the power ring. Note: Press and hold the Wt
increase or decrease button to enter your weight
more quickly.
4. Start the walking belt.
To start the walking belt, press the Run button or
one of the Quick speed buttons.
If you press the Run button, the walking belt will
begin to move at 1 mph. As you exercise, change
the speed of the walking belt as desired by press-
ing the Speed increase and decrease buttons.
Each time you press one of the buttons, the speed
setting will change by 0.1 mph; if you hold down
the button, the speed setting will change in incre-
ments of 0.5 mph. Note: After you press the button,
it may take a moment for the walking belt to reach
the selected speed setting.
If you press one of the Quick speed buttons, the
walking belt will gradually change speed until it
reaches the selected speed setting. To select a
speed setting that includes a decimal—such as
3.5 mph—press two numbered buttons in suc-
cession. For example, to select a speed setting of
3.5 mph, press the 3 button and then immediately
press the 5 button. Note: This option will not func-
tion if the console is set to metric units.
To stop the walking belt, press the Stop button.
The time will begin to fl ash in the display. To restart
the walking belt, press the Run button or the Quick
speed buttons.
Reset
Key
Clip
20
5. Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
Incline increase and decrease buttons or one of the
Quick incline buttons. Each time you press one of
the buttons, the treadmill will gradually adjust to the
selected incline setting.
6. Follow your progress with the display.
As you walk or run on the treadmill, the display can
show the following workout information:
• The incline level of the treadmill
• Your heart rate (see step 7)
• Your power level in watts
• The speed of the walking belt
• The elapsed time
• Your pace
• The approximate number of calories you have
burned
• The distance that you have walked or run
Press the
display icon
buttons to view
the desired
information in
the display.
If you press
the scan icon, the console will continuously cycle
through all information.
As you exercise, the power ring will indicate
the approximate intensity level of your exercise.
To adjust the intensity level, press the Watts/Kg
increase or decrease button. The speed and/or
incline settings of the treadmill will automatically
increase or decrease to reach the desired intensity
level.
To reset the display, press the Stop button repeat-
edly, or remove the key and then reinsert the key.
7. Measure your heart rate if desired.
You can measure your heart rate using either the
handgrip heart rate monitor or a compatible heart
rate monitor. For information about purchas-
ing an optional chest heart rate monitor, see
page 23.
The console is compatible with all BLUETOOTH
®
Smart heart rate monitors. To connect your heart
rate monitor to the console, see page 23.
Note: If you use both heart rate monitors at the
same time, the BLUETOOTH Smart heart rate
monitor will have priority.
Before using
the handgrip
heart rate moni-
tor, remove the
sheets of plastic
from the metal
contacts on the
pulse bar. In
addition, make
sure that your
hands are clean.
To measure your heart rate, stand on the foot
rails and hold the pulse bar with your palms on
the metal contacts; avoid moving your hands.
When your pulse is detected, your heart rate will be
shown. For the most accurate heart rate read-
ing, continue to hold the contacts for about 15
seconds.
8. Turn on the fan if desired.
The fan features several
speed settings. Press the
fan buttons repeatedly to
select a fan speed or to turn
on or turn off the fan.
Contacts
21
9. When you are fi nished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button
repeatedly, and adjust the incline of the treadmill
to zero. The incline must be at zero or you may
damage the treadmill when you fold it to the
storage position. Next, remove the key from the
console and put it in a secure place.
When you are fi nished using the treadmill, press
the power switch into the off position and unplug
the power cord. IMPORTANT: If you do not do
this, the treadmill’s electrical components may
wear prematurely.
HOW TO USE AN ONBOARD WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 19.
2. Enter your weight.
See step 3 on page 19.
3. Select an onboard workout.
To select an onboard workout, press the Tempo
Apps button or the Interval Apps button repeatedly
until the desired workout appears in the display.
4. Start the workout.
Press the Run button or the Speed increase button
to start the workout. A moment after you press the
button, the treadmill will automatically adjust to the
fi rst speed and incline settings of the workout. Hold
the handrails and begin walking.
Each workout is divided into segments. One speed
setting and one incline setting are programmed for
each segment. Note: The same speed setting and/
or incline setting may be programmed for consecu-
tive segments.
If the speed or incline setting is too high or too low
at any time during the workout, you can manu-
ally override the setting by pressing the Speed or
Incline buttons; however, when the next segment
of the workout begins, the treadmill will auto-
matically adjust to the speed and incline set-
tings for the next segment.
To stop the workout at any time, press the Stop
button. To resume the workout, press the Run but-
ton or the Speed increase button. The walking belt
will begin to move at 1 mph. When the next seg-
ment of the workout begins, the treadmill will auto-
matically adjust to the speed and incline settings
for the next segment.
5. Follow your progress with the display.
See step 6 on page 20. The display will show the
time remaining instead of the elapsed time.
6. Measure your heart rate if desired.
See step 7 on page 20.
7. Turn on the fan if desired.
See step 8 on page 20.
8. When you are fi nished exercising, remove the
key from the console.
See step 9 on this page.
22
HOW TO USE AN INTERVAL TRAINING WORKOUT
During an interval training workout, you will repeatedly
alternate between intervals of low-intensity “recovery”
exercise and intervals of high-intensity “work” exercise.
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 19.
2. Enter your weight.
See step 3 on page 19.
3. Select settings for the recovery intervals.
Press the speed and incline buttons to select the
desired speed setting and the desired incline set-
ting for the recovery intervals. Then, press and hold
the Recovery button until the console beeps twice.
4. Select settings for the work intervals.
Press the speed and incline buttons to select the
desired speed setting and the desired incline set-
ting for the work intervals. Then, press and hold the
Work button until the console beeps twice.
5. Alternate between recovery intervals and work
intervals.
As you exercise, press the Recovery button to
select the speed and incline settings that you
selected for recovery intervals. Press the Work but-
ton to select the speed and incline settings that you
selected for work intervals. Alternate between the
settings as many times as desired.
To change the settings at any time, repeat steps 3
and 4.
6. Follow your progress with the displays.
See step 6 on page 20. The display will show the
time remaining instead of the elapsed time.
7. Measure your heart rate if desired.
See step 7 on page 20.
8. Turn on the fan if desired.
See step 8 on page 20.
9. When you are finished exercising, remove the
key from the console.
See step 9 on page 21.
HOW TO CONNECT YOUR TABLET TO THE
CONSOLE
The console supports BLUETOOTH connections to
tablets via the iFit Bluetooth Tablet app and to compat-
ible heart rate monitors. Note: Other BLUETOOTH
connections are not supported.
1. Download and install the iFit Bluetooth Tablet
app on your tablet.
On your iOS
®
or Android™ tablet, open the App
Store℠ or the Google Play™ store, search for
the free iFit Bluetooth Tablet app, and then install
the app on your tablet. Make sure that the
BLUETOOTH option is enabled on your tablet.
Then, open the iFit Bluetooth Tablet app and follow
the instructions to set up an iFit account and cus-
tomize settings.
2. Connect your heart rate monitor to the console
if desired.
If you are connecting both your heart rate monitor
and your tablet to the console, you must connect
your heart rate monitor before you connect
your tablet. See HOW TO CONNECT YOUR
HEART RATE MONITOR TO THE CONSOLE on
page 23.
23
3. Connect your tablet to the console.
Press the Bluetooth button on the console; the
console pairing number will appear in the display.
Then, follow the instructions in the iFit Bluetooth
Tablet app to connect your tablet to the console.
When a connection is established, the LED on the
console will turn solid blue.
4. Record and track your workout information.
Follow the instructions in the iFit Bluetooth Tablet
app to record and track your workout information.
5. Disconnect your tablet from the console if
desired.
To disconnect your tablet from the console, first
select the disconnect option in the iFit Bluetooth
Tablet app. Then, press and hold the Bluetooth
button on the console until the LED on the console
turns solid green.
Note: All BLUETOOTH connections between
the console and other devices (including any
tablets, heart rate monitors, and so forth) will be
disconnected.
THE OPTIONAL CHEST HEART RATE MONITOR
Whether your
goal is to
burn fat or to
strengthen your
cardiovascular
system, the key
to achieving the
best results is
to maintain the
proper heart
rate during
your workouts. The optional chest heart rate monitor
will enable you to continuously monitor your heart rate
while you exercise, helping you to reach your personal
fitness goals. To purchase a chest heart rate moni-
tor, please see the front cover of this manual.
Note: The console is compatible with all BLUETOOTH
Smart heart rate monitors.
HOW TO CONNECT YOUR HEART RATE MONITOR
TO THE CONSOLE
The console is compatible with all BLUETOOTH Smart
heart rate monitors.
To connect your BLUETOOTH Smart heart rate moni-
tor to the console, press the Bluetooth button on the
console; the console pairing number will appear in the
display. When a connection is established, the LED on
the console will flash red twice.
Note: If there is more than one compatible heart rate
monitor near the console, the console will connect to
the heart rate monitor with the strongest signal.
To disconnect your heart rate monitor from the console,
press and hold the Bluetooth button on the console
until the LED on the console turns solid green.
Note: All BLUETOOTH connections between the
console and other devices (including any tablets, heart
rate monitors, and so forth) will be disconnected.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the
jack on the console and into a jack on your personal
audio player; make sure that the audio cable is fully
plugged in. Note: To purchase an audio cable, see
your local electronics store.
Next, press the play button on
your personal audio player.
Adjust the volume level using
the volume increase and
decrease buttons on the con-
sole or the volume control on
your personal audio player.
24
THE INFORMATION MODE
The console features an information mode that keeps
track of treadmill usage information and allows you to
select a unit of measurement for the console.
To select the information mode, insert the key into the
console while holding down the Stop button. Then,
release the Stop button. Note: If a workout has been
selected, you may have to press the Stop button
repeatedly to exit the workout before you can access
the information mode. When the information mode is
selected, the following information will be shown:
The display will show the software version of the con-
sole.
An “E” for English miles or an “M” for metric kilometers
will appear in the display. Press the Speed increase
button to change the unit of measurement, if desired.
To exit the information mode, remove the key from the
console, or press the Stop button repeatedly.

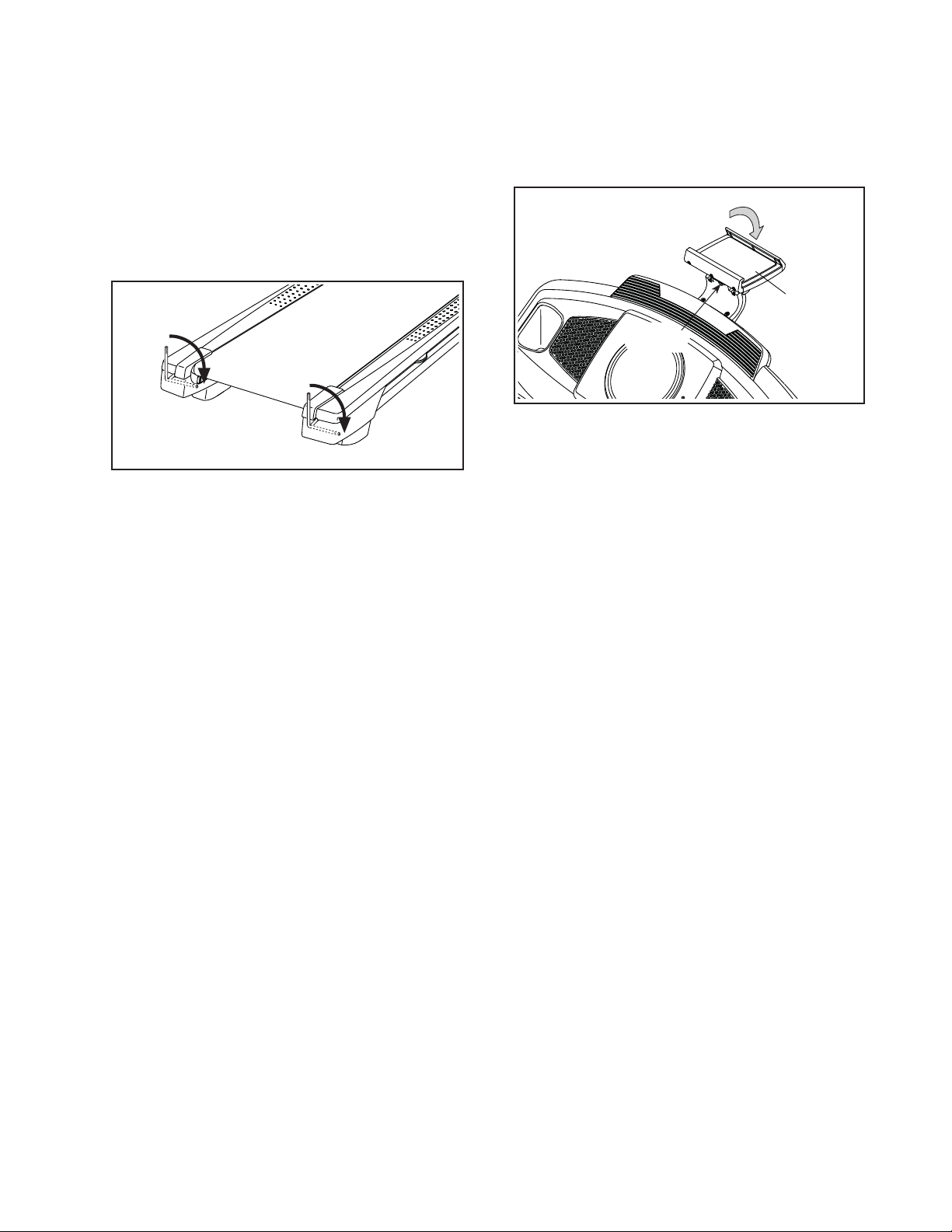

HOW TO USE THE TABLET HOLDER
IMPORTANT: The tablet holder is designed for use
with most full-size tablets. Do not place any other
electronic device or object in the tablet holder.
To insert a tablet into the tablet holder, set the bottom
edge of the tablet in the tray. Then, pull the clip over
the top edge of the tablet. Make sure that the tablet
is firmly secured in the tablet holder. Reverse these
actions to remove the tablet from the tablet holder.
Tablet
Holder
FCC INFORMATION
This console has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate this equipment.
IMPORTANT: To satisfy exposure compliance requirements, the antenna and transmitter in the console
must be at least 8 in. (20 cm) from all persons and must not be near or connected to any other antenna or
transmitter.
Note: The console contains either FCC ID: OMCBBICON14 or FCC ID: OMCBMD1.
25
HOW TO FOLD THE TREADMILL
To avoid damaging the treadmill, adjust the incline
to zero before you fold the treadmill. Then, remove
the key and unplug the power cord. CAUTION: You
must be able to safely lift 45 lbs. (20 kg) to raise,
lower, or move the treadmill.
1. Hold the metal frame fi rmly in the location shown
by the arrow below. CAUTION: Do not hold the
frame by the plastic foot rails. Bend your legs
and keep your back straight.
2. Raise the frame until the storage latch locks in the
storage position. CAUTION: Make sure that the
storage latch locks.
To protect the fl oor or carpet, place a mat under the
treadmill. Keep the treadmill out of direct sunlight.
Do not leave the treadmill in the storage position in
temperatures above 85°F (30°C).
HOW TO MOVE THE TREADMILL
Before moving the treadmill, fold it as described at the
left. CAUTION: Make sure that the storage latch is
locked in the storage position. Moving the treadmill
may require two people.
Hold the handrails with both hands and carefully push
the treadmill to the desired location. CAUTION: Do not
pull on the frame and do not move the treadmill
over an uneven surface.
HOW TO LOWER THE TREADMILL FOR USE
1. Push the upper end of
the frame forward, and
gently press the upper
part of the storage latch
with your foot at the
same time.
2. While pressing the stor-
age latch with your foot,
pull the upper end of the
frame toward yourself.
3. Step back and let the
frame lower to the floor.
Frame
2
Frame
Storage
Latch
Handrail
Wheel
Wheel
1
2
HOW TO FOLD AND MOVE THE TREADMILL
1
26
MAINTENANCE
Regular maintenance is important for optimal perfor-
mance and to reduce wear. Inspect and properly tighten
all parts each time the treadmill is used. Replace any
worn parts immediately.
Regularly clean the treadmill and keep the walking
belt clean and dry. First, press the power switch into
the off position and unplug the power cord. Wipe
exterior parts of the treadmill with a damp cloth and a
small amount of mild soap. IMPORTANT: Do not spray
liquids directly onto the treadmill. To avoid damage
to the console, keep liquids away from the console.
Then, thoroughly dry the treadmill with a soft towel.
TROUBLESHOOTING
Most treadmill problems can be solved by following
the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assis-
tance is needed, see the front cover of this manual.
SYMPTOM: The power does not turn on
a. Make sure that the power cord is plugged into a
surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see
page 17). Use only a surge suppressor that meets
all of the specifi cations described on page 17.
IMPORTANT: If the treadmill is connected to an
AFCI-equipped outlet and your circuit breaker
trips repeatedly when the treadmill is used, see
the front cover of this manual to purchase an
arc fi lter.
b. After the power cord has been plugged in, make
sure that the key is inserted into the console.
c. Check the power switch located on the treadmill
frame near the power cord. If the switch protrudes
as shown, the switch has tripped. To reset the
power switch, wait for fi ve minutes and then press
the switch back in.
d. The console requires activation. If you have not
activated the console, see assembly step 18 on
page 16.
SYMPTOM: The power turns off during use
a. Check the power switch (see the drawing above).
If the switch has tripped, wait for fi ve minutes and
then press the switch back in.
b. Make sure that the power cord is plugged in. If the
power cord is plugged in, unplug it, wait for fi ve
minutes, and then plug it back in.
c. Remove the key from the console, and then
reinsert it.
d. If the treadmill still will not run, please see the front
cover of this manual.
Reset
Tripped
c
MAINTENANCE AND TROUBLESHOOTING
27
SYMPTOM: The incline of the treadmill does not
change correctly
a. Hold down the Stop button and the Speed increase
button, insert the key into the console, and then
release the Stop button and the Speed increase
button. Next, press the Stop button and then
press the Incline increase or decrease button. The
treadmill will automatically rise to the maximum
incline level and then return to the minimum level.
This will recalibrate the incline system. If the incline
system does not begin calibrating, press the Stop
button again, and then press the Incline increase or
decrease button again. When the incline system is
calibrated, remove the key from the console.
SYMPTOM: The walking belt slows when walked on
a. Use only a surge suppressor that meets all of the
specifi cations described on page 17.
b. If the walking belt is overtightened, treadmill per-
formance may decrease and the walking belt may
become damaged. Remove the key and UNPLUG
THE POWER CORD. Using the hex key, turn both
idler roller screws counterclockwise, 1/4 of a turn.
When the walking belt is properly tightened, you
should be able to lift each edge of the walking belt
2 to 3 in. (5 to 7 cm) off the walking platform. Be
careful to keep the walking belt centered. Then,
plug in the power cord, insert the key, and run the
treadmill for a few minutes. Repeat until the walk-
ing belt is properly tightened.
c. Your treadmill features a walking belt coated with
high-performance lubricant. IMPORTANT: Never
apply silicone spray or other substances to
the walking belt or the walking platform unless
instructed to do so by an authorized service
representative. Such substances may deterio-
rate the walking belt and cause excessive wear.
If you suspect that the walking belt needs more
lubricant, see the front cover of this manual.
d. If the walking belt still slows when walked on, see
the front cover of this manual.
SYMPTOM: The walking belt is off-center or slips
when walked on
a. If the walking belt is off-center, fi rst remove the
key and UNPLUG THE POWER CORD. If the
walking belt has shifted to the left, use the hex
key to turn the left idler roller screw clockwise 1/2
of a turn; if the walking belt has shifted to the
right, turn the left idler roller screw counterclock-
wise 1/2 of a turn. Be careful not to overtighten the
walking belt. Then, plug in the power cord, insert
the key, and run the treadmill for a few minutes.
Repeat until the walking belt is centered.
Idler Roller Screws
2–3 in.
b
a
28
b. If the walking belt slips when walked on, fi rst
remove the key and UNPLUG THE POWER
CORD. Using the hex key, turn both idler roller
screws clockwise, 1/4 of a turn. When the walk-
ing belt is correctly tightened, you should be able
to lift each edge of the walking belt 2 to 3 in. (5 to
7 cm) off the walking platform. Be careful to keep
the walking belt centered. Then, plug in the power
cord, insert the key, and carefully walk on the
treadmill for a few minutes. Repeat until the walk-
ing belt is properly tightened.
SYMPTOM: The tablet holder does not stay in place
a. Rotate the tablet holder backwards. Then, tighten
the indicated screw slightly until the tablet holder
stays in place when it is rotated to the desired
position.
b
Tablet
Holder
Screw
a
29
EXERCISE GUIDELINES
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise; never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
30
Key No. Qty. Description Key No. Qty. Description
1 58 #8 x 1/2" Screw
2 31 #8 x 3/4" Screw
3 1 5/16" x 2 1/4" Bolt
4 4 5/16" x 1/2" Screw
5 4 #10 Star Washer
6 1 5/16" x 1 3/4" Bolt
7 4 3/8" x 2 1/4" Screw
8 2 5/16" x 1 1/2" Screw
9 4 #10 x 3/4" Screw
10 1 #8 x 1/2" Silver Screw
11 12 5/16" Star Washer
12 6 5/16" Nut
13 8 3/8" Star Washer
14 1 Right Inner Base Cover
15 3 1/4" x 2 1/2" Screw
16 1 3/8" x 1 1/2" Bolt
17 2 3/8" x 1 1/2" Wheel Bolt
18 1 Console Frame
19 4 #8 x 7/16" Screw
20 2 5/16" Motor Screw
21 2 3/8" Pin
22 2 3/8" x 1 1/8" Bolt
23 4 5/16" x 1 3/4" Screw
24 2 #8 Star Washer
25 2 5/16" x 3/4" Screw
26 4 #8 x 5/8" Machine Screw
27 1 Right Tray
28 4 5/16" x 2 1/2" Screw
29 1 3/8" x 1 3/4" Hex Head Bolt
30 4 5/16" Flat Washer
31 1 Fan Grill
32 2 Incline Motor Spacer
33 6 3/8" Jam Nut
34 2 3/8" Washer
35 6 Isolator Bottom
36 1 Left Tray
37 1 Fan Cover
38 1 Latch Crossbar
39 6 Isolator
40 2 Rear Foot
41 2 Console Clamp
42 1 Left Foot Rail
43 1 Warning Decal
44 1 Walking Platform
45 1 Walking Belt
46 2 Belt Guide
47 1 Right Rear Foot
48 4 Cable Tie
49 1 Drive Roller/Pulley
50 2 Base Pad
51 7 #8 x 1/2" Washer Head Screw
52 2 9/32" Plastic Bushing
53 1 Storage Latch
54 1 Drive Motor
55 1 Motor Belt
56 1 Frame
57 1 Left Rear Foot
58 2 Console Ground Wire
59 4 Rubber Cushion
60 1 Right Foot Rail
61 1 Idler Roller
62 2 3/8" x 1 3/4" Screw
63 2 3/8" x 1 1/4" Screw
64 1 Console Base
65 1 Motor Hood
66 1 Hood Accent
67 2 Incline Frame Spacer
68 5 Hood Clip
69 1 Incline Motor
70 1 Incline Frame
71 2 Frame Spacer
72 1 Controller
73 1 Controller Clamp
74 1 Controller Plate
75 1 Power Switch
76 1 Power Cord
77 2 Grommet
78 1 Belly Pan
79 1 Left Handrail Cover
80 1 Console
81 1 Upright Wire
82 1 Left Base Cover
83 1 Right Base Cover
84 1 Right Bottom Handrail Cover
85 1 Left Bottom Handrail Cover
86 1 Left Handrail
87 1 Right Handrail
88 4 3/8" Plastic Bushing
89 1 Left Upright
90 1 Right Upright
91 2 Caution Decal
92 1 Right Handrail Cover
93 1 Pulse Bar Bottom
94 1 Base
95 1 Pulse Bar
96 4 #4 Fan Screw
97 4 Wheel
98 1 Key/Clip
99 2 Cable Tie
100 2 1/4" x 1 1/2" Screw
PART LIST
Model No. PFTL79515.5 R1217A
31
Key No. Qty. Description Key No. Qty. Description
101 1 Fan
102 6 1/4" x 1 1/4" Screw
103 1 1/4" Nut
104 12 M5 Washer
105 1 Tablet Holder
106 1 Left Inner Base Cover
107 8 #8 x 3/4" Truss Head Screw
108 1 Power Cord Grommet
* – User’s Manual
Note: Specifi cations are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
32
107
107
107
107
107
107
107
107
35
35
102
102
102
102
102
102
1
104
1
104
104
35
1
104
35
35
1
104
1
35
104
1
3
12
53
12
6
54
60
55
23
15
15
42
23
49
56
12
30
59
23
21
45
48
12
30
59
61
30
12
59
23
43
44
21
100
52
100
52
46
19
19
46
25
11
25
11
12
30
59
20
2
57
2
40
40
47
2
2
38
2
103
15
39
39
39
39
39
39
51
74
73
24
51
51
51
EXPLODED DRAWING A
Model No. PFTL79515.5 R1217A
33
76
108
68
75
72
78
67
67
88
34
88
34
33
29
69
70
16
71
33
33
33
71
32
68
2
2
68
68
68
2
2
2
2
2
2
2
66
65
2
2
2
51
EXPLODED DRAWING B
Model No. PFTL79515.5 R1217A
34
1
11
92
86
11
4
79
87
1
1
1
1
1
1
1
1
4
11
28
11
28
84
85
1
17
17
33
77
81
33
94
88
13
22
22
88
97
62
62
10
63
82
91
97
83
90
97
97
91
14
106
13
13
7
13
63
7
13
13
7
13
2
2
50
50
81
89
77
EXPLODED DRAWING C
Model No. PFTL79515.5 R1217A
35
8
1
2
41
18
41
10
58
1
1
1
2
1
2
1
96
96
5
9
11
1
5
1
1
1
1
1
1
1
64
1
99
1
1
1
1
1
1
1
80
26
105
1
1
95
93
9
31
37
98
2
2
101
2
36
27
EXPLODED DRAWING D
Model No. PFTL79515.5 R1217A
Part No. 397639 R1217A Printed in China © 2017 ICON Health & Fitness, Inc.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame and motor are warranted for the lifetime of
the original purchaser (customer). Parts are warranted for two (2) years from the date of purchase. Labor
is warranted for one (1) year from the date of purchase.
This warranty extends only to the original purchaser (customer) and is not transferrable. ICON’s obliga-
tion under this warranty is limited to repairing or replacing, at ICON’s option, the product through one of
its authorized service providers. All repairs for which warranty claims are made must be preauthorized by
ICON. If replacement parts are shipped while the product is under warranty, the customer will be respon-
sible for a minimal handling charge. For in-home service, the customer may be responsible for a minimal
trip charge. This warranty does not extend to freight damage to the product. This warranty will automati-
cally be voided by the following conditions: (1) if the product is used as a store display model, (2) if the
product is purchased or transported outside the USA, (3) if all instructions and warnings in this manual are
not followed, (4) if the product is abused or improperly or abnormally used, or (5) if the product is used for
commercial or rental purposes. No other warranty beyond that specifi cally set forth above is authorized
by ICON.
ICON is not responsible or liable for the following damages: (1) indirect, special, or consequential dam-
ages arising out of or in connection with the use or performance of the product; (2) damages with respect
to any economic loss, loss of property, loss of revenues or profi ts, loss of enjoyment or use, or costs of
removal or installation; or (3) other consequential damages of any kind. Some states do not allow the
exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not
apply to the customer.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fi tness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to the customer. This warranty provides specifi c legal rights; the customer
may have other rights that vary from state to state.
For warranty service, please call the telephone number on the front cover of this manual. Please be pre-
pared to provide the model number and serial number of the product (see the front cover of this manual).
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
LIMITED WARRANTY
IMPORTANT: To protect your fitness equipment with an extended service plan, see page 5.
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING
near the end of this manual)
ORDERING REPLACEMENT PARTS
