TREADMILL EXERCISER
User's Manual
Sears, Roebuck and Co, Hoffman Estates, IL 60179

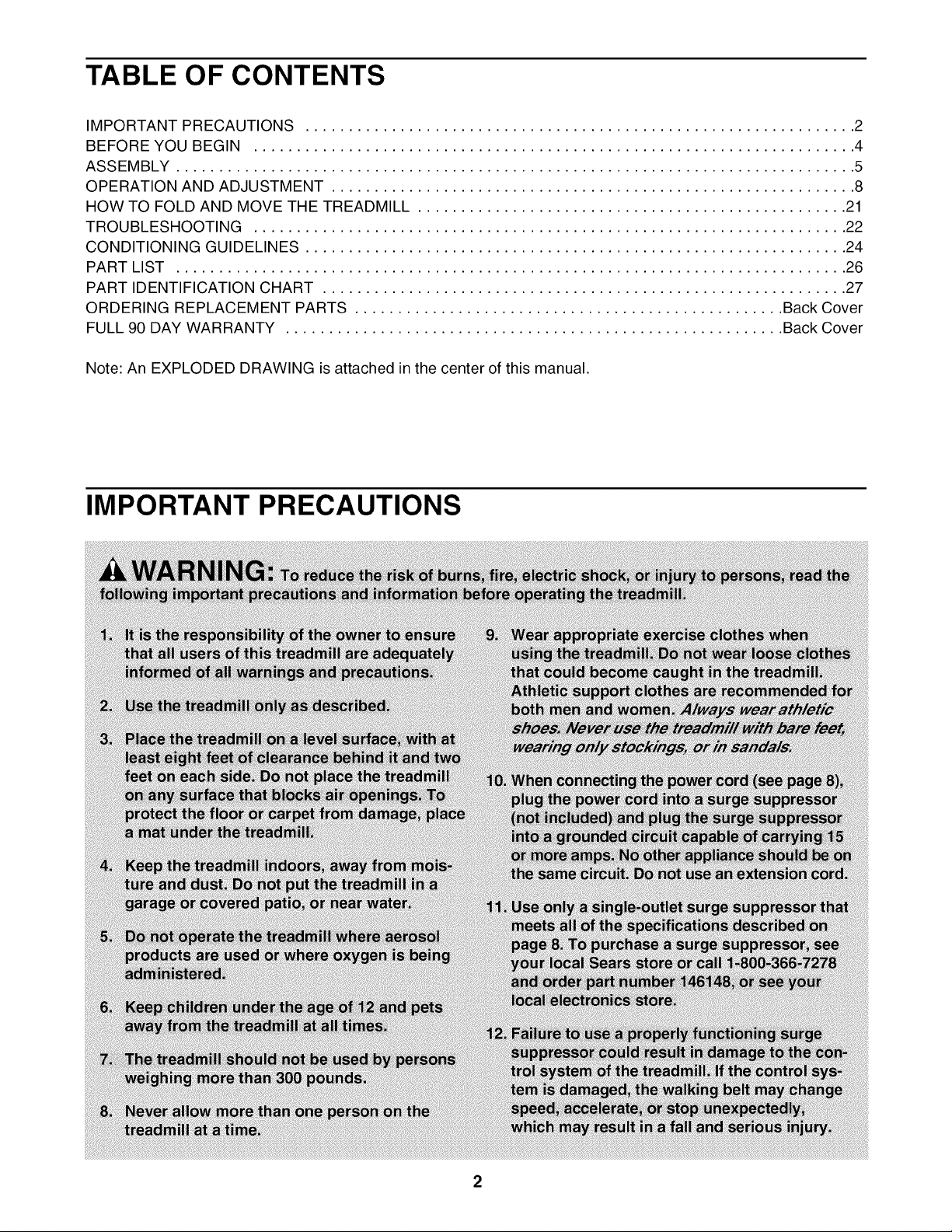

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS ................................................................ 2
BEFORE YOU BEGIN ...................................................................... 4
ASSEMBLY ............................................................................... 5
OPERATION AND ADJUSTMENT ............................................................. 8
HOW TO FOLD AND MOVE THE TREADMILL .................................................. 21
TROUBLESHOOTING ..................................................................... 22
CONDITIONING GUIDELINES ............................................................... 24
PART LIST .............................................................................. 26

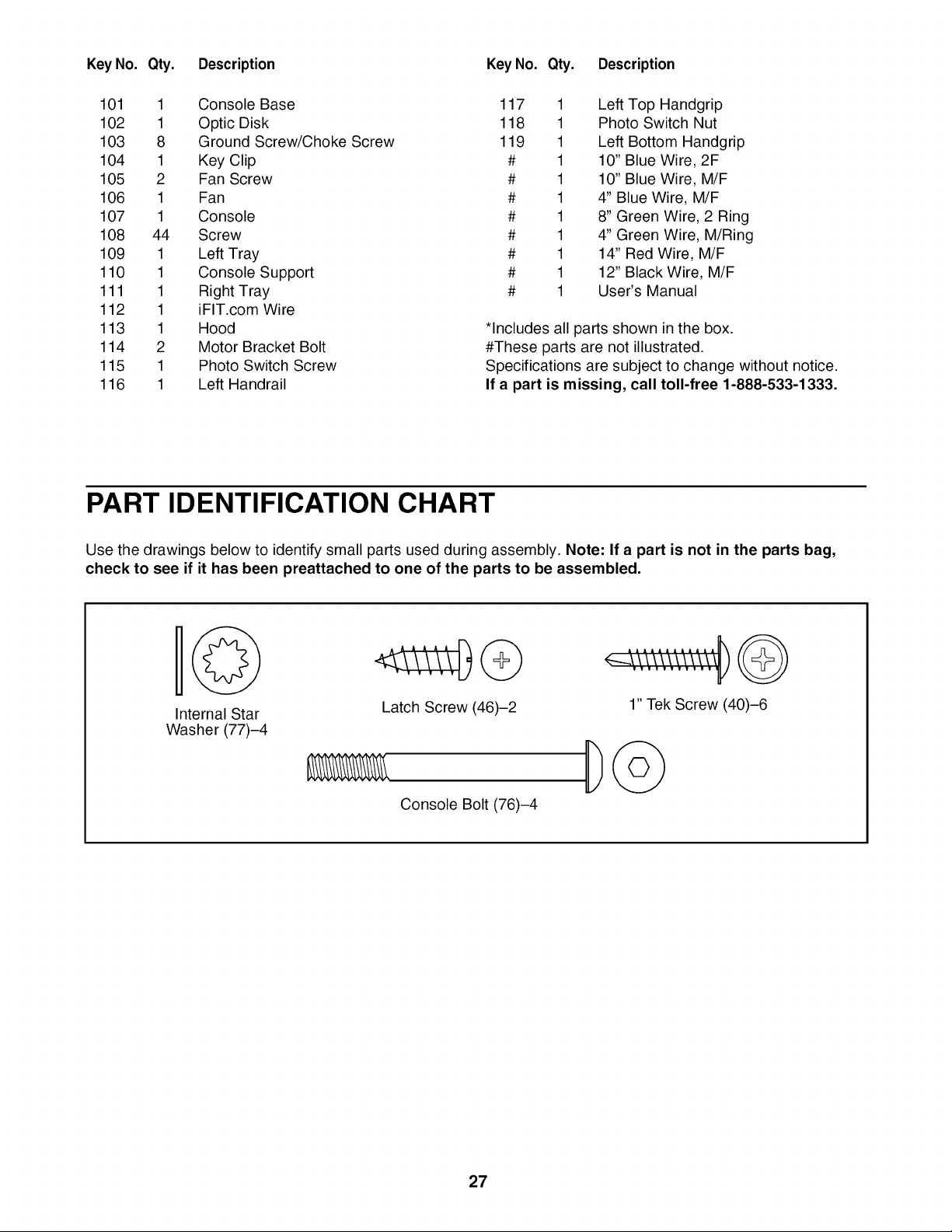

PART IDENTIFICATION CHART ............................................................. 27
ORDERING REPLACEMENT PARTS .................................................. Back Cover
FULL 90 DAY WARRANTY .......................................................... Back Cover

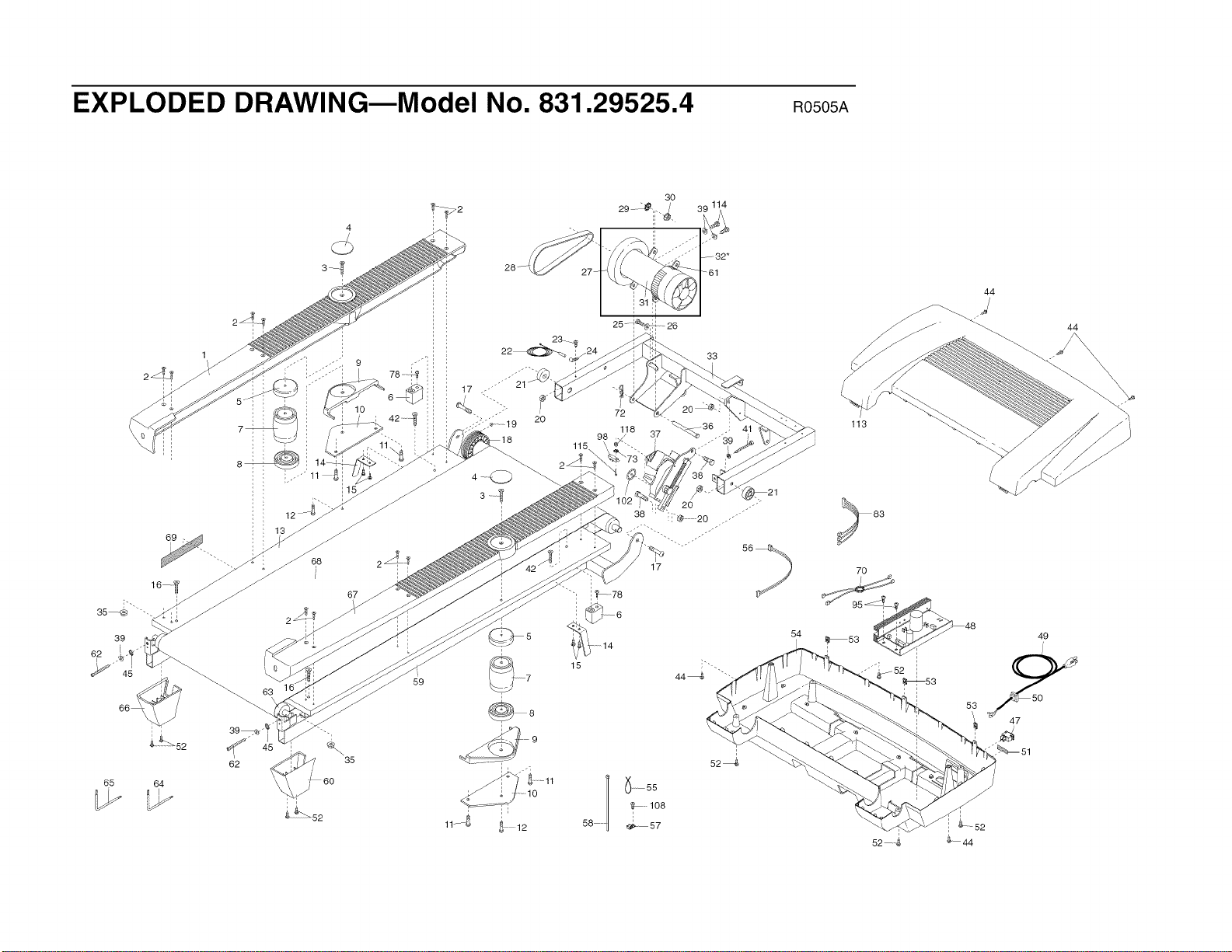

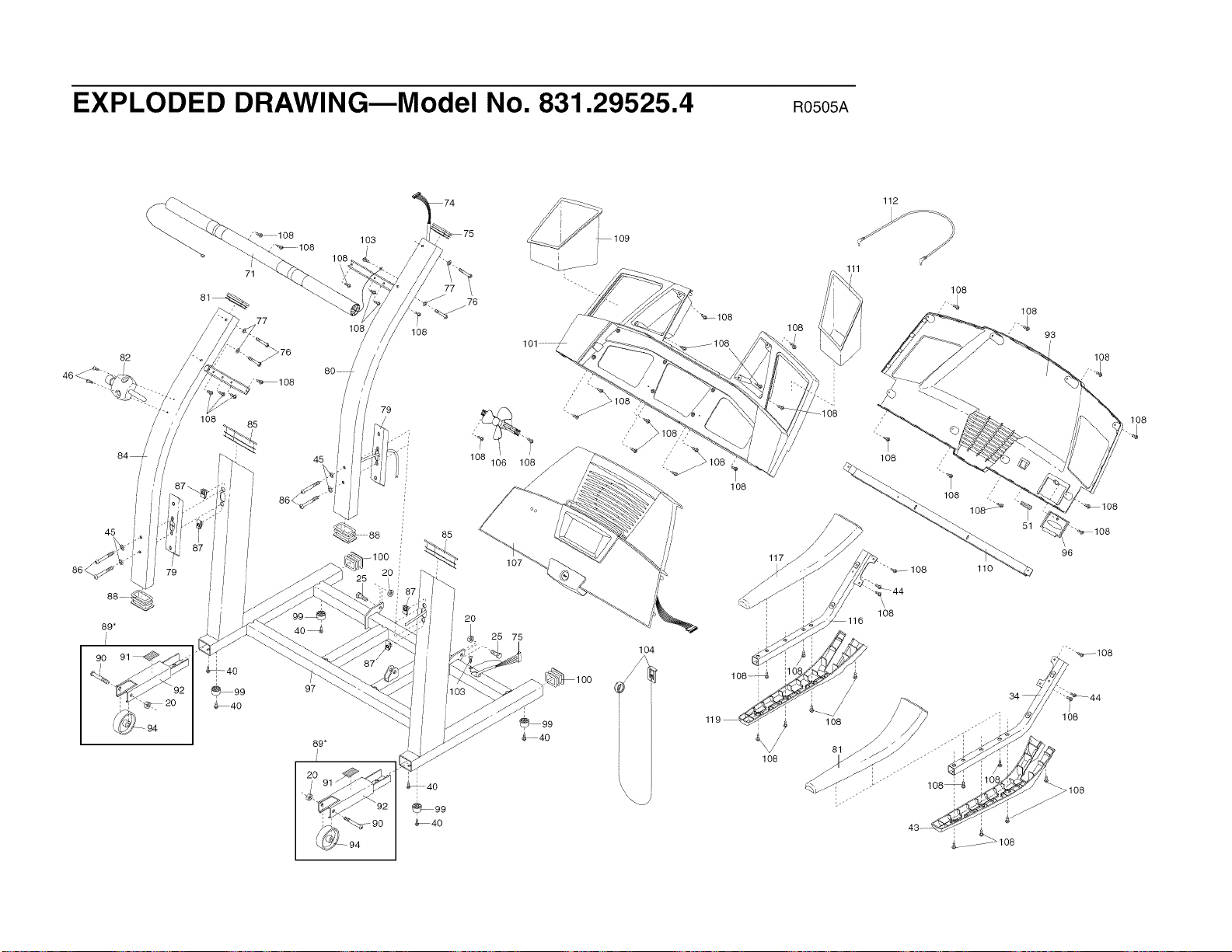

Note: An EXPLODED DRAWING is attached in the center of this manual.

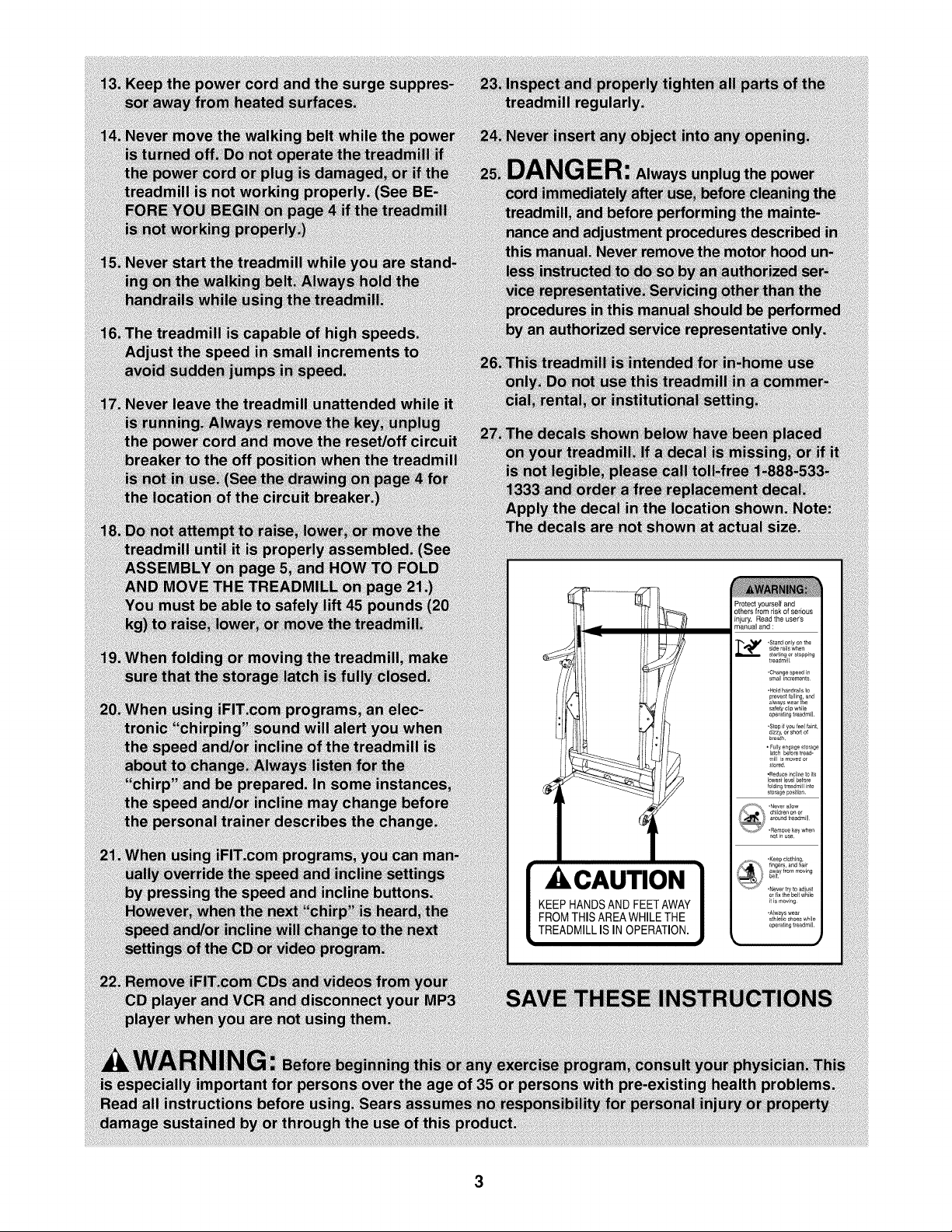

IMPORTANT PRECAUTIONS
2
I
]
KEEP HANDSAND FEETAWAY
FROMTHIS AREA WHILETHE
TREADMILLIS IN OPERATION.
Protect yourself and
others from risk of serious
injury. Read the users
manual and :
_°;_#'_°
staffing or stopp4ng
treadm II
,Hold handrails to
p_event falling, and
always wear the
safety clp while
operat ng treadmill
•Stop _f you feel faint,
dizzy, or short of
bmath
• Fully engage storage
latch before tread-
mill s moved o_
sto_e_
•Red_c_ ,,el _e to its
lowest level before
folding t_eadmill nto
storage position
_,% .Never allow
_*_ children on or
_ around tteadm II
_,,J_ "Remove key when
not in use
3
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM ®
XP 542e treadmill. The XP 542e treadmill offers an im-
pressive array of features designed to make your
workouts at home more enjoyable and effective. And
when you're not exercising, the unique XP 542e tread-
mill can be folded up, requiring less than half the floor
space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, call 1-800-4-MY-HOME ® (1-800-469-
4663).To help us assist you, please note the product
model number and serial number before calling. The
model number of the treadmill is 831.29525.4. The ser-
ial number can be found on a decal attached to the
treadmill (see the front cover of this manual for the lo-
cation).

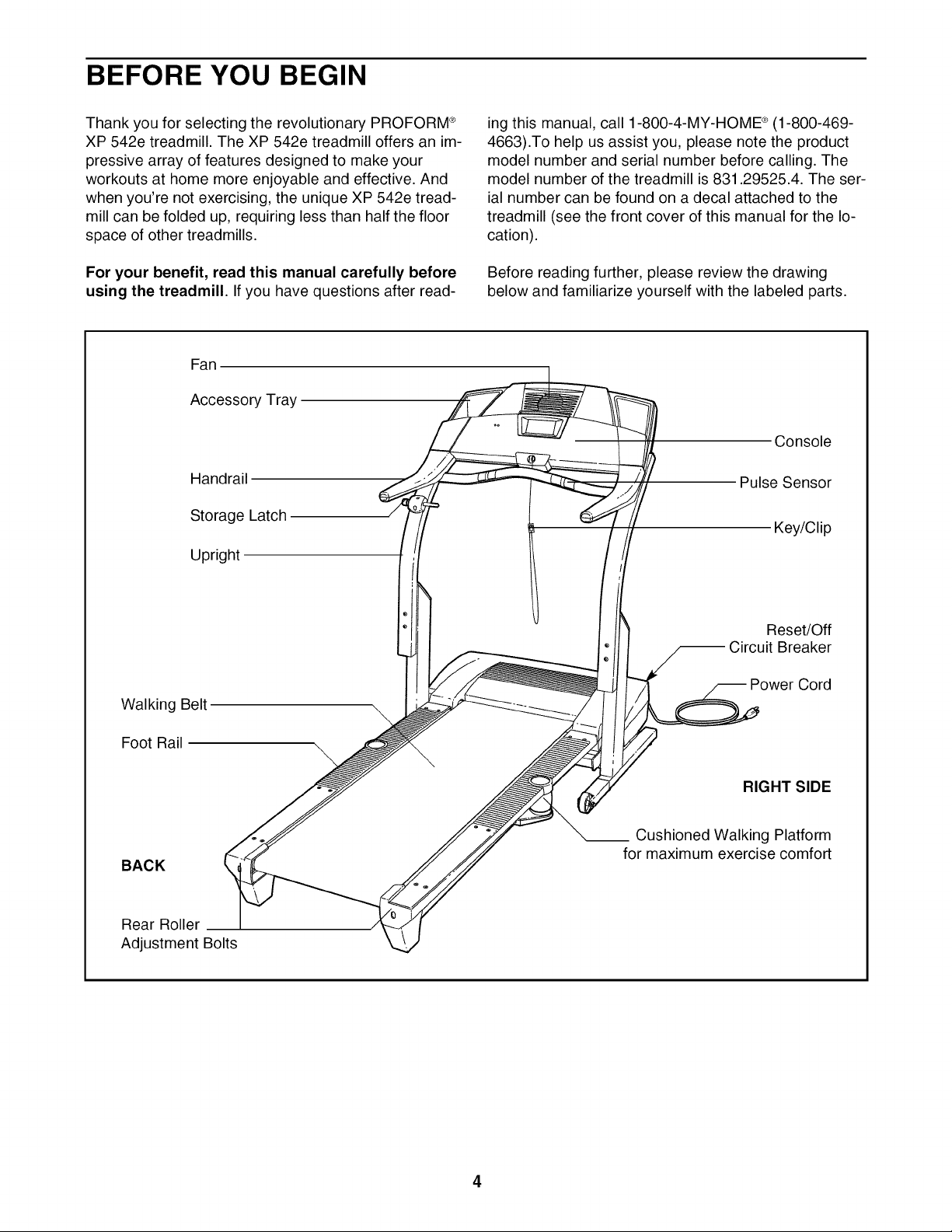

Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Fan
Accessory Tray
Handrail
Storage Latch
Upright
Console
Pulse Sensor
Key/Clip
Walking Belt
Foot Rail
\
Reset/Off
Circuit Breaker
Power Cord
RIGHT SIDE
BACK
Cushioned Walking Platform
for maximum exercise comfort
Rear Roller
Adjustment Bolts
4

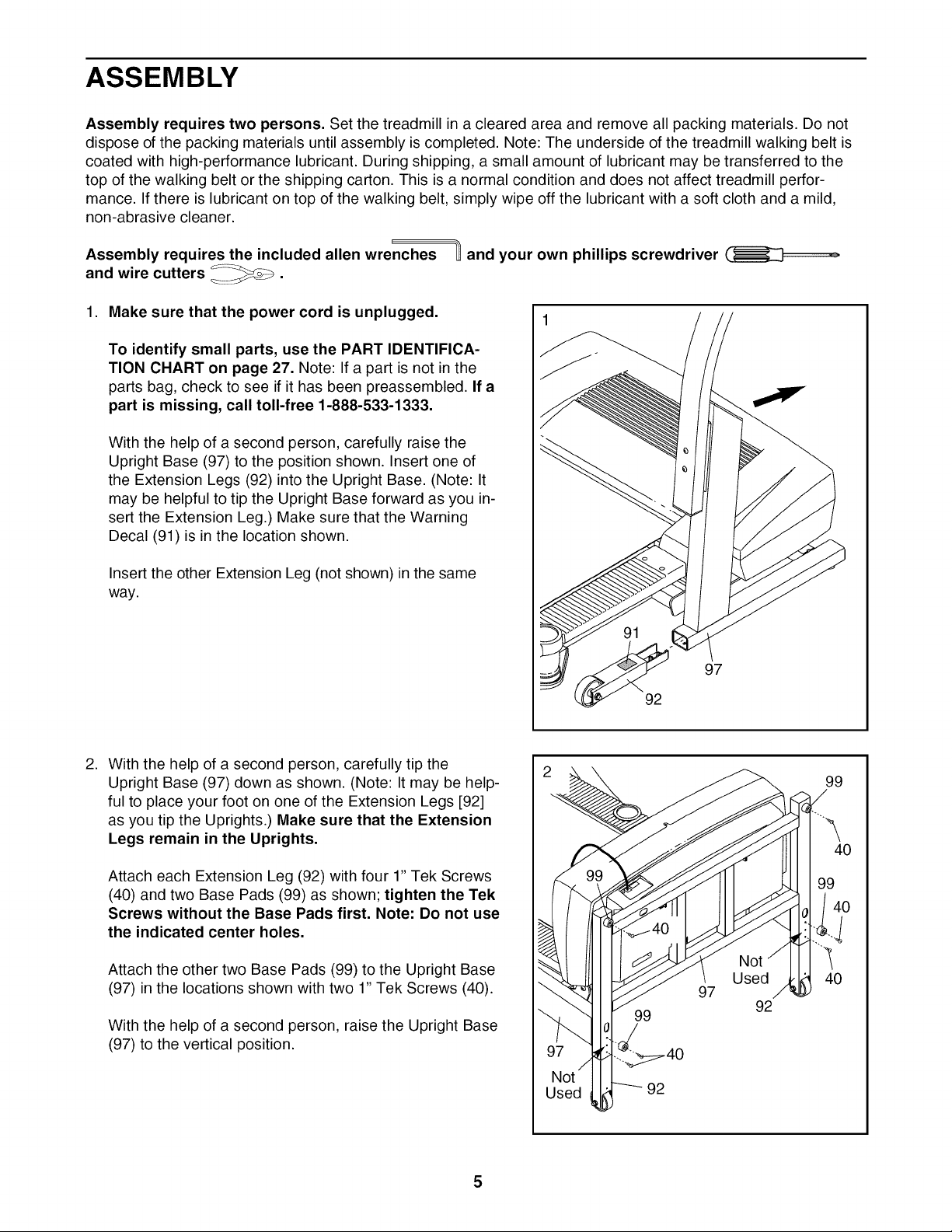

ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the
top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-
mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included allen wrenches _ and your own phillips screwdriver (_Z_=======_
and wire cutters _ .
1. Make sure that the power cord is unplugged.
To identify small parts, use the PART IDENTIFICA-
TION CHART on page 27. Note: If a part is not in the
parts bag, check to see if it has been preassembled. If a
part is missing, call toll-free 1-888-533-1333.
With the help of a second person, carefully raise the
Upright Base (97) to the position shown. Insert one of
the Extension Legs (92) into the Upright Base. (Note: It
may be helpful to tip the Upright Base forward as you in-
sert the Extension Leg.) Make sure that the Warning
Decal (91) is in the location shown.
Insert the other Extension Leg (not shown) in the same
way.
1
97
92
.
With the help of a second person, carefully tip the
Upright Base (97) down as shown. (Note: It may be help-
ful to place your foot on one of the Extension Legs [92]
as you tip the Uprights.) Make sure that the Extension
Legs remain in the Uprights.
Attach each Extension Leg (92) with four 1" Tek Screws
(40) and two Base Pads (99) as shown; tighten the Tek
Screws without the Base Pads first. Note: Do not use
the indicated center holes.
Attach the other two Base Pads (99) to the Upright Base
(97) in the locations shown with two 1" Tek Screws (40).
With the help of a second person, raise the Upright Base
(97) to the vertical position.
99
92
97
92
99
5
3. 3

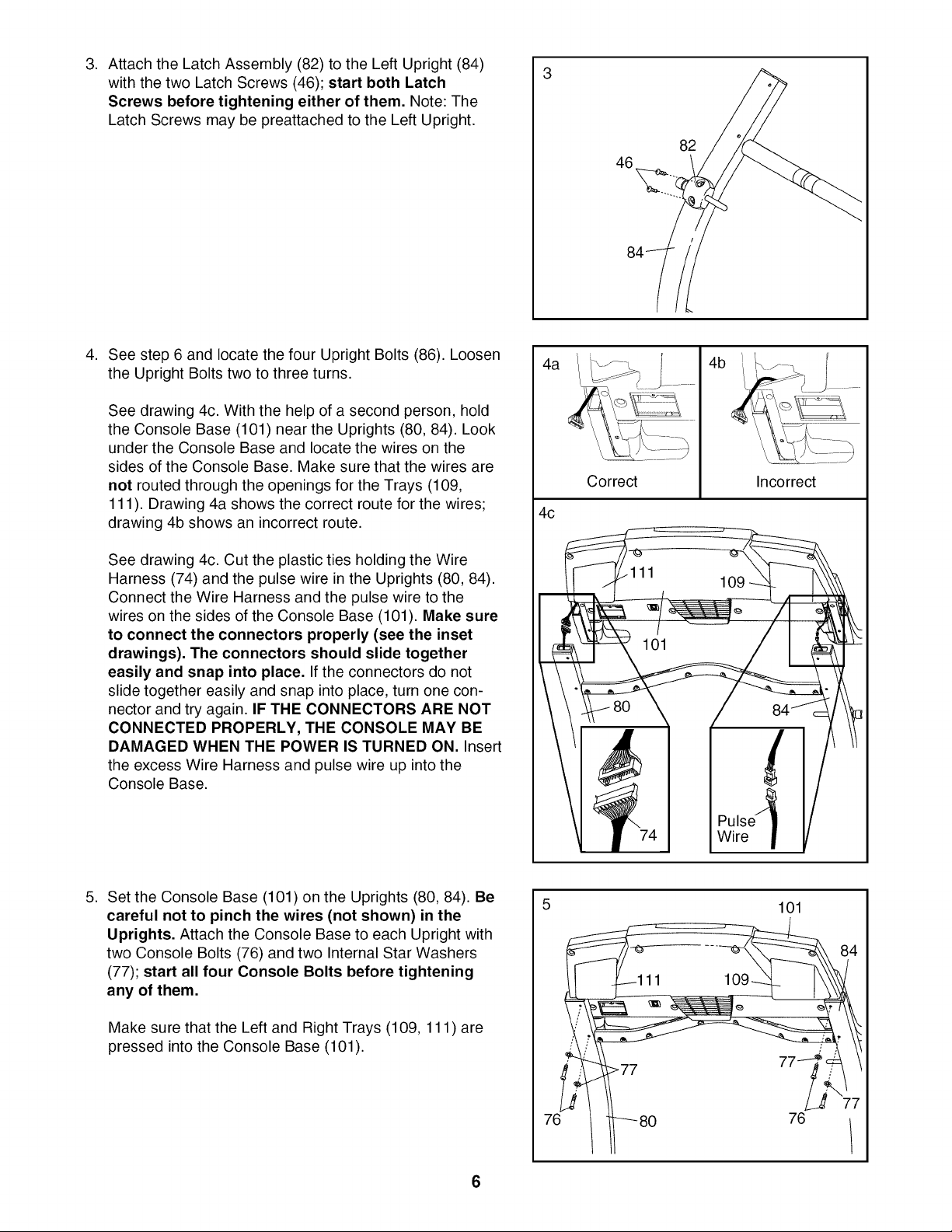

Attach the Latch Assembly (82) to the Left Upright (84)
with the two Latch Screws (46); start both Latch
Screws before tightening either of them. Note: The
Latch Screws may be preattached to the Left Upright.
46
82
.
.
See step 6 and locate the four Upright Bolts (86). Loosen
the Upright Bolts two to three turns.
See drawing 4c. With the help of a second person, hold
the Console Base (101) near the Uprights (80, 84). Look
under the Console Base and locate the wires on the
sides of the Console Base. Make sure that the wires are
not routed through the openings for the Trays (109,
111). Drawing 4a shows the correct route for the wires;
drawing 4b shows an incorrect route.
See drawing 4c. Cut the plastic ties holding the Wire
Harness (74) and the pulse wire in the Uprights (80, 84).
Connect the Wire Harness and the pulse wire to the
wires on the sides of the Console Base (101). Make sure
to connect the connectors properly (see the inset
drawings). The connectors should slide together
easily and snap into place. If the connectors do not
slide together easily and snap into place, turn one con-
nector and try again. IF THE CONNECTORS ARE NOT
CONNECTED PROPERLY, THE CONSOLE MAY BE
DAMAGED WHEN THE POWER IS TURNED ON. Insert
the excess Wire Harness and pulse wire up into the
Console Base.
Set the Console Base (101) on the Uprights (80, 84). Be
careful not to pinch the wires (not shown) in the
Uprights. Attach the Console Base to each Upright with
two Console Bolts (76) and two Internal Star Washers
(77); start all four Console Bolts before tightening
any of them.
Make sure that the Left and Right Trays (109, 111) are
pressed into the Console Base (101).
4a
Correct Incorrect
4c
_ _-..7, 4 PUlr/ /
101
1 80 76
84
6. TightenthefourUprightBolts(86).
7. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the
walking belt (see page 23). To protect the floor or carpet, place a mat under the treadmill.

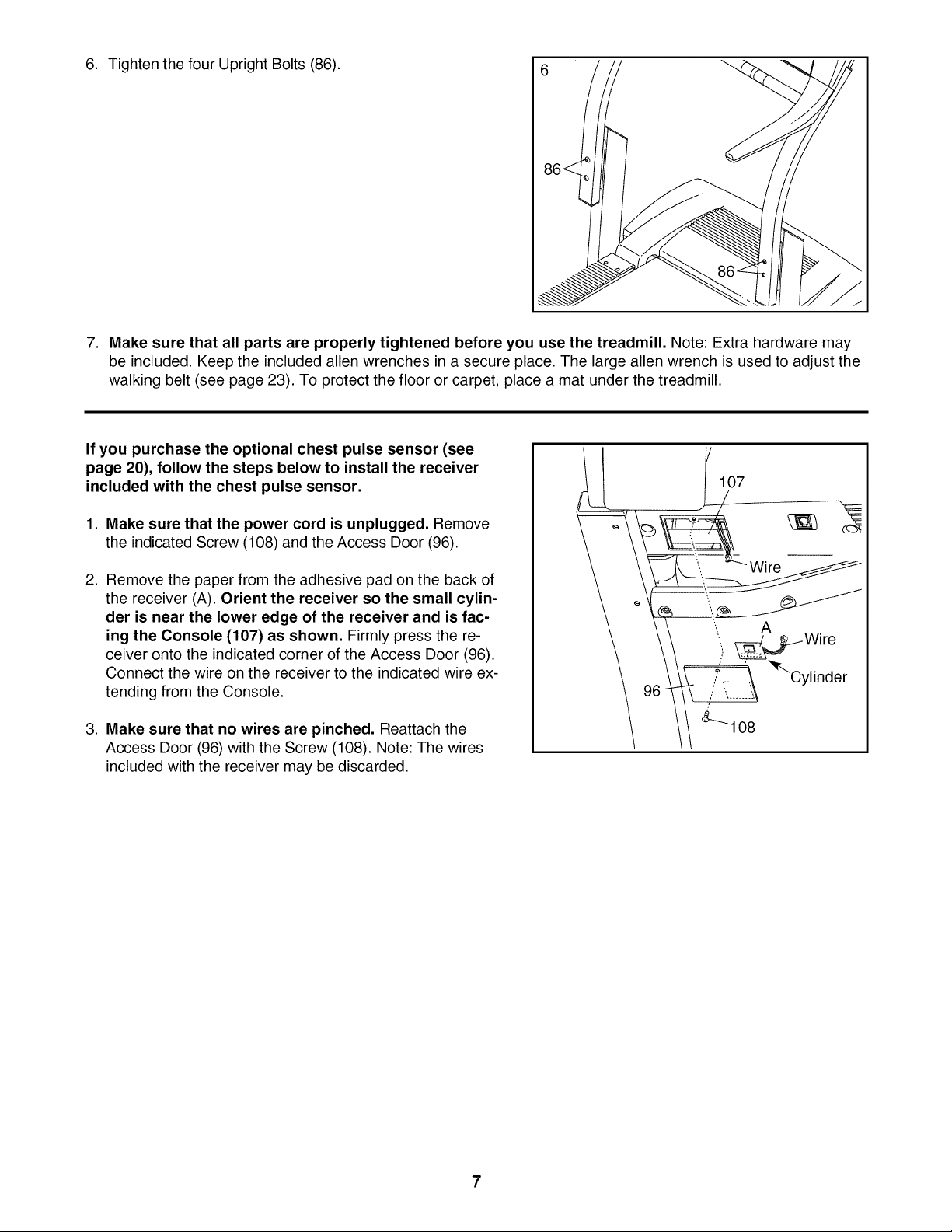

If you purchase the optional chest pulse sensor (see
page 20), follow the steps below to install the receiver
included with the chest pulse sensor.
1. Make sure that the power cord is unplugged. Remove
the indicated Screw (108) and the Access Door (96).
2. Remove the paper from the adhesive pad on the back of
the receiver (A). Orient the receiver so the small cylin-
der is near the lower edge of the receiver and is fac-
ing the Console (107) as shown. Firmly press the re-
ceiver onto the indicated corner of the Access Door (96).
Connect the wire on the receiver to the indicated wire ex-
tending from the Console.
3. Make sure that no wires are pinched. Reattach the
Access Door (96) with the Screw (108). Note: The wires
included with the receiver may be discarded.
107
Wire

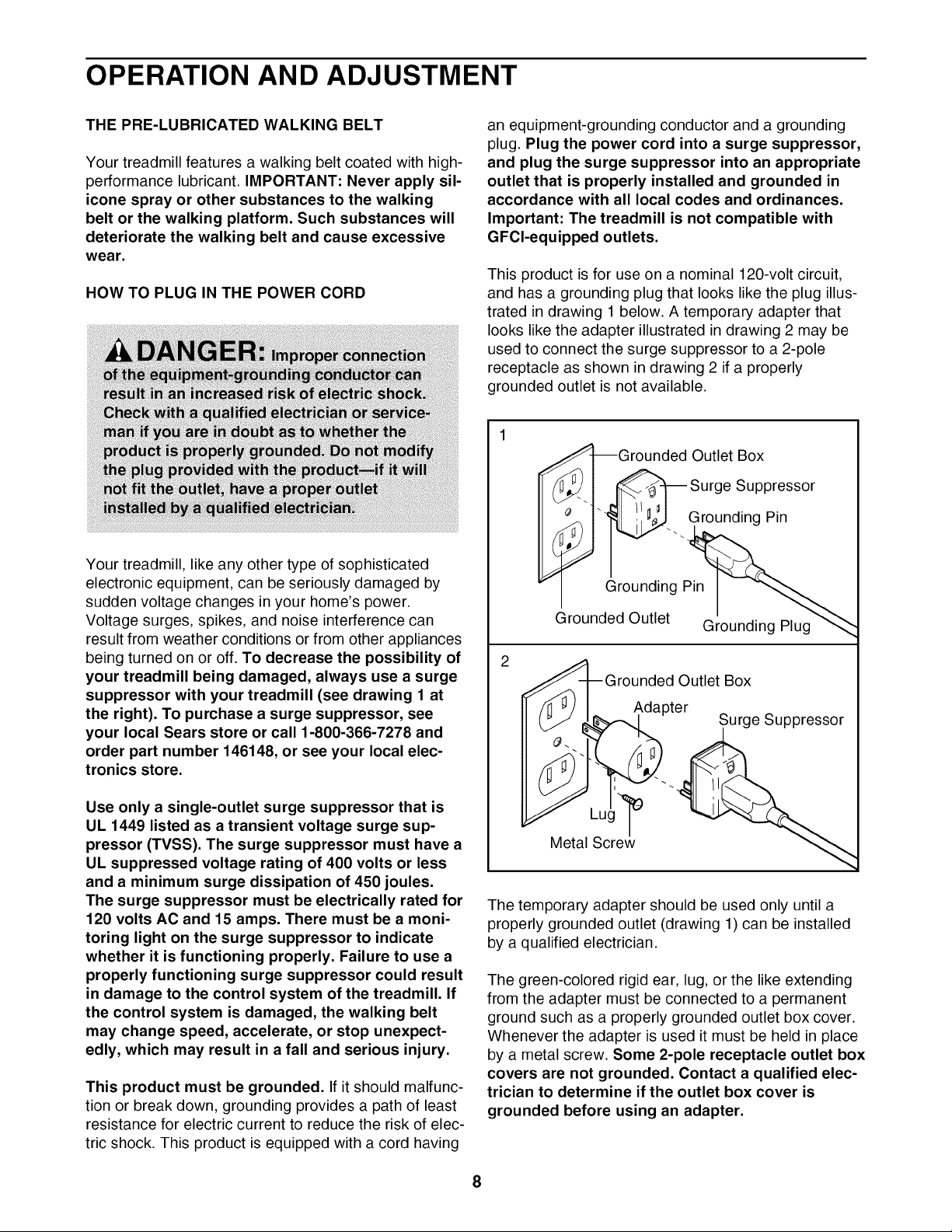

OPERATION AND ADJUSTMENT
THE PRE-LUBRICATED WALKING BELT
Your treadmill features a walking belt coated with high-
performance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG IN THE POWER CORD
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCl-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home's power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local Sears store or call 1-800-366-7278 and
order part number 146148, or see your local elec-
tronics store.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a moni-
toring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill. If
the control system is damaged, the walking belt
may change speed, accelerate, or stop unexpect-
edly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
Outlet Box
...Surge SuppressorGrounding Pin
2
Grounding Pin
Grounded Outlet Grounding Plug
--Grounded Outlet Box
Adapter _
i_1____.._Surge buppressor
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.

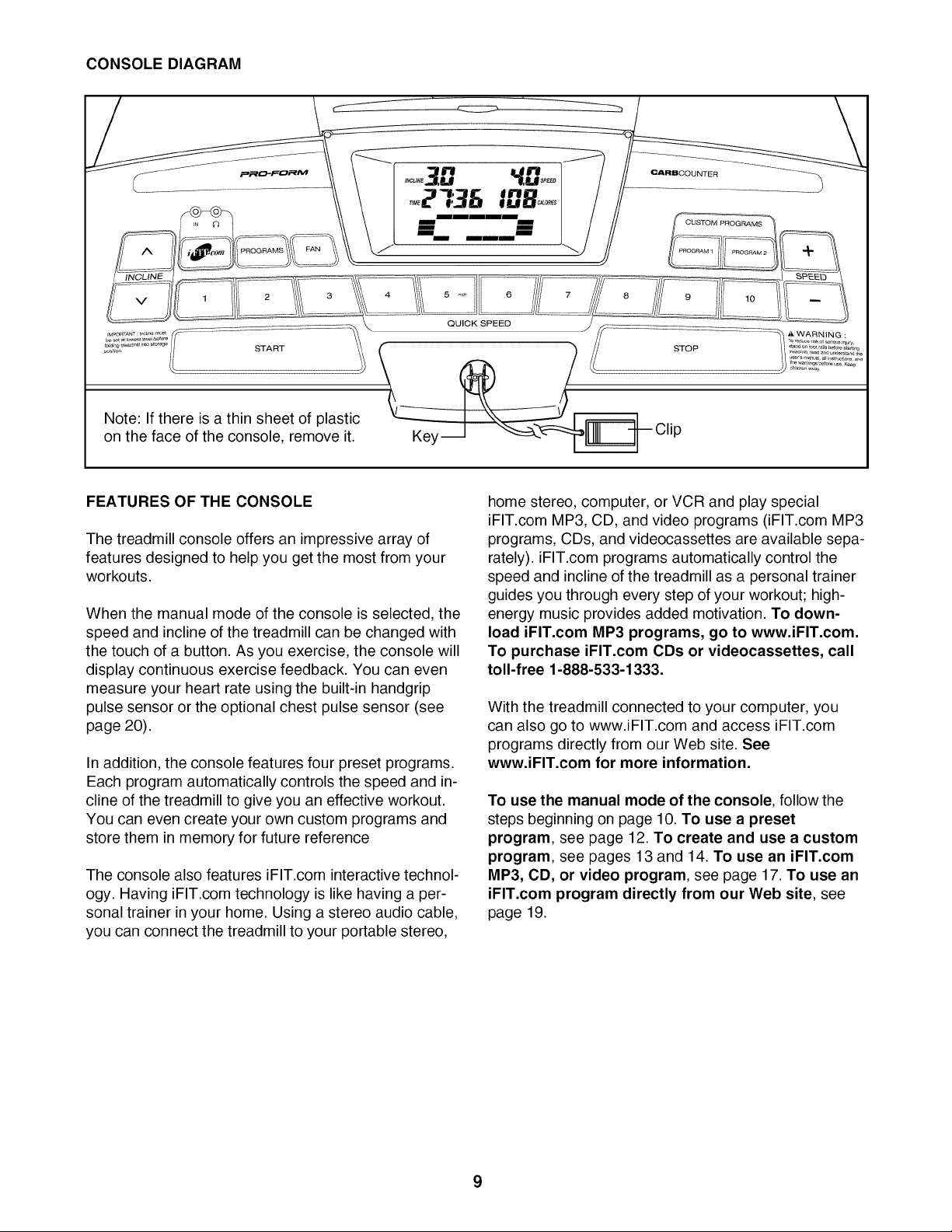

CONSOLE DIAGRAM
FEATURES OFTHE CONSOLE
The treadmill console offers an impressive array of
features designed to help you get the most from your
workouts.
When the manual mode of the console is selected, the
speed and incline of the treadmill can be changed with
the touch of a button. As you exercise, the console will
display continuous exercise feedback. You can even
measure your heart rate using the built-in handgrip
pulse sensor or the optional chest pulse sensor (see
page 20).
In addition, the console features four preset programs.
Each program automatically controls the speed and in-
cline of the treadmill to give you an effective workout.
You can even create your own custom programs and
store them in memory for future reference
The console also features iFIT.com interactive technol-
ogy. Having iFIT.com technology is like having a per-
sonal trainer in your home. Using a stereo audio cable,
you can connect the treadmill to your portable stereo,
home stereo, computer, or VCR and play special
iFIT.com MP3, CD, and video programs (iFIT.com MP3
programs, CDs, and videocassettes are available sepa-
rately), iFIT.com programs automatically control the
speed and incline of the treadmill as a personal trainer
guides you through every step of your workout; high-
energy music provides added motivation. To down-
load iFIT.com MP3 programs, go to www.iFIT.com.
To purchase iFIT.com CDs or videocassettes, call
toll-free 1-888-533-1333.
With the treadmill connected to your computer, you
can also go to www.iFIT.com and access iFIT.com
programs directly from our Web site. See
www.iFIT.com for more information.
To use the manual mode of the console, follow the
steps beginning on page 10. To use a preset
program, see page 12. To create and use a custom
program, see pages 13 and 14. To use an iFIT.com
MP3, CD, or video program, see page 17. To use an
iFIT.com program directly from our Web site, see
page 19.
9

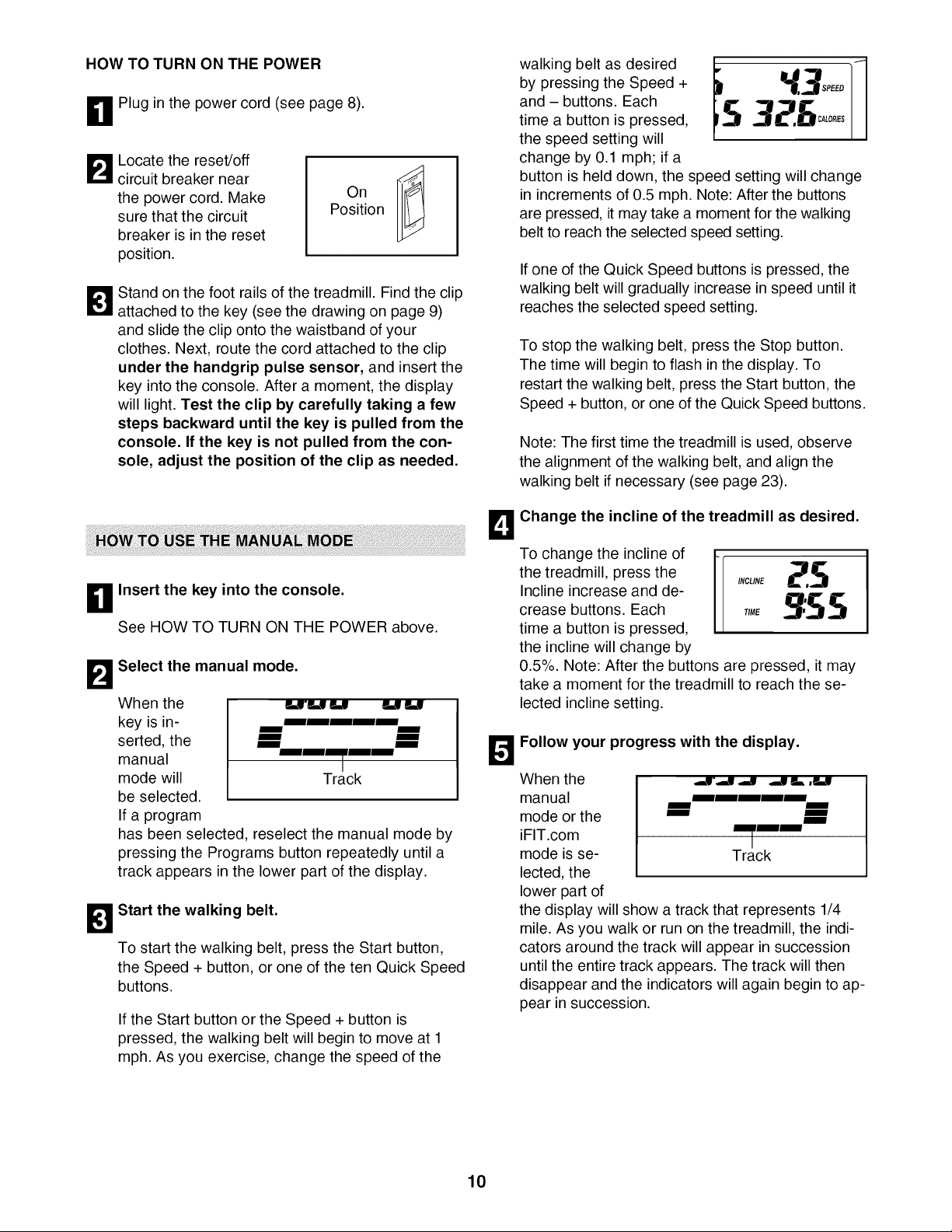

HOW TO TURN ON THE POWER
Plug in the power cord (see page 8).
B ocate the reset/off
circuit breaker near
the power cord. Make
sure that the circuit
breaker is in the reset
position.
Onl
Position
Stand on the foot rails of the treadmill. Find the clip
attached to the key (see the drawing on page 9)
and slide the clip onto the waistband of your
clothes. Next, route the cord attached to the clip
under the handgrip pulse sensor, and insert the
key into the console. After a moment, the display
will light. Test the clip by carefully taking a few
steps backward until the key is pulled from the
console. If the key is not pulled from the con-
sole, adjust the position of the clip as needed.
! Insert the key into the console.
See HOW TO TURN ON THE POWER above.
B
D
Select the manual mode.
When the r.m'_...we,.w auwr.J
key is in-
serted, the __ _
manual
mode will Track
be selected.
If a program
has been selected, reselect the manual mode by
pressing the Programs button repeatedly until a
track appears in the lower part of the display.
Start the walking belt.
To start the walking belt, press the Start button,
the Speed + button, or one of the ten Quick Speed
buttons.
If the Start button or the Speed + button is
pressed, the walking belt will begin to move at 1
mph. As you exercise, change the speed of the
E!
O
walking belt as desired
by pressing the Speed +
and - buttons. Each
time a button is pressed,
the speed setting will
change by 0.1 mph; if a
button is held down, the speed setting will change
in increments of 0.5 mph. Note: After the buttons
are pressed, it may take a moment for the walking
belt to reach the selected speed setting.
If one of the Quick Speed buttons is pressed, the
walking belt will gradually increase in speed until it
reaches the selected speed setting.
To stop the walking belt, press the Stop button.
The time will begin to flash in the display. To
restart the walking belt, press the Start button, the
Speed + button, or one of the Quick Speed buttons.
Note: The first time the treadmill is used, observe
the alignment of the walking belt, and align the
walking belt if necessary (see page 23).
Change the incline of the treadmill as desired.
To change the incline of
the treadmill, press the
Incline increase and de-
crease buttons. Each
time a button is pressed,
the incline will change by
0.5%. Note: After the buttons are pressed, it may
take a moment for the treadmill to reach the se-
lected incline setting.
Follow your progress with the display.
When the .,_-.,_ .,_ _ -.- ,r,,_
manual ,_
mode or the """ ""
iFIT.com
mode is se- Track
lected, the
lower part of
the display will show a track that represents 1/4
mile. As you walk or run on the treadmill, the indi-
cators around the track will appear in succession
until the entire track appears. The track will then
disappear and the indicators will again begin to ap-
pear in succession.
10
D

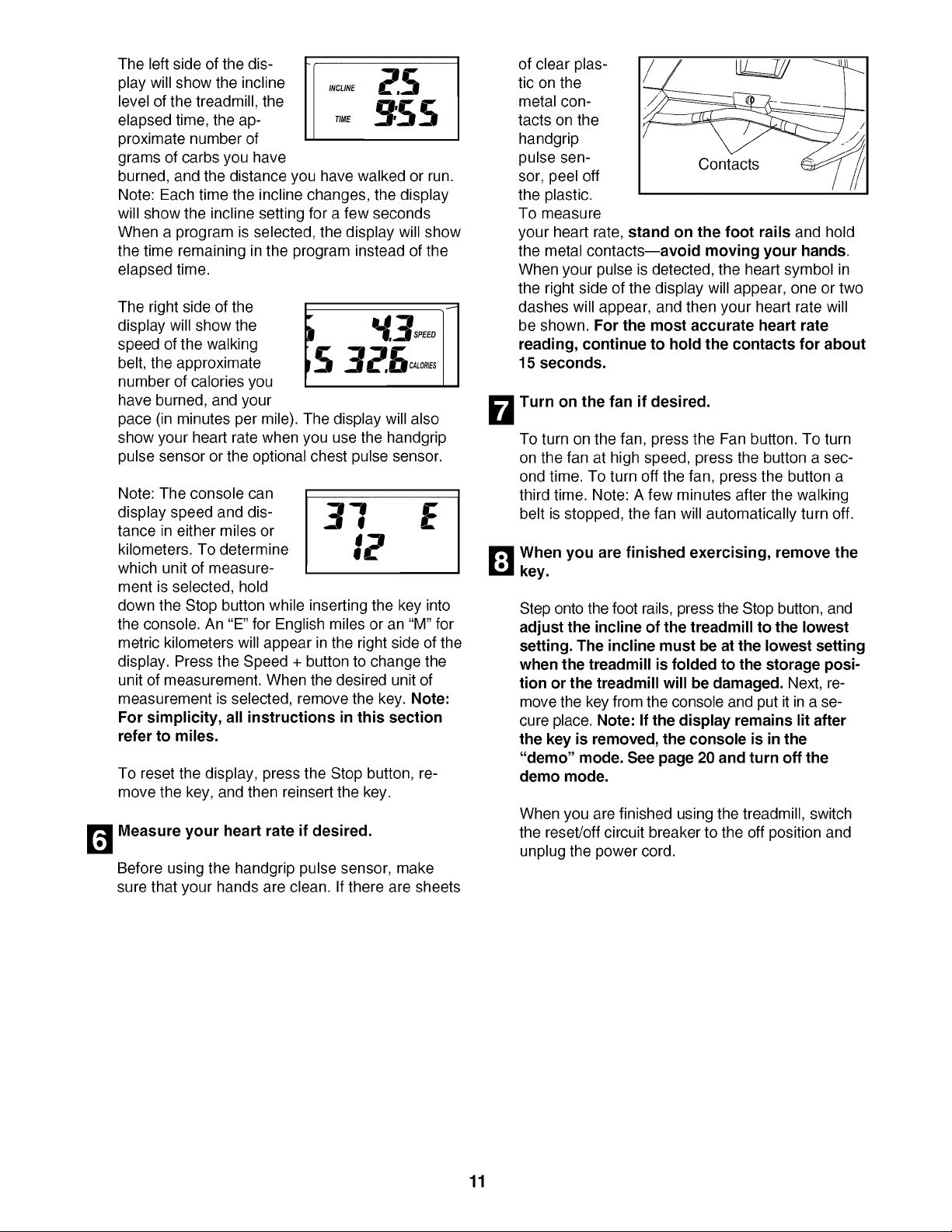

The left side of the dis-
play will show the incline
level of the treadmill, the
elapsed time, the ap-
proximate number of
grams of carbs you have
TIME
burned, and the distance you have walked or run.
Note: Each time the incline changes, the display
will show the incline setting for a few seconds
When a program is selected, the display will show
the time remaining in the program instead of the
elapsed time.
The right side of the
display will show the
speed of the walking
belt, the approximate
number of calories you
have burned, and your
pace (in minutes per mile). The display will also
show your heart rate when you use the handgrip
pulse sensor or the optional chest pulse sensor.
Note: The console can
display speed and dis- 3_ E
tance in either miles or
&,,_m
kilometers. To determine _Lt''J
which unit of measure-
ment is selected, hold
down the Stop button while inserting the key into
the console. An "E" for English miles or an "M" for
metric kilometers will appear in the right side of the
display. Press the Speed + button to change the
unit of measurement. When the desired unit of
measurement is selected, remove the key. Note:
For simplicity, all instructions in this section
refer to miles.
To reset the display, press the Stop button, re-
move the key, and then reinsert the key.
Measure your heart rate if desired.
Before using the handgrip pulse sensor, make
sure that your hands are clean. If there are sheets
B
of clear plas-
tic on the
metal con-
tacts on the
handgrip
pulse sen-
sor, peel off
the plastic.
To measure
your heart rate, stand on the foot rails and hold
the metal contacts--avoid moving your hands.
When your pulse is detected, the heart symbol in
the right side of the display will appear, one or two
dashes will appear, and then your heart rate will
be shown. For the most accurate heart rate
reading, continue to hold the contacts for about
15 seconds.
Turn on the fan if desired.
To turn on the fan, press the Fan button. To turn
on the fan at high speed, press the button a sec-
ond time. To turn off the fan, press the button a
third time. Note: A few minutes after the walking
belt is stopped, the fan will automatically turn off.
_1 hen you are finished exercising, remove the
key.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting
when the treadmill is folded to the storage posi-
tion or the treadmill will be damaged. Next, re-
move the key from the console and put it in a se-
cure place. Note: If the display remains lit after
the key is removed, the console is in the
"demo" mode. See page 20 and turn off the
demo mode.
When you are finished using the treadmill, switch
the reset/off circuit breaker to the off position and
unplug the power cord.
11
n
F.I

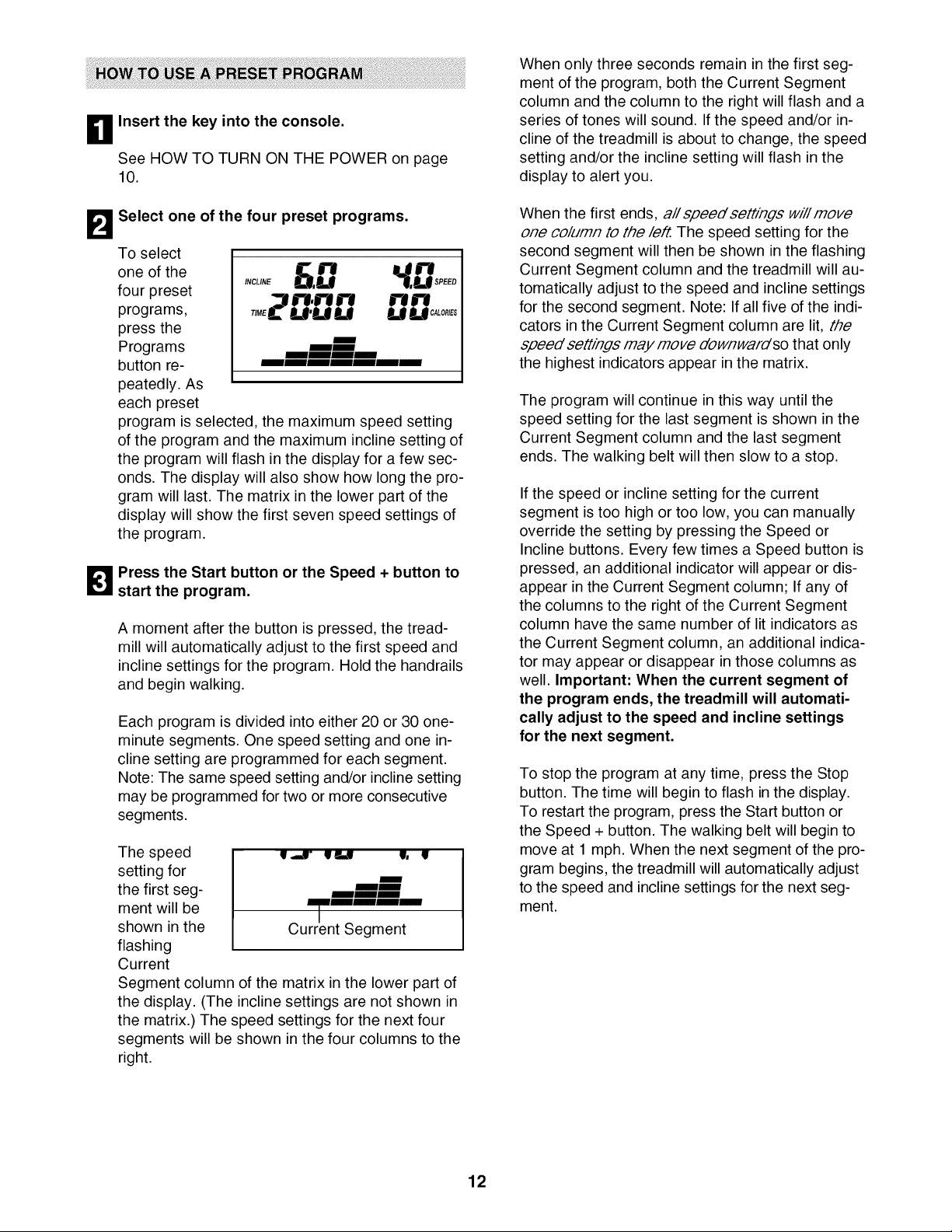

Insert the key into the console.
See HOW TO TURN ON THE POWER on page
10.
Select one of the four preset programs.
To select
one of the
four preset
programs,
press the
Programs
button re-
peatedly. As
each preset
_'!I,B U N
_c,,_ 31,Us
PEED
_Et!,WIlWI! El!'!
_ U'M U U U C_°_
m_
program is selected, the maximum speed setting
of the program and the maximum incline setting of
the program will flash in the display for a few sec-
onds. The display will also show how long the pro-
gram will last. The matrix in the lower part of the
display will show the first seven speed settings of
the program.
_ ress the Start button or the Speed + button to
start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings for the program. Hold the handrails
and begin walking.
Each program is divided into either 20 or 30 one-
minute segments. One speed setting and one in-
cline setting are programmed for each segment.
Note: The same speed setting and/or incline setting
may be programmed for two or more consecutive
segments.
The speed •,.J- • =,a •. •
setting for
the first seg- mmmm_
ment will be
shown in the
flashing
Current
Segment column of the matrix in the lower part of
the display. (The incline settings are not shown in
the matrix.) The speed settings for the next four
segments will be shown in the four columns to the
right.
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash and a
series of tones will sound. If the speed and/or in-
cline of the treadmill is about to change, the speed
setting and/or the incline setting will flash in the
display to alert you.
When the first ends, all speed settings willmove
one column to the left The speed setting for the
second segment will then be shown in the flashing
Current Segment column and the treadmill will au-
tomatically adjust to the speed and incline settings
for the second segment. Note: If all five of the indi-
cators in the Current Segment column are lit, the
speed settings may move downwardso that only
the highest indicators appear in the matrix.
The program will continue in this way until the
speed setting for the last segment is shown in the
Current Segment column and the last segment
ends. The walking belt will then slow to a stop.
If the speed or incline setting for the current
segment is too high or too low, you can manually
override the setting by pressing the Speed or
Incline buttons. Every few times a Speed button is
pressed, an additional indicator will appear or dis-
appear in the Current Segment column; If any of
the columns to the right of the Current Segment
column have the same number of lit indicators as
the Current Segment column, an additional indica-
tor may appear or disappear in those columns as
well. Important: When the current segment of
the program ends, the treadmill will automati-
cally adjust to the speed and incline settings
for the next segment.
To stop the program at any time, press the Stop
button. The time will begin to flash in the display.
To restart the program, press the Start button or
the Speed + button. The walking belt will begin to
move at 1 mph. When the next segment of the pro-
gram begins, the treadmill will automatically adjust
to the speed and incline settings for the next seg-
ment.
12

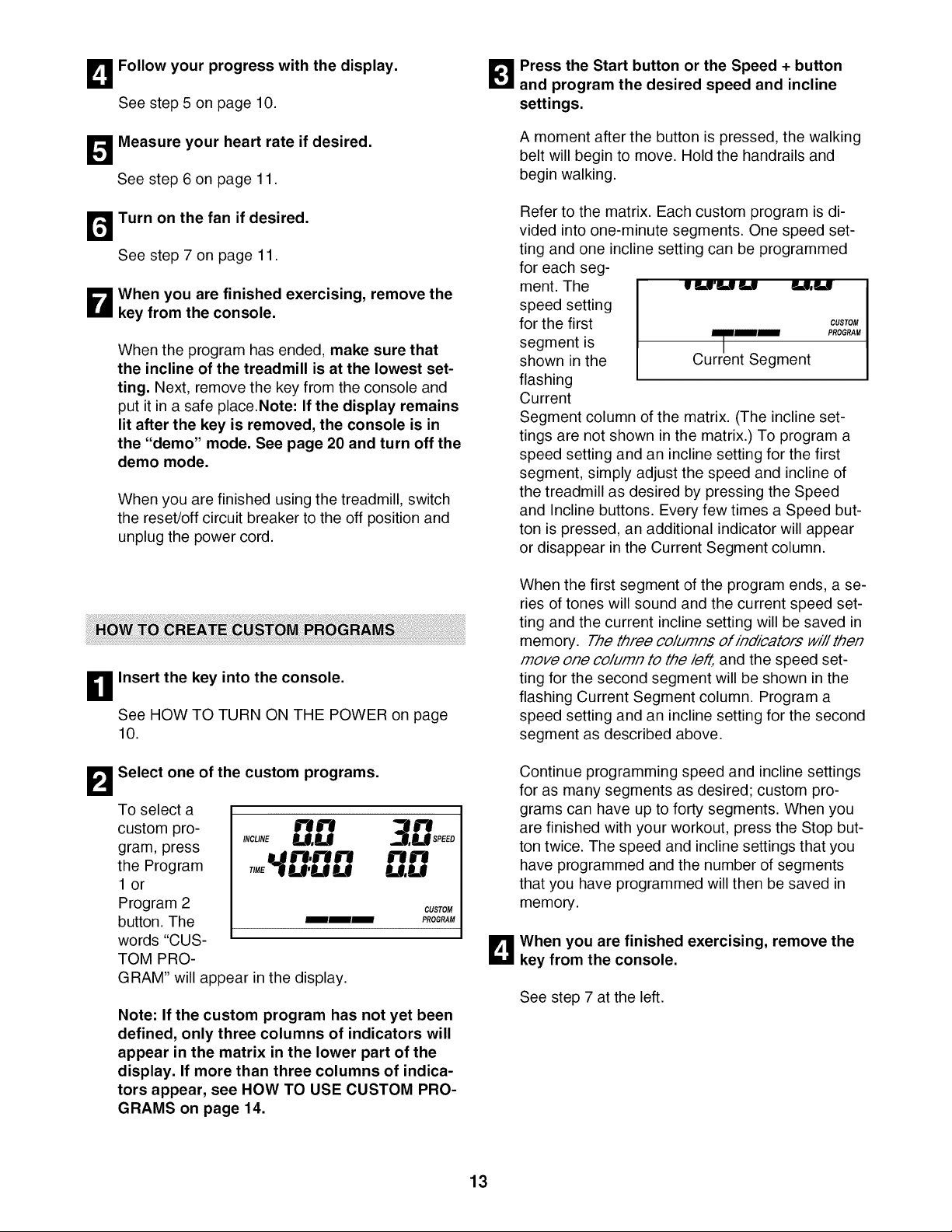

B ollow your progress with the display.
See step 5 on page 10.
_ easure your heart rate if desired.
See step 6 on page 11.
_ Turn on the fan if desired.
See step 7 on page 11.
B hen you are finished exercising, remove the
key from the console.
When the program has ended, make sure that
the incline of the treadmill is at the lowest set-
ting. Next, remove the key from the console and
put it in a safe place.Note: If the display remains
lit after the key is removed, the console is in
the "demo" mode. See page 20 and turn off the
demo mode.
When you are finished using the treadmill, switch
the reset/off circuit breaker to the off position and
unplug the power cord.
n
E!
Insert the key into the console.
See HOW TO TURN ON THE POWER on page
10.
Select one of the custom programs.
To select a
custom pro-
gram, press
the Program
1 or
Program 2
button. The
words "CUS-
TOM PRO-
_P
,,o,,,,BB 3,.,,,,°
lUlfll.b'!tt'tl IRItrtl
T,M_"!1U°M U U,U
CUSTOM
PROGRAM
GRAM" will appear in the display.
Note: If the custom program has not yet been
defined, only three columns of indicators will
appear in the matrix in the lower part of the
display. If more than three columns of indica-
tors appear, see HOW TO USE CUSTOM PRO-
GRAMS on page 14.
_1 ress the Start button or the Speed + button
and program the desired speed and incline
settings.
A moment after the button is pressed, the walking
belt will begin to move. Hold the handrails and
begin walking.
Refer to the matrix. Each custom program is di-
vided into one-minute segments. One speed set-
ting and one incline setting can be programmed
for each seg-
ment. The wL,m'm,Jr,,I u,r,,m
speed setting
for the first CUSTOM
segment is m__mm
PROGRAM
shown in the Current Segment
flashing
Current
Segment column of the matrix. (The incline set-
tings are not shown in the matrix.) To program a
speed setting and an incline setting for the first
segment, simply adjust the speed and incline of
the treadmill as desired by pressing the Speed
and Incline buttons. Every few times a Speed but-
ton is pressed, an additional indicator will appear
or disappear in the Current Segment column.
When the first segment of the program ends, a se-
ries of tones will sound and the current speed set-
ting and the current incline setting will be saved in
memory. The three columns of indicators will the/;
move one column to the left, and the speed set-
ting for the second segment will be shown in the
flashing Current Segment column. Program a
speed setting and an incline setting for the second
segment as described above.
Continue programming speed and incline settings
for as many segments as desired; custom pro-
grams can have up to forty segments. When you
are finished with your workout, press the Stop but-
ton twice. The speed and incline settings that you
have programmed and the number of segments
that you have programmed will then be saved in
memory.
B hen you are finished exercising, remove the
key from the console.
See step 7 at the left.
13
n
F.I

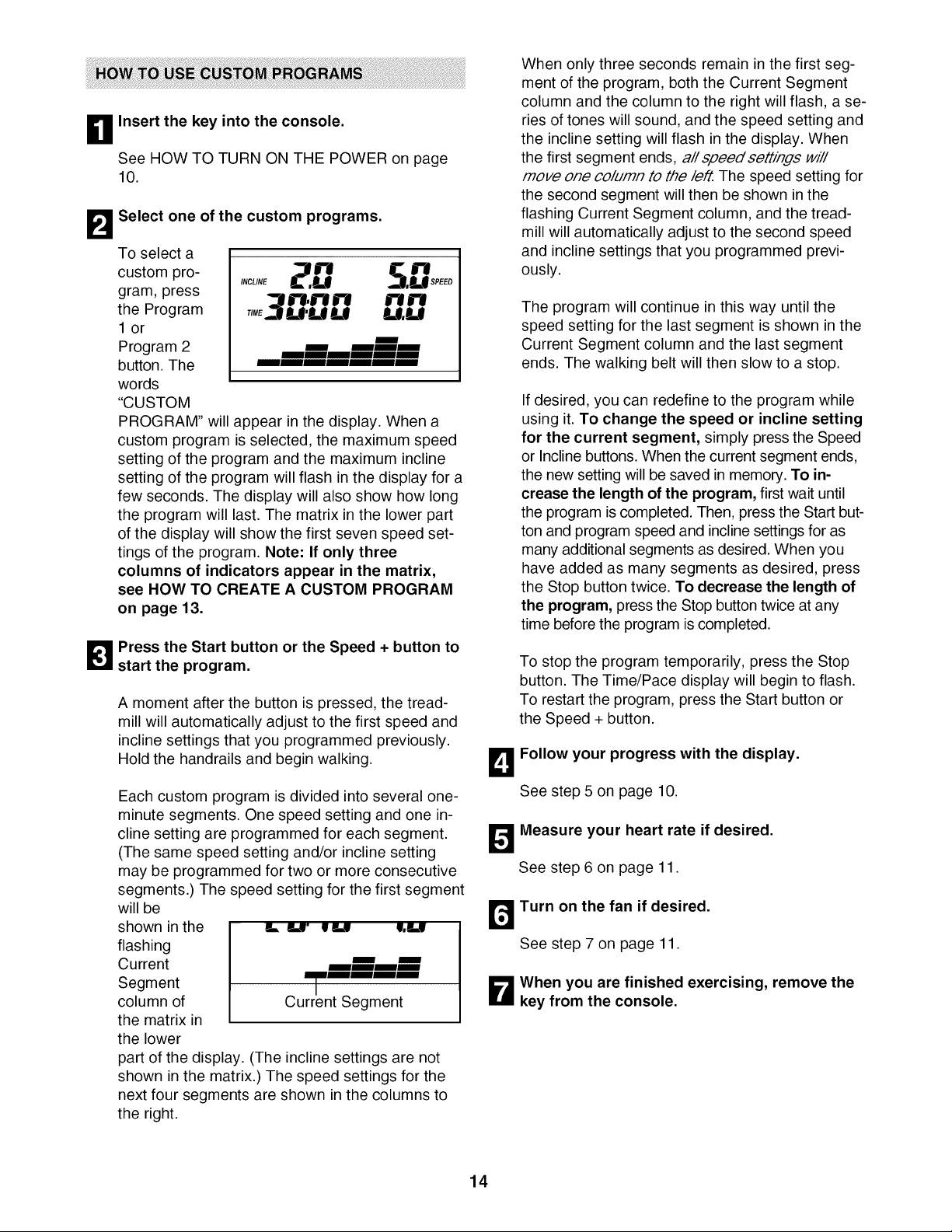

Insert the key into the console.
See HOW TO TURN ON THE POWER on page
10.
Select one of the custom programs.
To select a
custom pro-
gram, press
the Program
1 or
Program 2
button. The
words
"CUSTOM
INCLINE ,_,M S
PEED
=lr!.wllrT rlE'il
TIME,JU'U U U.U
I
I
PROGRAM" will appear in the display. When a
custom program is selected, the maximum speed
setting of the program and the maximum incline
setting of the program will flash in the display for a
few seconds. The display will also show how long
the program will last. The matrix in the lower part
of the display will show the first seven speed set-
tings of the program. Note: If only three
columns of indicators appear in the matrix,
see HOW TO CREATE A CUSTOM PROGRAM
on page 13.
_ ress the Start button or the Speed + button to
start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings that you programmed previously.
Hold the handrails and begin walking.
Each custom program is divided into several one-
minute segments. One speed setting and one in-
cline setting are programmed for each segment.
(The same speed setting and/or incline setting
may be programmed for two or more consecutive
segments.) The speed setting for the first segment
will be
shown in the
flashing
Current
Segment
column of
the matrix in
the lower
part of the display. (The incline settings are not
shown in the matrix.) The speed settings for the
next four segments are shown in the columns to
the right.
I= F,.T qlJ..J U.gJ
m m
Current Segment
E!
O
D
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash, a se-
ries of tones will sound, and the speed setting and
the incline setting will flash in the display. When
the first segment ends, all speed settings will
move one column to the left. The speed setting for
the second segment will then be shown in the
flashing Current Segment column, and the tread-
mill will automatically adjust to the second speed
and incline settings that you programmed previ-
ously.
The program will continue in this way until the
speed setting for the last segment is shown in the
Current Segment column and the last segment
ends. The walking belt will then slow to a stop.
If desired, you can redefine to the program while
using it. To change the speed or incline setting
for the current segment, simply press the Speed
or Incline buttons. When the current segment ends,
the new setting will be saved in memory. To in-
crease the length of the program, first wait until
the program is completed. Then, press the Start but-
ton and program speed and incline settings for as
many additional segments as desired. When you
have added as many segments as desired, press
the Stop button twice. To decrease the length of
the program, press the Stop button twice at any
time before the program is completed.
To stop the program temporarily, press the Stop
button. The Time/Pace display will begin to flash.
To restart the program, press the Start button or
the Speed + button.
Follow your progress with the display.
See step 5 on page 10.
Measure your heart rate if desired.
See step 6 on page 11.
Turn on the fan if desired.
See step 7 on page 11.
B hen you are finished exercising, remove the
key from the console.
14

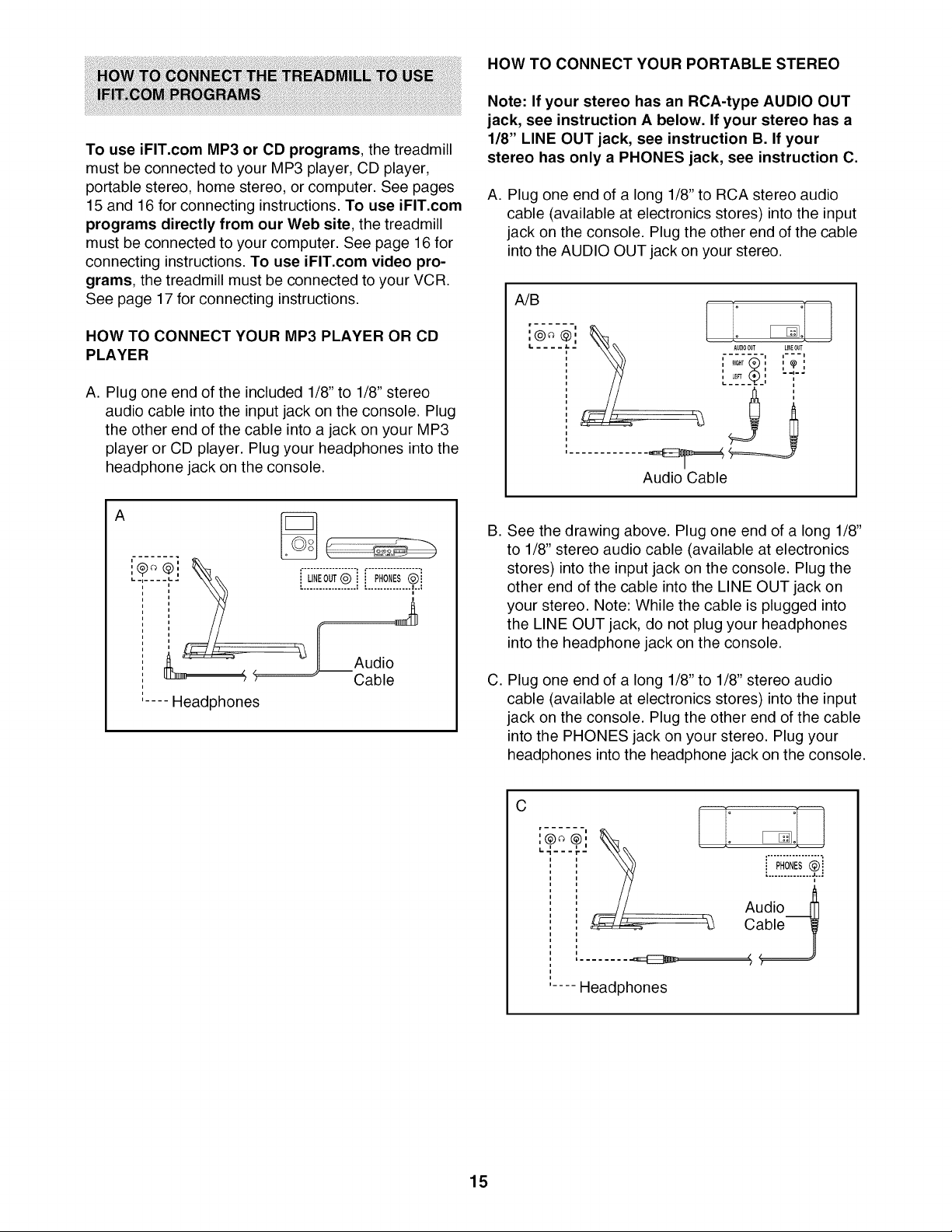

To use iFIT.com MP3 or CD programs, the treadmill
must be connected to your MP3 player, CD player,
portable stereo, home stereo, or computer. See pages
15 and 16 for connecting instructions. To use iFIT.com
programs directly from our Web site, the treadmill
must be connected to your computer. See page 16 for
connecting instructions. To use iFIT.com video pro-
grams, the treadmill must be connected to your VCR.
See page 17 for connecting instructions.
HOW TO CONNECT YOUR MP3 PLAYER OR CD
PLAYER
A. Plug one end of the included 1/8" to 1/8" stereo
audio cable into the input jack on the console. Plug
the other end of the cable into a jack on your MP3
player or CD player. Plug your headphones into the
headphone jack on the console.
A ........
L_,.... L" LINEOUT(_) PHONES(_)i
Audio
_" Cable
..... Headphones
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
1/8" LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of a long 1/8" to RCA stereo audio
cable (available at electronics stores) into the input
jack on the console. Plug the other end of the cable
into the AUDIO OUT jack on your stereo.
A/B
'. "_X_ . ..... . .---,
, _ I RIGHT _ , t (_ '
',_ : _ _, '--,-;
Audio Cable
g.
C.
See the drawing above. Plug one end of a long 1/8"
to 1/8" stereo audio cable (available at electronics
stores) into the input jack on the console. Plug the
other end of the cable into the LINE OUT jack on
your stereo. Note: While the cable is plugged into
the LINE OUT jack, do not plug your headphones
into the headphone jack on the console.
Plug one end of a long 1/8" to 1/8" stereo audio
cable (available at electronics stores) into the input
jack on the console. Plug the other end of the cable
into the PHONES jack on your stereo. Plug your
headphones into the headphone jack on the console.
C
L........ .=tz:_ ¸
..... Headphones
i PHONES(_)i
i
Audio _]
TJ
15

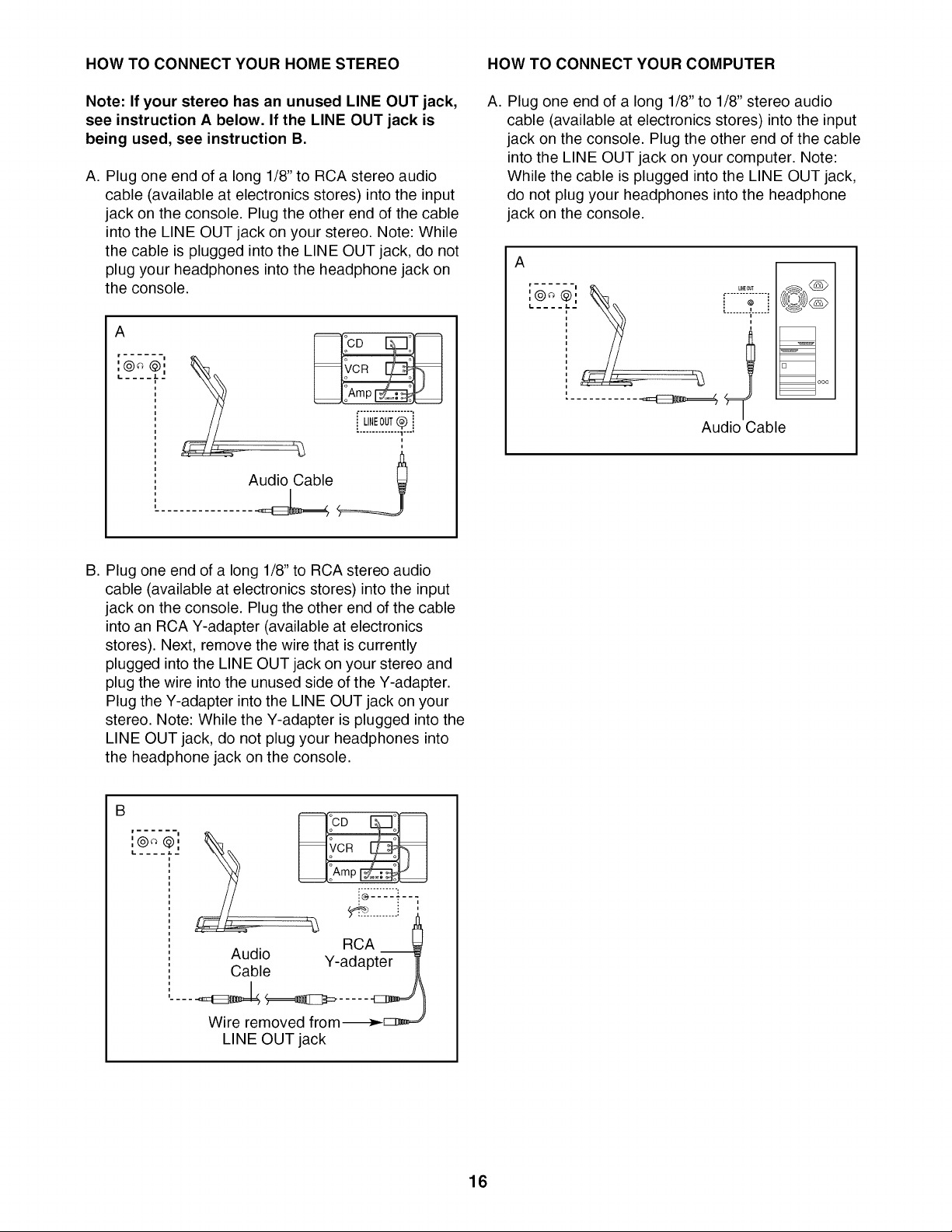

HOW TO CONNECT YOUR HOME STEREO HOW TO CONNECT YOUR COMPUTER
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of a long 1/8" to RCA stereo audio
cable (available at electronics stores) into the input
jack on the console. Plug the other end of the cable
into the LINE OUT jack on your stereo. Note: While
the cable is plugged into the LINE OUT jack, do not
plug your headphones into the headphone jack on
the console.
A
• ...... i
I@_" @'
i. .... ,L /
LINEOUT(_
.............. 1 ....
A. Plug one end of a long 1/8" to 1/8" stereo audio
cable (available at electronics stores) into the input
jack on the console. Plug the other end of the cable
into the LINE OUT jack on your computer. Note:
While the cable is plugged into the LINE OUT jack,
do not plug your headphones into the headphone
jack on the console.
A
,@ @,
i.. .... 1._
'4
UNE0UT
@
Audio Cable
B. Plug one end of a long 1/8" to RCA stereo audio
cable (available at electronics stores) into the input
jack on the console. Plug the other end of the cable
into an RCA Y-adapter (available at electronics
stores). Next, remove the wire that is currently
plugged into the LINE OUT jack on your stereo and
plug the wire into the unused side of the Y-adapter.
Plug the Y-adapter into the LINE OUT jack on your
stereo. Note: While the Y-adapter is plugged into the
LINE OUT jack, do not plug your headphones into
the headphone jack on the console.
B
r
i ©
,@ @,
L .... _.-
:Amp
i;:-:::}__.
'4 ......... '
RCA
Audio Y-adapter
Cable
Wire removed from -_::_
LINE OUT jack
16

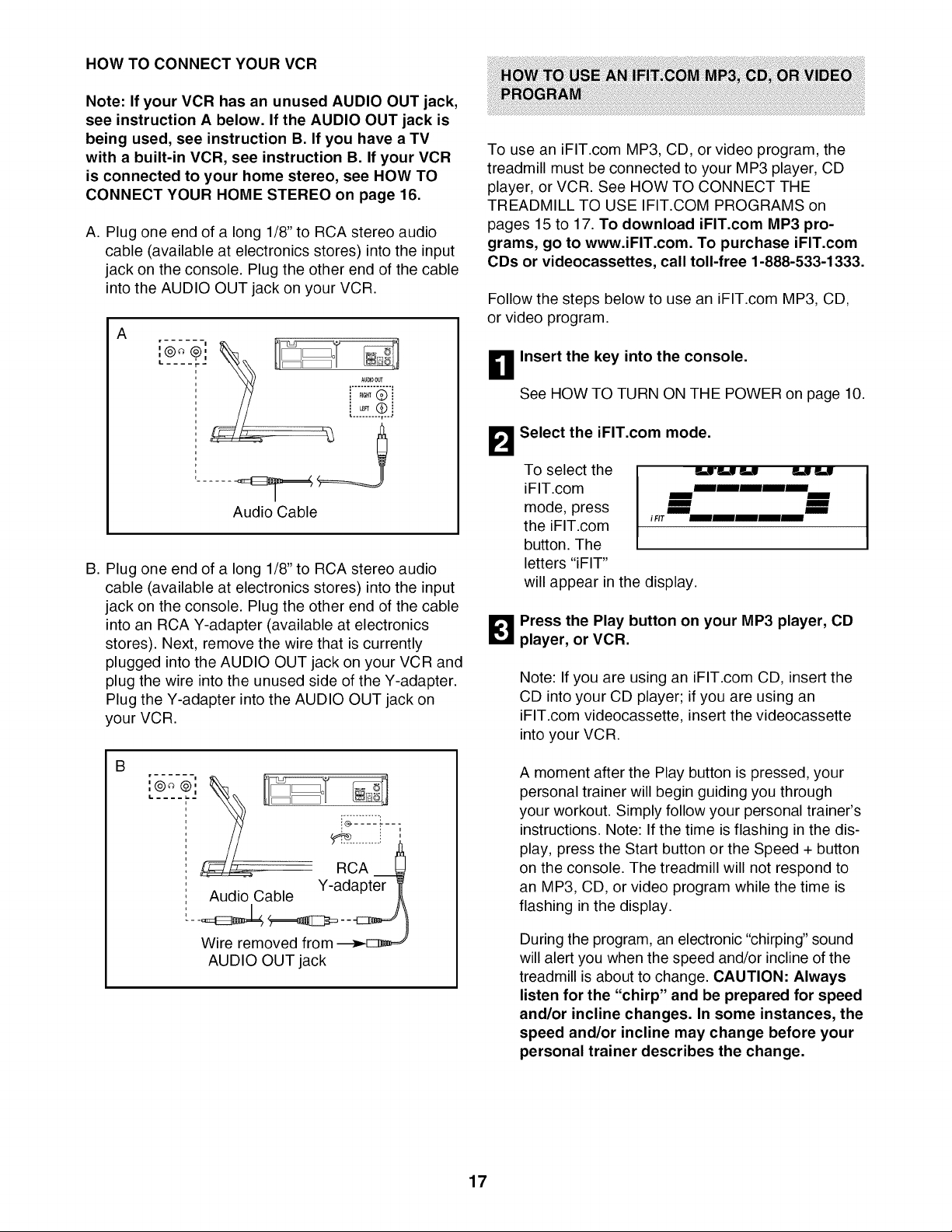

HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 16.
A. Plug one end of a long 1/8" to RCA stereo audio
cable (available at electronics stores) into the input
jack on the console. Plug the other end of the cable
into the AUDIO OUT jack on your VCR.
A
1_¢oo,
___;."
,,
,,
Audio Cable
B. Plug one end of a long 1/8" to RCA stereo audio
cable (available at electronics stores) into the input
jack on the console. Plug the other end of the cable
into an RCA Y-adapter (available at electronics
stores). Next, remove the wire that is currently
plugged into the AUDIO OUT jack on your VCR and
plug the wire into the unused side of the Y-adapter.
Plug the Y-adapter into the AUDIO OUT ack on
your VCR.
B
:@o @,
i@.........
RCA __
i Y-adapter
,, Audio Cable
_--_L41_=_:::_ ---c::_==_
wire removed from
AUDIO OUT jack
To use an iFIT.com MP3, CD, or video program, the
treadmill must be connected to your MP3 player, CD
player, or VCR. See HOW TO CONNECT THE
TREADMILL TO USE IFIT.COM PROGRAMS on
pages 15 to 17. To download iFIT.com MP3 pro-
grams, go to www.iFIT.com. To purchase iFIT.com
CDs or videocassettes, call toll-free 1-888-533-1333.
Follow the steps below to use an iFIT.com MP3, CD,
or video program.
1 Insert the key into the console.
See HOW TO TURN ON THE POWER on page 10.
B
Select the iFIT.com mode.
To select the
iFIT.com
mode, press ==='"=
iRT
the iFIT.com
button. The
letters "iFIT"
will appear in the display.
W'UU UU
I
_1 ress the Play button on your MP3 player, CD
player, or VCR.
Note: If you are using an iFIT.com CD, insert the
CD into your CD player; if you are using an
iFIT.com videocassette, insert the videocassette
into your VCR.
A moment after the Play button is pressed, your
personal trainer will begin guiding you through
your workout. Simply follow your personal trainer's
instructions. Note: If the time is flashing in the dis-
play, press the Start button or the Speed + button
on the console. The treadmill will not respond to
an MP3, CD, or video program while the time is
flashing in the display.
During the program, an electronic "chirping" sound
will alert you when the speed and/or incline of the
treadmill is about to change. CAUTION: Always
listen for the "chirp" and be prepared for speed
and/or incline changes. In some instances, the
speed and/or incline may change before your
personal trainer describes the change.
17

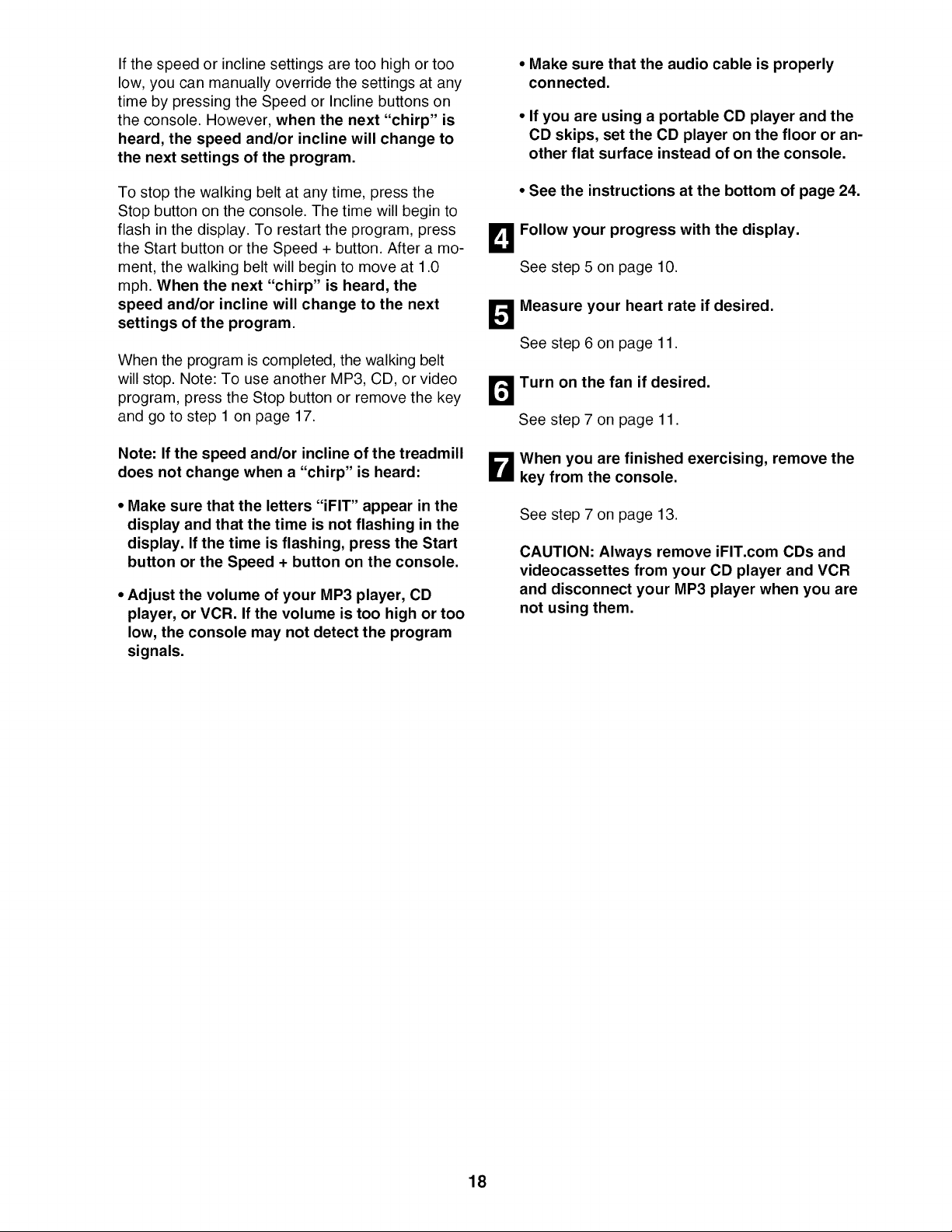

If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next "chirp" is
heard, the speed and/or incline will change to
the next settings of the program.
To stop the walking belt at any time, press the
Stop button on the console. The time will begin to
flash in the display. To restart the program, press
the Start button or the Speed + button. After a mo-
ment, the walking belt will begin to move at 1.0
mph. When the next "chirp" is heard, the
speed and/or incline will change to the next
settings of the program.
When the program is completed, the walking belt
will stop. Note: To use another MP3, CD, or video
program, press the Stop button or remove the key
and go to step 1 on page 17.
Note: If the speed and/or incline of the treadmill
does not change when a "chirp" is heard:
• Make sure that the letters "iFIT" appear in the
display and that the time is not flashing in the
display. If the time is flashing, press the Start
button or the Speed + button on the console.
• Adjust the volume of your MP3 player, CD
player, or VCR. If the volume is too high or too
low, the console may not detect the program
signals.
• Make sure that the audio cable is properly
connected.
• If you are using a portable CD player and the
CD skips, set the CD player on the floor or an-
other flat surface instead of on the console.
• See the instructions at the bottom of page 24.
B ollow your progress with the display.
See step 5 on page 10.
_ easure your heart rate if desired.
See step 6 on page 11.
_Turn on the fan if desired.
See step 7 on page 11.
B hen you are finished exercising, remove the
key from the console.
See step 7 on page 13.
CAUTION: Always remove iFIT.com CDs and
videocassettes from your CD player and VCR
and disconnect your MP3 player when you are
not using them.
18

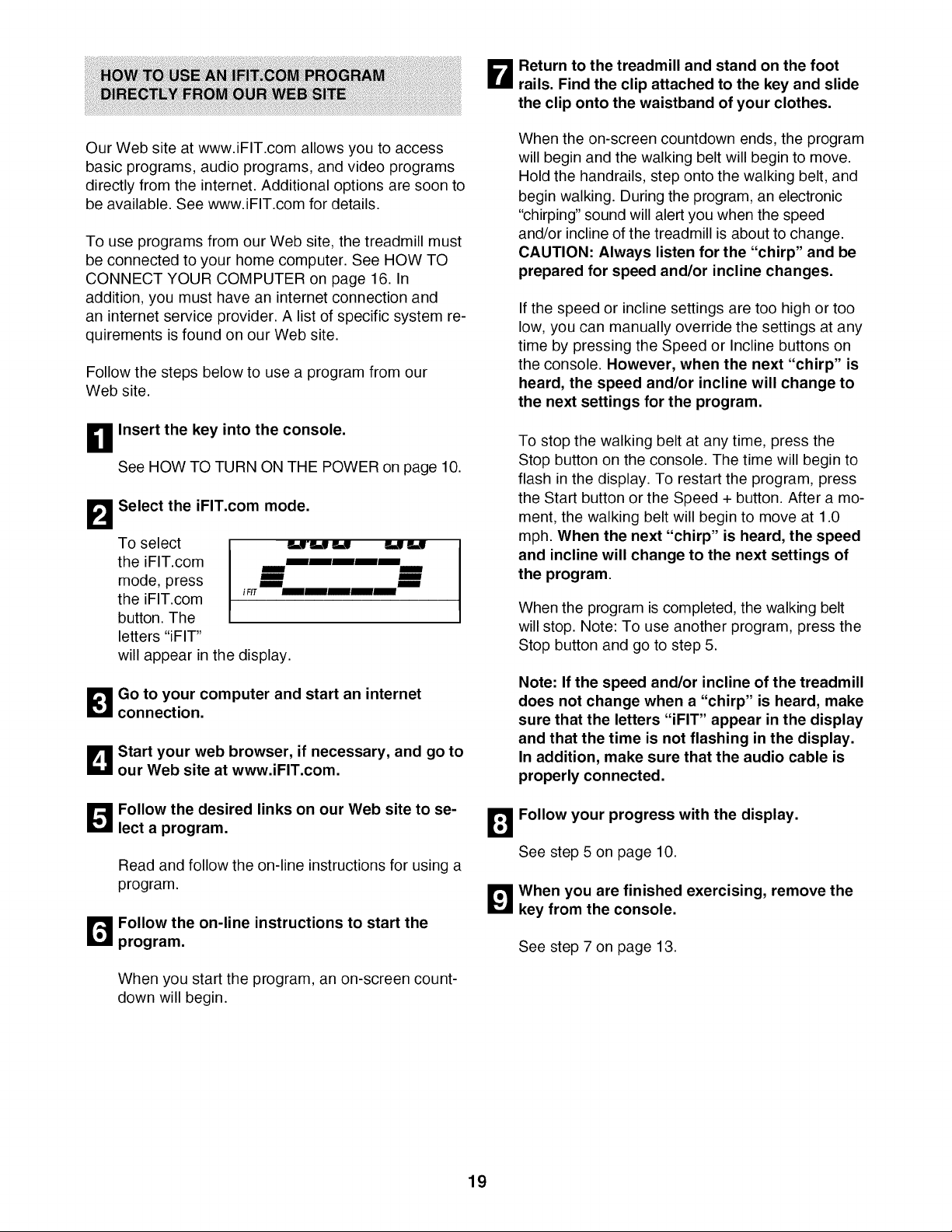

Our Web site at www.iFIT.com allows you to access
basic programs, audio programs, and video programs
directly from the internet. Additional options are soon to
be available. See www.iFIT.com for details.
To use programs from our Web site, the treadmill must
be connected to your home computer. See HOW TO
CONNECT YOUR COMPUTER on page 16. In
addition, you must have an internet connection and
an internet service provider. A list of specific system re-
quirements is found on our Web site.
Follow the steps below to use a program from our
Web site.
1 Insert the key into the console.
See HOW TO TURN ON THE POWER on page 10.
B
Select the iFIT.com mode.
To select
the iFIT.com
mode, press ,,.,.,"""
the iFIT.com i_lr
button. The
letters "iFIT"
will appear in the display.
n
m
mnmnmmm
Go to your computer and start an internet
connection.
B tart your web browser, if necessary, and go to
our Web site at www.iFIT.com.
.'t ollow the desired links on our Web site to se-
lect a program.
Read and follow the on-line instructions for using a
program.
r_ Follow the on-line instructions to start the
program.
When you start the program, an on-screen count-
down will begin.
B eturn to the treadmill and stand on the foot
rails. Find the clip attached to the key and slide
the clip onto the waistband of your clothes.
When the on-screen countdown ends, the program
will begin and the walking belt will begin to move.
Hold the handrails, step onto the walking belt, and
begin walking. During the program, an electronic
"chirping" sound will alert you when the speed
and/or incline of the treadmill is about to change.
CAUTION: Always listen for the "chirp" and be
prepared for speed and/or incline changes.
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next "chirp" is
heard, the speed and/or incline will change to
the next settings for the program.
To stop the walking belt at any time, press the
Stop button on the console. The time will begin to
flash in the display. To restart the program, press
the Start button or the Speed + button. After a mo-
ment, the walking belt will begin to move at 1.0
mph. When the next "chirp" is heard, the speed
and incline will change to the next settings of
the program.
When the program is completed, the walking belt
will stop. Note: To use another program, press the
Stop button and go to step 5.
Note: If the speed and/or incline of the treadmill
does not change when a "chirp" is heard, make
sure that the letters "iFIT" appear in the display
and that the time is not flashing in the display.
In addition, make sure that the audio cable is
properly connected.
Follow your progress with the display.
See step 5 on page 10.
_1 hen you are finished exercising, remove the
key from the console.
See step 7 on page 13.
19

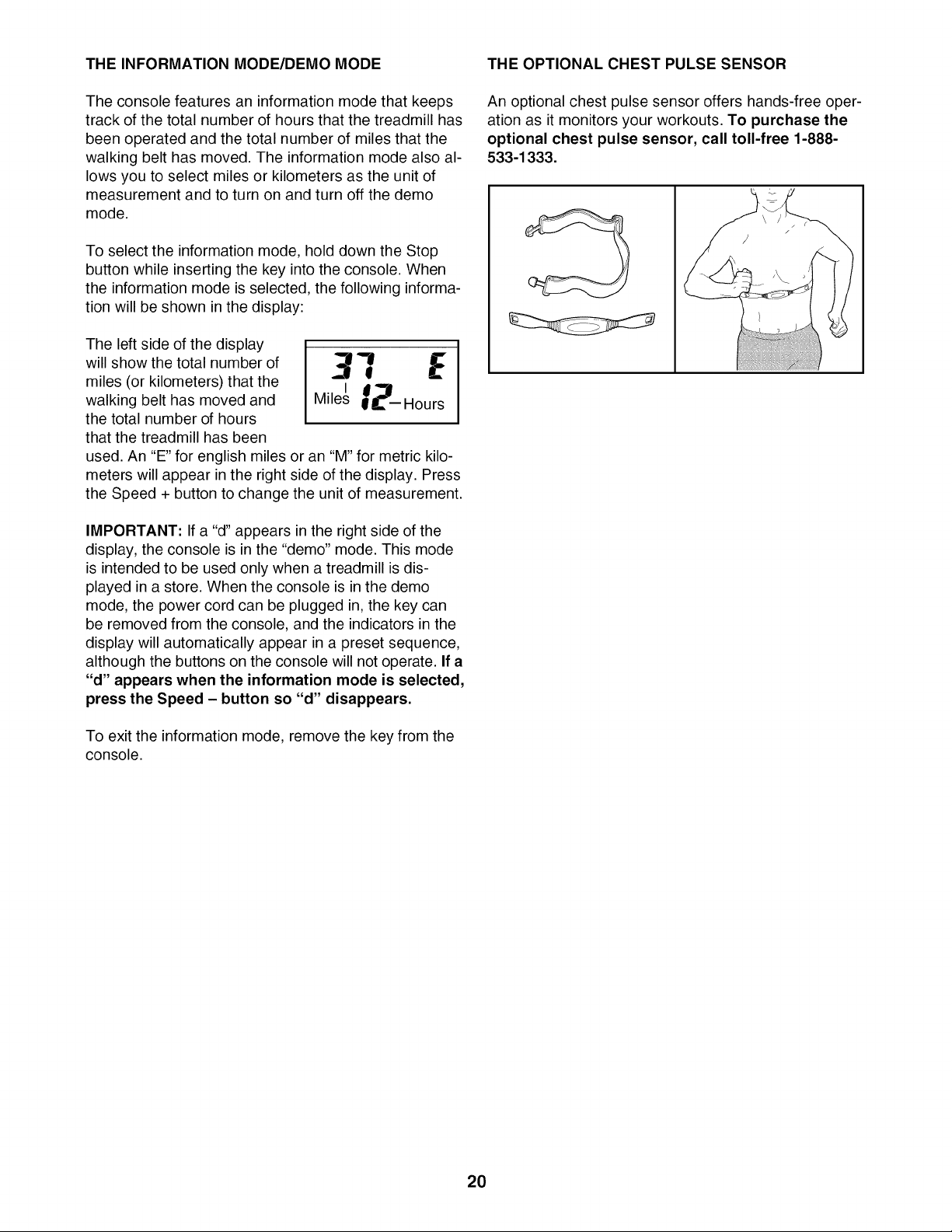

THE INFORMATION MODE/DEMO MODE THE OPTIONAL CHEST PULSE SENSOR
The console features an information mode that keeps
track of the total number of hours that the treadmill has
been operated and the total number of miles that the
walking belt has moved. The information mode also al-
lows you to select miles or kilometers as the unit of
measurement and to turn on and turn off the demo
mode.
To select the information mode, hold down the Stop
button while inserting the key into the console. When
the information mode is selected, the following informa-
tion will be shown in the display:
The left side of the display
will show the total number of
miles (or kilometers) that the
walking belt has moved and
the total number of hours
that the treadmill has been
31 E
Mile/ tIP-- Hours
used. An "E" for english miles or an "M" for metric kilo-
meters will appear in the right side of the display. Press
the Speed + button to change the unit of measurement.
IMPORTANT: If a "d" appears in the right side of the
display, the console is in the "demo" mode. This mode
is intended to be used only when a treadmill is dis-
played in a store. When the console is in the demo
mode, the power cord can be plugged in, the key can
be removed from the console, and the indicators in the
display will automatically appear in a preset sequence,
although the buttons on the console will not operate. If a
"d" appears when the information mode is selected,
press the Speed - button so "d" disappears.
To exit the information mode, remove the key from the
console.
An optional chest pulse sensor offers hands-free oper-
ation as it monitors your workouts. To purchase the
optional chest pulse sensor, call toll-free 1-888-
533-1333.
2O

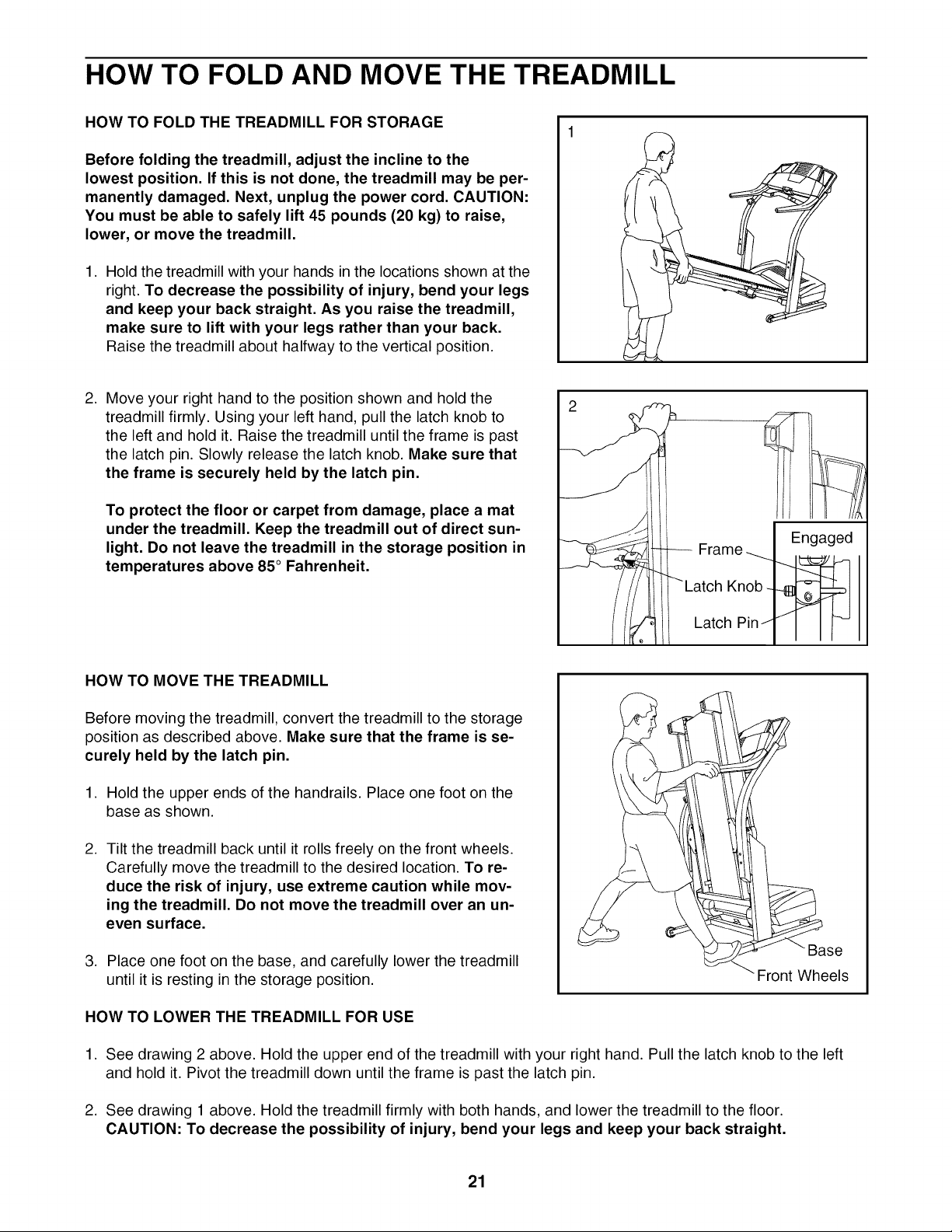

HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
lowest position. If this is not done, the treadmill may be per-
manently damaged. Next, unplug the power cord. CAUTION:
You must be able to safely lift 45 pounds (20 kg) to raise,
lower, or move the treadmill.
1. Hold the treadmill with your hands in the locations shown at the
right. To decrease the possibility of injury, bend your legs
and keep your back straight. As you raise the treadmill,
make sure to lift with your legs rather than your back.
Raise the treadmill about halfway to the vertical position.
r
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left hand, pull the latch knob to
the left and hold it. Raise the treadmill until the frame is past
the latch pin. Slowly release the latch knob. Make sure that
the frame is securely held by the latch pin.
To protect the floor or carpet from damage, place a mat
under the treadmill. Keep the treadmill out of direct sun-
light. Do not leave the treadmill in the storage position in
temperatures above 85 ° Fahrenheit.
Engaged
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage
position as described above. Make sure that the frame is se-
curely held by the latch pin.
1. Hold the upper ends of the handrails. Place one foot on the
base as shown.
2. Tilt the treadmill back until it rolls freely on the front wheels.
Carefully move the treadmill to the desired location. To re-
duce the risk of injury, use extreme caution while mov-
ing the treadmill. Do not move the treadmill over an un-
even surface.
3. Place one foot on the base, and carefully lower the treadmill
until it is resting in the storage position.
Base
"Front Wheels
HOW TO LOWER THE TREADMILL FOR USE
1. See drawing 2 above. Hold the upper end of the treadmill with your right hand. Pull the latch knob to the left
and hold it. Pivot the treadmill down until the frame is past the latch pin.
2. See drawing 1 above. Hold the treadmill firmly with both hands, and lower the treadmill to the floor.
CAUTION: To decrease the possibility of injury, bend your legs and keep your back straight.
21

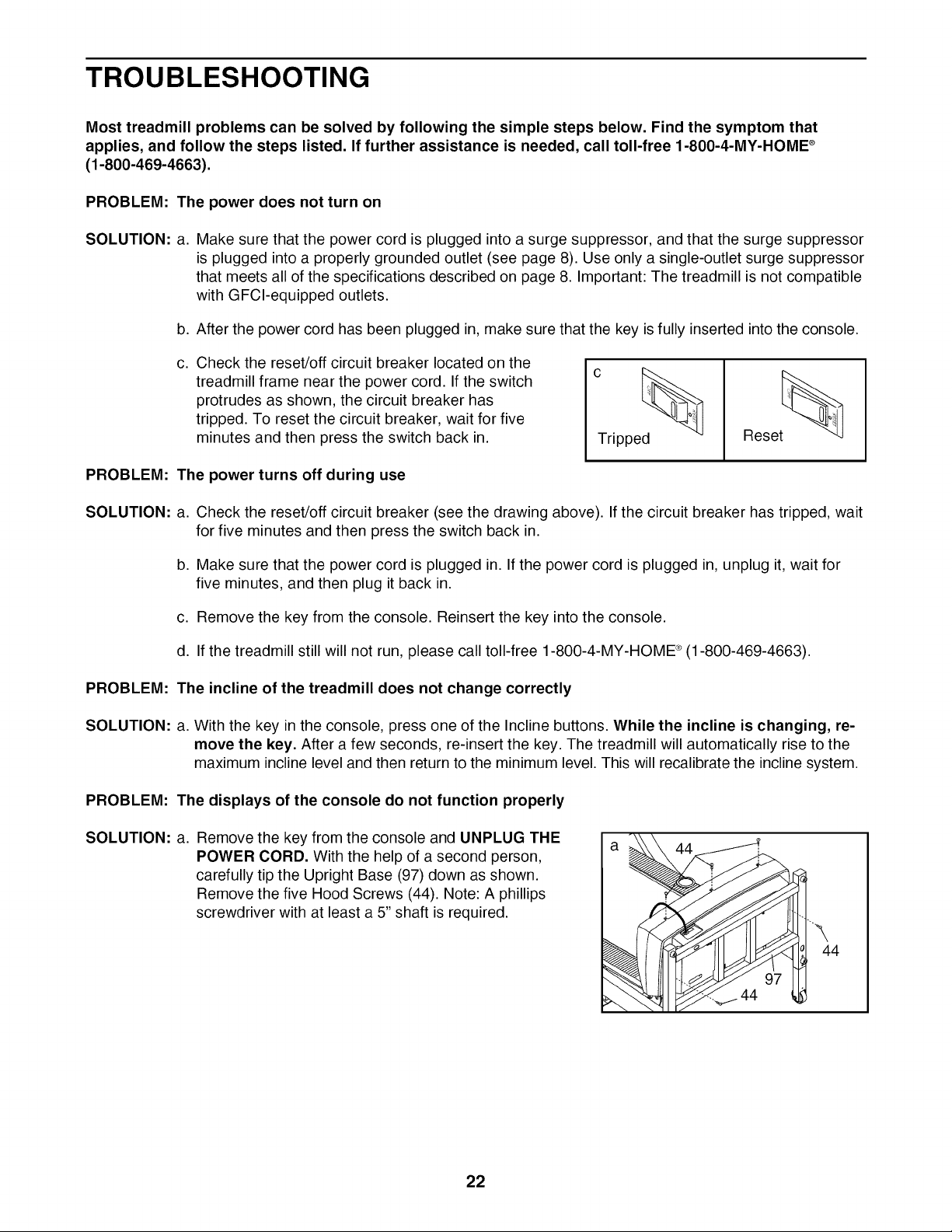

TROUBLESHOOTING
Most treadmill problems can be solved by following the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assistance is needed, call toll-free 1-800-4-MY-HOME _
(1-800-469-4663).
PROBLEM: The power does not turn on
SOLUTION: a.
Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 8). Use only a single-outlet surge suppressor
that meets all of the specifications described on page 8. Important: The treadmill is not compatible
with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
C.
Check the reset/off circuit breaker located on the
treadmill frame near the power cord. If the switch
protrudes as shown, the circuit breaker has
tripped. To reset the circuit breaker, wait for five
minutes and then press the switch back in.
Tripped
Reset_
PROBLEM: The power turns off during use
SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait
for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key into the console.
d. If the treadmill still will not run, please call toll-free 1-800-4-MY-HOME _>(1-800-469-4663).
PROBLEM: The incline of the treadmill does not change correctly
SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, re-
move the key. After a few seconds, re-insert the key. The treadmill will automatically rise to the
maximum incline level and then return to the minimum level. This will recalibrate the incline system.
PROBLEM: The displays of the console do not function properly
SOLUTION: a.
Remove the key from the console and UNPLUG THE
POWER CORD. With the help of a second person,
carefully tip the Upright Base (97) down as shown.
Remove the five Hood Screws (44). Note: A phillips
screwdriver with at least a 5" shaft is required.
t " '_44
22

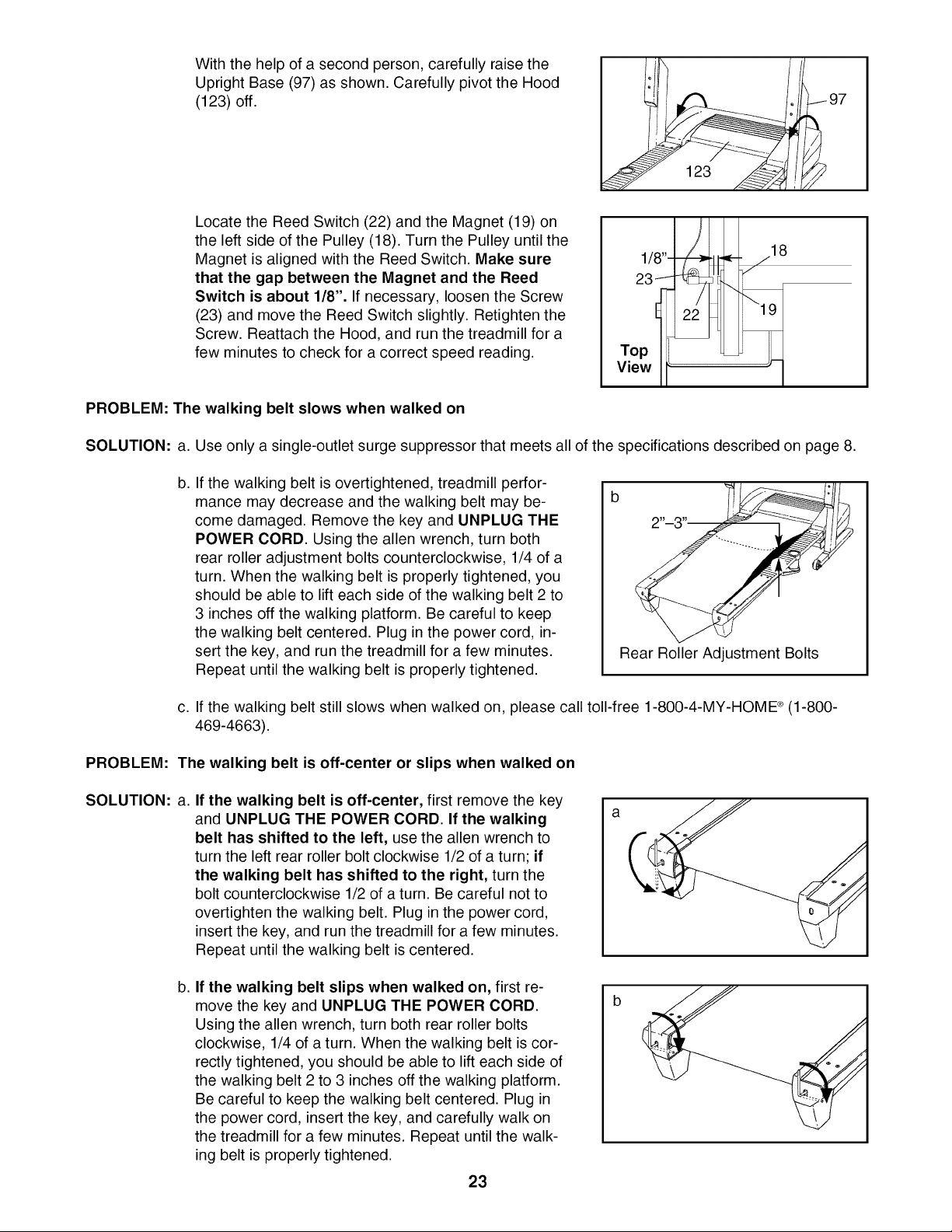

With the help of a second person, carefully raise the
Upright Base (97) as shown. Carefully pivot the Hood
(123) off.
Locate the Reed Switch (22) and the Magnet (19) on
the left side of the Pulley (18). Turn the Pulley until the
Magnet is aligned with the Reed Switch. Make sure
that the gap between the Magnet and the Reed
Switch is about 1/8". If necessary, loosen the Screw
(23) and move the Reed Switch slightly. Retighten the
Screw. Reattach the Hood, and run the treadmill for a
few minutes to check for a correct speed reading.
97
1/8"-
23 /
__ /18
/
_19
Top ]]_
View
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8.
b.
If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be-
come damaged. Remove the key and UNPLUG THE
POWER CORD. Using the allen wrench, turn both
rear roller adjustment bolts counterclockwise, 1/4 of a
turn. When the walking belt is properly tightened, you
should be able to lift each side of the walking belt 2 to
3 inches off the walking platform. Be careful to keep
the walking belt centered. Plug in the power cord, in-
sert the key, and run the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
b
Rear Roller Adjustment Bolts
c. If the walking belt still slows when walked on, please call toll-free 1-800-4-MY-HOME c_(1-800-
469-4663).
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a.
If the walking belt is off-center, first remove the key
and UNPLUG THE POWER CORD. If the walking
belt has shifted to the left, use the allen wrench to
turn the left rear roller bolt clockwise 1/2 of a turn; if
the walking belt has shifted to the right, turn the
bolt counterclockwise 1/2 of a turn. Be careful not to
overtighten the walking belt. Plug in the power cord,
insert the key, and run the treadmill for a few minutes.
Repeat until the walking belt is centered.
a
b.
If the walking belt slips when walked on, first re-
move the key and UNPLUG THE POWER CORD.
Using the allen wrench, turn both rear roller bolts
clockwise, 1/4 of a turn. When the walking belt is cor-
rectly tightened, you should be able to lift each side of
the walking belt 2 to 3 inches off the walking platform.
Be careful to keep the walking belt centered. Plug in
the power cord, insert the key, and carefully walk on
the treadmill for a few minutes. Repeat until the walk-
ing belt is properly tightened.
23

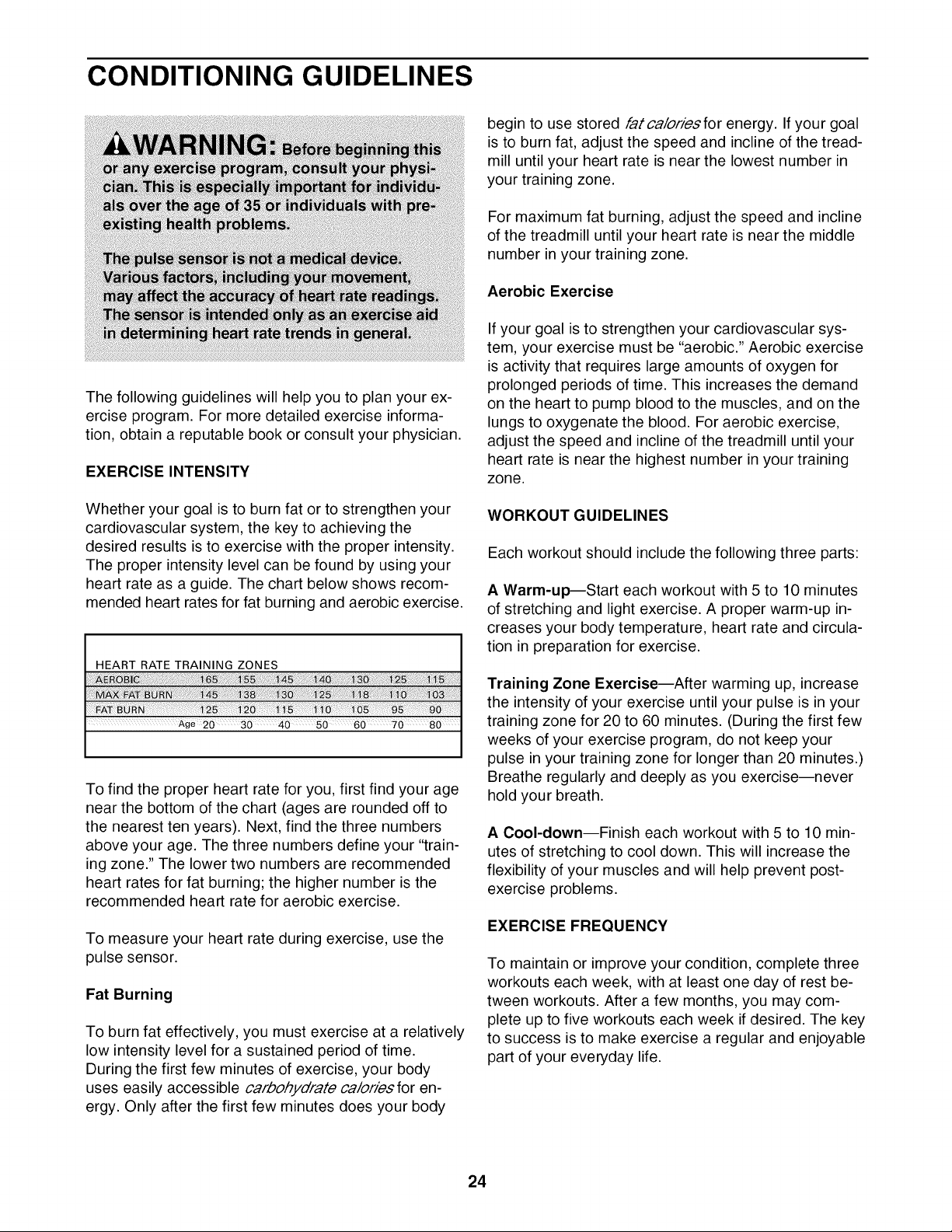

CONDITIONING GUIDELINES
The following guidelines will help you to plan your ex-
ercise program. For more detailed exercise informa-
tion, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning and aerobic exercise.
HEART RATE TRAINING ZONES
Age 20 30 40 50 .... 60 70 80
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers define your "train-
ing zone." The lower two numbers are recommended
heart rates for fat burning; the higher number is the
recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the
pulse sensor.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate ca/oriesfor en-
ergy. Only after the first few minutes does your body
begin to use stored fatca/oriesfor energy. If your goal
is to burn fat, adjust the speed and incline of the tread-
mill until your heart rate is near the lowest number in
your training zone.
For maximum fat burning, adjust the speed and incline
of the treadmill until your heart rate is near the middle
number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be "aerobic." Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up--Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up in-
creases your body temperature, heart rate and circula-
tion in preparation for exercise.
Training Zone Exercise--After warming up, increase
the intensity of your exercise until your pulse is in your
training zone for 20 to 60 minutes. (During the first few
weeks of your exercise program, do not keep your
pulse in your training zone for longer than 20 minutes.)
Breathe regularly and deeply as you exercise--never
hold your breath.
A Cool-down--Finish each workout with 5 to 10 min-
utes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent post-
exercise problems.
EXERClSE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest be-
tween workouts. After a few months, you may com-
plete up to five workouts each week if desired. The key
to success is to make exercise a regular and enjoyable
part of your everyday life.
24

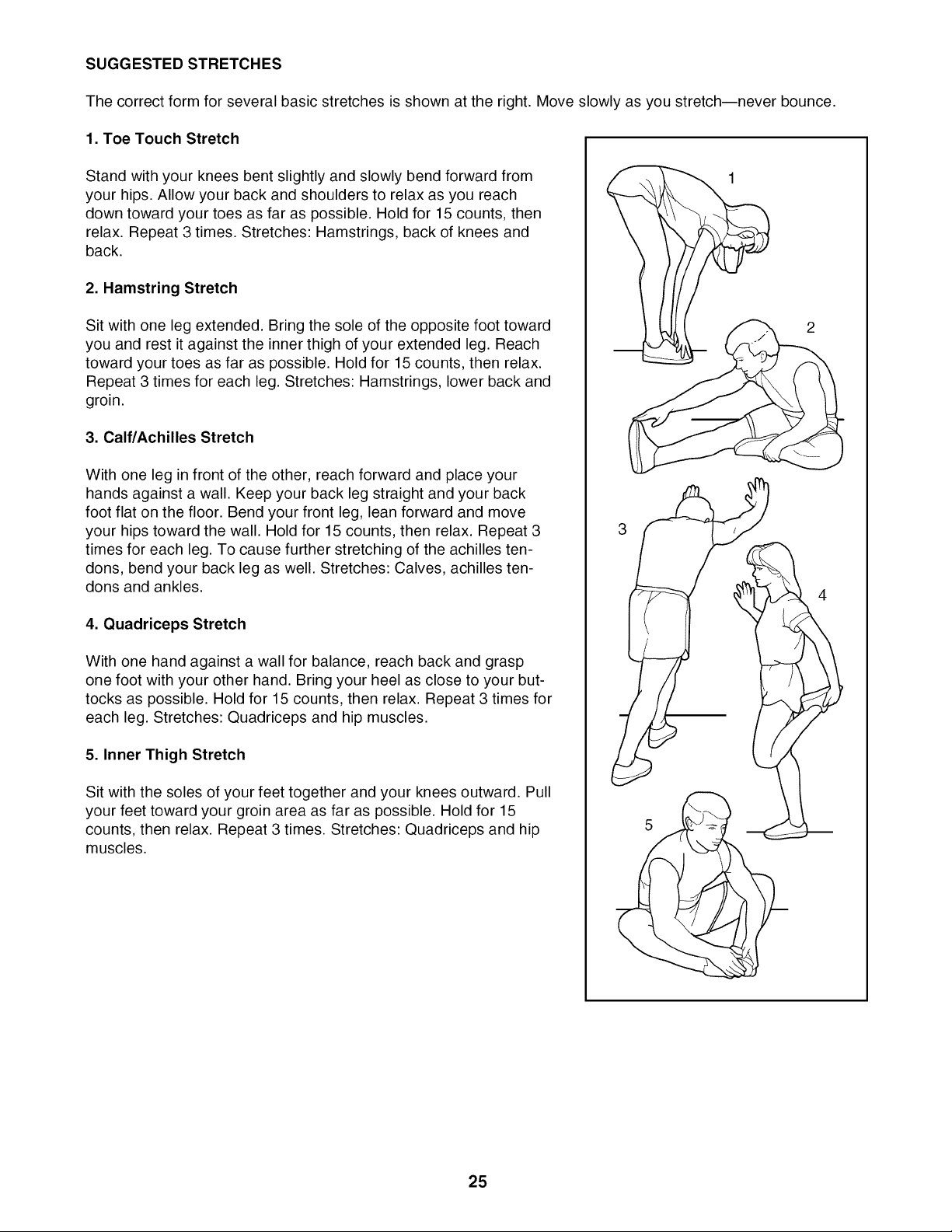

SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch--never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, back of knees and
back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat 3
times for each leg. To cause further stretching of the achilles ten-
dons, bend your back leg as well. Stretches: Calves, achilles ten-
dons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your but-
tocks as possible. Hold for 15 counts, then relax. Repeat 3 times for
each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull
your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
1
25

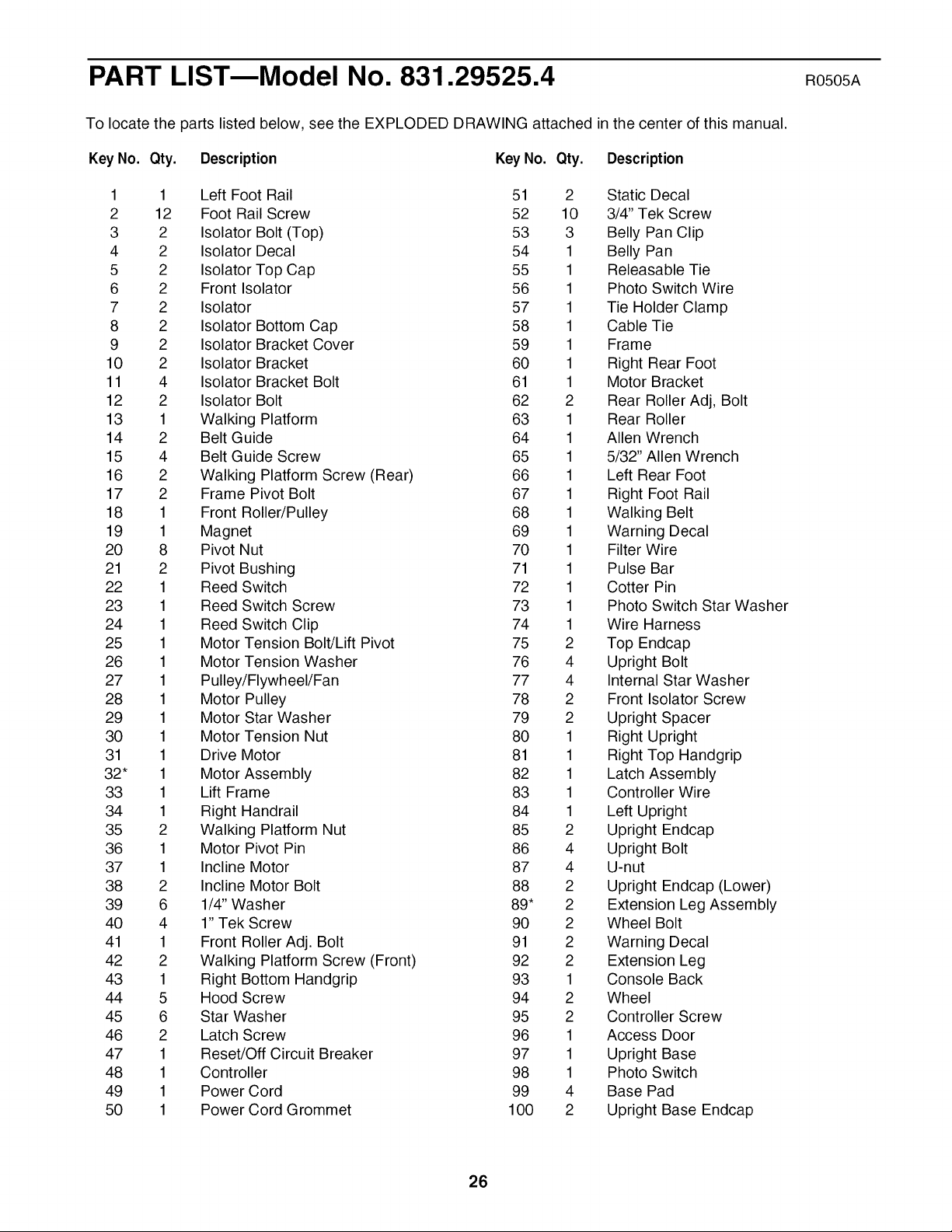

PART LISTmModel No. 831.29525.4 Ro5o5A
To locate the parts listed below, see the EXPLODED DRAWING attached in the center of this manual.
Key No. Qty. Description Key No. Qty. Description
1 1 Left Foot Rail 51 2
2 12 Foot Rail Screw 52 10
3 2 Isolator Bolt (Top) 53 3
4 2 Isolator Decal 54 1
5 2 Isolator Top Cap 55 1
6 2 Front Isolator 56 1
7 2 Isolator 57 1
8 2 Isolator Bottom Cap 58 1
9 2 Isolator Bracket Cover 59 1
10 2 Isolator Bracket 60 1
11 4 Isolator Bracket Bolt 61 1
12 2 Isolator Bolt 62 2
13 1 Walking Platform 63 1
14 2 Belt Guide 64 1
15 4 Belt Guide Screw 65 1
16 2 Walking Platform Screw (Rear) 66 1
17 2 Frame Pivot Bolt 67 1
18 1 Front Roller/Pulley 68 1
19 1 Magnet 69 1
20 8 Pivot Nut 70 1
21 2 Pivot Bushing 71 1
22 1 Reed Switch 72 1
23 1 Reed Switch Screw 73 1
24 1 Reed Switch Clip 74 1
25 1 Motor Tension Bolt/Lift Pivot 75 2
26 1 Motor Tension Washer 76 4
27 1 Pulley/Flywheel/Fan 77 4
28 1 Motor Pulley 78 2
29 1 Motor Star Washer 79 2
30 1 Motor Tension Nut 80 1
31 1 Drive Motor 81 1
32* 1 Motor Assembly 82 1
33 1 Lift Frame 83 1
34 1 Right Handrail 84 1
35 2 Walking Platform Nut 85 2
36 1 Motor Pivot Pin 86 4
37 1 Incline Motor 87 4
38 2 Incline Motor Bolt 88 2
39 6 1/4" Washer 89* 2
40 4 1" Tek Screw 90 2
41 1 Front Roller Adj. Bolt 91 2
42 2 Walking Platform Screw (Front) 92 2
43 1 Right Bottom Handgrip 93 1
44 5 Hood Screw 94 2
45 6 Star Washer 95 2
46 2 Latch Screw 96 1
47 1 Reset/Off Circuit Breaker 97 1
48 1 Controller 98 1
49 1 Power Cord 99 4
50 1 Power Cord Grommet 100 2
Static Decal
3/4" Tek Screw
Belly Pan Clip
Belly Pan
Releasable Tie
Photo Switch Wire
Tie Holder Clamp
Cable Tie
Frame
Right Rear Foot
Motor Bracket
Rear Roller Adj, Bolt
Rear Roller
Allen Wrench
5/32" Allen Wrench
Left Rear Foot
Right Foot Rail
Walking Belt
Warning Decal
Filter Wire
Pulse Bar
Cotter Pin
Photo Switch Star Washer
Wire Harness
Top Endcap
Upright Bolt
Internal Star Washer
Front Isolator Screw
Upright Spacer
Right Upright
Right Top Handgrip
Latch Assembly
Controller Wire
Left Upright
Upright Endcap
Upright Bolt
U-nut
Upright Endcap (Lower)
Extension Leg Assembly
Wheel Bolt
Warning Decal
Extension Leg
Console Back
Wheel
Controller Screw
Access Door
Upright Base
Photo Switch
Base Pad
Upright Base Endcap
26
Key No. Qty. Description Key No. Qty. Description
101 1 Console Base
102 1 Optic Disk
103 8 Ground Screw/Choke Screw
104 1 Key Clip
105 2 Fan Screw
106 1 Fan
107 1 Console
108 44 Screw
109 1 Left Tray
110 1 Console Support
111 1 Right Tray
112 1 iFIT.com Wire
113 1 Hood
114 2 Motor Bracket Bolt
115 1 Photo Switch Screw
116 1 Left Handrail
117 1 Left Top Handgrip
118 1 Photo Switch Nut
119 1 Left Bottom Handgrip
# 1 10" Blue Wire, 2F
# 1 10" Blue Wire, M/F
# 1 4" Blue Wire, M/F
# 1 8" Green Wire, 2 Ring
# 1 4" Green Wire, M/Ring
# 1 14" Red Wire, M/F
# 1 12" Black Wire, M/F
# 1 User's Manual
*Includes all parts shown in the box.
#These parts are not illustrated.
Specifications are subject to change without notice.
If a part is missing, call toll-free 1-888-533-1333.
PART IDENTIFICATION CHART
Use the drawings below to identify small parts used during assembly. Note: If a part is not in the parts bag,
check to see if it has been preattached to one of the parts to be assembled.
Internal Star
Washer (77)-4
Latch Screw (46)-2
Console Bolt (76)-4
D
...........
1" Tek Screw (40)-6
27
EXPLODED DRAWING--Model No. 831.29525.4 R0s0sA
114
1
59
115
--8
9
33
7'2
118 _-36 41
98 37 39
15
54
44
44
/
113
EXPLODED DRAWINGIModel No. 831.29525.4 ROSOSA
46 <
71
77
>76
108
89*
/
90 91_"
_-__
45
97
103
108
108
85
_99
4_, 40
106 108
20
1-109
i i
25 75
104
\
\
\
1 O8
117
108
1O8
112
111
108
108
93
J
J
108
96
108
_108
108
-._
Your Home
For repair - in your home - of all major brand appliances, lawn and garden equipment,
or heating and cooling systems, no matter who made it, no matter who sold it!
For the replacement parts, accessories, and user's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ® Anytime, day or night
(1-800-469-4663) (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in products like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts and Repair Center.
1-800-488-1222 Anytime, day or night (U.S.A. only)
www.sears.com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparaci6n a domicilio, y para ordenar piezas:
1-888-SU-HOGAR sM (1-888-784-6427)
SEARS
TM SM
® Registered Trademark / Trademark / Service Mark of Sears, Roebuck and Co.
® Marca Registrada / TMMarca de F&brica / SMMarca de Servicio de Sears, Roebuck and Co.
f
FULL 90 DAY WARRANTY
For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this
Sears Treadmill Exerciser, contact the nearest Sears Service Center throughout the United States and
Sears will repair or replace the Treadmill Exerciser, free of charge. The drive motor is warranted for ten
(10) years from the date of purchase.
This warranty does not apply when the Treadmill Exerciser is used commercially or for rental purposes.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
J
J
Part No. 227175 R0505A Printed in USA © 2005 Sears, Roebuck and Co.
