SP-310 M2
Spin Bike
USER MANUAL
NOTE:
This manual should not be used to guide your purchasing decision. Your product, and the contents inside its carton, may vary
from what is listed in this manual. This manual may also be subject to updates or changes. Updated manuals are available
through our website at www.lifespanfitness.com.au
Read all instructions carefully before using this product.
Retain this owner’s manual for future reference.
IMPORTANT
All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and
other moving parts. Failure to do so may cause damage to your threads and void your warranty.
2
TABLE OF
CONTENTS
I. Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03
II. Care Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 04
III. Exploded Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05
IV. Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06
V. Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09
VI. Seat and Handlebar Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
VII. Exercise Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
VIII. Exercise Computer Instruction Manual . . . . . . . . . . . . . . . . . . . . . . 17
IX. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
X. Hand Pulse Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
| TABLE OF CONTENTS
3
I. IMPORTANT SAFETY
INSTRUCTIONS
WARNING: Read all instructions before using this machine.
It is important your machine receives regular maintenance to prolong its useful life. Failing to
regularly maintain your machine may void your warranty.
IMPORTANT SAFETY INSTRUCTIONS |
Please always keep this manual with you.
• It is important to read this entire manual before assembling and using the equipment. Safe and
effective use can only be achieved if the equipment is assembled, maintained and used properly.
PLEASE NOTE: It is your responsibility to ensure that all users of the equipment are informed of all
warnings and precautions
• Before starting any exercise program you should consult your doctor to determine if you have any
medical or physical conditions that could put your health and safety at risk, or prevent you from
using the equipment properly. Your doctor’s advice is essential if you are taking medication that
affects your heart rate, blood pressure or cholesterol level.
• Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, and extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If you
do experience any of these symptoms, you should consult your doctor before continuing with your
exercise program.
• Keep children and pets away from the equipment. This equipment is designed for adult use only.
• Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 meters of free space around it.
• Before using the equipment, check that the nuts and bolts are securely tightened. If you hear any
unusual noises coming from the equipment during use and assembly, stop immediately. Do not use
the equipment until the problem has been rectified.
• Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get caught
in the equipment or that may restrict or prevent movement.
• This equipment is designed for indoor and family use only.
• Care must be taken when lifting or moving the equipment so as not to injure your back.
• Always keep this instruction manual and assembly tools at hand for reference.
• The equipment is not suitable for therapeutic use.
4 | IMPORTANT SAFETY INSTRUCTIONS
• The pulse or heart rate sensors are not medical devices. Various factors, including the user’s
movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as
exercise aids in determining heart rate trends in general.
II. CARE INSTRUCTIONS
a. All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and other
moving parts. Failure to do so may cause damage to your thread and void your warranty.
b. Lubricate moving joints with grease after periods of usage.
c. Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects.
d. The machine can be kept clean by wiping it down using dry cloth.
e. Flywheels must be lubricated after certain periods of use to keep the bike running smooth and
reduce vibration noise.
• Batteries are to be installed or replaced by adult only.
• Do not use rechargeable batteries. Do not mix
different battery types. Do not mix old and new
batteries. Do not mix alkaline, standard (Carbon-
Zinc), or rechargeable (Nickel-Cadmium) batteries.
• Remove batteries when product is not in use.
• Remove exhausted batteries from product and
dispose of in accordance with the
manufacturer’s recommendation.
• Do not attempt to recharge non-rechargeable
batteries.
• Batteries are to be inserted with correct polarity.
• The supply terminals are not to be short-circuited.
• Do not dispose of batteries in fire, batteries may
explode or leak.
BATTERY USAGE
IMPORTANT
5

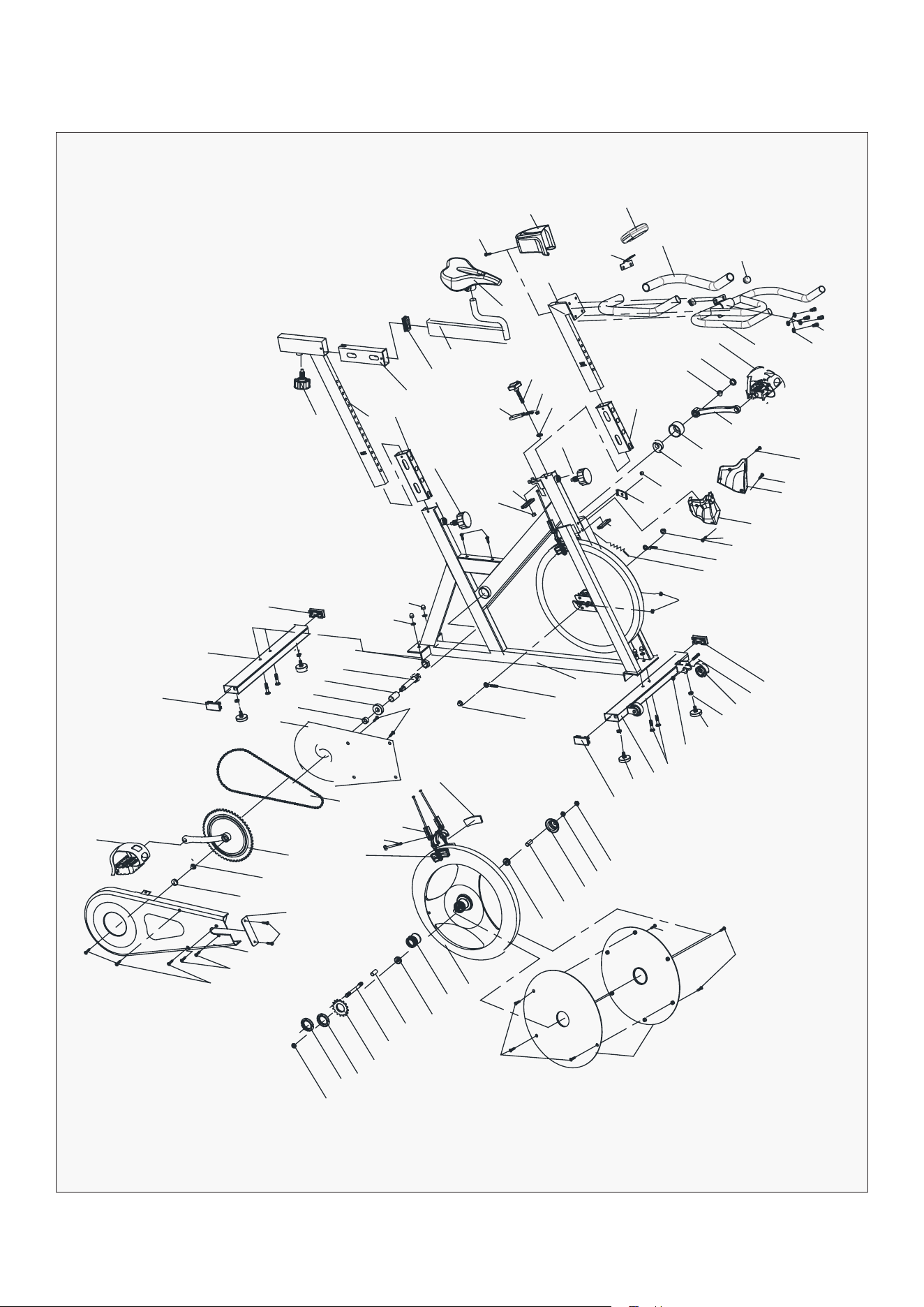

III. EXPLODED DIAGRAM
EXPLODED DIAGRAM |
65
64
17
70
42
13
25
26
27
24
12
11
8
8
7
7
8
29
28
1L
18
19
20
74
73
7
6
5
2
2
49
42
50
63
38
39
16
2
58
58
67
76
76
76
61
21
60
23
58
62
32
9
9
75
59
60
14
15
3
31
14
57
56
55
2
40
72
39
38
41
41
71
69
68
33
34
35
36
37
2
52
53
54
51
28
29
45
43
44
22
41
48
35
47
46
66
1R
4
10
31
30
41
6 | PARTS LISTS
NO. Name Quantity Specifications
1
PEDAL 1 JD-301(9/16")
2
END CAP1 5 INNER60*30*1.5
3
CARRIAGE BOLT 4 M8*42
4
REAR STABILIZER 1 WELDING
5
FLAT WASHER 4 GB/T 95-2002 8
6
DOMED NUT 4 GB/T 802-1988 M8 (H=16mm)
7
SPRING ADJUSTMENT KNOB 3 φ57*62 (M16*1.5)
8
PLASTIC SLEEVE 3 53.5*23.5*1.5
9
LOCK NUT 2 M33*1*4
10
VERTICAL SEAT POST 1 WELDING
11 END CAP2 1 53.5*23.5*1.5
12
SEAT POST 1 WELDING
13 SEAT 1 DD-2681
14 STOPPER 4 φ35*37/(M8X20)
15 FRONT STABILIZER 1 WELDING
16 MAIN FRAME 1 WELDING
17 HANDLEBAR POST 1 WELDING
18 HANDLE BAR 1 WELDING
19
SPRING WASHER
4 GB/T 859-1987 8
20
BOLT
4 GB/T 70.2-2000 M8*15
21
BUSHING
1 φ40*65
22
SCREW 4
2 GB/T 15856.1-2002 ST4.2X13
23
LONG TUBE
1 φ13.6*φ10.3*49
24
BRAKE KNOB
1 112*32*7
25
ADJUSTMENT KNOB
1 φ58*74
26
LITTLE PLASTIC RING
1 14*8*9
27
PLASTIC RING
1 φ20*φ9*3
IV. PARTS LIST
7PARTS LISTS |
NO. Name Quantity Specifications
28
FIXING NUT 1 2 GB/T 6177.2-2000 M10*1.25
29
CRANK END CAP 2 φ23*7.5
30
SHEET IRON 1 δ5
31
LOCK NUT 3 GB/T 889.1-2000 M8
32
CHAIN WEEL 1 A7K-16 1/2"*1/8" 16T(1.37")
33
LEFT CRANK 1 170*43
34
CRANK COVER 1 φ45*28
35
BEARING 2 6203ZZ
36
DOMED NUT 1 GB/T 802-1988 M6
37
U BRACKET 1 δ2.5
38
FIXING NUT 2 2 GB/T 6177.2-2000 M10*1.0
39 FIXING BOLT 2 M6*55
40
NUT 2 GB/T 41-2000 M6
41 SCREW 1 7 GB/T 15856.1-2002 ST4.2X19
42 SCREW 2 2 GB/T 845-1985 ST4.2*19
43 SCREW 3 2 GB/845-85 ST4.2X9.5
44 OUTER CHAIN COVER 1
636*265*40
45 LITTLE CHAIN COVER 1 108*37*3.5
46 AXIS 1
φ20*146
47
LONG FIXING TUBE
1 φ22*φ17.5*41
48
SHORT FIXING TUBE
1 φ22*φ17.5*11
49
INNER CHAIN COVER
1 451*262*32
50
CHAIN
1 P=12.7
51
RIGHT CRANK
1 170*48
52
BRAKE
1 2PCS 130mm
53
SPECIAL BOLT
1 M6*75
54
BRAKE PLASTIC
2 85*43*13
55
BOLT
2 GB/T 5781-2000 M8*40
56
WHEEL
2
φ50*23
8
NO. Name Quantity Specifications
57
NUT
4
GB/T 41-2000 M8
58
FIXING NUT 2
3
GB/T 6173-2000 M10*1.0 (H=5.0mm)
59
FIXING TUBE 1 φ13.6*φ10.3*35
60
BEARING 2 6000ZZ
61
FLYWHEEL 1 φ453*27 (13KG)
62
FLYWHEEL SHAFT 1 φ10*147
63
WOOLLY BLOCK 2 85*40*6
64
FIXED SEAT 1 φ28
65
COMPUTER 1 HS-6065
66
FIXING NUT 1 φ28*M20*1
67
FLYWHEEL COVER 1 φ59*35
68
SCREW 4 1 ST2.9*9.5
69
LEFT PROTECT COVER 1 157*73*157
70 HANDLEBAR COVER 1 115*89*75
71
RIGHT PROTECT COVER 1 156*80*174
72 SENSOR 1 SR-202 L=500
73 FOAM GRIP 2 φ23*φ31*500/φ25
74 PLASTIC PLUG 1 2 φ25*1.5
75 FLYWHEEL COVER 2 φ387*6.5
76 SCREW 5 6 GB/845-85 ST3.5X10
| PARTS LISTS
9ASSEMBLY INSTRUCTIONS |
V. ASSEMBLY INSTRUCTIONS

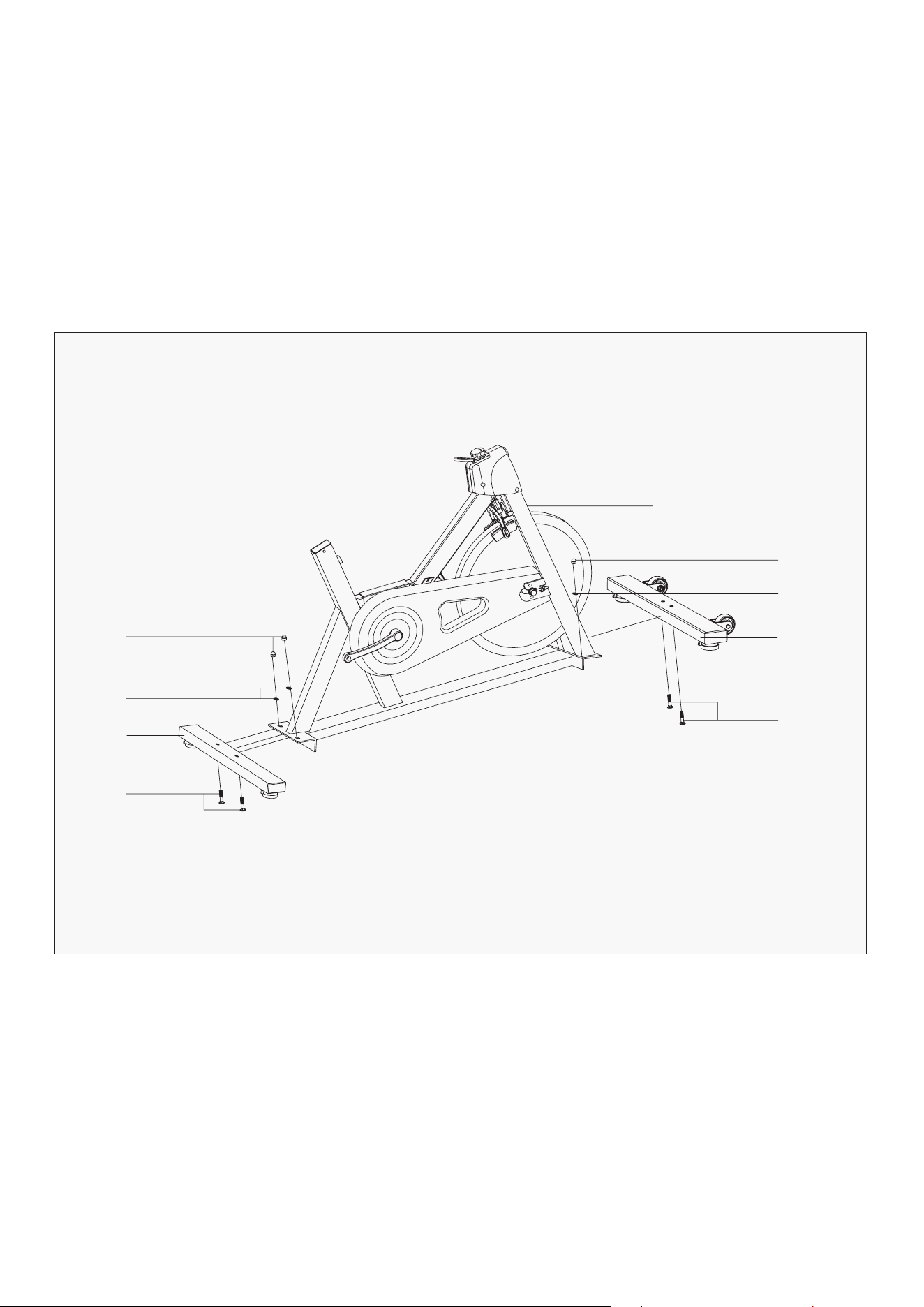

1. Attach the Front Stabilizer (pt.15) to the Main Frame (pt.16) using two sets of Ø8 Flat Washer (pt.5),
M8 Domed Nut (pt.6) and M8*42 Carriage Bolt (pt.3).
Attach the Rear Stabilizer (pt.4) to the Main Frame (pt.16) using two sets of Ø8 Flat Washer (pt.5),
M8 Domed Nut (pt.6) and M8*42 Carriage Bolt (pt.3).
1. Before assembling make sure that you will have enough space around the item.
2. Use the present tooling for assembling.
3. Before assembling please check whether all needed parts are available (at the above
of this instruction sheet you will find an explosion drawing with all single parts (marked
with numbers) which this item consists of.
PREPARATION
STEP 1
16
6
6
5
4
3
5
15
3
10

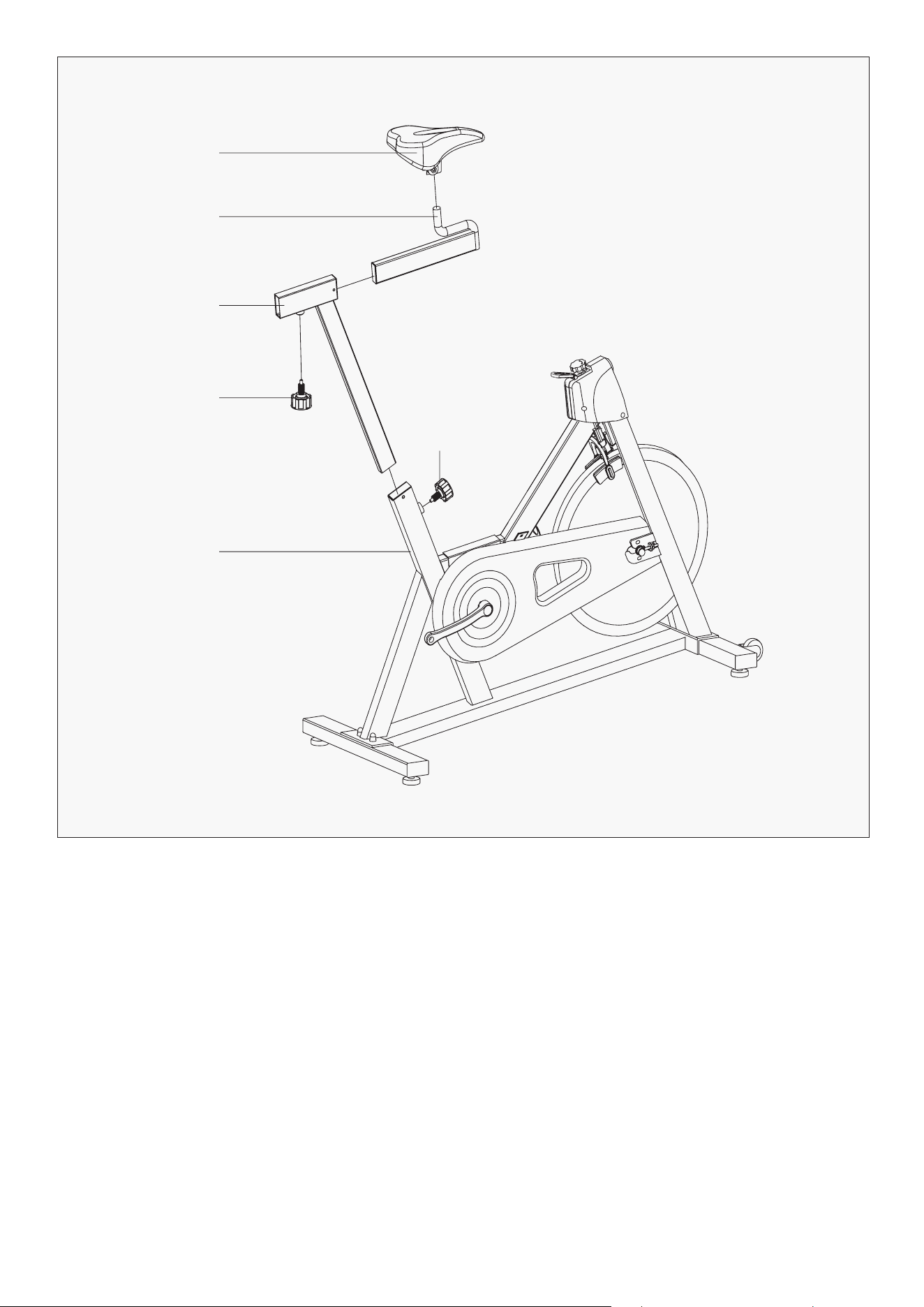

1. Slide the Vertical Seat Post (pt.10) into the seat post housing on the Main Frame (pt.16). You will
have to slacken the knurled section of the Knob (pt.7) and pull the knob back and then select
the desired height. Release the knob and retighten the knurled portion. Then slide the Seat
Post (pt.12) into the Vertical Seat Post (pt.10), use the knob (pt.7) to tighten.
2. Finally, the Seat (pt.13) fixed on the Seat Post (pt.12) as shown, and tighten the nuts under the seat.
STEP 2
| ASSEMBLY INSTRUCTIONS
7
10
12
13
7
16
11ASSEMBLY INSTRUCTIONS |

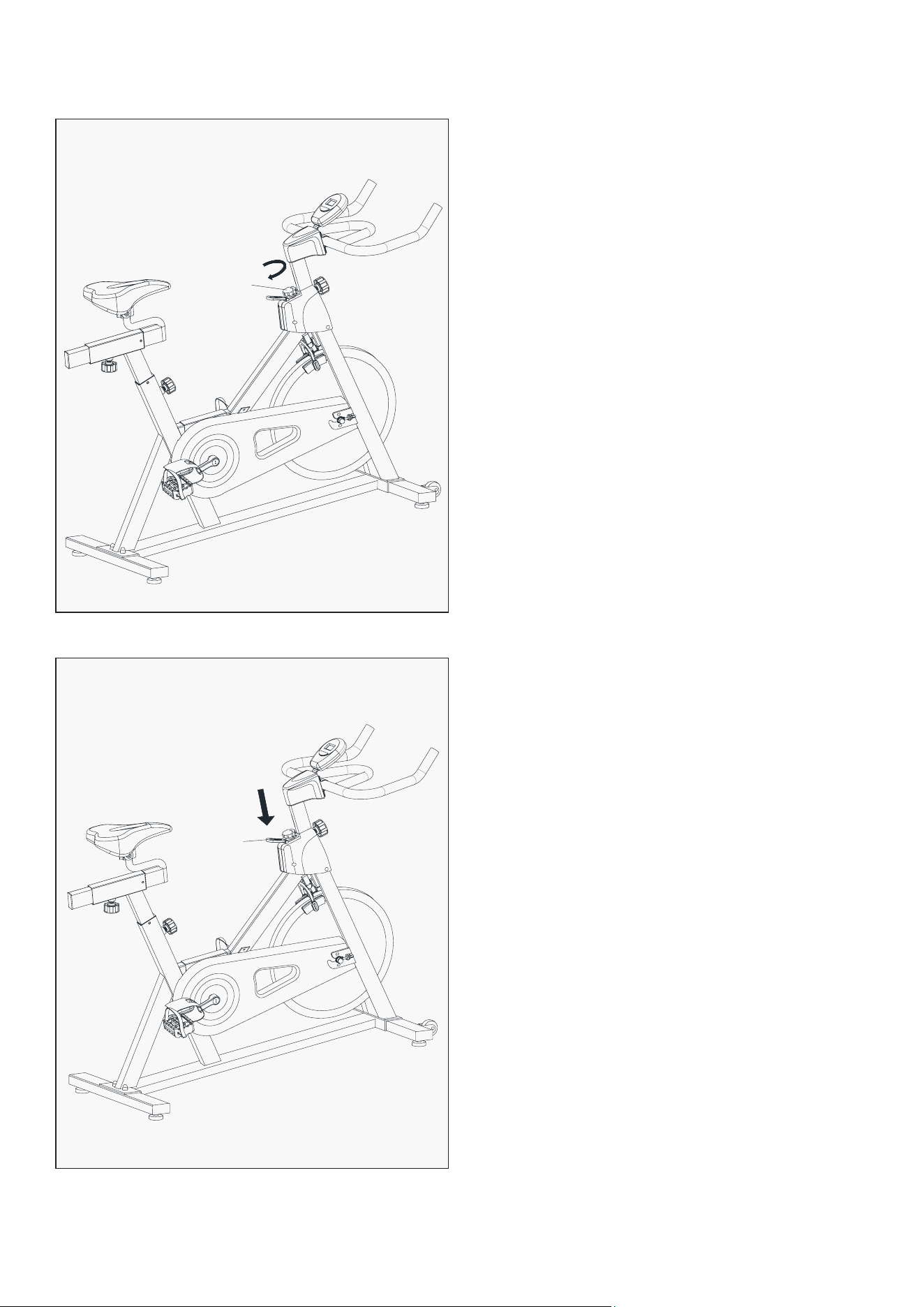

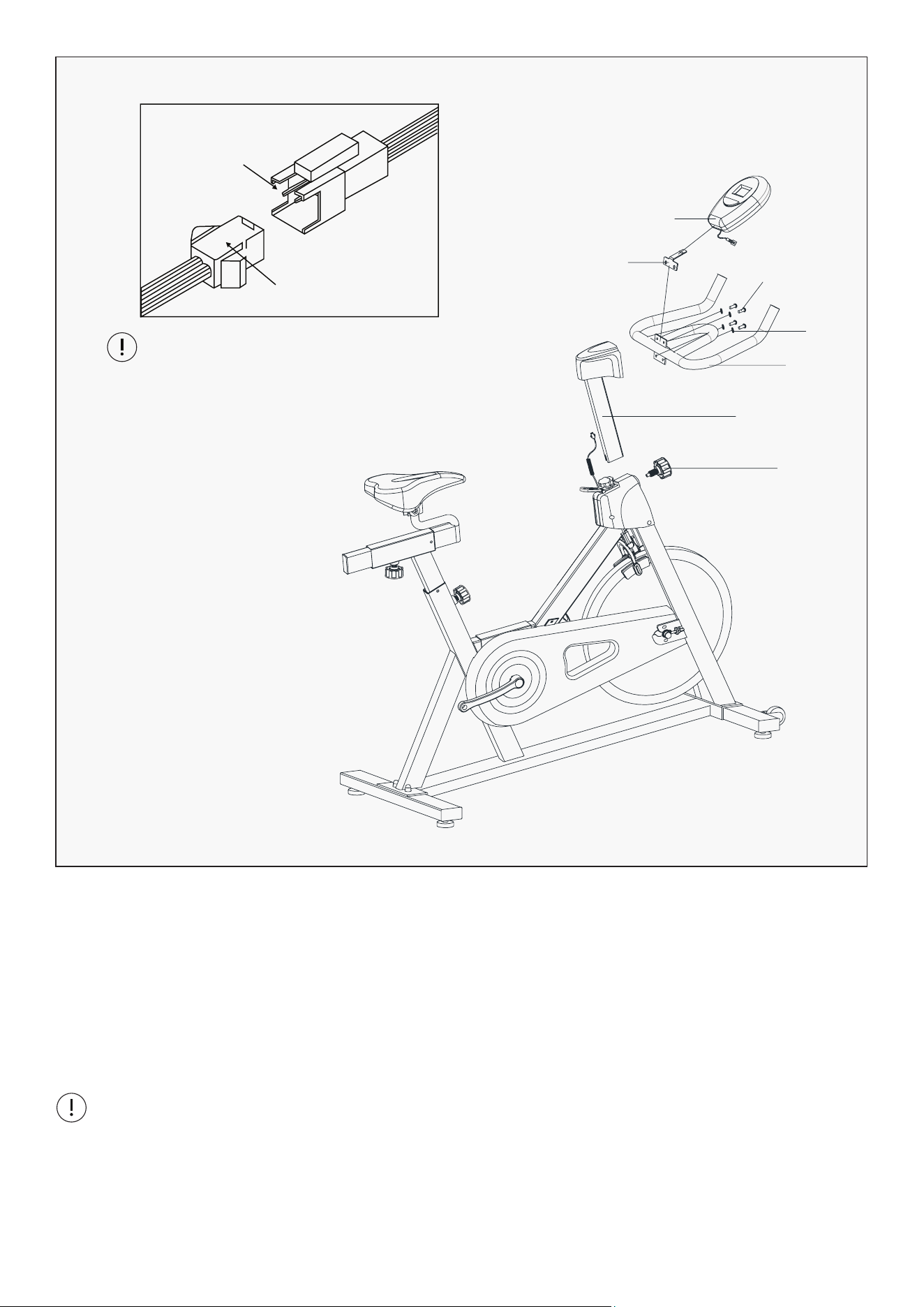

1. Slide the Handlebar Post (pt.17) into the handlebar post housing on the main frame. You will have
to slacken the knurled section of the Knob (pt.7) and pull the knob back and then select the desired
height. Release the knob and retighten the knurled portion.
2. Then the Handlebar (pt.18) and the supporting plate (pt.64) fixed on the Handlebar Post (pt.17),
use four Bolts (pt.20) and four Spring Washers (pt.19) to tighten. Finally, the Computer (pt.65)
inserted on the supporting plate.
ATTENTION: YOU SHOULD FIX THE HANDLEBAR TIGHTLY.
STEP 3
A1
A2
Gap
Convex Point
ATTENTION:
Connected with the computer line,
to Gap (A1) corresponding to the
convex point (A2) to insert link.
65
64
A1
A2
20
19
18
17
7
12 | ASSEMBLY INSTRUCTIONS

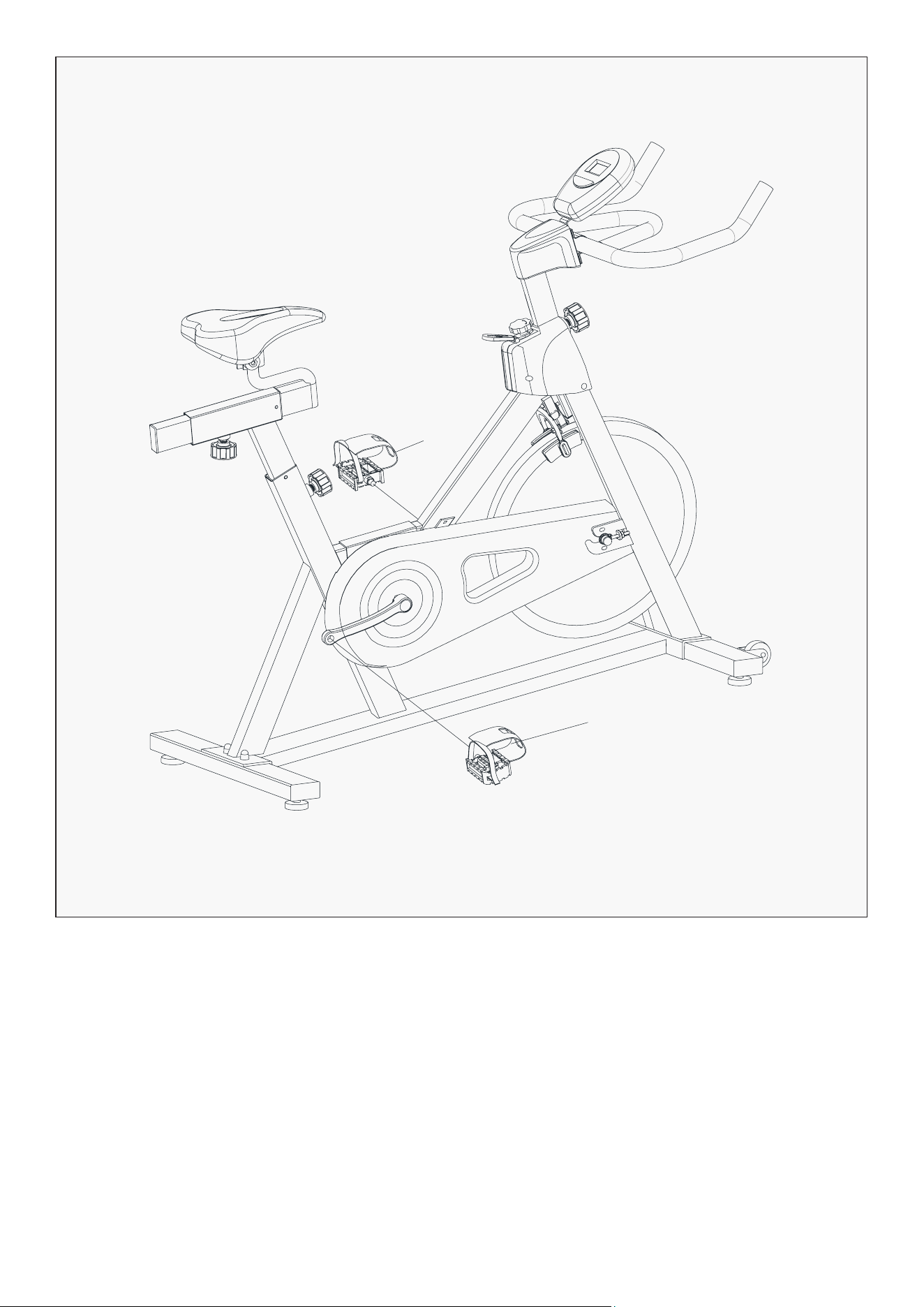

1. The Pedals (pt.1L & pt.1R) are marked "L" and "R" - Left and Right. Connect them to their appropriate
crank arms. The right crank arm is on the right - hand side of the cycle as you sit on it.
Important Note: that the Right pedal should be threaded on clockwise and the Left pedal
anticlockwise.
STEP 4
1L
1R
13
1. Adjusting the Tension
2. The Emergency Brake Function
Increasing or decreasing the tension allows you to
add variety to your workout sessions by adjusting
the resistance level of the bike. To increase
tension and increase resistance (requiring more
strength to pedal), turn the Tension Control Knob
(pt.25) to the right.
To decrease tension and decrease resistance
(requiring less strength to pedla), turn the Tension
Control Knob (pt.25) to the left.
Use this safety feature in any situation where
you would need to get off the bike and/or stop
the bike’s flywheel.
To use the Emergency Brake function in any
situation you would need it in, firmly press
downon the Emergency Brake (pt.24).
25
ASSEMBLY INSTRUCTIONS |
24
14
VI. SEAT AND HANDLEBAR
ADJUSTMENT
Seat Adjustment
Handlebar Adjustment
To adjust the seat height, slacken the spring knob on the vertical post stem on the main frame and
pull back the knob. Position the vertical seat post for the desired height so that holes are aligned, then
release the knob and retighten it.
To move the seat forward in the direction of the handlebar or backwards away from it, loosen the
adjusting knob and washer and pull the knob back. Slide horizontal seat post into desired position.
Align holes and then retighten the adjusting knob.
To adjust the handlebar height, slacken the spring knob and secondary knob and pull both knobs back.
Slide the handlebar post along the housing on the main frame to the desired height and, with the holes
aligned correctly, tighten the spring adjusting knob and then the secondary knob.
| SEAT AND HANDLEBAR ADJUSTMENT
15
VII. EXERCISE GUIDE
Using your SPINNING BIKE provides you with several benefits, it will improve your physical fitness, tone
muscle and in conjunction with calorie controlled diet help you lose weight.

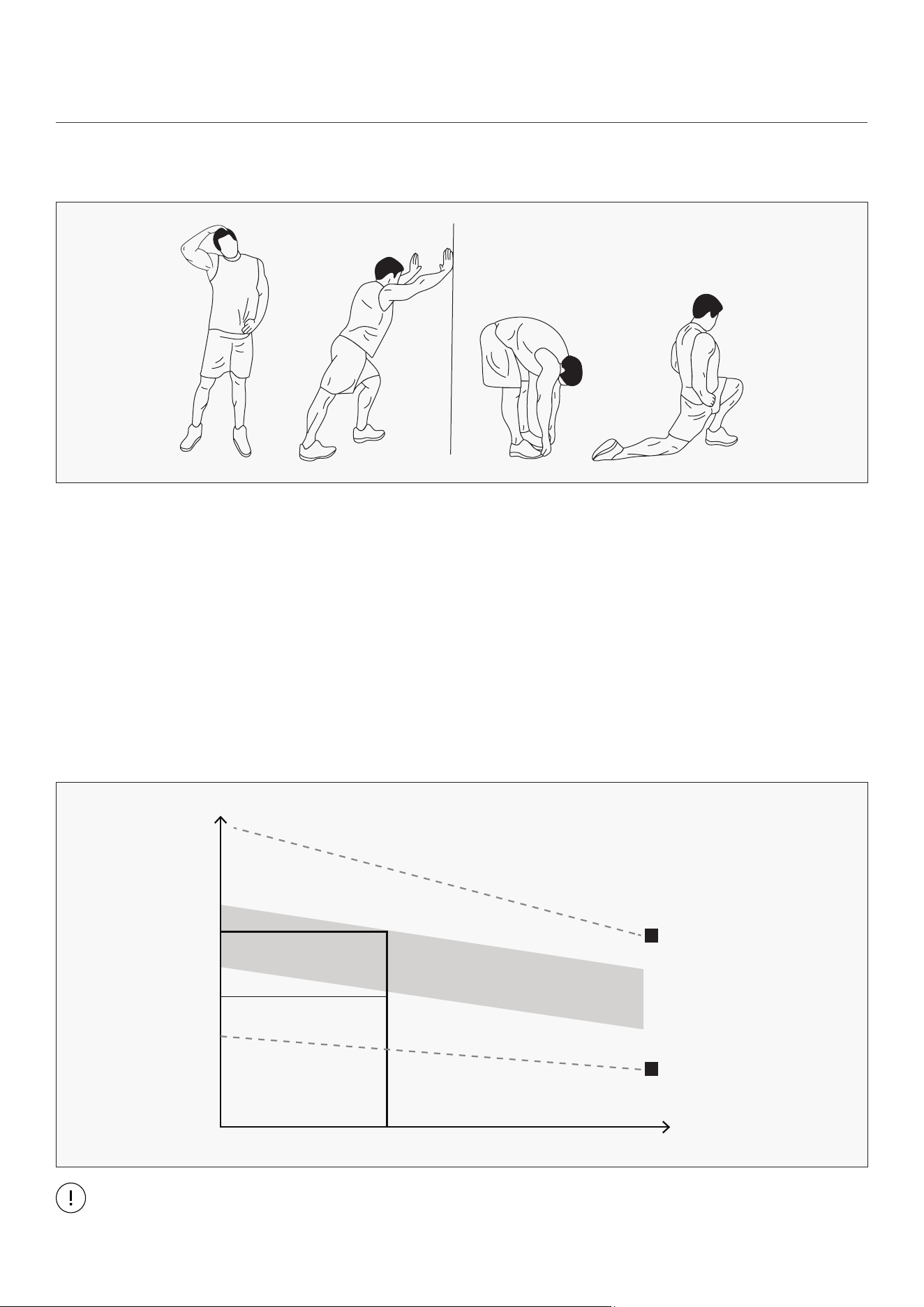

THE WARM UP PHASE
This stage helps get the blood flowing around the body and the muscles working properly. It will also
reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown
below. Each stretch should be held for approximately 30 seconds, do not force or jerk your muscles into
a stretch - if it hurts, STOP.
EXERCISE GUIDE |
THE EXERCISE PHASE
This is the stage where you put the effort in. After regular use , the muscles in your legs will become
Stronger. Work to your but it is very important to maintain a steady tempo throughout. The rate of work
should be sufficient to raise your heart beat into the target zone shown on the graph below.
TARGET ZONE
MAXIMUM
85%
70%
COOL DOWN
AGE
HEART RATE
200
180
160
140
120
100
80
20 25 30 35 40 45 50 55 60 65 70 75
This stage should last for a minimum of 12 minutes for most people.
16 | EXERCISE GUIDE
MUSCLE TONING
WEIGHT LOSS
USE
To tone muscle while on your SPINNING BIKE you will need to have the resistance set quite high. This
will put more strain on our leg muscles and may mean you cannot train for as long as you would like.
If you are also trying to improve your fitness you need to alter your training program. You should train
as normal during the warm up and cool down phases, but towards the end of the exercise phase you
should increase resistance, making your legs work harden than normal. You may have to reduce your
speed to keep your heart rate in the target zone.
The important factor here is the amount of effort you put in. The harder and longer you work the more
calories you will burn. Effectively this is the same as if you were training to improve your fitness, the
difference is the goal.
The tension control knob allows you to alter the resistance of the pedals. A high resistance makes it
more difficult to pedal, a low resistance makes it easier. For the best results set the tension while the
bike is in use.
17
VIII. EXERCISE COMPUTER
INSTRUCTION MANUAL
OVERVIEW:
MODE OR FUNCTION ACTION
Power on
If push the button, the unit will be on and display the parameters of the last
exercise.
Select function Scan
Push the button, the unit will display 5 parameters one by one. Push the
mode key until the "SCAN" signal shows on right down side. The unit will
scan by through Time, Speed, Distance, Calories and Pulse each for 4 sec-
onds.
Odometer(If have)
Push the mode key again, the scan will stop and the "SCAN" signal will dis-
appear. If push the button until the "ODO" points to "ODO", the display shows
the Odometer on the meter. The reading of the odometer will be reset to zero
after replacing the batteries.
Time
Push the mode key until the "TMR" points to "Time" to display the exercises
time. If the bike stop moving, the unit will stop count time also.
Speed
When the "SPD" points to "SPD" to display the speed value. Unit: km/h.
Distance
When the "DIST" points to "Dist" to display the distance value. Unit: km
Calories
When the "CAL" points to "CAL" to display the calories value. Unit: K Cal.
Pulse(If have)
When the "PULSE" points to "pulse" to display the heart rate of biker in per
minute. If the sensor is contact with ear, clip the sensor to earlobe before
measuring your pulse rate. If the pulse sensor is contact with hand, place
the palms of your hands on the both of the contact pads before measuring
your pulse rate. If the pulse signal is not in put over 30 second, the unit will
return the "Time" function.
Reset Push the mode key over 3 seconds the showing will become to zero.
Auto off The unit will be off if the speed signal stops over 4 minutes.
The unit is an electronic that display all workout parameters on LCD display. The workout parameters
include: Odometer (If have), Time, Speed, Distance, Calories and Pulse (If have). All workout parameters
may be selected by the select key.
EXERCISE COMPUTER INSTRUCTION MANUAL |
18
IX. WARRANTY
| WARRANTY
AUSTRALIAN CONSUMER LAW
Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come
with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss
or damage.
You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and
the failure does not amount to a major failure. Full details of your consumer rights may be found at
www.consumerlaw.gov.au.
Please visit our website to view our full warranty terms and conditions:
http://www.lifespanfitness.com.au/warranty-repairs
WARRANTY AND SUPPORT
Any claim against this warranty must be made through your original place of purchase.
Proof of purchase is required before a warranty claim may be processed.
If you have purchased this product from the Official Lifespan Fitness website, please visit
https://lifespanfitness.com.au/warranty-form
For support outside of warranty, if you wish to purchase replacement parts or request a repair or
service, please visit https://lifespanfitness.com.au/warranty-form and fill in our Repair/Service
Request Form or Parts Purchase Form.
Scan this QR code with your device to go to lifespanfitness.com.au/warranty-form
19
This product comes equipped with hand pulse sensors which are used to pick up tiny EKG/ECG signals
that run through the body when your heart beats. These electrical EKG/ECG signals are very small and
that they must be amplified 1000 times to make the signal useful for the computer to display your
pulse.
To ensure proper operation:
• The user must maintain good, consistent contact on all four sensors.
• The users skin cannot be too dry or too wet.
Other factors that could affect the reading:
• Change of grip on the sensors (during slow pace walking and up to running).
• Tightening of hand muscles will produce small electrical signals.
• Static electricity charges from the air or from walking on the treadmill.
EKG/ECG Sensors may filter through actual EKG/ECG signals and "Noise" factors that may affect the
reading. This will cause the pulse reading to be delayed and will take longer to update the display as the
heart rate changes. Too much noise will create an incorrect reading. Medical conditions or having no
electrical signal in the hands are other factors that may affect pulse readings as well.
These are limitations of hand pulse technology and even the most expensive systems (which can
cost upwards of $3,000) used in hospitals have the same problems. The difference is that a patient
in a hospital is not running on a treadmill. Hand pulse technology works well on stationary exercise
machines like bikes and even elliptical cross trainers but are not perfect on a treadmill. We offer
treadmills with a wireless heart rate receiver which may be a more accurate option.
To test if your hand pulse sensors are working up to specification, hold them while standing on the
sidestep rails, not walking, and see if the reading is more in line with what you would expect. This will
eliminate the movement and static electricity factors. If your hands are dry, then wet them slightly
(saliva works as a great conductor if this doesn’t bother you).
X. HAND PULSE TECHNOLOGY
HAND PULSE TECHNOLOGY |
WWW.LIFESPANFITNESS.COM.AU
