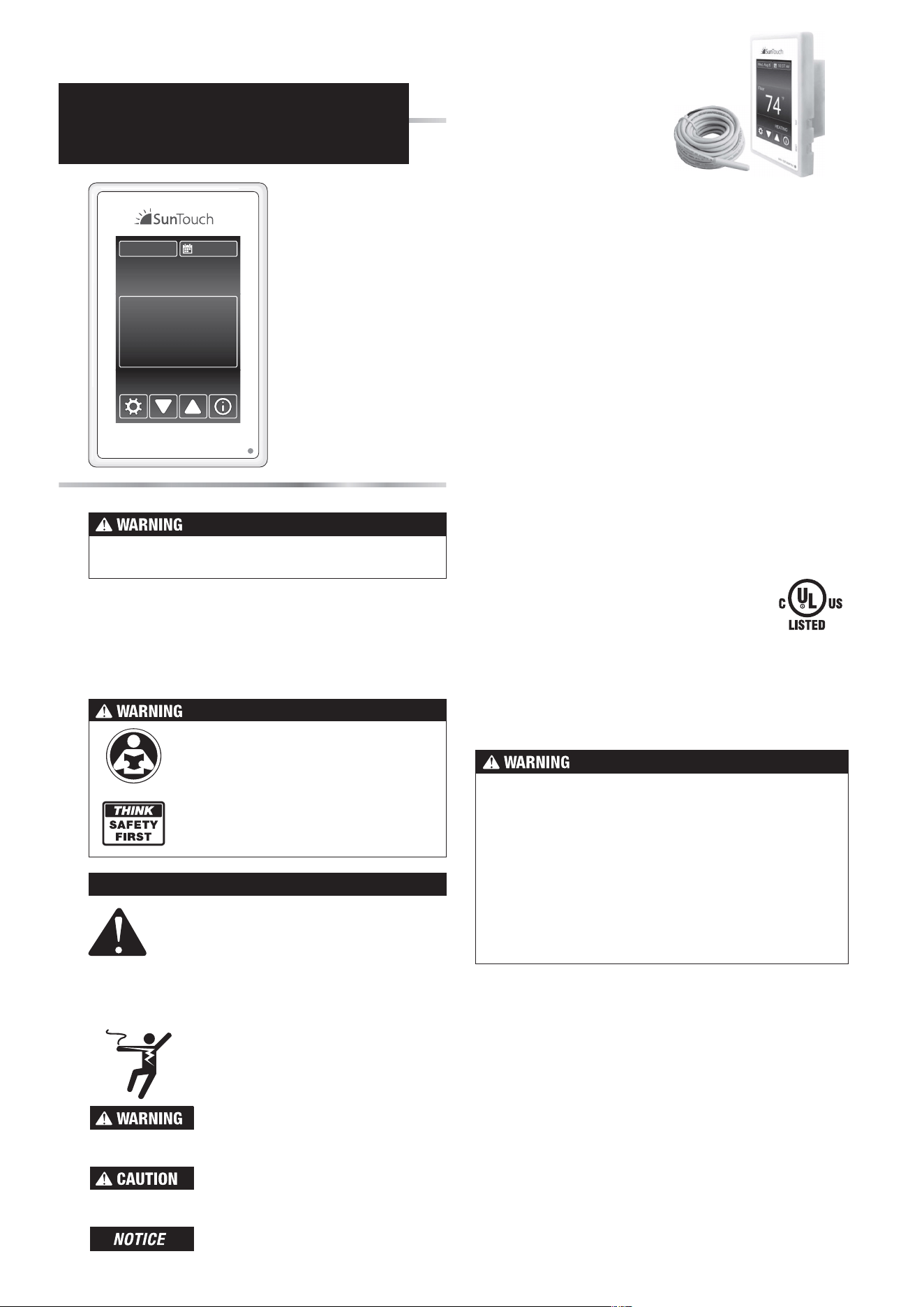

Box Contents
• SunStat Command Thermostat
• Floor sensor
• Screwdriver
• Installation manual
• 2 machine screws
• 5 wire nuts
74
°F
74
°F
Floor
Smart Start
Setpoint
6:27Fri, May 01
AM
HEATING
TE STRE SE T
GF CI / T EST MONT HLY
Please be aware local codes may require this control to
be installed or connected by an electrician.
Read this manual BEFORE using this
equipment.
Failure to read and follow all safety and
use information can result in death, serious
personal injury, property damage, or damage
to the equipment.
Keep this manual for future reference.
Important Safety Information
This pictorial alerts you to electricity,
electrocution, and shock hazards.
This symbol identifies hazards which,
if not avoided, could result in death or
serious injury.
This symbol identifies hazards which,
if not avoided, could result in minor or
moderate injury.
This symbol identifies practices, actions, or
failure to act, which could result in property
damage or damage to the equipment.
This is a safety-alert symbol. The safety-alert
symbol is shown alone or used with a signal word
(DANGER, WARNING, or CAUTION), a pictorial
and/or a safety message to identify hazards.
When you see this symbol alone or with a signal word on
your equipment or in this manual, be alert to the potential
for death or serious personal injury.
This device complies with Part 15 of the FCC Rules and with
Industry Canada license-exempt RSS standard(s). Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference
that may cause undesired operation.
Installation
Location
Items Needed
Installation must be performed by qualified persons, in
accordance with local codes, ANSI/NFPA 70 (NEC Article
424) and CEC Part 1 Section 62 where applicable. Prior
to installation, please consult the local codes in order to
understand what is acceptable. To the extent this information
is not consistent with local codes, the local codes should
be followed. Regardless, electrical wiring is required from a
circuit breaker or other electrical circuit to the control. It is
recommended that an electrician perform these installation
steps. Please be aware local codes may require this product
to be installed by an electrician.
NEVER forget to install the floor sensor included with the thermostat.
NEVER put the system into full operation until the tile or flooring
installer verifies all cement materials are fully cured (typically
two to four weeks after installation).
ALWAYS use copper supply conductors to the thermostat. Do
not use aluminum.
ALWAYS wire all circuits as Class 1, electric light & power circuits.
ALWAYS wire all circuits with insulation rated 600V minimum.
ALWAYS mount this control to a grounded electrical box.
ALWAYS use power supply wires suitable for at least (194°F) 90°C.
ALWAYS seek help if a problem arises. If ever in doubt about
the correct installation procedure to follow, or if the product
appears to be damaged, the factory must be called before
proceeding with the installation.
• Electrical box (must be UL Listed and proper size)
• Wire nuts (must be UL Listed and proper size)
• Flexible or rigid conduit (if required, must be UL Listed and
proper size)
• 12-guage or 14-guage electrical wiring cable (UL Listed)
• Nail plate
• Hot glue gun and hot glue
• Thermostat is designed for indoor dry location only.
•
Do not install where there is a draft, direct sun, hot-water piping,
ducting or other cause for inaccurate temperature readings.
•
Do not install where there is electrical interference from
equipment, appliances, or other sources.
•
Install away from all water sources such as sinks and at least
4' (1.2 m) away from showers and bathtubs.
• Consider easy access for wiring, viewing, and adjusting.
•
Install at a suitable height, normally about 4-1/2' to 5' (1.4 m
to 1.5 m) from the floor.
The following cautions must be observed:
Specifications:
Power supply 120/240 V (ac), 60 Hz, 3 watts
Maximum load 15 amps, resistive
Maximum power 1800 watts at 120 VAC
3600 watts at 240 VAC
GFCI
Class A (5 milliamp trip)
Approvals UL 943, UL 873, UL 991, FCC
Meets Class B: ICES-003 & FCC Part 15B
Ambient conditions 32 to 86°F (0 to 30°C), <90% RH non-condensing
Floor Sensor Thermistor, 10k NTC type, 300 V jacketed cable,
15' long
Features:
• Floor temperature
control with optional
air sensing mode
• Touchscreen display
with multiple color
themes
• Thin profile with
removable, paintable
beauty ring
• Easy to use programs
and scheduling
• Home automation
system tie-in
• Comprehensive help
screens
• Three-Year warranty
SunStat
®
Command
Installation and
Operation Manual
Model# 108001, 108002, 108003, 108004, 108005
Q108001_D - 09/15
