MAGNETIC TRAINING TREADMILL
SF-T7878
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: [email protected] or 1- 877 - 90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained, and used properly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or prevent you from
using the equipment properly. Your physician’s advice is essential if you are taking medication
that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you do
experience any of these conditions, you should consult your physician before continuing with your
exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 8 feet (240 CM) of free space behind it and 2
feet (60 CM) on each side. Do not place the treadmill on any surface that blocks air openings. To
protect the floor or carpet from damage, place a mat under the treadmill.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the
equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has
been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 300 pounds (135 KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in extreme
cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial use.
IMPORTANT NOTE:
The running belt must be lubricated before the first use! Please see Page 9 for instructions on
how to properly apply lubricant.
2

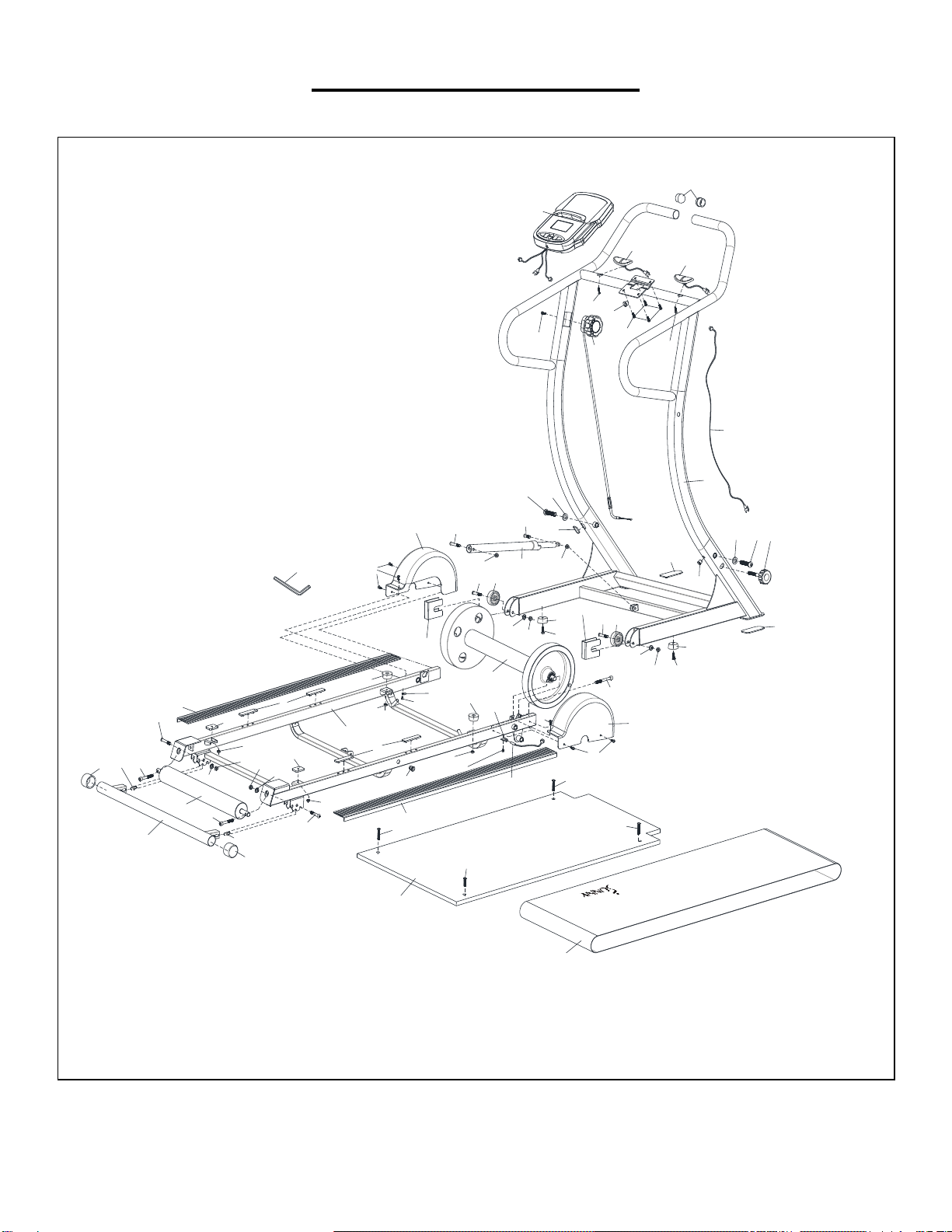

EXPLODED DIAGRAM
1
2
3
4
5
6
7
8
9
10L
10R
11
11
12
13
13
14
15
16
17
17
18
18
18
18
19
20
20 19
21
22
22
23
23
24
24
25
25
26
26
26
25
26
25
26
26
27
28
28
28
29
29
30
30
30
30
31
32
32
32
33
34
34
33
35
35
36
36
37
37
38
38
39
39
40
41
42
43
44
45
46
47
47
47
47
48
48
3
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
25
Flat Washer
Φ8.2*Φ16*1.5
4
2
Handlebar
1
26
Nylon Nut
M8
6
3
Incline Adjuster
1
27
Socket Pan Head Bolt
M8*25*15
1
4
Front Roller
1
28
Socket Pan Head Bolt
M8*45*20
3
5
Rear Roller
1
29
Phillips Self Drilling
Screw
ST5.5*22
2
6
Running Board
1
30
Cushion Mat
4
7
Running Belt
1
31
Bolt
M6*50
1
8
Meter
1
32
Phillips Self Drilling
Screw
ST4.8*16
6
9
Cylinder
1
33
Phillips Button Head
Screw
M6*30
2
10R
Right Plastic Cover
1
34
Phillips Button Head
Screw
M6*40
2
10L
Left Plastic Cover
1
35
Bolt
M8*55
2
11
Side Rail
2
36
Round End Cap
2
12
Tension Control Knob
1
37
Spring
2
13
Hand Pulse
2
38
Square Rubber Mat
2
14
End Cap
2
39
Cushion Strip
4
15
Plug
1
40
Nut
M10
1
16
Plug
1
41
Plug
1
17
Screw
M5*15
5
42
Wire Clip
1
18
Phillips Self Drilling
Screw
ST4.2*13
4
43
Sensor Bracket
1
19
Bolt
M12*70*30
2
44
Sensor Wire
1
20
Flat Washer
Φ12*Φ24*2.0
2
45
Sensor Wire Connector
1
21
Knob
M10*65
1
46
Allen Wrench
S6
1
22
Rubber Pad
2
47
Nut
M6
4
23
Transportation Wheel
2
48
Wheel Protective
Sleeve
2
24
Socket Pan Head Bolt
M8*40*15
2
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
✓ The model number (found on cover of manual)
✓ The product name (found on cover of manual)
✓ The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front of
the manual)
4

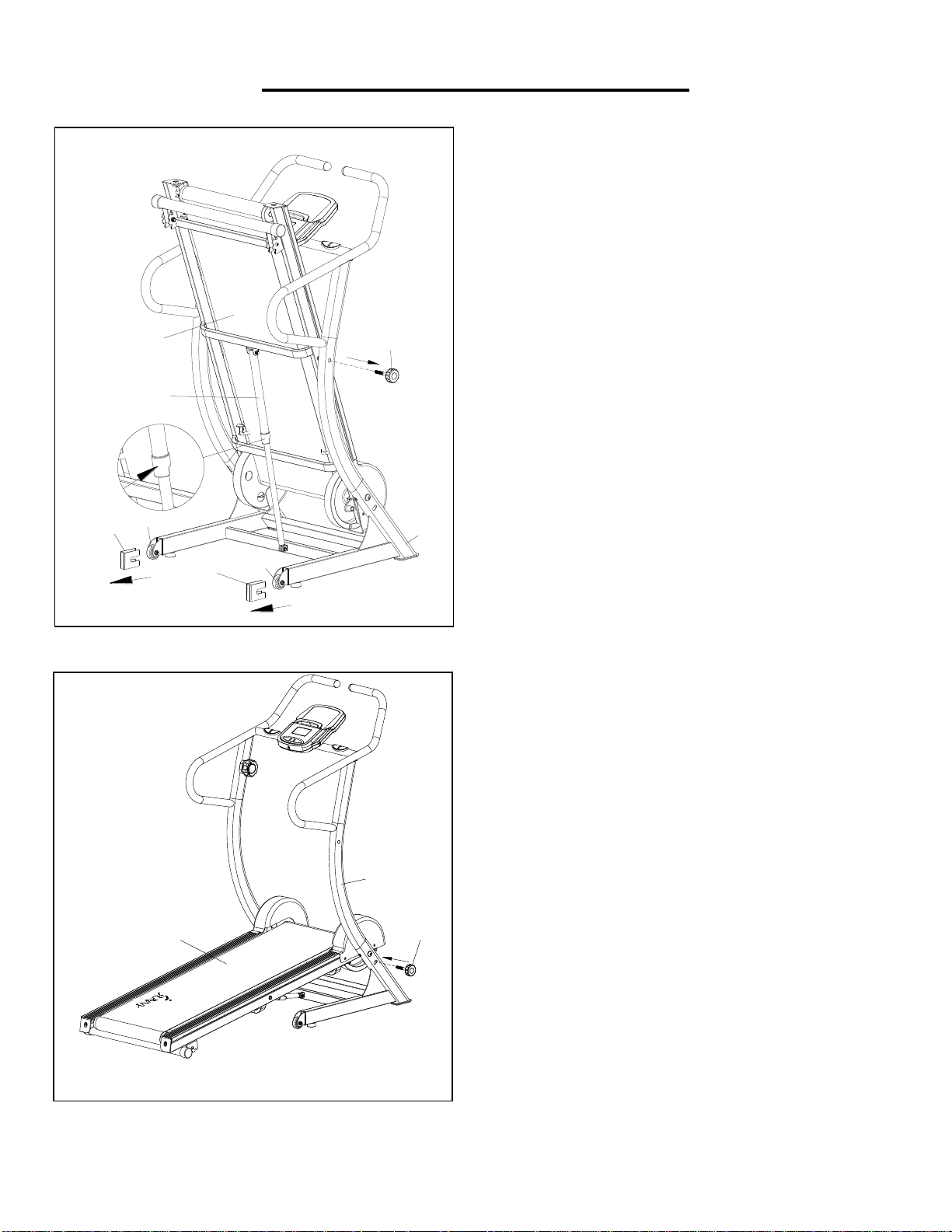

UNFOLDING INSTRUCTIONS
23
23
48
48
21
2
1
9
21
2
1
STEP 1:
Remove the 2 Wheel Protective Sleeves
(No. 48) from the 2 Transportation
Wheels (No. 23). You may save the 2
Wheel Protective Sleeves (No. 48) in
case you’d like to repackage and
transport this treadmill in the future.
Remove Knob (No. 21) by rotating it
counter-clockwise. Then, simply give the
treadmill a light kick to the position on
Cylinder (No. 9) that the arrow points to.
Let Main Frame (No. 1) lower slowly on
its own.
STEP 2:
Once the Main Frame (No. 1) touches the
ground, attach Knob (No. 21) into the
hole on Handlebar (No. 2). Rotate the
Knob (No. 21) clockwise to tighten.
The unfolding is complete!
5
FOLDING INSTRUCTIONS
21
2
21
2
1
9
STEP 1:
Remove the Knob (No. 21) by rotating it
counter-clockwise. Lift up Main Frame
(No. 1).
STEP 2:
Once the Cylinder (No. 9) is in place,
align the holes on Main Frame (No. 1)
and Handlebar (No. 2), then attach Knob
(No. 21) into the holes. Rotate the Knob
(No. 21) clockwise to tighten.
The folding is complete!
6

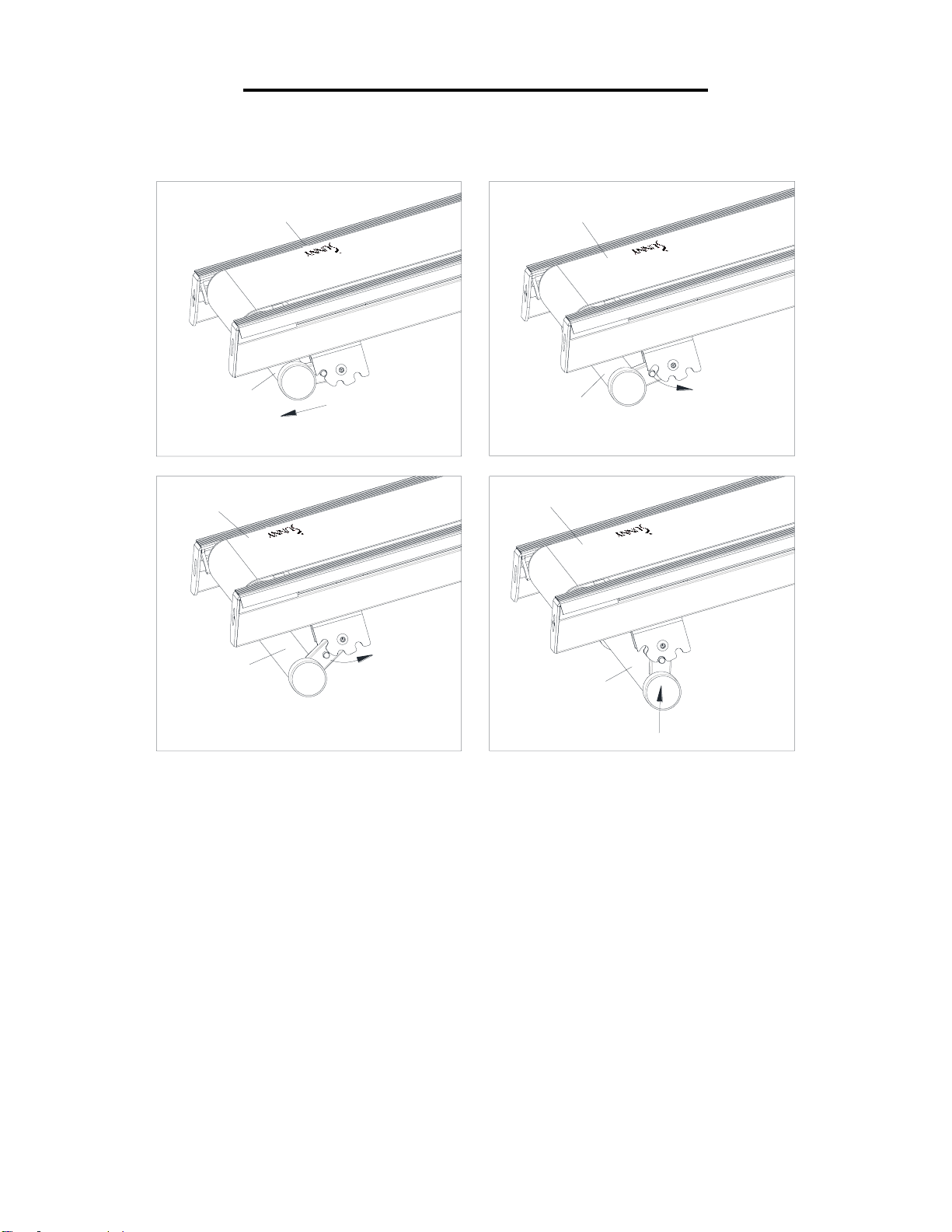

HOW TO ADJUST THE INCLINE
Pull out Incline Adjuster (No. 3), rotate the Incline Adjuster (No. 3), and push it into the desire
incline. This completes the incline adjustment.
1 1
1
1
3
3
3
3
7
HOW TO MOVE THE TREADMILL
23
2
2
23
23
2
2
Before attempting to move the treadmill,
make sure that it has been properly folded.
NOTE: Before moving, please make sure the
2 Wheel Protective Sleeves (No. 48) are
removed from the 2 Transportation Wheels
(No. 23).
To tilt, start by placing one hand at
Handlebar (No. 2) to support the treadmill.
Next, place one foot on Transportation
Wheels (No. 23) to hold the bottom end of
the treadmill steady. With your foot at
Transportation Wheels (No. 23), slowly tilt
Handlebar (No. 2) downward towards the
ground. Once Handlebar (No. 2) reaches a
low enough point, the Transportation
Wheels (No. 23) will touch the ground.
To transport, hold Handlebar (No. 2) and tilt
until Transportation Wheels (No. 23) are
able to move on the ground.
8

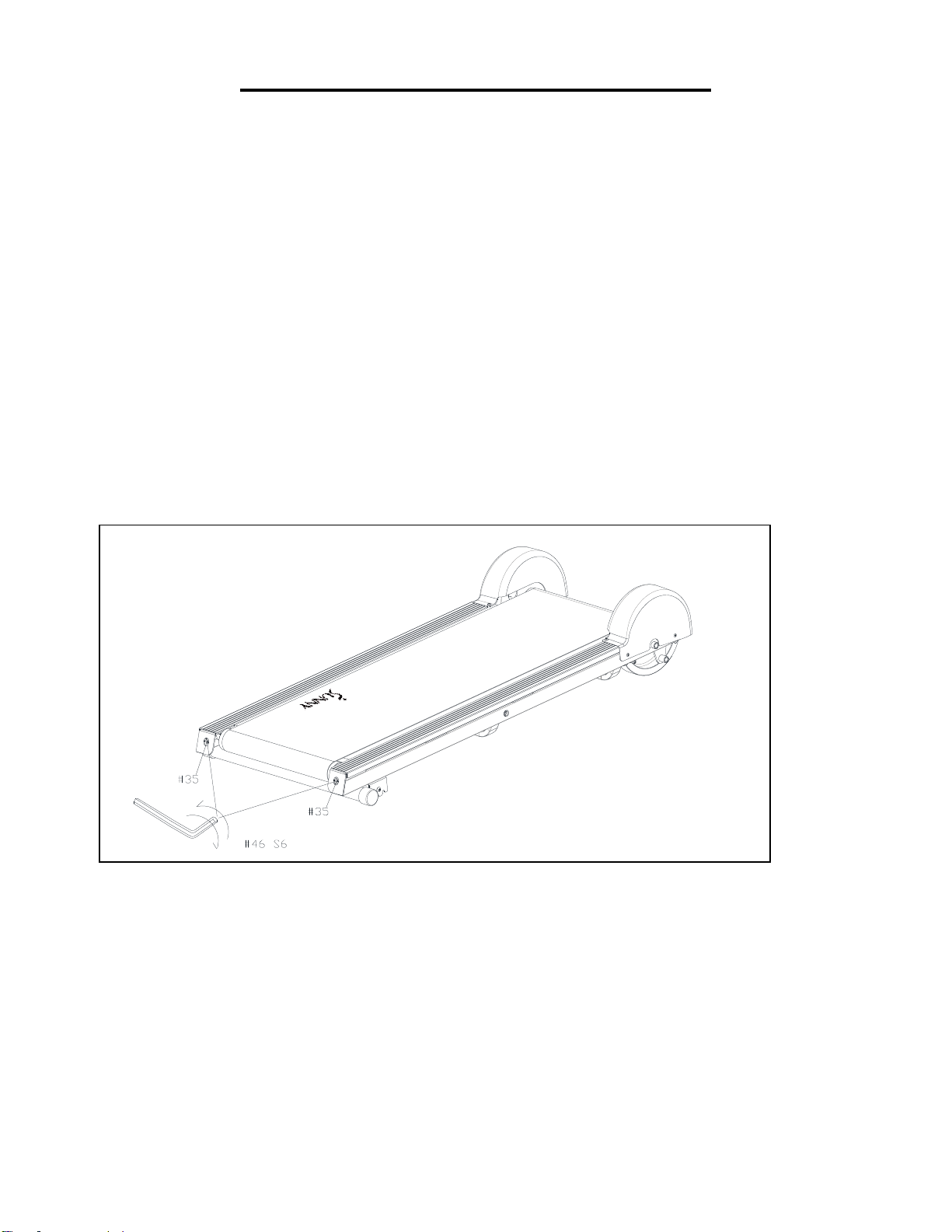

MAINTENANCE INSTRUCTIONS
CENTERING THE RUNNING BELT:
If the Running Belt (No. 7) is off-center, the unit will make noise. Please use the Allen Wrench (No.
46) to re-adjust the Running Belt (No. 7) if it is too loose or too tight.
1. When the Running Belt (No. 7) moves to the right side, please turn the right side Bolt (No. 35)
clockwise 1 or 2 circles, and then turn back slightly.
2. When the Running Belt (No. 7) moves to the left side, please turn the left side Bolt (No. 35)
clockwise 1 or 2 circles, and then turn back slightly.
3. When the Running Belt (No. 7) is too tight, please turn the left and the right side Bolts (No. 35)
counter-clockwise, and then turn back slightly.
4. When the Running Belt (No. 7) is too loose, please turn the left and the right side Bolts (No. 35)
clockwise, and then turn back slightly.
10

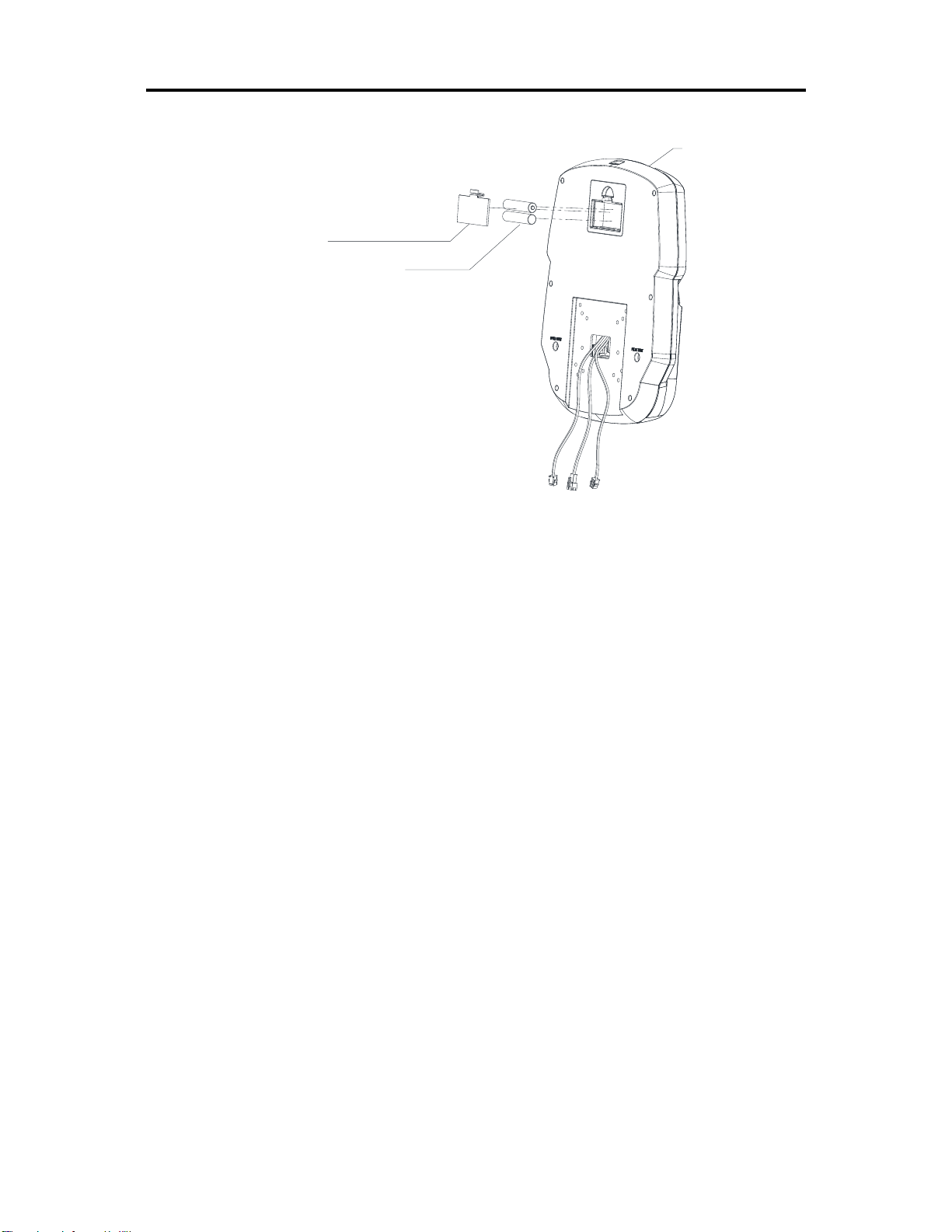

BATTERY INSTALLATION & REPLACEMENT
BATTERY INSTALLATION:
1. Take out 2 AA batteries from meter box.
2. Press the buckle of battery cover on the Meter (No. 8), then remove battery cover.
3. Install 2 AA batteries into the battery case on the back of the Meter (No. 8). Pay attention to the
battery + and – poles before installing.
4. Press the buckle of battery cover, then put the battery cover back to the back of the Meter (No. 8).
The installation is complete!
BATTERY REPLACEMENT:
1. Press the buckle of battery cover on the back of the Meter (No. 8), then remove battery cover.
2. Remove the 2 old AA batteries in the battery case and install 2 new AA batteries into the battery
case on the back of the Meter (No. 8). Pay attention to the battery + and – poles before installing.
3. Press the buckle of battery cover, then put the battery cover back to the back of the Meter (No. 8).
The replacement is complete!
Battery Cover
Battery
8
11
METER INSTRUCTIONS
FUNCTION BUTTONS
MODE: Press the Mode button to select the function displayed. Press and hold
the MODE button for 3 seconds, all the function values except Odometer will be
reset to zero.
SET: To set up the target value of Time, Distance, and Calories. You can hold
the button to increase the value fast. (No motion should be detected at the time
of setting).
RESET: Press the button to reset Time, Distance, and Calories.
Press and hold the RESET button for 3 seconds, all the function values except Odometer will be reset
to zero.
FUNCTIONS AND OPERATIONS
1. BATTERY INSTALLATION:
Please install 2 pieces of AA 1.5V batteries in the battery case on the back of meter.
(When batteries are removed, all the functions values will be reset to zero.)
2. AUTO ON/OFF:
While the user starts to exercise, the meter will show the workout value automatically. When
inactive for over 4 minutes, the meter will turn off, but the workout value of odometer will be held.
When the user starts to exercise again, the workout value on the odometer will accumulate
continuously.
3. AUTO SCAN:
After the meter is powered on or the MODE button is pressed, the LCD will display all functions
values from Time-Calories-Odometer-Pulse-Speed-Distance. Each value will be held for 6 seconds.
4. SPEED:
Displays the current training speed from 0.0 to 99.9 MPH. The user also can press MODE button to
display the speed value.
5. DISTANCE:
Displays the trip distance from 0.0 to 999.9 Miles. The user also can press MODE button to display
the distance value. Press the MODE and SET buttons to preset Distance.
6. TIME:
Displays the workout time from 00:00 to 99:59. The user also can press the MODE button to
display the workout time value. Press the MODE and SET buttons to preset Time.
12
7. CALORIES:
Displays the calories burned during training from 0.0 to 9999. The user also can press the MODE
button to display the calories burned. Press the MODE and SET buttons to preset Calories.
8. ODOMETER:
Displays the total accumulated distance from 0.0 to 999.9 Miles. The user also can press the
MODE button to display the odometer value.
9. PULSE:
Displays the current heart rate in beats per minute. The user can also press the Mode button to
display the odometer value. Please put your hands on the hand pulses when measuring the pulse.
NOTE: This data was designed to be a guide for exercise use only and should not be used for
medical purpose.
NOTE:
1. If the meter display is abnormal, please re-install the batteries and try again. If the meter is still not
displaying properly, replace the batteries.
2. Battery Spec: 1.5V UM-3 or AA (2PCS).
3. Do not mix battery types and do not mix old and new batteries. Dispose or recycle batteries
according to your state and local rules.
Version:1.4
