ENDURANCE ZONE TRAINING
RECUMBENT BIKE
SF-RB4958
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: [email protected] or 1- 877 - 90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained, and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before
continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, discontinue use of the equipment immediately and do not use until
the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 265 pounds (120 KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in
extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial
use.
2

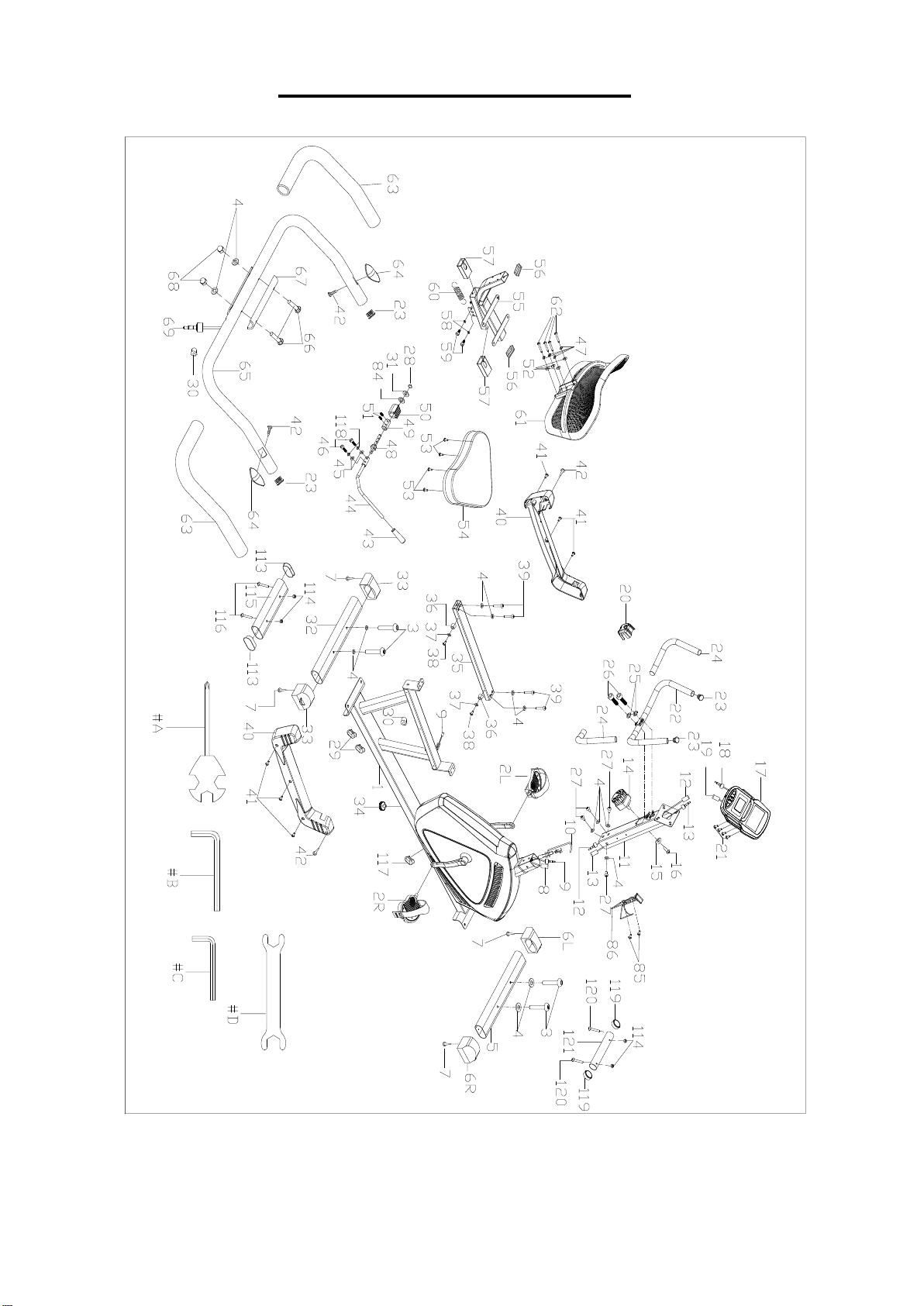

EXPLODED DIAGRAM 1
3

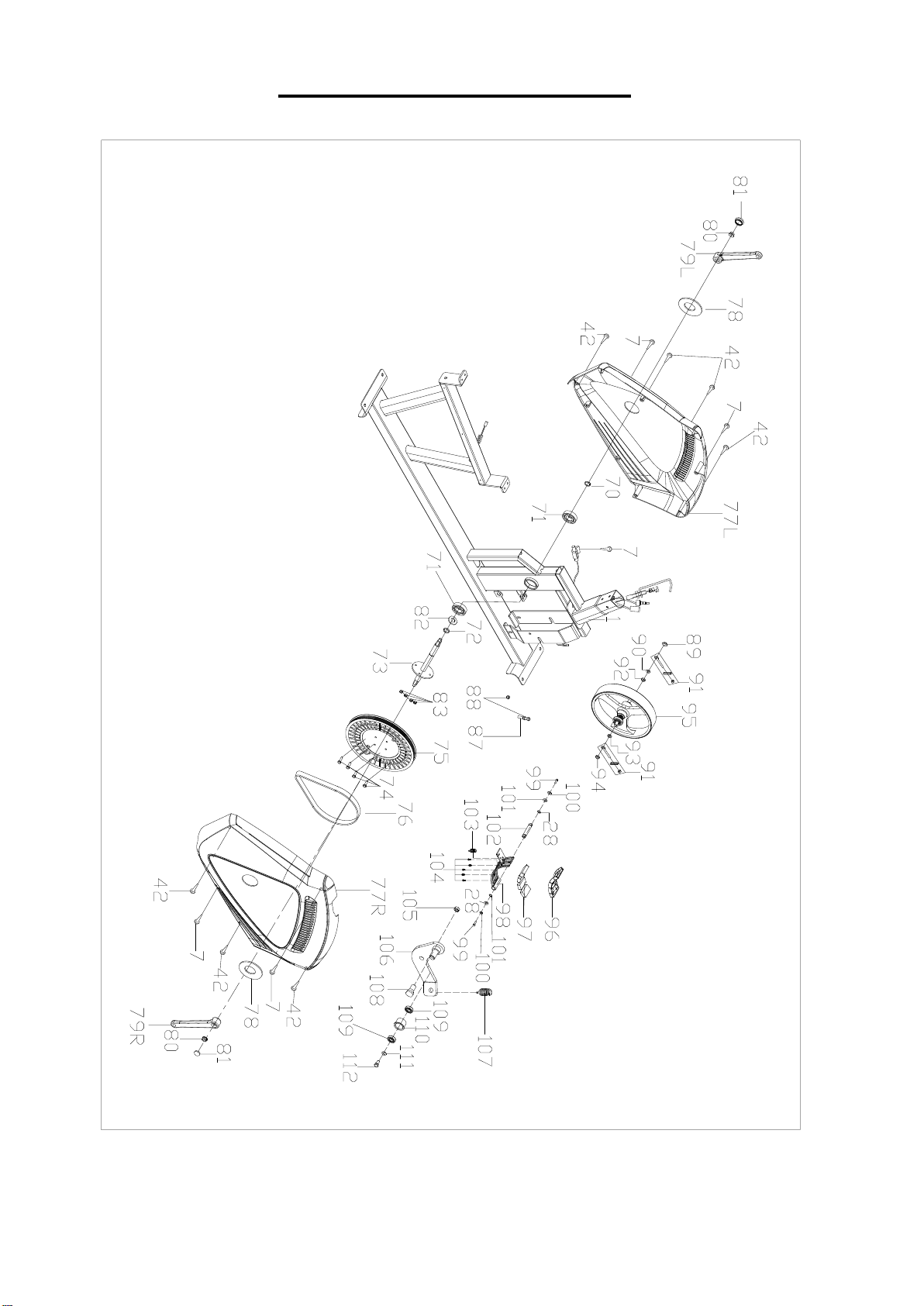

EXPLODED DIAGRAM 2
4
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
44
Brake Handle
1
2L/R
Pedal
2
45
Arc Washer
d6*Ф16*1.5*R16
2
3
Bolt
M8*45
4
46
Screw
M6*12
2
4
Washer
d8*Ф20*1.5
14
47
Spring Washer
d6
4
5
Front Stabilizer
1
48
Connecting Axle
1
6L/R
End Cap
2
49
Eccentric Wheel
1
7
Screw
ST4.2*16
9
50
Clamping Piece
1
8
Sensor Wire 1
1
51
Puller Bolt
M8*10
2
9
Handle Pulse Wire 1
1
52
Washer
d6*Ф12*1
4
10
Tension Wire
1
53
Screw
M6*16
4
11
Front Post
1
54
Seat
1
12
Sensor Wire 2
1
55
Backrest Frame
1
13
Handle Pulse Wire 2
1
56
End Cap
2
14
Tension Control Knob
1
57
Bushing
2
15
Arc Washer
d5*Ф20*1.5*R30
1
58
Nut
M6
2
16
Bolt
M5*50
1
59
Bolt
M6*10
2
17
Computer
1
60
Tension Spring 1
1
18
Computer Wire 1
1
61
Back Cushion
1
19
Computer Wire 2
1
62
Bolt
M6*45
4
20
Handlebar Cover
1
63
Foam Grip 2
2
21
Screw
M5*10
4
64
Handle Pulse
Sensor
2
22
Handlebar
1
65
Rear Handlebar
1
23
End Cap
Ф25
4
66
Carriage Bolt
M8*45
2
24
Foam Grip 1
2
67
Cover Plate
1
25
Spring Washer
d8
2
68
Dome Nut
M8
2
26
Screw
M8*30
2
69
Handle Pulse Wire 3
1
27
Screw
M8*16
4
70
C-clip
1
28
C-clip
d12
3
71
Bearing
6203
2
29
End Cap
2
72
Bushing
1
30
Grommet
2
73
Middle Axle
1
31
Washer
d12*Ф24*1
1
74
Hexagon Bolt
M6*16
4
32
Rear Stabilizer
1
75
Belt Wheel
1
33
End Cap
2
76
Belt
1
34
Foot Pad
1
77L/R
Belt Cover
2
35
Seat Adjusting Tube
1
78
Small Cover
2
36
Limit Mat
Ф22*Ф18*16
2
79L/R
Crank
2
37
Washer
d4*Ф9*1
2
80
Hexagon Flange
Nut
M10*1.25
2
38
Screw
M4*16
2
81
Crank Cap
2
39
Bolt
M8*40
4
82
Wave Washer
d17*Φ23*0.3
1
40
Seat Cover
2
83
Nylon Nut
M6
4
41
Screw
M4*10
6
84
Wave Washer
d12*Φ18*0.3
1
42
Screw
ST4.2*19
11
85
Crosshead Screw
M5*10
2
43
Brake Handle Cover
1
86
Bottle Holder
1
5

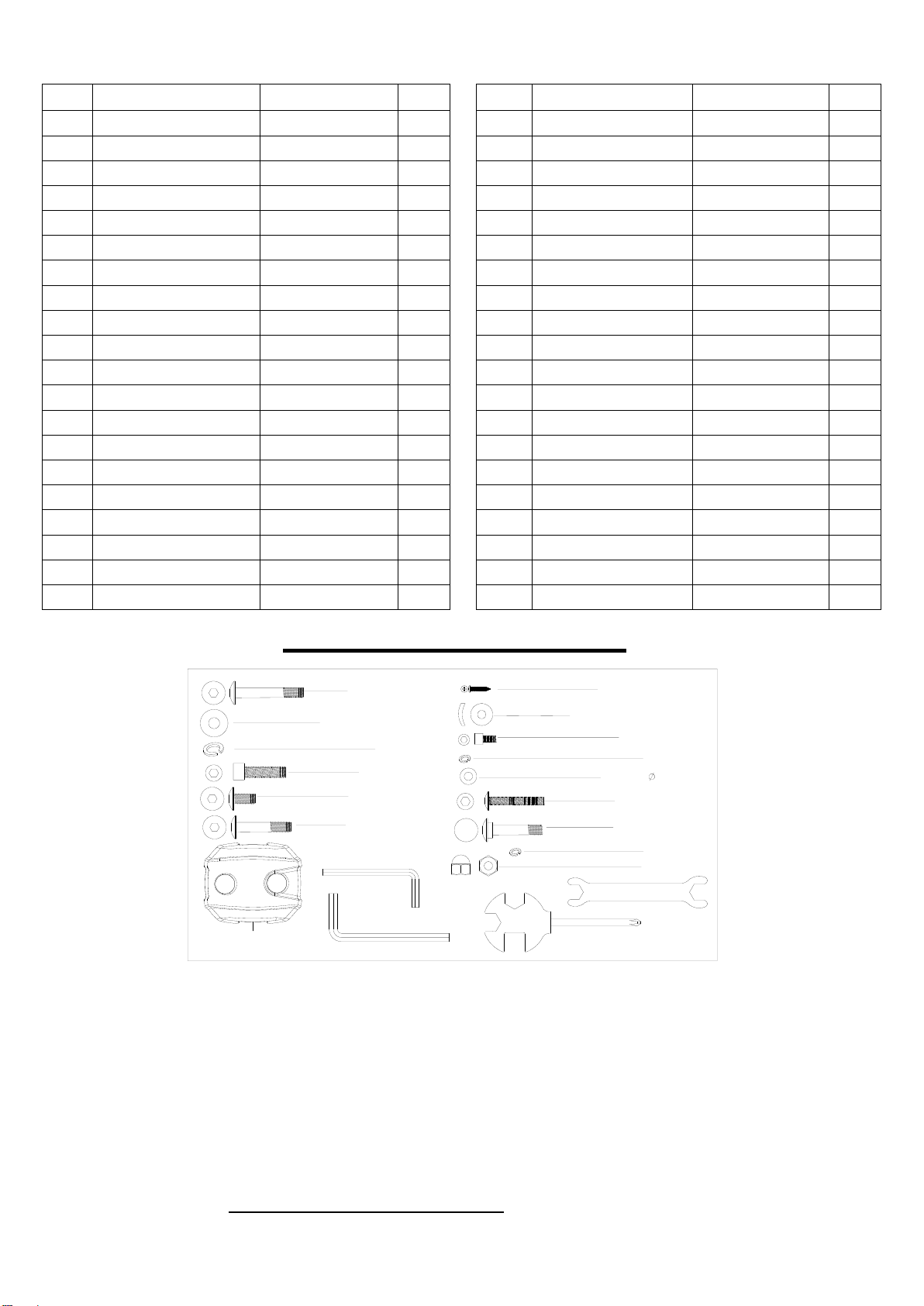

HARDWARE PACKAGE
#3 M8*50 4PCS
#4 d8*Φ20*1.5 14PCS
#27 M8*16 4PCS
#25 d8 2PCS
#26 M8*30 2PCS
#20 1PC
#45 d6*Φ16*1.5*R16 2PCS
#46 M6*12 2PCS
#47 d6 4PCS
#62 M6*45 4PCS
#52 d6* 12*1 4PCS
#66 M8*45 2PCS
#68 M8 2PCS
#39 M8*40 4PCS
S13
S14
S15
#C S5
#B S6
#A 1PC
#42 ST4.2*19 2PCS
#D 1PC
S13
S15
#118 d6 2PCS
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
✓ The model number (found on cover of manual)
✓ The product name (found on cover of manual)
✓ The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the
front of the manual)
Please contact us at [email protected] or 1- 877 - 90SUNNY (877-907-8669).
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
87
Bolt
M6*36
1
107
Tension Spring
1
88
Nut
M6
2
108
Screw
M8*19
1
89
Hexagon Flange Nut
M10*1.0
1
109
Bearing
6000
2
90
Spring Washer
d10
1
110
Idler Wheel
1
91
Bolt Set
2
111
Washer
d6*Φ16*1.5
1
92
Hexagon Nut
M10*1.0*5
1
112
Hexagon Bolt
M6*12
1
93
Hexagon Nut
M10*1.0*3
1
113
End Cap
2
94
Hexagon Nut
M10*1.0*3
1
114
Hexagon Nut
M8
4
95
Flywheel
1
115
Rear Shipping Tube
1
96
Plastic Lattice
1
116
Bolt
M8*50
2
97
Magnet
4
117
End Cap
1
98
Magnetic Board
1
118
Spring Washer
D6 Black
2
99
Hexagon Bolt
M6*20
2
119
End Cap
2
100
Spring Washer
d6
2
120
Bolt
M8*60
2
101
Washer
d6*Φ16*1
2
121
Front Shipping Tube
1
102
Magnetic Board Axle
1
A
Spanner
S13-14-15
1
103
Tension Spring
1
B
Allen Wrench
S6
1
104
Crosshead Screw
ST3.0*10
5
C
Allen Wrench
S5
1
105
Nylon Nut
M8
1
D
Wrench
S13-S15
1
106
Idler Wheel Shaft
1
45
6

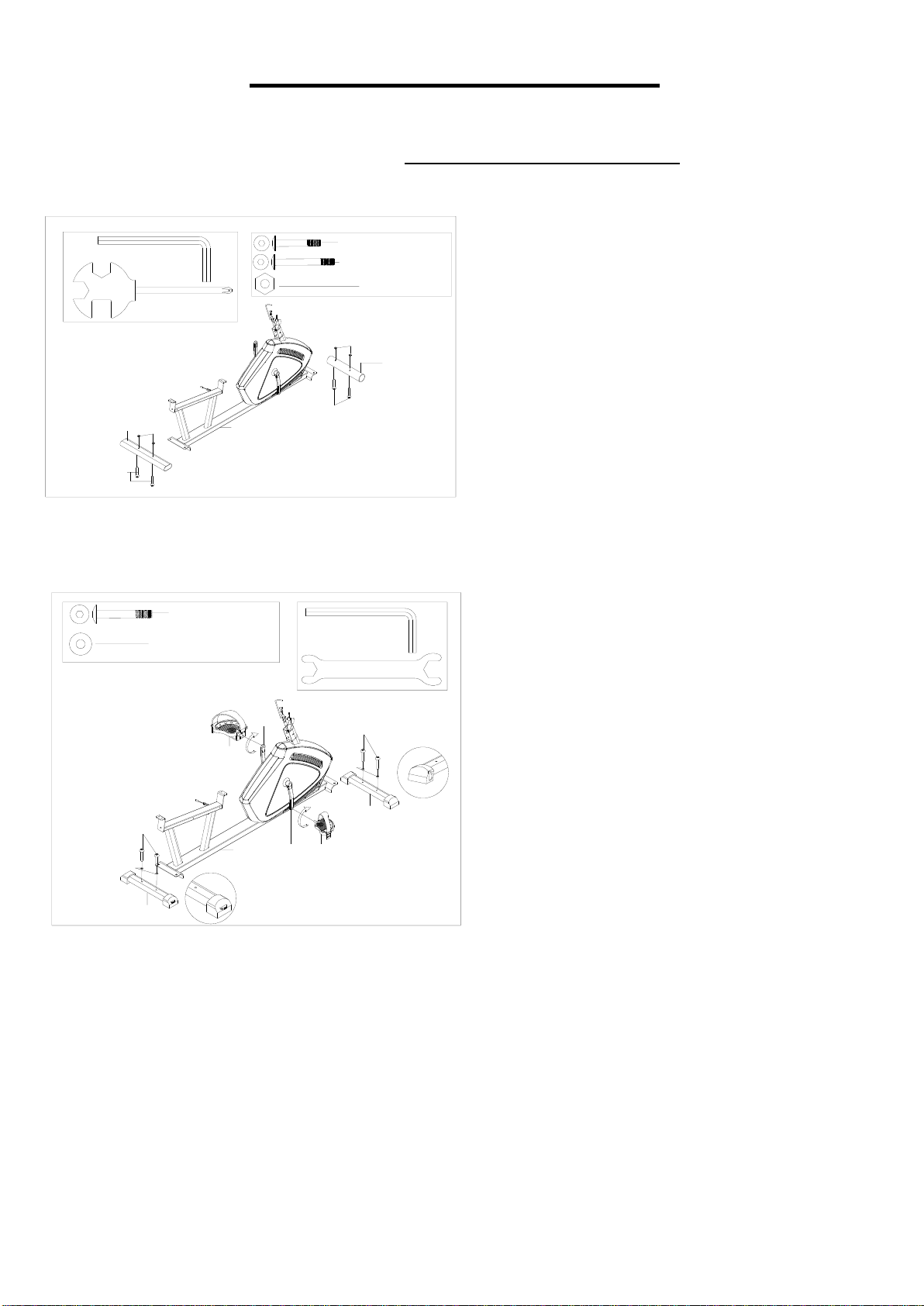

ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
(877-907-8669).
1
S6
#B
S13-14-15
#A
115
114
116
121
114
120
#116 M8*50 2PCS
#114 M8 4PCS
#120 M8*60 2PCS
#3 M8*45 4PCS
#4 d8*Φ20*1.5 4PCS
S15
1
3
4
5
32
3
4
#D
2L
2R
79R
79L
S6
#B
STEP 2:
Attach Front Stabilizer (No. 5) and Rear
Stabilizer (No. 32) to Main Frame (No. 1)
using 4 Bolts (No. 3) and 4 Washers (No. 4).
Tighten and secure with Allen Wrench (No. B).
Align the Left Pedal (No. 2L) with the Left
Crank (No. 79L) at 90° and gently insert the
pedal into the crank arm. Turn the Left Pedal
(No. 2L) counter-clockwise as tightly as you
can with your hands, then use Wrench (No. D)
to tighten securely.
Align the Right Pedal (No. 2R) with the Right
Crank (No. 79R) at 90° and gently insert the
pedal into the crank arm. Turn the Right Pedal
(No. 2R) clockwise as tightly as you can with
your hands, then use Wrench (No. D) to
tighten securely.
NOTE: Left Pedal (No. 2L) is marked with“L”
on the pedal, while Right Pedal (No. 2R) is
marked with “R” on the pedal.
STEP 1:
Remove the 2 Bolts (No. 116), 2 Bolts (No.
120) and 4 Hexagon Nuts (No. 114) from Main
Frame (No. 1) with Allen Wrench (No. B) and
Spanner (No. A). Then remove the Front
Shipping Tube (No. 121) and Rear Shipping
Tube (No. 115).
You may discard these parts or save them in
case you would like to repackage the item in the
future. [Bolts (No. 116), Bolts (No. 120),
Hexagon Nuts (No. 114), Front Shipping
Tube (No. 121) and Rear Shipping Tube (No.
115)].
7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
(877-907-8669).
11
4
27
10
9
8
1
12
#27 M8*16 4PCS
13
27
4
27
12
13
12
8
9
13
#4 d8*Φ20*1.5 4PCS
#B S6
#16 M5*50 1PC
#15 d5*Φ20*1.5*R30 1PC
85
86
11
14
15
16
10
12
13
14
10
#85 M5*10 2PCS
#A S13-14-15

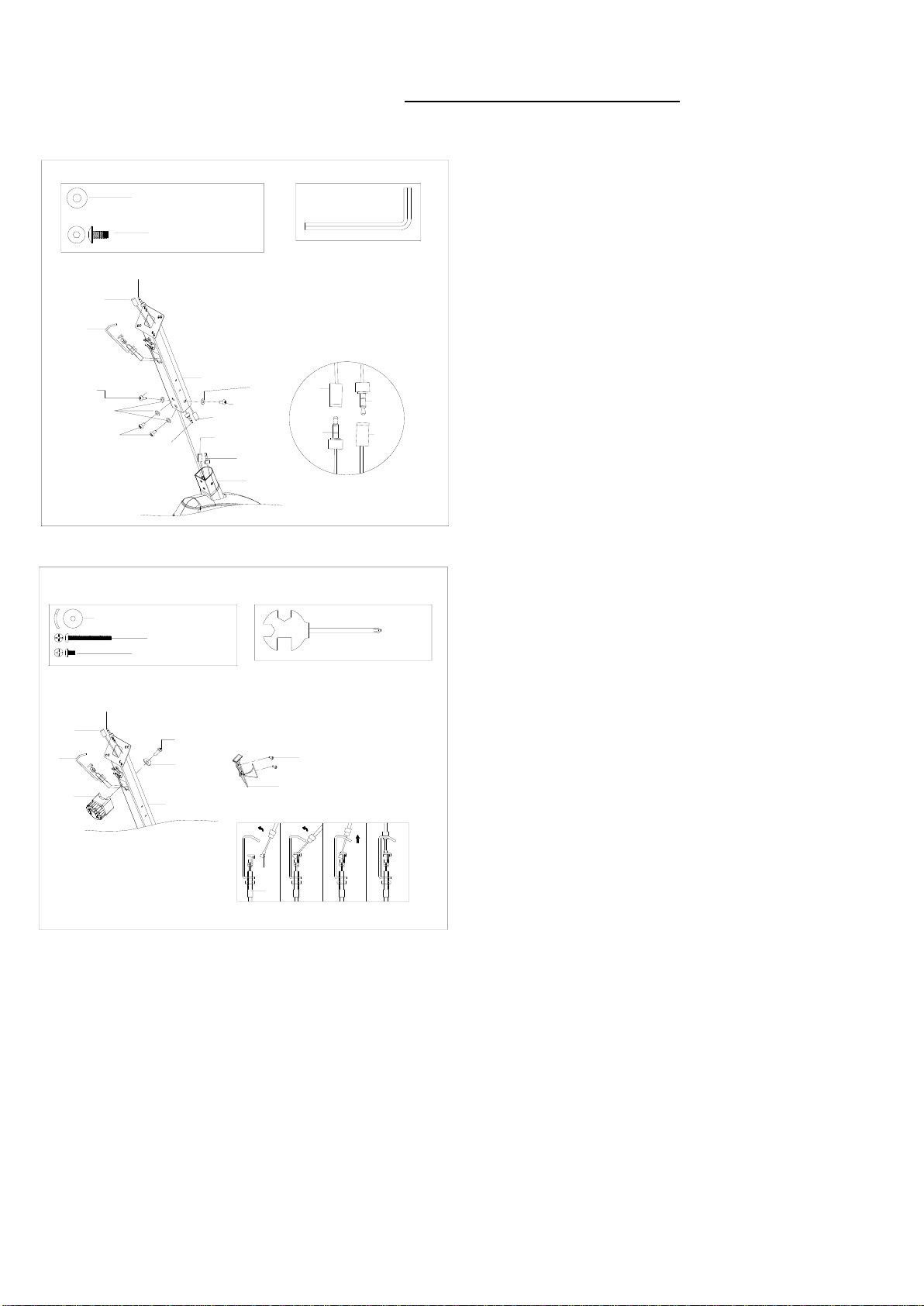

STEP 3:
Insert the Tension Wire (No. 10) into the Front
Post (No. 11) and take out the Tension Wire
(No. 10) from the hole on the side of Front
Post (No. 11).
Connect Sensor Wire 1 (No. 8) with Sensor
Wire 2 (No. 12). Connect Handle Pulse Wire
1 (No. 9) with Handle Pulse Wire 2 (No. 13).
Attach Front Post (No. 11) to Main Frame
(No. 1) using 4 Screws (No. 27) and 4
Washers (No. 4). Tighten and secure with
Allen Wrench (No. B).
STEP 4:
Remove the Bolt (No. 16) and Arc Washer
(No. 15) from Tension Control Knob (No. 14)
with Spanner (No. A).
CAUTION: Please make sure Tension
Control Knob (No. 14) is at the lowest
resistance level (level 1, all the way to the left)
before you connect Tension Wire (No. 10).
Connect the link wire of Tension Control
Knob (No. 14) with Tension Wire (No. 10).
Then, pull the link wire of Tension Control
Knob (No. 14) upward and insert it into the slot
of metal bracket on Tension Wire (No. 10).
Make sure the metal fitting on the link wire of
Tension Control Knob (No. 14) is secured in
the metal bracket.
Attach Tension Control Knob (No. 14) to the
Front Post (No. 11) with the Bolt (No. 16) and
Arc Washer (No. 15) that were removed.
Tighten and secure with Spanner (No. A).
Remove 2 Crosshead Screws (No. 85) from
Front Post (No. 11) with Spanner (No. A).
Attach Bottle Holder (No. 86) onto Front Post
(No. 11) using 2 Crosshead Screws (No. 85)
that were removed. Tighten and secure with
Spanner (No. A).
8
We value your experience using Sunny Health and Fitness products. For assistance with parts or
(877-907-8669).

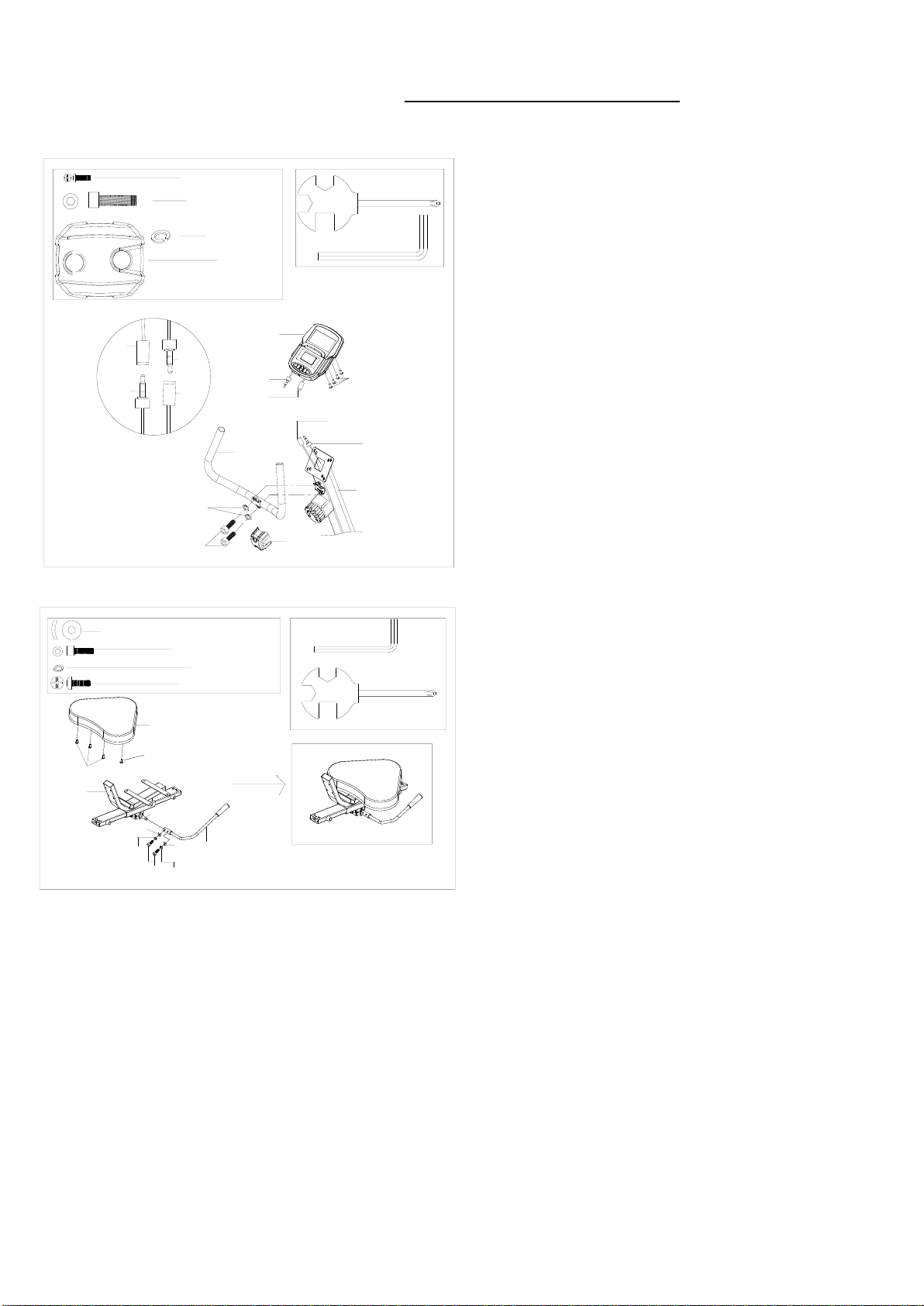

22
25
26
11
12
13
#21 M5*10 4PCS
20
21
17
18
19
18
12
13
19
#26 M8*30 2PCS
#25 d8 2PCS
#20 1PC
#B S6
#A S13-14-15
#C S5
53
54
44
45
46
55
48
#45 d6*Φ16*1.5*R16 2PCS
#46 M6*12 2PCS
#53 M6*16 4PCS
#A S13-14-15
45
53
118
118
#118 d6 2PCS
STEP 5:
Attached Handlebar (No. 22) to Front Post
(No. 11) using 2 Spring Washers (No. 25) and
2 Screws (No. 26). Tighten and secure with
Allen Wrench (No. B). Then attach the
Handlebar Cover (No. 20) onto Handlebar
(No. 22).
Remove 4 Screws (No. 21) from the back of
Computer (No. 17) with Spanner (No. A).
Connect Computer Wire 1 (No. 18) with
Sensor Wire 2 (No. 12). Connect Computer
Wire 2 (No. 19) with Handle Pulse Wire 2
(No. 13).
Attach Computer (No. 17) onto the bracket on
the top of Support Tube (No. 11) using 4
Screws (No. 21) that were removed. Tighten
and secure with Spanner (No. A).
STEP 6:
Attach Brake Handle (No. 44) to the
Connecting Axle (No. 48) using 2 Screws
(No. 46), 2 Spring Washers (No. 118) and 2
Arc Washers (No. 45). Tighten and secure
with Allen Wrench (No. C).
Remove 4 Screws (No. 53) from the back of
Seat (No. 54) with Spanner (No. A). Attach
Seat (No. 54) to the Backrest Frame (No. 55)
using 4 Screws (No. 53) that were removed.
Tighten and secure with Spanner (No. A).
9
We value your experience using Sunny Health and Fitness products. For assistance with parts or
(877-907-8669).
40
41
42
40
41
42
#B S6
35
39
4
#39 M8*40 4PCS
#4 d8*Φ20*1.5 4PCS
#41 M4*10 6PCS
#42 ST4.2*19 2PCS
#A S13-14-15
41
39
4
65
66
67
68
4
69
52
62
47
55
61
9
#62 M6*45 4PCS
#52 d6* 12*1 4PCS
#4 d8*Φ20*1.5 2PCS
#47 d6 4PCS
#66 M8*45 2PCS
69
9
#68 M8 2PCS
#A S13-14-15
#C S5

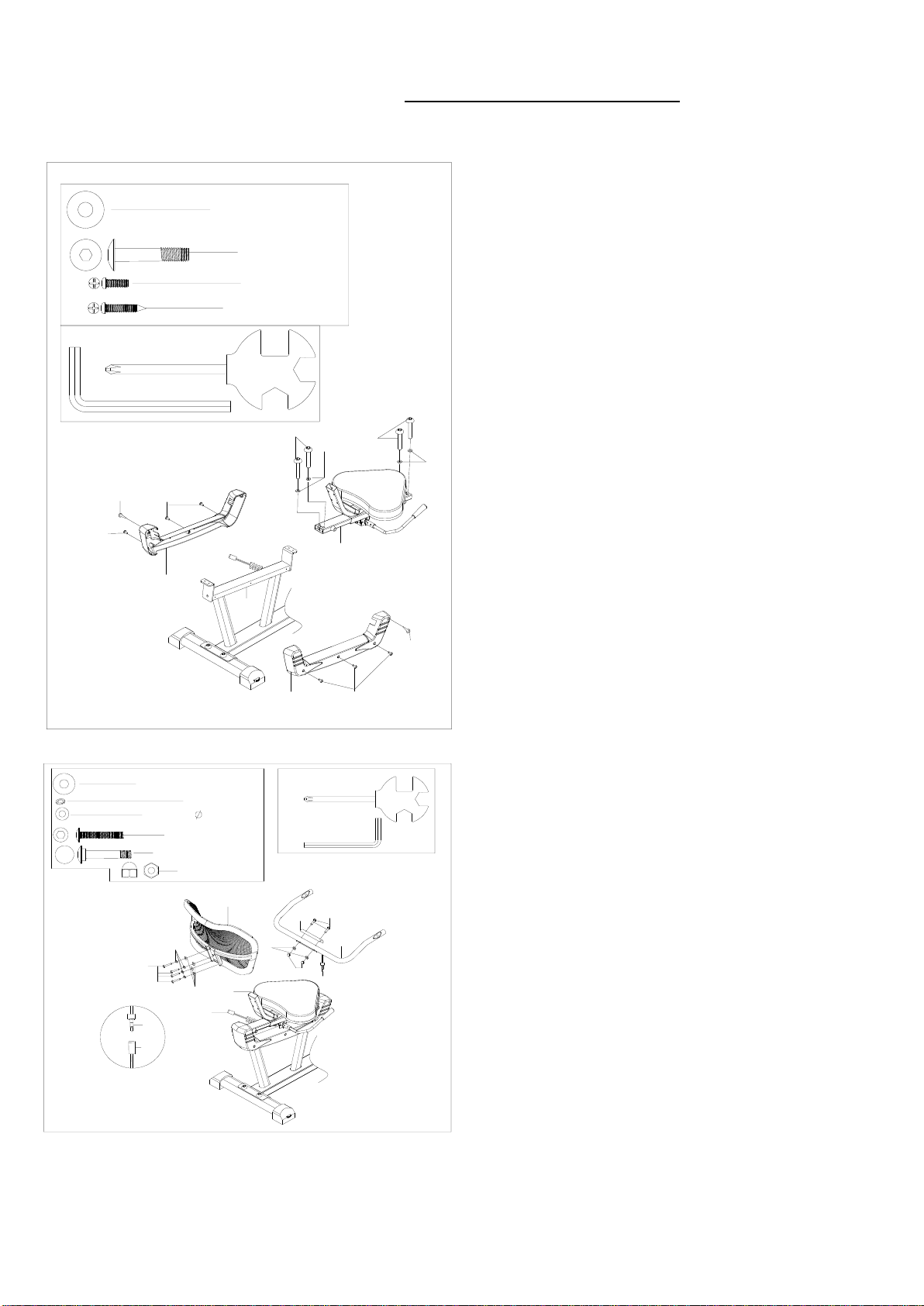

STEP 7:
Attach Seat Adjusting Tube (No. 35) onto
Main Frame (No. 1) using 4 Bolts (No. 39)
and 4 Washers (No. 4). Tighten and secure
with Allen Wrench (No. B).
Remove 6 Screws (No. 41) from Main
Frame (No. 1) with Spanner (No. A).
Attach 2 Seat Covers (No. 40) to the Main
Frame (No. 1) using 6 Screws (No. 41) that
were removed and 2 Screws (No. 42).
Tighten and secure with Spanner (No. A).
STEP 8:
Attach Cover Plate (No. 67) and Rear
Handlebar (No. 65) onto Backrest Frame
(No. 55) using 2 Carriage Bolts (No. 66), 2
Washers (No. 4) and 2 Dome Nuts (No. 68).
Tighten and secure with Spanner (No. A).
Connect Handle Pulse Wire 1 (No. 9) with
Handle Pulse Wire 3 (No. 69).
Attach Back Cushion (No. 61) to Backrest
Frame (No. 55) using 4 Bolts (No. 62), 4
Spring Washers (No. 47), and 4 Washers
(No. 52). Tighten and secure with Allen
Wrench (No. C).
The assembly is complete!
1
10

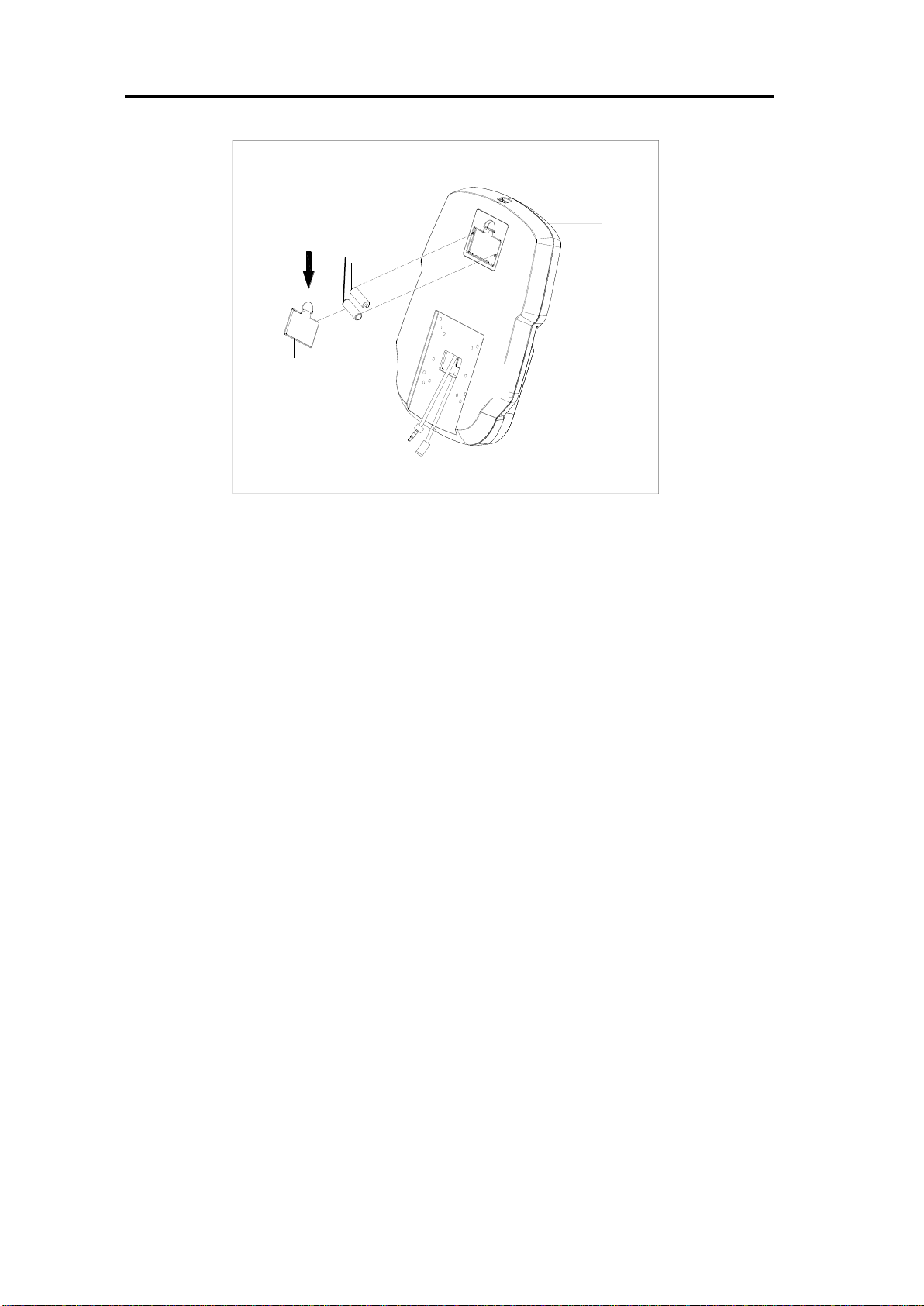

BATTERY INSTALLATION & REPLACEMENT
1
1a
1c
BATTERY INSTALLATION:
1. Take out 2 AA batteries from computer box.
2. Press the buckle of the battery cover on the back of the Computer (No. 17), then remove
battery cover.
3. Install 2 AA batteries into the battery case on the back of the Computer (No. 17). Pay attention
to the battery + and – ends before installing.
4. Press the buckle of the battery cover, then put the battery cover back to the back of the
Computer (No. 17).
The installation is complete!
BATTERY REPLACEMENT:
1. Press the buckle of the battery cover on the back of the Computer (No. 17), then remove the
battery cover.
2. Remove the 2 old AA batteries in the battery case and install 2 new AA batteries into the battery
case on the back of the Computer (No. 17). Pay attention to the battery + and – ends before
installing.
3. Press the buckle of the battery cover, then put the battery cover back to the back of the
Computer (No. 17).
The replacement is complete!
NOTE: Always change both batteries at the same time. Do not mix battery types and do not mix
old and new batteries. Dispose batteries according to your state and regional guidelines.
Battery
1
17
Battery Cover
11

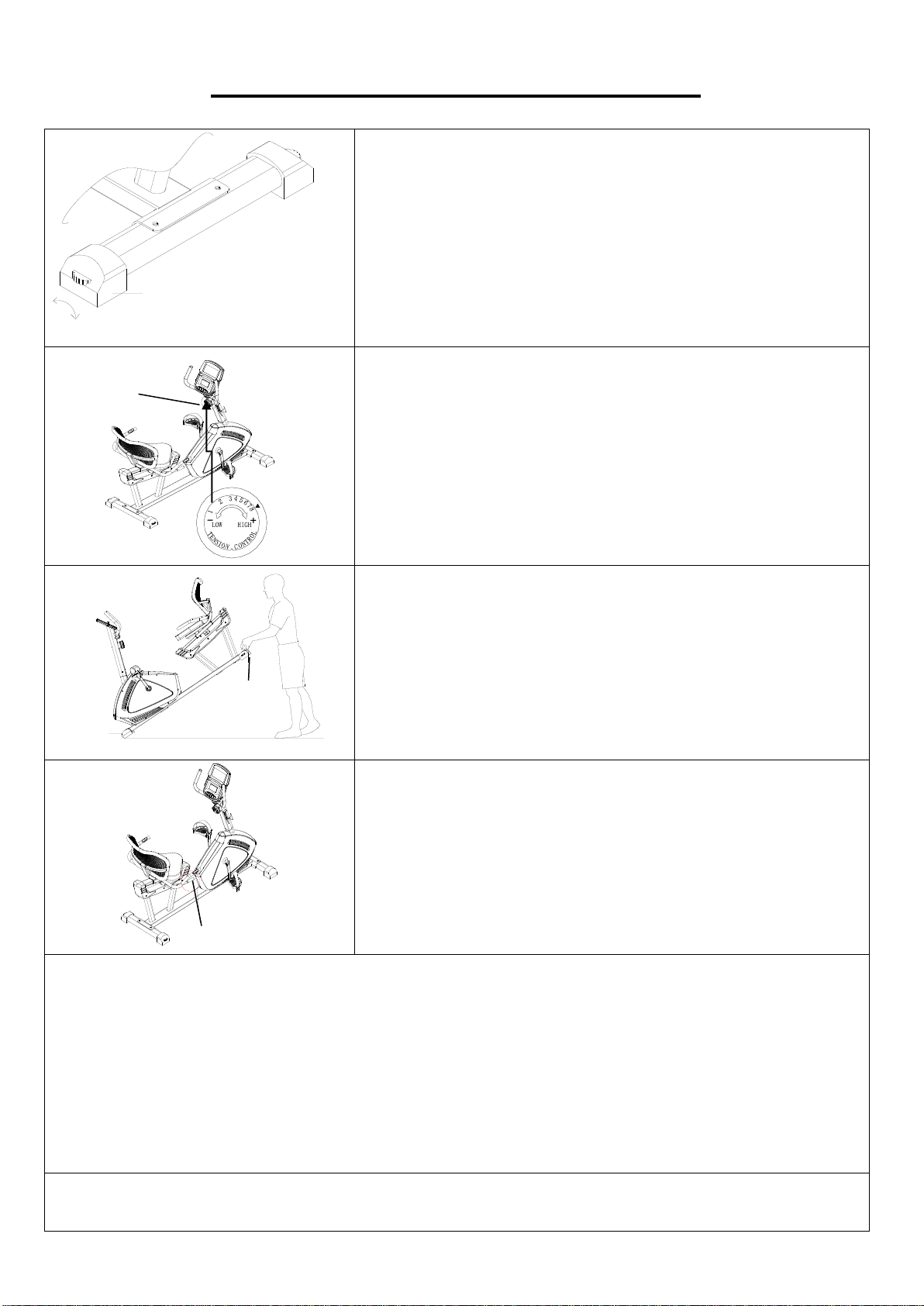

ADJUSTMENTS & USAGE GUIDE
33
ADJUSTING THE BALANCE
In order to achieve a smooth and comfortable ride, you must
ensure that the recumbent bike is stable and secured. If you
notice that the recumbent bike is unbalanced during use, you
should adjust the End Caps (No. 33) located on the rear
stabilizer until the recumbent bike becomes levelled with the
surface.
ADJUSTING THE TENSION
Adjust the tension by rotating the Tension Control Knob
(No. 14) clockwise to increase the level of resistance. Rotate
the Tension Control Knob (No. 14) counter-clockwise to
decrease the level of resistance.
Tension levels are set at Level 1 being the lowest and Level
8 being the highest.
6L/R
5
MOVING THE RECUMBENT BIKE
To move the recumbent bike, hold Rear Stabilizer (No. 32)
and tilt the recumbent bike until the movable wheels on the
Left & Right End Caps (No. 6L/R) located on the front
stabilizer touch the ground. With the wheels on the ground,
you can transport the recumbent bike to the desired location
with ease.
44
ADJUSTING THE SEAT
To adjust the seat forward or backwards, press down Brake
Handle (No. 44), then slide the seat to the desired position.
Lift the Brake Handle (No. 44) up to tighten.
CLEANING
The recumbent bike can be cleaned with a soft, clean, damp cloth. Do not use abrasives or
solvents on plastic parts. Please wipe your perspiration off the recumbent bike after each use. Be
careful not to get excessive moisture on the computer display panel as this might cause electrical
hazard or electronics to fail.
Please keep the recumbent bike, especially the computer, out of direct sunlight to prevent screen
damage.
Please inspect all assembly bolts and pedals on the recumbent bike for proper tightness every
week.
STORAGE
Store the recumbent bike a clean and dry environment, away from children.
14
32
6L/R
12

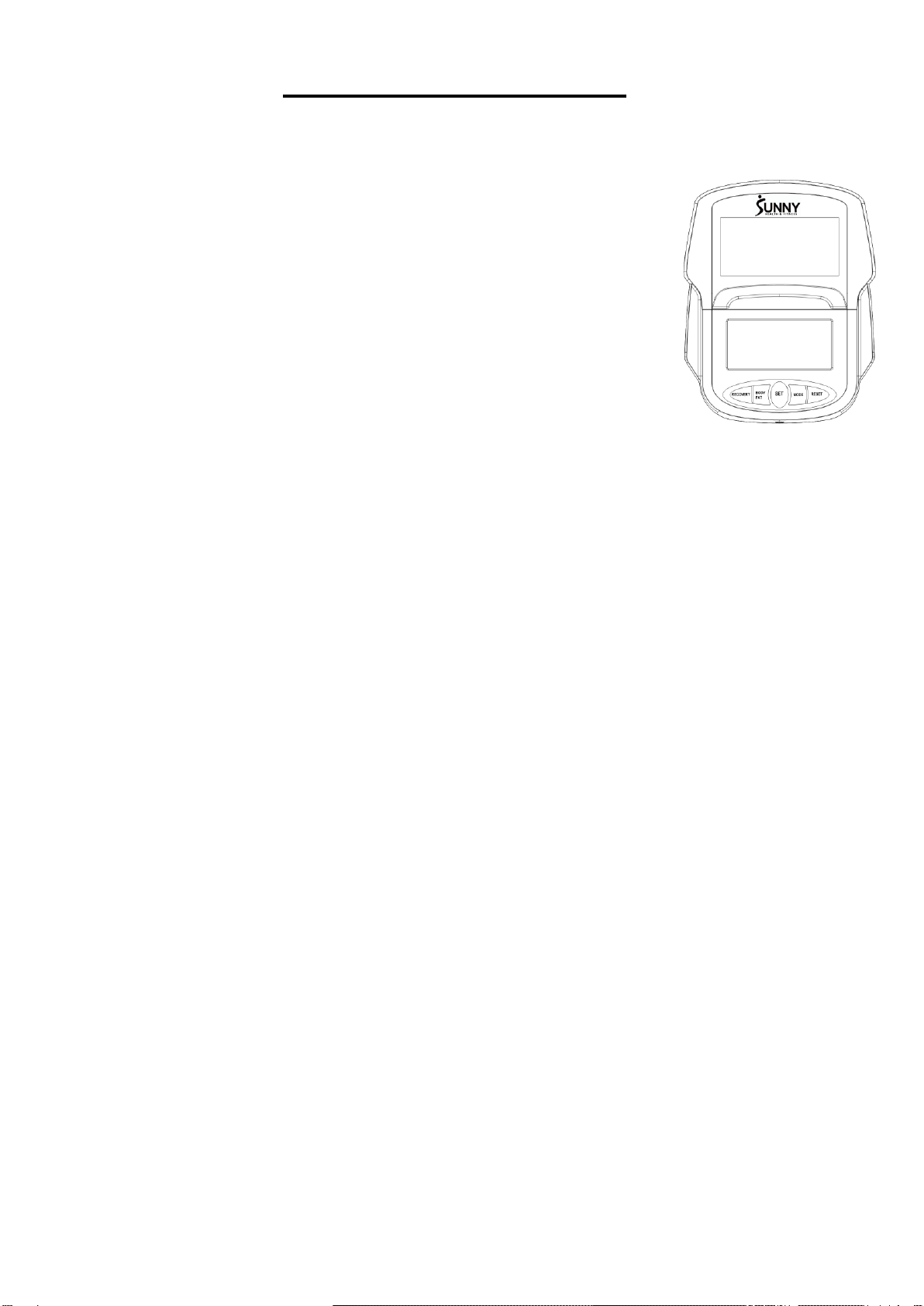

EXERCISE COMPUTER
FUNCTION KEYS
MODE:
1. Press the button to select hour, minute, year, month, and date for
setting.
2. Press the button to select TIME, DISTANCE, CALORIES, and PULSE to
preset.
3. Press the button for selecting function displaying on main LCD or enter
after setting.
4. Press the button to confirm setting value of Gender, Age, Height, and
Weight.
5. Press the button and hold for 2 seconds to reset all values to ZERO.
(Replacing the batteries will reset all values to ZERO automatically).
Note: If the time, date, and year are not set up in the beginning, you must remove the
batteries and reinsert them to set up these functions. Previous data will not be
saved.
SET:
1. Set up the time, year, month, and date.
2. Set up the target value of Time, Distance, Calories and Pulse. You can hold the button to
increase the value fast.
3. Set up the personal data of Gender, Age, Height, and Weight for Body fat test.
RESET:
1. Press the button to reset function value when setting.
2. Press the button and hold for 2 seconds to reset all values to ZERO. (Replacing batteries will
reset all values to ZERO automatically).
BODY FAT:
Press this button to enter Body Fat measuring function. Next, press the MODE button to enter
your personal data of Gender, Age, Height, and Weight. After you have finished setting, press
again to measure your Body fat percentage (FAT%) and BMI.
RECOVERY:
To activate the heart rate recovery function after pulse signal. Press any button to return to the
main display.
FUNCTIONS
SCAN: Automatically scans through each mode in sequence every 6 seconds. The cycle of
functions showing on display is RPM - Speed – Time – Distance – Calorie – Pulse.
TIME: Accumulates the total time from 00:00 up to 99:59. The user may preset the target time by
pressing SET & MODE buttons. Each increase is 1 minute.
13
RPM: Displays the Rotation per Minute (RPM). The RPM and SPEED will switch to another
display, every 6 seconds after the exercise starts.
SPEED: Displays current training speed. Maximum speed is 99.9 mph (miles/hour).
DISTANCE: Accumulates the total distance from 0.00 up to 99.99 m (miles). The user may preset
target distance data by pressing SET & MODE buttons, by increments of 0.5m (miles).
CALORIES: Accumulates the calories burned during training from 0 to max. 999 calories. The
user may also preset the target calories burned before training by pressing the SET & MODE
buttons, by increments of 10 cal.
PULSE: Displays the user's heart rate in beats per minute during training. You may set the target
heart rate by pressing the SET & MODE buttons.
NOTE: This data was designed to be a guide for exercise use only and should not be
used for medical purpose.
CALENDAR: Displays the date, month, and year when the computer is in sleep mode.
CLOCK: Displays current time when the computer is in sleep mode.
TEMPERATURE: Displays current room temperature from 50°F to 140°F when the computer is in
sleep mode.
OPERATION
1. Power on – Install 2 pieces of 1.5V UM-3 or AA batteries. The computer starts the segment
test with a long beep sound. (When the batteries are removed, all the functions values will be
reset to zero or default value.)
2. Set current data – Press the SET & MODE buttons to set up current time, year, month, and
date. After the first setting and until the batteries need to be replaced, the preset data will be
updated automatically.
3. Select and preset target value – Get access to the setting function of Time, Distance, Calories,
and Target Pulse. When you are in the TIME setting mode, the value will flash, and you can
press the SET button to adjust the value. Press MODE button for confirmation and to skip to
the next setting. The setting of Distance, Calories, and Target Pulse is the same as the Time
setting.
4. After entering speed signal, each function of SPEED-RPM-TIME-DISTANCE-CALORIES-
PULSE will display every 6 seconds.
5. You can press the MODE button to select single function display on the main screen except
RPM & SPEED. The RPM & SPEED function will display every 6 seconds.
6. If you have preset any function targets before, the function starts to count down from the target
when the training starts. Once target is achieved, the computer will beep, and the function will
count from zero automatically if training continues.
14
7. Pulse measurement – After holding onto the handle pulse sensors for a few seconds, the
computer will show your current heart rate in beats per minute. To ensure the heart rate
readout is precise, please hold the handle pulse sensors with both hands. You may preset the
target pulse before training starts. Once your current heart rate is achieved, the computer will
beep to notify you.
8. Recovery – When the PULSE is working, you can press the “RECOVERY” button to start the
recovery test function. The computer will count down from 0:60 seconds to 0:00 and the
heartbeat symbol will flash until the countdown reaches “0:00”. For the 60 seconds counting
period, please keep your hands on the handle pulse sensors. The screen will display “F1 to F6”
to show your recovery status. F1 is the best, and the F6 is the worst. You may keep exercising
to improve your heart rate recovery status and check it by using the Recovery function.
9. Body Fat -
9-1. Press the BODY FAT button to enter body fat measurement.
9-2. Press MODE & SET buttons to input your personal data. Each personal data available is
described as the following:
AGE: 10~99years HEIGHT: 100~250cm (3’03”~8’02“) WEIGHT:10~200kg (22~440lbs)
9-3. After all personal data has been entered, you can press the BODY FAT button and hold on
handle pulse sensors to start the body fat test.
9-4. It takes a few seconds to test the body fat. If you did not hold onto the handle pulse
sensors during the testing procedure, the LCD will show the error sign Err after a 10
seconds period.
9-5. After the testing is finished, you will see a percentage and BMI figure (Body Mass Index)
displayed on the main LCD in sequence by scan mode.
BODY FAT %: Calculated from your personal data to show the value from 5%~50%.
BMI: Calculated from your personal data to show the value from 1.0~99.99.
9-6. Press any button except SET to return to the main display.
Note:
1. If training stops for 4 minutes, the screen will show room temperature, clock, and calendar
display automatically.
2. If the computer has not received any speed signal or button input for one minute, the LED
backlight will turn off automatically. Any speed signal or button input can turn on the led
backlight automatically.
3. If the computer display is abnormal, please re-install the batteries and try again.
4. Battery Spec: 1.5V UM-3 or AA (2PCS).
15
TROUBLESHOOTING
PROBLEM
SOLUTION
There is no display on the computer.
1. Remove the computer and verify that the
wire from the computer is properly
connected to the wire that comes from the
front post.
2. Check if the batteries are correctly positioned
and battery springs are in proper contact with
batteries.
3. The batteries in the computer may be
unresponsive. Change to new batteries.
The recumbent bike wobbles when in use.
Adjust the end caps on the rear stabilizer as
needed to level the recumbent bike.
The recumbent bike makes squeaking
noises when in use.
The bolts may have become loose on the
recumbent bike. Please inspect all bolts and
tighten any bolts that have loosened.
Version: 1.2
16
