PERFORMANCE INTERACTIVE SERIES
RECUMBENT ELLIPTICAL
SF-RBE420035
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: [email protected] or 1-877-90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained,
and used properly. It is your responsibility to ensure that all users of the equipment are informed of
all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before continuing
with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 4 feet (120 cm) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has
been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 265 lbs (120 kgs).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in extreme
cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial use.
2

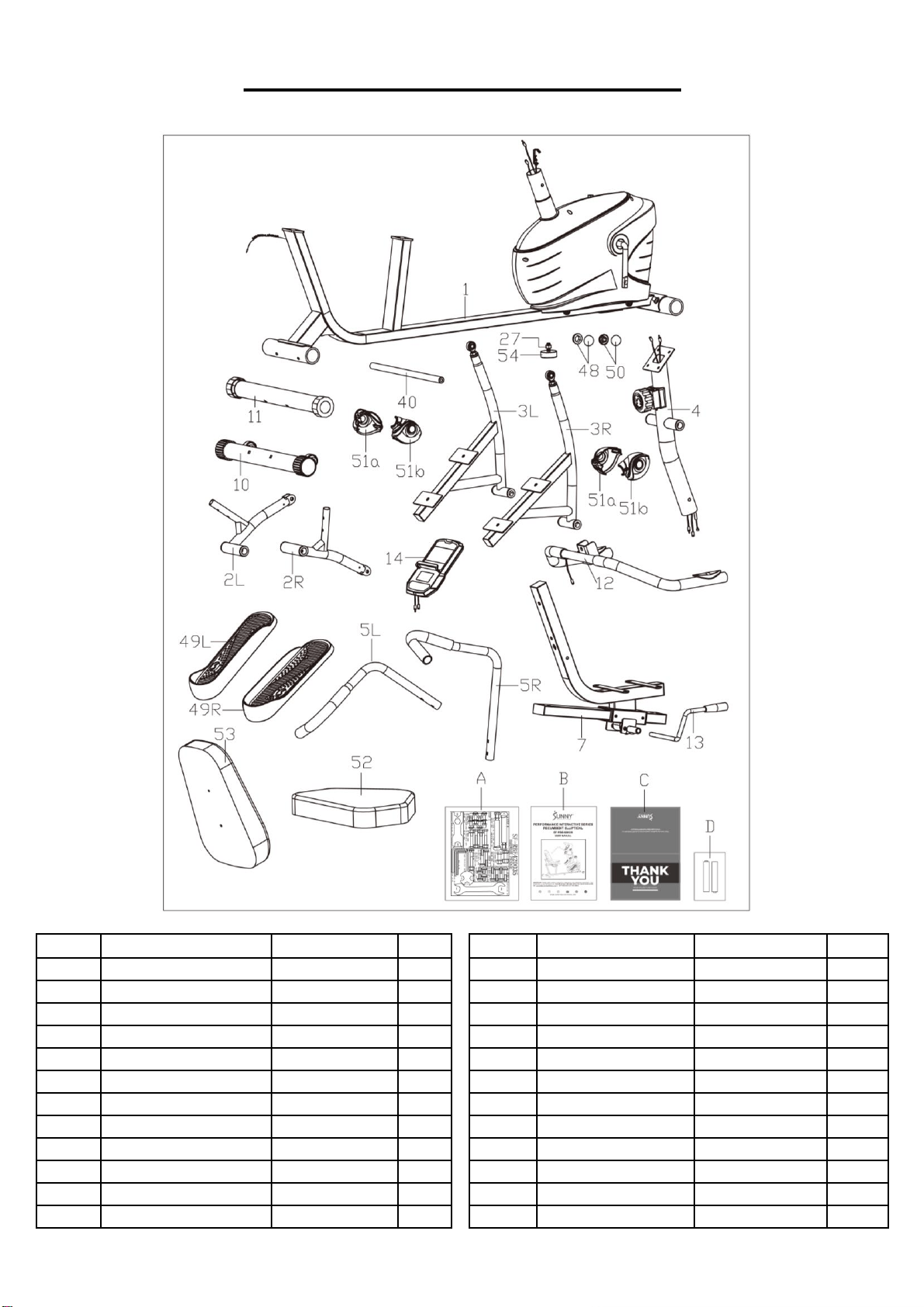

PRE-ASSEMBLY CHECK LIST
.Before you start to assemble, please make sure all parts are included.
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
40
Long Axle
Φ19x386
1
2L/R
Swing Bar
1 pr.
48
Nut Cap
S19
2
3L/R
Pedal Support Tube
1 pr.
49L/R
Pedal
1 pr.
4
Handlebar Post
1
50
Nut Cap
S13
2
5L/R
Handlebar
1 pr.
51a/b
Protective Cover
2 prs.
7
Seat Rail
1
52
Seat
1
10
Front Stabilizer
1
53
Backrest
1
11
Rear Stabilizer
1
54
Adjustable Pad
M10x30
1
12
Rear Handlebar
1
A
Hardware Package
1
13
Adjustable Handle
1
B
Manual
1
14
Meter
TZ4112
1
C
Thank You Card
1
27
Hex Nut
M10
1
D
Battery
AAA
2
3
HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
✓ The model number (found on cover of manual)
✓ The product name (found on cover of manual)

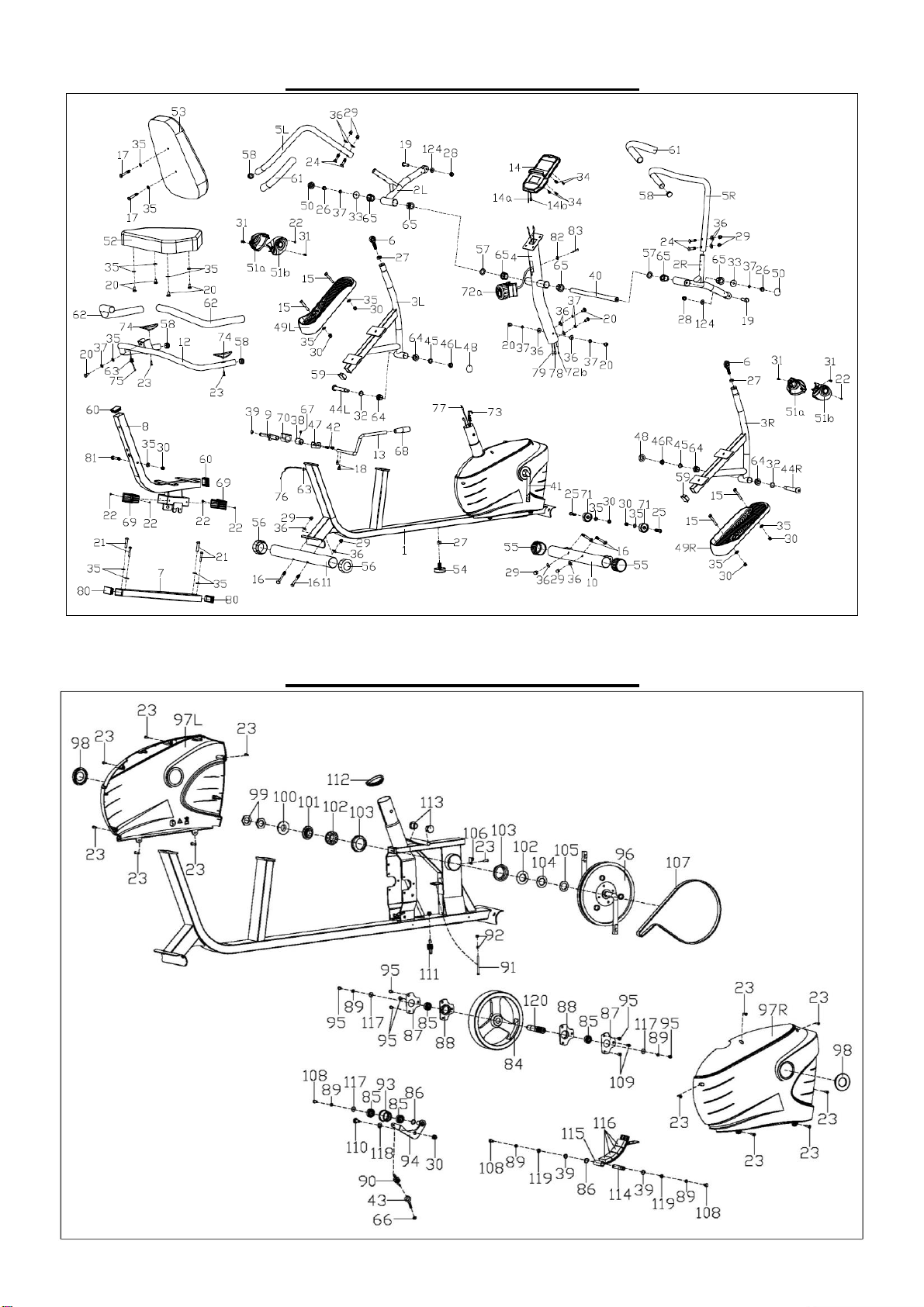

✓ The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the
end of the manual)
Please contact us at [email protected] or 1-877-90SUNNY (877-907-8669).
4
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
(877-907-8669).
STEP 1:

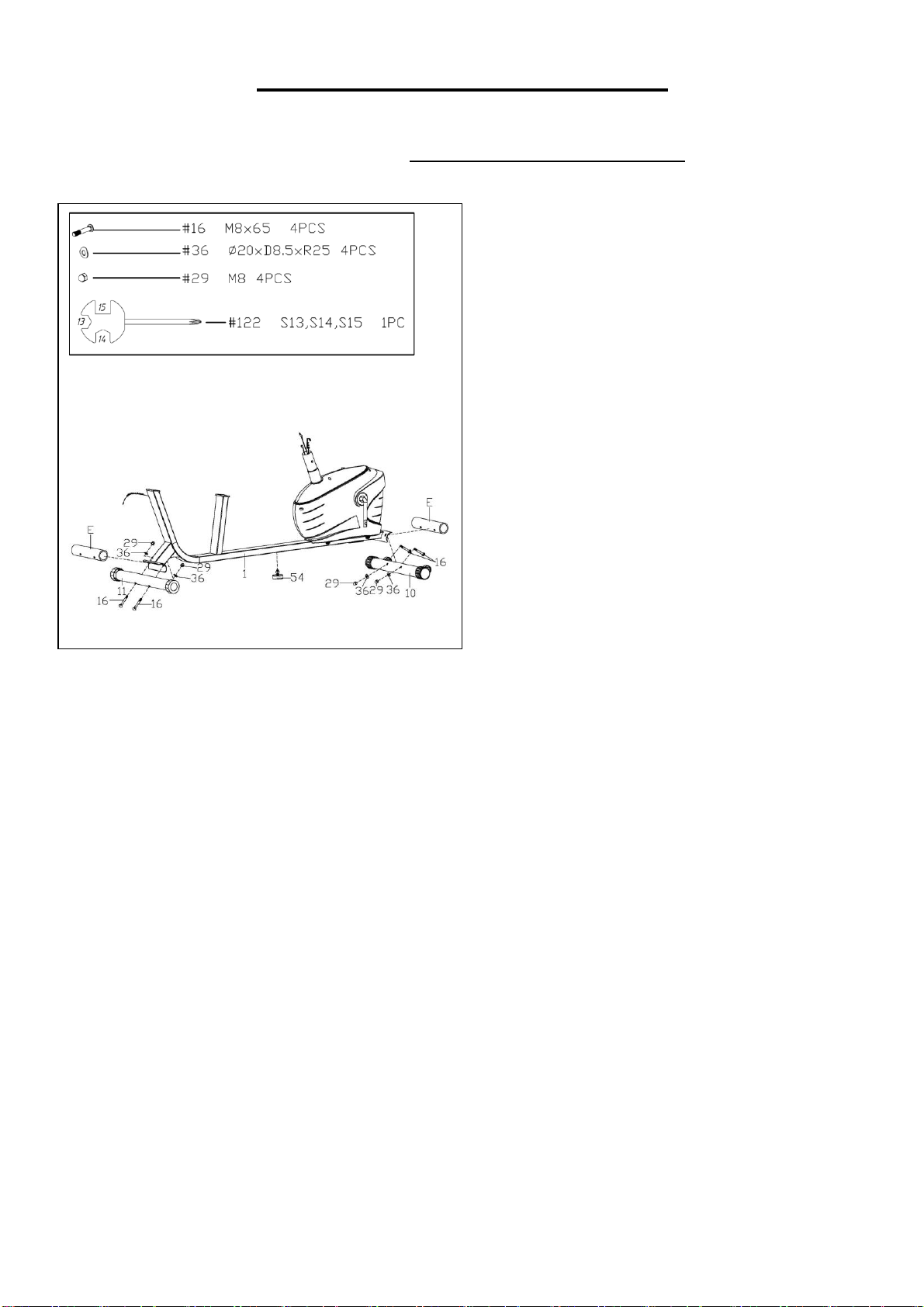

Remove 2 Paper Tubes (No. E), 4 Carriage
Bolts (No. 16), 4 Arc Washers (No. 36) and
4 Cap Nuts (No. 29) from the Main Frame
(No. 1).
NOTE: You may discard the Paper Tubes
(No. E) or save them to repackage the item
in the future.
Attach Adjustable Pad (No. 54) to the Main
Frame (No. 1).
Attach the Front Stabilizer (No. 10) and the
Rear Stabilizer (No. 11) to the Main Frame
(No. 1) with 4 Carriage Bolts (No. 16), 4
Arc Washers (No. 36) and 4 Cap Nuts (No.
29) that were just removed. Tighten and
secure with Spanner (No. 122).
5
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).

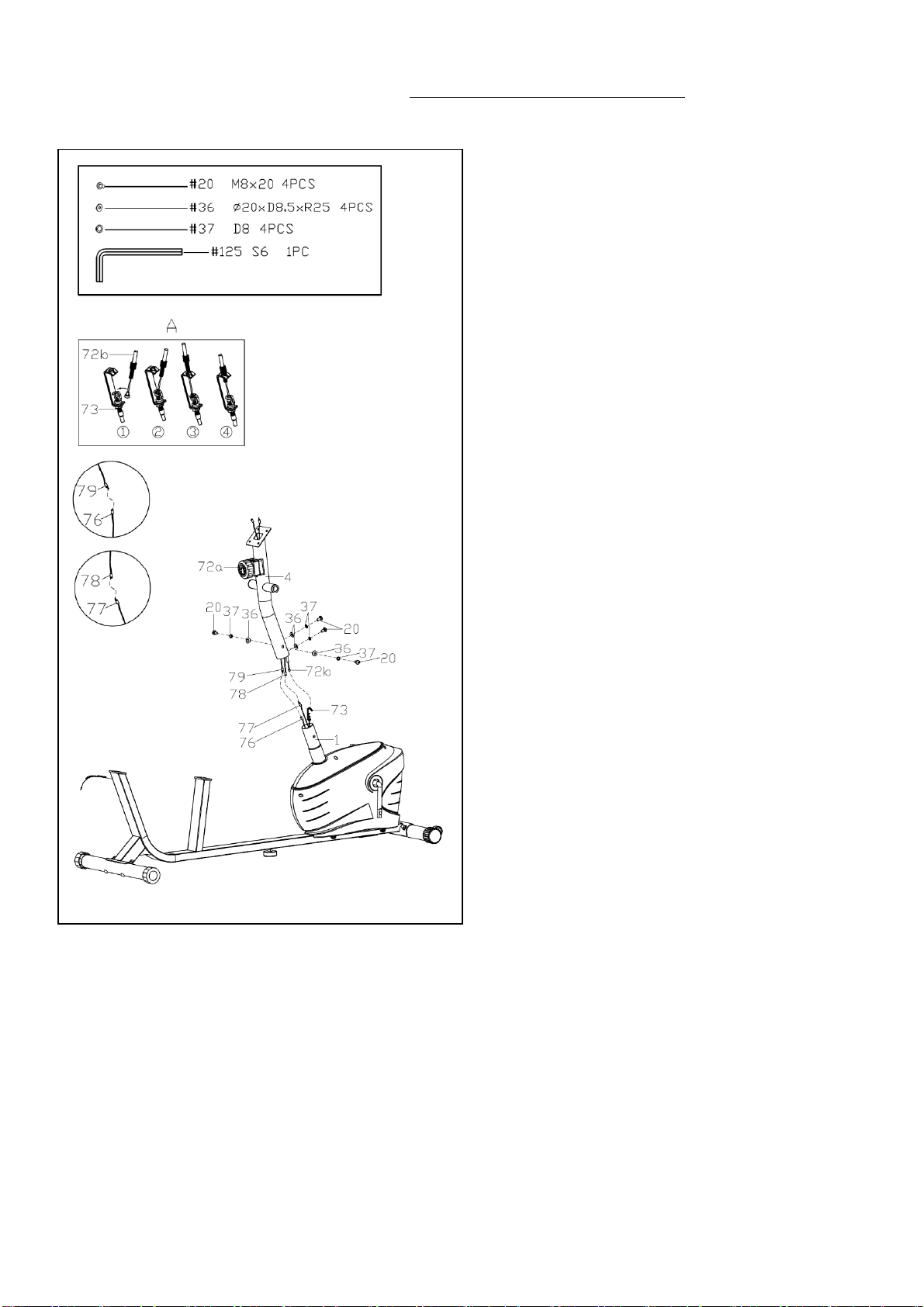

STEP 2:
NOTE: Make sure the Tension Controller
(No. 72a) is at the lowest level before you
connect the cable. This ensures the wires
are at their longest point. We recommend the
assistance of a second person to help hold
the Handlebar Post (No. 4). This will make
the connection easier when you are
attaching Tension Hook (No. 73) to the
Tension Cable (No. 72b).
Attach the Tension Cable (No. 72b) into the
metal bracket of Tension Hook (No. 73) as
shown in drawing A-①. Then, pull Tension
Cable (No. 72b) upward and insert it into the
slot of metal bracket of Tension Hook (No.
73) as shown in drawing A-③. Make sure the
metal fitting on Tension Cable (No. 72b) is
secured in the metal bracket.
Connect the Pulse Extension Wire 2 (No.
79) to the Pulse Extension Wire 1 (No. 76)
and connect the Sensor Extension Wire 1
(No. 77) to the Sensor Extension Wire 2
(No. 78).
Remove 4 Screws (No. 20), 4 Spring
Washers (No. 37) and 4 Arc Washers (No.
36) from the Main Frame (No. 1) using Allen
Wrench (No. 125).
Attach the Handlebar Post (No. 4) to the
Main Frame (No. 1) with 4 Screws (No. 20),
4 Spring Washers (No. 37) and 4 Arc
Washers (No. 36) that were just removed.
Tighten and secure with the Allen Wrench
(No. 125).
NOTE: Do not cut or pinch any wires when
attaching the Handlebar Post (No. 4).
6
We value your experience using Sunny Health and Fitness products. For assistance with parts or
(877-907-8669).

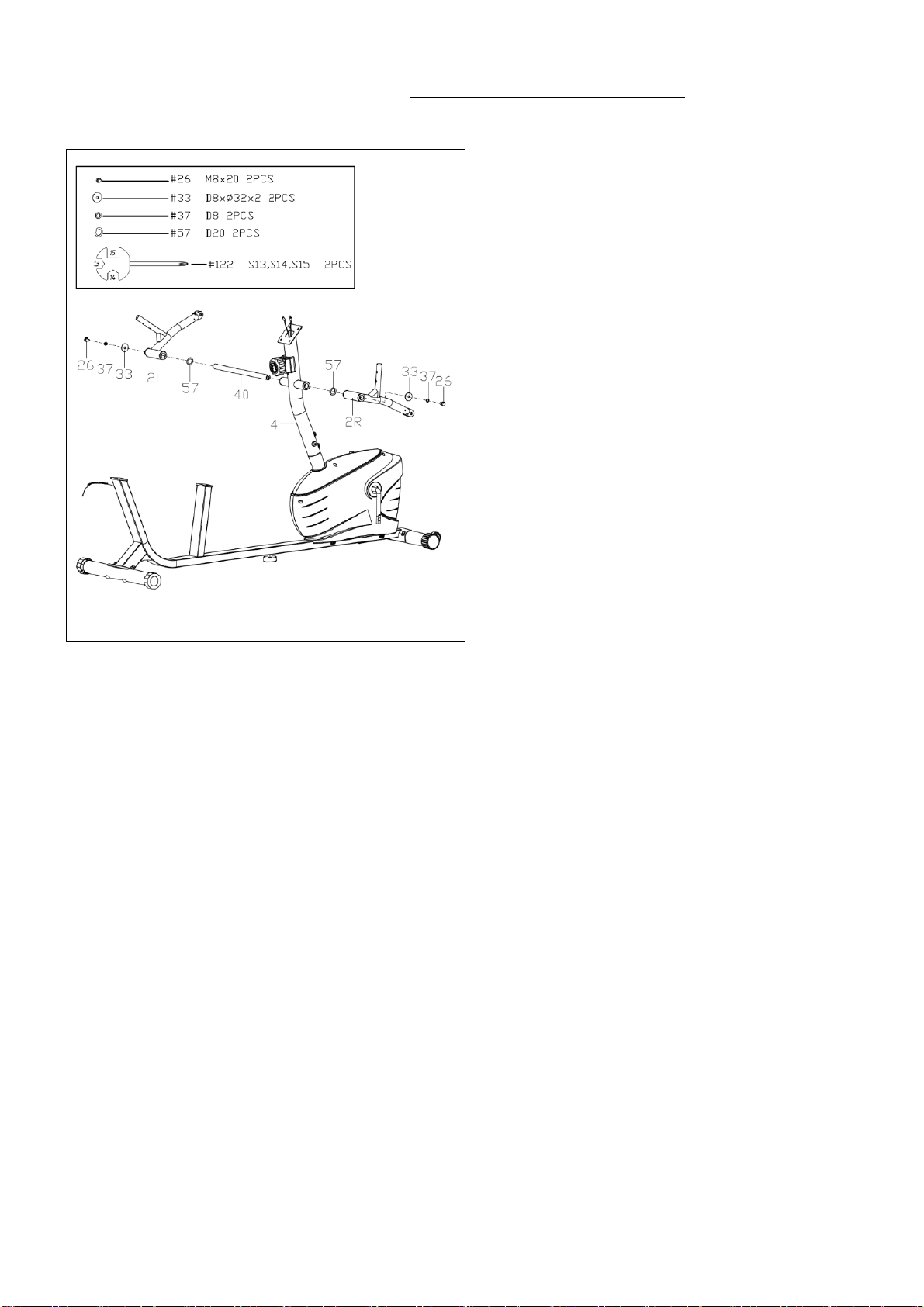

STEP 3:
Remove 2 Hex Screws (No. 26), 2 Spring
Washers (No. 37), 2 Flat Washers (No. 33)
and 2 Wave Washers (No. 57) from the
Long Axle (No. 40) using 2 Spanners (No.
122).
Insert the Long Axle (No. 40) into the
Handlebar Post (No. 4), then insert 2 Wave
Washers (No. 57) that were just removed to
the both sides of Long Axle (No. 40).
Attach the 2 Swing Bars (No. 2L/R) to both
sides of the Long Axle (No. 40) using 2 Flat
Washers (No. 33), 2 Spring Washers (No.
37) and 2 Hex Screws (No. 26) that were
just removed. Pre-secure with 2 Spanners
(No. 122).
NOTE: Do not completely tighten the Hex
Screws (No. 26) yet.
7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
(877-907-8669).
STEP 4:
Attach the Left Pedal Support Tube (No. 3L)
to the left side of the Crank (No. 41) with 1
Left Hinge Bolt (No. 44L) and 1 Wave
Washer (No. 32). Turn the Left Hinge Bolt
(No. 44L) counter-clockwise with your hand.
Then attach 1 Spring Washer (No. 45) and 1
Left Nylon Nut (No. 46L) to the end of Left
Hinge Bolt (No. 44L) and turn the Left Nylon
Nut (No. 46L) clockwise.
Attach the Right Pedal Support Tube (No.
3R) to the right side of the Crank (No. 41) with
1 Right Hinge Bolt (No. 44R) and 1 Wave
Washer (No. 32). Turn the Right Hinge Bolt
(No. 44R) clockwise with your hand. Then
attach 1 Spring Washer (No. 45) and 1 Right
Nylon Nut (No. 46R) to the end of Right
Hinge Bolt (No. 44R) and turn the Right
Nylon Nut (No. 46R) counter-clockwise.
The Left Hinge Bolt (No. 44L) is labeled L,
while the Right Hinge Bolt (No. 44R) is
labeled R. The Left Nylon Nut (No. 46L) is
BLACK and Right Nylon Nut (No. 46R) is
WHITE.
NOTE: Please do not fully tighten at this time.
Attach 2 Swing Bars (No. 2L/R) to 2 Pedal
Support Tubes (No. 3L/R) with 2 Bolts (No.
19), 2 Flat Washers (No. 124) and 2 Nylon
Nuts (No. 28) and pre-secure by Spanner
(No. 123) and Open End Wrench (No. 127).
NOTE: Please do not fully tighten at this time.
Firstly, fasten 2 Nylon Nuts (No. 46L/R) and 2
Hinge Bolts (No. 44L/R) using Allen Wrench
(No. 126) and Open End Wrench (No. 127).
Secondly, fasten 2 Bolts (No. 19) and 2 Nylon
Nuts (No. 28) using Spanner (No. 123) and
Open End Wrench (No. 127).
Then fasten 2 Hex Screws (No. 26) for STEP
3 using 2 Spanners (No. 122).
Finally, cover 2 Nut Caps (No. 50) and 2 Nut
Caps (No. 48).
NOTE: Ensure that all bolts and washers are
in place and partially threaded in before
completely tightening any of them.
NOTE: If the bike is making unusual noises
when in use, inspect the bike carefully and
tighten any loose bolts and nuts especially the
2 Bolts (No. 19) and 2 Nylon Nuts (No. 28).
8
We value your experience using Sunny Health and Fitness products. For assistance with parts or
(877-907-8669).
STEP 5:
Attach 2 Handlebars (No. 5L/R) to 2 Swing
Bars (No. 2L/R) with 4 Bolts (No. 24) , 4
Arc Washers (No. 36) and 4 Cap Nuts (No.
29). Tighten and secure with Spanner (No.
122).
Remove 4 Screws (No. 31) from 2 Swing
Bars (No. 2L/R) and remove 2 Screws (No.
22) from 2 Protective Covers (No. 51a/b)
using Spanner (No. 122).
Attach the 2 Protective Covers (No. 51a/b)
to the 2 joints of the 2 Swing Bars (No.
2L/R) and 2 Pedal Support Tubes (No.
3L/R) with 4 Screws (No. 31) and 2 Screws
(No. 22) that were just removed. Tighten and
secure with Spanner (No. 122).
Attach the 2 Pedals (No. 49L/R) to the 2
Pedal Support Tubes (No. 3L/R) using 4
Hex Bolts (No. 15), 4 Flat Washers (No.
35) and 4 Nylon Nuts (No. 30). Tighten and
secure with Spanner (No. 122).
STEP 6:

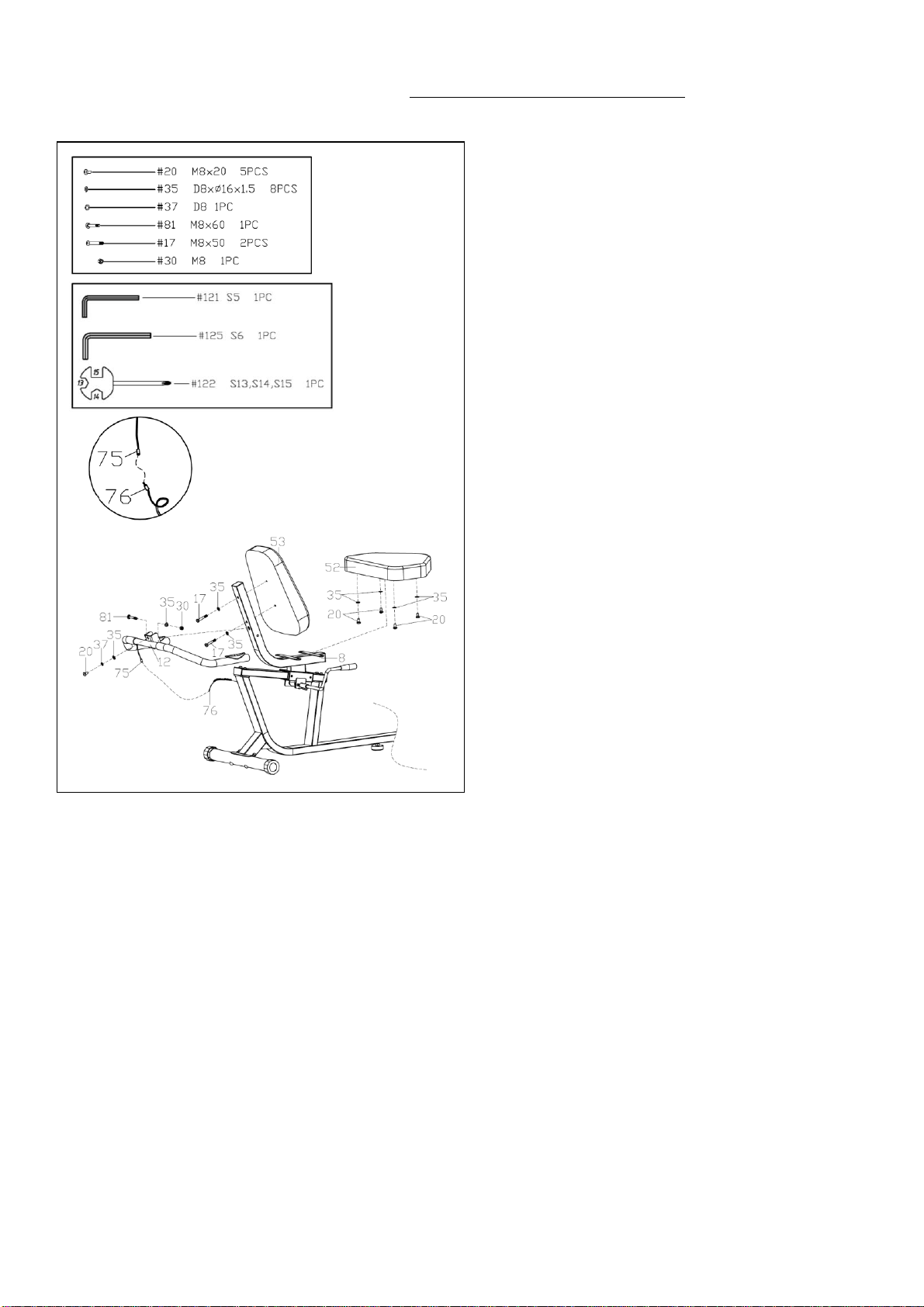

Attach the Seat Rail (No. 7) to the Main
Frame (No. 1) with 4 Bolts (No. 21) and 4
Flat Washers (No. 35). Tighten and secure
with Allen Wrench (No. 125).
Remove 2 Screws (No. 18) from the
Adjustable Handle (No. 13) using Allen
Wrench (No. 121).
Attach the Adjustable Handle (No. 13) to
the Axle (No. 9) with 2 Screws (No. 18) that
were just removed. Tighten and secure with
Allen Wrench (No. 121).
9
We value your experience using Sunny Health and Fitness products. For assistance with parts or
(877-907-8669).
STEP 7:
Remove 1 Screw (No. 20), 1 Spring
Washer (No. 37) and 1 Flat Washer (No.
35) from the Seat Support (No. 8) using
Allen Wrench (No. 125)
Attach the Rear Handlebar (No. 12) to the
Seat Support (No. 8) with 1 Screw (No.
20), 1 Spring Washer (No. 37) and 1 Flat
Washer (No. 35) that were just removed.
Don’t tighten the Screw (No. 20) now.
Attach the Rear Handlebar (No. 12) to the
Seat Support (No. 8) with 1 Hex Bolt (No.
81), 1 Flat Washer (No. 35) and 1 Nylon
Nut (No. 30). Then tighten the Screw (No.
20) with Allen Wrench (No. 125) and
tighten the Hex Bolt (No. 81) with Spanner
(No. 122) at the same time.
Connect the Pulse Extension Wire 1 (No.
76) to the Pulse Wire (No. 75).
Attach the Seat (No. 52) to the Seat
Support (No. 8) with 4 Flat Washers (No.
35) and 4 Screws (No. 20). Tighten and
secure with Allen Wrench (No. 125).
Attach the Backrest (No. 53) to the Seat
Support (No. 8) with 2 Flat Washers (No.
35) and 2 Bolts (No. 17) using Allen
Wrench (No. 121).
10
We value your experience using Sunny Health and Fitness products. For assistance with parts or
(877-907-8669).

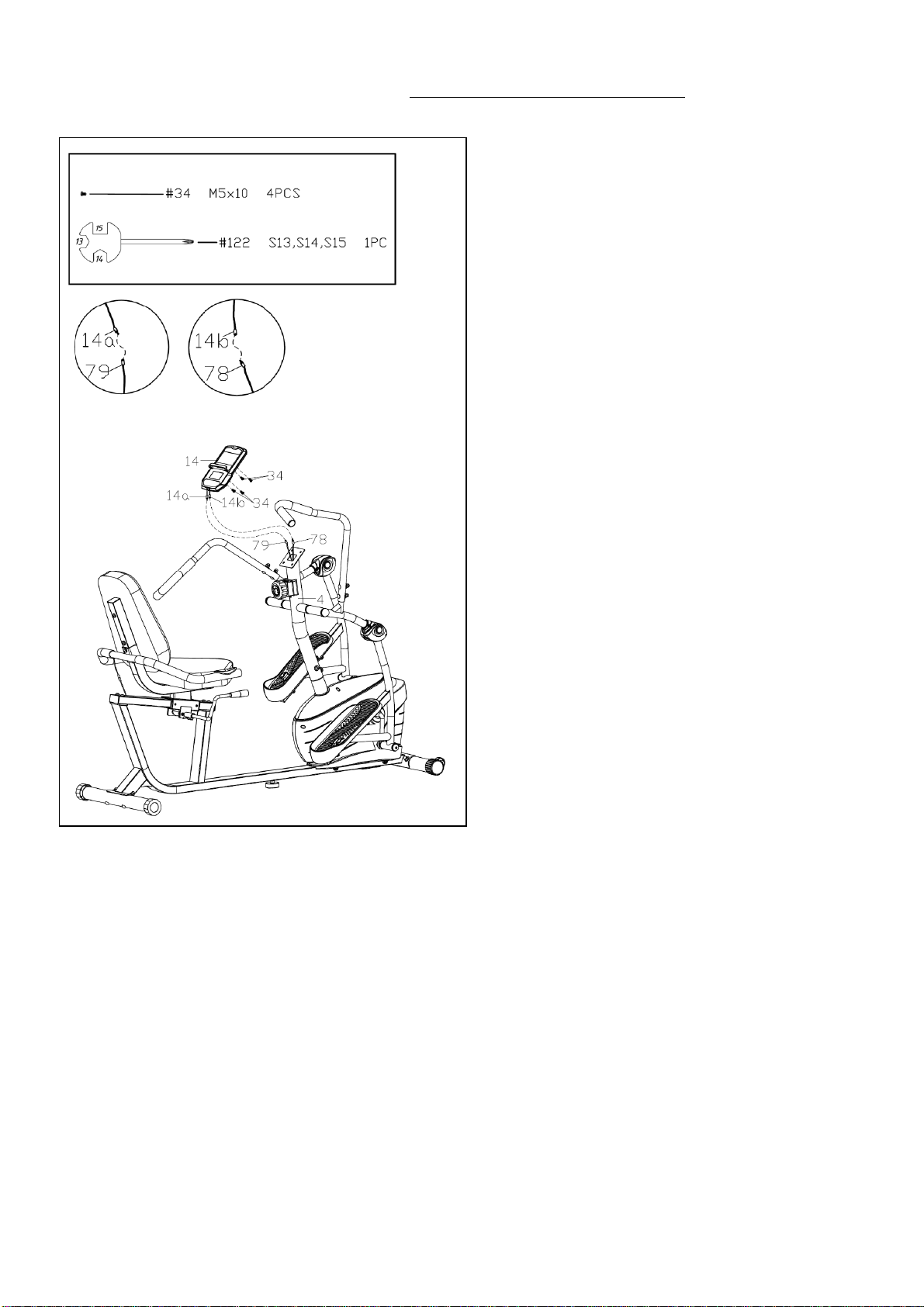

STEP 8
Remove 4 Screws (No. 34) from the Meter
(No. 14) with Spanner (No. 122).
Connect the Pulse Extension Wire 2 (No.
79) with Meter Wire A (No. 14a), and
connect the Sensor Extension Wire 2 (No.
78) with Meter Wire B (No. 14b).
Attach the Meter (No. 14) to the bracket of
the Handlebar Post (No. 4) with 4 Screws
(No. 34) that were just removed using
Spanner (No. 122).
The assembly is complete!
11

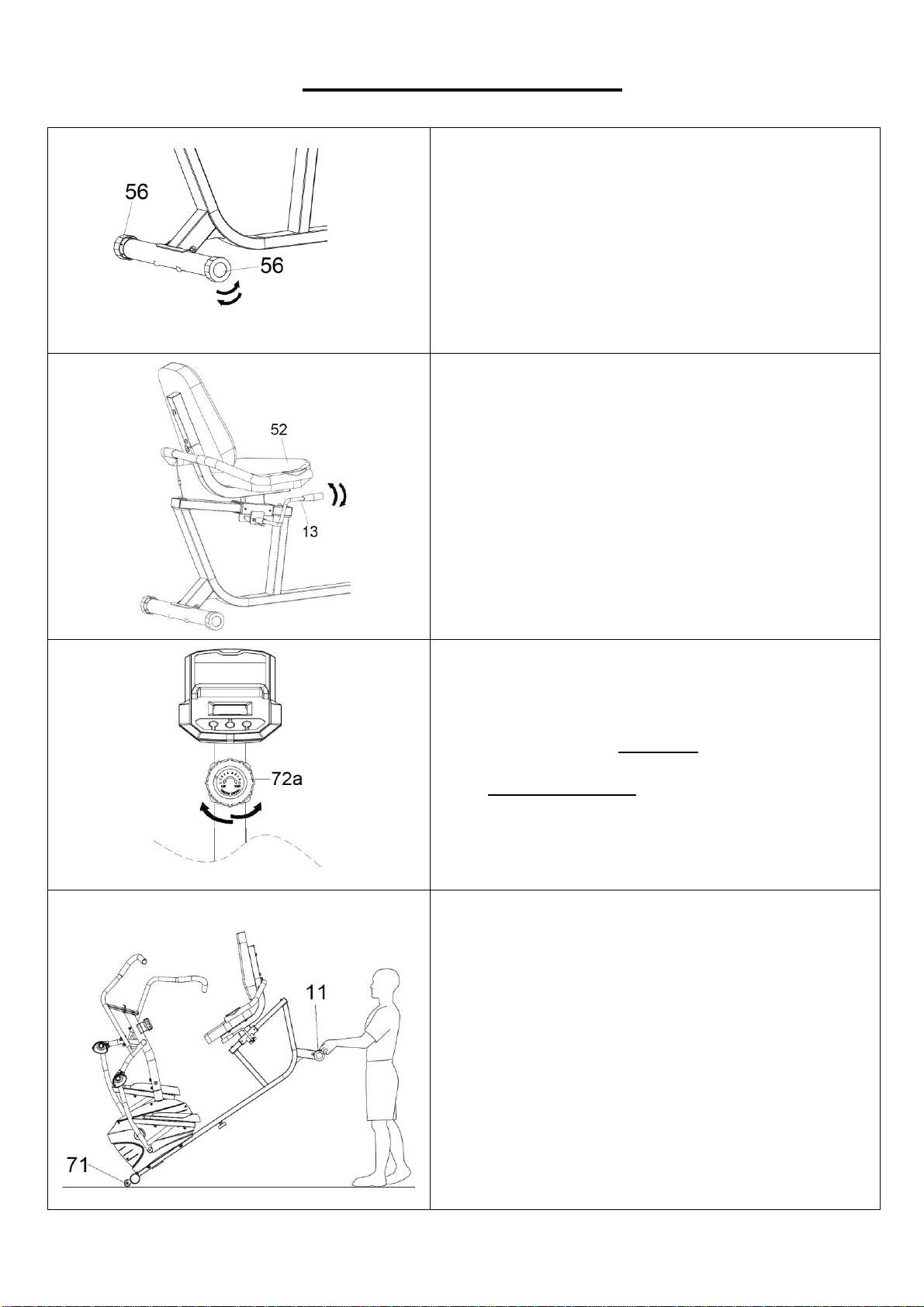

ADJUSTMENT GUIDE
ADJUSTING THE BALANCE
In order to achieve a smooth and comfortable ride,
you must ensure that the recumbent elliptical is
stabled and secured. If you notice that the
recumbent elliptical is unbalanced during use, you
should adjust the Rear End Caps (No. 56) located
on the rear stabilizer until the recumbent elliptical
becomes levelled with the floor surface.
ADJUSTING THE SEAT
To move the Seat (No. 52) forward or backward,
while seated on the recumbent elliptical, put your
feet on the floor. Shift the Adjustable Handle (No.
13) down to loosen. Adjust the Seat (No. 52) to your
desired position, then shift the Adjustable Handle
(No. 13) up to secure.
ADJUSTING THE TENSION
Adjust the tension by rotating the Tension
Controller (No. 72a) clockwise to increase the level
of resistance. Rotate the Tension Controller (No.
72a) counter-clockwise to decrease the level of
resistance.
Tension levels are set at Level 1 being the lowest
and Level 8 being the highest.
MOVING THE RECUMBENT ELLIPTICAL
Lift the recumbent elliptical by the Rear Stabilizer
(No. 11) until the Transportation Wheels (No. 71)
touch the ground. With the Transportation Wheels
(No. 71) on the ground, you can transport the
recumbent elliptical to the desired location with ease.
12

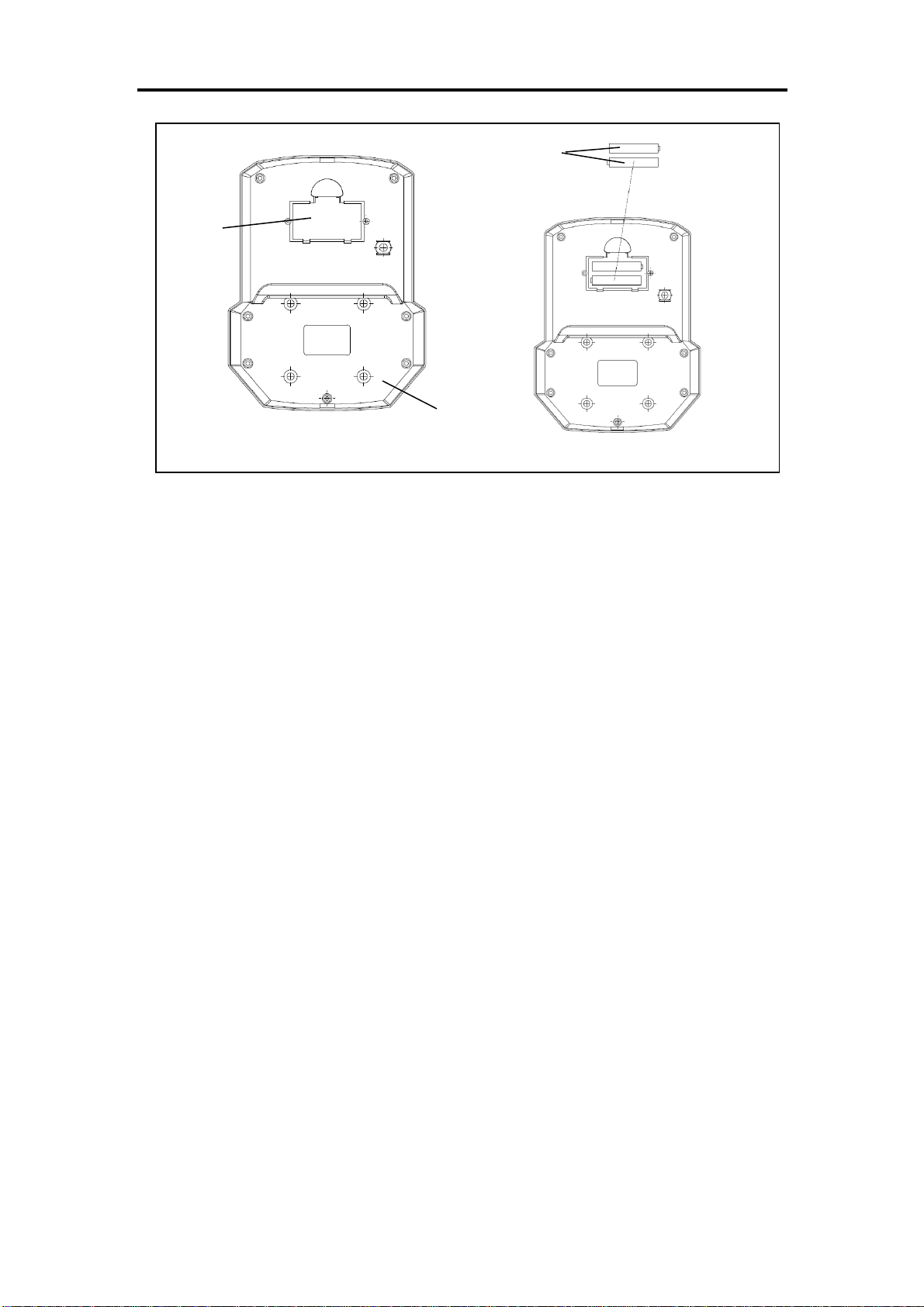

BATTERY INSTALLATION & REPLACEMENT
BATTERY INSTALLATION
1. Take out 2 AAA batteries from meter box.
2. Press the buckle of battery cover on the Meter (No. 14), then remove battery cover.
3. Install 2 AAA batteries into the battery case on the back of the Meter (No. 14). Pay attention to
the battery + and – poles before installing.
4. Press the buckle of battery cover, then put the battery cover back to the back of the Meter (No.
14).
The installation is complete!
BATTERY REPLACEMENT
1. Press the buckle of battery cover on the back of the Meter (No. 14), then remove battery cover.
2. Remove the 2 old AAA batteries in the battery case and install 2 new AAA batteries into the
battery case on the back of the Meter (No. 14). Pay attention to the battery + and – poles before
installing.
3. Press the buckle of battery cover, then put the battery cover back to the back of the Meter (No.
14).
The replacement is complete!
BATTERY DISPOSAL
Dispose the batteries according to the laws and regulations of your local region. Some batteries
may be recycled. When disposing or recycling, do not mix battery types.
Battery
Cover
Battery
14
13

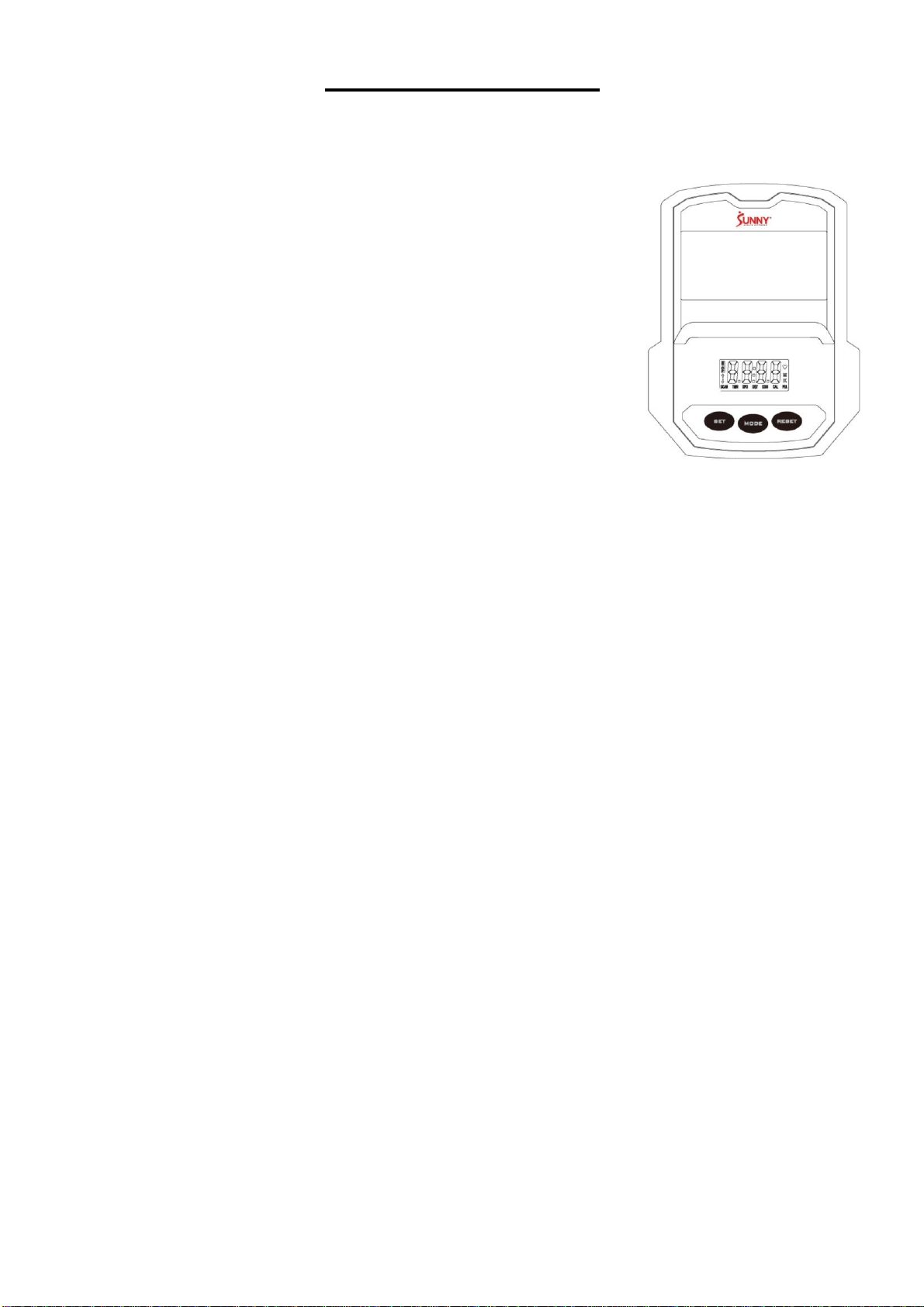

EXERCISE METER
FUNCTION BUTTONS:
MODE: Press the button to select TIME, DISTANCE, and
CALORIES to preset.
Press the button for selection function display value on
LCD or enter after setting.
Press the button and hold for 3 seconds to reset all values
except odometer to zero.
(When user replaces the batteries, all the values will reset
to ZERO automatically).
SET: To set up the target value of TIME, DISTANCE, and
CALORIES. Press the button and hold for 2 seconds to
speed up the increment.
RESET: Press the button to reset function value when setting.
Press the button and hold for 3 seconds to reset all values
except odometer to zero (When the user replaces batteries,
all the values will reset to ZERO automatically).
FUNCTIONS & OPERATIONS:
1. BATTERY INSTALLATION:
Please install 2 AAA 1.5V batteries in the battery case on the back of the meter. (Whenever
batteries are removed, all the function values will be reset to zero.)
2. AUTO ON/OFF:
Once the user begins to exercise, the meter will show the workout value automatically. After
about 4 minutes of inactivity, the meter will turn off. Odometer value does not reset to 0 when the
meter turns off. When the user starts to exercise again, the workout value of odometer will
accumulate continuously.
3. AUTO SCAN:
After the meter is powered on, press MODE button and the LCD will display all function values
from TIME-SPEED-DISTANCE-CALORIES-ODOMETER-PULSE. Each value will be held for 6
seconds.
4. SPEED:
Displays the current training speed from 0.0 to 99.9 MPH (Miles per hour).
5. DISTANCE:
Accumulates total distance from 0.00 up to 9999 M (miles). The user may preset target distance
by pressing the SET & MODE buttons. Each increment is 0.1 M (Miles).
Automatically counts down from targeting value during exercise.
6. TIME:
Accumulates total time from 00:00 up to 99:59. The user may preset target time by pressing SET
& MODE buttons. Each increment is 1 minute.
Automatically counts down from targeting value during exercise.
14
7. CALORIES:
Accumulates calories burned during training from 0.0 to 9999 (Cal). The user may also preset
the target calories before training by pressing the SET & MODE buttons. Each setting increment
is 1 Cal.
Automatically counts down from targeting value during exercise.
NOTE: This data is a rough guide which cannot be used in medical treatment.
8. ODOMETER:
Displays the total accumulated distance from 0.0 to 9999 M (miles). User can also press MODE
button to display the odometer value.
9. PULSE:
The meter will display the user's heart rate in beats per minute (BPM) during training.
NOTE: This data is a rough guide which cannot be used in medical treatment.
10. RESET:
Press the button and hold for 3 seconds to reset all values except odometer to zero.
NOTE:
1. If the meter display is abnormal, please re-install the new batteries and try again. Always change
both batteries at the same time. Do not mix battery types and do not mix old and new batteries.
2. Battery Spec: 1.5V UM-4 or AAA (2PCS).
3. Dispose the batteries safely, according to your state and regional guidelines.
APP CONNECTION:
1. Scan the QR code below to download the SunnyFit app onto your mobile device.
2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your
free SunnyFit account and log in.
3. Ensure that the Bluetooth function is turned on from your mobile device.
4. To connect the equipment to the SunnyFit app:
a. From the “Workout” tab, press on the “Search” button to search for your equipment.
b. Once your equipment appears on the list, tap the “Select” button to confirm.
c. NOTE: If your equipment does not appear on the "Searching for Equipment" list, check the
EXERCISE METER on your equipment to ensure that it is not in sleep mode and your phone's
Bluetooth function is on, then tap "Retry" to search again.
d. Once your equipment shows up on the “Workout” tab as “Currently Selected”, your equipment
is now ready to display, track, and record your equipment’s workout stats on the app!
5. If you are unable to replicate these steps, or have any other issues with the SunnyFit app,
please contact SunnyFit support at [email protected], or use the in-app “Contact Us”
form to request support (“Me” tab -> “Contact Us”).
15
EXPLODED DIAGRAM 1
EXPLODED DIAGRAM 2
16
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
45
Spring Washer
Φ13×B2
2
2L/R
Swing Bar
1 pr.
46L/R
Nylon Nut
B0.5×20
1 pr.
3L/R
Pedal Support Tube
1 pr.
47
Handle Fixed Plate
1
4
Handlebar Post
1
48
Nut Cap
S19
2
5L/R
Handlebar
1 pr.
49L/R
Pedal
1 pr.
6
Cardan Joint
2
50
Nut Cap
S13
2
7
Seat Rail
1
51a/b
Protective Cover
2 prs.
8
Seat Support
1
52
Seat
1
9
Axle
1
53
Backrest
1
10
Front Stabilizer
1
54
Adjustable Pad
M10×30
1
11
Rear Stabilizer
1
55
Front End Cap
Φ50
2
12
Rear Handlebar
1
56
Rear End Cap
Φ50
2
13
Adjustable Handle
1
57
Wave Washer
D20
2
14
Meter
TZ4112
1
58
Round Cap
Φ25×1.5
4
14a
Meter Wire A
1
59
Square Cap 1
30×30×1.5
2
14b
Meter Wire B
1
60
Square Cap 2
38×38×1.5
2
15
Hex Bolt
M8×55
4
61
Foam Grip 1
Φ24×T3×270
2
16
Carriage Bolt
M8×65
4
62
Foam Grip 2
Φ24×T3×480
2
17
Bolt
M8×50
2
63
Plug
Φ12.5
2
18
Screw
M6×10
2
64
Plastic Bushing
Φ24×16×Φ16.1
4
19
Bolt
M10×35
2
65
Plastic Bushing
Φ26.8×28
6
20
Screw
M8×20
9
66
Nylon Nut
M6
1
21
Bolt
M8×40
4
67
Set Bolt
M8×10
1
22
Screw
ST3.5×8
6
68
Grip
Black
1
23
Screw
ST4.2×18
15
69
Bushing
80×40x1.5
2
24
Bolt
M8×35
4
70
Upper Block
38×34×36.2
1
25
Screw
M8×38
2
71
Transportation
Wheel
Φ42×Φ8×L21
2
26
Hex Screw
M8×20
2
72a
Tension Controller
1
27
Hex Nut
M10
3
72b
Tension Cable
1
28
Nylon Nut
M10
2
73
Tension Hook
1150 mm
1
29
Cap Nut
M8
8
74
Pulse Sensor
2
30
Nylon Nut
M8
8
75
Pulse Wire
700 mm
1
31
Screw
ST4.2×12
4
76
Pulse Extension
Wire 1
2000 mm
1
32
Wave Washer
D17
2
77
Sensor Extension
Wire 1
650 mm
1
33
Flat Washer
D8×Φ32×2
2
78
Sensor Extension
Wire 2
650 mm
1
34
Screw
M5×10
4
79
Pulse Extension
Wire 2
650 mm
1
35
Flat Washer
D8×Φ16×1.5
18
80
Square Cap 3
60×30×1.5
2
36
Arc Washer
Φ20×D8.5×R25
12
81
Hex Bolt
M8×60
1
37
Spring Washer
D8
7
82
Arc Washer
D5
1
38
Eccentric Wheel
Φ25×38
1
83
Screw
M5×15
1
39
Axle Spring Washer
D12
3
84
Flywheel
Φ200×40
1
40
Long Axle
Φ19×386
1
85
Bearing
6001-2RS
4
41
Crank
B0.5×20
1
86
Wave Washer
D12
2
42
Screw
M6×16
2
87
Bearing Fixed Plate
72×56×1.5
2
43
Adjusting Bolt
M6×50
1
88
Bearing Bracket
72×56×11
2
44L/R
Hinge Bolt
Φ16×89
1 pr.
89
Spring Washer
D6
5
17
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
90
Spring
Φ3.5×Φ18.5×L43.5
1
109
Screw
M6×8
2
91
Hex Bolt
M5×60
1
110
Screw
Φ14×Φ10×M8x20.5
1
92
Hex Nut
M5
2
111
Spring
Φ1.6×Φ15×L47.2
1
93
Idler Wheel
Φ39×24
1
112
Sealing Ring
Φ50
1
94
Idler Wheel
Linkage
1
113
Plug
Φ25×22
2
95
Screw
M6×12
6
114
Magnetic Board
Axle
Φ12×61
1
96
Belt Pulley
Φ220
1
115
Magnetic Board
1
97L/R
Belt Cover
1 pr.
116
Magnet
40×25×10
4
98
Crank Cover
Φ60×Φ30
2
117
Flat Washer
D6×Φ16×1.5
3
99
Nut
4.5×32×32
2
118
Flat Washer
D10×Φ14×1
1
100
Washer
Φ22.6×Φ28×2.5
1
119
Flat Washer
D6×Φ12×1.2
2
101
Locking Nut-L
Φ45×H3.5
1
120
Flywheel Axle
Φ20×103
1
102
Open Face
Bearing
Φ45.8×8.8
2
121
Allen Wrench
S5
1
103
Bearing
Housing
25×76×76
2
122
Spanner
S13, S14, S15
2
104
Locking Nut-R
Φ45×H3.5
1
123
Spanner
S17, S19
1
105
Big Flat Washer
Φ25.2×Φ38×1
1
124
Flat Washer
D10×Φ20×2
2
106
Sensor Bracket
1
125
Allen Wrench
S6
1
107
Belt
350 PJ6
1
126
Allen Wrench
S8
1
108
Hex Screw
M6×15
3
127
Open End
Wrench
S17, S19
1
Version 1.2
