Operating and Installation
Instructions
Refrigerators
To prevent accidents and machine damage, read these instructions
before installation or use.
en- US, CA M.-Nr. 11 508 610
Contents
2
IMPORTANT SAFETY INSTRUCTIONS ............................................................ 5
Caring for the environment .............................................................................. 13
Installation.......................................................................................................... 14
Installation location ............................................................................................. 14
Climate class .................................................................................................. 14
Installation notes ................................................................................................. 15
Adjoining cabinetry/units................................................................................ 15
Load-bearing capacity of the niche floor ....................................................... 16
Ventilation....................................................................................................... 16
Door hinge...................................................................................................... 16
Side-by-side................................................................................................... 17
Installation dimensions........................................................................................ 19
Position of the electrical connection .............................................................. 19
Dimensions when the appliance door is open (opening angle 90°/115°)....... 22
Dimensions of the cabinet front .......................................................................... 23
Building in the appliance ..................................................................................... 24
Before starting................................................................................................ 24
Tools required................................................................................................. 24
Weight of cabinet front ................................................................................... 25
Aligning the installation niche......................................................................... 25
Checking the installation niche ...................................................................... 26
Before installation........................................................................................... 26
Preparing the installation niche ...................................................................... 28
Pushing the appliance into the niche ............................................................. 30
Aligning the refrigeration appliance................................................................ 32
Securing the appliance in the niche ............................................................... 35
Preparing the cabinet fronts........................................................................... 36
Securing and aligning the cabinet front ......................................................... 40
Securing the covers ....................................................................................... 43
Securing the toe-kick ventilation grille and toe-kick cover ............................ 46
Limiting the opening angle of the appliance door.......................................... 46
Electrical connection ........................................................................................... 47
Saving energy .................................................................................................... 49

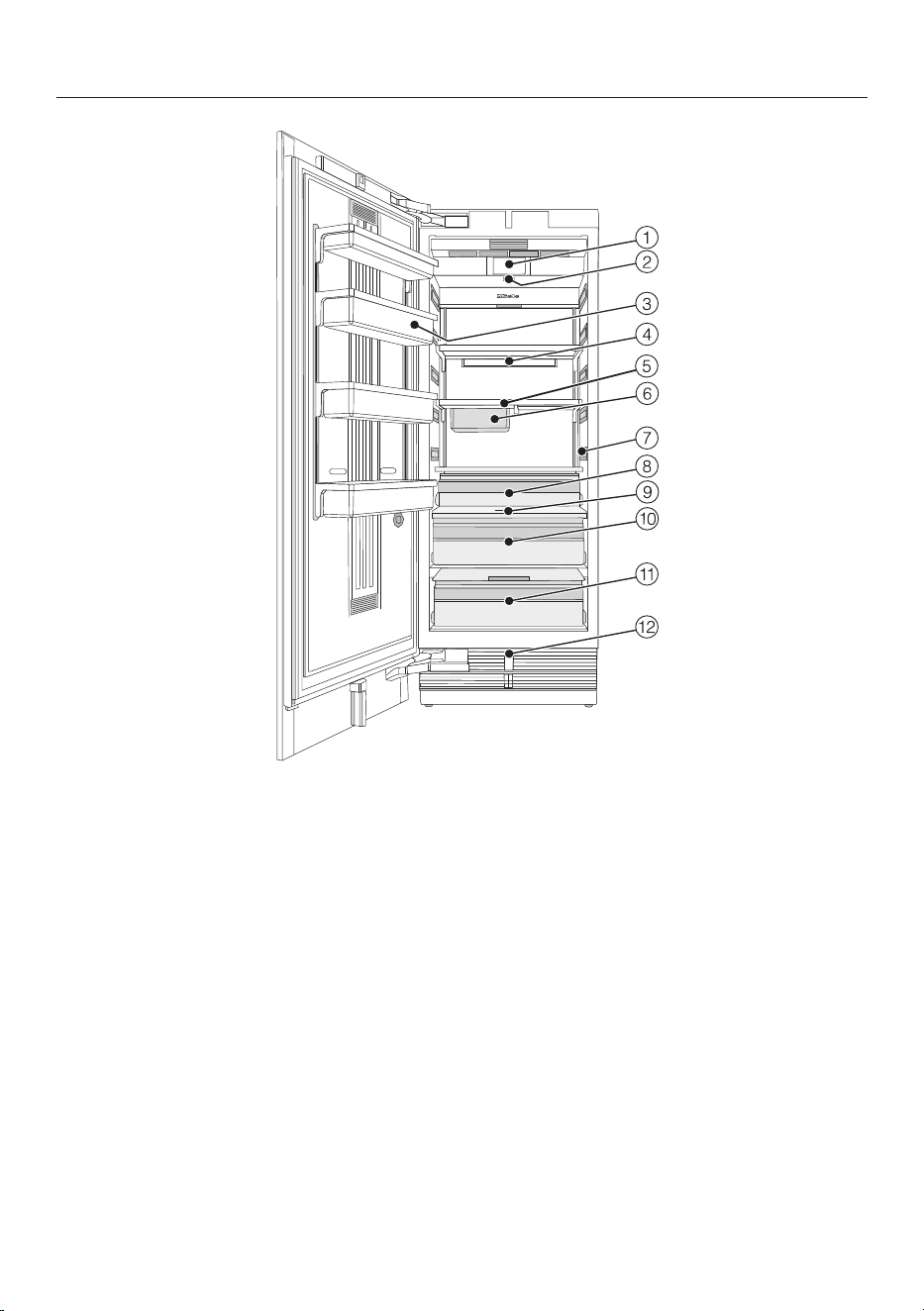

Guide to the appliance...................................................................................... 51
Main screen......................................................................................................... 53
Settings mode ................................................................................................ 54
Accessories ....................................................................................................... 56
Accessories supplied .......................................................................................... 56
Optional accessories........................................................................................... 56
Contents
3
Before first use .................................................................................................. 58
Choosing the right Door Assistant (Push2Open/Pull2Open) ........................ 58
Inserting the Active AirClean filters ................................................................ 59
Operating the refrigeration appliance.................................................................. 59
Starting up for the first time ........................................................................... 60
Switching on and off ......................................................................................... 62
Switching off for longer periods of time .............................................................. 62
Selecting additional settings............................................................................ 63
Switching Keypad Lock/ on or off .............................................................. 63
Adjusting the temperature in the MasterFresh zone (dry compartment) ....... 64
Switching Eco Modeon or off........................................................................ 64
Performing a Self Test..................................................................................... 65
Switching on the Door Assistant ..................................................................... 66
Switching off the Door Assistant ..................................................................... 68
Setting up Miele@home ...................................................................................... 68
Switching off Demo Mode................................................................................ 72
Resetting the settings to their default settings.............................................. 73
Switching Sabbath Mode on or off .................................................................. 75
Switching on, switching off, or resetting the Display Active AirClean Filter ... 76
The correct temperature................................................................................... 78
...in the refrigerator section and in the MasterFresh zone .................................. 78
Automatic cold air circulation (DynaCool) ...................................................... 78
Setting the temperature....................................................................................... 79
Adjusting the temperature in the dry compartment of the MasterFresh zone 79
Temperature range ......................................................................................... 79
Using Automatic SuperCool............................................................................. 80
Door alarm ......................................................................................................... 81
Adjusting the interior fittings............................................................................ 82
Removing or moving the door shelves................................................................ 82
Removing or moving the shelves ........................................................................ 82
Removing the hanging drawer ............................................................................ 83
Removing compartments from the Fridge Zone ................................................. 84
Storing food in the refrigerator section........................................................... 85
Different storage zones ....................................................................................... 85
Food which is not suitable for storage in the fridge zone ................................... 86
Notes on buying food.......................................................................................... 87
Storing food correctly.......................................................................................... 87
Contents
4
Storing food in the MasterFresh zone ............................................................. 88
MastertFresh zone............................................................................................... 88
Humidity-controlled compartment with moisture adjustment........................ 88
Dry compartment with adjustable temperature.............................................. 90
Automatic defrosting ........................................................................................ 92
Cleaning and care ............................................................................................. 93
Cleaning agents................................................................................................... 93
Before cleaning the appliance............................................................................. 94
Interior and accessories ...................................................................................... 94
Cleaning the door seal ........................................................................................ 95
Cleaning the ventilation gaps .............................................................................. 95
Replacing the Active AirClean filters ................................................................... 95
Frequently Asked Questions ............................................................................ 97
Causes of noises ............................................................................................... 102
Customer Service.............................................................................................. 103
Contact in the event of a fault ............................................................................. 103
Appliance warranty and product registration ...................................................... 103
Declaration of conformity................................................................................. 104
Copyrights and licenses ................................................................................... 105
IMPORTANT SAFETY INSTRUCTIONS
This refrigeration appliance complies with current safety
requirements. Inappropriate use can, however, lead to personal
injury and material damage.
Please read the operating and installation instructions carefully
before using the refrigeration appliance for the first time. They
contain important information on safety, installation, use, and
maintenance. This is to protect yourself from injury, and from
damaging your refrigeration appliance.
Miele expressly and strongly advises that you read and follow the
instructions in the chapter on installing the refrigeration appliance,
as well as the IMPORTANT SAFETY INSTRUCTIONS.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Risk of injury and damage due to tipping refrigeration
appliance.
This refrigeration appliance is very heavy and can tip forward when
the door is open.
Keep the appliance door shut until the refrigeration appliance has
been built in and secured in its housing in accordance with the
operating and installation instructions.
5
IMPORTANT SAFETY INSTRUCTIONS
Appropriate use
This appliance is intended for use in domestic households and
similar residential environments such as
– staff kitchen areas in shops, offices and other working
environments
– farm houses and by clients in hotels, motels and other residential
type environments
– bed and breakfast type environments
– catering and similar non-retail applications.
This appliance is not intended for use outdoors, in damp
environments or in places exposed to rain.
This refrigeration appliance is intended for domestic use only for
the cool storage of food and drink.
Any other usage is at the owner’s risk and could be dangerous.
This refrigeration appliance is not suitable for storing and keeping
cool medicines, blood plasma, laboratory preparations, or other
similar substances or products that are subject to the Medical
Device Directive. Incorrect use of the refrigeration appliance for such
purposes may cause deterioration of the items stored. The
refrigeration appliance is also not suitable for use in areas where
there is a risk of explosion.
Miele cannot be held liable for damage resulting from incorrect or
improper use or operation.
This refrigeration appliance may only be used by people (including
children) with reduced physical, sensory, or mental capabilities or
lack of experience and knowledge if they are supervised while using
it.
The refrigeration appliance may only be used by these people
without supervision if they have been shown how to use it in a safe
way and recognize and understand the consequences of incorrect
operation.
6
IMPORTANT SAFETY INSTRUCTIONS
Safety with children
To reduce the risk of injury, do not allow children to play in, on or
near the appliance.
The door hinges can cause injury. Keep children well away at all
times.
Ensure that any packing material is disposed of safely and kept
out of the reach of children. DANGER of suffocation!
Technical safety
The coolant circuit has been checked for leaks. The refrigeration
appliance complies with statutory and regulatory requirements.
This refrigeration appliance contains the coolant Isobutane
(R600a), a natural gas which is environmentally friendly. Although it is
combustible, it does not damage the ozone layer and does not
contribute to the greenhouse effect.
The use of this coolant has, however, led to a slight increase in the
noise level of the appliance. In addition to the noise of the
compressor, you might be able to hear the coolant flowing around
the cooling circuit. Unfortunately, this cannot be avoided, but it does
not affect the performance of the refrigeration appliance.
When transporting and installing the refrigeration appliance, ensure
that no parts of the cooling circuit are damaged. Splashes of coolant
can damage the eyes.
In the event of damage:
- Avoid open flames or anything which creates a spark.
- Disconnect the refrigeration appliance from the power supply.
- Ventilate the room where the refrigeration appliance is located for
several minutes.
7
IMPORTANT SAFETY INSTRUCTIONS
- Contact Miele Customer Service.
The more coolant there is in a refrigeration appliance, the larger
the room it should be installed in. In the event of a leakage, if the
appliance is in a small room, there is the danger of a combustible
gas/air mixture building up. For every 11g of coolant, at least 1m
3
of
room space is required. The amount of coolant in the refrigeration
appliance is stated on the data plate inside the appliance.
To avoid the risk of damage to the appliance, make sure that the
connection data (fuse rating, frequency and voltage) on the data
plate corresponds to the household supply.
Check that this is the case before connecting the appliance. Consult
a qualified electrician if in any doubt.
The electrical safety of the appliance can only be guaranteed
when correctly grounded. It is essential that this standard safety
requirement is met. If in any doubt please have the electrical
installation tested by a qualified electrician.
Reliable and safe operation of this appliance can only be assured
if it has been connected to the electricity supply.
The outlet must not be concealed behind the appliance and must
be easily accessible so that the appliance can be quickly
disconnected from the electrical supply in case of an emergency.
If the power cord supplied is damaged, it must only be replaced
by an original part to prevent a hazard for the user. Miele can only
guarantee the safety of the appliance when original Miele parts are
used.
The electrical outlet must be properly grounded.
Do not connect the appliance to the electrical supply with a power
bar or extension cord. These are a fire hazard and do not guarantee
the required safety of the appliance.
8
IMPORTANT SAFETY INSTRUCTIONS
If moisture gets into electrical components or into the power cord,
it could cause a short circuit. Therefore, do not operate the machine
in areas where there may be moisture or splashing water (e.g.,
garages, laundry rooms).
This appliance must not be installed and operated in mobile
installations (e.g. on a ship).
Do not use a damaged appliance. It could be dangerous. Check
the appliance for visible signs of damage.
For safety reasons, this appliance may only be used after it has
been built in.
During installation, side-by-side heater installation, maintenance
and repair work, the appliance must be disconnected from the
electrical power supply. It is only completely isolated from the
electricity supply when:
- the circuit breaker has been tripped, or
- the screw-type fuses on the electrical service panel have been
removed or
- the power cord has been unplugged. Pull on the plug and not on
the cord when removing it from the outlet.
Installation, repair, and maintenance work should only be
performed by a Miele-authorized service technician.
Work by unqualified persons could be dangerous and may void the
warranty.
Any manufacturer's warranty will be void if the appliance is not
repaired by a Miele approved service technician.
Faulty components must only be replaced by genuine Miele
replacement parts. Miele can only guarantee the safety standards of
the appliance when Miele replacement parts are used.
9
IMPORTANT SAFETY INSTRUCTIONS
Correct use
The refrigeration appliance is designed for use within a specific
climate class (room temperature range). Do not use in a climate class
for which it is not designed. A lower room temperature will cause the
compressor to switch off for longer periods, meaning that the
refrigeration appliance is unable to maintain the required
temperature.
WARNING! DANGER of overheating! Do not cover or block the air
vents. This can impair the efficiency of the appliance, increase the
power consumption and cause damage to the appliance.
If storing food which contains a lot of fat or oil in the appliance,
make sure that it does not come into contact with plastic
components as this could cause stress cracks or break the plastic.
Risk of fire and explosion. Do not store any explosive materials or
products containing flammable propellants (e.g., spray cans) in the
appliance. Electrical components can cause flammable mixes of
gases to ignite.
Risk of explosion. Do not operate any electrical equipment (e.g.,
an electric ice-cream maker) inside the refrigeration appliance. Risk
of sparking and explosion.
When eating stored food, there is a danger of food poisoning.
Storage times will depend on several factors, including the freshness
and quality of the food, as well as the temperature at which it is
stored. Observe the manufacturer's “use-by” dates and storage
instructions.
Use only genuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty may become invalid.
10
IMPORTANT SAFETY INSTRUCTIONS
Cleaning and maintenance
Do not use any oil or grease on the door seals.
They can cause the seals to deteriorate over time.
Never use a steam cleaner to clean the appliance.
The steam can reach the electrical components and cause a short
circuit.
Sharp edged or pointed objects will damage the evaporator,
causing irreversible damage to the appliance. Do not use sharp
edged or pointed objects to
- remove frost or ice,
- separate frozen foods or remove ice trays.
Transport
To avoid damage to the appliance, always transport it upright and
in its packaging.
Risk of injury and damage. The refrigeration appliance is very
heavy and must be transported by 2people.
11
IMPORTANT SAFETY INSTRUCTIONS
Disposal of your old appliance
Children could become trapped in the machine and could
suffocate.
- Remove the machine doors.
- Remove the drawers.
- Leave the adjustable shelves in the machine so children cannot
climb inside.
DANGER of electric shock!
- Cut the plug off the power cord.
- Cut the power cord off the old appliance.
Dispose of them separately from the appliance.
Ensure that the appliance is not stored in the vicinity of gasoline or
inflammable gases and liquids during and after disposal.
Make sure that the coolant pipework is not damaged during
disposal to avoid uncontrolled leakage of oil and coolant (see data
plate for coolant type).
Splashes of coolant can cause damage to the eyes. Be careful not
to damage any part of the pipework while awaiting disposal, e.g. by
- puncturing the coolant channels in the evaporator,
- kinking any pipework,
- scratching the surface coating.
12
Caring for the environment
13
Disposal of packaging material
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children. Return
the packaging to your dealer.
Disposing of your old
appliance
Electronic and electrical appliances
contain many valuable materials. They
also contain certain materials,
compounds, and components which
were essential for their correct
functioning and safety. These could be
hazardous to your health and to the
environment if disposed of with general
waste or if handled incorrectly. Please
do not, therefore, dispose of your old
appliance with general waste.
Instead, please make use of officially
designated collection and disposal
points to dispose of and recycle
electrical and electronic appliances. By
law, you are solely responsible for
deleting any personal data from the
appliance prior to disposal.
Take care not to damage your
refrigeration appliance’s pipework
before or during transportation to an
authorized collection depot.
This is to ensure that coolant in the
cooling circuit and oil in the compressor
is contained, and will not leak into the
environment.
Please ensure that your old appliance
poses no risk to children while being
stored for disposal. For additional
information, see “IMPORTANT SAFETY
INSTRUCTIONS” in these operating and
installation instructions.
Installation
*INSTALLATION*
14
Installation location
This appliance should be installed in a
dry, well-ventilated room.
When deciding where to install your
refrigeration appliance, please bear in
mind that it will use more energy if
installed near to a heater, a range, or
another appliance that gives off heat.
Direct sunlight should also be avoided.
The higher the room temperature, the
longer the compressor runs and the
higher the energy consumption of the
refrigeration appliance.
When installing the refrigeration
appliance, please note the following:
- The electrical socket must be easily
accessible in an emergency and not
concealed behind the appliance.
- The plug and power cord must not
touch the rear of the refrigeration
appliance as they could be damaged
by vibrations from the appliance.
- Do not plug in other appliances
behind the refrigeration appliance.
If installation near a heat source is
unavoidable, observe the following
minimum distances between the
appliance and the heat source:
- At least 1 1/4" (3cm)
to electric or gas stoves
- At least 11 3/4" (30cm)
to oil or coal-based stoves
If it is not possible to observe these
minimum distances, an isolation plate
must be installed between the
refrigeration appliance and the heat
source.
Climate class
The refrigeration appliance is designed
for use within the climate class (room
temperature range) SN-T. Do not use in
a climate class for which it is not
designed.
Climate class Room
temperature
SN 50°F to 90°F /
10°C to 32°C
N 60°F to 90°F /
+16°C to +32°C
ST 60°F to 100°F /
+16to +38°C
T 60°F to 109°F /
+16to +43°C
A lower room temperature will cause
the compressor to switch off for longer
periods. This can cause the internal
temperature in the refrigeration
appliance to rise with the risk of food
deteriorating and going off.
Installation
*INSTALLATION*
15
Risk of damage due to high
humidity.
In environments with high humidity,
condensation can build up on
external refrigeration appliance
panels, which can cause corrosion.
Install the refrigeration appliance in a
dry and/or air-conditioned room with
sufficient ventilation.
After installation, make sure that the
appliance door closes properly, the
ventilation gaps are not covered, and
the refrigeration appliance has been
installed in accordance with these
operating and installation
instructions.
Installation notes
Risk of damage and injury due to
the refrigeration appliance tipping
over.
This refrigeration appliance is very
heavy and can tip forwards when the
appliance door(s) is (are) open.
Keep the appliance door(s) shut until
the refrigeration appliance has been
built in and secured in its housing in
accordance with these operating and
installation instructions.
Due to its weight and size, the
refrigeration appliance must be
installed by two people.
Adjoining cabinetry/units
The appliance is screwed to the
adjoining cabinetry/units to the side and
above. For this reason, it is essential
that all cabinets/units are fixed to the
ground and/or wall.
Installation
*INSTALLATION*
16
Load-bearing capacity of the niche
floor
To ensure the safe installation of the
refrigeration appliance and to guarantee
its correct functioning, the floor of the
niche where the appliance is to be
installed must be smooth and even.
It must be made from strong, rigid
material.
Because the refrigeration appliance is
extremely heavy when fully loaded, it is
essential that the floor it stands on is
able to bear its weight. If necessary,
seek the advice of an architect or
construction expert.
When fully loaded, the weight of the
refrigeration appliance is approx.:
K 2602 Vi, K 2612 Vi 717 lbs
(325 kg)
K 2802 Vi, K 2812 Vi 838 lbs
(380 kg)
K 2902 Vi, K 2912 Vi 988 lbs
(448 kg)
Ventilation
Risk of fire and damage due to
insufficient ventilation.
If the refrigeration appliance is not
ventilated sufficiently, the
compressor will run more frequently
and for longer periods.
This causes increased energy
consumption and an increased
compressor operating temperature,
which can result in damage to the
compressor.
Please ensure that there is adequate
ventilation around the refrigeration
appliance.
Do not block the ventilation gaps.
The ventilation gaps must never be
obstructed.
Door hinge
Risk of damage and injury when
changing the door hinges.
Changing the door hinges single-
handedly can cause damage to the
appliance and injury.
The refrigeration appliance is
supplied with a fixed hinge. On no
account should you attempt to
change the door hinge yourself.
If you need to change the door hinge
to the other side, please contact the
Miele Service department.
Installation
*INSTALLATION*
17
Side-by-side
This appliance can be installed side-by-
side with another refrigeration
appliance. The following overview will
show you which side-by-side
installation options you have with your
refrigeration appliance.
Depending on the installation
situation, you will need the side-by-
side installation kit for side-by-side
installation (see “Accessories –
Optional accessories”).
Instructions for installing refrigeration
appliances side-by-side can be found
in the side-by-side installation kit
installation instructions.
. . . with partition wall
The wall a between the side-by-side
appliances must be at least
5/8" (16mm) thick.
If the door hinges of the refrigeration
appliances are next to each other,
you must take into account the
thickness of the cabinet fronts and
door handles so that the appliance
doors do not collide and become
damaged if they are opened at the
same time.
The refrigeration appliances are secured
individually in their installation niche
using the supplied installation material.
If the partition wall a is narrower than
6 5/16" (160mm), you will need the
side panel heater from the side-by-side
installation kit to prevent condensation
from forming and any resulting damage.
When planning installation niches,
please note that the niche into which
the refrigeration appliance with the
side panel heater is installed must be
3/16" (4mm) wider (see “Installation
– Building-in dimensions”).
If the partition wall a is thicker than
6 5/16" (160mm), you do not need the
side-by-side installation kit, nor the side
panel heater.
Installation
*INSTALLATION*
18
. . .without partition wall
If the appliances are to be installed next
to each other without a partition wall
between them, they will need to be
joined together with the side-by-side
installation kit. In addition, you must
install the side panel heater to prevent
condensation from forming and any
resulting damage.
Installation
*INSTALLATION*
Installation dimensions
Position of the electrical connection
- The electrical connection must not be positioned higher than 9" (228 mm) above
the floor.
The electrical socket must not be concealed behind the appliance and must be
easily accessible in an emergency.
19
Installation
*INSTALLATION*
A
B
C
A B C
K 2602 Vi,
K 2611 V2
84"–85 3/16"
(2134–2164 mm)
24" (610 mm) 24" (610 mm) +
cabinet front 3/4"–1 1/2"
(19–38 mm)
K 2802 Vi,
K 2812 Vi
84"–85 3/16"
(2134–2164 mm)
30" (762 mm) 24" (610 mm) +
cabinet front 3/4"–1 1/2"
(19–38 mm)
K 2902 Vi,
K 2912 Vi
84"–85 3/16"
(2134–2164 mm)
36" (915 mm) 24" (610 mm) +
cabinet front 3/4"–1 1/2"
(19–38 mm)
20
Installation
*INSTALLATION*
1 3/16"
(30 mm)
7/8"
(22 mm)
10 5/16"
(262 mm)
4"
(102 mm)
4"
(102 mm)
3 3/8"
(85 mm)
Side view
21
Installation
*INSTALLATION*
Dimensions when the appliance door is open (opening angle 90°/115°)
3/8" (10 mm)
A
D
B
C
A B* C* D (with a
Cabinet front of
3/4" (19 mm)
K 2602 Vi,
K 2612 Vi
26 5/8"
(677mm)
Cabinet front 3/4"–1
1/2" (19–38mm)
Door handle 11 2/3"
(296mm)
K 2802 Vi,
K 2812 Vi
32 5/8"
(829mm)
Cabinet front 3/4"–1
1/2" (19–38mm)
Door handle 14 1/3"
(363mm)
K 2902 Vi,
K 2912 Vi
38 11/16"
(982mm)
Cabinet front 3/4"–1
1/2" (19–38mm)
Door handle 16 7/8"
(428mm)
* The dimensions of the cabinet fronts and handles will vary according to the
individual kitchen.
22
Installation
*INSTALLATION*
Dimensions of the cabinet front
A
B
C
A B C
K 2602 Vi,
K 2612 Vi
23 3/4" (604 mm) 79 7/8" (2029 mm) ≥ 4-5 3/16"
(102–132 mm)
K 2802 Vi,
K 2812 Vi
29 3/4" (756 mm) 79 7/8" (2029 mm) ≥ 4-5 3/16"
(102–132 mm)
K 2902 Vi,
K 2912 Vi
35 3/4" (908 mm) 79 7/8" (2029 mm) ≥ 4-5 3/16"
(102–132 mm)
23
Installation
*INSTALLATION*
24
Building in the appliance
Before starting...
It is essential to read these
installation instructions carefully
before starting to install the
appliance.
The appliance should be installed by
a suitably qualified tradesman in
accordance with these installation
instructions. Safe operation of the
appliance is only assured if it has
been installed and connected in
accordance with the installation
instructions.
Risk of damage and injury!
This appliance is very heavy and can
tip forwards when the door is open.
Keep the appliance door shut until
the appliance has been built in and
secured in its housing in accordance
with the operating and installation
instructions.
The appliance is both large and
heavy. Installation must be carried
out by two people.
The appliance must be installed in
accordance with local regulations. If
local regulations are not available, the
following regulations must be observed:
- in the USA: the National Electric
Code, ANSI/NFPA 70 - latest edition/
State and Municipal codes and/or
local codes.
- in Canada: the Canadian Electric
code C22.1 - latest edition/Provincial
and Municipal codes and/or local
codes.
Tools required
- Cordless drill
- TX20 screwdriver
- Hammer drill
- Drill bits in various sizes, depending
on materials
- Hammer
- Open-ended wrench
- Ratchet wrench, attachment: socket,
5/16" (8mm)
- Adhesive tape
- Utility knife
- Pipe wrench
- Level
- Tape measure
- Pencil
Other
- Step ladder
- Hand truck
Installation
*INSTALLATION*
25
Weight of cabinet front
Before installing the cabinet front,
ensure that the weight of the door does
not exceed the maximum permitted:
Appliance Max. weight
of cabinet
front
K2602Vi, K2612Vi 106 lb (48kg)
K2802Vi, K2812Vi 59 lb (27kg)
K2902Vi, K2912Vi 81 lb (37kg)
If the cabinet front is too heavy,
this can cause damage.
Fitting a cabinet front which is
heavier than the maximum permitted
weight could damage the hinges.
This damage can affect various
factors, such as operation of the
appliance.
Before installing the cabinet front,
ensure that the weight of the door
does not exceed the maximum
permitted.
Aligning the installation niche
The building-in niche must be carefully
aligned using a spirit level before the
refrigeration appliance is installed. The
niche corners must be at 90° angles to
each other, otherwise the cabinet front
will not sit straight on all 4corners of
the building-in niche.
Installation
*INSTALLATION*
26
Checking the installation niche
Check the installation dimensions
(see “Installation – Installation
dimensions”).
Check the position of the electrical
connection. The length of the power
cord is 9' 10" (3m).
The electrical socket must not be
concealed behind the appliance and
must be easily accessible in an
emergency.
Check the surroundings for possible
collisions (see “Installation –
Dimensions with appliance door
open”).
Only install the refrigeration appliance
in stable, solid installation niches,
positioned on an even and level floor.
Also check the installation niche for
the following criteria:
- The side panels of the installation
niche must be even.
- The surrounding walls of the
installation niche must be at least
5/8" (16mm) thick.
- The surrounding walls must be
securely fixed to the floor or wall.
- Shortened side walls must be at least
4" (100mm) deep.
Before installation
Before installation, remove any
accessories from the back of the
appliance.
Check the refrigeration appliance for
damage during transportation.
Do not install a damaged
refrigeration appliance.
Check that all parts at the back of the
appliance are unhindered.
To protect the floor during installation,
secure an off-cut of flooring or similar
material to the floor in front of the
installation area.
Installation
*INSTALLATION*
27
Do not remove the installation aids
from the appliance door. These will
be required later for aligning the
appliance in the building-in niche.
Risk of damage and injury due to
the refrigeration appliance tipping
over.
As soon as you unscrew the
brackets that fix the refrigeration
appliance to the pallet, the appliance
is no longer secured.
Due to its weight and size, the
refrigeration appliance must be
installed by two people.
2
Unscrew the fixing brackets .
With the help of several people as
required, carefully lift the refrigeration
appliance from the pallet, starting
with the back of the appliance.
Risk of damaging the floor from
the load.
Moving the refrigeration appliance
can cause damage to the floor.
Move the refrigeration appliance
carefully on floors that are sensitive
to scratching.
As soon as you have set the appliance
upright, you can move it using the
rollers on the bottom.
Installation
*INSTALLATION*
28
Preparing the installation niche
Risk of damage and injury due to
the refrigeration appliance tipping
over.
This refrigeration appliance is very
heavy and can tip forwards when the
doors are open.
The building-in niche must be
secured to the wall behind it and/or
above it with several screws. Only
this will prevent the refrigeration
appliance from tipping over after
being installed.
In addition, use the provided anti-tip
brackets to secure the building-in
niche.
The parts required for installation are
supplied with the refrigeration
appliance. The plastic bags supplied
are marked with letters for easy
identification.
When performing the individual
assembly steps, observe the letters
specified and use the matching
plastic bag with the required
installation equipment.
The anti-tip brackets prevent the
refrigeration appliance from tipping.
The anti-tip brackets are also used to fix
the building-in niche securely to the
surrounding walls.
Use 2 anti-tip brackets for each
individual appliance or 4 anti-tip
brackets for each (side-by-side)
combination of 2 appliances.
Position the anti-tip brackets on
the left and right of the building-in
niche.
Depending on the subsequent
adjustment of the feet, the anti-tip
brackets are positioned 7'-7' 1
3/4" (2134–2164mm) from the floor of
the niche.
Installation
*INSTALLATION*
29
Risk of injury and damage due to
tipping refrigeration appliance.
If the anti-tip brackets are fixed too
high up, they cannot be used to
secure the refrigeration appliance.
The distance between the
anti-tip brackets and the refrigeration
appliance must not exceed
5/16" (8mm).
Make sure that the gap between the
refrigeration appliance’s rear wall and
the building-in niche does not exceed
2" (51mm).
Place a wooden wedge behind the
anti-tip brackets if necessary.
While holding the anti-tip brackets in
place, mark the necessary drill holes
on the rear wall of the installation
niche.
Fixing screws for different uses and
types of material are supplied in the
accompanying pack.
Securing to a concrete wall
Securing to a wooden wall
Installation
*INSTALLATION*
30
Securing with a wooden wedge
Secure the building-in niche to the
wall behind it and/or above it as
required using the anti-tip brackets
.
Pushing the appliance into the niche
Then push the appliance into the
niche, taking care not to damage the
electrical connection!
If you are installing several
refrigeration appliances side by side,
now secure the appliances to one
another (see the Installation
Instructions for the side-by-side
installation kit).
To ensure that the refrigeration
appliance can then be aligned
correctly, the toe-kick ventilation grille
must be removed from the appliance
toe kick:
Carefully guide a flat-head
screwdriver through the toe-kick
ventilation grille on both sides and
use it to push the internal plastic
latches outwards to release the toe-
kick ventilation grille.
Place the toe-kick ventilation grille to
one side.
Installation
*INSTALLATION*
31
Affix edge protection to the
adjacent cabinet fronts.

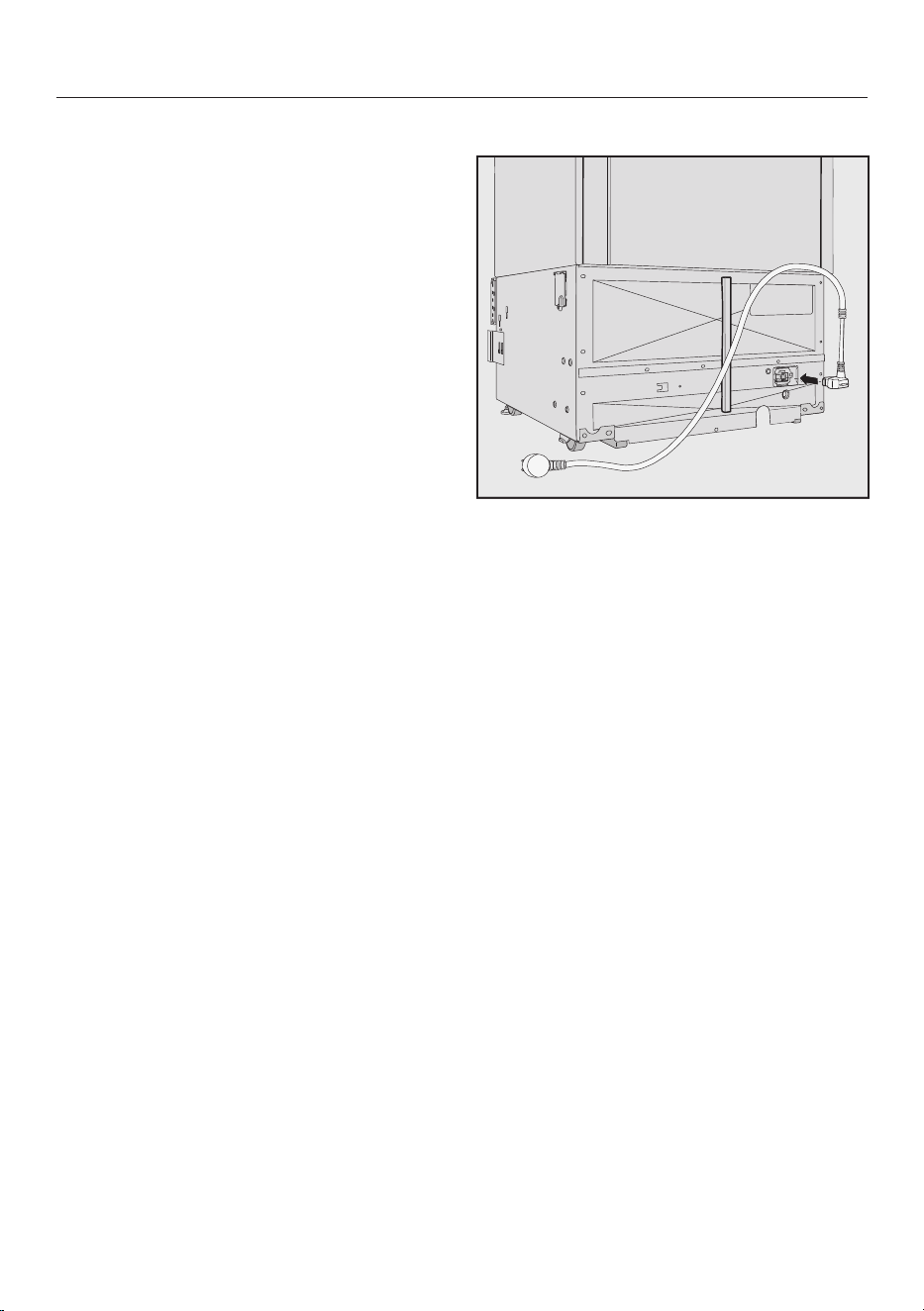

Insert the plug connector at the back
of the refrigeration appliance (see
“Installation – Electrical connection”).
Insert the plug into the electrical
socket.
The electrical socket must not be
concealed behind the appliance and
must be easily accessible in an
emergency.
Risk of damage due to electrical
overload.
If the refrigeration appliance is
electrically overloaded, this can
cause a short circuit and thus
damage your refrigeration appliance.
When you install appliances side by
side, each refrigeration appliance
must have its own separate electrical
socket.
Tip: Secure the power cord to prevent it
becoming caught: tie a piece of string
to the middle of the power cord and as
the refrigeration appliance is being
pushed into the niche, pull the cord
forward underneath the appliance.
Carefully push the refrigeration
appliance into the niche.
If the refrigeration appliance cannot
be pushed into the niche (because
the floor is uneven, for example),
unscrew the rear feet slightly (see
“Installation – Aligning the
refrigeration appliance”) and slide the
refrigeration appliance into the
installation niche.
Remove the edge protection from
the adjacent cabinet fronts.
Installation
*INSTALLATION*
32
Aligning the refrigeration appliance
The installation aids on the
appliance door provide assistance
with the alignment of the refrigeration
appliance in the building-in niche.
The installation aids are suitable for a
cabinet front thickness of 3/4" or
1 1/2" (19mm or 38mm).
Align the appliance with neighboring
cabinet fronts as described below.
Cabinet-front thickness of 3/4” (19mm)
Cabinet-front thickness of 1 1/2” (38mm)
The adjustable feet at the front and
back of the appliance can all be
adjusted from the front of the
appliance.
Risk of damage due to incorrect
feet adjustment.
You may damage the adjustable feet
if you use a cordless screwdriver.
Always adjust the front and rear feet
by hand.
Installation
*INSTALLATION*
33
Position the supplied spacers on
both sides on the markings next to
the adjustable feet at the front of the
appliance.

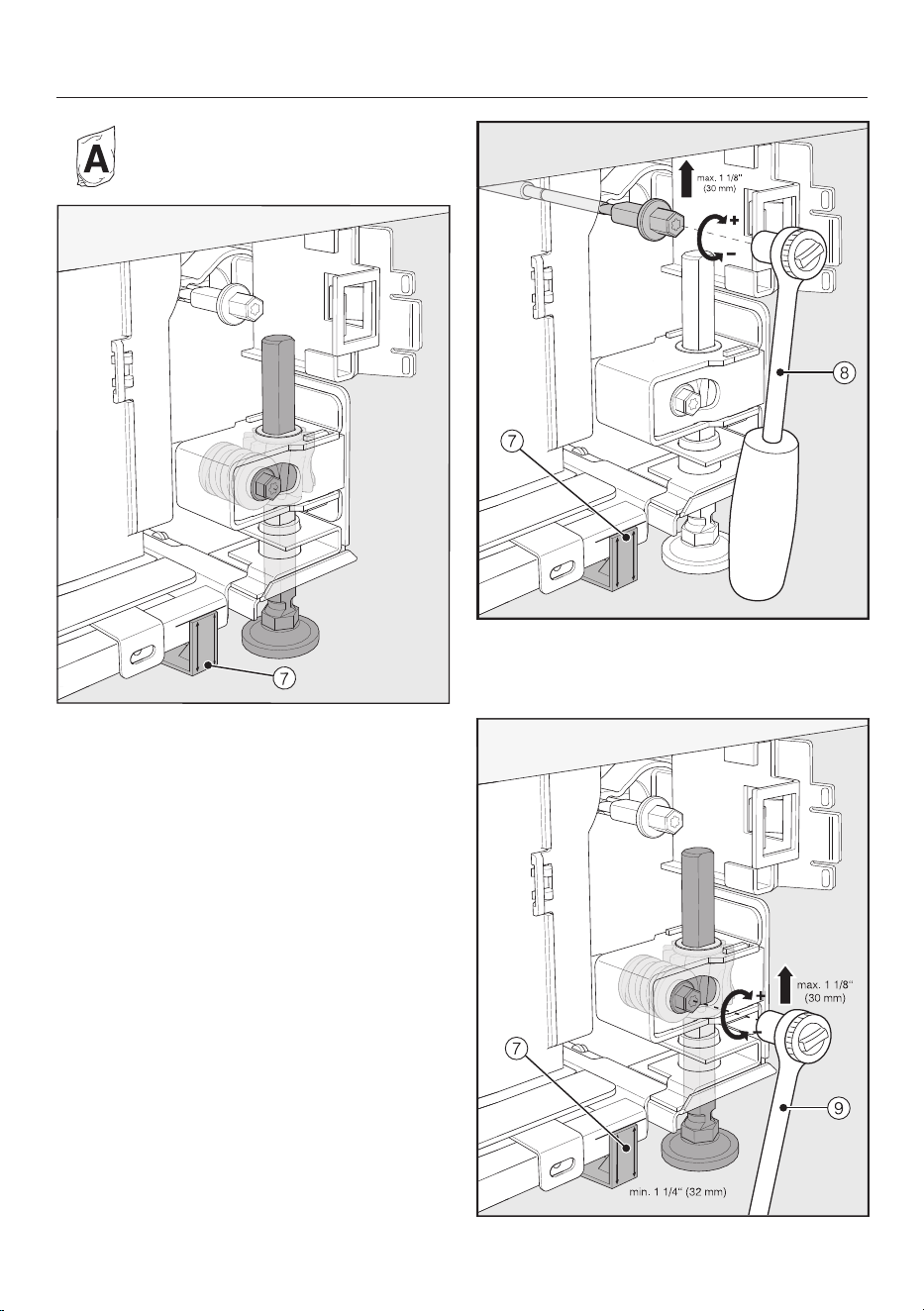

Adjust the rear feet with a ratchet
(attachment: 5/16” (8mm) socket) or
a TX20 screwdriver .
Installation
*INSTALLATION*
34
Adjust the front feet with a ratchet
(attachment: 5/16” (8mm) socket) or
a TX20 screwdriver .
Tip: Proceed carefully when adjusting
the feet, alternating between the left
and right feet.
Place a level across the installation
aids on the appliance door to
check the refrigeration appliance’s
alignment.
Unscrew the feet and on both
sides at least until the marking on the
toe-kick is aligned with the required
1 1/4” (32mm) on the spacer . The
standard dimension of 1 1/4” (32mm)
relates to a niche height of
84” (2,134mm).
It is important to adjust the feet to a
height of at least 1 1/4” (32mm) so
that the ventilation of the refrigeration
appliance via the toe-kick functions
correctly.
Risk of damage if the feet are
adjusted too much.
The rear adjustable feet can be
damaged.
Unscrew the feet only until the
marking on the toe-kick is aligned to
a maximum of 2 7/16” (62mm) (max.
niche height of 85 3/16” (2,164mm)).
Check the alignment of the
refrigeration appliance again using
the installation aids and level.
Installation
*INSTALLATION*
35
Securing the appliance in the niche
Screw the lugs for the fixing plate
into the cabinets/units above the
appliance.
If it is not possible to secure the
appliance at the top, it can be attached
to the niche with the side fixing plates:
Open out the side fixing lugs.
Secure the side fixing lugs with the
screws provided.
Installation
*INSTALLATION*
36
Open the appliance door.
Screw the fixing plate lugs at the
top and bottom to the cabinets/units
adjacent to the appliance.
In a side-by-side combination, only
the external panels of the two
appliances can be secured to the
cabinet wall.
Preparing the cabinet fronts
Open the appliance door as far as it
will go.
Unscrew the installation aids from
the appliance door.
Installation
*INSTALLATION*
37

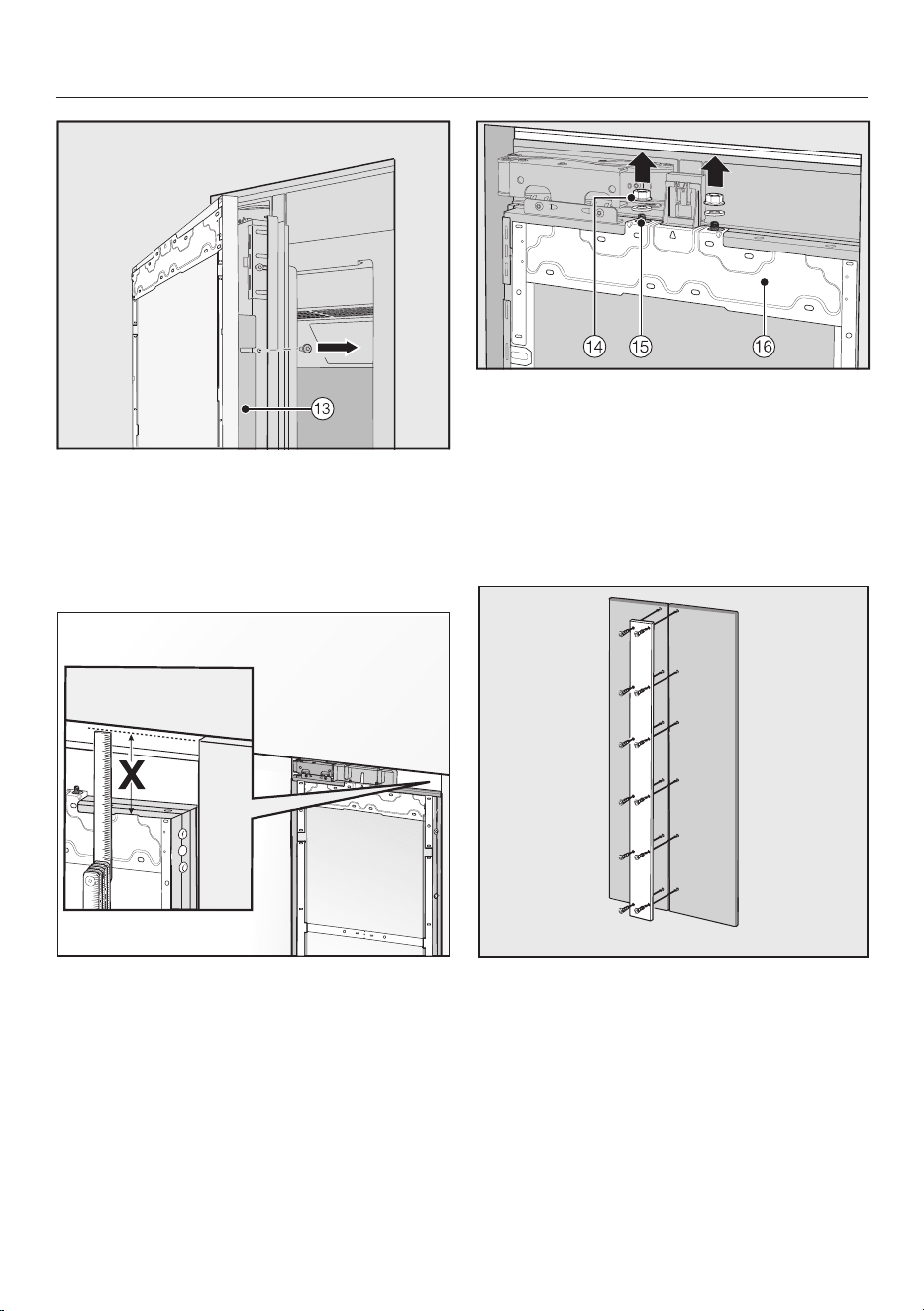

Unscrew the angle trims from both
sides of the appliance door and place
the trims and screws to one side –
they will be required later.
Close the appliance door.
Measure the gapX between the
mounting frame and the upper edge
of the adjacent cabinet front.
Remove the nuts and washers
from the threaded bolts and store
them in a safe place – they will be
required later.
Take the mounting frame off the
appliance door by removing it
upwards.
For inset fronts: always pay attention
to the length of the screws when
securing the metal strip to the cabinet
front.
Installation
*INSTALLATION*
38
Place the cabinet front on a firm
surface, with the external side facing
downwards (place on a blanket or
similar to avoid it becoming
scratched).
Mark the distanceX-1/8” (3mm) on
the inner side of the cabinet front.
Similarly, locate and mark the
midpointY on the cabinet front.

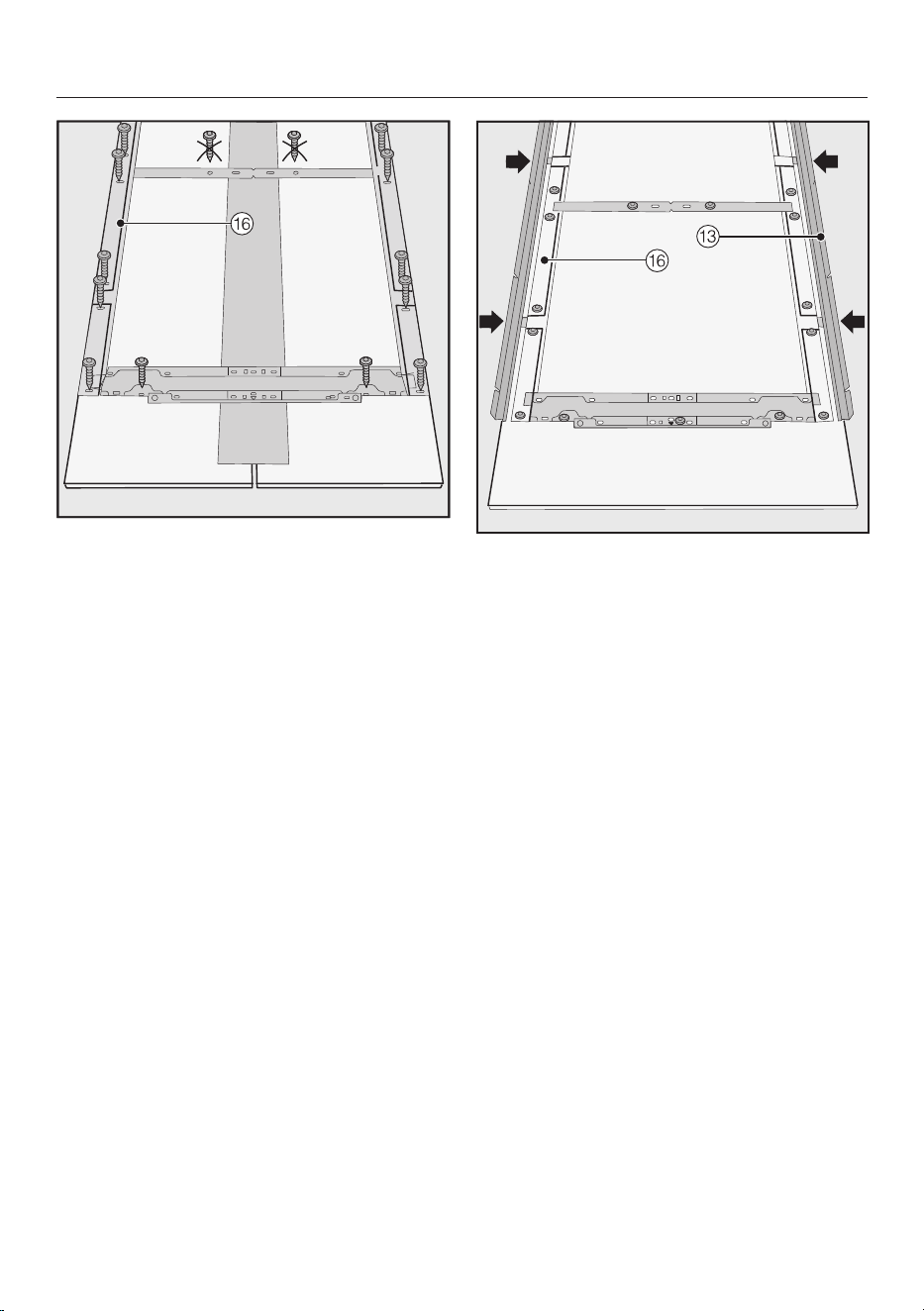

Position the mounting frame
according to the markings on the
cabinet front.
Pre-drill the holes.
Screw the mounting frame to the
cabinet front:
Use at least one screw for each
retaining point on the mounting frame
.
Secure the mounting frame to the
top of the cabinet front, using 6 to
10screws depending on the size.
The mounting frame has several
different types of holes to take
account of a variety of cabinet fronts.
When securing the frame, always
screw into the strongest part of the
cabinet front. To do this, select screws
which are slightly shorter than the
thickness of the cabinet front.
Installation
*INSTALLATION*
39
For inset fronts: only secure the
mounting frame to the outer frame
with the screws.
Screw the appliance handle to the
cabinet front from the inside if
necessary (not for handle-free
kitchens).
Now insert the angle trims on both
sides as far as they will go into the
provided spaces in the mounting
frame .
Installation
*INSTALLATION*
40
Securing and aligning the cabinet
front
Open the appliance door and hang
the cabinet front on its frame onto
the threaded bolts from above.
Press the angle trims into the white
plastic frame on both sides and
screw them on loosely at first. Spare
screws are provided in the plastic
bag marked with the letter E.
Place the spacers on top of the
corners of the cabinet front on both
sides.
Close the appliance door and check
the distance between the door and
adjacent cabinet fronts.
Installation
*INSTALLATION*
41

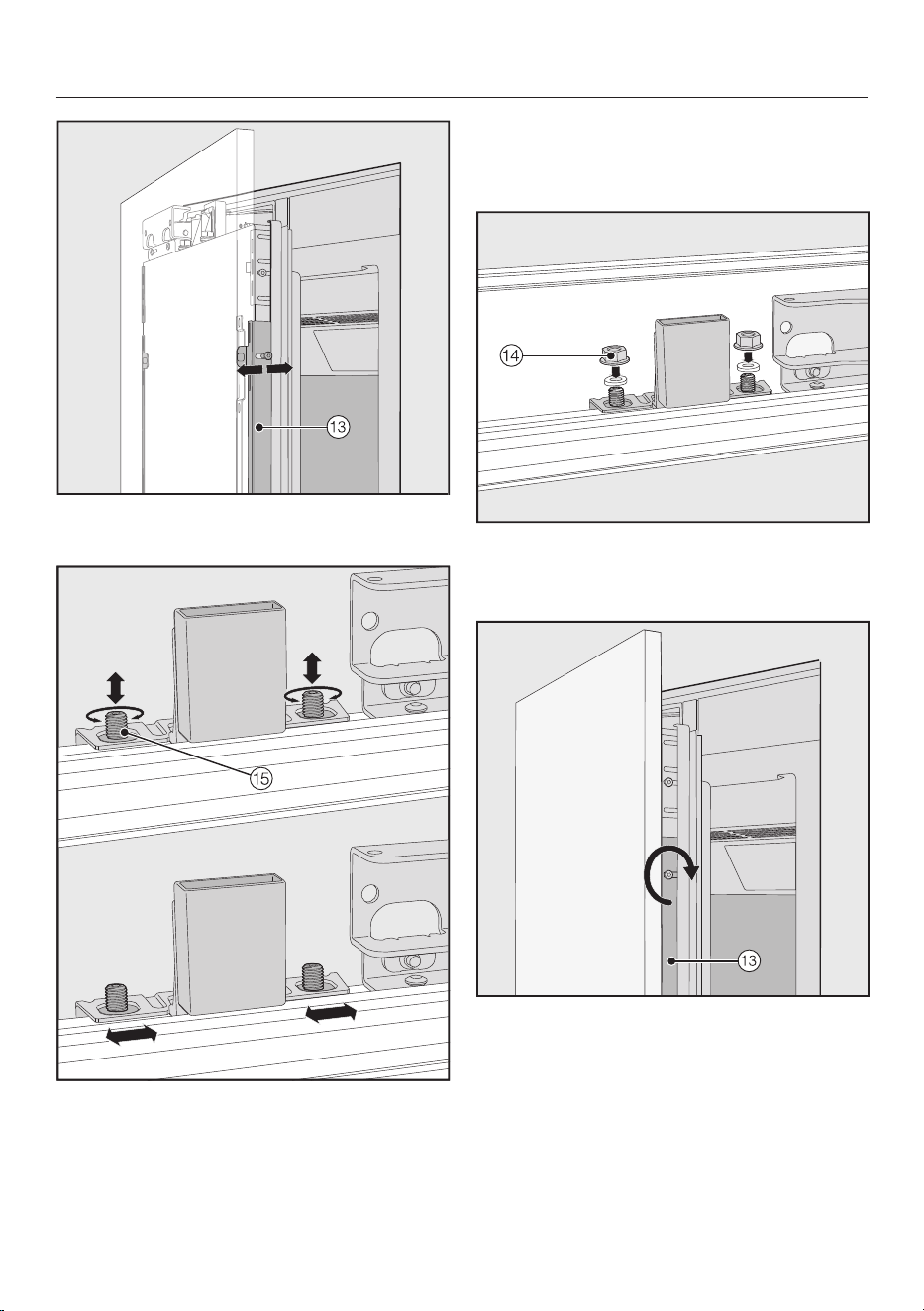

Align the depth of the cabinet front
via the gaps in the angle trims .
Align the height and sides of the
cabinet front using the threaded bolts
.
Close the appliance door and check
the distance between the door and
adjacent cabinet fronts.
Place the washers and nuts back
in position and tighten the nuts .
The cabinet front is now secured.
Now tighten the screws in the angle
trims .
Open the appliance door.
Remove the spacers from the
cabinet front.
Installation
*INSTALLATION*
42

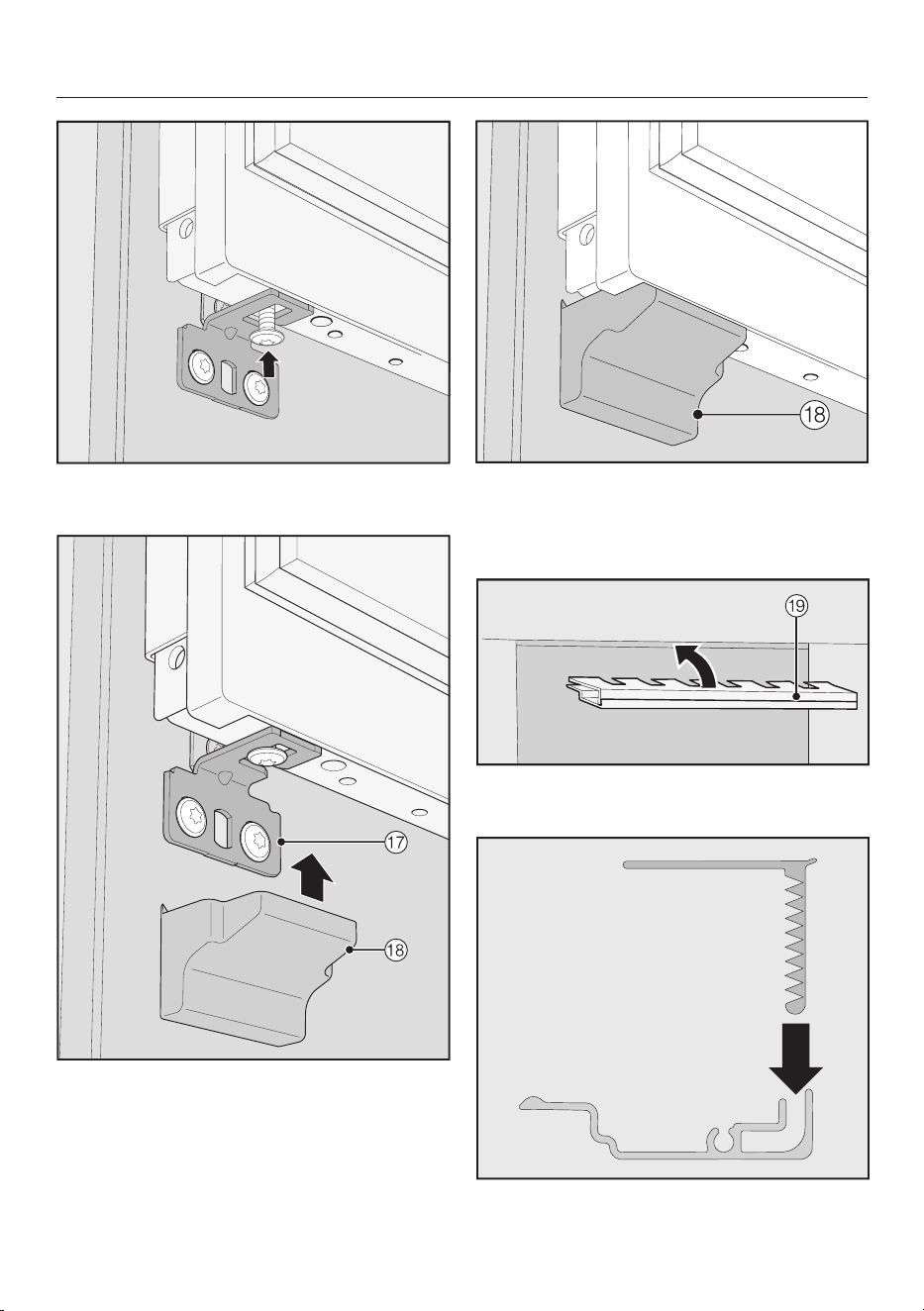

Mounting the fixing brackets
The fixing bracket is used to secure the
cabinet front to the bottom of the
appliance door.
Do not mount the fixing bracket until
the appliance (or side-by-side
combination, if applicable) has been
installed and the cabinet front has
been aligned.
Open the appliance door as far as it
will go.
Slide the fixing bracket sideways
onto the screw at the bottom of the
appliance door.
Screw the fixing bracket securely
to the cabinet front.
Installation
*INSTALLATION*
43
Tighten the screw at the bottom of
the appliance door.
Install the cover over the fixing
bracket.
Click the cover onto the fixing
bracket.
Securing the covers
The top cover must be assembled
as follows before it can be installed:
Insert the two parts of the cover into
one another.
Installation
*INSTALLATION*
44
Cover viewed from the side
Place the assembled cover into
the gap above the appliance so it
clicks into place. While doing so,
slide both parts of the cover together
as required.
Mounting the cover in a side-by-side
combination
Insert the joining peg (from the side-
by-side kit) halfway into the channel
in the cover for the left-hand
appliance.
Place the second cover onto the pin
and press the two covers together.
Click the two covers together into the
niche above the appliance.
Fit the two plastic covers on both
sides of the appliance door by
clicking them into the gap between
the appliance door and the cabinet
door, starting at the bottom and
working up to the top.
Installation
*INSTALLATION*
45
Secure both sides of the appliance
using at least 3 clips for the
covers.
Now attach the covers onto the
retaining clips on both sides.
In the case of side-by-side
installation, the covers are only
required on the outer side.
Fit the cover to the light contact
switch.
Installation
*INSTALLATION*
46
Securing the toe-kick ventilation
grille and toe-kick cover
Click the toe-kick ventilation grille
onto the bottom of the appliance toe-
kick.
If necessary, cut the toe-kick cover to
the required length and height (cut
along the lower edge of the toe-kick
facing where it touches the floor).
Secure the toe-kick cover to the
bottom of the toe-kick ventilation
grille.
Limiting the opening angle of the
appliance door
The door hinges are set ex works to
enable the appliance door to be opened
wide.
If, for example, the appliance door hits
an adjacent wall when it is opened, you
should limit the opening angle of the
appliance door to 90°.
Open the appliance door.
Insert the pin into the lower hinge
from above.
This will limit the opening angle of the
appliance door to 90°.
Installation
*INSTALLATION*
47
Electrical connection
Risk of electric shock!
The appliance must only be switched
on when it has been installed in
accordance with the installation
instructions.
Ground the appliance.
The appliance must not be grounded
via a gas pipe.
If in doubt, have a suitably qualified
and experienced electrician check
that the installation complies with
relevant regulations.
Do not install a fuse into neutral
current or grounding electrical circuit.
Do not use extension cords or
ungrounded (two prong) adapters.
Do not use a frayed or damaged
power cord.
Risk of electric shock!
For protection against electric shock,
this appliance is equipped with a
pole-free plug which is protected
against reverse polarity. The
electrical outlet must be properly
grounded.
Do not remove the round grounding
connector pin from the plug.
Use only a grounded plug adapter.
Wait for 1hour after installation before
plugging the appliance into the power
supply. This allows coolant and
refrigerator oil to settle in accordance
with regulations.
Ensure that the voltage of the power
supply corresponds with the connection
voltage of the appliance. A power
supply of 110–120V, 60Hz and 10–
16Amp, which is protected by a power
switch or a fuse, is required to operate
the appliance.
The manufacturer recommends
operating the appliance on a dedicated
circuit to avoid overloading the
electrical circuit.
All relevant legal electrical, fire, and
building regulations must be observed
when installing the electrical outlet and/
or the appliance.
In certain countries, appliances are
required to be connected to the
electrical supply via a wall-mounted
ON/OFF switch.
To avoid the risk of fire, electric shock,
or other injuries, the appliance must be
installed and connected by a suitably
qualified electrician in accordance with
all relevant local and national
regulations and standards, including fire
prevention.
The socket must not be concealed
behind the appliance and must be
easily accessible so that the appliance
can be quickly disconnected from the
electrical supply in case of an
emergency.
Installation
*INSTALLATION*
48
If the outlet is no longer accessible after
installation, an additional means of
disconnection must be provided for all
poles. Suitable means of disconnection
include switches with an all-pole
disconnect device with a contact
opening of at least 1/8" (3mm). These
can be circuit breakers, fuses, and
relays.
The plug and power cord must not
come into contact with the back of the
appliance as vibrations can cause
damage to these components. This
could result in a short circuit.
Do not plug other appliances into
electrical outlet behind this appliance.
Do not connect the appliance to a
stand-alone inverter such as those used
with an autonomous energy source e.g.,
solar power.
When the appliance is turned on, power
surges could result in a safety switch-
off. This can damage the electronics.
The appliance must not be used with
so-called energy saving devices
either. These reduce the amount of
energy supplied to the appliance,
causing it to overheat.
If the power cord needs to be replaced,
this must be performed by a qualified
technician.
Connecting the appliance
Insert the plug into the back of the
appliance.
Make sure that the plug has clicked into
position correctly.
Insert the plug into the electrical
outlet and switch on.
The appliance is now connected to the
electricity supply.
Saving energy
Normal
energy consumption
Increased
energy consumption
Installation /
Maintenance
In a well-ventilated room. In an enclosed, poorly
ventilated room.
Protected from direct
sunlight.
In direct sunlight.
Away from heat sources
(radiator, range/oven).
Near a heat source (radiator,
oven).
Where the ideal room
temperature is approx. 68°F
(20°C).
Where the ambient room
temperature is above 77°F
(25°C).
Air vents uncovered and
dusted regularly.
Where the ventilation
openings are blocked and
full of dust.
Temperature
setting
39°F to 41°F (4°C to 5°C) in
the refrigerator section
The lower the temperature in
the appliance, the higher the
energy consumption.
Dry compartment in the
MasterFresh zone approx.
32°F (0°C).
49
Saving energy
Normal
energy consumption
Increased
energy consumption
Use The drawers, and shelves
are arranged as they were
when the appliance was
delivered.
Only open the door when
necessary and for as short a
time as possible. Store food
in an organized way.
Frequent opening of the
door for long periods will
cause a loss of coldness.
The appliance will try to cool
down and the compressor
will run for longer periods.
When shopping, use a
cooler bag and place the
food in the appliance as
soon as possible.
Replace any food removed
as quickly as possible,
before it warms up too
much.
Allow hot food and drinks to
cool down before placing
them in the appliance.
Hot food or food at room
temperature raises the
temperature inside the
refrigeration appliance. The
appliance will try to cool
down and the compressor
will run for longer periods.
Store food well packaged or
covered.
The evaporation or
condensation of liquids in
the refrigerator section will
cause a loss of coldness.
Place frozen food in the
refrigerator section to
defrost.
Do not overfill the appliance
in order to allow the air to
circulate.
Poor air circulation will
cause a loss of coldness.
50
Guide to the appliance
a
Display
b
On/Off switch
c
Door shelves in the appliance door
d
Holder for the Active AirClean filter
e
Shelves
f
Hanging drawer for storing small food items
g
Interior lighting
h
Fruit and vegetable drawer
i
Moisture regulator
j
Humidity-controlled compartment with moisture regulator for fruit and
vegetables
k
Dry compartment with temperature adjustment for meat and fish
l
Automatic door opening (Push2open/Pull2open)
51
Guide to the appliance
The dry compartment in the MasterFresh zone fulfills the requirements of a cold
storage compartment according to ENISO15502.
52
Guide to the appliance
Main screen
°F
39
1
2
3
4
5
a
Automatic SuperCool display
(only visible when the Automatic SuperCool function has been switched on)
b
Temperature display (target temperature)
c
Sensor control
for setting the temperature
d
Display for Miele@home connection status
(only visible when Miele@home has been set up)
e
Sensor control
for adjusting various settings in Settings mode
53
Guide to the appliance
Settings mode
In Settings mode, you can select the following appliance functions and alter their
settings to some extent:
Symbol Function
Language Set
Display Brightness Adjust (darker to brighter)
Color Scheme Set (dark or bright)
/ Buzzer Tones Adjust the volume or switch off the Buzzer Tones
completely (e.g., for the door alarm)
/
Keypad Tone Adjust the volume or switch off the Keypad Tone
completely
°F / °C Temperature Unit Set (°Fahrenheit or °Celsius)
/ Keypad Lock Switch on or off
(see “Selecting additional settings”)
MasterFresh Adjust the temperature in the dry compartment
(see “Selecting additional settings”)
Eco Mode Switch on or off
(see “Selecting additional settings”)
Self Test The system restarts and is checked for faults or
malfunctions
(see “Selecting additional settings”)
Door Assistant Switch on (Push2Open or Pull2Open) or switch off
(see “Selecting additional settings”)
Miele@home Set up, deactivate, or query WiFi connection
status (see “Selecting additional settings”)
54
Guide to the appliance
* Demo Mode Switch off
* (only visible when Demo Mode, is switched on
see “Selecting additional settings”)
Factory Default Reset to default settings
(see “Selecting additional settings”)
Sabbath Mode Switch on or off
(see “Selecting additional settings”)
Display Active
AirClean Filter
Switch on or off or reset
(see “Selecting additional settings”)
Symbols in settings mode
/ Scroll in settings mode or select a setting
/ Change a setting (e.g., display brightness)
OK Confirm a setting
Exit the menu level
55
Accessories
56
Accessories supplied
Appliance plug
Active AirClean filters
The Active AirClean filters neutralize
unpleasant odors in the refrigerator
section and stop odors from being
transferred to the food.
Insert the supplied Active AirClean
filters as described under “Cleaning
and care – Replacing the Active
AirClean filters”.
We recommend replacing the Active
AirClean filters every 6months.
Optional accessories
A range of useful Miele accessories and
care products are available for your
appliance.
Active AirClean filters
See “Accessories supplied” for a
description.
Active AirClean filters with holder
The Active AirClean filters neutralize
unpleasant odors in the fridge zone and
stop odors from being transferred to the
food.
The holder for the Active AirClean filters
can be fixed under any shelf in the
fridge zone.
Stainless steel front panel
Stainless steel front panels give your
refrigeration appliance a high-quality
appearance.
Handles and toe-kick panels are also
available in a stainless steel look.
Accessories
57
Metal filler panel for inset fronts
If you wish to install two cabinet fronts
next to each other instead of one
cabinet front, they will have to be
connected with a metal filler panel.
Side-by-side installation kit
To install two or more refrigeration
appliances next to one another, you will
need the side-by-side installation kit
(see “Installation – Side-by-side”).
Hinge pocket
If the door hinging needs to be changed
on your refrigeration appliance, the
upper toe-kick ventilation grille must be
converted. A new hinge pocket is
required in order to do this.
The door hinging must only be replaced
by Miele Technical Service.
Accessories are available to order via
the Miele Webstore, from Miele
directly (see back cover for contact
details) or from your Miele dealer.
Before first use
58
Before first use
Allow the appliance to stand for
approx. 1hour prior to connecting it
to the power supply.
This will help prevent any
malfunctions.
Packaging material
Remove all packaging material from
the inside of the appliance.
Leftover tape residue.
Always remove all packaging
material, including adhesive tape,
before switching on the appliance.
Cleaning
Please refer to the relevant
instructions in “Cleaning and care”.
Clean the inside of the appliance and
the accessories.
Choosing the right Door Assistant
(Push2Open/Pull2Open)
The Door Assistant helps you to open
the appliance door.
You can choose between the two Door
Assistants Push2Open and Pull2Open
(see “Selecting additional settings –
Switching on the Door Assistant ”).
The default Door Assistant is
Push2Open.
Select the
Pull2Open Door Assistant if your
appliance has a cabinet front with a
handle.
Select the
Push2Open Door Assistant if your
appliance has a handle-free cabinet
front.
Before first use
59
Inserting the Active AirClean filters
Your refrigeration appliance is equipped
with 2Active AirClean filters which
neutralize unpleasant odors in the
refrigerator section.
Insert the Active AirClean filters
supplied as described under
“Cleaning and care – Replacing the
Active AirClean filters”.
Operating the refrigeration
appliance
The touch display can be scratched
by pointed or sharp objects, e.g.,
pens.
Only touch the display with your
fingers.
If your fingers are cold, the touch
display may not react.
°F
39
The sensor controls underneath the
temperature display can be selected
directly by touch; the symbols and text
in or above the temperature display can
only be displayed.
Before first use
60
Settings mode
In Settings mode, you can select
different refrigeration appliance
functions and alter their settings to
some extent (see “Selecting additional
settings”).
Touch the sensor control to open
Settings mode.
Use the and sensor controls to
select the function for which you wish
to adjust the settings.
Confirm your selection with OK.
Adjust the settings using either the
and sensor controls or the and
sensor controls.
Confirm your selection with OK.
The setting with the colored
background is always the selected
setting; it can be confirmed directly
with OK.
Touch the sensor control if you
wish to switch to the previous menu
level or terminate the process.
Every touch of the display is
confirmed with an audible keypad
tone. You can switch off this keypad
tone in Settings mode.
Starting up for the first time
Open the appliance door.
Turn the refrigeration appliance on by
pressing the On/Off switch.
The On/Off switch is located below
the display.
The refrigeration appliance will start to
cool and the interior lighting will come
on when the appliance door is opened.
Miele will appear in the refrigeration
appliance display.
When you turn the appliance on for
the first time, you will be asked to
configure the following settings:
- Set the Language
(if you accidentally select the wrong
Language, return to Settings
mode and use the symbol to
change the language)
- Set the Temperature Unit:
°C (degrees Celsius) or °F (degrees
Fahrenheit)
- Set up Miele@home:
Select Continue if you wish to set up
Miele@home now (to do this, follow
the instructions under “Selecting
additional settings – Miele@home”).
Before first use
61
Select Skip if you would prefer to set
up Miele@home later.
Use the and sensor controls to
select the right setting and select OK
to confirm your selection.
Touch the sensor control if you
want to return to the previous menu
level.
Set-up Successful will appear on the
display.
Confirm the first use with OK.
The main screen will appear on the
display (see “Appliance description –
Main screen”).
You cannot terminate the initial start-
up process. The only way to terminate
the process is to switch off the
refrigeration appliance, though the
process will continue when the
appliance is switched back on.
Switching on and off
62
Switching on the appliance
Open the appliance door.
Turn the refrigeration appliance on by
pressing the On/Off switch.
The refrigeration appliance will start to
cool and the interior lighting will come
on when the appliance door is opened.
Miele will appear, followed by the main
screen on the refrigeration appliance
display:
°F
39
To enable the temperature to get
sufficiently cold inside the appliance,
allow the appliance to run for a few
hours before placing food in it.
Switching off the appliance
Turn the refrigeration appliance off by
pressing the On/Off switch.
The cooling and interior lighting are
switched off.
Please note: the refrigeration
appliance is not disconnected from
the power supply when the On/Off
switch is in the “Off” position.
Switching off for longer
periods of time
If the appliance is not going to be used
for a longer period of time:
Turn the appliance off.
Unplug the appliance or trip the
circuit breaker.
Clean the refrigeration appliance.
Leave the door ajar to air the
refrigeration appliance and avoid
odors building up inside the
appliance.
If, during a long absence, the
refrigeration appliance is switched off
but not cleaned and the door(s) left
shut, there is a danger of bacteria
building up inside the appliance.
It is essential to clean the
refrigeration appliance.
Selecting additional settings
63
In settings mode, certain settings
can be adjusted and functions selected,
allowing you to adjust the machine to
suit your requirements.
The following section only describe the
functions in settings mode that
require further explanation.
The door alarm and other warnings
are automatically disabled when the
appliance is in settings mode .
Switching Keypad Lock/
on or off
Switch Keypad Lock on if you wish to
protect your refrigeration appliance
from unwanted temperature changes or
other unintentional adjustments in
Settings mode .
In Settings mode, use the and
sensor controls to select Keypad
Lock and select OK to confirm your
selection.
Use the and sensor controls to
switch the sensor lock On or Off and
select OK to confirm your selection.
The keypad lock will not be activated
until you close the appliance door.
Nothing will appear on the display to
indicate that the keypad lock is
switched on.
The message Press OK for 6 seconds to
unlock will appear on the display if you
select a sensor control while the sensor
lock is switched on.
Follow the instructions on the display.
The display is unlocked briefly so you
can adjust the setting as required.
Closing the appliance door will
reactivate the sensor lock.
Selecting additional settings
64
Adjusting the temperature in
the MasterFresh zone (dry
compartment)
In Settings mode, use the and
sensor controls to select
MasterFresh and select OK to confirm
your selection.
Use the and sensor controls to
select the desired temperature and
touch OK to confirm your selection.
Touch the sensor control if you
wish to terminate the process.
The segment bar displays 5 segments;
the temperature is adjusted in
increments of approx. 34°F (1°C).
The factory default setting for the
temperature in the dry compartment is
32°F (0°C).
Switching Eco Modeon or
off
Eco Mode is useful when going on
vacation, for example, if you do not
wish to switch off the appliance
completely or do not need a high
degree of cooling. Energy consumption
in Eco Mode is lower than in normal
operation.
The refrigerator section is thereby
regulated to a temperature of 43°F (6°C)
and the dry compartment in the
MasterFresh zone to approx. 34°F (1°C).
If the AutomaticSuperCool function
is switched on, this will be automatically
switched off when Eco Mode is selected.
In Settings mode, use the and
sensor controls to select Eco Mode
and select OK to confirm your
selection.
Use the and sensor controls to
switch Eco Mode On or Off and select
OK to confirm your selection.
Only the changed temperature on the
display indicates that Eco Mode is
switched on.
Tip: You can also switch off the Eco
Mode function by directly adjusting the
temperature (see “The correct
temperature”) – Setting the
temperature”).
Storing food at a temperature of 43°F
(6°C) for an extended period of time
may impair the shelf life and quality
of the food.
Selecting additional settings
65
Performing a Self Test
Perform a Self Test if you are concerned
that your refrigeration appliance is not
working properly and want to check if it
is suffering from any problems.
In Settings mode, use the and
sensor controls to select Self Test
and select OK to confirm your
selection.
Touch the sensor control if you
wish to terminate the process.
The Self Test starts and the appliance is
checked for any faults or malfunctions.
- The message System restart will
appear on the display if the Self Test
does not discover any faults or
malfunctions.
- If the Self Test does discover any
faults or malfunctions, they are
indicated as error messages on the
display.
An alarm will also sound.
If you find the alarm disruptive, you
can switch it off in advance by
touching the sensor control.
Make a note of the error message(s)
displayed.
Contact Miele Service and inform
them of the error message(s) on the
display.
Confirm the message with OK.
System restart will appear on the display.
The refrigeration appliance briefly
switches off and then back on
automatically.
Self test completed will appear on the
display.
Confirm the message with OK.
The main screen appears on the display
again.
Selecting additional settings
66
Switching on the Door
Assistant
You can choose between the two Door
Assistants Push2Open and Pull2Open.
The default Door Assistant is
Push2Open.
The Push2Open Door Assistant is
suitable for cabinet fronts without
handles. The door will then open
automatically when you gently press
against it.
The Pull2Open Door Assistant is suitable
for cabinet fronts with handles. The
appliance door can be opened easily
with little force.
Risk of damage if the appliance
door is closed prematurely.
When the Door Assistant is switched
on, repeatedly closing the appliance
door early can lead to damage or
malfunctions.
Refrain from holding onto or closing
the appliance door while automatic
door opening is still extended. If you
have indeed closed the appliance
door, leave it closed for 5minutes.
Automatic door opening resets itself.
Switching on Push2Open
In Settings mode, use the and
sensor controls to select Door
Assistant and select OK to confirm
your selection.
Use the and sensor controls to
select Mode and select OK to confirm
your selection.
Use the and sensor controls to
select Push2Open and select OK to
confirm your selection.
Touch the sensor control to return
to the previous menu level.
– Adjusting the intensity
You can also adjust the intensity of the
Push2Open function. The lower the set
intensity, the less force required when
you push against the appliance door.
In Settings mode, use the and
sensor controls to select Door
Assistant and select OK to confirm
your selection.
In Settings mode, use the and
sensor controls to select Intensity
and select OK to confirm your
selection.
Use the and sensor controls to
select the right intensity (Low, Medium,
High) and select OK to confirm your
selection.
Selecting additional settings
67
– Adjusting the duration of the
AutoClose function
You can also adjust the duration for
how long the appliance door will remain
open until it closes automatically.
In Settings mode, use the and
sensor controls to select Door
Assistant and select OK to confirm
your selection.
In Settings mode, use the and
sensor controls to select AutoClose
and select OK to confirm your
selection.
Use the and sensor controls to
select the duration (5 to 30seconds)
and touch OK to confirm your
selection.
To protect against inadvertent
opening: if you do not pull the
appliance door open, it will close
again by itself after a duration defined
by you.
Switching on Pull2Open
In Settings mode, use the and
sensor controls to select Door
Assistant and select OK to confirm
your selection.
Use the and sensor controls to
select Mode and select OK to confirm
your selection.
Use the and sensor controls to
select Pull2Open and select OK to
confirm your selection.
Touch the sensor control to return
to the previous menu level.
– Adjusting the intensity
You can also adjust the intensity of the
Pull2Open function. The lower the set
intensity, the less force required when
you pull the appliance door.
In Settings mode, use the and
sensor controls to select Door
Assistant and select OK to confirm
your selection.
In Settings mode, use the and
sensor controls to select Intensity
and select OK to confirm your
selection.
Use the and sensor controls to
select the right intensity (Low, Medium,
High) and select OK to confirm your
selection.
Selecting additional settings
68
Switching off the Door
Assistant
In Settings mode, use the and
sensor controls to select Door
Assistant and select OK to confirm
your selection.
Use the and sensor controls to
select Mode and select OK to confirm
your selection.
Use the and sensor controls to
select Off and select OK to confirm
your selection.
Touch the sensor control to return
to the previous menu level.
Setting up Miele@home
Your refrigeration appliance is
equipped with an integrated WiFi
module.
Networking is deactivated at the
factory.
To use this feature, you will need:
- a WiFi network
- the Miele@mobile app
- a Miele user account You can create
a user account via the Miele@mobile
app.
The Miele@mobile app will guide you as
you connect your appliance to your
home WiFi network.
Once the refrigeration appliance is
connected to your WiFi network, you
can use the app to carry out the
following activities, for example:
- Call up information on the operating
status of your refrigeration appliance.
- Change the settings on your
refrigeration appliance.
Connecting your refrigeration appliance
to your WiFi network will increase
energy consumption, even when the
appliance is switched off.
Make sure that the signal of your
WiFi network is sufficiently strong in
the place where you want to set up
your refrigeration appliance.
Selecting additional settings
69
Availability of the WiFi connection
The WiFi connection shares a frequency
range with other appliances (including
microwave ovens and remote control
toys). This can cause sporadic or even
complete connection failures.
Therefore, the availability of featured
functions cannot be guaranteed.
Miele@home availability
The ability to use the Miele@mobile app
depends on the availability of the
Miele@home service in your country.
The Miele@home service is not
available in every country.
For information about availability,
please visit www.miele.com.
Miele@mobile App
The Miele@mobile App is available to
download free of charge from the Apple
App Store
®
or from the Google Play
Store™.
Connecting your appliance via the
Miele@mobile app
You will also require the following to log
in:
- the password to your WLAN network
- your refrigeration appliance’s
password
Your refrigeration appliance‘s password
is its serial number, which can be found
on the data plate.
The data plate can be found in the
interior cabinet of the refrigeration
appliance.
XXXXXX
XXXX XX / XXXXXXXXXXXXXXXXXXX / XX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXX XXXXXXXXX
If your serial number is “78000001” for
example, your password will be
“78000001”.
In Settings mode, use the and
sensor controls to select
Miele@home and select OK to confirm
your selection.
Set up will appear on the display.
Confirm your selection with OK.
Use the and sensor controls to
select via the App and select OK to
confirm your selection.
Open the Miele@mobile app and
follow the instructions in the app.
Selecting additional settings
70
As soon as your refrigeration
appliance has been integrated into
your WiFi network, the message
Connection successful will appear on
your refrigeration appliance‘s display.
Confirm the process with OK again.
If the WLAN connection is active, will
appear on the display.
Connecting your refrigeration
appliance via WPS
Your router must be equipped with the
WPS function for this connection
option.
In Settings mode, use the and
sensor controls to select
Miele@home and select OK to confirm
your selection.
Set up will appear on the display.
Confirm your selection with OK.
Use the and sensor controls to
select via WPS and select OK to
confirm your selection.
Now follow the instructions on the
display.
Confirm the process with OK.
To be able to use the Miele@home
functions, you also have to register
your refrigeration appliance in the app.
As soon as your refrigeration
appliance has been integrated into
your home network via WPS, the
message Connection successful will
appear on the display.
Confirm the process with OK again.
If the WLAN connection is active, will
appear on the display.
Selecting additional settings
71
Deactivating Miele@home
In Settings mode, use the and
sensor controls to select
Miele@home and select OK to confirm
your selection.
Use the and sensor controls to
select Deactivate and select OK to
confirm your selection.
Deactivation successful will appear on the
display.
Confirm the message with OK.
Your refrigeration appliance is now
disconnected from your WLAN network.
The symbol will go out on the
display.
Activating Miele@home
If you have already activated
Miele@home and then disconnected
the connection, you will need to
reactivate the connection.
In Settings mode, use the and
sensor controls to select
Miele@home and select OK to confirm
your selection.
Use the and sensor controls to
select Activate and select OK to
confirm your selection.
Activation successful will appear on the
display.
Confirm the message with OK.
If the WLAN connection is active, will
appear on the display.
Checking the WLAN connection
status
In Settings mode, use the and
sensor controls to select
Miele@home and select OK to confirm
your selection.
Use the and sensor controls to
select Connection status and select OK
to confirm your selection.
Information about the WLAN
connection status will then appear on
the display:
- connected: there is a strong
connection
- connected: there is an average
connection
- connected: there is a weak
connection
- disconnected
Setting up Miele@home again
If you have changed your WiFi network,
you can set up Miele@home again for
your appliance.
In Settings mode, use the and
sensor controls to select
Miele@home and select OK to confirm
your selection.
Use the and sensor controls to
select Set up again and select OK to
confirm your selection.
Reset configuration? will appear on the
display.
Use the and sensor controls to
select Yes or No and select OK to
confirm your selection.
Selecting additional settings
72
Resetting the network configuration
Reset the refrigeration appliance’s
settings to the default settings when
disposing of your refrigeration
appliance, selling it, or putting a used
refrigeration appliance into operation.
This will reset the network
configuration so that all personal data
is deleted from the refrigeration
appliance. This will also ensure that a
previous owner is no longer able to
access the refrigeration appliance.
Reset the settings of the refrigeration
appliance as described under
“Resetting the settings to their default
settings”.
Switching off Demo Mode
Demo mode allows the appliance to
be presented in the showroom
without the cooling system being
switched on. Do not activate this
setting for domestic use.
If Demo mode has been switched on
as a default setting, will show on the
display.
In Settings mode, use the and
sensor controls to select Demo
Mode and select OK to confirm your
selection.
Press OK for 4 seconds to deactivate will
appear on the display.
Follow the instructions on the display.
The countdown Demo Mode will
deactivate in seconds. appears on the
display.
Demo Mode deactivated. The appliance will
cool down. will appear on the display.
Confirm the message with OK.
The main screen appears on the display
again.
Selecting additional settings
Resetting the settings to their default settings
You can reset the refrigeration appliance‘s settings to their default settings.
Reset the refrigeration appliance’s settings to the default settings when disposing
of your refrigeration appliance, selling it, or putting a used refrigeration appliance
into operation. This will reset the network configuration so that all personal data
is deleted from the refrigeration appliance. This will also ensure that a previous
owner is no longer able to access the refrigeration appliance.
In Settings mode, use the and sensor controls to select Factory Default
and select OK to confirm your selection.
Use the and sensor controls to select Reset and select OK to confirm your
selection.
After a brief delay, Settings reset appears on the display.
Confirm the message with OK.
The initial commissioning process restarts (see “Before first use – Starting up for
the first time”).
73
Selecting additional settings
The refrigeration appliance‘s settings will be reset to the following values:
Function Default settings
Language English
Display Brightness Average value
(4 of 7 segments)
Color Scheme Dark
/ Buzzer Tones Average value
(4 of 7 segments)
/
Keypad Tone Average value
(4 of 7 segments)
°F / °C Temperature Unit °Fahrenheit
/ Keypad Lock Switched off
MasterFresh 32°F (0°C)
(2 of 5 segments)
Eco Mode Switched off
Door Assistant Push2open
Miele@home Switched off
Sabbath Mode Switched off
Display Active AirClean Filter Switched on
Temperature in the
refrigerator section
37°F (4°C)
Temperature in the dry
compartment
32°F (0°C)
74
Selecting additional settings
75
Switching Sabbath Mode on
or off
The refrigeration appliance has a
Sabbath Mode to support the
observance of religious customs.
When Sabbath Mode is switched on,
you cannot make any settings on your
refrigeration appliance.
Ensure that the appliance door is
properly closed, as visual and audible
alarms are switched off in Sabbath
Mode.
In Settings mode, use the and
sensor controls to select Sabbath
Mode and select OK to confirm your
selection.
Use the and sensor controls to
select On or Off and select OK to
confirm your selection.
When Sabbath Mode is switched on,
will appear on the display and the
display brightness will be reduced (the
display does not change when the
appliance door is closed).
When Sabbath Modeis switched on,
the following functions are switched off:
- Door Assistant
(for cabinet fronts without handles,
the appliance door will have to be
pulled from the bottom or side)
- Lighting
- All audible and visual signals,
- Temperature display
- The Automatic SuperCool function (if
previously switched on)
You can still select:
- the sensor control for Settings
mode so that Sabbath Mode can be
switched off
The Sabbath Mode function will switch
itself off automatically after approx.
125hours.
Danger of food poisoning!
Any power failure during Sabbath
Mode will not be shown on the
display. After a power failure, the
appliance will restart in Sabbath
Mode. When power is restored, no
notification of the power failure will
appear on the display.
If there is a power failure during
Sabbath mode, check the quality of
the food.
Selecting additional settings
76
Switching on, switching off, or
resetting the Display Active
AirClean Filter
The Display Active AirClean Filter will
remind you approx. every 6months that
the Active AirClean filters have to be
replaced. Change Active AirClean Filter will
appear on the display.
See “Cleaning and care – Replacing the
Active AirClean filters” for instructions
on how to replace the Active AirClean
filters.
The first time the Active AirClean filters
need to be replaced, the display will
remind you automatically; the
reminder does not need to be
switched on separately.
Switching on the Display Active
AirClean Filter
If the Display Active AirClean Filter has
been switched off once, it must be
switched on again if required.
In Settings mode, use the and
sensor controls to select the Display
Active AirClean Filter and select OK to
confirm your selection.
Use the and sensor controls to
select On and select OK to confirm
your selection.
The Display Active AirClean Filter has been
switched on.
Switching off the Display Active
AirClean Filter
If you do not require theDisplay Active
AirClean Filter, you can switch it off.
In Settings mode, use the and
sensor controls to select the Display
Active AirClean Filter and select OK to
confirm your selection.
Use the and sensor controls to
select Off and select OK to confirm
your selection.
The Display Active AirClean Filter has been
switched off.
Selecting additional settings
77
Resetting the Display Active AirClean
Filter
After you have replaced the Active
AirClean filters, you must reset the
Display Active AirClean Filter so that it can
be displayed again after 6months.
If you do not reset the display, it
appears again and again.
In Settings mode, use the and
sensor controls to select the Display
Active AirClean Filter and select OK to
confirm your selection.
Use the and sensor controls to
select Reset and select OK to confirm
your selection.
The Change Active AirClean Filter message
disappears from the display.
The Display Active AirClean Filter to
replace the Active AirClean filters has
been activated.
The correct temperature
78
It is very important to set the correct
temperature for storing food in the
appliance. Bacteria will cause food
which is not stored at the correct
temperature to deteriorate rapidly.
Temperature influences the growth rate
of these bacteria. Reducing the
temperature reduces their growth rate.
The temperature in the appliance will
rise:
- the more often the appliance door is
opened and the longer it is kept open
- the more food that is stored in it
- the warmer the food is that is being
put into it
- the higher the ambient temperature
surrounding the refrigeration
appliance is. The appliance is
designed for use within specific
ambient temperatures (climate
range). Do not use in ambient
temperatures for which it is not
designed
...in the refrigerator section
and in the MasterFresh zone
We recommend a temperature of 39°F
(4°C) in the refrigerator section.
We recommend a temperature of 32°F
(0°C) in the dry compartment of the
MasterFresh zone.
Automatic cold air circulation
(DynaCool)
The fan automatically turns on when the
cooling system for the refrigerator
section turns on. It distributes the
temperature in the refrigerator section
to all areas evenly so that all the food
inside will be chilled to about the same
degree.
The correct temperature
79
Setting the temperature
Touch the sensor control to set the
temperature.
The previously set temperature will
appear.
Use the and sensor controls to
set the temperature. Keeping your
finger on the sensor control changes
the temperature continuously.
Confirm the temperature setting with
OK or wait approx. 8seconds after
the last touch of the sensor. This
temperature will be automatically
adopted.
Tip: The new temperature setting can
also be confirmed and adopted by
closing the appliance door.
The temperature display always shows
the required temperature.
If you have adjusted the temperature,
wait for approximately 6hours if the
appliance is not very full and for
approximately 24hours if the
appliance is full before checking the
temperature display. It will take this long
for an accurate reading to be given.
If, after this time, the temperature is
still too high or too low, adjust it
again.
Adjusting the temperature in the dry
compartment of the MasterFresh
zone
The temperature in the dry
compartment of the MasterFresh zone
is maintained at approx. 32°F (0°C).
However, if you would like it to be
warmer or colder, you can adjust the
temperature slightly (see “Selecting
additional settings – Adjusting the
temperature in the MasterFresh zone
(dry compartment)”).
Tip: You can select a lower setting for
storing, for example, particularly
delicate fish. A slightly higher
temperature is preferable for storing
ready-to-eat food, for example.
Temperature range
The temperature in the refrigerator
section can be set between 36°F (2°C)
and 46°F (8°C).
The temperature in the dry
compartment in the MasterFresh zone
can be set between 30°F (-1°C) and
37°F (3°C).
Using Automatic SuperCool
80
AutomaticSuperCool
function
The AutomaticSuperCool function can
be used to rapidly reduce the
temperature in the refrigerator section
to its lowest setting (depending on the
room temperature).
AutomaticSuperCool is particularly
recommended for the rapid chilling of
large amounts of fresh food or drink.
Switching on AutomaticSuperCool
Touch the sensor control to set the
temperature.
Touch the sensor control to switch
the AutomaticSuperCool function on.
The symbol is highlighted in color
and the newly set temperature value of
36°F (2°C) appears on the display.
Confirm the setting with OK or wait
approx. 8seconds after the last press
of the button. The setting will be
automatically adopted.
The symbol is now illuminated on the
display.
The appliance will now run at maximum
power.
Switching off AutomaticSuperCool
Touch the sensor control to set the
temperature.
The symbol is highlighted in color
and the temperature value of 36°F (2°C)
is shown on the display.
Touch the sensor control to switch
the AutomaticSuperCool function off.
The symbol is no longer highlighted
in color and the previous temperature
setting appears again on the display.
Confirm the setting with OK or wait
approx. 8seconds after the last press
of the button. The setting will be
automatically adopted.
The symbol disappears from the
temperature display.
The refrigeration appliance will continue
running at normal power.
If you do not turn off the
AutomaticSuperCool function, it will
turn itself off automatically after approx.
6hours. The appliance will then run at
normal power again.
Tip: To save energy, the
AutomaticSuperCool function can be
turned off once food and drinks are
sufficiently chilled.
Door alarm
81
The appliance is fitted with a warning
system to avoid increased energy
consumption if the door is left open.
Door alarm
An alarm will sound if the appliance
door has been left open for longer than
approx. 2minutes.
The Close the door message also
appears on the display.
As soon as the door is closed, the
alarm will stop and the message on the
display will disappear.
Turning the door alarm off early
If the alarm disturbs you, it can be
turned off early.
Touch the OK sensor control in the
display.
The alarm stops and the message
disappears from the display.
After a certain time the alarm will sound
again and the message will reappear in
the display until the appliance door is
closed.
Adjusting the interior fittings
82
Removing or moving the door
shelves
Only move or remove the door
shelves when they are empty.
Hold the shelf on the frame with both
hands and lift it slightly so that it can
be lifted with the catches on both
sides over the guide.
Remove the shelf or place it in the
required position with the catches in
the guides at the same height again.
Make sure that the shelf is straight.
Tip: For the purposes of loading and
unloading or cleaning, the clip-in
containers in the shelves can be
removed from their holders completely.
Removing or moving the
shelves
Hold the shelf on both sides and raise
it slightly so that it can be lifted with
the catches over the guide at the
back.
Pull the shelf forward.
Remove the shelf or place it in the
required position, with the catches
engaged at the back.
Make sure that the shelf is straight.
Adjusting the interior fittings
83
Removing the hanging drawer
Pull the hanging drawer straight out
to lift it over the pull-out stops on
both sides.
To reinsert the hanging drawer, push
it straight into the guide.
The hanging drawer can be moved to
the left or right if required.
Moving the hanging drawer
The hanging drawer can be fixed under
any shelf in the refrigerator section.
Pull the hanging drawer out.
To remove the holder for the hanging
drawer, press against the retainers on
both sides of the holder from the rear
and pull the holder downwards
diagonally from the frame.
To replace the holder, press against
the retainers on both sides of the
holder from the rear and clamp it into
the gap on the frame from below.
Put the hanging drawer back in.
Tip: Alternatively, you can move the
shelf together with the hanging drawer.
Adjusting the interior fittings
84
Removing compartments from
the Fridge Zone
Pull the compartment out a little bit.
Using both hands, grasp the
compartment frame from below and
push the compartment downwards
so that the rear end disengages and
lifts upwards.
Pull the compartment forwards to
remove it.
Push the runners back in again to
avoid damaging them!
Be careful not to wash away the
special lubricant in the telescopic
runners during cleaning.
Wipe the telescopic runners with a
damp cloth to clean them.
To reinsert the compartment, position
it on the telescopic runners so that it
clicks into place.
Storing food in the refrigerator section
85
Always observe USDA food safety
guidelines.
Risk of fire from electrical
appliances.
Operating electrical devices in the
appliance can cause sparks to form.
Do not operate any electrical devices
inside the appliance.
Risk of explosion due to
flammable mixes of gases.
Electrical components can cause
flammable mixes of gases to ignite.
Do not store any explosive materials
or products containing flammable
propellants (e.g., spray cans) in the
appliance. The spray cans in
question can be identified by the
contents printed on the can or by a
flame symbol. Electrical components
can cause escaping gases to ignite.
Risk of damage due to greasy or
oily foods.
If storing food which contains a lot of
fat or oil in the appliance or the door,
make sure that it does not come into
contact with plastic components as
this could cause stress cracks or
break the plastic.
Make sure that no fat or oil leaks
onto the plastic parts of the
appliance.
Different storage zones
Due to natural air circulation, there are
different temperature zones in the
refrigerator section.
Cold, heavy air sinks to the lowest
section of the refrigeration section.
Make use of the different zones when
placing food in the appliance.
Tip: To allow air to circulate efficiently,
do not pack food too closely together in
the refrigerator.
If there is insufficient air circulation,
the cooling performance will
decrease and energy consumption
will increase.
Do not cover the fan in the rear wall
of the appliance.
Tip: Do not store food in such a way
that it touches the rear wall of the
refrigerator section as it may freeze to
the rear wall.
This appliance has DynamicCooling,
which helps to keep an even
temperature when the fan is running.
When DynamicCooling is turned on,
the difference between the various
zones is less pronounced.
Storing food in the refrigerator section
86
Warmest area
The warmest area in the refrigerator
section is in the top section of the door.
Use this for storing butter so that it
remains spreadable and cheese so that
it retains its flavor.
Coldest area
The coldest area in the refrigerator
section is directly above the fruit and
vegetable drawer and at the back of the
appliance. The temperature in the dry
compartment of the MastertFresh zone
is even colder.
Use this area in the refrigerator section
and in the dry compartment of the
MasterFresh zone for all delicate and
highly perishable food, e.g.:
- fish, meat, poultry
- cold cuts, ready-made meals
- dishes or baked goods containing
eggs or cream
- fresh dough, cake mixtures, pizza
dough, or pie dough
- raw milk cheese and other raw milk
products
- pre-packed vegetables and other
fresh food with a best-before date
that requires storage at a temperature
of at least 40°F (4°C)
Food which is not suitable for
storage in the fridge zone
Not all food is suitable for refrigeration
at temperatures below 40°F (5°C)
because it is sensitive to cold.
Foods which are sensitive to cold
include:
- pineapples, avocados, bananas,
pomegranates, mangoes, melons,
papayas, passion fruit, citrus fruits
such as lemons, oranges, mandarins,
grapefruits
- fruit (which is not yet ripe)
- eggplant, cucumbers, potatoes,
peppers, tomatoes, zucchini
- hard cheeses (e.g., Parmesan)
Storing food in the refrigerator section
87
Notes on buying food
The freshness of the food when it is first
placed in the appliance is the most
important factor for how long it stays
fresh.
Take into account the use-by date and
the correct storage temperature.
Time out of the fridge, e.g., transporting
food in a warm car, should be kept to a
minimum.
Storing food correctly
Ensure that food stored in the fridge
zone is in packaging or covered
properly (some exceptions apply in the
MasterFresh zone). This will prevent
food smells from affecting other food,
food from drying out, and also any
cross-contamination of bacteria. This is
particularly important when storing
meat products. Make sure that foods
such as raw meat and fish in particular
do not come into contact with other
food.
By ensuring that the temperature
settings are correct and by taking
appropriate hygiene measures you can
prolong the storage life of your food
considerably and avoid food waste.
Fruit and vegetables
Fruit and vegetables can be stored
loose in the fruit and vegetable drawer.
Storing food in the MasterFresh zone
88
MastertFresh zone
The MastertFresh zone provides ideal
storage conditions for fruit, vegetables,
fish, meat, and dairy products. Food
stays fresh considerably longer while
retaining both flavor and vitamins.
The MasterFresh zone comprises a
humidity-controlled and a dry
compartment.
- Depending on the moisture-regulator
setting, the humidity-controlled
compartment is particularly suitable
for storing fruit and vegetables.
- The dry compartment is suitable for
storing perishable foods such as
fish, meat, and dairy products.
Any type of food can in fact be stored
in this compartment, as long as it is
packaged.
Max. load of the
drawers in the
MasterFresh
zone
K26x2Vi/SF 55 lb (25kg)
K28x2Vi/SF 77 lb (35kg)
K29x2Vi/SF 100 lb (45kg)
Humidity-controlled compartment
with moisture adjustment
The moisture released by food in
storage is kept within the humidity-
controlled compartment drawer. The
closer the air humidity in the humidity-
controlled compartment is to the
humidity content of the food, the crisper
and fresher the food remains over a
longer period, as the water content of
the food is largely retained.
The moisture level greatly depends on
the type and quantity of food being
stored, if stored unwrapped.
The temperature in the humidity-
controlled compartment is
approximately equivalent to the
temperature in the conventional fridge
zone.
Remember that the fresher the food
when it is placed in the appliance, the
longer it will stay fresh.
Storing food in the MasterFresh zone
89
The moisture regulator is used to
regulate the amount of moisture in the
humidity-controlled compartment with
settings to .
Position of the moisture regulator
= slightly increased humidity
Select this setting if you store very
large quantities of fruits and
vegetables in the humidity-controlled
compartment. The moisture regulator
partially closes the vents in the
compartment so that some of the
moisture present is retained.
Position of the moisture regulator
= increased humidity
Select this setting if you store small
to large quantities of fruits and
vegetables in the humidity-controlled
compartment. The moisture regulator
closes the vents in the compartment
completely so that all of the moisture
present is retained.
Tip: If the humidity level is too high and
a lot of moisture has collected in the
compartment, select the setting.
If the quantity of food being stored in
this compartment is small, the moisture
level may be too low. If you are only
storing a small amount of food, wrap it
in airtight packaging.
Increased moisture in the humidity-
controlled compartment can, in
some circumstances, cause a build-
up of condensate.
Wipe off any condensate with a
cloth.
Regulating the humidity level in the
humidity-controlled compartment
Slide the moisture regulator to the
left or right depending on the
setting required.
Storing food in the MasterFresh zone
90
Dry compartment with adjustable
temperature
The temperature in the dry
compartment is maintained at 30 to
37°F (-1 to 3°C). While lower than the
temperature in a standard refrigerator
section, this is the optimum
temperature range for storing fresh food
which is not sensitive to cold.
The deterioration process is
decelerated at this temperature range
so food can be stored without loss of
freshness for considerably longer than
in a standard refrigerator and you do
not need to shop as often.
However, if you would like it to be
warmer or colder, e.g., when storing
fish, you can adjust the temperature
slightly (see “Selecting additional
settings – Adjusting the temperature in
the MasterFresh zone (dry
compartment)”).
The humidity level is similar to that in
the conventional refrigerator section.
Tip: This compartment is ideal for all
home-cooked meals as any
microorganisms that may still be
present cannot multiply.
The dry compartment is ideal for storing
perishable foods such as:
- dairy products such as yogurt,
cheese, cream, etc.
- deli salads
- meat, poultry, and sausage
- fresh fish and shellfish
- Any type of food can in fact be stored
in this compartment, as long as it is
packaged.
Please note that foods rich in protein
deteriorate faster than others.
Shellfish, for example, deteriorates
faster than fish, and fish deteriorates
faster than meat.
For hygiene reasons, always keep these
foods covered or wrapped in this
compartment.
Take food out of the dry compartment
approximately 30to60minutes before
using it. The aroma and taste do not
fully develop until the food has
reached room temperature.
At high room temperatures, delicate
food should preferably be kept in the
refrigerator section for a period of
time.
Storing food in the MasterFresh zone
The following tips may help if you find that food you have stored does not
keep well (for example, the food wilts or becomes withered after only a short
storage time):
Only place fresh food in the appliance as the initial condition of the food is
crucial to maintaining freshness.
Clean the MasterFresh zone before storing food in it.
Very wet food should be dried off before storing it in the humidity-controlled
compartment.
Do not store food which is sensitive to cold in the dry compartment (see
“Storing food in the refrigerator section – Food which is not suitable for storage
in the refrigerator section”).
Allocate the appropriate settings to food you wish to store (e.g., humid or dry
storage).
Store food loose in the humidity-controlled compartment.
A high humidity level in the humidity-controlled compartment is achieved by the
moisture present in the food being stored.
If the humidity level is not high enough (e.g., too little food is being stored), it can
be increased by placing a damp sponge in the drawer.
If you think that the temperature in the dry compartment is too high or too low,
adjust the temperature in the compartment (see “The correct temperature –
Temperature range”). If ice crystals start to form at the bottom of the dry
compartment, increase the temperature as otherwise the cold temperature will
damage the food.
If too much water collects at the bottom of the humidity-controlled
compartment, dry it with a cloth. If necessary, dry food before placing it in the
appliance or place a wire rack at the bottom of the humidity-controlled
compartment to allow water to drain off.
91
Automatic defrosting
92
WARNING! DANGER of injury
and damage!
Do not use any mechanical or other
types of aids which are not
recommended by the manufacturer
to accelerate the defrosting process.
Refrigerator section and
MasterFresh drawer
The refrigerator section and the
MasterFresh drawer defrost
automatically.
Condensate and frost can build up on
the back wall of the refrigerator section
and the MasterFresh drawer while in
use. You do not need to remove this, as
it will defrost and evaporate
automatically with the warmth
generated by the appliance.
Cleaning and care
93
WARNING! DANGER of electric
shock!
Unplug the appliance or trip the
circuit breaker.
WARNING! Fire hazard!
Do not damage the coolant
pipework.
Do not let water get into the
electronic or the lighting.
Risk of damage due to moisture
penetration.
The steam from a steam cleaner can
damage plastic and electrical
components.
Do not use a steam cleaner to clean
the refrigeration appliance.
The data plate located inside the
interior cabinet of the refrigeration
appliance must not be removed. It
contains information which is required
in the event of a service call.
Cleaning agents
To avoid damaging the surfaces of your
appliance, do not use:
- cleaning agents containing soda,
ammonia, acids, or chloride
- cleaning agents containing lime scale
remover
- abrasive cleaning agents, such as
scouring powder, scouring liquid, or
pumice stones
- cleaning agents containing solvents
- stainless steel cleaning agents
- dishwasher cleaner
- oven sprays
- glass cleaner
- hard, abrasive sponges and brushes,
such as pot scrubbers
- eraser sponges
- sharp metal scrapers
Cleaning and conditioning agents
used in the interior cabinet of the
refrigeration appliance must be food
safe.
We recommend using lukewarm water
and a little liquid dish soap for cleaning.
Cleaning and care
94
Before cleaning the appliance
Turn the appliance off completely by
pressing the On/Off switch.
Take any food out of the appliance
and store it in a cool place.
Take out all other removable parts for
cleaning (see “Adjusting the interior
fittings”).
Interior and accessories
Clean the appliance regularly, or at
least once a month.
Clean up any spills, stains, or food
immediately. Do not allow them to
dry and stick to the appliance.
Clean the appliance with a solution of
lukewarm water and liquid dish soap.
Rinse all parts by hand. Do not wash
in a dishwasher.
After cleaning, wipe with clean water
and dry with a soft cloth.
Leave the door open to air the
appliance sufficiently for a short while
and to prevent odor buildup.
Aluminum frames
The frames to the shelves inside the
appliance and the door shelves are
partially made from aluminum.
Aluminum is a dynamic material. The
reflection and appearance of aluminum
changes in different lights and
environments and depending on the
angle you observe it from. It is also
susceptible to scratching.
The aluminum frames may become
discolored or damaged if soiling is left
on for too long. Remove any soiling
immediately.
Cleaning and care
95
Cleaning the door seal
Risk of damage as a result of
incorrect cleaning.
If you treat the door seal with oils or
grease, it can become porous.
Do not use any oils or grease on the
door seal.
The door seals should be cleaned
regularly with clean water, and then
wiped dry with a soft cloth.
Cleaning the ventilation gaps
A build-up of dust will increase the
energy consumption of the appliance.
The ventilation gaps should be
cleaned on a regular basis with a
brush or vacuum cleaner (you could
use a Miele Vacuum Cleaner dust
brush, for example).
Replacing the Active AirClean
filters
The Active AirClean filters in the
refrigerator section need to be replaced
approx. every 6months.
Change Active AirClean Filter will appear
on the display.
Confirm the message with OK.
To remove the holder for the Active
AirClean filters, press against the
retainers on both sides of the holder
from the rear and pull the holder
downwards diagonally from the
frame.
Remove the used Active AirClean
filters and place the new Active
AirClean filters with the surrounding
edge pointing downwards in the
holder.
To replace the holder, press against
the retainers on both sides of the
holder from the rear and clamp it into
the gap on the frame from below.
Cleaning and care
96
The holder can be fixed under any
shelf in the refrigerator section.
Once the Active AirClean filters have
been replaced, the Active AirClean filter
display must be reset using Settings
mode on the display (see “Selecting
additional settings – Resetting the
Display Active AirClean Filter”).
New Active AirClean filters (both with
and without a holder) can be obtained
from Miele Service, your local dealer,
or via the Miele website.
After cleaning
Replace all shelves and accessories
in the appliance.
Switch the appliance back on.
Switch on the SuperCool function for
a while so that the refrigerator section
can cool down quickly.
Place food back in the appliance and
close the door.
Frequently Asked Questions
With the help of the following guide minor faults in the performance of the
machine, some of which may result from incorrect operation, can be remedied
without contacting the Service Department.
This guide may help you to find the reason for the fault, and how to correct it.
To prevent cold from escaping, open the appliance doors as little as possible
until the fault has been corrected.
Problem Possible cause and solution
If you are concerned
that your appliance is
not working properly,
you can perform a Self
Test. Your appliance will
be checked for any
faults or malfunctions.
Any errors identified during the Self Test are shown
on the display.
Perform a Self Test (see “Additional settings”,
section “Performing a Self Test ”).
Contact Miele Service and inform them of the error
message(s) on the display.
The appliance is not
getting cold and the in-
terior lighting does not
come on when the ap-
pliance door is opened.
The appliance has not been turned on.
Turn the appliance on. The temperature appears in
the display.
The plug is not properly plugged into the electrical
outlet.
Insert the plug into the outlet.
The fuse has tripped. There could be a fault with the
appliance, the household electrical wiring, or another
appliance.
Contact a technician or the Miele Service
department.
97
Frequently Asked Questions
Problem Possible cause and solution
The compressor is turn-
ing on more frequently
and for longer periods
of time; the temperature
in the refrigeration ap-
pliance is too low.
The ventilation gaps in the cabinetry have been
covered or become too dusty.
Do not block the ventilation gaps.
Clean the ventilation gaps on a regular basis to
remove any dust.
The appliance door has been opened too frequently,
or a large number of bottles have been put inside the
unit all at once.
Only open the appliance door when necessary and
for as short a time as possible.
After a while, the temperature will return to normal by
itself.
The appliance door is not properly closed.
Close the door.
After a while, the temperature will return to normal by
itself.
The ambient temperature is too high. The higher the
ambient temperature, the longer the compressor has
to run.
See the information in the section on “Installation –
Installation location”.
The refrigeration appliance was not properly installed
in the building-in niche.
See the information in “Installation – Installing the
refrigeration appliance”.
The compressor is turn-
ing on more frequently
and for longer periods
of time; the temperature
in the appliance is too
low.
The temperature setting is too low.
Correct the temperature setting.
The SuperCool function is still turned on.
To save energy, you can turn SuperCool off early
yourself.
The compressor comes
on less and less often
and for shorter periods
of time. The tempera-
ture in the appliance
rises.
This is not a fault. The temperature is too high.
Correct the temperature setting.
Check the temperature again after 24hours.
98
Frequently Asked Questions
Problem Possible cause and solution
The compressor runs
continuously.
Not a fault. To save energy, the compressor runs at
a lower speed when less cooling is required. This
increases the compressor run time.
An alarm sounds. The appliance door has been open for longer than
3minutes.
Close the appliance door.
No alarm sounds de-
spite the appliance door
being open.
You have switched off the audible signal.
Switch the audible signal back on using Settings
mode.
The Sabbath Mode function is switched on: the
temperature display is dark and the symbol is
shown on the display.
You can switch off Sabbath mode at any time (see
“Selecting additional settings – Switching Sabbath
Mode on or off”).
The appliance door
cannot be opened.
The Pull2OpenDoor Assistant is switched on but the
appliance has a handle-free cabinet front.
For handle-free cabinet fronts, switch on the
Push2OpenDoor Assistant (see “Switching on the
Door Assistant” in “Selecting additional settings”).
The appliance door
cannot be opened when
Sabbath Mode is
switched on.
The Push2OpenDoor Assistant is switched on at the
same time as Sabbath Mode.
When Sabbath Mode is switched on, the Door
Assistant is deactivated.
Pull the appliance door open from below or from
the side.
99
Frequently Asked Questions
Messages in the display
Message Possible cause and solution
The warning sounds
and the message Close
the door appears on the
display.
The appliance door is open.
Close the appliance door.
If you wish to turn the alarm off early, touch the
sensor control OK on the display.
The alarm will stop.
The temperature display
is dark and the sym-
bol is shown on the dis-
play.
The Sabbath Mode function is switched on. The
interior lighting is switched off and the refrigeration
appliance is cooling down.
You can switch off Sabbath mode at any time (see
“Selecting additional settings – Switching Sabbath
Mode on or off”).
“F Please contact Miele
Technical Service.” ap-
pears in the display and
an alarm sounds.
There is a fault.
Make a note of the fault message if necessary.
Contact Miele Service.
To turn the alarm off, touch the symbol.
The error message does not disappear from the
display until the error has been rectified.
The voltage level is too high/low.
Observe the connection data under “Electrical
connections”.
Contact Miele Service if necessary.
To turn the alarm off, touch the symbol.
The error message does not disappear from the
display until the error has been rectified.
is shown in the dis-
play. The machine does
not get cold, but the
machine controls are
working.
Demo Mode is switched on. Demo mode allows the
appliance to be presented in the showroom without
the cooling system being turned on. Do not activate
this setting for domestic use.
Switch off Demo mode (see “Selecting additional
settings”, section “Switching off Demo Mode ”).
100
Frequently Asked Questions
The interior lighting is not working.
Problem Possible cause and solution
The interior lighting is
not working.
The refrigeration appliance has not been turned on.
Turn the refrigeration appliance on.
The Sabbath Modefunction is switched on: the
temperature display is dark and the symbol is
shown on the display.
You can switch off Sabbath Mode at any time via
the Settings mode.
There is a fault.
Risk of electric shock due to exposed, live
electrical components.
When removing the lighting cover, there is a risk of
coming into contact with live electrical
components.
Do not remove the lighting cover. The LED lighting
may only be repaired or replaced by Miele Service.
Risk of injury from LED lighting.
This lighting corresponds to risk group RG2. If the
cover is defective, there is a risk of eye injury.
If the lighting cover is defective, do not look from a
close range directly into the lighting with optical
instruments (e.g., magnifying glass or similar).
Contact Miele Service.
101
Causes of noises
Normal
noises
Cause
Brrrrr... A humming noise is made by the motor (compressor). This noise
can get louder for brief periods when the motor switches on.
Blub, blub... A gurgling noise can be heard when the coolant circulates
through the pipes.
Click... Clicking sounds occur whenever the thermostat switches the
motor on or off.
Crack... A cracking sound can be heard when materials expand inside
the appliance.
Please bear in mind that a certain amount of noise is unavoidable (from the
compressor and the coolant circulating through the system).
Noises Cause and solution
Rattling,
clinking
The appliance is uneven. Realign the appliance using a level, by
raising or lowering the adjustable feet underneath the appliance
or placing something underneath it.
The appliance is touching another machine or piece of furniture.
Move it away.
Drawers, baskets or shelves are jiggling or are stuck. Check all
removable parts and refit them correctly if required.
Bottles or containers are touching each other. Separate them a
little.
102
Customer Service
103
Contact in the event of a fault
In the event of a fault which you cannot
remedy yourself, please contact your
Miele dealer or Miele Customer Service.
You can book a Miele Service Call
online at www.miele.com/service.
Contact information for Miele
Customer Service can be found at the
end of this document.
Please quote the model identifier and
serial number of your appliance (SN)
when contacting Miele Customer
Service. Both pieces of information can
be found on the data plate.
You will find the data plate inside your
appliance.
Appliance warranty and
product registration
You can register your product and/or
view the manufacturer´s warranty terms
and conditions for Miele appliances and
vacuum cleaners at
www.mieleusa.com.
Declaration of conformity
104
Frequency band 2.412 GHz –
2.462 GHz
Maximum
transmitting
power
< 100 mW
Copyrights and licenses
Miele uses their own and third party software which is not subject to any so-called
open source license for the operation and control of the device/appliance. This
software/these software components are protected by copyright. The copyright
powers of Miele and third parties have to be respected.
Furthermore, this device/appliance contains software components which are
distributed under open source license conditions. Please refer to the document
“Open Source Information and Licenses” for the Open Source components
contained therein, together with the corresponding copyright notices, copies of the
licensing conditions valid at the time, and any further information. The liability and
warranty provisions of the open source licensing conditions as stated therein apply
only in relation to the respective rights holders.
In particular, the device/appliance contains software components licensed by the
copyright holders under the GNU General Public License, Version 2, or the GNU
Lesser General Public License, Version 2.1. For a period of at least 3 years from
the date of purchase or delivery of the device/appliance respectively, Miele offers
to provide you or third parties with a machine-readable copy of the source code of
the Open Source components contained in the device/appliance and licensed
under the terms of the GNU General Public License, Version 2, or the GNU Lesser
General Public License, Version 2.1, on a data carrier (CD-ROM, DVD or USB
stick). Please contact us via e-mail ([email protected]) or the below postal address
and state the product name, the serial number and the date of purchase to obtain
this source code.
Miele & Cie. KG
Open Source
GTZ/TIM
Carl-Miele-Straße 29
33332 Gütersloh
Please note the limited warranty in favor of the rights holders under the terms of
the GNU General Public License, Version 2, and the GNU Lesser General Public
License, Version 2.1:
This program is distributed in the hope that it will be useful, but WITHOUT ANY
WARRANTY, without even the implied warranty of MERCHANTABILITY of FITNESS
FOR A PARTICULAR PURPOSE. See the GNU General Public License and GNU
Lesser General Public License for more details.
105
9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Customer Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
800-843-7231
609-419-4298
Customer Service & Support
Phone:
Fax:
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
888-99-MIELE(64353)
888-586-8056
Customer Care Centre
Phone:
800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 11 508 610 / 01en- US, CA
K 2602 Vi, K 2612 Vi, K 2802 Vi, K 2812 Vi, K 2902 Vi, K 2912
Vi
