Operating and installation instructions
Refrigerator
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-AU, NZ M.-Nr. 10 942 040
Contents
2
Warning and Safety instructions.......................................................................... 5
Caring for the environment ................................................................................ 14
Installation............................................................................................................ 15
Location................................................................................................................. 15
Installation notes ................................................................................................... 16
Adjoining cabinets/units................................................................................... 16
Load-bearing capacity of the niche floor ......................................................... 17
Ventilation......................................................................................................... 17
Door hinging..................................................................................................... 17
Side-by-side units ............................................................................................ 18
Installation dimensions.......................................................................................... 20
Dimensions with appliance door open (opening angle 90°/115°) .................... 21
Dimensions of the furniture front........................................................................... 22
Installing the appliance.......................................................................................... 23
Before you start................................................................................................ 23
Tools required................................................................................................... 23
Weight of furniture front.................................................................................... 24
Aligning the installation niche........................................................................... 24
Checking the installation niche ........................................................................ 25
Before installation............................................................................................. 25
Preparing the installation niche ........................................................................ 27
Pushing the appliance into the niche ............................................................... 29
Aligning the appliance ...................................................................................... 31
Securing the appliance in the niche ................................................................. 34

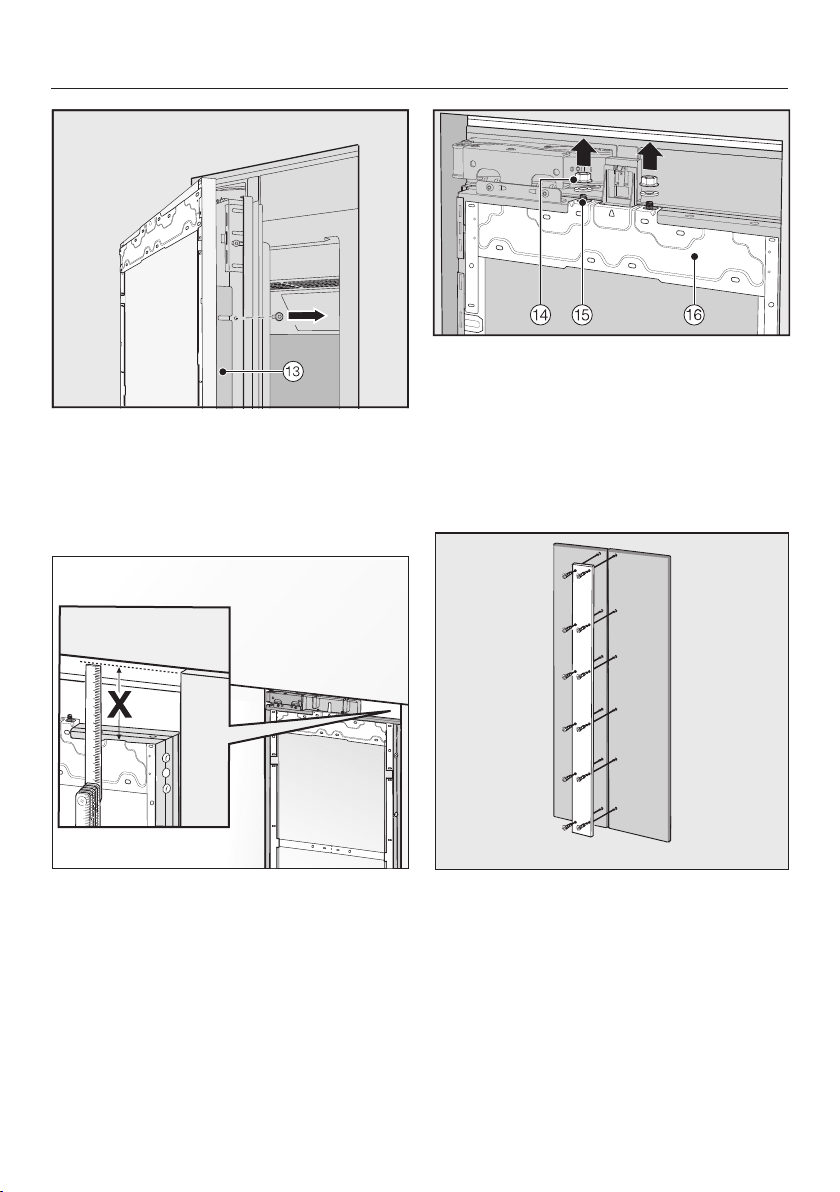

Preparing to install the furniture fronts ............................................................. 35

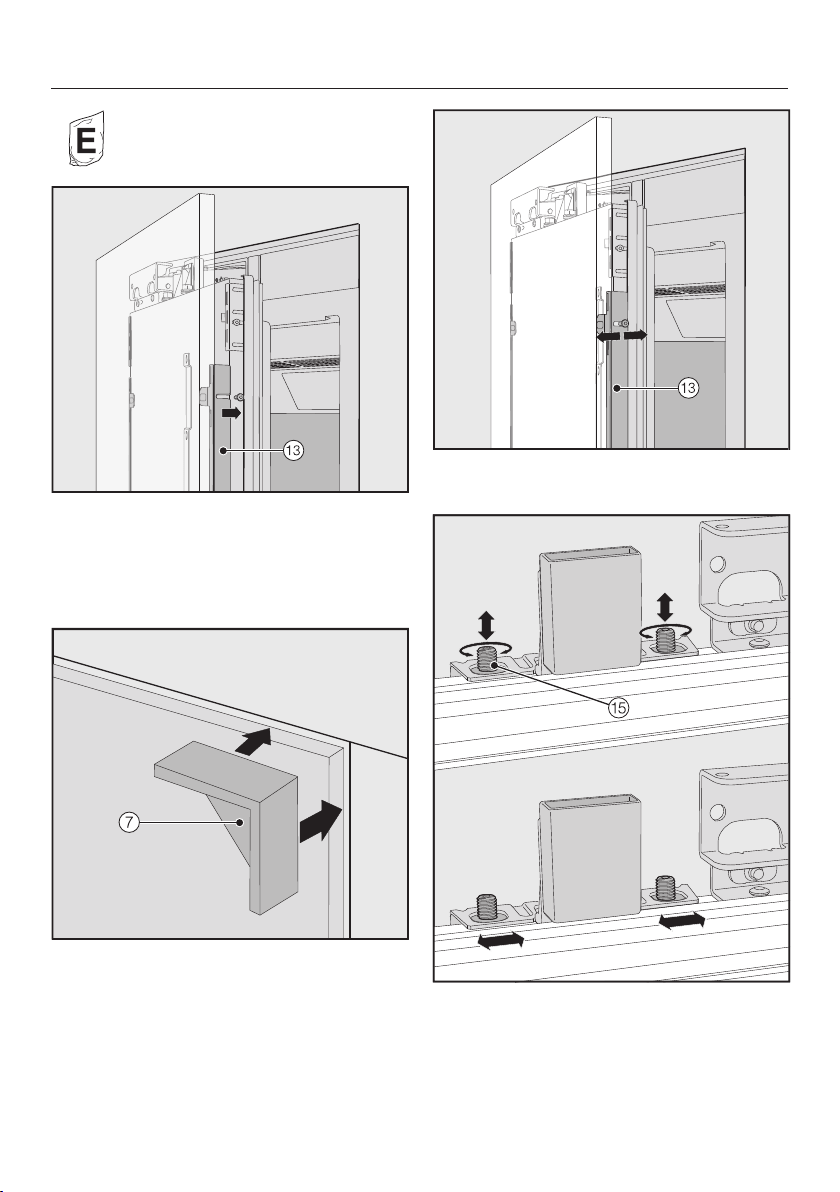

Securing and aligning the furniture front .......................................................... 38

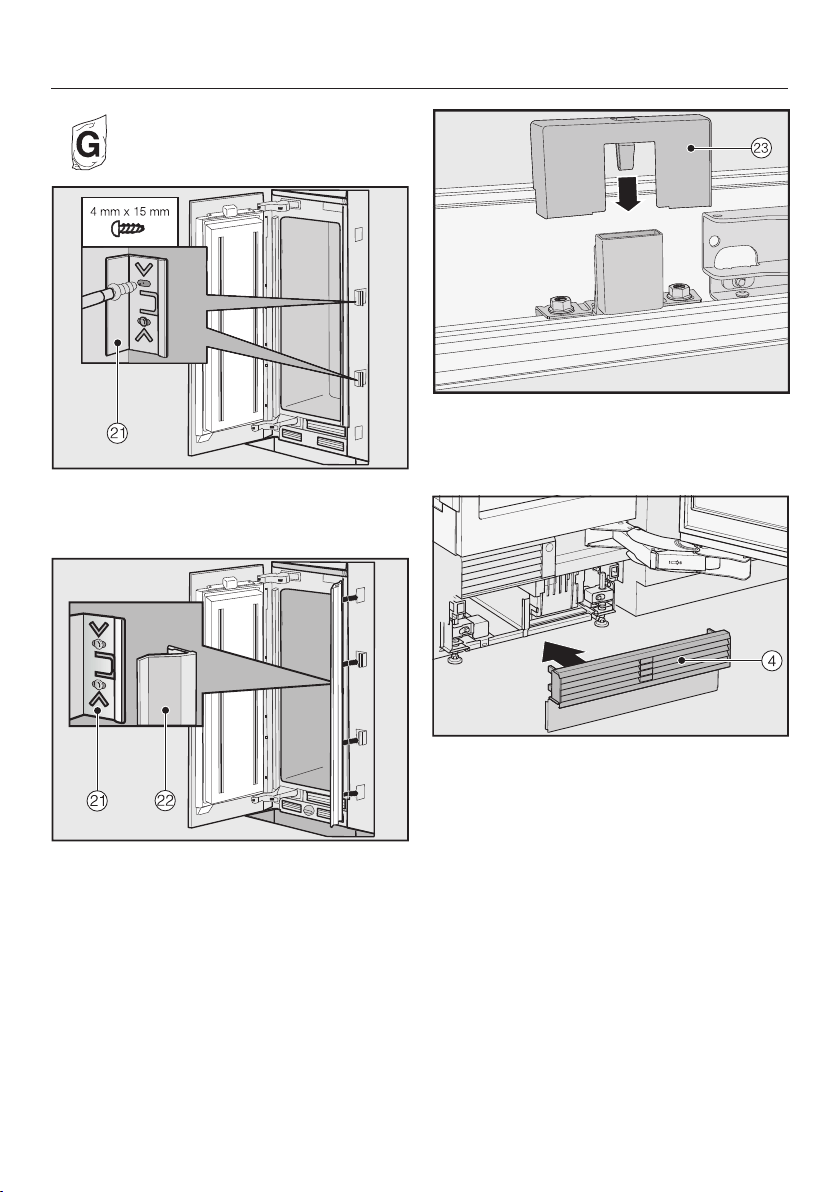

Securing the covers ......................................................................................... 42
Securing the plinth and base cover.................................................................. 44
Limiting the opening angle of the door ............................................................ 46
Electrical connection ............................................................................................. 47
Saving energy ...................................................................................................... 49

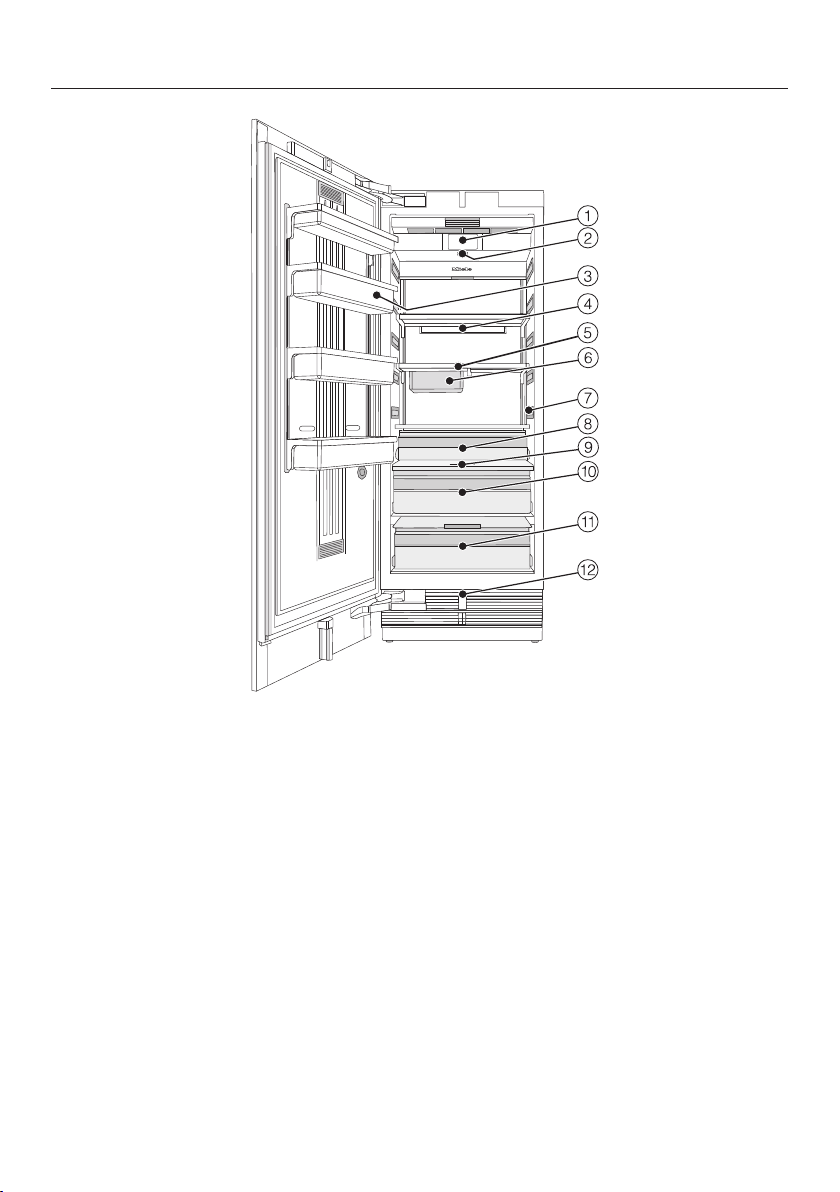

Guide to the appliance........................................................................................ 51
Main screen........................................................................................................... 52
Settings mode .................................................................................................. 53
Accessories ......................................................................................................... 56
Accessories supplied ............................................................................................ 56
Optional accessories............................................................................................. 56
Contents
3
Using for the first time ........................................................................................ 58
Before using for the first time................................................................................ 58
Choosing the right Door assistant (Push2open/Pull2open) ............................ 58
Affixing the MasterFresh zone labels ............................................................... 59
Inserting the Active AirClean filters .................................................................. 59
Operating the appliance........................................................................................ 60
Using for the first time...................................................................................... 61
Switching on and off ........................................................................................... 62
Switching off for longer periods of time ................................................................ 62
Selecting further settings ................................................................................... 63
Switching the Keypad lock / on or off........................................................... 63
Adjusting the temperature in the MasterFresh zone (dry compartment) ......... 64
Switching Eco modeon or off.......................................................................... 64
Carrying out a Self test ..................................................................................... 65
Switching on the Door assistant........................................................................ 66
Switching off the Door assistant ....................................................................... 68
Miele@home .......................................................................................................... 68
Switching off Demo mode.................................................................................. 72
Resetting the settings to their factory default settings .................................... 73
Switching Sabbath modeon or off.................................................................... 75
Switching on, switching off, or resetting theDisplay Active AirClean filter...... 76
The correct temperature..................................................................................... 78
...in the refrigerator section and in the MasterFresh zone .................................... 78
Setting the temperature......................................................................................... 79
Adjusting the temperature in the dry compartment of the MasterFresh zone.. 79
Temperature range ........................................................................................... 79
Using SuperCool.................................................................................................. 80
Door alarm ........................................................................................................... 81
Adjusting the interior fittings.............................................................................. 82
Moving the shelves in the appliance door............................................................. 82
Moving the adjustable shelves .............................................................................. 82
Removing the hanging drawer .............................................................................. 83
Removing compartments from the refrigerator section ........................................ 84
Using the refrigerator efficiently ........................................................................ 85
Different storage zones ......................................................................................... 85
Food which is not suitable for storage in the refrigerator...................................... 86
Notes on buying food............................................................................................ 86
Storing food correctly............................................................................................ 86
Contents
4
Storing food in the MasterFresh zone ............................................................... 87
MasterFresh zone .................................................................................................. 87
Humidity-controlled compartment with moisture regulator ............................. 87
Dry compartment with adjustable temperature................................................ 89
Automatic defrosting .......................................................................................... 91
Cleaning and care ............................................................................................... 92
Cleaning agents..................................................................................................... 92
Before cleaning the appliance............................................................................... 93
Cleaning the interior and accessories ................................................................... 93
Cleaning the door seal .......................................................................................... 94
Cleaning the ventilation gaps ................................................................................ 94
Replacing the Active AirClean filters ..................................................................... 94
After cleaning ........................................................................................................ 95
Problem solving guide ........................................................................................ 96
Noises................................................................................................................. 101
Service................................................................................................................ 102
Contact in case of fault ....................................................................................... 102
Warranty .............................................................................................................. 102
Copyright and licences ..................................................................................... 103
Warning and Safety instructions
5
This refrigeration appliance complies with current safety
requirements. However, inappropriate use can lead to personal
injury and damage to property.
Please read the operating and installation instructions carefully
before using the refrigeration appliance for the first time. They
contain important information on safety, installation, use and
maintenance of the appliance. This is to protect yourself from
injury and from damaging your appliance.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in
“Installation”, as well as in the “Warning and Safety instructions”.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Risk of injury and damage due to the refrigeration appliance
tipping over.
This appliance is very heavy and can tip forwards when the door is
open.
Keep the appliance doors shut until the appliance has been built in
and secured in its housing in accordance with the operating and
installation instructions.
Correct application
This appliance is designed for domestic use and for use in similar
environments by guests in hotel or motel rooms, bed & breakfasts
and other typical living quarters. This does not include common/
shared facilities or commercial facilities within hotels, motels or bed
& breakfasts.
Warning and Safety instructions
6
This appliance is not suitable for outdoor use.
This appliance is intended for domestic use only for the cooling
and storing of food and drinks.
Any other usage is not permitted.
This appliance is not suitable for storing and keeping cool
medicines, blood plasma, laboratory preparations or similar
substances or products. Incorrect use of the appliance for such
purposes may cause deterioration of the items stored.
The appliance is also not suitable for use in areas where there is a
risk of explosion.
Miele cannot be held liable for damage resulting from incorrect or
improper use or operation of the appliance.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities or
lack of experience and knowledge, unless they have been given
supervision and instruction concerning its use by a person
responsible for their safety.
They may only use the appliance unsupervised if its operation has
been clearly explained to them and they are able to use it safely and
are able to understand and recognise the possible dangers caused
by incorrect operation.
Warning and Safety instructions
7
Safety with children
Young children must not be allowed to use this appliance.
Older children may only use the appliance when its operation has
been clearly explained to them and they are able to use it safely,
recognising the dangers of misuse.
Cleaning work may only be carried out by older children under the
supervision of an adult.
Please supervise children in the vicinity of the appliance and do
not let them play with it.
The appliance door hinges can cause injury. Keep children away
at all times.
Danger of suffocation! Children may be able to wrap themselves in
packing material (e.g. foil) or pull it over their head with the risk of
suffocation. Keep packaging material away from children.
Warning and Safety instructions
8
Technical safety
The refrigerant circuit has been checked for leaks. The
refrigeration appliance complies with all current local and national
safety requirements.
This refrigeration appliance contains the coolant Isobutane
(R600a), a natural gas which is environmentally friendly. Although it is
flammable, it does not damage the ozone layer and has a lower
greenhouse effect than some other refrigerants.
The use of this coolant, however, leads to a slight increase in the
noise level of the appliance. In addition to the noise of the
compressor, you might be able to hear the coolant flowing around
the system. Unfortunately, this cannot be avoided, but it does not
affect the performance of the refrigeration appliance.
When transporting and installing the refrigeration appliance, ensure
that no parts of the cooling circuit are damaged. Leaking refrigerant
can damage the eyes.
In the event of any damage:
– avoid any flames or anything which creates a spark
– disconnect the refrigeration appliance from the mains electricity
supply
– ventilate the room where the appliance is located for several
minutes, and
– call Miele.
The more coolant there is in a refrigeration appliance, the larger
the room should be in which it is installed. In the event of a leakage,
if the appliance is in a small room, there is a danger of combustible
gases building up. For every 11 g of coolant at least 1m
3
of room
space is required. The amount of coolant in the appliance is stated
on a data plate inside the appliance.
Warning and Safety instructions
9
To avoid the risk of damage to the appliance, make sure that the
connection data (fuse rating, frequency and voltage) on the data
plate corresponds to the household supply. Check that this is the
case before connecting the appliance.
Consult a qualified electrician if in any doubt.
The electrical safety of this appliance can only be guaranteed
when correctly earthed. It is essential that this standard safety
requirement is met. If in any doubt please have the electrical
installation tested by a qualified electrician.
Reliable and safe operation of this appliance can only be assured
if it has been connected to the mains electricity supply.
The socket must not be concealed behind the appliance and must
be easily accessible so that the appliance can be quickly
disconnected from the electricity supply in case of an emergency.
If the electrical connection cable supplied is damaged, it must
only be replaced by an original spare part to prevent a hazard for the
user. Miele can only guarantee the safety of the appliance when
original Miele spare parts are used.
Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. These do not guarantee the
required safety of the appliance (e.g. danger of overheating).
If moisture gets into electrical components or into the mains
connection cable, it could cause a short circuit. Therefore, do not
operate this refrigeration appliance in areas which are exposed to
moisture (e.g in a garage or laundry).
This appliance must not be installed and operated in mobile
installations (e.g. on a ship).
Do not use a damaged appliance. It could be dangerous. Check
the appliance for visible signs of damage.
For safety reasons, this appliance may only be used when it has
been fully installed.
Warning and Safety instructions
10
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply. It is only
completely isolated from the electricity supply when:
– the mains circuit breaker has been switched off, or
– the screw-out fuse is removed (in countries where this is
applicable), or
– it is switched off at the wall socket and the plug is withdrawn from
the socket. Do not pull the mains connection cable but the mains
plug to disconnect your appliance from the mains electricity
supply.
Repairs and other work by unqualified persons could be
dangerous. Maintenance work and repairs to electrical appliances
must only be carried out by a Miele authorised technician.
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele authorised technician.
Faulty components must only be replaced by genuine Miele spare
parts. The manufacturer can only guarantee the safety of the
appliance when Miele replacement parts are used.
Correct use
The appliance is designed for use within a certain climate range
(ambient temperatures) and should not be used outside this range.
The climate range for your appliance is stated on the data plate
inside the appliance. Installing it in a room with too low an ambient
temperature, e.g. a garage, will lead to the appliance switching off
for longer periods, with the result that it cannot maintain the required
temperature.
To ensure proper air flow in and out of the appliance, the
ventilation gaps in the appliance and built-in structure must not be
covered or blocked in any way. This would also increase the energy
consumption and could cause damage to the appliance.
Warning and Safety instructions
11
If storing food which contains a lot of fat or oil in the appliance or
the appliance door, make sure that it does not come into contact
with plastic components as this could cause stress cracks or break
the plastic. Make sure that no fat or oil leaks onto the plastic parts of
the appliance.
Risk of fire and explosion! Do not store any explosive materials or
products containing flammable propellants (e.g. spray cans) in the
refrigeration appliance. Electrical components can cause flammable
mixes of gases to ignite.
Danger of explosion! Do not operate any electrical equipment (e.g.
an electric ice cream maker) inside the appliance. Danger of
sparking and explosion.
Food stored for too long may present a risk of food poisoning.
Storage times will depend on several factors, including the freshness
and quality of the food, as well as the temperature at which it is
stored. Follow the instructions given on the food manufacturer's
packaging regarding storage conditions and use-by dates.
Use only genuine original Miele spare parts. If spare parts or
accessories from other manufacturers are used, the warranty will be
invalidated, and Miele cannot accept liability.
Warning and Safety instructions
12
Cleaning and care
Do not use any oils or grease on the door seals, as these will
cause the seals to deteriorate and become porous with time.
Do not use a steam cleaning appliance to clean this appliance.
Steam could reach the electrical components and cause a short
circuit.
Sharp edged or pointed objects will damage the evaporator,
causing irreversible damage to the appliance. Do not use sharp
edged or pointed objects to
– remove frost and ice, or accelerate the defrosting process,
– separate frozen foods and remove ice trays.
Never place electric heaters or candles in the appliance to defrost
it. These can damage the plastic parts.
Do not use defrosting sprays or de-icers, as they might contain
substances which could damage the plastic parts or which could
cause a build-up of gases and pose a danger to health.
Warning and Safety instructions
13
Transport
To avoid damage to the appliance, always transport it upright and
in its packaging.
Risk of injury and damage! The appliance is very heavy and must
be transported by two people.
Disposal of your old appliance
If your old appliance has a door lock, destroy it. This way you will
prevent the risk of playing children accidentally locking themselves in
and endangering their lives.
Splashes of coolant can damage the eyes. Be careful not to
damage any part of the pipework whilst awaiting disposal, e.g. by
– puncturing the refrigerant channels in the condenser,
– bending any pipework, or
– scratching the surface coating.
Caring for the environment
14
Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and can normally be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites. Ensure that any plastic
wrappings, bags etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger of
suffocation!
Disposing of your old
appliance
Electronic and electrical appliances
contain many valuable materials. They
also contain certain materials,
compounds and components which
were essential for their correct
functioning and safety. These could be
hazardous to human health and to the
environment if disposed of with general
waste or if handled incorrectly. Please
do not, therefore, dispose of your old
appliance with your household waste.
Please dispose of it at your local
community waste collection/recycling
centre for electrical and electronic
appliances, or contact Miele. You are
also responsible for deleting any
personal data that may be stored on the
appliance being disposed of.
Take care not to damage the pipework
at the back of the appliance before or
during transportation to an authorised
collection depot.
This is to ensure that refrigerant in the
pipework and oil in the compressor are
contained and will not leak out into the
environment.
Please ensure that your old appliance
presents no danger to children while
being stored awaiting disposal. See
“Warning and Safety instructions” for
more information.
Installation
*INSTALLATION*
15
Location
This appliance should be installed in a
dry, well-ventilated room.
When deciding where to install your
refrigerator, please bear in mind that it
will use more energy if installed near a
heater, cooktop or other appliance that
gives off heat. Direct sunlight should
also be avoided.
The higher the room temperature, the
longer the compressor will run and the
higher the energy consumption will be.
Please note the following when
installing the appliance:
– The mains socket must not be
located directly behind the appliance
and must be easily accessible.
– The plug and the power cable must
not touch the rear of the refrigeration
appliance as they could be damaged
by vibrations from the appliance.
– Nor should other appliances be
plugged into a socket located directly
behind this appliance.
If installation near a heat source is
unavoidable, observe the following
minimum distances between the
appliance and the heat source:
– at least 3cm
to electric or gas stoves
– at least 30cm
to oil or coal stoves.
If it is not possible to observe these
minimum distances, an insulation plate
must be installed between the
refrigeration appliance and the heat
source.
Climate range
The appliance is designed for use within
a certain climate range (ambient
temperatures) and should not be used
outside this range. The climate range of
the appliance is stated on the data plate
inside the appliance.
Climate range Ambient room
temperature
SN +10 to +32°C
N +16 to +32°C
ST +16 to +38°C
T +16 to +43°C
Operating in a room which is too cold
will result in the compressor switching
off for too long, causing the internal
temperature in the appliance to rise with
the risk of food deteriorating and going
off.
Installation
*INSTALLATION*
16
Risk of damage due to high
humidity.
In environments with high humidity,
condensation can build up on
external appliance panels, which can
cause corrosion.
Install the refrigeration appliance in a
dry and/or air-conditioned room with
sufficient ventilation.
After installation, make sure that the
appliance door(s) close properly, the
ventilation gaps are not covered and
that the refrigeration appliance has
been installed in accordance with
these operating and installation
instructions.
Installation notes
Danger of damage and injury
due to the appliance tipping over!
This refrigeration appliance is very
heavy and can tip forwards when the
door(s) is/are open.
Keep the appliance door(s) shut until
the appliance has been built in and
secured in its housing in accordance
with these operating and installation
instructions.
Due to the size and weight of the
appliance, installation must be
carried out by two people.
Adjoining cabinets/units
The appliance is screwed to the
adjoining cabinets/units to the side and
above. For this reason, it is essential
that all cabinets/units are fixed to the
ground or wall.
Installation
*INSTALLATION*
17
Load-bearing capacity of the niche
floor
To ensure the safe installation of the
appliance and to guarantee its correct
functioning, the floor of the niche where
the appliance is to be installed must be
smooth and even.
It must be made from strong, rigid
material.
Because the appliance is extremely
heavy when fully loaded, it is essential
that the floor it stands on is able to bear
its weight. If necessary, seek the advice
of an architect or construction expert.
When fully loaded, the approx. weight
of the appliance is:
K 2601 Vi 325 kg
Ventilation
Risk of fire and damage due to
insufficient ventilation.
If the refrigeration appliance is not
ventilated sufficiently, the
compressor will run more frequently
and for longer periods.
This will result in increased energy
consumption and a higher operating
temperature of the compressor. This,
in turn, can result in damage to the
compressor.
Please ensure that there is adequate
ventilation around the appliance.
It is essential to observe the required
ventilation gaps. The ventilation gaps
must not be covered or blocked in
any way.
Door hinging
Risk of damage and injury when
changing the door hinge.
Changing the door hinge single-
handedly can cause damage to the
appliance and injury.
The appliance is supplied with fixed
hinges. Under no circumstances
should you attempt to change the
door hinging yourself.
If you need to change the door
hinges to the other side, please
contact Miele customer service.
Installation
*INSTALLATION*
18
Side-by-side units
This appliance can be installed side by
side with another refrigeration
appliance. The following overview will
show you which side-by-side
installation options you have with your
refrigeration appliance.
Depending on the installation
situation, you may need the side-by-
side installation kit (see “Accessories -
Optional accessories”).
Instructions for installing appliances
side by side can be found in the side-
by-side installation kit installation
instructions.
. . . with partition wall
The wall a between the side-by-side
refrigeration appliances must be at
least 16mm thick.
If the door hinges of the appliances
are next to each other, you must take
into account the thickness of the
cabinet fronts and door handles so
that the appliance doors do not
collide and become damaged if they
are opened at the same time.
The appliances are secured individually
in their niche using the supplied
installation material.
If the partition wall a is between 16 mm
and 160mm, you will need the side
panel heater from the side-by-side
installation kit to prevent condensation
from forming and any resulting damage.
When planning installation niches,
please note that the niche into which
the refrigeration appliance with the
side panel heater is installed must be
4mm wider (see “Installation –
Installation dimensions”).
If the partition wall a is thicker than
160mm, you do not need the side-by-
side installation kit, nor the side panel
heater.
Installation
*INSTALLATION*
19
. . .without partition wall
If the appliances are to be installed next
to each other without a partition wall
between them, they will need to be
joined together with the side-by-side
installation kit. In addition, you must
install the side panel heater to prevent
condensation from forming and any
resulting damage.
Installation
*INSTALLATION*
20
Installation dimensions
K2601Vi
≥ 629 mm
610 mm
2134−2164 mm
30 mm
22 mm
≥ 262 mm
102 mm
≥ 102 mm
≥ 85 mm
Side view
Installation
*INSTALLATION*
21
Dimensions with appliance door open (opening angle 90°/115°)
90°
A B* C* D
K 2601 Vi 677mm furniture front
(max. 38mm)
door handle 296mm
* The dimensions of the furniture front and the door handle vary depending on the
design of the kitchen.
Installation
*INSTALLATION*
22
Dimensions of the furniture front
K2601Vi
≥ 102−132 mm
2029 mm
604 mm
Installation
*INSTALLATION*
23
Installing the appliance
Before you start
It is essential to read these operating
and installation instructions carefully
before starting to install the
appliance.
The refrigeration appliance should be
installed by a suitably qualified and
competent installer in accordance
with these operating and installation
instructions. Safe operation of the
appliance is only assured if it has
been installed and connected in
accordance with these operating and
installation instructions.
Danger of damage and injury
due to the appliance tipping over!
This appliance is very heavy and can
tip forwards when the door is open.
Keep the appliance door shut until
the appliance has been built in and
secured in its niche in accordance
with these operating and installation
instructions.
Due to the size and weight of the
appliance, installation must be
carried out by two people.
Tools required
– Cordless drill
– TX20 screwdriver
– Hammer drill
– Drill bits in various sizes, depending
on materials
– Hammer
– Open-end spanner
– Ratchet wrench, attachment: 8 mm
socket
– Adhesive tape
– Utility knife
– Pipe wrench
– Spirit level
– Tape measure
– Pencil
– Try square
Other
– Step ladder
– Hand trolley
Installation
*INSTALLATION*
24
Weight of furniture front
Before fitting a furniture front, ensure
that its weight does not exceed the
maximum permitted weight.
Appliance Max. weight
of furniture
front
K2601Vi 48 kg
Risk of damage due to a
furniture front that is too heavy.
Fitting a furniture front which is
heavier than the maximum permitted
weight could damage the hinges.
Among other things, this damage
can lead to functional impairments.
Before fitting a furniture front, ensure
that its weight does not exceed the
maximum permitted weight.
Aligning the installation niche
The installation niche must be carefully
aligned using a spirit level before
installing the appliance. The niche
corners must be at 90° angles to each
other, otherwise the furniture panels will
not sit straight on all four corners of the
installation niche.
Installation
*INSTALLATION*
25
Checking the installation niche
Check the installation dimensions
(see “Installation - Installation
dimensions”).
Check the position of the electrical
connection. The length of the
electrical connection cable is 3m.
The electrical socket must not be
concealed behind the appliance and
must be easily accessible in an
emergency.
Check the surroundings for possible
collisions (see “Installation
dimensions - Dimensions with
appliance door open”).
Install the appliance in a stable, solid
installation niche, positioned on an
even and level floor.
Also check the installation niche for
the following criteria:
– The side panels of the installation
niche must be even.
– The surrounding walls of the niche
must be at least 16 mm thick.
– The surrounding walls must be
securely fixed to the floor or wall.
– Shortened side walls must be at least
100mm thick.
Before installation
Before installation, remove any
accessories from the back of the
appliance.
Check the appliance for transport
damage.
Do not install a damaged appliance.
Check that all parts at the back of the
appliance are unhindered.
To protect the floor when installing
the appliance, secure an off-cut of
flooring (e.g. linoleum) or similar
material to the floor in front of the
installation area.
Installation
*INSTALLATION*
26
Do not remove the installation aids
from the appliance door. These will
be required later when the appliance
is installed in the niche.
Danger of damage and injury
due to the appliance tipping over!
Note that once you unscrew the
brackets that fix the refrigeration
appliance to the pallet, the appliance
will no longer be secured.
Due to the size and weight of the
appliance, installation must be
carried out by two people.
2
Unscrew the fixing brackets.
With the help of several people as
required, carefully lift the appliance
from the pallet, starting with the back
of the appliance.
Risk of damaging the floor.
Moving the refrigeration appliance
may damage your floor.
Move the appliance carefully on
floors that are sensitive to
scratching.
As soon as you have set the appliance
upright, you can move it using the
rollers on the underside of the
appliance.
Installation
*INSTALLATION*
27
Preparing the installation niche
Danger of damage and injury
due to the appliance tipping over!
This refrigeration appliance is very
heavy and can tip forwards when the
door is open.
The housing unit must be secured to
the wall behind it and/or above it
with several screws. Only this will
prevent the appliance from tipping
over after being installed.
In addition, use the anti-tip brackets
provided to secure the housing unit.
The parts required for installation of
the appliance are supplied with the
appliance. The plastic bags supplied
are marked with letters for easy
identification.
Please take note of these letters
during the individual assembly steps
and use the applicable plastic bag
with the required installation material.
The anti-tip brackets prevent the
refrigeration appliance from tipping.
The anti-tip brackets are also used to fix
the housing unit securely to the
surrounding walls.
Use 2 anti-tip brackets for each
individual appliance or 4 anti-tip
brackets for each (side-by-side)
combination of 2 appliances.
Position the anti-tip brackets on
the left and right side of the
installation niche.
Depending on the subsequent
adjustment of the feet, the anti-tip
brackets are positioned 2134–
2164mm from the floor of the niche.
Installation
*INSTALLATION*
28
Risk of injury and damage due to
the refrigeration appliance tipping
over.
If the anti-tip brackets are fixed too
high, they cannot be used to secure
the refrigeration appliance.
The height between the
anti-tip brackets and the top of the
refrigeration appliance must not
exceed 8mm.
Make sure that the gap between the
refrigeration appliance‘s rear wall and
the installation niche does not exceed
51mm.
Place a wooden wedge behind the
anti-tip brackets if necessary.
While holding the anti-tip brackets in
place, mark the drill holes on the rear
wall of the installation niche.
The accessory pack supplied
contains fastening screws for various
applications/materials:
Securing to a concrete wall
Securing to a wooden wall
Installation
*INSTALLATION*
29
Securing with a wooden wedge
Secure the housing unit to the wall
behind it and/or above it as required
using the anti-tip brackets.
Pushing the appliance into the niche
Take care not to damage the
electrical connection when pushing
the refrigeration appliance into the
installation niche.
If you are installing several
refrigeration appliances side by side,
secure the appliances to one another
now (see the instructions of the side-
by-side installation kit).
To ensure that the refrigeration
appliance can then be aligned
correctly, the plinth must be removed
from the appliance base:
Carefully guide a flat-head
screwdriver through the grate in the
plinth on both sides and use it to
push the internal plastic latches
outwards to release the plinth panel.
Place the plinth to one side.
Installation
*INSTALLATION*
30
Affix an edge protection to the
adjacent furniture fronts.
Insert the plug connector at the back
of the appliance (see “Installation -
Electrical connection”).
Insert the plug into the electrical
socket.
The wall socket should be close to
the appliance and easily accessible.
Risk of damage due to electrical
overload.
If the refrigeration appliance is
electrically overloaded, this can
cause a short circuit and thus
damage your appliance.
When you install appliances side by
side, each refrigeration appliance
must have its own separate electrical
socket.
Useful tip: Secure the power cord to
prevent it becoming caught: Tie a piece
of string to the middle of the cable and
as the appliance is being pushed into
the niche, pull the cable forward
underneath the appliance.
Carefully push the appliance into the
niche.
If the refrigeration appliance cannot
be pushed into the niche (because
the floor is uneven, for example),
unscrew the rear feet slightly (see
“Installation - Aligning the appliance”)
and slide the appliance into the niche.
Remove the edge protection from
the adjacent furniture fronts.
Installation
*INSTALLATION*
31
Aligning the appliance
The installation aids on the
appliance door provide assistance
with the alignment of the refrigeration
appliance in the installation niche.
The installation aids are suitable for a
furniture front thickness of 19mm or
38mm.
Align the appliance with adjacent
furniture fronts as described below.
Furniture front thickness of 19mm
Furniture front thickness of 38mm
The front and rear feet are height-
adjustable and can all be adjusted
from the front of the appliance.
Risk of damage due to incorrect
adjustment of the feet.
The foot adjustment can be
damaged by using an electric
screwdriver.
Always adjust the front and rear feet
by hand.
Installation
*INSTALLATION*
32
Position the spacers supplied on
both sides at the markings next to the
adjustable feet in front of the
appliance.
Adjust the rear feet with a ratchet
(attachment: 8mm socket) or a TX20
screwdriver.
Installation
*INSTALLATION*
33
Adjust the front feet with a ratchet
(attachment: 8mm socket) or a TX20
screwdriver.
Useful tip: Proceed carefully when
adjusting the feet, alternating between
the left and right feet.
Place a spirit level across the
installation aids on the appliance
door to check the appliance’s
alignment.
Unscrew the feet and on both
sides at least until the marking on the
base has reached the minimum
specified distance of 32mm on the
spacer. The standard dimension of
32mm relates to a niche height of
2134mm.
It is important to adjust the feet to a
height of at least 32 mm in order to
ensure the ventilation of the
refrigeration appliance via the base.
Risk of damage if the feet are
adjusted too much.
The rear adjustable feet can be
damaged.
Unscrew the feet only until the
marking on the plinth is aligned to a
maximum of 62mm (max. niche
height of 2164mm).
Installation
*INSTALLATION*
34
Check the alignment of the appliance
again using the installation aids
and the spirit level.
Securing the appliance in the niche
Screw the lugs of the fixing plate
into the cabinets/units above the
appliance.
If it is not possible to secure the
appliance at the top, it can be attached
to the niche with the side mounting
brackets:
Fold out the side mounting brackets
.
Secure the side mounting brackets
with the screws provided.
Installation
*INSTALLATION*
35
Open the appliance door.
Screw the lugs of the mounting plate
at the top and bottom to the
cabinets/units adjacent to the
appliance.
In a side-by-side combination, only
the external panels of the two
appliances can be secured to the
adjacent cabinets/units.
Preparing to install the furniture
fronts
Open the appliance door as far as it
will go.
Unscrew the installation aids from
the appliance door.
Installation
*INSTALLATION*
36
Unscrew the angle bars from both
sides of the appliance door and keep
the bars and screws in a safe place –
they will be required later.
Close the appliance door.
Measure the gapX between the
mounting frame and the upper edge
of the adjacent furniture front.
Remove the nuts and washers
from the threaded bolts and store
them in a safe place – they will be
required later.
Take the mounting frame off the
appliance door by removing it
upwards.
For cassette fronts: When fixing the
metal panel to the furniture front, be
sure to pay attention to the length of
the screws.
Installation
*INSTALLATION*
37
Place the furniture front on a firm
surface with the inside facing
upwards (to avoid scratches, place a
blanket underneath).
Mark the distanceX -3mm on the
inner side of the furniture front.
Also locate and mark the centre
pointY on the furniture front.
Position the mounting frame
according to the markings on the
furniture front.
Pre-drill the holes.
Screw the mounting frame to the
furniture front:
Use at least one screw for each
retaining point on the mounting
frame.
Secure the mounting frame to the
top of the furniture front, using 6 to
10screws depending on the size.
The mounting frame has several
different types of holes to take
account of a variety of furniture fronts.
When securing the frame, always
screw into the strongest part of the
furniture front. To do this, select
screws which are slightly shorter than
the thickness of the furniture front.
For cassette fronts: Secure the
mounting frame to the outer frame
only with the screws.
Installation
*INSTALLATION*
38
Screw the appliance handle to the
furniture front from the inside if
necessary (not for handle-free
kitchens).
Now insert the angle bars on both
sides as far as they will go into the
provided spaces in the mounting
frame.
Securing and aligning the furniture
front
Open the appliance door and hang
the furniture front with its mounting
frame onto the threaded bolts .
Installation
*INSTALLATION*
39
Press the angle bars into the white
plastic frame on both sides and
screw them on loosely at first. Spare
screws are provided in the plastic
bag marked with the letter E.
Place the spacers on top of the
corners of the furniture front on both
sides.
Close the appliance door and check
the distance between the door and
adjacent furniture fronts.
Align the depth of the furniture front
via the slots in the angle bars .
Align the height and sides of the
furniture front with the threaded bolts
using the TX 20 screwdriver.
Installation
*INSTALLATION*
40
Close the appliance door and check
the distance between the door and
adjacent furniture fronts again.
Place the washers and nuts back
in position and tighten the nuts.
Tighten the screws in the angle
bars.
The furniture front is now secured.
Open the appliance door.
Remove the spacers from the
furniture front.

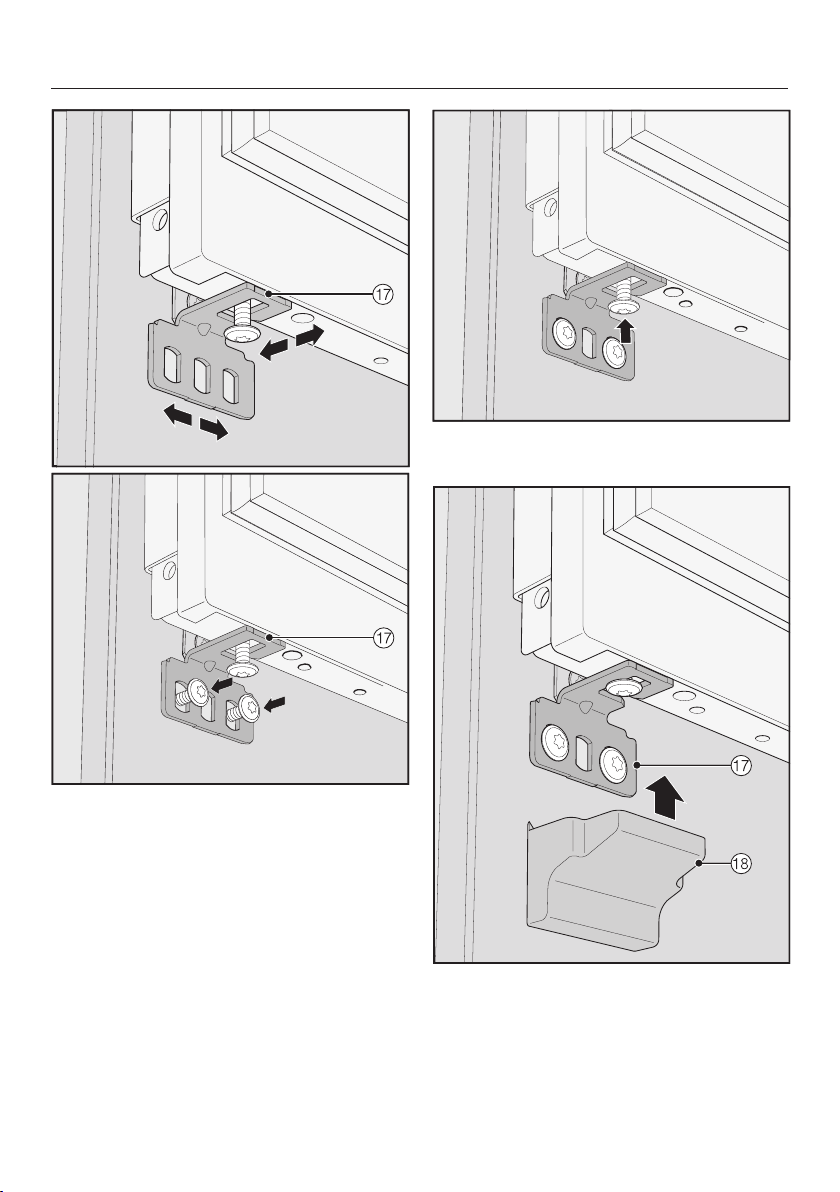

Fitting the mounting bracket
The mounting bracket is used to further
secure the furniture front to the bottom
of the appliance door.
Do not fit the fixing bracket until the
appliance (or side-by-side
combination, if applicable) has been
installed and the furniture front has
been aligned.
Open the appliance door as far as it
will go.
Slide the mounting bracket
sideways onto the screw at the
bottom of the appliance door.
Installation
*INSTALLATION*
41
Screw the mounting bracket
securely to the furniture front.
Tighten the screw at the bottom of
the appliance door.
Place the cover on the mounting
bracket.
Installation
*INSTALLATION*
42
Snap the cover onto the mounting
bracket so that it clicks into place.
Securing the covers
The top cover must be assembled
as follows before it can be fitted:
Insert the two parts of the cover into
one another.
Cover viewed from the side
Installation
*INSTALLATION*
43

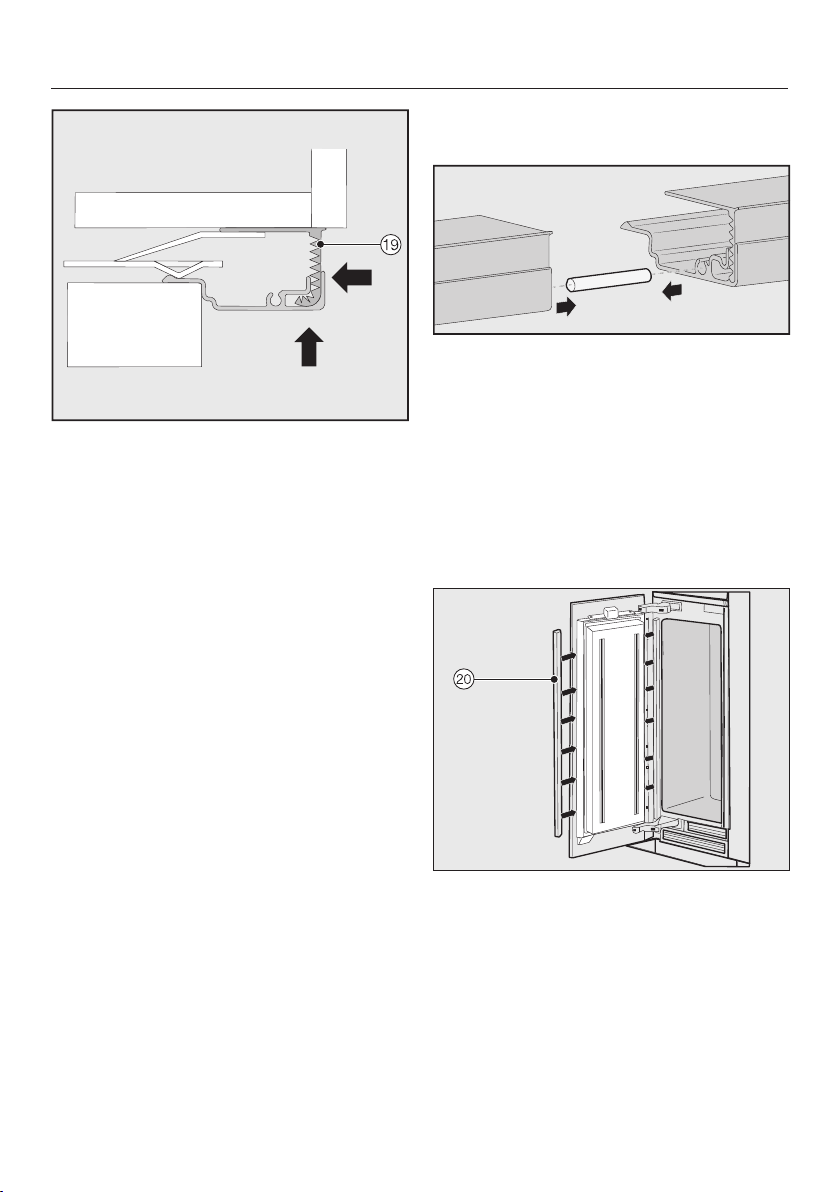

Place the assembled cover into
the gap above the appliance so that it
clicks into place. While doing so,
slide both parts of the cover together
as required.
Fitting the cover in a side-by-side
combination
Insert the joining peg (from the side-
by-side installation kit) halfway into
the guide in the cover for the left-
hand appliance.
Place the second cover onto the pin
and press the two covers together.
Place the two covers together in the
niche above the appliances until they
click into place.
Fit the plastic covers on both sides
of the appliance door by clicking
them into the gap between the
appliance door and the furniture door,
starting at the bottom and working up
to the top.
Installation
*INSTALLATION*
44
Secure at least 3 clips on both
sides of the appliance for the gap
covers.
Then attach the covers onto the
clips on both sides.
With a side-by-side installation, the
covers are only required on the outer
sides.
Install the cover onto the light
contact switch.
Securing the plinth and base cover
Click the base cover onto the
bottom of the appliance base.
Installation
*INSTALLATION*
45
Risk of fire and damage due to
insufficient ventilation.
If the refrigeration appliance is not
ventilated sufficiently, the
compressor will run more frequently
and for longer periods.
This will result in increased energy
consumption and a higher operating
temperature of the compressor. This,
in turn, can result in damage to the
compressor.
Please ensure that there is adequate
ventilation around the appliance.
It is essential to observe the required
ventilation gaps. The ventilation gaps
must not be covered or blocked in
any way.
If necessary, cut the plinth to the
required length and height (cut along
the lower edge of the plinth where it
touches the floor).
Secure the bottom of the base cover
to the plinth.
Installation
*INSTALLATION*
46
Limiting the opening angle of the
door
The door hinges are set at the factory to
enable the door to be opened wide.
However, if the appliance door hits an
adjacent wall, for example, when it is
opened, you should limit the door
opening angle to 90°.
Open the appliance door.
Insert the pin into the lower hinge
from above.
The door opening angle is now limited
to 90°.
Installation
*INSTALLATION*
47
Electrical connection
All electrical work should be carried out
by a suitably qualified and competent
person in strict accordance with current
local and national safety regulations.
The refrigeration appliance must only be
connected using the connection cable
supplied (AC220–240V50/60Hz
supply).
The fuse rating must be at least 10A.
The voltage and frequency are given on
the data plate. Please ensure that these
match the household mains supply.
This appliance must be connected to a
suitable switched socket. The electrical
installation must be in compliance with
current local and national safety
regulations.
The socket must not be concealed
behind the appliance and must be
easily accessible so that the appliance
can be quickly disconnected from the
electricity supply in case of an
emergency.
If the socket is no longer accessible
after installation, an additional means of
disconnection must be provided for all
poles. Suitable means of disconnection
include switches with an all-pole
contact gap of at least 3mm. These
include isolator switches, fuses and
relays (EN 60335).
The plug and the power cable must not
touch the rear of the refrigeration
appliance as they could be damaged by
vibrations from the appliance. This
could result in a short circuit.
Nor should other appliances be
plugged into a socket located directly
behind this appliance.
Do not connect the appliance to the
mains electricity supply using an
extension lead. Extension leads do not
guarantee the required safety of the
appliance (e.g. danger of overheating).
Do not connect the appliance to a
stand-alone inverter such as those used
with an autonomous energy source, e.g.
solar power.
When the appliance is switched on,
power surges could result in a safety
switch-off. This could damage the
electronics.
The appliance must not be used with
so-called energy-saving devices
either. These reduce the amount of
energy supplied to the appliance,
causing it to overheat.
Installation
*INSTALLATION*
48
Connecting the appliance
Insert the plug connector into the
back of the appliance.
Make sure that the plug connector has
locked into position correctly.
Insert the plug of the appliance into
the socket and switch it on.
The appliance is now connected to the
electricity supply.
Saving energy
49
Normal energy
consumption
Increased energy
consumption
Installation/
Maintenance
In a ventilated room. In an enclosed, unventilated
room.
Protected from direct
sunlight.
In direct sunlight.
Not situated near a heat
source (radiator, oven).
Situated near a heat source
(radiator, oven).
Where the ideal ambient
room temperature is approx.
20°C.
Where there is a high room
temperature.
Ventilation gaps kept
uncovered and free of dust.
Where the ventilation gaps
are covered or dusty.
Temperature
settings
Refrigerator 4 to 5°C The lower the temperature in
the appliance, the higher the
energy consumption.
Dry compartment in the
MasterFresh zone approx.
0°C.
Saving energy
50
Normal energy
consumption
Increased energy
consumption
Use The drawers and shelves are
arranged as they were when
the appliance was delivered.
Only open the door when
necessary and for as short a
time as possible. Store food
in an organised way.
Frequent opening of the
door for long periods will
cause a loss of coldness.
The appliance will try to cool
down, and the compressor
will run for longer periods.
Take a cooler bag when
shopping and load food in
the appliance as quickly as
possible on your return
home.
Replace any food removed
as quickly as possible,
before it warms up too
much.
Allow hot food and drinks to
cool down before placing
them in the appliance.
Hot food or food at room
temperature raises the
temperature inside the
appliance. The appliance will
try to cool down and the
compressor will run for
longer periods.
Store food well packaged or
covered.
The evaporation or
condensation of liquids in
the refrigerator will cause a
loss of coldness.
Place frozen food in the
refrigerator to defrost.
Do not overfill the appliance
to allow air to circulate.
Poor air circulation will
cause a loss of coldness.
Guide to the appliance
51
a
Display
b
On/Off switch
c
Door shelves
d
Holder for the Active AirClean filters
e
Shelves
f
Hanging drawer for storing small items
g
Interior lighting
h
Fruit and vegetable drawer
i
Moisture regulator
j
Humidity-controlled compartment with moisture regulator for fruit and
vegetables
k
Dry compartment with temperature adjustment for food which goes off quickly
l
Automatic door opening (Push2open/Pull2open)
Guide to the appliance
52
Main screen
°C
4
1
2
3
4
5
a
SuperCool display
(only visible when the SuperCool function is switched on)
b
Temperature display (target temperature)
c
sensor
for setting the temperature
d
Display for Miele@home connection status
(only visible when Miele@home has been set up)
e
sensor
for selecting various functions in Settings mode
Guide to the appliance
53
Settings mode
In Settings mode, you can select the following appliance functions and alter their
settings:
Symbol Function
Language Set
Display brightness Adjust (darker to brighter)
Colour scheme Set (black or white)
/ Buzzer tones Adjust the volume or switch off the Buzzer tones
completely (e.g. for the door alarm)
/
Keypad tone Adjust the volume or switch off the Keypad tone
completely
°F / °C Temperature unit Set (° Fahrenheit or ° Celsius)
/ Keypad lock Switch on or off
(see “Selecting further settings”)
MasterFresh Adjust the temperature in the dry compartment
(see “Selecting further settings”)
Eco mode Switch on or off
(see “Selecting further settings”)
Self test The system restarts and is checked for faults or
malfunctions
(see “Selecting further settings”)
Door assistant (Push2open or Pull2open) Switch on or off
(see “Selecting further settings”)
Miele@home Set up, deactivate, or query Wi-Fi connection
status (see “Selecting further settings”)
Guide to the appliance
54
* Demo mode Switch off
* (only visible when Demo mode is switched on,
see “Selecting further settings”)
Factory default
settings
Reset to factory default settings
(see “Selecting further settings”)
Sabbath mode Switch on or off
(see “Selecting further settings”)
Display Active
AirClean filter
Switch on or off or reset
(see “Selecting further settings”)
Guide to the appliance
55
Symbols in Settings mode
/ Scroll in Settings mode or select a setting
/ Change a setting (e.g. display brightness)
OK Confirm a setting
Exit the menu level
Accessories
56
Accessories supplied
Appliance plug
Labels for the MasterFresh zone
Each type of food has its own
characteristics and requires certain
storage conditions.
Dry compartment label
Humidity-controlled compartment label
The two labels supplied for the
compartments in the MasterFresh zone
help you to choose the right
compartment for your food to ensure
ideal storage conditions.
Affix the labels onto the compartments
in the MasterFresh zone as described
in “Using for the first time - Before
using for the first time”.
ActiveAirCleanfilters
The Active AirClean filters neutralise
unpleasant odours in the refrigerator
section and stop odours from
transferring to the food.
Insert the Active AirClean filters
supplied as described in “Cleaning
and care - Replacing the Active
AirClean filters”.
We recommend replacing the Active
AirClean filters every 6months.
Optional accessories
A range of useful Miele accessories and
care products is available for your
appliance.
Miele all purpose microfibre cloth
Light soiling and fingerprints on
stainless steel fronts, control panels
and furniture can be easily removed
with this microfibre cloth.
ActiveAirCleanfilters
For a description see “Accessories
supplied”.
Stainless steel front panel
Stainless steel front panels provide a
high-quality exterior design for your
refrigeration appliance.
Handles and plinth ventilation grilles are
also available in stainless steel look.
Accessories
57
Metal panel for cassette fronts
If you want to install two furniture fronts
instead of one, these must be
connected to each other with a metal
panel.
Side-by-side installation kit
To install two or more refrigeration
appliances next to one another, you will
need the side-by-side installation kit
(see “Installation - Side-by-side units”).
Hinge pockets
The hinge pockets can be used to
change the door hinging on the
appliance.
The door hinging must only be changed
by a suitably qualified and competent
person.
Accessories are available from Miele
directly (see back cover for contact
details).
Using for the first time
58
Before using for the first time
Allow the refrigeration appliance to
stand for approx. 1hour before
connecting it to the power supply.
This will prevent potential functional
problems with the appliance.
Removing packaging material
Remove all packaging material from
the inside of the appliance.
Remove all packaging material,
including adhesive tape, before
switching on the appliance. The
adhesive tape is difficult to remove
from cold surfaces.
Cleaning
Please refer to the relevant
instructions in “Cleaning and care”.
Clean the inside of the appliance and
the accessories.
Choosing the right Door assistant
(Push2open/Pull2open)
The Door assistant helps you to open
the appliance door.
You can choose between the two Door
assistants Push2open and Pull2open (see
"Selecting further settings - Switching
on the Door assistant ").
The factory default Door assistant is
Push2open.
Select the
Pull2open Door assistant if your
refrigeration appliance has a furniture
front with a handle.
Select the
Push2open Door assistant if your
refrigeration appliance has a handle-
free furniture front.
Using for the first time
59
Affixing the MasterFresh zone labels
Affix the labels as described below
before switching on the refrigeration
appliance.
The labels will not stick to a cold
surface. The surface should also be
free of dust and grease.
– Humidity-controlled compartment
for fruit and vegetables
Remove the label from the foil and
stick it onto the frame of the
humidity-controlled compartment
(see “Guide to the appliance”).
– Dry compartment for food which
deteriorates quickly
Remove the label from the foil and
stick it onto the frame of the dry
compartment (see “Guide to the
appliance”).
Useful tip: If you are not satisfied with
the positioning of the labels, you can
easily pull them off and stick them on
again. In addition, they can be removed
without leaving any residue.
Inserting the Active AirClean filters
Your refrigeration appliance is equipped
with 2Active AirClean filters which
neutralise unpleasant odours in the
refrigerator section.
Insert the Active AirClean filters
supplied as described in “Cleaning
and care - Replacing the Active
AirClean filters”.
Using for the first time
60
Operating the appliance
The touch display can be scratched
by pointed or sharp objects, e.g.
pens.
Only touch the display with your
fingers.
If your fingers are cold, the touch
display may not react.
°C
4
The sensors underneath the
temperature display can be selected
directly by touch; the symbols and text
in or above the temperature display
cannot be selected.
Settings mode
In Settings mode, you can select
different functions of the appliance
and alter their settings (see “Selecting
further settings”).
Touch the sensor to open Settings
mode.
Use the and sensors to select
the function for which you wish to
adjust the settings.
Confirm your selection withOK.
Adjust the settings using either the
and sensors or the and
sensors.
Confirm your selection withOK.
The setting that can currently be
selected is highlighted in orange; it
can be confirmed directly with OK.
Touch the sensor if you wish to
switch to the previous menu level or
terminate the process.
Every touch of the display is
confirmed by a keypad tone. You can
switch off this keypad tone in Settings
mode.
Using for the first time
61
Using for the first time
Open the appliance door.
Switch the refrigeration appliance on
by pressing the On/Off switch.
The On/Off switch is located below
the display.
The appliance will start to cool, and the
interior lighting will come on when the
door is opened.
Miele will appear in the display.
When you switch the refrigeration
appliance on for the first time, you
will be asked to configure the
following settings:
– Set theLanguage
(if you accidentally select the
wrongLanguage, return to Settings
mode and use the symbol to
change the language)
– Set theTemperature unit:
°C (degrees Celsius) or °F (degrees
Fahrenheit)
– Set up Miele@home:
Select Continue if you wish to set up
Miele@home now (to do this, follow
the instructions in “Selecting further
settings - Miele@home”).
Select Skip if you would prefer to set
up Miele@home later.
Use the and sensors to select
the required setting and select OK to
confirm your selection.
Touch the sensor if you want to
return to the previous menu level.
Set-up successful will appear in the
display.
Confirm the initial setup with OK.
The main screen will appear in the
display (see “Guide to the appliance -
Main screen”).
You cannot cancel the initial setup
process. The only way to terminate the
process is to switch off the
refrigeration appliance, though the
process will continue when the
appliance is switched back on.
Switching on and off
62
Switching the appliance on
Open the appliance door.
Switch the refrigeration appliance on
by pressing the On/Off switch.
The appliance will start to cool and the
interior lighting will come on when the
door is opened.
Miele will appear in the display, followed
by the main screen.
°C
4
To enable the temperature to get
sufficiently cold inside the appliance,
allow the appliance to run for a few
hours before placing food in it.
Switching off the appliance
Switch the appliance off by pressing
the On/Off switch.
The cooling and interior lighting are
switched off.
Please note: The refrigeration
appliance is not disconnected from
the power supply when it is switched
off with the On/Off switch.
Switching off for longer
periods of time
If the appliance is not going to be used
for a longer period of time, e.g. whilst
on holiday:
Switch the appliance off.
Disconnect the appliance from the
mains. Switch off at the wall and
withdraw the plug from the socket, or
switch off the mains circuit breaker.
Clean the refrigeration appliance.
Leave the door ajar to air the
appliance and to prevent odours
building up.
If, during a long absence, the
appliance is switched off but not
cleaned and the door(s) left shut,
there is a risk of mould forming
inside the appliance.
It is essential to clean the appliance.
Selecting further settings
63
In Settings mode , you can select
different functions of the refrigeration
appliance and alter their settings,
allowing you to adjust the appliance to
suit your requirements.
Only the functions in Settings mode
that require further explanation are
described below.
The door alarm and other warnings
are automatically disabled when the
appliance is in Settings mode.
Switching the Keypad lock /
on or off
Switch on the Keypad lock if you wish to
protect your appliance from unwanted
temperature changes or other
unintentional adjustments in Settings
mode .
In Settings mode, use the
and sensors to selectKeypad lock
and touch OK to confirm your
selection.
Use the and sensors to switch
the sensor lock On or Off and select
OK to confirm your selection.
The sensor lock will not be activated
until you close the appliance door.
Nothing will appear in the display to
indicate that the sensor lock is switched
on.
The message Press OK for 6 seconds to
unlock will appear in the display if you
select a sensor while the sensor lock is
switched on.
Follow the instructions in the display.
The display is unlocked briefly so you
can adjust settings as required. Closing
the appliance door will reactivate the
sensor lock.
Selecting further settings
64
Adjusting the temperature in
the MasterFresh zone (dry
compartment)
In Settings mode, use the
and sensors to selectMasterFresh
and touch OK to confirm your
selection.
Use the and sensors to select
the desired temperature and touch
OK to confirm your selection.
Touch the sensor if you wish to
terminate the process.
The segment bar displays 5 segments;
the temperature is adjusted in
increments of approx.1 °C.
The factory default setting for the
temperature in the dry compartment is
0°C.
Switching Eco modeon or
off
Eco modeis useful when going on a
holiday, for example, if you do not wish
to switch off the appliance completely
or do not need a high degree of cooling.
Energy consumption inEco mode is
lower than in normal operation.
The refrigerator section is regulated to a
temperature of 6°C and the dry
compartment in the MasterFresh zone
to approx. 1°C.
If the SuperCool function is switched
on, this will be automatically switched
off when Eco mode is selected.
In Settings mode, use the
and sensors to selectEco mode
and touch OK to confirm your
selection.
Use the and sensors to switch
Eco mode On or Off and confirm your
selection with OK.
Only the changed temperature in the
display indicates thatEco mode is
switched on.
Useful tip: You can also switch off the
Eco modefunction by directly adjusting
the temperature (see “The correct
temperature - Setting the temperature”).
Long-term storage of food at a
temperature of 6°C may adversely
affect the shelf life and quality of the
food.
Selecting further settings
65
Carrying out a Self test
Perform a Self test if you feel that your
refrigeration appliance is not functioning
properly and needs to be checked for
any malfunctions.
In Settings mode, use the
and sensors to selectSelf test and
touch OK to confirm your selection.
Touch the sensor if you wish to
terminate the process.
The Self test starts and the appliance is
checked for any faults or malfunctions.
– If the Self test does not detect any
faults or malfunctions, the display will
show the message System restart.
– If the Self test does discover any
faults or malfunctions, they are
indicated as error messages in the
display.
An alarm tone also sounds.
If you find the alarm disruptive, you
can switch it off early by touching the
sensor.
Make a note of the error message(s)
displayed.
Contact customer service and inform
them of the error message(s) in the
display.
Confirm the message with OK.
System restart will appear in the display.
The appliance will briefly switch off and
then back on automatically.
Self test completed will appear in the
display.
Confirm the message with OK.
The main screen will appear in the
display.
Selecting further settings
66
Switching on the Door
assistant
You can choose between the two Door
assistants Push2open and Pull2open.
The factory default Door assistant is
Push2open.
The Push2open Door assistant is
suitable for furniture fronts without
handles. The door will open
automatically when you gently press
against it.
The Pull2open Door assistant is suitable
for furniture fronts with handles. The
appliance door can be opened easily
and with little effort.
Risk of damage if the appliance
door is closed prematurely.
When the Door assistant is switched
on, repeatedly closing the appliance
door early can lead to damage or
malfunctions.
Refrain from holding onto or closing
the appliance door while the
automatic door opening is still
extended. If you have closed the
appliance door despite this, leave it
closed for 5 minutes. The automatic
door opening will reset itself.
Switching onPush2open
In Settings mode, use the
and sensors to selectDoor assistant
and touch OK to confirm your
selection.
Use the and sensors to select
Mode and confirm your selection with
OK.
Use the and sensors to select
Push2open and confirm your selection
with OK.
Touch the sensor to return to the
previous menu level.
– Adjusting the intensity
You can also adjust the intensity of the
Push2openfunction. The lower the
intensity, the less force is required when
you push against the appliance door.
In Settings mode, use the
and sensors to selectDoor assistant
and touch OK to confirm your
selection.
Use the and sensors to
selectIntensity and touch OK to
confirm your selection.
Use the and sensors to select
the desired intensity (Low, Medium,
High) and select OK to confirm your
selection.
Selecting further settings
67
- Adjusting the duration of the
AutoClose function
You can also adjust the duration for
how long the appliance door will remain
open until it closes automatically.
In Settings mode, use the
and sensors to selectDoor assistant
and touch OK to confirm your
selection.
Use the and sensors to
selectAutoClose and touch OK to
confirm your selection.
Use the and sensors to select
the duration (5 to 30 seconds) and
confirm your selection with OK.
To protect against unintentional
opening: If you do not pull the
appliance door open, it will close
again by itself after the duration
defined by you.
Switching on thePull2open
In Settings mode, use the
and sensors to selectDoor assistant
and touch OK to confirm your
selection.
Use the and sensors to select
Mode and confirm your selection with
OK.
Use the and sensors to select
Pull2open and confirm your selection
with OK.
Touch the sensor to return to the
previous menu level.
– Adjusting the intensity
You can also adjust the intensity of the
Pull2openfunction. The lower the
intensity, the less force is required when
you pull the appliance door open.
In Settings mode, use the
and sensors to selectDoor assistant
and touch OK to confirm your
selection.
Use the and sensors to
selectIntensity and touch OK to
confirm your selection.
Use the and sensors to select
the desired intensity (Low, Medium,
High) and touch OK to confirm your
selection.
Selecting further settings
68
Switching off the Door
assistant
In Settings mode, use the
and sensors to selectDoor assistant
and confirm your selection with OK.
Use the and sensors to select
Mode and confirm your selection with
OK.
Use the and sensors to select
Off and confirm your selection with
OK.
Touch the sensor to return to the
previous menu level.
Miele@home
Your appliance is equipped with an
integrated Wi-Fi module.
Networking is deactivated at the
factory.
In order to use it, you will need:
– a Wi-Fi network
– the Miele@mobile App
– a Miele user account. The user
account can be created via the
Miele@mobile App.
The Miele@mobile App will guide you
as you connect your appliance to your
home Wi-Fi network.
Once the refrigeration appliance is
connected to your Wi-Fi network, you
can use the App to carry out the
following activities, for example:
– Call up information on the operating
status of your refrigeration appliance
– Change the settings on your
refrigeration appliance
Connecting your refrigeration appliance
unit to your Wi-Fi network will increase
energy consumption, even when the
appliance is switched off.
Make sure that the signal of your Wi-
Fi network is sufficiently strong in the
area where you want to set up your
refrigeration appliance.
Selecting further settings
69
Availability of the Wi-Fi connection
The Wi-Fi connection shares a
frequency range with other appliances
(including microwave ovens and remote
control toys). This may result in
sporadic or even complete connection
failures. Therefore, a constant
availability of featured functions cannot
be guaranteed.
Miele@home availability
The ability to use the Miele@mobile App
depends on the availability of the
Miele@home service in your country.
The Miele@home service is not
available in every country.
For information about availability,
please visit www.miele.com.
Miele@mobile App
You can download the Miele@mobile
App from the Apple App Store
®
or the
Google Play Store™ free of charge (only
functional in selected countries).
Connecting your appliance via the
Miele@mobile App
You will also require the following to log
in:
– the password to your Wi-Fi network
– the password of the refrigeration
appliance
Your appliance's password is its serial
number, which can be found on the
data plate.
The data plate is located inside the
appliance.
If your serial number is “7800001”, for
example, your password will be
“78000001”.
In Settings mode, use the
and sensors to selectMiele@home
and touch OK to confirm your
selection.
Set up appears in the display.
Confirm your selection withOK.
Use the and sensors to select via
the App and confirm your selection
with OK.
Open the Miele@mobile App and
follow the instructions in the App.
Selecting further settings
70
As soon as your appliance has been
integrated into your Wi-Fi network via
the App, the message Connection
successful will appear in your
appliance's display.
Confirm the process with OK again.
If the Wi-Fi connection is active, will
appear in the display.
Connecting your appliance via WPS
Your router must be equipped with the
WPS function for this connection
option.
In Settings mode, use the
and sensors to selectMiele@home
and touch OK to confirm your
selection.
Set up appears in the display.
Confirm your selection withOK.
Use the and sensors to select via
WPS and confirm your selection with
OK.
Now follow the instructions in the
display.
Confirm the process with OK.
To be able to use the Miele@home
functions, you also have to register
your appliance in the App.
As soon as your refrigeration
appliance has been integrated into
your home network via WPS, the
message Connection successful will
appear in the display.
Confirm the process with OK again.
If the Wi-Fi connection is active, will
appear in the display.
Deactivating Miele@home
In Settings mode, use the
and sensors to selectMiele@home
and touch OK to confirm your
selection.
Use the and sensors to select
Deactivate and confirm your selection
with OK.
Deactivation successful will appear in the
display.
Confirm the message with OK.
Your refrigeration appliance is now
disconnected from your Wi-Fi network.
The symbol will go out in the display.
Activating Miele@home
If you have previously activated
Miele@home and then deactivated the
connection, you can reactivate the
connection.
In Settings mode, use the
and sensors to selectMiele@home
and touch OK to confirm your
selection.
Use the and sensors to select
Activate and confirm your selection
with OK.
Activation successful will appear in the
display.
Confirm the message with OK.
If the Wi-Fi connection is active, will
appear in the display.
Selecting further settings
71
Checking the Wi-Fi connection status
In Settings mode, use the
and sensors to selectMiele@home
and touch OK to confirm your
selection.
Use the and sensors to select
Connection status and confirm your
selection with OK.
Information about the Wi-Fi connection
status will appear in the display:
– connected: strong connection
– connected: average connection
– connected: weak connection
– : no connection
Setting up Miele@home again
If you have changed your Wi-Fi
network, you can set up Miele@home
again for your appliance.
In Settings mode, use the
and sensors to selectMiele@home
and touch OK to confirm your
selection.
Use the and sensors to select
Set up again and confirm your
selection with OK.
Reset configuration?will appear in the
display.
Use the and sensors to select
Yes or No and confirm your selection
with OK.
Resetting the network configuration
Reset the appliance's settings to the
factory settings when disposing of
your refrigeration appliance, selling it
or putting a used refrigeration
appliance into operation. This will
reset the network configuration so that
all personal data is deleted from the
refrigeration appliance. This will also
ensure that, in the case of the latter, a
previous owner is no longer able to
access the appliance.
Reset the settings of the refrigeration
appliance as described in the chapter
“Resetting the settings to their factory
default settings ”.
Selecting further settings
72
Switching off Demo mode
Demo mode allows the appliance to
be presented in a showroom without
the cooling system being switched
on. Do not activate this setting for
domestic use.
If Demo mode has been switched on
at the factory, will show in the
display.
In Settings mode, use the
and sensors to selectDemo mode
and touch OK to confirm your
selection.
Press OK for 4 seconds to deactivate will
appear in the display.
Follow the instructions in the display.
The countdown Demo mode will
deactivate in seconds will appear in the
display.
Demo mode deactivated. Appliance cooling
switched on will appear in the display.
Confirm the message with OK.
The main screen will appear in the
display.
Selecting further settings
73
Resetting the settings to their factory default settings
You can reset the appliance's settings to their default settings.
Reset the appliance's settings to the factory settings when disposing of your
refrigeration appliance, selling it or putting a used refrigeration appliance into
operation. This will reset the network configuration so that all personal data is
deleted from the refrigeration appliance. This will also ensure that, in the case of
the latter, a previous owner is no longer able to access the appliance.
In Settings mode, use the and sensors to selectFactory default settings
and touch OK to confirm your selection.
Use the and sensors to select Reset and confirm your selection with OK.
After a short while, Settings reset will appear in the display.
Confirm the message with OK.
The initial setup process restarts (see “Using for the first time - Before using for the
first time”).
The refrigeration appliance's settings will be reset to the following values:
Selecting further settings
74
Function Factory default setting
Language English
Display brightness middle value
(4 of 7 segments)
Colour scheme black
/ Buzzer tones middle value
(4 of 7 segments)
/
Keypad tone middle value
(4 of 7 segments)
°C/°F Temperature unit ° Celsius
/ Keypad lock switched off
MasterFresh 0°C (2 of 5 segments)
Eco mode switched off
Door assistant Push2open
Miele@home switched off
Sabbath mode switched off
Display Active AirClean filter switched on
Temperature in the
refrigerator section
4°C
Temperature in the dry
compartment
0°C
Selecting further settings
75
Switching Sabbath modeon
or off
The refrigeration appliance has a
Sabbath mode to support the observance
of religious customs.
When Sabbath mode is switched on,
you cannot configure any settings on
your refrigeration appliance.
Ensure that the appliance door is
properly closed, as visual and audible
alarms are switched off in Sabbath
mode.
In Settings mode, use the
and sensors to selectSabbath mode
and touch OK to confirm your
selection.
Use the and sensors to select
On or Off and confirm your selection
with OK.
When Sabbath mode is switched on,
will appear in the display and the
display brightness will be reduced (the
display does not change when the
appliance door is closed).
When Sabbath mode is switched on,
the following functions are switched off:
– the Door assistant
(with furniture fronts without handles,
the appliance door will have to be
pulled from the bottom or side)
– the lighting
– all acoustic and visual signals
– the temperature display
– the SuperCool function
(if previously switched on)
You can still select:
– the sensor for Settings mode so
that Sabbath mode can be switched
off.
The Sabbath mode function will switch
itself off automatically after approx.
125hours.
Health risk due to consumption
of spoiled food.
As power failures are not indicated
while Sabbath mode is active, food
may be exposed to increased
temperatures for a certain period of
time. This shortens the shelf life of
the food.
If there is a power cut during
Sabbath mode, check the quality of
the food.
Selecting further settings
76
Switching on, switching off, or
resetting theDisplay Active
AirClean filter
The Display Active AirClean filter will
remind you approx. every 6months that
the Active AirClean filters need to be
replaced. Change Active AirClean filter
appears in the display.
See “Cleaning and care - Replacing the
Active AirClean filters” for instructions
on how to replace the Active AirClean
filters.
The first time the Active AirClean filters
need to be replaced, the display will
remind you automatically; the
reminder does not need to be
switched on separately.
Switching on theDisplay Active
AirClean filter
If theDisplay Active AirClean filter has
been switched off, it must be switched
on again if required.
In Settings mode, use the
and sensors to selectDisplay Active
AirClean filter and touch OK to confirm
your selection.
Use the and sensors to select
On and confirm your selection with
OK.
The Display Active AirClean filter has been
switched on.
Switching off theDisplay Active
AirClean filter
If you do not require theDisplay Active
AirClean filter, you can switch it off.
In Settings mode, use the
and sensors to selectDisplay Active
AirClean filter and touch OK to confirm
your selection.
Use the and sensors to select
Off and confirm your selection with
OK.
TheDisplay Active AirClean filter has been
switched off.
Selecting further settings
77
Resetting theDisplay Active AirClean
filter
After you have replaced the Active
AirClean filters, you must reset the
Display Active AirClean filter so that it will
be displayed again automatically after
6months.
If you do not reset the reminder, it will
appear again and again.
In Settings mode, use the
and sensors to selectDisplay Active
AirClean filter and touch OK to confirm
your selection.
Use the and sensors to select
Reset and confirm your selection with
OK.
The Change Active AirClean filtermessage
disappears from the display.
The Display Active AirClean filter to replace
the Active AirClean filters has been
activated.
The correct temperature
78
It is very important to set the correct
temperature for storing food in the
appliance. Bacteria will cause food
which is not stored at the correct
temperature to deteriorate rapidly.
Temperature influences the growth rate
of these microorganisms. Reducing the
temperature reduces their growth rate.
The temperature in the appliance will
rise:
– The more often the door is opened
and the longer it is kept open.
– The more food is stored in it.
– The warmer the food is which is
being put into it.
– The higher the ambient temperature
of the refrigeration appliance. The
appliance is designed for use within
specific ambient temperatures
(climate range). Do not use it in
ambient temperatures for which it is
not designed.
...in the refrigerator section
and in the MasterFresh zone
We recommend a temperature of 4°C
in the refrigerator section.
We recommend a temperature of 0°C
in the dry compartment of the
MasterFresh zone.
Automatic temperature distribution
(DynaCool)
The fan switches on automatically when
the cooling system for the refrigerator
switches on. It distributes the
temperature in the appliance to all areas
more evenly so that all the food is
chilled to about the same degree.
The correct temperature
79
Setting the temperature
Touch the sensor for setting the
temperature.
The previously set temperature will
appear.
Use the and sensors to set the
temperature. Keeping your finger on
the sensor changes the temperature
continuously.
Confirm the temperature setting
withOK or wait approx. 8seconds
after the last touch of a sensor. The
temperature will then be adopted
automatically.
Useful tip: The newly set temperature
can also be confirmed and adopted by
closing the appliance door.
The temperature display always shows
the required temperature.
If you have adjusted the temperature,
wait for approx. 6hours if the
appliance is not very full and for
approx. 24hours if the appliance is
full before checking the temperature. It
will take this long for the required
temperature to be reached.
If, after this time, the temperature is
still too high or too low, adjust it
again.
Adjusting the temperature in the dry
compartment of the MasterFresh
zone
The temperature in the dry
compartment of the MasterFresh zone
is maintained at approx. 0°C.
However, if you would like it to be
warmer or colder, you can adjust the
temperature slightly (see “Selecting
further settings – Adjusting the
temperature in the MasterFresh zone
(dry compartment)”).
Useful tip: You can select a lower
setting, for example for storing
particularly delicate fish. A slightly
higher temperature is preferable for
example for storing ready-to-eat food.
Temperature range
The temperature in the refrigerator
section can be set from 2°C to 8°C.
The temperature in the dry
compartment of the MasterFresh zone
can be set from approx. -1°C to 3°C.
Using SuperCool
80
SuperCool function
The SuperCool function can be used to
rapidly reduce the temperature in the
refrigerator section to its lowest setting
(depending on the room temperature).
SuperCool is particularly recommended
for the rapid chilling of large amounts of
fresh food or drinks.
Switching on SuperCool
Touch the sensor for setting the
temperature.
Touch the sensor to switch the
SuperCool function on.
The symbol will be highlighted in
colour and the newly set temperature
value of 2°C will appear in the display.
Confirm the setting with OK or wait
approx. 8seconds after the last touch
of the sensor. The setting will then be
automatically adopted.
Thesymbol lights up in the display.
The appliance will run at maximum
power.
Switching off SuperCool
Touch the sensor for setting the
temperature.
The symbol will be highlighted in
colour and the temperature value of
2°C will appear in the display.
Touch the sensor to switch the
SuperCool function off.
The symbol is no longer highlighted
in colour and the previous temperature
setting appears again in the display.
Confirm the setting with OK or wait
approx. 8seconds after the last touch
of the sensor. The setting will then be
automatically adopted.
The symbol disappears from the
temperature display.
The refrigeration appliance will run at
normal power again.
If you do not switch off the SuperCool
function, it will turn itself off
automatically after approx. 6hours. The
appliance will then run at normal power
again.
Useful tip: To save energy, you can
manually switch off SuperCool once
food and drinks are sufficiently chilled.
Door alarm
81
The appliance is fitted with a warning
system to avoid increased energy
consumption and food becoming warm
if the door is left open.
Door alarm
An alarm will sound if the appliance
door has been left open for longer than
2minutes.
In addition, theClose the door message
will appear in the display.
As soon as the door is closed, the
alarm will stop and the message in the
display will disappear.
Switching the door alarm off early
You can switch the alarm off early if you
wish.
Touch the OKsensor.
The alarm will stop and the message
will disappear from the display.
The alarm will sound again and the
message will reappear in the display
after a while if the appliance door has
not been closed.
Adjusting the interior fittings
82
Moving the shelves in the
appliance door
Only move the shelves in the door
when they are empty.
The door shelves can be moved when
loading and unloading and for cleaning,
or they can be removed completely:
Hold the shelf on the frame with both
hands and lift it slightly so that it can
be lifted over the guide on both sides
with the catches.
Remove the shelf or replace it in the
required position with the catches in
the guides at the same height.
Make sure that you refit the shelf
straight.
Useful tip: For the purposes of loading
and unloading or cleaning, the clip-in
containers in the shelves can be
removed from their holders completely.
Moving the adjustable shelves
If necessary, the adjustable shelves can
be removed or their height can be
adjusted:
Hold the shelf on both sides and raise
it slightly so that it can be lifted with
the catches over the guide at the
back.
Pull the shelf forwards.
Remove the shelf or replace it in the
required position in the guide with the
catches.
Make sure that the shelf is straight.
Adjusting the interior fittings
83
Removing the hanging drawer
The hanging drawer can be moved to
the left or right if required.
To clean the hanging drawer, remove it
as follows:
Pull the hanging drawer straight out
to lift it over the pull-out stops on
both sides.
To reinsert the hanging drawer, push
it straight into the guide.
Moving the hanging drawer
The hanging drawer can be fixed under
any shelf in the refrigerator section.
Pull the hanging drawer out.
To remove the holder for the hanging
drawer, press against the retainers on
both sides of the holder from the rear
and pull the holder downwards
diagonally from the frame.
To replace the holder, press against
the retainers on both sides of the
holder from the rear and clamp it into
the gap on the frame from below.
Refit the hanging drawer.
Useful tip: Alternatively, the hanging
drawer can be moved by swapping the
shelves over.
Adjusting the interior fittings
84
Removing compartments from
the refrigerator section
The compartments in the refrigerator
section sit on telescopic runners and
can be removed for filling, emptying, or
cleaning:
Pull the compartment out a little bit.
Using both hands, grasp the
compartment frame from below and
push the compartment downwards
so that the rear end disengages and
lifts upwards.
Pull the compartment forwards to
remove it.
Push the telescopic runners back in
to avoid damaging them.
Be careful not to wash out the
special lubricant in the telescopic
runners during cleaning.
Wipe the telescopic runners with a
damp cloth to clean them.
To reinsert the compartment, position
it on the telescopic runners so that it
clicks into place.
Using the refrigerator efficiently
85
Different storage zones
Due to the natural air circulation there
are different temperature zones in the
refrigerator.
Cold, heavy air sinks to the lowest
section of the appliance. Make use of
the different zones when placing food in
the appliance.
Useful tip: To allow air to circulate
efficiently, do not pack food too closely
together in the refrigerator.
If there is insufficient air circulation,
the cooling performance will
decrease and energy consumption
will increase.
Do not cover the fan in the rear wall
of the appliance.
Useful tip: Do not store food in such a
way that it touches the rear wall of the
refrigerator. It may freeze to the back
wall.
This appliance has DynaCool, which
helps to keep an even temperature
when the fan is running. When
DynaCool is operating, the difference
between the various zones is less
pronounced.
Warmest area
The warmest area is located in the top
section of the main storage area and
the door. Use this for storing butter so
that it remains spreadable and for
cheese so that it retains its flavour.
Coldest area
The coldest area in the refrigerator
section is directly above the fruit and
vegetable drawer and at the back of the
appliance. The temperature in the dry
compartment of the MasterFresh zone
is even colder.
Use this area in the refrigerator section
and the dry compartment of the
MasterFresh zone for all delicate and
highly perishable food, e.g.:
– fish, meat, poultry
– sausage products, ready meals
– dishes or baked goods containing
eggs or cream
– fresh dough, cake mixtures, pizza or
quiche dough
– soft cheese and other dairy products
– pre-packed vegetables and other
fresh food with a label stating it
should be kept at a temperature of no
higher than 4°C.
Useful tip: This compartment is ideal
especially for homemade meals, as the
growth of existing microorganisms is
greatly reduced.
Using the refrigerator efficiently
86
Food which is not suitable for
storage in the refrigerator
Not all food is suitable for refrigeration
at temperatures below 5 °C because it
is sensitive to cold. Depending on the
type of food, the appearance,
consistency, flavour and/or vitamin
content may be altered if stored at too
cold a temperature.
Foods which are sensitive to cold
include:
– Pineapples, avocados, bananas,
pomegranates, mangoes, melons,
papayas, passionfruit, citrus fruits
such as lemons, oranges,
mandarines, grapefruits
– Fruit which is not yet ripe
– Eggplants, cucumbers, potatoes,
capsicums, tomatoes, zucchini
– Hard cheeses, e.g. Parmesan,
mountain cheese
Notes on buying food
The freshness of the food when it is first
placed in the appliance is the most
important factor for how long it stays
fresh. Freshness is essential for a long
shelf life.
Take into account the use-by date and
the correct storage temperature.
Time out of the refrigerator, e.g.
transporting food in a warm car, should
be kept to a minimum.
Useful tip: Take a cooling bag when
shopping, and load food in the
appliance as soon as possible.
Storing food correctly
Ensure that food stored in the
refrigerator section is in packaging or
covered properly (some exceptions
apply in the MasterFresh zone). This will
prevent food smells from affecting other
foods, food from drying out, and also
cross-contamination of bacteria. This is
especially important when storing meat
products. Make sure that foods such as
raw meat and fish in particular do not
come into contact with other foods.
By ensuring that the temperature
settings are correct and by taking
appropriate hygiene measures, you can
prolong the storage life of your food
considerably.
Fruit and vegetables
Fruit and vegetables can be stored
loose in the fruit and vegetable drawer.
Storing food in the MasterFresh zone
87
MasterFresh zone
The MasterFresh zone provides ideal
storage conditions for fruit, vegetables,
fish, meat, and dairy products. Food
stays fresh considerably longer while
retaining both flavour and vitamins.
The MasterFresh zone comprises a
humidity-controlled and a dry
compartment.
– Depending on the moisture regulator
setting, the humidity-controlled
compartment is particularly suitable
for storing fruit and vegetables.
– The dry compartment is suitable for
storing perishable foods such as
fish, meat, and dairy products.
Any type of food can in fact be stored
in this compartment, as long as it is
packaged.
Max. load
capacity of the
drawers in the
MasterFresh
zone
K2601Vi 25 kg
Humidity-controlled compartment
with moisture regulator
The humidity level in the humidity-
controlled compartment can be
regulated to approximately suit the food
being stored. Food retains its own
moisture if stored at a higher humidity
and does not dry out as quickly. This
allows it to stay crisp and fresh for
longer.
The moisture released by food in
storage is kept within the humidity-
controlled compartment. The more the
humidity in the humidity-controlled
compartment corresponds to the food's
own humidity content, the crisper and
fresher the food will remain over a
longer period of time, as the water
content of the food is largely retained.
The moisture level greatly depends on
the type and quantity of the food
being stored, if stored unwrapped.
The temperature in the humidity-
controlled compartment is
approximately equivalent to the
temperature in a conventional
refrigerator.
Remember that the freshness of the
food when first placed in the
appliance is the most important factor
in determining how long it will stay
fresh.
Storing food in the MasterFresh zone
88
The moisture regulator is used to
regulate the amount of moisture in the
humidity-controlled compartment with
the settings to.
Position of the moisture regulator
= slightly increased humidity
Select the setting if you store very
large quantities of fruits and
vegetables in the humidity-controlled
compartment. The moisture regulator
partially closes the vents in the
compartment so that some of the
moisture present is retained.
Position of the moisture regulator
= increased humidity
Select the setting if you store small
to large quantities of fruits and
vegetables in the humidity-controlled
compartment. The moisture regulator
closes the vents in the compartment
completely so that all of the moisture
present is retained.
Useful tip: If the humidity level is too
high and a lot of moisture collects in the
compartment, select the setting.
If the quantity of food being stored in
this compartment is small, the moisture
level may be too low. If you are only
storing a small amount of food, wrap it
in airtight packaging.
Increased moisture in the humidity-
controlled compartment can, in
some circumstances, cause a build-
up of condensate.
Wipe off any condensate with a
cloth.
Regulating the humidity level in the
humidity controlled compartment
Slide the moisture regulator to the
left or right depending on the
setting required.
Storing food in the MasterFresh zone
89
Dry compartment with adjustable
temperature
The temperature in the dry
compartment is maintained at -1 to
3°C. While lower than the temperature
in a conventional refrigerator, this is the
optimum temperature range for storing
fresh food which is not sensitive to
cold.
As the shelf life of the food is
extended at this temperature, food
can be stored considerably longer
without loss of freshness.
However, if you would like it to be
warmer or colder, e.g. when storing
fish, you can adjust the temperature
slightly (see “Selecting further settings –
Adjusting the temperature in the
MasterFresh zone (dry
compartment)”).
The humidity level is similar to that in a
conventional refrigerator.
Useful tip: This compartment is ideal
especially for homemade meals, as the
growth of existing microorganisms is
greatly reduced.
The dry compartment is ideal for storing
perishable foods such as:
– Dairy products such as yoghurt,
cheese, cream, quark etc.
– Deli salads
– Meat, poultry, sausages
– Fresh fish, shellfish and crustaceans
– Any type of food can in fact be stored
in this compartment, as long as it is
packaged.
Please note that foods rich in protein
deteriorate faster than others.
Shellfish, for example, deteriorates
faster than fish, and fish deteriorates
faster than meat.
For hygiene reasons, always keep these
foods covered or wrapped in this
compartment.
Storing food in the MasterFresh zone
90
If you are not satisfied with your stored food (for example the food wilts or
becomes limp after only a short storage time), ensure the following:
Only place fresh food in the appliance. The initial condition of the food is crucial
to maintaining freshness.
Clean the MasterFresh zone before storing food in it.
The surface of very moist food should be dried before storing it in the humidity-
controlled compartment.
Do not store food which is sensitive to cold in the dry compartment (see “Using
the refrigerator efficiently - Food which is not suitable for storage in the
refrigerator”).
Allocate the appropriate settings to food you wish to store (e.g. humid or dry
storage).
Store food loose in the humidity-controlled compartment.
A high humidity level in the humidity-controlled compartment is achieved by the
moisture present in the food being stored.
If the humidity level is not high enough (e.g. too little food is being stored), it can
be increased by placing a damp sponge in the drawer.
If you think that the temperature in the dry compartment is too high or too low,
adjust the temperature in the dry compartment (see “The correct temperature –
Setting the temperature”). If ice crystals start to form on the floor of the dry
compartment, increase the temperature as otherwise the cold temperature will
damage the food.
If too much water collects at the bottom of the humidity-controlled
compartment, dry it with a cloth. If necessary, dry food before placing it in the
appliance or place a rack at the bottom of the humidity-controlled compartment
to allow water to drain off.
Automatic defrosting
91
Refrigerator section and
MasterFresh zone
The refrigerator section and the
MasterFresh zone defrost automatically.
Condensate and ice can build up on the
back wall of the refrigerator section and
the MasterFresh zone while the
compressor is running. You do not need
to remove this, as it will defrost and
evaporate automatically with the
warmth generated by the appliance.
Cleaning and care
92
Do not let water get into the
electronic unit or the lighting.
Risk of damage due to moisture
ingress.
The steam from a steam cleaning
appliance can damage plastic parts
and electrical components.
Do not use a steam cleaner to clean
the appliance.
The data plate located inside the
refrigeration appliance must not be
removed. It contains information
which is required in the event of a
fault.
Cleaning agents
To avoid damaging the surfaces of your
appliance, do not use:
– cleaning agents containing soda,
ammonia, acids or chlorides
– cleaning agents containing descaling
agents
– abrasive cleaning agents, e.g.
powder cleaners and cream cleaners
– solvent-based cleaning agents
– stainless steel cleaning agents
– dishwasher cleaner
– oven sprays
– glass cleaning agents
– hard, abrasive sponges and brushes,
e.g. pot scourers
– dirt erasers
– sharp metal scrapers.
Cleaning and conditioning agents
used in the interior of the
refrigeration appliance must be food
safe.
We recommend using lukewarm water
with a little dishwashing liquid to clean
the appliance.
Cleaning and care
93
Before cleaning the appliance
Switch the appliance off by pressing
the On/Off switch.
Disconnect the appliance from the
power supply. Switch off at the wall
and withdraw the plug from the
socket, or switch off the mains circuit
breaker.
Take any food out of the appliance
and store it in a cool place.
Take out all other removable parts for
cleaning (see “Adjusting the interior
fittings”).
Cleaning the interior and
accessories
Clean the appliance regularly, or at
least once a month.
Clean up any spills, stains and food
immediately. Do not allow them to
dry and stick to the appliance.
Clean the interior with a solution of
lukewarm water and a little
dishwashing liquid. Rinse all parts by
hand. Do not wash in a dishwasher.
After cleaning, wipe with a damp
cloth and dry with a soft cloth.
Leave the door open for a short time
to air out the appliance and avoid the
formation of odours.
Aluminium frames
The frames on the shelves inside the
appliance and the door shelves are
partially made from aluminium.
Aluminium is a dynamic material. The
reflection and appearance of
aluminium changes in different lights
and environments and depending on
the angle you view it from. It is also
susceptible to scratching.
The aluminium frames may become
discoloured or get damaged if soiling
is left on for too long.
Remove any soiling from the
aluminium frames immediately.
Cleaning and care
94
Cleaning the door seal
Risk of damage due to incorrect
cleaning.
If you treat the door seals with oils or
grease, they can become porous.
Do not use any oils or grease on the
door seals.
The door seals should be cleaned
regularly with clean water, and then
wiped dry with a soft cloth.
Cleaning the ventilation gaps
A build-up of dust will increase the
energy consumption of the appliance.
The ventilation gaps should be
cleaned on a regular basis with a
brush or vacuum cleaner (you could
use a Miele vacuum cleaner dusting
brush, for example). A build-up of
dust will increase the energy
consumption of the appliance.
Replacing the Active AirClean
filters
The Active AirClean filters in the
refrigerator section need to be replaced
approx. every 6months.
Change Active AirClean filter appears in
the display.
Confirm the message with OK.
To remove the holder for the Active
AirClean filters, press against the
retainers on both sides of the holder
from the rear and pull the holder
downwards diagonally from the
frame.
Remove the used Active AirClean
filters and place the new Active
AirClean filters with the surrounding
edge pointing downwards in the
holder.
To replace the holder, press against
the retainers on both sides of the
holder from the rear and clamp it into
the gap on the frame from below.
Cleaning and care
95
The holder can be fixed under any
shelf in the refrigerator section.
Once the Active AirClean filters have
been replaced, the Active AirClean filter
display must be reset via the
Settings mode in the display (see
“Selecting further settings - Resetting
the Display Active AirClean filter”).
New Active AirClean filters are
available from a Miele Experience
Centre or on the Miele website.
After cleaning
Refit all shelves and accessories in
the appliance.
Reconnect to the power supply and
switch the appliance back on.
Switch on the SuperCool function
for a while so that the refrigerator
section can cool down quickly.
Place the food back in the appliance
and close the door.
Problem solving guide
96
With the help of the following guide, minor faults in the performance of the
appliance, some of which may result from incorrect operation, can be remedied
without contacting Miele. This will save you time and money because you won't
need a service call.
Please note that a call-out charge will be applied to unnecessary service visits
where the problem could have been rectified as described in these operating
instructions.
To prevent cold from escaping, avoid opening the appliance door until the fault
has been corrected.
Problem Possible cause and remedy
If you feel that your
refrigeration appliance
is not working properly,
you can perform a Self
test. Your appliance will
be checked for any
faults or malfunctions.
Any errors identified during the Self test are shown in
the display.
Perform the Self test (see “Selecting further
settings - Carrying out a Self test”).
If necessary, contact customer service and inform
them of the error message(s) in the display.
The refrigeration
appliance is not getting
cold and the interior
lighting does not come
on when the appliance
door is opened.
The appliance is not switched on.
Switch the appliance on. The temperature appears
in the display.
The plug is not properly inserted into the socket or
the socket is not switched on.
Insert the plug into the socket correctly and switch
on.
The mains circuit breaker has tripped. There could be
a fault with the appliance, the household electrical
wiring or another electrical appliance.
Contact a qualified electrician or Miele.
Problem solving guide
97
Problem Possible cause and remedy
The compressor is
switching on more
frequently and for
longer periods of time.
The temperature in the
appliance is too low.
The ventilation gaps in the housing unit are covered
or have become too dusty.
Do not block the ventilation gaps.
Clean the dust from the ventilation gaps on a
regular basis.
The door has been opened too frequently, or a large
amount of fresh food has been placed in the
appliance.
Only open the door when necessary and for as
short a time as possible.
After a while the temperature will return to normal by
itself.
The door is not properly closed.
Close the door.
After a while the temperature will return to normal by
itself.
The ambient room temperature is too high. The
higher the room temperature, the longer the
compressor will run.
See the information in “Installation - Location”.
The refrigeration appliance was not properly installed
in the niche.
See the information in “Installation – Installing the
appliance”.
The compressor is
switching on more
frequently and runs for
longer periods of time,
and the temperature in
the appliance is too low.
The temperature setting is too low.
Correct the temperature setting.
The SuperCool function is still switched on.
To save energy, you can switch SuperCool off
early.
The compressor comes
on less and less often
and for shorter periods
of time. The
temperature in the
appliance rises.
This is not a fault. The temperature is too high.
Correct the temperature setting.
Check the temperature again after 24hours.
Problem solving guide
98
Problem Possible cause and remedy
The compressor runs
continuously.
This is not a fault. To save energy, the compressor
runs at a lower speed when less cooling is required.
This increases the running time of the compressor.
An alarm sounds. The appliance door has been open for longer than
2minutes.
Close the appliance door.
No alarm sounds
despite an appliance
door being open.
You have deactivated the alarm.
Switch the alarm back on via the Settings mode
.
The Sabbath mode function is switched on: The
temperature display is dark and the symbol is
shown in the display.
You can switch off Sabbath mode at any time (see
"Selecting further settings - Switching Sabbath
mode on and off").
The door of the
appliance cannot be
opened.
The Pull2openDoor assistant is switched on but the
appliance has a handle-free furniture front.
With handle-free furniture fronts, switch on the
Push2openDoor assistant (see “Selecting further
settings - Switching on the Door assistant ”).
The appliance door
cannot be opened when
Sabbath mode is
switched on.
The Push2openDoor assistant is switched on at the
same time as Sabbath mode.
When Sabbath mode is switched on, the Door
assistant is deactivated.
Pull the door open from the bottom or from the
side.
Problem solving guide
99
Messages in the display
Message Possible cause and remedy
The alarm sounds and
the message Close the
door appears in the
display.
The appliance door is open.
Close the appliance door.
If you want to switch the alarm off early, touch the
OK sensor in the display.
The alarm will stop.
The temperature display
is dark and the
symbol lights up in
the display.
Sabbath mode is switched on. The interior lighting is
switched off and the refrigeration appliance is
cooling.
You can switch off Sabbath mode at any time (see
“Selecting further settings - Switching Sabbath
mode on and off”).
F Please call Miele Service
appears in the display
and an alarm sounds.
There is a fault.
Make a note of the fault message if necessary.
Call Miele.
To turn the alarm off, touch the symbol.
The error message will not disappear from the
display until the error has been rectified.
The voltage level is too high or too low.
Observe the connection data in “Installation -
Electrical connection”.
Contact customer service if necessary.
To turn the alarm off, touch the symbol.
The error message will not disappear from the
display until the error has been rectified.
The symbol lights up
in the display. The
refrigeration appliance
does not get cold, but
the appliance controls
are working.
Demo mode is switched on. Demo mode allows the
appliance to be presented in a showroom without the
cooling system being switched on. Do not activate
this setting for domestic use.
Switch off Demo mode (see “Selecting further
settings - Switching off Demo mode ”).
Problem solving guide
100
The interior lighting is not working
Problem Possible cause and remedy
The interior lighting is
not working.
The appliance is not switched on.
Switch the appliance on.
The Sabbath modefunction is switched on: The
temperature display is dark and the symbol lights
up in the display.
You can switch off Sabbath mode at any time via the
Settings mode.
There is a fault.
Risk of electric shock due to exposed, live
electrical components!
When removing the lighting cover, there is a risk of
coming into contact with live electrical
components.
Do not remove the lighting cover. The LED lighting
must only be repaired or replaced by a qualified
technician.
Danger of injury from LED lighting.
This lighting corresponds to risk group RG2. If the
cover is defective, there is a risk of eye injury.
If the lighting cover is defective, do not look from a
close range directly into the lighting with optical
instruments (e.g. magnifying glass or similar).
Call Miele.
Noises
101
Normal
noises
What causes them
Brrrrr ... A humming noise is made by the motor (compressor). This noise
can get louder for brief periods when the motor switches on.
Blubb,
blubb ...
A gurgling noise can be heard when coolant is circulating
through the pipes.
Click ... Clicking sounds are made when the thermostat switches the
motor on and off.
Crack ... A cracking sound can be heard when materials expand inside
the appliance.
Remember that the noise of the compressor and the coolant circulating in the
system is unavoidable.
Noises Possible cause and remedy
Rattling,
vibrating,
clinking
The appliance is uneven. Realign the appliance using a spirit
level. Do so by raising or lowering the screw feet underneath the
appliance or place something underneath it.
The appliance is touching another appliance or piece of
furniture. Move it away.
Drawers, baskets or shelves are jiggling or are stuck. Check all
removable parts and refit them correctly.
Bottles or containers are touching each other. Separate them.
Service
102
Contact in case of fault
In the event of any faults which you
cannot remedy yourself, please contact
Miele.
You can book a Miele customer
service call-out online at
www.miele.com/service.
Contact information for Miele can be
found at the end of this booklet.
Please quote the model and serial
number of your appliance (SN) when
contacting the Miele. This information
can be found on the data plate.
The data plate is located inside the
appliance.
Warranty
The manufacturer's warranty for this
appliance is 2years.
For more information about country-
specific warranty terms and conditions,
please contact Miele.
Copyright and licences
103
For the purpose of operating and controlling the appliance, Miele uses proprietary
or third-party software that is not covered by open source licensing terms. These
items of software/software components are protected by copyright. The copyright
powers of Miele and third parties must be respected.
In addition, the appliance contains software components which are distributed
under open source licensing terms. You can view these open source components
along with the associated copyright notices, copies of the valid licensing terms
and any further information in the document “Open Source Information and
Licenses”. The liability and warranty arrangements for the open source licences
displayed at this location only apply in relation to the respective rights holders.
The appliance contains, in particular, software components which are licensed by
the rights holders under the GNU General Public License, version2, or the GNU
Lesser General Public License, version2.1. For a period of at least 3years
following the purchase or delivery of the appliance, Miele shall provide you or third
parties with a machine-readable copy of the source code for the open source
components contained in the appliance, which are licensed under the terms of the
GNU General Public License, version2, or the GNU Lesser General Public License,
version2.1. The source code shall be made available on a data carrier (CD-ROM,
DVD or USB stick). To obtain this source code, please contact us, specifying the
product name, serial number and purchase date, by sending us an e-mail
([email protected]) or writing to the following address:
Miele & Cie. KG
Open Source
GTZ/TIM
Carl-Miele-Straße 29
33332 Gütersloh, Germany
We wish to draw your attention to the limited warranty for the benefit of rights
owners under the terms of the GNU General Public License, version2, and the
GNU Lesser General Public License, version2.1:
This program is distributed in the hope that it will be useful, but WITHOUT ANY
WARRANTY, without even the implied warranty of MERCHANTABILITY of FITNESS
FOR A PARTICULAR PURPOSE. See the GNU General Public License and GNU
Lesser General Public License for more details.
Miele Experience Centre and
Head Office Melbourne:
1 Gilbert Park Drive
Knoxfield, VIC 3180
Miele Experience Centre South Melbourne:
206-210 Coventry Street
South Melbourne, VIC 3205
Miele Experience Centre and Office Sydney:
3 Skyline Place
Frenchs Forest, NSW 2086
Miele Experience Centre and Office Brisbane:
Tenancy 4C, 63 Skyring Terrace
Newstead, QLD 4006
Miele Experience Centre and Office Perth:
83-85 Sir Donald Bradman Drive
Hilton, SA 5033
Miele Experience Centre and Office Adelaide:
Miele Australia Pty. Ltd. Miele New Zealand Limited
Level 2, 10 College Hill
Freemans Bay, Auckland 1011
Miele Experience Centre
Auckland:
8 College Hill
Freemans Bay, Auckland 1011
Miele Global Headquarters
Germany
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Federal Republic of Germany
Head Office:
IRD 98 463 631
ACN 005 635 398
ABN 96 005 635 398
Miele Experience Centre Gold Coast:
131 Ferry Road
Southport, QLD 4215
Miele Experience Centre
Wellington:
183 Featherston Street
Wellington 6011
0800 464 353 (0800 4 MIELE)
www.miele.co.nz
205-207 Stirling Highway
Claremont, WA 6010
1300 464 353 (1300 4 MIELE)
www.miele.com.au
M.-Nr. 10 942 040 / 00en-AU, NZ
K 2601 Vi
