Operating instructions
Fridge-freezer
It is essential to read these operating and installation instructions
before installing and using the appliance. This prevents both personal
injury and damage to the appliance.
en - AU, NZ M.-Nr. 12 430 190
Contents
2
Warning and Safety instructions...................................................................... 5
Caring for the environment .............................................................................. 15
Installation.......................................................................................................... 16
Installation location ............................................................................................. 16
Side-by-side combinations ............................................................................ 17
Climate range ................................................................................................. 18
Ventilation....................................................................................................... 18
Furniture door...................................................................................................... 19
Horizontal and vertical gaps........................................................................... 19
Weight of the furniture door ........................................................................... 20

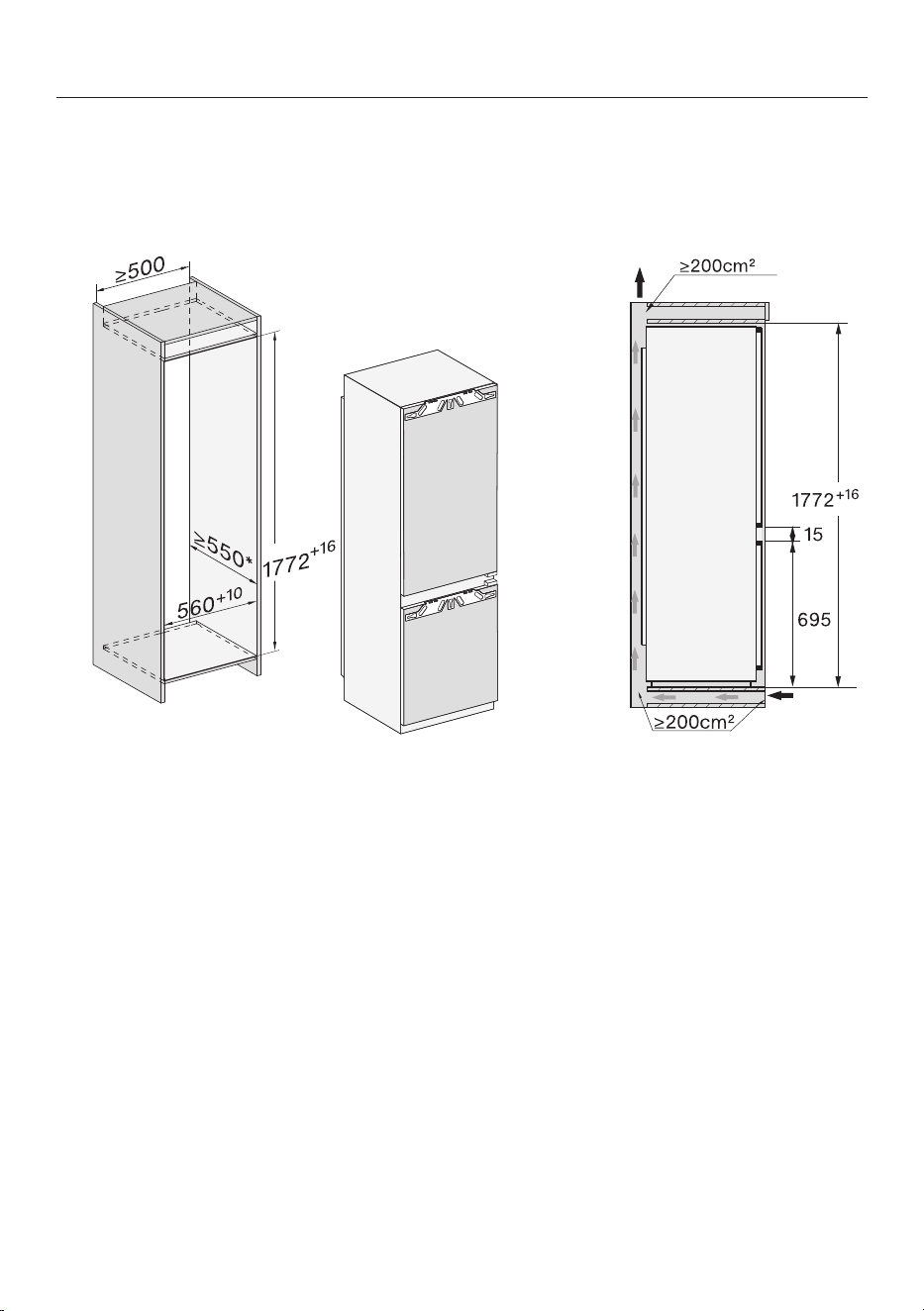

Installation dimensions........................................................................................ 21
Installation in a tall unit/side view................................................................... 21
Connections and ventilation........................................................................... 22
Limiting the opening angle of the appliance doors ............................................. 23
Electrical connection ........................................................................................... 24
Saving energy .................................................................................................... 25

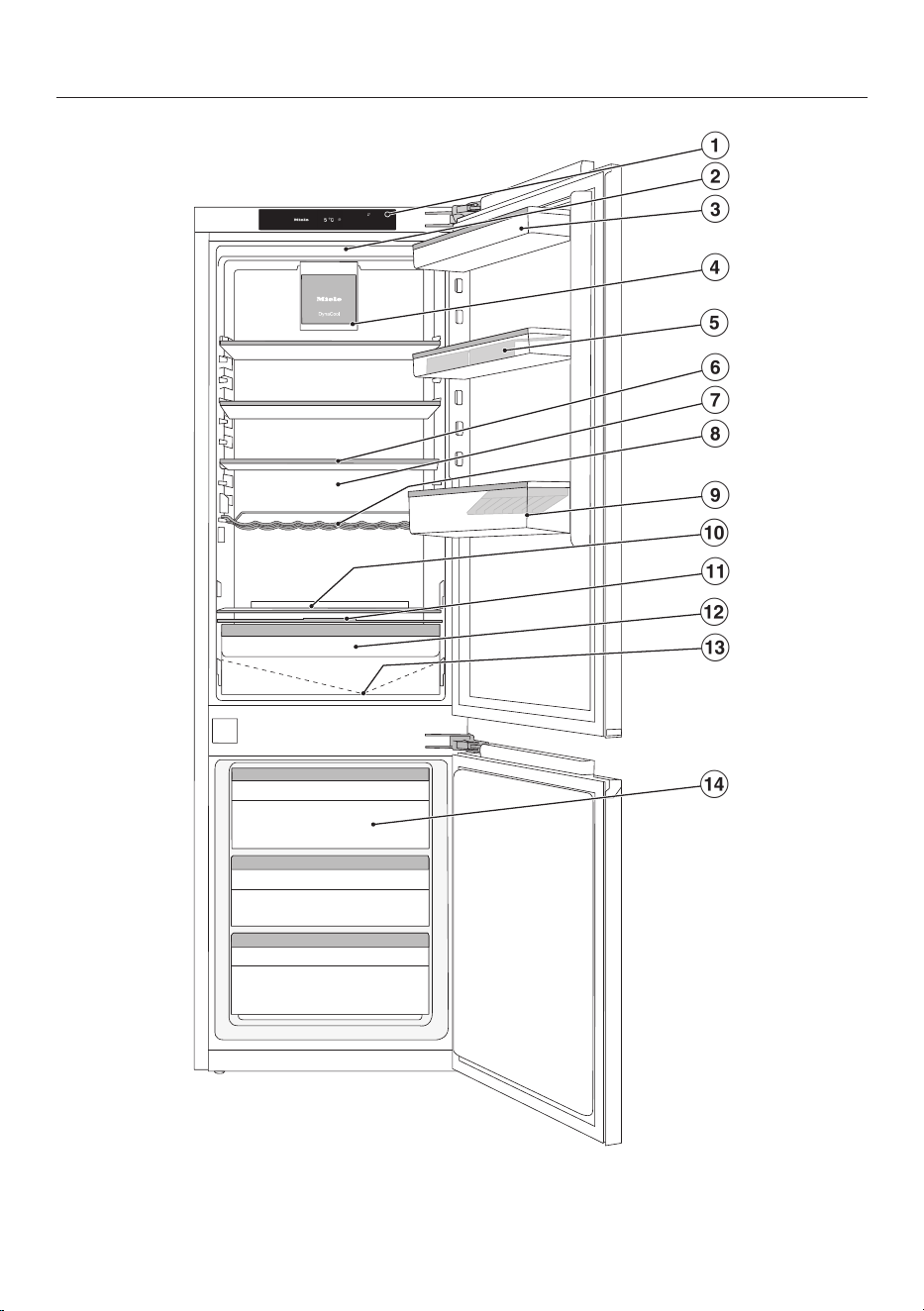

Guide to the appliance...................................................................................... 26
Control panel with start display........................................................................... 28
Settings mode ........................................................................................... 28
Selecting the desired function in Settings mode....................................... 30
Adjusting the interior fittings................................................................................ 31
Moving the door/bottle shelf .......................................................................... 31
Clipping the egg trays on ............................................................................... 31
Adjusting or removing the bottle holder......................................................... 31
Moving the adjustable shelves....................................................................... 31
Adjusting the bottle rack ................................................................................ 31
Space for a baking tray .................................................................................. 32
Moving the charcoal filters ............................................................................. 32
Accessories supplied .......................................................................................... 33
Optional accessories........................................................................................... 33
Switching on and off ......................................................................................... 34
Before using for the first time.............................................................................. 34
Connecting the appliance .............................................................................. 34
Switching on the appliance ................................................................................. 34
Switching off the appliance................................................................................. 35
Switching off the refrigerator section separately............................................ 35
Switching off for longer periods of time ......................................................... 36
Contents
3
The correct temperature................................................................................... 37
Temperature display ............................................................................................ 38
Setting the temperature in the refrigerator/freezer sections................................ 38
Possible temperature settings........................................................................ 38
Using SuperCool, SuperFreeze and DynaCool............................................... 39
Selecting further settings ................................................................................. 42
Explanation of the different settings.................................................................... 42
Party mode ................................................................................................. 42
Holiday mode............................................................................................ 42
Switching the lock function/ on............................................................. 43
Sabbath mode ............................................................................................ 44
Information on Sabbath mode .................................................................... 44
Changing the time before the door alarm is triggered ............................... 45
Miele@home................................................................................................... 45
Changing the volume of the alarms and buzzers/ .............................. 47
Adjusting the display brightness ............................................................... 48
Switching off Demo mode........................................................................... 48
Resetting the settings to their factory default settings............................. 49
Information .................................................................................................. 49
Charcoal filter change indicator................................................................. 49
Cleaning mode ......................................................................................... 49
Temperature and door alarm............................................................................ 50
Door alarm........................................................................................................... 51
Storing food in the refrigerator section........................................................... 52
Different storage zones ....................................................................................... 52
Food which is not suitable for storage in the refrigerator.................................... 53
Notes on buying food.......................................................................................... 53
Storing food correctly.......................................................................................... 54
Storing food in the DailyFresh drawer............................................................. 55
Freezing and storing food................................................................................. 57
Freezing fresh food.............................................................................................. 57
Storing frozen food.............................................................................................. 57
Home freezing ..................................................................................................... 57
Storage time for frozen food................................................................................ 59
Cooling drinks quickly ......................................................................................... 59
Using accessories ............................................................................................... 59
Making ice cubes ........................................................................................... 59
Defrosting........................................................................................................... 60
Contents
4
Cleaning and care ............................................................................................. 61
Cleaning agents................................................................................................... 61
Preparing the refrigeration appliance for cleaning .............................................. 62
Cleaning the interior of the machine ................................................................... 63
Cleaning accessories by hand or in the dishwasher........................................... 63
Removing and dismantling accessories for cleaning.......................................... 64
Inserting the glass shelves and drawers into the freezer section................... 65
Cleaning the door seal ........................................................................................ 66
Cleaning the ventilation gaps .............................................................................. 66
After cleaning ...................................................................................................... 66
Problem solving guide ...................................................................................... 67
Noises................................................................................................................. 77
Service................................................................................................................ 78
Contact in case of fault ....................................................................................... 78
Warranty .............................................................................................................. 78
Warning and Safety instructions
5
This refrigeration appliance complies with current local and
national safety requirements. However, inappropriate use can lead
to personal injury and damage to property.
Please read the operating and installation instructions carefully
before using the refrigeration appliance for the first time. They
contain important information on safety, installation, use and
maintenance of the appliance. This is to protect yourself from
injury and from damaging your refrigeration appliance.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow all information provided
concerning the installation of the refrigeration appliance, as well as
safety notes and warnings.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Correct application
This appliance is designed for domestic use and for use in similar
environments by guests in hotel or motel rooms, bed & breakfasts
and other typical living quarters. This does not include common/
shared facilities or commercial facilities within hotels, motels or bed
& breakfasts.
This appliance is not suitable for outdoor use.
This appliance is intended for cooling and storing food and drinks
as well as for storing deep-frozen food, freezing fresh food and for
making ice.
Any other usage is not supported by the manufacturer and could be
dangerous.
Warning and Safety instructions
6
This appliance is not suitable for storing and keeping cool
medicines, blood plasma, laboratory preparations or similar
substances or products. Incorrect use of the appliance for such
purposes may cause deterioration of the items stored.
The appliance is also not suitable for use in areas where there is a
risk of explosion.
Miele cannot be held liable for damage resulting from incorrect or
improper use or operation of the appliance.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities or
lack of experience and knowledge, unless they have been given
supervision and instruction concerning its use by a person
responsible for their safety.
They may only use the appliance unsupervised if its operation has
been clearly explained to them and they are able to use it safely and
are able to understand and recognise the possible dangers caused
by incorrect operation.
Safety with children
Young children must not be allowed to use this appliance.
Older children may only use the appliance when its operation has
been clearly explained to them and they are able to use it safely,
recognising the dangers of misuse.
Cleaning work may only be carried out by older children under the
supervision of an adult.
Please supervise children in the vicinity of the appliance and do
not let them play with it.
Danger of suffocation! Children may be able to wrap themselves in
packing material (e.g. foil) or pull it over their head with the risk of
suffocation. Keep packaging material away from children.
Warning and Safety instructions
7
Technical safety
The refrigerant circuit has been checked for leaks. The
refrigeration appliance complies with all current local and national
safety requirements.
Warning: Risk of fire / Flammable materials.
The refrigerant inside the appliance (details on the data plate) is
environmentally friendly but flammable.
The use of this refrigerant does, however, sometimes lead to a slight
increase in the noise level of the appliance. In addition to the noise of
the compressor, you might be able to hear the refrigerant flowing
around the system. Unfortunately, these effects cannot be avoided,
but they do not not affect the performance of the refrigeration
appliance.
When transporting and installing the refrigeration appliance, ensure
that no parts of the cooling circuit are damaged. Splashes of
refrigerant can damage the eyes and leaking refrigerant can ignite.
In the event of any damage:
- Avoid naked flames or anything which creates a spark.
- Disconnect the refrigeration appliance from the mains electricity
supply.
- Ventilate the room in which the appliance is located for several
minutes.
- Call Miele.
Warning and Safety instructions
8
The more refrigerant there is in a refrigeration appliance, the larger
the room should be in which it is installed. In the event of a leakage,
if the appliance is in a small room, there is the danger of a
combustible gas/air mixture building up. For every 8g of refrigerant,
at least 1m
3
of room space is required. The amount of refrigerant in
the refrigeration appliance is stated on the data plate inside the
appliance.
To avoid the risk of damage to the appliance, make sure that the
connection data (fuse rating, frequency and voltage) on the data
plate corresponds to the household supply. Check that this is the
case before connecting the appliance.
Consult a qualified electrician if in any doubt.
The electrical safety of this appliance can only be guaranteed
when correctly earthed. It is essential that this standard safety
requirement is met. If in any doubt please have the electrical
installation tested by a qualified electrician.
Temporary or permanent operation with a self-sufficient or non-
mains synchronous energy supply system (e.g. isolated networks,
back-up systems) is possible. A requirement for the operation is that
the energy supply system complies with all current local and national
requirements that apply to stand-alone, solar and/or battery
systems.
The protective measures provided in the installation and in this Miele
product must also be assured in their function and operation in
isolated operation or in non-mains synchronous operation, or
replaced with equivalent measures in the installation.
If the electrical connection cable supplied is damaged, it must
only be replaced by an original spare part to prevent a hazard for the
user. Miele can only guarantee the safety of the appliance when
original Miele spare parts are used.
Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. These do not guarantee the
required safety of the appliance (e.g. danger of overheating).
Warning and Safety instructions
9
If moisture gets into electrical components or into the mains
connection cable, it could cause a short circuit. Therefore, do not
operate this refrigeration appliance in areas which are exposed to
moisture (e.g in a garage or laundry).
This appliance must not be installed and operated in mobile
installations (e.g. on a ship).
Do not use a damaged appliance. It could be dangerous. Check
the appliance for visible signs of damage.
For safety reasons, this appliance may only be used when it has
been fully installed.
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply. It is only
completely isolated from the electricity supply when:
- the mains circuit breaker has been switched off, or
- the screw-out fuse is removed (in countries where this is
applicable), or
- it is switched off at the wall socket and the plug is withdrawn from
the socket. Do not pull the mains connection cable but the mains
plug to disconnect your appliance from the mains electricity
supply.
Repairs and other work by unqualified persons could be
dangerous. Maintenance work and repairs to electrical appliances
must only be carried out by a Miele authorised technician.
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele authorised technician.
Faulty components must only be replaced with genuine Miele
original spare parts. Miele can only guarantee the safety standards of
the appliance when Miele spare parts are used.
Warning and Safety instructions
10
This refrigeration appliance is supplied with a special lamp to
cope with particular conditions (e.g., temperature, moisture,
chemical resistance, abrasion resistance and vibration). This lamp
must only be used for the purpose for which it is intended. The lamp
is not suitable for room lighting. Replacement lamps may only be
replaced by a Miele authorised technician. This refrigeration
appliance contains several light sources with at least energy
efficiency classF.
In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the appliance and
its surroundings clean at all times. Any damage caused by
cockroaches or other vermin will not be covered by the warranty.
Correct installation
When installing the refrigeration appliance, it is a mandatory
requirement to follow the installation instructions supplied with it.
Always wear protective gloves when transporting and installing
the refrigeration appliance.
Two people are required to install the refrigeration appliance.
Change the door hinging (if necessary) as described in the
installation instructions supplied with the appliance.
Only install the refrigeration appliance in a solid, rectangular, and
level housing unit, positioned on an even and level floor.
Warning and Safety instructions
11
Correct use
This refrigeration appliance is designed for use within specific
ambient temperatures (climate range). Do not use it in ambient
temperatures for which it is not designed. The climate class is stated
on the data plate inside the refrigeration appliance. A lower ambient
temperature will cause the compressor to switch off for longer
periods, meaning that the refrigeration appliance is unable to
maintain the required temperature.
To ensure proper air flow in and out of the appliance, the
ventilation gaps in the appliance and built-in structure must not be
covered or blocked in any way. This would also increase the energy
consumption and could cause damage to the appliance.
If storing food which contains a lot of fat or oil in the appliance or
the appliance door, make sure that it does not come into contact
with plastic components as this could cause stress cracks or break
the plastic. Make sure that no fat or oil leaks onto the plastic parts of
the appliance.
Risk of fire and explosion! Do not store any explosive materials or
products containing flammable propellants (e.g. spray cans) in the
refrigeration appliance. Electrical components can cause flammable
mixes of gases to ignite.
Danger of explosion! Do not operate any electrical equipment (e.g.
an electric ice cream maker) inside the appliance. Danger of
sparking and explosion.
Risk of injury and damage! Do not store cans or bottles containing
carbonated drinks or liquids which could freeze in the freezer
section. Otherwise they could burst, causing injury or damage.
Risk of injury and damage! When chilling drinks in the freezer
section, make sure that bottles are not left in for more than one hour.
Otherwise they could burst, causing injury or damage.
Warning and Safety instructions
12
Danger of injury! Never handle frozen food or the metal parts of
the appliance with wet hands. Your hands may freeze to the frozen
food or to the metal.
Danger of injury! Do not take ice cubes out with your bare hands
and never place ice cubes or ice lollies in your mouth straight from
the freezer zone. The very low temperature of the frozen goods can
cause frost burn to the lips and tongue.
Do not refreeze thawed or partially thawed food. Defrosted food
should be used up as quickly as possible, as food soon loses its
nutritional value and goes off. Defrosted food may only be refrozen
after it has been cooked.
Food stored for too long may present a risk of food poisoning.
Storage times will depend on several factors, including the freshness
and quality of the food, as well as the temperature at which it is
stored. Follow the instructions given on the food manufacturer's
packaging regarding storage conditions and use-by dates.
Accessories and spare parts
Only use original Miele accessories. Using spare parts or
accessories from other manufacturers will invalidate the warranty,
and Miele cannot accept liability.
Miele will guarantee to supply functional spare parts for a
minimum of 10years and up to 15years following the
discontinuation of your refrigeration appliance.
Cleaning and care
Do not use any oils or grease on the door seals, as these will
cause the seals to deteriorate and become porous with time.
Do not use a steam cleaning appliance to clean this appliance.
Steam could reach the electrical components and cause a short
circuit.
Warning and Safety instructions
13
Sharp edged or pointed objects will damage the evaporator,
causing irreversible damage to the appliance. Do not use sharp
edged or pointed objects to
- remove frost and ice, or accelerate the defrosting process,
- separate frozen foods and remove ice trays.
Never place electric heaters or candles in the appliance to defrost
it. These can damage the plastic parts.
Do not use defrosting sprays or de-icers, as they might contain
substances which could damage the plastic parts or which could
cause a build-up of gases and pose a danger to health.
Transport
To avoid damage to the appliance, always transport it upright and
in its packaging.
Risk of injury and damage! The refrigeration appliance is very
heavy and must be transported by two people.
Disposal of your old appliance
Children playing could become trapped in the refrigeration
appliance and could suffocate.
- Remove the appliance door(s).
- Remove the drawers.
- Leave the adjustable shelves in the refrigeration appliance so
children cannot climb inside.
- If your old refrigeration appliance has a door lock, destroy it. This
way you will prevent the risk of playing children accidentally
locking themselves in and endangering their lives.
Risk of electric shock!
- Cut the power plug off the mains connection cable.
- Cut the mains connection cable off the old appliance.
Warning and Safety instructions
14
Dispose of everything separately from the old appliance.
During and after disposal, make sure that the refrigeration
appliance is not placed near petrol or other flammable gases and
liquids.
Risk of fire due to escaping oil or refrigerant!
The refrigerant and oil inside the appliance are flammable. In high
enough concentrations, escaping refrigerant or oil may ignite if they
come into contact with an external heat source.
During disposal, make sure that the cooling circuit is not damaged in
order to prevent refrigerant and oil escaping in an uncontrolled
manner (see the data plate for details of the refrigerant).
Splashes of coolant can damage the eyes. Be careful not to
damage any part of the pipework whilst awaiting disposal, e.g. by
- puncturing the refrigerant channels in the condenser,
- bending any pipework, or
- scratching the surface coating.
Symbol on the compressor (depending on model)
This information is only relevant for recycling. There is no risk during normal
operation.
The oil in the compressor can be fatal if swallowed or if it
penetrates the airways.
Caring for the environment
15
Disposal of the packing
material
The transport and protective packaging
has been selected from materials which
are environmentally friendly for
disposal, and can normally be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites. Ensure that any plastic
wrappings, bags etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger of
suffocation.
Disposing of your old
appliance
Electrical and electronic appliances
contain many valuable materials. They
also contain certain materials,
compounds, and components which
were essential for their correct
functioning and safety. These could be
hazardous to human health and to the
environment if disposed of with general
waste or if handled incorrectly. Please
do not, therefore, dispose of your old
appliance with your household waste.
Take care not to damage your
refrigeration appliance before or during
disposal in an authorised,
environmentally friendly manner.
This is to ensure that refrigerant in the
cooling circuit and oil in the compressor
is contained, and will not leak into the
environment.
Please dispose of it at your local
community waste collection/recycling
centre for electrical and electronic
appliances, or contact Miele. You are
also responsible for deleting any
personal data that may be stored on the
appliance prior to disposal. You should
remove any old batteries which are not
securely enclosed by the appliance and
remove any lamps without destroying
them, where this is possible. These
must be taken to a suitable collection
point where they can be handed in free
of charge. Please ensure that your old
appliance presents no danger to
children while being stored awaiting
disposal.
Installation
*INSTALLATION*
16
Installation location
Danger of damage and injury
due to the appliance tipping over!
This refrigeration appliance is very
heavy and can tip forward when the
door is open.
Keep the appliance door(s) closed
until the refrigeration appliance has
been built in. The refrigeration
appliance must be secured in its
building-in niche in accordance with
the operating and installation
instructions.
Fire hazard and risk of damage
from appliances that give off heat.
Appliances that give off heat can
catch fire and set fire to the
refrigeration appliance.
This refrigeration appliance must not
be installed underneath a cooktop.
Fire risk and danger of damage
from open flames!
Open flames can set fire to the
refrigeration appliance.
Keep open flames (e.g. a candle)
away from the refrigeration
appliance.
This appliance should be installed in a
dry, well-ventilated room.
Risk of damage due to high
humidity.
In environments with high humidity,
condensation can build up on
external refrigeration appliance
panels.
This condensate can cause corrosion
on external appliance panels.
Install the refrigeration appliance in a
dry and/or air-conditioned room with
sufficient ventilation.
After installation, please make sure
that the appliance door(s) closes
(close) properly and the refrigeration
appliance is installed in accordance
with these installation instructions. It
is essential to comply with the
specified ventilation cut-out
requirements.
When deciding on the installation site,
please bear in mind that your
refrigeration appliance will use more
energy if installed near to a heater, a
cooker or other appliance that gives off
heat. Avoid direct sunlight.
The higher the ambient temperature,
the longer the compressor runs and the
higher the energy consumption is.
Installation
*INSTALLATION*
17
Please note the following when
installing the appliance:
- The mains socket must not be
located directly behind the appliance
and should be easily accessible.
- The plug and mains connection cable
must not touch the rear of the
refrigeration appliance as they could
be damaged by vibrations from the
appliance.
- Other appliances must also not be
plugged into a socket located directly
behind this appliance.
- WARNING: When positioning the
appliance, ensure the mains
connection cable is not trapped or
damaged.
- WARNING: Do not locate multiple
portable socket-outlets or portable
power supplies at the rear of the
appliance.
- The floor at the installation site must
be horizontal and level and must be
as high as the surrounding floor.
Side-by-side combinations
Risk of damage due to
condensation on the external
appliance panels.
In environments with high humidity
and a lack of ventilation,
condensation can build up on
external appliance panels, which can
cause corrosion.
Do not place refrigeration appliances
directly next to or on top of one
another.
Your refrigeration appliance can be
installed with another refrigeration
appliance next to it as it is equipped
with integrated heaters in the side
panels. Each of the two refrigeration
appliances must be built into a separate
housing unit.
Installation
*INSTALLATION*
18
Climate range
This refrigeration appliance is designed
for use within specific ambient
temperatures (climate range). Do not
use it in ambient temperatures for which
it is not designed. The climate class is
stated on the data plate inside the
refrigeration appliance.
Climate range Ambient
temperature
SN 10 to 32°C
N 16 to 32°C
ST 16 to 38°C
T 16 to 43°C
SN-ST 10 to 38°C
SN-T 10 to 43°C
A lower ambient temperature leads to
the compressor switching off for longer
periods. This can cause the internal
temperature in the appliance to rise with
the risk of food deteriorating and going
off.
Ventilation
Risk of fire and damage due to
insufficient ventilation!
If the appliance is not ventilated
sufficiently, the compressor will run
more frequently and for longer
periods. This will result in increased
energy consumption and a higher
operating temperature of the
compressor. This, in turn, can result
in damage to the compressor.
Please ensure that there is adequate
ventilation around the appliance.
It is essential to observe the required
ventilation gaps.
The ventilation gaps must not be
covered or blocked in any way.
They must also be cleaned on a
regular basis to remove dust.
Air at the back of the refrigeration
appliance gets warm. The appliance
housing unit must therefore be
constructed to allow sufficient space for
ventilation (see “Installation
dimensions” and the installation
instructions provided).
Installation
*INSTALLATION*
19
Furniture door
Horizontal and vertical gaps
Depending on the style of kitchen
furniture, the thickness and edge radius
of the furniture door panel and the gap
that runs around the door, vertically and
horizontally, are specified.
It is essential to pay attention to the
following:
- Horizontal gap
The gap between the furniture door
panel and the housing unit door above
or below it must be at least 3mm.
- Vertical gap
If the gap between the refrigeration
appliance furniture door panel and
the adjoining housing unit door or
wall on the hinged side is too small,
the appliance door could collide with
the adjoining furniture unit door or
side wall when opened.
It may be necessary to adjust the
size of this gap to suit the thickness
and edge radius of the appliance
furniture door.
This must be taken into consideration
when planning your kitchen and when
replacing an old refrigeration appliance
with a new one to ensure the installation
conditions required are met.
Appliance
furniture
door
thickness
A [mm]
Gap X [mm]
for different
edge radii B
R0 R1.2 R2 R3
≥16–19 min. 3
20 5 4 4 3.5
21 5.5 5 4.5 4
22 6.5 6 5.5 5
Adjoining kitchen furniture front
A=Furniture front thickness
B=Edge radius
X=Gap
Adjoining side wall
A=Furniture front thickness
B=Edge radius
X=Gap
Useful tip: Fit a spacer between the
housing unit body and the side wall.
This way you will get a sufficiently wide
gap.
Installation
*INSTALLATION*
20
Weight of the furniture door
If the door panel is too heavy,
this can cause damage!
Fitting a furniture front which is
heavier than the maximum permitted
weight could damage the hinges.
Among other things, this damage
can lead to functional impairments.
Before fitting furniture doors, ensure
that the weight of the door does not
exceed the maximum weight
permitted:
The maximum permissible weights of
the door panels in kg are:
Refrigeration
appliance
Upper
furniture
door
panel
Lower
furniture
door
panel
KFNS 7734 D 18 12
Installation
*INSTALLATION*
21
Installation dimensions
Installation in a tall unit/side view
All dimensions are given in mm.
Before installation, ensure the furniture unit dimensions are the correct size.
Installation
*INSTALLATION*
22
Connections and ventilation
All dimensions are given in mm.
The specified ventilation cross-sections must be adhered to in order to ensure
the correct functioning of the refrigeration appliance.
a
Front view
b
Mains connection cable, length = 2200 mm
A longer mains connection cable is available from Miele.
c
Ventilation cut-out min. 200cm²
d
Ventilation
e
No connections permitted in the rear panel
Installation
*INSTALLATION*
23
Limiting the opening angle of
the appliance doors
The door hinges are set to enable the
appliance doors to be opened wide.
If the opening angle of the doors needs
to be limited to approx. 90°, the hinge
can be adjusted to accommodate this.
The locking pins for limiting the door
opening must be fitted before the
appliance is installed.
The refrigerator section door must be
taken off in order to insert the pins into
the upper hinge of the freezer section
door (see the installation instructions
provided).
Place the locking pins supplied for
limiting the door opening into the
hinges from above.
This will limit the opening angles of the
appliance doors to approx. 90°.
Installation
*INSTALLATION*
24
Electrical connection
The refrigeration appliance must only be
connected to an earthed socket using
the connection cable supplied.
The socket should be easily accessible
after the refrigeration appliance has
been installed. If the socket is not easily
accessible, ensure that a suitable
means of disconnection is provided on
the installation side for each pole.
Risk of fire from overheating.
Connecting the appliance to a multi-
socket plug adapter or to an
extension lead can overload the
cable.
For safety reasons, do not use an
extension cable or multi-socket
adapter.
All electrical work must be carried out
by a suitably qualified and competent
person in strict accordance with
national and local safety regulations.
For safety reasons, we recommend
using a suitable residual current device
(RCD) in the relevant electrical
installation for connecting the
refrigeration appliance.
If the mains connection cable is
damaged, it must only be replaced with
a specific mains connection cable of
the same type (available from Miele).
The data plate indicates the nominal
power consumption and the connection
data. Compare this information with the
data of the on-site electrical
connection. If in any doubt, consult a
qualified electrician.
Temporary or permanent operation with
a self-sufficient or non-mains
synchronous energy supply system
(e.g. isolated networks, back-up
systems) is possible. A requirement for
the operation is that the energy supply
system complies with all current local
and national requirements that apply to
stand-alone, solar and/or battery
systems.
The protective measures provided in
the domestic installation and in this
Miele product must also be assured in
their function and operation in isolated
operation or in non-mains synchronous
operation, or replaced with equivalent
measures in the installation.
Connecting the appliance
Insert the plug connector into the
back of the appliance.
Make sure that the plug connector has
locked into position correctly.
Insert the plug of the appliance into
the socket and switch it on.
The appliance is now connected to the
electricity supply.
Saving energy
25
How to save energy:
Installation
location
The refrigeration appliance has to cool more often at higher
ambient temperatures and consumes more energy in the
process. Therefore, you should:
- Install the refrigeration appliance in a well-ventilated room.
- Do not install the refrigeration appliance near to a heat source
(heater element, cooker).
- Protect the refrigeration appliance from direct sunlight.
- Ensure an ideal ambient temperature of 20°C.
- Clean the ventilation gaps on a regular basis to remove any
dust.
Temperature
setting
The colder the temperature, the higher the energy consumption.
The following settings are recommended:
- 4 to 5°C in the refrigerator section.
- -18°C in the freezer section.
Use Energy consumption is increased by heat input and impeded air
circulation. Therefore, you should:
- Only open the appliance door(s) when necessary and for as
short a time as possible. Arrange the food in such a way that
makes it easy to find in the appliance.
- Always close the appliance door(s) properly after opening
them.
- Allow hot food and drinks to cool down before placing them in
the refrigeration appliance.
- Store food well packaged or covered.
- Do not overfill the compartments to allow air to circulate.
- Place frozen food in the refrigerator section to defrost.
- Keep drawers and shelves arranged as they were when the
appliance was delivered.
Guide to the appliance
26
Guide to the appliance
27
a
Display
b
Interior lighting
c
Door shelves
d
Fan
e
Egg tray
f
Adjustable shelf
g
Dry rear panel
h
Flexible bottle rack
i
Bottle shelf with bottle holder
j
Space for a baking tray (ComfortSize)
k
Compartment cover for setting the humidity level in the DailyFresh drawer
l
DailyFresh drawer for fruit and vegetables (humidity-controlled)
m
Condensate channel and drain hole
n
Freezer drawers
Guide to the appliance
28
Control panel with start display
OK
<
>
°C
5
-18
°C
1
2
3
4
5
a
Temperature display for the refrigerator section
b
Temperature display for the freezer section
c
Sensors for selecting a setting
d
OKsensor for confirming a selection
e
Display for Miele@home connection status
(only visible when the Miele@home function has been set up)
Settings mode
In Settings mode, you can select the following appliance functions and alter their
settings to some extent:
Symbol Function Factory
default
setting
Switching the Party mode function on or off
(see “Selecting further settings”)
Off
Switching the Holiday mode function on or off
(see “Selecting further settings”)
Off
/ Switching the system lock on or off
(see “Selecting further settings”)
(Off)
Switching the refrigeration appliance off
(see “Switching on and off”)
Guide to the appliance
29
Switching the Sabbath mode function on or off
(see “Selecting further settings”)
Off
Calling up information on the Sabbath mode function
(see “Selecting further settings”)
––
Changing the time before the door alarm is triggered
(see “Selecting further settings”)
1:00
Changing over the cooling circuit
(technical measurement function, not relevant for the
customer)
Off
Setting up the Miele@home function for the first time,
activating and deactivating Wi-Fi,
or resetting the network configuration
(see “Selecting further settings”)
APP
/
Switching the keypad tone on or off On
/ Changing the volume of the alarms and buzzers or
switching them off entirely
(see “Selecting further settings”)
On
/Level5
Changing the display brightness
(see “Selecting further settings”)
Level4
°C/°F Changing the temperature unit
(°Celsius or °Fahrenheit)
°C
Switching the Demo mode function off
(only visible when switched on)
(see “Selecting further settings”)
Off
Resetting to default settings
(see “Selecting further settings”)
––
Calling up information (model designation and serial
number) about your refrigeration appliance
(see “Selecting further settings”)
––
Guide to the appliance
30
Switching on the reminder to change the
charcoal filter (see “Optional accessories”)
(see “Selecting further settings”)
Off
Switching Cleaning mode on or off
(see “Cleaning and care” and “Selecting further
settings”)
Off
Selecting the desired function in Settings mode
Touch the OKsensor on the control panel.
will appear in the display (refrigerator section is selected).
Use the or sensor to scroll to the symbol.
Touch OK.
Select the function you want using the or sensor.
Touch OK to select the function you want.
When the function is switched on, a dot appears in the upper corner of the
display
.
Touch OK to deselect a selected function.
When the function is switched off, the dot in the upper corner of the display goes
out.
Exiting Settings mode
Use the or sensor to scroll to the symbol.
Touch OK.
Use the or sensor to scroll to the symbol and touch OK.
Alternatively:
Wait approx. 15seconds after the last press of a sensor.
Settings mode is then exited automatically.
Guide to the appliance
31
Adjusting the interior fittings
Moving the door/bottle shelf
Only move the door/bottle shelves in
the appliance door when they are
empty.
Push the door/bottle shelf upwards,
then remove it by pulling it forwards.
Refit the door/bottle shelf at the
required height.
Clipping the egg trays on
Clip the egg trays onto the rear edge
of the door shelf.
Adjusting or removing the bottle
holder
The non-slip fins of the bottle holder
make bottles more secure when you
open and close the appliance door.
The bottle holder can be moved to the
left or right to create more room for
drink cartons.
The bottle holder can be removed
completely, e.g. for cleaning:
Pull the bottle holder up to remove it.
Moving the adjustable shelves
The shelves can be adjusted according
to the height of the food.
Raise the shelf slightly at the front
and pull it forwards a little.
Lift it until the notches at the side are
in line with the shelf supports. The
shelf can then be raised or lowered to
the required level.
Push the shelf in.
Stoppers prevent the shelves from
being dislodged by mistake.
Adjusting the bottle rack
The bottle rack can be placed on
different levels in the appliance.
Raise the rack and pull it forwards
slightly until the notch at the side is in
line with the shelf support. It can then
be raised or lowered to the required
level.
Guide to the appliance
32
The stop bar at the back must face
upwards to prevent the bottles from
touching the back wall.
The bottle rack has stoppers at the
sides to prevent it from being pulled
out unintentionally.
Space for a baking tray
A baking tray can be placed above the
drawers. The baking tray can be no
more than 466mm wide, 386mm deep
and 50mm high.
Open the appliance door as far as it
will go.
Place the baking tray on the dividing
plate.
Useful tip: Let the baking tray cool
down to room temperature before
putting it in the refrigerator section.
Moving the charcoal filters
KKF-FS charcoal filters with holder
(Active AirClean) are available as
optional accessories (see “Optional
accessories”).
When you are storing very strong
smelling food (e.g. very ripe cheese):
- Place the holder with the charcoal
filters on the shelf where this food is
kept.
- Change the charcoal filters sooner if
necessary.
- Use more charcoal filters (with
holders) in the appliance (see
“Optional accessories”).
The holder for the charcoal filters sits
on a protective strip at the back of the
shelf.
To move the charcoal filters, pull the
holder upwards to remove it from the
protective strip.
Then pull the protective strip off the
shelf.
Refit the protective strip on the shelf
you wish to use it on.
Refit the holder on the protective
strip.
Guide to the appliance
33
Accessories supplied
For a description, see “Guide to the
appliance – Adjusting the interior
fittings”.
Egg tray
Bottle holder
Flexible bottle rack
Ice cube tray
Optional accessories
A range of useful Miele accessories and
care products is available for your
appliance.
Optional accessories can be ordered
from the Miele webshop. They can
also be ordered directly from Miele
(see end of this booklet for contact
details).
Miele all purpose microfibre cloth
Light soiling and fingerprints on
stainless steel fronts, control panels
and furniture can be easily removed
with this microfibre cloth.
KKF-FS charcoal filter with holder
(Active AirClean)
Charcoal filters neutralise unpleasant
odours in the refrigerator section for
improved air quality.
KKF-RF replacement charcoal filters
(ActiveAirClean)
Replacement filters to fit the holder are
available. We recommend replacing the
charcoal filters every 6months.
Flexible bottle rack
For a description, see “Guide to the
appliance – Adjusting the interior
fittings”.
Adjustable shelf with pivotable glass
shelf (FlexiTray)
The pivotable glass shelf can be turned
180°, improving access to the food
placed at the back.
Organisation box
The organisation box makes it easier to
sort the food in the refrigerator section
drawer in a clear manner.
Depending on the model, you may
need to remove the entire drawer to
insert and remove the organisation
box.
SoftClose hinges
The SoftClose hinges ensure that your
appliance doors close very softly and
quietly.
Furthermore, they close the appliance
door automatically if the angle of the
open door is less than 30°.
Switching on and off
34
Before using for the first time
Remove all packaging material and
protective film.
Clean the inside of the appliance and
the accessories (see “Cleaning and
care”).
Connecting the appliance
Connect the appliance to the
electricity supply as described in
"Electrical connection".
Mielewill then appear in the appliance
display, followed by.
Switching on the appliance
Open the appliance door.
Touch the OKsensor on the control
panel.
The appliance will start to cool and the
interior lighting will come on when the
door is opened.
When the set freezer temperature is
reached, the
symbol disappears,
the temperature display of the freezer
lights up constantly and the alarm
stops.
If the alarm annoys you, tap OK.
The alarm will stop.
The refrigeration appliance will gradually
reach the preset temperatures.
To enable the temperature to get
sufficiently cold inside the
refrigeration appliance, allow the
appliance to run for a few hours. Do
not place food in the refrigeration
appliance until it has reached the
preset temperature.
Do not place food in the freezer
section until it has reached the
preset temperature (min. -18°C).
Switching on and off
35
Switching off the appliance
You can only switch the entire
refrigeration appliance off in Settings
mode.
Touch the OKsensor on the control
panel.
will appear in the display (refrigerator
section is selected).
Use the or sensor to scroll to the
symbol.
Touch OK.
Use the or sensor to scroll to the
symbol.
Touch OK.
The cooling and interior lighting are
switched off.
appears in the display.
Please note: the refrigeration
appliance is not disconnected from
the power supply when it is switched
off.
Switching off the refrigerator section
separately
The refrigerator section can be
switched off without having to switch
off the freezer section. This is useful,
e.g. while on holiday.
Touch the OKsensor on the control
panel.
will appear in the display (refrigerator
section is selected).
Touch OK.
Use the sensor to scroll to the
symbol.
Touch OK.
The temperature display for the
refrigerator section will go out. will
appear in the display.
The refrigerator section is switched off.
The temperature display for the freezer
section remains lit up.
Switching the refrigerator section
back on again separately
Touch OK.
will appear in the display (refrigerator
section is selected).
Touch OK.
Use the sensor to scroll to the
temperature you want and touch OK.
The refrigerator section switches back
on.
Switching on and off
36
Switching off for longer periods of
time
If, during a long absence, the
refrigeration appliance is switched off
but not cleaned and the door is left
shut, there is a danger of mould
building up inside the appliance.
It is essential to clean the appliance.
If the appliance is not going to be used
for a longer period of time, observe the
following:
Switch the appliance off.
Switch off at the wall and withdraw
the plug from the socket, or switch
off the mains circuit breaker.
Clean the refrigeration appliance and
leave the door ajar to air the
appliance and avoid odours building
up inside.
It is also advisable to carry out the last
instruction if you are switching off only
the refrigerator section for a longer
period of time.
The correct temperature
37
It is very important to set the correct
temperature to ensure the shelf life of
food. Reducing the temperature
reduces the growth rate of
microorganisms. Food does not spoil as
quickly.
The temperature in the appliance will
rise:
- the more often the door is opened
and the longer it is kept open.
- the more food is stored in it.
- the warmer the food is which is being
put into it.
- the higher the ambient temperature
surrounding the refrigeration
appliance. This refrigeration
appliance is designed for use within
specific ambient temperatures
(climate range). Do not use it in
ambient temperatures for which it is
not designed.
... in the refrigerator section
We recommend a temperature of 4°C
in the refrigerator section.
... in the freezer section
To freeze fresh food, a temperature of
-18°C is required. This will prolong the
storage life of your food and retain its
quality.
As soon as the temperature rises above
-10°C, the bacteria become active in
the food again so it cannot be kept as
long. For this reason, partially defrosted
or defrosted food must not be refrozen.
Food may be refrozen once it has been
cooked, as the high temperatures
achieved during cooking destroy most
bacteria.
The correct temperature
38
Temperature display
In normal operation, the temperature
display shows the current average
refrigerator section temperature and
the maximum freezer section
temperature.
Depending on the ambient temperature
and the temperature setting, it can take
the appliance a few hours to reach the
temperature required and for this
temperature to then be shown
constantly in the display.
Setting the temperature in the
refrigerator/freezer sections
Touch the OKsensor on the control
panel.
will appear in the display (refrigerator
section is selected).
Use the andsensors to change
the selected temperature zone if
required.
Touch OK.
Use the andsensors to change
the temperature.
Touch OK.
The temperature display will then
change back to the current temperature
in the relevant temperature zone.
Possible temperature settings
- Refrigerator section: 2to9°C
- Freezer section: -15to-26°C
If you change the temperature
setting:
Check the temperature display after a
few hours. It will take this long for an
accurate reading to be given.
- Wait for approx.6hours if the
refrigeration appliance is not very full.
- Wait for approx.24hours if the
refrigeration appliance is full.
If, after this time, the temperature is still
too high or too low:
Adjust the temperature again.
Using SuperCool, SuperFreeze and DynaCool
39
SuperCool
When switched on, the SuperCool
function can be used to rapidly
reduce the temperature in the
refrigerator section to its lowest
setting (depending on the ambient
temperature). The refrigeration
appliance will work at full power and
lower the temperature. Select this
function for the rapid chilling of large
amounts of fresh food or drink.
When the SuperCool function is
switched on, the appliance may make
more noise than usual.
The SuperCool function should be
switched on 4hours before placing
food or drinks in the refrigerator
section.
The SuperCool function will switch
itself off automatically after approx.
12hours. The appliance will then run
at normal power again.
Useful tip: To save energy, you can
manually switch off the SuperCool
function once food and drinks are
sufficiently chilled.
Switching SuperCool on and off
Touch the OKsensor on the control
panel.
will appear in the display (refrigerator
section is selected).
Touch OK.
Use the sensor to scroll to the
symbol.
Touch OK.
When the SuperCool function is
switched on, a dot appears in the
upper corner of the display
.
Use the sensor to scroll to the
temperature you want and touch OK.
Using SuperCool, SuperFreeze and DynaCool
40
SuperFreeze
When switched on, the SuperFreeze
function can be used to rapidly
reduce the temperature in the freezer
section to its lowest setting
(depending on the ambient
temperature). The refrigeration
appliance will work at full power and
lower the temperature. Select this
function before freezing fresh food.
This helps food to freeze quickly and
retain its nutrients, vitamins, flavours
and appearance.
When the SuperFreeze function is
switched on, the appliance may make
more noise than usual.
SuperFreeze should be switched on
approx. 6hours before placing food
in the freezer section.
When freezing the maximum amount
of food, the SuperFreeze function
should be switched on 24hours
beforehand.
The SuperFreeze function will
switch itself off automatically after a
maximum of 72hours. The appliance
will then run at normal power again.
The quantity of fresh food placed in
the freezer will determine the duration
before it switches off.
Useful tip: To save energy, you can
manually switch the SuperFreeze
function off once food and drinks are
sufficiently chilled.
You do not need to switch on the
SuperFreeze function:
- when placing food in the freezer
that is already frozen.
- when freezing only up to 2kg fresh
food daily.
Switching SuperFreeze on and off
Touch the OKsensor on the control
panel.
will appear in the display (refrigerator
section is selected).
Use the sensor to scroll to the
symbol.
Touch OK.
Use the sensor to scroll to the
symbol.
Touch OK.
When the SuperFreeze function is
switched on, a dot appears in the
upper right-hand corner of the
display
.
Using SuperCool, SuperFreeze and DynaCool
41
DynaCool
When the DynaCool function is not
switched on, the natural circulation of
air in the appliance will cause different
temperature zones in the fridge, as the
cold, heavy air will sink to the lowest
section of the appliance. Make use of
the different temperature zones when
placing food in the refrigerator (see
"Storing food in the refrigerator
section").
However, if you are storing a large
amount of similar food in the
refrigerator at any one time, e.g. after
your weekly shop, it is a good idea to
switch on DynaCool. This way you can
distribute the temperature on all the
adjustable shelves inside the
appliance more evenly so that all the
food in the refrigerator section will be
chilled to about the same degree.
The temperature can be set as usual
with the temperature control.
Also switch on the DynaCool
function when:
- the ambient temperature is high
(above approx. 35°C)
- the humidity levels are high (e.g. in
the summer)
The fan will always switch on
automatically when the compressor
switches on.
Useful tip: As the energy consumption
increases when DynaCool is
switched on, you should switch the
DynaCool function off again under
normal conditions.
To save energy, the fan switches off
automatically when the door is open.
Switching DynaCool on and off
Touch the OKsensor on the control
panel.
will appear in the display (refrigerator
section is selected).
Touch OK.
Use the sensor to scroll to the
symbol.
Touch OK.
When the DynaCool function is
switched on, a dot appears in the
upper corner of the display
.
Selecting further settings
42
Explanation of the different
settings
Only the settings that require further
explanation are described below.
The door alarm and other warnings
are automatically suppressed when
you are in Settings mode.
Party mode
The Party mode function is
recommended if you wish to chill or
freeze large amounts of fresh food or
drink quickly.
Useful tip: Switch on the Party mode
function approx. 4hours before
placing food and drinks in the
appliance.
When Party mode is switched on, the
DynaCool, SuperCool and
SuperFreeze functions are switched
on automatically.
Party mode cannot be switched on
if the refrigerator section is switched
off or if Holiday mode is switched
on.
The Party mode function will switch
itself off automatically after approx.
24hours. However, you can switch
the Party mode function off early at
any time.
Holiday mode
The Holiday mode function is
useful when you go on holiday, for
example, if you do not wish to switch
off the refrigerator section completely
or do not need a high degree of
cooling.
If Holiday mode is switched on, this
will be indicated in the start display.
The refrigerator section is regulated to a
temperature of 15°C. In this way, the
refrigerator section remains in operation
whilst saving energy.
The freezer section remains switched
on at the previously set temperature.
Food which does not go off quickly
can be stored in the refrigeration
appliance for some time at this
moderate refrigerator temperature.
Energy consumption is lower than in
normal operation.
This also prevents the build-up of
odours and mould, which can occur if
the refrigerator section is switched off
and the appliance door is closed.
Selecting further settings
43
Health risk due to consumption
of spoiled food.
The shelf life and quality of food in
the refrigerator section may
deteriorate if the temperature
remains above 4°C for an extended
period.
Only ever switch on the Holiday
mode function for a limited
period.
Do not store any temperature-
sensitive food which goes off easily
such as fruit, vegetables, fish, meat
and dairy products during this time.
Switching the lock function/ on
When the lock function is switched on,
it protects the refrigeration appliance
from being switched off unintentionally
and being adjusted unintentionally by
unauthorised persons, e.g. children.
In Settings mode, use the or
sensor to scroll to the symbol.
Touch OK.
When the safety lock function is
switched on, a dot appears in the upper
corner of the display
.
Close the appliance door. The safety
lock function will now be activated.
Deactivating the lock function/
temporarily
If you want to adjust the temperature,
for example, you can deactivate the
safety lock function temporarily:
Touch OK.
will appear in the display.
Touch the OKsensor for approx.
6seconds.
will appear in the display (refrigerator
section is selected).
Use the andsensors to change
the selected temperature zone if
required.
Touch OK.
Now select the required settings.
Touch OK.
Closing the appliance door will
reactivate the safety lock function.
Switching the lock function/ off
completely
Touch OK.
will appear in the display.
Touch the OKsensor for approx.
6seconds.
will appear in the display (refrigerator
section is selected).
Use the or sensor to scroll to the
symbol.
Touch OK.
Use the or sensor to scroll to the
symbol.
Touch OK.
When the safety lock function is
switched off, appears in the display.
Selecting further settings
44
Sabbath mode
The appliance offers a Sabbath mode
for the purpose of religious observance.
If Sabbath mode is switched on, this
will be indicated in the start display.
The display switches off after
3seconds.
When Sabbath mode is switched
on, you cannot adjust any settings on
your refrigeration appliance.
Ensure that the appliance doors are
properly closed, as visual and audible
alarms are switched off.
The Sabbath mode function will
switch off automatically after approx.
120hours.
When Sabbath mode is switched on,
the following are deactivated:
- The interior lighting when the door is
opened.
- All audible and visual signals.
- The temperature display.
All other functions switched on
previously remain activated.
Health risk due to consumption
of spoiled food.
As power failures are not indicated
while Sabbath mode is active,
food may be exposed to increased
temperatures for a certain period of
time. This shortens the shelf life of
the food.
If there is a power failure during
Sabbath mode, check the quality
of the food.
Switching Sabbath mode on
In Settings mode, use the or
sensor to scroll to the symbol.
Touch OK.
When the Sabbath mode function is
switched on, a dot appears in the upper
corner of the display
.
The display switches off after
3seconds.
Close the appliance door.
Switching Sabbath mode off
Touch the OKsensor.
will appear in the display.
Touch OK.
When the Sabbath mode function is
switched on, a dot appears in the upper
corner of the display
.
Touch OK.
When the Sabbath mode function is
switched off, the dot in the upper
corner of the display goes out.
Information on Sabbath mode
This product is certified by Star-K, an
international institute for kosher
certification.
You can find the Star-K certification
version here.
Selecting further settings
45
Changing the time before the door
alarm
is triggered
You can set how quickly the door alarm
should sound after an appliance door
has been opened.
In Settings mode, use the or
sensor to scroll to the
symbol.
Touch OK.
Use the andsensors to set the
time you want between 30seconds
and 3minutes: 30seconds.
Touch OK.
Miele@home
Your refrigeration appliance is
equipped with an integrated Wi-Fi
module.
Networking is deactivated at the
factory.
To use this feature, you will need:
- a Wi-Fi network
- the Miele App
- a Miele user account. You can create
a user account via the Miele App.
The Miele App will guide you as you
connect your refrigeration appliance to
your home Wi-Fi network.
Once the refrigeration appliance is
connected to your Wi-Fi network, you
can use the App to carry out the
following activities, for example:
- Call up information on the operating
status of your refrigeration appliance
- Change the settings on your
refrigeration appliance
Connecting your refrigeration appliance
unit to your Wi-Fi network will increase
energy consumption, even when the
appliance is switched off.
Make sure that the signal of your Wi-
Fi network is sufficiently strong in the
area where you want to set up your
refrigeration appliance.
Selecting further settings
46
Availability of the Wi-Fi connection
The Wi-Fi connection shares a
frequency range with other appliances
(including microwave ovens and remote
control toys). This may result in
sporadic or even complete connection
failures. Therefore, a constant
availability of featured functions cannot
be guaranteed.
Miele@home availability
The ability to use the Miele App
depends on the availability of the
Miele@home service in your country.
The Miele@home service is not
available in every country.
For information about availability,
please visit www.miele.com.
Miele App
You can download the Miele App from
the Apple App Store
®
or the Google
Play Store™ free of charge (only
functional in selected countries).
Setting up Miele@home for the first
time
In Settings mode, use the or
sensor to scroll to the symbol.
Touch OK.
Use the and sensors to select
the connection method you wish to
use (App or WPS).
Touch OK.
After you have successfully logged in,
will appear in the start display.
If a connection could not be created,
will appear.
Start the process again.
Deactivating or activating the Wi-Fi
connection
In Settings mode, use the or
sensor to scroll to the symbol.
Touch OK.
If the Wi-Fi is deactivated, the
symbol will appear in the display.
To reactivate the Wi-Fi connection,
touch OK.
If the Wi-Fi is activated, the symbol
and a dot appear in the upper corner of
the display
.
When the Wi-Fi connection is active,
the symbol appears in the start
display.
Selecting further settings
47
Resetting the network configuration
In Settings mode, use the or
sensor to scroll to the symbol.
Touch OK.
Use the sensor to scroll to the
symbol.
Touch OK.
Use the sensor to scroll to the
symbol.
Touch OK.
All entered settings and values for
Miele@home are reset to the default
settings.
The Wi-Fi connection has been
deactivated. will go out in the start
display.
Reset the network configuration if
you are disposing of or selling your
refrigeration appliance, or if you are
putting a used refrigeration appliance
into operation. All personal data is
removed from the refrigeration
appliance. This will also ensure that a
previous owner is no longer able to
access the appliance.
Changing the volume of the alarms
and buzzers/
You can change the volume of the
alarms and buzzers (e.g. in the event of
a door alarm or a fault message).
Alternatively, you can switch the alarms
and buzzers off if you find them
annoying.
In Settings mode, use the or
sensor to scroll to the symbol.
Touch OK.
Use the and sensors to select
the volume you want for alarms and
buzzers.
Touch OK.
When the alarms and buzzers are
switched off, will appear.
Selecting further settings
48
Adjusting the display brightness
You can adjust the display brightness to
the lighting conditions in the room.
In Settings mode, use the or
sensor to scroll to the symbol.
Touch OK.
Use the and sensors to select
the display brightness you want.
Touch OK.
Switching off Demo mode
Demo mode allows the refrigeration
appliance to be presented in the
showroom without the cooling system
being switched on. Do not activate this
setting for domestic use.
If Demo mode has been switched on
as a default setting, will appear in
the display when the refrigeration
appliance is switched on.
Touch the OKsensor on the control
panel.
Miele will appear initially in the display,
followed by the start screen.
Touch OK.
In Settings mode, use the or
sensor to scroll to the symbol.
Touch OK.
After Demo mode has been switched
off, the refrigeration appliance shuts
down and must be switched on again.
Selecting further settings
49
Resetting the settings to their factory
default settings
All settings made on the refrigeration
appliance will be reset to the factory
default settings (for settings, see “Guide
to the appliance”).
In Settings mode, use the or
sensor to scroll to the symbol.
Touch OK.
Use the sensor to scroll to the
symbol.
Touch OK.
The refrigeration appliance shuts down
and must be switched on again.
Information
Appliance data (model number and
serial number) is shown in the display.
Keep this appliance data to hand:
- For integrating the refrigeration
appliance into your Wi-Fi network
(see “Selecting further settings –
Miele@home”).
- When reporting an appliance fault to
Miele (see “Service”).
Charcoal filter change indicator
After inserting the charcoal filter
(optional accessory), you must activate
the charcoal filter change indicator in
Settings mode.
The charcoal filter change indicator
in the start display will remind you to
replace the charcoal filter approx.
every 6months (see “Cleaning and
care – Replacing the charcoal filters”).
Cleaning mode
Cleaning mode makes it easier to
clean the refrigerator section (see
“Cleaning and care”). The interior
lighting remains switched on, even
though the refrigerator section is
switched off. The buzzer will stop and
the symbols in the display will also go
out.
If Cleaning mode is switched on,
this will be indicated in the start
display.
After cleaning, Cleaning mode must
be switched off. If the appliance door is
closed for more than 10minutes,
Cleaning mode switches itself off
automatically.
Temperature and door alarm
50
Health risk due to consumption
of spoiled food.
If the temperature in the freezer
remains above -18°C for a long
time, the frozen food may start to
defrost. This shortens the shelf life of
the food.
Check whether the frozen food has
started to defrost. If it has, check
that the food is safe to use and if it
is, use it as soon as possible or cook
it before freezing it again.
Temperature alarm
The refrigeration appliance is
equipped with a warning system so
that the temperature in the freezer
section cannot rise unnoticed.
If the temperature in the freezer section
becomes too warm,
will be shown
in the freezer section temperature
display.
An alarm will also sound until the cause
of the alarm is rectified or the alarm is
switched off.
The temperature the appliance is set at
determines the temperature the
appliance recognises as being too
warm.
A temperature alarm is displayed
before an existing door alarm.
The audible and visual signals may be
activated in the following situations:
- The appliance is switched on and
the temperature in the appliance
differs greatly from the set
temperature.
- A lot of warm room air enters the
freezer as you are rearranging or
taking out frozen goods.
- You are freezing large amounts of
food at once.
- You are freezing warm food.
- There was a power outage.
- The appliance has a fault.
Before you switch the temperature
alarm off, you must determine the
cause and rectify it.
You can switch the alarm off early if you
wish.
Touch OK.
The alarm message is confirmed:
goes out and the alarm stops.
The start screen appears in the display:
the warmest temperature recorded in
the freezer section will flash in the
display for about 1minute. Then the
temperature display will change to the
current temperature in the freezer
section.
The alarm will stop. The
symbol will
go out when the temperature reaches
the correct level again.
Temperature and door alarm
51
Door alarm
The refrigeration appliance is
equipped with a warning system to
avoid increased energy consumption
and food becoming warm if the
appliance door is left open.
If an appliance door is left open for a
longer period of time,
will appear in
the relevant temperature display. An
alarm tone also sounds.
You can change the time before the
door alarm is triggered. However, the
door alarm can also be switched off
(see “Selecting further settings”).
The alarm will stop and
will go out
in the display as soon as the door is
closed.
Switching the door alarm off early
You can switch the alarm off early if you
wish.
Touch OK.
The alarm will stop and the
symbol
will go out.
If the appliance door is not closed, the
alarm will sound again after 3minutes.
Storing food in the refrigerator section
52
If there is insufficient air circulation,
the cooling performance will
decrease and energy consumption
will increase.
To allow air to circulate efficiently, do
not pack food too closely together in
the appliance.
Do not cover the fan in the rear wall
of the appliance.
Different storage zones
Due to the natural air circulation, there
are different temperature zones in the
refrigerator section.
Cold, heavy air sinks to the lowest
section of the refrigerator section. Make
use of the different zones when placing
food in the appliance.
This appliance has dynamic cooling,
which helps to keep an even
temperature when the fan is running.
The difference between the various
temperature zones is therefore less
pronounced.
Warmest area
The warmest area is located in the top
section of the main storage area and
the door. Use this for storing butter so
that it remains spreadable and for
cheese so that it retains its flavour.
Storing food in the refrigerator section
53
Coldest area
The coldest area in the refrigerator
section is directly above the DailyFresh
drawer and at the back of the
appliance.
A temperature setting of 4°C
combined with appropriate hygiene
measures delays the propagation of
bacteria, e.g. salmonella and listeria,
which can lead to serious food
poisoning.
Therefore, you should use these areas
to store all delicate and highly
perishable food, including:
- fish, meat, poultry
- sausage products, ready meals
- dishes or baked goods containing
eggs or cream
- fresh dough, cake mixtures, pizza or
quiche dough
- soft cheese and other dairy products
- pre-packed vegetables
- other fresh food (with a label stating it
should be kept at a temperature of
approx. 4°C)
Food which is not suitable for
storage in the refrigerator
Not all food is suitable for refrigeration
at temperatures below 5 °C because it
is sensitive to cold.
Foods which are sensitive to cold
include:
- Pineapples, avocados, bananas,
pomegranates, mangoes, melons,
papayas, passionfruit and citrus fruits
such as lemons, oranges,
mandarines, grapefruits
- Fruit (which is not yet ripe)
- Eggplants, cucumbers, potatoes,
capsicums, tomatoes, zucchini
- Hard cheeses, e.g. Parmesan,
mountain cheese
Notes on buying food
The freshness of the food when it is first
placed in the appliance is the most
important factor for how long it stays
fresh.
Take into account the use-by date and
the correct storage temperature.
Time out of the refrigerator, e.g.
transporting food in a warm car, should
be kept to a minimum.
Storing food in the refrigerator section
54
Storing food correctly
Ensure that food stored in the
refrigerator section is in packaging or
covered properly (some exceptions
apply in the DailyFresh drawer).
This will prevent food odours from
affecting other food, stop food from
drying out, and also prevent any cross-
contamination of bacteria. This is
particularly important when storing
meat products. Make sure that food
such as raw meat and fish in particular
does not come into contact with other
food.
By ensuring that the temperature
settings are correct and by taking
appropriate hygiene measures, you
can prolong the storage life of your
food considerably. This prevents
food waste.
Protein rich food
Please note that foods rich in protein
deteriorate faster than others. Shellfish,
for example, deteriorates faster than
fish, and fish deteriorates faster than
meat.
Storing food in the DailyFresh drawer
55
The DailyFresh drawer provides good
storage conditions for fruit and
vegetables.
The humidity level in the DailyFresh
drawer can be regulated to suit the food
being stored. Food retains its own
moisture if stored at a higher humidity
and does not dry out as quickly. The
temperature is approximately equivalent
to the temperature in the refrigerator
section.
Remember that the freshness of the
food when first placed in the
appliance is the most important factor
in determining how long it will stay
fresh.
Adjusting the humidity level in the
DailyFresh drawer for fruit and
vegetables
The moisture level greatly depends on
the type and quantity of food being
stored, if stored unwrapped.
If the quantity of food being stored in
this compartment is small, the
humidity level may be too low.
Useful tip: If you are only storing a
small amount of food, wrap it in airtight
packaging.
Selecting low humidity
The appliance is delivered with
increased humidity and the
compartment cover pushed
backwards .
Only change this default setting if the
humidity level in the DailyFresh drawer
is too high.
Open the DailyFresh drawer.
Pull the compartment cover forwards
as far as it will go.
The compartment cover is open and the
humidity decreases .
Selecting increased humidity
Open the DailyFresh drawer.
Slide the compartment cover
backwards as far as it will go.
The compartment cover is closed and
the humidity remains in the
compartment.
Storing food in the DailyFresh drawer
56
Observe the following tips if you find that food you have stored does not keep
well (e.g. food becomes limp or wilts after only being stored for a short time):
Only place fresh food in the appliance. The initial condition of the food is crucial
to maintaining freshness.
Clean the DailyFresh drawer before storing food in it.
Dry the surface of very moist food before storing it.
Do not store food which is sensitive to cold in the DailyFresh drawer (see “Using
the refrigerator efficiently – Food which is not suitable for storage in the
refrigerator”).
Set the compartment cover to the correct position for the food being stored (low
humidity or humidity increased ).
An increased humidity level in the humidity-controlled compartment is
achieved with the moisture present in the food being stored if it is stored
unwrapped. The more food stored in the compartment, the higher the humidity.
If too much moisture collects in the compartment at the setting and the food
is affected, dry the floor and place a rack or similar item in the compartment so
that excess moisture can drip down. Alternatively, reduce the humidity by
pulling the compartment cover forwards.
If the humidity level is too low despite the setting, wrap the food in airtight
packaging.
Freezing and storing food
57
Freezing fresh food
Health risk due to consumption
of spoiled food.
If the temperature in the freezer
remains above -18°C for a long
time, the frozen food may start to
defrost. This shortens the shelf life of
the food.
Check whether the frozen food has
started to defrost. If it has, check
that the food is safe to use and if it
is, use it as soon as possible or cook
it before freezing it again.
Fresh food should be frozen as quickly
as possible so that the nutritional value
of the food, its vitamin content,
appearance and flavour are maintained.
If food is frozen quickly, the cells have
less time to lose moisture, so they
shrink significantly less. As there is not
so much moisture loss, it is easier for
the food to reabsorb it during the
defrosting process, and very little water
collects around the defrosted food.
Storing frozen food
When buying frozen food to store in
your freezer, make sure to check:
- that the packaging is not damaged.
- the use-by date.
- that the temperature at which the
frozen food is being stored in the
shop is -18°C or colder.
Where possible, transport frozen food
in an insulated bag and then store it
quickly in the refrigeration appliance.
Home freezing
Before placing food in the appliance
When freezing more than 2kg of
fresh food, switch on the SuperFreeze
function 6hours before placing the
food in the freezer.
When freezing even larger amounts of
food, switch on the SuperFreeze
function 24hours before placing
the food in the freezer.
This helps food which is already stored
in the freezer to stay frozen.
Only freeze food which is fresh and in
good condition.
Please note that some food is not
suitable for freezing. These include, for
example, vegetables that are usually
eaten raw, such as lettuce or radishes.
Useful tip: To retain colour, taste,
aroma, and vitamin C, vegetables
should be blanched before they are
frozen. To blanch, immerse the trimmed
and washed vegetables in boiling water
for 2-3 minutes. Remove and plunge
into ice-cold water to cool quickly. Drain
and pack ready for freezing.
Freezing and storing food
58
Packaging food for freezing
Freeze food in portions.
Useful tip: Use suitable packaging to
avoid freezer burn (such as freezer
containers).
Expel as much air as possible from
the packaging and close it tightly.
Label the packaging with the
contents and the date of freezing.
Placing food in the freezer
Risk of damage due to heavy
loads.
Loading food which is too heavy can
cause damage to the freezer
drawers/glass shelves.
Do not exceed the relevant maximum
load:
Freezer drawer = 12kg
Glass shelf = 35kg
Unfrozen food should not touch
frozen food as this will cause the
frozen food to begin to thaw.
To prevent food sticking together
when frozen, make sure that the
packaging and containers are dry.
To ensure that food freezes through to
the core quickly, do not exceed the
following packaging and container
sizes:
- Fruit and vegetables: max. 1kg
- Meat: max. 2.5kg
- Freezing small amounts of food
Freeze small items in the upper freezer
drawers.
Place the food flat in the bottom of
the upper freezer drawers so that it
freezes through to the core as quickly
as possible.
–VarioRoom: freezing the maximum
amount of food
If the ventilation slots are blocked,
the cooling performance will
decrease and energy consumption
will increase.
When placing food in the freezer,
make sure that the ventilation gaps
are not blocked.
Useful tip: You can expand the space
available in the freezer. If you wish to
freeze large items such as a turkey or
game, you can remove the glass
shelves between the freezer drawers. To
do this:
Remove the upper freezer drawers.
Place the food flat on the upper glass
shelves so that it freezes through to
the core as quickly as possible.
After the initial freezing process:
Switch the SuperFreeze function
off.
Place the frozen food in the freezer
drawers and push them back in.
Freezing and storing food
59
Storage time for frozen food
Food group Storage time
(months)
Ice cream 2 to 6
Bread, baked goods 2 to 6
Cheese 2 to 4
Fish, oily 1 to 2
Fish, lean 1 to 5
Sausage, ham 1 to 3
Game, pork 1 to 12
Poultry, beef 2 to 10
Vegetables, fruit 6 to 18
Herbs 6 to 10
The storage times given are guidelines only.
Where the storage time given on the
packaging differs, follow the advice on
the packaging.
By keeping the freezer at a constant
temperature of -18°C and taking
appropriate hygiene measures, you can
maximize the storage life of your food
and avoid food waste.
Cooling drinks quickly
To cool drinks quickly in the refrigerator
section, switch on the SuperCool
function.
If you want to cool a large amount of
drinks, or if you want to cool drinks in
the freezer section, select Party mode
in Settings mode.
When cooling drinks quickly in the
freezer, make sure bottles are not left in
for more than one hour. Otherwise
they could burst, causing injury or
damage.
Using accessories
Making ice cubes
Fill the ice cube tray 3/4 full with
water and place it on the bottom of
one of the freezer drawers.
Once frozen, use a blunt instrument
such as a spoon handle to remove
the ice cube tray from the freezer if it
is stuck.
Useful tip: Ice cubes can be easily
removed from the tray by briefly holding
it under running water.
Defrosting
60
Refrigerator section and
DailyFresh drawer
The refrigerator section and the
DailyFresh drawer defrost automatically.
The condensate drains through a
channel and drain hole into an
evaporation system at the back of the
refrigeration appliance. The warmth
generated by the compressor causes
the condensate to evaporate
automatically.
Keep the condensate channel and
drain hole clean to enable this.
Condensate must be able to drain
away unhindered at all times.
Freezer section
The appliance is equipped with a
"NoFrost" system. The freezer defrosts
automatically.
The moisture generated in the
appliance collects on the evaporator
and is automatically defrosted and
dissipated from time to time.
This automatic defrosting system
enables the freezer to remain
permanently ice-free. Food stored in the
freezer will not defrost with this system.
Cleaning and care
61
The data plate located inside the
refrigeration appliance must not be
removed. It contains information
which is required in the event of a
fault.
Do not let water get into the
electronic unit or the lighting.
Risk of damage due to moisture
ingress.
The steam from a steam cleaning
appliance can damage plastic parts
and electrical components.
Do not use a steam cleaning
appliance to clean the refrigeration
appliance.
Cleaning water must not get into the
drain hole.
Cleaning agents
Cleaning and conditioning agents
used in the interior of the
refrigeration appliance must be food
safe.
To avoid damaging the surfaces of your
appliance, do not use:
- cleaning agents containing soda,
ammonia, acid or chloride
- cleaning agents containing descaling
agents
- abrasive cleaning agents, e.g.
powder cleaners and cream cleaners
- solvent-based cleaning agents
- stainless steel cleaning agents
- dishwasher cleaners
- oven sprays
- glass cleaning agents
- hard, abrasive sponges and brushes,
e.g. pot scourers
- dirt eraser sponges
- sharp metal scrapers
We recommend using lukewarm water
with a little washing-up liquid to clean
the appliance.
Cleaning and care
62
Preparing the refrigeration
appliance for cleaning
Cleaning the refrigerator section
only:
Switch Cleaning mode on. The
cooling system in the refrigerator
section is switched off, but the interior
lighting remains switched on.
In Settings mode, use the or
sensor to scroll to the symbol.
Touch OK.
When Cleaning mode is switched
on, a dot appears in the upper corner of
the display
.
If Cleaning mode is switched on,
this will be indicated in the start display.
Take any food out of the refrigerator
section and store it in a cool place.
Take out any removable accessories
for cleaning (see “Removing,
dismantling, and cleaning
accessories”).
Cleaning the freezer section/the
entire refrigeration appliance:
Switch the appliance off.
appears in the display and the
cooling system is switched off.
Take any food out of the freezer
section/refrigeration appliance and
store it in a cool place.
Take out any removable accessories
for cleaning (see “Removing,
dismantling, and cleaning
accessories”).
Cleaning and care
63
Cleaning the interior of the
machine
Clean the appliance regularly, or at
least once a month.
If soiling is left on for any length of
time, it may become impossible to
remove under certain circumstances.
Surfaces may suffer discolouration or
damage.
Remove any soiling immediately.
Clean the interior with a clean
sponge, lukewarm water and a little
washing-up liquid.
After cleaning, wipe with a damp
cloth and dry with a soft cloth.
Clean the condensate channel and
drain hole frequently using a cotton
swab or similar item to ensure that
condensate can drain away freely.
Leave the door open to air the
refrigeration appliance sufficiently for
a short while and to prevent odour
build-up.
Cleaning accessories by hand
or in the dishwasher
The following components must be
cleaned by hand only:
- the stainless steel-look trim
- Adjustable shelf with printing
- the flexible bottle rack
- All drawers and compartment covers
(these vary depending on model)
- the plastic parts of the adjustable
shelf with pivotable glass shelf
(available as optional accessory)
- Organisation box (available as an
optional accessory)
The following components are
dishwasher-safe:
Risk of damage due to high
dishwasher temperatures.
Parts of the refrigeration appliance
may become unusable, e.g. deform,
if they are washed in the dishwasher
at more than 55°C.
For dishwasher-safe components,
always select dishwasher programs
with a maximum temperature of
55°C.
Contact with natural dyes from
carrots, tomatoes, and ketchup, etc.
may discolour the plastic parts in the
dishwasher. This discolouration does
not affect the stability of the parts.
- The bottle holder, egg tray, ice cube
tray
Cleaning and care
64
- the door and bottle shelves in the
appliance door (without stainless
steel-look trim)
- The adjustable shelves (with the
strips removed and without the
printing)
- The glass shelves (without protective
trims)
- The holder for the charcoal filter
(optional accessory)
Removing and dismantling
accessories for cleaning
Dismantling the door shelf/bottle
shelf
Remove the trim in stainless steel-look
before cleaning the door shelf/bottle
shelf in the dishwasher.
To remove the trim, proceed as follows:
Place the door shelf/bottle shelf on
the worktop.
Pull the trim off the shelf, beginning at
one side.
After cleaning the door shelf/bottle
shelf, reattach the trim.
Dismantling an adjustable shelf
Remove the trim before cleaning the
adjustable shelf. Proceed as follows:
Place the shelf on a worktop covered
with a soft material (e.g. a tea towel).
Pull the trim off the shelf, beginning at
one side.
After cleaning the shelf, reattach the
trim.
Removing a drawer from the
refrigerator section
Lift the drawer at the front and pull it
out.
After cleaning, slide the drawer back
in again.
Cleaning and care
65
Removing the compartment cover
Lift the cover at the front and pull it
out.
After cleaning, slide the compartment
cover back in again.
Removing the drawers and glass
shelves from the freezer section
Lift the drawer up slightly at the front
and pull it out.
Pull the glass shelf forwards a little
and out.
Inserting the glass shelves and
drawers into the freezer section
Place the glass shelf on the guide
rails at an angle.
Push in and lower the glass shelf.
Place the drawer on the guide rails at
an angle.
Push in and lower the drawer.
Replacing the charcoal filters
(optional accessories)
Replace the charcoal filters in the
holder every 6months.
The symbol in the start display
reminds you that the charcoal filter
needs to be changed.
Replacement KKF-RF charcoal filters
can be obtained from Miele or the
Miele online shop.
Pull the charcoal filter holder upwards
to remove it from the shelf.
Remove both charcoal filters and
place the new filters with the
surrounding edge pointing
downwards in the holder.
Place the holder in the middle of the
protective strip at the back of the
adjustable shelf so that it clicks into
position.
Cleaning and care
66
Touch the OKsensor to confirm that
the filters have been replaced.
The change charcoal filters indicator will
go out and the counter is reset.
The symbol will go out in the start
display.
Cleaning the door seal
Risk of damage due to incorrect
cleaning.
If you treat the door seals with oils or
grease, they can become porous.
Do not use any oils or grease on the
door seals.
The door seal should be cleaned
regularly with clean water, and then
wiped dry with a soft cloth.
Cleaning the ventilation gaps
A build-up of dust will increase the
energy consumption of the appliance.
The ventilation gaps should be
cleaned on a regular basis with a
brush or vacuum cleaner (you could
use a Miele Vacuum Cleaner dusting
brush, for example).
After cleaning
Refit all removable parts and
accessories in the appliance.
Switch the refrigeration appliance
back on, if necessary.
If you have activated the refrigerator
section’s Cleaning mode:
Touch the OKsensor on the control
panel.
will appear in the display.
Touch OK.
When Cleaning mode is switched
off, the dot in the upper corner of the
display disappears.
Use the and sensors to scroll to
the symbol and touch OK.
The refrigerator section will start cooling
again.
Switch the SuperFreeze function
on for a while so that the freezer can
cool down quickly.
Switch on the SuperCool function
for a while so that the refrigerator
section can cool down quickly.
Place food in the refrigerator section
and close the door.
Once the freezer has reached the
required temperature, place the
frozen food back in the freezer
drawers in the freezer.
Switch the SuperFreeze function
off as soon as the temperature in the
freezer is a constant -18°C or colder.
Close the freezer door.
Problem solving guide
67
Many malfunctions and minor faults that can occur in daily operation can be
corrected without contacting Miele. This will save you time and money because
you will not need a service call.
You can find information on how to remedy faults yourself at www.miele.com/
service.
Please note, however, that a call-out charge will be applied to unnecessary service
visits where the problem could have been rectified as described in these operating
instructions.
To prevent cold from escaping, avoid opening the appliance door until the fault
has been corrected.
Problem Possible cause and remedy
The refrigeration
appliance is not getting
cold and the interior
lighting does not come
on when the appliance
door is opened.
The refrigeration appliance is not switched on and
the symbol is lit up in the display.
Switch the appliance on.
The plug is not properly inserted into the socket or
the socket is not switched on.
Insert the plug into the socket correctly and switch
on. If the refrigeration appliance is switched off,
will appear in the display.
The mains circuit breaker has tripped. There could be
a fault with the refrigeration appliance, the household
electrical wiring or another electrical appliance.
Contact a qualified electrician or Miele.
The compressor runs
continuously.
This is not a fault. To save energy, the compressor
runs at a lower speed when less cooling is required.
This increases the running time of the compressor.
The compressor is
switching on more
frequently and for
longer periods of time.
The temperature in the
appliance is too low.
The ventilation gaps are covered or have become too
dusty.
Do not block the ventilation gaps.
Clean the dust from the ventilation gaps on a
regular basis.
The appliance doors have been opened too
frequently or a large amount of fresh food has been
put in all at once for storage or freezing.
Only open the doors when necessary and for as
short a time as possible.
Problem solving guide
68
Problem Possible cause and remedy
After a while, the temperature will return to normal by
itself.
The appliance doors are not closed properly. A thick
layer of ice may have formed in the freezer section.
Close the appliance doors.
After a while, the temperature will return to normal by
itself.
If a thick layer of ice has already formed, this will
affect cooling and increase energy consumption.
Defrost the refrigeration appliance and clean it.
The ambient temperature is too high. The higher the
ambient temperature, the longer the compressor
runs.
See the information in "Installation - Installation
location".
The appliance was not properly installed in the niche.
Install the refrigeration appliance in the niche as
described in the installation instructions supplied
with it.
The temperature setting is too low.
Correct the temperature setting.
A large amount of food has been placed in the
freezer at once.
See "Freezing and storing food".
The SuperCool function is still switched on.
Switch off the SuperCool function earlier to
save energy.
The SuperFreeze function is still switched on.
Switch off the SuperFreeze function earlier to
save energy.
Problem solving guide
69
Problem Possible cause and remedy
The compressor comes
on less and less often
and for shorter periods
of time. The
temperature in the
appliance rises.
This is not a fault. The temperature setting is too
high.
Correct the temperature setting.
Check the temperature again after 24hours.
The frozen food begins to defrost.
The ambient temperature is too low for this
refrigeration appliance.
If the ambient temperature is too low, the
compressor will run less frequently. This may cause
the freezer to become too warm.
See the information in "Installation - Location".
Increase the ambient temperature.
Ice or condensation has
built up inside the
refrigeration appliance.
The appliance door may
not close correctly.
The door seal has come out of its groove.
Check that the door seal is correctly seated in the
groove.
The door seal is damaged.
Check if the door seal is damaged.
The door seal is
damaged and needs to
be replaced.
No tools are required to change the door seal.
Change the door seal. A replacement is available
from Miele.
Problem solving guide
70
Other problems
Problem Possible cause and remedy
The floor of the
refrigerator is wet.
The condensate drain hole is blocked.
Clean the condensate channel and drain hole.
Food has frozen
together.
The food packaging was not dry when loaded in the
freezer.
Use a blunt instrument, e.g. a spoon handle or
plastic scraper, to prise it apart carefully.
There is no audible
alarm even though the
door has been open for
a long time.
This is not a fault. The alarm has been switched off in
Settings mode. If you want to switch the audible
alarm back on again:
In Settings mode, use the or sensor to
scroll to the symbol.
Touch OK.
Use the and sensors to select the volume you
want for alarms and buzzers.
Touch OK.
When the alarms and buzzers are switched on,
will appear.
Problem solving guide
71
Messages in the display
Message Possible cause and remedy
lights up in the
display, the
refrigeration
appliance does
not get cold even
though the
controls and the
interior lighting
are working.
Demo mode has been activated.
Touch OK.
Miele will appear initially in the display, followed by
the start screen.
Touch OK.
In Settings mode, use the or sensor to
scroll to the symbol.
Touch OK.
After Demo mode has been switched off, the
refrigeration appliance shuts down and must be
switched on again.
is lit up in the
display and the
refrigeration
appliance cannot
be used.
The Cleaning mode function is still switched on.
Touch the OKsensor on the control panel to
switch off Cleaning mode.
will appear in the display.
Touch OK.
When Cleaning mode is switched off, the dot in
the upper corner of the display goes out.
Use the or sensor to scroll to the symbol
and touch OK.
The refrigeration appliance will start cooling again.
Nothing is visible in the
display. The display is
dark.
Sabbath mode is switched on: the interior lighting
is switched off and the refrigeration appliance is
cooling down.
Touch OK.
will appear in the display.
Touch OK.
When the Sabbath mode function is switched on, a
dot appears in the upper corner of the display
.
Touch OK.
When the Sabbath mode function is switched off,
the dot in the upper corner of the display goes out.
Problem solving guide
72
Message Possible cause and remedy
is lit up in the
display and the
refrigeration
appliance cannot
be used.
The lock function has been activated.
Unlock the refrigeration appliance temporarily or
switch the lock function off completely (see
“Selecting further settings – Deactivating the lock
function/ temporarily/switching off
completely”).
The symbol lights up
in the start display and
a buzzer also sounds.
The charcoal filter change indicator in the start
display reminds you that the charcoal filter needs to
be changed.
Replace the charcoal filter in the holder (see
“Cleaning and care – Replacing the charcoal filters
(optional accessory)”) and confirm that the
charcoal filter has been replaced by touching the
OKsensor.
The symbol will go out in the start display.
lights up yellow in
one of the temperature
displays and an alarm
also sounds.
The door alarm has been activated.
Touch OK.
The alarm will stop and the
symbol will go out.
Close the relevant appliance door.
Problem solving guide
73
Message Possible cause and remedy
lights up in the
freezer temperature
display and an alarm
also sounds.
The temperature alarm has been activated; the
temperature in the freezer section has risen higher or
fallen lower than the temperature set.
Possible reasons for this include:
– The appliance door has been opened too
frequently.
– A large quantity of fresh food has been placed
in the freezer without switching on the
SuperFreeze function.
– A prolonged power cut (mains outage) has
occurred.
– The appliance has a fault.
Touch OK.
The alarm message is confirmed:
goes out and
the alarm stops.
The warmest temperature recorded in the freezer
section will flash for about 1minute in the display.
Then the temperature display will change to the
current temperature in the freezer section.
You can exit the flashing temperature display early:
Touch OK.
The warmest temperature displayed will disappear.
The display will revert to showing the current
temperature in the freezer.
Rectify the cause of the alarm.
Depending on the temperature displayed, you
should check whether food in the freezer has
started to thaw or has defrosted. Defrosted food
may only be refrozen after it has been cooked.
Problem solving guide
74
Message Possible cause and remedy
lights up in the
display and an alarm
also sounds.
Indication of an interruption to the power supply: the
temperature in the freezer section over the last few
days or hours has risen too high because of a power
cut or interruption to the power supply.
Touch OK.
The fault message is confirmed:
goes out and the alarm will stop.
The warmest temperature recorded in the freezer
section will flash for about 1minute in the
temperature display for the freezer section. Then the
temperature display will change to the current
temperature in the freezer section.
You can exit the flashing temperature display early:
Touch OK.
The warmest temperature display will disappear. The
display will revert to showing the current temperature
in the freezer. The appliance will operate at the last
temperature setting when the power is restored.
Rectify the cause of the alarm.
Depending on the temperature displayed, you
should check whether food in the freezer has
started to thaw or has defrosted. Defrosted food
may only be refrozen after it has been cooked.
Problem solving guide
75
Message Possible cause and remedy
lights up in the
display and a
fault code F with
numbers may
appear. An alarm
tone also sounds.
There is a fault.
Switch the alarm off by touching OK.
Call Miele.
To report the fault, you need the fault code and also
the model designation and serial number of your
refrigeration appliance. You can access this
information in the display.
Touch OK.
The appliance data required will be shown in the
display.
Touch OK.
To exit the information display, use the or
sensor to scroll to the symbol.
To switch off the refrigeration appliance, use the
or sensor to scroll to the symbol.
Touch OK.
There is an appliance fault: this display always has
priority over any settings which have just been
selected.
An appliance fault has priority over any current door
and/or temperature alarms in the display.
Problem solving guide
76
The interior lighting is not working.
Risk of electric shock due to exposed, live electrical components!
When removing the lighting cover, there is a risk of coming into contact with live
electrical components.
Do not remove the lighting cover. The LED lighting must only be repaired or
replaced by a qualified technician.
Danger of injury from LED lighting.
This lighting corresponds to risk group RG2. If the cover is defective, there is a
risk of eye injury.
Do not look from a close range directly into the lighting with optical instruments
(e.g. magnifying glass or similar).
Problem Possible cause and remedy
The interior lighting is
not working.
The refrigeration appliance is not switched on.
Switch the appliance on.
Sabbath mode is switched on: the display is black
and the refrigeration appliance is cooling.
Touch OK.
will appear in the display.
Touch OK.
When the Sabbath mode function is switched on, a
dot appears in the upper corner of the display
.
Touch OK.
When the Sabbath mode function is switched off,
the dot in the upper corner of the display goes out.
To avoid overheating, the interior lighting switches
itself off automatically after approx. 15minutes if the
door is left open. If this is not the case, there is a
fault.
Call Miele.
Noises
77
The refrigeration appliance is producing various noises during operation.
If the cooling performance is low, the refrigeration appliance will conserve energy
but operate for longer. The volume will be lower.
Food will be chilled faster if the cooling performance is high.
The volume will be higher.
Normal
noises
What causes them
Brrrrr ... A humming noise is made by the compressor. This noise can
get louder for brief periods when the compressor switches on.
Blubb,
blubb ...
A gurgling noise can be heard when coolant is circulating
through the pipes.
Click ... Clicking sounds occur whenever the thermostat switches the
compressor on or off.
Sssrrrrr ... You can sometimes just hear the sound of the fan inside the
appliance.
Crack ... A cracking sound can be heard when materials expand inside
the appliance.
Please bear in mind that the noise of the compressor and the coolant circulating
in the system is unavoidable.
Noises Possible cause and remedy
Rattling,
vibrating,
clinking
The refrigeration appliance is uneven. Realign the appliance
using a spirit level. Do so by raising or lowering the adjustable
feet underneath the refrigeration appliance.
For niches of 140cm and more: place the stabilising rods
supplied underneath the appliance base.
Drawers, baskets or shelves are jiggling or are stuck. Check all
removable items and refit them correctly.
Bottles or containers are touching. Separate them.
Service
78
You can find information on how to
remedy faults yourself and about
Miele spare parts at www.miele.com/
service.
Contact in case of fault
In the event of a fault which you cannot
remedy yourself, please contact Miele.
You can book a Miele customer
service call-out online at
www.miele.com/service.
Contact information for Miele can be
found at the end of this booklet.
Please quote the model and serial
number of your appliance (SN) when
contacting Miele. Both of these can be
found on the data plate inside the
refrigeration appliance or, depending on
the model, in the settings mode under
information.
Warranty
The manufacturer's warranty for this
appliance is 2years.
For more information about country-
specific warranty terms and conditions,
please contact Miele.
Thailand
Miele Appliances Ltd.
BHIRAJ TOWER at EmQuartier
43rd Floor Unit 4301-4303
689 Sukhumvit Road
North Klongton Sub-District
Vadhana District
Bangkok 10110, Thailand
Miele Global Headquarters Germany
Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Federal Republic of Germany
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana Petroleum
Solaris Dutamas No. 1, Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288, Fax: +603-6205-3768
Singapore
Miele Pte. Ltd.
29 Media Circle
#11-04 ALICE@Mediapolis
Singapore 138565
Tel: +65 6735 1191, Fax: +65 6735 1161
E-Mail: [email protected]
Internet: www.miele.sg
Miele (Pty) Ltd
63 Peter Place, Bryanston 2194
P.O. Box 69434, Bryanston 2021
Tel.: (011) 875 9000, Fax: (011) 875 9035
Internet: www.miele.co.za
E-mail: [email protected]
South Africa
India
Miele India Pvt. Ltd.
1st Floor, Copia Corporate Suites,
Commercial Plot 9,
Mathura Road, Jasola,
New Delhi - 110025
E-mail: [email protected]
Website: www.miele.in
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
Miele Head Office Melbourne:
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
Miele New Zealand Ltd.
IRD 98 463 631
Head Office:
8 College Hill
Freemans Bay
Auckland 1011
1300 464 353 (1300 4 MIELE)
www.miele.com.au
0800 464 353 (0800 4 MIELE)
www.miele.co.nz
Miele (Hong Kong) Ltd.
41/F - 4101, Manhattan Place
23 Wang Tai Road, Kowloon Bay
Hong Kong
Tel.: (852) 2610 1025
Fax: (852) 3579 1404
E-mail: [email protected]
Website: www.miele.hk
Hong Kong, China
M.-Nr. 12 430 190 / 00en - AU, NZ
KFNS 7734 ...
