MasterCool Refrigeration
Side-by-Side Merging Combinations
For Vi Models
KSK 2002
8mieleusa.com
Specification Sheets TRS05202019
Shown: F 2471 Vi merged to K 2801 Vi
Please note: This information is subject to change
Page 2 of 12
Side-by-Side Merging Kit
KSK 2002
The merging kit should be used for side-by-side installation of Miele MasterCool
units.
SPECIFICATIONS
Electrical
Power Cord Direct connection to left-standing appliance
Support
Call Miele (800) 999-1360
Miele Website
8www.mieleusa.com
20/20 Link
82020technologies.com
KSK 2002
Item 38996071USA
Page 3 of 12
Side-by-Side Merging Kit
KSK 2002
MERGING STYLE
Merged with a partition
PARTITION SPECIFICATIONS
If the partition wall 'a' is narrower than 6 5/16" (16 mm), a
heating mat ① from the merging kit to prevent condensation
from forming and any resulting damage.
Partition Dimension 'a':
Min. Partition Thickness 5/8"
Max. Partition Thickness 6 5/16" (160 mm)
MERGING SPECIFICATIONS
Maximum allowed amount of
units merged
3
Merged together
refrigeration
FOR FLUSH INSTALLATION
Page 4 of 12
FOR FLUSH INSTALLATION
Product and Cut-out Dimensions
42” Side-by-Side Combination
Page 5 of 12

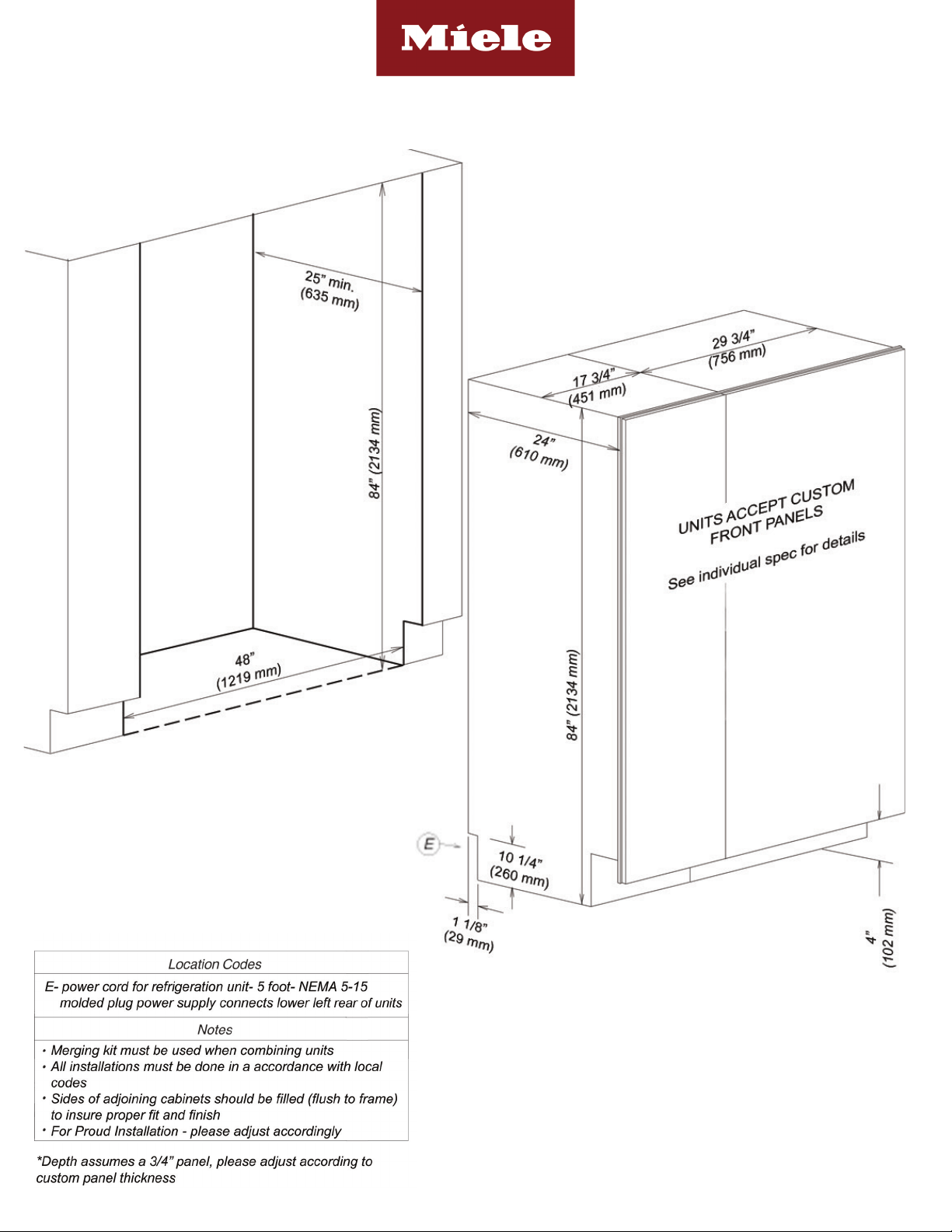

FOR FLUSH INSTALLATIONFOR FLUSH INSTALLATION
Product and Cut-out Dimensions
48” Side-by-Side Combination
Page 6 of 12
FOR FLUSH INSTALLATION
Product and Cut-out Dimensions
48” Side-by-Side Combination
Page 7 of 12

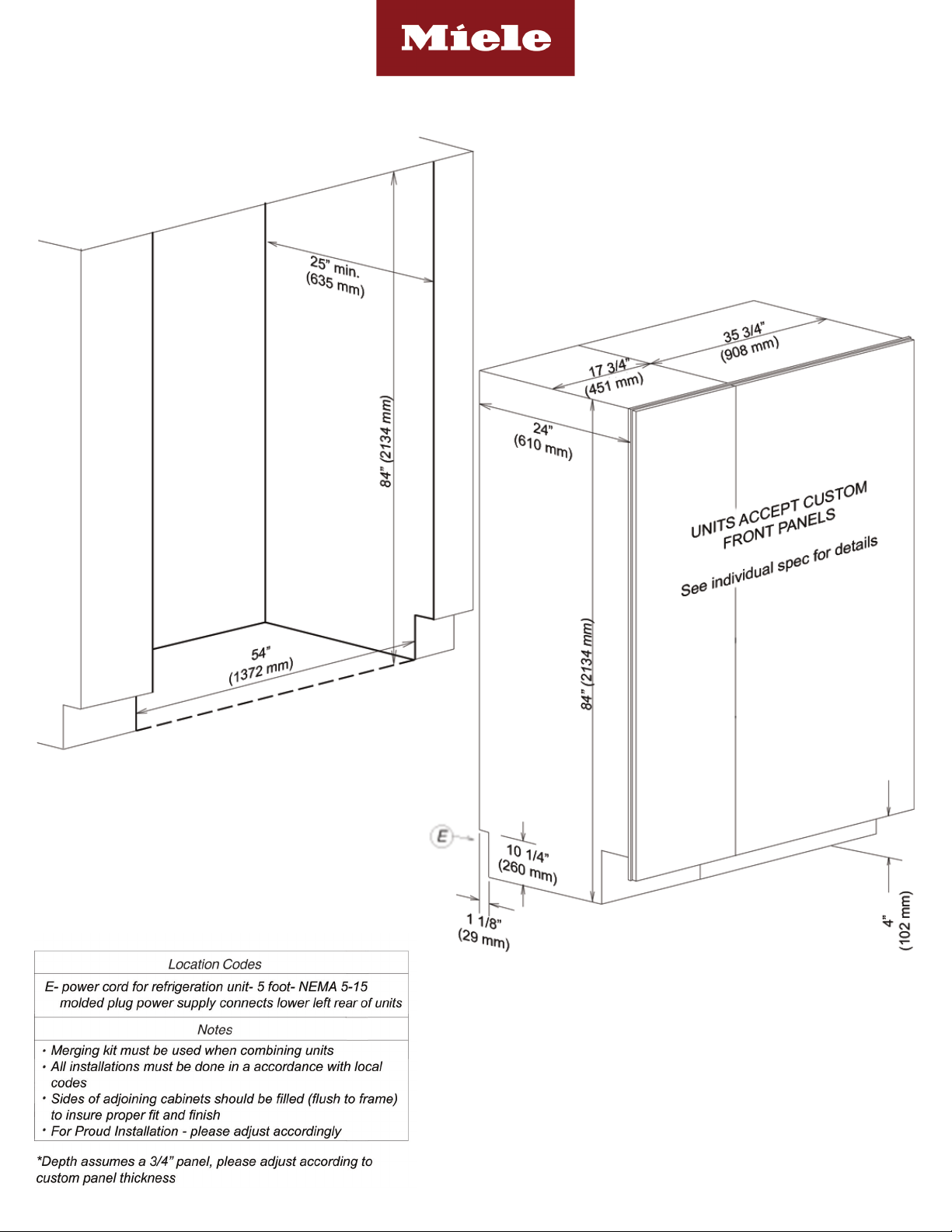

FOR FLUSH INSTALLATION
Product and Cut-out Dimensions
54” Side-by-Side Combination
Page 8 of 12
FOR FLUSH INSTALLATION
Product and Cut-out Dimensions
54” Side-by-Side Combination
Page 9 of 12

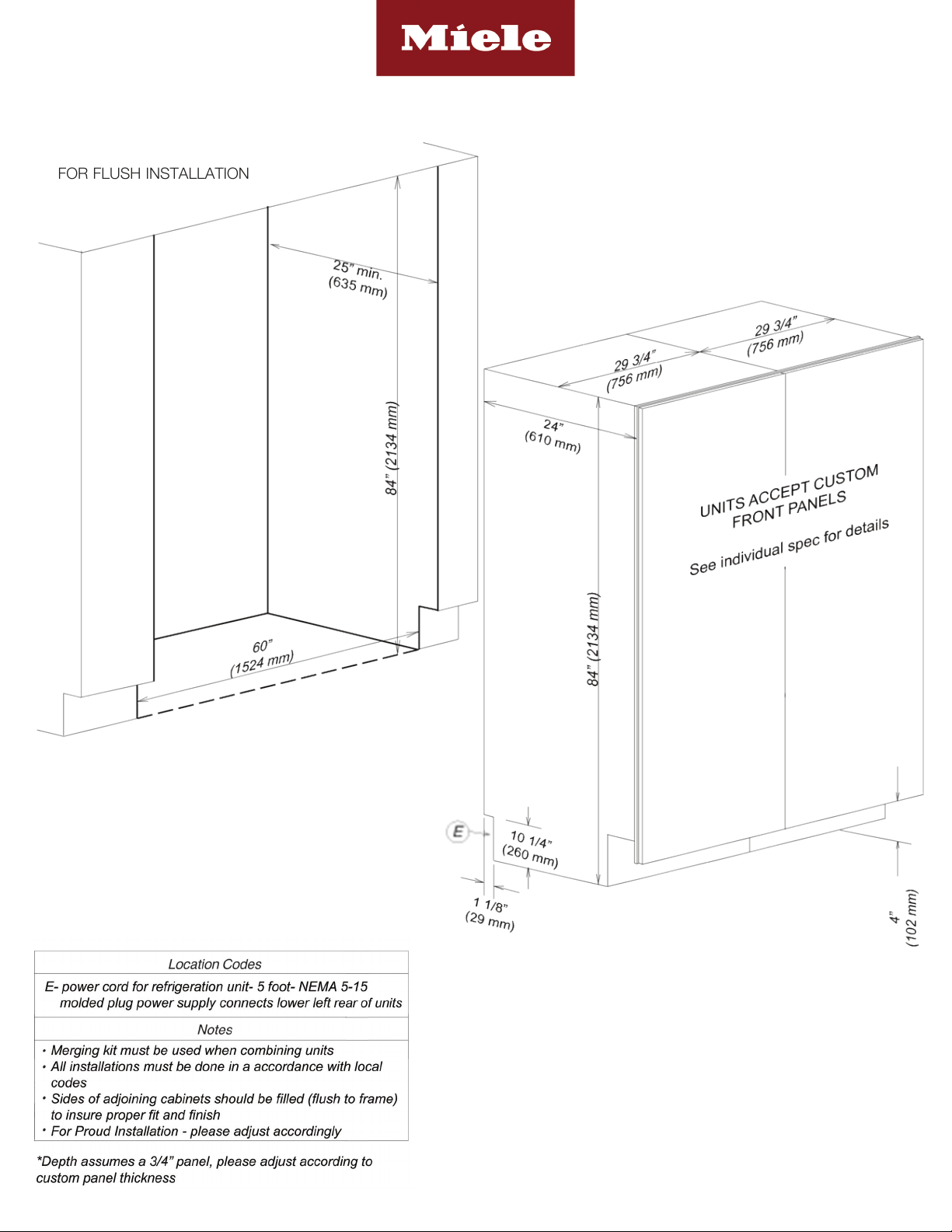

FOR FLUSH INSTALLATION
Product and Cut-out Dimensions
60” Side-by-Side Combination
Page 10 of 12
FOR FLUSH INSTALLATION
Product and Cut-out Dimensions
60” Side-by-Side Combination
Page 11 of 12
FOR FLUSH INSTALLATION
Product and Cut-out Dimensions
66” Side-by-Side Combination
Page 12 of 12

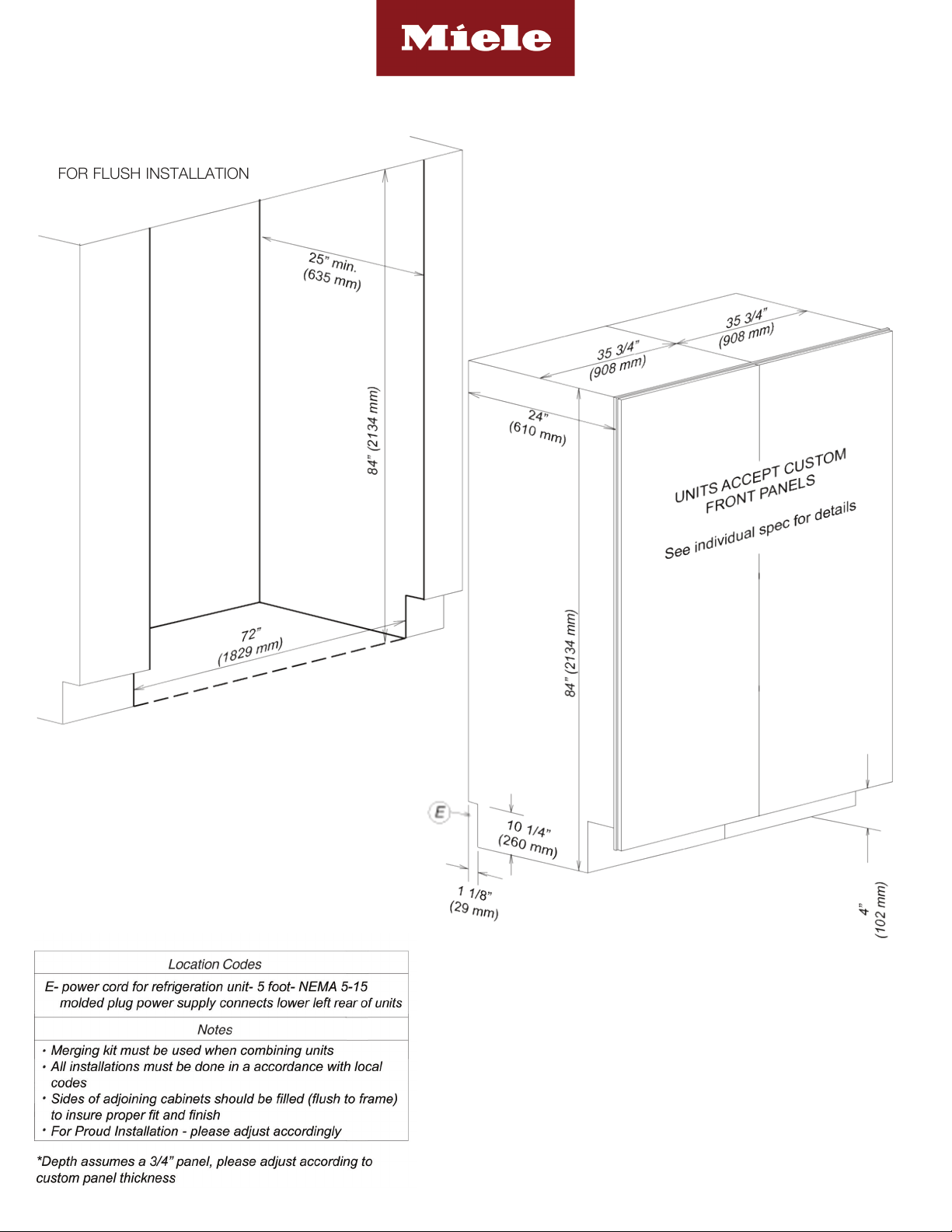

FOR FLUSH INSTALLATION
Specification Sheets TRS05202019
Product and Cut-out Dimensions
72” Side-by-Side Combination
