Read all safety rules and instructions carefully before operating this tool.
Owner’s Manual
TOLL-FREE HELPLINE: 1-888-90WORKS
(888.909.6757)
20" Electric Lawn Mower
25022
2
Contents .............................................................................................................................. 2
Product specications .......................................................................................................... 2
Safety information ............................................................................................................. 3-7
Symbols ............................................................................................................................8-9
Electrical ....................................................................................................................... 10-11

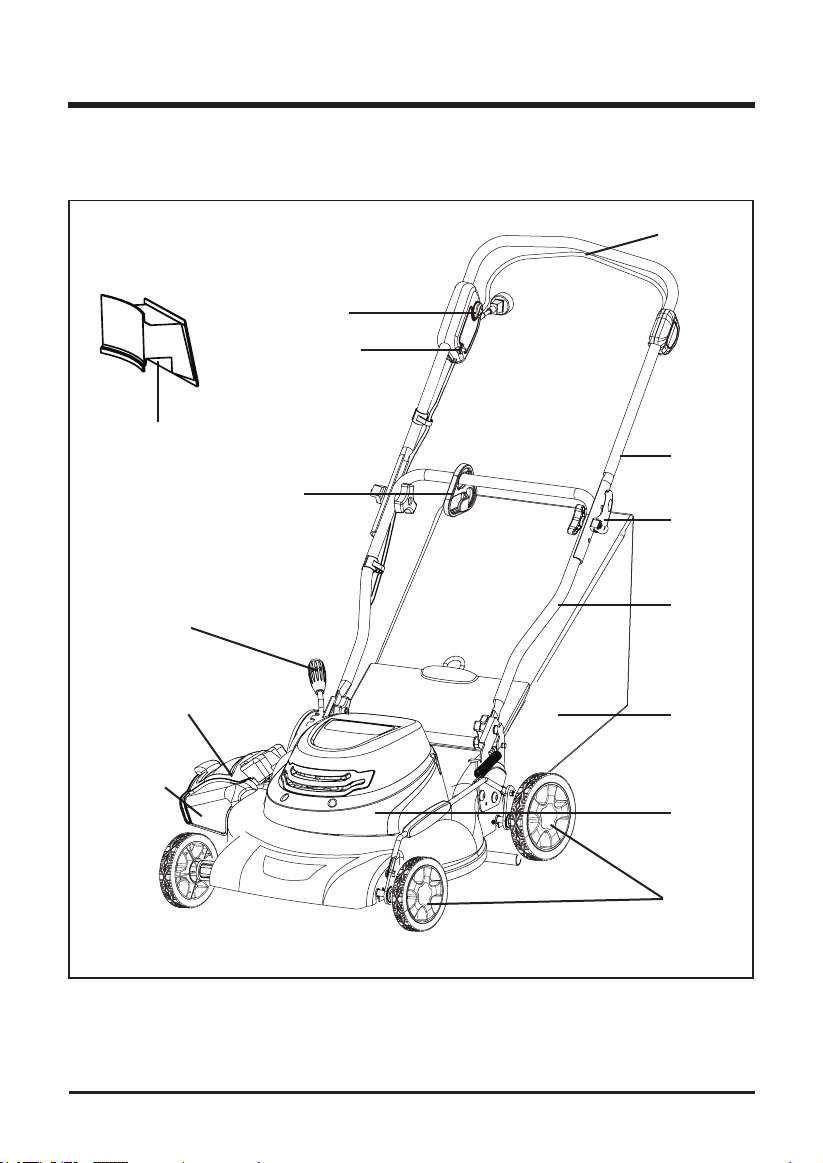

Know your lawn mower ...................................................................................................... 12

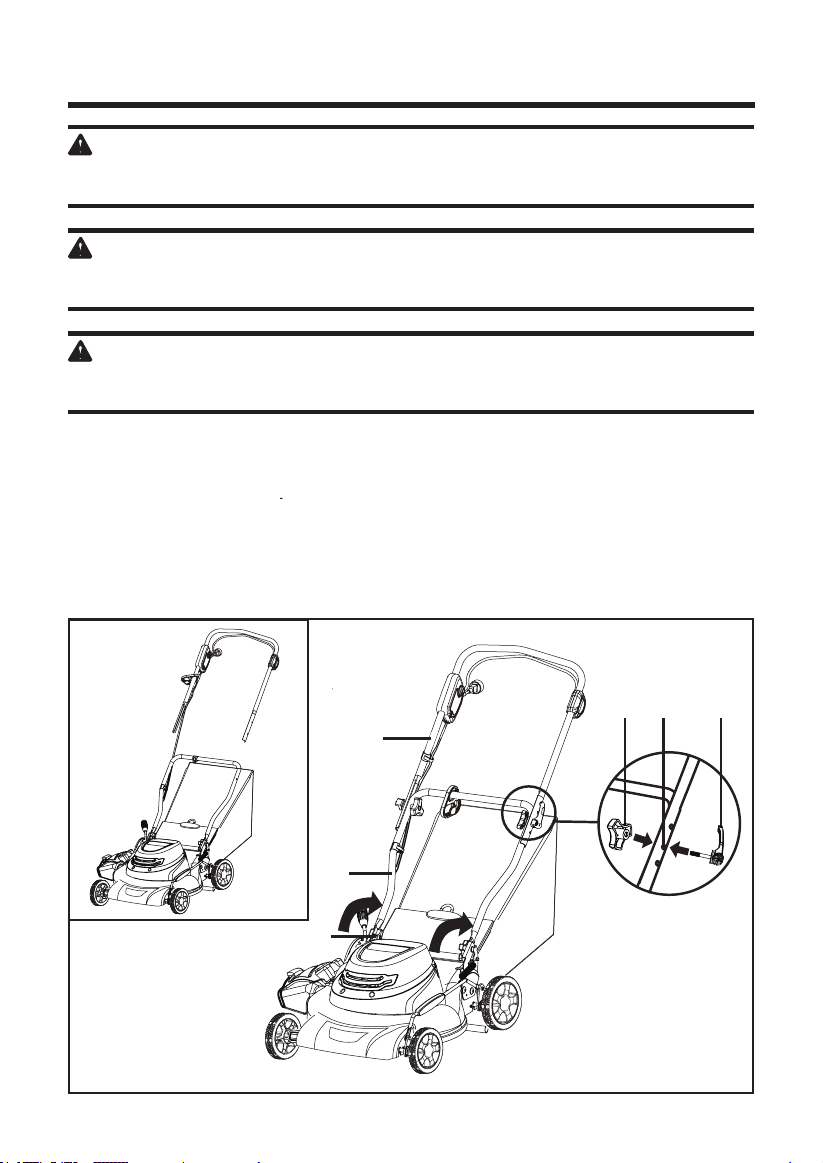

Assembly ...................................................................................................................... 13-18
Operation ...................................................................................................................... 19-24
Maintenance ................................................................................................................. 25-26
Storage .............................................................................................................................. 27
Troubleshooting ................................................................................................................. 28
Warranty ............................................................................................................................ 29

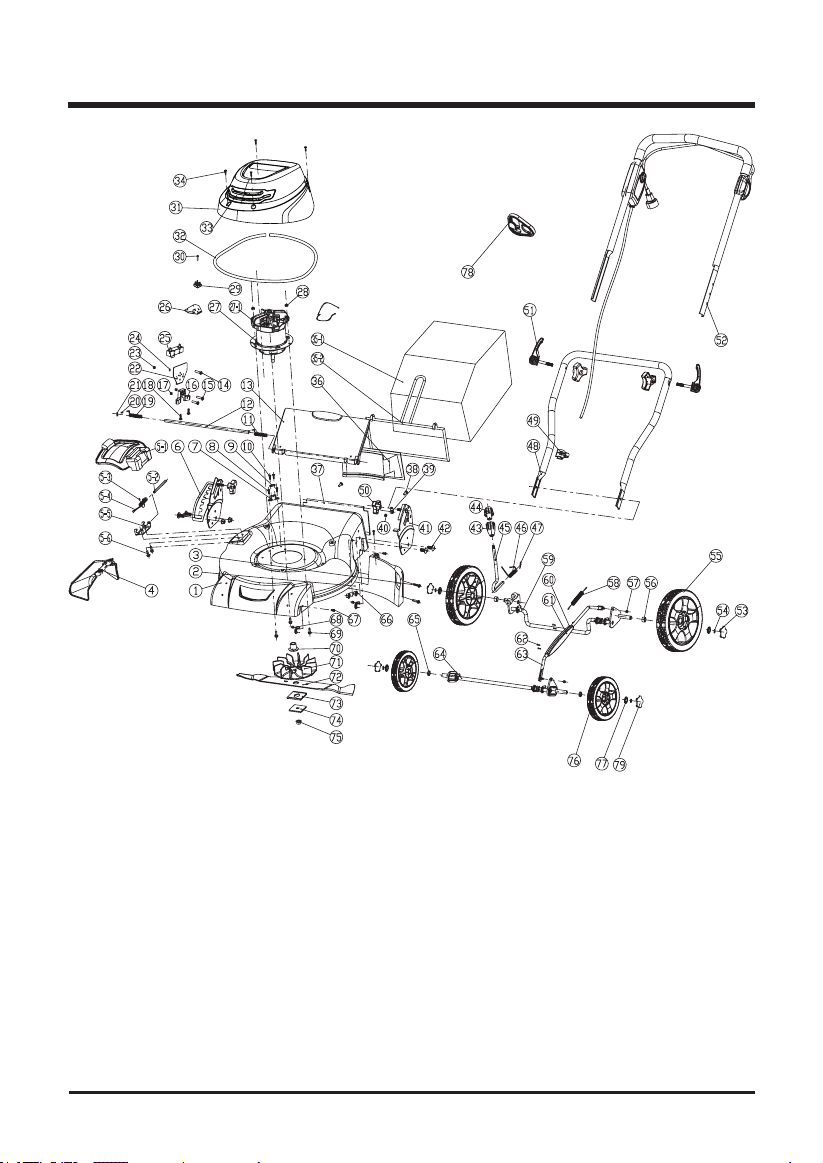

Exploded View ................................................................................................................... 30
Parts List....................................................................................................................... 31-33
Notes ............................................................................................................................34 -35
PRODUCT SPECIFICATIONS
20" ELECTRIC LAWN MOWER
Motor ............................................................................................ 120 V AC, 60 Hz, 12 A
No-load speed ................................................................................................ 3600 RPM
Cutting path ................................................................................................ 20" (50.8 cm)

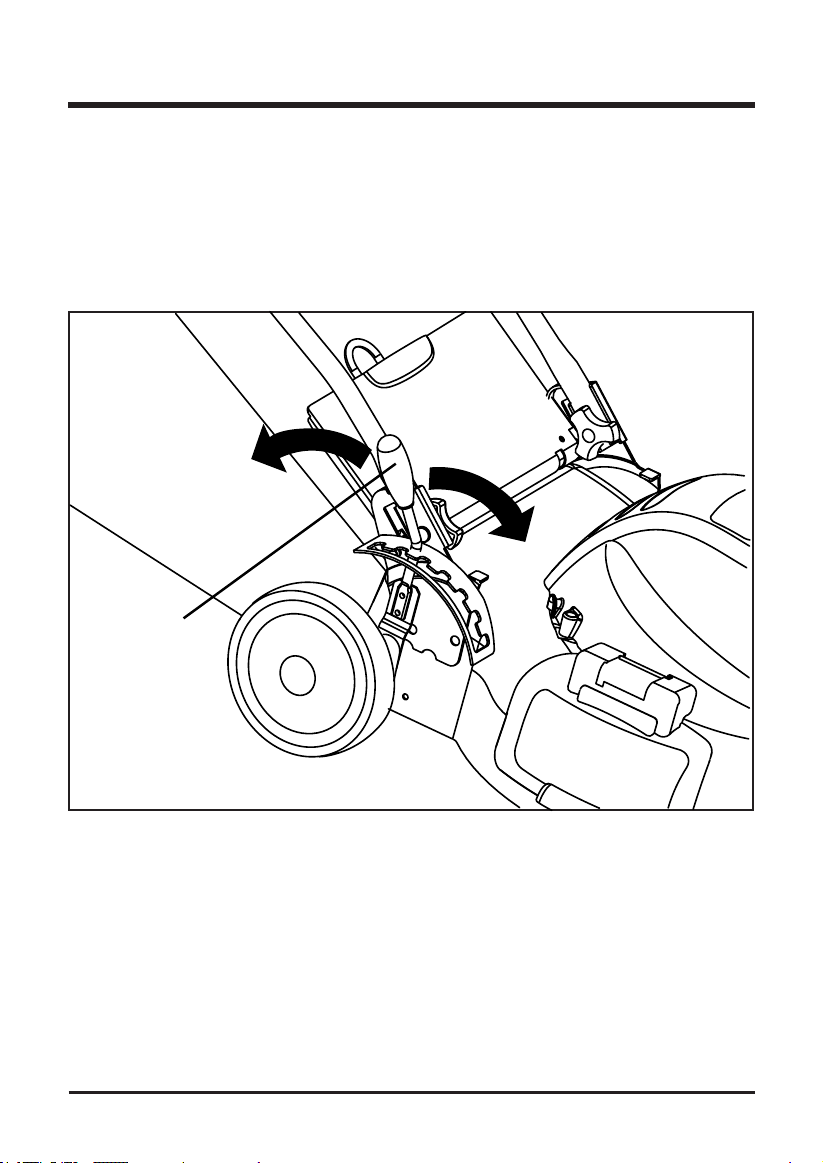

Height adjustments ............................................................1 1/2—3 3/4" (3.8 cm-9.5 cm)
Functions ......................................................... 3-in-1: Mulch, side discharge or rear bag
Weight .....................................................................................................56 lbs (25.4 kg)
CONTENTS
3
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
I M P O R T A N T
READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below
may result in electric shock, re, and/or serious personal injury.
• Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
• To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider
than the other). This plug will t in a polarized outlet only one way. If the plug does not t fully
in the outlet, reverse the plug. If it still does not t, contact a qualied electrician to install the
proper outlet. Do not change the plug in any way.
• Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerators.
There is an increased risk of electric shock if your body is grounded.
• Don’t expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
• Do not handle plug or tool with wet hands.
• Use outdoor extension cords marked W-A, W, SW-A, SOW-A, STW-A, STOW-A, SJW-A,
SJTW-A, or SJTOW-A. These cords are rated for outdoor use and reduce the risk of electric
shock.
• Never allow children to operate the equipment. This is not a toy. Never allow adults to operate
the equipment without proper instruction.
• Keep all bystanders, children, and pets at least 50 ft. away.
• Always wear safety glasses with side shields. Everyday glasses have only impact resistant
lenses. They are NOT safety glasses. Following this rule will reduce the risk of eye injury. Use
face mask if operation is dusty.
• Wear eye protection which is marked to comply with ANSI Z87.1 when operating this product.
• Use extra care when cleaning on stairs.
• Do not leave appliance plugged in. Unplug from outlet when not in use and before servicing.
• Do not expose to rain; store indoors.
• Use only as described in this manual. Use only identical manufacturer’s replacement parts
and accessories. Use of any other parts may create a hazard or cause product damage.
• Secure long hair so it is above shoulder level to prevent entanglement in any moving parts.
• Wear heavy long pants, boots, and gloves. Avoid loose garments or jewelry that could get
caught in moving parts of the machine or its motor.
• Keep rm footing and balance. Do not overreach. Overreaching can result in loss of balance.
• Do not operate the equipment while barefoot or when wearing sandals or similar lightweight
footwear. Wear protective footwear that will protect your feet and improve your footing on
slippery surfaces.
• Do not force tool. Use the correct tool for your application. The correct tool will do the job
better and safer at the rate for which it is designed.
4
SAFETY INFORMATION
• Turn off all controls before unplugging.
• Avoid accidental starting. Be sure the power switch is not on before plugging in. Turn off
power switch before unplugging.
• Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the
switch is dangerous and must be repaired.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been
dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not leave the tool when plugged in. Unplug from the power outlet when not in use, before
servicing, and before storing the tool. Such preventative safety measures reduce the risk of
starting the tool accidentally.
• Do not operate this unit when you are tired, ill, or under the inuence of alcohol, drugs, or
medication.
• Do not operate in poor lighting.
• Keep all parts of your body away from any moving parts and all hot surfaces of the unit.
• Do not put any object into openings. Do not use with any opening blocked; keep openings free
of dust, lint, hair, and anything that may reduce air ow.
• Check the work area before each use. Remove all objects such as rocks, broken glass, nails,
wire, or string which can be thrown or become entangled in the machine.
• Do not pull or carry by cord, use cord as a handle, close a door on a cord, or pull cord around
sharp edges or corners. Do not run appliance over cord. Keep cord away from heated
surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.Do not put any object
into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything
that may reduce air ow.
• Do not handle plug or appliance with wet hands.
• In a double insulated appliance, two systems of insulation are provided instead of grounding.
No grounding means is provided on a double insulated appliance, nor should a means
for grounding be added to the appliance. Servicing a double insulated appliance requires
extreme care and knowledge of the system and should be done only by qualified service
personnel. Replacement parts for a double insulated appliance must be identical to the parts
they replace.
• Not intended for commercial use.
SPECIFIC SAFETY RULES FOR MOWER
W A R N I N G
This symbol points out important safety instructions, which if not followed, could endanger the
personal safety and/or property of yourself and others. Read and follow all instructions in this
manual before attempting to operate this machine. Failure to comply with these instructions may
result in personal injury.
5
SAFETY INFORMATION
D A N G E R
This machine was built to be operated according to the rules for safe operation in this manual.
As with any type of power equipment, carelessness or error on the part of the operator can result
in serious injury. This machine is capable of amputating hands and feet and throwing objects.
Failure to observe the following safety instructions could result in serious injury or death.
W A R N I N G
When using electric lawn mowers, basic safety precautions should always be followed to reduce
the risk of re, electric shock, and personal injury.
GENERAL OPERATION
Use of this mower should be restricted to individuals who have read and understoood and will
follow the warningsand instructions that are printed in this manual and on the mower.
• Carefully read all instructions on the mower and in the manual before attempting to assemble
and operate the mower. Keep this manual in a safe place for future reference, and consult it
regularly.
• Become familiar with all controls and their proper operation. Know how to stop the mower and
how to disengage the power in an emergency.
• In order to avoid contact with the blade or injury caused by a thrown object, stay in the
operating zone behind the handles, and keep children and bystanders at least 50 ft.(15 m)
away from the mower while it is in operation. Stop the motor immediately if someone enters
the mowing area.
• Thoroughly inspect the area where the mower is to be used. Remove all stones, sticks, wire,
toys, and other objects that could be tripped over or thrown by the blade. Thrown objects can
cause serious personal injury.
• Plan your mowing pattern in such a way as to avoid discharging material toward roads,
sidewalks, bystanders, etc. Do not discharge material against a wall or obstruction. Doing so
may cause the discharged material to ricochet back toward the operator.
• Always wear proper eye protection in order to protect your eyes while operating or performing
any adjustment or repair. Thrown objects that ricochet can cause serious eye injury.
• Always wear a face mask or a dust mask when operating the mower in a dusty environment.
• Dress properly. Do not wear loose clothing or jewelry that can get caught in moving parts. The
wearing of protective gloves and safety footwear is recommended.
• Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or
outlet(s) to be used for the lawn mower. Receptacles are available having built-in GFCI
protection and may be used for this measure of safety.
• Many injuries occur as a result of the mower being pulled over the operator's foot during a
fall caused by slipping or tripping. Do not operate this mower in bare feet, or while wearing
sandals or lightweight (e.g.:canvas) shoes. Do not hold onto the mower if you are falling.
Release the handle immediately.
6
SAFETY INFORMATION
• Never pull the mower back toward you while you are walking. If you must back the mower
away from a wall or an obstruction, rst look down and behind in order to avoid tripping, and
then follow these steps:
• Step back from the mower in order to fully extend your arms.
• Be sure that you are well balanced.
• Pull the mower back slowly.
• Do not use the mower for any job except that for which it is intended. Do not force the mower.
• Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade
can amputate hands and feet.
• Do not attempt to adjust the wheels or the cutting height while the motor is running.
• Avoid dangerous environments. Do not operate the mower in the rain or in wet or damp grass.
• Mow only in daylight or in good articial light. Do not rush a mowing job.
• Stop the blade when crossing gravel driveways, walkways,or roads.
• If the mower starts to vibrate excessively, stop the motor and check for the cause immediately.
Vibrationis generally a warning of trouble.
• Stop the motor and wait until the blade comes to a complete stop before removing the grass
catcher or unclogging the chute. The cutting blade will continue to rotate for a few seconds
after the motor is shut off. Do not place any part of your body in the blade area until you are
sure that the blade has stopped rotating.
• Never operate mower without a proper trail shield, discharge cover, grass catcher, blade/
motor control, or other safety device in place and in working order. Do not operate the mower
with damaged safety devices. Doing so can result in injury.
• Stay behind the handle when the engine (motor) is running.
• Stop machine if anyone enters the area.
• Do not pull machine backward unless absolutely necessary. Always look down and behind
before and while moving backward.
• Never leave a running machine unattended.
• Operate machine only in daylight or good articial light.
W A R N I N G ( P R O P O S I T I O N 6 5 )
Some dust created by power sanding, sawing, grinding, drilling and other construction activities
contains chemicals known to the state of California to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To
reduce your exposure to these chemical: work in a well ventilated area, and work with approved
safety equipment, such as those dust masks that are specially designed to lter out microscopic
particles.
7
SAFETY INFORMATION
CHILD SAFETY
Tragic accidents can occur if the operator is not aware of the presence of children.
• Keep children out of the mowing area and under the watchful care of a responsible adult.
• Do not allow children under the age of 14 to operate this mower. Children who are 14 years
of age and older must read and understand the operating instructions and safety rules in this
manual and must be trained and supervised by a parent.
• Stay alert, and turn the mower off if a child or any other person enters the mowing area.
• Look behind and down for small children before and while moving backwards.
• Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects
that may obscure your view of a child who may run into the path of the mower.
SAVE THESE INSTRUCTIONS
8
Some of the following symbols may be used on this product. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.
SYMBOLS
n
o
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watts Power
min Minutes Time
Alternating Current Type of current
Direct Current Type or a characteristic of current
No Load Speed Rational speed, at no load
Class II Construction Double-insulated construction
/min Per Minute Revolutions, strokes, surface speed, orbits etc.,
per minute
Wet Conditions Alert Do not expose to rain or use in damp locations
Read The Operator’s Manual To reduce the risk of injury user must read and
understand operator’s manual before using this
product.
Eye and Head Protection Wear eye and head protection when operating
this equipment.
Ricochet Thrown objects can ricochet and result in personal
injury or property damage.
Sharp Blade Danger – Keep hands and feet away from blade.
Operating on a slope Do not mow a slope that has an angle of greater
than 15°.
Keep Bystanders Away Keep all bystanders at least 50 ft. away.
8
9
The following signal words and meanings are intended to explain the levels of risk associated
with this product.
SERVICE
Servicing requires extreme care and knowledge and should be performed only by a qualied
service technician. For service we suggest you return the product to your nearest AUTHORIZED
SERVICE CENTER for repair. When servicing, use only identical replacement parts.
W A R N I N G
To avoid serious personal injury, do not attempt to use this product until you have read this
Owner's Manual thoroughly and understand it completely. If you do not understand the warnings
and instructions in this Owner's Manual, do not use this product. Call the Toll-free Helpline (1-
888-909-6757) for assistance.
W A R N I N G
The operation of any power tool can result in foreign objects being thrown into your
eyes, which can result in severe eye damage. Before beginning power tool operation,
always wear safety goggles or safety glasses with side shields and, when needed, a
full face shield. We recommend Wide Vision Safety Mask for use over eyeglasses or
standard safety glasses with side shields. Always use eye protection which is marked
to comply with ANSI Z87.1.
SYMBOL SIGNAL MEANING
DANGER Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION Indicates a potentially hazardous situation, which, if not avoided,
may result in minor or moderate injury.
CAUTION (Without Safety Alert Symbol) Indicates a situation that may
result in property damage.
SYMBOLS
SAVE THESE INSTRUCTIONS
10
1) 2-prong plug
2) Properly grounded extension cord
Fig. 1
ELECTRICAL
DOUBLE INSULATED LAWN MOWER (See Figure 1.)
C A U T I O N
IN ALL CASES, MAKE CERTAIN THE RECEPTACLE IN QUESTION IS PROPERLY GROUNDED.
IF YOU ARE NOT SURE, HAVE A CERTIFIED ELECTRICIAN CHECK THE RECEPTACLE.
W A R N I N G
THIS MOWER IS FOR OUTDOOR USE ONLY. DO NOT EXPOSE TO RAIN OR USE IN DAMP
LOCATIONS.
This mower is “DOUBLE INSULATED”
• Replacement Parts: When servicing use only identical replacement parts.
• Polarized Appliance Connections: To reduce the risk of electric shock, this appliance has
a polarized plug (one blade is wider than the other) and will require the use of a polarized
extension cord. The appliance plug will fit into a polarized extension cord only one way. If
the plug does not t fully into the extension cord, reverse the plug. If the plug still does not
t, obtain a correct polarized extension cord. A polarized extension cord will require the use
of a polarized wall outlet. This plug will t into the polarized wall outlet only one way. If the
plug does not t fully into the wall outlet, reverse the plug. If the plug still does not t, contact
a qualified electrician to install the proper wall outlet. Do not change the equipment plug,
extension cord receptacle, or extension cord plug in any way.
GUIDELINES FOR USING EXTENSION CORDS
USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one heavy enough to carry the current your
product will draw. An undersized cord will cause overheating. The table below shows the correct
size to use depending on cord length and nameplate ampere rating. If in doubt, use the next
heavier gauge. The smaller the gauge number, the heavier the cord.
Make sure your extension cord is properly wired and in good electrical condition. Always replace
a damaged extension cord or have it repaired by a qualied person before using it. Keep your
extension cords away from sharp objects, excessive heat and damp or wet areas.
Use a separate electrical circuit for your tools. This circuit should not be less than #12 wire and
should be protected with a 15 A time delayed fuse. Before connecting the motor to the power
line, make sure the switch is in the OFF position and the electric current is rated the same as the
current stamped on the motor nameplate. Running at a lower voltage will damage the motor.
W A R N I N G
ALTHOUGH TH IS TOOL IS D OUBLE INSULATED, THE EXTENSION CORD AND
RECEPTACLE MUST STILL BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR
FROM ELECTRIC SHOCK.
ELECTRICAL
MINIMUM GAUGE FOR EXTENSION CORDS (AWG)
(WHEN USING 120 V ONLY)
Amp Rating Total Length of Cord in Feet (meters)
More Than Not More Than 25' (7.6 m) 50' (15 m) 100' (30.4 m) 150' (45.7 m)
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not Recommended
11
SAVE THESE INSTRUCTIONS
12
KNOW YOUR LAWN MOWER
Fig. 2
Power Button
Bail
Switch
Circuit Breaker
Mulch Plug
Cord Retainer
Height
Adjustment
Lever
Side
Discharge
Cover
Side
Discharge
Chute
Upper
Handle
Cam
Lock
Lower
Handle
Grass
Catcher
Bag
Motor
Housing
Wheels
Read this operator's manual and safety rules before operating your lawn mower. Compare the
illustration in Figure 2 to your lawn mower in order to familiarize yourself with the location of
various controls and adjustments. Save this manual for future reference.
13
UNPACKING
This product has been shipped completely assembled.
• Carefully remove the product and any accessories from the box. Make sure that all items
listed in the packing list are included.
• Inspect the product carefully to make sure no breakage or damage occurred during shipping.
• Do not discard the packing material until you have carefully inspected and satisfactorily
operated the product.
• If any parts are damaged or missing, please call 1-888-909-6757 for assistance.
PACKING LIST
• Lawn mower
• Mulch plug
• Grass catcher bag
• Side discharge chute
• Owner's Manual
W A R N I N G
If any parts are damaged or missing, do not operate this product until the parts are replaced.
Failure to heed this warning could result in serious personal injury.
W A R N I N G
Do not connect to power supply until assembly is complete. Failure to comply could result in
accidental starting and possible serious personal injury.
W A R N I N G
Do not attempt to modify this product or create accessories not recommended for use with this
product. Any such alteration or modication is misuse, and could result in a hazardous condition
leading to possible serious personal injury.
ASSEMBLY INSTRUCTIONS
14
W A R N I N G
Do not allow familiarity with this product to make you careless. Remember that a careless
fraction of a second is sufcient to inict serious injury.
W A R N I N G
Always wear safety goggles or safety glasses with side shields when operating power tools. Failure
to do so could result in objects being thrown into your eyes, resulting in possible serious injury.
W A R N I N G
Do not use any attachments or accessories not recommended by the manufacturer of this product.
The use of attachments or accessories not recommended can result in serious personal injury.

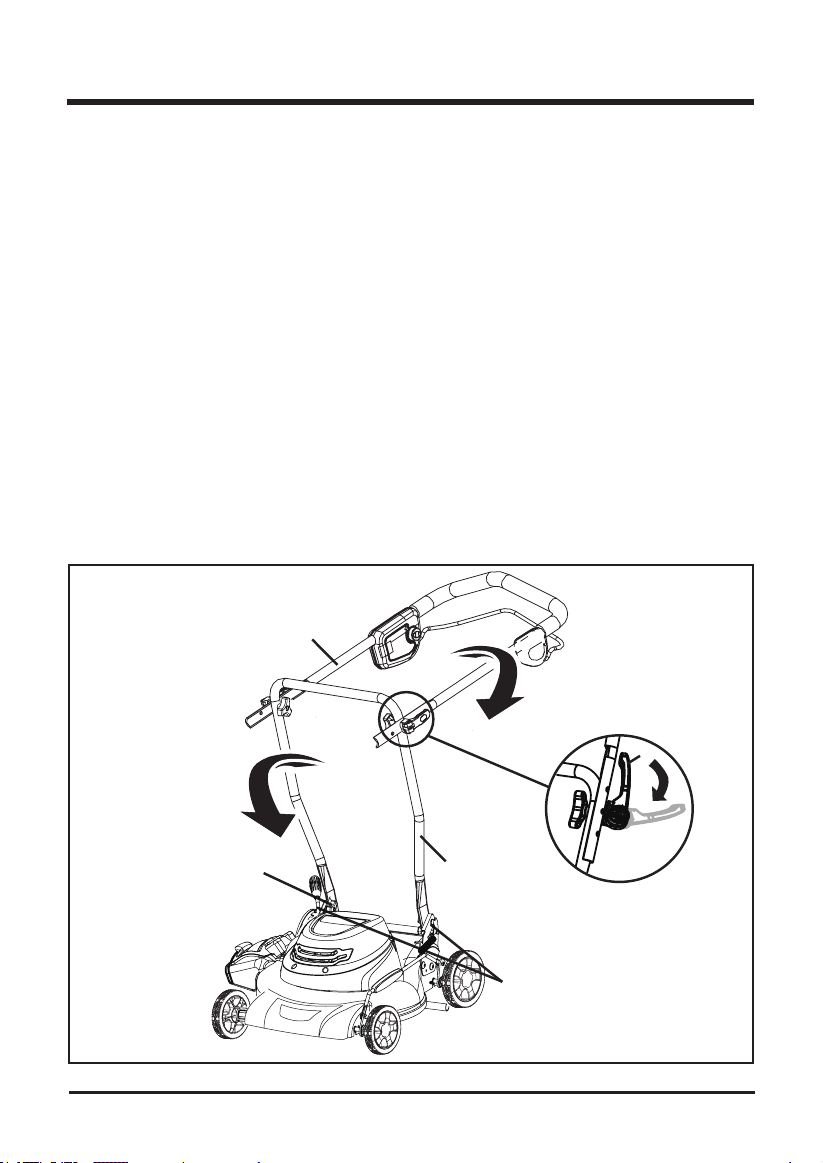

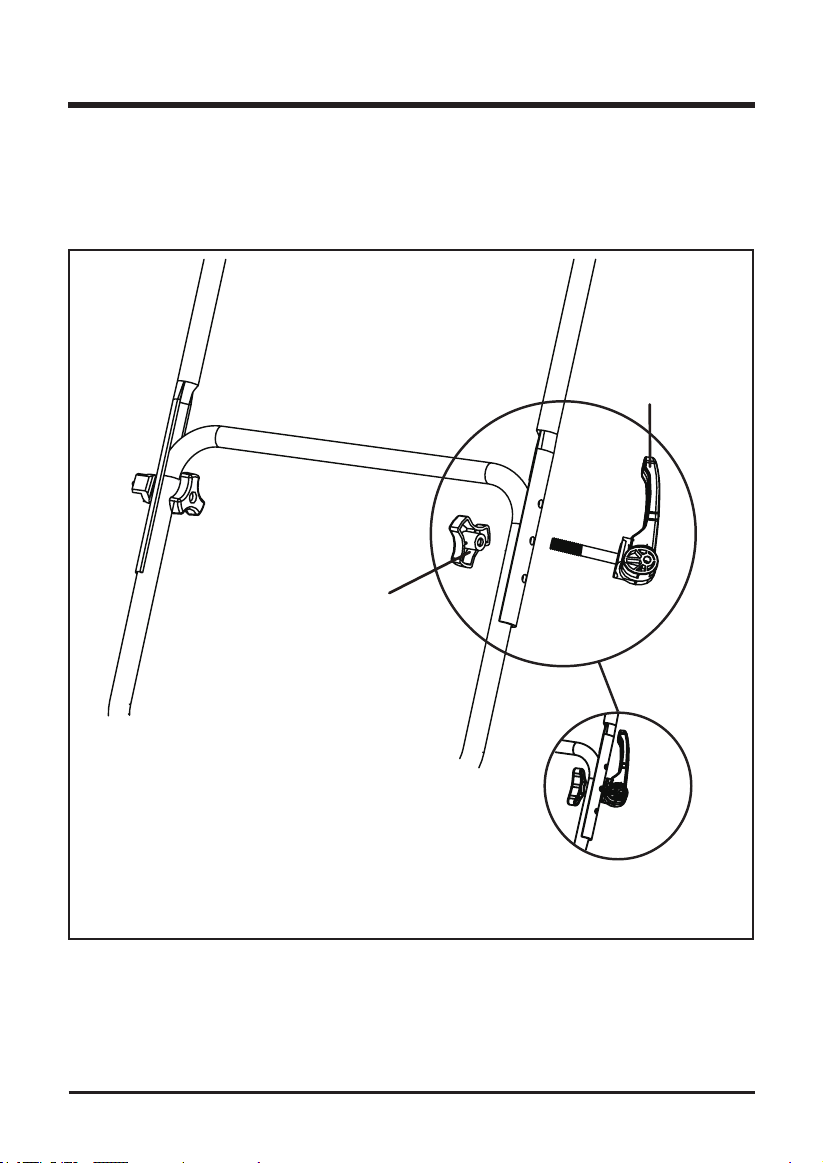

ASSEMBLING THE HANDLE (See Figure 3-4)
• Remove any packing material which may be between the upper and lower handles for
shipping purposes.
• Pull up and back on the upper handle to raise the handle into the operating position. Make
certain the lower handle is seated securely into the handle mounting bracket (see Fig. 3).
• Align the holes (3) between the upper handle (1) and lower (2) handles. Insert the cam locks (4)
and tighten them with the wing nuts (5) provided.
• Secure the lower handle to the bracket with the knob (6) in each side (see Fig. 4).
ASSEMBLY INSTRUCTIONS
Fig. 4
Fig. 3
435
1
2
6
15

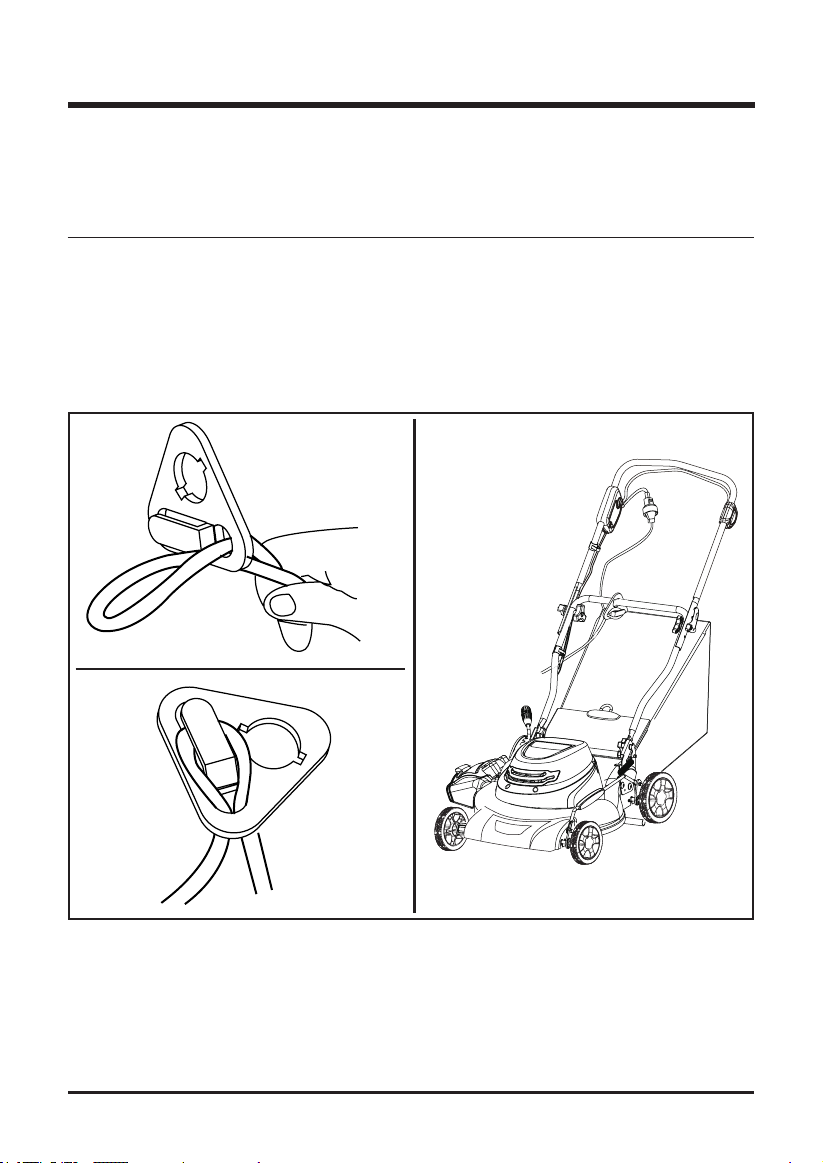

USING THE CORD RETAINER (See Figure 5-7)
This lawn mower is equipped with a cord retainer in order to prevent the extension cord from
disconnecting from the power cord while the mower is in use. The cord retainer hangs from the
cord guide bar.
NOTE: Do not plug the extension cord into the outlet until it has been connected to the cord retainer and
plugged into the mower.
To use the cord retainer:
• Fold the extension cord in order to forming a tight loop near the retainer.
• Push the loop through the bottom hole in the retainer (See Figure 5).
• Slide the loop over the retaining clip, and pull down until the cord is secured (See Figure 6).
ASSEMBLY INSTRUCTIONS
Fig. 7
Fig. 5
Fig. 6
16

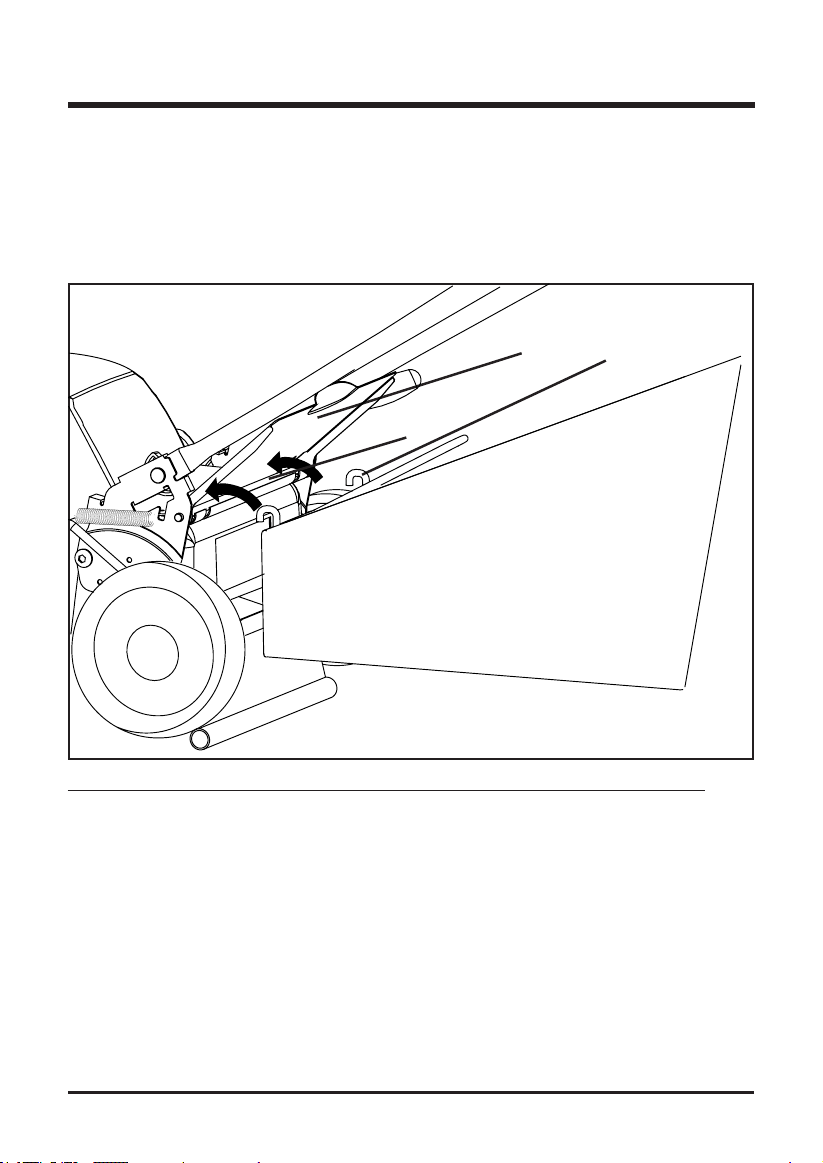

INSTALLING THE GRASS CATCHER BAG (See Figure 8)
• UNPLUG THE POWER CORD, AND WAIT FOR BLADE TO COME TO A COMPLETE STOP.
• Lift the chute cover (1).
• While holding up the cover (1), place the grass catcher bag hanger hooks (2) into the opening
on the chute cover (1) to allow the hanger hooks to attach to the rod (3) which secures the
chute cover.
NOTE: For optimal performance empty grass catcher bag often during use. A full grass bag will inhibit
performance of the mower and collection of grass clippings.
ASSEMBLY INSTRUCTIONS
Fig. 8
1
2
3
17

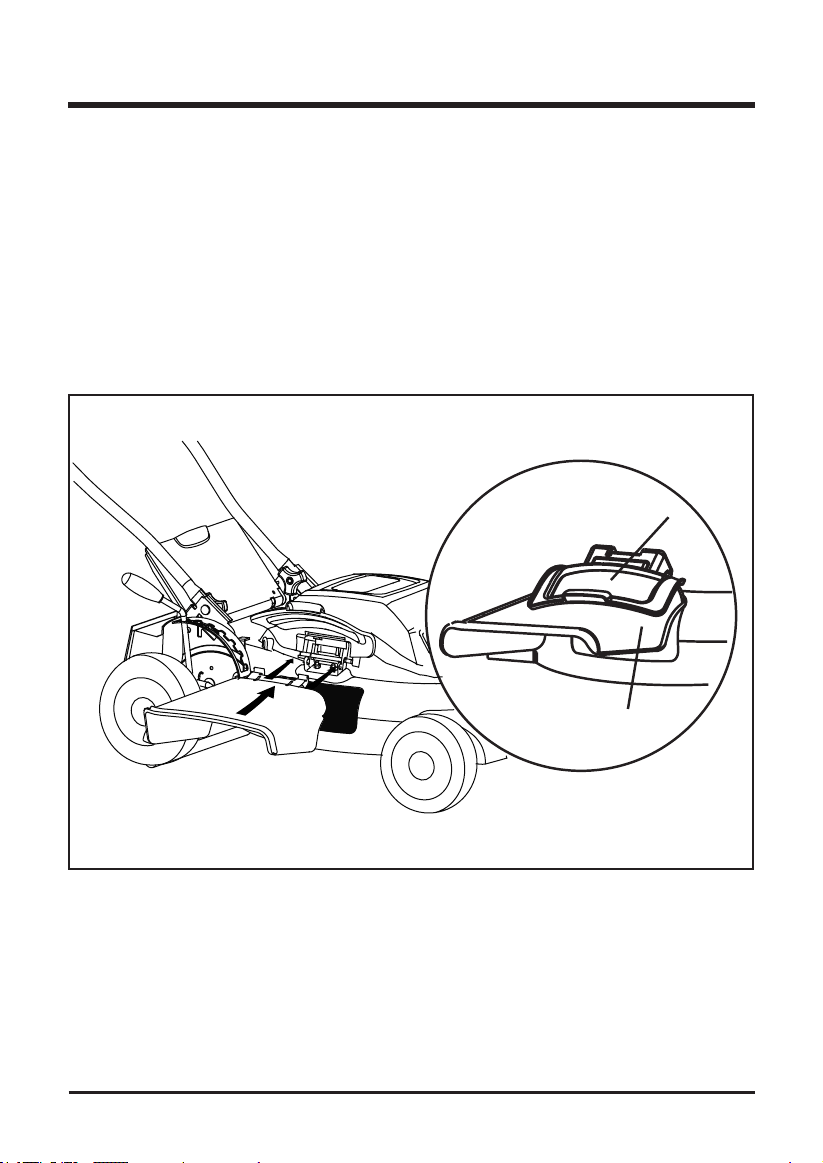

INSTALLING THE SIDE DISCHARGE CHUTE (See Figure 9)
This mower has 3 different functions-mulch, side discharge, and rear bag. If you wish to
discharge the clippings rather than mulch, perform these steps.
• UNPLUG THE POWER CORD, AND WAIT FOR BLADE TO COME TO A COMPLETE STOP.
• Lift the side discharge cover (1).
• Align the slot on the discharge chute (2) with the pins on the underside of the discharge cover
(1).
• Lower the discharge chute (2) until the hooks on the mower deck are secured in the openings
in the discharge chute (2).
• Release the side discharge cover (1).
ASSEMBLY INSTRUCTIONS
Fig. 9
2
1
18

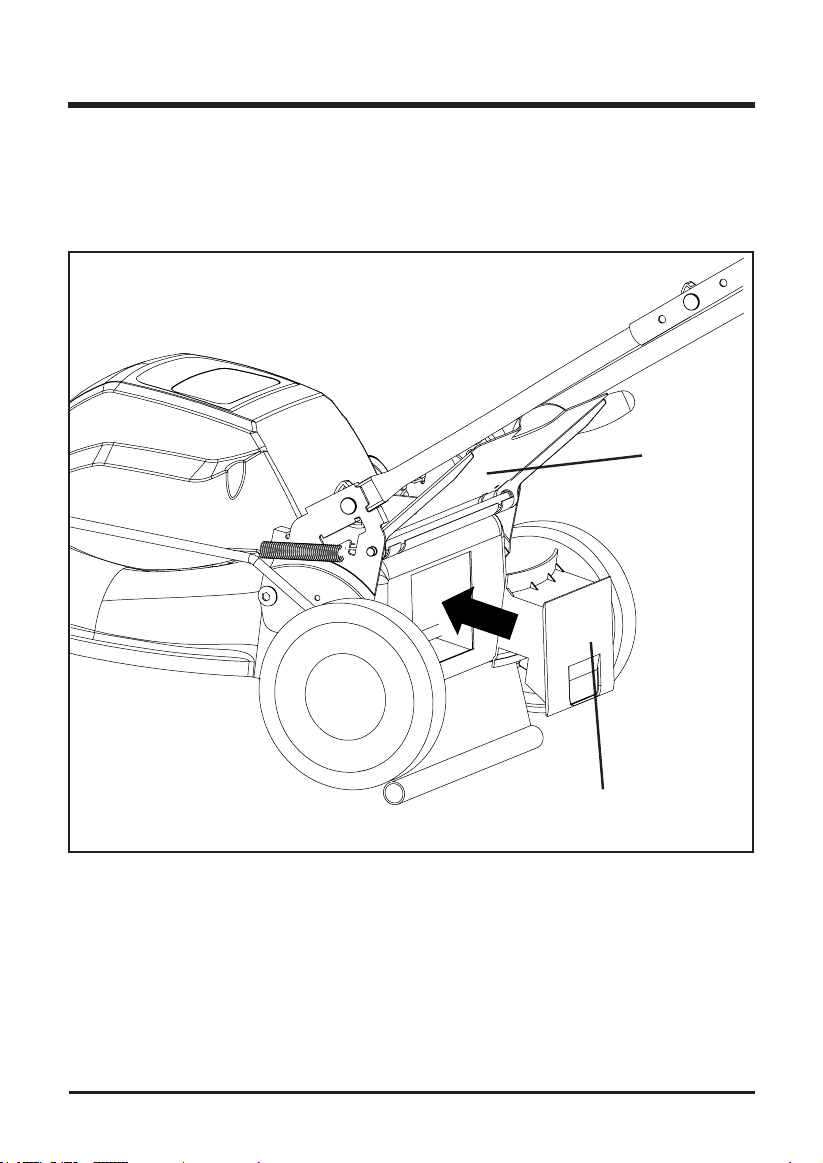

INSTALLATION OR REMOVAL OF THE MULCH PLUG (See Figure 10)
• UNPLUG THE POWER CORD, AND WAIT FOR BLADE TO COME TO A COMPLETE STOP.
• To remove the mulch plug, lift the chute cover (1) and pull out on the handle.
• The mulch plug (2) is inserted on an angle, so it will require some force when removing.
ASSEMBLY INSTRUCTIONS
Fig. 10
1
2
19

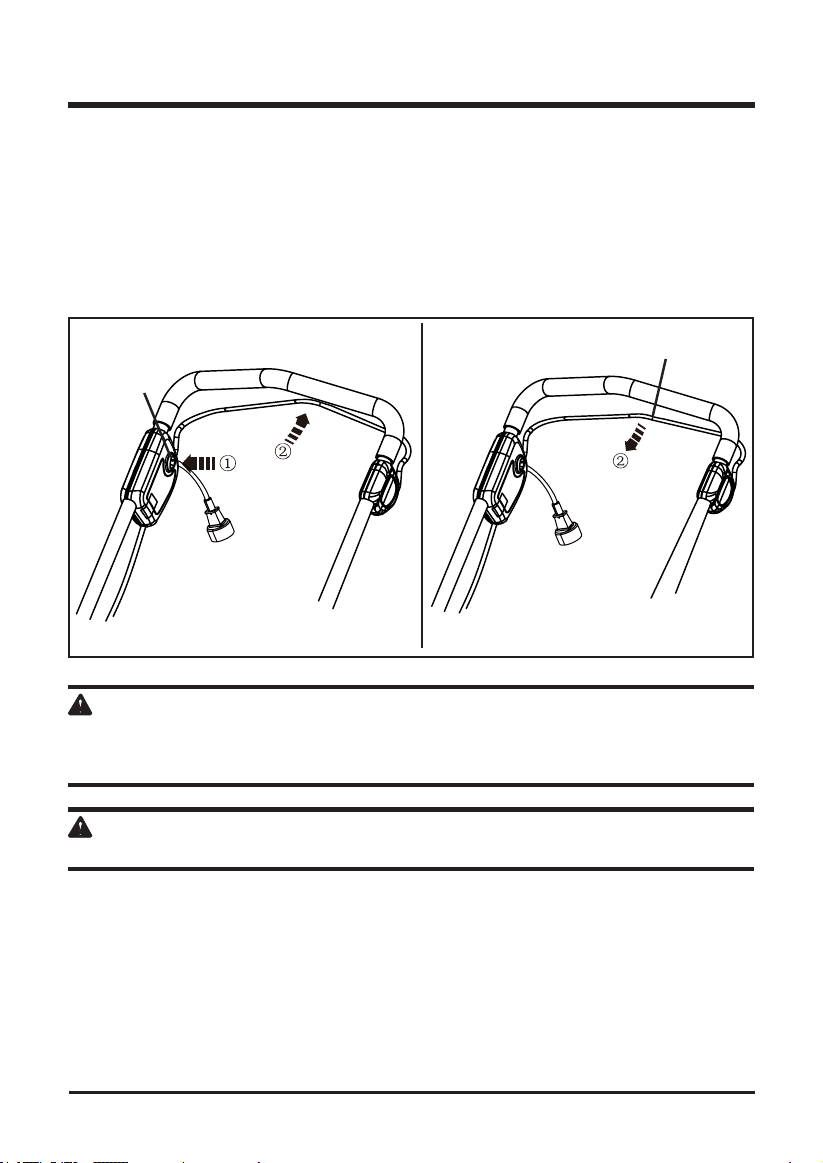

STARTING AND STOPPING THE MOWER (See Figure 11-12)
Starting the mower:
• Hold the power button (1) and pull the bail switch (2) upward to the handlebar to start the
mower.
Stopping the mower:
• To stop the mower, release the bail switch (2).
W A R N I N G
The operation of any mower can result in foreign objects being thrown into the eyes, which can
cause severe eye damage. Always wear safety glasses while operating the mower and while
performing any adjustments or repairs.
W A R N I N G
Ensure that other people and pets remain at least 50 ft. (15 m) away when the mower is in use.
INSPECT THE CUTTING AREA
Remove all stones, sticks, wire, and other debris that might be thrown by the rotating blades.
OPERATING YOUR LAWN MOWER
Fig. 12Fig. 11
Power
Button
Bail
Switch

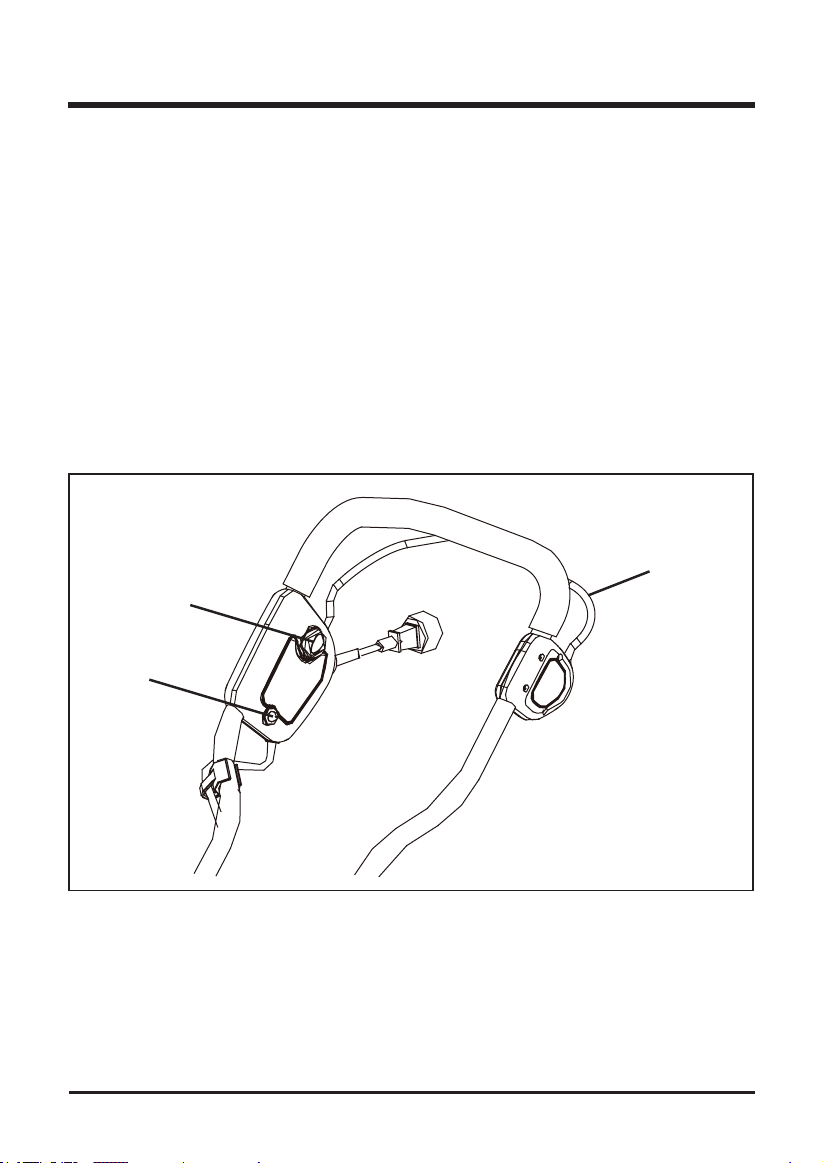

CIRCUIT BREAKER (See Figure 13)
This mower is equipped with a circuit breaker in order to protect the supply circuit from short-
circuit overloads.
Follow these steps if the circuit breaker switch pops out:
• Release the trigger switch, and allow the mower to stop and cool down for a minute.
• Press the circuit breaker in order to reset it. Resume operation.
Follow these steps if the switch pops out again shortly after the rst time:
• Allow the mower to stop and cool down for 15 to 30 minutes.
• After the mower has cooled down, press the circuit breaker in order to reset it. Resume
operation.
If the circuit breaker does not stay in, or if it continues to pop out during operation, contact the
Toll-Free Helpline, at 1-888-909-6757.
OPERATING YOUR LAWN MOWER
Fig. 13
20
Power
Button
Bail
Switch
Circuit
Breaker
21
ADJUSTING THE CUTTING HEIGHT (See Figure 14)
• Simply depress the lever (1) towards the wheel and move to desired position. This sets all
wheels to the same position.
• To raise the height, pull the height adjustment lever from the current stop position towards the
back of the mower.
• To lower the height, pull the height adjustment lever from the current stop position towards the
front of the mower.
OPERATING YOUR LAWN MOWER
Fig. 14
HIGH
LOW
1
22
OPERATING YOUR LAWN MOWER
ADJUSTING THE UPPER HANDLE HEIGHT (See Figure 15)
• Loosen the upper handle knob.
• Adjust the upper handle to the most comfortable of the 3 positions.
• Snug the upper handle knob and lock the cam lock handle to secure.
Upper handle knob
Cam lock handle
Lock
Fig. 15
23
SLOPE OPERATION
W A R N I N G
Do not mow a slope that has an angle of greater than 15° (a rise of approximately 2-1/2 ft. [75m]
every 10 ft. [3m]). Mow across the face of a slope, and never up and down.
• Slopes are a major factor related to slip and fall accidents that can result in severe injury.
Operation on slopes requires extra caution. If you feel uneasy on a slope, do not mow it. For
your safety, do not attempt to mow slopes greater than 15 degrees.
• Mow across the face of slopes, not up and down. Exercise extreme caution when changing
direction on slopes.
• Watch for holes, ruts, rocks, hidden objects, or bumps which can cause you to slip or trip. Tall
grass can hide obstacles. Remove all objects such as rocks, tree limbs, etc., which could be
tripped over or thrown by the blade.
• Always be sure of your footing. A slip and fall can cause serious personal injury. If you feel
you are losing your balance, release the switch control lever immediately.
• Do not mow near drop-offs, ditches, or embankments; you could lose your footing or balance.
OPERATING YOUR LAWN MOWER
24
MOWING TIPS
NOTE: A sharp blade will greatly enhance the performance of the mower, especially when cutting high grass.
Be sure to check the blade and to sharpen it at least once per year, as described in the Maintenance section.
• Verify that the lawn is free of stones, sticks, wires, and other objects that could damage
the blades or the motor. These objects could be accidentally thrown by the mower in any
direction, and could cause serious personal injury to the operator and to others.
• In order to prevent electric shock, do not operate the mower in damp or wet conditions.
• Do not mow in circles. Travel back and forth across the lawn.
• When cutting thick grass, reduce walking speed in order to allow for a more effective cut
and a proper discharge of the clippings. For a healthy lawn, always cut off one-third or
less of the total length of the grass. The average lawn should be approximately 1-1/2 to 2"
(3.8 to 5 cm) long during cool months, and more than 2" (5 cm) long during hot months. If
there is growth, the lawn should be cut in the fall.
MULCHING TIPS
NOTE: ALWAYS INSPECT AREA WHERE MOWER IS TO BE USED AND REMOVE ALL STONES,
STICKS, WIRE, BONES AND OTHER DEBRIS WHICH MIGHT BE THROWN THE ROTATING BLADE.
• Release switch to turn mower OFF when crossing any graveled area (stones can be
thrown by the blade).
• Set mower at highest cutting height when mowing on rough ground or in tall weeds.
• For effective mulching, do not cut wet grass, as it tends to stick to the underside of the
deck preventing proper mulching of grass clippings. New or thick grass may require a
narrower cut. The ground speed should be adjusted to the condition of the lawn. If mowing
has been delayed and the grass has been allowed to grow in excess of 4", mow twice to
reduce the grass height to 3-3/4" maximum.
• Walk at a good, steady pace. Overlap your rows. Don’t let the grass get too tall. If the
grass gets too long start at the highest cutting position and work down to the desired
cutting height.
W A R N I N G
If you strike a foreign object, stop the motor and disconnect the power cord. Thoroughly inspect
the mower for any damage. Repair any damage before operating the mower. Excessive vibration
of the mower during operation is an indication of damage. Thoroughly inspect the mower and
repair any damage before operating the mower.
OPERATING YOUR LAWN MOWER
25
CUTTING BLADE REPLACEMENT (See Figure 16-17)
W A R N I N G
Always protect your hands by wearing heavy gloves and/or wrapping the cutting edges with rags
or other materials when performing any maintenance on the blades.
• RELEASE THE BAIL SWITCH TO TURN THE MOWER OFF, WAIT FOR THE BLADE TO
COME TO A COMPLETE STOP, AND THEN UNPLUG THE POWER CORD.
• While wearing leather padded gloves, wedge a block of wood between the blade and the
mower deck in order to prevent the blade from turning when the nut is being removed.
• Using a 15-mm wrench or socket, loosen the blade nut (1) and remove the blade (4). Turn the
nut "COUNTERCLOCKWISE" to loosen it and "CLOCKWISE" to tighten it.
• Remove the blade nut (1), the square washer (2), the insulator washer (3), and the blade (4).
• To re-install the blade, position the blade with the cutting edges toward the ground. Assemble
the blade nut, the square washer, and the insulator washer as shown in following. Using a 15-
mm wrench or socket, turn the blade nut "CLOCKWISE” to secure the blade.
NOTE: Be sure to replace the parts in the exact order in which they were removed. When installing the
cuttingblade, verify that it is installed with the curved ends pointing toward the mower deck, and not toward
the ground. Refer to the schematic drawing on page 30 of this Manual.
MAINTENANCE
Fig. 17Fig. 16
Tighten
Loosen
1
2
3
4
26
MAINTENANCE
CLEAN THE MOWER
W A R N I N G
To reduce the risk of electric shock, do not expose the mower to water.
The underside of mower deck should be cleaned after each use as grass clippings, leaves, dirt
and other debris will accumulate causing rust and corrosion.
• Remove any buildup of grass and leaves on or around the motor cover (do not use water).
Wipe the mower clean with a dry cloth occasionally.
• If debris build up on the underside of the unit while in use, stop the motor and disconnect
it from the power supply. Tilt the mower forward, or on its side, and scrape it clean with an
appropriate tool.
27
STORAGE
To reduce the risk of electric shock, do not expose the mower to water.
• Make certain the power cord is disconnected.
• Clean mower as instructed in previous section.
• Inspect and replace/sharpen blade, if required. Refer to the Maintenance section.
• Store mower in a dry, clean area. Do not store next to corrosive materials, such as fertilizer and
rock salt.
• Wipe extension cord to remove any foreign substances such as oil or stains. Replace extension
cord if cut or damaged in any way.
• Wind cord in a series of equal loops to prevent it from tangling.
• Store mower indoors, in a cool, dry place, out of the reach of children. Do not cover lawn mower
with a solid plastic sheet. Plastic coverings trap moisture around the mower causing corrosion.
The handle may be folded away completely for storage. (See Figure 18)
• Lift up the cam locks (1) on the sides of the handle to unlock, and fold the upper handle (2)
down.
• Loosen the handle knobs (3), pull outwards on each side of the lower handle (4), and lift the
sides of the lower handle past the edges of the handle mounting brackets (5). Fold the lower
handle forward. Make sure not to bend or kink the power cord.
Fig. 18
4
5
2
3
1
Unlock
28
PROBLEM POSSIBLE CAUSE SOLUTION
Handle not in Carriage bolts not seated Adjust the height of the handle and make
position. properly. sure the carriage bolts are seated properly
Handle knobs not tightened. Tighten handle knobs.
Mower not starting. Extension cord not connected to Reconnect the cord and use the cord
the mower plug. retainer to keep the cord close to the
motor/blade control.
Extension cord not connected Connect the extension cord to a live
to power source. 120V AC, 60 HZ AC receptacle.
Tripped circuit breaker on Push to reset
mower
Motor control switch defective. Have motor control switch replaced
by an authorized service center.
Mower cutting Lawn is rough or uneven or Move the wheels to a higher position.
unevenly. height not set properly. All wheelsmust be placed in the same
cutting height for the mower to cut evenly.
Mower not mulching Wet grass clipping s sticking to Wait until the grass dries before mowing.
properly. the underside of the deck.
Mower hard to push. High grass, rear of mower Raise cutting height.
housing and blade dragging in
heavy grass, or cutting height
too low.
Mower vibrating at Blade is unbalanced. Balance the blade by grinding each
higher speed. cutting edge equally.
Bent motor shaft. Stop the motor, disconne ct the power
source, and inspect for dam age. Have
repaired by an authorized service center
before restarting.
TROUBLESHOOTING
29
GREENWORKS™ hereby warranties this product, to the original purchaser with proof of
purchase, for a period of four (4) years against defects in materials, parts or workmanship.
GREENWORKS™, at its own discretion will repair or replace any and all parts found to be
defective, through normal use, free of charge to the customer. This warranty is valid only for
units which have been used for personal use that have not been hired or rented for industrial/
commercial use, and that have been maintained in accordance with the instructions in the
owners’ manual supplied with the product from new.
ITEMS NOT COVERED BY WARRANTY:
1. Any part that has become inoperative due to misuse, commercial use, abuse, neglect,
accident, improper maintenance, or alteration; or
2. The unit, if it has not been operated and/or maintained in accordance with the owner's
manual; or
3. Normal wear, except as noted below;
4. Routine maintenance items such as lubricants, blade sharpening;
5. Normal deterioration of the exterior nish due to use or exposure.
GREENWORKS HELPLINE (1 888 90WORKS):
Warranty service is available by calling our toll-free helpline, 9 a.m. to 5 p.m. EST. Monday –
Friday at 1 888 909 6757 (1 888 90WORKS).
TRANSPORTATION CHARGES:
Transportation charges for the movement of any power equipment unit or attachment are the
responsibility of the purchaser. It is the purchaser’s responsibility to pay transportation charges
for any part submitted for replacement under this warranty unless such return is requested in
writing by GREENWORKS.
LIMITED FOUR-YEAR WARRANTY
30
EXPLODED VIEW
31
ITEM NO. PART NO. DESCRIPTION QTY
1 31301227-3 Deck 1
2 34106236 Rear enclosure 1
3 32201235 Screw 6
4 3410438-1 Side discharge chute 1
5 31107227 Side discharge cover assy. 1
5-1 3410338-2 Side discharge cover 1
5-2 3320338 Side discharge axle 1
5-3 3420207 Rubber bushing 2
5-4 3340237 Spring 1
5-5 3330637 Side discharge bracket 1
5-6 3220136 Bolt 2
6 33305222-2 Height adjustment plate(R) 1
7 3410137 Cord guide 1
8 3221137 Screw 2
9 3410403 Cord clip 1
10 3220346 Screw 2
11 33304235 Spring for rear cover (L) 1
12 3320138-1 Axle for rear cover 1
13 34103236-2 Rear cover 1
14 3220511 Screw 1
15 3220850 Screw 2
16 3410290-1 Resistance clamp 1
17 3220439 Nut 2
18 3220951 Screw 2
19 33302235 Spring for rear cover (R) 1
20 3420436 Spring bushing 2
21 3290506 Clip 1
22 3331035 Resistance heat radiator 1
23 3290105 Nut 1
24 3290675 Spring washer 1
25 36901227 Resistor & bracket 1
26 3331035 Rectier heat radiator 1
27 3610138-1 12 A motor assy. 1
27-1 3110638-3 Brush 2
28 32205227 Bolt 1
29 3690135 Rectier (KBPC2504) 1
30 3220404 Screw 1
31 34103222-1 Motor cover 1
32 3420235 Cover seal 1
33 34105222-3 Motor vent 1
34 3220435 Screw 4
PARTS LIST
32
PARTS LIST
ITEM NO. PART NO. DESCRIPTION QTY
35 31104227-1 Grass catcher assy. 1
35-1 34902237-2 Grass catcher 1
35-2 33301237-1 Grass catcher bracket 1
36 34104236 Rear plug 1
37 3420138-2 Rear shield 1
38 3220511 Screw 2
39 33305227-1 New cord clamp 2
40 3221237 Nut 2
41 33302222-2 Height adjustment plate (L) 1
42 3221637 Bolt 4
43 34114227-2 Height adjustment handle (lower) 1
44 34113227-2 Height adjustment handle (upper) 1
45 31103222 Height adjustment bar 1
46 33401222 Spring 1
47 3290135 Cir-clip 1
48 3330394-1 Lower handle 1
49 3411135 Cord hook 2
50 3410835-8 Handle knob 2
51 31101466-1 Cam lock assy. 2
52 31103227-2 Upper handle and switch assy. 1
53 34202227-5 10" Wheel cover 2
54 3290440 Clip Ф12 4
55 34202227-7 Wheel (10 X 1.5) 2
56 3320639 Wheel bushing 2
57 3220537 Nut 2
58 3340137-2 Spring 1
59 31102222 Rear wheel axle 1
60 34112227-1 Link bar decoration (R) 1
61 34111227-1 Link bar decoration (L) 1
62 32204227 Screw 4
63 33303227-2 Link bar 1
64 31101222 Front wheel axle 1
65 3320237 Wheel bushing 2
66 3220737 Nut M10 4
67 3220575 Screw 4
68 3220439 Nut M5 4
69 32205227 Bolt M6 X 18 3
70 3320238 Motor bushing 1
71 3410237 Fan 1
72 3331238-2 20’’ blade 1
33
PARTS LIST
ITEM NO. PART NO. DESCRIPTION QTY
73 3410535 Blade bafe 1
74 3331435 Square bafe 1
75 3221037 Nut 1
76 34203229-5 Wheel (7 X 1.5) 2
77 3331638 Washer 4
78 34120227 Cord retainer 1
79 34203229-7 7" Wheel cover 2
34
NOTES
35
NOTES
TOLL-FREE HELPLINE: 1-888-90WORKS
(888.909.6757)
Rev: 01 (11-20-09) Printed in China on 100% Recycled Paper
