USER’S MANUAL
Electric Lawn Mower
ET1279
2
www.costway.com
Contact Us!
Do NOT return this item.
Contact our friendly customer service department for help first.
E-mail
US: cs.us@costway.com
UK: cs.uk@costway.com
Before You StartBefore You Start
Please read all instructions carefully.
Retain instructions for future reference.
Seperate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled near to the
area in which they will be placed in use, to avoid moving the product
unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product away from
babies and children as they potentially pose a serious choking hazard.
2
www.costway.com
Contact Us!
Do NOT return this item.
Contact our friendly customer service department for help first.
E-mail
US: cs.us@costway.com
UK: cs.uk@costway.com
Before You StartBefore You Start
Please read all instructions carefully.
Retain instructions for future reference.
Seperate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled near to the
area in which they will be placed in use, to avoid moving the product
unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product away from
babies and children as they potentially pose a serious choking hazard.
11
www.costway.com
1. Machine Accessories Display
Installation and Use Instructions
11
www.costway.com
1. Machine Accessories Display
Installation and Use Instructions
13
www.costway.com
12
www.costway.com
2. Machine Installation
3. Startup Steps
(1) Unscrew the lower
handrail screw.
(2) Insert the lower
handrail into the fixing
hole of the mower and
tighten the screw.
(3) Put the hook into the
upper handrail.
(1) Press and hold the
round power button.
(2) Hold the start switch
at the same time.
(3) Release the power
button after startup.
(7) Cover the upper and lower lids of
the grass basket.
(8) Turn over the grass basket cover
board and install the grass basket.
(4) Fix the upper and
lower handrail bars with
fan screws.
(5) Fix the power cord of
machine body with the
triangle clamp.
(6) Fix the tire with the
wheel shaft screw (only
1200W lawn mower
needs to be installed).
13
www.costway.com
12
www.costway.com
2. Machine Installation
3. Startup Steps
(1) Unscrew the lower
handrail screw.
(2) Insert the lower
handrail into the fixing
hole of the mower and
tighten the screw.
(3) Put the hook into the
upper handrail.
(1) Press and hold the
round power button.
(2) Hold the start switch
at the same time.
(3) Release the power
button after startup.
(7) Cover the upper and lower lids of
the grass basket.
(8) Turn over the grass basket cover
board and install the grass basket.
(4) Fix the upper and
lower handrail bars with
fan screws.
(5) Fix the power cord of
machine body with the
triangle clamp.
(6) Fix the tire with the
wheel shaft screw (only
1200W lawn mower
needs to be installed).
14
www.costway.com
4. Mowing Height Adjustment
1200W lawn mower adjusts the three-level height of mowing by wheel mounting.
1600W lawn mower adjusts the three-level height of mowing by moving the
wheel axle.
15
www.costway.com
14
www.costway.com
4. Mowing Height Adjustment
1200W lawn mower adjusts the three-level height of mowing by wheel mounting.
1600W lawn mower adjusts the three-level height of mowing by moving the
wheel axle.
15
www.costway.com
17
Welcome to visit our website and purchase our quality products!
Reward Points
Exclusive Customer Service
Personalized Recommendaons
Permanent Shopping Cart
Order History
We would like to extend our hearelt thanks to
all of our customers for taking me to assemble
this product and giving us valuable feedbacks.
www.costway.com
Your suggestions and comments for COSTWAY are really important to us!
We sincerely solicit you to go back to our shop and leave a good rating in just a
simple click. It would be quite encouraging if you could kindly do so like below:
February 24, 2019
Great products so far. Fast delivery, easy setup, and working without any issues.
Great products so far
With your inspiring rating, COSTWAY will be more consistent to offer you
EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE!
US office: Fontana, California
UK office: Ipswich
www.costway.com
16
www.costway.com

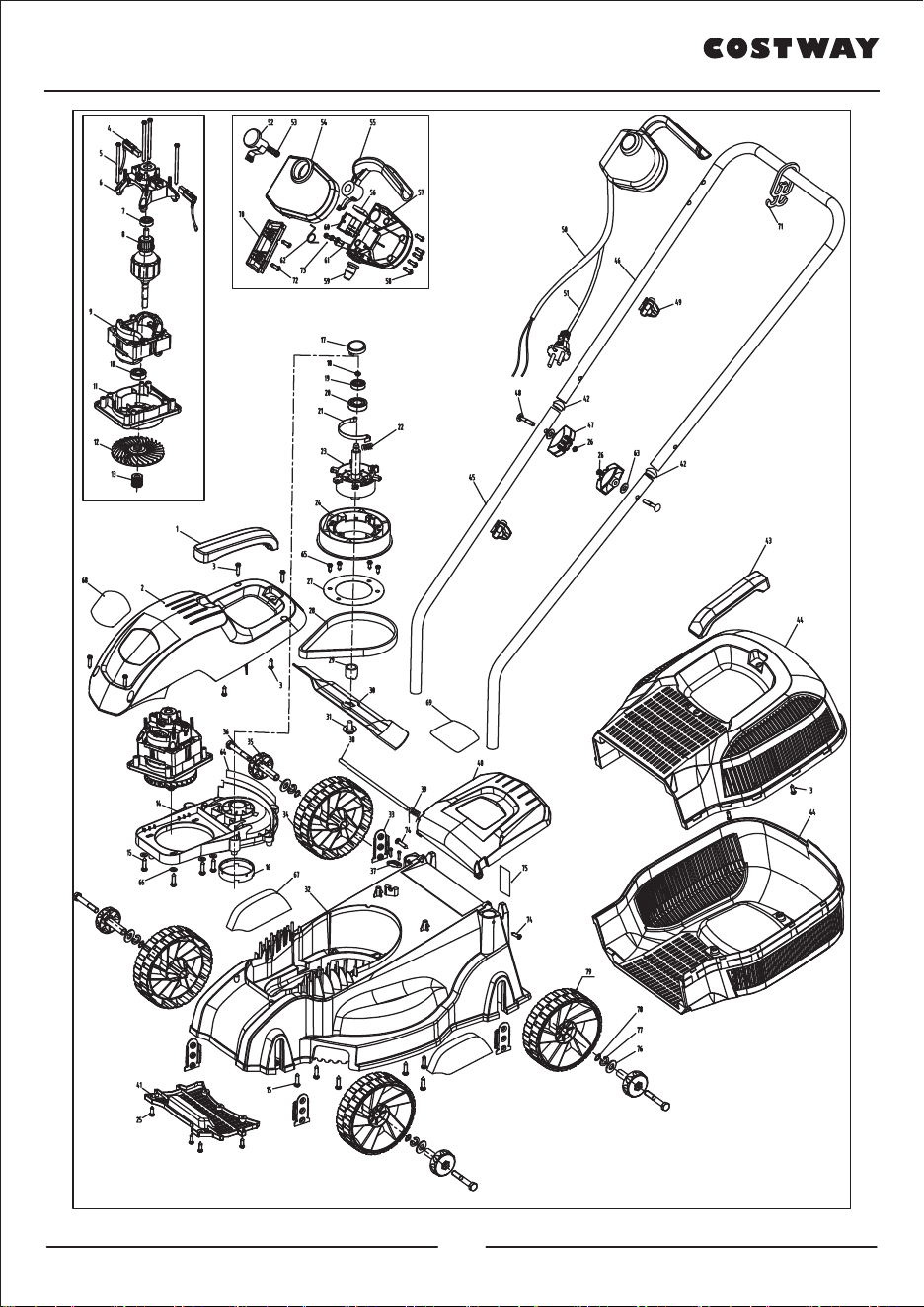

SPARE PART SET
1 Carrying handle 1
2 Top Cover 1
3 Cross head Tapping screw 8
4 Brush set 2
5 Cross head Tapping screw 4
6 Motor end cap 1
7 Deep groove ball bearing 1
8 Armature 1
9 Stator 1
10 Deep groove ball bearing 1
11 Motor front cap 1
12 Fan 1
13 Belt roller 1
14 Motor holder 1
15 Cross head Tapping screw 10
16 brake hoop 1
17 bearing cover 1
18 nut 1
19 Deep groove ball bearing 1
20 Deep groove ball bearing 1
21 Brake steel belt 1
22 Brake spring 1
23 Br
ake core 1
24 big belt wheel 1
25 Cross head Tapping screw 6
26 2
27 Belt wheel cover 1
28 Belt 1
29 Blade washer 1
30 Blade 1
31 Blade bolt with flange 1
32 Base 1
33 Wheel height adjust plate 4
34 Wheel 4
35 Wheel Bolt 4
36 Hexagon screw 4
37 Strain relief 1
38 Grass box rotation shaft 1
39 Grass box spring 1
40 Grass box cover 1
41 Weight adding box cover 1
42 Pipe plug 2
43 Grass box handle 1
44 Grass box 2
45 Lower push handle 2
46 Upper push handle 1
47 Handle knob 2
48 Square nick screw 2
49 Cable clip 2
50 Cable 1
51 Plug 1
52 switch safety button 1
53 switch box spring 1
54 switch front cover 1
55 switch trigger 1
56 capacitor 1
57 switch rear cover 1
58 Cross head Tapping screw 5
59 Cord guard 1
60 switch 1
61 Cable clamp 1
62 spring 1
63 Washer 2
64 1
65 Cross head T
apping screw 4
66 Washer 4
67 sponge 2
68 logo label 1
69 warning label 1
70 1
71 cable hook 1
72 Cross head Tapping screw 2
73 Cross head Tapping screw 3
74 Tapping screw 2
75 nameplate 1
76 Washer 4
77 Spring Washer 4
78 Circlip 4
17
Welcome to visit our website and purchase our quality products!
Reward Points
Exclusive Customer Service
Personalized Recommendaons
Permanent Shopping Cart
Order History
We would like to extend our hearelt thanks to
all of our customers for taking me to assemble
this product and giving us valuable feedbacks.
www.costway.com
Your suggestions and comments for COSTWAY are really important to us!
We sincerely solicit you to go back to our shop and leave a good rating in just a
simple click. It would be quite encouraging if you could kindly do so like below:
February 24, 2019
Great products so far. Fast delivery, easy setup, and working without any issues.
Great products so far
With your inspiring rating, COSTWAY will be more consistent to offer you
EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE!
US office: Fontana, California
UK office: Ipswich
www.costway.com
16
www.costway.com
SPARE PART SET
1 Carrying handle 1
2 Top Cover 1
3 Cross head Tapping screw 8
4 Brush set 2
5 Cross head Tapping screw 4
6 Motor end cap 1
7 Deep groove ball bearing 1
8 Armature 1
9 Stator 1
10 Deep groove ball bearing 1
11 Motor front cap 1
12 Fan 1
13 Belt roller 1
14 Motor holder 1
15 Cross head Tapping screw 10
16 brake hoop 1
17 bearing cover 1
18 nut 1
19 Deep groove ball bearing 1
20 Deep groove ball bearing 1
21 Brake steel belt 1
22 Brake spring 1
23 Br
ake core 1
24 big belt wheel 1
25 Cross head Tapping screw 6
26 2
27 Belt wheel cover 1
28 Belt 1
29 Blade washer 1
30 Blade 1
31 Blade bolt with flange 1
32 Base 1
33 Wheel height adjust plate 4
34 Wheel 4
35 Wheel Bolt 4
36 Hexagon screw 4
37 Strain relief 1
38 Grass box rotation shaft 1
39 Grass box spring 1
40 Grass box cover 1
41 Weight adding box cover 1
42 Pipe plug 2
43 Grass box handle 1
44 Grass box 2
45 Lower push handle 2
46 Upper push handle 1
47 Handle knob 2
48 Square nick screw 2
49 Cable clip 2
50 Cable 1
51 Plug 1
52 switch safety button 1
53 switch box spring 1
54 switch front cover 1
55 switch trigger 1
56 capacitor 1
57 switch rear cover 1
58 Cross head Tapping screw 5
59 Cord guard 1
60 switch 1
61 Cable clamp 1
62 spring 1
63 Washer 2
64 1
65 Cross head T
apping screw 4
66 Washer 4
67 sponge 2
68 logo label 1
69 warning label 1
70 1
71 cable hook 1
72 Cross head Tapping screw 2
73 Cross head Tapping screw 3
74 Tapping screw 2
75 nameplate 1
76 Washer 4
77 Spring Washer 4
78 Circlip 4
