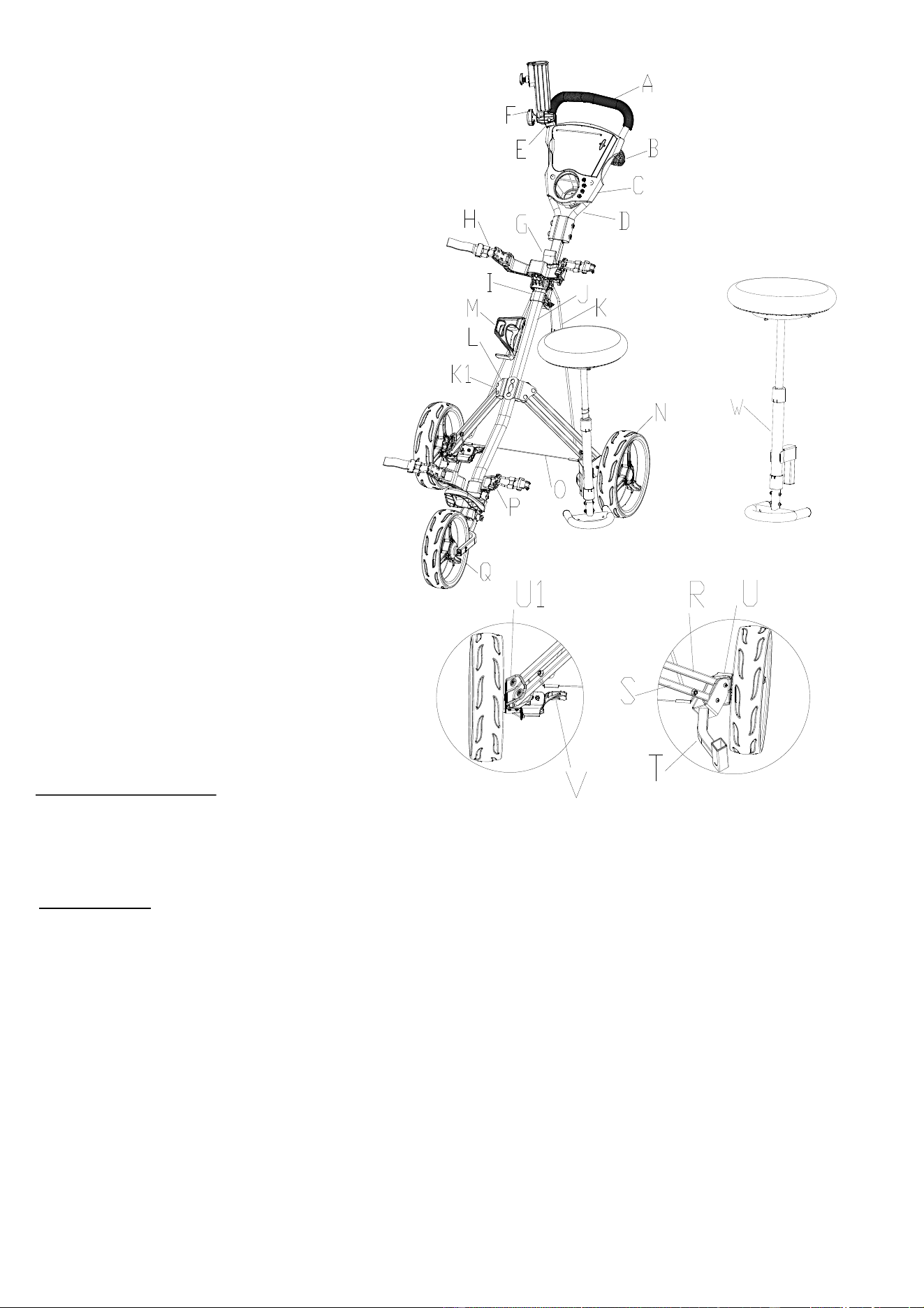

PARTS LIST
A
Foam Handle
B
Net Bag
C
Scorecard Holder
D
Hand Grip
E
Umbrella Holder Base
F
Umbrella Holder
G
Sliding Lock
H
Upper Bracket
I
Joint
J
Main Frame Tube
K
Right Weight Stabilizer
K1
Left Weight Stabilizer
L
Leg Bracket
M
Beverage Holder
N
Rear Wheel
O
Anti-Splay Wire
P
Lower Bracket
Q
Front Wheel
R
2 Holes Leg Frame
S
3 Holes Leg Frame
T Seat Fixed Bar
U
Right Wheel Locking Mechanism
U1
Left Wheel Locking Mechanism
V Footbrake
W Seat
Warning:
For your own safety,please read and understand these warnings and keep
this user guide for future reference.
Always make sure the cart is fully extended and locked before use.
Always make sure the cart is folded and locked properly before lifting or
transporting.
Do not run while using this product.
Do not use accessories other than those designed for use with your carts.
Keep all packing materials away from children and recycle where possible or
where required by law.
Warning:Keep hands and fingers away
from moving or sliding parts!
Always keep control of the buggy - Do not let it run down hills without full control.
MAINTENANCE
To clean, wipe cart with a soft,dry cloth. Car polish may be used
to maintain finish. Lubricate moving parts every 6 months.
202352
M6*40mm
screw
1
2
3
4
Fig.13
Fig.2
Press the button to release the
front wheel, then fold until the pin
inserts in the hole as Fig.8and 9
Move the slide lock
downside and lock to
upper bracket as Fig.2
Lift the handle to level
position as Fig.1
Fig.1
Fig.12
Fig.14
Adjustable handle
with 4 positions
height as Fig.13
Press the red button
and adjust the slide
lock to required handle
height as Fig.12
Fig.9
Fig.7
Fig.4
Fig.5
Fig.10
Press the button on the wheel
lock mechanism to assembly
rear wheel as Fig.3
Fig.11 shows the
folded position
Assembly the seat as Fig.6.
Fig.3
Fig.6
Fig.11
Move the slide lock
up to release the
handle as Fig.10

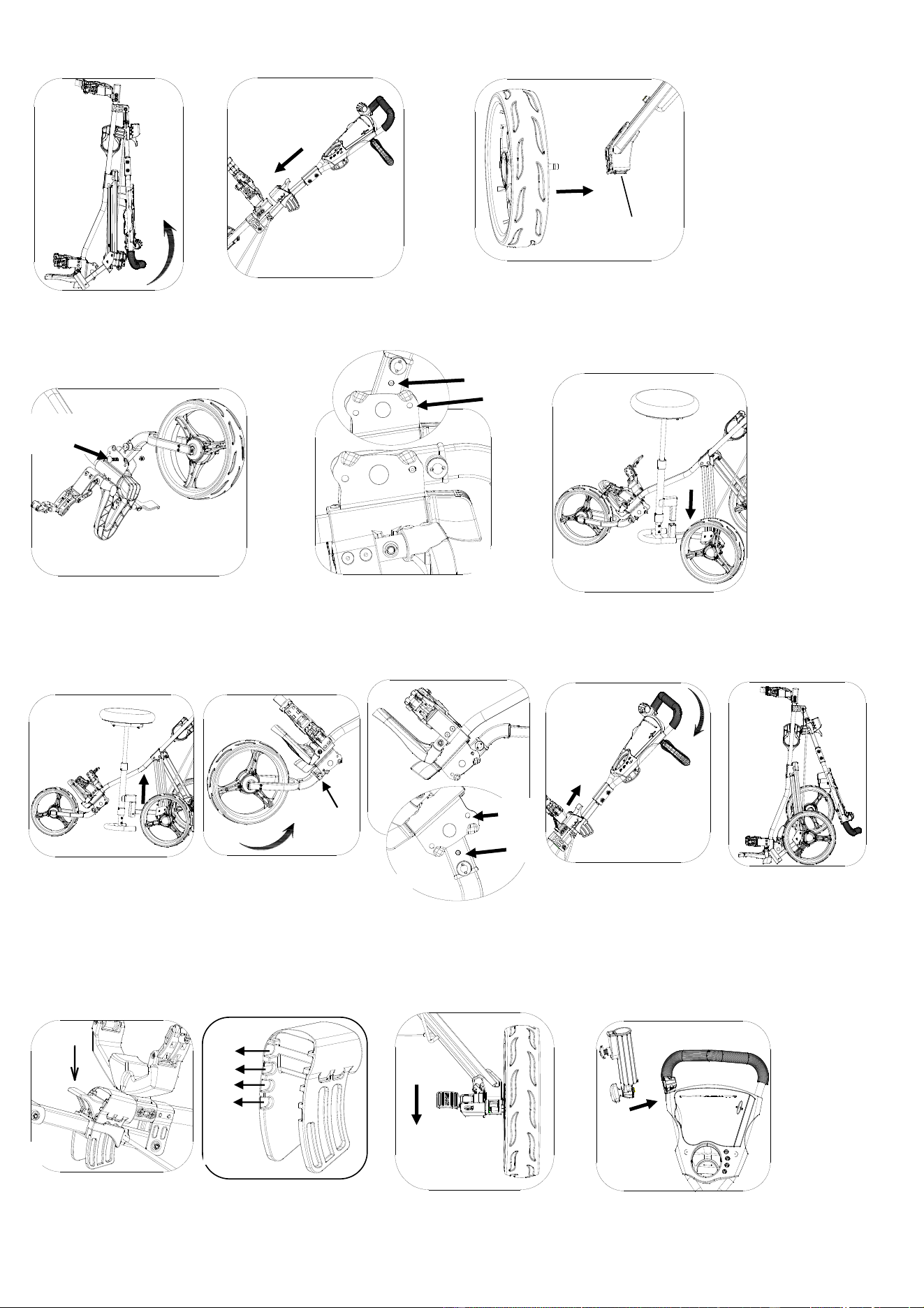

Assembly front wheel set into the lower frame by 1pc M6*40mm screw
and nut as Fig.4,then rotate until the pin inserts in the hole as Fig.5
Umbrella Holder
Assembly
To Put In Use:
Simply attach the umbrella
holder onto the cart in fig. 15
Foot Brake
Mechanism
Slide Lock Mechanism
Folding Steps
Assembly Details
button
pin
hole
pin
hole
button
Fig.15
Fig.8
Release the seat
as Fig.7.
Push on the brake pedal to
stop the rear wheel and pull
off to release as Fig.14
Front Wheel Adjustment Mechanism

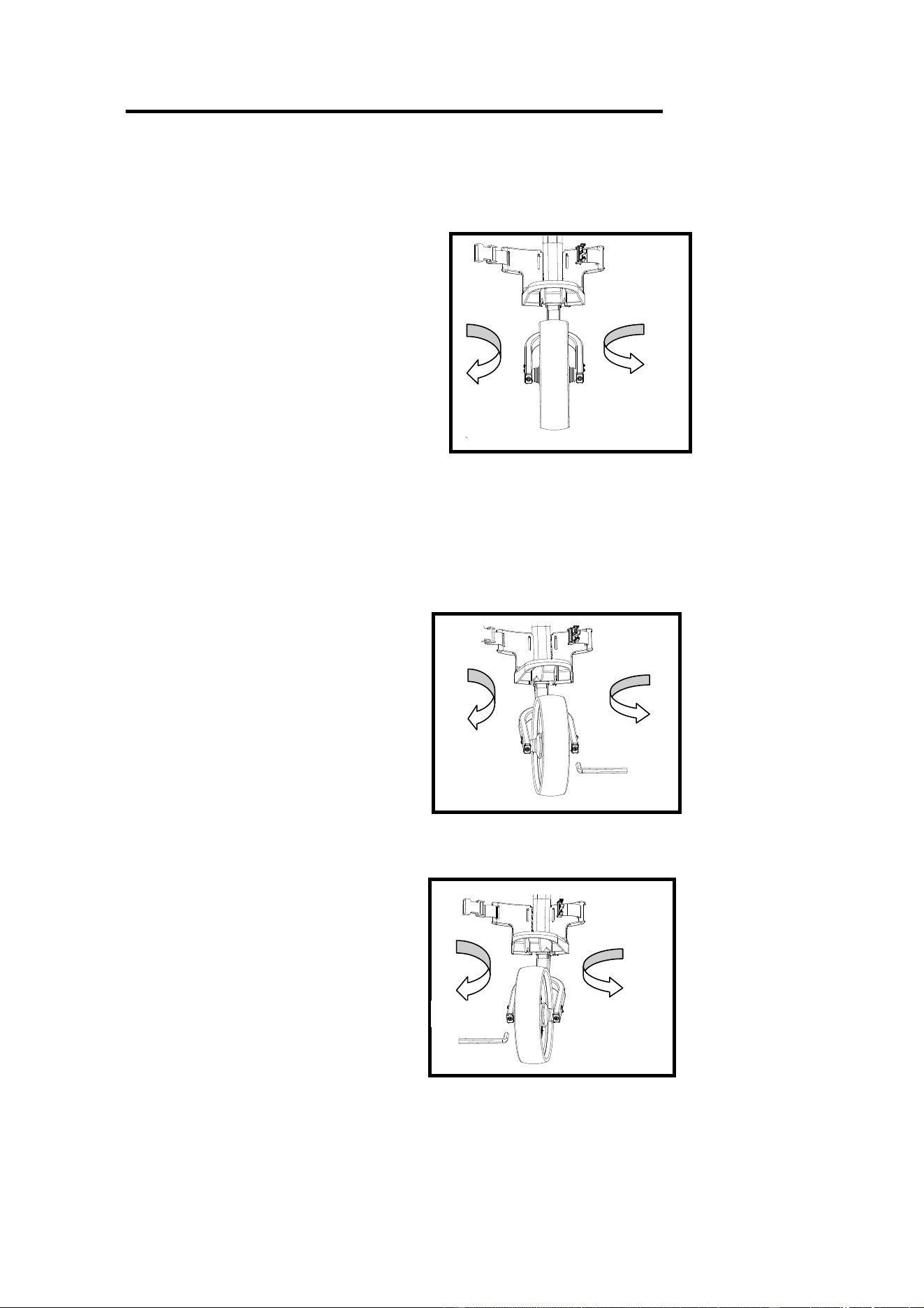

1.If during use, you find the
cart veers to the right or
left,please see the instructions
below to correct this
problem.(Fig.1)
2.If the cart veers to the left,
face the front wheel of the
cart and use the Allen
wrench provided to screw
the right bolt
counterclockwise or the left
bolt clockwise until the front
wheel is centered between
the front fork.(Fig.2)
3.If the cart veers to the right,
face the front wheel of the cart
and use the Allen wrench
provided to screw the left bolt
counterclockwise or the right
bolt clockwise until the front
wheel is centered between the
front fork.(Fig.3)
Fig .1
Fig .2
Fig .3
Left
Left
Right
Right
Left
Right
