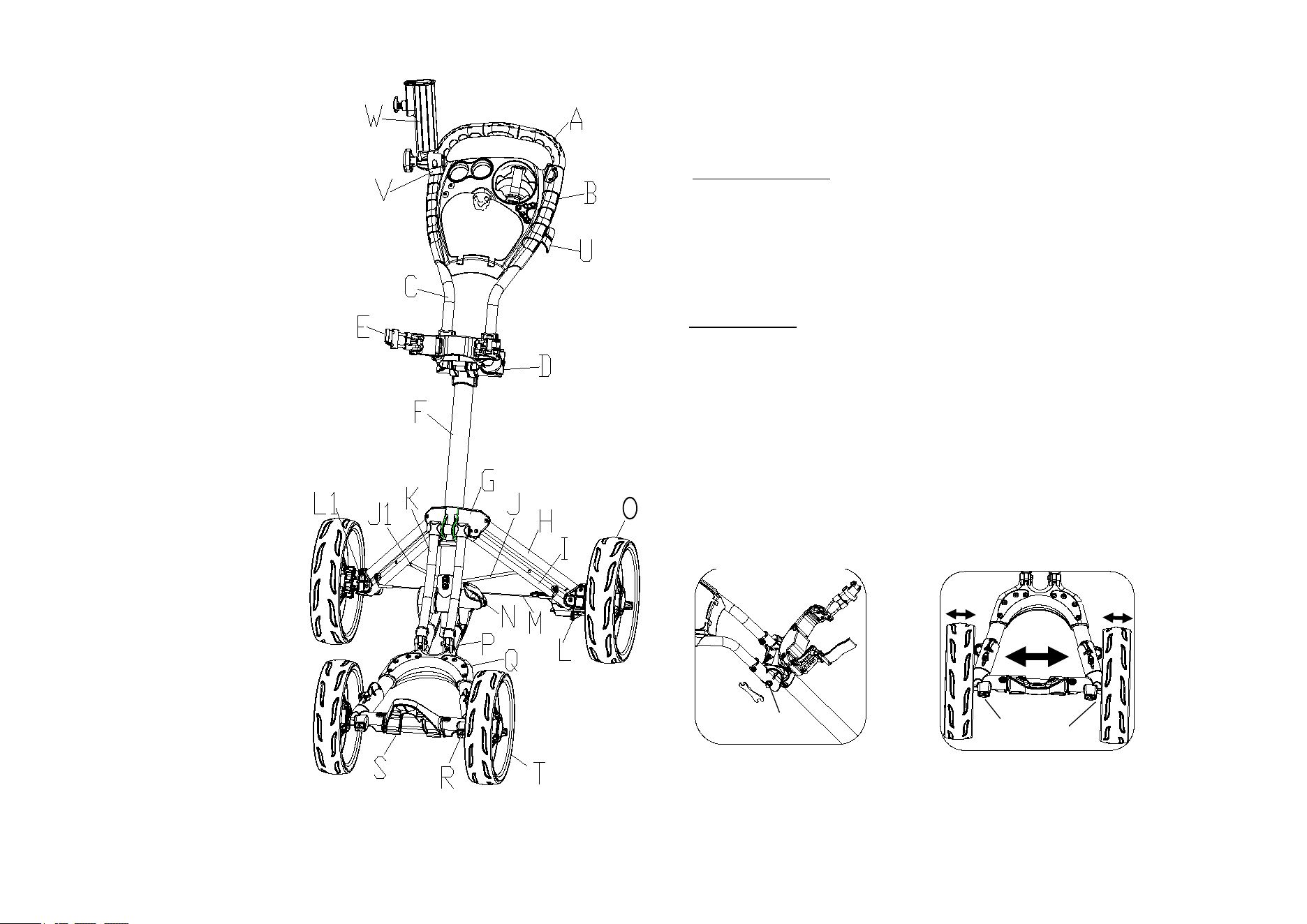

A
PVC grip
B
Scorecard holder
C
Handle tube
D
Adjustable handle mechanism
E
Upper bag holder bracket
F
Main upper frame tube
G
Leg bracket
H
2 holes leg frame
I
4 holes leg frame
J
Right weight stabilizer
J1
Left weight stabilizer
K
Slippery connecting rods
L
Right wheel locking mechanism
L1
Left wheel locking mechanism
M
Anti-splay wire
N
Lower frame mechanism
O
Rear wheel
P
Lower frame
Q
Front fork
R
Front wheel locking mechanism
S
Lower bag holder bracket
T
Front wheel
U
Umbrella holder storage rack
V
Umbrella holder base
W
Umbrella holder
PARTS LIST
GC332616
MAINTENANCE
To clean to the cart, wipe with a soft, dry cloth. Car polish may be
used to maintain finish. Lubricate moving parts every 6 months.
Warning:
For your own safety, please read and understand these warnings and
keep this user guide for future reference.
Always make sure the cart is fully extended and locked before use.
Always make sure the cart is folded and locked properly before lifting or
transporting.
Do not run while using this product.
Do not use accessories other than those designed for use with this cart.
Keep all packing materials away from children and recycle where possible
or where required by law.
Front wheel
Press the button to pull out
the wheel forward two sides,
so it can suit for different bag
size as Fig.B.
Fig.B
Fig.A
button
Handle Joint Mechanism
The customer can adjust the
nut on the handle joint
mechanism by wrench tool
when they found the handle
joint is so loose as Fig.A
nut
Fig.1

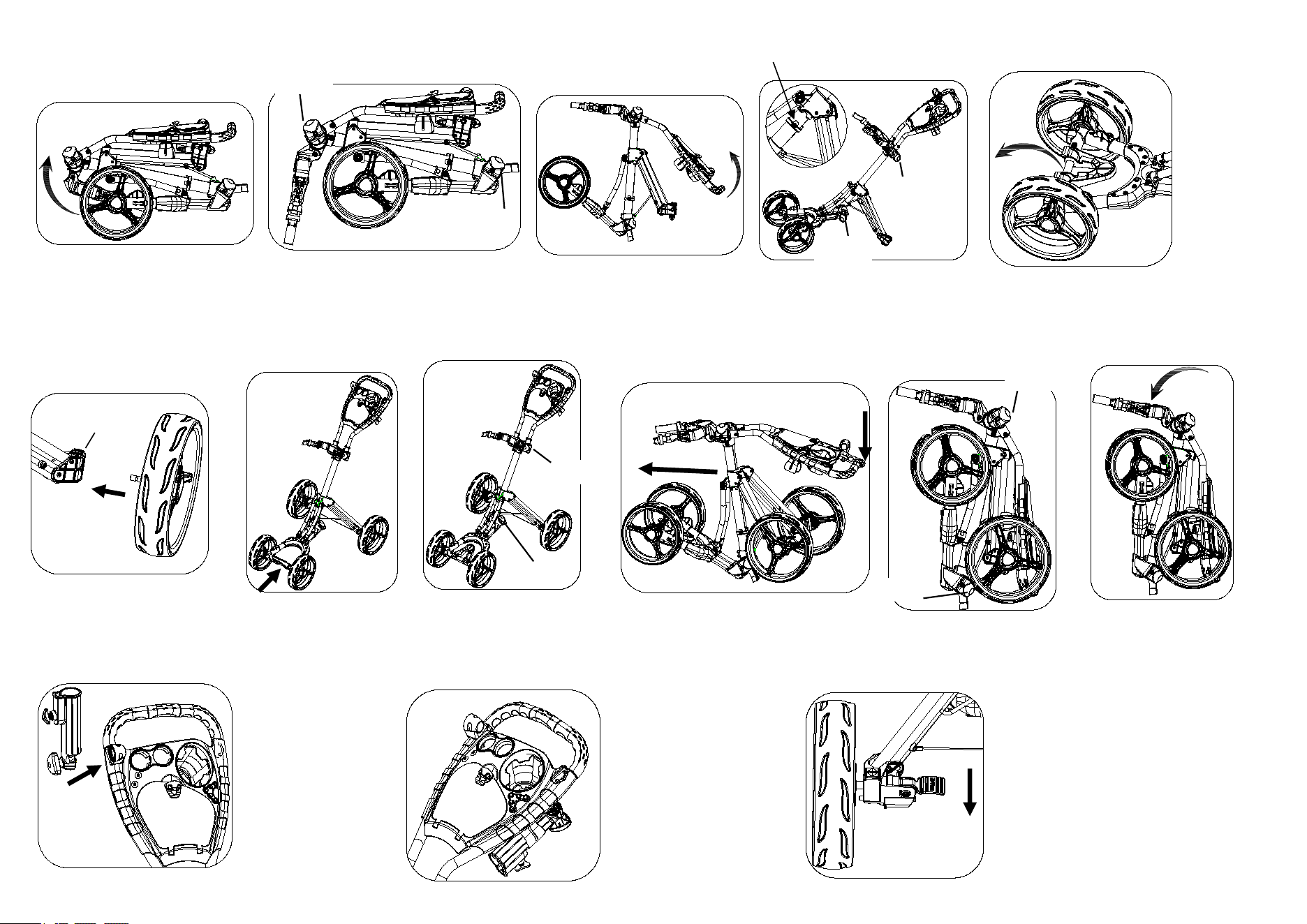

UNFOLDING
FOLDING STEP
Fig.2
Fig.10
Fig.3
Fig.4
Fig.5
Fig.7
Open the top bracket as
Fig.1
Unfolding the handle and low frame, and click to
sticking point, fixed the buckle on the handle and
Assemble the rear
Release the buckle for
the handle joint and low
bracket as Fig.8
Fixed the buckle as
Fig.10.
Folding the handle and push
forward the frame as Fig.9, so
the handle can fold in the
sticking point
Fig.8
Fig.11
Release the buckle for the
low frame and handle joint
mechanism as Fig.2
Folding the top bracket
as Fig.11 and finish the
To store：
Attach the
umbrella holder to
the storage rack
on the handle as in
Fig. 13
Fig.12
Fig.13
Fig.14
UMBRELLA HOLDER
Folding the low
bracket as Fig.7
Unfolding the bottome
bracket as Fig.5
Fig.6
Fig.9
Buckle
FOOT BRAKE MECHANISM
Push on the brake pedal
to stop the rear wheel
and pull off to release as
Fig.14
To put in use：
Simply attach the
umbrella holder
onto the cart as in
Fig. 12
button
Buckle
Buckle
Buckle
Buckle
Buckle
Buckle
Buckle
Left
Right
Left
Right
A
B

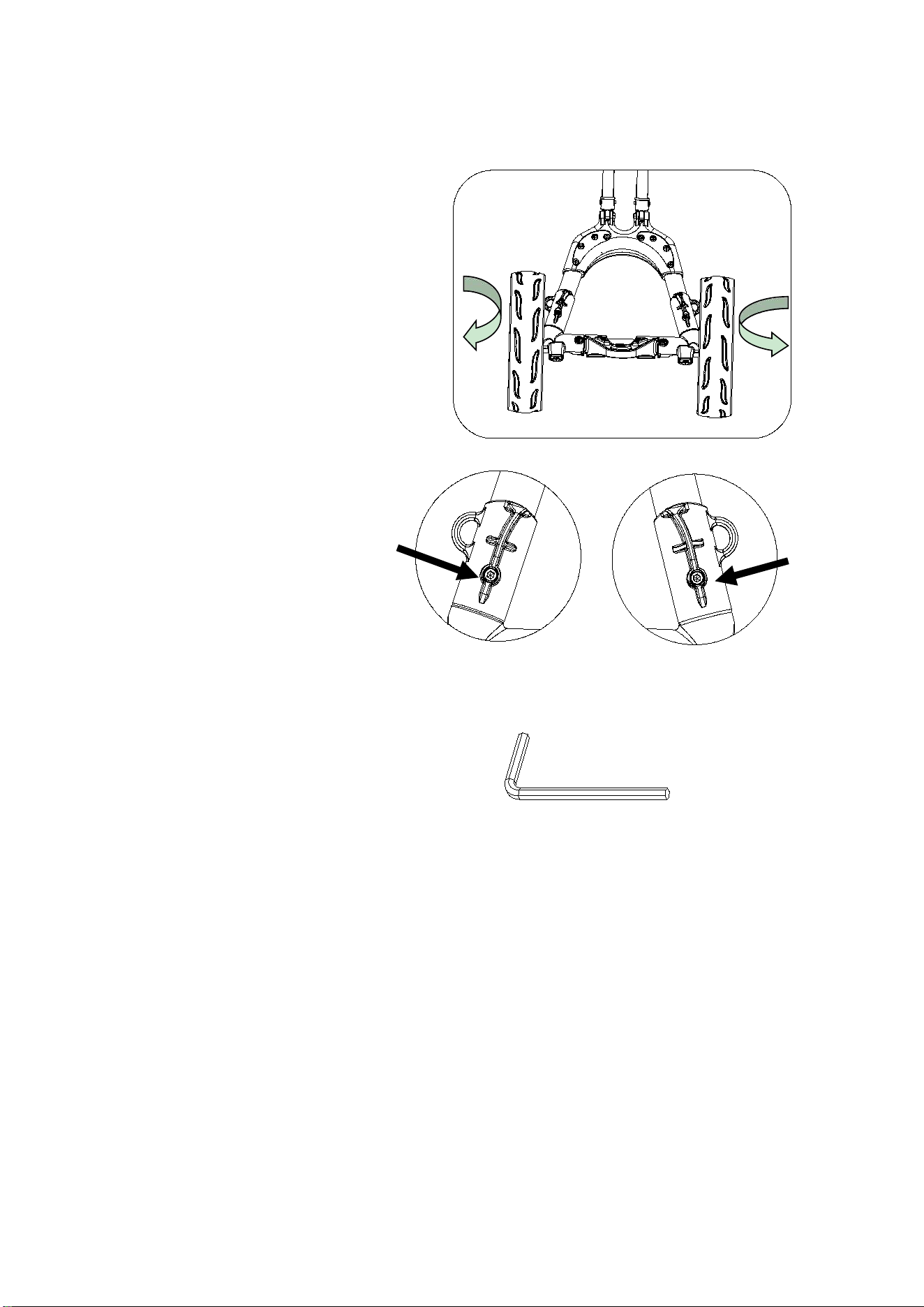

If the cart veers to the left, please use the hex
wrench to turn the screw A counterclockwise and
Screw B clockwise to adjust the alignment.
If the cart veers to the right, please use the hex
wrench to turn Screw A clockwise and screw B
counterclockwise to adjust the alignment.
Alignment adjusting screws A/B
