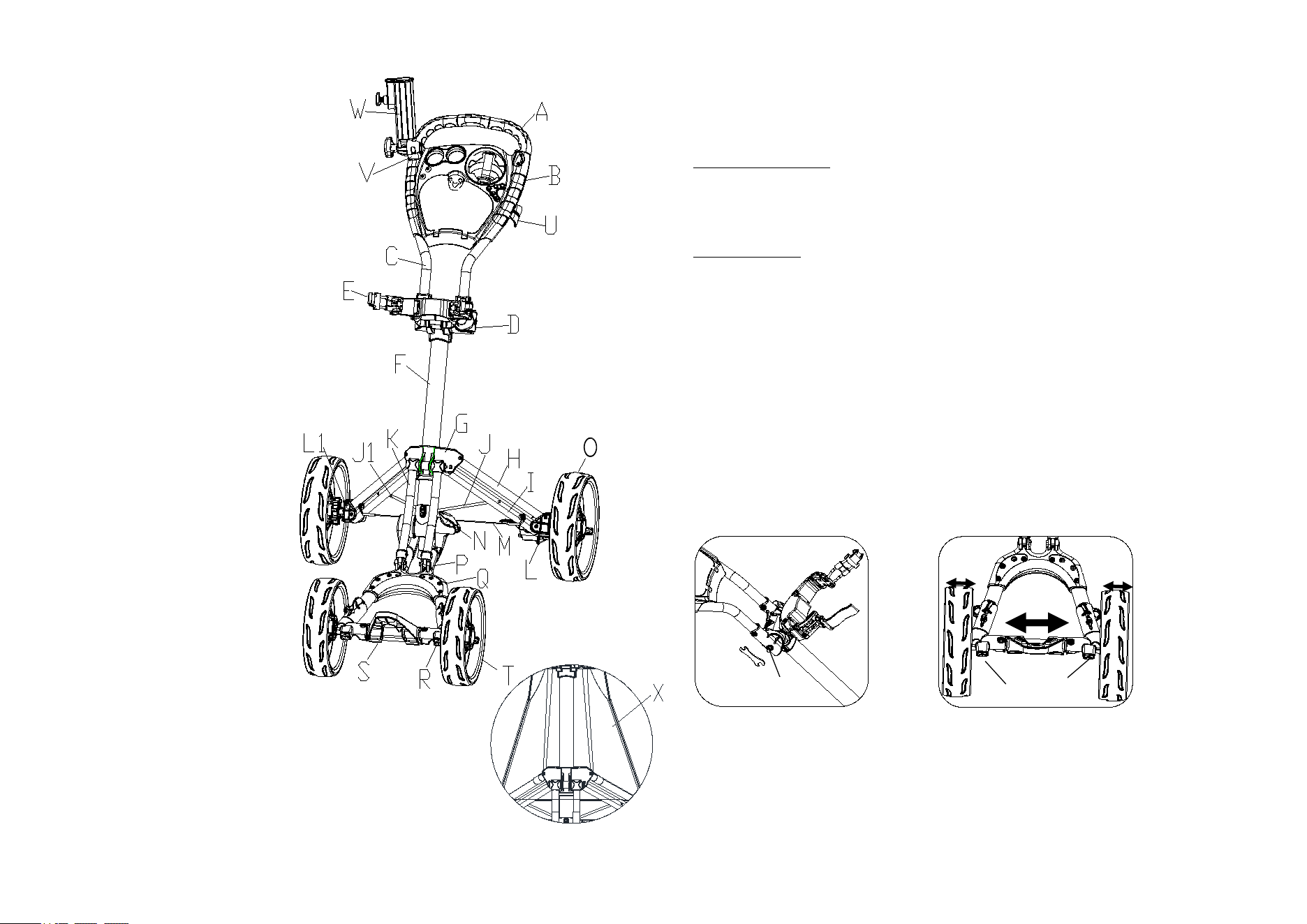

A
PVC grip
B
Scorecard holder
C
Handle tube
D
Adjustable handle mechanism
E
Upper bag holder bracket
F
Main upper frame tube
G
Leg bracket
H
2 holes leg frame
I
4 holes leg frame
J
Right weight stabilizer
J1
Left weight stabilizer
K
Slippery connecting rods
L
Right wheel locking mechanism
L1
Left wheel locking mechanism
M
Anti-splay wire
N
Lower frame mechanism
O
Rear wheel
P
Lower frame
Q
Front fork
R
Front wheel locking mechanism
S
Lower bag holder bracket
T
Front wheel
U
Umbrella holder storage rack
V
Umbrella holder base
W
Umbrella holder
X
Basket
PARTS LIST
GC332632
MAINTENANCE
To clean to the cart, wipe with a soft, dry cloth. Car polish may be
used to maintain finish. Lubricate moving parts every 6 months.
Warning:
For your own safety, please read and understand these warnings and
keep this user guide for future reference.
Always make sure the cart is fully extended and locked before use.
Always make sure the cart is folded and locked properly before lifting
or transporting.
Do not run while using this product.
Do not use accessories other than those designed for use with this
cart.
Keep all packing materials away from children and recycle where
possible or where required by law.
Front wheel
Press the button to pull out
the wheel forward two sides,
so it can suit for different
bag size as Fig.B.
Fig.B
Fig.A
button
Handle Joint Mechanism
The customer can adjust
the nut on the handle
joint mechanism by
wrench tool when they
found the handle joint is
so loose as Fig.A.
nut
Fig.1
UNFOLDING
FOLDING STEP
Fig.2
Fig.10
Fig.3
Fig.4
Fig.5
Fig.7

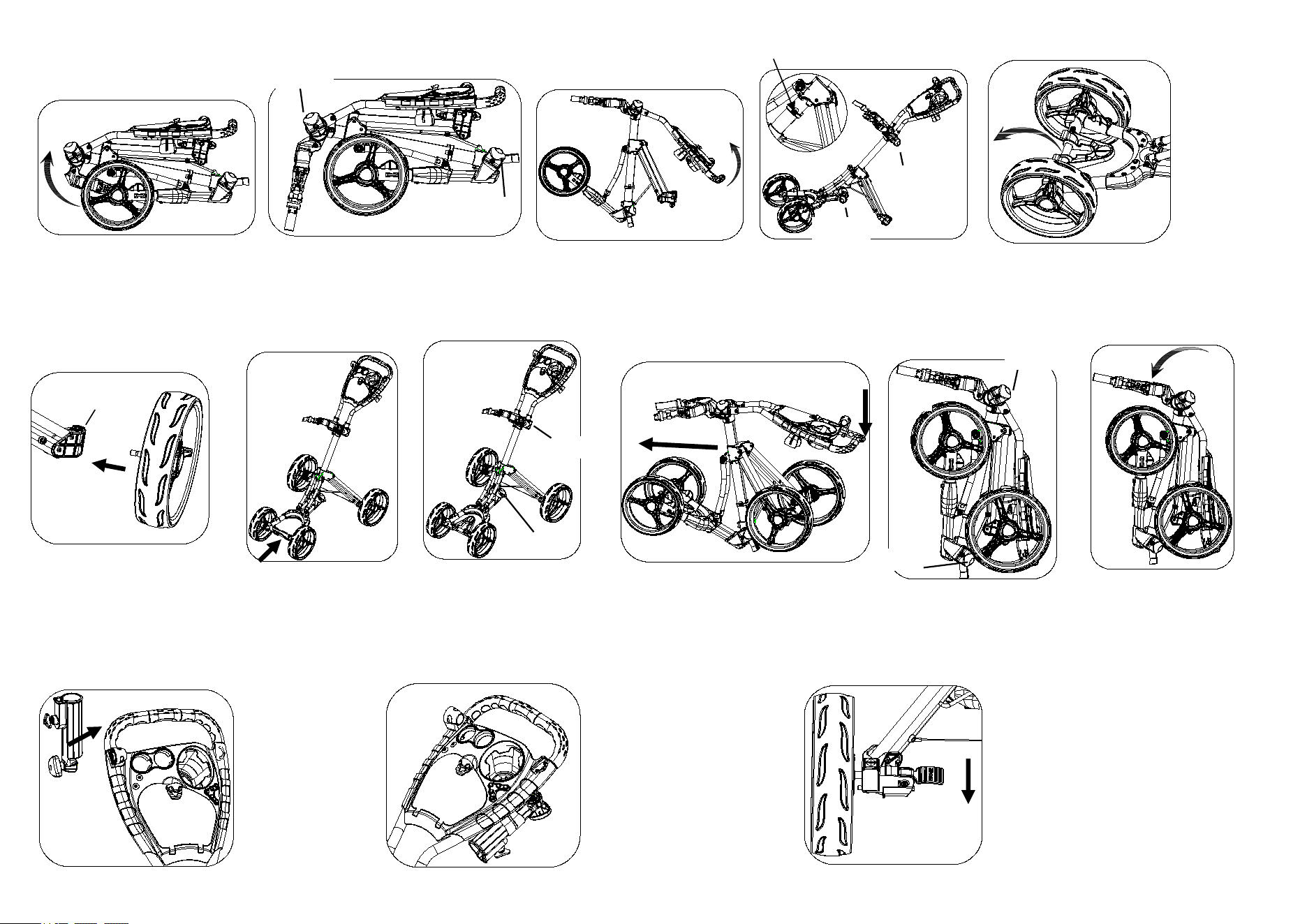

Open the top bracket as Fig.1.
Unfolding the handle and low frame, and click to sticking
point, fixed the buckle on the handle and low frame as Fig.3
& Fig.4.
Assemble the rear
wheel as Fig.6.
Release the buckle for
the handle joint and low
bracket as Fig.8.
Fixed the buckle as
Fig.10.
Folding the handle and push
forward the frame as Fig.9, so the
handle can fold in the middle of
rear wheel.
Sticking point
Fig.8
Fig.11
Release the buckle for the low
frame and handle joint
mechanism as Fig.2.
Folding the top bracket
as Fig.11 and finish the
folding trolley.
To store：
Attach the umbrella
holder to the storage
rack on the handle as
in Fig. 13.
Fig.12
Fig.13
Fig.14
UMBRELLA HOLDER
Folding the low
bracket as Fig.7
Unfolding the bottom
bracket as Fig.5.
Fig.6
Fig.9
Buckle
FOOT BRAKE MECHANISM
Push on the brake pedal to
stop the rear wheel and pull
off to release as Fig.14.
To put in use：
Simply attach the
umbrella holder
onto the cart as in
Fig. 12.
button
Buckle
Buckle
Buckle
Buckle
Buckle
Buckle
Buckle
Left
Right
Left
Righ
A
B

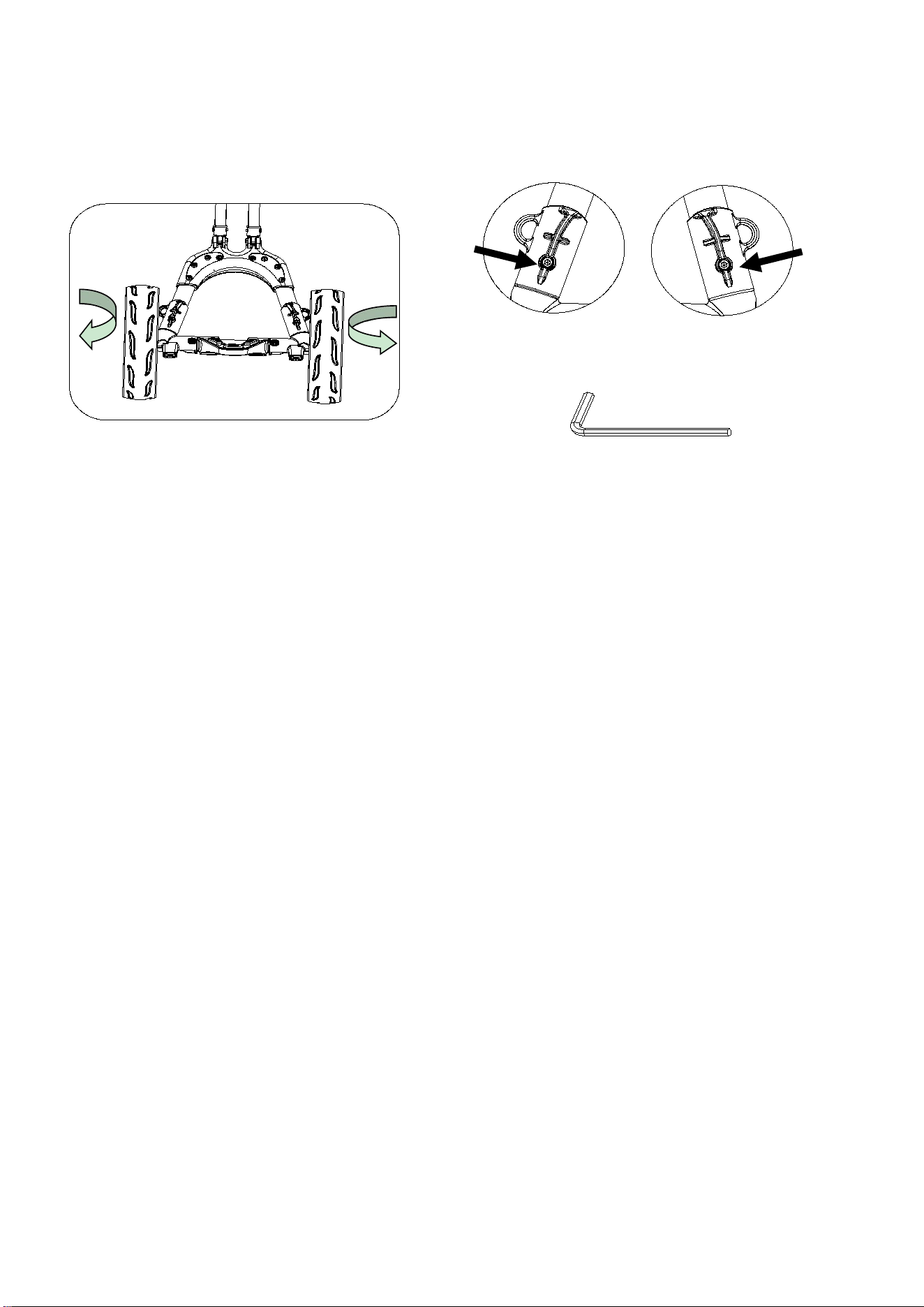

If the cart veers to the left, please use the allen wrench to turn screw A counterclockwise and Screw B
clockwise to adjust the alignment.
If the cart veers to the right, please use the allen wrench to turn screw A clockwise and screw B counterclockwise
to adjust the alignment.
Alignment adjusting screws A/B
Front Wheel Alignment
Allen wrench
