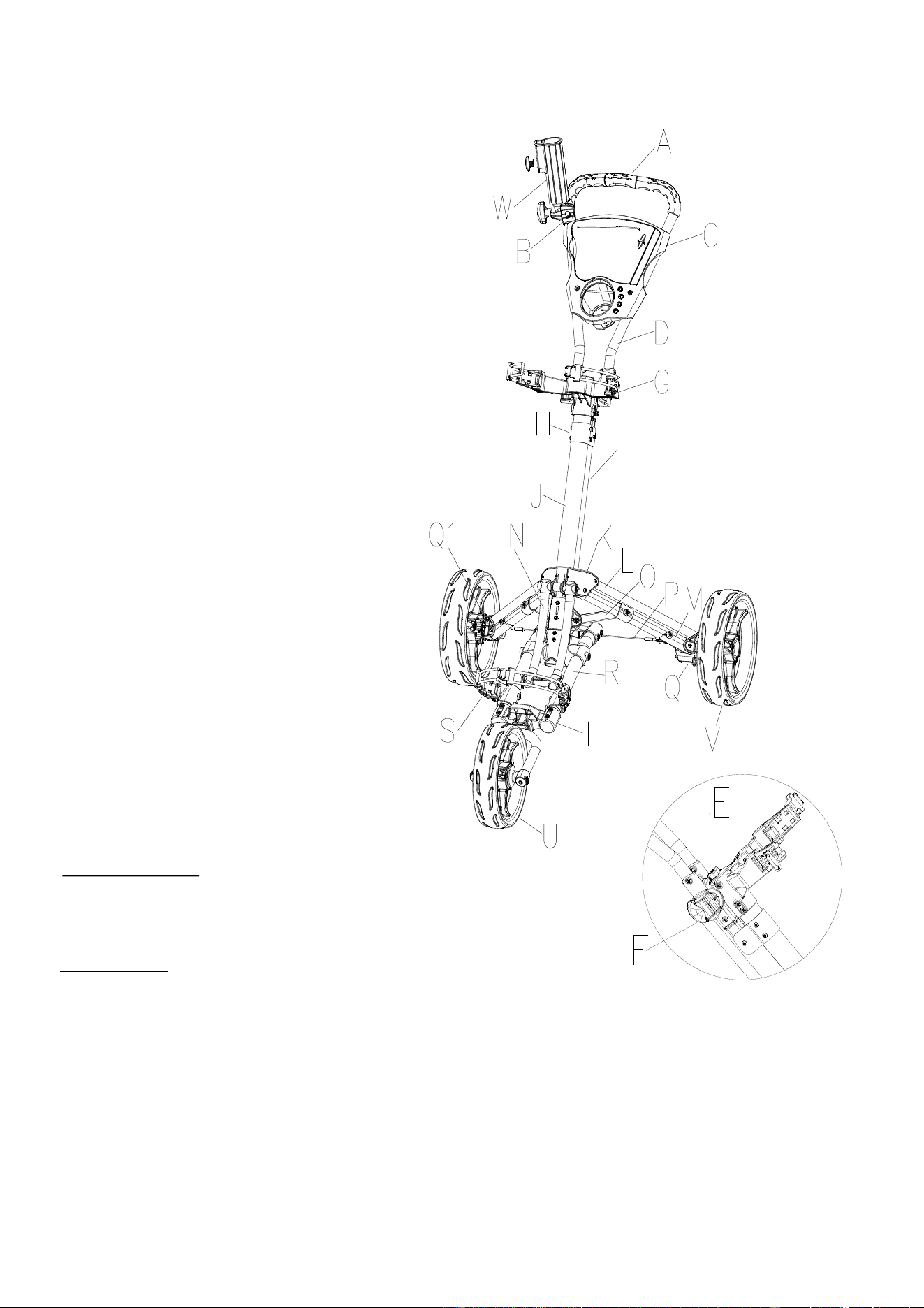

A PVC grip
B Umbrella holder base
C Scorecard holder
D Handle tube
E Push button system
F Adjustable handle mechanism
G Upper bag holder bracket
H Joint
I Connecting rods
J Main upper frame tube
K Leg bracket
L 2 holes leg frame
M 4 holes leg frame
N Slippery connecting rods
O Weight stabilizer
P Anti-splay wire
Q Right wheel locking mechanism
Q1 Left wheel locking mechanism
R Main lower frame tube
S Adjustable bag elastic rope
T Lower bag holder bracket
U Front wheel assembly
V Main wheel
W Umbrella holder
PARTS LIST
338044
MAINTENANCE
To clean to the cart, wipe with a soft, dry cloth. Car polish may be
used to maintain finish. Lubricate moving parts every 6 months.
Warning:
For your own safety, please read and understand these warnings and
keep this user guide for future reference.
Always make sure the cart is fully extended and locked before use.
Always make sure the cart is folded and locked properly before lifting or
transporting.
Do not run while using this product.
Do not use accessories other than those designed for use with this cart.
Keep all packing materials away from children and recycle where possible
or where required by law.
Fig.1
Pull the handle up until you
hear the cart 'Click' as in Fig.1
Press the red button and insert
the rear wheels as in Fig.2
UNFOLDING
Press the red button and insert the
front wheel as in Fig.3
FOLDING
Press the red button and fold the cart in the
direction of the arrow as in Fig.4
Fig.5 shows the folded
position
push on the brake pedal to stop the rear wheel and pull
off to release as in Fig.7﹠8.
Use the brake
Fig.2
Fig.3
Fig.4
Fig.5
Fig.7
Fig.8
The connecting rod will
insert into the plastic bracket
when folding is completed as
Fig.6
Fig.6
button
button
button
To put in use：
Simply attach the umbrella
holder onto the cart as in
Fig. 9
Fig.9
Umbrella holder
Right
Left
If during use, you find that the cart
alignment is off, please see the
instructions below to correct this
problem. In order for the cart to be
perfectly aligned, the front wheel
should be in the center of the fork as
in Fig. 1
CART VEERING TO LEFT (Fig. 2)
If the cart veers to the left, face the front
wheel and use the allen wrench
provided to make the adjustments. You
can either screw the left bolt clockwise,
or the right bolt counterclockwise.
Please continue doing so until the front
wheel is centered between the front fork.
CART VEERING TO RIGHT (Fig. 3)
If the cart veers to the right, face the front
wheel and use the allen wrench provided
to make the adjustments. You can either
screw the left bolt counterclockwise, or the
right bolt clockwise. Please continue doing
so until the front wheel is centered
between the front fork.
Fig .1
Fig .2
Fig .3
Left
Right
Left
Right
Front Wheel Adjustment Mechanism
