Coredy R400
Owner’s Manual
01
02
1.1 Use Restrictions ............................................................................................................
1.2 Battery and Charging ..................................................................................................
1
Important Safety Information
01
05
07
08
09
10
2.1 Robot ...............................................................................................................................
2.2 Accessories ....................................................................................................................
2.3 Charging Dock ..............................................................................................................
2.4 Remote Control .............................................................................................................
2.5 LED Indication................................................................................................................
2
Product Diagram
05
11
12
14
20
3.1 Notes Before Cleaning ................................................................................................
3.2 Quick Start .....................................................................................................................
3.3 Use Your R400 with the “Coredy Robot” APP .......................................................
3.4 How Coredy R400 Cleans Your Home ....................................................................
3
Operating and Programming
11
23
23
24
24
25
25
26
4.1 Emptying Robot’s Bin ..................................................................................................
4.2 Cleaning Robot’s Filter ................................................................................................
4.3 Cleaning Robot’s Side Brush .....................................................................................
4.4 Cleaning Robot’s Cliff Sensors and Charging Contacts......................................
4.5 Cleaning Robot’s Floor Tracking Sensor.................................................................
4.6 Cleaning Robot’s Rolling Brush.................................................................................
4.7 Battery and Charging Information ............................................................................
4
Regular Robot Care
22
5
Troubleshooting
28
6
Wi-Fi Connection
32
7
Specifications
33
Table of
Contents
1.1 Use Restrictions
1 Important Safety Information
This appliance can be used by children aged 8 years old or above, and people lacking knowledge in use if they were super-
vised concerning operation manual and understand what hazard is involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be touched by children without supervision.
The robot must be used in accordance with the directions of this Instruction Manual. Coredy Inc. cannot be held liable or
responsible for any damages or injuries caused by improper use.
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local
authority for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps,
hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. Please
contact your local or regional waste authority for more information on collection, reuse and recycling programs.
To reduce the risk of injury or damage, keep these safety precautions in mind when setting up, using and maintaining your
robot:
Your robot is for indoor use only. Do not use the robot outdoor, commercial or industrial environments.
Before use this device, please pick up the objects scattering on the floor, including clothes and important papers so on.
Read all safety and operating instructions before operating your robot.
Retain the safety and operating instructions for reference afterwards.
Heed all warnings on your robot, battery, charging Dock and in the owner’s manual.
Follow all operating and use instructions.
The symbol on the product or its packaging indicates:
01
1.2 Battery and Charging
Your robot is not a toy, please do not sit or stand on this device. Small children and pets should be under supervision when
your robot is operating.
Store and operate your robot in the environment with room temperature only.
Do not use this device to pick up anything that is burning or smoking.
Do not use this device to pick up spills of bleach, paint, or other chemicals, or anything wet.
If the room to be cleaned contains a balcony that a physical barrier should be used to separate from the balcony to ensure
safe operation.
This appliance is not intended for use by persons (including children) with lacked physical, sensory or mental capabilities, or
average knowledge, unless they have been instructed concerning use of the appliance by a person responsible for their
safety.
Children should be supervised to ensure they do not play with the robot. Cleaning and maintenance shall not be performed
by children without supervision.
Do not place anything on top of your robot.
Be aware that the robot moves on its own, please watch out as walking in the area that the robot is operating.
Do not operate the robot in areas with exposed electrical outlets in the floor.
Use only rechargeable battery packs with the correct specification approved by Coredy.
To use a standard outlet for charging only, the product may not be used with any type of power converter. Use of other power
converters will immediately void the warranty.
Do not use a Charging Dock with a damaged cord or plug. If the cord or plug is damaged, it must be serviced by the
manufacturer or the professional.
Please remember to remove the battery from your robot and accessories if not used for the long-term storage or transportation
Charge indoors only.
02
Your robot is not a toy, please do not sit or stand on this device. Small children and pets should be under supervision when
your robot is operating.
Never handle the Charging Dock with wet hands.
Always disconnect your robot from the Charging Dock before cleaning or maintaining it.
Please ensure voltage rating for enclosed Charging Dock to match standard outlet voltage.
The used battery packs should be placed in a sealed plastic bag and disposed of safely according to local environment
regulations.
Before every use, check the battery pack for any sign of damage or leakage. Do not charge damaged or leaking battery
packs.
If the battery pack were leaking, please don’t hesitate to contact Coredy.
The battery pack must be removed from the robot before disposal.
Do not crush or dismantle battery packs. Do not heat or place the battery pack near any heat source.
Do not incinerate the battery pack. Do not short-circuit the battery pack.
Do not immerse the battery pack in any liquid.
03
FCC STATEMENT
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
04
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should
be installed and operated with minimum distance 20cm between the radiator & your body
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
2 Product Diagram
2.1 Robot
Power On / Off
Press to start / stop cleaning
Indicator
Indicator Solid Blue: Fully Charged / Standby / Cleaning
Indicator Solid Pink: Returning to the Charging Dock
Indicator Blinks Pink: Charging
Indicator Blinks Red: Low Power / Troubleshooting
05
Wi-Fi Indicator Lights
Indicator Blinks Blue: Wi-Fi Pairing Mode
06
Anti-Collision Sensors
Bumper
Remote Control Receiver
Surface Case
Dust Bin
Driving Wheels
Power Switch
Anti-Drop Sensors
Charging Contacts
Universal Wheel
Side Brushes
Battery Pack
Main Brush
Brush Guard
07
2.2 Accessories
1 x Charging Dock 1 x Adapter
1 x Remote Control
(with 2 x AAA batteries)
1 x Dust Bin
4 x Side Brushes 1 x Brush1 x Main Brush
1 x High Efficiency Filter
2.3 Charging Dock
08
Charging Indicator
Location for Remote Control
Signal Transmission Area
Charging Contacts
2.4 Remote Control
Direction Buttons
Start / Pause Button
Edge Cleaning Button
Wi-Fi Reset Button
Suction Level Button
Automatic Cleaning
Spot Cleaning Button
Automatic Re-charging Button
09
10
2.5 LED Indication
You can see the status of Coredy R400 Robot from the LED indicators.
Lights Status Status
Solid pink Low power (less than 12%) and returning to Charging Dock
Solid blue Standby / Cleaning / Fully Charged
Flashing red
Low power (less than 5%)；
Error indication; Refer to the "Troubleshooting" section in this manual for solutions.
Pulsating pink
Charging
Lights Status Status
Slowly flashing blue Wi-Fi pairing mode (AP)
Rapidly flashing blue Wi-Fi pairing mode (EZ)
Solid blue Wi-Fi connected
3 Operating and Programming
3.1 Notes Before Cleaning
Before using this device, pick up the objects scattering on the floor, including but not limited clothes and
important papers, curtains, cords.
If the room to be cleaned contains a balcony that a physical barrier should be used to separate from the balcony
and ensure safe operation.
11
3.2 Quick Start
Place the Charging Dock on a hard
level surface and against a wall.
Plug in the Charging Dock and place
the remaining wire into the trunking
at the bottom of the Charging Dock
1.
2.
Charging Dock Position
Place the Charging Dock against the wall and make sure
it is in an open and uncluttered area leaving at least:
2 meters (6 feet) in the front of the Charging Dock.
1 meter (3 feet) on both sides of the Charging Dock.
3.
12
Attach Side Brushes to the bottom of Coredy R400 by pressing
a brush into each slot until clicked.
Install Side Brushes
4.
Activate the Robot
Place Coredy R400 onto the Charging Dock, making sure the
metal charging contacts on the Charging Dock match up with
those underneath the robot.
If successful, you will hear a series of tones. Once the
Power button illuminates, Coredy R400 is ready for use.
5.
Note: Failure to place the remaining wire
into the trunking, may cause Robot to
become stuck while charging or cleaning.
Initial Use, Turn on the Power switch on the bottom.
Note:
If the Charging Dock is inaccessible, Robot will not be able to
recharge, please place the robot manually on Charging Dock for
charging. (Refer Activate the Robot)
Start Cleaning Cycle
Press the power button once to wake up the robot.
Press the power button again to start a cleaning cycle (or
button on Remote Control).
If its battery gets low before finishing a cleaning cycle, robot
returns to the Charging Dock to recharge.
6.
Pause
To pause the robot during a cleaning cycle press the button
on robot or press the button on the Remote Control.
To resume the cleaning cycle, press button again.
To send robot back to the Charging Dock, press button.
7.
Reset
Long-press the button for 5 seconds to reset Wi-Fi
connection mode.
8.
13
Please refer to section 3.4 for more Cleaning Mode.
Note:
Note: The actions listed above, you can also manage to do
in Coredy App.
3.3 Use Your R400 with the “Coredy Robot” APP
Before you start, make sure that：
To enjoy all available features, it is recommended to control your Robot via the Coredy Robot App.
14
Coredy Robot
Coredy Robot
to download the App to start your journey for handsfree chore!
Scan the QR code as below or from the App Store (iOS devices) or Google Play (Android devices).
to download the App to start your journey for handsfree chore!
1. Your smartphone or tablet is connected to a 2.4GHz Wi-Fi network (Only support 2.4GHz network).
2. Your smartphone or tablet is running iOS 8.0 (or above) or Android 4.4 (or above).
,
15

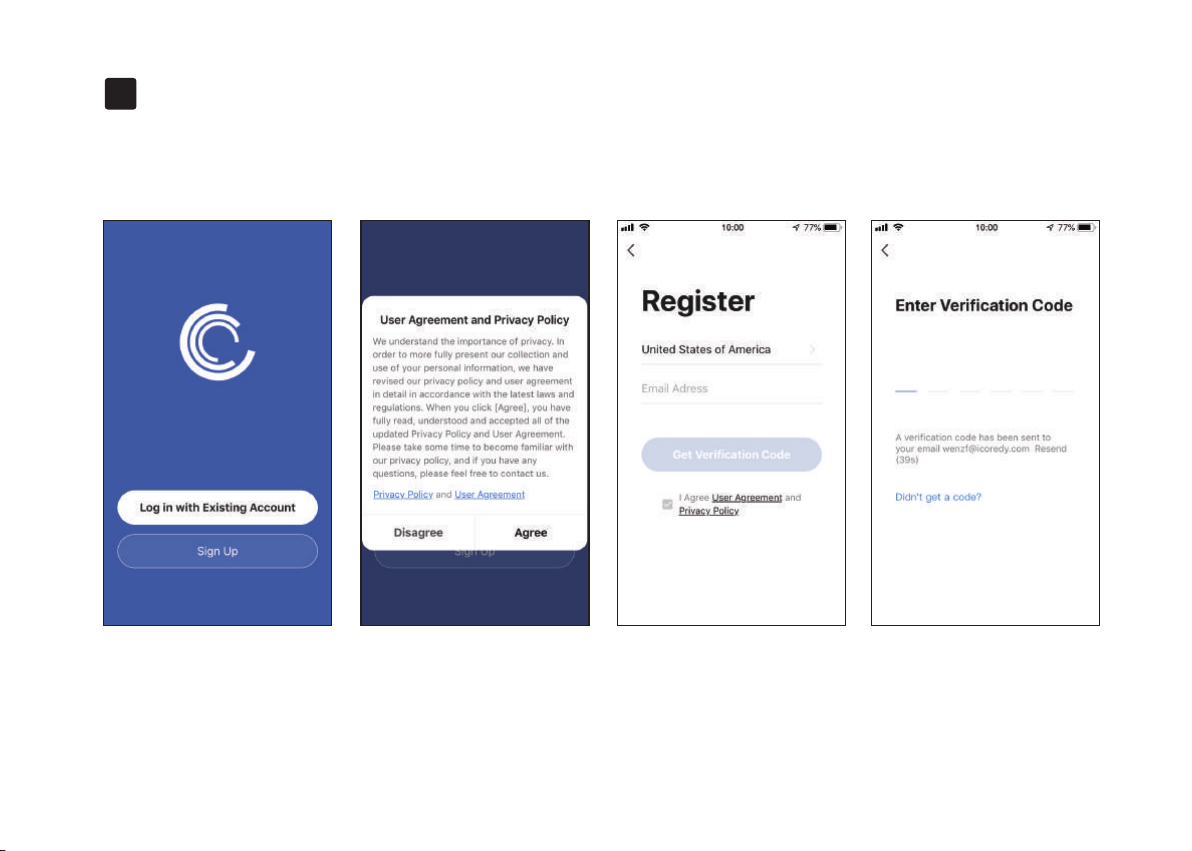

1. Open the App and create
a user account.
2. Agree to the "Privacy Policy". 3. Create your account with the
mobile phone number or E-mail
address.
1.
Create A User Account
1.
16

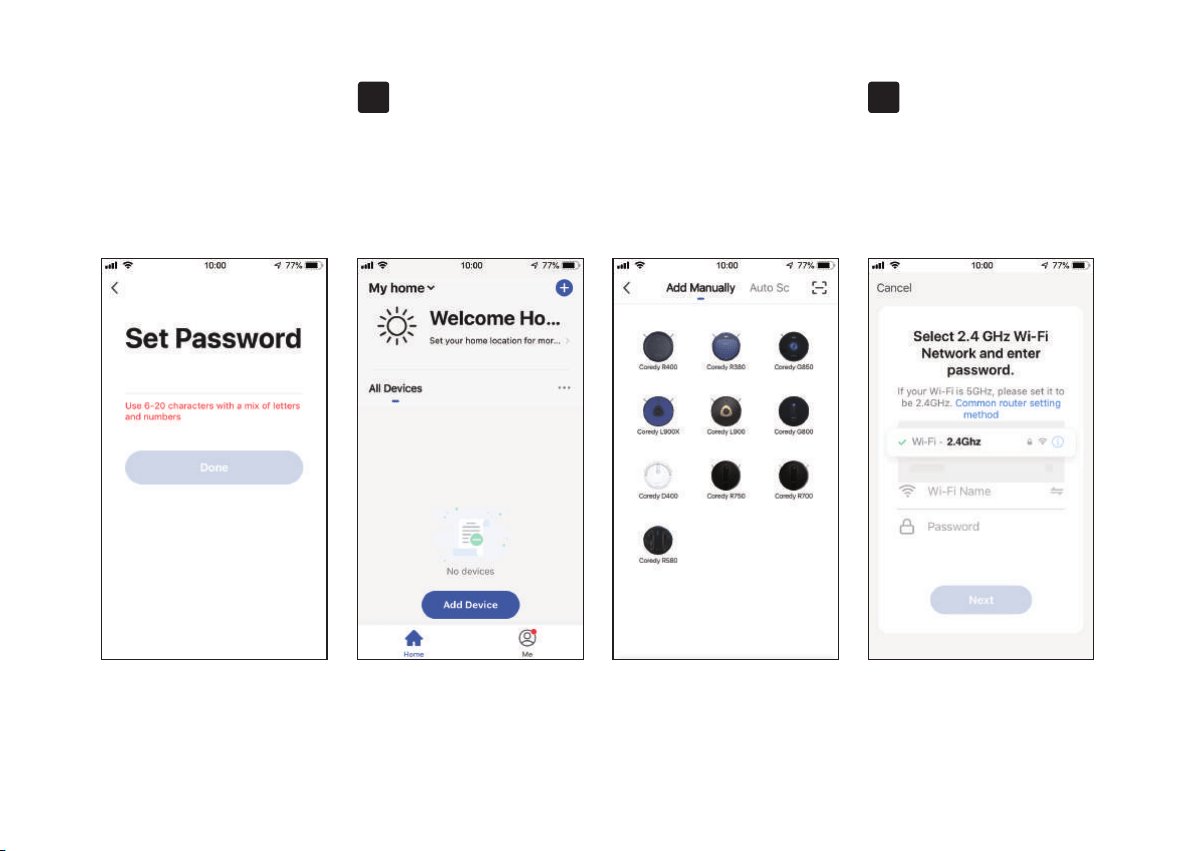

Add Device
1. Press “Add Device” or “+” on
the upper right corner for next.
2. Add a Coredy R400 Robot
to your Coredy account.
1. Check and set your phone
the same Wi-Fi on Coredy App,
enter Wi-Fi password, press
"Next" to connect.
Wi-Fi Connec�on
5. Set your password with
6-20 characters.
2. 3.
17

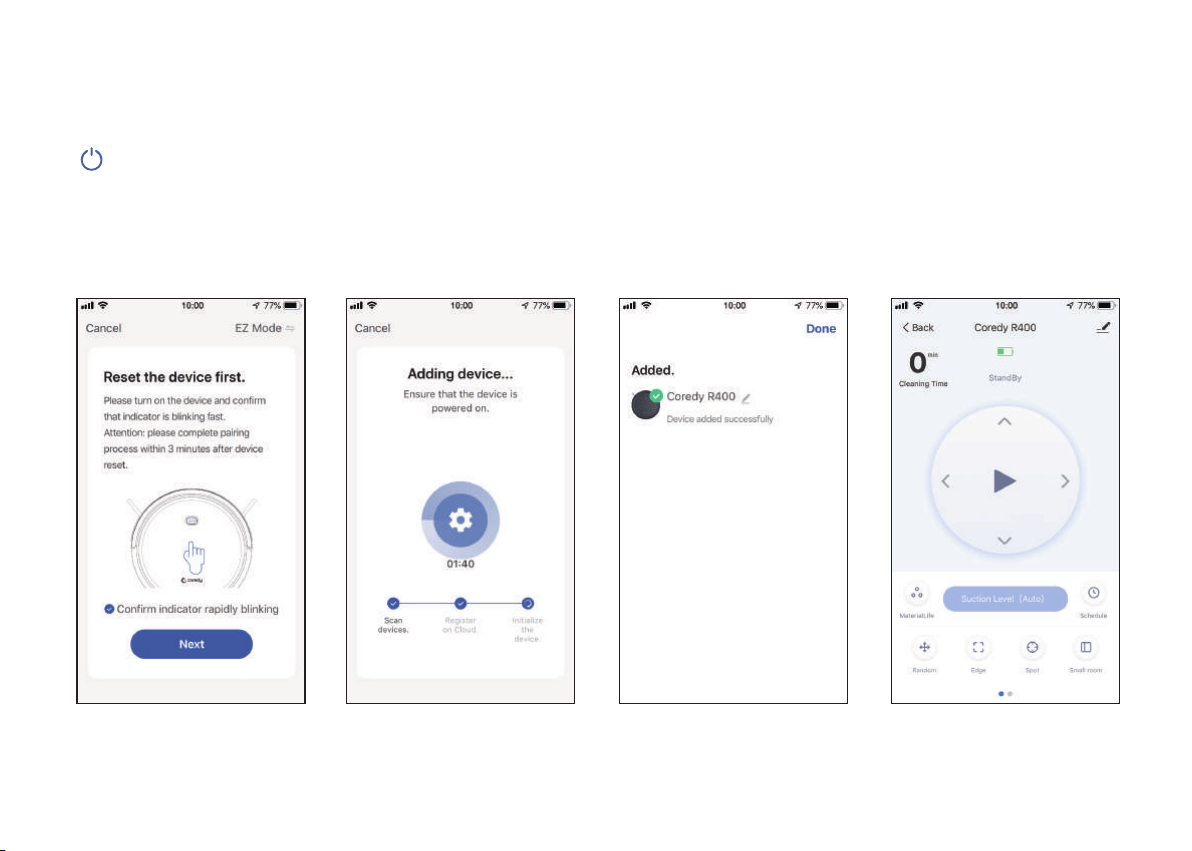

2. Turn on the main power
Robot, then press and hold
hear two beeps from the Robot,
press "Next".
progress to reach 100%.
4. Device added successfully,
then press“Done”.
5. Wait 1-2 seconds for the
Robot to go on standby.
18
Coredy APP Control
Note:
If you got any problems during the Wi-Fi setup process, you
are welcome to call or email us at [email protected].
If the Robot gets stuck anywhere unseen in your home, tap
"Seek Robot" on the App to find the Robot. This function is
available on the App only.
4.
5.
Using Amazon Alexa
Connect your Coredy device with the Coredy Robot App,
Have an Alexa-enabled device (i.e. Amazon Echo, Echo Dot and
Amazon Tap),
Install Amazon Alexa on your smart-phone device and have created
an account.
To control Coredy device with Amazon Alexa:
1. Open the Alexa App and select “Skills & Game” from the menu.
3. Select your Smart Life skill then press "Enable".
4. Login with your Coredy Robot account so that Alexa can control
your Coredy device.
5. Use “Smart Life” skill (for Robot only):
You do not need to discover your device as you can control the
Alexa only supports two commands currently as following:
Before you start, you need to:
"Alexa, turn on Coredy R400"
"Alexredy R400"
2. Search for “ Smart Life”.
6.
Reset the Wi-Fi Connec�on
from the Robot and the Wi-Fi incdicator light on the Robot is rapidly
5.
6. If you add two or more Robot devices to Coredy Robot App,
you can edit name for each Coredy Robot in either the Coredy App
If named one Coredy Robot “Robot 1”
will be supported as following:
19
What do I do if Alexa fails to discover my devices?
Try to reboot the smart device and re-discover the device on Alexa.
Why does the device’s status show “Offline” on Alexa?
device and re-discover on Alexa.
Internet access on your router could be unavailable. Check if your
router is connected to the Internet and try again.
Why can't I control Coredy device with Amazon Alexa?
Check if you are using the proper commands when talking to Alexa.
request.
Make sure your Coredy device is at least eight inches away from
walls or other objects that may cause interference (such as
microwave ovens).
Troubleshoo�ng
"Alexa, turn on Robot 1"
Your Coredy device is connected with Coredy Robot App by a
Google assistant - enabled device (i.e. Google Home);
The Google Home App is installed on your smart device as well as
with an account you have created.
To control Coredy device with Google Assistant(For Robot only),
please follow the steps below:
1. Open the Google Home App.
2. Say “OK Google, talk to Robot” to the Google Assistant-enabled
Google Assistant with your Coredy Robot account.
Assistant:
5. If you add two or more Robot devices to Coredy Robot App, you
can edit name for each Coredy Robot in either Coredy App or Google
be supported as following:
(Note: Only supports the commands above word for word presently.)
Before you start, make sure that:
"OK Google, turn on Coredy R400"
"OK Google, go home Coredy R400"
"OK Google, turn on Robot 2"
"OK Google, go home Robot 2"
Using Google Assistant
7.
(Note: Only supports the commands above word for word presently.)
3.4 How Coredy R400 Cleans Your Home
Auto Cleaning
Coredy R400 is designed to intelligently clean an entire level of your
home. It's a multifunctional Robot with Cleaning-Sweeping, Vacuuming
function.
Working in random pattern for seamlessly and thoroughly clean.
At various times throughout the cleaning cycle, Coredy R400 touches up
around the edges of the room, as well as chair legs and other furniture.
Coredy R400 continues this process until it has cleaned an entire level
of your home. If its battery gets low before finishing a cleaning cycle,
Coredy R400 returns to the Charging Dock to recharge.
Once Coredy R400 finishes its cleaning cycle, Coredy R400 returns to
the Charging Dock to recharge.
1.
Spot Cleaning
When you select Spot Cleaning, robot intensely cleans a localized
area by spiraling outward about 3 feet (1 meter) in diameter and
then spiraling inward to where it started. When Spot Cleaning,
robot boosts its vacuum power to provide the best cleaning
possible where you need it. To use Spot Cleaning, place robot on
top of the localized debris and press (Spot) on the Remote
Control.
2.
20
Edge Cleaning
After robot finishes cleaning the open areas of your floor, it uses
Edge Clean to ensure that it has cleaned along walls and around
furniture legs. If you prefer a quicker edge cleaning, press the
button on Remote Control.
3.
21
Single Room Cleaning (available via
the App only)
Coredy R400 intensively cleans one single room and stops after 30
minutes. Select this mode only when one specific room needs to be
cleaned. Make sure to confine Coredy R400 to the room by closing
the door.
4.
Set A Schedule (available via the App only)
You can set the time and customize the cleaning schedules from
Monday to Sunday on Coredy Robot App. This function available
on the App only.
6.
Select A Suction Power Level
Change the cleaning suction power by pressing the button on
the Remote Control.
5.
Note: Vacuuming cleaning suction is 1000Pa by default,
when a carpet is detected, Coredy R400 will increase the
suction to 1500Pa automatically and normal suction will
return once off the carpet.
Manual Cleaning
You can direct Coredy R400 to clean a particular area by using the
directional buttons on the remote control.
7.
Move forward
Turn left Turn right
To keep robot running at peak performance, perform the following care procedures. If you notice robot picks up less debris from your floor, then
empty the bin, clean the filter and the rolling brush.
4 Regular Robot Care
22
Robot Part Care Frequency Replacement Frequency
Side Brush
Once per week (twice per week in homes
with pets)
Every 2-3 months (or when visibly worn)
Cliff Sensors
Charging Contacts
Floor Tracking Sensor
Front Driving Wheel
Unversal Wheel
Once per week
Filter
Once per week (twice per week in homes
with pets)
Every 2-3 months
Every 12 monthsDust Bin After each use
Note: Coredy manufactures various replacement parts and assemblies. If you think you need a replacement part, please contact Coredy
Customer Care for more information.
Every 3-6 months
Rolling Brush
Once per week (twice per week in homes
with pets)
Every 3-6 monthsBrush Guard Once per week
23
4.1 Emptying Robot’s Bin
Press dust bin release button to remove it.
1.
4.2 Cleaning Robot’s Filter
Remove filter by grasping the white tab.
1.
Shake off debris by tapping the filter against your trash container.
2.
Open dust bin door to empty it.
2.
4.3 Cleaning Robot’s Side Brush
4.4 Cleaning Robot’s Cliff Sensors
and Charging Contacts
Remove the brush.1.
Wipe Robot’s Cliff Sensors with a clean, dry cloth.1.
Wipe the charging contacts on Robot and the Charging
Base with a clean, dry cloth.
2.
Clean the brush and the brush stand, and reinstall the brush.2.
24
25
4.5 Cleaning Robot’s Floor Tracking
Sensor
4.6 Cleaning Robot’s Rolling Brush
Use a clean, dry microfiber or soft cotton cloth to wipe any
debris accumulated in the round sensor that can be opened
on the right side of the bottom surface.
Do not spray cleaning solution directly into the sensor
entrance.
Pull on the release tabs to unlock the brush guard as shown.
1.
Lift the rolling brush to remove.
2.
Clean the rolling brush with the provided cleaning tool
or a vacuum cleaner.
3.
Reinstall the rolling brush by inserting the fixed protruding
end first and then clicking into place.
4.
Press down to snap the brush guard into place.
5.
Lithium Ion Battery
Battery Charging
4.7 Battery and Charging Information
To extend battery life, always keep robot charged on the Home Base when not in use.
Battery Storage
If storing robot off of the Charging Dock, remove the battery first. Then store robot and the battery in a cool, dry place.
Battery Disposal
Contact your local waste management authority for battery recycling and disposal regulations in your area.
Battery Replacement
You can visit Coredy’s website http://shop.coredy.com to purchase the battery or other accessories for the robot.
Remove the lithium ion battery from the product
Place a piece of tape over the battery’s metal charging contacts
Reinstall the battery (with the tape on it) in the product and secure the battery door
Package the product in its original packaging or in your own packaging that prevents any movement during transportation
Ship via ground transportation only (no air shipping)
Important: Lithium ion batteries and products that contain lithium ion batteries are subject to stringent transportation regulations.
If you need to ship this product (with the battery included) for service, travel or any other reason, you MUST comply with the following
shipping instructions:
26
Follow these instructions to remove and reinstall robot’s battery:
Unscrew two screws on the battery door, then remove the door.
1.
Reinstall the battery with the battery label and tabs facing up.
2.
Reinstall the battery door and the two screws. Take care not to pinch
the side brush in the battery door when re-installing the battery.
3.
Battery Removal
27
Rebooting Instructions
Robot will tell you something is wrong with a two-tone distress sound followed by message. The indicator will also blink or light red. Refer
to the chart as below to resolve Robot’s problem. If the problem is not resolved, please contact our COST FREE customer service team for
more assistances.
For some errors, rebooting Robot may resolve the problem. To reboot Robot, turn on the power switch on the bottom of Robot, you will hear an
audible tone signifying a successful reboot.
5 Troubleshooting
28
Indicator Lighting Red
Clean the front driving wheel, then press the
power button to restart the robot.
Robot's front driving wheel is stuck.
One beep
Clean the side brush, then press the power
button to restart the robot.
Robot's side brush is stuck.
Two beeps
Remove and empty robot's dust bin.
Clean robot's filter, then briskly tap the bin to
loosen any remaining trapped debris.
Make sure the vacuum inlet is not blocked by
any hair or debris.
Robot's vacuum fan is stuck
or its filter is clogged.
Three beeps
Indicator Lighting Red
Robot Blinks and Sounds Likely Cause What to Do
29
Indicator Flashing Red
Clean robot's cliff sensors gently with a dry cloth.
Start cleaning in a new location if robot is
hanging over a drop, or on a dark surface.
Use a physical barrier to block
off the problem area.
Robot's cliff sensors are dirty.
Robot is hanging over a drop,
or it is stuck on a dark surface.
Three beeps
Tap robot's bumper several times to dislodge
any debris that might be trapped underneath.
Press robot's bumper 5-10 times to ensure
bumper contracts freely.
Two beeps
Manually take the robot on the charging dock to
charge.
Ensure there are no obstacles in front of the
charging dock or starting position, wipe the
charging contacts on both of the charging dock
and robot with a clean, dry cloth.
Robot's battery power level is too low.
Robot cannot return to its charging
dock.
Four beeps
Indicator Flashing Red
Robot Blinks and Sounds Likely Cause What to Do
Robot's bumper is stuck.
30
Frequently asked questions
Coredy R400 cannot
be activated.
Make sure the main power switch is in the ON position.
Make sure the battery is fully charged.
Replace the batteries (2 AAA) in the remote control.
Make sure the remote control is within range (16ft/5m) of Coredy R400.
If you still have trouble, turn off the main power switch and then turn it back on.
The remote control
does not work.
Replace the batteries in the remote control.
Make sure Coredy R400 is turned on and fully charged.
Note: Limited workable range distance is 16ft/5m.
Coredy R400 stops
working suddenly.
Check if Coredy R400 is trapped or stuck on an obstacle.
Check if the battery level is too low.
If you still have trouble, turn off the main power switch, wait for 2 seconds, and then turn it back on.
You cannot schedule
cleanings.
Make sure the main power switch on the bottom of Coredy R400 is turned on.
Make sure the scheduled time have been set correctly.
Check if Coredy R400’s power is too low to start cleaning.
Suction power is
weak.
Check if any obstructions are blocking the suction inlet.
Empty the dust collector.
Clean the filters with a vacuum cleaner or a cleaning brush.
Check if the filters are wet due to water or other liquid on the floor. Air-dry the filters completely before use.
Coredy R400 cannot
be charged.
Check if the indicator on the Charging Base lights up. If not, contact the Coredy Customer Care to repair or
replace the Charging Base.
Dust off the charging contact pins with a dry cloth.
Check if you can hear a beep when Coredy R400 is docked onto the Charging Base. If not, contact the
Coredy Customer Care to repair or replace the Charging Base.
Problems Solutions
31
Coredy R400 cannot
return to the Charging
Base.
Coredy R400 Robot
cannot connect to a
Wi-Fi network.
You cannot control
Coredy R400 Robot
with Amazon Alexa.
Remove objects within 3ft/1m to the left and right side and within 6ft/2m of the front of the Charging Base.
When Coredy R400 is in the vicinity of the Charging Base (distance within 26ft/8m), it returns more quickly.
However, if the Charging Base is located far away (distance over 26ft/8m), Coredy R400 needs more time to
return. Please be patient as it walks back.
Clean the charging contact pins.
Check if there are any Internet connection problems.
Check whether you have installed the Amazon Alexa App onto your smart device and enabled “Smart Life”
Skill in the Amazon Alexa App. For details, refer to the “Smart Integrations” page in the Coredy Robot App.
Make sure you have a Coredy Robot account and that it is connected to Coredy R400 Robot.
Make sure you are using correct Alexa voice-commands.
Check if there are any Internet connection problems.
Check if you have installed the Google Home App onto your smart device and initiated the “Coredy Robot”
action in the Google Home App. For details, refer to the “Smart Integrations” page in the Coredy Robot App.
Check if you are using the proper commands when talking to the Google Assistant. When making your
request, first say the wake words “Ok Google”.
Repeat your question. Speak clearly to the Google Assistant.
Make sure your Wi-Fi router supports the 2.4GHz and 802.11b/g/n bands; the 5GHz band is not supported.
For details, refer to the “Troubleshooting > Wi-Fi connection” section in this manual.
Coredy R400’s
movements or travel
path are abnormal.
You cannot control
Coredy R400 Robot
with the Google
Assistant.
Clean the sensors carefully with a dry cloth.
Restart Coredy R400 by turning the power switch off and on.
Problems Solutions
6 Wi-Fi Connection
32
Before Wi-Fi setup, make sure Coredy R400 Robot and
your Wi-Fi network meet the following requirements.
- Coredy R400 Robot is fully charged and the main power
switch on the bottom of Coredy R400 Robot is turned on.
- Wi-Fi indicator status flashing blue.
- Use the correct password for your network.
- Do not use a VPN (Virtual Private Network) or Proxy
Server.
- Your Wi-Fi router supports 802.11b/g/n and IPv4 protocol.
- You are using a 2.4GHz router or a dual-band router that
is configured to support a 2.4GHz frequency band.
Coredy R400 Robot does not support 5GHz frequency band.
- WPA and WPA2 using TKIP, PSK, AES/CCMP encryption.
If Coredy R400 Robot cannot connect to the Wi-Fi network
and you are using a 2.4/5GHz mixed network, switch to a
2.4GHz network for Wi-Fi setup. You can switch back once
your setup is complete.
When connecting to a hidden network, make sure you
enter the correct network name, SSID (case sensitive),
and connecting to a 2.4GHz wireless network.
When using a network extender/repeater, make sure the
network name (SSID) and password are the same as your
primary network.
The firewall and port settings of your Wi-Fi router allow
Coredy R400 Robot to connect with the Coredy servers.
Wi-Fi Setup Requirements
Coredy R400 Robot:
Wi-Fi Network:
Network Security Requirement
- The FCC requires that all wireless devices in the United
States operate on the 1-11 wireless spectrum channels.
- Some countries outside North America can use spectrum
channels higher than channel 11. Refer to your local
regulatory agency to determine which channels are
accessible.
- A future software release will support access to channels
above 11 for users outside North America. Until then, use
channels 1-11.
If you cannot control Coredy R400 Robot with your smart-
phone, please contact the Coredy Service Center for
help.
Wi-Fi Channels
33
7 Specifications
Product Model R400
Input
19 V
0.6 A
Battery Voltage DC 14.4 V
Power Consumption 28 W
Battery Type
DC 14.4 V
Li-ion 2600 mAh
Dust Collector Capacity 0.5 L
Cleaning Time Max. 110 mins
Charging Time 180-240 mins
Input
19 V
0.6 A
Output
19 V
0.6 A
@CoredyOfficial @CoredyOfficial @coredy_robotvacuum @Coredy Official
V1.0
MODEL: R400
Website: http://shop.coredy.com
E-mail: [email protected]
US COST FREE Tech Support:
(PST Mon-Sun 06:00-24:00) (GMT Mon-Sun 14:00-08:00)
+1 (800) 999 8470
UK COST FREE Tech Support:
+44 (808) 134 9909
