User Manual Honeywell CT410B 4 Wire Premium Baseboard/Line Volt Thermostat

• User Manual - (English, French, Spanish)

• Spec Sheet (web) - (English)

Table of contents

• When Installing This Product
• Preparation
• Remove Old Thermostat
• Wire and Mount New Thermostat
• Check Out Thermostat
• Setting Thermostat
• Troubleshooting

When Installing This Product

1. Read these instructions carefully. Failure to follow them could damage the product or cause a hazardous condition.
2. Check the ratings given in these instructions to make sure the thermostat is suitable for your application.
3. After installation is complete, check out operation as provided in these instructions.

Preparation

• Proper installation of your Honeywell thermostat will occur if you follow these instructions STEP-BY-STEP. It is recommended that as you read, understand and complete each step, you check it off with pencil or pen.
• Check thermostat suitability for your homeís system by reviewing the ratings above.
• Make certain that your heating system is working, especially if it has been inoperative for a length of time. If the system does not work, contact your local electrician for assistance.
• Carefully unpack your new thermostat. To avoid damage to the sensing element, do NOT remove the thermostat cover until wiring has been completed.
• Save packages of screws, instructions, receipt and proof-of-purchase.

Remove Old Thermostat

WARNING Electrical Shock Hazard. Can cause severe injury, death or property damage. Begin by turning off power to the heating circuit at the main service panel.

• Remove cover of old thermostatócover normally snaps off when pulled firmly from the bottom. If it resists, check for a screw that locks the cover.
• Loosen screws holding thermostat base to outlet box and lift away.
• Disconnect wires from old thermostat. As you disconnect each wire, tape the end and label it with the letter of the terminal designation to make reconnection to new thermostat easier.
• Check the old insulation for cracks, nicks or fraying, and apply high quality plastic tape where necessary for adequate insulation.
• Retain the old thermostat for reference purposes and until your new thermostat is functioning smoothly.

Wire and Mount New Thermostat

• Remove thermostat cover by grasping the top and bottom ends with fingers, and pulling outward.
• Connect wires to the thermostat as shown in the applicable wiring diagram. Push the wires into the outlet box, and insert the thermostat into the box for mounting by pushing against top and bottom of the thermostat base.

IMPORTANT

Do not press on setting knob. Rough handling or strong pressure can damage knob or sensing element, and change calibration.

• Secure the thermostat to the box with the two captive mounting screws provided.
• Replace thermostat cover.
• Set knob to desired room temperature.

POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.

BREAKS ON POSITIVE OFF.

EXPOSED UNUSED LEADWIRES TO BE PROPERLY INSULATED.

THERMALLY ACTIVATED—BREAKS ON TEMPERATURE RISE. MAKES ON TEMPERATURE FALL.

CAUTION: SPECIAL SERVICE CO/ALR SOLDERLESS CONNECTORS MUST BE USED WHEN CONNECTING WITH ALUMINUM CONDUCTORS; OTHERWISE, A FIRE HAZARD CAN RESULT.

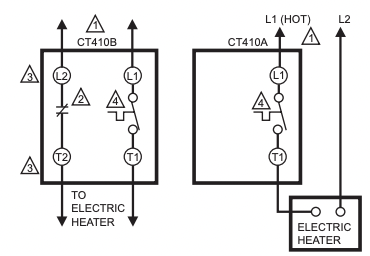

Fig. 1. Thermostat wiring diagram

Check Out Thermostat

• Turn on the power to the heating system.
• Turn setting knob all the way clockwise ; listen for clicking sound as switch makes contact. Electric heater should begin operation.
• Turn knob all the way counterclockwise ; listen for clicking sound as switch breaks contact. Electric heater should shut off.

Setting Thermostat

• Begin with setting knob at 70°F (20°C) on the scale.
• If this setting is not satisfactory after at least two hours of operation, turn setting knob up to raise the temperature, or down to lower the temperature. Move knob only a degree each time.

Troubleshooting

Your Honeywell thermostat requires little or no attention. Most problems can generally be traced to the following:

Symptom	Checkout	Action
No heat.	Make sure power is on at main service panel. Turn the temperature setting knob fully clockwise	service panel. Turn the temperature setting knob fully clockwise . Heater should start to warm up within two minutes. If not, contact qualified electrician to check thermostat and heater.
	Improper connections to thermostat.	With power to circuit OFF, tighten all wiring connections. Repair any frayed or broken wires.
	Other.	Contact a qualified electrician for assistance
Heater never turns off.	Turn temperature setting knob fully counterclockwise	Heater should start to cool within minutes. If not, turn off power at the main service panel, and contact qualified electrician.
Thermostat setting and thermometer reading disagree.	Thermostat affected by drafts or radiant heat.	Contact electrician to change the location. The thermostat should be about 5 ft (1.5m) above the floor and on an inside wall.

WARNING Electric shock hazard This thermostat is a line voltage control (120 Volts to 277 Volts.) Do not install it if you are not completely familiar with house wiring. If handled improperly, there can be risk of a 120 Volt to 277 Volt electric shock hazard, which may cause serious injury or death.

MERCURY NOTICE

If this control is replacing a control that contains mercury in a sealed tube, do not place you old control in the trash. Dispose of properly. Contact you local waste management authority for instruction regarding recycling and the proper disposal of a old control.
