CRP-AH10 Fuzzy Series
1.8L(2~10Persons) / 1.8L(2~10 )
Operating Instructions
NO.1 CUCKOO
CUCKOO IH PRESSURE JAR COOKER
Thank you very much for purchasing CUCKOO
Electric Rice cooker/warmer
Read the following instruction manual before use. Save this
instruction manual for future reference. This manual will be useful if
you have any questions or have problems operating the rice cooker.
Important safeguards
3
4
44~47
48
49~50
51
51
52
52
53
54
55
56~57
58~59
60~61
62
63~64
65~66
67~68
69~71
72
73
73
73
NFC
74~79
80~82
CONTENTS
BEFORE USING
Important safeguards 3
Specifications
4
Safety precautions
5~8
Name of each part
9
How to clean
10~11
Function operating part
12
Error code and possible cause
12
WHEN USING
How to set current time 13
How to set or cancel voice guide function
13
Night voice volume reduction / voice setting function
14
Before cooking rice
15
For the best taste of rice
16
How to cook
17~18
MY MODE (Cuckoo Customized Taste Function)
19~20
How to use “GABA Rice (Brown rice)”
21~22
How to cook the MULTI-COOK
23
How to cook using fermentation bread baking
24~25
How to preset timer for cooking
26~27
How to use Preset Reheating Function
28~29
To keep cooked rice warm and tasty
30~32
How to use power saving/energy eye function
33
Display Lighting power saving mode
34
How to lock buttons
34
How to use Remaining Cooking Time Display Mode
34
How to use the NFC Function
35~40
BEFORE ASKING FOR SERVICE
Check before asking for service 41~43
CONTENTS
1. Read all instructions before using this appliance.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and / or injury to persons do net immerse cord, plugs, or Pressure
4. Close supervision is necessary when this appliance is used by or near children.
This appliance is not intended for use by young children without supervision.
5. Unplug from outlet when not in use and before cleaning.
Allow appliance to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug, after the appliance malfunctions, or has
been damaged in any manner. Return the Appliance to the nearest authorized service facility for
examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may result in fire,
electric shock, and / or injury to persons.
8. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the
manufacturer or your service agent.
9. Do not use outdoors.
10. Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
11. Do not place on or near a hot gas, electric burner, or in a heated oven.
12. Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, or
set all control to off , then remove the plug from the wall outlet.
13. Do not use this appliance for other than its intended use.
14. Extreme caution must be used when moving an appliance containing hot oil or any hot liquids.
15. Oversized foods, metal foil packages, or utensils must not be inserted into the appliance as they are a
risk of fire or electric shock.
16. A fire may occur if the appliance is covered or touching flammable material, including curtains,
draperies, walls, etc while in operation.
17. To reduce the risk of electric shock, cook only in the provided removable container.
18. This appliance cooks under pressure. Improper use may result in scalding injury.
Before operating the unit, properly secure and close the unit. See “Operating Instructions.”
19. Do not cook foods such as applesauce, cranberries, cereals, macaroni, spaghetti, or other foods.
These foods tend to foam, froth, and sputter, and may block the pressure releasing device.
20. Before use always check the pressure releasing device for clogging.
21. Do not open the pressure cooker until the unit has cooled and internal pressure has been reduced.
See “Operating Instructions.”
22. Do not use this pressure cooker to fry in oil.
23. Be sure that handles are assembled and fastened properly before each use.
Cracked, broken or charred handles should be replaced.
SAVE THESE INSTRUCTIONS
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY
WARNING : This appliance generates heat and releases steam during use. Use proper precaution to
prevent risk of burns, fires, other injuries, or damage to property.
1. Keep hands and face away from the Pressure Release Valve when releasing pressure.
2. Take extreme caution when opening the Lid after cooking. Severe burns can result from steam inside.
3. Never open the Lid while the unit is in operation.
4. Do not use without the inner Pot in place.
5. Do not cover the Pressure Valve with anything as an explosion may occur.
6. Do not touch the inner pot nor any heating parts, immediately after use.
Allow the unit to cool down completely first.
ADDITIONAL IMPORTANT SAFEGUARDS
IMPORTANT SAFEGUARDS
SPECIFICATIONS /
CRP-AH10 Fuzzy Series
AC120V, 60Hz
1305W
Glutinous Rice
Mega Heat Glutinous Rice
Mixed Rice Rice
Mega Heat Mixed Rice
Soft Glutinous soft
Turbo Glutinous Rice
Turbo Mixed Rice
GABA
Mega Heat GABA Rice
Black Bean
Nutritious Rice
Nu Rung Ji
Porridge
0.36~1.08L (2~6cups)
0.36~1.8L (2~10cups)
0.36~1.44L (2~8cups)
0.18~0.36L (1~2cups)
1.0m
88.2KPa(0.9kgf/cm
2
)
7.9kg
30.1cm
41.2cm
29cm
Model Name
Power Supply
Power Consumption
Power Cord Length
Pressure
Weight
Width
Length
Height
Cooking Capacity
Dimension
Note:
A. A short power-supply cord (or cord set) is provided to reduce the hazards from entanglement by a longer cord.
B. Extension cord should be used properly.
C. Extension cord usage for the rice cooker:
(1) The correct rated voltage should be used for the rice cooker.
(2) If the appliance is set on the ground, the extension cord should also be set on the ground.
(3) The cord wires and extension cord should always be arranged to prevent hazards to children.
This appliance has a polarized plug : (one blade is wider than the other).
As a safety feature, this plug will fit in a polarized outlet only one way.
If the plug does not properly fit in the outlet, turn the plug over.
If it still does not fit, contact a qualified electrician.
Please, keep this safety feature.
HOW TO USE EXTENSION CORD

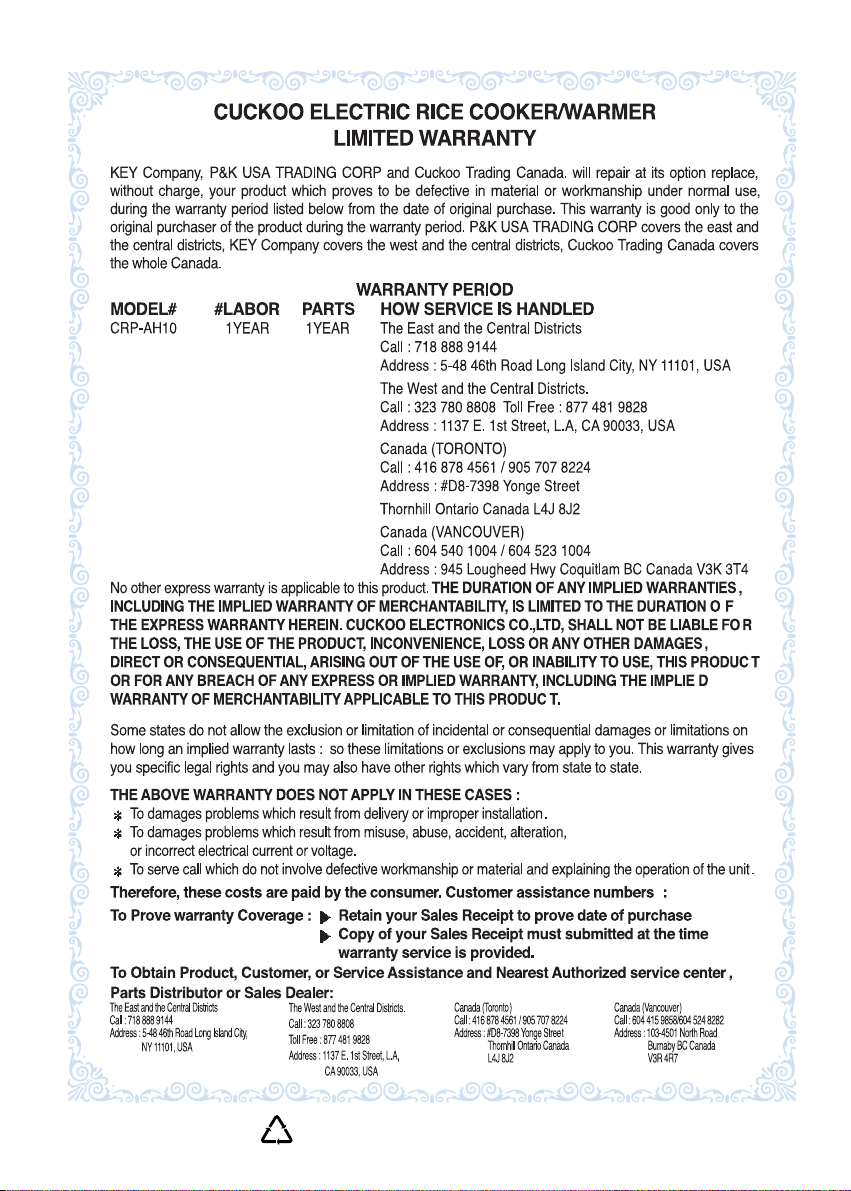

HOW SERVICE IS HANDLED
The East and the Central Districts
Tel. No. 718 888 9144
The West and the Central Districts
Tel. No. 323 780 8808
TORONTO
Tel. No. 905 707 8224 / 416 878 4561
VANCOUVER
Tel. No. 604 540 1004 / 604 523 1004
USA Canada
SAFETY PRECAUTIONS
www.cuckooworld.com
ENGLISH
Do not alter, reassemble,
disassemble or repair.
It can cause fire, electric shock or injury.
For repair, contact dealer or the service center.
Do not use the cooker near
hot things such as stove,
gas stove or direct ray of
light.
It can cause an electric shock, fire, deformation,
malfunction or discoloration.
Please check the power cord and plug frequently.
Warning Do not
Do not cover the automatic
steam outlet or pressure
weight with your hand or face.
It can cause burns.
Especially be careful to keep
it out of children's reach.
Do not let the cooker contact any water
by sprinkling water on the cooker.
It can cause an electric shock or fire.
If it contacts water, please separate power cord and
contact dealer and service center.
Do not use damaged
power cord, plug or
loose socket.
Please check the power cord frequently for damage.
Serious damage can cause electric shock or fire.
If the plug is damaged, contact the dealer or a
service center.
Use a single socket with
the rated current
above 15A.
Using several lines in one socket can cause
overheating or fire. Please check the power cord
and plug frequently
Use an extension cord with the rated current
above 15A.
Please pay careful
attention against water
and chemicals.
It can cause an electric
shock or fire.
Read the following product safety guide carefully to prevent any accidents and/or serious danger.
‘Warning’ and ‘Caution’ are different as follows.
This sign is intended to remind and alert that something
may cause problems under the certain situation.
Please read and follow the instruction to avoid any harmful
situation.
Indicates a prohibition
This means that the action it describes may
result in death or severe injury.
This means that the action it describes may
result in injury or property damage.
Indicates an instruction
Warning
Caution
SAFETY PRECAUTIONS
Do not insert metal objects
such as pins and wires or any
other external substances in
the automatic steam exhaust
outlet or any other slot.
It can cause an electric shock or fire.
Especially be careful to keep it out of
reach of children.
Do not use pots that are not
designed for the cooker.
Do not use abnormal pot and
do not use without inner pot.
It can cause an electric shock or fire.
<Inner pot>
Do not cover the automatic
steam outlet or pressure
weight with a duster, a
towel, or apron, etc.
It can cause deformation or a breakdown.
It can cause an explosion by pressure.
Don't spray or put any
insecticide and chemicals.
It can cause an electric shock or fire.
If cockroaches or any insects get inside
the cooker, please call a dealer or a service center.
Damages by impact can cause an
electric shock or fire. Please check the power cord
and plug frequently.
Be careful that both the plug
and power cord are not to be
bit by animals, or pierced by
sharp metal materials.
Do not put any needle, cleaning pin etc in
the ventilator or any gap of the cooker.
Do not turn the Lock/Unlock Handle to
“Unlock” during cooking
The hot steam or any hot content within the cooker
can cause burns.
After you finish the cooking do not try to open the
cooker by force until the steam is completely
exhausted.
Do not insert cleaning pins to other parts except to
the valve hole of the pressure weight.
It can cause an electric shock or fire.
Keep the cooker out of children's reach.
It can cause burns, electric shock or injury.
Do not use it without the inner pot
It can cause electric shock or malfunction.
Do not pour rice or water without the inner pot.
If rice or water gets in then do not turn the product
over or shark it please contact to dealer or service
center.
Remove external substances on plug with
a clean cloth.
It can cause fire.
Please check the power cord and plug frequently.
It can cause an electric shock or short
circuit resulting in fire. Please check the
power cord and plug frequently.
Do not cover the automatic
steam outle
Do not open the top cover during heating
and cooking.
It can cause burns.
If you need to open the lid while cooking, keep
pressing the cancel button for 2 seconds and
confirm internal steam is released, completely
turning the pressure weight over.
Do not place heavy things on the power cord.
It can cause an electric shock or fire.
Warning Do not
ENGLISH
SAFETY PRECAUTIONS
www.cuckooworld.com
When this unit is working, it can influence any
electrical medical equipment.
If you use cardiac pacemakers
or electrical medical supporting
equipment, consult a doctor
before using this unit.
Do not use on a rice chest
or a shelf.
Do not place the power cord
between furniture. It can cause an
electric shock resulting in fire.
Please check the power cord and plug frequently.
When using on furniture be cautious of steam
release As it can cause damage, fire and and/or
electric shock.
Don't use the cooker near
a magnetic field.
It can cause burns or breakdown.
Please use the cooker for original purposes.
Don't use for various purposes for inner pot.
It can cause deformation of the inner pot.
It can cause to spill the inner coating.
It can cause the malfunction or smell.
Do not touch the metallic surface of the
inner pot and pressure weight after
cooking or warming.
It can cause overflow or breakdown.
Do not cook over capacity stated for cooking of
chicken soup and congee.
It can cause an electric shock.
Use product on a flat surface.
Do not use on a cushion.
Please avoid using it on an
unstable location prone to
falling down.
Please contact dealer or service center if
a strange smell or smoke has occurred.
Do not use over the maximum capacity.
It can cause malfunction or a fire. Please check.
the power cord and plug frequently.
Do not plug or pull the power cord with
wet hands.
It can cause an electric shock.
Please pull out the plug when not in use.
It can cause electric shocks or fire.
Use AC 120V only.
Clean any dust or external
substances off the
temperature sensor and
inner pot.
It can cause a system malfunction or fire.
it out of children's reach.
Do not drop the cooker or impact.
It can cause malfunction.
It can cause burns.
Remaining hot steam can cause burns when you
tilt the pressure weight during and after the cooking.
Caution Do not
Warning Remember
SAFETY PRECAUTIONS
Maintain more than 30cm of distance from
the product while using.
Do not place on rough top
or tilted top.
It can cause burns or breakdowns.
Be careful to install the power cord
to pass without disruption.
Do not keep easily spoiled food warm in the
product such as red bean rice, mixed food,
croquette or gratin. (Except white rice)
If power fails during rice cooking, automatic
steam release may work, leading to
dispersion of contents.
Cook rice with specified amounts of rice and water.
In particular, water more than specified amount may
cause overflowing of contents.
Cook rice while soft steam cap is mounted.
Wipe off any excessive water on the cooker
after cooking.
It can cause odor and discoloration.
Wipe off water that is left behind from dew.
Even if power plug is unplugged,
turn lid combining hand grip
always to (Lock) location.
When you pull out the power plug,
don’t pull the power cord. Please,
safely pull out the power plug.
If you inflict impact on power cord,
it can cause an electric shock or fire.
Be cautious when steam is being released
Please clean the body and
other parts after cooking.
It can cause burns.
Especially be careful to keep it out of children's reach.
After cooking chicken soup or, multi
cook dishes, etc., the smell may
be absorbed.
Clean the oven packing, top heater plate and inner pot
every time you cook any of those.
Use dry kitchen cleaner or sponge to clean the inner
pot, since rough scrub or metallic ones are abrasive to
the coating. (Refer to page 10~11)
Depending on the using methods or user's
circumstances inner pot coating might rise.Please call
the customer service for those cases.
After you finish cooking, do
not try to open the cooker
by force until the steam is
completely exhausted.
The hot steam or any hot content within
the cooker can cause burns.
Cautiously open the top cover after
cooking is done to avoid dangerous
steam and burns.
Please call customer service if
the inner pot coating peels off.
Oven coating may wear away after long use.
When cleaning the inner pot, do not use tough
scrubber, metallic scrubber, brush, abrasive
metallic etc.
When the exterior of inner pot is diamond
shield plated.
Use dry kitchen cleaner or sponge to clean the inner
pot since rough scrub or metallic ones might cause
scratch on the exterior of the plating.
The friction of the inner pot with sink or other
appliances can cause its plating's coming off.
(No problem to use it)
Do not hold the cooker by the inner pot handle.
It can cause problems and danger. There are portable
handles on the bottom right and left side of the cooker.
Hold the handles with both hands and move it carefully.
In case My Cauldron is hot or hot cooked
rice is left after cooking is completed, close lid
and turn lid combining hand grip to (Lock) direction
even after unplugging power plug. Otherwise product
deformation or damage may occur by internal pressure.
Be sure to turn lid combining hand grip to (Lock)
direction during cooking and heat preservation before use.
A magnetic field can be released from electronic goods.
Caution Remember
Warning Do not
NAME OF EACH PART
www.cuckooworld.com
ENGLISH
Name of each part
Name of each part
Always keep it horizontal.It stabilizes steam
inside of the oven. Pressure weight is
twisted, it release steam.
Pressure Weight
Soft Steam Cap
When finished cooking or during warming,
steam is automatically released.
Automatic Steam Exhaust Outlet
(Solenoid valve)
Lock/Unlock Handle
(Set the handle to lock when
cooking or warming the rice)
The handle has to turn to ‘Lock’ for operation.
Lid Clamp
Turn handle to ‘Unlock’, and then press
Clamp knob to open.
Control Panel
Accessories
Manual&Cooking
Guide
Rice Scoop
Rice Measuring Cup
Steam Plate
Cleaning Pin
(Attached on the
bottom of the unit)
Empty the water out of a dew
dish after cooking or keep warming,
Leaving the water in the dew dish
results in bad smell.
Drain Dish
DET. cover Holder
Handle
Place the inner pot Into
the body property.
Inner Pot(Oven)
Pressure
Packing
Pressure
Control Plate
Holder Guide
Power Plug
Power Cord
Temperature
Sensor
Control Plate
Packing Cover
Control Plate
Packing
Rice Scoop holder
Pot Handle
DET. cover
Lid Assy
HOW TO CLEAN
To prevent foul odor clean the lid assy after the rice cooker has cooled and the rice cooker is unplugged.
Body and cover should be cleaned with a dry dish towel. Do not use betel while using rice cooker, starch
can remain. No effect on health.
Do not put materials like screws into holes of detachable cover. Check the back cover and front cover.
1. Handle must be turned to “Lock” during Cooking.
When the lamp is turned on it means that it is ready to cook.
2. After cooking, turn the handle from “Lock” to “Unlock” turn the
handle to open.
If there is unreleased steam in the Inner pot it
might be hard to turn the handle. In this case twist the pressure
weight and let the excess steam out. Do not open by force.
3. Handle must be turned to “Unlock” when opening and closing.
Detachable cover & Pressure packing
Detachable cover & Pressure packing
After cleaning detachable cover, put it back on the lid
Unless detachable cover is mounted, preset cooking cannot be done. (Alarm may sound while keeping warm.)
When mounting the cover,
grab separate cover handle,
attach it to hole, and after
adjusting holder on top of
packing stop tab, fix it by
turning it clockwise.
Make sure to clean the clean steam
went after/before use. Do not try to
pull out the clean steam went and
safety packing, clean it with care.
Make sure the clean steam went
and safety packing are installed
completely after/before use. If the
steam vent is detached, or not
attached completely, please
contact customer service.
Wipe the water on the outside and
bottom of the Inner Pot. A rough
sponge, a brush or an abrasive can
cause scratches on the coating.
Use a dishwashing liquid and a
soft cloth or a sponge.
Wipe the main unit with a wet cloth
that has been extracted out of al
water
Make sure to clean the steam
control went before and after use.
Steam Vent Inner Pot
Pressure Packing
Inside of the Main body
Wash the cover with cooking
purposeneutral detergent and
sponge frequently, and wipe off
moisture with handkerchief.
Please keep clean the edge of
rubber packing, then the rice
cooker last's longer.
Turn the holder counter
clock wise, and the cover
will be easily separated
from the cooker and can be
washed.
It is easier to attach the
cover holder when the power
part of the detachable cover
is pressed.
Please fir a rubber packing into the cover plate completely after washing or replacing the rubber packing.
After fitting 6 projections to the holes, please
press the rubber packing around the corner
completely as shown in the picture.
To put back the rubber packing,
please fit it to each of 6 projections
and holes as shown in the picture.
Rubber packing guide Oven cover point
To separate the rubber packing,
please pull it out from the cover
plate as shown in the picture.
Please check that the rubber packing fits into the cover
plate completely. If not, steam may be released from the
crack between the packing and the plate.
Keeping the contact area of the Inner Pot with the pressure
packing always clean, increases the product's durability.
Rubber packing
contact surface.
Inner pot
contact surface.
If the lamp does not turn on, it would not
operate the “Cook” and “Preset” buttons.
Make sure the handle is located in “Lock”.
HOW TO CLEAN
www.cuckooworld.com
ENGLISH
2. To close the lid turn the handle to unlock,
in shown in the picture on the right.
1. Check to make sure the inner pot is
place correctly inside the main body.
3. If there is excess steam inside the
inner pot it might be difficult to lock
the handle. Twist the pressure
weight and allow the excess steam
to release. Then try to turn the
handle again.
Do not try to close the lid by force. It can cause problems.
When lid does not close perfectly
Separate cover as
the arrow points.
Use brush kit. You can easily
clean a drain use the ditch
cap and tough pat to clean.
When using cleaning
pin, pull out cleaning
pin and make it meet
at right angles.
Only use for the
vlave hole of the
pressure weight.
Separate cleaning pin Attached
on the bottem of the unit from
main body as shown in picture.
How to use cleaning pin and brush kit
Separate dew dish
Separate the drain ditch
cap by pushing it down.
Clean the drain ditch
cap and dew dish with
a neutral detergent.
Clean the drain ditch
cap with brush kit.
Securely put in the dew
dish after cleaning.
How to clean dew dish
How to clean the soft steam cap
Do not touch the surface of the soft steam cap right after cooking. You can get burned.
Detach the soft steam
cap like the picture.
Press the hook in the back, and follow the arrow to
detach and clean. Make sure you clean frequently
with a sponge or a neutral detergent.
Assemble the went
so that it fits into the
groove perfectly.
After you attach the soft
steam cap to fit into the
groove, press “A” part firmly
to assemble the soft steam
cap into the product.
Packing
Packing guide
How to clean the pressure weight nozzle.
The valve hole of the pressure weight allows steam to release. Check regularly to ensure that it not blocked.
If the valve hole of the pressure weight is blocked, the hot steam and hot content within the cooker can
cause serious injury.
Do not use the cleaning pin for any other use except to clean the valve hole of the pressure weight.
Soft steam cap
Cleaning Pin
If the valve of the pressure part is clogged, puncture it with the cleaning pin
How to
disassemble the
pressure weight
Under the Lock/Unlock handle is locked(located on “Lock”) turn the pressure weight counter-
clockwise while pulling it up, and pull it out.
Puncture the clogged valve hole with the cleaning pin and reassemble it by turning it clockwise.
When the pressure weight is properly assembled, it can freely be turned.
Pressure Weight
Attached on the
botton of the unit.
Alien
Substance
FUNCTION OPERATING PART /
ERROR CODE AND POSSIBLE CAUSE
This function is used to select from among Glutinous Rice, High Heat Glutinous Rice ,Mixed Rice,
High Heat Mixed Rice, Sushi Rice, GABA Rice, High Heat GABA Rice, Black bean, Nu rung ji,
Nutritious Rice, Nutritious porridge, Multi cook, Ferment Bread(Ferment), Ferment Bread(Baking), Auto
clean and to modify preset time. See page. For setting selected action with mode button and
setting gaba time multi-cook Bread(Ferment), Ferment Bread(Baking) time. See page.
Keep Warm
/Reheat button
Used to warm or reheat.
(Refer to page 30)
Preset/AUTO
CLEAN Button
Used to preset preferred
cooking time
(Refer to page 28~29)
When you use automatic
steam cleaning function
(Refer to page 18)
Mode button
This function is used to
customize individual (Refer to
page 19~20) cooking
preference, time-setting (Refer
to page 14), voice volume
setting (Refer to page 13), keep
warm temperature setting (Refer
to page 32), and power saving
mode (Refer to page 33).
Menu / Selection
button
Pressure Cook /
Turbo Button
This function is used to start
cooking. (Refer to page 17)
Cancel button
This function is used to cancel
a selection or release
remaining steam in the inner
pot. (Refer to page 41) When
using Power saving function.
(Refer to page 33)
Display
Set button
This function is used to select
a function or to button-lock
function. (Refer to page 34)
When the product has any problems or used it inappropriately, you can follw the below marks.
If error persistently shows up even in normal using conditions or after taking measure, inquire with customer service .
Error Code and Possible Cause
Function Operating Part
When the inner pot is not placed into the unit.
When pressing the Pressure Cook and Timer button, while the Lock/Unlock handle is on “Unlock”
Turn the Lock/Unlock handle “Lock”
When boiling only water.
Problem on fan motor. “ “marks blink.)
When setting preset time longer than 13 hours Set the preset time within 13 hours.
(Refer to page 28~29)
It is appears on the display when you press Start button again, or if the cooking has finished and you've never
ever turned the handle to “Unlock”, It can be solved by turning handle to “Unlock” and then turn to “Lock”.
Problem on micom power.
Problem on environment sensor.
Problem on micom memory.
This error messager shows up when Pressure Cook or keeping warm/reheating button is pressed while separate cover is not
mounted. Mount separete cover. Note: While keeping warm. alarm will sound and keeping warm and reheating do not work.
This code indicates the function of checking for abnormality of power of product.
Problem on temperature sensor. (“ ” mark, “ ” mark, “ ” mark blink.)
If no operation is done while power cord is plugged, the system while be on standby mode as
shown in the figure. (The menu on standby screen, time, voice and customized rice taste stage
may differ depending on used configuration.)
If cancel button is pressed during cook, the rice cooker will go in standby mode.
Press the button until the buzzer sounds, Picture may vary depending on model.
<Standby condition screen>
HOW TO SET CURRET TIME / HOW TO
SET OR CANCEL VOICE GUIDE FUNCTION
www.cuckooworld.com
ENGLISH
To enter this function, press Mode button 2 times. Mode button needs to be pressed for over 1 second at the first time.
Voice guide volume control (The function which can control volume and cancel)
Press mode button once.
Press mode button for more than 1sec
”Current time mode press yes button” after setting current time with selection
button Menu/selection button blinks and Mode, Set and Cancel buttons turn ON.
Colon mark (:) on the sec. screen is blinking once per second.
1
About Lithium battery
This product contains lithium battery for improving blackout
compensation and time. Lithium battery lasts for 3 years.
When current time is not displayed on the screen, it means the
battery is exhausted. It should be replaced.
What is blackout compensation
This product remembers and maintains previous condition and
processes. After finishing blackout, it operates immediately.
If blackout happens during cooking, the cooking time will
be delayed depending on blackout time.
If the rice became cold because of blackout, warming will
be cancelled.
How to set current time during keep
warming mode
1. Press Cancel button to cancel keep warm and
then press Mode button over 1 time to set
current time.
2. After setting time, press keep warm button to
re-start keep warm.
ex)8:25am now
How to set current time
When finishing to set time you want, press “Set”button.
If it is over 7sec without yes button, setting time will be canceled with voice,"
it is canceled due to overtime".
3
Set o'clock and minute as pressing menu/selection
button.
2
Set button blinks and Mode, Menu/Selection and Cancel buttons turn ON.
Keep the button pressed, and the button will turn to Continuous.
Set to desired voice volume, and press Set button.
‘ ’ sign is displayed when entered volume control mode by
pressing Mode button 2 times.
If set value became ‘ ’ by pressing button, voice guide function
is off.
Press button to set ‘ ’, that is the maximum volume sound.
When finish setting desired volume, press Mode button to store.
1 min up “ ” button
1 min down “ ” button
10 min up or down “ ”, “ ” keep pressing.
Careful of setting am,pm.
In case of 12:00 it is 12:00 pm.
<Standby mode>
NIGHT VOICE VOLUME REDUCTION/
VOICE SETTING FUNCTION
Night Voice Volume Reduction
1. Press mode button 10 times in standby status, and you will enter Night Voice Volume Reduction mode.
When pressing mode button initially, press the button for 1 second or longer to enter Night Voice Volume
Reduction mode.
2. When you enter Night Voice Volume Reduction mode, a voice comes up saying “You have entered
Night/Voice Volume Reduction. Select or inactivate Night Voice Volume Reduction mode with
'Menu/Selection' button and press 'Set' button.”
3. Press 'Menu/Selection' button, and as process progress bar change, voice volume will change. Select
desired voice volume, and press 'Set' button.
4. Once process progress bar reach full condition through adjustment of 'Menu/Selection' button, a voice will
come saying “The function of Night Voice Volume Reduction is inactivate.” Inactivate the function by
pressing 'Set' button.
5. If 'Set' button is pressed or no button is pressed for 7 seconds after you enter Night Voice Volume
Reduction mode, the function will be inactivated along with voice “As set time is elapsed, the function is
inactivated”, and the system will be back to standby mode.
1. Press mode button 11 times in standby status, and you will enter Voice mode. When pressing mode button
initially, press the button for 1 second or longer to enter Voice mode.
2. When you enter Night mode, a voice comes up saying “You have entered Voice function. Select or inactivate
Woman, English and Chinese Voice mode with 'Menu/Selection' button and press 'Set' button.”
3. After setting Auto voice with 'Menu/Selection' button, Woman voice or English or Chinese, and press 'Set'
button.
4. If 'Set' button is pressed or no button is pressed for 7 seconds after you enter Volume, the function will be
inactivated along with voice “As set time is elapsed, the function is inactivated”, and the system will be back
to standby mode.
Example) 60% of day time voice volume
Example) When set to woman voice Example) When set to Chinese voice
Night voice volumes by the setting of process progress
Set the function of night voice volume reduction, the function to reduce the volume of voice
during night time (10:00PM-05:59AM) on need-to-do basis. This function works only during night time.
How to set night voice volume reduction
Voice Setting Function
This function helps you select Auto voice for either a woman or English or Chinese's voice. With this function, you can
set to your desired voice.
How to set voice function
Zero volume
20% of day time voice volume
40% of day time voice volume
60% of day time voice volume
80% of day time voice volume
Example) When set to English voice
BEFORE COOKING RICE
www.cuckooworld.com
ENGLISH
Glutinous Rice for 8 persons
(8 cups) : Set the water to scale
8 of “GLUTINOUS”
For overcooked rice : pour less
water than the measured scale
When you want to cook the old
rice or want the soft rice :
pour more water than the
measured scale
Rice for 8 persons (8 cups)
Clean the inner pot and wipe the water on the inner pot with dry cloth.
Use the soft cloth to wash the inner pot.
Tough scrubber can make the coating come off.
1
Measure the amount of rice you want to cook using the measuring cup.
Make the rice flat to the top of measuring cup and it is serving for
1 person.
(ex: for 3 servings 3 cups, for 6 servings 6 cups)
2
Wash the rice with another container until the water becomes clear.
(We recommand not to use inner pot for washing grains)
3
Put rinsed rice into the inner pot.
4
Put the inner pot into the main body and close the topcover.
Put the inner pot correctly.
If there is any external substance on the temperature sensor or the bottom
of the inner pot, wipe it off before putting the pot into the main unit.
lid will not close if the inner pot is not placed correctly in the main body (Place
the inner pot to the corresponding parts of the main body)
6
According to menu, adjust the water amount.
For measuring, place the inner pot on a leveled surface and adjust
the amount of water.
The marked line of the inner pot indicates water level when putting
the rice and water into inner pot together.
About water scale
Glutinous rice, Turbo Glutinous rice, High Heat Glutinous Rice, Nutritious rice :
Adjust waterlevel to the water scale for 'GLUTINOUS'. Glutinous rice / High Heat
Glutinous rice can be cooked to max 10 servings, Turbo Glutinous rice /
Nutritious rice to max 6 servings.
Mixed Rice, Turbo Mixed rice, High Heat Mixed Rice : Adjust water level to the
water scale for 'Mixed Rice'. Mixed Rice / Mega Heat Mixed Rice can be cooked
to max 8 servings, Turbo Mixed Rice to max 6 servings.
GABA Rice : Adjust water level to the water scale for 'GABA Rice'.
GABA Rice can be cooked to max 6 servings
Soft Glutinous Rice : Adjust water level to the water scale for ‘Soft GLUTINOUS'.
Soft Glutinous Rice can be cooked to max 6 servings.
Nutritious porridge: Adjust water level to the water scale for 'PORRIDGE'.
Nutritious porridge can be cooked to max 2 servings
5
Cook in cereals menu, hard cereals like red-bean can be half-cooked depeding
on the kind of cereal.
Connect power plug and turn the handle to “Lock”
The lamp turning on means closed perfectly.
If you press the cook button without setting the Lock/Unlock
handle to “Lock”, the cooker will not operate. You will hear
“beep beep beep” sound and “ ” is shown in the LCD.
If you want to select another function while cooking, push cancel button.
7
If ‘ ’ mark shows up in other instance, turn cover handle to “Open”
direction, and turn it toward “Lock”. Then the cooker will work normally.
(The operation of cover lock sensing device can be checked.)
Note: This instruction is not applicable if cover handle is turned toward “Open”
direction once or more after cooking was completed in previous cooking.
FOR THE BEST TASTE OF RICE
Use the measuring
cup!
Pour the water until
water level marking
in the inner pot!
How to keep the
rice
It’s better to set
the preset time
shortly.
It’s better to set
the Keep
warming time
shortly.
Keep the product
clean.
When measuring the rice, Use the measuring cup.
(The amount of the rice may vary depending on the
quality of the rice.)
Place the inner pot on a flat surface and adjust the
water to water level in the inner pot.
If possible, buy a small amount of rice and keep
the rice some place where ventilates well and
avoid a direct ray of light. It can prevent
evaporation of rice moisture.
If the rice has been unsealed for long, rice can be
dry and stale. In this case, you should pour the
half of water more. It s tastier.
If possible, do not use the preset time function if
rice is too dry and pour more water more.
It s better to set the keep warming in 12 hours.
Clean the product often.
(Especially clean the top of the cover for external
substance.)
When the propotion between the
amount of rice is not proper, rice can
be crisp or hard.
When rice is too dry, it can be crips
even though measuring the amount
of rice is accurate.
If you set “Preset” over the 10 hours
or “Preset” dried rice, rice can be crisp
or half cooked. Even worse condition,
rice can be cooked different tastes
each level.
If the preset time is longer, the
melanoizing effect could be increased.
If rice is kept warm for a long period
of time, rice color will change, and
can cause odor.
Wipe the lid heating part well for any
rice or external substance.
For the best taste of rice, check the following points carefully.
Cook tasty rice with Cuckoo pressure rice cooker
HOW TO COOK
www.cuckooworld.com
ENGLISH
Choose menu with menu/selection button
Start cooking by pressing Pressure
Cook/Turbo button.
Select button.
Each time “Menu” button is pressed, the selection switchs in
the sequential order, Glutinous Rice
High Heat Glutinous
Rice
Mixed Rice High Heat Mixed Rice Soft Glutinous
Rice
GABA Rice High Heat GABA Rice Nutritious Rice
Nutritious porridge Chicken soup Smart menu Multi
cook
Baby food Ferment Bread(Ferment) Ferment
Bread(Baking)
Auto clean.
If the button is pressed, repeatedly, the menu switches
continuously in sequential order.
In the cases of sushi, mixed rice, GABA and old rice, the menu
remains memorized once each cooking is completed, so for
continuous use of the same menu, no selection of menu is required.
You must turn lid handle to lock before cooking.
Then press the pressure Cook/Turbo button.
Unless lid handle is not turned to close, you get
alarm with “ ” , and sound “turn lid handle
to lock”.
12
The end of cooking
When cooking is completed. warming will start with
the voice "cuckoo completed glutinous".
When cooking ends, stir rice equally and
immediately. If you don't stir rice at once and keep
it stagnant, rice will go bad and smell bad.
If the lid handle is not working well, take out the steam
completely out of inner pot by turning over pressure weight.
While cooking, do not press cancel button.
4
ex) In case of selecting Soft Glutinous Rice.
You can hear a voice, Soft Glutinous Rice. when you cook
Soft Glutinous Rice, automatic steam outlet operates while
cooking.
ex) In case of cooking Glutinous.
Cooking thoroughly
The cooktime remaining on the display is shown
from cooking thoroughly. The cook time is
different according to the menu.
Be careful not to burn yourself from the
automatic steam outlet.
3
ex) In case of 14minutes left.
After cooking chicken soup and multi cook etc, the smell may permeate into the unit, use the Unit after cleaning the rubber packing and lid
part according to page 10.
Cooking time by menus may vary to some degree depending on the using environment of the product.
Baby Food/Fermentation/
Bread Baking/Multi Cook
See detailed
guide to
cooking by the
menus.
Automatic Sterilization
(Steam Cleaning)
Up to water scale 2
About 20 minutes
Cooking
Capacity
Cooking
Time
Menu
Class
Glutinous
2 servings~
10 servings
About 28 min~
About 37 min
Turbo
Glutinous Rice
2 servings~
6 servings
About 13 min~
About 24 min
High Heat
Glutinous Rice
2 servings~
10 servings
About 29 min~
About 40 min
Mixed
Rice
2 servings~
8 servings
About 45 min~
About 54 min
Turbo
Mixed Rice
2 servings~
6 servings
About 26 min~
About 36 min
High Heat
Mixed Rice
2 servings~
8 servings
About 45 min~
About 55 min
Soft Glutinous
Rice
2 servings~
6 servings
About 53 min~
About 59 min
GABA
Rice
2 servings~
6 servings
About 54 min~
About 64 min
High Heat
GABA Rice
2 servings~
6 servings
About 55 min~
About 65 min
Smart
Menu
Please refer
to app.
Nutritious
Rice
2 servings~
6 servings
About 30 min~
About 33 min
Porridge
1 servings~
2 servings
About 61 min~
About 72 min
Chicken
Soup
1 Chicken
(About 1kg)
About 70
min
HOW TO COOK
How to use automatic sterilization (Steam Cleaning)
After cooking in white rice turbo mode or cooking of small serving, discard water. In case of small servings white rice turbo
cooking, more water may be required than other menu.
Please refer to the cooking guide.
You can soak grains before stating cooking by setting a desired time with this function.
Setting Method
The cooked rice can be light yellow at the bottom of the oven, because this product is designed to improve pleasant flavor
and taste. Especially, melanoizing is more serious at the
Preset cooking than just Cooking .
It does not mean malfunction.
When mixing other rice with Glutinous, Melanoizing effect could increase more than Glutinous cook setting.
Melanoizing effect
Put water until water scale 2, make sure to close and lock the cover.
Method 1, After choosing automatic cleaning menu by pressing “Menu/Select”
button, and then press “Pressure cook/turbo” button.
Method 2. After choosing automatic cleaning function by pressing “Preset”
button twice in standby mode, press “Pressure Cook/turbo” button.
1. To activate the Simple Soft Function, “press /Auto Clan” button within 5 seconds right after. CUCKOO started the menu for
Glutinous Rice, Mixed Rice, Turbo Mixed Rice, Sushi Rice, Nutritious Rice, Nu Rung Ji or Black bean.
2. To change the soaking time, press “press /Auto Clan” button in simple Soft Function: the time setting can change from 10 to
30 minutes, 60 minutes, and No Soaking Time.
3. If you do not press any button for more than 5 seconds while setting the soaking time, it will be automatically set back to the
current soaking time, After the soaking time is over, the cooking will start.
Soaking time is counted by 1 minute unit.
If you unlock the Lock/Unlock Handle during the simple Soaking Function, the cooking will be canceled.
The longer the soaking time, the melaoizing effect.
Simple Soft Function
Mixed /Brown
Boby Food
Glutinous
When you want to have sticky and nutritious white rice.
Soft Glulinous
When you want to have a little more sticky and nutritive white rice
than Glutinous rice.
How to use the cooking menu
This menu is used to cook various baby foods by
setting a time manually.
Smart
Menu
With the NFC (Near field communication) function of the
Smart Phone,the rice cooker can cook the new recipes,
which are not pre-stored in the cooker, by transmitting the
new recipes from the Smart Phone to the “Smart Menu” of
the rice cooker.
GABA Rice
Used to cook germinated brown rice.
This menu is used to cook a variation of
mixed rice or brown rice.
Chicken soup
This menu cooks samgyetang automatically.
Nutritious
Rice
Used to cook nutritious rice.
Porndge
For cooking porridge.
Multi Cook
Automatic
Sterilization
(Steam
Cleaning)
This menu is used to cook various dishes by
setting a time manually.
This menu is used to eliminate small
soaked after cooking or warming.
Mixed Rice
Turbo
If selected turbo mixed rice, total cooking time will be reduced.
(It takes about 26minutes for cooking mixed rice for two people.)
Turbo mixed rice cooking lessens the quality of food, so only use for less than four people.
For better taste of cooked rice, cook rice in white rice turbo mode after macerating rice for 20 minutes or so before cooking.
Mega Heal
(Glulinous/Mixed
GABA Rice)
Use when cooking more sticky and soothing Cooked Rice
Turbo
function
for
Glutinous
Rice
Pressing “pressure cook/turbo” twice will switch to quick cooking “Pressure Cook/Turbo” twice will switch to quick cooking
and shorten the cooking time. (It takes about 14minutes when you cook the Glutinous rice for 2 persons.)
Use this turbo cooking function only for cooking rice for less than 4 persons. (The condition of the rice will not be good for
more than 4 persons.)
The turbo cooking function is allowed up to 6 persons.
If you soak the rice in water for about 20minutes before cooking the rice and then cook the rice in turbo cooking course,
the rice will taste good.
ENGLISH
www.cuckooworld.com
MY MODE (Cuckoo Customized Taste Function)
Cuckoo’s patented technology based on variable circuit design. User can select the degree of “softness” and “glutinosity
& tastiness” to meet a user’s desire.
What is “MY MODE”?
Longer “SOFT” Time : rice becomes soft and glutinous. (selectable in 4 steps)
Longer “SWEET” Time : rice becomes tastier(selectable in 4 steps) [melanoizing will occur]
Both functions above can be selected simultaneously or separatetly
MY MODE Function
To enter Customized Rice Taste
Setting Mode, select desire menu
and hold the Mode button once for
1 second or longer.
“MENU”setting screen
To enter “Customized Rice Taste Setting Mode”, select the menu in which Customized Rice Taste is supported such as glutinous rice,
High Heat glutinous, mixed rice, High Heat mixed rice GABA rice, High Heat GABA rice and press the mode button for 1 second or longer.
Then, you are going to enter “Customized Rice Taste Setting Mode. Select the welling and heating stage with the Selection button, and
press the Set button”.
The setting of figure below is based onglutinous rice menu.
How to Use “MY MODE”
“MY MODE” setting screen
Select desired heating extension time by
pressing the button, and press Set button.
Set button will blink, and Pressure Cook, Cancel
and Menu/Select button will turn ON.
Note : For 16 customized rice tastes, refer to
the graph for 6 rice tastes. (See page 20.)
Set up desired customized rice taste.
And press Pressure Cook.
(If you press cancel or do not press a
button within 7 seconds, the function
will deactivate and return to the
standby mode.)
Select desired swelling time by pressing
the button.
Set button will blink, and Pressure Cook,
Cancel and Menu/Select button will turn ON.
Select menu you want with
menu/selection button and press
the set button.
Soft time control mode
Sweet time control mode
Setting the completed screen after
To enter Customized Rice Taste etting
Mode, select desire menu and press
Mode button once for 1 second or
longer
“MENU”setting screen
You can customize your preference for cooked rice by selecting Customized Cooked Rice Taste mode or mode button.
Each time you press Mode button, the major cooked rice taste will show up in the sequential order ‘Sticky Cooked Rice
Taste –> Soft Cooked Rice Taste -> Soothing Cooked Rice Taste -> Soft and Soothing Cooked Rice Taste’.
The setting in the figure below is based on glutinous rice menu.
How to Use “MY MODE” ll
“MY MODE” setting screen
Press Mode button two times, and the display
will change as in the figure. At this time, Soothing
Cooked Rice Taste 4th Step will be selected.
Set up desired customized rice
taste. And press Pressure Cook.
(If you press cancel or do not press
a button within 7 seconds, the
function will deactivate and return to
the standby mode.)
Press Mode button once, and the display will
change as shown in the figure. At this time, Soft
Cooked Rice Taste 4th Step will be selected.
Select the menu you want with the
menu/selection button and press
the set button
Soft time control mode
Sweet time control mode
Setting completed screen after
Press Mode button three times, and the display
will change as in the figure. At this time, Soft,
Soothing Cooked Rice Taste will be selected.
Soft and Sweet Rice Mode
MY MODE (Cuckoo Customized Taste Function)
The display for My Mode
This is a graph that shows the flavors of 16 types of cuckoo custom-made rice
If you press the mode button 5times, customized cooking function is setup. Select heating power by
selection button. You can see all means with cuckoo customized cooking function on the display.
*1. The rice becomes solid and glutinous.
*2. The rice becomes soft and well-raised rice.
*3. The rice becomes soft and glutinous.
Note: Rice taste number from 1 to 16 will be displayed on the display window.
How to use Cuckoo Customized cooking function
1. ‘Cuckoo customized cooking function’ applies to Glutinous, High Heat Glutinous, Mixed Rice , High Heat Mixed Rice, Soft Glutinous Rice , GABA Rice,
High Heat GABA Rice ,Nutritious Rice collectively
2. Set up the step of customized cooking function to taste. The scorch can occur when cooking in high level mode.
3. Cook is subject to be set differently depending on the percentage of water content and the condition of rice.
The display Cuckoo
customized cooking
function
Make the screen changed by pressing
menu/selection button.
Set button will blink, and Mode, Menu/Selection
and Cancel buttons will turn ON.
Keep pressing the button, and the menu will
switch continuously.
Push the menu/selection button, then the
screen will be changed as above picture.
Set button will blink, and Mode, Menu/Selection
and Cancel buttons will turn ON.
Keep pressing the button, and the menu will
switch continuously.
High level mode
If you press the “set” button to
complete your customized
cooking. (If you press cancel
or do not press a button within
7 seconds, the function will
deactivate and return to the
standby mode.)
If the push the button 5 times,
the display for customized
cooking function will be set up.
Initiation is like above picture.
Menu/selection button will blink,
and mode, seland Cancel buttons
will turn ON.
Setting completed
screen after
Low level mode
Shown in the figure above, the stage mark will show up on the display during setting swelling time, heating, and maintenance time.
The mark will continue to show up during cooking, reservation, keeping warm, and reheating as well.
Cuckoo customized taste function is applied to glutinous, mixed, GABA, old rice, Nu Rung ji.
Set-up times is stored until the next reset. No need to set-up at every cooking.
During cooking, warming and preset time cooking modes, “soak” and “heat” time cannot be readjusted.
SOAK : 1STEP, HEAT : 1STEP
SOAK : 4STEP, HEAT : 1STEP SOAK : 1STEP, HEAT : 4STEP
4step
SOAK
3step
2step
1step
4step
3step
2step
1step
HEAT
1. ‘MY MODE’ function may influence scorching or cooking quality. Ensure that cooking time is not
changed, by children.
Default settings are “SOFT” 1 step, “SWEET” 1 step.
2. ‘MY MODE’ function may elongate cooking time according to the set-up time.
3. Scorching of rice may occur by longer “HEAT” Time.
Cautions
Initialization is set up “ ” get step by step as the case may be.
- High step : for cooking cereals, old rice and soft-boiled rice.
- Low step : for cooking the year’s crop of rice.
While cooking you can control the heating temperature (both high an low) depending on, your prefenence.
Cuckoo customized cooking function
HEAT
4step
3step
2step
1step
1step
2step
3step4step
SOAK
HOW TO USE GABA RICE (Brown rice)
www.cuckooworld.com
ENGLISH
Check the dates of harvest and pounding.
The dates should be within 1year from harvest, 3 months from pounding.
Inspect rice with your eyes.
Check too see if the embryo is alive
Rice surface should be light yellow and glazing. Whitely stirred up surface, or darkish colored Brown rice is not suitable
for a germination
Avoid fractured, not fully corned, or empty ear’s. Empty ear’s may generate odors during germination and and be
bluish- nor corned Brown rice cannot be germinated.
(Regular brown rice)
< Comparison of Germinated brown rice s nutrition
and Glutinous rice
s (6 hours) nutrition. >
Brown rice has richer nutrients than polished rice. However, brown rice is rather tough and hard to be digested.
By germination, the enzymes in the brown rice are activated, generating nutrients and become more digestible.
What is Germinated Brown rice?
Germinated Brown rice increases nutrients and enhances taste which is a weak point of brown rice.
Germinated Brown rice also improves digestion.
Taste will be greatly enhanced.
Digestive and rich in nutrients.
Diabetic hormone is generated improving digestion.
Good as a health food for children or adults.
- Rich with dietary fiber.
Germinated brown rice has rich GABA (Gamma Aminobutryc Acid)
- GABA promotes metabolism in liver and kidneys, suppresses neutral fat, lowers blood pressure, promotes metabolism
in brain cells - these effects have been proven by medical science.
Features of Germinated Brown rice
Tips to Buy Quality Brown Rice
(Poor brown rice)
-Empty ear and nit fully comed brown rice)
Phytic acid 10.3Times
Ferulic acid 1.4Times
Gamma-orizanol 23.9Times
Gammma-aminobutyric 5Times
Inositol 10Times
Food fiber 4.3Times
HOW TO USE GABA RICE (Brown rice)
First setting time 0H (0Hours)
Using GABA RICE Menu
In order to promote germination, soak brown rice for 16 hours in water.
Method of Pre-germination
Put washed brown rice in an appropriate container, pour sufficient water to soak the rice.
Pre-germination shall not exceed 16 hours. Make sure to wash rice clean with flowing water before using
GABA menu. Be careful that hard washing may take off embryos which generate the germination.
Unique smell may be generated according to the soaking time of pre-germination.
When pre-germination has been completed, wash the rice and put in inner pot (Oven). Pour appropriated
volume of water, and use
GABA RICE menu.
In summer or hot temperature environment odor may be generated. Reduce germination time and wash clean
when cooking.
1
Set the Lock/Unlock
handle at “Lock”, press
“Menu/Selection” button
to select “GABA RICE”
Menu
When the “GABA Rice” is
selected, “ “ is indicated in
the display.
Set button will blink, and Mode,
Menu/Selection, Cancel and
Pressure Cook/Turbo buttons
will turn ON.
2
Press “Set” and
“Menu/Selection”
buttons to set time.
Menu/Selection button will
blink, and Mode, Cancel and
Pressure Cook Turbo buttons
will turn ON.
1. Pressing “Menu/Selection”
button changes germination
time by 3hours.
2. Pressing “Menu/Selection”
button changes Germination
time by 3hours.
3. ”GABA Rice” time by 0hours,
pressing “Pressure Cook/
Turbo” button will start cooking
immediately.
If GABA time is set “0” hours,
pressing “Pressure Cook/
Turbo” button will start cooking
immediately. To cook without
germination or cooking
germinated Brown rice,
set the time at “0”.
3
3 more hours for germination
Press “Pressure
Cook/Turbo” button.
Pressing “Pressure
Cook/Turbo” button will begin
the “GABA Rice” process,
after which. Cooking will begin
immediately.
During “GABA Rice” mode
“ ” indicator will show the
remaining time and will be
displayed in minutes with the
“3H” mark going around clock
wise.
4
Precautions for GABA RICE Cooking
If smaller germ is preferred, omit pre-germination process. Select GABA RICE menu, set-up appropriate
germination time, and start cooking (nutrient ingredients do not vary significantly by the size of germ).
During hot seasons, longer germination time may generate odor. Reduce germination time.
GABA RICE cooking is allowed up to 6 persons.
City water can be used for germination. However, spring water is recommended. Germination may not be properly
performed in hot or boiled water even after cooling.
Germination rate, germ growth may differ by the Brown rice type, condition or period of storing, etc.
- Germinated brown rice is sprouted brown rice. Germination rate and growth may differ by the Brown rice type.
The brown rice should be within 1 year from harvest, and not long since pounded.
In GABA RICE mode, preset on 3H may not be possible. If you want to preset the GABA RICE, set up ‘ ’.
(See the page 26)
The taste of rice could be different as depending on a kind of brown rice. Use customized taste function or control the
amount of water for your taste. (Refer to page 19~20)
Depending on the state of the surrounding environment or the condition/type of rice, the sprouts of rice may not be
visible or appeared.
HOW TO COOK THE MULTI COOK
www.cuckooworld.com
ENGLISH
Press SET button, and set heating stage with
Menu/Selection button.
Menu/Selection button blinks and after that Cancel and Pressure
Cook/Turbo buttons light. A voice comes up saying “Press SET button
after setting heating stage for cooking with Selection button”. (Please
refer to the Cooking Guide for setting cooking time for each menu.)
2
4
How to use the preset timer of Multi-Cook
Set the Lock/Unlock handle at " "(Lock) and press
Menu/Selection button to select Multi-Cook.
SET button blinks, and Menu/Selection, Cancel, and Pressure
Cook/Turbo buttons light.
L:2 is indicated on the display when Multi-Cook menu is selected.
(A voice comes up saying “Press Multi-Cook button” .)
1
3
Press SET button, and set cooking temperature with
Menu/Selection button.
Menu/Selection button blinks and after that Cancel and Pressure
Cook/Turbo buttons light. A voice comes up saying “Press SET button
after setting cooking temperature with Selection button”. (Please refer to
the Cooking Guide for setting cooking time for each menu.)
Press SET button, and set cooking time with
Menu/Selection button.
Menu/Selection button blinks and after that Cancel and Pressure
Cook/Turbo buttons light. A voice comes up saying “Press SET button
after setting cooking time with Selection button”. (Please refer to the
Cooking Guide for setting cooking time for each menu.)
When you press the SET button, a voice will come up saying “Press Cook
or Preset button”.
5
Press Pressure Cook/Turbo button.
Pressure Cook/Turbo button blinks and after that Menu/Selection and
Cancel buttons light. Press Pressure Cook/Turbo button and Multi-
Cook mode begins. Once the Multi-Cook mode begins, the cooking
icon is displayed along with the remaining time. A voice comes up
saying “Multi-Cook CUCKOO starts cooking delicious meals”.
HOW TO COOK USING FERMENTATION/
BREAD BAKING
Turn the top handle to “Lock”, press menu to select the
“Ferment”.
Set button will blink, and Menu/Selection, Cancel and Pressure Cooking
buttons will turn ON.
When the Fermenting Menu is selected, the display indicates cooking time to
be 40 minutes.
1
Press “Pressure Cook/Turbo” button
3
hen first fermet is completed, press softly dough for remove
gas and repeat process 2-3 for second ferment
After second ferment, open the lid and make sure dough size is 1.5 to 2 times.
4
Using Fermentation
Press “Pressure Cook/Turb” button will begin the “Ferment” process, after
which cooking will begin immediately.
During “ Ferment” mode, indicator will show the remaining time.
Press “Set” button and “Menu/Selection” button to set
fermentation time
Available setting time is 5~120 minutes.
(From 90 minutes or more onward, the fermentation time increases or
decreases by 10 minutes)
2
Using Bread Baking
Press “Menu/Selection” button to select the”Bread
Baking”mode.
When selecting “Bread baking”, the display indicate cooking time to
be 40 minutes.
1
Press “Pressure Cook/Turbo” button
3
Press “Pressure Cook/Turb” button will begin the “Bread Baking” process,
after which cooking will begin immediately.
During “Bread Baking” mode, indicator will show the remaining time.
Press “Set” button and “Menu/Selection” button to
set baking time.
Available setting time is 1~80 minutes.
Set the baking time depending on the fermentation state and the capacity
of the dough.
2
When the “Bread Baking” process is complete. Immediately remove the bread from inner pot
After the “Bread Baking” is complete, the bread is hot and you shoulc be careful.
HOW TO COOK USING FERMENTATION/
BREAD BAKING
www.cuckooworld.com
ENGLISH
Case Chech point Do the following
When dough is not inflated
When bread is small and stiff.
When bread is rough and
crunch.
When bread was
undercooked.
When bread was overcooked.
When the baked color of the
Underside of the bread is not
appered.
When the bread is too sticky
and wrinkled.
Is capacity of the material
accurate?
Do not have the dough is elastic
with flaccid?
Is the surface of the dough
smooth and elastic, and
transparent?
Does fermentation time is long
or short?
Capacity of the material, the
time set correctly?
Fermentation time and kneading
time set correctly?
Did you set short fermentation
time or baking time?
Did you set long fermentation
time or baking time?
Did you put the dough in the
middle of inner pot. Did you set
short baking time?
Did you remove baket bread
immediately?
When the second fermentation is complete,
the dough should be left in the middle of the
inner pot. Extend ther baking time.
When the “Bread Baking” process is
complete. Immediately remove the bread
from inner pot
follow the correct ingredient volumes and
directions for fermentation and baking time.
Check the volume of the incredients and
knead the dough well.
D
O
U
G
H
B
A
K
E
D
B
R
E
A
D
If there is a problem of fermentation / bread baking, check the following details.
HOW TO PRESET TIMER FOR COOKING
Check if the current time and the menu are correct.
Refer to page 13 for the time setting.
If the current time is not set correctly, the presetting time will
also be incorrect.
Make sure to select AM or PM correctly.
1
Turn the Lock/Unlock handle to the lock
position and a lock icon will be displayed on the
screen. Then press the "preset" button.
To activate Preset 1, press the "preset" button once. To activate Preset
2, press the "preset/timer" button twice.
Factory Set Configurations-Preset 1 : Preset at 6:30 am, Preset 2 :
Preset at 7:00pm. If you want to use these times, select Preset 1 or
Preset 2.
If the lock/unlock handle is not in the locked position then you will not
be able to program or use the preset function.
When you press the "preset" button, the preset time will be displayed,
and the Preset 1 & Preset 2 signs will be blinking.
Gaba menu, you have to select " " in order to use the preset timer
function.
When it is in keep warm mode, press cancel to exit keep warm mode,
then select your desired preset time.
2
Select menu with "Menu/Selection" button.
3
Press "Pressure Cook"button.
It says that preset cook for glutinous is booked Preset cook will be
completed at the timer.
Once cook is completed with preset time, preset time is stored in the
memory.
Don't need to set up time again.
If a small amount of rice is cooked, it could be finished earlier than
time you programmed it.
5
Preset the time.
In case of setting up timer while warming, increases by 10min
when you press " "button.
Please set up timer after canceling warming, decreases by
10min when you press " " button
If you keep on pressing either button, It can be changed continually.
Please be careful no to change frome AM to PM.
Then press the "Set" button to program your desired time.
4
How to preset timer for cooking
How to use timer function
HOW TO PRESET TIMER FOR COOKING
www.cuckooworld.com
ENGLISH
Precautions for preset cooking
In case of preset cooking
If the rice is old and dry, the result may not be good.
If the rice is not well cooked, add more water by about half-scale.
If the preset time is longer, melanization could be increased.
Rinsed rice adds precipitated starch, Preset Cook may cause scorching.
To reduce scorching, cook washed rice by rinsing in running water or reduce cooking amount.
1
The change of preset time
Press “cancel” button for more than 2 seconds and restart it to change the preset time.
2
If the preset time is shorter than cooking time, cooking will immediately begin.
If set time is shorter than preset time, cooking will immediately begin.
3
In case the preset time is over 13 hours.
“”
will be displayed and the preset time will be changed to 13 hours automatically.
ex)
If cooking is preset to AM07:00 of the following day at PM5:00 of the day, where preset time is 14 hours,
“ ” will be displayed, and preset time automatically changes to AM06:00. (Preset time is 13 hours)
If the preset time is over 13 hours, it can cause bad smell. The limited preset time is set up less than 13 hours
because the rice spoils easily during the summer time.
When you want to finish presetting P.M 12:00, preset P.M 12:00.
Use this function when you want to finish cooking between 1 hour to 13 hours based on the preset time.
If you press the set button to check the present time during the preset cooking function, the preset time will be
displayed for 2 second.
4
Glutinous
Rice
Soft Glutinous
Rice
Mixed
Rice
GABA
Rice
MegaHeat
GABA Rice
Automatic
Sterilization
(Steam Cleaning)
From
(42minutes
+ My mode)
to 13 hours
From
(45minutes
+My mode)
to 13hours
From
(59minutes
+My mode)
to 13hours
From
(60minutes
+My mode)
to 13hours
From
64minutes
to 13hours
From
(69minutes
+My mode)
to 13hours
From
(70minutes
+My mode)
to 13hours
From
38minutes
to 13hours
From
(1minutes
+My mode)
to 13hours
From
75minutes
to 13hours
From
77minutes
to 13hours
From
(1minutes
+My mode)
to 13hours
From
(1minutes
+My mode)
to 13hours
From
25minutes
to 13hours
MegaHeat
Glutinous
Rice
MegaHeat
Mixed Rice
Nutritious
Rice
Boby
Food
Chicken
Soup
Nutritious
porridge
Multi Cook
Ferment
Bread baking
Possible
time
Setting
Possible time setting for each menu
Menu
Class
HOW TO USE PRESET REHEATING FUNCTION
How to use Preset Reheating function
Make sure that the current time is correct
See Page 13 for how to set the current time.
Please make sure that the current time is correct so that the reheating
process ends on time.
Do not get confused between morning and afternoon.
1
Set the Lock/Unlock handle at " "(Lock) and press Preset/Auto Clean
button when the Lock icon is displayed.
A voice will come up saying "Select menu with Preset and Selection
button and press SET button."
Menu/Selection, Keep Warm/Reheat buttons blink and after that
Preset/Auto Clean, Set, Cancel and Pressure Cook/Turbo buttons light.
Please make sure that the Lock/Unlock handle is locked properly before
using the Preset function.
2
Press the Keep Warm button and Preset Reheating mode begins.
A voice will come up saying “Please set the completion hour of
reheating using Preset Reheating and Selection button and then
press Keep Warm button."
Menu/Selection button blinks and after that Keep Warm/Reheat,
SET and Cancel buttons light.
The Preset time is set to 06:30 AM when the product is delivered
from the factory. If you want to preset reheating to this hour, it is not
required for you to set the time.
3
Press the Menu/Selection button to preset the completion hour of reheating.
Keep Warm/Reheat button blinks and after that Menu/Selection,
SET and Cancel buttons light.
The completion hour is increased by 10 minutes each time you
press the “ ” button.
The completion hour is decreased by 10 minutes each time you
press the “ ” button. If you keep pressing the button and the
time changes continuously (repetition is allowed).
Do not get confused between morning and afternoon.
4
Use this function when the cooked rice is not kept warm in the rice cooker but you still want to
enjoy a hot meal at your convenience.
It takes three hours before it's fully warmed up: Please use the function at least three hours
before you enjoy your meal.
For example, if it is nine o’clock in the evening and you want to have warm breakfast at six
thirty the next morning:
Press the SET button.
A voice will come up saying "Press the Keep Warm button."
Keep Warm/Reheat button blinks and after that Menu/Selection,
SET and Cancel buttons light.
5
Press the Keep Warm/Reheat button.
A voice will come up saying “Reheating will be completed
today/tomorrow at OO, OO:OO AM/PM.
Reheating is completed as scheduled.
The cooker memorizes the hour that you have preset: You may press
the Warming/Reheating button directly without having to preset the
time again from the beginning.
6
“ ” will be displayed and the preset time will be changed to 13 hours automatically.
If cooking is preset to AM07:00 of the following day at PM5:00 of the day, where preset time
is 14 hours, “ ” will be displayed, and preset time automatically changes to AM06:00.
(Maximum preset time is 13 hours)
If the preset time is over 13 hours, it can cause bad smell. The limited preset time is set up less
than 13 hours because the rice spoils easily during the summer time.
When you want to finish presetting P.M 12:00, preset P.M 12:00.
Use this function when you want to finish cooking between 1 hour to 13 hours based on the
preset time.
If you press the set button to check the present time during the preset cooking function, the
present time will be displayed for 2 seconds.
HOW TO USE PRESET REHEATING FUNCTION
www.cuckooworld.com
ENGLISH
Precautions for preset reheating
In case of preset reheating
When leaving cooked rice at ambient temperature for a prolonged period of time, moisture is
evaporated from cooked rice. In such a case, the reheating preset may cause dehumidifying
or melanosis (slightly burnt) of cooked rice.
If there is an excessive amount of cooked rice in the pot, it may not sufficiently be reheated.
It is recommended to set reheating for no more than six people(approx. half of the inner pot).
Reheating of cold- or frozen-stored cooked rice may cause insufficient heating, dehumidifying
or melanosis (slightly burnt) after completion of reheating.
Put cold-stored cooked rice into the inner pot, beat rice with a scoop, and then reheat rice.
Reheating of frozen-stored cooked rice shall be performed only after thawing the rice.
1
Changing preset time
Press “cancel” button for more than 2 seconds and restart it to change the preset time.
2
If the preset time is beyond the available range
If the preset time is shorter than the available range(3hours), reheating will begin immediately.
3
In case the preset time is over 13 hours.
4
TO KEEP COOKED RICE WARM AND TASTY
Having a meal
If you want to have warm rice, press the “Keep warm/Reheat” button. Then “Reheat” function will be started and
you can eat fresh rice in 9 minutes.
To use reheaing in standby status after power is applied, turn lid combining hand grip to Locked location, press
Reheat/Keep button, and the cooker will convert to Heat Preservation mode. Here press Reheat/Keep warm
button once more.
It will be hard to open the lid during warming or right after it has
finished cooking, So push the pressure weight to the side and
allow the steam to release.
Make sure the handle is in the “Lock” position during warming or
reheating.
It is recommended to evenly stir the cooked rice after cooking.
The rice taste is improved. (For a small quantity of rice, pile up the
rice on the center area of the inner pot to keep warm)
Do not keep the scoop inside the pot while warming the rice.
When using a wooden scoop it can create serious bacteria and
odors.
It would be better to warm the rice for less than 12 hours because
of odors and color change.
The cooked rice, which cooked by pressure cooker is more prone
to changing color than the rice cooked by general cooker.
During warm mode, the rice can arise and turn white and rise. In
this case, mix the rice.
Do not mix small amount of rice or leftovers with the rice under
keeping warm. Doing so may cause an odor. (Use a microwave
oven for the cold rice.)
Simple Soft Function
The mixed and brown rice cannot be in such good condition as
white rice while in warm function due to their characteristics.
Therefore do not keep mixed and brown rice in function for a long
period of time.
If you change the present time during warming, see the page 13.
The frequent use of the “Reheat” function may cause the cooked rice to be discolored or dried. Use it once or twice per day.
If a separate heating appliance or gas burner is used to cook rice, put the cooked rice into the cooker and press the “Keep
Warm/Reheat” button to keep the rice warm. At this time, “ ” is shown on the display. (Like this, transferring hot rice to a cold
cooker may cause the rice to be discolored or develop an odor)
After 24 hours of heat preservation, the lamp of heat preservation time lapse blinks, indicating that long time has passed in heat
preservation condition.
In case the lid combining hand grip is in open status during heat preservation, the cooker does not go for reheating. For reheating,
lock the lid combining hand grip to (Locked) position, and then press Keep warm/reheat button.
If the lid combining hand grip is turned to open status during reheating, function display will show “ ”. At this time, reheating
will be cancelled, and heat preservation will proceed.
<Keep warming>
<Finishing reheat>
<Reheating>
indicates the time elapsed as
warming time.
When the reheat finishes with the beep
sound, keep warming function will be
operated and show the time elapsed.
The lamp blinks and indicator
will show the reheat remaining time
displayed in minutes with the mark
going around clockwise.
TO KEEP COOKED RICE WARM AND TASTY
www.cuckooworld.com
ENGLISH
Press “Mode” button over
1 time during warming. It displays
as picture with buzzer. At the time,
means current warming
temperature.
“Menu/Selection” button will blink, and
“Mode”, “Set” and “Cancel” buttons will be
turned ON.
-1 Press “Menu/Selection” button to
change the temperature as
“Set” button will blink, and “Mode”, “Menu/selection”
and “Cancel” button will be turned ON.
To switch the functions continuously, keep pressing
the button.
-2 Press “Menu/Selection” button to change
the temperature as
“Set” button will blink and “Model”, “Menu/Selection” and
“Cancel” buttons will be turned ON.
To switch the functions continuously, keep pressing the
button.
1. If too much water is spilled out when you open the lid : Press “Menu/Selection” button to raise the setting mode.
2. If the edge of rice is too soft : Press “Menu/Selection” button to reduce the setting mode.
Controlling method of warming temperature
If the temperature in the oven is not proper, it will smell bad and the color of the rice will change
so make sure to adjust the temperature.
-1 Press “Menu/Selection” button to change as the
picture (up)
“Set” button will blink, and “Mode”, “Menu selection” and
“Cancel” button will be turned ON.
To switch the functions continuously, keep pressing the button.
Select the menu you want, then the press the “Mode”
button and set-up time will be automatically entered with
a buzzer. (If you press the “Cancel” button or do not
press a button within 7 seconds, the function will be
cancelled and returned to standby mode.)
After setting temperature, press “Mode”
select button. Preset temperature will be
stored with buzzer sound. (If will be
cancelled once press “Cancel” button or
after 7 seconds without pressing any
button)
-2 Press “Menu/Selection” button as the picture (down)
“Set” button will blink and “Model”, “Menu/Selection” and “Cancel”
buttons will be turned ON.
To switch the functions continuously, keep pressing the button.
How to operate My Mode function.
Use it while opening the lid when there is too much water or rice becomes too soft.
In standby mode, push the
“mode” button 4times.
The voice says that it is
programmed warming
mode, control the
temperature you want.
Note: The reference temperature programmed when the
product is shipped may differ from the Instruction.
If you want to change cooking temperature in the standby mode, press “Mode select” button over
2 seconds, and press it 2 more times. You can change cooking temperature.
Change of temperature
To raise temperature
To lower temperature
TO KEEP COOKED RICE WARM AND TASTY
1. Hold “mode” button for one second, then press the “mode” button 6times to set up sleeping mode.
If sleeping mode is not shown, keep on pressing the “mode”button until it is heard or displayed.
2. When you are in sleeping mode, it says “After selecting or canceling sleeping mode, press the set button.”
At this time, “Menu/Selection”button will blink, and the “Mode”, “Set”, and “Cancel”button will turn on.
3. Press the “Menu/Selection” button until you hear or see “Sleeping mode”, then Press “set”button.
You will see nothing surrounding the rice cooker on the screen.
4. This function must be activated by the user depending on necessity
1. Hold “Mode” button for one second, then press the “mode” button 6times to set up sleeping mode. If
sleeping mode is not shown, Keep on pressing the “mode” button until it is heard or displayed.
2. When you are in sleeping mode, it says “After selecting or canceling sleeping mode, press the set button”
At this time, “Menu/Selection” button will blink, and the “Mode”, “Set”, and “Cancel” button will turn on.
3. Press the “Menu/Selection” button until you hear or see “Sleeping mode”, then Press “Set” button. You will
see nothing surrounding the rice cooker on the screen.
4. In the Sleep/Warm mode, if you press “Cancel” button, the Voice message will state: “Time is over. The
function setting has been canceled.” If no button is pressed for more than 7 seconds, You'll return to the
Standby mode.
How to activate “Sleeping” mode.
When keeping rice warm for a long time, set up the temperature low to prevent the following quality of rice:
smelly, dry, change of color; from PM10:00 ~ AM 04:00.
When odors are rising during the warming mode
Clean the lid frequently. It can cause bacteria and odors.
Even though exterior looks clean, there might be germs and it can cause odor so please be sure to use automatic
sterilization (steam cleaning) menu for cleaning. Clean the inner pot completely after automatic cleaning function is
done. (refer to 18)
After you cook soups and steamed dishes, clean the inner pot properly to prevent rice from smelling.
How to set up
How to release
If you need to keep the rice warm during sleeping, do not use this function. This function makes the rice
cooler than normal. In summer, the rice can be spoiled and may smell bad because of high temperature.
If possible, do not use the “Custom-made warming” mode while sleeping.
This function is set up as cancel state.
HOW TO USE POWER SAVING/
ENERGY EYE FUNCTION
www.cuckooworld.com
ENGLISH
What is power saving in “Standby” mode?
If power cord is not unplugged, little bit of electricity will be still wasted. It is called standby electric power.
The power saving of "Standby"mode is technology which minimizes this electricity consumption.
How to start power saving
When Cancel button is pushed for 2 seconds at
waiting state, Saving power function is set up.
Automatic Method
If the standby time is chosen as number other than “0” at the automatic power saving mode, the automatic
saving power function will be operative.
If you move lid handle or push any button before passing waiting time, the waiting time which is reduced will go
back to the setting.
Manual Method
How to end power saving
Method 1) Push any button then it will be returned
to waiting mode.
Method 2) If lid handle is turned to open or close,
power saving mod will be canceled and
back to waiting Mode.
1. If you push “mode” button 7 times at the standby state, automatic power
saving mode is set up.
2. When automatic power saving mode is set up, it says that this is automatic
power saving mode. Press the “Set” button after selecting waiting time.
3. If you select “0” minute with “Menu/ Selection” button, Automatic saving will
be canceled. After setting up waiting time you want, press the “Set” button.
4. Without pressing any button within 7 seconds or pushing “Cancel” button,
Automatic power saving function will be canceled and go back to waiting
mode.
Energy Eye function
The luminance sensor automatically recognizes ambient brightness during standby, cooking, warming and preset
timer for minimizing power consumption of the product. If you want the power saving mode to start when it's darker
than the current level(Step 2), set the mode to Step 1. If you want the mode to start when it's brighter than the
current level, set the mode to Step 3. (The power saving mode of CUCKOO is set to Step 2 at the factory.)
1. Press the Mode button 12 times in standby status and you will enter the Energy Eye mode. (Please make sure
that you press the Mode button for a second or longer in the beginning.)
2. When you enter the mode, a voice comes up saying "You have entered the Energy Eye mode. Please select or
deactivate the Energy Eye mode with Selection button and press SET button.” After that, Menu/Selection button
blinks and Mode, SET and Cancel buttons light.
3. Each time you press the Menu/Selection button, the Energy Eye shifts from OFF to Step 1 to Step 2 to Step 3.
When OFF is displayed, a voice comes up saying “Energy Eye function is deactivated." The Set button blinks and
Mode, Menu/Selection and Cancel buttons light.
4. After selecting your preferred step, please press the SET button. A voice will come up saying "Energy Eye setting
has been completed" and your step will be stored.
5. If will be cancelled if you press the “Cancel” button or after 7 seconds without pressing any button. In this case a
voice will come up saying "Time exceeded, the mode will be canceled".
(When selecting Energy Eye function) (When deactivating Energy Eye function)
How to original setting
HOW TO USE POWER SAVING/LOCK BUTTONS/
REMAINING COOKING TIME DISPLAY MODE
Display Lighting/Power-Saving Mode
This mod adjusts the brightness of the display during cooking, warming or reservation cooking.
How to set and unset the mode
1. In the Standby mode, press the Mode button 9times to activate the Display Lighting/Power- Saving mode.
(Press the Mode button for more than 1 second to enter into the Display Lighting /Power-Saving mode)
2. When the Display Lighting /Power-Saving mod starts, a Voice message will state “Set or cancel the Display
Lighting Function by pressing the Selection button. Then, please press the Display “At that moment the
Menu/Selection button will be switched off and Mode, Set and Cancel button will appear.
3. When you press the Menu/Selection button, a Voice message will give one of these two statements : The
Display the Lighting/ Power –Saving Function is selected. Please, press the Set button. “or” The Display
Lighting/ Power–Saving Function is canceled. Please press the Set button. “The Set button will then
disappear and the Mode, Set and Cancel button will be turn on.
4. Press the Set Button and the Display Lighting/Power –Saving Funding will start with a Voice message
stating “The Display Lighting/Power –Saving Function has been set.”
5. In the Display Lighting/Power- Saving mode, press the Cancel button or do not press any button for more
than 7 seconds. The setting will be canceled and you return to the Standby mode with a Voice message
stating “Tim is over. The function has been canceled.”
How to Set “LOCK BUTTONS”
1. Button will be locked if “Set” button is pressed for 3 seconds or
longer during cooking, presetting, warming, reheating or in
standby condition.
2. When button is locked, a voice will sound saying “Button lock is
selected”. At this time, button lock is displayed on the screen.
Lock can be set for touch button to prevent accidental touch during cleaning or by children.
Note: Any button other than “Set” button is pressed while button lock is set, buzzer will sound.
Setting Method
1. To cancel button lock, press ”Set” button for 3 seconds or
longer on locked the button.
2. “Lock” sign on the display disappears when button lock is
cancelled, a voice will be saying “Button lock is cancelled”.
Note: Desired function can be set after cancelling button lock is set, buzzer will sound.
Note: Button lock function is cancelled automatically when the power is off even though the button lock function is already set.
Remaining Cooking Time Display Mode
This mode sets on or off the remaining cooking time display which appears periodically during the cooking.
(The displayed remaining cooking time may vary from the actual one depending on the cooking volume and process.)
1. In the Standby mode, press the Mode button 9 times to activate the Remaining Cooking
Time Display mode. (Press the Mode button for more than 1 second to enter into the
Remaining Cooking Time Display mode.)
2. When the Remaining Cooking Time Display mode starts, a voice message will state “Set
or cancel the Remaining Cooking Time Display Function by pressing the Selection button.”
3. When you press the Menu/Selection button, a voice message will give one of these
two statements: “The Remaining Cooking Time Display Function is selected. Please,
press the OK button.” or “The Remaining Cooking Time Display Function is canceled.
Please press the OK button.” The OK button will then disappear and the Mode,
Menu/Selection and Cancel button will be turned on. After selecting either mode,
press the OK button.
4. In the Remaining Cooking Time Display mode, press the Cancel button or do not press any
button for more than 7 seconds. The setting will be canceled and you return to the Standby
mode with a voice message stating “Time is over. The function has been canceled.”
Remaining Cooking Time
Display mode set off
Remaining Cooking Time
Display mode set on
How to set and unset the mode
HOW TO USE THE NFC FUNCTION
www.cuckooworld.com
ENGLISH
App installation and activation
How to touch
You can interface the product with your smart phone when you download and install CUCKOO Smart Rice
Cooker application from Android Play Store.
How to use the NFC function
1. Please see the user’s manual of your smart phone if the phone supports the NFC function.
2. NFC function of smart phone is supported only by Android OS version 2.3.3 or higher only.
3.
If you are new to the NFC function, please refer to the NFC setting instruction below:
How to set NFC function (for Galaxy S3)
Setting method may slightly vary among smart phone models. See the user’s manual of your smart phone.
Settings
More Settings
NFC function ON
Read and Write/P2P,
Android function NO
1. Hold the smart phone as shown below, and touch the antenna of your smart
phone on NFC icon of your product for 2-3 seconds.
2. NFC functions only when the screen of the smart phone is displayed as shown
below.
3.
It does not function properly when the screen of your smart phone is
turned on, or locked.
4. Please make sure the antenna touches the NFC icon properly so that they
communicate without any problem.
5. Once they communicate properly, a message window is displayed to
indicate the transmission has succeeded.
6. Location of the NFC antenna varies among smart phone models. See the
user’s manual of your smart phone to check the location of the NFC
antenna.
7. NFC transmission speed may vary among smart phone models.
1. You can simply touch your smart phone on the NFC icon of your product to install the application from the
Google Store.
2. Search CUCKOO on Google Store, and download and install the application.
App installation
HOW TO USE THE NFC FUNCTION
How to select your product model after loading the application.
Automatic cooking
It is allowed to perform cooking function through interface of CUCKOO and the smart phone.
CUCKOO recipes
The NFC technology supports cooking based on
the additional recipes transmitted to Smart Menu
of your product. Transmitted recipes are stored in
the Smart Menu of your product. (The Smart menu
has Black bean as its default recipe.)
Favorite recipes
When Favorite button on the CUCKOO recipes is
clicked, the recipe is saved as a favorite recipe.
Rice cooker menu
It allows to easily set various menus and settings
of the rice cooker with the smart phone, and
conveniently cook the menu through the NFC
function.
My recipes
You can save your own recipes in your smart
phone, and conveniently cook according to the
recipe simply by touching it to your product.
Shopping cart
List of ingredients for recipes is stored in the
shopping cart of CUCKOO recipes.
Start the application.
Choose between
Automatic and
Manual selection.
-1 Automatic selection
-2 Manual selection
The app is executed.
HOW TO USE THE NFC FUNCTION
www.cuckooworld.com
ENGLISH
How to choose a recipe
1. Search recipe
Select search bar
Type in recipe and
search
Confirm the recipe
2. Search by the types of recipe
Select
automatic cooking
Select
cuckoo recipe
Select recipes
Select Steam
dish
Select Multi-flavor
glutinous rice
HOW TO USE THE NFC FUNCTION
How to choose a recipe
3. Search by the conditions
Select
automatic cooking
Select
cuckoo recipe
Select special day
Select treatment for
seniors
Select Multi-flavor
glutinous rice
How to start cooking after selecting your preferred recipe
(example: Cooking tteokbokki, Stir-Fried Rice Cake).
1. Select
tteokbokki
2. Check out the
recipe and prepare
ingredients for
cooking
3. Clean
ingredients
following each
step
4. Select Start
Cooking button
from the
Introduction tab
6. Start
cooking
5. Touch the
smart phone
to your
product.
HOW TO USE THE NFC FUNCTION
www.cuckooworld.com
ENGLISH
Viewing dishes cooked by bloggers
Viewing dishes
It allows view recipes uploaded by other
bloggers or myself.
Uploading your own dishes
You can upload your own recipes of the dishes
to share them with other bloggers
Please login to our website.
If you don’t have an ID, please
sign up for your account before
logging in to our website.
It is possible to view blogger's dishes, and directly upload recipes of the dishes
Setting rice cooker
Clock setting
You can easily set the time on the product.
Language & Voice Volume setting
You may select your language among Korean, English
and Chinese, and adjust the volume for your
convenience.
Customized Rice Taste & Warming temperature
setting
You may select your preferred taste and warming
temperature.
Power Saving setting
You can minimize power consumption in standby mode.
You can set various functions of the rice cooker using the NFC technology.
The function settings are configured with Clock setting, Language & Voice Volume setting, Customized Rice
Taste & Warming temperature setting and Power Saving setting.
HOW TO USE THE NFC FUNCTION
Troubleshooting
Other functions
The menu consists of Self-diagnosis, Checking trouble in advance, and Contacting our repair center
Self-diagnosis
You can diagnose the current conditions of the
rice cooker, and identify cause of abnormal
conditions, if any, through the NFC function of
your smart phone.
Checking troubles in advance
If the product functions abnormally, you can
identify the cause of trouble before you contact
out repair center.
Contact our repair center
You may find and contact the nearest local
repair center.
Other functions include timer and diet management.
Timer
You can use this function for conveniently
measuring cooking time during cooking.
Diet management
You can count how often you have been
cooking and have calorie information for each
dish for a day or a certain period of time
through the NFC function of the smart phone.
Product information
We will keep you updated on our new models and the list of replacements.
Product information
Please keep yourself updated on our new
models and the list of replacements so that your
CUCKOO products can have a longer life span.
www.cuckooworld.com
CHECK BEFORE ASKING
FOR SERVICE
Case
When cannot turn to “Unlock”.
When the lid cannot open
although the Lock/Unlock
handle is turned to "Unlock".
When the steam exhausted
between the lid.
When the “Cancel” button
does not operate while
cooking.
When you hear weird noises
during cooking and warming
Brown rice is not germinated
properly
Check points
Did you turn the “Lock/Unlock” handle while
cooking?
Did you turn the “Lock/Unlock” handle
before exhausting steam perfectly?
Is there an external substance on the
packing?
Is packing too old?
Is the inner pot hot?
Is currently the setting to lock mode?
Is there a wind blowing sound when
cooking the rice?
Is there a “Chi” sound when warming
the rice?
Does the amount of rice exceed the
specified maximum capacity?
Is bean(other grains) too dry?
Do the following
Don’t open the lid while cooking. If you want to open
lid while cooking, press the “Cancel” button more
than 2 seconds and release the steam.
Pull the pressure handle to the side once and allow
the steam to release.
Because of the pressure.
Pull the pressure handle to aside once and exhaust
the steam perfectly.
Clean the packing with duster.
Keep the packing clean.
If the steam is exhausted through the lid, please
power off and contact the service center and
dealer.
Packing life cycle is 12 month, please replace the
packing per 1 year.
Keep pressing the “Cancel” button for 2 seconds for
safety reason if you want to cancel while cooking.
Be careful of hot steam emission or hot contents
spattered from the automatic steam outlet during
cancellation.
Please press “Set” button for over 3 seconds to
release.
Is the inner pot inserted?
Check the rated voltage?
Put the specified maximum capacity of brown rice.
Old rice or contaminated rice may not be
germinated properly. (Refer to page 21)
If there is a problem with your cooker, check the following details before requesting service to your dealer.
Sometimes the cooker may not operate as desired if used incorrectly.
ENGLISH
CHECK BEFORE ASKING
FOR SERVICE
If there is a problem with your cooker, check the following details before requesting service to your dealer.
Sometimes the cooker may not operate as desired if used incorrectly.
Case Check points Do the following
When the Pressure
“Cook/Turbo” Timer
button does not operate
with “ ”
When the rice is badly sticky.
Did you turn the Lock/Unlock Handle
to “Lock”
Is “pressure” lamp on?
Is there any rice or any other alien
substance on the temperature sensor or
the bottom surface of the inner pot?
When the button cannot
operate with “ ”
Is the inner pot inserted?
Check the rated voltage?
Clean all the alien substances on the
temperature sensor or the bottom surface of the
inner pot.
When “ ” is showed on
the LCD.
When the time cannot be
preset.
When you smell after and
before cooking?
Check the rated Voltage?
Is the current time correct?
Is AM or PM set properly?
Did you set the reservation time over
13 hours?
Cut the power and contact customer service.
It is normal to get “ ” when putting only water.
This is only for 120V.
Is the inner pot correctly inserted in the
main body?
Is the Lock/Unlock handle on the top
cover set to “Lock”?
Is there hot food in the inner pot?
Micom memory is out.
Please cut the power and contact customer service
“ ” mark shows up
during the product operation
Please insert inner pot.
This product is 120V only.
Please turn the “Lock/Unlock” handle to “Lock”.
When “ ”, “ ” are
shown on the LCD by turns
Micom power is out
Please cut the power and contact customer service
When “ ”, “ ” are
shown on the LCD by turns
The sensor is broken
Please cut the power and contact customer service
When “ ”, “ ” are
shown on the LCD by turns
Pressure Cook/Turbo “button is pressed?
Is there power cut while in cooking?
Set the current time(Refer to page 13).
Check the AM and PM.
Maximum reservation time is 13 hours.
(Refer to page 26~27)
Please put in the inner pot perfectly.
Please turn the “Lock/Unlock” handle to “Lock”
Pull the pressure handle to aside once.
www.cuckooworld.com
ENGLISH
CHECK BEFORE ASKING
FOR SERVICE
If there is a problem with your cooker, check the following details before requesting service to your dealer.
Sometimes the cooker may not operate as desired if used incorrectly.
Case
When the rice is not cooked.
When the rice is not well
cooked.
Rice is too watery or stiff.
Check points
“Pressure Cook/Turbo” button is pressed?
Is there power cut while in cooking?
Did you use the measuring cup for the rice?
Did you put proper amount of water?
Did you rinse the rice before cooking?
Did you put rice in water for a long time?
Is the rice old or dry?
Is the menu selected correctly?
Did you properly measure water?
Did you open the top cover before
cooking was finished?
Do the following
Press the “Pressure Cook/Turbo” button
once. And check “ ”sign on the display.
Re-press the “Pressure Cook/Turbo” button.
Refer to page 15~16
Add water about half the notch and then cook.
Bean (other grains)is half
cooked.
Is been (other grains) too dry?
Soak or steam beans and other grains before
cooking in the pressure cooker in order to avoid
partially cooked beans or grains. Beans should
be soaked for -2-minutes or steamed for-2-
minutes prior to cooking, depending on your
taste.
Select the correct menu.
Properly measure water.
Open the top cover after cooking finished
When the water overflows.
Did you use the measuring cup?
Did you use proper amount of water?
Is the menu selected correctly?
Refer to page 15~16
When you smell odors while
warming.
If “ ” sign is appears.
Did you close the top cover?
Please check it the power cord is plugged.
Did it warm over 12 hours?
Is there any other substance such as rice
scoop or cold rice?
Is been (other grains) too dry?
Select the correct menu.
Properly measure water.
Open the top cover after cooking finished
It shows on the display when pressing
“Start” button again, or when the cooking
has finished and you've never ever open
turned the handle to “Unlock”
It can be solved by turning handle to “Unlock” and
then turn to “Lock”
Alarm sounds or reheating does
not work while keeping warm
Is been (other grains) too dry?
Mount detachable cover(Refer to page 10)
When the NFC function is
not operated
Does “SMART” appear on the control
panel of your rice cooker?
Does your Smart Phone have the NFC
(Near field communication) function?
Please check your Smart Phone Manual to find out
whether your phone has the NFC function or not.
This NFC function only supports android 2.3.3 and
above
“ ”
Signs show up.
“ ” Signs show up.
Temperature sensor or fan motor does
not work properly.
Unplug the power cord and call the Service center.
Warming passed time mark
blinks during keeping warm.
24 hours has not passed yet after Keeping
warm
This function alarms if the rice remained warm for
more than 24 hours.
Rice has gotten cold or a lot of
water flow during Keeping warm
Keeping warm was set in “Sleeping” mode
Keep warm after cancelling or setting “Sleep
Keeping Warm” mode depending on the necessity.
“ ” sign shows up
Detachable cover is not mounted
Mount detachable cover(Refer to page 10)
If “ ” sign is displayed continuously even
though you already installed detachable cover,
please contact customer service.
MEMO
www.cuckooworld.com
KOREAN
100% Recycled paper 383-900D Rev.0
