CRP-HL10 Fuzzy Series
Electric Pressure Rice cooker/warmer
Read all instructions before use.
Save these instructions for future reference.
Important safeguards
3
4
35~38
39
40~42
43
43
44
44
45
46
47~48
49~51
52~53
54
55~56
57~59
60~61
62~64
Limited warranty
68
Important safeguards 3
Specifications
4

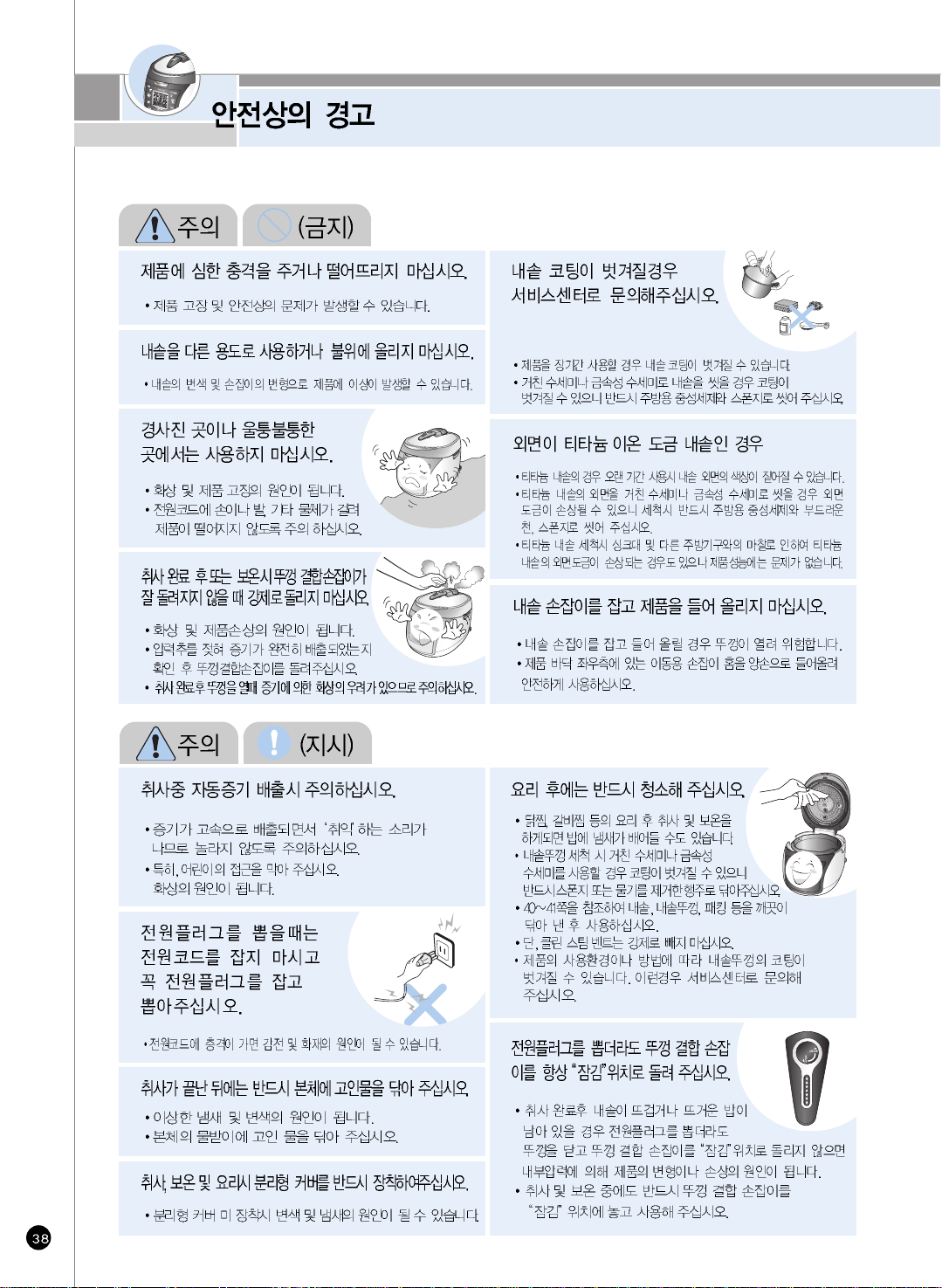

Warnings for safety
5~8
Name of each part
9

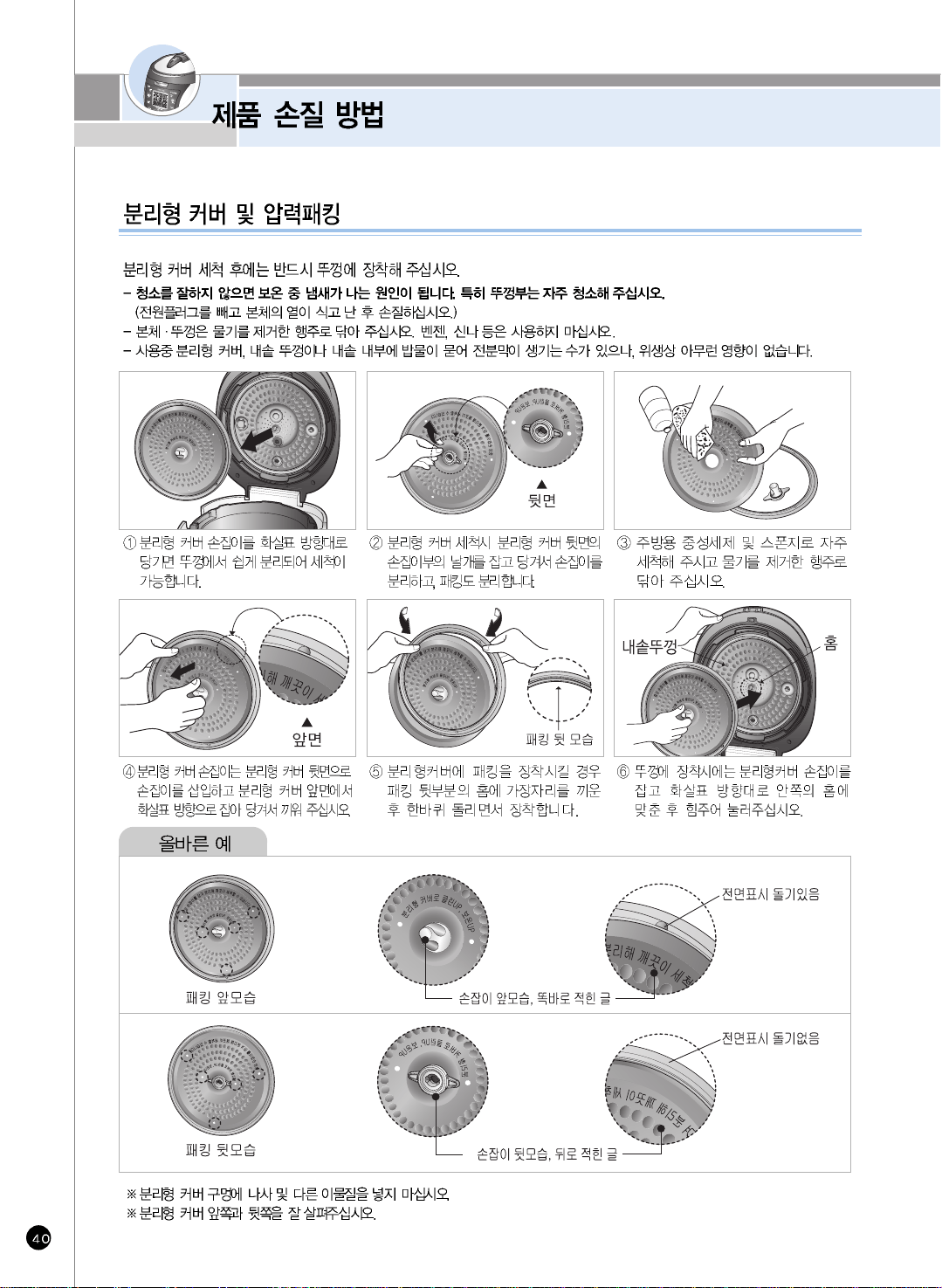

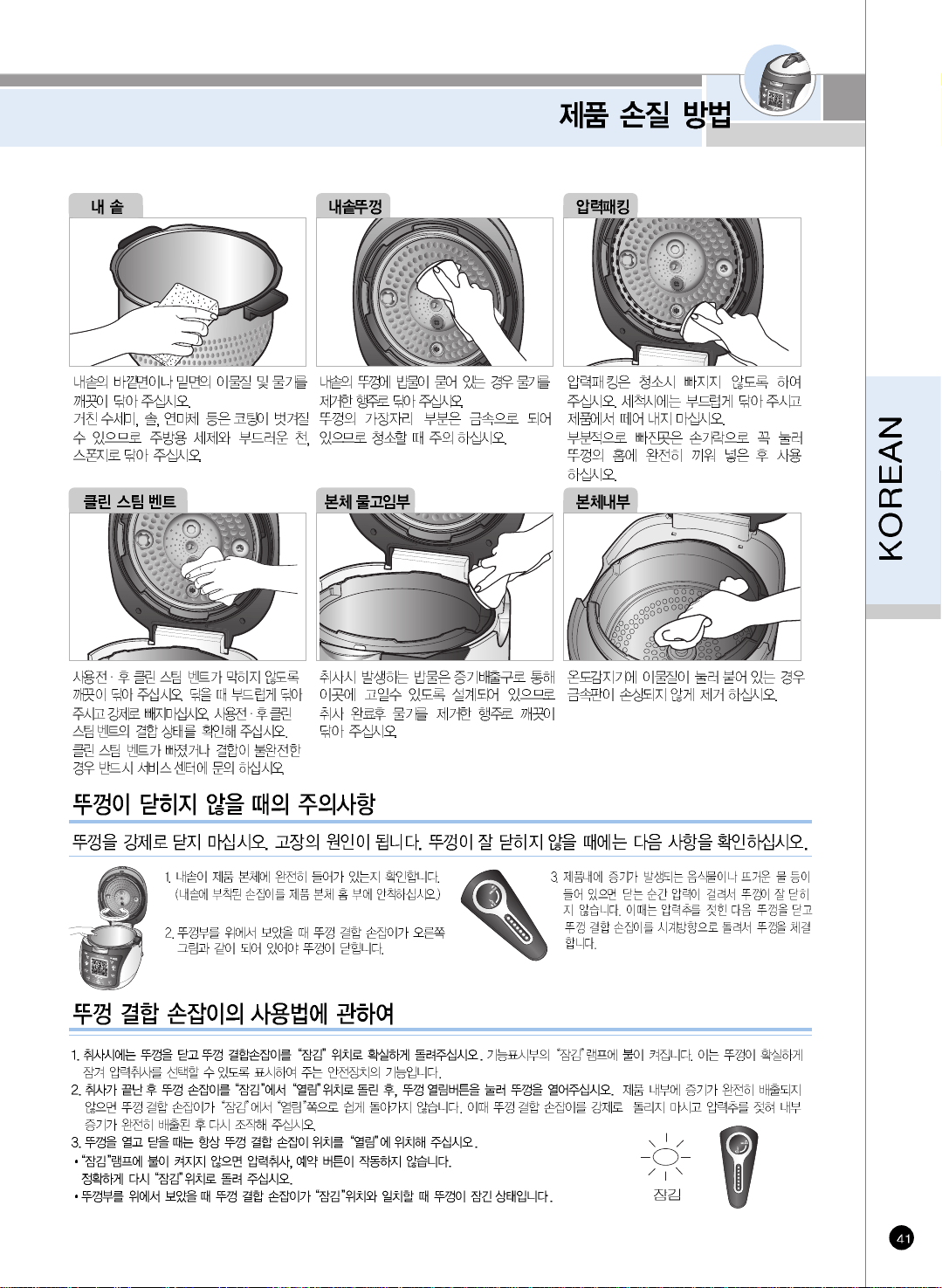

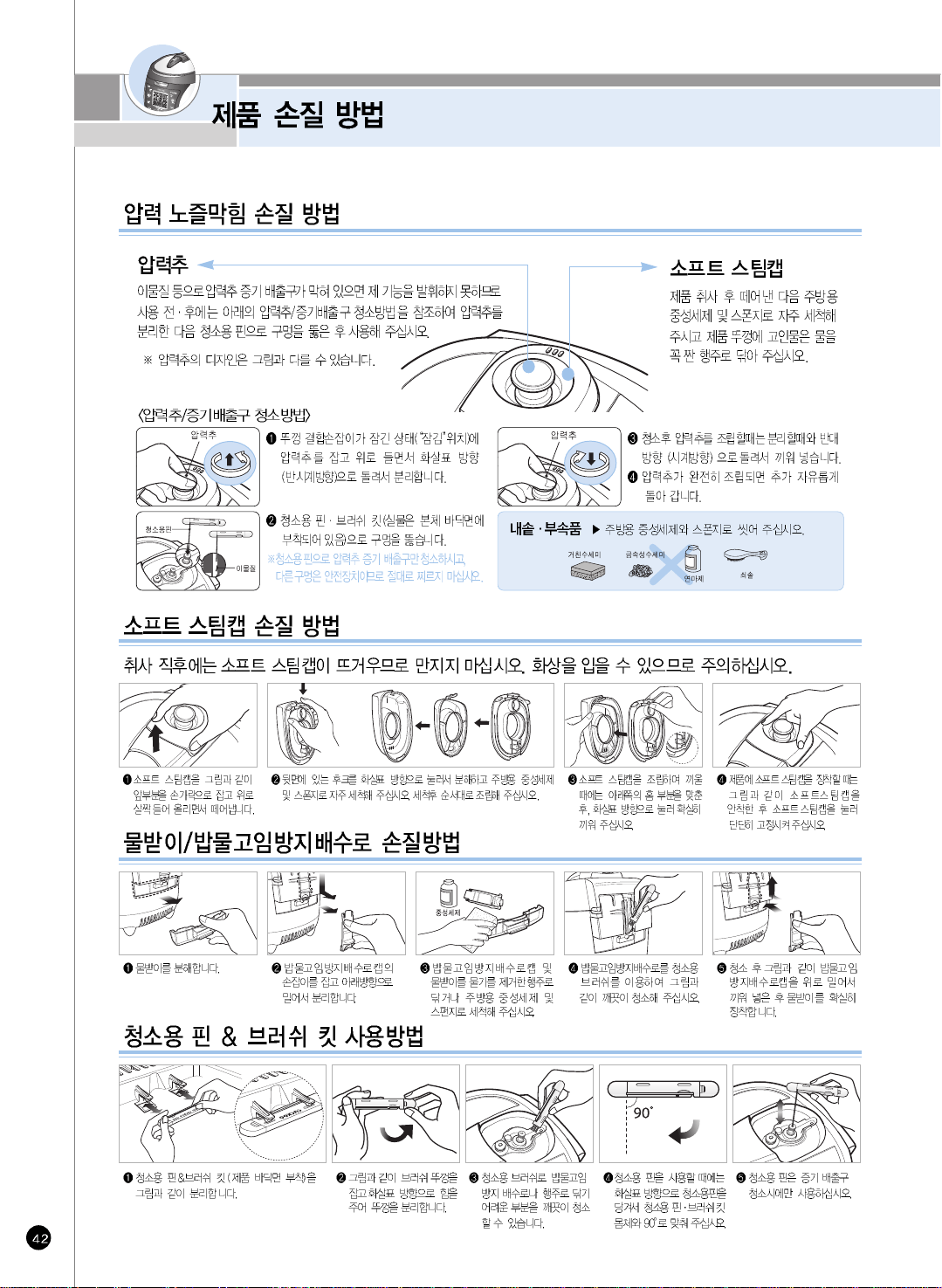

How to clean
10~12
Function operating part
13

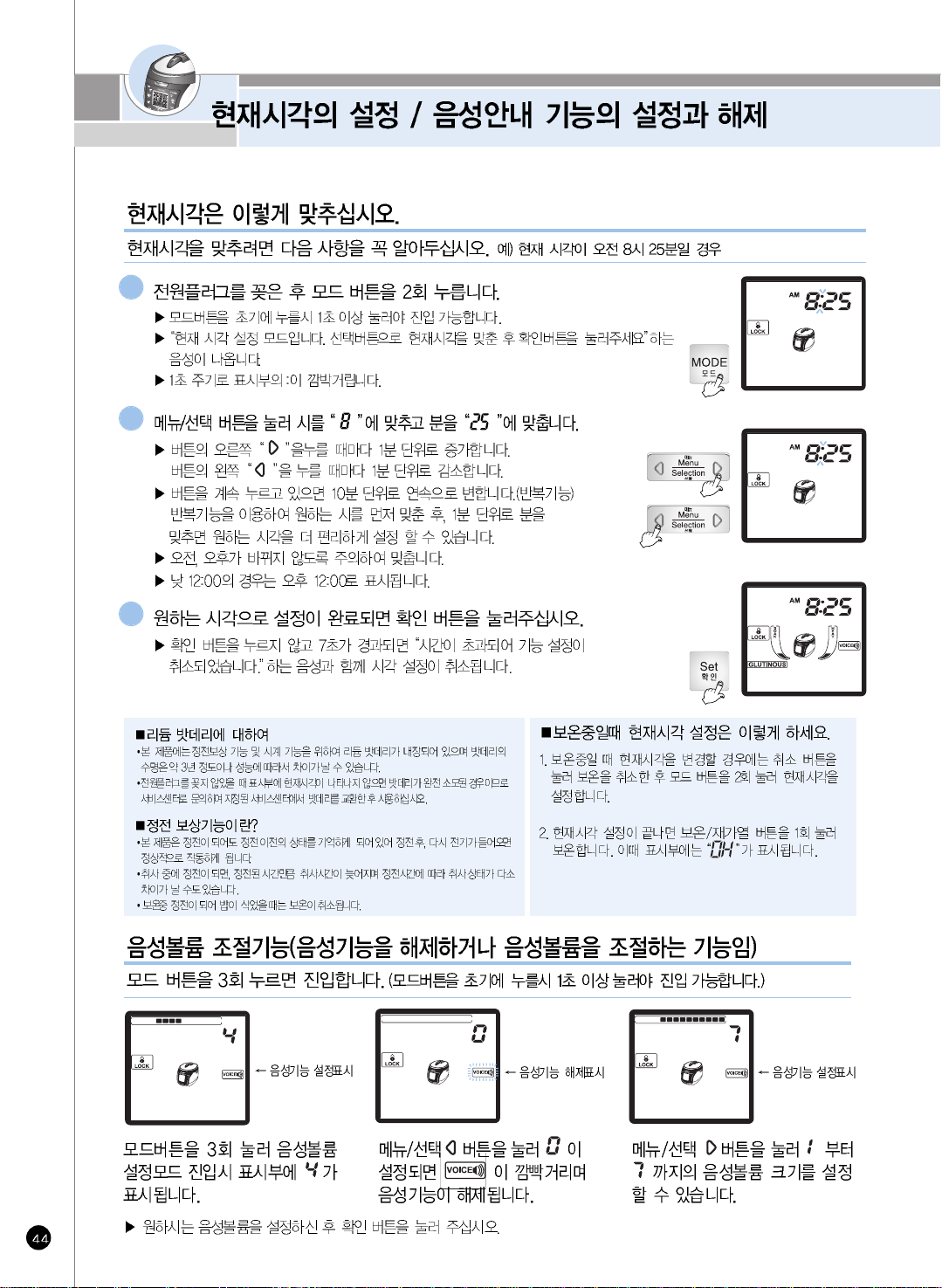

How to set current time 14
How to set or cancel voice guide function
14
Before cooking rice
15

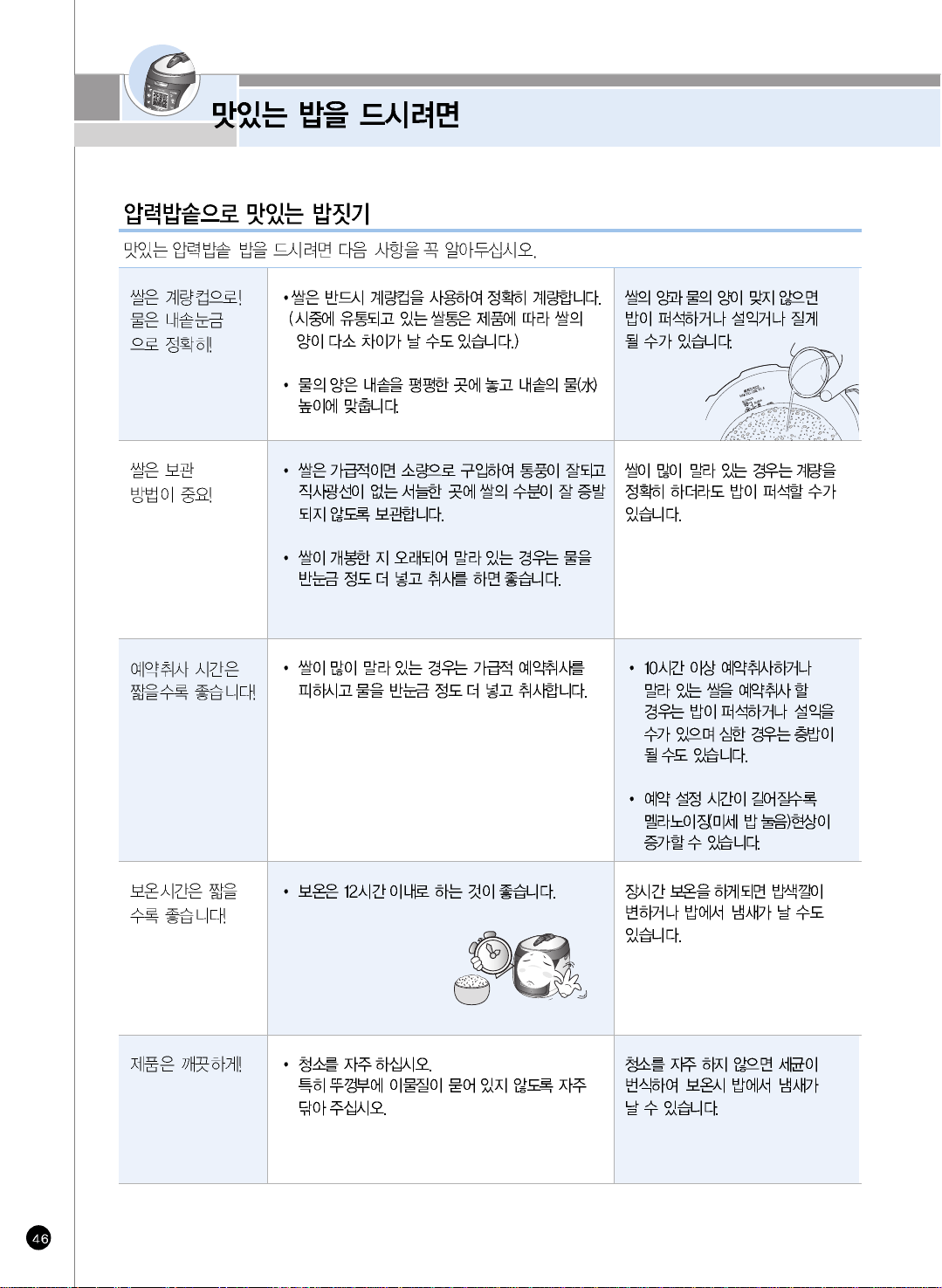

For better taste of rice
16
How to cook
17~18

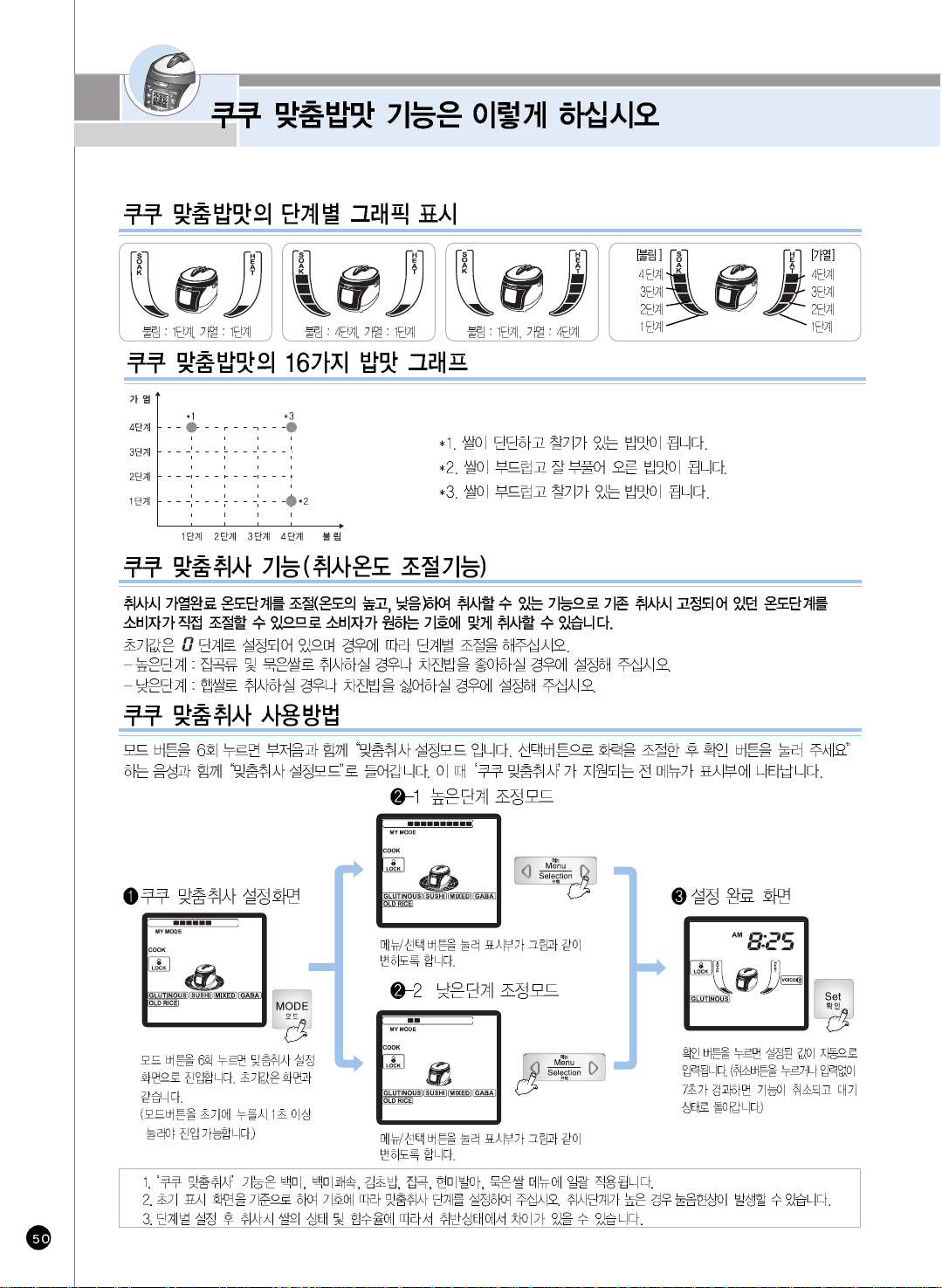

MY MODE (Cuckoo Customized Taste Function)
19~21
How to use
GABA (Brown rice) 22~23
How to cook the MULTI-COOK and NU RUNG JI
24
How to preset the timer
25~26

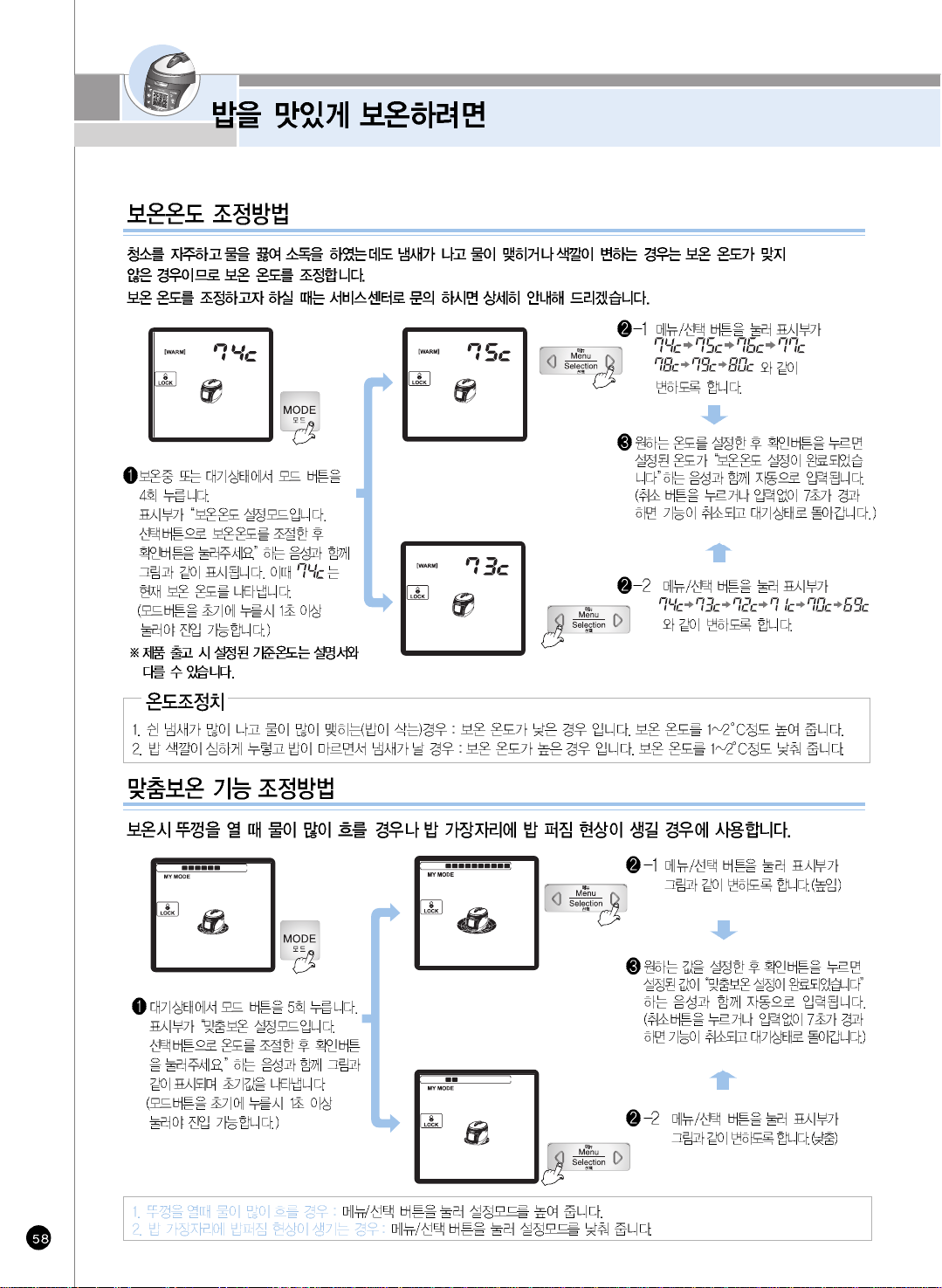

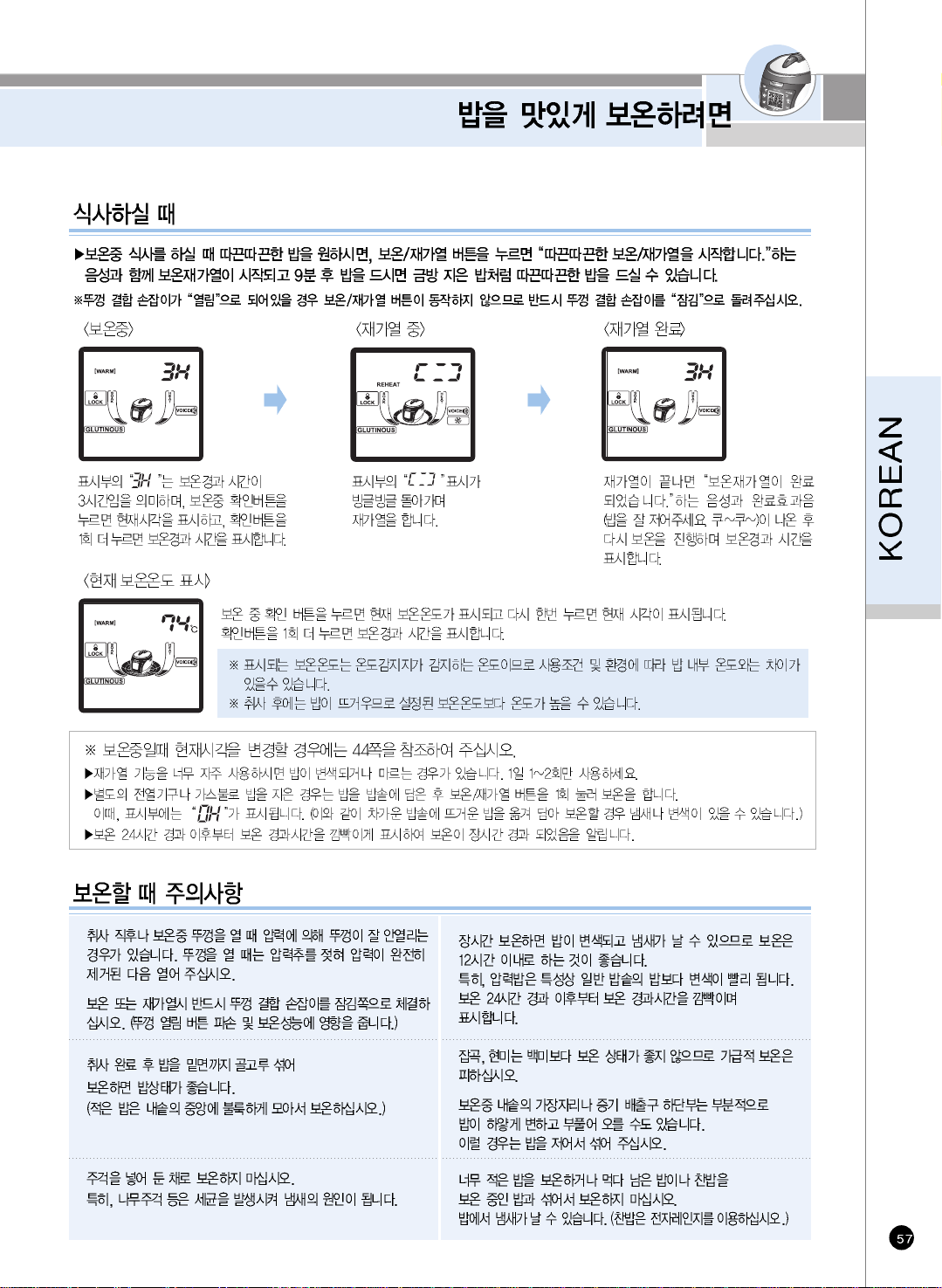

To keep warm the cooked rice tasty
27~29
How to use saving power function
30~31
Check before asking for service 32~34
Limited warranty
68
CONTENTS
www.cuckoo.co.kr
1. Read all instructions before using this appliance.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and / or injury to persons do not immerse cord, plugs, or
Pressure Cooker Body in water or any other liquid.
4. Close supervision is necessary when this appliance is used by or near children.
This appliance is not intended for use by young children or infirm persons without supervision.
Young children should be supervised to ensure that they do not play with the appliance.
5. Unplug from outlet when not in use and before cleaning.
Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or
has been damaged in any manner. Return the appliance to the nearest authorized service facility
for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may result in
fire, electric shock, and / or injury to persons.
8. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the
manufacturer or its service agent.
9. Do not use outdoors.
10. Do not let the cord hang over the edge of the table or counter, or touch hot surfaces.
11. Do not place on or near a hot gas or electric burner, or in a heated oven.
12. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any
control to off , then remove plug from wall outlet.
13. Do not use this appliance for other than its intended use.
14. Extreme caution must be used when moving an appliance containing hot oil or any hot liquids.
15. Oversized foods, metal foil packages, or utensils must not be inserted in the appliance as they
may involve a risk of fire or electric shock.
16. A fire may occur if the appliance is covered or touching flammable material, including curtains,
draperies, walls, and the like while in operation.
17. To reduce the risk of electric shock, cook only in removable container.
18. This appliance cooks under pressure. Improper use may result in scalding injury.
Make certain unit is properly closed before operating. See “Operating Instructions.”
19. Do not cook foods such as applesauce, cranberries, or other cereals macaroni or spaghetti.
These foods tend to foam, froth, and sputter, and may block the pressure release device.
20. Always check the pressure release device for clogging before use.
21. Do not open the pressure cooker until the unit has cooled and internal pressure has been
reduced. See “Operating Instructions.”
22. Do not use this pressure cooker for pressure frying with oil.
WARNING : This appliance generates heat and escaping steam during use. Use proper precaution to
prevent risk of burns, fires, or other injury to persons or damage to property.
1. Keep hands and face away from Pressure Release Valve when releasing pressure.
2. Take extreme caution when opening the Lid after cooking. Serious burns can result from steam inside.
3. Never open the Lid while the unit is in operation.
4. Do not use without the inner Pot in place.
5. Do not cover the Pressure Valve with anything as an explosion may occur.
6. Do not touch the inner pot and any heating parts, immediately after using.
Let the unit cool down completely first.
ADDITIONAL IMPORTANT SAFEGUARDS
IMPORTANT SAFEGUARDS
Note:
A. A short power-supply cord (or cord set) is to be provided to reduce the hazards resulting from
becoming entangled in or tripping over a longer cord.
B. Longer cord set or extension cords are available and may be used if care is exercised in their use.
C. If a long cord set or extension cord is used.
(1) the marked electrical rating of the cord set or extension cord should be at least as great as the
electrical rating of the appliance.
(2) if the appliance is of the grounded type, the extension cord should be a grounding-type three-wire
cord, and
(3) the longer cord should be arranged so that it will not drape over the counter top or tabletop where
it can be pulled on by children or tripped over accidentally.
This appliance has a polarized plug : (one blade is wider than the other).
As a safety feature, this plug will fit in a polarized outlet only only one way.
If the plug does not fit fully in the outlet, reverse the plug.
If it still does not fit, contact a qualified electrician.
Do not attempt to defeat this safety feature.
CRP-HL10 Fuzzy Series
AC120V, 60Hz
1315W
0.36~1.8L (2~10cups)
0.36~1.44L (2~8cups)
0.36~1.08L (2~6cups)
0.36~0.72L (2~4cups)
0.18~0.36L (1~2cups)
1.0m
88.2KPa(0.9kgf/cm
2
)
7.2kg
40.0
cm
28.9cm
29.0cm
SHORT CORD INSTRUCTIONS
SPECIFICATIONS /
HOW SERVICE IS HANDLED
The East and the Central Districts
Tel. No. (718) 888-9144
The West and the Central Districts
Tel. No. (213) 687-9828
TORONTO
Tel. No. 905 707 8224 / 416 878 4561
VANCOUVER
Tel. No. 604 540 1004/604 523 1004
USA Canada

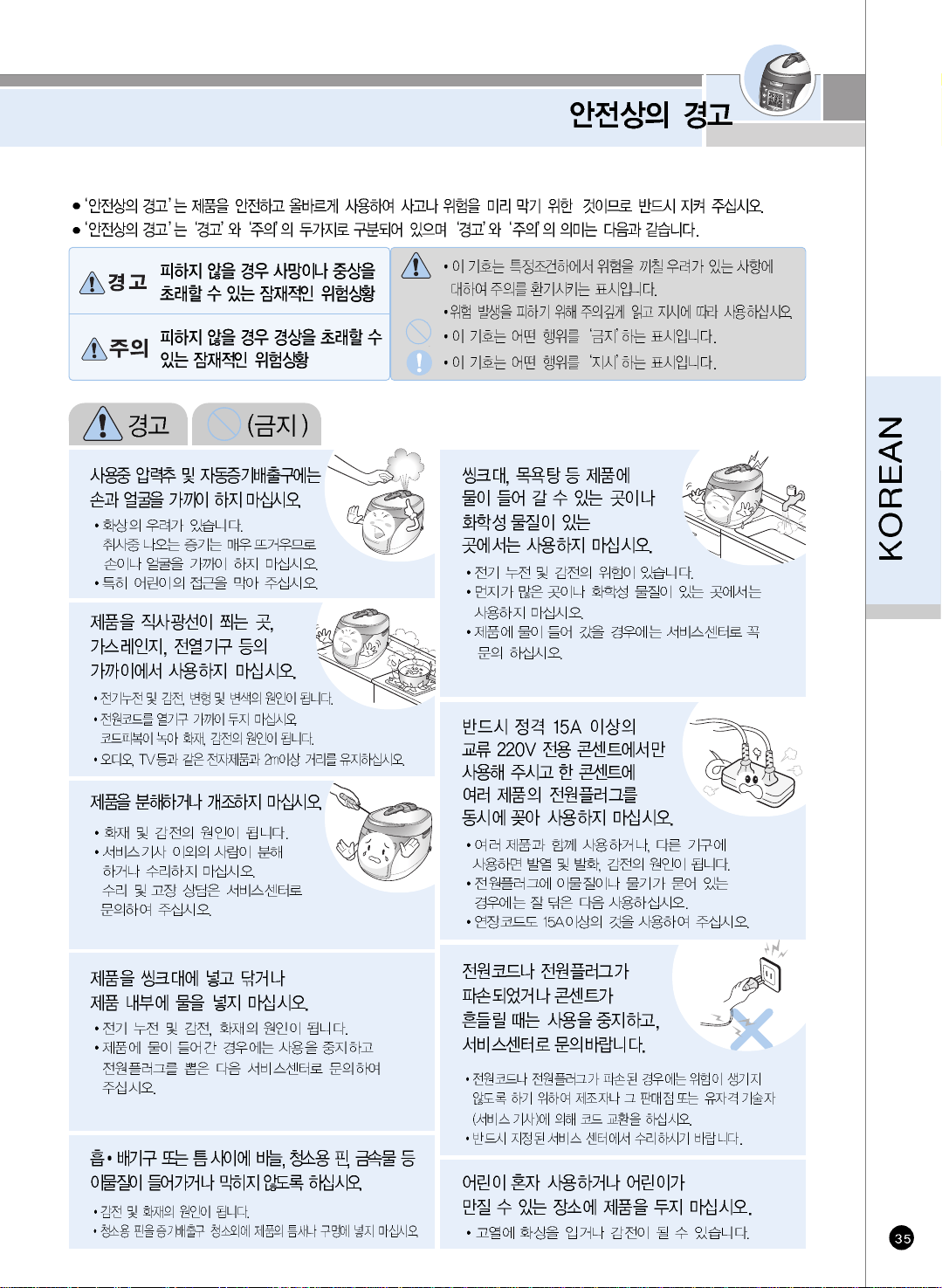

WARNINGS FOR SAFETY
www.cuckoo.co.kr
This sign is for reminding something may cause problems
under the certain situation.
Please read and follow the instruction to avoid any harmful
situation.
Indicates a prohibition
This means is the action it describes may result
in death or severe injury.
This means is the action it describes may result in
injury or property damage.
Indicates an instruction
The following must be observed to use the product safely and correctly to prevent accident and dangerous situations.
‘Warning’ and ‘Caution’ are different as follows.
Do not alter, reassemble,
disassemble or repair.
It can cause fire, electric
shock or injure.
For repair, contact dealer
or the service center.
Do not let the cooker contact any water by
sprinkling water on the cooker.
It can cause an electric shock or fire.
If it contact water, please separate power cord
and contact dealer and service center.
Do not use damaged
power cord, plug or loose
socket.
It can cause an electric shock,
short circuit or fire.
If the plug were damaged, contact dealer
or a service center.
Warning
Caution
Do not use the cooker near
hot things such as stove,
gas stove or direct ray
of light.
It can cause an electric shock,
fire, transformation or discolor ation.
Warning
Do not cover the automatic
steam outlet or pressure
weight with your hand or face.
It can cause burns.
Especially be careful to keep
it out reach of children.
Do not
Use a single socket with
the rated current
above 15A.
Using several lines in one socket
can cause overheating resulting in fire.
Use the extension cord with the rated current
above 15A.
Please pay careful attention
against water and chemicals
It can cause an electric
shock or fire.
Do not insert metal objects
such as pin and wire or any
other alien substance in the
automatic steam exhaust
outlet or any other slot.
It can cause an electric shock or fire.
Especially be careful to keep it out of reach of children.
Damages by impact can cause an electric shock or fire.
Be careful both plug and
power cord not to be shocked
by animal attack or sharp
metal materials.
WARNINGS FOR SAFETY
Do not use pots that are not
designed for the cooker.
Do not use abnormal pot and
do not use without inner pot.
It can cause an electric shock or fire.
Do not cover the automatic
steam outlet or pressure
weight with a duster,
a towel or apron, etc.
It can cause a transformation or a breakdown.
It can cause an explosion by pressure.
Don’t spray or put any
insecticide and chemicals.
It can cause an electric shock or fire.
In case cockroach or any insects
get inside of the cooker please call a dealer
or a service center.
It can cause an electric shock or short circuit resulting in fire.
Do not bend, tie or pull the
power cord by force.
Do not open the top cover while in
heating and cooking.
It can cause burns.
If you need to open the lid while cooking, keep
pressing the cancel button for 2 seconds and confirm
internal steam released completely turning the
pressure weight over.
Do not put any needle, cleaning pin etc in
the ventilator or any gap of the cooker.
Do not turn the Lock/Unlock Handle to
“Unlock” in cooking.
The hot steam or any hot content within the cooker can cause
burns.
After you finish the cooking do not try to open the cooker by
force until the steam is completely exhausted.
Do not insert cleaning pin to other parts except to the
valve hole of the pressure weight.
It can cause an electric shock or fire.
Especially be careful to keep it out of reach of children.
Keep the cooker out of reach of children.
It can cause burns, electric shock or injury.
Remove an alien substance on plug with
the clean cloth.
It can cause fire.
Do not press heavy things on the power cord.
It can cause an electric shock or fire.
Warning Do not
When separate it, the steam control vent can be blocked.
Do not pull out the clean steam vent by force.
If you have any problem with assembly and
cleaning of the clean steam vent, please call
a dealer or service center.
Keep clean the product before and after use.
Please make sure you clean and check
the assembly condition of the clean
steam vent before and after use.
WARNINGS FOR SAFETY
www.cuckoo.co.kr
When this unit is working, it can influence on any
electrical medical equipment.
If you use cardiac pacemakers
or electrical medical supporting
equipment consult a doctor
before using this unit.
Do not use on a rice chest
or a shelf.
Do not press the power code
between furniture. It can cause
an electric shock resulting in fire.
When use on furniture automatic steam releasing
can cause damage, fire and an electric shock.
Don’t use the cooker near the
magnetic field.
It can cause burns or breakdown.
Please use the cooker for an original
purpose.
It can cause the transformation or smell.
Do not touch the metallic surface of the inner
pot and pressure weight after cooking or
warming.
It can cause burns.
Remaining hot steam can cause burns when you tilt
the pressure weight while and right after the cooking.
It can cause overflow or breakdown.
Do not cook over capacity stated for cooking of
chicken soup and congee.
Use product at the flat place.
Do not use on the cushion.
Please avoid using it on an
unstable location easy to be
fallen down
Do not use the cooker except for original
purposes. It can cause danger of accidents.
Please contact dealer or service center
when strange smell or smoke is occurred.
Do not use over the maximum capacity.
It can cause a transformation or a fire
Do not plug or pull the power cord with
wet hands.
It can cause an electric shock.
Warning
Caution Do not
Please surely pull out
the plug when not in use.
It can cause electric
shocks or fire.
Use AC 120V only.
Clean any dust or alien
substance off the temperature
sensor and inner pot.
It can cause a system problem
or fire.
Remember
First pull out the power cord.

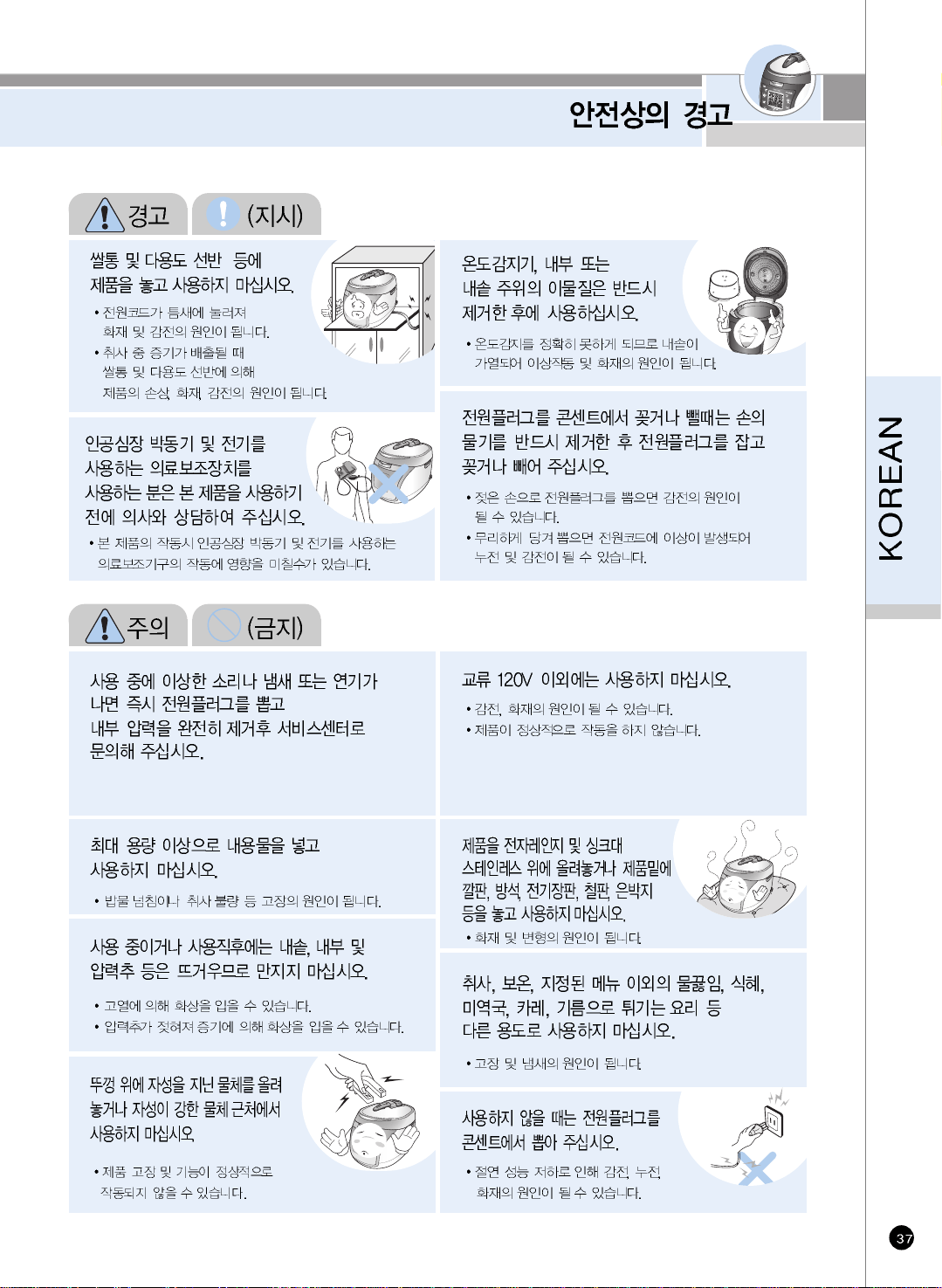

WARNINGS FOR SAFETY
Always turn the Lock/Unlock
Handle to "Lock" when not
in use.
It can cause the transformation
by remaining pressure.
Do not place on rough top
or tilted top.
It can cause burns or breakdowns.
Be careful to install the power cord
which does not disturb to pass.
Do not pull up the cooker by holding the
inner pot handle.
If can cause problems and dangerous situations.
There are portable handles on bottom right and left
side of the cooker. Hold the handles with both hands
and move it carefully.
After you finish the cooking, do
not try to open the cooker
by force until the steam is
completely exhausted.
The hot steam or any hot content within
the cooker can cause burns.
Be careful with burn by the steam when you open
the top cover after cooking is done.
Do not drop the cooker or impact.
It can cause the safety problem.
Don’t use for various purpose for inner pot.
It can cause the transformation of the inner pot
It can cause to spill the inner coating.
Be careful about the released
steam of vent.
When the steam is released
don’t be surprised.
Please keep the cooker out
of reach of children.
Please clean the body and
other parts after cooking.
After cooking chicken soup or, multi cook
dishes, etc., the smell may be absorbed.
Clean the oven packing, top heater plate and inner pot
every time you cook any of those.
It can cause the transformation or smell.
Use dry kitchen cleaner or sponge to clean the inner pot,
since rough scrub or metallic ones might let coating rise.
Depending on the using methods or user's circumstances
inner pot coating might rise.
Please call the customer service for those cases.
Please, do not pull out the clean steam vent by force.
Please call the customer service
if the inner pot coating falls off.
Oven coating may wear away
after long use.
When cleaning the inner pot,
do not use tough scrubber, metallic
scrubber, brush, abrasive metallic etc.
Caution Do not
When you pull out the power
plug, don’t pull the power cord.
Please, surely pull out the
power plug.
If you inflict the impact on power cord,
it can cause an electric shock or fire.
Caution Remember
Please clean the body and
other parts after cooking.
It can cause the transformation
or smell.
Tough crubber
Abrasive
Material Brush
Metallic crubber

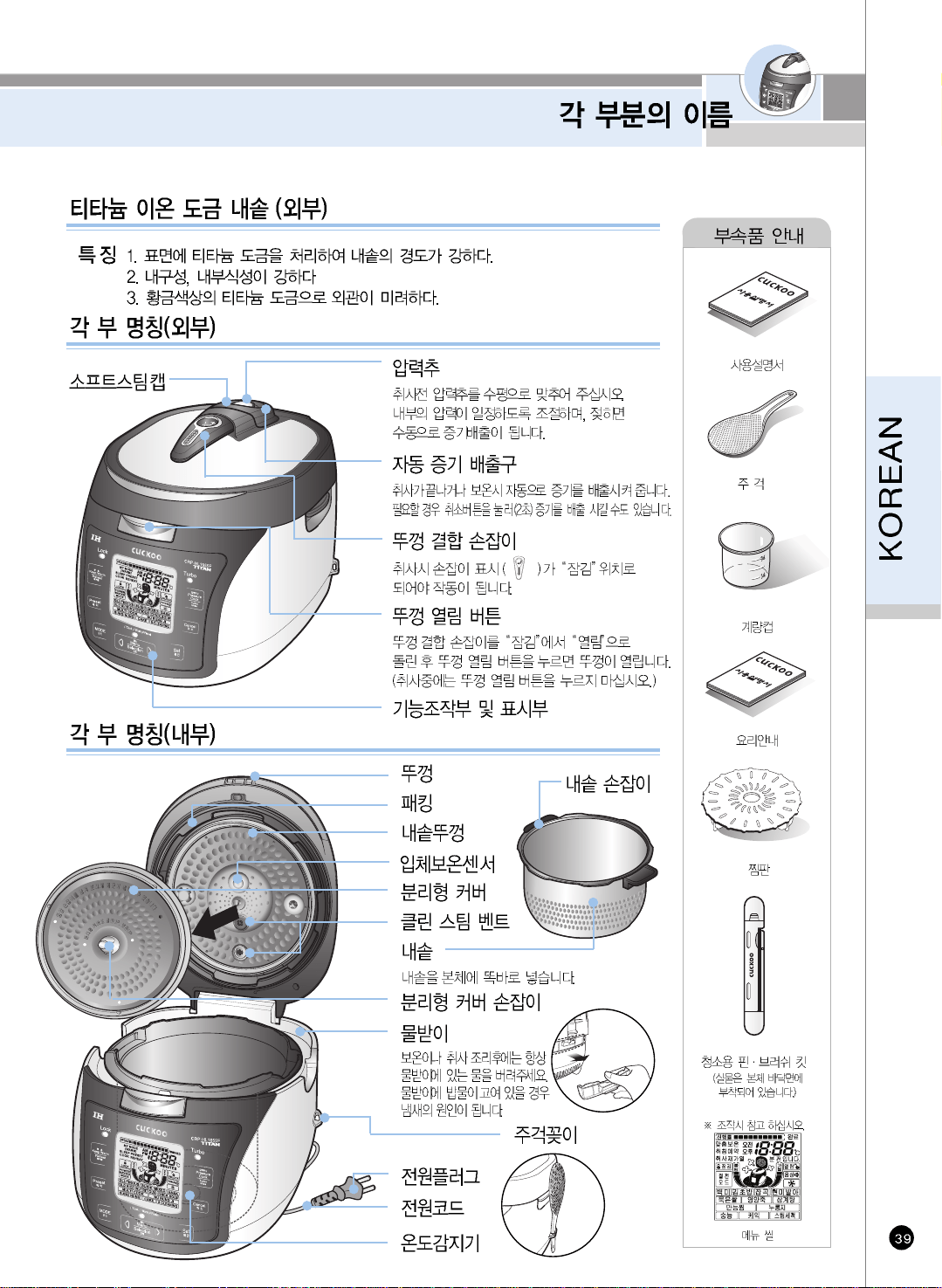

Name of each part
NAME OF EACH PART
www.cuckoo.co.kr
Name of each part
Pressure Weight
Always keep it horizontal.It stabilizes
steam inside of the oven. Pressure
weight is twisted, it lets steam out.
Automatic Steam Exhaust
Outlet (Solenoid valve)
When finish cooking or during warming ,
it lets steam out automatically.
Lock/Unlock Handle (Set the
handle to lock when cooking or
warming the rice)
The handle has to turn to ‘Lock’ for operation.
Clamp Knob
Turn handle to ‘Unlock’, and then press
Clamp knob to open.
Control Panel
Soft Steam Cap
Dew Dish
Empty the water out of a dew
dish after cooking or keep-
warming. Remaining the water
in the dew dish cause bad smell.
Seperate Cover
Power Plug
Temperature Sensor
Power Cord
Rice Scoop holder
Pot Handle
Set the pot handle on the
slot of the main unit.
Inner Pot(Oven)
Handle
Clean Steam Vent
Oven Packing
3D Warming Sensor
Top Cover Assy
Plated inner pot by titanium ion (The outside)
Accessories
Rice Scoop
Rice Measuring Cup
Menu seal
Steam Plate
Cleaning Pin
(Attached on the
bottom of the unit)
Feature
1.the strong hardness of inner pot by plating surface with titanium
2.high durability and strong against corrsireness
3.beautiful exterior with golden plated titanium
When operating, refer to
follow picture
Manual
Cooking guide
HOW TO CLEAN
Correct example
-Unless you clean the separate cover, it can cause bad smell (After cooling out and plugging out, cleaning it).
-Body and cover should be cleaned by a dry dish towel. Do not use bentol while using rice cooker, starch can be happened.
No effect on health.
-Do not put substances like screw into hole of separate cover look up back cover and front cover.
Separate cover & Pressure packing
After cleaning separate cover surely, put it back the lid
Do not put substances like screw into hole of separate cover.
Look up back cover and front cover.
① If you pull out separate cover as
arrow point, it can be easily
separated.
③ Clean frequently the cover with a
neutral detergent.
② When cleaning the separate cover,
hold and pull the both side wing of
the cover, then separate packing
and a handle.
⑤ In case you fix packing into
separate cover. Hold it between by
turning the packing after putting
the pack at the edge of the
separate cover.
④ Separate cover handle should be
inserted from the other side of the
cover them put the cover handle
between
⑥ When putting the cover into the lid,
press the cover handle after fitting
the handle into the froce of inside
as arrow point.
the back side
the back side of
cover packing
the front
A cover of
the inner pot
A groove
the front of packing the front of handle correct word
projection
mepresenting
the front
no projection
the back side of packing the back side of handle word written reversly
HOW TO CLEAN
www.cuckoo.co.kr
Wipe the inner upper and outer of the
inner pot of any alien substance.
Do not use tough scrubber, metallic
scrubber, brush, abrasive material etc.
INNER POT
Check if there is any rice or alien
substance on the oven packing.
OVEN PACKING
Wipe the top cover with a wet cloth
that has been squeezed out of all
the water. Be careful cleaning edge
of top heater.
TOP COVER
Wipe the main unit with a wet cloth that
has been squeezed out of all the water
MAIN UNIT
Make sure you clean the clean steam vent
before and after use. When cleaning it,
clean softly and do not pull out it by force.
Make sure the assembly condition of the
clean steam vent before and after use. If
the clean steam vent is not assembled
perfectly or come out, please call a dealer
or service center.
CLEAN STEAM VENT
Make sure clean the steam control
vent before and after use.
INNER BODY
2. To close the top cover, the
handle must be located at
“Unlock” as the right picture.
1. Check the inner pot
correctly put in the main
body.
3. If there is hot things in the inner
pot, the top cover would not be
closed.
At the time twist the pressure
weight and let the steam out and
then close the top cover.
Do not try to close the top cover by force. It can cause problems.
Cautions when top cover does not close perfectly
1. Handle must be located at “Lock” during Cooking.
The lamp turning on means the top cover is closed
perfectly, so you can cook.
2. After cooking, the handle must be turned from
“Lock” to “Unlock”, and then push clamp knob to open.
It is hard to open when there is remained steam in the
Inner pot. At the time, twist pressure weight and let the
steam out. Do not open by force.
3. Handle must be located at “Unlock” when open and close.
If the lamp does not turn on, it would
not operate Cook and Preset buttons.
Make sure the handle must be located
at “Lock”.
Lock
How to use handle
- When the cooker is not properly cleaned, it can cause smells. Clean the top cover frequently.
- If there are any rice or alien substances on the oven packing or on the inner side of the inner pot,
it can cause the steam to leak. Therefore the rice may be under-cooked and crumbly.
HOW TO CLEAN
How to clean the soft steam cap
Do not touch the surface of the soft steam cap right after cooking. You can get burned.
Detach the soft
steam cap like the
picture.
Press the hook, in the back, and follow the arrow
to detach and clean. Make sure you clean
frequently with a sponge or a neutral detergent.
Assemble the vent
so that it fits into
the groove
perfectly.
After you attach the
soft steam cap to fit
into the groove,
press ‘A’part firmly
to assemble the soft
steam cap into the
product.
Separate dew
dish.
Separate a drain
ditch cap as
pushing it down.
Clean a drain ditch
cap and dew dish
with a neutral
detergent.
Clean a drain ditch
cap with brush kit.
Put in dew dish
surely, after
cleanning.
How to clean dew dish
Separate cover as
arrow point
Use brush kit. you
can clean easily a
drain ditch cap
and tough part to
clean.
When using
cleaning pin, pull
out cleaning pin
and make it meet
at night angles.
Only use for the
valve hole of the
pressure weight.
Separate cleaning & Attached
on the bottom of the unit from
main body like picture
How to use cleaning pin and brush kit
The valve hole of the pressure weight allowing the escape of steam should be checked regularly to
ensure that it is not blocked.
If you use the valve hole of pressure weight as it is blocked, the hot steam or any hot content within the
cooker can cause injury.
Do not use a Cleaning Pin for other use except cleaning for the valve hole of the pressure weight.
Pressure Weight
Alien
Substance
Soft steam cap
Attached on the
botton of the unit.
Cleaning Pin
If the valve hole of the pressure weight part is clogged, punch it with the cleaning pin
How to
disassemble the
pressure weigh
Under the Lock/Unlock handle is locked(located on “Lock”) turn the pressure weight counter-
clockwise while pulling it up, and pull it out.
Punch the clogged valve hole with the cleaning pin and reassemble it by turning it clockwise.
When the pressure weight is properly assembled, it can freely be turned.
Temperature sensor problem. mark mark, and marks
blink.
Consult the service center and dealer.

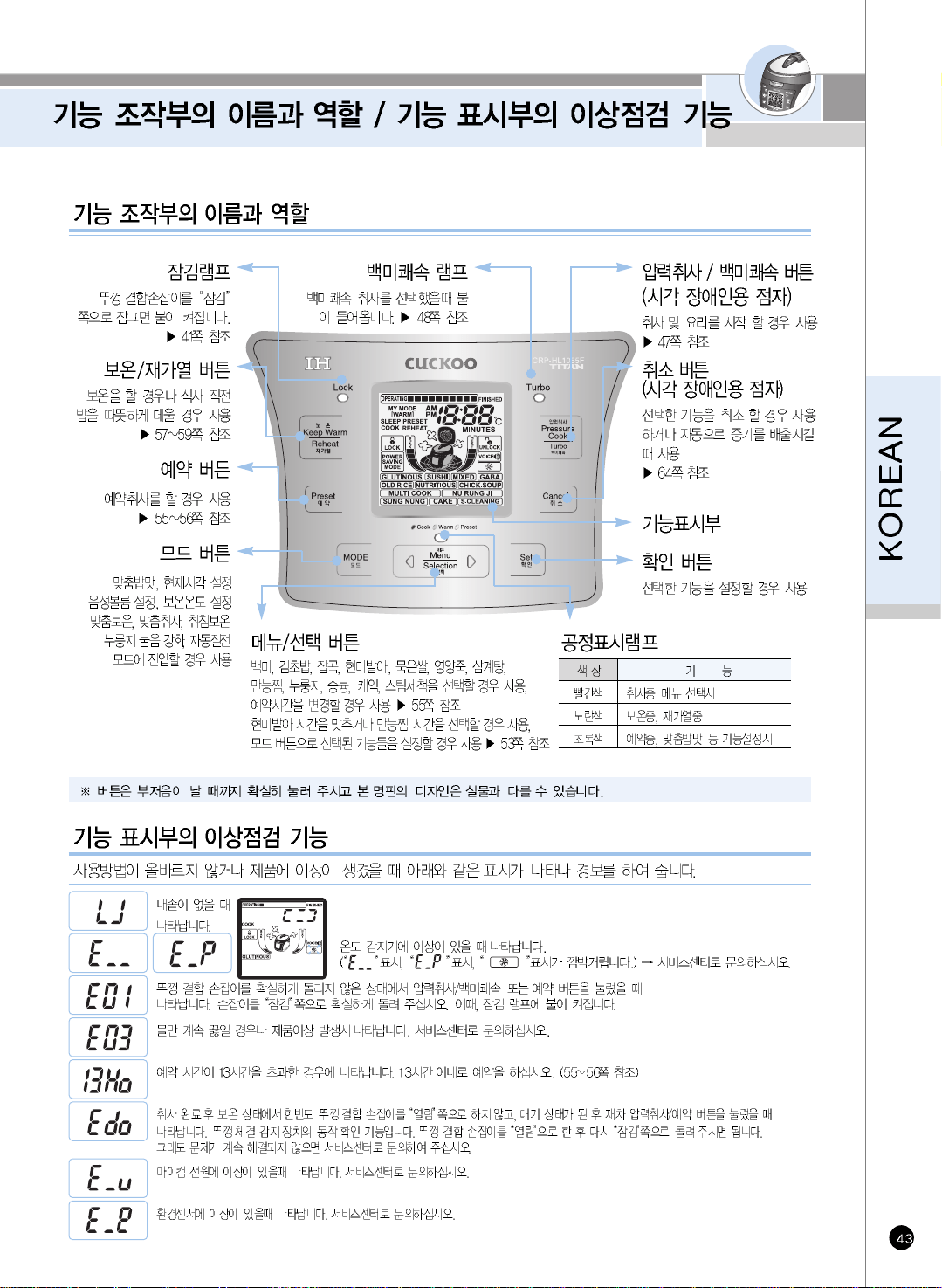

FUNCITION OPERATING PART
www.cuckoo.co.kr
Funcition Operating Part
Turbo button
when pressing the button
the light will be on
(Refer to page 18)
Keep Warm /
Reheat button
Use it for warming or
reheating the cooked meal
right before eating.
(Refer to page 27~29)
Timer Button
Use it by presetting the
time when you desire
specific time to eat.
(Refer to page 25~26)
Pressure
Cook/Turbo Button
Use it for cooking the rice.
(Refer to page 17)
Cancel button
Use it for canceling selected
function or releasing
remaining steam in the inner
pot.
(Refer to page 34)
Display
Set button
Use for setting up selected
function.
When the inner
pot is not placed
into the unit.
When pressing the Pressure Cook and Timer botton, while the
Lock/Unlock handle is on “Unlock” Turn the Lock/Unlock handle “Lock”
When boiling only water.
When setting preset time longer than 13 hours
Set the preset time within 13 hours. (Refer to page 25~26)
It is appeared on the display when press Start button again, if the cooking has done and you’ve never
ever turned the handle to ‘Unlock’. It can be solved by turning handle to ‘Unlock’ and then turn to ‘Lock’.
Ploblem on micom power.
Ploblem on sensor.
When the product have any problems or use it inappropriately you can see the below marks.
Error Code and Possible Cause
※ The button has to be pressed until buzzer sounds. There is a chance to be different the picture and the real.
Mode button
Menu button
For glutinous, sushi, mixed, gaba old rice, cake,
porridge, nu rung ji steam washing, changing
curror time (Refer to page 25).
For setting selected faction with mode button and
setting gaba time multi-cook time.
Ready to operate
The light will be on when
it’s ready to operate.
(Refer to page 11)
for customifed taste
function, time-setting,
voice volrum setting
keep warn temperature
setting, power saving
movement.
HOW TO SET CURRENT TIME / HOW TO SET OR
CANCEL VOICE GUIDE FUNCTION.
To enter this function, press Mode button 3 times. It needs to be pressed Mode button over 1 second at the first time.
Voice guide volume control ( The function which can control volume and cancel)
About Lithium battery
This product contains lithium battery for improving blackout
compensation and time. Lithium battery lasts for 3 years.
When current time does not be displayed on the screen, it
means the battery is exhausted. It should be changed new one.
What is blackout compensation
This product memories previous condition and process.
After finishing blackout, it operates immediately.
If blackout happens during cooking, the cooking time will
be delayed depending on blackout time.
If the rice became cold because of blackout, warming will
be cancelled.

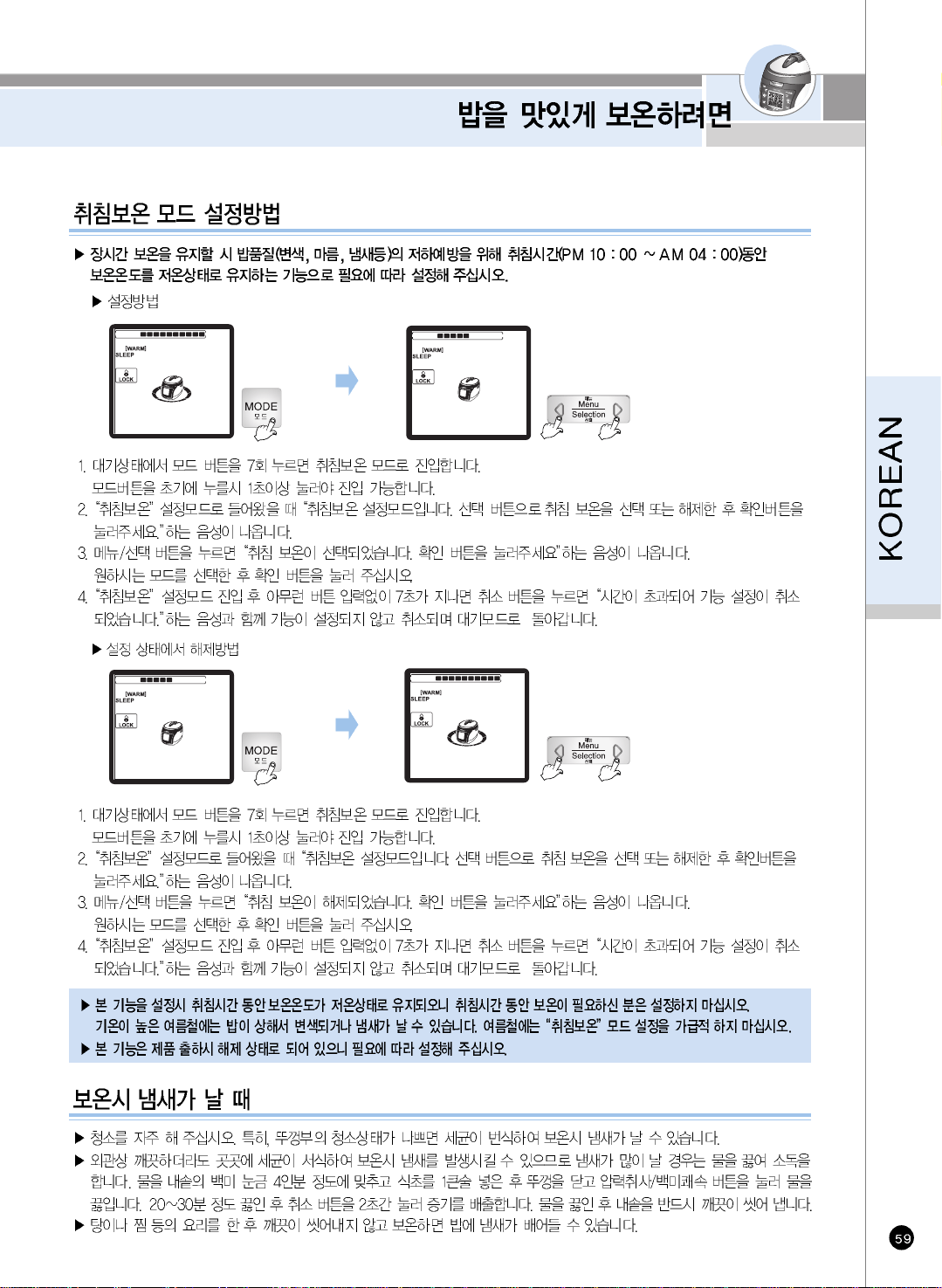

How to set current time during keep
warming mode
1. Press Cancel button to cancle keep warm and
then press Mode button over 2 seconds to set
cument time.
2. After setting time, press keep warm button to
re-start keep warm.
ex)8:25am now
How to set current time
‘4’ sign is displayed when
entered volume control mode by
pressing Mode button 2 times.
If set value became ‘0’ by pressing
button, voice guide function is off.
Press button to set ‘7’, that is the
maximum volume sound. When
finish setting desired volume, press
Mode button to store.
Press mode button 2times.
t can be operated by pressing mode button more than 1sec
Current time mode press yes button” after setting current time with
selection button.
: on the se screen is blinked.
1
When finishing to set time you want, press "Set" button.
If it is over 7sec without yes button, setting time will be canceled with
voice,"it is canceled due to overtime".
3
1 min up " " button
1 min down " " button
10 min up or down " ", " " keep pressing.
Careful of setting am,pm.
In case of 12:00 it is 12:00 pm.
2

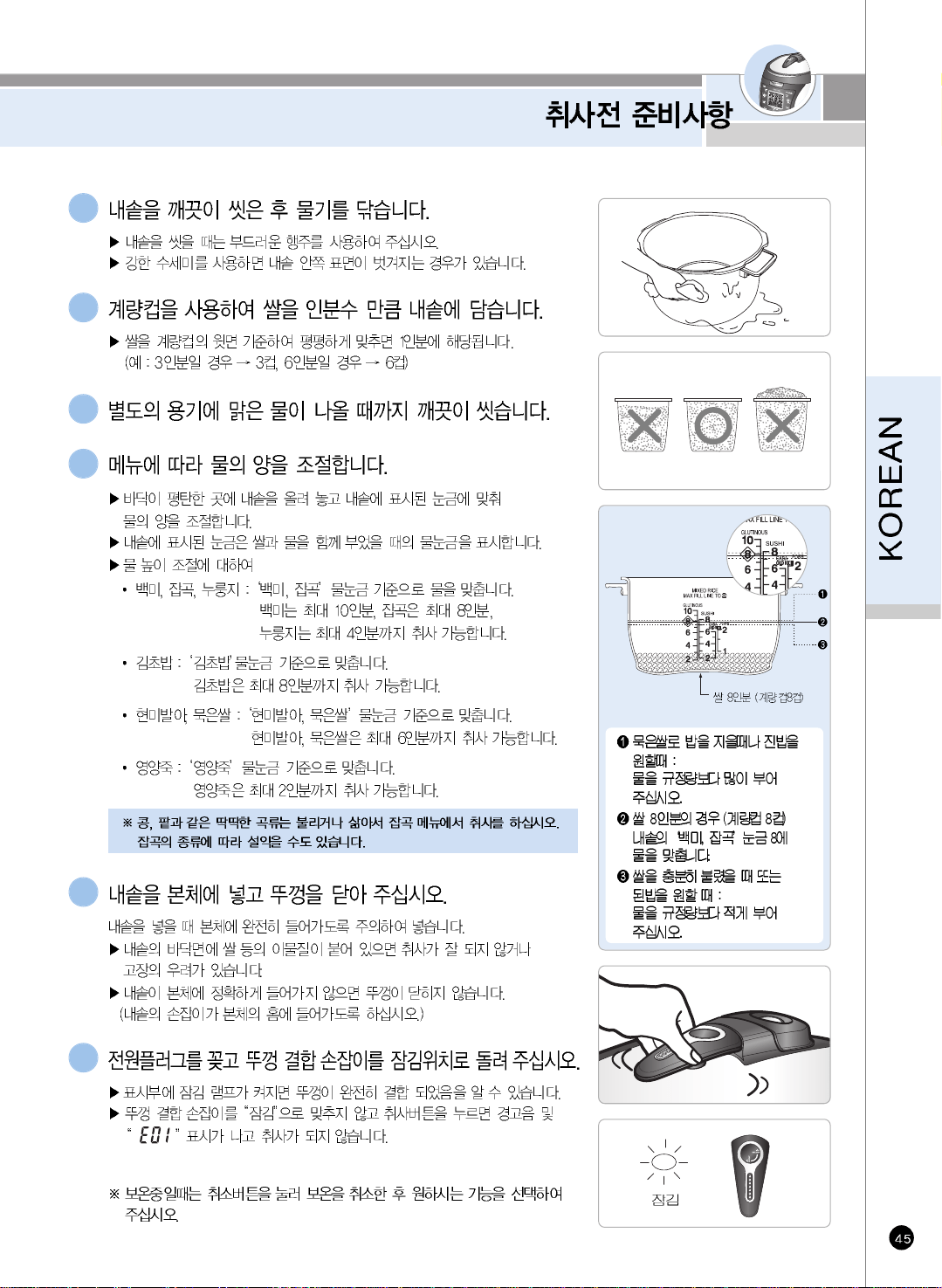

BEFORE COOKING RICE
www.cuckoo.co.kr
Clean the inner pot and wipe the water on the inner pot with dry cloth.
Use the soft cloth to wash the inner pot.
Tough scrubber can make the coating comes off.
1
Measure the amount of rice you want to cook using the measuring cup.
Make the rice flat to top of measuring cup and it s for 1 person.
(ex: for 3 servings 3 cups, for 6 servings 6 cups)
2
Wash the rice with another container until the water becomes clear.
3
Put the inner pot into the main body and close the topcover.
Put the inner pot correctly.
If there is any alien substance on the temperature sensor or the bottom
of the inner pot, wipe it off before putting the pot into the main unit.
Top cover will not close if the inner pot is not placed correctly in the main
body (Place the inner pot to the corresponding parts of the main body)
5
Connect power plug and turn the handle to “Lock”
The lamp turning on means closed perfectly.
If you press the cook button without setting the Lock/Unlock
handle to “Lock” the cooker will not operate. You will hear “beep
beep beep” sound and “ ” is shown in the LCD.
6
According to menu, adjust the water amount.
For measuring place the inner pot on a leveled surface and adjust
the amount of water.
The marked line of inner pot indicates water level when put the rice
and water into inner pot together.
About water scale
Glutinous rice, Mixed rice, Nu rung ji : Pour water to scale of
"glutinous" max. capacity
Glutinous rice : 10persons
Mixed rice : 8 persons,
Nu rung ji : 4 persons.
Gaba, Dried rice : pour water to scale of "gaba, dried"
Max capacity : 6persons
Sushi : Pour water to scale of sushi
Max capacity: 8 persons.
Porridge : pour water to scale of "porr"
Max capacity: 2persons.
4
Glutinous Rice for 8 persons (8
cups) : Set the water to scale of
GLUTINOUS
❸ For overcooked rice : pour less
water than the measured scale
When you want to cook the old rice
or want the soft rice : pour more
water than the measured scale
Lock
Rice for 8 persons
(6 cups)
FOR BETTER TASTE OF RICE
Use measuring
cup!
Pour the water
until water level in
the inner pot!
How to keep the
rice
It s better to set
the preset time
shortly.
It
s better to set
the keep warming
time shortly.
Keep the product
tidy.
When you measure the rice, Use the measuring
cup surely.
Put the inner pot on the flat place and adjust the
water to water level in the inner pot.
If possible, buy a small amount of rice and keep
the rice some place which is airing well and avoid
a direct ray of light. It can prevent evaporation of
water of rice.
If the rice has been old with unsealing, rice can be
dried. In this case, you should pour the half of
water more. It s tastier.
If possible, do not to set the preset when rice is
too dry and pour the half of water.
It s better to set the keep warming in 12 hours.
Clean the product often.
If amount of water and amount of
rice is different, rice can be crisp or
hard.
If the rice dries much, measure the
rice accurately even though rice can
be crisp.
If you set preset over the 10 hours or
preset dried rice, rice can be crisp or
half cooked. Even worse condition,
rice can be cooked different tasty
each level.
If keep warm the rice long time, rice
color can be changed or cause
smell.
Wipe the top cover heating part well
without any rice or alien substance.
When you want to have tasty rice, check the following points carefully.
Cook the tasty rice with Cuckoo s pressure cooker
HOW TO COOK
www.cuckoo.co.kr
Choose menu with menu selection
button
Start cooking with pressure Cook/Turbo
Select button.
level a pressure weight before cooking once
glutinous, sushi, mixed, gaba and old rice is
completed, they will be stored in the memory
No need to select menu again
You must turn lid handle to lock before cooking.
Then press the pressure Cook/Turbo
Unless lid handle is not turned to close, you get
alarm with “ ” , and sound “turn lid handle
to lock”.
12
The end of cook
When completing cook. warming will be started
with the voice" cuckoo completed glutinous".
When ending cook, stir rice equally and
immediately. If you don't stir rice at once and keep
it left, rice will go bad and smell bad.
If the lid handle is not worked well, steam completely
out of inner pot by turning over pressure weight
While cooking, do not press cancel button.
4
Cooking thoroughly
Left cook time on the display is shown from
cooking thoroughly. The left cook time is
different relying on menu.
Careful not to be burned in automatic steam
outlet.
3
After cooking chicken soup and multi cook etc, the smell may permeate into the unit, use the Unit after cleaning the rubber packing and
lid part according to page
Glutinous
Turbo
Glutinous rice
Sushi
Mixed
GABA Old Rice Porridge
Chick.
soup
Multi
Cook
Nu Rung Ji Sung Nung
Cake
Cooking
Capacity
Cooking
Time
2~10
persons
2~6
persons
2~8
persons
2~8
persons
2~6
persons
2~6
persons
1~2
persons
1
Refer to
the
cooking
guide
2~4
persons
2~4
persons
Refer to the
cooking
guide
27~37
minuts
13~23
minuts
38~51
minuts
41~50
minuts
42~56
minuts
40~45
minuts
60~71
minuts
69
minuts
36~39
minuts
35~43
minuts
45~50
minuts
Menu

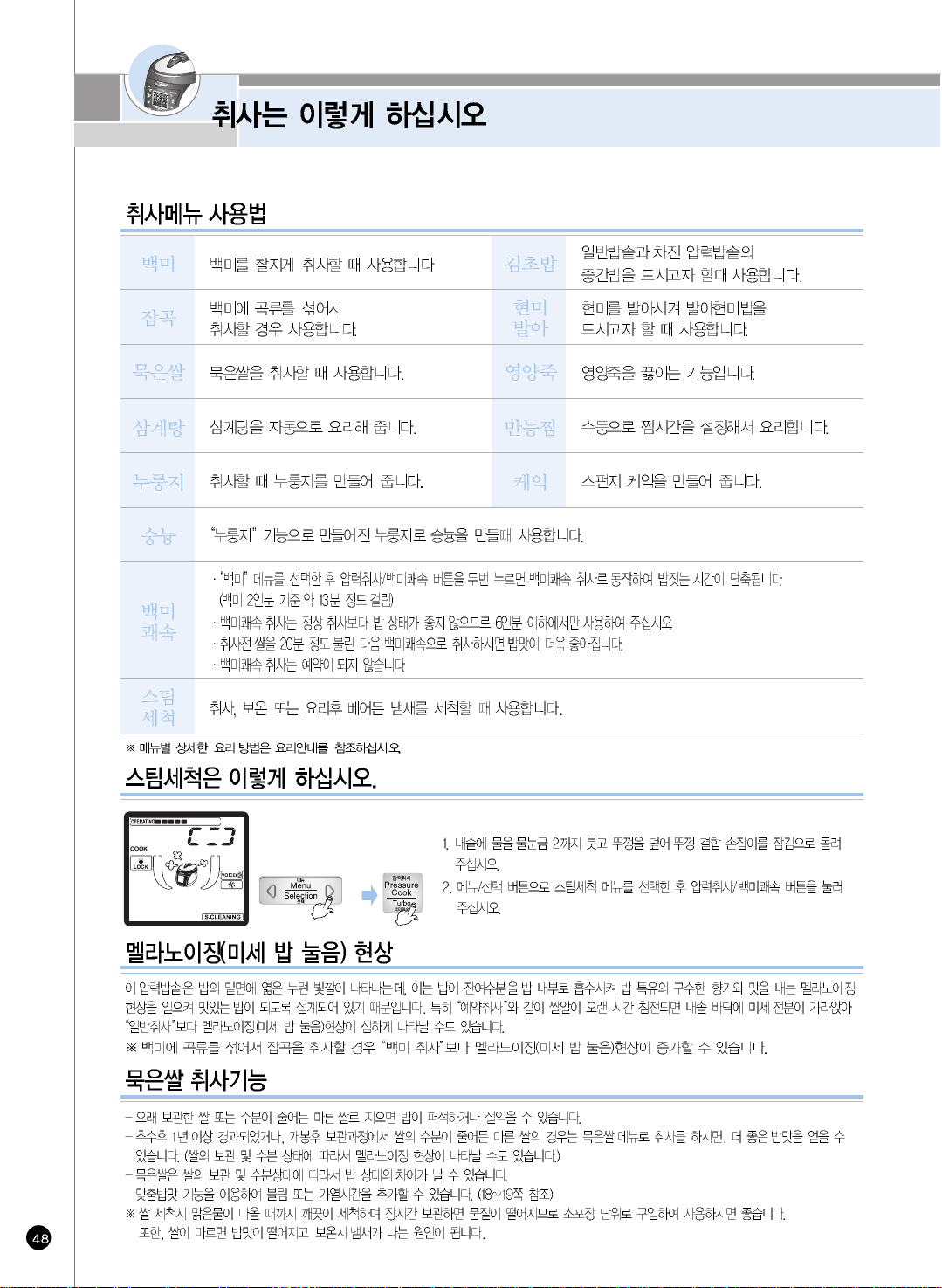

HOW TO COOK
Chick soup
Cooks chicken soup.

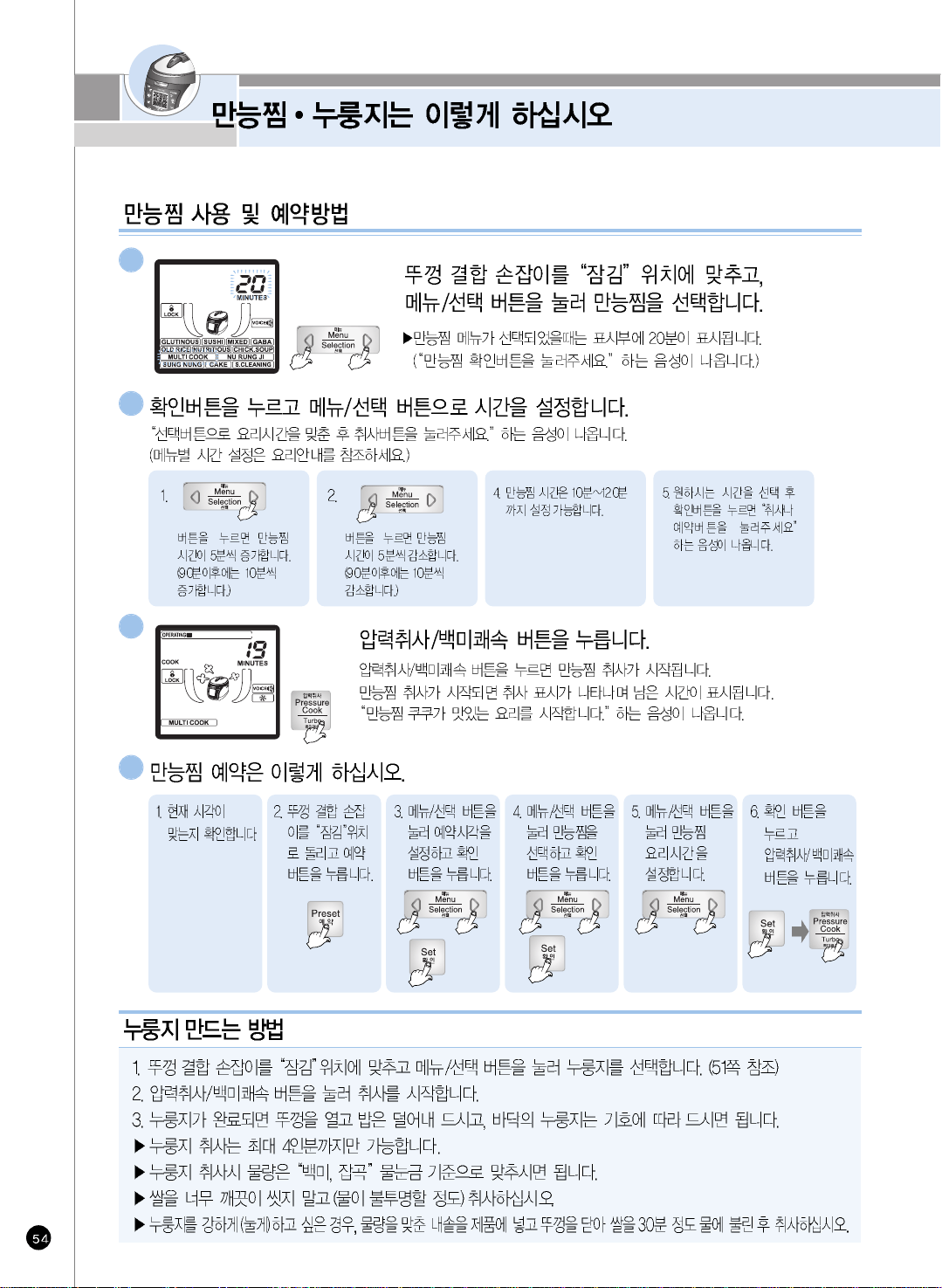

Multi cook
For cooking Nutritious Rice.
- If you cook long stored rice or dried rice, they could be half-cooked. If using old rice menu, you can get better taste .
- The taste of rice will be different depending on storage of rice and water state.
※ you can add the heating time or soaktime (Refer to page18~19).
Old rice cook function
1.Pour water into inner pot till water scale mark 2.
2.Press pressure Cook/Turbo button after seleting steam
cleaning menu with Menu/Select button.
How to do steam cleaning
The cooked rice can be light yellow at the bottom of the oven, because this product is designed to improve pleasant flavor
and taste. Especially, melanoizing is more serious at the
Preset cooking than just Cooking .
It does not mean malfunction.
Melanoizing effect
Please refer to the cooking guide.
Glutinous
When you want to have sticky and
nutritive white rice.
Mixed/Brown
Turbo function
for
Glutinous rice
Steam Clean
For cooking together with brown
rice and some other kinds of grain.
Press twice Pressure Cook/Turbo will switch to quick cooking and shorten the cooking time.
(It takes about 17 minutes when you cook the Glutinous rice for 2 persons.)
Use this turbo cooking function only for cooking rice for less than 6 persons.
(The condition of the rice will not be good for more than 6 persons)
The turbo cooking function is allowed up to 6 persons.
If you soak the rice in water for about 20 minutes before cooking the rice and then cook the rice
in turbo cooking course, the rice will taste good.
Sushi
When you want to have a little more sticky
and nutritive white rice than Glutinous rice.
GABA
For cooking germinated brown rice.
For deodorizing smell left after cook.
How to use the cooking menu
Dried
For cooking dried rice
Porridge
For cooking germinated brown rice.
Nu Rung Ji
(Scorched rice)
Have scorched rice when cooking
done.
Cake
For cooking cake.

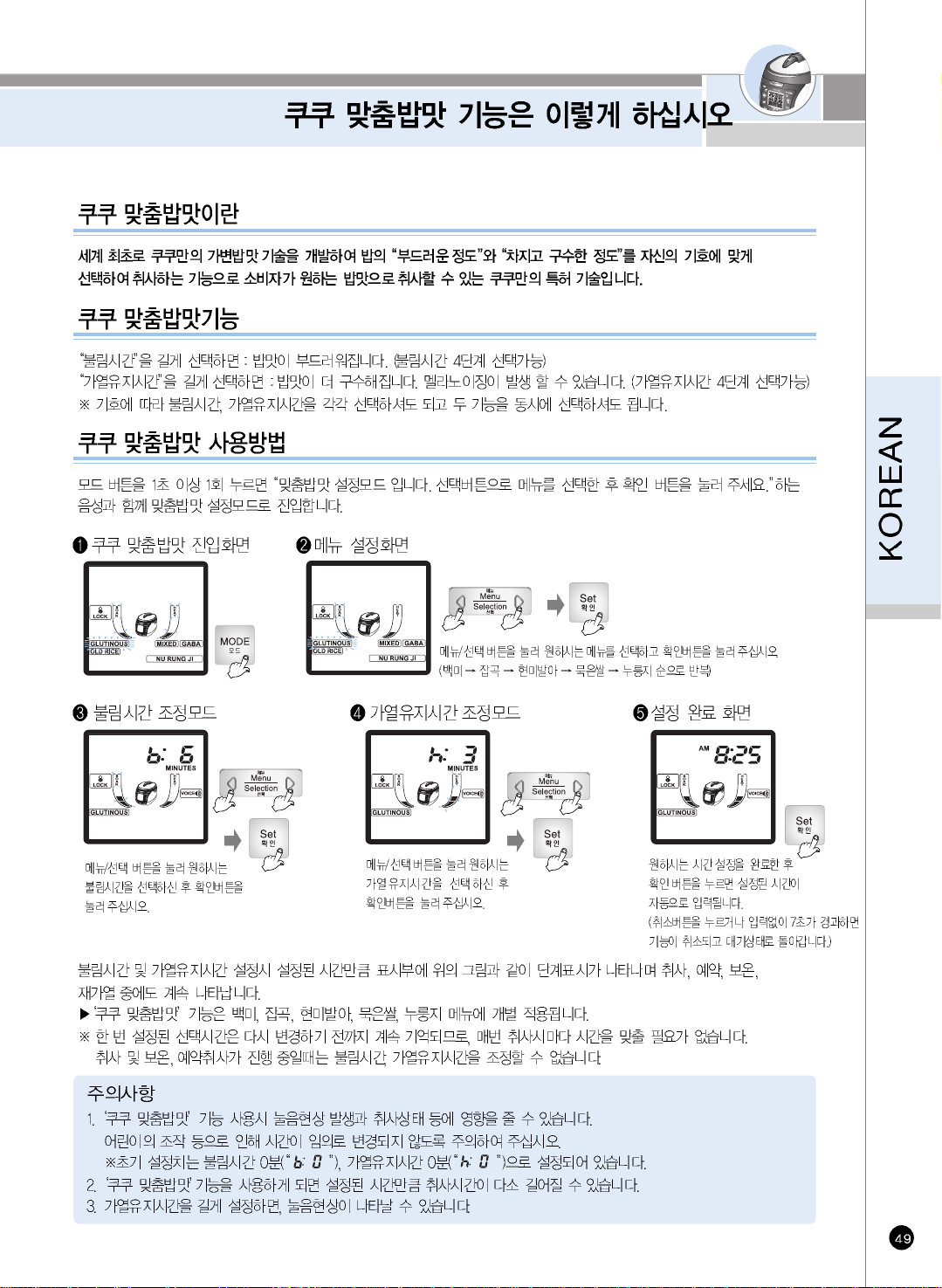

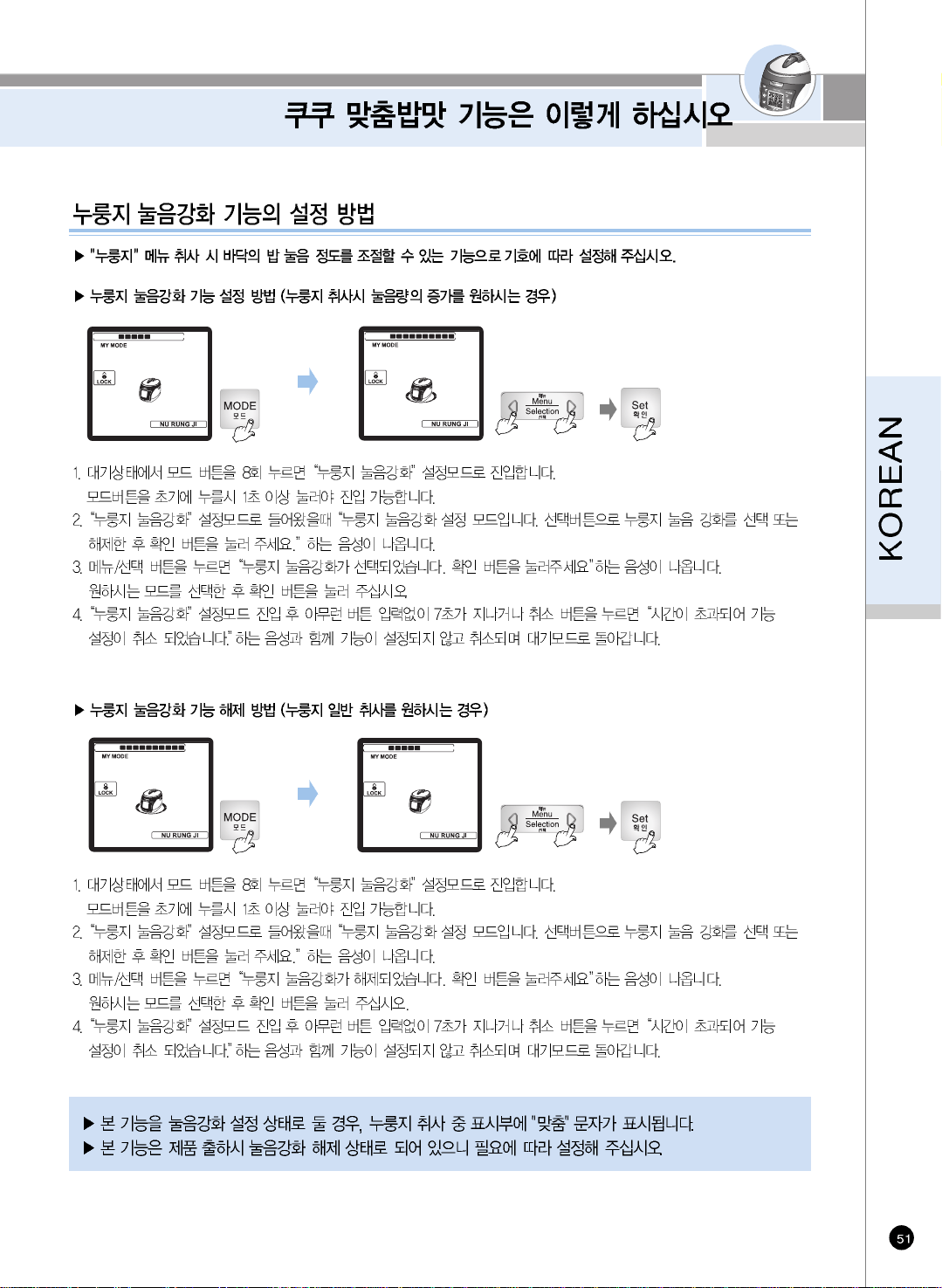

MY MODE (Cuckoo Customized Taste Function)
www.cuckoo.co.kr
1.'MY MODE' function may influence scorching or cooking quality. ensure that cooking time is not changed, by children.
Default settings are “SOAK” Time 0 min(“ ”), “HEAT” Time 0 min(“ ”).
2. “MY MODE” function may elongate cooking time according to set-up time.
3. Scorching of rice may occur by longer “HEAT” Time(“ ”).
Cautions
Set-up time is stored until the next reset. no need to set-up at every cooking.
During cooking, warming and preset time cooking modes, "soak" and "heat" time cannot be readjusted.
“MY MODE”
setting screen
Cuckoo’s patented technology based on variable circuit design. User can select the degree of “softness” and “glutinosity
& tastiness” to meet a user’s specific taste.
What is “MY MODE”?
Longer “SOAK” Time : rice becomes soft and glutinous. (selectable in 4 steps)
Longer “HEAT” Time : rice becomes tasty (selectable in 4 steps) [amelanizing will occur]
Above 2 functions can be selected both or individually.
MY MODE Function
If you puch mode button 1time,1 more sec, it will be "customized taste mode". it says that push the set button after
selecting menu with selection button.
How to use “MY MODE”
“MENU”setting
screen
After selecting keep
rieatiny time control
mede, push the “set”
button.
After setting time you want
push the “set” button.
established time will be
automatially (if you press the
cancel button or 7seconds over
without any button, every
action will be canceled)
After selecting soak time
with menu button push
the yes button.
Soak time
control mode
Keep heating fine
control mode
Setting completed
screen after
MY MODE (Cuckoo Customized Taste Function)
SOAK 1 STEP, HEAT 1 STEP SOAK 4 STEP, HEAT 1 STEP SOAK 1 STEP, HEAT 4 STEP
4 Step
3 Step
2 Step
1 Step
4 Step
3 Step
2 Step
1 Step
The display of my mode
This is a graph the flavors of 16 types of cuckoo custom-made rice
If you mode button 6times, customized cooking function is setup. select heating power by selection button.
You can see all mean with cuckoo customized cooking function on the display.
*1. The rice becomes solid and glutinous.
*2. The rice becomes soft and well-raised rice.
*3. The rice becomes soft and glutinous.
How to use Cuckoo Customized cooking function
1 . ‘Cuckoo customized cooking function’ applies to Glutinous, Turbo cooking, Sushi, Mixed rice/Brown rice, GABA, Nutrition rice,
OLD RICE collectively.
2 . Set up the step of customized cooking function to taste. the scorch can be happened when cook is high step.
3 . Cook is subject to set different depending on the percentage of water content and the condition of rice.
Initialization is set up “ step” get step by step as the case may be.
- High step : for cooking cereals, old rice and soft-boilde rice.
- Low step : for cooking the year’s crop of rice.
While cooking you can control the heating temperature (both high an low) depending on, your prefenence.
Cuckoo customized cooking function
The display Cuckoo
customized cooking
function
Make the screen changed like as
pressing menu button.
push th menu/selection button then the
screen will be changed as above picture.
High level mode
If you press the “set”button,
established menu will be set
up automatic cally.(If you
press cancel or do not press
a button within 7 seconds, the
function will deactivate and
return to the standby mode.)
If you push mode button
6times. the display for
customized cooking
function will be set up.
initialitaion is like 0bove
picture.
Setting completed
screen after
Low level mode
Heat
4step
3step
2step
1step
1step 2step 3step 4step Heat
MY MODE (Cuckoo Customized Taste Function)
www.cuckoo.co.kr
▶ When cooking nu rung ji, please set it up for your taste with function which control the leve of burning nu rung ji.
▶ The way to set up the enhance burning nu rung ji (for enhanced burning nu rung ji).
1. If you push mode button 8 times at the waiting state ,enhanced burning nu rung ji mode will be set up
when pushing mode button more than I see it will be possible to set up.
2. When enhanced burning nu rung ji mode is set up, it says "after removed or selection of enhanced
burning nu rung ji, push the yes button
3. If you push the menu/selection button it says "enhanced burning nu rung ji chosen press the yes
button after choosing a mode you want. press the yes button
4. without any button within 7 seconds or cancel button, enhanced burning nu rung ji mode will be
canceled and return to waiting state.
How to set up the function of burning nu rung ji
The way to cancel the enhanced burning nu rung ji
1. If you push mode button 8 times at the waiting state ,enhanced burning nu rung ji mode will be set up
when pushing mode button more than I see it will be possible to set up.
2. When enhanced burning nu rung ji mode is set up, it says "after removed or selection of enhanced
burning nu rung ji, push the set button
3. If you push the menu/selection button it says "enhanced burning nu rung ji chosen press the yes
button after choosing a mode you want. press the set button
4. without any button within 7 seconds or cancel button, enhanced burning nu rung ji mode will be
canceled and return to waiting state.
Set up this function as occasion demands because this function is on the condition of cancel for
enriched saorch at the first use.
(Regular brown rice)
(Poor brown rice
- Empty ear and nit fully corned brown rice)
HOW TO USE GABA (Brown rice)
Check the dates of harvest and pounding.
The dates should be within 1year from a harvest, 3 months from pounding.
Inspect rice with your eyes.
Check that embryo is alive
Rice surface should be light yellow and glazing. Whitely stirred up surface, or darkish colored Brown rice is not suitable
for a germination
Avoid fractured, not fully corned, or empty ear. Empty ear may generate odor during germination and bluish- nor corned
Brown rice cannot be germinated.
< Comparison of Germinated brown rice s nutrition
and Glutinous rice
s (6 hours) nutrition. >
Brown rice has richer nutrients than polished rice. However, brown rice is rather tough and harder to be digested.
By a least germination, the enzymes in the brown rice are activated, generating nutrients and more digestible.

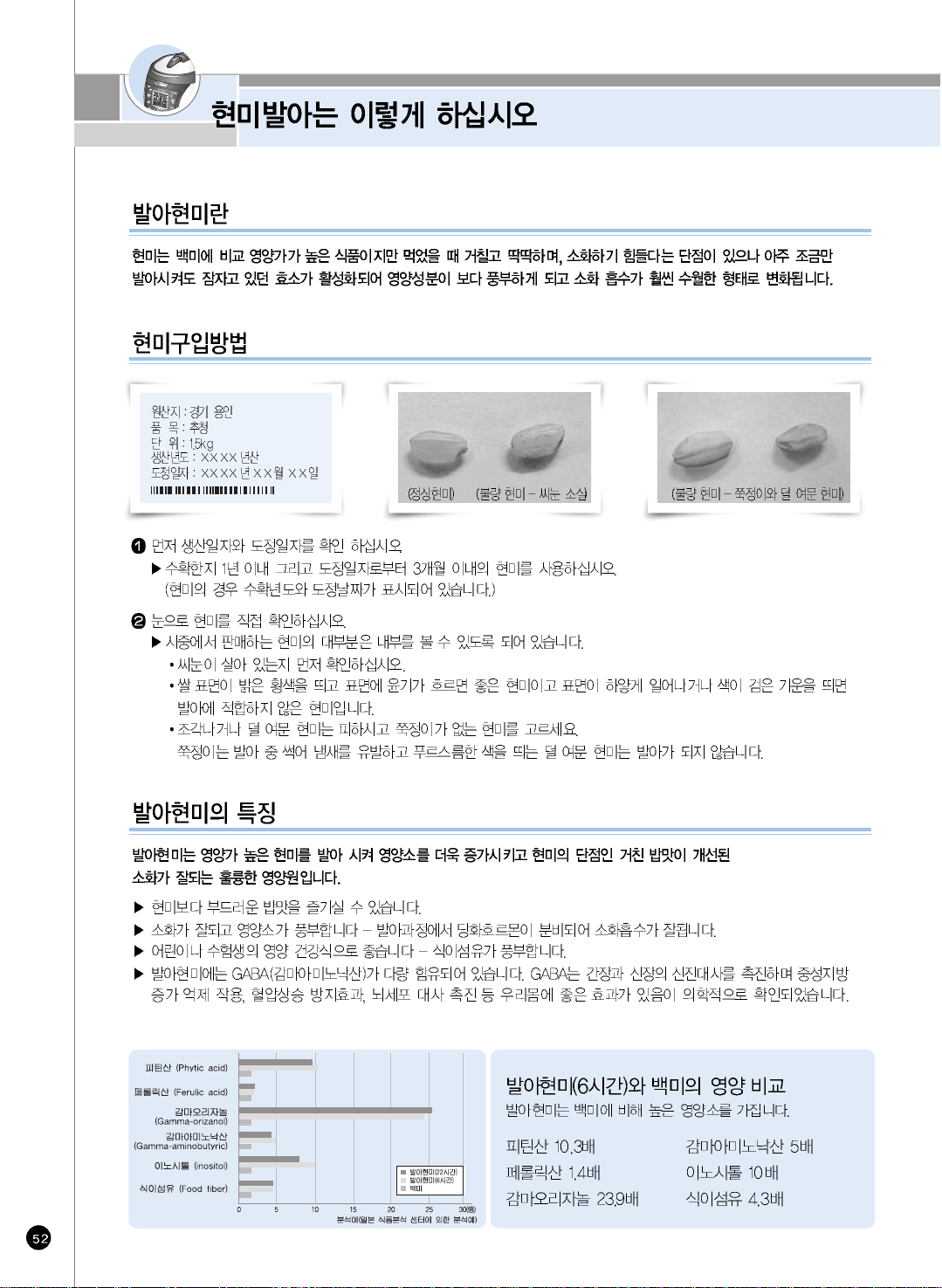

What is Germinated Brown rice?
Germinated Brown rice increases nutrients and enhances taste which is a weak point of brown rice.
Germinated Brown rice also improves digestibility.
Taste will be greatly enhanced.
Digestive and rich in nutrients.
Diatetic hormone is generated improving digestibility.
Good as a health food for children or students.
- Rich with dietary fiber.
Germinated brown rice has rich GABA (Gamma Amino Butryc Acid)
- GABA promotes metabolism in liver and kidneys, suppresses neutral fat, lowers blood pressure, promotes metabolism
in brain cells - these effects have been proved by medical science.
Features of Germinated Brown rice
Tips to Buy Quality Brown Rice
Phytic acid 10.3Times
Ferulic acid 1.4Times
Gamma-orizanol 23.9Times
Gammma-aminobutyric 5Times
Inositol 10Times
Food fiber 4.3Times

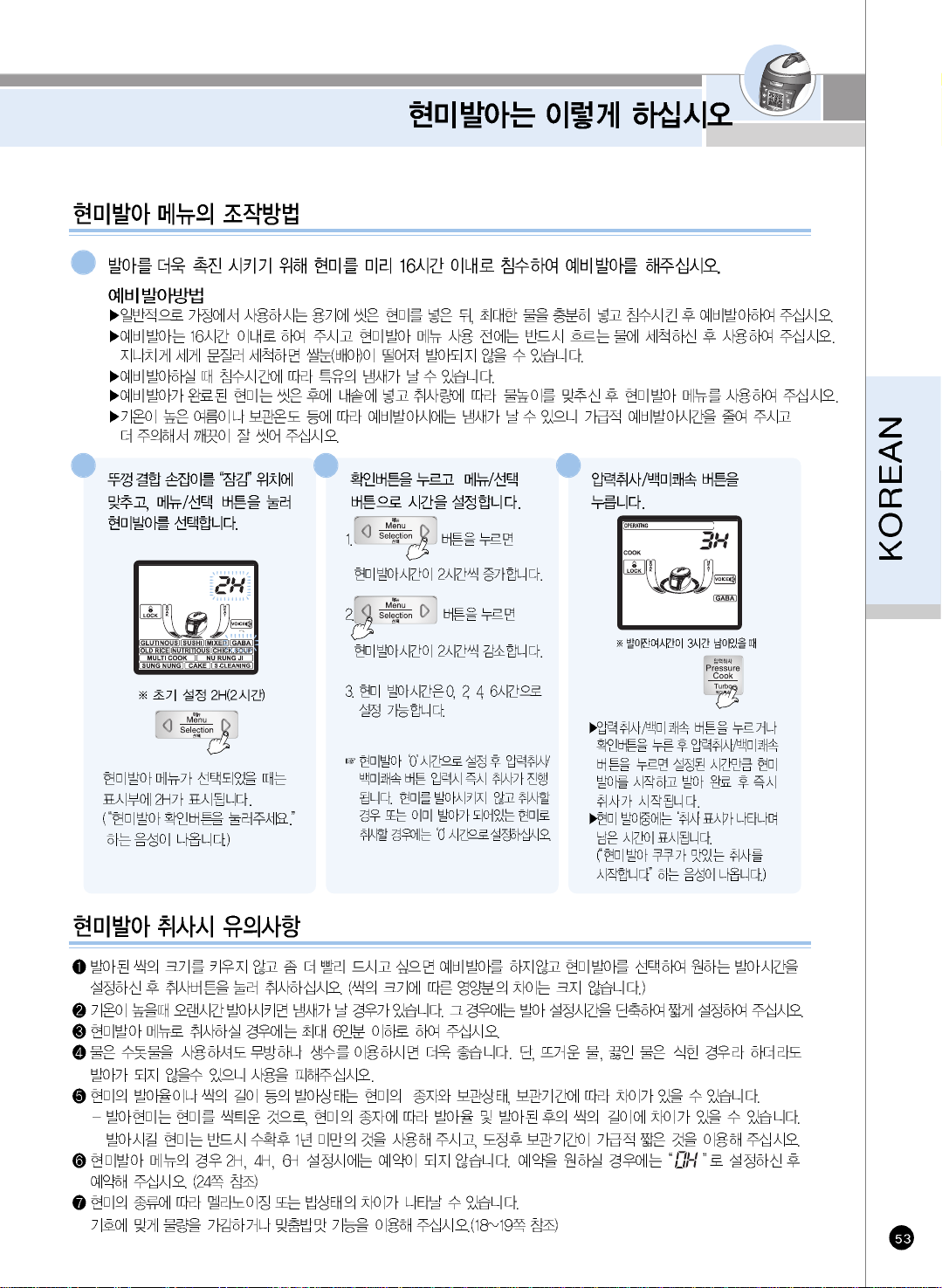

Using GABA Menu
Precautions for GABA Cooking
If smaller germ is preferred, omit pre-germination process. Select GABA menu, set-up appropriate germination
time, and start cooking (nutrient ingredients do not vary significantly by the size of germ).
During hot seasons, longer germination time may generate odor. Reduce germination time.
GABA cooking is allowed up to 6 persons.
City water can be used for germination. However, spring water is recommended. Germination may not be properly
performed in hot or boiled water even after cooling.
Germination rate, germ growth may differ by the Brown rice kind, condition or period of storing, etc.
- Germinated brown rice is sprouted brown rice. Germination rate and growth may differ by the Brown rice kind.
The brown rice should be within 1 year from harvest, and not long since pounded.
In GABA mode, preset on 4H, 5H, 6H may not be possible. If you want to preset the GABA, set up ‘OH’.(See the page 20)
The taste of rice could be different as depending on a kind of brown rice. Use customized taste function or control the
amount of water for your taste. (Refer to page 18~19)
In order to promote germination, soak brown rice for 16 hours in water.
Put washed brown rice in an appropriate container, pour sufficient water to soak the rice.
Pre-germination shall not exceed 16 hours. Make sure to wash rice clean with flowing water before using
GABA menu. Be careful that too hard washing may take off embryos which generate the germination.
Unique smell may be generated according to the soaking time of pre-germination.
When pro-germination has been completed, wash the rice and put in inner pot (Oven). Pour appropriated volume
of water, and use
GABA menu.
In summer or hot temperature environment odor may be generated. Reduce germination time and wash clean
when cooking.
1
Set the Lock/Unlock
handle at
Lock , press
Menu button to select
GABA .
When the GABA is
selected,
2H is indicated
in the display.
2
Press Set and Menu
Selection
buttons to
set time.
1.Pressing
button increases
germination time by 2hour.
2.Pressing
button decreases
germination time by 2hour.
3.“GABA” time can be set up by
0,2,4,6 hours.
If GABA time is set 0 hours,
pressing
Pressure Cook
button will start cooking
immediately.
To cook without germination
or cooking germinated Brown
rice, set the time at
0 .
3
Press Pressure Cook
button.
4
Pressing Pressure Cook
button will begin the GABA
process, after which. cooking will
begin immediately.
During GABA mode,
indicator will shows the
remaining time will be displayed
in minutes with the
3H mark
going around clockwise.
Method of Pre-germination
HOW TO USE GABA (Brown rice)
www.cuckoo.co.kr
HOW TO COOK THE MULTI-COOK AND NU RUNG JI
How to make Nu rung ji
1. Turn the Lock/Unlock handle to Lock and press menu to select the Nu Rung Ji.
2. Press the “Pressure Cook/Turbo” button to start cooking.
3. When cooking is completed, scoop out the boiled rice. The Nu Rung Ji on the jar bottom can
be prepared for your taste (e.g. scorched rice tea)
Nu Rung Ji can be prepared for people up to 4
For Nu Rung Ji cooking, set the water volume at Glutinous level.
Not too much washing rice.
If you want enhanced burning nu rung ji, cook after sioaking rice in water for 30minutes.
Press “Set”, “Menu/Selection” button to set up the time.
It says after setting cooking time with selection button press the cook button.
Please refer to the cooking guide for cooking time.
2
Use the preset time of Multi -cook as following instruction.
4
How to use the Multi-cook and preset the time
Turn the top handle to Lock, press
menu to select the Multi-cook.
When selecting Multi-cook, the display indicates cooking time to be
20 minutes.
1
Press “Pressure Cook/Turbo” button.
Press the Pressure Cook/Turbo button and the Multi-cook will start.
If the Multi-cook starts, the display shows the
cooking mark and
remaining minutes.
3
1. Check the
present time.
2. Turn the
Lock/Unlock
handle to
Lock and
press the
“Timer” button.
6. Press the
“Timer” or
“Pressure
Cook/Turbo”.
1.
Each time you press
“Menu/Selection” button,
the time increases 5
minutes.
(After 90min, each 10min
decrease.)
3. Press the
Menu/Selection
or Min/Heat to
preset time.
4. Press menu
selection butt
on to select
the Multi-cook.
5. Set up the
cooking time
for pressing
menu selection
button, Min/
Heat button.
2.
Each time you press
“Menu/Selection” button,
the time decreases 5
minutes.
(After 90min, each 10min
decrease.)
3. Available setting time
is 10 ~ 90 minutes.
4. If you press the yes
button after choosing
time you want it says
"press cook or tineer
button"

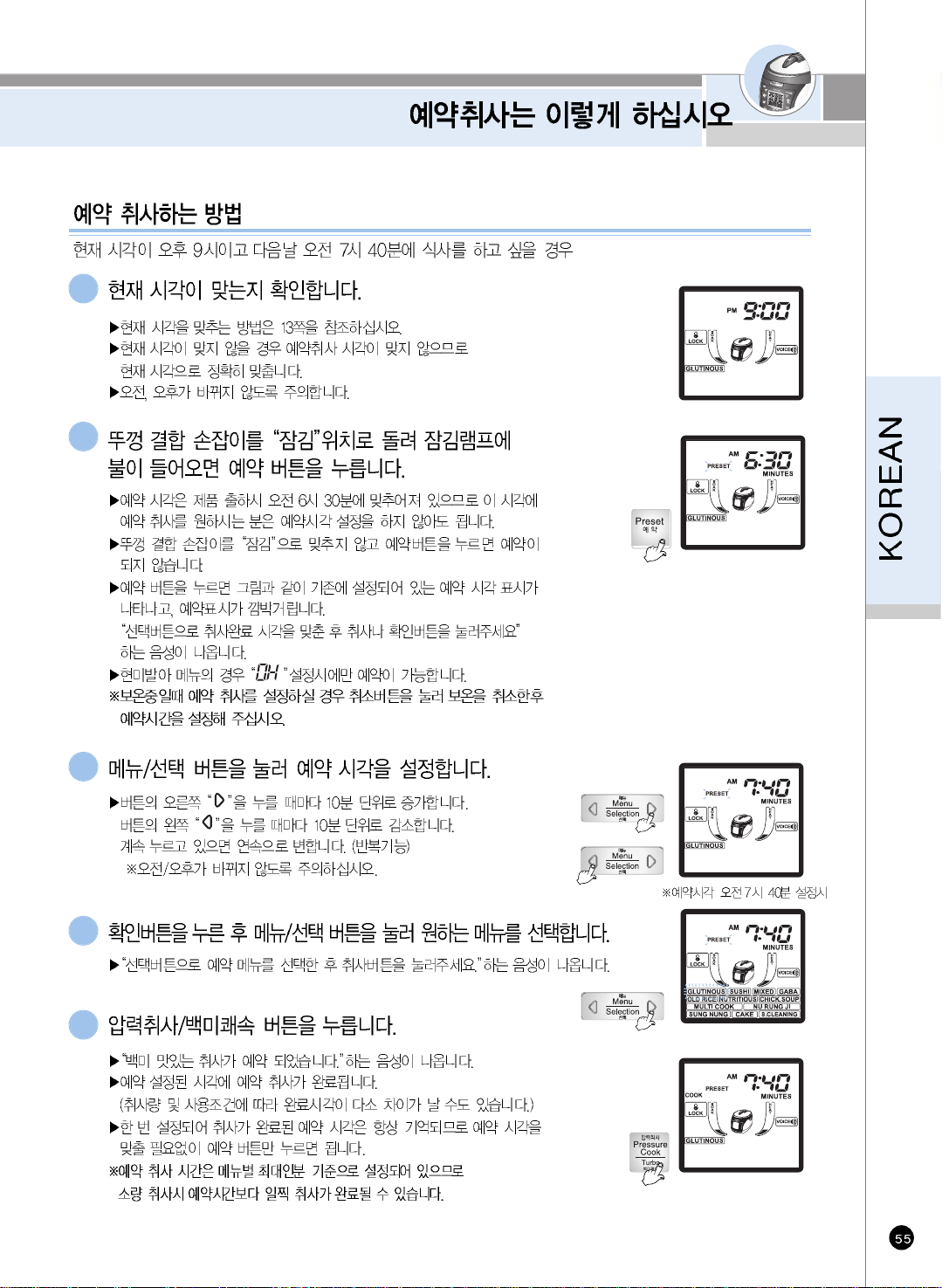

HOW TO PRESET THE TIMER
www.cuckoo.co.kr
Check if the current time and the menu are correct.
Refer to page 10 for the time setting method.
If the current time is not set correctly, the presetting time also
be incorrect.
Make sure not to change A.M. and P.M.
1
Press the “Timer” button.
The initial time set at 6:30 am is already programed.
Please. rid handle should be locked.
f you push timer button, timer screen will be blinked.
n GABA mode, preset on “ ”is possible.
If you want to preset “Timer” while keeping warm, cancel keep
warm and preset the “Timer”
2
Set the presetting time.
In case of setting up timer while warming
10min up / 1 “ ”button
Plase set up timer after canceling warming
10min down / 1 “ ”button
If you keep pressing, It can be changed continually.
Please be careful not to change from AM to PM.
In case of presetting timer
AM7:40
3
Press pressure Cook/Turbo
It says that cook for glutinous is booked
Preset cook will be completed at the timer
Once cook is completed with preset time,
preset time is stored in the memory.
Don't need to set up time again.
If a small amount of rice is cooked, cook could be finished earlier
than time you set up.
5
Select menu with Menu/Selection button
If you select “Timer” menu with selection button it says
“Please, press the Cook/Turbo button.
4
How to preset the timer
How th use timer function
HOW TO PRESET THE TIMER

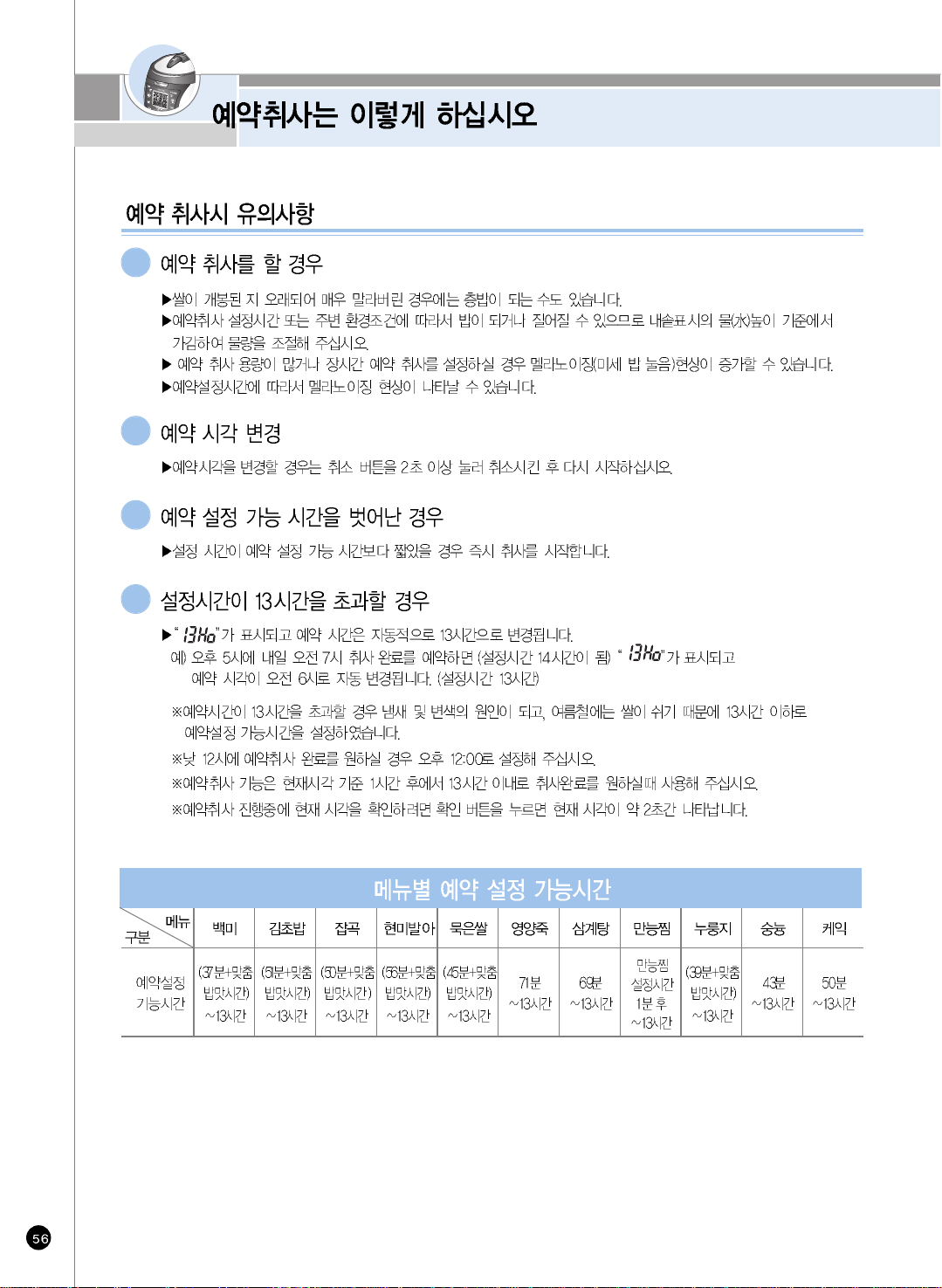

Precautions for preset cooking
If the rice is old and very dry, the result of the cooking may not be good.
If the rice is not well cooked increase the amount of water about half-scale.
Press “Cancel” button and restart to change the preset time.
Set the presetting time to no more than 13 hours especially if the presetting time exceeds 7 to 8 hours
during the summer time, the rice can smell bad.
Preset time will be changed automatically and displays “
when setup time exceeds 13 hours.
If the preset time is shorter than cooking time in the below table, the cooking starts immediately.
After cooking chicken soup and multi cook etc, the smell may permeate into the unit, use the Unit after cleaning the rubber packing and
lid part according to page
Glutinous
Using
range of
preset
timer
From
(37minutes
+ My mode)
to 13 hours
Sushi
From
(51minutes
+ My mode)
to 13 hours
Mixed
From
(50minutes
+ My mode)
to 13 hours
GABA
From
(56minutes
+ My mode)
to 13 hours
Old Rice
From
(45minutes
+ My mode)
to 13 hours
Porridge
From
71minutes
to 13 hours
Chick. soup
From
69minutes
to 13 hours
Multi Cook
From
(setting time
+ 1minutes)
to 13 hours
Nu Rung ji
From
(39minutes
+ My mode)
to 13 hours
Sung Nung
From
43minutes
to 13 hours
Cake
From
50minutes
to 13 hours
Menu
The lamp blinks and
indicator will shows the reheat
remaining time will be displayed in
minutes with the
mark
going around clockwise.
TO KEEP WARM THE COOKED RICE TASTY
www.cuckoo.co.kr
It is possible to be hard to open the lid during warming or finished
cooking right after, at this time pull the pressure weight to aside
once and exhaust the steam perfectly.
Make sure the handle must be located on “Lock” during warming
or reheating.
It is recommended to evenly stir the cooked rice after cooking.
The rice taste is improved. (For a small quantity of rice, pile up the
rice on the center area of the inner pot to keep warm)
Do not keep the scoop inside the pot while warming the rice.
When using a wooden scoop it can cause serious bacteria and
odors.
It would better keep warming the rice less than 12 hours because
of odors and color.
The cooked rice, which cooked by pressure cooker is more easier
changing color than the rice cooked by general cooker.
During warm mode, the rice can turn white and rise. In this case,
mix the rice.
Do not mix too small quantity of rice or leftovers with the rice
under keeping warm. Doing so may develop an odor. (Use a
microwave oven for the cold rice.)
Cautions for Keeping Warm
The mixed and brown rice cannot be in such good condition as
white rice while in warm function due to their characteristics.
Therefore do not keep mixed and brown rice in function for a long
period of time.
<Keep warming>
indicates the time elapsed as
warming time.
<Reheating> <Finishing reheat>
aIf the reheat finishes with the beep
sound, keep warming function will be
operated and show the time elasped.
Having a meal
If you want to have fresh rice, press the reheat/keep warm. And Reheat/Keep warm function will be started and
you can eat fresh rice in 9 minutes.
The lid handle should be looked for smooth apreation
If you change the present time during warming see the page 14
The frequent use of the Reheat function may cause the cooked rice to be discolored or dried. Use it once or twice per day.
If a separate heating appliance or gas burner is used to cook rice, put the cooked rice into the cooker and press the Keep
Warm/Reheat button to keep the rice warm. At this time, ' ' is shown on the display. (Like this, transferring hot rice to a cold
cooker may cause the rice to be discolored or develop an odor)
<Present morning
temperature>
If you push the yes button present warming temperature is displayed and push yes button again.
The present time is displayed during warming moreover, push the button one more the time
elapsed of warming is displayed
There is different between the temperature and inner temperature because it needs on
various users and environment.
After cooking rice temperature is much higher the warming temperature programmed.
TO KEEP WARM THE COOKED RICE TASTY
Press Mode button over
2 seconds during keep warming.
It displays as picture with
buzzer. At the time, means
current warming temperature.
Press Hour/up button to change
the temperature as
Press Minute/Down button to
change the temperature as
1. When opening the lid, if too much water is spilt : Press Menu/Selection button to raise the setting mode about 1~2 step.
2. If the edge of rice is too soft : Press Menu/Selection button to reduce the setting mode about 1~2 step.
Controlling method of warming temperature
If the temperature in the oven is not proper, it smells odor and changes rice color even though clean it
frequently and boil up. It needs to be set temperature.
Press menu/choice button to
change as the picture(up)
Select the menu you want, then the
press the “My Mode” button and set-
up time will be automatically entered
with a buzzer. (If you press the cancel
button or do not press a button within
7 seconds, the function will be
cancelled and return to standby mode.)
After setting temperature, press Mode
select button. Preset temperature will be
stored with buzzer sound.
(It will be cancelled once press Cancel
button or after 7 seconds without
pressing any button.)
Press menu/choice button
as the picture(down)
How to operate the warm temperature to my mode.
Use it while opening the lid when there is much water or rice becomes too soft.
In standby state, push the mode
button 5times.
The voice says that it is
programmed warming mode
control the temperature you want.
Preset temperature may
differ from instruction manual.
If you want to change cooking temperature in the standby mode, press Mode select button over 2 seconds,
and press it 2 more times. You can change cooking temperature.
Change of temperature
TO KEEP WARM THE COOKED RICE TASTY
www.cuckoo.co.kr
1. In the custom-made rice taste function, press the Warm/Reheat button. The custom-made warming
mode
will be entered. At the same time, press the preset button. The display will indicate as below.
2. When entering the custom-made warming mode in bed, press the Menu/Selection button. display will be
corrected and press the My Mode function to set up.
3. After entering the custom-made warming mode, if you do not press the any other buttons within 7
seconds, the function will return to the previous cancelled function.
4. This function must be activated the buyer depending in necessity.
1. In the My Mode function, press the Keep Warm/Reheat button. The custom-made warming mode will be
entered. At the same time, press the preset button. The display will be shown as below.
2. When entering the custom-made warming mode in bed, press the Menu/Selection button.
display will blink and then press the custom-made rice taste function to relase.
3. After entering the custom-made warming mode in bed, press the “Cancel” button or do not press any button for
7 seconds, then function will go back to the prior cancelled function.
How to keep warm during sleep
When keeping the rice warm for long time, set up the temperature low to prevent the following quality of
rice: smell, dry, change of color; from PM10:00 ~ AM 04:00.
When odors are rising during the warming mode
Clean the lid frequently. It could produce bacteria and odors.
Although it appears to be clean, the bacterias may cause odor during keep warm mode. So sterilize with
a cloth has been boiled in hot water. Set the water to scale 4 of,
GLUTINOUS and add 15cc of vinegar into the
inner pot and boil pressing the
Cancel button for 20-30 minutes.
After you cook soups and steamed dishes clean the inner pot properly to prevent rice from smelling.
How to set up
How to release
If you need to keep the rice warm during sleeping, do not use this function. This function makes the rice
cooler than normal. In summer, the rice can be spoiled and may smell because of high temperature. If
possible, do not use the custom-made warming mode while sleeping.
This function is set up as cancel state.
HOW TO USE SAVING POWER FUNCTION
what is saving power of standby mode?
A little electricity is wasted if power cord is not plugged in. It is called manual way as standby electric power.
The saving power of standby mode is technology which minimises elcetricity consumption.
The way to start saving power
Push Set button for 2seconds at waiting state saving power function is set up.
How to use automatic way
If the standby time is chosen as number without "0" at the automatic saving power mode, the automatic
saving power function will be operated.
If you move lid handle or push any button before passing waiting time, the waiting time which is reduced will
go bact to settings.
Manual way
The way to end saving power
Way1) Push any button then it will be returned waiting mode.
Way2) If lid handle turn to open or close, saving power mode will be canceled and back to waiting state.
How to set up
1. If you push mode button 9times at the standby state automatic saving power
mode is set up.
2. When automatic saving power mode is set up. it says that this is automatic saving
power mode. Press the "Set" button after selecting waiting time.
3. If you select '0'minute with menu/select button. automatic saving power will be
canceled. After setting up waiting time you want, press the "Set" button
4. Without any button within 7seconds or push cancel button. Automatic saving power
function will be canceled and so back to waiting mode
HOW TO USE SAVING POWER FUNCTION
www.cuckoo.co.kr
This is the function to save electricity from solenoid valve while keeping warming.
If the display of keep warming is shown on the automatic power saving mode with keep warming button,
it means to complete setting up or canceled state.
What is power saving while keeping warming
The condition to start power saving
1. In case of passing, established waiting time at the automatic saving power mode.
2. In case that lid handle is located to lock.
3. In case that cook temperature after-cooking is reached to established
temperature of keep warming.
The way to end saving power function
1. Press menu/select button or “Set” button.
2. Locate lid handle to ‘open’.
3. Plug power cord out.
Caution
1. If it is difficult to turn lid handle at the power saving mode, turn it after completing
power saving mode with menu/select button.
CHECK BEFORE ASKING
FOR SERVICE
If there is a problem with your cooker, check the following details before requesting service to your dealer. Sometimes
the cooker may not operate as desired if used incorrectly.
Case
When the rice is not cooked.
When the rice is not well
cooked.
Bean(other grains) is half
cooked.
Rice is too watery or stiff.
When the water overflow.
When you smell something
while warming.
if “ ”, “ ”, “ ”
signs are appeared.
When the Pressure
Cook/Turbo, Timer button are
not operate with “ ”
When the rice is badly sticky.
Check points
Pressure Cook/Turbo button is pressed?
Is there power cut while in cooking?
Did you use the measuring cup to
measure your rice?
Did you measure proper water?
Did you clean the rice before cooking?
Did you put rice in water too long time?
Is the rice old or dry?
Refer to page 15~16
Refer to page 15~16
Is bean (other grains) is too dry?
Is it selected the menu correctly?
Did you measure proper water?
Did you open the top cover before
cooking was finished?
Did you use the measuring cup?
Did you measure proper water?
Is it selected the menu correctly?
Did you close the top cover.
Please check the power cord input to wall
socket.
Did it warm over 12 hours?
Is there any other substance such as rice
scoop or cold rice.
Temperature sensor does not work
properly.
Did you turn the Lock/Unlock Handle to
"Lock"
Is “pressure” lamp on?
Is there any rice or any other alien
substance on the temperature sensor or
the bottom surface of the inner pot?
Press the Pressure Cook/Turbo button
once. And check “ ”sign on the display.
Re-press the Pressure Cook/Turbo button.
Do the following
When the button cannot
operate with “ ”
Is there inner pot?
Check the rated voltage?
Please insert inner pot.
120V only
Unplug the power cord and call to Service
center.
Close the top cover perfectly.
Always be keeping the power on while warming.
As possible as warming time is within 12 hours.
Don’t warm rice with other substance.
Select the correct menu.
Measure the proper water.
Open the top cover after cooking finished.
Soaked or steam beans other grains before cooking
in the pressure cooker in order to avoid partially
cooked beans or grains. Beans should be soaked
for-to-minutes or steamed for-to-minutes prior to
cooking, depending on your taste.
Please turn the Lock/Unlock Handle to "Lock"
Clean all the alien substance on the temperature
sensor or the bottom surface of the inner pot.
If “ ”sign is appeared.
It shows on the display when press [Start]
button again, even the cooking has done and
you
ve never ever open turned the handle to
‘Unlock’.
It can be solved by turning handle to ‘Unlock’
and then turn to ‘Lock’.
www.cuckoo.co.kr
Case Check points Do the following
When the Pressure
“Cook/Turbo” Timer
button are not operate
with “ ”
When the rice is badly sticky.
Did you turn the Lock/Unlock Handle
to “Lock”
Is “pressure” lamp on?
Is there any rice or any other alien
substance on the temperature sensor or
the bottom surface of the inner pot?
When the button cannot
operate with “ ”
Is there inner pot?
Check the rated voltage?
Clean all the alien substance on the temperature
sensor or the bottom surface of the inner pot.
Please turn the Lock/Unlock Handle to “ Lock”.
Please insert inner pot.
120V only.
When the time cannot be
preset.
When you smell after and
before cooking?
When the top cover cannot be
closed.
Is the current time correct?
Is it right AM or PM?
Did you set the reservation time over
13 hours?
Did you clean it after cooking?
Is the inner pot correctly put in the main
body?
Is the Lock/Unlock handle on the top cover
set to “Lock”?
Is there hot thing in the inner pot?
Cheek the rated Voitage?
Cut the power and contact customer service.
It is normal to get “ ” when putting only
water.
This is only for 120V.
Set the current time. (Refer to page 14)
Check the AM, PM.
Maximum reservation time is 13 hours. (Refer to
page 25~26)
Please clean it after cooking.
Please put in the inner pot perfectly.
The Lock/Unlock handle to “Unlock”.
Pull the pressure weight to aside once.
When “ ” is showed
on the LCD
When mycom power is broken. Please cut the power and contact customer service.
When “ ”, “ ” are
showned on the LCD by turns.
When the sensor is broken. Please cut the power and contact customer service.
When “ ”, “ ” are
showned on the LCD by turns.
CHECK BEFORE ASKING
FOR SERVICE
If there is a problem with your cooker, check the following details before requesting service to your dealer. Sometimes
the cooker may not operate as desired if used incorrectly.
Case
When cannot turn to “Unlock”.
When the top cover cannot
open although the Lock/Unlock
handle to "Unlock".
When the steam exhausted
between the top cover.
When the Cancel button does
not operated while
cooking.
When you hear weird noises
during cooking and warming
Brown rice is not germinated
properly
Check points
Did you turn the Lock/Unlock handle while
cooking?
Did you turn the Lock/Unlock handle before
exhausting steam perfectly?
Is there alien substance on the packing?
Is packing too old?
Is the inner pot hot?
Is there a wind blowing sound when
cokking the rice?
Is there a “Chi” sound when warming the
rice?
Does the quantity of rice exceed the
specified maximum capacity?
Is the Brown rice too old?
Do the following
Don’t open the top cover while cooking. If you want
to open top cover while cooking, press the Cancel
button more than 2 seconds and exhaust the steam.
Pull the pressure weight to aside once and exhaust
the steam perfectly.
Because of pressure.
Pull the pressure weight to aside once and exhaust
the steam perfectly.
Clean the packing with duster.
Keep to be clean near the packing.
If the steam is exhausted the top cover, please
power off and contact the service center and dealer.
Packing life cycle is 12 month, please replace the
packing per 1 year.
Keep pressing the Cancel button for 2 seconds for
safety reason if you like to cancel while cooking.
Be carefully of hot steam emission or hot contents
spattered from the automatic steam outlet when
cancelation.
This is the sound of the fan motor to cool
the internal parts. This is normal.
The “Chi” sound during the warming process is the
sound of IH cooker operating. This is normal.
Put the specified maximum capacity of Brown rice.
OLD RICE or contaminated rice may mot be
germinated properly. (Refer to page 22)
CHECK BEFORE ASKING
FOR SERVICE
If there is a problem with your cooker, check the following details before requesting service to your dealer. Sometimes
the cooker may not operate as desired if used incorrectly.
www.cuckoo.co.kr
www.cuckoo.co.kr
www.cuckoo.co.kr
www.cuckoo.co.kr
www.cuckoo.co.kr
1
3
2
www.cuckoo.co.kr
1
2
3
5
6
4
www.cuckoo.co.kr
12
43
www.cuckoo.co.kr
www.cuckoo.co.kr
www.cuckoo.co.kr
1
2 3 4
2
4
1
3
www.cuckoo.co.kr
1
2
3
5
4
1
2
3
4
www.cuckoo.co.kr
www.cuckoo.co.kr
www.cuckoo.co.kr
www.cuckoo.co.kr
www.cuckoo.co.kr
www.cuckoo.co.kr
100% Recycled paper 383-845C Rev.0
CUCKOO ELECTRIC RICE COOKER/WARMER
LIMITED WARRANTY
KEY Company, P&K USA TRADING CORP and Cuckoo Trading Canada. will repair at its option replace,
without charge, your product which proves to be defective in material or workmanship under normal use,
during the warranty period listed below from the data of original purchase. This warranty is good only to the
original purchaser of the product during the warranty period. P&K USA TRADING CORP covers the east and
the central districts, KEY Company covers the west and the central districts, Cuckoo Trading Canada covers
the whole Canada.
WARRANTY PERIOD
MODEL# #LABOR PARTS HOW SERVICE IS HANDLED
HL10 Series 1YEAR 1YEAR The East and the Central Districts
Call : 718 888 9144
Address : 129-04 14th Avenue College Point, NY 11356, USA
The West and the Central Districts.
Call : 213 687 9828 Toll Free : 877 481 9828
Address : 700 Jackson Street, L.A, CA 90012, USA
Canada (TORONTO)
Call : 416 878 4561 / 905 707 8224
Address :
#D8-7398 Yonge Street
Thornhill Ontario Canada L4J 8J2
Canada (VANCOUVER)
Call : 604 540 1004 / 604 523 1004
Address :
945 Lougheed Hwy Coquitlam BC Canada V3K 3T4
No other express warranty is applicable to this product. THE DURATION OF ANY IMPLED WARRANTIES,
INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF
THE EXPRESS WARRANTY HEREIN. CUCKOO ELECTRONICS CO.,LTD, SHALL NOT BE LIABLE FOR
THE LOSS THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT
OR CONSE QUENTIAL, ARISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR
FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED
WARRANTY OF MERCHANTABILITY APPLICABLE TO THIS PRODUCT
.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on
how long an implied warranty lasts : so these limitations or exclusions may apply to you. This warranty gives
you specific legal rights and you may also have other rights which vary from state to state.
THE ABOVE WARRANTY DOES NOT APPLY IN THESE CASES:
To damages problems which result from delivery or improper installation.
To damages problems which result from misuse, abuse, accident, alteration,
or incorrect electrical current or voltage.
To serve call which do not involve defective workmanship or material and explaining the operation of the unit.
Therefore, these costs are paid by the consumer. Customer assistance numbers :
To Prove warranty Coverage :
Retain your Sales Receipt to prove data of purchase
Copy of your Sales Receipt must submitted at the time
warranty service is provided.
To Obtain Product, Customer, or Service Assistance and Nearest Authorized service center,
Parts Distributor or Sales Dealer:
The West and the Central Districts.
Call : 213 687 9828
Toll Free : 877 481 9828
Address : 700 Jackson Street, L.A,
CA 90012, USA
Canada (Toronto)
Call : 416 878 4561 / 905 707 8224
Address : #D8-7398 Yonge Street
Thornhill Ontario Canada
L4J 8J2
Canada (Vancouver)
Call : 604 415 9858/604 524 8282
Address : 103-4501 North Road
Burnaby BC Canada
V3R 4R7
The East and the Central Districts
Call : 718 888 9144
Address :129-04 14th Avenue
College Point, NY 11356, USA
