Installation Information
Thank you for selecting Bose® PowerMatch® amplifiers. This document is intended to provide professional installers
with basic installation and safety guidelines for using the AmpLink Digital Input Card accessory with PowerMatch®
amplifiers. Please read this document before attempting installation.
The INPUT RJ-45 connector receives up to 24 digital channels from a Bose AmpLink product. The amp also
supports a THRU path for daisy-chaining all 24 digital audio channels to other Bose AmpLink products, at a
maximum distance of 10 m between products.
CAUTION: Shielded EIA/TIA 568B straight CAT 5 cable, or equivalent, is required for proper AmpLink
operation. Unshielded cable is not supported and may cause AmpLink audio to operate improperly. Do
NOT connect either of RJ-45 ports to an Ethernet-based network.
To install the AmpLink Digital Input Card:
1. Turn o and unplug the amplifier.
2. Detach the rear expansion slot cover plate by
removing the two screws. See Fig. 1.
3. Align the AmpLink card with the plastic card guides
in the open slot; insert until the rear panel is flush
with the rear of the amplifier. See Fig 2.
4. Screw the card into place.
5. Set the channel select switch appropriately.
6. Plug in the power cord and turn on the amplifier.
7. Using the front panel, navigate to the FIRMWARE
VERSION screen (MAIN MENU>UTILITY>FIRMWARE
VERSION).
8. Check the amplifier LCD screen to view whether the
AmpLink card has been identified. See Fig 3.
9. If the card does not appear in the FIRMWARE
VERSION screen, repeat steps 1 through 7. Be sure
that the card is completely pushed into the slot and
that the card is properly aligned with the card guides.
PowerMatch® Amplifiers
AmpLink Digital Input Card: 772238-0110

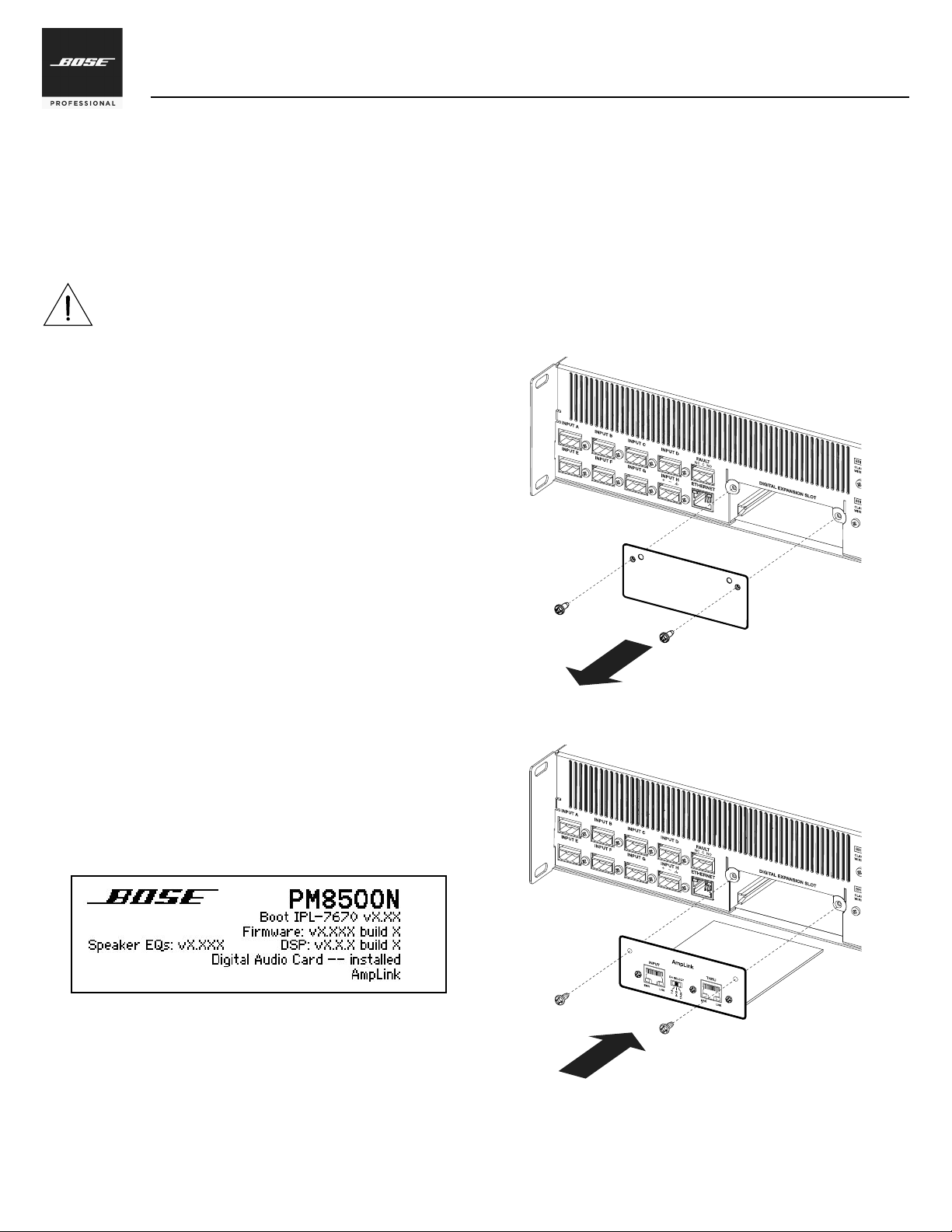

Fig. 1. Remove cover plate from rear expansion slot
Fig. 2. Insert AmpLink card into amplifier
Fig. 3. Amplifier LCD screen after AmpLink card is installed
©2017 Bose Corporation. All rights reserved.
Framingham, MA 01701-9168 USA,
www.pro.Bose.com
All trademarks are the property of their respective owners
AM799287 Rev. 01
September 2017
Safety Information
CAUTION: This product is intended for installation by professional installers only!
PRECAUCIÓN: Solo un instalador profesional deberá montar este producto!
ATTENTION: L’installation de ce produit est réservée à un technicien professionnel!
ACHTUNG: Dieses Produkt darf nur von fachkundigen Monteuren installiert werden!
CAUTION: Make no modification to system or accessories. Unauthorized alterations may compromise safety, regulatory compliance, and
system performance.
PRECAUCIÓN: No realice alteraciones no autorizadas a este producto; esto podría comprometer la seguridad, el cumplimiento de las
normas y el rendimiento del sistema.
ATTENTION: Ne pas faire des modifications non autorisées à ce produit; ce qui pourrait compromettre la sécurité, la conformité
réglementaire et la performance du système.
ACHTUNG: Keine nicht autorisierten Veränderungen am Produkt vornehmen. Diese können die Sicherheit, die Einhaltung von Richtlinien
und die Systemleistung beeinträchtigen.
CAUTION: This accessory is for use with Bose PowerMatch amplifiers only.
PRECAUCIÓN: Este accesorio está diseñado para usarse únicamente con altavoces Bose PowerMatch amplifiers.
ATTENTION: Cet accessoire est destiné pour l’usage avec les haut-parleurs Bose PowerMatch amplifiers exclusivement.
ACHTUNG: Dieses Zubehör ist ausschließlich zur Verwendung mit Bose PowerMatch amplifiers Lautsprechern vorgesehen.
CAUTION: Electro-Static Discharge (ESD) sensitive device. Handle with care.
PRECAUCIÓN: Dispositivo sensible a descargas electrostáticas (ESD). Manipule con cuidado.
ATTENTION: Dispositif sensible aux décharges électrostatiques. À manipuler avec précaution.
ACHTUNG: Das Gerät ist vor Schäden durch elektrostatische Entladung zu schützen.
PowerMatch® Amplifiers
AmpLink Digital Input Card: 772238-0110
Additional Information
For additional information on PowerMatch® amplifier modules and accessories, refer to the installation guide available at pro.Bose.com. To
request a printed copy, use the phone numbers provided.
For regulatory compliance information, please visit www.Bose.com/compliance.
