USER'S
MANUAL
Refrigerator Water Filter
REPLACES FILTERS:
LG LT1000P
ADQ74793501
FIN-25
INSTALLATION INSTRUCTIONS
PART 2

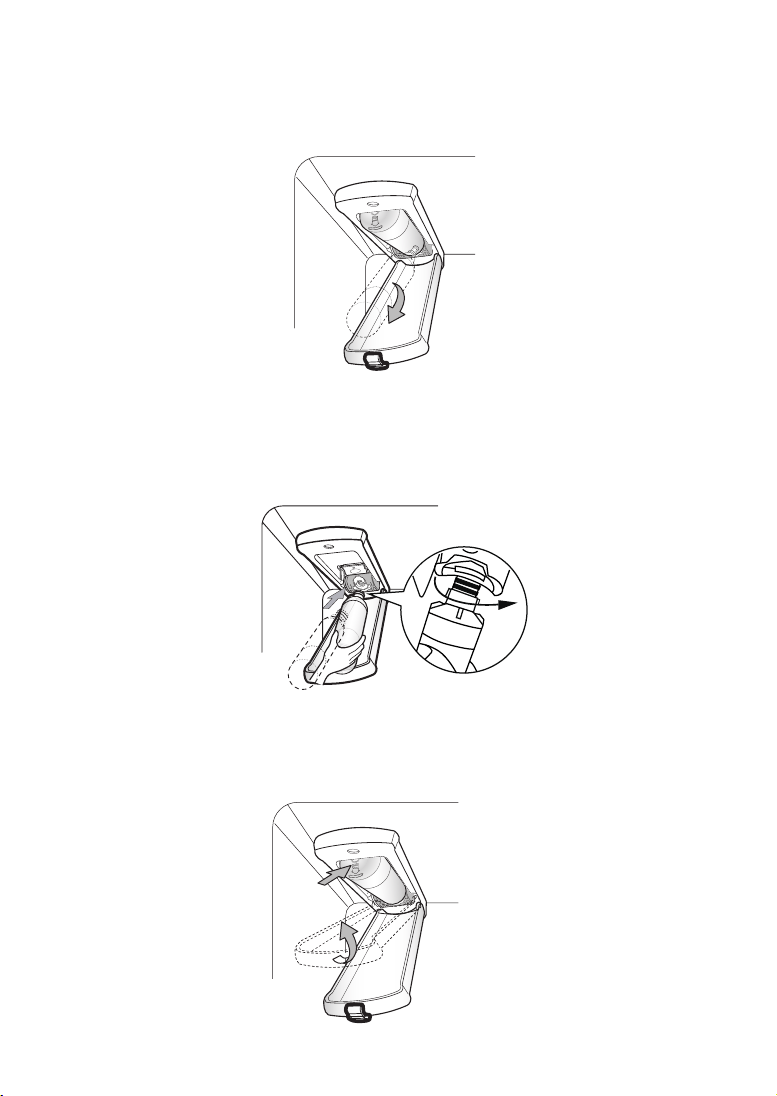

1. Please put down the top shelf and Press the push button to open the
water filter cover.
PART 1
FINVIE is top quality brand of water filter, our manufacturer is one of only
two companies' export filters have passed NSF certification, we have top
production technology and professional machine, adopt the better
materials into the filters for great filtration effect.
1. Adopt Sri Lanka High quality activated carbon, provide better effect
of filtration and environment-friendly and resource-efficient.
2. Filter shell plastic is made of high purity polyethylene from Germa-
ny, lighter and stable.
3. The glue comes from LG in Korea, which ensures that the size of each
honeycomb hole is uniform for ensure the filtering effect.
FINVIE OVERVIEW
2. Rotate the filter down completely then pulling it out of the filter head,
remove the old water filter.
3. Take out the new filter and remove the protective cover from the
o-rings. With the water filter tabs in the horizontal position, push the
new water filter into the filter head and turn to clockwise.
4. Rotate the water filter up into position and close the cover. The cover
will click when closed correctly.
NOTE
Do not dispense the entire 2.5 gallon amount continuously. Press and
release the dispenser pad for cycles of 30 seconds ON and 60 seconds
OFF.
To reduce the risk associated with choking, do not allow children under 3
years old to have access to small parts during the installation of this
product.
NOTICE
To reduce the risk associated with property damage due to water
leakage:
1. Read and follow use instructions before installation and use of this
system.
2. Installation and use must comply with all state and local plumbing
codes.
3. Do not install if water pressure exceeds 100 psi (6.8 bar). If your
water pressure exceeds 60 psi (4.1 bar), you must install a pressurelimiting
valve. Contact a plumbing professional if you are uncertain how to
check your water pressure.
4. Water hammer conditions exist you must install a water hammer
arrester. Contact a plumbing professional if you are uncertain how to
check for this condition.
PART 3
WARNING!
Compatible Model:
LG LT1000P, LT1000PC, LT1000PCS, LT-1000PC, MDJ64844601,
ADQ747935, ADQ74793501, ADQ74793502
Kenmore 46-9980 , 9980, 469980
Compatible LG Refrigerators:
The LG LT1000P Replacement Refrigerator Water Filter (part#
ADQ747935) is compatible with the following select LG InstaView
Door-in-Door & Side-By-Side Refrigerators:
LFCC22426S, LFCS28768S, LFXC22526S, LFXC22596S,
LFXC24796D, LFXC24796S, LFXS26566M, LFXS26566S,
LFXS26596M, LFXS26596S, LFXS26973D, LFXS26973S,
LFXS28566, LFXS28566D, LFXS28566M, LFXS28566S,
LFXS28596D, LFXS28596M, LFXS28596S, LFXS28968,
LFXS28968D, LFXS28968S, LFXS30796D, LFXS30796S,
LMXC23796D, LMXC23796M, LMXC23796S, LMXS28626,
LMXS28626D
5. Do not install on hot water supply lines. The maximum operating
water temperature of this filter system is 100º F.
6. Contact a plumbing professional if you are uncertain how to select/
instal/maintain a pressure regulating valve.
7. The disposable filter cartridge should be replaced every 3-6
months at the rated capacity, or sooner if a noticeable reduction in
flow rate occurs.
PART 4
FQAS
Q: Does it have NSF standards?
A: Yes, it has NSF 42 standards. Throughout China, only two compa-
nies' export filters have passed NSF certification. We are one of them,
and we can provide a real certificate. You can cut the filter directly and
you can see the internal structure and the extra-large area of coconut
shell activated carbon.
Q: Aer installed, Sometimes the water output in the water/ice
dispenser to be much slower than previous?
A: On the one hand, slow water flow is good for filtering out more
impurities in water. The water flow is fast and helps bacteria and
microorganisms break through the filter.
On the other hand, one should be mindful of any water main work
which might be done in the street, as the particulates and sediment
released when the pipes are disturbed can get into your filter through
the water system. This may cause it to clog somewhat and affect the
longevity of the filter.
Q: How long does it take to replace?
A: I It usually is replaced every 3-6 months or 200 gallons. For the best
filtration results, we recommend that it be replaced every 3 months.
Because the microorganisms intercepted by water filtration will parasit-
ize in the filter element, it will be better to replace the filter element in time.
However, if you still have any questions, please do not hesitate to
inform us and we will reply you within 10 hours.
