LMR18406_Folder_Cover.inddLMR18406
1
UL
®
325 LISTED GATE OPERATORS
Total solutions. Complete compliance.
ULTIMATE ASSURANCE.
S505AL
CSL24UL
LMRRUL
© 2018 LiftMaster All Rights Reserved
300 Windsor Drive, Oak Brook, IL 60523
LiftMaster.com
UL and the UL logo are trademarks of UL LLC © 2018 All Rights Reserved.
LMPAENNBUL325 5/18
800.323.2276Dealer.LiftMaster.com
Contact Your LiftMaster
®
Sales Representative
Customer.Service@LiftMaster.com
PLACE YOUR ORDER TODAY.
381327 pocket folder.indd 1 5/2/18 11:03 PM
LMR18406_Folder_Cover.inddLMR18406
1
RSL12UL RSW12UL
LA500PKGUL LA400PKGUL LA412PKGUL
CSW24UL CSL24UL HCTDCUL CSW200UL SL3000UL SL585UL SL595UL
LMTBUL LMRRUL LMWEKITU
ASSURED SAFETY
AND
RELIABILITY.
EVERY APPLICATION.
Only LiftMaster
®
provides an ultra-reliable UL
®
325 Listed product line of gate operators and safety entrapment protection devices. Enhanced with dealers and end users in mind,
the 2018 UL 325 line is easy to install and maintain and functions reliably. Give your customers ultimate assurance knowing they have a safe and reliable total gate safety solution.
TABLE OF CONTENTS
Gate Operator Features Chart
Residential Gate Operators
DC Commercial Gate Operators
AC Commercial/Industrial Gate Operators
Safety Accessories
Compatibility/Solar Charts
UL 325 Gate Safety
S505AL
381327 pocket folder.indd 2 5/2/18 11:04 PM
UL 325 LISTED GATE OPERATOR FEATURE CHART
For specifications and information on all our products, visit LiftMaster.com/TOTALPAS
RESIDENTIAL GATE OPERATORS ELITE
®
SERIES DC COMMERCIAL GATE OPERATORS ELITE
®
S E R I E S AC COMMERCIAL/INDUSTRIAL GATE OPERATORS
Model Number LA500PKGUL LA400PKGUL LA412PKGUL RSL12UL RSW12UL CSW24UL CSL24UL HCTDCUL CSW200UL SL3000UL SL585UL SL595UL
Description
24VDC Residential/
Light Commercial Linear
Actuator
24VDC Residential
Linear Actuator
12VDC Solar Residential
Linear Actuator
12VDC Residential/Light
Commercial Slide Gate
Operator
12VDC Residential/Light
Commercial Swing
Gate Operator
24VDC High-Trafc
Commercial Swing
Gate Operator
24VDC High-Trafc
Commercial Slide
Gate Operator
Specialty Overhead
Operator
AC Commercial
High-Trafc Swing Gate
Operator
AC Commercial
High-Trafc Slide Gate
Operator
AC Industrial Slide Gate
Operator
AC Heavy-Duty Industrial
Slide Gate Operator
Battery Backup
Powers up when the
power’s down**
500 cycles 400 cycles Solar 114 cycles 147 cycles 146 cycles 208 cycles 112 cycles - - - -
Security+ 2.0
®
3 Channel Receiver
Virtually eliminates interference
and extends range
Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
MyQ
®
Controls your gate
from anywhere with
your smartphone
Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Monitored Safety Inputs
(Color Coded)
6 Inputs (Main and
Expansion Board)
3 Inputs (Main Board) 3 Inputs (Main Board) 3 Inputs (Main Board) 3 Inputs (Main Board)
6 Inputs (Main and
Expansion Board)
6 Inputs (Main and
Expansion Board)
6 Inputs (Main and
Expansion Board)
6 Inputs (Main and
Expansion Board)
6 Inputs (Main and
Expansion Board)
6 Inputs (Main and
Expansion Board)
6 Inputs (Main and
Expansion Board)
Exceptional
Standby Power**
Up to 24 days Up to 97 days Up to 126 days Up to 63 days Up to 63 days Up to 24 days Up to 24 days Up to 72 days - - - -
Best-in-Class
Solar Performance**
Approx. 43 cycles
per day
Approx. 81 cycles
per day
Approx. 100 cycles
per day
Approx. 33 cycles
per day
Approx. 41 cycles
per day
Approx. 16 cycles
per day
Approx. 22 cycles
per day
Approx. 11 cycles
per day
- - - -
DC Motor with
Smooth Start/Stop
Yes Yes Yes Yes Yes Yes Yes Yes - - - -
Diagnostic Code
Display - 2 Digit LED
Yes Yes Yes
Yes
Yes Yes Yes Yes Yes Yes Yes Yes
Wireless
Dual-Gate Operation
Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Warranty Period 2 Years 2 Years 2 Years 3 Years 3 Years
7 Years Res.
5 Years Comm.
7 Years Res.
5 Years Comm.
5 Years Comm.
7 Years Res.
5 Years Comm.
7 Years Res.
5 Years Comm.
2 Years 2 Years
Max. Gate Length 18 ft. 16 ft. 16 ft. 25 ft. 16 ft.
18 ft. 50 ft. 12 ft. Door/Gate
1/2 HP 18 ft.
1 HP 22 ft.
1/2 HP 50 ft.
1 HP 50 ft.
1/2 HP 45 ft.
1 HP 70 ft.
1 1/2 HP 75 ft.
1 HP 70 ft.
1 1/2 HP 80 ft.
2 HP 90 ft.
Max. Gate Weight 1600 lbs. 850 lbs. 850 lbs. 800 lbs. 1000 lbs.
1600 lbs. 1500 lbs. 700 lbs.
1/2 HP 1600 lbs.
1 HP 2000 lbs.
1/2 HP 1000 lbs.
1 HP 2000 lbs.
1/2 HP 1000 lbs.
1 HP 1600 lbs.
1 1/2 HP 1900 lbs.
1 HP 1700 lbs.
1 1/2 HP 2100 lbs.
2 HP 2500 lbs.
Recommended Cycles 300 cycles per day 100 cycles per day
100 cycles per day
(see solar chart for
specic details)
120 cycles per day 250 cycles per day
High-Cycle,
High-Temperature
Continuous Duty
High-Cycle,
High-Temperature
Continuous Duty
High-Cycle,
High-Temperature
Continuous Duty
High-Cycle,
High-Temperature
Continuous Duty
High-Cycle,
High-Temperature
Continuous Duty
20 cycles per hour 25 cycles per hour
Power 115V/230V Single Phase 115V Single Phase Solar Powered only 115V Single Phase 115V Single Phase 115V/230V Single Phase 115V/230V Single Phase 115V/230V Single Phase 115V Single Phase 115V Single Phase
115/208/230VAC,
Single Phase
208/230/460/VAC, 3
Phase -
575VAC, 3 Phase
115/208/230VAC,
Single Phase
208/230/460/VAC, 3
Phase -
575VAC, 3 Phase
*Cycles noted are for Zone 1 with a 10W solar panel (6 hours sunlight per day).
**When installing LMRRUL/LMTBUL heater option refer to install manual for
cycles and standby time.
LMGTCTOOSB
381327 LMGTCTOOSB_F.indd 1 5/2/18 6:45 PM
P
R
O
D
U
C
T
H
I
G
H
L
I
G
H
T
S
BATTERY BACKUP
Provides up to 500 Cycles or
24 Days of Standby Power
MyQ
®
TECHNOLOGY
Allows You to Securely Monitor
and Control Your Gate Operator
from Anywhere with the
MyQ App
LMTBUL
LMRRUL
INCLUDED ACCESSORIES:
LMWEKITU EDGES
SAFETY ADD-ONS:
TOTAL SOLUTION ACCESSORIES:
EL1SS
*Wireless kit for up to 4 transmitters and 2 resistive
edges per transmitter.
828LM
210W/220W
Our most powerful swing gate operator.
24VDC RESIDENTIAL/LIGHT
COMMERCIAL LINEAR ACTUATOR
INTERNET GATEWAY
Connects MyQ-enabled gate
operators to the Internet and enables
control through the MyQ App.
TELEPHONE INTERCOM AND
ACCESS CONTROL SYSTEM
Durable construction and secure access.
PRODUCT GUIDE LA500PKGUL
24VDC RESIDENTIAL/LIGHT COMMERCIAL
LINEAR ACTUATOR
SAFE
AND
SECURE
RELIABLE
MyQ TECHNOLOGY ENABLES YOU TO SECURELY CONTROL AND MONITOR
YOUR GATE OPERATOR FROM ANYWHERE.
WIRELESS DUAL-GATE COMMUNICATION SYNCHRONIZES GATE OPENING/
CLOSING AND ELIMINATES EXPENSIVE DRIVEWAY TRENCHING COSTS.
BI-PART DELAY MONITORS AND ADJUSTS SPEED AND POSITION OF EACH
WING TO ENSURE PRIMARY GATE CLOSES LAST.
SOLAR-READY, ULTRA-RELIABLE SYSTEM DELIVERS POWER WHEN AND
WHERE YOU NEED IT MOST.
SMART
LA500PKGUL
SOLAR PANEL KIT
Uses the sun to power the operator
with (2) 10W or (2) 20W solar panels.
QUICK CLOSE/ANTI-TAILGATE QUICKLY SECURES PROPERTY, PREVENTING
UNAUTHORIZED ACCESS.
SECURITY+ 2.0
®
SAFEGUARDS ACCESS WITH AN ENCRYPTED TRI-BAND SIGNAL
TO VIRTUALLY ELIMINATE INTERFERENCE AND OFFER EXTENDED RANGE.
INHERENT REVERSING SENSOR DETECTS OBSTRUCTIONS AND REVERSES
GATE WHEN CLOSING OR STOPS/REVERSES THE GATE WHEN OPENING.
FIRE DEPARTMENT COMPLIANCE ALLOWS GATE TO AUTO-OPEN UPON
LOSS OF AC POWER OR BATTERY DEPLETION.
MANUAL DISCONNECT WHEN UNLOCKED ALLOWS GATE TO BE
OPENED MANUALLY.
UL
®
LISTED GATE OPERATORS WITH MONITORED SAFETY ENTRAPMENT
PROTECTION DEVICES.
COMMERCIAL-DUTY CAST-ALUMINUM HOUSING WITH HEAVY-DUTY DC
MOTOR PERFORMS IN THE MOST DEMANDING APPLICATIONS.
SMOOTH START/STOP OPERATION AND MID-TRAVEL REVERSAL EXTEND
HARDWARE LIFE OF THE GATE AND OPERATOR.
BATTERY BACKUP PROVIDES SEAMLESS ACCESS BY PROVIDING STANDBY
POWER WHEN THE POWER IS DOWN.
SURGE SUPPRESSION PROVIDES INDUSTRIAL SURGE AND LIGHTNING
PROTECTION AGAINST STRIKES UP TO 50 FEET AWAY.
WARRANTY 2 YEARS.
MONITORED SAFETY
ENTRAPMENT EDGES
Full line of Small, Large and Wraparound
Profile Edges that sense obstructions.
MONITORED RETRO-
REFLECTIVE PHOTO EYE
Enhanced retro-reflective photo eye now
with heater and wider polarized beam,
engineered to stay aligned; max.
range: 50 ft.
MONITORED THROUGH-
BEAM PHOTO EYES
Enhanced through-beam now with wider
polarized beam and heater for high
performance in most environments;
max. range: 90 ft.
MONITORED WIRELESS EDGE KIT
Low-energy Bluetooth
®
connection
between a LiftMaster Monitored
Resistive Edge and the gate operator;
max. range: 130 ft.*
381327 LMPAENPGLA500_F_REV042018.indd 1 5/2/18 7:41 PM
- 24VDC Continuous-Duty Motor
- Operator Duty Rating: 300 Cycles per Day
- Wormgear Reduction: Precision-Machined
All-Metal Gear Drive
MECHANICS
- Full-Time AC-Run Operation 115V/230V Single-Phase
- Solar-Ready, Ultra-Reliable System
Delivers Power When and
Where You Need It
- Accessory Power: 24VDC 500mA Output
POWER
COMMERCIAL-GRADE DESIGN
BATTERY BACKUP OPERATION
Battery Cycles Standby Time
(2) 7Ah 500 24 Days
(2) 33Ah 2,781 180 Days
RECOMMENDED CAPACITIES
1,600 Ibs.
1,600
1,200
800
600
0
8 ft. 12 ft. 16 ft. 18 ft.
1,200 Ibs.
800 Ibs.
600 Ibs.
-4°F (-20°C) to 140°F (60°C)
TEMPERATURE SPECIFICATIONS
LA500DC
GATE TRAVEL SPEED
Opens 90° in 15–17 Seconds
LA500PKGUL
24VDC RESIDENTIAL/LIGHT
COMMERCIAL LINEAR ACTUATOR
MASTERFUL ENGINEERING.
STANDARD FEATURES. SUPPORT.
For Support Tools and Training Videos, Visit
LiftMasterTraining.com
For More Information on Gate Operators, Visit
LiftMaster.com/UL325Gates
To Find the Right Perimeter Access Solution
for You, Visit
LiftMaster.com/Solution-Generator
Sales Support: 800.282.6225
Technical Support Center: 800.528.2806
To Order: 800.323.2276
© 2018 LiftMaster All Rights Reserved
300 Windsor Drive, Oak Brook, IL 60523
LiftMaster.com
UL
®
and the UL logo are trademarks of UL LLC
© 2018 All Rights Reserved.
© 2018 Bluetooth SIG, Inc. All rights reserved.
HomeLink
®
and the HomeLink House
®
logo
are registered trademarks of Gentex Corporation
LMPAENPGLA500 5/18
*May require an external adapter depending on the model and year
of your vehicle. Visit HomeLink.com for additional information.
- Housing: Commercial-Duty Cast Aluminum
- UL
®
Usage Classification: I, II, III and IV
- Weights:
Actuator Arm: 35 lbs.
Standard Control Box: 13 lbs.
(Includes [2] 7Ah Batteries)
PRE-MOTION WARNING ALARM
- Activates On-Board Alarm 3 Seconds
Prior to Gate Motion
SYNCHRONIZED CLOSE
- Simultaneously Closes Gates
MONITORED SAFETY INPUTS
- 3 Main Board, 3 Optional Expansion Board
SECURITY+ 2.0
®
ON-BOARD RADIO RECEIVER
- Tri-Band 310/315/390 MHz Frequency
- Up to 50 Remote Controls
(Unlimited with 811LM/813LM)
LED DIAGNOSTIC DISPLAY
- Simplifies Installation and Troubleshooting
PROGRAMMABLE AUXILIARY RELAYS
- Make Adding Additional Features Easy
HOMELINK
®
COMPATIBLE
- Version 4.0 or Higher*
LA500CONTUL
XLSOLARCONTUL
[NOT INCLUDED]
21.00" x 17.22" x 6.19"
381327 LMPAENPGLA500_F_REV042018.indd 2 5/2/18 7:41 PM
Our most popular swing gate operator
for residential applications.
24VDC RESIDENTIAL LINEAR ACTUATOR
PRODUCT GUIDE LA400PKGUL
24VDC RESIDENTIAL LINEAR ACTUATOR
P
R
O
D
U
C
T
H
I
G
H
L
I
G
H
T
S
SECURITY+ 2.0
®
SAFEGUARDS ACCESS WITH AN ENCRYPTED TRI-BAND SIGNAL
TO VIRTUALLY ELIMINATE INTERFERENCE AND OFFER EXTENDED RANGE.
INHERENT REVERSING SENSOR DETECTS OBSTRUCTIONS AND REVERSES
GATE WHEN CLOSING OR STOPS/REVERSES THE GATE WHEN OPENING.
FIRE DEPARTMENT COMPLIANCE ALLOWS GATE TO AUTO-OPEN UPON
LOSS OF AC POWER OR BATTERY DEPLETION.
MANUAL DISCONNECT WHEN UNLOCKED ALLOWS GATE TO BE
OPENED MANUALLY.
UL
®
LISTED GATE OPERATORS WITH MONITORED SAFETY ENTRAPMENT
PROTECTION DEVICES.
SAFE
AND
SECURE
COMMERCIAL-DUTY CAST-ALUMINUM HOUSING WITH HEAVY-DUTY DC
MOTOR PERFORMS IN THE MOST DEMANDING APPLICATIONS.
SMOOTH START/STOP OPERATION AND MID-TRAVEL REVERSAL EXTEND
HARDWARE LIFE OF THE GATE AND OPERATOR.
BATTERY BACKUP PROVIDES SEAMLESS ACCESS BY PROVIDING STANDBY
POWER WHEN THE POWER IS DOWN.
SURGE SUPPRESSION PROVIDES INDUSTRIAL SURGE AND LIGHTNING
PROTECTION AGAINST STRIKES UP TO 50 FEET AWAY.
WARRANTY 2 YEARS.
RELIABLE
MyQ TECHNOLOGY ENABLES YOU TO SECURELY CONTROL AND MONITOR
YOUR GATE OPERATOR FROM ANYWHERE.
WIRELESS DUAL-GATE COMMUNICATION SYNCHRONIZES GATE OPENING/
CLOSING AND ELIMINATES EXPENSIVE DRIVEWAY TRENCHING COSTS.
BI-PART DELAY MONITORS AND ADJUSTS SPEED AND POSITION
OF EACH WING TO ENSURE PRIMARY GATE CLOSES LAST.
PARTY PASS ALLOWS FOR THE GATES TO BE HELD OPEN FOR AN
EXTENDED PERIOD OF TIME.
SOLAR-READY, ULTRA-RELIABLE SYSTEM DELIVERS POWER WHEN AND
WHERE YOU NEED IT MOST.
SMART
BATTERY BACKUP
Provides up to 400 Cycles or
97 Days of Standby Power
MyQ
®
TECHNOLOGY
Allows You to Securely Monitor
and Control Your Gate Operator
from Anywhere with the
MyQ App
LA400PKGUL
LMTBUL
LMRRUL
INCLUDED ACCESSORIES:
LMWEKITU
EDGES
MONITORED SAFETY
ENTRAPMENT EDGES
Full line of Small, Large and Wraparound
Profile Edges that sense obstructions.
SAFETY ADD-ONS:
TOTAL SOLUTION ACCESSORIES:
INTERNET GATEWAY
Connects MyQ-enabled gate
operators to the Internet and enables
control through the MyQ App.
KPW5
828LM
WIRELESS COMMERCIAL KEYPAD
Provides constant pressure override to
control gate operator if safety devices
fault yet are free of obstructions. Hold
Open/Party Pass enabled with gate
operator firmware 4.2 or higher.
*Wireless kit for up to 4 transmitters and 2 resistive
edges per transmitter.
SOLAR PANEL KIT
Uses the sun to power the operator
with (2) 10W or (2) 20W solar panels.
210W/220W
MONITORED RETRO-
REFLECTIVE PHOTO EYE
Enhanced retro-reflective photo eye now
with heater and wider polarized beam,
engineered to stay aligned; max.
range: 50 ft.
MONITORED WIRELESS EDGE KIT
Low-energy Bluetooth
®
connection
between a LiftMaster Monitored
Resistive Edge and the gate operator;
max. range: 130 ft.*
MONITORED THROUGH-
BEAM PHOTO EYES
Enhanced through-beam now with wider
polarized beam and heater for high
performance in most environments; max.
range: 90 ft.
381327 LMPAENPGLA400_F.indd 1 5/2/18 7:53 PM
- 24VDC Continuous-Duty Motor
- Operator Duty Rating: 100 Cycles per Day
- Wormgear Reduction: Precision-Machined
All-Metal Gear Drive
MECHANICS
- 115/230V Single-Phase (Standard Control Box)
- Solar-Ready, Ultra-Reliable System
Delivers Power When and
Where You Need It
- Accessory Power: 24VDC 500mA Output
POWER
COMMERCIAL-GRADE DESIGN
BATTERY BACKUP OPERATION
Battery Cycles Standby Time
(2) 7Ah 400 97 Days
(2) 33Ah 3,622 180 Days
-4°F (-20°C) to 140°F (60°C)
TEMPERATURE SPECIFICATIONS
RECOMMENDED CAPACITIES
850 Ibs.
850
750
650
550
0
10 ft. 12 ft. 14 ft. 16 ft.
750 Ibs.
650 Ibs.
550 Ibs.
GATE TRAVEL SPEED
Opens 90° in 15–17 Seconds
LA400PKGUL
24VDC RESIDENTIAL
LINEAR ACTUATOR
MASTERFUL ENGINEERING.
STANDARD FEATURES. SUPPORT.
For Support Tools and Training Videos, Visit
LiftMasterTraining.com
For More Information on Gate Operators, Visit
LiftMaster.com/UL325Gates
To Find the Right Perimeter Access Solution
for You, Visit
LiftMaster.com/Solution-Generator
Sales Support: 800.282.6225
Technical Support Center: 800.528.2806
To Order: 800.323.2276
© 2018 LiftMaster All Rights Reserved
300 Windsor Drive, Oak Brook, IL 60523
LiftMaster.com
UL
®
and the UL logo are trademarks of UL LLC
© 2018 All Rights Reserved.
© 2018 Bluetooth SIG, Inc. All rights reserved.
HomeLink
®
and the HomeLink House
®
logo
are registered trademarks of Gentex Corporation
LMPAENPGLA400 5/18
*May require an external adapter depending on the model and year
of your vehicle. Visit HomeLink.com for additional information.
WITH OPTIONAL EXPANSION
BOARD ONLY
QUICK CLOSE
-Closes the Gate Immediately After a
Vehicle Pulls Off the Interrupt Loop
ANTI-TAILGATE
-Prevents Unauthorized Access
- Housing: Commercial-Duty Cast Aluminum
- UL
®
Usage Classification: I, II, III and IV
- Weights:
Actuator Arm: 19 lbs.
Standard Control Box: 13 lbs.
(Includes [2] 7Ah Batteries)
LA400CONTUL
SYNCHRONIZED CLOSE
- Simultaneously Closes Gates
HOMELINK
®
COMPATIBLE
- Version 4.0 or Higher*
MONITORED SAFETY INPUTS
- 3 Main Board, 3 Optional Expansion Board
SECURITY+ 2.0
®
ON-BOARD RADIO RECEIVER
- Tri-Band 310/315/390 MHz Frequency
- Up to 50 Remote Controls
(Unlimited with 811LM/813LM)
LED DIAGNOSTIC DISPLAY
- Simplifies Installation and Troubleshooting
XLSOLARCONTUL
[NOT INCLUDED]
21.00" x 17.22" x 6.19"
LA400DC
381327 LMPAENPGLA400_F.indd 2 5/2/18 7:53 PM
The most popular swing gate operator
on the market.
12VDC SOLAR RESIDENTIAL LINEAR ACTUATOR
LMTBUL
LMRRUL
INCLUDED ACCESSORIES:
LMWEKITU EDGES
MONITORED SAFETY
ENTRAPMENT EDGES
Full line of Small, Large and Wraparound
Profile Edges that sense obstructions.
SAFETY ADD-ONS:
TOTAL SOLUTION ACCESSORIES:
KPW5
PRODUCT GUIDE LA412PKGUL
12VDC SOLAR RESIDENTIAL LINEAR ACTUATOR
P
R
O
D
U
C
T
H
I
G
H
L
I
G
H
T
S
RELIABLE
SMART
SOLAR CHARGE
Provides up to 126 Days of
Standby Power
MyQ
®
TECHNOLOGY
Allows You to Securely Monitor
and Control Your Gate Operator
from Anywhere with the
MyQ App
LA412PKGUL
*Wireless kit for up to 4 transmitters and 2 resistive
edges per transmitter.
LOOPDETLM
PLUG-IN LOOP DETECTOR
Prevents the gate from closing on a vehicle
in the path; power efficient for maximum
cycles on Battery Backup.
HEAVY-DUTY DC MOTOR PERFORMS IN THE MOST DEMANDING
APPLICATIONS.
SMOOTH START/STOP OPERATION AND MID-TRAVEL REVERSAL EXTEND
HARDWARE LIFE OF THE GATE AND OPERATOR.
SURGE SUPPRESSION PROVIDES INDUSTRIAL SURGE AND LIGHTNING
PROTECTION AGAINST STRIKES UP TO 50 FEET AWAY.
WARRANTY 2 YEARS.
SOLAR-POWERED, ENERGY-EFFICIENT SYSTEM ELIMINATES EXPENSIVE
TRENCHING COSTS TO PULL POWER TO THE GATE.
MyQ TECHNOLOGY ENABLES YOU TO SECURELY CONTROL AND MONITOR
YOUR GATE OPERATOR FROM ANYWHERE.
WIRELESS DUAL-GATE COMMUNICATION SYNCHRONIZES GATE OPENING/
CLOSING AND ELIMINATES EXPENSIVE DRIVEWAY TRENCHING COSTS.
BI-PART DELAY MONITORS AND ADJUSTS SPEED AND POSITION OF EACH
WING TO ENSURE PRIMARY GATE CLOSES LAST.
RESIDENTIAL FEDERAL TAX CREDIT: QUALIFIES FOR A 30% TAX CREDIT
ON SOLAR GATE OPERATORS AND INSTALLATION THROUGH 2021.
SECURITY+ 2.0
®
SAFEGUARDS ACCESS WITH AN ENCRYPTED TRI-BAND SIGNAL
TO VIRTUALLY ELIMINATE INTERFERENCE AND OFFER EXTENDED RANGE.
INHERENT REVERSING SENSOR DETECTS OBSTRUCTIONS AND REVERSES GATE
WHEN CLOSING OR STOPS/REVERSES THE GATE WHEN OPENING.
FIRE DEPARTMENT COMPLIANCE ALLOWS GATE TO AUTO-OPEN UPON
LOSS OF AC POWER OR BATTERY DEPLETION.
MANUAL DISCONNECT WHEN UNLOCKED ALLOWS GATE TO BE
OPENED MANUALLY.
UL
®
LISTED GATE OPERATORS WITH MONITORED SAFETY ENTRAPMENT
PROTECTION DEVICES.
SAFE
AND
SECURE
MONITORED RETRO-
REFLECTIVE PHOTO EYE
Enhanced retro-reflective photo eye
now with wider polarized beam,
engineered to stay aligned;
max. range: 50 ft.
MONITORED THROUGH-
BEAM PHOTO EYES
Enhanced through-beam now with wider
polarized beam for high performance in
most environments; max. range: 90 ft.
WIRELESS COMMERCIAL KEYPAD
Provides constant pressure override to
control gate operator if safety devices fault
yet are free of obstructions. Hold Open/
Party Pass enabled with gate operator
firmware 4.2 or higher.
INTERNET GATEWAY
Connects MyQ-enabled gate operators to
the Internet and enables control through
the MyQ App.
828LM
MONITORED WIRELESS EDGE KIT
Low-energy Bluetooth
®
connection
between a LiftMaster Monitored
Resistive Edge and the gate operator;
max. range: 130 ft.*
381327 LMPAENPGLA412_F.indd 1 5/10/18 10:50 PM
- 12VDC Continuous-Duty Motor
- Wormgear Reduction: Precision-Machined
All-Metal Gear Drive
MECHANICS
- Solar-Powered, Ultra-Reliable System
Accepts up to 30W 12V Solar Panels
- Accessory Power: 24VDC 500mA Output
POWER
LA412CONTUL
LA412DC
LA412PKGUL
12VDC SOLAR RESIDENTIAL LINEAR
ACTUATOR
MASTERFUL ENGINEERING.
© 2018 LiftMaster All Rights Reserved
300 Windsor Drive, Oak Brook, IL 60523
LiftMaster.com
UL
®
and the UL logo are trademarks of UL LLC
© 2018 All Rights Reserved.
© 2018 Bluetooth SIG, Inc. All rights reserved.
HomeLink
®
and the HomeLink House
®
logo are
registered trademarks of Gentex Corporation
LMPAENPGLA412 5/18
- Housing: Commercial-Duty Cast Aluminum
- UL
®
Usage Classification: I, II, III and IV
- Weights:
Actuator Arm: 19 lbs.
Standard Control Box: 13 lbs.
(Includes [2] 7Ah Batteries)
RECOMMENDED CAPACITIES
850 Ibs.
850
750
650
550
0
10 ft. 12 ft. 14 ft. 16 ft.
750 Ibs.
650 Ibs.
550 Ibs.
-4° F (-20° C) to 140° F (60° C)
TEMPERATURE SPECIFICATIONS
STANDARD FEATURES. SUPPORT.
For Support Tools and Training Videos, Visit
LiftMasterTraining.com
For More Information on Gate Operators, Visit
LiftMaster.com/UL325Gates
To Find the Right Perimeter Access Solution
for You, Visit
LiftMaster.com/Solution-Generator
Sales Support: 800.282.6225
Technical Support Center: 800.528.2806
To Order: 800.323.2276
*May require an external adapter depending on the model and year
of your vehicle. Visit HomeLink.com for additional information.
WITH OPTIONAL EXPANSION
BOARD ONLY
QUICK CLOSE
- Closes the Gate Immediately After a
Vehicle Pulls Off the Interrupt Loop
ANTI-TAILGATE
- Prevents Unauthorized Access
SYNCHRONIZED CLOSE
- Simultaneously Closes Gates
HOMELINK
®
COMPATIBLE
- Version 4.0 or Higher*
MONITORED SAFETY INPUTS
- 3 Main Board, 3 Optional Expansion Board
SECURITY+ 2.0
®
ON-BOARD RADIO RECEIVER
- Tri-Band 310/315/390 MHz Frequency
- Up to 50 Remote Controls
(Unlimited with 811LM/813LM)
LED DIAGNOSTIC DISPLAY
- Simplifies Installation and Troubleshooting
GATE TRAVEL SPEED
Opens 90° in 23–24 Seconds
XLSOLARCONTUL
[NOT INCLUDED]
21.00” x 17.22” x 6.19”
COMMERCIAL-GRADE DESIGN
381327 LMPAENPGLA412_F.indd 2 5/10/18 10:50 PM
Ideal for residential and light commercial gate applications.
12VDC RESIDENTIAL/LIGHT
COMMERCIAL SWING GATE OPERATOR
INCLUDED ACCESSORIES:
SAFETY ADD-ONS:
TOTAL SOLUTION ACCESSORIES:
PRODUCT GUIDE RSW12UL
12VDC RESIDENTIAL/LIGHT
COMMERCIAL SWING GATE OPERATOR
P
R
O
D
U
C
T
H
I
G
H
L
I
G
H
T
BATTERY
BACKUP
Provides up to 147
Cycles or 63 Days
of Standby Power
RSW12UL
11600
IN-GROUND TRAFFIC SPIKE
SECTION (6 FT.)
Standard-duty, in-ground manual
traffic spikes. 6 ft. sections come in
different finishes.
EL25
RESIDENTIAL TELEPHONE
ENTRY SYSTEM
Controls access at gated entrances
with 2,000 unique codes and
Versa XS 4.0 software.
SECURITY+ 2.0
®
SAFEGUARDS ACCESS WITH AN ENCRYPTED TRI-BAND
SIGNAL TO VIRTUALLY ELIMINATE INTERFERENCE AND OFFER EXTENDED RANGE.
EMERGENCY DISCONNECT: SIMPLE-TO-USE RELEASE HANDLE ALLOWS GATE TO
BE OPERATED MANUALLY AND MAINTAIN LIMIT POSITION ONCE REENGAGED.
FIRE DEPARTMENT COMPLIANCE ALLOWS GATE TO AUTO-OPEN UPON
LOSS OF AC POWER OR BATTERY DEPLETION.
QUICK CLOSE AND ANTI-TAILGATE QUICKLY SECURE PROPERTY, PREVENTING
UNAUTHORIZED ACCESS (REQUIRES OPTIONAL EXPANSION BOARD).
UL
®
LISTED GATE OPERATORS WITH MONITORED SAFETY ENTRAPMENT
PROTECTION DEVICES.
SAFE
AND
SECURE
BATTERY BACKUP PROVIDES SEAMLESS ACCESS BY PROVIDING STANDBY
POWER WHEN THE POWER IS DOWN.
SOLAR-READY, ULTRA-RELIABLE SYSTEM DELIVERS POWER WHEN AND
WHERE YOU NEED IT.
SMOOTH START/STOP OPERATION AND MID-TRAVEL REVERSAL EXTEND
OPERATOR AND HARDWARE LIFE.
HEAVY-DUTY COMMERCIAL GEAR-DRIVEN TRANSMISSION PROVIDES
UNSURPASSED RELIABILITY.
WARRANTY 3 YEARS.
RELIABLE
MyQ
®
TECHNOLOGY ENABLES YOU TO SECURELY CONTROL AND MONITOR
YOUR GATE OPERATOR FROM ANYWHERE.
WIRELESS DUAL-GATE COMMUNICATION SYNCHRONIZES GATE OPENING/
CLOSING AND ELIMINATES EXPENSIVE DRIVEWAY TRENCHING COSTS.
SMART
20W7A/20W33A
SOLAR KIT
20W 12V solar panel kit
(includes panel, batteries and harness).
LMWEKITU EDGES
MONITORED SAFETY
ENTRAPMENT EDGES
Full line of Small, Large and Wraparound
Profile Edges that sense obstructions.
INTERNET GATEWAY
Connects MyQ-enabled gate
operators to the Internet and enables
control through the MyQ App.
828LM
LMTBULLMRRUL
MONITORED RETRO-
REFLECTIVE PHOTO EYE
Enhanced retro-reflective photo eye now
with heater and wider polarized beam,
engineered to stay aligned; max.
range: 50 ft.
MONITORED THROUGH-
BEAM PHOTO EYES
Enhanced through-beam now with wider
polarized beam and heater for high
performance in most environments; max.
range: 90 ft.
MONITORED WIRELESS EDGE KIT
Low-energy Bluetooth
®
connection
between a LiftMaster Monitored
Resistive Edge and the gate operator;
max. range: 130 ft.*
*Wireless kit for up to 4 transmitters and 2 resistive
edges per transmitter.
381327 LMPAENPGRSW12_F_REV042018.indd 1 5/2/18 7:26 PM
RECOMMENDED CAPACITIES
1,000 Ibs.
1,000
700
400
0
6 ft. 10 ft. 16 ft.
700 Ibs.
400 Ibs.
TEMPERATURE SPECIFICATIONS
GATE TRAVEL SPEED
Opens 90° in 12–15 Seconds
RSW12UL
12VDC RESIDENTIAL/LIGHT
COMMERCIAL SWING
GATE OPERATOR
MASTERFUL ENGINEERING.
- 12VDC Continuous-Duty Motor
- Operator Duty Rating: 250 Cycles per Day
- Wormgear Reduction: 2 Commercial Oil-Bath Gearboxes
Providing 900:1 Wormgear Reduction
- Chassis: Constructed with 1/4 in. Gold Zinc-Plated Steel
for Rust Prevention
- Cover: High-Density, UV-Resistant Polycarbonate 2-Piece
for Excellent Heat and Corrosion Resistance
- UL
®
Usage Classification: I, II, III and IV
- Operator Weight: 180 lbs.
MECHANICS
- 115VAC
- Solar-Ready, Ultra-Reliable System Delivers Power When
and Where You Need It
- Accessory Power: 12VDC 500mA Output
POWER
COMMERCIAL-GRADE DESIGN
© 2018 LiftMaster All Rights Reserved
300 Windsor Drive, Oak Brook, IL 60523
LiftMaster.com
UL
®
and the UL logo are trademarks of UL LLC © 2018 All Rights Reserved.
© 2018 Bluetooth SIG, Inc. All rights reserved.
HomeLink
®
and the HomeLink House
®
logo are registered trademarks of Gentex Corporation
LMPAENPGRSW12 5/18
WITHOUT HEATER:
-4°F (-20°C) to 140°F (60°C)
WITH OPTIONAL HEATER (HTR)
-40°F (-40°C) to 140°F (60°C)
BATTERY BACKUP OPERATION
Battery Cycles Standby Time
(1) 7Ah 147 63 Days
(2) 7Ah 354 126 Days
(2) 33Ah 877 180 Days
INHERENT REVERSING SENSOR
- Detects Obstructions and Reverses
Gate When Closing or Stops/Reverses
Gate When Opening
BI-PART DELAY
- Monitors and Adjusts Speed and
Position of Each Wing to Ensure
Primary Gate Closes Last
SYNCHRONIZED CLOSE
- Simultaneously Closes Gates
MONITORED SAFETY INPUTS
- 3 Main Board, 3 Optional
Expansion Board
SECURITY+ 2.0
®
ON-BOARD
RADIO RECEIVER
- Tri-Band 310/315/390 MHz Frequency
- Up to 50 Remote Controls
(Unlimited with 811LM/813LM)
LED DIAGNOSTIC DISPLAY
- Simplifies Installation
and Troubleshooting
PROGRAMMABLE AUXILIARY RELAYS
- Make Adding Additional Features Easy
HOMELINK
®
COMPATIBLE
- Version 4.0 or Higher*
SUPPORT.
For Support Tools and Training Videos, Visit
LiftMasterTraining.com
For More Information on Gate Operators, Visit
LiftMaster.com/UL325Gates
To Find the Right Perimeter Access Solution
for You, Visit
LiftMaster.com/Solution-Generator
Sales Support: 800.282.6225
Technical Support Center: 800.528.2806
To Order: 800.323.2276
*May require an external adapter depending on the model and year
of your vehicle. Visit HomeLink.com for additional information.
STANDARD FEATURES.
381327 LMPAENPGRSW12_F_REV042018.indd 2 5/2/18 7:26 PM
PRODUCT GUIDE RSL12UL
12VDC RESIDENTIAL/LIGHT
COMMERCIAL SLIDE GATE OPERATOR
P
R
O
D
U
C
T
H
I
G
H
L
I
G
H
T
SECURITY+ 2.0
®
SAFEGUARDS ACCESS WITH AN ENCRYPTED TRI-BAND
SIGNAL TO VIRTUALLY ELIMINATE INTERFERENCE AND OFFER EXTENDED RANGE.
POSILOCK
®
PREVENTS GATE FROM AN UNAUTHORIZED MANUAL OPEN.
FIRE DEPARTMENT COMPLIANCE ALLOWS GATE TO AUTO-OPEN UPON
LOSS OF AC POWER OR BATTERY DEPLETION.
MANUAL DISCONNECT WHEN UNLOCKED ALLOWS GATE TO BE
OPENED MANUALLY.
UL
®
LISTED GATE OPERATORS WITH MONITORED SAFETY ENTRAPMENT
PROTECTION DEVICES.
SAFE
AND
SECURE
SOLAR-READY, ULTRA-RELIABLE SYSTEM DELIVERS POWER WHEN
AND WHERE YOU NEED IT.
BATTERY BACKUP PROVIDES SEAMLESS ACCESS BY PROVIDING STANDBY
POWER WHEN THE POWER IS DOWN.
SMOOTH START/STOP OPERATION AND MID-TRAVEL REVERSAL EXTEND
OPERATOR HARDWARE LIFE.
COMMERCIAL GEAR-DRIVEN TRANSMISSION PROVIDES
UNSURPASSED RELIABILITY.
WARRANTY 3 YEARS.
RELIABLE
MyQ
®
TECHNOLOGY ENABLES YOU TO SECURELY CONTROL AND MONITOR
YOUR GATE OPERATOR FROM ANYWHERE.
WIRELESS DUAL-GATE COMMUNICATION SYNCHRONIZES GATE OPENING/
CLOSING AND ELIMINATES EXPENSIVE DRIVEWAY TRENCHING COSTS.
SMART
BATTERY
BACKUP
Provides up to 114
Cycles or 63 Days of
Standby Power
Ideal for residential and light commercial gate applications.
12VDC RESIDENTIAL/LIGHT
COMMERCIAL SLIDE GATE OPERATOR
RSL12UL
INCLUDED ACCESSORIES:
SAFETY ADD-ONS:
TOTAL SOLUTION ACCESSORIES:
RESIDENTIAL TELEPHONE
ENTRY SYSTEM
Controls access at gated entrances
with 2,000 unique codes and
Versa XS 4.0 software.
SOLAR PANEL
20W 12V solar panel kits (panel,
batteries, harness).
MONITORED SAFETY
ENTRAPMENT EDGES
Full line of Small, Large and Wraparound
Profile Edges that sense obstructions.
INTERNET GATEWAY
Connects MyQ-enabled gate
operators to the Internet and enables
control through the MyQ App.
MONITORED SMALL
PROFILE RESISTIVE EDGE
Pressure-sensitive edge stops and/or
reverses gate when obstructed.
LMWEKITU EDGESLMTBULLMRRUL
S505AL
EL25
20W7A/20W33A
828LM
*Wireless kit for up to 4 transmitters and 2 resistive
edges per transmitter.
MONITORED WIRELESS EDGE KIT
Low-energy Bluetooth
®
connection
between a LiftMaster Monitored
Resistive Edge and the gate operator;
max. range: 130 ft.*
MONITORED THROUGH-
BEAM PHOTO EYES
Enhanced through-beam now with wider
polarized beam and heater for high
performance in most environments; max.
range: 90 ft.
MONITORED RETRO-
REFLECTIVE PHOTO EYE
Enhanced retro-reflective photo eye now
with heater and wider polarized beam,
engineered to stay aligned; max.
range: 50 ft.
381327 LMPAENPGRSL12_F.indd 1 5/2/18 7:16 PM
GATE
TRAVEL
SPEED
per second
10"
BATTERY BACKUP OPERATION
Battery Cycles Standby Time
(1) 7Ah 114 63 Days
(2) 7Ah 281 126 Days
(1) 33Ah 710 180 Days
RSL12UL
CAPACITIES
800 Ibs.
800
600
400
200
0
25 ft.
12VDC RESIDENTIAL/LIGHT
COMMERCIAL SLIDE
GATE OPERATOR
MASTERFUL ENGINEERING.
- 12VDC Continuous-Duty Motor
- Operator Duty Rating: 120 Cycles per Day
- Wormgear Reduction: Commercial Oil-Bath Gearbox
Providing 15:1 Wormgear Reduction
- Chain: #41 Black Oxide (25 ft. Supplied)
- Chassis: Constructed with 1/4 in. Gold Zinc-Plated Steel for
Rust Prevention
- Cover: 1-Piece UV-Resistant Polyethylene Cover
- UL
®
Usage Classification: I, II, III and IV
- Operator Weight: 100 Ibs.
MECHANICS
- 115VAC
- Solar-Ready, Ultra-Reliable System
Delivers Power When and Where You Need It
- Accessory Power: 12VDC 500mA Output
POWER
COMMERCIAL-GRADE DESIGN
© 2018 LiftMaster All Rights Reserved
300 Windsor Drive, Oak Brook, IL 60523
LiftMaster.com
UL
®
and the UL logo are trademarks of UL LLC © 2018 All Rights Reserved.
© 2018 Bluetooth SIG, Inc. All rights reserved.
HomeLink
®
and the HomeLink House
®
logo are registered trademarks of Gentex Corporation
LMPAENPGRSL12 5/18
WITHOUT HEATER
-4°F (-20°C) to 140°F (60°C)
WITH OPTIONAL HEATER (HTR)
-40°F (-40°C) to 140°F (60°C)
TEMPERATURE SPECIFICATIONS
SUPPORT.
For Support Tools and Training Videos, Visit
LiftMasterTraining.com
For More Information on Gate Operators, Visit
LiftMaster.com/UL325Gates
To Find the Right Perimeter Access Solution
for You, Visit
LiftMaster.com/Solution-Generator
Sales Support: 800.282.6225
Technical Support Center: 800.528.2806
To Order: 800.323.2276
SYNCHRONIZED CLOSE
- Simultaneously Closes Gates
QUICK CLOSE AND ANTI-TAILGATE
- Quickly Secure Property, Preventing
Unauthorized Access (Requires
Expansion Board)
SECURITY+ 2.0
®
ON-BOARD
RADIO RECEIVER
- Tri-Band 310/315/390 MHz Frequency
- Up to 50 Remote Controls
(Unlimited with 811LM/813LM)
LED DIAGNOSTIC DISPLAY
- Simplifies Installation
and Troubleshooting
PROGRAMMABLE AUXILIARY RELAYS
- Make Adding Additional Features Easy
HOMELINK
®
COMPATIBLE
- Version 4.0 or Higher*
INHERENT REVERSING SENSOR
- Detects Obstructions and Reverses
Gate When Closing or Stops/Reverses
Gate When Opening
MONITORED SAFETY INPUTS
- 3 Main Board, 3 Optional
Expansion Board
*May require an external adapter depending on the model and year
of your vehicle. Visit HomeLink.com for additional information.
STANDARD FEATURES.
381327 LMPAENPGRSL12_F.indd 2 5/2/18 7:16 PM
The first choice for heavy-traffic swing gate applications.
24VDC HIGH-TRAFFIC COMMERCIAL
SWING GATE OPERATOR
PRODUCT GUIDE CSW24UL
24VDC HIGH-TRAFFIC COMMERCIAL
SWING GATE OPERATOR
P
R
O
D
U
C
T
H
I
G
H
L
I
G
H
T
SAFE
AND
SECURE
BATTERY BACKUP PROVIDES SEAMLESS ACCESS BY PROVIDING STANDBY
POWER WHEN THE POWER IS DOWN.
SMOOTH START/STOP OPERATION AND MID-TRAVEL REVERSAL EXTEND
OPERATOR HARDWARE LIFE.
SURGE SUPPRESSION PROVIDES INDUSTRIAL SURGE AND LIGHTNING
PROTECTION AGAINST STRIKES UP TO 50 FEET AWAY.
HEAVY-DUTY COMMERCIAL GEAR-DRIVEN TRANSMISSION PROVIDES
UNSURPASSED RELIABILITY.
WARRANTY 5 YEARS COMMERCIAL, 7 YEARS RESIDENTIAL.
RELIABLE
SMART
BATTERY
BACKUP
Provides up to 146
Cycles or 24 Days
of Standby Power
CSW24UL
210W/40W33A
SOLAR KIT
210W: (2) 10W 12V solar panels;
40W33A: (2) 20W 12V panels, (2) 33Ah
batteries and solar harness.
CAPXL
CONNECTED ACCESS PORTAL,
HIGH CAPACITY
Cloud-based access control
for residential communities.
WIRELESS COMMERCIAL KEYPAD
Provides constant pressure override to
control gate operator if safety devices
fault yet are free of obstructions. Hold
Open/Party Pass enabled with gate
operator firmware 4.2 or higher.
INCLUDED ACCESSORIES:
LMRRUL
SAFETY ADD-ONS:
LMWEKITU EDGES
MONITORED SAFETY
ENTRAPMENT EDGES
Full line of Small, Large and Wraparound
Profile Edges that sense obstructions.
MONITORED THROUGH-
BEAM PHOTO EYES
Enhanced through-beam now with wider
polarized beam and heater for high
performance in most environments; max.
range: 90 ft.
LMTBUL
1160O
IN-GROUND TRAFFIC SPIKE
SECTION (6 FT.)
Standard-duty, in-ground manual
traffic spikes. 6 ft. sections come in
different finishes.
TOTAL SOLUTION ACCESSORIES:
KPW250
*Wireless kit for up to 4 transmitters and
2 resistive edges per transmitter.
MyQ
®
TECHNOLOGY ENABLES YOU TO SECURELY CONTROL AND MONITOR
YOUR GATE OPERATOR FROM ANYWHERE.
WIRELESS DUAL-GATE COMMUNICATION SYNCHRONIZES GATE OPENING/
CLOSING AND ELIMINATES EXPENSIVE DRIVEWAY TRENCHING COSTS.
SYNCHRONIZED CLOSE SIMULTANEOUSLY CLOSES GATES.
SECURITY+ 2.0
®
SAFEGUARDS ACCESS WITH AN ENCRYPTED TRI-BAND
SIGNAL TO VIRTUALLY ELIMINATE INTERFERENCE AND OFFER EXTENDED RANGE.
EMERGENCY DISCONNECT: SIMPLE-TO-USE RELEASE HANDLE ALLOWS GATE
TO BE OPERATED MANUALLY AND MAINTAIN LIMIT POSITION ONCE REENGAGED.
FIRE DEPARTMENT COMPLIANCE ALLOWS GATE TO AUTO-OPEN UPON
LOSS OF AC POWER OR BATTERY DEPLETION.
QUICK CLOSE AND ANTI-TAILGATE QUICKLY SECURE PROPERTY, PREVENTING
UNAUTHORIZED ACCESS.
UL
®
LISTED GATE OPERATORS WITH MONITORED SAFETY ENTRAPMENT
PROTECTION DEVICES.
MONITORED RETRO-
REFLECTIVE PHOTO EYE
Enhanced retro-reflective photo eye now
with heater and wider polarized beam,
engineered to stay aligned; max.
range: 50 ft.
MONITORED WIRELESS EDGE KIT
Low-energy Bluetooth
®
connection
between a LiftMaster Monitored
Resistive Edge and the gate operator;
max. range: 130 ft.*
381327 LMPAENPGCSW24_F.indd 1 5/9/18 10:30 AM
BATTERY BACKUP OPERATION
Battery Cycles Standby
Time
(2) 7Ah 146 24 Days
(2) 33Ah 876 105 Days
CAPACITIES
1,600 Ibs.
800 Ibs.
1,600
1,200
800
400
0
8 ft. 16 ft. 18 ft.
600 Ibs.
GATE TRAVEL SPEED
Opens 90° in 13–15 Seconds
CSW24UL
24VDC HIGH-TRAFFIC
COMMERCIAL SWING
GATE OPERATOR
MASTERFUL ENGINEERING.
- 24VDC Continuous-Duty Motor
- Operator Duty Rating: High-Cycle, High-Temperature
Continuous Duty
- Wormgear Reduction: 2 Commercial Oil-Bath Gearboxes
Providing 900:1 Wormgear Reduction
- Chassis: Constructed with 1/4 in. Gold Zinc-Plated Steel
for Rust Prevention
- Cover: High-Density, UV-Resistant Polycarbonate 2-Piece
for Heat and Corrosion Resistance
- UL
®
Usage Classification: I, II, III and IV
- Operator Weight: 206 lbs.
MECHANICS
- 120/230VAC Single-Phase
- Optional Kit (3PHCONV) to Convert an Input Voltage of
208/230/460/575VAC to an Output Voltage of 120VAC
- Accessory Power: 24VDC 500mA Max.
- Solar Option Available
POWER
COMMERCIAL-GRADE DESIGN
© 2018 LiftMaster All Rights Reserved
300 Windsor Drive, Oak Brook, IL 60523
LiftMaster.com
UL
®
and the UL logo are trademarks of UL LLC © 2018 All Rights Reserved.
© 2018 Bluetooth SIG, Inc. All rights reserved.
HomeLink
®
and the HomeLink House
®
logo are registered trademarks of Gentex Corporation
LMPAENPGCSW24 5/18
TEMPERATURE SPECIFICATIONS
WITHOUT HEATER
-4°F (-20°C) to 140°F (60°C)
WITH OPTIONAL HEATER (HTR)
-40°F (-40°C) to 140°F (60°C)
SUPPORT.
For Support Tools and Training Videos, Visit
LiftMasterTraining.com
For More Information on Gate Operators, Visit
LiftMaster.com/UL325Gates
To Find the Right Perimeter Access Solution
for You, Visit
LiftMaster.com/Solution-Generator
Sales Support: 800.282.6225
Technical Support Center: 800.528.2806
To Order: 800.323.2276
STANDARD FEATURES.
PRE-MOTION WARNING ALARM
- Activates On-Board Alarm 3 Seconds
Prior to Gate Motion
INHERENT REVERSING SENSOR
- Detects Obstructions and Reverses
Gate When Closing or Stops/Reverses
Gate When Opening
BI-PART DELAY
- Monitors and Adjusts Speed and
Position of Each Wing to Ensure
Primary Gate Closes Last
MONITORED SAFETY INPUTS
- 3 Main Board, 3 Expansion Board
SECURITY+ 2.0
®
ON-BOARD
RADIO RECEIVER
- Tri-Band 310/315/390 MHz Frequency
- Up to 50 Remote Controls
(Unlimited with 811LM/813LM)
LED DIAGNOSTIC DISPLAY
- Simplifies Installation
and Troubleshooting
PROGRAMMABLE AUXILIARY RELAYS
- Make Adding Additional Features Easy
HOMELINK
®
COMPATIBLE
- Version 4.0 or Higher*
*May require an external adapter depending on the model and year
of your vehicle. Visit HomeLink.com for additional information.
381327 LMPAENPGCSW24_F.indd 2 5/9/18 10:30 AM
Ideal for the most demanding slide gate environments.
24VDC HIGH-TRAFFIC COMMERCIAL
SLIDE GATE OPERATOR
INCLUDED ACCESSORIES:
SAFETY ADD-ONS:
TOTAL SOLUTION ACCESSORIES:
LOOPDETLM
PLUG-IN LOOP DETECTOR
Prevents the gate from closing on a
vehicle in the path; power efficient for
maximum cycles on Battery Backup.
INTERNET GATEWAY
Connects MyQ-enabled gate
operators to the Internet and enables
control through the MyQ App.
CAPXL 828LM
CONNECTED ACCESS
PORTAL, HIGH CAPACITY
Cloud-based access control for
residential communities.
PRODUCT GUIDE CSL24UL
24VDC HIGH-TRAFFIC COMMERCIAL
SLIDE GATE OPERATOR
P
R
O
D
U
C
T
H
I
G
H
L
I
G
H
T
SECURITY+ 2.0
®
SAFEGUARDS ACCESS WITH AN ENCRYPTED TRI-BAND SIGNAL
TO VIRTUALLY ELIMINATE INTERFERENCE AND OFFER EXTENDED RANGE.
QUICK CLOSE AND ANTI-TAILGATE QUICKLY SECURES THE PROPERTY,
PREVENTING UNAUTHORIZED ACCESS.
FIRE DEPARTMENT COMPLIANCE ALLOWS GATE TO AUTO-OPEN UPON
LOSS OF AC POWER OR BATTERY DEPLETION.
MANUAL DISCONNECT WHEN UNLOCKED ALLOWS GATE TO BE
OPENED MANUALLY.
UL
®
LISTED GATE OPERATORS WITH MONITORED SAFETY ENTRAPMENT
PROTECTION DEVICES.
SAFE
AND
SECURE
BATTERY BACKUP PROVIDES SEAMLESS ACCESS BY PROVIDING STANDBY
POWER WHEN THE POWER IS DOWN.
COMMERCIAL GEAR-DRIVEN TRANSMISSION PROVIDES
UNSURPASSED RELIABILITY.
SMOOTH START/STOP OPERATION AND MID-TRAVEL REVERSAL EXTEND
OPERATOR HARDWARE LIFE.
WARRANTY 5 YEARS COMMERCIAL, 7 YEARS RESIDENTIAL.
RELIABLE
MyQ
®
TECHNOLOGY ENABLES YOU TO SECURELY CONTROL AND MONITOR
YOUR GATE OPERATOR FROM ANYWHERE.
WIRELESS DUAL-GATE COMMUNICATION SYNCHRONIZES GATE OPENING/
CLOSING AND ELIMINATES EXPENSIVE DRIVEWAY TRENCHING COSTS.
SMART
BATTERY
BACKUP
Provides up to 208
Cycles or 24 Days
of Standby Power
CSL24UL
*Wireless kit for up to 4 transmitters and 2 resistive
edges per transmitter.
MONITORED RETRO-
REFLECTIVE PHOTO EYE
Enhanced retro-reflective photo eye now
with heater and wider polarized beam,
engineered to stay aligned; max.
range: 50 ft.
MONITORED SAFETY
ENTRAPMENT EDGES
Full line of Small, Large and Wraparound
Profile Edges that sense obstructions.
MONITORED THROUGH-
BEAM PHOTO EYES
Enhanced through-beam now with wider
polarized beam and heater for high
performance in most environments; max.
range: 90 ft.
MONITORED WIRELESS EDGE KIT
Low-energy Bluetooth
®
connection
between a LiftMaster Monitored
Resistive Edge and the gate operator;
max. range: 130 ft.*
MONITORED SMALL PROFILE
RESISTIVE EDGE
Pressure-sensitive edge stops and/or
reverses gate when obstructed.
LMRRUL LMWEKITU EDGESLMTBULS505AL
381327 LMPAENPGCSL24_F.indd 1 5/2/18 6:53 PM
- 24VDC Continuous Duty
- Operator Duty Rating: High-Cycle, High-Temperature
Continuous Duty
- Wormgear Reduction: Commercial Oil-Bath Gearbox
Provides 10:1 Wormgear Reduction
- Chain: #41 Black Oxide (30 ft. Supplied)
- Chassis Constructed with 1/4 in. Gold Zinc-Plated Steel
for Rust Prevention
- Cover: High-Density, UV-Resistant Polycarbonate 2-Piece
Cover for Excellent Heat and Corrosion Resistance
- UL
®
Usage Classification: I, II, III and IV
- Operator Weight: 140 lbs.
MECHANICS
- 120/230V Single-Phase
- Optional Kit (3PHCONV) to Convert an Input Voltage of
208/230/460/575VAC to an Output Voltage of 120VAC
- Solar-Ready Ultra-Reliable System
Delivers Power When and Where You Need It
- Accessory Power: 24VDC 500mA Output; Switched
and Unswitched Power
POWER
COMMERCIAL-GRADE DESIGN
SLIDE RATING
CSL24UL
24VDC HIGH-TRAFFIC
COMMERCIAL SLIDE
GATE OPERATOR
MASTERFUL ENGINEERING.
STANDARD FEATURES. SUPPORT.
© 2018 LiftMaster All Rights Reserved
300 Windsor Drive, Oak Brook, IL 60523
LiftMaster.com
UL
®
and the UL logo are trademarks of UL LLC © 2018 All Rights Reserved.
© 2018 Bluetooth SIG, Inc. All rights reserved.
HomeLink
®
and the HomeLink House
®
logo are registered trademarks of Gentex Corporation
LMPAENPGCSL24 5/18
GATE
SPEED
per second
12"
BATTERY BACKUP OPERATION
Battery Cycles Standby Time
(2) 7Ah 208 24 Days
(2) 33Ah 1,179 105 Days
1,500 Ibs.
1,500
1,000
500
0
50 ft.
TEMPERATURE SPECIFICATIONS
WITHOUT HEATER
-4°F (-20°C)
WITH HEATER (HTR)
-40°F (-40°C)
WITHOUT HEATER
140°F (60°C)
WITH HEATER (HTR)
140°F (60°C)
INHERENT REVERSING SENSOR
- Detects Obstructions and Reverses
Gate When Closing or Stops/Reverses
Gate When Opening
POSILOCK
®
- Automatically Closes the Gate When
It Is Pushed from the Closed Limit
MONITORED SAFETY INPUTS
- 3 Main Board, 3 Expansion Board
SECURITY+ 2.0
®
ON-BOARD
RADIO RECEIVER
- Tri-Band 310/315/390 MHz Frequency
- Up to 50 Remote Controls
(Unlimited with 811LM/813LM)
LED DIAGNOSTIC DISPLAY
- Simplifies Installation
and Troubleshooting
PROGRAMMABLE AUXILIARY RELAYS
- Make Adding Additional Features Easy
HOMELINK
®
COMPATIBLE
- Version 4.0 or Higher*
*May require an external adapter depending on the model and year
of your vehicle. Visit HomeLink.com for additional information.
For Support Tools and Training Videos, Visit
LiftMasterTraining.com
For More Information on Gate Operators, Visit
LiftMaster.com/UL325Gates
To Find the Right Perimeter Access Solution
for You, Visit
LiftMaster.com/Solution-Generator
Sales Support: 800.282.6225
Technical Support Center: 800.528.2806
To Order: 800.323.2276
381327 LMPAENPGCSL24_F.indd 2 5/2/18 6:53 PM
INCLUDED ACCESSORIES:
CPSUN4G
CAP2D
CAPXL
MAT
SAFETY ADD-ONS:
OES-SD 16/24/50
TOTAL SOLUTION ACCESSORIES:
LOOPDETLM RGL24LY
LMTBUL
LMRRUL
PRODUCT GUIDE HCTDCUL
SPECIALTY OVERHEAD OPERATOR
P
R
O
D
U
C
T
H
I
G
H
L
I
G
H
T
SECURITY+ 2.0
®
SAFEGUARDS ACCESS WITH AN ENCRYPTED TRI-BAND SIGNAL
TO VIRTUALLY ELIMINATE INTERFERENCE AND OFFER EXTENDED RANGE.
POSILOCK
®
AUTOMATICALLY POWERS THE OPERATOR AND RETURNS THE GATE/
DOOR TO THE CLOSED POSITION WHEN PUSHED OFF THE CLOSED LIMIT.
QUICK CLOSE AND ANTI-TAILGATE QUICKLY SECURE THE PROPERTY,
PREVENTING UNAUTHORIZED ACCESS.
FIRE DEPARTMENT COMPLIANCE ALLOWS GATE/DOOR TO AUTO-OPEN UPON
LOSS OF AC POWER OR BATTERY DEPLETION.
UL
®
LISTED GATE OPERATORS WITH MONITORED SAFETY ENTRAPMENT
PROTECTION DEVICES.
SAFE
AND
SECURE
RELIABLE
SMART
SMOOTH START/STOP
and Mid-Travel Reversal Ensure
Low-Maintenance Performance
NOISE-ISOLATING
DESIGN
Provides for Exceptionally Smooth
and Ultra-Quiet Operation
BATTERY BACKUP SECURES AND SAFEGUARDS YOUR PROPERTY BY PROVIDING
STANDBY POWER WHEN THE POWER IS DOWN.
HEAVY-DUTY COMMERCIAL GEAR-DRIVEN TRANSMISSION PROVIDES
UNSURPASSED RELIABILITY.
SMOOTH START/STOP OPERATION AND MID-TRAVEL REVERSAL EXTEND
OPERATOR HARDWARE LIFE.
YELLOW ZINC DICHROMATE RAIL FINISH OFFERS MAXIMUM
RUST PROTECTION.
WARRANTY 5 YEARS.
NOISE ISOLATORS PROVIDE EXCEPTIONALLY SMOOTH AND QUIET
PERFORMANCE.
SELECTABLE SPEED CONTROL OPENS UP TO 11" PER SECOND, 25% FASTER
THAN INDUSTRY AVERAGE, TO KEEP TRAFFIC FLOWING.
LOW-PROFILE DESIGN INSTALLS EASILY IN TIGHT APPLICATIONS AT ONLY
8" IN HEIGHT.
MyQ
®
TECHNOLOGY ENABLES YOU TO SECURELY CONTROL AND MONITOR
YOUR GATE OPERATOR FROM ANYWHERE.
Ideal for multi-unit residential parking facilities.
SPECIALTY OVERHEAD OPERATOR
HCTDCUL
MONITORED COMMERCIAL
PROTECTOR SYSTEM
®
Increases entrapment protection with
through-beam infrared sensors with
heavy-duty housings and brackets; NEMA
4 rated; max. range: 45 ft.
CONNECTED ACCESS PORTAL,
2-DOOR CONTROLLER
Keypad and proximity reader functionality
controls a single-entry access.
CONNECTED ACCESS PORTAL,
HIGH CAPACITY
Cloud-based access control
for residential communities.
HIGH-TRAFFIC DC BARRIER
GATE OPERATOR
Provides easy in-and-out access 24
hours a day to keep traffic flowing.
MONITORED RETRO-
REFLECTIVE PHOTO EYE
Enhanced retro-reflective photo eye now
with heater and wider polarized beam,
engineered to stay aligned; max.
range: 50 ft.
MONITORED THROUGH-
BEAM PHOTO EYES
Enhanced through-beam now with wider
polarized beam and heater for high
performance in most environments; max.
range: 90 ft.
OPTICAL EDGE SYSTEM
Commercial door through-beam infrared
optical sensors with premium rubber
door edges sense obstructions.
Not compatible with LMWEKITU.
PLUG-IN LOOP DETECTOR
Identifies vehicles within the gate or
door pathway.
RED/GREEN TRAFFIC LIGHT
Assures safe entering and exiting by
indicating door status.
381327 LMPAENPGHCTDCU_F.indd 1 5/2/18 10:43 PM
MECHANICS
- 120/230V Single-Phase
POWER
COMMERCIAL-GRADE DESIGN
-4°F (-20°C) to 140°F (60°C)
TEMPERATURE SPECIFICATIONS
HCTDCUL
SPECIALTY OVERHEAD OPERATOR
MASTERFUL ENGINEERING.
STANDARD FEATURES. SUPPORT.
For Support Tools and Training Videos, Visit
LiftMasterTraining.com
For More Information on Gate Operators, Visit
LiftMaster.com/UL325Gates
To Find the Right Perimeter Access Solution for
You, Visit
LiftMaster.com/Solution-Generator
Sales Support: 800.282.6225
Technical Support Center: 800.528.2806
To Order: 800.323.2276
PRE-MOTION WARNING ALARM
- Activates On-Board Alarm 3 Seconds
Prior to Gate Motion
EXTERNAL ALARM RESET BUTTON
- Instantly Resets the Built-In Safety
Alarm Siren
MAXIMUM-RUN TIMER
- Protects Against Damage to the Gate and
Operator by Limiting the Unit’s Run Time
to 120 Seconds
DYNAMIC BRAKING SYSTEM
- Adds Substantial Gate Position Control
at All Points of Travel
© 2018 LiftMaster All Rights Reserved
300 Windsor Drive, Oak Brook, IL 60523
LiftMaster.com
UL
®
and the UL logo are trademarks of UL LLC © 2018 All Rights Reserved.
LMPAENPGHCTDCU 5/18
BATTERY BACKUP OPERATION
Battery Cycles Standby
Time
(2) 7Ah 112 24 Days
GATE TRAVEL SPEED
BI-PART DELAY OFF (DEFAULT) = 8 IN./SEC.
OPEN SPEED*
BI-PART DELAY ON (FAST) = 11 IN./SEC.
OPEN SPEED*
RAILS
HCT08: 121.5"
HCT10: 145.5"
HCT12: 169.5"
CAPACITIES
Rated for Overhead Doors or
Gates with up to 12 ft. Rail or
Weighing up to 700 lbs.
700 Ibs.
600
400
200
0
12 ft.
- Chassis: Constructed with 1/4 in. Gold
Zinc-Plated Steel for Rust Prevention
- Trolley Assembly: Heavy-Duty 12-Gauge
Steel Track with 6 UHMW Rollers
- UL
®
Usage Classification: II, III and IV
- Weights:
- Powerhead = 86 lbs.
- HCT08—8 ft. Rail = 93 lbs.
- HCT10—10 ft. Rail = 111 lbs.
- HCT12—12 ft. Rail = 129 lbs.
- 24VDC Continuous-Duty Motor
- Operator Duty Rating: High-Cycle, High-Temperature
Continuous Duty
- Wormgear Reduction: Oil-Bath Gearbox
with 28:1 Gear Reducer
- Accessory Power: 24VDC 500mA Output
MONITORED SAFETY INPUTS
- 3 Main Board, 3 Expansion Board
SECURITY+ 2.0
®
ON-BOARD
RADIO RECEIVER
- Tri-Band 310/315/390 MHz Frequency
- Up to 50 Remote Controls (Unlimited
with 811LM/813LM)
LED DIAGNOSTIC DISPLAY
- Simplifies Installation and
Troubleshooting
PROGRAMMABLE AUXILIARY RELAYS
- Make Adding Additional Features Easy
*Select gate travel speed using the BI-PART DELAY
switch and enable a high-speed open option to
help flow in high-traffic areas (open speed only).
381327 LMPAENPGHCTDCU_F.indd 2 5/2/18 10:43 PM
For the most demanding high-traffic swing gate environments.
AC HIGH-TRAFFIC COMMERCIAL
SWING GATE OPERATOR
KPW250
WIRELESS COMMERCIAL KEYPAD
Provides constant pressure override to
control gate operator if safety devices
fault yet are free of obstructions. Hold
Open/Party Pass enabled with gate
operator firmware 4.2 or higher.
CAPXL
CONNECTED ACCESS PORTAL,
HIGH CAPACITY
Cloud-based access control
for residential communities.
PRODUCT GUIDE CSW200UL
AC HIGH-TRAFFIC COMMERCIAL
SWING GATE OPERATOR
P
R
O
D
U
C
T
H
I
G
H
L
I
G
H
T
SAFE
AND
SECURE
RELIABLE
LEGACY ELITE HEAVY-DUTY COMMERCIAL GEAR-DRIVEN
TRANSMISSION PROVIDES UNSURPASSED RELIABILITY.
SURGE SUPPRESSION PROVIDES INDUSTRIAL SURGE AND LIGHTNING
PROTECTION AGAINST STRIKES UP TO 50 FEET AWAY.
WARRANTY 5 YEARS COMMERCIAL, 7 YEARS RESIDENTIAL.
SMART
CONTINUOUS-DUTY,
High-Temperature Motor
CSW200UL
LOOPDETLM
PLUG-IN LOOP DETECTOR
Prevents the gate from closing on a
vehicle in the path; power efficient for
maximum cycles on Battery Backup.
INCLUDED ACCESSORIES:
MONITORED RETRO-
REFLECTIVE PHOTO EYE
Enhanced retro-reflective photo eye now
with heater and wider polarized beam,
engineered to stay aligned; max.
range: 50 ft.
LMRRUL
SAFETY ADD-ONS:
LMWEKITU EDGES
MONITORED SAFETY
ENTRAPMENT EDGES
Full line of Small, Large and Wraparound
Profile Edges that sense obstructions.
MONITORED THROUGH-
BEAM PHOTO EYES
Enhanced through-beam now with wider
polarized beam and heater for high
performance in most environments;
max. range: 90 ft.
LMTBUL
11600
IN-GROUND TRAFFIC SPIKE
SECTION (6 FT.)
Standard-duty, in-ground manual
traffic spikes. 6 ft. sections come in
different finishes.
*Wireless kit for up to 4 transmitters and
2 resistive edges per transmitter.
TOTAL SOLUTION ACCESSORIES:
MyQ
®
TECHNOLOGY ENABLES YOU TO SECURELY CONTROL AND MONITOR
YOUR GATE OPERATOR FROM ANYWHERE.
WIRELESS DUAL-GATE COMMUNICATION SYNCHRONIZES GATE OPENING/
CLOSING AND ELIMINATES EXPENSIVE DRIVEWAY TRENCHING COSTS.
SYNCHRONIZED CLOSE SIMULTANEOUSLY CLOSES GATES.
SECURITY+ 2.0
®
SAFEGUARDS ACCESS WITH AN ENCRYPTED TRI-BAND SIGNAL
TO VIRTUALLY ELIMINATE INTERFERENCE AND OFFER EXTENDED RANGE.
EMERGENCY DISCONNECT: SIMPLE-TO-USE RELEASE HANDLE ALLOWS
GATE TO BE OPERATED MANUALLY AND MAINTAIN LIMIT POSITION
ONCE REENGAGED.
INHERENT REVERSING SENSOR DETECTS OBSTRUCTIONS AND
REVERSES GATE WHEN CLOSING OR STOPS/REVERSES THE GATE
WHEN OPENING.
QUICK CLOSE AND ANTI-TAILGATE QUICKLY SECURE PROPERTY,
PREVENTING UNAUTHORIZED ACCESS.
UL
®
LISTED GATE OPERATORS WITH MONITORED SAFETY ENTRAPMENT
PROTECTION DEVICES.
MONITORED WIRELESS EDGE KIT
Low-energy Bluetooth
®
connection
between a LiftMaster Monitored
Resistive Edge and the gate operator;
max. range: 130 ft.*
381327 LMPAENPGCSW200_F.indd 1 5/2/18 7:59 PM

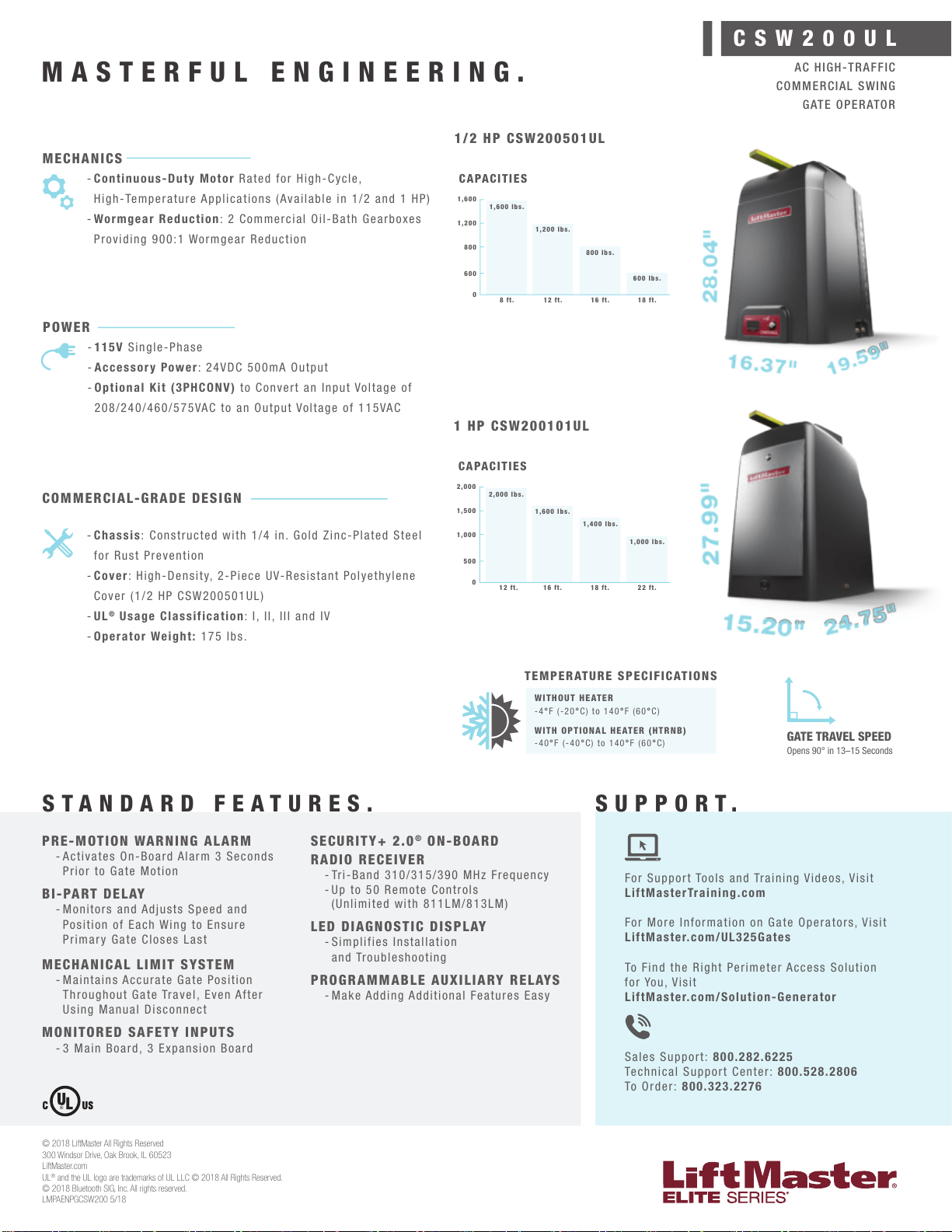

CAPACITIES
1,600 Ibs.
1,200 Ibs.
1,600
1,200
800
600
0
8 ft. 12 ft.
16 ft. 18 ft.
800 Ibs.
600 Ibs.
CAPACITIES
2,000 Ibs.
1,600 Ibs.
2,000
1,500
1,000
500
0
12 ft. 16 ft.
18 ft. 22 ft.
1,400 Ibs.
1,000 Ibs.
GATE TRAVEL SPEED
Opens 90° in 13–15 Seconds
CSW200UL
AC HIGH-TRAFFIC
COMMERCIAL SWING
GATE OPERATOR
MASTERFUL ENGINEERING.
- Continuous-Duty Motor Rated for High-Cycle,
High-Temperature Applications (Available in 1/2 and 1 HP)
- Wormgear Reduction: 2 Commercial Oil-Bath Gearboxes
Providing 900:1 Wormgear Reduction
- Chassis: Constructed with 1/4 in. Gold Zinc-Plated Steel
for Rust Prevention
- Cover: High-Density, 2-Piece UV-Resistant Polyethylene
Cover (1/2 HP CSW200501UL)
- UL
®
Usage Classification: I, II, III and IV
- Operator Weight: 175 lbs.
MECHANICS
- 115V Single-Phase
- Accessory Power: 24VDC 500mA Output
- Optional Kit (3PHCONV) to Convert an Input Voltage of
208/240/460/575VAC to an Output Voltage of 115VAC
POWER
COMMERCIAL-GRADE DESIGN
1 HP CSW200101UL
1/2 HP CSW200501UL
© 2018 LiftMaster All Rights Reserved
300 Windsor Drive, Oak Brook, IL 60523
LiftMaster.com
UL
®
and the UL logo are trademarks of UL LLC © 2018 All Rights Reserved.
© 2018 Bluetooth SIG, Inc. All rights reserved.
LMPAENPGCSW200 5/18
STANDARD FEATURES.
PRE-MOTION WARNING ALARM
- Activates On-Board Alarm 3 Seconds
Prior to Gate Motion
BI-PART DELAY
- Monitors and Adjusts Speed and
Position of Each Wing to Ensure
Primary Gate Closes Last
MECHANICAL LIMIT SYSTEM
- Maintains Accurate Gate Position
Throughout Gate Travel, Even After
Using Manual Disconnect
MONITORED SAFETY INPUTS
- 3 Main Board, 3 Expansion Board
SECURITY+ 2.0
®
ON-BOARD
RADIO RECEIVER
- Tri-Band 310/315/390 MHz Frequency
- Up to 50 Remote Controls
(Unlimited with 811LM/813LM)
LED DIAGNOSTIC DISPLAY
- Simplifies Installation
and Troubleshooting
PROGRAMMABLE AUXILIARY RELAYS
- Make Adding Additional Features Easy
SUPPORT.
For Support Tools and Training Videos, Visit
LiftMasterTraining.com
For More Information on Gate Operators, Visit
LiftMaster.com/UL325Gates
To Find the Right Perimeter Access Solution
for You, Visit
LiftMaster.com/Solution-Generator
Sales Support: 800.282.6225
Technical Support Center: 800.528.2806
To Order: 800.323.2276
TEMPERATURE SPECIFICATIONS
WITHOUT HEATER
-4°F (-20°C) to 140°F (60°C)
WITH OPTIONAL HEATER (HTRNB)
-40°F (-40°C) to 140°F (60°C)
381327 LMPAENPGCSW200_F.indd 2 5/2/18 7:59 PM
PRODUCT GUIDE SL3000UL
AC HIGH-TRAFFIC COMMERCIAL SLIDE
GATE OPERATOR
P
R
O
D
U
C
T
H
I
G
H
L
I
G
H
T
SECURITY+ 2.0
®
SAFEGUARDS ACCESS WITH AN ENCRYPTED TRI-BAND SIGNAL
TO VIRTUALLY ELIMINATE INTERFERENCE AND OFFER EXTENDED RANGE.
INHERENT REVERSING SENSOR DETECTS OBSTRUCTIONS AND REVERSES
GATE WHEN CLOSING OR STOPS/REVERSES THE GATE WHEN OPENING.
PRE-MOTION WARNING ALARM ACTIVATES ON-BOARD ALARM 3 SECONDS
PRIOR TO GATE MOTION.
MANUAL DISCONNECT WHEN UNLOCKED ALLOWS GATE TO BE
OPERATED MANUALLY.
QUICK CLOSE AND ANTI-TAILGATE QUICKLY SECURE PROPERTY, PREVENTING
UNAUTHORIZED ACCESS.
UL
®
LISTED GATE OPERATORS WITH MONITORED SAFETY ENTRAPMENT
PROTECTION DEVICES.
SAFE
AND
SECURE
LEGACY ELITE HEAVY-DUTY COMMERCIAL GEAR-DRIVEN TRANSMISSION
PROVIDES UNSURPASSED RELIABILITY.
LIMIT SWITCH DESIGN PROVIDES PRECISION LIMIT ACCURACY AND RELIABILITY.
SURGE SUPPRESSION PROVIDES INDUSTRIAL SURGE AND LIGHTNING
PROTECTION AGAINST STRIKES UP TO 50 FEET AWAY.
WARRANTY 5 YEARS COMMERCIAL, 7 YEARS RESIDENTIAL.
RELIABLE
MyQ
®
TECHNOLOGY ENABLES YOU TO SECURELY CONTROL AND MONITOR
YOUR GATE OPERATOR FROM ANYWHERE.
WIRELESS DUAL-GATE COMMUNICATION SYNCHRONIZES GATE OPENING/
CLOSING AND ELIMINATES EXPENSIVE DRIVEWAY TRENCHING COSTS.
SMART
The first choice for heavy-traffic applications.
AC HIGH-TRAFFIC COMMERCIAL
SLIDE GATE OPERATOR
SL3000UL
PLUG-IN LOOP DETECTOR
Prevents the gate from closing on a
vehicle in the path; power efficient for
maximum cycles on Battery Backup.
EL2000SS
TELEPHONE ENTRY FOR
COMMERCIAL APPLICATIONS
AND GATED COMMUNITIES
Mid-capacity telephone entry access
control system with Versa XS 4.0 software.
INCLUDED ACCESSORIES:
LMRRUL
SAFETY ADD-ONS:
LMWEKITU EDGES
MONITORED SAFETY
ENTRAPMENT EDGES
Full line of Small, Large and Wraparound
Profile Edges that sense obstructions.
LMTBUL
11600
IN-GROUND TRAFFIC SPIKE
SECTION (6 FT.)
Standard-duty, in-ground manual
traffic spikes. 6 ft. sections come in
different finishes.
TOTAL SOLUTION ACCESSORIES:
MONITORED SMALL
PROFILE RESISTIVE EDGE
Pressure-sensitive edge stops and/or
reverses gate when obstructed.
S505AL
LOOPDETLM
CONTINUOUS-DUTY,
High-Temperature Motor
MONITORED RETRO-
REFLECTIVE PHOTO EYE
Enhanced retro-reflective photo eye now
with heater and wider polarized beam,
engineered to stay aligned; max.
range: 50 ft.
MONITORED THROUGH-
BEAM PHOTO EYES
Enhanced through-beam now with wider
polarized beam and heater for high
performance in most environments; max.
range: 90 ft.
MONITORED WIRELESS EDGE KIT
Low-energy Bluetooth
®
connection
between a LiftMaster Monitored
Resistive Edge and the gate operator;
max. range: 130 ft.*
*Wireless kit for up to 4 transmitters and 2 resistive
edges per transmitter.
381327 LMPAENPGSL3000_F.indd 1 5/2/18 7:23 PM
GATE
TRAVEL
SPEED
per second
12"
SL3000UL
AC HIGH-TRAFFIC
COMMERCIAL SLIDE GATE
OPERATOR
CAPACITIES
2,000 Ibs.
1,000 Ibs.
2,000
1,500
1,000
500
0
50 ft. 1 HP 50 ft. 1/2 HP
MASTERFUL ENGINEERING.
- Continuous-Duty Motor with Class H Insulation Is Rated for High-
Cycle, High-Temperature Applications (Available in 1/2 and 1 HP)
- Operator Duty Rating: Continuous Duty
- Wormgear Reduction: Commercial Oil-Bath Gearbox Providing 30:1
Wormgear Reduction
- Chain: #41 Black Oxide (25 ft. Supplied)
- Chassis: Constructed with 1/4 in. Gold Zinc-Plated Steel for
Rust Prevention
- Cover: High-Density, UV-Resistant, 1-Piece Polyethylene
Plastic for Excellent Heat and Corrosion Resistance
- UL
®
Usage Classification: I, II, III and IV
- Operator Weight: 140 lbs.
MECHANICS
- 115V Single-Phase
- Accessory Power: 24VDC 500mA Output
- 2 Auxiliary Outlets
- Optional Kit (3PHCONV) to Convert an Input Voltage of
208/240/480/575VAC to an Output Voltage of 115VAC
POWER
COMMERCIAL-GRADE DESIGN
© 2018 LiftMaster All Rights Reserved
300 Windsor Drive, Oak Brook, IL 60523
LiftMaster.com
UL
®
and the UL logo are trademarks of UL LLC © 2018 All Rights Reserved.
© 2018 Bluetooth SIG, Inc. All rights reserved.
HomeLink
®
and the HomeLink House
®
logo are registered trademarks of Gentex Corporation
LMPAENPGSL3000 5/18
SUPPORT.
For Support Tools and Training Videos, Visit
LiftMasterTraining.com
For More Information on Gate Operators, Visit
LiftMaster.com/UL325Gates
To Find the Right Perimeter Access Solution
for You, Visit
LiftMaster.com/Solution-Generator
Sales Support: 800.282.6225
Technical Support Center: 800.528.2806
To Order: 800.323.2276
TEMPERATURE SPECIFICATIONS
WITHOUT HEATER
-4°F (-20°C) to 140°F (60°C)
WITH OPTIONAL HEATER (HTRNB)
-40°F (-40°C) to 140°F (60°C)
SECURITY+ 2.0
®
ON-BOARD
RADIO RECEIVER
- Tri-Band 310/315/390 MHz Frequency
- Up to 50 Remote Controls
(Unlimited with 811LM/813LM)
LED DIAGNOSTIC DISPLAY
- Simplifies Installation
and Troubleshooting
PROGRAMMABLE AUXILIARY RELAYS
- Make Adding Additional Features Easy
HOMELINK
®
COMPATIBLE
- Version 4.0 or Higher*
*May require an external adapter depending on the model and year
of your vehicle. Visit HomeLink.com for additional information.
STANDARD FEATURES.
EXTERNAL ALARM RESET BUTTON
- Instantly Resets the Built-In Safety
Alarm Siren
MECHANICAL LIMIT SYSTEM
- Maintains Accurate Gate Position
Throughout Gate Travel, Even After
Using Manual Disconnect
MONITORED SAFETY INPUTS
- 3 Main Board, 3 Expansion Board
[SL3000101UL AND SL3000501UL HAVE THE SAME DIMENSIONS]
381327 LMPAENPGSL3000_F.indd 2 5/2/18 7:23 PM
Reliable gear-driven slide gate operator for
commercial and industrial applications.
AC HEAVY-DUTY INDUSTRIAL SLIDE
GATE OPERATOR
PRODUCT GUIDE SL585UL
AC HEAVY-DUTY INDUSTRIAL SLIDE
GATE OPERATOR
P
R
O
D
U
C
T
H
I
G
H
L
I
G
H
T
HEAVY-DUTY COMMERCIAL GEAR-DRIVEN TRANSMISSION PROVIDES
UNSURPASSED RELIABILITY.
SURGE SUPPRESSION PROVIDES INDUSTRIAL SURGE AND LIGHTNING
PROTECTION AGAINST STRIKES UP TO 50 FEET AWAY.
WARRANTY 2 YEARS.
RELIABLE
MyQ
®
TECHNOLOGY ENABLES YOU TO SECURELY CONTROL AND MONITOR
YOUR GATE OPERATOR FROM ANYWHERE.
UNIVERSAL FOOTPRINT SIMPLIFIES RETROFIT APPLICATIONS BY
ADAPTING TO PREEXISTING PADS.
HOMELINK
®
COMPATIBLE (VERSION 4.0 AND HIGHER).
SMART
HEAVY-DUTY,
Industrial Lockable
Metal Cover
SL585UL
SAFE
AND
SECURE
SECURITY+ 2.0
®
SAFEGUARDS ACCESS WITH AN ENCRYPTED TRI-BAND SIGNAL
TO VIRTUALLY ELIMINATE INTERFERENCE AND OFFER EXTENDED RANGE.
MANUAL DISCONNECT WHEN UNLOCKED ALLOWS GATE TO BE
OPERATED MANUALLY.
QUICK CLOSE AND ANTI-TAILGATE QUICKLY SECURE PROPERTY, PREVENTING
UNAUTHORIZED ACCESS.
LOCKOUT/TAGOUT FEATURE PREVENTS POWER FROM BEING SWITCHED
ON WHEN SERVICING OPERATOR AND SAFEGUARDS WORKERS FROM
HIGH-VOLTAGE POWER.
AUTOMATIC SOLENOID BRAKE PREVENTS THE GATE FROM
BEING BACK DRIVEN.
PLUG-IN LOOP DETECTOR
Prevents the gate from closing on a
vehicle in the path; power efficient for
maximum cycles on Battery Backup.
EL2000SS
TELEPHONE ENTRY FOR
COMMERCIAL APPLICATIONS
AND GATED COMMUNITIES
Mid-capacity telephone entry access
control system with Versa XS 4.0 software.
INCLUDED ACCESSORIES:
LMRRUL
SAFETY ADD-ONS:
LMWEKITU EDGES
MONITORED SAFETY
ENTRAPMENT EDGES
Full line of Small, Large and Wraparound
Profile Edges that sense obstructions.
LMTBUL
11600
IN-GROUND TRAFFIC SPIKE
SECTION (6 FT.)
Standard-duty, in-ground manual
traffic spikes. 6 ft. sections come in
different finishes.
TOTAL SOLUTION ACCESSORIES:
MONITORED SMALL
PROFILE RESISTIVE EDGE
Pressure-sensitive edge stops and/or
reverses gate when obstructed.
S505AL
LOOPDETLM
MONITORED RETRO-
REFLECTIVE PHOTO EYE
Enhanced retro-reflective photo eye now
with heater and wider polarized beam,
engineered to stay aligned; max.
range: 50 ft.
MONITORED THROUGH-
BEAM PHOTO EYES
Enhanced through-beam now with wider
polarized beam and heater for high
performance in most environments; max.
range: 90 ft.
MONITORED WIRELESS EDGE KIT
Low-energy Bluetooth
®
connection
between a LiftMaster Monitored
Resistive Edge and the gate operator;
max. range: 130 ft.*
*Wireless kit for up to 4 transmitters and 2 resistive
edges per transmitter.
381327 LMPAENPGSL585_F.indd 1 5/2/18 10:43 PM
SUPPORT.
GATE
TRAVEL
SPEED
per second
11"
MASTERFUL ENGINEERING.
- High-Starting Torque Continuous-Duty Motor (Available in 1/2, 1
and 1 1/2 HP)
- Operator Duty Rating: 20 Cycles per Hour
- Wormgear Reduction: 20:1 Wormgear Reducer
- Adjustable Friction Clutch: Helps to Protect Gate and Operator
from Damage Should the Gate Meet an Obstruction
- Chain: #50 Nickel-Plated (25 ft. Supplied)
MECHANICS
- 115/208/230VAC Single-Phase; 208/230/460/575VAC 3-Phase
(575V Includes Factory-Installed Heater)
- Accessory Power: 24VDC 500mA Max.
- Dual-Voltage Connections: Increase Flexibility by Enabling the Installer
to Select the Required Voltage, Within Phase, to Meet Job-Site Requirements
POWER
COMMERCIAL-GRADE DESIGN
HP Max. Gate
WT. (lbs.)
Max. Gate
Width (ft.)
(Overhead/V-Groove)
Max. Gate
Width (ft.)
(Cantilever)
Cycles/HR
1/2 1,000 45 25 20
1
1 1/2
1,600
1,900
70
75
35
40
20
20
CAPACITIES
SL585UL
AC HEAVY-DUTY
INDUSTRIAL SLIDE GATE
OPERATOR
- Chassis: Heavy-Duty Steel Chassis and Lockable Powder-Coated Steel
Cover Withstand Extreme and Harsh Environments
- Cover/Frame: Weather-Resistant, Lockable, 16-Gauge Steel; 7-Gauge
Pre-Galvanized Steel Frame
- UL
®
Usage Classification: I, II, III and IV
- Operator Weight: 240 lbs.
© 2018 LiftMaster All Rights Reserved
300 Windsor Drive, Oak Brook, IL 60523
LiftMaster.com
UL
®
and the UL logo are trademarks of UL LLC © 2018 All Rights Reserved.
© 2018 Bluetooth SIG, Inc. All rights reserved.
HomeLink
®
and the HomeLink House
®
logo are registered trademarks of Gentex Corporation
LMPAENPGSL585 5/18
WITHOUT HEATER
-4°F (-20°C) to 140°F (60°C)
WITH OPTIONAL HEATER
(HTRNB—HTR460 FOR 460V OPERATORS)
-40°F (-40°C) to 140°F (60°C)
TEMPERATURE SPECIFICATIONS
MECHANICAL LIMIT SYSTEM
- Maintains Accurate Gate Position
Throughout Gate Travel, Even After Using
Manual Disconnect
MONITORED SAFETY INPUTS
- 3 Main Board, 3 Expansion Board
-
SECURITY+ 2.0
®
ON-BOARD
RADIO RECEIVER
- Tri-Band 310/315/390 MHz Frequency
- Up to 50 Remote Controls (Unlimited with
811LM/813LM)
LED DIAGNOSTIC DISPLAY
- Simplifies Installation and
Troubleshooting
PROGRAMMABLE AUXILIARY RELAYS
- Make Adding Additional Features Easy
STANDARD FEATURES.
PRE-MOTION WARNING ALARM
- Activates On-Board Alarm 3 Seconds Prior
to Gate Motion
EXTERNAL ALARM RESET BUTTON
- Instantly Resets the Built-In Safety
Alarm Siren
MAXIMUM RUN TIMER
- Protects Against Damage to the Gate and
Operator by Limiting the Unit’s Run Time
to 120 Seconds
INHERENT REVERSING SENSOR
- Detects Obstructions and Reverses Gate When
Closing or Stops/Reverses Gate When Opening
For Support Tools and Training Videos, Visit
LiftMasterTraining.com
For More Information on Gate Operators, Visit
LiftMaster.com/UL325Gates
To Find the Right Perimeter Access Solution
for You, Visit
LiftMaster.com/Solution-Generator
Sales Support: 800.282.6225
Technical Support Center: 800.528.2806
To Order: 800.323.2276
381327 LMPAENPGSL585_F.indd 2 5/2/18 10:43 PM
Extreme heavy-duty operator for industrial locations.
AC HEAVY-DUTY INDUSTRIAL SLIDE
GATE OPERATOR
PRODUCT GUIDE SL595UL
AC HEAVY-DUTY INDUSTRIAL SLIDE
GATE OPERATOR
P
R
O
D
U
C
T
H
I
G
H
L
I
G
H
T
SAFE
AND
SECURE
COMMERCIAL GEAR-DRIVEN TRANSMISSION PROVIDES
UNSURPASSED RELIABILITY.
HEAVY-DUTY STEEL LOCKABLE NEMA 3R ENCLOSURE: OIL-TIGHT,
WEATHERPROOF CABINET WITHSTANDS EXTREME AND HARSH ENVIRONMENTS.
SURGE SUPPRESSION PROVIDES INDUSTRIAL SURGE AND LIGHTNING PROTECTION
AGAINST STRIKES UP TO 50 FEET AWAY.
WARRANTY 2 YEARS.
RELIABLE
MyQ
®
TECHNOLOGY ENABLES YOU TO SECURELY CONTROL AND MONITOR
YOUR GATE OPERATOR FROM ANYWHERE.
SIMPLIFIED MOUNTING AND WIRING ROUTING FOR EASIER INSTALLATIONS.
SMART
SL595UL
HEAVY-DUTY,
Industrial Lockable
Metal Cover
PLUG-IN LOOP DETECTOR
Prevents the gate from closing on a
vehicle in the path; power efficient for
maximum cycles on Battery Backup.
EL2000SS
TELEPHONE ENTRY FOR
COMMERCIAL APPLICATIONS
AND GATED COMMUNITIES
Mid-capacity telephone entry access
control system with Versa XS 4.0 software.
INCLUDED ACCESSORIES:
LMRRUL
SAFETY ADD-ONS:
LMWEKITU EDGES
MONITORED SAFETY
ENTRAPMENT EDGES
Full line of Small, Large and Wraparound
Profile Edges that sense obstructions.
LMTBUL
11600
IN-GROUND TRAFFIC SPIKE
SECTION (6 FT.)
Standard-duty, in-ground manual
traffic spikes. 6 ft. sections come in
different finishes.
TOTAL SOLUTION ACCESSORIES:
MONITORED SMALL
PROFILE RESISTIVE EDGE
Pressure-sensitive edge stops and/or
reverses gate when obstructed.
S505AL
LOOPDETLM
SECURITY+ 2.0
®
SAFEGUARDS ACCESS WITH AN ENCRYPTED TRI-BAND SIGNAL
TO VIRTUALLY ELIMINATE INTERFERENCE AND OFFER EXTENDED RANGE.
MANUAL DISCONNECT WHEN UNLOCKED ALLOWS GATE TO BE
OPERATED MANUALLY.
QUICK CLOSE AND ANTI-TAILGATE QUICKLY SECURE PROPERTY, PREVENTING
UNAUTHORIZED ACCESS.
INHERENT REVERSING SENSOR DETECTS OBSTRUCTIONS AND REVERSES GATE
WHEN CLOSING OR STOPS/REVERSES THE GATE WHEN OPENING.
MECHANICAL BRAKING SYSTEM: THIS SOLENOID-ACTUATED BRAKE SYSTEM
ADDS SUBSTANTIAL GATE POSITION CONTROL AT ALL POINTS IN TRAVEL AND
PREVENTS THE GATE FROM BEING BACK DRIVEN.
MONITORED RETRO-
REFLECTIVE PHOTO EYE
Enhanced retro-reflective photo eye now
with heater and wider polarized beam,
engineered to stay aligned; max.
range: 50 ft.
MONITORED THROUGH-
BEAM PHOTO EYES
Enhanced through-beam now with wider
polarized beam and heater for high
performance in most environments; max.
range: 90 ft.
MONITORED WIRELESS EDGE KIT
Low-energy Bluetooth
®
connection
between a LiftMaster Monitored
Resistive Edge and the gate operator;
max. range: 130 ft.*
*Wireless kit for up to 4 transmitters and 2 resistive
edges per transmitter.
381327 LMPAENPGSL595_F.indd 1 5/2/18 7:19 PM
GATE
TRAVEL
SPEED
per second
12"
HP Max. Gate
WT. (lbs.)
Max. Gate
Width (ft.)
(Overhead/V-Groove)
Max. Gate
Width (ft.)
(Cantilever)
Cycles/HR
1 1,700 70 35 25
1 1/2
2
2,100
2,500
80
90
40
45
25
25
CAPACITIES
SUPPORT.
SL595UL
AC HEAVY-DUTY
INDUSTRIAL SLIDE GATE
OPERATOR
MASTERFUL ENGINEERING.
- High-Starting Torque Continuous-Duty Motor (Available in 1,
1 1/2 and 2 HP)
- Operator Duty Rating: 25 Cycles per Hour
- Wormgear Reduction: 20:1 Wormgear Reducer
- Mechanical Limit System: Maintains Accurate Gate Position
Throughout Travel, Even After Using Manual Disconnect
- Adjustable Friction Clutch: Helps to Protect Gate and Operator
from Damage Should the Gate Meet an Obstruction
- Chain: #50 Nickel-Plated (25 ft. Supplied)
- Metal Frame: 7-Gauge Pre-Galvanized Steel
- Maximum Run Timer: Protects Against Damage to the Gate and
Operator by Limiting the Unit’s Run Time to 120 Seconds
- Cover: Powder-Coated, Pre-Galvanized 16-Gauge Steel Oil-Tight,
Weatherproof NEMA 3R Lockable Cabinet
- UL
®
Usage Classification: I, II, III and IV
- Operator Weight: 270 lbs.
MECHANICS
- 115/208/230VAC Single-Phase; 208/230/460/575VAC 3-Phase
(575V Includes Factory-Installed Heater)
- Accessory Power: 24VDC 500mA Max.
- Dual-Voltage Connections: Increase Flexibility by Enabling the
Installer to Select the Required Voltage, Within Phase, to Meet
Job-Site Requirements
POWER
COMMERCIAL-GRADE DESIGN
STANDARD FEATURES.
© 2018 LiftMaster All Rights Reserved
300 Windsor Drive, Oak Brook, IL 60523
LiftMaster.com
UL
®
and the UL logo are trademarks of UL LLC © 2018 All Rights Reserved.
© 2018 Bluetooth SIG, Inc. All rights reserved.
HomeLink
®
and the HomeLink House
®
logo are registered trademarks of Gentex Corporation
LMPAENPGSL595 5/18
PRE-MOTION WARNING ALARM
- Activates On-Board Alarm 3 Seconds
Prior to Gate Motion
EXTERNAL ALARM RESET BUTTON
- Instantly Resets the Built-In Safety
Alarm Siren
MONITORED SAFETY INPUTS
- 3 Main Board, 3 Expansion Board
SECURITY+ 2.0
®
ON-BOARD
RADIO RECEIVER
- Tri-Band 310/315/390 MHz Frequency
- Up to 50 Remote Controls (Unlimited
with 811LM/813LM)
LED DIAGNOSTIC DISPLAY
- Simplifies Installation and
Troubleshooting
PROGRAMMABLE AUXILIARY RELAYS
- Make Adding Additional Features Easy
HOMELINK
®
COMPATIBLE
- Version 4.0 or Higher*
WITHOUT HEATER
-4°F (-20°C) to 140°F (60°C)
WITH OPTIONAL HEATER
(HTRNB—HTR460 FOR 460V OPERATORS)
-40°F (-40°C) to 140°F (60°C)
TEMPERATURE SPECIFICATIONS
For Support Tools and Training Videos, Visit
LiftMasterTraining.com
For More Information on Gate Operators, Visit
LiftMaster.com/UL325Gates
To Find the Right Perimeter Access Solution
for You, Visit
LiftMaster.com/Solution-Generator
Sales Support: 800.282.6225
Technical Support Center: 800.528.2806
To Order: 800.323.2276
*May require an external adapter depending on the model and year
of your vehicle. Visit HomeLink.com for additional information.
381327 LMPAENPGSL595_F.indd 2 5/2/18 7:20 PM
P
R
O
D
U
C
T
H
I
G
H
L
I
G
H
T
INTEGRATED
DIAGNOSTICS
with Our 2018 UL
®
325 Gate Operators
Photo eye and reflector with polarized beam.
MONITORED PHOTO EYES
PRODUCT GUIDE LMRRUL/LMTBUL
MONITORED PHOTO EYES
SECURE MOUNTING HARDWARE FOR VERSATILE PERFORMANCE IN HARSH
APPLICATIONS.
HOODS INCLUDED FOR DURABILITY AND SHIELD FROM ELEMENTS.
NEMA 4X RATED FOR SUPERIOR WEATHER RESISTANCE.
UL RECOGNIZED: TESTED AND EVALUATED BY UL AND MEET UL 325
REQUIREMENTS.
SAFE
AND
SECURE
VERSATILE SOLUTION FOR ENTRAPMENT PROTECTION.
LONG-RANGE SENSING DISTANCE OF UP TO 50 FT. (LMRRUL)
OR 90 FT. (LMTBUL).
BUILT-IN HEATER FOR DEPENDABLE PERFORMANCE IN MOST
ENVIRONMENTS.
INCREASED BEAM ANGLE FOR SIMPLE, RELIABLE ALIGNMENT.
VERSATILE GIMBLE BRACKET FOR FINE ALIGNMENT AND ADJUSTABILITY.
WARRANTY 2 YEARS.
RELIABLE
ALIGNMENT STRENGTH INDICATOR SIGNALS OPTIMAL BEAM ALIGNMENT.
MULTI-VIEW LED LIGHTS INDICATE SENSOR STATUS,
SIMPLIFYING INSTALLATION.
WIRELESS NETWORK CAPABILITY ELIMINATES THE NEED TO WIRE BETWEEN
OPERATORS IN DUAL-GATE APPLICATIONS (LMTBUL).
SMART
LMRRUL/LMTBUL
*Wireless kit for up to 4 resistive edge transmitters
and 2 resistive edges per transmitter.
S505AL EDGES
MONITORED SAFETY
ENTRAPMENT EDGES
Full line of Small, Large and Wraparound
Profile Edges that sense obstructions.
SAFETY ADD-ONS:
TOTAL SOLUTION ACCESSORIES:
MONITORED SMALL PROFILE
RESISTIVE EDGE
Pressure-sensitive edge stops and/or
reverses gate when obstructed.
LMWETXU
MONITORED WIRELESS EDGE
TRANSMITTER
Features 2 unique configurable open/
close edge inputs to expand protection of
your system up to 8 entrapment zones.
KPW5
WIRELESS KEYPAD
Provides constant pressure override to
control gate operator if safety devices
fault yet are free of obstructions. Hold
Open/Party Pass enabled with gate
operator firmware 4.2 or higher.
LMWEKITU
MONITORED WIRELESS EDGE KIT
Low-energy Bluetooth
®
connection
between a LiftMaster Monitored
Resistive Edge and the gate operator;
max. range: 130 ft.*
381327 LMGTCAMEST_F.indd 1 5/2/18 10:39 PM
LMRRUL/LMTBUL
MONITORED PHOTO EYES
MASTERFUL ENGINEERING.
- Stainless-Steel Sensor Hood
- Durable Polycarbonate Reflector Hood
- Powder-Coated Galvanized Mounting Brackets
- LMRR UL: 3.3 lbs.
- LMTBUL: 4.3 lbs.
QUALITY-GRADE DESIGN
STANDARD FEATURES.
© 2018 LiftMaster All Rights Reserved
300 Windsor Drive, Oak Brook, IL 60523
LiftMaster.com
UL
®
and the UL logo are trademarks of UL LLC
© 2018 All Rights Reserved.
© 2018 Bluetooth SIG, Inc. All rights reserved.
LMGTCAMEST 5/18
SUPPORT.
For Support Tools and Training Videos, Visit
LiftMasterTraining.com
For More Information on Gate Operators, Visit
LiftMaster.com/UL325Gates
To Find the Right Perimeter Access Solution for
You, Visit
LiftMaster.com/Solution-Generator
Sales Support: 800.282.6225
Technical Support Center: 800.528.2806
To Order: 800.323.2276
INPUT VOLTAGE AND CURRENT DRAW
Sensor:
- Black/Red Wires: 6.8V DC, 20mA
Heater:
- Green/White Wires: 10–40V DC or
8–28V AC, 2 Watts Max., 170mA at
120V DC/AC, 85mA at 24V DC/AC
MONITORING TECHNOLOGY
- Pulsed System
INTERFACE
- 4-Wire Connection (2 for Eye; 2
for Heater)
SENSOR COMPATIBILITY
- LMRR UL Emitter Is Not
Interchangeable with LMTBUL Emitter
INCLUDES
- Brackets, Hardware and 10 ft. Wire
and Hoods
*LMRRUL and LMTBUL sensor dimensions are similar, but the 2
products are not compatible with each other.
-40°F (-40°C) to 149°F (65°C)
TEMPERATURE SPECIFICATIONS
DIAGNOSTICS
Solid Blue—Optimal Alignment
Blinking Blue—LED Blinks Faster to Indicate
Near Alignment
Solid Red—Misaligned or Obstructed
Solid Blue—Power On
Solid Blue—Optimal Alignment
Blinking Blue—LED Blinks Faster to Indicate
Near Alignment
Solid Red—Misaligned or Obstructed
LMRRUL
:
LMTBUL:
Emitter:
Receiver
:
Cover:
Weight:
Reflector with Hood
Photo Eye with Hood*
[Photo Eye without Hood: 4.56" H x 2.35" W x 1.97" D]
381327 LMGTCAMEST_F.indd 2 5/2/18 10:39 PM
Small profile and large profile monitored resistive edges.
MONITORED RESISTIVE STANDARD EDGES
PRODUCT GUIDE L50/L504AL/L505AL/
L506AL S50/S504AL/S505AL/S506AL
MONITORED RESISTIVE STANDARD EDGES
P
R
O
D
U
C
T
H
I
G
H
L
I
G
H
T
PRESSURE-SENSITIVE EDGE SENDS SIGNAL TO STOP AND/OR REVERSE
GATE OPERATION WHEN SENSING OBSTRUCTIONS.
UL RECOGNIZED: TESTED AND EVALUATED BY UL AND MEET UL 325
REQUIREMENTS.
SAFE
AND
SECURE
VERSATILE SOLUTION FOR VIRTUALLY ANY ENVIRONMENT.
WARRANTY 2 YEARS.
RELIABLE
HIGHLY COMPATIBLE WITH WIRELESS OR HARDWIRED GATE APPLICATIONS.
LARGE PROFILE EDGES OFFER AN ADDITIONAL CONTACT SURFACE.
SMALL PROFILE EDGES ARE IDEAL FOR LOW-CLEARANCE APPLICATIONS.
FIXED OR CUSTOMIZABLE LENGTHS ARE AVAILABLE FOR PRECISION
INSTALLATION AND PROTECTION.
INTEGRATED DIAGNOSTICS WITH LIFTMASTER
®
UL
®
325 GATE OPERATORS
TO SPEED INSTALL AND TROUBLESHOOTING.
SMART
CUSTOMIZABLE
OR FIXED LENGTHS
for Use in Any
Application
L50/L504AL/L505AL/L506AL
S50/S504AL/S505AL/S506AL
*Wireless kit for up to 4 resistive edge transmitters
and 2 resistive edges per transmitter.
S505AL EDGES
MONITORED SAFETY
ENTRAPMENT EDGES
Full line of Small, Large and Wraparound
Profile Edges that sense obstructions.
TOTAL SOLUTION ACCESSORIES:
MONITORED SMALL PROFILE
RESISTIVE EDGE
Pressure-sensitive edge stops and/or
reverses gate when obstructed.
LMWETXU
MONITORED WIRELESS EDGE
TRANSMITTER
Features 2 unique configurable open/
close edge inputs to expand protection of
your system up to 8 entrapment zones.
KPW5
WIRELESS KEYPAD
Provides constant pressure override to
control gate operator if safety devices
fault yet are free of obstructions. Hold
Open/Party Pass enabled with gate
operator firmware 4.2 or higher.
LMWEKITU
MONITORED WIRELESS EDGE KIT
Low-energy Bluetooth
®
connection
between a LiftMaster Monitored
Resistive Edge and the gate operator;
max. range: 130 ft.*
LMTBUL
MONITORED THROUGH-
BEAM PHOTO EYES
Enhanced through-beam now with wider
polarized beam and heater for high
performance in most environments;
max. range: 90 ft.
SAFETY ADD-ONS:
MONITORED RETRO-
REFLECTIVE PHOTO EYE
Enhanced retro-reflective photo eye
now with heater and wider polarized
beam, engineered to stay aligned;
max. range: 50 ft.
LMRRUL
381327 LMGTCAMEFX_F.indd 1 5/2/18 9:03 PM
L50/L504AL/L505AL/L506AL
S50/S504AL/S505AL/S506AL
MONITORED RESISTIVE STANDARD EDGES
MASTERFUL ENGINEERING.
CUSTOMIZE YOUR OWN LIFTMASTER MONITORED
RESISTIVE STANDARD EDGE
© 2018 LiftMaster All Rights Reserved
300 Windsor Drive, Oak Brook, IL 60523
LiftMaster.com
UL
®
and the UL logo are trademarks of UL LLC
© 2018 All Rights Reserved.
© 2018 Bluetooth SIG, Inc. All rights reserved.
LMGTCAMEFX 5/18
1. CHOOSE THE PROFILE THAT FITS
YOUR APPLICATION NEEDS.
3. SELECT THE MOUNTING CHANNEL.
(Fits Large and Small Profile Edges)
2. PICK THE END CAPS.
Only LiftMaster Monitored Photo Eyes or Edge Sensors may be
used with LiftMaster operators to meet UL
®
325 Standards.
- Outdoor Rating: IP65
- Material: TPE Rubber
- Compatibility: All LiftMaster
®
Gate Operators with Burgundy
Boards, Wireless Edge Kit (LMWEKITU) and Monitored Wireless
Edge Transmitter (LMWETXU) Only
- Electrical Capacity: 24V 100mA
- Electrical Diagram: 2-Wire N.0. Configuration
POWER
QUALITY-GRADE DESIGN
Large Profile Edge 82 ft. Roll (L50)
Small Profile Edge 82 ft. Roll (S50)
Aluminum Channel 10 ft. (L50CHAL)
• 0.55" H x 1" W
• Pack of 8
Plastic Channel 8 ft. (L50CHP)
• 0.55" H x 1" W
• Pack of 10
End Caps for L50 and S50 (L50E, S50E)
• Universal 2-Wire Configuration
• Pack of 10 Pairs
Assemble edge within minutes with easy
plug-in system; no glue is required.
-40°F (-40°C) to 149°F (65°C)
TEMPERATURE SPECIFICATIONS
SHIPPING WEIGHT
L50 and S50:
L504AL: 2.8 lbs. S504AL: 2.5 lbs.
50 lbs. L505AL: 3.4 lbs. S505AL: 3.1 lbs.
L506AL: 4.1 lbs. S506AL: 3.7 lbs.
SUPPORT.
For Support Tools and Training Videos, Visit
LiftMasterTraining.com
For More Information on Gate Operators, Visit
LiftMaster.com/UL325Gates
To Find the Right Perimeter Access Solution
for You, Visit
LiftMaster.com/Solution-Generator
Sales Support: 800.282.6225
Technical Support Center: 800.528.2806
To Order: 800.323.2276
- L504AL: 4 ft.
- L505AL: 5 ft.
- L506AL: 6 ft.
- S504AL: 4 ft.
- S505AL: 5 ft.
- S506AL: 6 ft.
EDGE LENGTH:
Large Profile Edge
Small Profile Edge
381327 LMGTCAMEFX_F.indd 2 5/2/18 9:03 PM
P
R
O
D
U
C
T
H
I
G
H
L
I
G
H
T
WIRELESS
CONNECTION
to Easily Expand
Entrapment Zone
Protection
Monitored Wireless Edge Kit and Monitored Wireless Edge Transmitter.
MONITORED WIRELESS EDGE SYSTEM
S505ALLMTBUL
MONITORED THROUGH-
BEAM PHOTO EYES
Enhanced through-beam now with wider
polarized beam and heater for high
performance in most environments;
max. range: 90 ft.
SAFETY ADD-ONS:
TOTAL SOLUTION ACCESSORIES:
PRODUCT GUIDE LMWEKITU/LMWETXU
MONITORED WIRELESS EDGE SYSTEM
MONITORED SMALL PROFILE
RESISTIVE EDGE
Pressure-sensitive edge stops and/or
reverses gate when obstructed.
PRESSURE-SENSITIVE EDGE SENDS SIGNAL TO STOP AND/OR REVERSE GATE
OPERATION WHEN SENSING OBSTRUCTIONS.
FLEXIBLE EXPANSION ENSURES PROTECTION OF UP TO 8 ENTRAPMENT
ZONES (LMWETXU).
UL RECOGNIZED: TESTED AND EVALUATED BY UL AND MEETS UL 325
REQUIREMENTS.
SAFE
AND
SECURE
VERSATILE SOLUTION FOR VIRTUALLY ANY ENVIRONMENT.
BLUETOOTH
®
TECHNOLOGY PROVIDES INDUSTRY-LEADING POWER
EFFICIENCY FOR 2-YEAR BATTERY LIFE.
LOW-BATTERY INDICATOR SIGNALS WHEN REPLACEMENT IS NEEDED.
NEMA 4X RATED TO WITHSTAND TOUGH OUTDOOR ENVIRONMENTS.
WARRANTY 2 YEARS.
RELIABLE
MULTICHANNEL BLUETOOTH TRANSMISSION ELIMINATES INTERFERENCE
AND PROVIDES UP TO 130 FT. RANGE.
HIGH-CAPACITY EDGE RECEIVER ACCEPTS UP TO 4 TRANSMITTERS, AND
EACH TRANSMITTER ACCEPTS UP TO 2 WIRED EDGES.
WIRELESS TRANSMITTER FEATURES 2 UNIQUE CONFIGURABLE OPEN/CLOSE
EDGE INPUTS.
FAST AND EASY TO PAIR TRANSMITTER AND RECEIVER VIA SMART BUTTON.
NON-POLARIZED EDGE INPUTS FOR EASE OF INSTALLATION.
INTEGRATED DIAGNOSTICS WITH LIFTMASTER
®
UL
®
325 GATE OPERATORS
TO SPEED INSTALL AND TROUBLESHOOTING.
SMART
LMWEKITU/LMWETXU
MONITORED RETRO-
REFLECTIVE PHOTO EYE
Enhanced retro-reflective photo eye
now with heater and wider polarized
beam, engineered to stay aligned;
max. range: 50 ft.
LMRRUL EDGES
MONITORED SAFETY
ENTRAPMENT EDGES
Full line of Small, Large and Wraparound
Profile Edges sense obstructions.
KPW5
WIRELESS KEYPAD
Provides constant pressure override to
control gate operator if safety devices
fault yet are free of obstructions. Hold
Open/Party Pass enabled with gate
operator firmware 4.2 or higher.
381327 LMGTCAMEKT_F.indd 1 5/2/18 6:56 PM
LMWEKITU/LMWETXU
MONITORED WIRELESS EDGE SYSTEM
MASTERFUL ENGINEERING.
- Long-Range Sensing Distance: 130 ft. (39.6 m)
- Outdoor Rating: NEMA 4X
- Diagnostics: Integrated with Our UL
®
325 Gate Operators
- Compatibility: All LiftMaster
®
Gate Operators with Burgundy
Boards and LiftMaster Monitored Resistive Edges Only
- LMWEKITU: 3.3 lbs.
- LMWETXU: 0.9 lbs.
QUALITY-GRADE DESIGN
STANDARD FEATURES.
© 2018 LiftMaster All Rights Reserved
300 Windsor Drive, Oak Brook, IL 60523
LiftMaster.com
UL
®
and the UL logo are trademarks of UL LLC
© 2018 All Rights Reserved.
© 2018 Bluetooth SIG, Inc. All rights reserved.
LMGTCAMEKT 5/18
VOLTAGE
- 6.8V DC (LMWEKITU)
INTERFACE
- 2-Wire Connection
SOLAR COMPATIBILITY
- 12mA Power Draw
LOW-POWER INDICATOR
- Gate Operator Beeps Twice When
Transmitter Battery Is Low
INCLUDES
- LMWEKITU: (1) Transmitter, (1)
Receiver, (2) AA Lithium Batteries,
(1) Interface Board, Mounting
Bracket Hardware
- LMWETXU: (1) Transmitter, (2) AA
Lithium Batteries, Mounting
Bracket Hardware
BATTERY
- Two-Year-Life (AA) Lithium Battery
WIRING:
LMWEKITU
Receiver Connects Directly to Main or
Expansion Board (Harness Included); Does Not
Require Separate Power
CURRENT DRAW:
LMWEKITU
Receiver: 5.8mA for a 24V System; 12.0mA for
a 12V System
LMWETXU
N/A
LMWETXU
Connects Resistive Edges to Open/Close Edge
Inputs on Transmitter; Polarity Not Important
When Wiring Edges
-40°F (-40°C) to 149°F (65°C)
TEMPERATURE SPECIFICATIONS
DIAGNOSTICS
Weight:
SUPPORT.
For Support Tools and Training Videos, Visit
LiftMasterTraining.com
For More Information on Gate Operators, Visit
LiftMaster.com/UL325Gates
To Find the Right Perimeter Access Solution
for You, Visit
LiftMaster.com/Solution-Generator
Sales Support: 800.282.6225
Technical Support Center: 800.528.2806
To Order: 800.323.2276
Red—Flashes if Edge Is Contacted or Obstructed
Blue—Powered
Red—Flashes if Edge Is Contacted or Obstructed;
Solid During Learn Process
Red—Flashes if Contacted or Obstructed
LMWEKITU
Transmitter:
LMWETXU
Transmitter
:
Receiver:
381327 LMGTCAMEKT_F.indd 2 5/2/18 6:56 PM
P
R
O
D
U
C
T
H
I
G
H
L
I
G
H
T
EASY TO
SECURE
to a Round or
Square Post without
Adding a Channel
Round and square profile.
MONITORED RESISTIVE
WRAPAROUND EDGES
LMWEKITU LMWETXU
PRODUCT GUIDE WR4/WR5/WR6/
WS4/WS5/WS6
MONITORED RESISTIVE WRAPAROUND EDGES
MONITORED WIRELESS EDGE KIT
Low-energy Bluetooth
®
connection
between a LiftMaster Monitored
Resistive Edge and the gate operator;
max. range: 130 ft.*
MONITORED WIRELESS
EDGE TRANSMITTER
Features 2 unique configurable open/
close edge inputs to expand protection of
your system up to 8 entrapment zones.
PRESSURE-SENSITIVE EDGE SENDS SIGNAL TO STOP AND/OR REVERSE
GATE OPERATION WHEN SENSING OBSTRUCTIONS.
UL RECOGNIZED: TESTED AND EVALUATED BY UL AND MEET UL 325
REQUIREMENTS.
SAFE
AND
SECURE
VERSATILE SOLUTION FOR VIRTUALLY ANY ENVIRONMENT.
WARRANTY 2 YEARS.
RELIABLE
HIGHLY COMPATIBLE WITH WIRELESS OR HARDWIRED SLIDE
GATE APPLICATIONS.
INTEGRATED DIAGNOSTICS WITH LIFTMASTER
®
UL
®
325 GATE
OPERATORS TO SPEED INSTALL AND TROUBLESHOOTING.
SMART
WR4/WR5/WR6/WS4/WS5/WS6
*Wireless kit for up to 4 resistive edge
transmitters and 2 resistive edges per transmitter.
LMTBUL
MONITORED THROUGH-
BEAM PHOTO EYES
Enhanced through-beam now with wider
polarized beam and heater for high
performance in most environments;
max. range: 90 ft.
SAFETY ADD-ONS:
TOTAL SOLUTION ACCESSORIES:
MONITORED RETRO-
REFLECTIVE PHOTO EYE
Enhanced retro-reflective photo eye
now with heater and wider polarized
beam, engineered to stay aligned;
max. range: 50 ft.
LMRRUL KPW5
WIRELESS KEYPAD
Provides constant pressure override to
control gate operator if safety devices
fault yet are free of obstructions. Hold
Open/Party Pass enabled with gate
operator firmware 4.2 or higher.
381327 LMGTCAMESW_F.indd 1 5/2/18 9:00 PM
WR4/WR5/WR6/WS4/WS5/WS6
MONITORED RESISTIVE WRAPAROUND EDGES
© 2018 LiftMaster All Rights Reserved
300 Windsor Drive, Oak Brook, IL 60523
LiftMaster.com
UL
®
and the UL logo are trademarks of UL LLC
© 2018 All Rights Reserved.
© 2018 Bluetooth SIG, Inc. All rights reserved.
LMGTCAMESW 5/18
SUPPORT.
Only LiftMaster Monitored Photo Eyes or Edge Sensors may be
used with LiftMaster operators to meet UL
®
325 Standards.
Wraparound Edges can be used with slide gate applications only.
- Outdoor Rating: IP65
- Material: TPE Rubber
- Compatibility: All LiftMaster
®
Gate Operators with Burgundy
Boards, Wireless Edge Kit (LMWEKITU) and Wireless Edge
Transmitter (LMWETXU) Only
- WR4 and WS4: 8.8 lbs.
- WR5 and WS5: 11 lbs.
- WR6 and WS6: 13.2 lbs.
- WR4 and WS4: 4 ft.
- WR5 and WS5: 5 ft.
- WR6 and WS6: 6 ft.
- Cable Length: 39 in.
- Electrical Capacity: 24V 100mA
- Electrical Diagram: 2-Wire N.0. Configuration
POWER
QUALITY-GRADE DESIGN
Square Profile (for 2 in. Square Posts):
3.8" x 2.6"
Round Profile (for 1.6–2.3 in. Round Posts):
3.8" x 2.8"
-40°F (-40°C) to 149°F (65°C)
TEMPERATURE SPECIFICATIONS
SHIPPING WEIGHT:
EDGE LENGTH:
For Support Tools and Training Videos, Visit
LiftMasterTraining.com
For More Information on Gate Operators, Visit
LiftMaster.com/UL325Gates
To Find the Right Perimeter Access Solution for
You, Visit
LiftMaster.com/Solution-Generator
Sales Support: 800.282.6225
Technical Support Center: 800.528.2806
To Order: 800.323.2276
381327 LMGTCAMESW_F.indd 2 5/2/18 9:00 PM
✓
=
Compatible
Tri-Band
=
Delivered on 310/390/315 MHz
Operator Manufacture Year:
Frequency Code:
1993-Present
DIP Capable
1993-1995
Billion Code
390MHz
1996-2005
Security+
®
2006-2014
Security+
315MHz
2012+
Security+2.0
®
2018 UL 325 Compliant Gate Operators
LA400PKGUL, LA412PKGUL, LA500PKGUL, RSL12UL, RSW12UL,
CSL24UL, CSW24UL, CSW200UL, SL3000UL, SL585UL, SL595UL,
HCTDCUL
✓811LM Tri-Band
✓(Q3 2018)
2016 UL 325 Compliant Gate Operators
with On-Board Receiver
LA400PKGU
•
LA412PKGU
•
LA500PKGU
•
RSL12U, RSW12U
CSL24U
•
CSW24U
•
CSW200
•
SL3000
•
SL585
•
SL595
•
HCTDCU
✓811LM Tri-Band ✓(Q4 2015)
Discontinued Gate Operators
2014 Gate Operators with On-Board Receiver
LA4001PKGDC, LA4121PKGDC, LA5001PKGDC
•
RSL12VDC,
RSW12VDC, CSL24VDC, CSW24VDC
✓811LM Tri-Band ✓2014
Gate Operators with 850LM Radio Hard Wired in
SL3000UL8, CSW200UL8
•
SL585, SL595
•
HCT
BG, MAT, MAST, MA, MAS
✓811LM Tri-Band ✓
Miracle One™, LA100
•
SW420, SW470, SW490
•
MSW, MSL,
MSLX, SL575, SL930, VSL595
•
HS670
Operators with 312HM Receiver Built-In Models End in G3, UL3, or H3.
Operators with 412HM Receiver Built-In Models End in G, UL, or H.
✓
361LM - 315 MHz
✓61LM - 390 MHz
✓
412HM
✓
312HM
CAME by LiftMaster BX243* FROG * FERNI
✓811LM Tri-Band ✓
Gate Operators with On-Board Receiver
LA400, LA412 - RSL12V, RSW12V
✓361LM
✓
LA500 - CSW200UL8, SL3000UL8 - CSL24V, CSW24V
✓811LM Tri-Band ✓
Receivers
STAR1000 Commercial Access Control Receiver
✓811LM Tri-Band ✓
860LM Weather-Tight Universal Receiver
✓811LM Tri-Band ✓
390MHz 310, 315, 390MHz
GATE OPERATOR RADIO TECHNOLOGY COMPATIBILITY CHART
See Radio Accessories on the reverse side.
LMACENCTRCAP 4/18
381327 LMACENCTRCAP_F.indd 1 5/2/18 8:23 PM
Technology Available/Manufacture Year:
Frequency Code:
1993-Present
DIP Capable
1993-1995
Billion Code
390MHz
1996-2005
Security+
®
2006-2014
Security+
315MHz
2012+
Security+2.0
®
390MHz 310, 315, 390MHz
892LT 2-Button Learning Remote Control
✓Clones
61LM, 361LM, 811LM
✓ ✓ ✓
894LT 4-Button Learning Remote Control
✓Clones
61LM, 361LM, 811LM
✓ ✓ ✓
811LM 1-Button DIP Style Remote Control
✓2012 - Present
813LM 3-Button DIP Style Remote Control
✓2012 - Present
891LM 3-Button Remote Control
893MAX 3-Button Remote Control
✓ ✓ ✓ ✓
371LM 1-Button Remote Control
✓
373LM 3-Button Remote Control
✓
375UT 2-Button Universal Remote Control
✓1993-2012 ✓ ✓ ✓ ✓
61LM 1-Button Remote Control (DIP Coded)
✓390 MHz
1993-2005
✓
361LM 1-Button Remote Control (DIP Coded)
✓315 MHz
2006-2015
✓
PPV3M 3-Button Passport MAX Visor Remote Control
✓
PPLV1-10/PPLV1-100 1-Button Passport Lite Visor Remote Control
✓
KEYCHAIN REMOTE CONTROLS
890MAX 3-Button Mini Remote Control
✓ ✓ ✓ ✓
374UT Mini Universal Remote Control
✓ ✓ ✓ ✓
PPK3M 3-Button Passport MAX Mini Keychain Remote Control
✓ ✓ ✓
PPLK1-10/PPLK1-100 1-Button Passport Lite Mini Keychain Proximity
Remote Control
✓
PPK3PHM 3-Button Passport MAX Mini Keychain Proximity Remote Control
✓ ✓ ✓
PPLK1PH-10/PPLK1PH-100 1-Button Passport Lite Mini Keychain
Proximity Remote Control
✓
WIRELESS KEYLESS SYSTEM
877MAX Wireless Keyless Entry
✓ ✓ ✓ ✓
877LM Wireless Keyless Entry
✓
KPW250 Wireless Commercial Keypad (250 Code)
✓ ✓ ✓
KPW5 Wireless Commercial Keypad (5 Code)
✓
381327 LMACENCTRCAP_F.indd 2 5/2/18 8:23 PM
SOLAR GATE CYCLES
PER DAY
REFERENCE GUIDE
LiftMaster Solar Gate Operators feature a best-in-class
power management system that delivers power when
needed most to operate the gate while minimizing power
consumption at all other times. Power is provided to the
gate operator via batteries. The batteries are charged
from a solar panel(s) connected to the operator. The
number of solar panels required is determined by whether
the application is for a single or dual-gate, daily cycle
rate, control board current consumption by feature and
accessory, and region of the country.
Solar panel(s) must be located in an open area clear of
obstructions and shading for the entire day. Snow, heavy
fog or heavy rain affect solar panel performance and
charge rate. Solar panels should be cleaned regularly
to ensure proper operation. LiftMaster Gate Operators
utilizing the solar option in cold weather climates where
temperatures reach below -32°F (0°C) for more than
2 consecutive weeks require 33Ah batteries in lieu of
standard 7Ah batteries. This is due to the effect of cold
weather on batteries and a reduced number of hours of
sunlight during the winter months. (see back page for
details)
HCTDCUL
Solar Gate Cycles Per Day Reference Guide
LA500PKGUL
LA412PKGUL
LA400PKGUL
CSW24UL
CSL24UL
RSW24UL
RSL24UL
LMGTENCTSLGD 4/18
381327 LMGTENCTSLGD_F.indd 1 5/2/18 9:38 PM
Control Board Feature Current Draw (mA)
Main board with no radios learned
2.7
One or more LiftMaster
®
remote controls learned +1
MyQ
®
device or wireless dual-gate learned +2.4
Expansion board +11.1
Per loop detector LOOPDETLM (up to 3 loop detectors
can be plugged in to the expansion board) +3.8
Monitored Wireless Edge Kit (Model LMWEKITU receiver accepts up to (4)
edge transmitters and each transmitter accepts up to (2) wired edges for a
total system of (8) Monitored LiftMaster Edges, (1) receiver per gate operator.)
LA500PKGUL / LA400PKGUL
* Not currently offered in accessory line
** Numbers above for solar daily cycles are representative of wired dual-gate installation. If your installation is a
wireless dual-gate setup use single gate cycle estimate and add in power draw for wireless dual-gate feature.
*** When installing LMRRUL/LMTBUL heater option refer to install manual for cycles and standby time.
LA500PKGUL
7Ah
batteries
33Ah
batteries
7Ah
batteries
33Ah
batteries
7Ah
batteries
33Ah
batteries
7Ah
batteries
33Ah
batteries
7Ah
batteries
33Ah
batteries
7Ah
batteries
33Ah
batteries
552563033111222241314 5 5
15 43 47 23 25 5619 20 10 11
23
20 39 43 19 21 3317 19 8911
40 24 27 68#NUM! #NUM! 10 12 3 3#NUM!#NUM!
60 10 13 #NUM! #NUM!#NUM!#NUM! 4 6#NUM!#NUM! #NUM!#NUM!
5 113 132 67 792732485729341
21
4
15 103 122 59 7020244452253
081
0
20 98 117 54 65162142502328 7 9
50 71 88 30 40 #NUM! 2 30 38 13 17 #NUM
!1
100 29 45 #NUM! 5#NUM! #NUM! 13 19#NUM! 2#NUM!#NUM!
5 212 299 128181 53 759112955 78 23 32
15 201 288118 170 44 66 86 124 51 731
92
9
20 196 282113 165 40 62 84 121 49 711
72
7
100 114 194 41 86 #NUM! 3 49 83 18 37 #NUM
!1
200 27 93 #NUM! 7#NUM! #NUM! 11 40#NUM! 3#NUM! #NUM!
5263300 159286 66120113 203 68 123 2
85
2
15 252 300149 275 57 111 108197 6411825 48
20 246 300143 269 53 106 106195 6211523 45
100 160 300 67 181 #NUM! 35 69 153 29 78#NUM
!1
5
250 24 187 #NUM! 39#NUM!#NUM! 10 80#NUM!17 #NUM! #NUM!
SINGLE GATE SOLAR CYCLES PER DAY
Zone 1
(6 Hrs Sunlight/Day)
Zone 2
(4 Hrs Sunlight/Day)
Zone 3
(2 Hrs Sunlight/Day)
Zone 1
(6 Hrs Sunlight/Day)
Zone 2
(4 Hrs Sunlight/Day)
Zone 3
(2 Hrs Sunlight/Day)
DUAL-GATE SOLAR CYCLES PER DAY
Tot al
System
Current
Draw (mA)
10W* Solar Panel
Note: Must use 24V
Solar Panel
20W Solar Panel
Note: 20W would be
(2) 10W 12V panels
in series
40W Solar Panel
Note: 40W would be
(2) 20W 12V panels
or (4) 10W 12V
panels in series
60W Solar Panel
Note: 60W would be
(6) 10W 12V panels
or (2) 20W 12V & (2)
10W 12V in series
7Ah
batteries
33Ah
batteries
7Ah
batteries
33Ah
batteries
7Ah
batteries
33Ah
batteries
7Ah
batteries
33Ah
batteries
7Ah
batteries
33Ah
batteries
7Ah
batteries
33Ah
batteries
581874751181935372022 8 8
15 68 74 36 39 81029321517 4 4
20 61 68 30 34 4526 29 13 14
22
40 37 43 10 13 #NUM! #NUM! 16 18 4 5#NUM!#NUM!
60 16 21 #NUM! #NUM!#NUM!#NUM! 7 9#NUM!#NUM!#NUM! #NUM!
5 100 100 100100 42 50768945531
82
1
15 100 100 92 100 31 38698239471
31
6
20 100 100 85 100 25 33667936441
11
4
50 100 100 47 63 #NUM! 3 48 59 20 27 #NUM
!1
100 46 70 #NUM! 8#NUM! #NUM! 20 30#NUM! 3#NUM! #NUM!
5100100 100100 83100100 100 86 100 3
55
1
15 100 100100 100 70 100 100100 7910030 45
20 100 100100 100 63 97 100 100 76 100 2
74
2
100 100 100 65100#NUM! 5 77 100 28 58#NUM
!2
200 42 100 #NUM! 11 #NUM! #NUM! 18 63#NUM! 5#NUM!#NUM!
Zone 3
(2 Hrs Sunlight/Day)
Zone 1
(6 Hrs Sunlight/Day)
Zone 2
(4 Hrs Sunlight/Day)
LA400PKGUL SINGLE GATE SOLAR CYCLES PER DAY DUAL-GATE SOLAR CYCLES PER DAY
Zone 3
(2 Hrs Sunlight/Day)
Zone 1
(6 Hrs Sunlight/Day)
Zone 2
(4 Hrs Sunlight/Day)
Tot al
System
Current
Draw (mA)
10W* Solar Panel
Note: Must use 24V
Solar Panel
20W Solar Panel
Note: 20W would be
(2) 10W 12V panels
in series
40W Solar Panel
Note: 40W would be
(2) 20W 12V panels
or (4) 10W 12V
panels in series
60W Solar Panel
Note: 60W would be
(6) 10W 12V panels
or (2) 20W 12V & (2)
10W 12V in series
5
15
20
100
250
100
100
100
100
37
100
100
100
100
100
100
100
100
100
100
100
100
100
61
100
90
83
100
100
100
55
100
100
100
100
16
100
100
100
100
100
100
100
96
45
100
100
100
100
26
44
38
36
81
74
71
24
-
-
Current consumption by control board feature 24V (LA500PKGUL, LA400PKGUL) congurations.
Add up current draw by feature and accessory to determine total current draw.
+5.8
Note: If the additional features on the expansion board are not used, it may be unplugged to conserve additional power draw (11mA)
381327 LMGTENCTSLGD_F.indd 2 5/2/18 9:38 PM
LA412PKGUL
The map and daily cycle rate
shown are approximations based
upon the average solar radiation
and the temperature effects on
batteries in the given regions.
Local geography and weather
conditions may require additional
solar panels. Solar optimized
or wireless accessories are
recommended in order to minimize
power draw, as added accessories
draw power and affect the daily
cycle rate. For full details please
reference the manual.
7Ah
batteries
33Ah
battery
7Ah
batteries
33Ah
battery
7Ah
batteries
33Ah
battery
7Ah
batteries
33Ah
battery
7Ah
batteries
33Ah
battery
7Ah
batteries
33Ah
battery
6 100 100 82 863234596235371
41
5
25 100 100 63 67 17 19 50 53 27 29
78
30 100 100 58 63 14 15 48 51 25 27
67
50 91 98 40 44 1239 42 17 19
11
100 43 49 35#NUM! #NUM! 19 21 12#NUM! #NUM!
6 100 100 100 100 73 82 100 100 76 85 31 35
25 100 100 100 100 55 64 100 100 67 76 24 27
30 100 100 100 100 51 59100 100 65 73 22 25
100 100 100 77 95 #NUM! 3 78 92 33 41 #NUM
!1
200 75 100 #NUM! 7#NUM! #NUM! 32 44#NUM! 3#NUM!#NUM!
6 100 100 100 100 100 100 100 100 100 100 4
75
7
25 100 100 100 100 90 100 100 100 100 100 39 48
30 100 100 100 100 85100 100 100 100 100 37 46
100 100 100 100 100 22 39100 100 66 86
91
7
200 100 100 51 91 #NUM! #NUM! 83 100 22 39 #NUM! #NUM!
Zone 3
(2 Hrs Sunlight/Day)
Zone 1
(6 Hrs Sunlight/Day)
Zone 2
(4 Hrs Sunlight/Day)
LA412PKGUL SINGLE GATE SOLAR CYCLES PER DAY
DUAL-GATE SOLAR CYCLES PER DAY
Zone 3
(2 Hrs Sunlight/Day)
Zone 1
(6 Hrs Sunlight/Day)
Zone 2
(4 Hrs Sunlight/Day)
Tot al
System
Current
Draw (mA)
10W Solar Panel
20W Solar Panel
Note: (2) 10W 12V
panels in parallel or
(1) 20W 12v panel
30W Solar Panel
Note: 30W would be
(3) 10W 12V panels
in parallel or (1)
10W & (1) 20W 12V
panel in parallel
-
Control Board Feature Current Draw (mA)
Main board with no radios learned 4.2
One or more LiftMaster
®
remote controls learned +1.5
MyQ
®
device or wireless dual-gate learned +3.9
Expansion board +18.5
Per loop detector LOOPDETLM (up to 3 loop detectors
can be plugged in to the expansion board) +6.6
Monitored Wireless Edge Kit (Model LMWEKITU receiver accepts up to (4) edge
transmitters and each transmitter accepts up to (2) wired edges for a total system of
(8) Monitored LiftMaster Edges, (1) receiver per gate operator.)
Current consumption by control board feature 12V (LA412PKGUL) congurations.
Add up current draw by feature and accessory to determine total current draw.
+11
Note: If the additional features on the expansion board are not used, it may be unplugged to conserve additional power draw (11mA)
* When installing LMRRUL/LMTBUL heater option refer to install manual for cycles and standby time.
381327 LMGTENCTSLGD_F.indd 3 5/2/18 9:39 PM
7Ah ba ttery
Two 7Ah
batteries
33Ah
battery 7Ah battery
Two 7Ah
batteries
33Ah
battery 7Ah battery
Two 7Ah
batteries
33Ah
battery
6333638192223 8
99
25 27 31 33 15 17 18 455
30 26 29 31 13 15 17 344
50 21 24 26 91112#NUM!
01
100 91113#NUM! 11#NUM! #NUM!#NUM!
6505050374750151
92
2
25 50 50 50 32 41 47 11 15 17
30 50 50 50 30 40 45 91
31
6
100 33 48 50 12 20 25 #NUM! #NUM
!1
200 82027#NUM!#NUM! 2#NUM! #NUM!#NUM!
6505050465050192
93
5
25 50 50 50 40 50 50 14 24 30
30 50 50 50 39 50 50 13 23 28
100 47 50 50 20 41 50 #NUM! 6 10
200 19 50 50 #NUM! 14 24#NUM!#NUM! #NUM!
RSL12UL GATE SOLAR CYCLES PER DAY
Zone 1
(6 Hrs Sunlight/Day)
Zone 2
(4 Hrs Sunlight/Day)
Zone 3
(2 Hrs Sunlight/Day)
Total System
Current Draw
(mA)
10W Solar Panel
20W Solar Panel
Note: (2) 10W 12V panels
or (1) 20W panel
in parallel
30W Solar Panel
Note: 30W would be (3)
10W 12V panels in parallel
or (1) 10W & (1) 20W 12V
panel in parallel
7Ah ba ttery
Two 7Ah
batteries
33Ah
battery 7Ah battery
Two 7Ah
batteries
33Ah
battery 7Ah battery
Two 7Ah
batteries
33Ah
battery
6414648242729101
11
1
25 34 39 41 18 21 22 566
30 33 37 39 17 19 21 455
50 26 30 32 11 13 15 #NUM! 0 1
100 111416#NUM! 12#NUM! #NUM!#NUM!
6505050475050192
42
7
25 50 50 50 40 50 50 13 18 21
30 50 50 50 38 50 50 12 17 20
100 425050152632#NUM!#NUM
!1
200 102534#NUM!#NUM! 2#NUM! #NUM!#NUM!
6505050505050243
74
4
25 50 50 50 50 50 50 18 30 37
30 50 50 50 49 50 50 16 28 35
100 505050255050#NUM! 7 13
200 245050#NUM!17 30 #NUM! #NUM!#NUM!
Zone 1
(6 Hrs Sunlight/Day)
Zone 2
(4 Hrs Sunlight/Day)
Zone 3
(2 Hrs Sunlight/Day)
10W Solar Panel
Total System
Current Draw
(mA)
RSW12UL
GATE SOLAR CYCLES PER DAY
20W Solar Panel
Note: (2) 10W 12V panels
or (1) 20W panel
in parallel
30W Solar Panel
Note: 30W would be (3)
10W 12V panels in parallel
or (1) 10W & (1) 20W 12V
panel in parallel
Control Board Feature Current Draw (mA)
Main board with no radios learned 4.2
One or more LiftMaster
®
remote controls learned +1.5
MyQ
®
device or wireless dual-gate learned +3.9
Expansion board +18.5
Per loop detector LOOPDETLM (up to 3 loop detectors
can be plugged in to the expansion board) +6.6
Current consumption by control board feature 12V (RSW12UL, RSL12UL)
congurations. Add up current draw by feature and accessory to determine
total current draw.
Monitored Wireless Edge Kit (Model LMWEKITU receiver accepts up to (4) edge
transmitters and each transmitter accepts up to (2) wired edges for a total system of
(8) Monitored LiftMaster Edges, (1) receiver per gate operator.)
+11
Note: If the additional features on the expansion board are not used, it may be unplugged to conserve additional power draw (11mA)
RSW12UL / RSL12UL
* When installing LMRRUL/LMTBUL heater option refer to install manual for cycles and standby time.
381327 LMGTENCTSLGD_F.indd 4 5/2/18 9:39 PM
CSW24UL / CSL24UL
7Ah
batteries
33Ah
batteries
7Ah
batteries
33Ah
batteries
7Ah
batteries
33Ah
batteries
519201112 4 5
15 16 17 8922
20 14 16 7811
40 9102 3#NUM!#NUM!
60 45#NUM! #NUM!#NUM! #NUM!
5414825291012
15 38 45 21 26 79
20 36 43 20 24 68
50 26 32 11 15 #NUM! 1
100 1116#NUM! 2#NUM!#NUM!
57811047 66 19 28
15 74 106 43 631624
20 72 104 41 611523
100 42711532#NUM! 1
200 1034#NUM! 2#NUM!#NUM!
59717358 105 24 44
15 92 169 5410121 41
20 90 166 53 991939
100 5913125 67 #NUM! 13
250 968 #NUM! 14#NUM!#NUM!
CSW24UL
GATE SOLAR CYCLES PER DAY
Zone 1
(6 Hrs Sunlight/Day)
Zone 2
(4 Hrs Sunlight/Day)
Zone 3
(2 Hrs Sunlight/Day)
Total
System
Current
Draw (mA)
10W* Solar Panel
Note: Must use
24V Solar Panel
20W Solar Panel
Note: 20W would be (2) 10W
12V panels or (1) 20W 12V
panel in series
40W Solar Panel
Note: 40W would be (4) 10W
12V or (2) 20W 12V panels
in series
60W Solar Panel
Note: (6) 10W 12V or (2)
20W & (2) 10W 12V panels
in series
7Ah
batteries
33Ah
batteries
7Ah
batteries
33Ah
batteries
7Ah
batteries
33Ah
batteries
526281517 6 6
15 22 24 12 13 33
20 20 22 10 11 12
40 12 14 34#NUM! #NUM!
60 57#NUM! #NUM!#NUM! #NUM!
5576734401416
15 52 62 30 36 10 12
20 50 60 28 33 811
50 36 45 15 20 #NUM! 1
100 1523#NUM! 3#NUM!#NUM!
5108152 65 922738
15 103 147 60 87 23 34
20 100 144 58 84 21 32
100 58992144#NUM! 1
200 1447#NUM! 3#NUM!#NUM!
5134240 8114634 61
15 128 234 76 140 29 56
20 125 231 73 137 27 54
100 8218134 92 #NUM! 18
250 1295#NUM! 20 #NUM! #NUM!
Zone 1
(6 Hrs Sunlight/Day)
Zone 2
(4 Hrs Sunlight/Day)
Zone 3
(2 Hrs Sunlight/Day)
Total
System
Current
Draw (mA)
CSL24UL
GATE SOLAR CYCLES PER DAY
10W* Solar Panel
Note: Must use
24V Solar Panel
20W Solar Panel
Note: 20W would be (2) 10W
12V panels or (1) 20W 12V
panel in series
40W Solar Panel
Note: 40W would be (4) 10W
12V or (2) 20W 12V panels
in series
60W Solar Panel
Note: (6) 10W 12V or (2)
20W & (2) 10W 12V panels
in series
Control Board Feature Current Draw (mA)
Main board with no radios learned 2.7
One or more LiftMaster
®
remote controls learned +1
MyQ
®
device or wireless dual-gate learned +2.4
Expansion board +11.1
Per loop detector LOOPDETLM (up to 3 loop detectors
can be plugged in to the expansion board) +3.8
Monitored Wireless Edge Kit (Model LMWEKITU receiver accepts up to (4) edge
transmitters and each transmitter accepts up to (2) wired edges for a total system
of (8) Monitored LiftMaster Edges, (1) receiver per gate operator.)
+5.8
Note: If the additional features on the expansion board are not used, it may be unplugged to conserve additional power draw (11mA)
Current consumption by control board feature 24V (CSW24UL, CSL24UL)
congurations. Add up current draw by feature and accessory to determine
total current draw.
* When installing LMRRUL/LMTBUL heater option refer to install manual for cycles and standby time.
381327 LMGTENCTSLGD_F.indd 5 5/2/18 9:39 PM
HCTDCUL
Add up current draw by feature and accessory to determine total battery current draw.
CONTROL BOARD FEATURE CURRENT DRAW (mA)
Main board with no radios learned 2.7
One or more LiftMaster
®
remote controls learned +1
MyQ
®
device or wireless dual-gate learned +2.4
Expansion board +11.1
Per loop detector LOOPDETLM (up to 3 loop detectors can +3.8
be plugged in to the expansion board)
HCTDCUL
SOLAR CYCLES PER DAY
BATTERY
CURRENT DRAW
(mA)
ZONE 1
(6 HRS SUNLIGHT/DAY)
ZONE 2
(4 HRS SUNLIGHT/DAY)
ZONE 3
(2 HRS SUNLIGHT/DAY)
7 AH BATTERIES 7 AH BATTERIES
7 AH BATTERIES
10W* Solar Panel
NOte: Must Use 24V
Solar Panel
5
15
20
40
60
5
15
20
50
100
5
15
20
100
200
5
15
20
100
200
13
11
20
40
60
29
26
25
18
60
56
54
52
32
60
74
72
70
48
13
17
15
14
18
60
34
31
30
12
60
45
42
41
22
60
14
12
11
22
60
19
17
15
22
60
20W Solar Panel
Note: 20W would be (2) 10W
12V panels in series or
(1) 20W 12V Panel
40W Solar Panel
Note: (4) 10W 12V or (2) 20W
panels in series
60W Solar Panel
Note: (6) 10W 12V or
(2) 20W 12V & (2) 10W 12V
Panels in series
381327 LMGTENCTSLGD_F.indd 6 5/2/18 9:39 PM
LiftMaster Solar Gate Operators are engineered to have low idle current draw including radio
receiver to maximize battery life and solar performance. It is important to note, the following
environmental factors can adversely affect battery performance in solar applications.
· Cold temperature (below 32°F (0°C))
· Snow cover on solar panel
· Reduced hours of sunlight in winter months
In geographic areas that experience cold temperatures below 32°F (0°C) for more than two
weeks in addition to any of the factors listed above, the following steps can be taken to
ensure best performance:
· Replace the standard 7Ah batteries with 33Ah batteries. (For linear actuators, use the
optional XL control box model XLSOLARCONTUL)
· In states adjacent to Canada and Canadian provinces, increase the angle of the solar
panels by an additional 15 degrees (60 degrees total). This will optimize the solar panels
for the winter months and reduce the buildup of snow and ice on the panels.
Important note: Daily cycle rate and standby time will be reduced by at least 50% when
temperatures reach extreme cold temperatures below -4°F (or -20°C) for periods of more
than two weeks.
For best performance during the winter months, snow and ice should be removed from
the solar panel, moving parts on the gate and gate operator. In addition all snow should be
removed from the path of the gate to prevent nuisance reversals.
If heavy amounts of snow are expected over several days, the manual disconnect may
be engaged and the gate left open to allow access and snow removal. Once the snow is
removed, simply reengage the manual disconnect to resume normal operation.
OPTIONAL POWER SUPPLY FOR COLD WEATHER APPLICATIONS
Gate Operator Optional Power Supply
LA500PKGUL, LA412PKGUL, LA400PKGUL XLSOLARCONTUL (2) 33Ah batteries not included)
CSW24UL, CSL24UL (2) 33Ah batteries recommended in lieu of standard 7Ah batteries
RSW12UL, RSL12UL (1) 33Ah batteries recommended in lieu of standard 7Ah batteries
381327 LMGTENCTSLGD_F.indd 7 5/2/18 9:39 PM
WIRING
WIRE THE SOLAR PANELS - 24V APPLICATIONS
20W APPLICATION
(IN SERIES)
40W APPLICATION
(IN SERIES)
60W APPLICATION
(IN SERIES)
(To Battery(ies) (To Battery(ies)
(To Battery(ies) (To Battery(ies) (To Battery(ies)
10W 10W
10W 10W
10W 10W
10W 10W
10W 10W
10W
10W
20W
20W
20W
20W
10W 10W
WIRE THE SOLAR PANELS - 12V APPLICATIONS
10W APPLICATION
(IN PARALLEL)
20W APPLICATION
(IN PARALLEL)
30W APPLICATION
(IN PARALLEL)
10W 10W 10W
10W 10W 10W
10W20W 20W
(To Battery(ies)
(To Battery(ies) (To Battery(ies) (To Battery(ies) (To Battery(ies)
Models: LA412CONTU, LA412VDC, RSL12VDC, RSL12U, RSW12VDC, RSW12U
Models: LA400CONTU, LA400VDC, LA500CONTU, LA500VDC, LA500, CSL24VDC, CSL24U, CSW24VDC, CSW24U (for models CSL24V and
CSW24V refer to the wiring instructions provided with the Solar Harness Kit [Model K94-36596]).
381327 LMGTENCTSLGD_F.indd 8 5/2/18 9:39 PM
MONITORED PHOTO EYES MONITORED WIRELESS EDGE SOLUTIONS MONITORED RESISTIVE EDGES
Description
Monitored Retro-
Reective Photo Eye
Monitored Through-Beam
Photo Eyes
Monitored Wireless
Edge Kit
Monitored Wireless Edge
Transmitter
Monitored Resistive Wrap
Around Edge—Square
Monitored Resistive Wrap
Around Edge—Round
Monitored Resistive
Standard Edge in Aluminum
Channel—Large Prole
Monitored Resistive
S
tandard Edge in Aluminum
Channel—Small Prole
Monitored Resistive Edge
82 ft. Roll—Large Prole
Monitored Resistive Edge
82 ft. Roll—Small Prole
Application
Versatile Solution for
Entrapment Protection
Powerful Through-Beam
Design Provides Superior
Performance in a Variety of
Environmental Conditions
Expandable; Protects up
to 8 Entrapment Points.
Reliable Performance in ALL
Environmental Conditions.
Two Congurable
Inputs (Open/Close) Provide
Further Flexibility
Slide Gates—Pair with
Monitored Wireless Edge Kit or Hardwire
Swing and Slide Gates—Pair with
Monitored Wireless Edge Kit or Hardwire
Swing and Slide Gates—Pair with
Monitored Wireless Edge Kit or Hardwire
Additional Feature
Single-Sided Design
Means No Trenching
a
nd Less Wiring
Wireless Network
C
apability in Dual-Gate
Applications
Bluetooth
®
Technology Is Extremely
Power Efcient, Provides 2-Year Battery Life
Easily Secures to Gate Post for
Long-Lasting Stability and Reliability
Pre-Assembled Means an Easier Installation,
Saving You Time and Money
Cut to Length while on the Job, Allowing You to Meet
Almost Any Application Requirements. Requires
Endcaps and Mounting Channels (Sold Separately).
Range 50 ft. 90 ft. 130 ft. 130 ft. - - - - - -
B
uilt-In Heater Yes Yes - - - - - - - -
LED Alignment
Indicators
Yes Yes Yes Yes - - - - - -
I
ntegrated Diagnostics
with Gate Operator
Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Available Lengths - - - - 4 ft. / 5 ft. / 6 ft. 4 ft. / 5 ft. / 6 ft. 4 ft. / 5 ft. / 6 ft. 4 ft. / 5 ft. / 6 ft. 82 ft. Roll 82 ft. Roll
Solar Compatible Yes* Yes* Yes Yes Yes Yes Yes Yes Yes Yes
Current Draw
70mA @ 12VDC/VAC or
85mA @ 24 VDC/VAC (If
heater is wired-see manual)
70mA @ 12VDC/VAC or
85mA @ 24 VDC/VAC (If
heater is wired-see manual)
5.8 mA for a 24V System,
12.0 mA for a 12V System
Powered by 2
AA Lithium Batteries
Turns Off When
the Operator Is Idle
Turns Off When
the Operator Is Idle
Turns Off When
the Operator Is Idle
Turns Off When
the Operator Is Idle
Turns Off When
the Operator Is Idle
Turns Off When
the Operator Is Idle
Outdoor Rating NEMA 4X NEMA 4X NEMA 4X NEMA 4X IP65 IP65 IP65 IP65 IP65 IP65
Operating Temperature -40ºF to 149ºF -40ºF to 149ºF -40ºF to 149ºF -40ºF to 149ºF -40ºF to 149ºF -40ºF to 149ºF -40ºF to 149ºF -40ºF to 149ºF -40ºF to 149ºF -40ºF to 149ºF
Package Content
Sensor, Reector, Hoods,
Mounting Brackets,
10 ft. Cable and Hardware
Sensors, Hoods, Mounting
Brackets, 10 ft. Cable
a
nd Hardware
Receiver, Transmitter,
Mounting Brackets, 2 AA
Lithium Batteries, Hardware
Transmitter,
Mounting Bracket, 2 AA
Lithium Batteries, Hardware
Edge with Cable Edge with Cable
Edge with Cable in
A
luminum Channel
Edge with Cable in
A
luminum Channel
82 ft. Roll 82 ft. Roll
Dimensions
With Hood:
2.5” W x 4.6” H x 2.8”D
Without Hood:
2.4”W x 4.6”H x 2.0”D
With Hood:
2.5” W x 4.6” H x 2.8”D
Without Hood:
2.4”W x 4.6”H x 2.0”D
6.8" H x 2" W x
1.8" D
6.8" H x 2" W x
1.8" D
3.8" W x 2.6" H for 2"
Square Posts
3.8" W x 2.8" H for
1 5/8–2 3/8"
Round Posts
1.8" H x 1" W
(2.35" H in Aluminum
Channel)
1.2" H x 1" W
(1.6" H in Aluminum
Channel)
82 ft. x 1.8" H x 1" W 82 ft. x 1.2" H x 1" W
Warranty 2 Years 2 Years 2 Years 2 Years 2 Years 2 Years 2 Years 2 Years 2 Years 2 Years
Monitored Safety Entrapment Protection Devices and Accessories Feature Chart
LMRRUL LMTBUL LMWEKITU LMWETXU
WS4/WS5/
WS6
WR4/WR5/
WR6
L504AL/L505AL/
L506AL
S504AL/S505AL/
S506AL
L50 S50
Powers up when
the power’s down
Controls your gate from
anywhere with your smartphone
3-channel receiver virtually
eliminates interference and
extends range
LMGTENCTMSDA 4/18
*When installing LMRRUL/LMTBUL heater option refer
to install manual for cycles and standby time.
381327 LMGTENCTMSDA_F.indd 1 5/10/18 11:12 PM
LiftMaster Cloud™ Connected
Virtually unlimited expansion
potential
with the freedom to
be constantly connected
Yes Yes - - -
Real-Time Event Monitoring
Intuitive browser-based
interface is easy to use 24/7
Yes Yes - - -
Cloud Storage
Never lose your database
Yes Yes Yes Yes -
Email Notications
Yes Yes - - -
Local Event History
50,000 6,000 4,000 4,000 -
Local Resident Capacity/
Programmable Entry Codes
50,000 25,000 2,000 2,000
No Directory /
200 Entry Codes
Voice Communication
Phone.com Service for Celluar, Wi-Fi,
Wired High-Speed Internet, DSL
- POTS / Filtered DSL POTS / Filtered DSL
Intercom / POTS /
Filtered DSL
Data Connectivity
Dial-Up Modem / Direct Connect / Keypad Dial-Up Modem / Direct Connect / Keypad Keypad
Software
LiftMaster Cloud Versa XS 4.0 Versa XS 4.0 -
BASIC INPUT / OUTPUT
Number of Gates /
Doors of Control
4 2 4 4 2
Wiegand Inputs
4 2
Up to 4 Wiegand Inputs, with 2 (Optional)
Plug-In Modules (WOMODKT)
Up to 4 Wiegand Inputs, with 2 (Optional)
Plug-In Modules (WOMODKT)
-
Additional Gate /
Door Expansion
Virtually Unlimited
(via LiftMaster Cloud) / -
Virtually Unlimited
(via LiftMaster Cloud)
Shared Telephone Line for 7 Units Shared Telephone Line for 7 Units -
Radio Receiver
Display Type
10" 720p High-Def
Touch Screen
Multi-Status LEDs
5" LCD Screen; 4 Display Lines,
20 Characters per Line
Illuminated Keypad
Backlit Keypad /
Illuminated Call Button
Postal Lock
Built In - Built In - -
Camera Ready
Yes - Yes Yes -
Mounting Options
Surface / Flush or Pedestal Surface / Standard Gang Box Surface / Flush / Gooseneck Surface / Gooseneck Surface / Gooseneck
Temperature Specications
-20°F to 130°F
(-29°C to 54°C)
32°F to 125°F
(0°C to 52°C)
-4°F to 149°F
(-20°C to 65°C)
-4°F to 149°F
(-20°C to 65°C)
-4°F to 149°F
(-20°C to 65°C)
Height
18 in. 4.5 in. 16 in. 10.25 in. 6.25 in.
Width
14 in. 3 in. 11.25 in. 6 in. 10 in.
Depth
4.5 in. 1.25 in. 3.25 in. 4 in. 5.25 in.
Warranty
2 Years 2 Years 2 Years 2 Years 2 Years
Code and
Radio
Frequency
• LiftMaster
®
Security+ 2.0
®
(Default)
- Delivered on Tri-Band 310/315/390 MHz
• LiftMaster Security+
®
315 MHz
• LiftMaster Security+ 390 MHz
• Linear Multi-Code
®
300 MHz
• LiftMaster
Security+ 2.0 (Default)
- Delivered on Tri-Band 310/315/390 MHz
PIN Capacity
• Up to 250 Permanent 4-Digit PINs
• Up to 10 Unique Temporary PINs
• Up to 5 Permanent 4-Digit PINs
• Up to 10 Unique Temporary PINs
Power
9V Lithium Battery with Battery Life up to
5 Years (Based on 25 Activations per Day)
9V Lithium Battery with Battery Life up to
5 Years (Based on 25 Activations per Day)
Operating
Temperature
-4˚F to 140˚F
(-20˚C to 60˚C)
-4˚F to 140˚F
(-20˚C to 60˚C)
Storage and
Shipping
Temperature
Range
-40˚F to 140˚F
(-40˚C to 60˚C)
-40˚F to 140˚F
(-40˚C to 60˚C)
Operating
Humidity
5% to 95%
(Non-Condensing)
5% to 95%
(Non-Condensing)
Weatherization
Electronics Meet NEMA 4X Water
Protection Requirements; Housings Meet
or Exceed NEMA 3R
Electronics Meet NEMA 4X Water
Protection Requirements; Housings Meet
or Exceed NEMA 3R
Enclosure
Zinc-Alloy Metal
Front Cover; High-Impact Polycarbonate
Back Housing
High-Impact
Polycarbonate Front Cover and
Back Housing
Lockable
Housing
Restricts Access
to the Reset Button
Restricts Access
to the Reset Button
Memory
Non-Volatile
(Codes Are Saved When Battery
Is Replaced)
Non-Volatile
(Codes Are Saved When Battery
Is Replaced)
Mounting
Compatible for Surface Mount or
Standard Pedestal Mount (4 x 4 in.)
Compatible for Surface Mount or
Standard Pedestal Mount (4 x 4 in.)
Operating
Range
Up to 500 ft. (Open Field) Up to 500 ft. (Open Field)
Dimensions
4.3" W x 6" H x 1.75" D 4.3" W x 6" H x 1.75" D
Shipping
Weight
1.2 lbs. 0.73 lbs.
Warranty
1 Year Limited 1 Year Limited
CAPXL CAP2D EL2000SS EL25 EL1SS KPW250 KPW5
Cellular, Wi-Fi, Wired
High-Speed Internet, DSL
LiftMaster Cloud
Cellular, Wired
High-Speed Internet, DSL
Description
Connected Access Portal,
High Capacity
Connected Access Portal,
2-Door Controller
Telephone Entry/Access Control System Telephone Entry/Access Control System
Telephone Intercom and
Access Control System
Security+ 2.0
®
Passport
Optional Security+ 2.0
®
PPWR
Optional Security+ 2.0
®
PPWR
Optional Security+ 2.0
®
PPWR
Powers up when
the power’s down
Controls your gate from
anywhere with your smartphone
3-channel receiver virtually
eliminates interference and
extends range
Access Control Feature Chart
For specifications and information on all our products, visit LIiftMaster.com/TOTALPAS
LMACENCTOOOF 4/18
381327 LMACENCT000F.indd 1 5/2/18 8:07 PM
Powers up when
the power’s down
Controls your gate from
anywhere with your smartphone
3-channel receiver virtually
eliminates interference and
extends range
Reader and Credential Specication Charts
For specifications and information on all our products, visit LiftMaster.com/TOTALPAS
LMPC2-SN LMPK2-SN LMPK3-ST LMISOPC-ST LMPC2-ST LMCSEK2-ST LMCSEC-ST LMCSECMC-ST LMBF-SN
Description
ProxCard II
®
1326—Sentex
ProxKey III
®
1346—Sentex
ProxKey III 1346 Key Fob
ISOProx II
®
1386
ISOProx Card
ProxCard II 1326
Clamshell Card
iCLASS SE Key II
iCLASS SE
Contactless
iCLASS SE Clamshell
Barrium Ferrite
Card—Sentex
Bit
Numbers
30 Bit 30 Bit 26 Bit 26 Bit 26 Bit 26 Bit 26 Bit 26 Bit 30 Bit
Format S10301 S10301 H10301 H10301 H10301 H10301 H10301 H10301 Sentex
125 KHz Yes Yes Yes Yes Yes - - - N/A
13.56 MHz - - - - - Yes Yes Yes -
LMPPP LMMP LMTL2 LMPPK LMMC-MINI LMMC-MMT LMMC-WS LMMC-KP LMCSE-MINI LMCSE-MMT LMCSE-WS
Description
ProxPoint
®
Plus 6005
MiniProx
®
5365 ThinLine II
®
5395
ProxPro
®
with
Keypad 5355
multiCLASS
®
SE RP10 Mini
Mullion
multiCLASS SE RP15
Mullion Mount
multiCLASS RP40
Wall Switch
multiCLASS RPK40
iCLASS
®
SE R10
Mini Mullion
iCLASS SE R15
Mullion Mount
iCLASS SE R40
Typical Read Range
3.0"
(7.5 cm)
5.5"
(14.0 cm)
5.5"
(14.0 cm)
8.0"
(20.5 cm)
iCLASS: 1.6" (4 cm)
HID Prox: 1.6" (4 cm)
iCLASS: 1.6" (4 cm)
HID Prox: 2.0" (5 cm)
iCLASS: 2.4" (6 cm)
HID Prox: 2.0" (5 cm)
iCLASS: 2.8" (7 cm)
HID Prox: 1.6" (4 cm)
iCLASS Seos
®
: 2.4"
(6 cm)
iCLASS: 3.6" (9 cm)
iCLASS Seos: 2.4"
(6 cm)
iCLASS: 3.6" (9 cm)
iCLASS Seos: 3.2"
(8 cm)
iCLASS: 5.2" (13 cm)
Mounting Mullion Mullion
Single-Gang
Electrical Box
Single-Gang
Electrical Box
Mini Mullion Mullion
Single-Gang
Electrical Box
Single-Gang
Electrical Box
Mini Mullion Mullion
Single-Gang
Electrical Box
Dimensions
3.13" x 1.7" x
0.66"
(8.0 cm x
4.5 cm x
1.5 cm)
6.0" x 1.7" x 1.0"
(15.0 cm x
4.5 cm x
2.0 cm)
4.7" x 3.0" x 0.68"
(12.0 cm x
7.5 cm x
1.5 cm)
5.0" x 5.0" x 1.0"
(12.5 cm x
12.5 cm x
2.5 cm)
1.9" x 4.1" x 0.9"
(4.8 cm x
10.3 cm x
2.3 cm)
1.9" x 6.0" x 0.9"
(4.8 cm x
15.3 cm x
2.3 cm)
3.3" x 4.8" x 1.0"
(8.4 cm x
12.2 cm x
2.4 cm)
3.3" x 4.8" x 1.1"
(8.5 cm x
12.2 cm x
2.8 cm)
1.9" x 4.1" x 0.9"
(4.8 cm x
10.3 cm x
2.3 cm)
1.9" x 6.0" x 0.9"
(4.8 cm x
15.3 cm x
2.3 cm)
3.3" x 4.8" x 1.0"
(8.4 cm x
12.2 cm x
2.4 cm)
Operating
Voltage
5–16V DC 5–16V DC 5–16V DC 10–28.5V DC 5–16V DC 5–16V DC 5–16V DC 5–16V DC 5–16V DC 5–16V DC 5–16V DC
Current Draw
Standard Power
Mode (mA)
35 mA 35 mA 35 mA 155 mA 75 mA 75 mA 85 mA 95 mA 60 mA 60 mA 65 mA
LMACENCTORCS 4/18
381327 LMACENCT0RCS_F.indd 1 5/2/18 8:24 PM
STARTING AUGUST 1, 2018 - Updates to the UL 325 Safety Standard will require a minimum of two (2)
means of entrapment zone protection in both the open and close direction for slide gate operators to
function. See back for more details.
SAFETY LEADER
LiftMaster
®
leads the industry in
safety when it comes to UL 325
compliant gate systems.
DIRECT COMMUNICATION
Informing you of industry advances
and partnering with you on ways
to protect your business.
BE ON THE LEADING
EDGE OF SAFETY.
PROTECTION
Providing solutions to keep your
business, your people and your
customers safe and secure.
381327 5284_UL325_F.indd 1 5/9/18 10:48 AM
**Entrapment Zone: The location where an object can be
caught or held in a position that increases the risk of injury.
KNOW
THE
STANDARD.
To be UL 325 compliant, two monitored safety entrapment protection devices must be installed at each
entrapment zone (the inherent reversing system in LiftMaster Gate Operators counts as one device).
Beginning August 1, 2018, for a LiftMaster Slide Gate Operator to function, the operator will require a
minimum of two external monitored safety entrapment protection devices: one in the open direction and one in
the close direction. LiftMaster Slide Gate Operators will be shipped with a LiftMaster Monitored Safety Edge in
addition to a LiftMaster Retro Reflective Photo Eye. LiftMaster Monitored Safety Entrapment Protection Devices
must be used with LiftMaster Gate Operators to meet UL 325.
Every installation is unique. It is the responsibility of the installer to ensure all entrapment zones are protected
with a minimum of two entrapment protection devices.
© 2018 LiftMaster. All Rights Reserved.
300 Windsor Drive, Oak Brook, IL 60523
LiftMaster.com
UL and the UL logo are trademarks of UL LLC ©2018 All Rights Reserved
5284_UL325_F 4/18
LEARN MORE.
Visit LiftMaster.com/UL325Gates for a complete line of
UL 325 compliant operators and safety devices.
COMMITTED
TO
SAFETY.
LiftMaster is committed to helping the industry design, build and maintain safe gate systems that are tested to
meet UL 325 safety standards. Look for more information as we prepare for the 2018 UL 325 standard update.
A
B
A
A
A
B
B
KNOW YOUR ENTRAPMENT ZONES
*
LIFTMASTER TOTAL SAFETY SOLUTION
LMWEKITU Monitored
Wireless Edge Kit
LMRRUL Retro Reective
Photo Eye
LMTBUL Through Beam
Photo Eye
Wrap Around Edges
Square and round proles
available
Monitored Safety Edge
Large and small
proles available
A
Monitored Photo Eye stops or reverses gate
when beam is obstructed
B
Monitored Safety Edges stops or reverses
gate upon contact
ENTRAPMENT ZONE
**
*This example is for illustrative purposes only.
VISIT DASMA.COM FOR MORE INFORMATION.
381327 5284_UL325_F.indd 2 5/9/18 10:48 AM
381327 LMSPCAGTUL_F.pdf 1 5/10/18 11:05 PM
Swing and Slide Gate Operator UL 325 and
ASTM F2200 Site Planning Safety Checklist
Name:
Address:
City/State/ZIP:
Phone:
Email:
Please Print
ASTM F2200 Standards
Gate Construction Evaluation: Gate Constructed with Safety in mind. ASTM F2200 Standards are followed
Component: Result (Circle) Comments: Figures (On Back)
All Gates
Gates have smooth bottom edges, no protrusions exceed 1/2” beyond base of gate Pass / Fail
5
All access controls at least 6 ft. from gate Pass / Fail
1,4
Barbed tape (razor wire) at least 8 ft. above grade Pass / Fail
Barbed wire at least 6 ft. above grade Pass / Fail
Separate pedestrian gate – out of reach of a moving gate – vehicular gate is
for automotive traffic only
Pass / Fail
1,4
Gate does not move on its own if disconnected from operator Pass / Fail
Gates prevented from falling over if disconnected from supporting hardware Pass / Fail
SWING
Distance from pivot point to column edge is less than 4 in. Pass / Fail
4
Distance from open gate to wall or column greater than 16 in. or external
entrapment protection is provided
Pass / Fail
4
SLIDE
Roller covers on wheels Pass / Fail
1
Meshing installed up to 6 ft. above grade if pickets spaced equal to or
greater than 2 1/4 in. apart
Pass / Fail
3
Gap between gate and fence post less than 2 1/4 in. & gap protected with safety device Pass / Fail
2
Positive stops at both fully open and fully closed positions Pass / Fail
1
Receiver guides recessed behind receiver post for receiver guides less than 8 ft. Pass / Fail
Other: Pass / Fail
© 2018 LiftMaster All Rights Reserved
300 Windsor Drive, Oak Brook, IL 60523
LMSPCLSWSL 4/18
Please Print
First & Last Name of Dealer:
Name of Dealership:
Dealership Address (Street Address/City/State/Zip):
Dealer Signature:
Customer Signature:
First & Last Name of Installer:
Phone:
Installer Signature:
Satisfactory
Needs Repair/Replacement
Gate Safety Check —
Simple steps to quickly determine if an End User’s gate operator is safe.
UL 325 Standard
Component: Result (Circle) Comments: Figures (On Back)
1. Gate Operator is approved to current UL 325 standards (check operator label) Pass / Fail
2. Proper gate warning signs attached to both sides of gate area Pass / Fail
1,4
3. All entrapment zones protected by 2 safety devices/obstruction tested
1,4
Close Side (circle two) Photo Eye
Reversing Edge Inherent Reverse
Pass / Fail
Open Side
(circle two) Photo Eye
Reversing Edge Inherent Reverse
Pass / Fail
Other Entrapment Areas
Pass / Fail
UL 325 Installation Class (
circle one) I II III VI
*Entrapment Zone: The location where an object can be caught or held in a position that increases the risk of injury
381327 LMSPCLSWSL_F.indd 1 5/2/18 7:33 PM
GETTING STARTED WITH SWING AND SLIDE GATE OPERATOR.
• Only install the operator on gates used for vehicular trafc.
• A separate pedestrian entry/exit must be clearly visible to promote
pedestrian usage and located so pedestrians do not come in contact
with the vehicular gate while it is moving.
• Install two independent
†
entrapment protection devices protecting
each entrapment zone.
• Pickets of a slide gate must be designed or screened to prevent
persons from reaching through, or passing through a gate.
• Every Installation is unique. It is the responsibility of the installer to
ensure all entrapment zones are protected with a minimum of two
independent
†
entrapment protection devices.
• Beginning August 1, 2018, for a slide gate operator to function,
the operator will require a minimum of two independent
†
monitored
safety entrapment protection devices in each direction: two in the
open direction, two in the close direction.
Always design, install and maintain safe gate access systems in accordance with UL 325 & ASTM F2200 standards.
SLIDE GATE SITE LAYOUT GUIDELINES
SECURE SIDE
PUBLIC SIDE
Be sure to place the
WARNING signs on both
sides of the gate in clear view.
For your records, take a photograph of the
completed installation site.
WARNING
Gap between vertical bars
must be less than 2¼" (57 mm)
Left Hand Gate
opening
Physical stop - at both ends of gate rail.
Photo eye (Emitter or Reector in the Open direction)
Edge sensor
on Trailing Edge
of gate
Pedestrian gate located
near the slide gate.
Mount access control
devices at least 6 ft
(1.8 m) beyond the gate.
Make sure a separate walk-
through entrance is available
and its pedestrian path is
clearly designated.
Edge sensor on
Leading Edge of gate
V track
(gate rail)
Physical
stop
Earth ground
Interior posts,
Non-pinch
rollers (2x)
Guide
posts
ENTRAPMENT
NOTE: Any gap larger than 2¼" (57 mm)
between gate and xed objects must be
protected. Install edge sensors where gap
between post and gate creates a draw-in zone.
6 ft (1.8 m)
minimum
Photo eye (Receiver)
Photo eye (Receiver)
Photo eye
Emitter or Reector
(Close direction)
ZONE
Edge sensor (Draw-in zone)
SECURE SIDE
PUBLIC SIDE
Pedestrian gate located
near the
swing gate.
Make sure a separate
walk-through
entrance
is
available and its pedestrian
path is clearly designated.
Mount access control
devices at least 6 ft
(1.8 m) beyond the gate.
eyes
ZONE
Photo eye
(public side)
Edge
sensor
Earth ground
Reector
for Photo
Eye
ENTRAPMENT
Be sure to place the
WARNING signs on both
sides of the access point in clear view of vehicles.
For your records, take a photograph of the
completed installation site.
WARNING
ENTRAPMENT
Curb
Curb
A
View A
Cross Section
ENTRAPMENT
ZONE
Photo eye
(public side)
SWING GATE SITE LAYOUT GUIDELINES
Ed
ge
sensor
ENTRAP
RAPMEN
C
Gate Frame and Adjacent Fence Area
6 ft. minimum
X X XX X XX X X X X XX X XX X X
Gate Frame and Adjacent Fence Area
If gaps (xxx)
between vertical
bars of the gate or
fence are less
than 2 1/4", no
further screening
is required.
For gaps (xxx)
equal to or larger
than 2 1/4", a wire
mesh screen must
be applied to the
gate. Wire mesh
screen openings
must be smaller
than 2 1/4". The
minimum height of
wire mesh screen:
6 ft. above grade.
SLIDE GATE OPENINGS GUIDELINES
Openings of a horizontal slide gate must be smaller than 2 1/4"
or else be guarded or screened. These design rules apply to
both the moving gate as well as the portion of adjacent fence
that the gate covers in the open position. See Illustrations
below.
SLIDE GATE SPACING GUIDELINES
Slide Gate Gaps
A gap, measured in the horizontal plane
parallel to the roadway, between a xed
stationary object nearest the roadway (such
as a gate support post) and the gate frame
when the gate is in either the fully open
position or the fully closed position, shall not
exceed 2 ¼ in.. Exception: All other xed
stationary objects greater than 16 in. from
the gate frame shall not be required to
comply with this section. Any gap must be
protected. Install safety device to protect
draw-in zone.
**Swing Gate Entrapment Zones: Locations between a moving gate or moving, exposed operator components and a counter
opposing edge or surface where entrapment is possible up to 1.8m (6 ft) above grade. Such locations occur if during any point in travel:
a) The gap between the bottom of a moving gate and the ground is greater than 101.6mm (4 in) and less than 406mm (16 in); or
b) The distance between the center line of the pivot and the end of the wall, pillar, or column to which it is mounted when in the open
or closed position exceeds 101.6mm (4 in). Any other gap between a moving gate and xed counter opposing edges or surfaces or
other xed objects is less than 406mm (16 in) (examples are walls, curbs, berms, or other immovable objects).
Definitions
Entrapment: The condition when a person is caught or held in a
position that increases the risk of injury.
Slide Gate Entrapment Zones: An entrapment zone exists if at
any point during travel, the gap between the moving gate and xed
counter opposing edges or surfaces is less than 406 mm (16”) in a
location up to 1.8 m (6ft.) above grade.
†
Independent the same type of device shall not be utilized for both entrapment protection
devices.
FIGURE 1
The above examples are two of many installation possibilities and are for illustration purposes only.
See device and operator manuals for complete instruction.
Visit DAMSA.com for more information.
FIGURE 2
FIGURE 3
FIGURE 4
FIGURE 5
381327 LMSPCLSWSL_F.indd 2 5/2/18 7:33 PM
LMR18406_Folder_Cover.inddLMR18406
1
UL
®
325 LISTED GATE OPERATORS
Total solutions. Complete compliance.
ULTIMATE ASSURANCE.
S505AL
CSL24UL
LMRRUL
© 2018 LiftMaster All Rights Reserved
300 Windsor Drive, Oak Brook, IL 60523
LiftMaster.com
UL and the UL logo are trademarks of UL LLC © 2018 All Rights Reserved.
LMPAENNBUL325 5/18
800.323.2276Dealer.LiftMaster.com
Contact Your LiftMaster
®
Sales Representative
Customer.Service@LiftMaster.com
PLACE YOUR ORDER TODAY.
381327 pocket folder.indd 1 5/2/18 11:03 PM
