Cybex 525AT Arc Trainer
®
Owner's Manual
Part Number 5525-4 G
www.cybexintl.com
Table of Contents
Safety
Safety Guidelines and Practices.........................4
Power Cord Information......................................4
Important Safety Instructions..............................4
Warnings and Cautions......................................6
Label Placement.................................................8
Assembly
Specifications - 525AT........................................9
Choosing and Preparing Site............................10
Environment.....................................................11
Electrical Power Requirements........................11

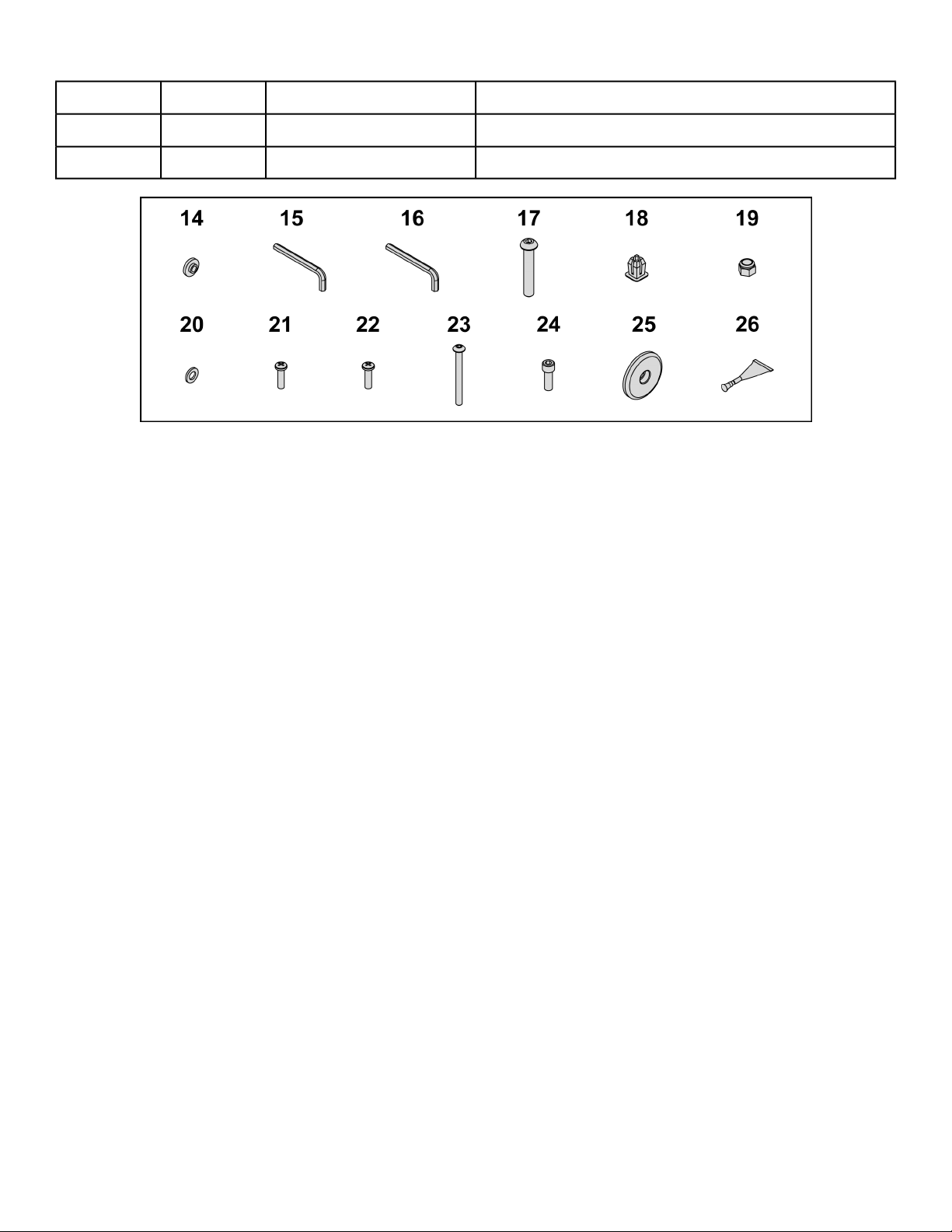

Tools Required..................................................11

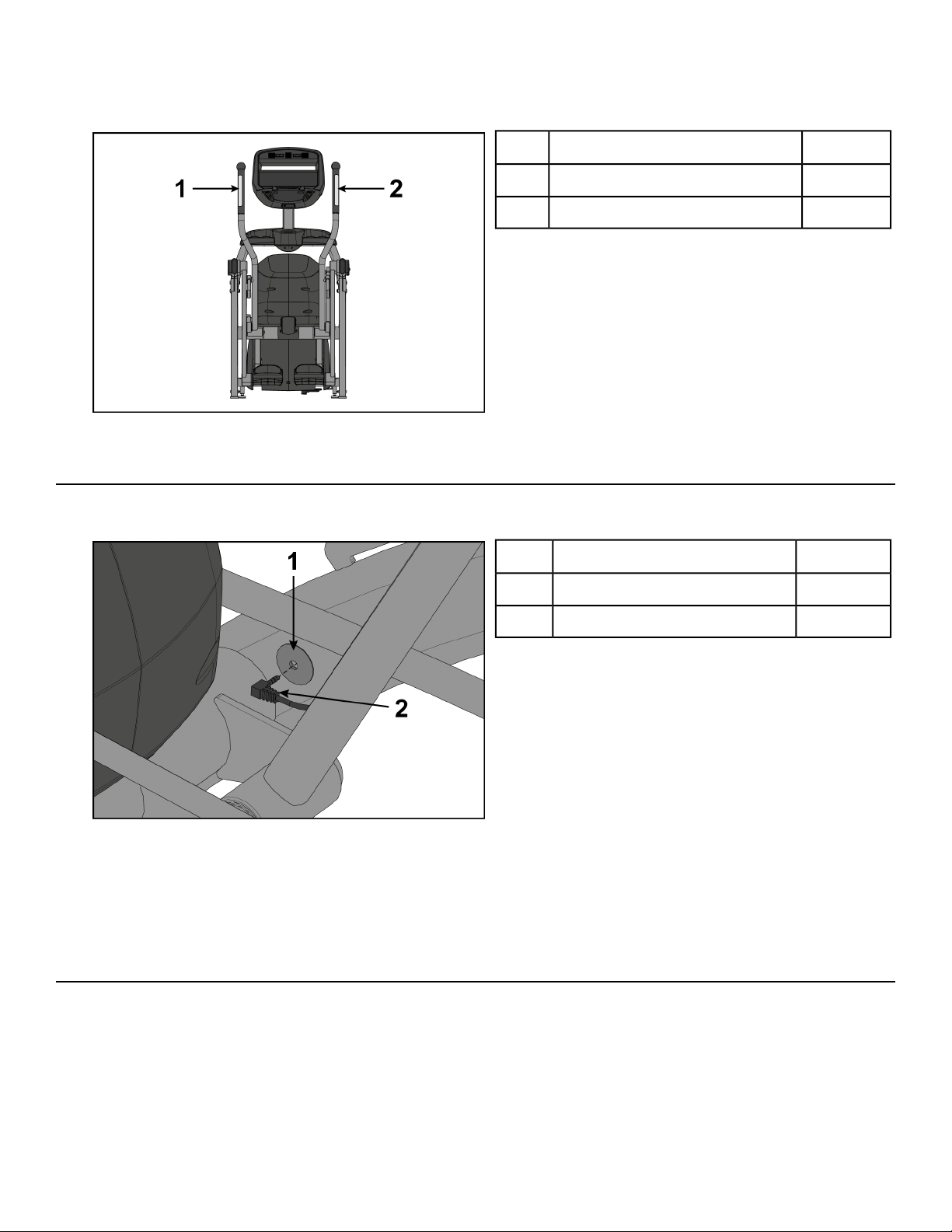

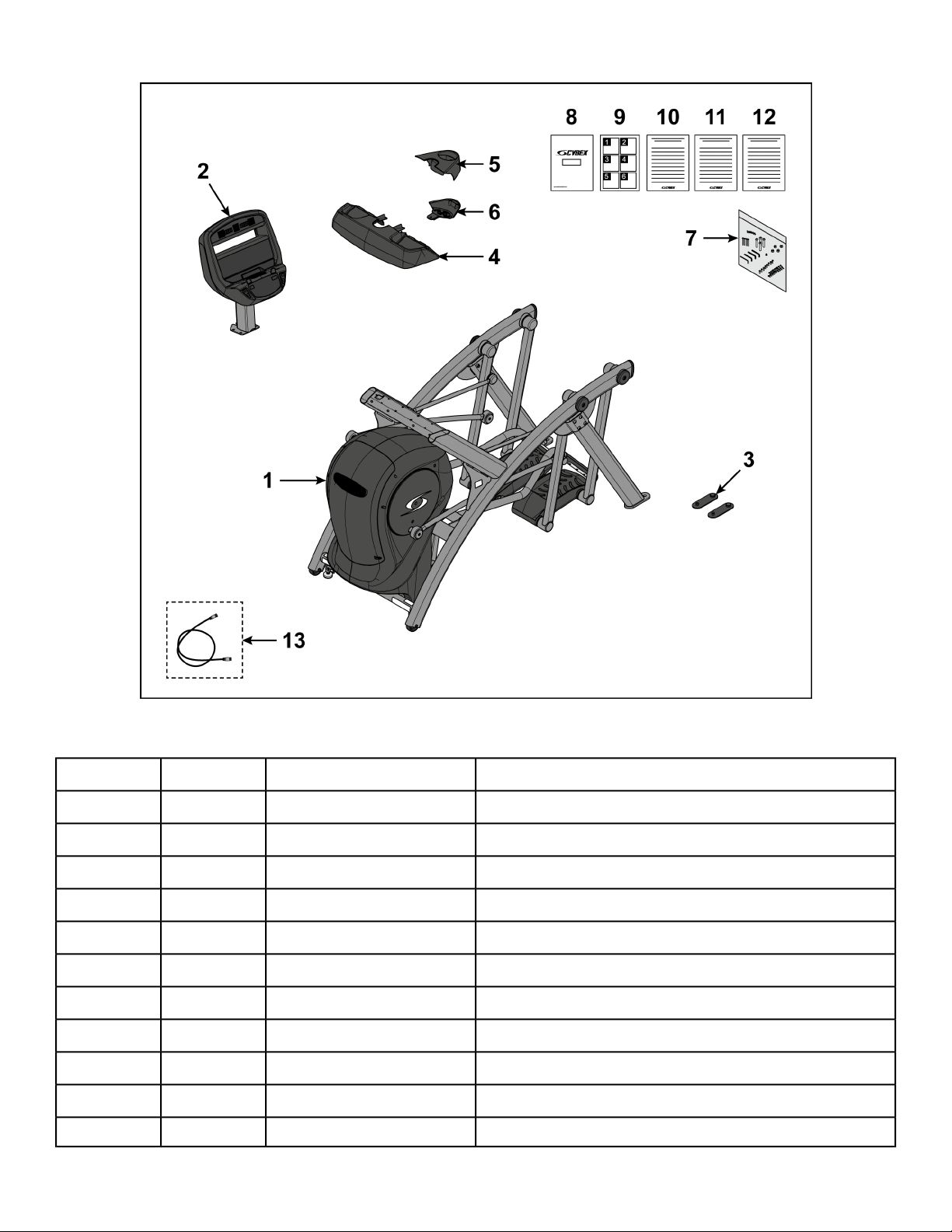

Assembly Procedure........................................12

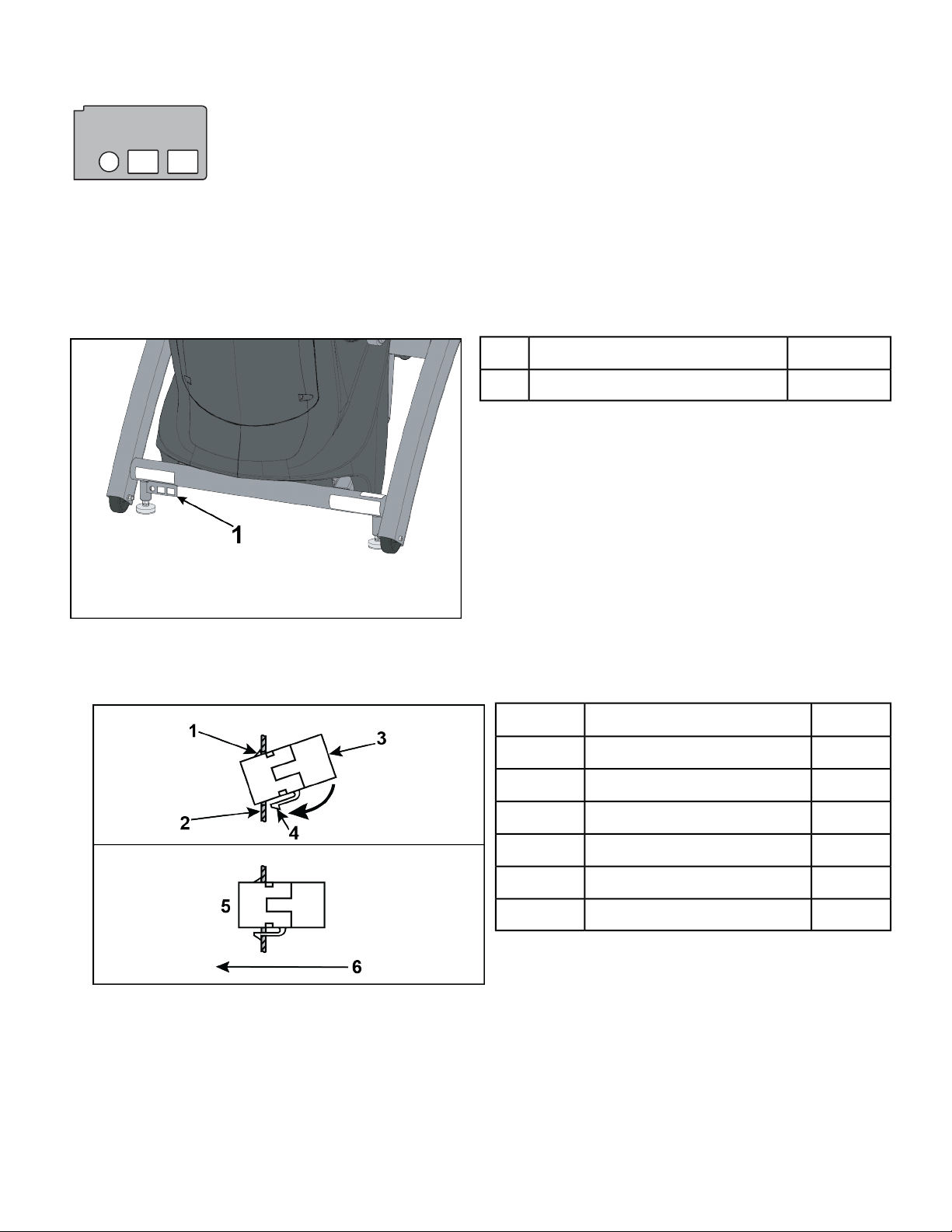

Setup................................................................26
Testing Operation.............................................29
Operation
Intended Use....................................................31
Individual human power versus mechanical
power...........................................................31
Terms Used......................................................31
User Control Symbols Used.............................32

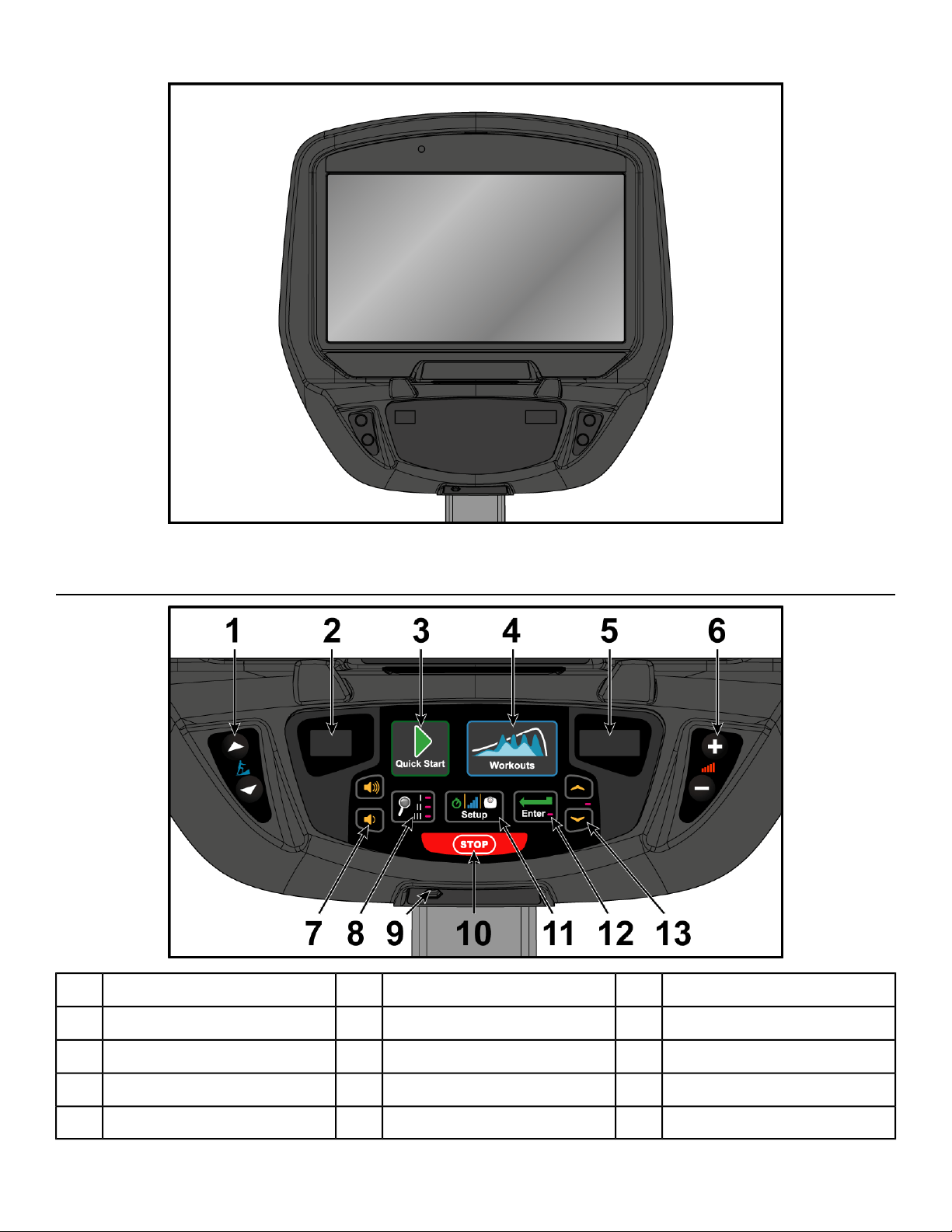

Console Display................................................33

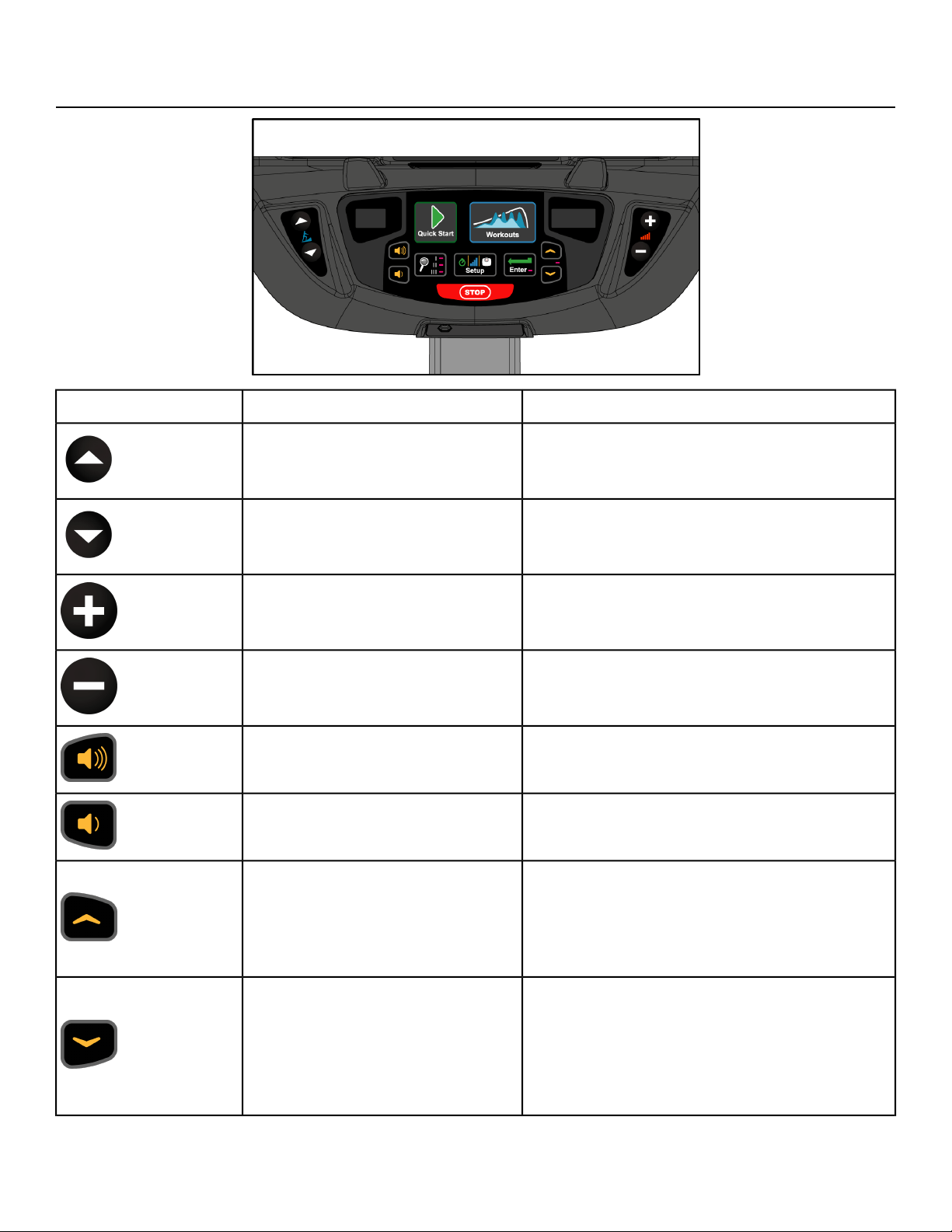

User Controls....................................................34
Mount and Dismount........................................35
Range of Motion...............................................35
Quick Operation Guide.....................................36
Detailed Operation Guide.................................37
Safety Sentry....................................................38
Workout Selection............................................38
Data Readouts..................................................39
Heart Rate Indicator.........................................39
E3 View Monitor Screen Options......................40
iPod/iPhone/iPad Functions.............................41
How power input versus displayed value is
calculated.....................................................41
Testing Parameters...........................................41
Maintenance
Warnings...........................................................42
Clean Unit.........................................................42

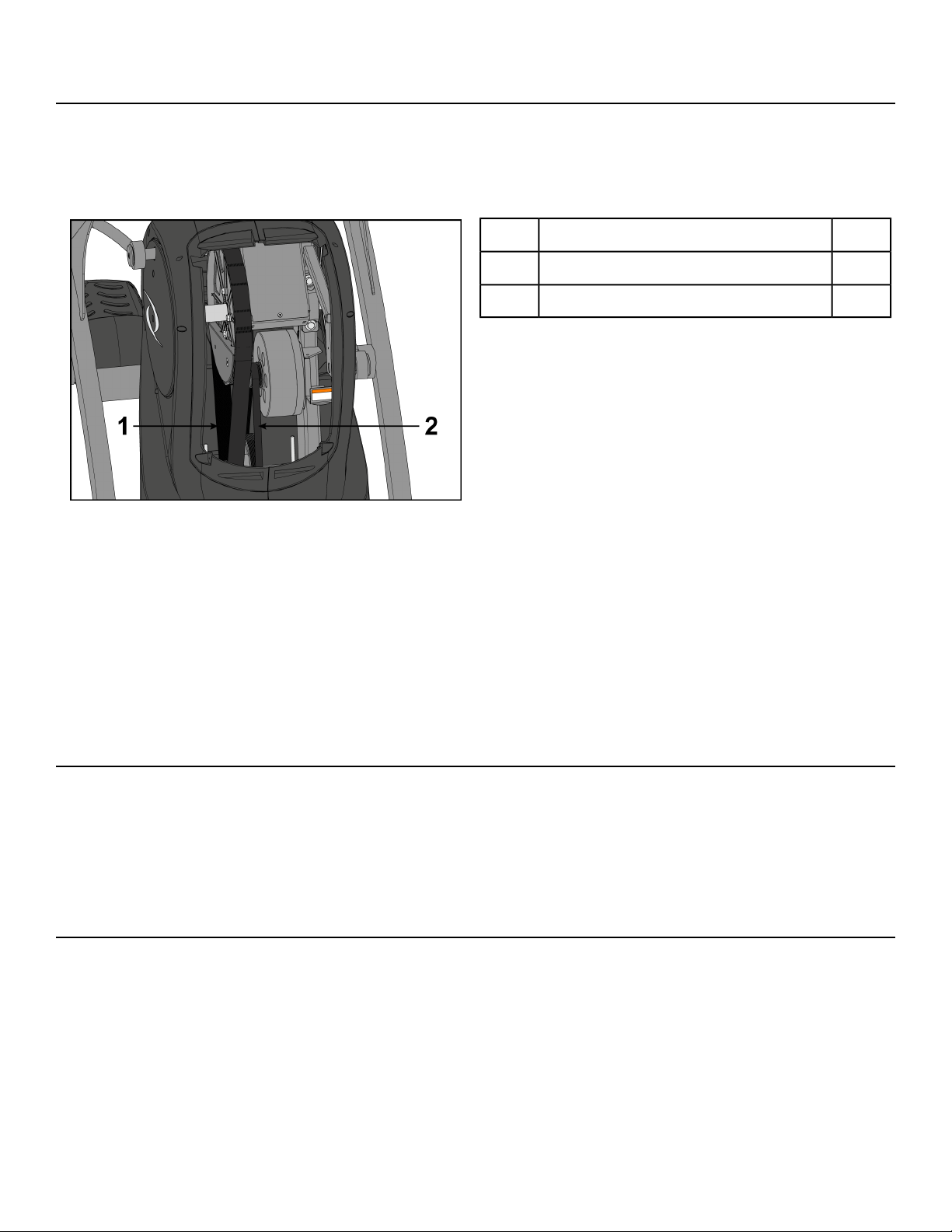

Drive Belts........................................................43
Rechargeable Battery.......................................44
E3 View Monitor................................................45
Service Schedule..............................................45
Customer Service
Product Registration.........................................48
Contacting Service...........................................48
Ordering Parts..................................................48
Return Material Authorization (RMA)................49
Damaged Parts.................................................49
Appendix - Workout Overviews
1 - Weight Loss 1..............................................50
2 - Weight Loss 2..............................................52
3 - Weight Loss 3..............................................54
4 - Cardio 1.......................................................56
5 - Cardio 2.......................................................58
6 - Cardio 3.......................................................60
7 - Strength 1....................................................62
8 - Strength 2....................................................64
9 - Heartrate Control (E3 View Monitor
Option).........................................................66
Cybex
®
and the Cybex logo are registered trademarks of Cybex International, Inc. Polar
®
is a registered trademark of Polar Electro Inc. iPod,
iPhone, and iPad are trademarks of Apple Inc., registered in the U.S. and other countries.
DISCLAIMER: Cybex International, Inc. makes no representations or warranties regarding the contents of this manual. We reserve the right to
revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such
revisions or changes.
©
Copyright 2016, Cybex International, Inc.
10 Trotter Drive, Medway, MA 02053 • 888-462-9239 • 508-533-4300 • FAX 508-533-5183
www.cybexintl.com • 5525-4 G • July 2016
Page 2 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
FCC Compliance Information
Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Page 3 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Safety
Safety Guidelines and Practices
Read the Owner’s Manual carefully before assembling, servicing, or using the equipment. Owner
must comply with all safety guidelines in this manual. It is also the owner’s responsibility to instruct
users on the safe and proper operation of the equipment and to properly display any and all
warning labels and instructional placards. All users should read these labels and placards before
using equipment.
Serious injury or death could occur if the following safety precautions and
instructions are not followed.
Power Cord Information
Shock and electrocution hazard.
• Connect unit to a grounded outlet.
• Do not use voltage adapter or extension cord.
Cybex is not responsible for injuries or damages as a result of cord or plug
modification.
• Verify voltage requirements of unit match local voltage requirements.
• Verify unit outlet is the same configuration as the plug.

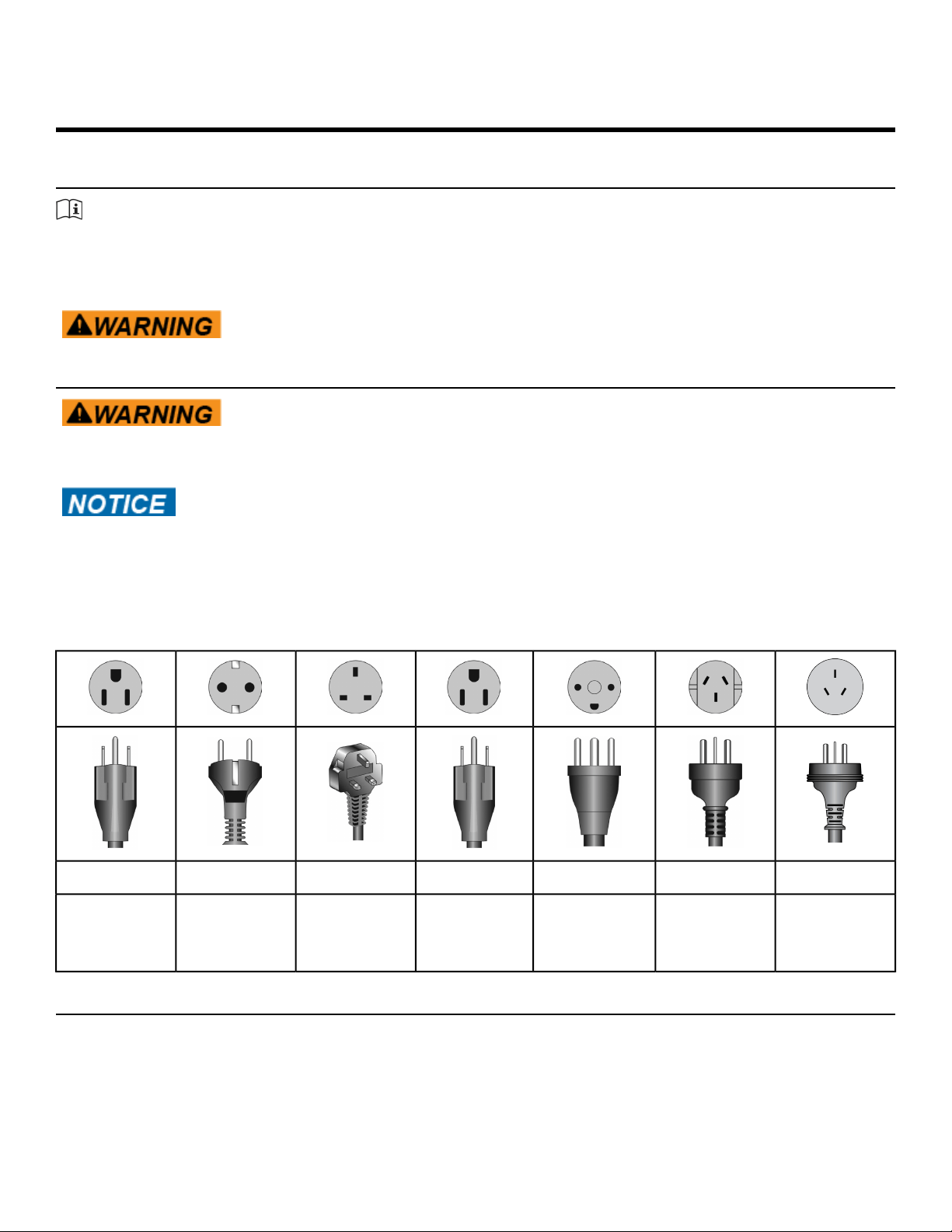

Power cord configurations
ChineseAustraliaDanishJapaneseUK 230 VACEuro Plug115 VAC
GB 2099-1
and GB 1002-
1
AS/NZS 3112107-2-D1JIS 8303BS 1363CEE 7/7NEMA 5-15
Important Safety Instructions
(Save These Instructions)
Page 4 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Shock and electrocution hazard.
• Unplug unit and let sit 10 minutes before cleaning or performing
maintenance.
• Electrical charge can remain in unit after unplugging.
• Keep water and liquids away from electrical parts.
User Safety Precautions
Prior to use:
• Obtain a medical exam before beginning any exercise program.
• Obtain instruction before using.
•
Read and understand warning labels.
• Keep foot plate surface clean and dry.
• Maximum user weight is 400 lbs. (180 kg).
• Inspect unit. If damaged, notify floor staff. DO NOT USE.
• Do not remove this label. Replace if damaged or illegible.
During use
• Do not use for stretching and do not attach straps or other devices.
• Do not allow children 12 or younger to be on or near machine.
• Stop exercise if feeling faint, dizzy, or have pain.
• Use the handrails for support and to maintain balance.
• Keep all body parts, clothing, and accessories, clear of moving parts.
• Wait until foot plates come to a complete stop before getting off.
Facility Safety Precautions
It is the sole responsibility of the user/owner or facility operator to ensure that regular maintenance is
performed.
• Enforce all user and safety precautions.
• Read and understand the Owner’s Manual completely before assembling, servicing or using unit.
• Verify all users are properly trained on using the equipment.
• Do not use unit outdoors.
• Verify that each unit is setup, leveled and operated on a solid level surface. Do not install equipment
on an uneven surface.
• Verify there is enough room for safe access and operation of unit.
• Do not use the unit if: (1) the cord is damaged; (2) the unit is not working properly or (3) if the unit
has been dropped or damaged. Seek service from a qualified technician.
• EQUIPMENT is not suitable for use in the presence of aerosol (spray), FLAMMABLE ANAESTHETIC
MIXTURE WITH AIR or WITH OXYGEN or NITROUS OXIDE.
• Perform regular maintenance checks on unit. Performance level can be maintained only if examined
regularly. Pay close attention to all areas most susceptible to wear, including (but not limited to)
cables, pulleys, belts and grips.
• Replace any warning labels if damaged, worn, or illegible.
Page 5 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
• Immediately replace worn or damaged components. If unable to immediately replace worn or damaged
components, then remove unit from service until repair is made.
• Do not attempt electrical or mechanical repairs.
Seek qualified repair personnel when servicing. If you live in the USA, contact Cybex Customer
Service at 888-462-9239. If you live outside the USA, contact Cybex Customer Service at
508-533-4300.
• Use only Cybex supplied components to maintain/repair unit.
• Keep a repair log of all maintenance activities.
• Disconnect the power cord before servicing unit.
• Do not use attachments unless recommended for the unit by Cybex.
• The unit may generate electromagnetic or other forms of interference, or it may be affected by
interference from other equipment nearby. If this is suspected, take precautions by separating the
equipment or otherwise shielding it to avoid such interference.
Warnings and Cautions
Warning labels indicate a potentially hazardous situation that could result in serious injury or death if
the precautions are not observed.
Caution labels indicate a potentially hazardous situation that could result in serious injury or damage to
machine if the precautions are not observed.
Contact Cybex Customer Service to replace any worn or damaged labels.
Canadian
Page 6 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Page 7 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G

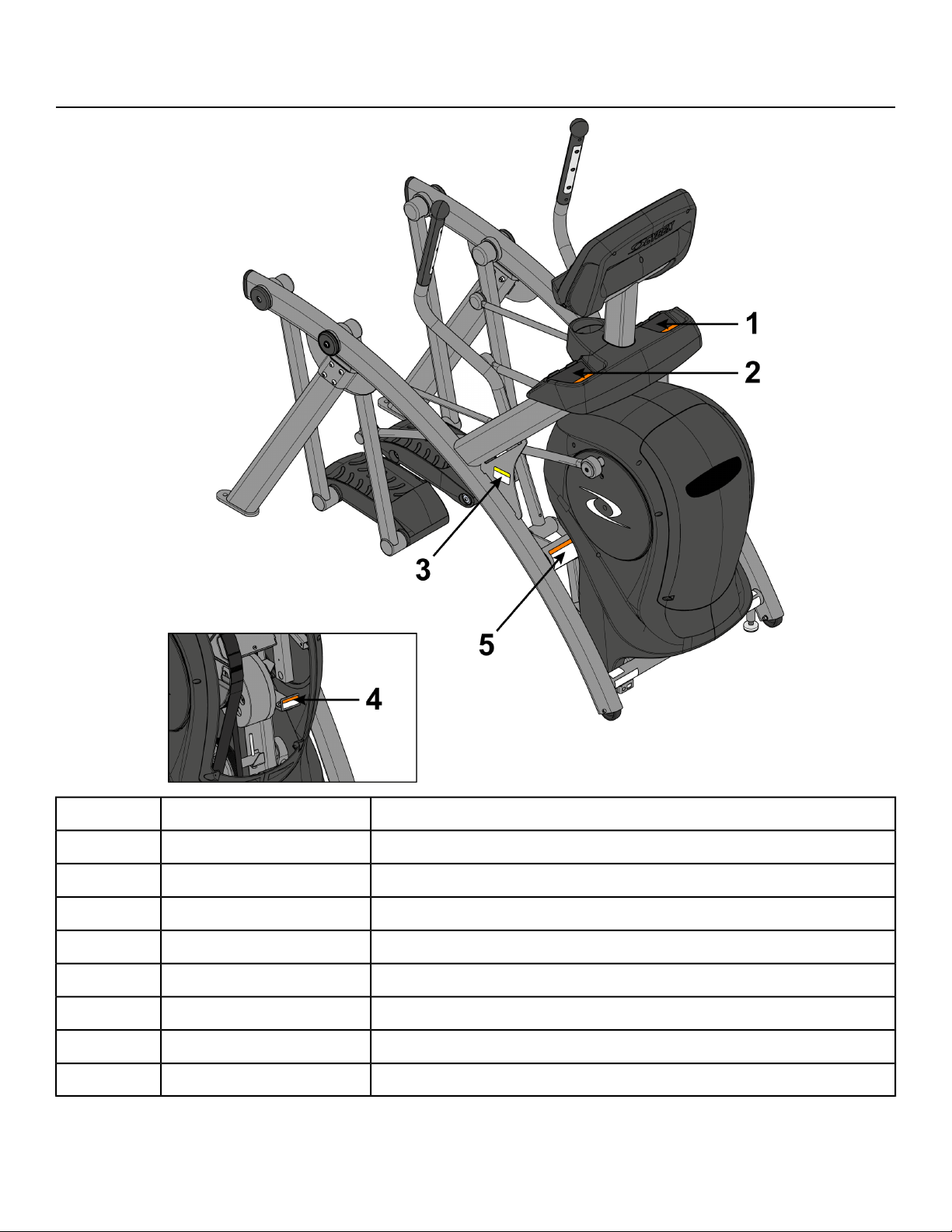

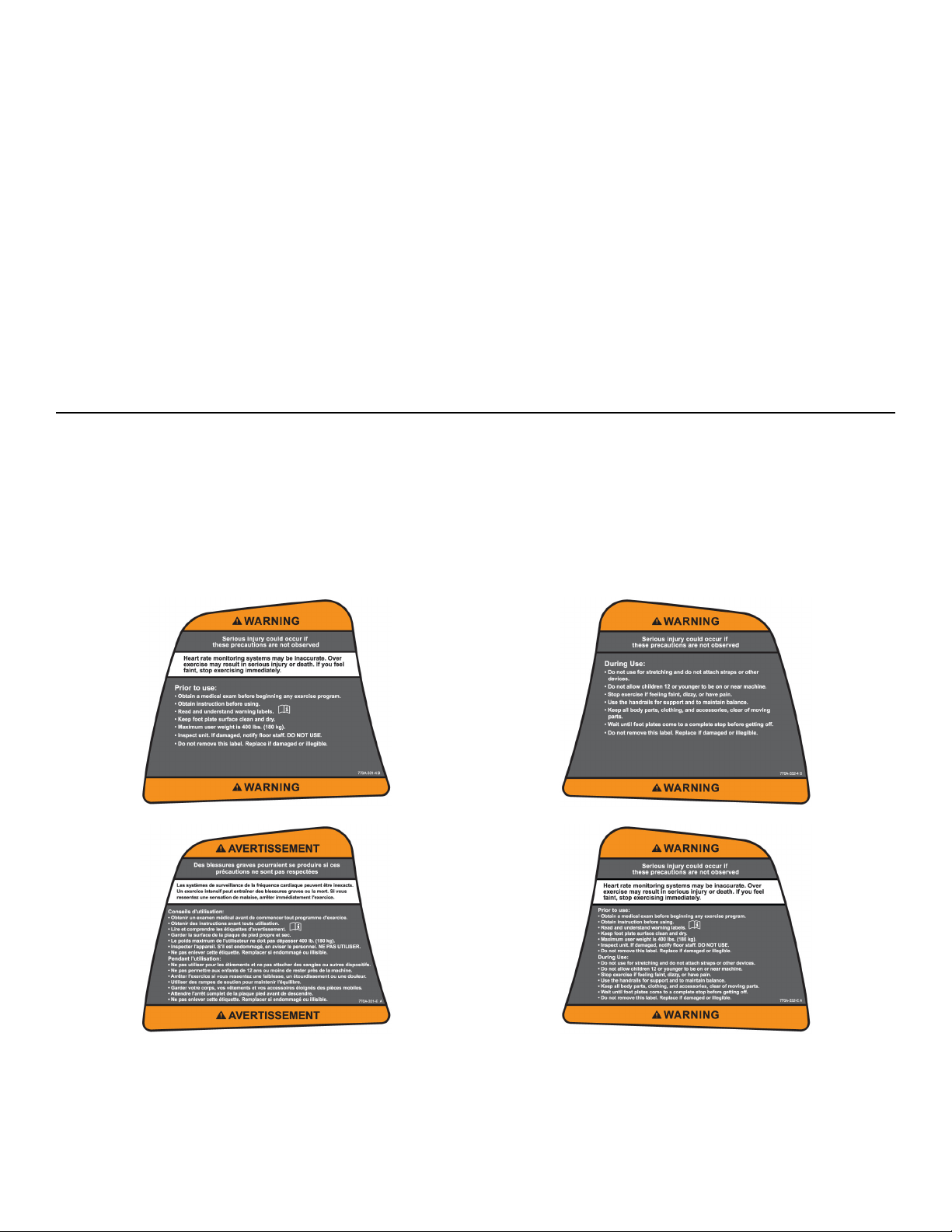

Label Placement
Label, Warning, Access tray, Left770A-331-X1
Label, Warning, Access tray, Left, Canadian770A-331-E1
Label, Warning, Access tray, Right770A-332-X2
Label, Warning, Access tray, Right, Canadian770A-332-E2
Decal, Caution moving partsDE000004-X3
Label, Warning, Hot flywheelDE-17155-X4
Label, Warning, Disconnect Power525AT-4005
Label, Warning, Disconnect Power525AT-4015
Label, Warning, Disconnect Power525AT-4025
Page 8 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Assembly
Specifications - 525AT
S (Studio)Classification
AAccuracy
70.5” (179 cm)Assembled Length
30” (76 cm)Assembled Width
62.5”(159 cm)Assembled Height
412 lbs. (187 kg.)Weight of Product
437 lbs. (198 kg.)Shipping Weight
0-20 % gradeIncline Levels
0-80Resistance Levels
24” (61 cm) fixed lengthStride Length
Quick Start and eight workoutsWorkouts
Upper console: LED or E3 View Monitor.
Displays - BPM, Calories, Cal/Hr, Incline, Strides per Minute, and Time.
E3 View Monitor also displays Watts, MET, and Distance.
Lower console: Two numeric displays for incline and resistance. Accessory
trays and water bottle holder.
Console Features
Built-in 5 KHz wireless heart rate receiver (transmitter not included) and contact
heart rate monitoring.
Heart Rate Features
Standard: White Texture, Black Texture, Metaltone Gold, Black Chrome,
Platinum Sparkle.
Custom: Unlimited colors available.
Frame Colors
0 to 600 watts.Resistance Range
400 lbs. (180 kg).
Maximum User
Weight
100-120 VAC, 3.0 A, 1-Phase or 200-240 VAC, 2.5 A, 1-Phase.Power Rating
E3 View Monitor, Wireless audio receiver, iPod/iPhone/iPad compatibility.Options
Page 9 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G

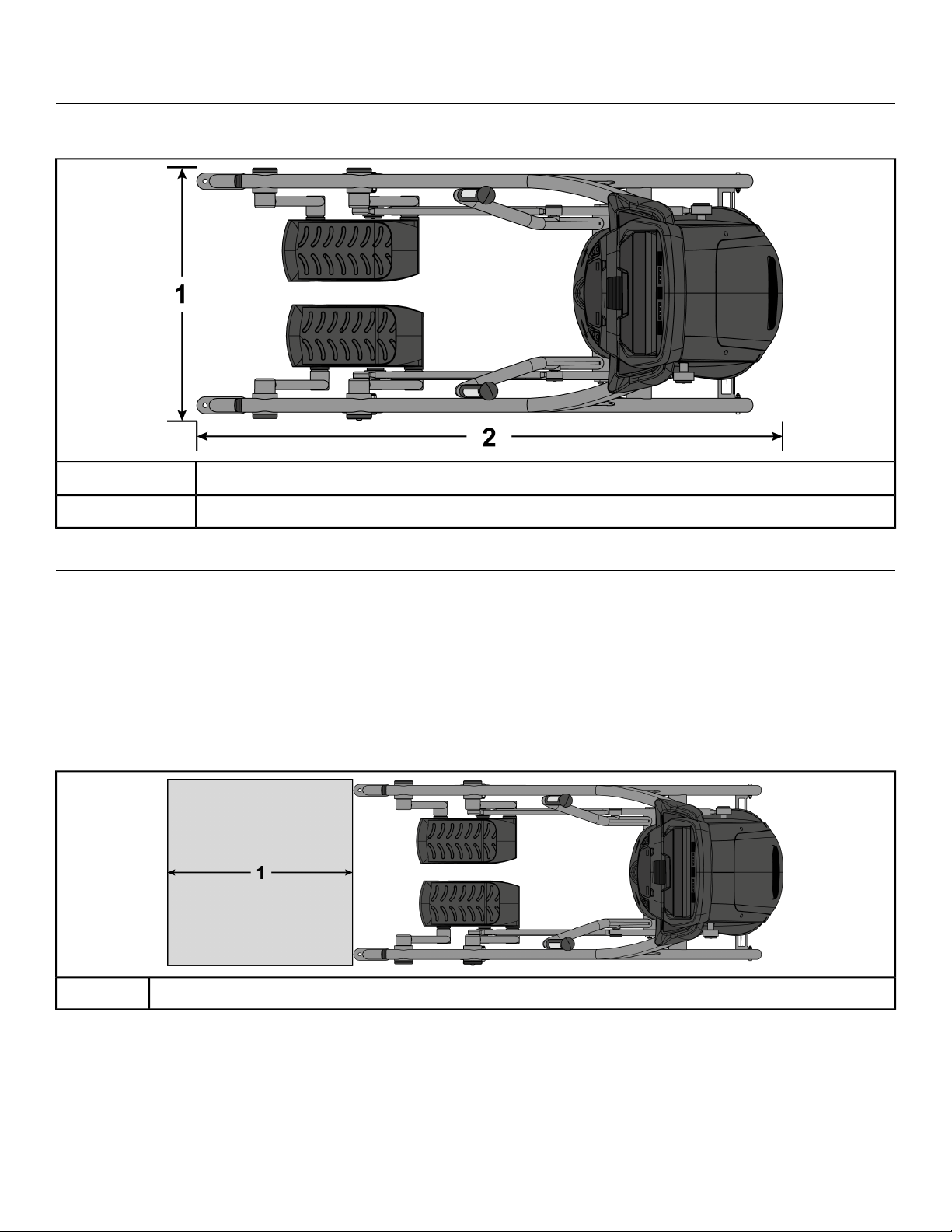

Top View 525AT
Dimensions
30” (76 cm)
1
70.5” (179 cm)2
Choosing and Preparing Site
Before assembling the unit, verify the chosen site meets the following criteria:
• Area is well lit and well ventilated.
• Surface is structurally sound and properly leveled.
• Free area for access to unit and emergency dismount. Minimum clearance is 23.6 inches (0.6 meters).
• Adjacent units may share the free area.
Free Area
23.6”, 0.6m1
It is the responsibility of the facility owner/owner of the equipment to ensure that there is appropriate
clearance around each machine to allow for safe use and passage.
Page 10 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
In compliance with the ADA (American Disabilities Act) there must be clear floor space of at least 30 by
48 inches and be served by an accessible route for at least one of each type of exercise equipment. If
the clear space is enclosed on three sides (e.g., by walls or the equipment itself), the clear space must
be 36 by 48 inches.
All other machines must have a clear floor space of 23" for all access point on the machine.
The dimensions stated in the assembly instructions of this manual include the maximum foot print (in
use) dimensions.
Minimum clearance of 12” (30 cm) between units for proper wireless heart rate signal operation.
Environment
Humidity and Static Electricity
The unit is designed to function normally in an environment with a relative humidity range of 30% to
75%. The unit can be shipped and stored in a relative humidity range of 10% to 90%.
Climatic dry air may cause static electricity. During workout, user may experience a shock due to build
up of static electricity on the body and the discharge path of the unit. If static electricity is experienced,
increase humidity to a comfortable level through the use of a humidifier.
Do not install, use or store the unit in an area of high humidity, such as in the vicinity of a steam room,
sauna, indoor pool or outdoors. Exposure to extensive water vapor, chlorine and/or bromine could
adversely affect the electronics as well as other parts of the unit.
Temperature
The unit is designed to function normally in an environment with an ambient temperature range of 50°
F (10° C) to 104° F (40° C). The unit can be shipped and stored in an environment with an ambient
temperature range of 32° F (0° C) to 140° F (60° C).
Electrical Power Requirements
Verify the unit is connected to an outlet having the same configuration as the plug.
Verify connection is a grounded circuit. Do not use a ground-plug adapter to adapt the 3-prong power
cord to a non-grounded electrical outlet.
Verify power supply is compliant with local building codes.
Tools Required
• Stubby Phillips screwdriver
• 3/16” Allen wrench (included)
• 7/32” Allen wrench (2) (included)
• 9/16” Open end wrench
Page 11 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Assembly Procedure
Two people will be required for this procedure.
Read and understand all instructions thoroughly before assembling this unit. Check all items
carefully. If there is damage, see the Customer Service section of this manual for proper procedure
to return, replace, or reorder parts.
The words "left" and "right" denote the user's orientation.
Verify you have received the correct package
1. Read box label to verify the model number and voltage (optional) match what was ordered.
2. Verify paint color matches what was ordered.

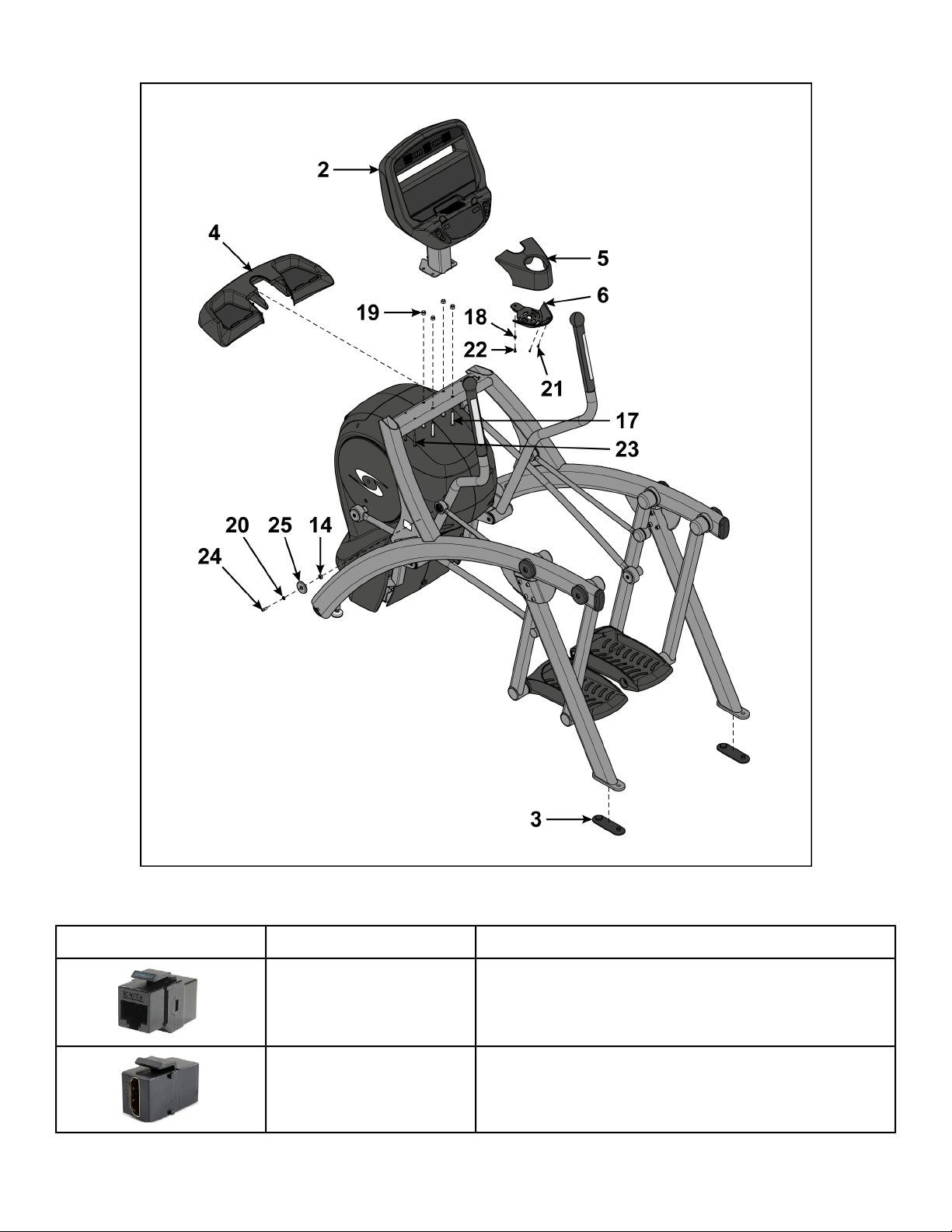

Verify parts list shown below
DescriptionPart NumberQuantityItem
Base assemblyVaries11
Console assemblyVaries12
Foot pad12090-32223
Base, Accessory tray-14
Cover, Top, Accessory tray770A-31715
Cover, Bottom, Accessory tray770A-31816
Hardware pack525AT-106-417
Owner’s Manual5525-X18
Assembly poster525AT-32819
Consumer Arc warranty sheet525AT-331110
Entry Commercial Arc warranty sheet525AT-330111
Full Commercial Arc warranty sheet525AT-413112
Cable, 6’, Coax (E3 View Monitor option)770A-427113
Page 12 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Hardware
DescriptionPart NumberQuantityItem
Flange Spacer600A-311214
3/16” Allen WrenchBK030201115
7/32” Allen WrenchBK030204216
BHSCS .375-16 × 2.25”HC700428417
Grommet, NylonHF540200118
Locknut, .375-16 NylonHN704901419
Washer, Flat .281 ID × .500 OD × .062”HS307601220
Screw, Pan Head Phillips, #6 x .50”HT532512221
Screw, Pan Head Phillips, 8-16 × .50”HT552512322
Tap Sc 10-12 × 2.00 Pn Hd PhilHT592526423
SHCS .250-20 UNC-3A SSHX622815224
Page 13 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
DescriptionPart NumberQuantityItem
Linkage Rod Cap 2.00 OD (1 extra)PL-16535325
LoctiteYA000201126
Page 14 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Optional audio visual components
DescriptionPart NumberCoupler
Ethernet CouplerOCN-22747
HDMI CouplerOCN-25816
Page 15 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Lift and move unit
1. Remove large bolts and shipping supports. Keep package material on linkage arms at this time.
This will protect the paint from scratching during assembly.
2. Grasp each rear support leg firmly and lift with one person on each side.
3. Lift the lower rear support legs so the front transport wheels are able to roll on floor.
Use proper lifting methods.
4. Move unit to intended location.
5. Lower rear support legs.
Install console assembly
1. Place the console into position on the frame. Do not pinch cables while lowering the console.
Qty.Description
4Locknuts1
1Console2
1Frame3
4Bolts4
1Upper heart rate cable5
1Lower heart rate cable6
1Upper display cable7
1Lower display cable8
2. Insert (from underneath) the four bolts into the frame and console.
3. Thread the four locknuts onto the bolts by hand.
4. Tighten the four bolts and locknuts with a 7/32” Allen wrench and a 9/16” open-end wrench.
5. Plug the upper heart rate cable into the lower heart rate cable.
6. Plug the upper display cable into the lower display cable.
Page 16 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G

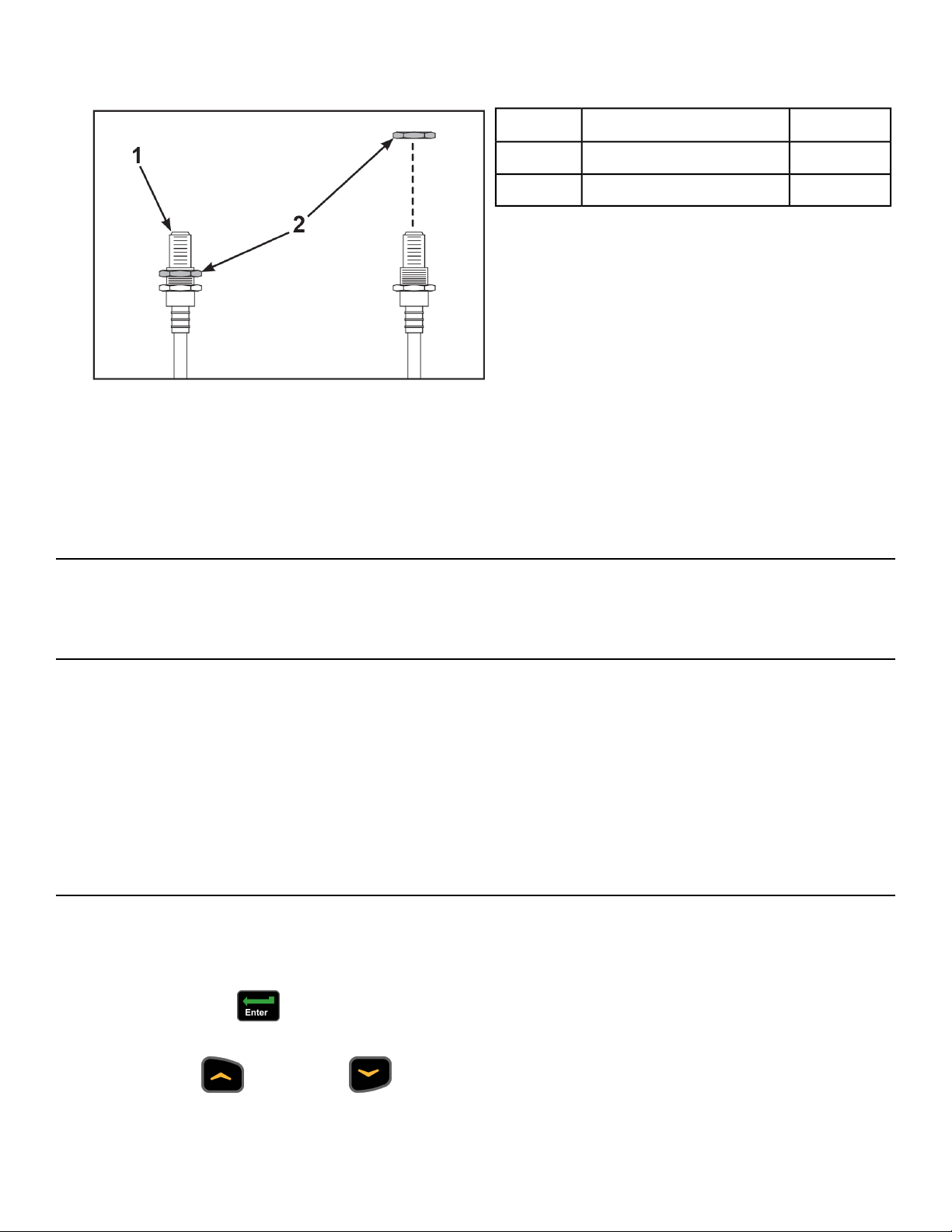

Install optional coax and ethernet cables
1. Plug the coax cable connectors into each other and tighten threaded connector.
Qty.Description
1Coax cable connectors1
1Ethernet cable connectors2
2. Plug the ethernet cable connectors into each other.
Install accessory tray base
1. Place the accessory tray base in position on the base assembly.
Qty.Description
1Accessory tray base1
1Base assembly2
4Screws3
2. Install the four screws using a stubby Phillips screwdriver.
Page 17 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G

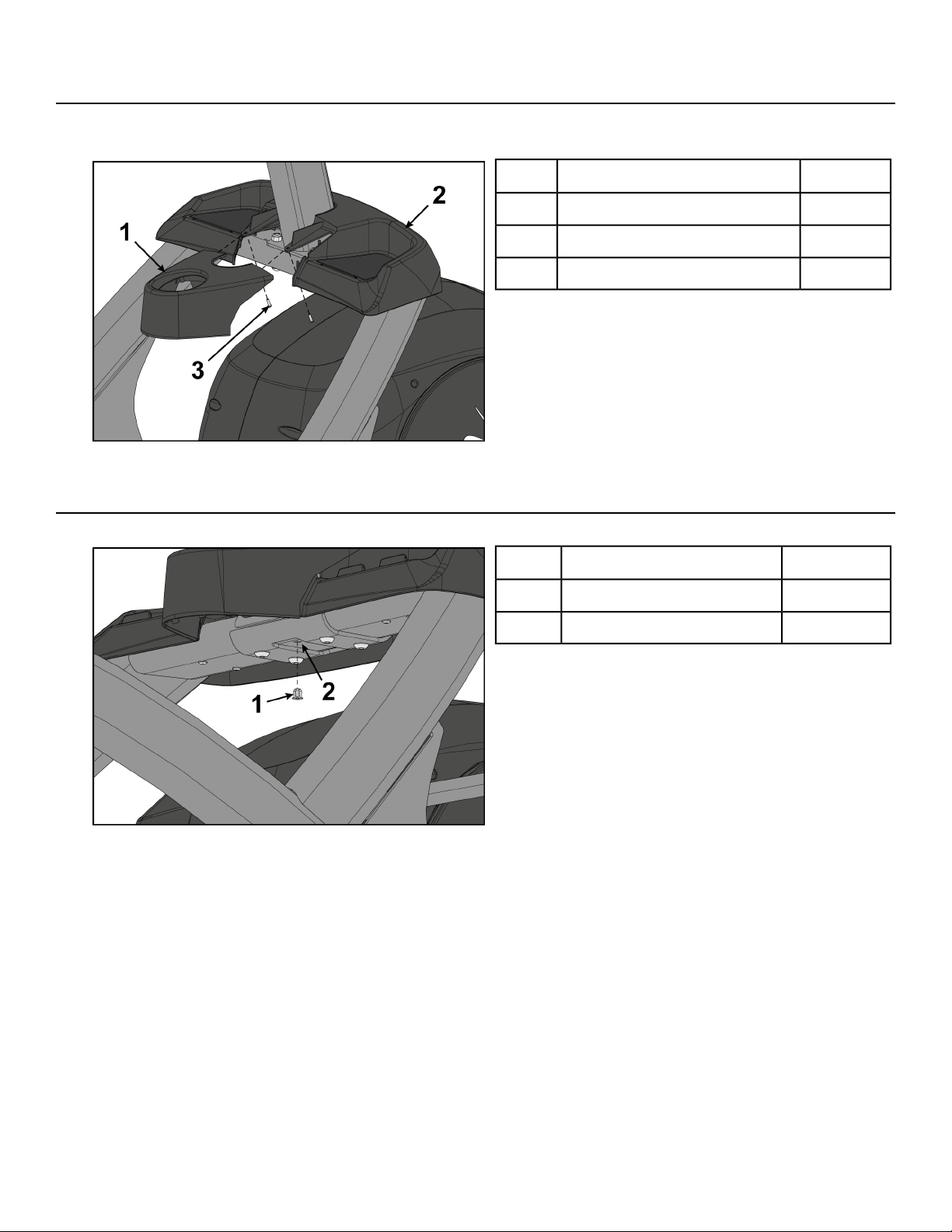

Install accessory tray top
Install the two screws securing accessory tray top to accessory tray base using a stubby Phillips
screwdriver.
QtyDescription
1Accessory tray top1
1Accessory tray base2
2Screws3
Install accessory tray bottom
1. Install the grommet to the frame.
QtyDescription
1Grommet1
1Frame2
Page 18 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
2. Install the accessory tray bottom to the accessory tray base with three screws using a Phillips
screwdriver.
QtyDescription
1Accessory tray bottom1
1Accessory tray base2
3Screws3

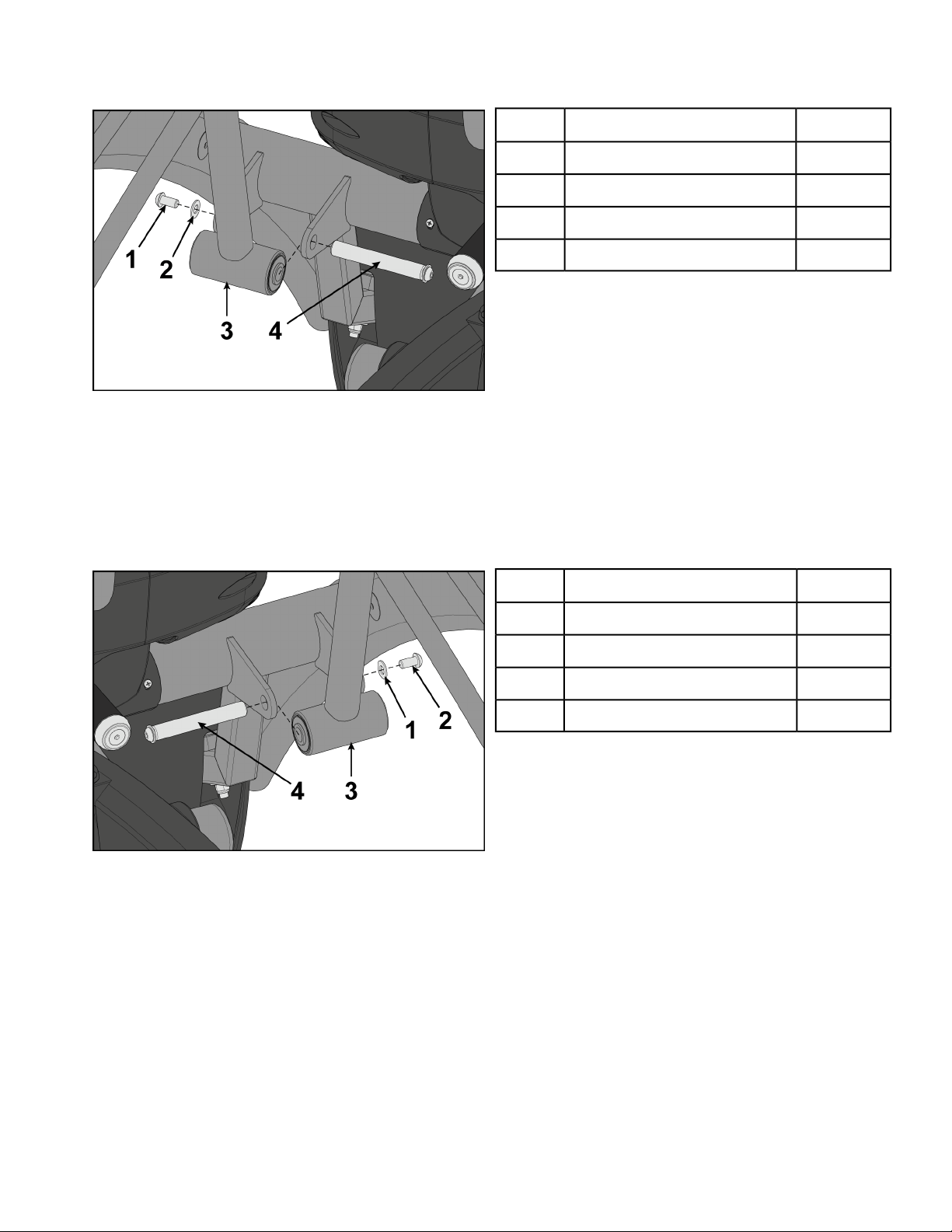

Remove left and right handle assembly
The left and right handle assemblies are shipped in rotated positions. The handle assemblies must be
removed and rotated 180 degrees for proper setup and assembly.
Page 19 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
1. Remove a screw and washer from the left handle assembly using two 7/32” Allen wrenches.
Qty.Description
1Screw1
1Washer2
1Left handle3
1Pivot pin assembly4
2. Slide pivot pin assembly out and remove left handle assembly.
3. Rotate left handle assembly 180 degrees.
4. Apply Loctite to threads inside the pivot pin and screw.
5. Place left handle assembly in position and slide pivot pin assembly back in place.
6. Install the screw and washer to the left handle assembly using two 7/32” Allen wrenches.
7. Remove a screw and washer from the right handle assembly using two 7/32” Allen wrenches.
Qty.Description
1Washer1
1Screw2
1Right handle3
1Pivot pin assembly4
8. Slide pivot pin assembly out and remove right handle assembly.
9. Rotate right handle assembly 180 degrees.
10. Apply Loctite to threads inside the pivot pin and screw.
11. Place right handle assembly in position and slide pivot pin assembly back in place.
12. Install the screw and washer to the right handle assembly using two 7/32” Allen wrenches.
Page 20 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G

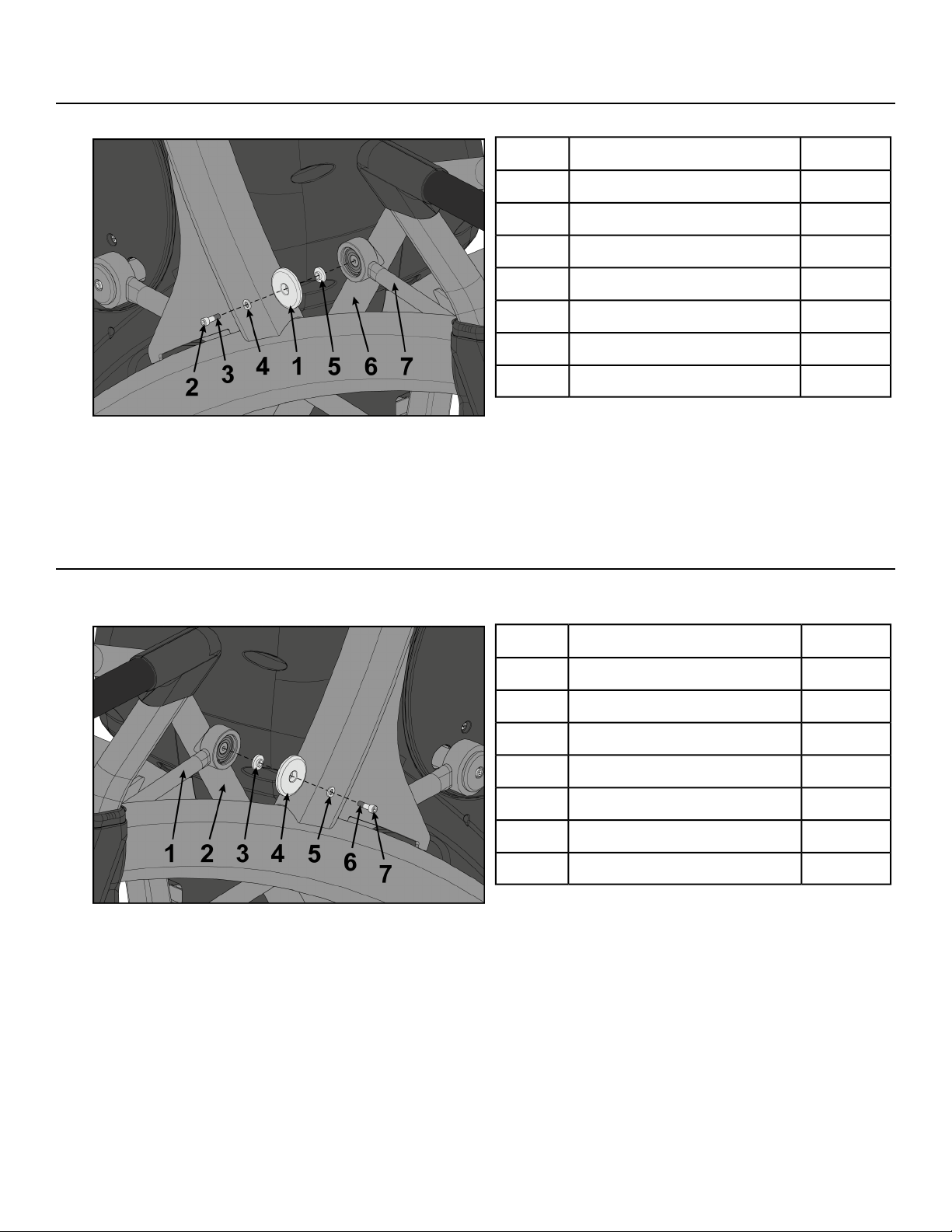

Install left linkage rod
1. Pivot left handle assembly up and slide left linkage rod onto left arm.
Qty.Description
1Linkage rod cap1
1Screw2
1Loctite3
1Washer4
1Flange spacer5
1Left arm6
1Left linkage rod7
2. Place a drop of Loctite onto the screw.
3. Install the screw, washer, linkage rod cap, and flange spacer using a 3/16” Allen wrench.
4. Tighten screw to a minimum of 90 in/lbs.
Install right linkage rod
1. Pivot right handle assembly up and slide left linkage rod onto left arm.
Qty.Description
1Right linkage rod1
1Right arm2
1Flange spacer3
1Linkage rod cap4
1Washer5
1Loctite6
1Screw7
2. Place a drop of Loctite onto the screw.
3. Install the screw, washer, linkage rod cap, and flange spacer using a 3/16” Allen wrench.
Page 21 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
4. Tighten screw to a minimum of 90 in/lbs.
Verify handle assemblies are now installed in the correct position.
Qty.Description
1Left handle assembly1
1Right handle assembly2
Install contact heart rate cable
1. Plug right heart rate cable into main frame socket.
Position plug so handle does not rub cable during operation.
Qty.Description
1Main frame socket1
1Heart rate wire2
2. Plug left heart rate cable into main frame socket.
Position plug so handle does not rub cable during operation.
Verify heart rate cables do not rub on handle during operation.

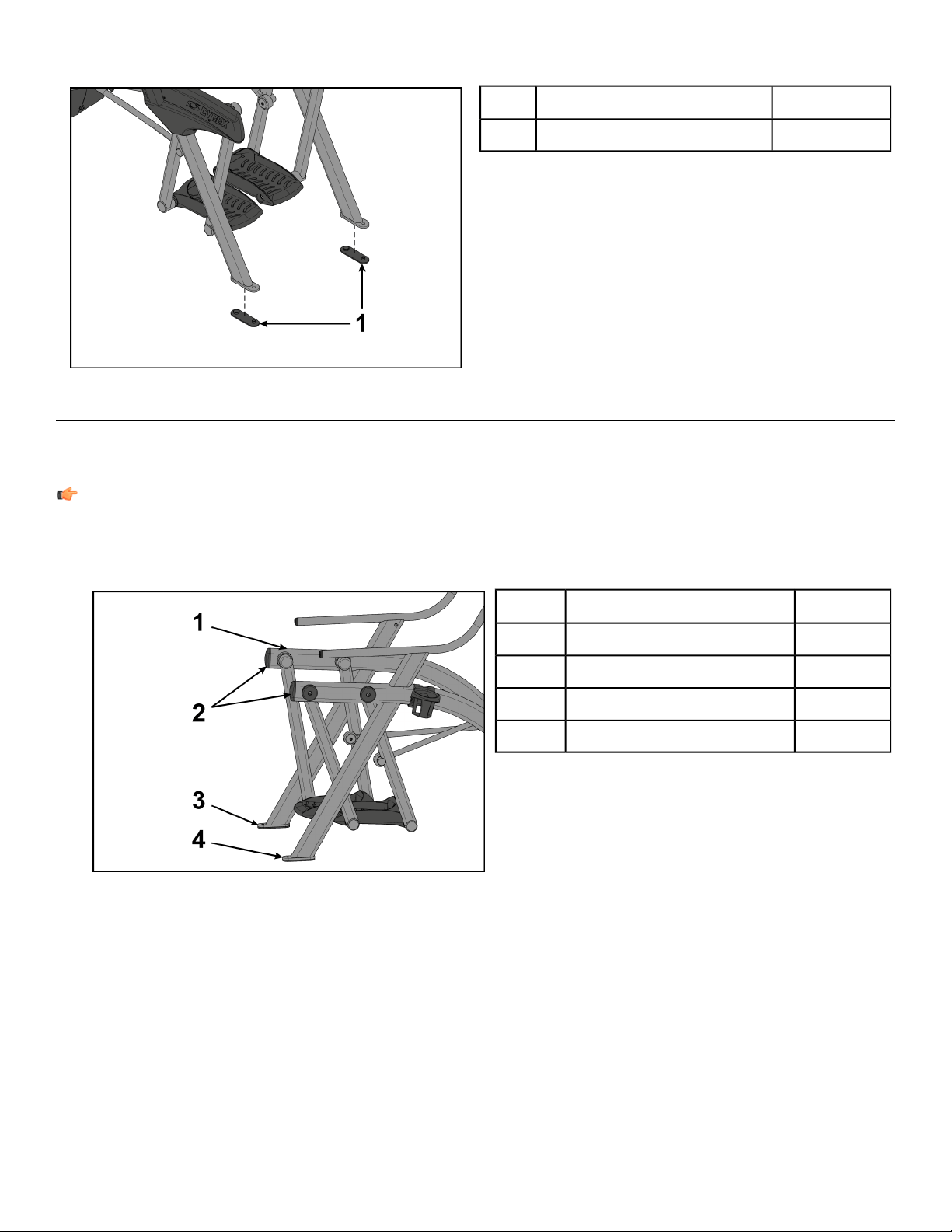

Install foot pads
Have one person lift the unit while a second person places a foot pad under each of the two back feet.
Page 22 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Qty.Description
2Foot pads1
Level unit
This procedure will level the unit by evenly adjusting the weight on the rear feet. Leveling the unit will
eliminate rocking during use.
Note: References to left and right are from the users perspective during use.
1. Verify foot plates are completely stopped.
2. Grasp one side of the frame and slowly lift the rear foot off the floor. Lower rear foot to the floor.
Qty.Description
2Frame1
2Lift here2
1Left rear foot3
1Right rear foot4
Page 23 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
3. Grasp the other side of the frame and slowly lift the rear foot off the floor. Lower rear foot to the floor.
Make note of either rear foot lifting off the floor easier than the other.
If both rear feet lift off the floor evenly, secure both leveling foot jam nuts against the frame post
using a 9/16” open-end wrench. Unit is leveled.
Qty.Description
1Frame post1
1Jam nut2
1Leveling foot3
1
Turn counter-clockwise to
secure
4
Left leveling foot shown
4. Adjust the weight of the rear feet using a 1/2” open-end wrench.
• If the left rear foot lifts up easier, Adjust the right leveling foot nut down.
• If the right rear foot lifts up easier, Adjust the left leveling foot nut down.
Qty.Description
1Frame post1
1Leveling foot nut2
1Leveling foot3
1
Turn clockwise to adjust level-
ing foot down
4
Left leveling foot shown
5. Test the unit again for uneven weight on the rear feet. Adjust leveling foot nuts until each rear foot
lifts with even force.
6. Secure both jam nuts using a 9/16” open-end wrench. Unit is leveled.
Install optional Audio Visual cables
The optional audio visual cables can include combinations of Coax, Ethernet, or HDMI cables.Mounting
plate has three holes for all configuration options:
Page 24 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
• Coax Only (EPEM Tuner or MYE CableSAT w/coax)
• Coax and Ethernet (Cybex GO or BV CAB w/coax)
• Ethernet Only (BV CAB TV on a stand)
• HDMI Only (MYE CableSAT w/HDMI)
• Ethernet and HDMI (BV CAB)
Qty.Description
1Mounting plate location1
1. Insert the optional couplers into the mounting plate by hooking the upper tab into the mounting plate
and snapping in the lower tab.
Qty.Description
1Upper tab1
1Mounting plate2
1Ethernet or HDMI coupler3
1Lower tab4
1Installed5
1Front of unit6
Page 25 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
2. Remove the nut at the end of the coax cable.
Qty.Description
1Coax cable1
1Nut2
3. Insert the coax cable into the D-shaped hole in the mounting plate on the front of the unit.
4. Thread the nut removed in step 2 onto the coax cable.
5. Install the coax cable to the mounting plate on the front of the unit using a 14 mm open end wrench.
6. Plug the Ethernet or HDMI cable into the coupler on the front of the unit.
Visually inspect unit
1. Remove any packing material from unit.
2. Examine the unit to ensure that the assembly is correct and complete.
Setup
Use the following instructions to setup the unit.
1. Plug the power cord into a power outlet from a grounded circuit.
Coil up the remainder of the power cord and place it out of the way. The control panel will light up
and be in the Dormant Mode.
2. Hold the handrails to steady self while stepping into the foot plates.
3. Begin striding.
Time and Date confirmation
The first time the unit is turned on, it prompts the user to confirm the current Time and Date. Quick Start,
Workouts, Setup or Stop will skip this requirement but it will appear again the next time the unit is
powered up until the time and date are properly set.
1.
Press the ENTER key to begin editing the time, starting with the hours (HH) and then minutes
(MM) and then AM/PM/24.
2.
Press the UP and DOWN keys to select the hour.
Page 26 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
3.
Press the ENTER key to accept and begin editing the minutes.
4.
Press the UP and DOWN keys to select the minutes.
5.
Press the ENTER key to accept and begin editing the AM/PM/24 hour setting.
6.
Press the ENTER key to accept time.
Continue this procedure for the Date. Date format is [YYYY] [MM] [DD]. Y - Year, M - Month and D
- Day.
7.
Press the ENTER key after the final setting for Day. The opening screen will now be displayed.
Time and Date confirmation complete.
Setup options
1.
Press and the hold the Display option and UP keys for 3 seconds.
2.
Navigate through the setup menu with the UP and DOWN keys.
3.
Press the ENTER key once to enter setup values. Press again to save any changes and
advance forward in the menu.
Setup menu - LED console
Set time display format AM, PM, 12, or 24. Set time in Hours and Minutes HH:MM.Time
Year format is Y - Year [YYYY].
Month format is M - Month [MM].
Day format is D - Day [DD].
Date
WEIGHT: LbS. - Pounds, Kg - Kilograms, or Ston - Stone.
SPEED: MI - Miles or KM - Kilometers.
Units
Set time length for Pause. OFF (Default), 1:00, 5:00 or 10:00 minutes.Pause
Set default workout time. 10, 20, 30 (Default), or 60.Default Time
Set maximum workout time. OFF (Unlimited), 30, 60 (Default), 90, or 120 minutes.Max Time
Set Quick Start mode. Choices are Arc (default resistance), CP - Constant Power
(default power), or AP - Adaptive Power (default level).
Quick Start
Mode
Set A/V option. Choices are none (Default), FM TF/M, UHF, or C.A.B. (Console
Adapter Box for Broadcast Vision). Contact qualified service technician for audio visual
setup.
A/V
Page 27 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Toggle console beeper On (Default) or OFF. Some volume, range is 0-30, 10 is de-
fault.
Beeper (Tone)
Setup menu - E3 View Monitor
Set time display format AM, PM, 12, or 24. Set time in Hours and Minutes HH:MM.Time
Date format is [YYYY] [MM] [DD]. Y - Year, M - Month, and D - Day.Date
WEIGHT: LbS. - Pounds, Kg - Kilograms, or Ston - Stone.
SPEED: MI - Miles or KM - Kilometers.
Units
Set time length for Pause. OFF (Default), 1:00, 5:00 or 10:00 minutes.Pause
Set default workout time. 10, 20, 30 (Default), or 60.Default Time
Set maximum workout time. OFF (Unlimited), 30, 60 (Default), 90, or 120 minutes.Max Time
Set Quick Start mode. Choices are Arc (default resistance), CP - Constant Power
(default power), or AP - Adaptive Power (default level).
Quick Start
Setup
Set beeper and volume levels.
Console beeper - On or Off.
Headphone beeper - Off, Some, or All.
Default volume - Range is 0 to 30, 10 is default.
Volume (VOL)
Set TV Input Source. Choices are Tuner, STB + Tuner, or STB + HDMI. Contact
qualified service technician for audio visual setup.
A/V
Set E3 View Monitor language. Standard languages available. English (Default).Languages
Reset setup options to default values
Reset LED console
1.
Press the Display Option key at the first setup option screen (Time).
The console will display [rSEt][? ] [no].
To exit without resetting, press the ENTER key.
2.
Press the UP or DOWN keys to select YES and press the ENTER key.
The console will beep twice and return to setup mode.
Page 28 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Reset E3 View Monitor
1.
Press the Display Option key at the first setup option screen (Time).
The console will display RESET and Reset Defaults? NO.
To exit without resetting, press the ENTER key.
2.
Press the UP or DOWN keys to select YES.
3.
Press the ENTER key to reset the console to the default values.
The console will beep twice and return to setup mode.
Exit Set Up mode
Press the STOP key to exit Setup options.
Testing Operation
Use the following instructions to test the full resistance and incline range of the unit:
1. Plug the optional power cord into a power outlet from a grounded circuit.
Coil up the remainder of the power cord and place it out of the way. If you do not have the optional
power supply, skip to step 3.
2. Verify the control panel will illuminate and is in Dormant Mode.
3. Hold the handrails to steady self while stepping into the foot plates.
4. Begin striding.
5. Verify lower heart rate cable is not rubbing on handle during operation.
6. Press Quick Start.
7. Run unit through full resistance range.
First press the Resistance + key until unit reaches its highest load (the display will show 100). Then
press the Resistance - key until unit reaches its lowest load (the display will show 0).
When unit reaches the set incline and resistance, the displays will stop flashing and remain steadily
illuminated to indicate the desired settings have been reached.
8. Run unit through full incline range.
First press the Incline key until the unit reaches its highest incline (the display will show 20). Then
press the Incline key until unit reaches its lowest incline (the display will show 0).
Moving parts and fall hazard.
• To avoid serious injury wait until foot plates come to a complete stop
before getting off unit.
• The moving parts cannot be stopped immediately, the unit is not
equipped with a free wheel.
9. Press STOP twice to bring the incline back to its start position, end the workout review, and return
the display to Dormant Mode.
Page 29 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
10. Wait until foot plates come to a complete stop before dismounting unit.
Hold handrails to steady self while stepping off unit.
Page 30 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Operation
Intended Use
The intended commercial use of this machine is to aid exercise and improve general physical fitness.
Individual human power versus mechanical power
Power difference. The individual human power which is required to carry out
an exercise can be different than the mechanical power displayed.
Terms Used
This section lists some of the common terms and symbols used in this chapter. Other terms and symbols
are listed in this chapter as appropriate.
Any time the unit is controlling resistance and accumulating workout data. Active
Mode begins after pressing the Quick Start key, after completing the setup for a
Active Mode
workout, or by default if the initial screen times out and enters Quick Start Manual
mode.
Display automatically cycles through workout data.Auto-Scan
A reduction of work load for a short duration allows user to gently reduce heart
rate. Cool Down occurs two minutes prior to completion of the workout-controlled
workout sessions.
Cool Down
Occurs when unit is plugged in and not in use.Dormant Mode
Manual Mode allows the user to adjust the Incline (0-20) and Resistance (0-80).
Manual Mode continues until the goal is reached. Manual Mode is only available
during Active Mode.
Manual Mode
Occurs only if the Pause feature is enabled and user selects the STOP key from
Active Mode.
Pause Mode
Press the Quick Start key to enter into Quick Start Manual Mode, where the user
controls the incline and resistance as time counts up. Also occurs after 20 seconds
of the user striding and not interacting with the console.
Quick Start
Review of the accumulated workout data will happen at the end of each workout
session.
Workout Review
Page 31 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
User Control Symbols Used
DescriptionControl NameControl
Adjust Incline up.INCLINE UP
Adjust Incline down.INCLINE DOWN
Adjust Resistance +up.RESISTANCE UP
Adjust Resistance -down.RESISTANCE DOWN
Adjust Volume up.VOLUME UP
Adjust Volume down.VOLUME DOWN
Adjust Time, Level, Weight, or Workout up
A/V - Channel UP
iPod/iPhone/iPad - NEXT track (option)
UP KEY
Adjust Time, Level, Weight, or Workout
down
A/V - Channel DOWN
iPod/iPhone/iPad - PREVIOUS track (option)
DOWN KEY
Page 32 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Press STOP once to end the workout session
and start the Workout Review. Press STOP
again to exit to Dormant Mode.
STOP
Console Display
LED Display
Displays Time, BPM, or Weight.Left enunciator1
Displays value of Time, BPM, or Weight.Left data readout2
Displays workout profiles and setup options.Bar graph3
Displays Calories, SPM, or Cal/Hour.Right enunciator4
Displays value of Calories, SPM, or Cal/Hour.Right data readout5
Page 33 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
E3 View Monitor
User Controls
Setup key11Resistance keys6Incline keys1
Enter key12Volume keys7Incline display2
Up/Down keys13Display option key8Quick Start key3
Headphone jack9Workouts key4
STOP key10Resistance display5
Page 34 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Incline and Resistance are shown in the LED displays.Displays
User controls for Incline, Quick Start, Workouts, Resistance, Volume, Scan, STOP,
Setup, Enter and Up/Down.
Keys
Mount and Dismount
Mount unit safely
1. Verify foot plates are completely stopped.
2. Grasp handrail and step carefully onto foot plates.
Dismount unit safely
Moving parts and fall hazard.
• To avoid serious injury wait until foot plates come to a complete stop before
getting off unit.
• The moving parts cannot be stopped immediately, the unit is not equipped
with a free wheel.
1. Grasp handrails for support.
2. Stop striding.
3. Wait until foot plates come to a complete stop.
4. Continue to hold handrails while carefully stepping off unit.
Range of Motion
The incline is adjustable up or down in the shape of an arc. The lowest setting of 0 equates to an arc
of 12 degrees, where the highest setting of 20 equates to an arc of 34.5 degrees. There is no difference
in muscles used between different incline positions. Differences exist in the intensity of muscle activity.
Page 35 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Quick Operation Guide
Maximum user weight is 400 lbs. (181 kg).
The following is a quick overview of the operation of the unit.
1. Verify foot plates are completely stopped.
2. Grasp handrail and step carefully onto foot plates.
Begin striding.
3. Press the Quick Start key.
The console will beep for one second to signal start of workout.
4. Press the Incline ▲▼ keys to change the incline at any time.
The left display will show incline.
5. Press the Resistance + – keys to change the resistance at any time.
The right display will show the current resistance.
6. Press the STOP key at any time to end workout.
If pause is enabled, Workout Review is displayed, and the incline returns to 6%.
Page 36 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Detailed Operation Guide
Maximum user weight is 400 lbs. (181 kg).
1. Plug the power cord into a power outlet from a grounded circuit.
Coil up the remainder of the power cord and place it out of the way.
2. Toggle the on/off (I/O) power switch under the front end of the unit to the on position (I).
The control panel will light up and be in the Dormant Mode.
3. Verify foot plates are completely stopped.
4. Grasp handrail and step carefully onto foot plates.
Begin striding.
5. Select Quick Start or WORKOUTS.
If Quick Start is selected, The console will beep for one second to signal start of workout and enter
Active Mode.
If WORKOUTS is selected, Select a workout and setup options.
a)
Select workouts 1 through 8 with the UP and DOWN keys.
b)
Press the ENTER key to advance to setup options.
Enter workout time.Time
Enter workout level.Level
Enter user weight.Weight
c)
Use the UP and DOWN keys to increase or decrease each of the setup options.
Press the ENTER key to advance to the next option.
For the most accurate resistance and calorie count, you must set your correct weight before
beginning your workout (including clothing).
When selecting a workout you must press the ENTER key after each adjustment of Time,
Level, or Weight. E3 View Monitor models include age selection.
After final selection has been made the console will beep for one second to signal start of workout,
and enter Active Mode.
Page 37 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
6. Observe the control panel.
The top center Bar Graph display shows a graphical representation of the relative MET level, and
if in a workout, will show the relative intensity changes that are coming up. The left and right Data
Readouts will start showing the workout data: Time, BPM (Heart rate if available), Calories, Cal/Hour,
and SPM (Strides per minute). The data displays will start by automatically shifting every 5 seconds.
When you adjust incline or resistance in a workout, the change will affect only the current segment.
The workout control will resume starting with the next segment. To increase or decrease overall
intensity, adjust the resistance and/or the workout level.
7. Press the Incline ▲▼ keys to change the incline at any time.
The left display will show incline.
8. Press the Resistance + – keys to change the resistance at any time.
The right display will show the current resistance.
9. Press the STOP key at any time to end workout.
If pause is enabled, Workout Review is displayed, and the incline returns to 6%.
When a workout is complete the unit begins a countdown, 3...2...1 and sounds a tone for each
count. Workout Review is displayed for the preset time or until you press the STOP key. The unit
returns to Dormant Mode.
Safety Sentry
Safety Sentry uses display feedback (speed signal or key presses) to determine user presence. If a
user is not detected within 10 seconds, the display beeps and inquires PEdl? (LED console) or Are you
there? (E3 View Monitor console).
Resume striding or press any key within a pre-selected time to resume workout.
Workout Selection
Choose from Quick Start or eight workout choices. Speed is never predetermined. Change speed by
changing stride.
Workout Choices:
SettingsLevelsWorkout
Select time, level and weight.10Weight Loss 11
Select time, level and weight.10Weight Loss 22
Select time, level and weight.10Weight Loss 33
Select time, level and weight.10Cardio 14
Select time, level and weight.10Cardio 25
Select time, level and weight.10Cardio 36
Select time, level and weight.10Strength 17
Select time, level and weight.10Strength 28
Page 38 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
SettingsLevelsWorkout
Select time, age, target heart rate and weight.N/A
Heart rate Control (HRC) (E3 View
Monitor Option)
9
Navigation
The keypad is active during the workout setup time to key in time, level and weight values. The
Resistance + - keys are also active to adjust the displayed workout value (up or down). Hold down key
to accelerate rate of increments.
Press the ENTER key after each step to accept values entered and to move forward in the setup
process.
The Quick Start key may be pressed any time during this process to accept all workout defaults. If no
activity is performed after a workout is selected, the unit will default to the settings of the current workout
selected.
Data Readouts
As the user exercises, the unit keeps track of and displays the following data:
Your current heart rate. Heart rate will appear when a signal is introduced. Use
the hand grips for Contact Heart rate or wear a Polar
®
compatible heart rate chest
strap.
BPM (Beats Per
Minute)
The total accumulated calories burned during your workout. Your weight must be
correctly set before beginning your workout for this measurement to be most ac-
curate.
Calories
Calculation of present workload's energy exertion in Calories per Hour.Calories Per Hour
The average number of strides per minute at current speed.SPM (Strides per
Minute)
The total time you've been working out or time remaining. Display time as min-
utes:seconds.
Time
00:01 to 99:99Minutes:SecondsMM:SS
100 minutes or moreMinutesMMMM
Heart Rate Indicator
Lightly hold hand grips on the handlebar ensuring that hands are clean and contact
both the front and back sensors of each grip. A heart rate will display in typically
30 seconds or less.
Contact Heart
Rate
Factors that interfere with heart rate signal:
• hand lotions
Page 39 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
• oils or body powder
• excessive dirt
• excessive movement
• body composition
• hydration
• too loose grip
• too tight grip
• resting or leaning on grips
To use this feature, a 5 KHz Polar
®
compatible heart rate transmitter belt (not in-
cluded) must be worn.
Wireless Heart
Rate

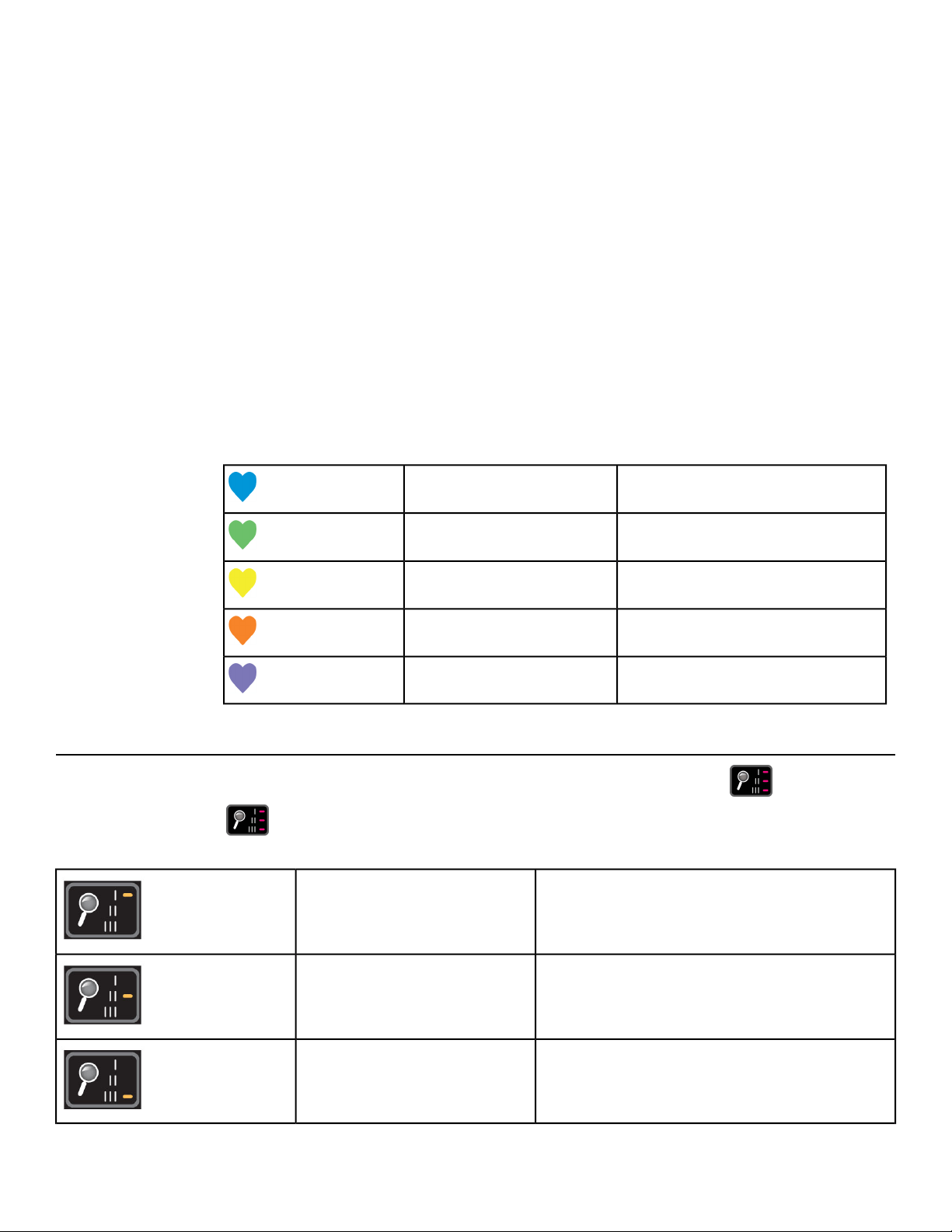

Once the actual heart rate is determined, the LED is blinking to the displayed BPM
and the Heart LED lights up. The color of the light represents a scale of low to
high target heart rate.
0 - 69 BPMBlue
70 - 93 BPMGreen
94 - 119 BPMYellow
120 - 169Dark Orange
170 and higherMagenta
E3 View Monitor Screen Options
During operation four E3 View Monitor screen options are available. Press SCAN to change
screens. The SCAN LED’s will indicate display option.
Display video with data at bottom of screenTV + Data
LED I on
Display video onlyTV Only
LED II on
Display data onlyData Only
LED III on
Page 40 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Screen is blank, video and data are not
displayed
Blank
No LED’s on
iPod/iPhone/iPad Functions
Connecting an iPod/iPhone/iPad allows some control through the keypad. The iPod/iPhone/iPad will
not be charged while connected.
1. Connect iPod/iPhone/iPad (not supplied) into the 30 pin connector.
2. Place iPod/iPhone/iPad onto the accessory tray.
3. Plug headphones (not supplied) into the console headphone jack.
4.
Press volume Up or Down to adjust volume.
5.
For non-E3 View Monitor consoles, press the Up and Down keys to change tracks.
Videos will not be displayed on the E3 View Monitor.
How power input versus displayed value is calculated
Total power, as displayed in Watts on the console, is calculated from the measured speed of the Eddy
Current Brake Flywheel and the measured current powering the Eddy Current Brake.
Testing Parameters
Displayed power (Wattage) and speed (Strides Per Minute), were found to meet class A accuracy when
compared with measured power and speed, with adjustable braking positioned in its maximum position,
at the following accuracy test points:
• 25 W, 37 SPM
• 50 W, 52 SPM
• 100 W, 72 SPM
• 150 W, 86 SPM
• 175 W, 92 SPM
• 200 W, 97 SPM
Page 41 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Maintenance
All preventive maintenance activities must be performed on a regular basis. Performing routine preventive
maintenance actions can aid in providing safe, trouble-free operation of all Cybex equipment.
Cybex is not responsible for performing regular inspection and maintenance actions for your machines.
Instruct all personnel in equipment inspection and maintenance actions and also in accident reporting
and recording. Cybex representatives are available to answer any questions that you may have.
Warnings
Read all warnings in this chapter.
For maintenance, service and repair:
• Must be performed by trained service personnel only
• Use only Cybex replacement parts
• Unplug unit before working on it
• Keep water and liquids away from electrical parts.
Electrocution hazard. To avoid death or serious injury unplug unit when not
in use or when performing maintenance.
Equipment hazard. To avoid serious injury or death replace worn or damaged
components immediately and keep the equipment out of use until repair is
completed.
Clean Unit
Shock and electrocution hazard.
• Unplug unit and let sit 10 minutes before cleaning or performing
maintenance.
• Electrical charge can remain in unit after unplugging.
• Keep water and liquids away from electrical parts.
Tools Required
• Cleaning solution
• Rubbing alcohol
• Clean cloth
• Vacuum
After Each Use
Wipe up any liquid spills immediately. After each workout, use a cloth to wipe up any remaining
perspiration from the handrails and painted surfaces.
Be careful not to spill or get excessive moisture between the edge of the display panel and the console,
as this might create an electrical hazard or cause failure of the electronics.
Page 42 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
As Needed
Vacuum any dust or dirt that might accumulate under or around the unit. Cleaning this area should be
done as often as indicated in the Service Schedule.
Clean Console
Do not spray cleaning solution directly on the console. Direct spraying could
cause damage to the electronics and may void the warranty.
• Spray a mild cleaning agent on a clean cloth.
• Clean the console, accessory tray, and cup holder with a damp cloth.
Clean Base
• Spray a mild cleaning agent on a clean cloth.
• Clean the base of the unit with a damp cloth.
Contact Heart Rate Grips
Clean the grips using a cloth dampened with a cleaning solution containing rubbing alcohol.
Contaminants, such as hand lotions, oils or body powder, may come off on the contact heart rate grips.
These can reduce sensitivity and interfere with the heart rate signal. It is recommended that the user
have clean hands when using the contact heart rate.

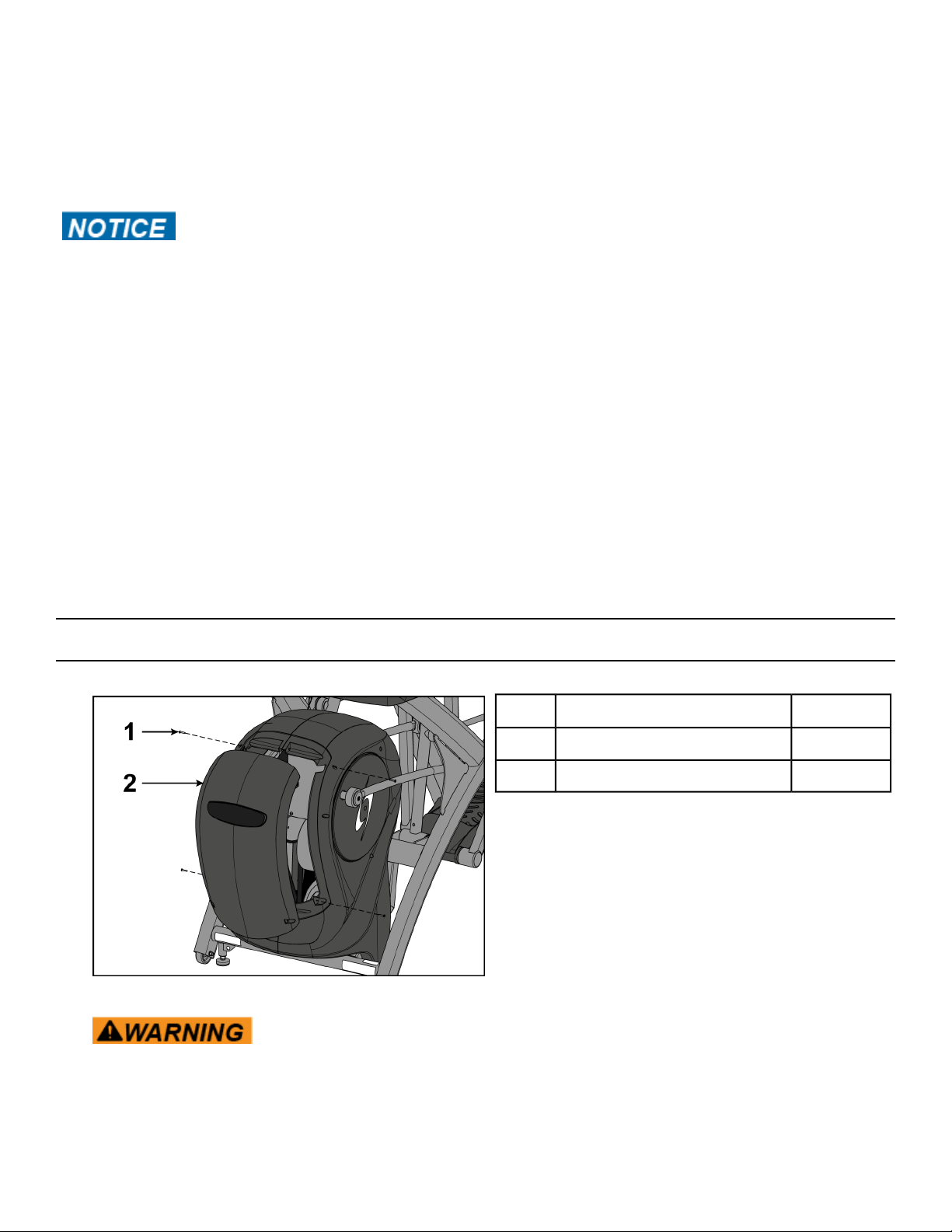

Drive Belts
Remove front access cover
1. Remove screws securing front access cover using a Phillips screwdriver.
Qty.Description
4Screw1
1Front access cover2
2. Remove access cover.
Burn hazard. Do not touch flywheel until cool.
Page 43 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Inspect drive belts
There are two drive belts that may become loose, worn or cracked.
Unless the belts have been removed and not replaced properly, it is unlikely the belts will come loose
or need to be re-tensioned.
Qty.Description
1Primary drive belt1
1Secondary drive belt2
If a belt has cracks or appears worn, it must be replaced immediately by a qualified service technician.
Primary Belt
The wider of the two belts. It has grooves that keep it aligned on the large upper pulley.
Secondary Belt
The narrower of the two belts. It has grooves that keep it aligned on the flywheel's drive pulley.
Install access cover
Do not over tighten screws.
1.
Replace and tighten the two upper screws using a Phillips screwdriver.
2.
Replace and tighten the two lower screws using a Phillips screwdriver.
3. Test unit for proper operation.
Rechargeable Battery
The unit is designed with a 12 volt Lead-Acid rechargeable battery. The battery will recharge during
regular operation of unit or when the optional power adapter is plugged in.
The display will indicate dashes in the incline display if the battery fails to provide enough energy. The
unit will still function normally other than the disabling of the incline feature.
Page 44 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
If the battery is completely discharged, the workout review will also be truncated if the user is not striding
during the time period. See Customer Service for contact information to replace the battery or purchase
the optional AC adapter kit.
Battery replacement must be performed only by qualified technician.
Remove battery and dispose of safely before unit disposal.
E3 View Monitor
Cleaning
• Clean with a dust free cloth. For further cleaning, use a soft cloth or paper towel dampened with
water. To avoid damage to the surface of the monitor, do not use abrasive or chemical cleaning
agents.
• Disinfecting: to avoid damage to the surface, test a small portion of the monitor’s cabinet with any
disinfectant to verify that the disinfectant will not discolor or soften the enclosure.
Storage or Long Non-Use Periods
When not using product for an extended period of time the product should be disconnected from the
Power Supply, TV/Cable Signal Feed, and any Peripheral Devices.
Pixels
Very small red, blue, white or green spots may be visible or may appear on the screen. This is a
characteristic of liquid crystal display panels and is not considered a defect for replacement. The liquid
crystal panel is built with very high precision technology giving fine picture details. Occasionally, a few
non-active pixels may appear on the screen as a fixed point. This does not affect the performance of
monitor or merit a warranty claim.
Maintenance
• It is very important to have the unit regularly examined by a qualified technician to ensure the product
is fit for use.
• If the unit malfunctions, please refer to a qualified technician for repair or replacement of defective
parts immediately. Do not attempt to use the monitor until it has been inspected and repaired by a
qualified technician.
• For inspection, installation and servicing, please consult qualified technician.
• Failure to use a manufacturer approved repair technician may void any warranty claims.
Service Schedule
All maintenance activities shall be performed by qualified personnel. Failure to do so could result in
serious injury.
This is the minimum recommended service.
Page 45 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Determine distance
1. Verify foot plates are completely stopped.
2. Grasp handrail and step carefully onto foot plates. Begin striding.
3.
Press and the hold the Scan/Hold or Display option and DOWN keys for 3 seconds.
A beep signifies the first screen of the Statistics menu.
4.
Menu navigation is done two ways:Up/Down - The UP and DOWN keys allow you to
scroll up and down in the statistics menu.
The Statistics menu includes: Miles/Km, Hours, Starts, Battery and Error log.
5. The first menu item is Miles/Km.
6. Record Distance.
7. Navigate to menu item Hours.
8. Record Hours.
9. Exit Statistics menu by pressing the Pause or STOP key.
First 500 Miles (800 KM)
Follow this procedure to ensure the belts are tensioned properly and in good condition.
1.
Remove access cover. (See previous procedure Remove Access Cover)
2. Pull down and roll each belt to examine the condition. If a belt has cracks or appears worn, it must
be replaced immediately by a qualified service technician.
3.
Attach access cover. (See previous procedure Attach Access Cover)
Every 5000 Miles (8000 KM)
Check drive belts for tension and wear. (See procedure First 500 Miles)
Move unit and vacuum underneath. Lift the rear of unit and roll it back from its present position. Vacuum
underneath and return unit to normal position.
Clean inside unit.
1.
Remove access cover. (See previous procedure Remove Access Cover)
2. Using a vacuum cleaner attachment or hand vacuum, clean the exposed components.
3. Remove dirt and debris from internal components.
4. Using a dry cloth, wipe all exposed areas.
5.
Attach access cover. (See procedure Attach Access Cover)
Page 46 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Every 20,000 Miles (32000 KM)
Contact qualified service technician to check elevation assembly, replace any worn parts and lubricate
elevation bushings.
Page 47 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Customer Service
Product Registration
To register product do the following:.
1.
Visit www.cybexintl.com.
2. Locate Product Registration in the Support section.
3. Fill out form completely.
4. Click the Submit button to register product.
Contacting Service
Hours of phone service are Monday through Friday from 8:30 a.m. to 6:00 p.m. Eastern Standard Time.
For Cybex customers living in the USA, contact Cybex Customer Service at 888-462-9239.
For Cybex customers living outside the USA, contact Cybex Customer Service at 508-533-4300 or fax
Find information on the web at www.cybexintl.com.
To contact us online go to www.cybexintl.com.
Ordering Parts
To order parts online go to www.cybexintl.com.
To speak with a customer service representative, call 888-462-9239 (for customers living within the
USA) or 508-533-4300 (for customers outside the USA).
The following information located on the serial number decal will assist our Cybex representatives in
serving you.
• Unit Serial Number, Product Name and Model Number
• Part Description and Part Number if you have it. All parts can be found on the web at
www.cybexintl.com
• Shipping Address
• Contact Name
• Include a description of the problem.
In addition to your shipping address and contact name, your account number is helpful but not required.
You may also fax orders to 508-533-5183.
Page 48 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Return Material Authorization (RMA)
The Return Material Authorization (RMA) system is used when returning material for placement, repair
or credit. The system assures that returned materials are properly handled and analyzed. Follow the
following procedures carefully.
Contact your authorized Cybex dealer on all warranty-related matters. Your local Cybex dealer will
request a RMA from Cybex, if applicable. Under no circumstances will defective parts or equipment be
accepted by Cybex without proper RMA and an Automated Return Service (ARS) label.
Please contact Cybex Customer Service for the return of any item that is defective.
Provide the technician with a detailed description of the problem you are having or the defect in the item
you wish to return. Provide the model and serial number of your Cybex equipment.
At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for
evaluation and repair or replacement. The technician will assign you a RMA number and will send you
an ARS label. The ARS label and the RMA numbers must be clearly displayed on the outside of the
package that contains the item(s) to be returned. Include the description of the problem, the serial
number of the equipment and the name and address of the owner in the package along with the part(s).
Merchandise returned without an RMA number on the outside of the package or shipments sent COD
will not be accepted by the Cybex receiving department.
Damaged Parts
Materials damaged in shipment should not be returned for credit. Shipping damages are the responsibility
of the carrier (UPS, Federal Express, trucking companies, etc.)
Apparent Damage
Upon receipt of your shipment, check all items carefully. Any damage seen with a visual check must be
noted on the freight bill and signed by the carrier’s agent. Failure to do so will result in the carriers refusal
to honor your damage claim. The carrier will provide you with the required forms for filing such claims.
Concealed Damage
Damage not seen with a visual check upon receipt of a shipment but notices later must be reported to
the carrier as soon as possible. Upon discovery of the damage, a written or phone request to the carrier
asking them to perform an inspection of the materials must be made within ten days of the delivery date.
Keep all shipping containers and packing materials as they will be needed in the inspection process.
The carrier will provide you with an inspection report and the necessary forms for filing a concealed
damage claim. Concealed damage claim is the carrier’s responsibility.
Page 49 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
Appendix - Workout Overviews
1 - Weight Loss 1
The Weight Loss 1 workout is a five-minute core workout designed for low to medium intensity training
that the user can sustain for an extended period of time. It builds from a low intensity baseline to include
short bursts of higher resistance while the elevation increases by fifty percent for two-minutes. The
constant variety provides for periods of higher expenditure and training effect without the introduction
of undue fatigue allowing the user to perform for longer periods of time.
Resistance
:30:30:30:301:001:001:001:001:00:30:30:30:30Time
Cool DownCore SegmentsWarm Up
4321543214321
51015204525454525201510510
5101520402540402520151059
5101520352535352520151058
55101540254040251510557
55101535253535251510556
55101530253030251510555
8105102515252515105554
8105102015202015105553
33451551515555552
33451051010555551
Elevation
:30:30:30:301:001:001:001:001:00:30:30:30:30Time
Cool DownCore SegmentsWarm Up
4321543214321
Page 50 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
:30:30:30:301:001:001:001:001:00:30:30:30:30Time
Cool DownCore SegmentsWarm Up
88888812128888810
8888881212888889
6666661212666668
66666688666667
66666688666666
66666688666665
44444466444444
44444466444443
44444466444442
44444466444441
Page 51 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
2 - Weight Loss 2
The Weight Loss 2 workout is a five-minute core workout that begins at a low intensity level and
incrementally increases both resistance and elevation until peaking after three-minutes and remains at
that level for one-minute before ramping back down to the initial level. The repetitive workout is designed
to encourage a transition in training intensity to encourage the development of aerobic and anaerobic
energy systems.
Resistance
:30:30:30:301:001:001:001:001:00:30:30:30:30Time
Cool DownCore SegmentsWarm Up
4321543214321
2025304050658065504030252010
202530355060756050353025209
202530354555705545353025208
152025354550655045352520157
152025304045604540302520156
101520204040554040202015105
101015153035503530151510104
55101020204020201010553
55101020204020201010552
55101015203520151010551
Elevation
:30:30:30:301:001:001:001:001:00:30:30:30:30Time
Cool DownCore SegmentsWarm Up
4321543214321
681010121620161210108610
68101011151915111010869
6888101418141088868
Page 52 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
:30:30:30:301:001:001:001:001:00:30:30:30:30Time
Cool DownCore SegmentsWarm Up
66889131713988867
66888121612888866
66887111411788865
668869129688864
668858108588863
66884686488862
66883565388861
Page 53 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
3 - Weight Loss 3
The Weight Loss 3 workout is a three-minute thirty-second core workout designed to give the user an
intense workout. Users will experience moderate resistance and elevation at the beginning to simulate
the start of a climb and will crest at peak elevation gain and difficult resistance after two-minutes. The
resistance then returns to the preliminary level and the core workout repeats itself for the next hill.
Resistance
:30:30:30:30:30:30:30:30:30:30:30:30:30:30:30Time
Cool DownCore SegmentsWarm Up
432176543214321
20304050505080756555505040302010
2030404545457570605045454030209
2030354040407565554540403530208
1525353535357060504535353525157
1525303535356555504035353025156
1525303030306050453530303025155
1020253025255550403025302520104
1020252520205045403020252520103
1015202520204540352520252015102
1010151520204035302020151510101
Elevation
:30:30:30:30:30:30:30:30:30:30:30:30:30:30:30Time
Cool DownCore SegmentsWarm Up
432176543214321
6810121414202018161612108610
6681013132018161614108669
66881212181816141488668
Page 54 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
:30:30:30:30:30:30:30:30:30:30:30:30:30:30:30Time
Cool DownCore SegmentsWarm Up
66881111181614141288667
66681010161614121286666
666699161412121066665
444688141412101064444
44467714121010864443
4444661212108844442
444455121088644441
Page 55 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
4 - Cardio 1
The Cardio 1 workout is a four-minute core workout designed for medium intensity workouts. Users will
experience intervals of moderate resistance and elevation at the beginning to simulate the start of a
climb and greater resistance and steeper elevation after two-minutes. The resistance then returns to
the preliminary level and the core workout repeats itself for the next interval.
Resistance
:30:30:30:302:002:00:30:30:30:30Time
Cool DownCore Seg-
ments
Warm Up
4321214321
2025303560403530252010
202530355040353025209
152025304535302520158
152025304035302520157
151520253530252015156
151520252530252015155
101015203025201510104
101015202525201510103
101010152020151010102
101010101515101010101
Elevation
:30:30:30:302:002:00:30:30:30:30Time
Cool DownCore Seg-
ments
Warm Up
4321214321
681012201212108610
668102010108669
Page 56 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
:30:30:30:302:002:00:30:30:30:30Time
Cool DownCore Seg-
ments
Warm Up
668101810108668
666818886667
666816886666
666616666665
666614666664
446614666443
446612666442
446612666441
Page 57 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
5 - Cardio 2
The Cardio 2 workout is a two-minute core workout utilizing a 1:1 work to rest ratio. It is designed to
improve both aerobic and anaerobic capabilities as users will face a high level of resistance for one
minute followed by a one-minute recuperation period before performing the work interval again. The
elevation remains constant throughout the workout.
Resistance
:30:30:30:301:001:00:30:30:30:30Time
Cool DownCore Seg-
ments
Warm Up
4321214321
2030354050804035302010
152530355075353025159
152025304575302520158
102025304570302520107
102025304070302520106
101520254065252015105
152020253565252020154
101015203560201510103
5101520306020151052
5101515305515151051
Elevation
:30:30:30:301:001:00:30:30:30:30Time
Cool DownCore Seg-
ments
Warm Up
4321214321
881216202016128810
88121620201612889
Page 58 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
:30:30:30:301:001:00:30:30:30:30Time
Cool DownCore Seg-
ments
Warm Up
88121216161212888
88121216161212887
88121216161212886
888121212128885
8888121288884
8888121288883
88888888882
88888888881
Page 59 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
6 - Cardio 3
The Cardio 3 workout is designed to maintain a high total demand with two-minutes with high resistance
and low elevation and two minutes at medium resistance with higher elevation for a total four-minute
core workout. The prolonged exertion period takes advantage of the long term energy stores and total
aerobic capability when associated with speeds that require a high sustained cardiovascular demand.
Resistance
:30:30:30:302:002:00:30:30:30:30Time
Cool DownCore Seg-
ments
Warm Up
4321214321
3035455560805545353010
253545555575554535259
253040455070454030258
202535404565403525207
152030354060353020156
152025303555302520155
101520253050252015104
5101520304520151053
05101525401510502
005102035105001
Elevation
:30:30:30:302:002:00:30:30:30:30Time
Cool DownCore Seg-
ments
Warm Up
4321214321
681012161012108610
668101610108669
Page 60 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
:30:30:30:302:002:00:30:30:30:30Time
Cool DownCore Seg-
ments
Warm Up
6688141088668
668814888667
666812886666
666612866665
444610664444
444610664443
44448444442
44448444441
Page 61 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
7 - Strength 1
The Strength 1 workout uses a 1:2 work to rest ratio. It is designed for high resistance training with
longer rest periods than the 1:1 workout. Users will face a high level of resistance for thirty-seconds
followed by a one minute recuperation period before performing the interval again. The elevation remains
constant throughout the workout.
Resistance
:30:30:30:30:30:30:30:30:30:30:30Time
Cool DownCore SegmentsWarm Up
43213214321
203035404545706555453510
15253035404065605040359
15202530353560555040308
10202530303055504535307
10202530303050454035256
10152025252545403530255
10152025252540353025204
10101520202035303025203
5101520202030302520152
5101515151525202015101
Elevation
:30:30:30:30:30:30:30:30:30:30:30Time
Cool DownCore SegmentsWarm Up
43213214321
48121620202016128810
4812162020201612889
4812121616161212888
Page 62 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
:30:30:30:30:30:30:30:30:30:30:30Time
Cool DownCore SegmentsWarm Up
4812121616161212887
4812121616161212886
48812121212128885
488812121288884
488812121288883
488888888882
488888888881
Page 63 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
8 - Strength 2
The Strength 2 workout is designed with the specific goal of raising the users’ lactic acid threshold. The
workout uses a 1:3 work to rest ratio with fifteen-second intervals for maximum power development and
forty-five second rest periods for recuperation.
Resistance
:30:30:30:30:15:15:15:15:30:30:30:30Time
Cool DownCore SegmentsWarm Up
432143214321
152025303535351004540302510
1520253035353595403530259
1520253035353590403530258
1520202530303085403530257
1520202530303080353025206
1015202530303075353025205
0020202525257035305204
00202025252565302520203
51001520202060302520152
51001520202055252015151
Elevation
:30:30:30:30:15:15:15:15:30:30:30:30Time
Cool DownCore SegmentsWarm Up
432143214321
10121618202020201816121010
1012161820202020181612109
1012141618181818161412108
1012141618181818161412107
Page 64 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
:30:30:30:30:15:15:15:15:30:30:30:30Time
Cool DownCore SegmentsWarm Up
1012141618181818161412106
81012141616161614121085
81012141616161614121084
81012141616161614121083
681012141414141210862
681012141414141210861
Page 65 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
9 - Heartrate Control (E3 View Monitor Option)
The Heartrate Control (HRC) workout will attempt to bring the user to their target heartrate in 3-5 minutes,
then keep them there for the duration of the body of the program. A Cool Down is built in to the end of
the program. HRC is run in Constant Power and thus defines watts.
Note: This workout requires the user to wear a 5 KHz Polar
®
or compatible heart rate transmitter
belt. The Heart Rate Control workout (HRC) cannot be selected on the control console unless it
detects a heart rate signal. The HRC workout will not work with the cardio touch contact heart
rate system.
The user selects a target heartrate, which defaults to 75% of max. Limits should be set to not allow a
Target HR (THR) less than 60% of max or more than 95% of max.
Max HR formula: 208-(0.7 x Age).
The protocol starts in Stage II, with the entry point based on Target HR.
• 80 – 120 BPM = Step 6
• 121-127 BPM = Step 8
• 128-134 BPM = Step 10
• 135-up BPM = Step 12
A running pulse-to-pulse BPM value is continuously measured.
Every 15 seconds the user’s pulse rate is sampled and a prediction function is evaluated (decision.)
This is subtracted from the target heartrate to form an error value which is scaled and added to the
current load value. There is a maximum rate of change of 15 steps per decision.
A chart of Step and Watts has been created. It has four defined stages:
• Stage 1 ramps the load from Step 1 to Step 5.
• Stage 2 ramps the load from Step 6 through Step 18.
• Stage 3 ramps the load from Step 19 through Step 39.
• Stage 4 ramps the load from Step 40 through Step 100.
The user has full control over incline throughout the program, with incline having no bearing on the
program at all. The user has limited control over the load in that the user’s selections are not permanent.
At the next decision, a new load can be chosen by the software as described above to override any
user modifications.
If the user presses the LEVEL key, they can modify their Target Heartrate real-time. Utilize the Target
Heartrate Setup selection screen and exit back to the program in progress, making the change to their
target heartrate real-time.
Lost Signal
If a signal is lost for two consecutive decisions (roughly 30 seconds), the display will beep four times,
show HR SIGNAL LOST, show dashes in the BPM window and show the heart solid white. During this
HR signal lost period, the load will remain steady.
Page 66 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
If after two further decisions (roughly an additional 30 seconds) the heartrate signal has not been
reestablished, continue to show HR SIGNAL LOST on the Text area. The program will reduce the
workload by 10 steps per minute until minimum workload or Step 1. After one minute at minimum
workload, go to Exiting Active Mode.
Cool Down
By default, Cool Down occurs at session time minus two minutes. Cool Down goes to 75% of existing
step, then drops by 1 step every 15 seconds for the remainder of Cool Down.
Page 67 of 68
Cybex 525AT Arc Trainer Part Number 5525-4 G
10 Trotter Drive, Medway, MA 02053 • 888-462-9239 • 508-533-4300 • FAX 508-533-5183
www.cybexintl.com
